HD Camcorder

Quick Guide

PUB. DIE-0413-000

*)(

The warranty information

for Australia and New Zealand

is at the end of this Quick Guide.

2

Important Usage Instructions

COPYRIGHT WARNING:

Unauthorized recording of copyrighted materials may infringe on the rights of copyright

owners and be contrary to copyright laws.

To reduce the risk of electric shock, do not expose this product to dripping or splashing.

The Mains plug is used as the disconnect device. The Mains plug shall remain readily

operable to disconnect the plug in case of an accident.

While using the compact power adapter, do not wrap it or cover it with a piece of cloth,

and do not place it in confined narrow spaces.

CA-110E identification plate is located on the bottom.

European Union (and EEA) only.

These symbols indicate that this product is not to be disposed of

with your household waste, according to the WEEE Directive

(2002/96/EC), the Battery Directive (2006/66/EC) and/or your

national laws implementing those Directives.

This product should be handed over to a designated collection point, e.g., on an

authorized one-for-one basis when you buy a new similar product or to an authorized

collection site for recycling waste electrical and electronic equipment (EEE) and

batteries and accumulators. Improper handling of this type of waste could have a

possible impact on the environment and human health due to potentially hazardous

substances that are generally associated with EEE. Your cooperation in the correct

disposal of this product will contribute to the effective usage of natural resources.

For more information about the recycling of this product, please contact your local city

office, waste authority, approved scheme or your household waste disposal service or

visit www.canon-europe.com/environment.

(EEA: Norway, Iceland and Liechtenstein)

Complies with

IDA Standards

DB007671

3

Precautions About the Battery Pack

DANGER!

Treat the battery pack with care.

• Keep it away from fire (or it might explode).

• Do not expose the battery pack to temperature higher than 60 °C. Do not

leave it near a heater or inside a car in hot weather.

• Do not try to disassemble or modify it.

• Do not drop it or subject it to shocks.

• Do not get it wet.

REGIONS OF USE

LEGRIA HF R38, LEGRIA HF R37 and LEGRIA HF R36 are in compliance (as of January

2012) with the radio signal regulations of the regions listed below. For details on other

regions where they can be used, make inquiries with the contacts listed on the back

side of this instruction manual.

* France: Cannot be used outdoors.

Statement on EC directive

REGIONS

Australia, Austria, Belgium, Bulgaria, China (PRC mainland), Cyprus, Czech Republic,

Denmark, Estonia, Finland, France*, Germany, Greece, Hong Kong S.A.R., Hungary,

Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta,

Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Russia, Singapore,

Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom

Hereby, Canon Inc., declares that this WM217 is in compliance with the essential

requirements and other relevant provisions of Directive 1999/5/EC.

Please contact the following address for the original Declaration of Conformity:

CANON EUROPA N.V.

Bovenkerkerweg 59-61, 1158 XB Amstelveen, The Netherlands

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

Model

ID0003: LEGRIA HF R36 / LEGRIA HF R37 / LEGRIA HF R38

4

Important Note About the Memory

•Observe the following precautions while the ACCESS indicator is on or

flashing. Failing to do so may result in permanent data loss or damage to

the memory.

- Do not open the memory card slot cover.

- Do not disconnect the camcorder's power source or turn off the

camcorder.

- Do not change the camcorder’s operating mode.

Trademark Acknowledgements

• SD, SDHC and SDXC Logos are trademarks of SD-3C, LLC.

• Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United

States and/or other countries.

• App Store, iPhone, iTunes, Mac OS and Macintosh are trademarks of Apple Inc., registered in the U.S. and

other countries.

• “x.v.Color” and the “x.v.Color” logo are trademarks.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC in the United States and other countries.

• “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation

and Sony Corporation.

• Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• YouTube is a trademark of Google Inc.

• Facebook is a registered trademark of Facebook, Inc.

• Wi-Fi is a registered trademark of the Wi-Fi Alliance.

• Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo are trademarks of the Wi-Fi Alliance.

• WPS as used on the camcorder’s settings, onscreen displays and in this manual signifies Wi-Fi Protected

Setup.

• DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the

Digital Living Network Alliance.

• Other names and products not mentioned above may be trademarks or registered trademarks of their

respective companies.

• This device incorporates exFAT technology licensed from Microsoft.

• “Full HD 1080” refers to Canon camcorders compliant with high-definition video

composed of 1,080 vertical pixels (scanning lines).

• ANY USE OF THIS PRODUCT OTHER THAN CONSUMER PERSONAL USE IN ANY

MANNER THAT COMPLIES WITH THE MPEG-2 STANDARD FOR ENCODING VIDEO INFORMATION FOR

PACKAGED MEDIA IS EXPRESSLY PROHIBITED WITHOUT A LICENSE UNDER APPLICABLE PATENTS IN THE

MPEG-2 PATENT PORTFOLIO, WHICH LICENSE IS AVAILABLE FROM MPEG LA, L.L.C., 250 STEELE STREET,

SUITE 300, DENVER, COLORADO 80206.

• This product is licensed under AT&T patents for the MPEG-4 standard and may be used for encoding

MPEG-4 compliant video and/or decoding MPEG-4 compliant video that was encoded only (1) for a

personal and non-commercial purpose or (2) by a video provider licensed under the AT&T patents to

provide MPEG-4 compliant video. No license is granted or implied for any other use for MPEG-4 standard.

5

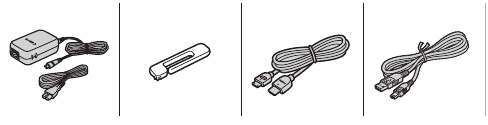

Package contents

• CA-110E Compact Power Adapter (incl. power cord) [1]

• BP-709 Battery Pack

•Stylus pen [2]

• HTC-100/S HDMI Cable [3]

• IFC-300PCU/S USB Cable [4]

•*/)/( Wi-Fi Basic Setup Guide

•2 Software CD-ROMs

-PIXELA CD-ROM*

*/)/( Contains VideoBrowser for managing, editing, and

playing back movies, and Network Utility for transferring recordings

wirelessly to a computer.

+ Contains Transfer Utility for saving and transferring movies and

music files you can use as background music.

-: LEGRIA CD-ROM

Contains the full-version Instruction Manual of the camcorder (PDF file).

See the explanation on next page.

* A printed Startup Guide for PIXELA’s software is also supplied. Refer to this

Startup Guide for details about the supplied software.

1234

6

Table of Contents

5 Package contents

8 Onscreen Icons and Displays

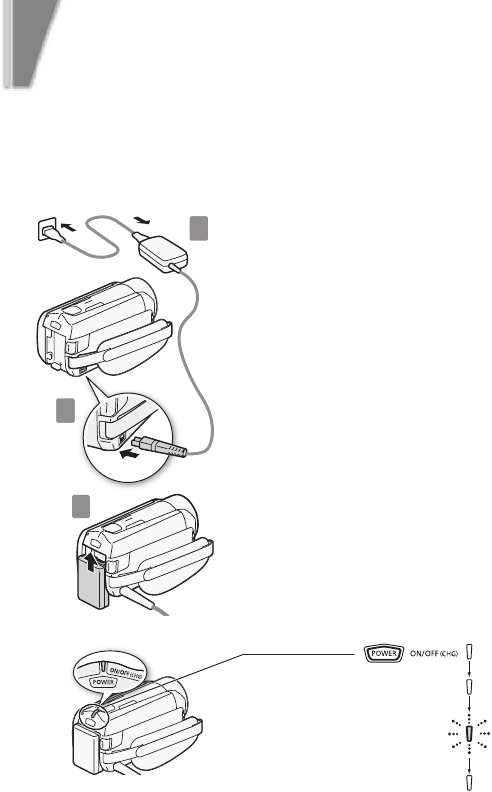

13 Charging the Battery Pack

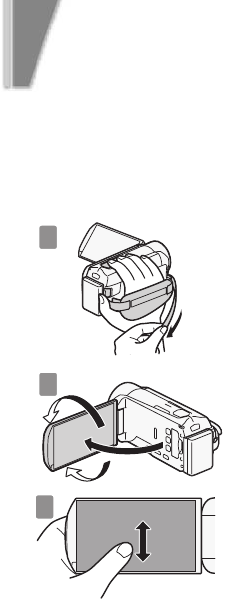

15 Basic Preparations

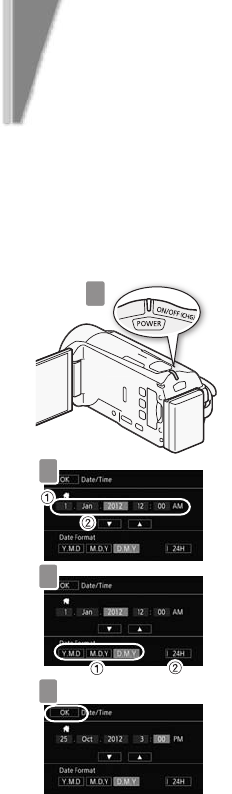

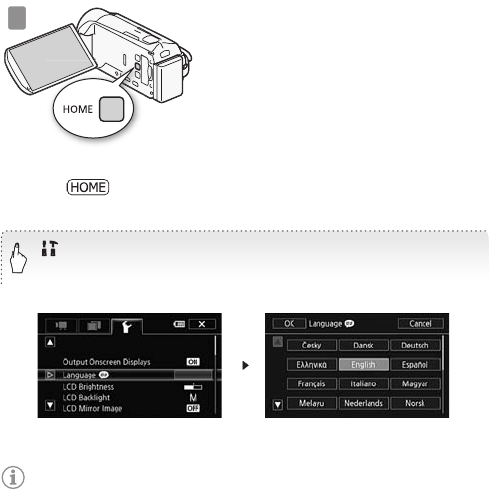

18 Setting the Date/Time and Language

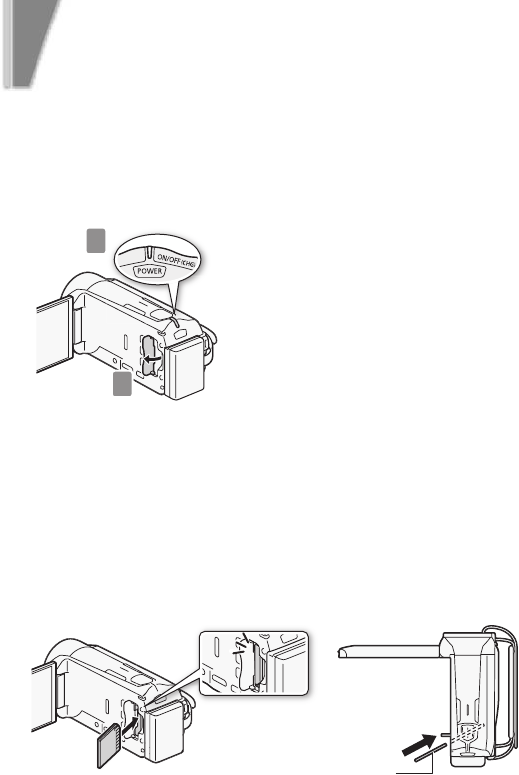

20 Using a Memory Card

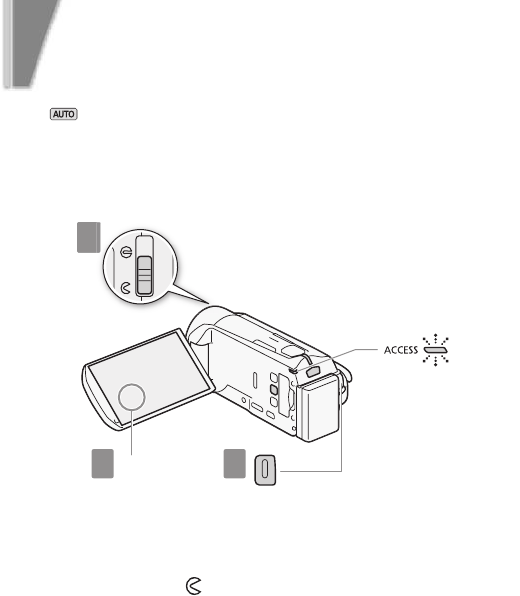

23 Shooting Video and Taking Photos

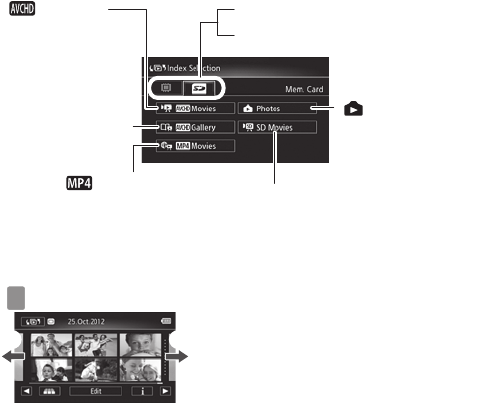

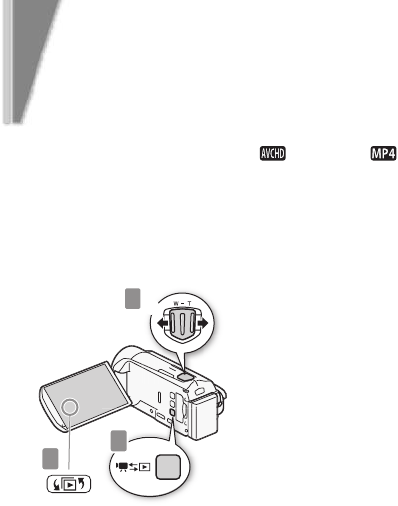

27 Playing Back Movies and Viewing Photos

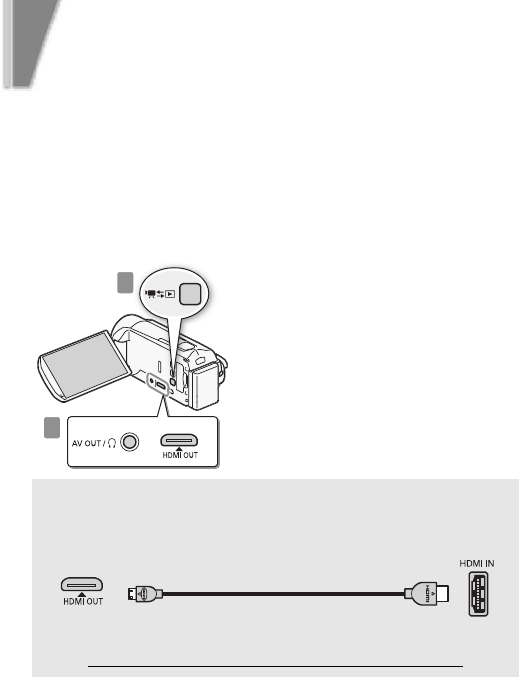

30 Playback on a TV Screen

32 Saving and Sharing Your Recordings

33 Abridged Specifications

About the Camcorder’s Wi-Fi Functions (*/)/( only)

You can make your camcorder an active part of your Wi-Fi network to fully

enjoy a variety of Wi-Fi functions. While these Wi-Fi functions are beyond the

scope of this Quick Guide, you can read the Wi-Fi Basic Setup Guide

supplied with the camcorder to complete the connection of the camcorder

to your home Wi-Fi network. And you have the complete information in the

full-version Instruction Manual (PDF file*).

About the Camcorder’s PDF Instruction Manual

This guide will get you started and show you how to use the most basic

functions of your camcorder to shoot video, take photos and play back your

recordings (using the camcorder or connecting it to your TV). To learn more

about the more advanced functions of your camcorder, to read important

handling precautions and to consult the troubleshooting section if an error

message is displayed, be sure to read the full-version Instruction Manual

(PDF file*). In this Quick Guide, the ; mark indicates reference page

numbers in the PDF file.

*Adobe® Reader® 6 or later is required to view the PDF Instruction Manual.

7

Installing the Camcorder’s Instruction Manual (PDF file)

1 Turn on the computer.

2 Insert the LEGRIA CD-ROM into the computer’s disc drive.

3Windows: Open the drive into which you inserted the CD-ROM

using Windows Explorer.

Mac OS: Use Finder and click on the CD-ROM icon.

4 Click/Double-click the Disc_Setup.exe icon.

5 In the installer panel, click [Instruction Manual of the

Camcorder] and select your language.

6 When the installation is complete, click [OK], then [Exit].

The installer will save the camcorder’s Instruction Manual (PDF file) on

the computer and will create a shortcut icon on the desktop for easy

access.

8

introduction

Onscreen Icons and Displays

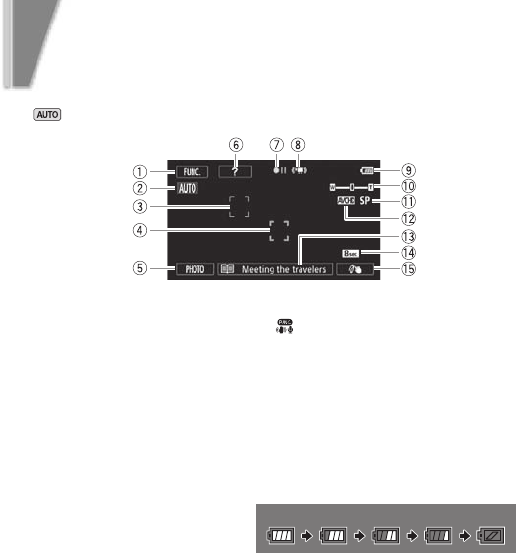

Recording movies (using Story Creator)

1Control button [FUNC.]: Open the [ Main Functions] panel (;27)

2Smart AUTO (A24)

3Face detection frame (;99)

4Touch & Track frame: Touch a moving subject on the screen to keep it

clearly in focus at all times. (;100)

5Control button [PHOTO] - Take a photo (A23)

6Control button [?]: Displays a shooting tip for the current story scene

7Memory operation (;185)

8Intelligent IS (;47)

9Remaining battery level

- If the icon appears in yellow

or red, the battery pack is

almost empty. Replace

with a fully charged battery pack.

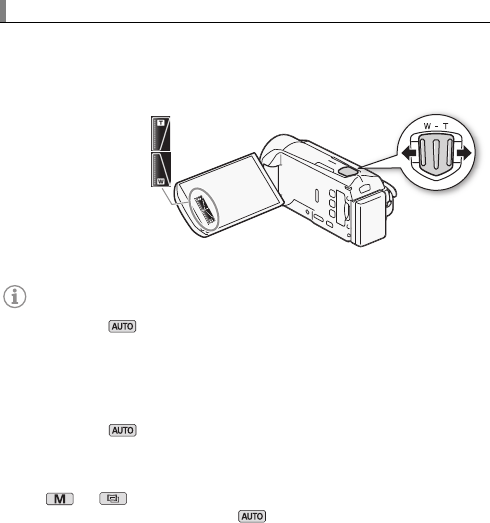

Aq Zoom (A24)

Aa Recording mode (A22)

As Recording standard (A17)

Ad Current story scene (;68)

Af Recommended scene length (;68)

Ag Decoration: Add a fun personal touch using stamps, drawings, image mix

and more. (;73)

100% 75% 50% 25% 0%

Onscreen Icons and Displays

9

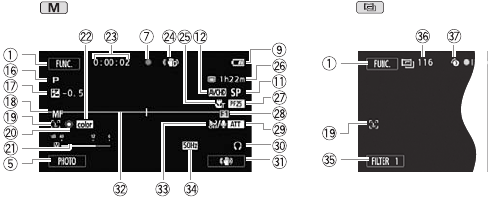

Recording movies

Manual mode Cinema mode

Ah Recording program: Recording programs allow you to change various

picture-related settings to your preference, or to use a special scene

recording program to apply the camcorder settings most appropriate for

a variety of situations. (;94)

Aj Manual exposure: Correct the exposure manually for a picture darker/

brighter than the one obtained using the automatic exposure set by the

camcorder. (;102)

Ak Manual focus (;104)

Al Face detection: You can have the camcorder automatically detect people’s

faces and use this information to adjust the focus and set the best

exposure and color control settings for beautiful videos and photos.

(;99)

Sq White balance: Change the setting so different lighting conditions do not

affect the colors in your recordings and white objects look truly white.

(;106)

Sa Audio level indicator: Manually adjust the audio recording level.

(;109)

Ss x.v.Color: The camcorder uses a color space with an extended gamut to

achieve deeper colors, closer to real life. (;174)

Sd While recording/during playback: Scene counter (hours : minutes :

seconds); <Self timer (;108)

Sf Image stabilizer (;97)

Sg Tele macro (;105)

Onscreen Icons and Displays

10

Sh Remaining recording time

* On the memory card; & In the built-in memory*

( Relay recording (;40)*

- When there is no more free space on the memory, [& End] (built-in

memory*) or [* End] (memory card) will be displayed in red and

recording will stop.

* */)/( only.

Sj Frame rate (;94)

Sk Fader (;101)

Sl Microphone attenuator: Use the attenuator to avoid audio distortions when

the sound is too loud. (;171)

Dq Headphone output (;110)

Da Custom control button (;179)

Ds Level marker: Display onscreen markers to check your composition and

make sure horizontal or vertical lines do not appear crooked in your

recordings. (;171)

Dd Wind screen off: Wind screen removes the background sound of wind when

recording outdoors. You may want to turn it off when recording indoors in

very quiet surroundings. (;171)

Df Flicker reduction (;171)

Dg Control button [FILTER 1] - Cinema-look filters: Use cinema-look filters to

create unique movies with distinctive looks. (;70)

Dh In record pause mode: Total number of scenes

Dj Pre-recording: The camcorder will start recording video 3 seconds before

you press Y, so you do not miss important shooting

opportunities. (;98)

Onscreen Icons and Displays

11

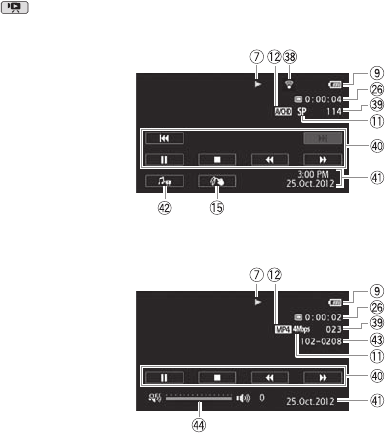

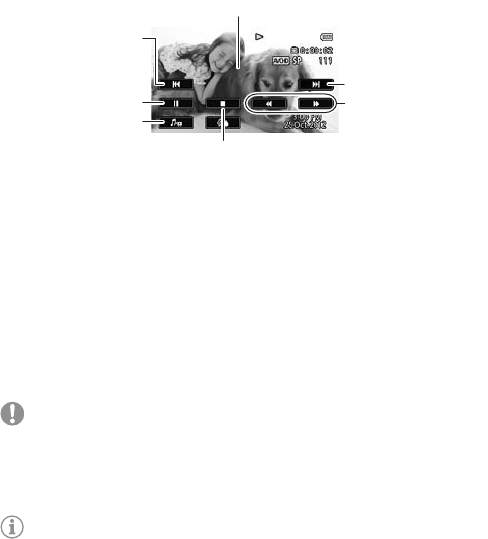

Playing movies (during playback)

AVCHD movies:

MP4 movies:

Dk Eye-Fi Wireless Communication: Using an Eye-Fi card you can upload you

recordings wirelessly. Important restrictions apply so be sure to refer to

Using an Eye-Fi card (;144).

Dl Scene number

Fq Playback control buttons (A28)

Fa Data code: Displays information depending on the type of recording.

(;66, 172)

Fs Volume and background music balance controls (;55, 83)

Fd File number (;175)

Ff Volume controls (;56)

Onscreen Icons and Displays

12

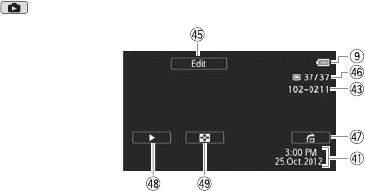

Viewing photos

Fg Control button [Edit] - Open the Edit panel (;169)

Fh Current photo / Total number of photos

Fj Control button [h] - Photo jump (;117)

Fk Control button [Ð] - Slideshow: Play back a slideshow of your photos and

use your favorite background music. (;120)

Fl Control button [f] - Return to the [Photos] index screen (;116)

13

step 1

Charging the Battery Pack

The camcorder can be powered with a battery pack or directly using the

compact power adapter. When you use the compact power adapter, the

power of the battery pack will not be consumed. Charge the battery pack

before use.

1Connect the compact power

adapter.

1Connect to the adapter .

2Plug into a power outlet.

2Connect the camcorder.

Plug into the DC IN terminal.

3Insert the battery pack.

1 Press softly into the battery attachment

unit.

2 Slide up until it clicks in place.

Charging will start when the

camcorder is turned off.





2

1

3

Lamp off

(camcorder turned off)

Red lamp on

(charging)

Lamp off

(battery pack fully charged)

Charging the Battery Pack

14

Charging the supplied BP-709 Battery Pack will take approximately

2 hours 50 minutes. A fully charged battery pack will allow for the

following operations (movies in FXP mode).

All given times are approximate and vary according to recording mode

and charging, recording or playback conditions.

See Charging, Recording and Playback Times (;212) for details.

IMPORTANT

•The battery pack will be charged only when the camcorder is off.

•Do not connect to the camcorder’s DC IN terminal or to the compact power

adapter any electrical equipment that is not expressly recommended for

use with this camcorder.

•Do not connect the supplied compact power adapter to voltage converters

or special power sources such as those on aircraft, DC-AC inverters, etc.

NOTES

•We recommend charging the battery pack in temperatures between 10 °C and

30 °C. If either the ambient temperature or the battery pack’s temperature is

outside the range of approx. 0 °C to 40 °C, charging will not start.

•If remaining battery time is an issue, you can power the camcorder using

the compact power adapter so the battery pack will not be consumed.

•Charged battery packs continue to discharge naturally. Therefore, charge

them on the day of use, or the day before, to ensure a full charge.

•We recommend that you prepare battery packs to last 2 to 3 times longer

than you think you might need.

Charging times

Typical recording Playback

Memory card 25 min. 1 hr. 15 min.

*/)/(

Built-in memory 30 min. 1 hr. 20 min.

15

step 2

Basic Preparations

Before you begin, make basic adjustments and learn about a few of the

frequently-used parts.

See Using the Grip Belt (;22), Opening the Lens Cover and

Adjusting the LCD Screen (;23) for details.

1Fasten the grip belt.

Adjust it so you can reach the zoom

lever with your index finger, and

Y with your thumb.

2Open the LCD panel and adjust

the angle.

1 Rotate it up to 90 degrees down (for

example, to record with your hand

extended above a crowd).

2 Rotate it up to 180 degrees toward the

lens (for example, to record video of

yourself).

3Become familiar with the touch

screen.

In addition to touching buttons to

select items, you can also drag your finger

across the screen for operations such as

scrolling menus. While applying pressure,

swipe your finger across the screen.

You can also use the supplied stylus for

more precise operations.

See Handling Precautions (; 204), Cleaning (;208) for important

information about how to take care of the touch screen.





2

1

3

Basic Preparations

16

IMPORTANT

•The camcorder uses a pressure-sensitive touch screen. Press firmly

when using touch operations.

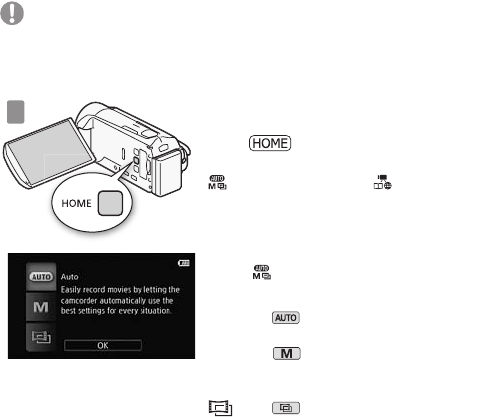

4Set the camera mode and

recording standard.

Press to open the HOME menu.

From there, you can access the

[ Camera Mode] and [ Recording

Standard] menus.

Camera mode

Touch [ Camera Mode] and then select

one of the following camera modes.

[N] In mode, the camcorder takes

care of most of the settings.

[n] In mode, you have access to

all the menus and can use a wide

array of advanced functions.

[ ] In mode, you can give your

recordings a cinematic look and still

have access to all the menus.

See Advanced Functions (;89) for more details.

4

Basic Preparations

17

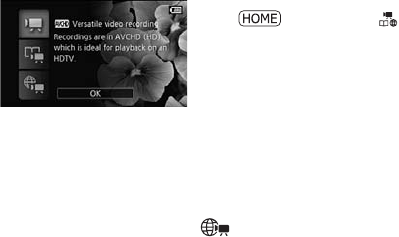

Recording standard

Press . Then, touch [ Recording

Standard] and choose to record AVCHD

movies or MP4 movies.

[v] If you plan on showing your movies

on an HDTV, then select this option

so you can play them back with

fantastic quality.

[é] Story Creator mode allows you to

create video stories by following a

story theme and receiving shooting

tips.

[ ] MP4 movies have smaller file sizes

so they are much easier to upload to

the Web and transfer to other

devices.

18

step 3

Setting the Date/Time and

Language

When you turn on the camcorder for the first time, you will need to set the

date and time before using the camcorder. You can also change the date

format and time zone. (For your convenience, you can do so after

changing the language to your preference.)

See Changing the Time Zone (;35) for details.

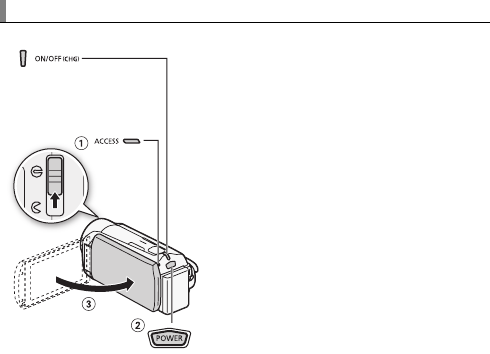

1Press P.

T

When the internal clock is not set, the

[Date/Time] screen will appear.

2Change the date/time.

1 Touch a field you want to change.

2 Touch [Î] or [Í] to change the field.

3Select your preferred date/time

format.

1 Touch one of the control buttons.

2 Touch to use 24-hour clock.

4Touch [OK].

1

2

4

3

Setting the Date/Time and Language

19

5Select the language used for

menus and onscreen displays.

See Using the Menus (;26) for details.

1 Press .

2 Select the desired language.

NOTES

•If you changed the language by mistake, look for the menu option with the

! mark.

5

[ Other Settings] > q > [Language !] >

Desired language > [OK] > [X]

English is the default language

20

step 4

Using a Memory Card

Use commercially available . SD, / SDHC (SD High Capacity) or

0 SDXC (SD eXtended Capacity) memory cards. Make sure you use a

compatible memory card. See Memory Cards Compatible for Use with the

Camcorder (;36) for memory cards that can be used. Before using

an Eye-Fi card be sure to refer to Using an Eye-Fi card (;145).

1Turn off the camcorder.

Make sure the indicator is off.

2Open the memory card slot

cover.

3Insert the memory card at a slight angle all the way into the

memory card slot until it clicks. Then, close the memory card

slot cover.

1 Push the memory card into the memory card slot. The memory card

slot is at a slight angle toward the lens so be careful not to damage

the memory card when inserting it.

2 Securely close the cover and press until it clicks. Do not force it

closed if the memory card is not correctly inserted.

1

2



The label of the memory

card facing the lens

click!

Lens

Memory card Top view

Using a Memory Card

21

You can select to record your movies and photos in the built-in memory

or on a memory card. The default memory for recording both movies and

photos is the built-in memory but you can select the recording memory

independently for movies and for photos.

See Selecting the Memory (Built-in Memory/Memory Card) for the

Recordings (;39) for details.

IMPORTANT

•Memory cards have front and back sides that are not interchangeable.

Inserting a memory card facing the wrong direction can cause a

malfunction of the camcorder.

•For important information regarding the use of SDXC memory cards be

sure to refer to SDXC Memory Cards (;37).

•Initialize memory cards when you use them with this camcorder for the first

time.

See Initializing the Memory (;41) for details.

NOTES

•To remove the memory card: Push the memory card once to release it. When

the memory card springs out, pull it all the way out.

*/)/( Selecting the memory to use for recording

22

basic recording

Selecting the Quality of Video

After you choose to record movies in MP4 or AVCHD, you can set the

recording mode (level of video quality). Changing the recording mode will

change the recording time available on the memory. For AVCHD movies,

select MXP or FXP for better quality or LP for longer recording times. For

MP4 movies, select 4 Mbps for smaller file sizes and faster uploads.

See Selecting the Video Quality (Recording Mode) (;91) for

approximate recording times.

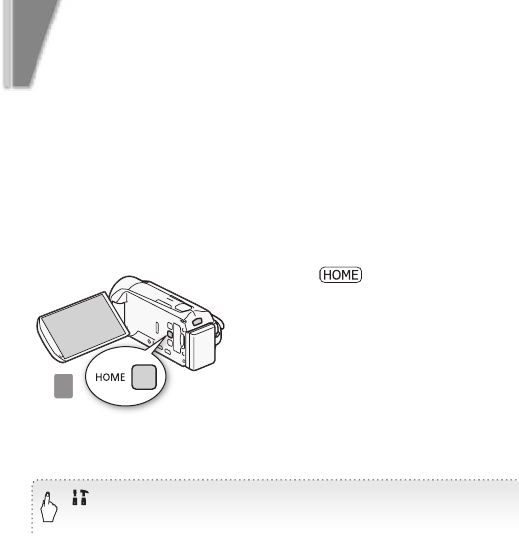

1Press .

2Select the recording mode.

1

[ Other Settings] > r > [Recording Mode] >

Desired recording mode > [X]

23

basic recording

Shooting Video and Taking Photos

In mode you can easily record movies and photos. You do not need

to worry about any settings or menu options - the camcorder will select

the most appropriate settings automatically.

Before using an Eye-Fi card be sure to refer to Using an Eye-Fi card

(;145).

1Open the lens cover.

Before you start recording, open the lens cover. Move the lens

cover switch down to .

2Start recording movies.

Press to start recording. Press again to pause the recording and

record the video on the memory as one scene.

3Take a photo.

Touch [PHOTO] on the screen.

1

3 2

Flashes in red while

shooting video and

while a scene or photo

is being recorded on the

memory.

Z

START/STOP button

Shooting Video and Taking Photos

24

Use the zoom lever or the onscreen zoom controls. To zoom out, zoom

toward the T (wide angle) end. To zoom in, zoom toward the S (telephoto)

end.

NOTES

•Smart AUTO: In mode, just point the camcorder and Smart AUTO will

automatically select the best settings for your subject and the scene you

want to use. One of 38 icons will appear depending on the characteristics

of the subject, background, lighting conditions, etc.

See About the Smart AUTO function (;45) for details.

•Intelligent IS: In mode, the camcorder will automatically select the best

IS setting for the situation.

See Intelligent IS (;47) for details.

•Use or mode to access the menus and to change various

settings up to your preferences. In mode, you have limited access to

menus.

See Recording in Manual Mode (;89), Cinema Mode and Cinema-

Look Filters (;70) and all through Advanced Functions (;89)

for details.

Use the zoom to frame the subject

Touch [FUNC.] >

[ZOOM] to display the

onscreen zoom controls

Shooting Video and Taking Photos

25

•Follow the suggestions of the Story Creator to transform casual and

random videos to interesting video stories. Story Creator offers easy-to-

follow scripts optimized for various scenarios.

See Video Stories and Cinema Style (;67) for details.

•The camcorder features 32x optical zoom. When recording movies, you

can also use the 51x advanced zoom and 1020x digital zoom () 2550x

digital zoom).

See Zooming (;49) for details.

•About the zoom speed:

- Onscreen zoom controls: depends on where you touch within the zoom

control.

- Zoom lever: variable speed. That is, the zoom speed depends on how

you press the lever: press gently for slower zooms; press harder for faster

zooms. You can also change the zoom speed to one of three constant

speeds.

See Zooming (;49) for details.

•In most situations, keep at least 1m away from the subject. Using the tele

macro function you can reduce this distance to 50 cm at full telephoto. The

minimum focusing distance at full wide angle is 1 cm.

See Tele Macro (;105) for details.

•While recording, you can simply close the LCD panel to set the camcorder

in standby mode, which consumes less power and allows the camcorder

to use the battery pack longer. During standby mode, the ON/OFF (CHG)

indicator will change from green to orange. Open the LCD panel to return

the camcorder to record pause mode.

See Quick Start (;51) for details.

IMPORTANT

•Do not disconnect the power source during standby mode (while the ON/

OFF (CHG) indicator is lit in orange).

Quick Start

Shooting Video and Taking Photos

26

Make sure the camcorder has finished

writing the scenes or photos on the memory

before turning it off.

1 Check that the indicator is off.

2 Press P.

3 Close the LCD panel.

4 Close the lens cover.

When you have finished recording

4

Confirm that the

indicator goes out

27

basic playback

Playing Back Movies and

Viewing Photos

The basic playback screen is the [ Movies] or [ Movies] screen.

You can change the index screen displayed from the [GIndex

Selection] screen. You can also play back complete stories from the

gallery.

See Playing Back Video (;53), Playing Back Stories from the Gallery

(;78), Viewing Photos (;116) for details.

1Press to set the camcorder to

playback mode.

2Change the index screen, if necessary.

Touch [G] to open the [GIndex Selection] screen. Next, you

can touch the tabs at the top to select the memory*, and then touch the

control button of the desired index screen.

2

3

1



Playing Back Movies and Viewing Photos

28

3Look for the scene or photo you

want to play back.

1Move toward T to show 15 scenes/

photos; move toward S to show 6

scenes/photos.

2Drag your finger left or right for the

next/previous index page.

4Touch the desired scene or photo to play back.

Movies: The selected scene is played back. Playback continues until

the end of the last scene in the index screen. Touch the screen during

playback to display the playback controls.

& Built in memory*

* memory card

[ Movies]

index screen:

Scenes organized

by date

Gallery: Scenes

organized by stories

(;78)

[ Photos] index

screen (;116)

Scenes converted to standard definition (only

when the memory card is selected)* (;

139)

**/)/( only.

[ Movies]

index screen

(;58)

22

3

Playing Back Movies and Viewing Photos

29

1Touch anywhere else to hide the playback controls

2Next scene

3Fast playback* (touch again to increase the speed)

4Stop

5Volume and background music controls

6Pause (touch again to resume playback)

7Beginning of the scene (double-tap to jump to the previous scene)

* In playback pause, these controls are replaced by the slow playback controls.

Photos: The selected photo is displayed in single photo view. Drag your

finger left/right to browse through the photos one by one. Touch the

screen to display the playback controls.

IMPORTANT

•You may not be able to play back with another device the movies you

recorded on the memory card with this camcorder. In such case, play back

the movies on the memory card using this camcorder.

NOTES

•When playing back movies, depending on the recording conditions, you

may notice brief stops in video or sound playback between scenes.

1

2

3

4

6

5

7

AVCHD movies

30

basic playback

Playback on a TV Screen

Connect your camcorder to a TV to enjoy your recordings with family and

friends. Make sure the camcorder and TV are turned off before you start.

1Connect the camcorder to the TV.

Select the most appropriate connection according to the input

terminals on your TV. The HDMI connection has higher picture quality

(HD) than the composite video connection (SD).

2Turn on the camcorder.

Press to turn on the camcorder

directly in playback mode.

3Play back your movies or photos

as described in the previous

pages.

2

1

! HDMI connection: All digital, high-definition connection.

See Connection Diagrams - Connection ! (; 122) for details about

additional settings.

HTC-100/S HDMI Cable

(supplied)

(HDMI mini-

connector)

(standard HDMI

connector)

Playback on a TV Screen

31

NOTES

•The illustrations are for reference only. The layout of terminals on your TV

may be different.

•We recommend powering the camcorder using the compact power

adapter.

•Adjust the volume using the TV.

•When you play back 16:9 movies on standard TV sets with a 4:3 aspect

ratio, the TV set will switch automatically to widescreen mode if it is

compatible with the WSS system. Otherwise, change the aspect ratio of the

TV manually.

See [TV Type] (;172) for details.

•Using a SCART adapter, you can connect the camcorder also to the

SCART terminal on the TV.

See Connection Diagrams - Connection , (;123) for details.

•*/)/( If your HDTV is DLNA Certified, you can play back your

recordings on your HDTV wirelessly, directly from the camcorder.

See Wi-Fi Functions (;147) for details.

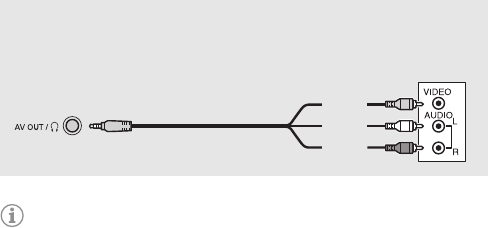

" Composite video connection: Analog, standard-definition connection.

See Connection Diagrams - Connection " (; 123) for details about

additional settings.

Red

White

Yellow

STV-250N Stereo Video Cable

(optional)

32

external connections

Saving and Sharing Your

Recordings

It is recommended that you periodically save your recordings.

- For AVCHD movies. Refer to the Startup Guide (supplied leaflet) and

Software Guide (PDF file) of the supplied PIXELA’s software for details

about installing and using the software.

- For MP4 movies and photos. This software allows you to save and manage

MP4 movies and photos.

Refer to Saving MP4 Movies and Photos (Windows/Mac OS) (;131)

for details about installing the software.

- You can transfer files wirelessly, directly from the camcorder to your

computer or FTP server and upload videos wirelessly to the Web.

See Wi-Fi Functions (;147) for details.

- Easily save the whole content of the memory onto an external hard drive

connected directly to the camcorder. With no need for a computer, this is

a very convenient way to save backup copies of your recordings.

See Memory Save: Saving an Entire Memory onto an External Hard Drive

(;134) for details.

PIXELA’s software (Windows only)

ImageBrowser EX (Windows/Mac OS)

*/)/( Wi-Fi Functions

*/)/( Memory Save: Saving Recordings without a Com-

puter

33

specifications

Abridged Specifications

The specifications given here are an abridged version of the full

specifications of the camcorder. Be sure to read the full version of the

instruction manual for the complete information.

See Specifications (;215) for details.

Power supply (rated)

3.6 V DC (battery pack), 5.3 V DC (compact power adapter)

Power consumption

2.6 W (SP mode, AF on)

Canon offers a wide range of optional accessories for your camcorder.

See Optional Accessories (;211) for details.

Optional Accessories

Use of genuine Canon accessories is recommended.

This product is designed to achieve excellent performance when used with

genuine Canon accessories. Canon shall not be liable for any damage to this

product and/or accidents such as fire, etc., caused by the malfunction of non-

genuine Canon accessories (e.g., a leakage and/or explosion of a battery pack).

Please note that this warranty does not apply to repairs arising out of the

malfunction of non-genuine Canon accessories, although you may request such

repairs on a chargeable basis.

This mark identifies genuine Canon video accessories. When

you use Canon video equipment, we recommend Canon-brand

accessories or products bearing the same mark.

34

WARRANTY CARD

For Canon products distributed by Canon Australia Pty Ltd or Canon New Zealand Ltd only.

Warranty does not cover Canon products purchased in other countries unless otherwise stated.

PLEASE RETAIN YOUR SALES DOCKET AS PROOF OF PURCHASE

DATE IS REQUIRED FOR WARRANTY SERVICE

“THANK YOU FOR PURCHASING CANON”

This card contains the terms of your Canon product warranty. To ensure access to warranty services, kindly complete the

details on the front of the card at the time of purchase.

You will need proof of purchase to claim warranty service, therefore please ensure that you retain and store your receipt

and this card in a safe place, or you may be charged for repairs.

If and when you need warranty service, please refer to the warranty terms.

Should you need to send your product to us, please ensure that it is properly packed and insured. Canon Australia and

Canon New Zealand will not be liable for loss in transit or damage to goods sent to us.

WARRANTY TERMS AND CONDITIONS

1. Canon warrants that, during the Warranty Period, the Product will, with normal use and service, be free from faulty

parts, manufacture or workmanship.

2. The Warranty Period for:

(a) all projector Products (excluding projector lamps) and standard Canon accessories is 36 months from the date

of purchase;

(b) non-Image Stabiliser binoculars is 60 months from date of purchase;

(c) projector lamps, is 90 days from the date of purchase; and

(d) all other Products and their standard Canon accessories is 12 months from the date of purchase.

3. This warranty is valid only for Products that are purchased new and unused

(a) in Australia or New Zealand; and

(b) sourced from Canon Australia Pty Ltd or Canon New Zealand Ltd (“Canon”).

The Customer must provide the original proof of purchase which demonstrates compliance with the above

conditions to receive any services under this warranty.

DEALER’S NAME & ADDRESS

PRODUCT NAME

SERIAL NO.

PURCHASE DATE / /

CANON AUSTRALIA PTY LTD

A.B.N. 66 005 002 951

1 Thomas Holt Drive, North Ryde, 2113

Canon Service Tel: 131383

Web: canon.com.au

CANON NEW ZEALAND LTD

Tel: 0800 222 666

Akoranga Business Park

28 The Warehouse Way

Northcote, Auckland

Email: helpdesk@canon.co.nz

Web: canon.co.nz

Australia and New Zealand Only

35

4. This warranty only applies where a defect has arisen, wholly or substantially, as a result of faulty manufacture, parts

or workmanship during the Warranty Period.

5. The warranty does not apply where damage is caused by other factors, including without limitation:

(a) normal wear and tear;

(b) abuse, mishandling, accident or failure to follow operating instructions;

(c) leaking batteries, exposure to liquid or infiltration of foreign particles;

(d) servicing or modification of the Product other than by Canon, their authorised service agents or, where

applicable, another member of the Canon Camera International Service Network;

(e) use of the Product with unsuitable ink or toner;

(f) use of the Product with other accessories, attachments, product supplies, parts or devices (including batteries,

tapes/cards, lenses and flash attachments) that do not conform to Canon Inc specifications; or

(g) shipment or other transit.

6. This warranty does not cover:

(a) the replacement of any consumables such as print heads, drums, lamps, film, ink and toner cartridges and

paper;

(b) rubber rollers in scanners;

(c) software included with scanners;

(d) repair or replacement of any Product damaged during transit to or from Canon; or

(e) any loss or consequential damage incurred while the Product is being repaired.

7. This warranty is to be read together with any benefits that Canon may provide to a consumer under statute.

8. This clause relates to goods supplied in Australia only: Our goods come with guarantees that cannot be excluded

under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for

compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired

or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

9. You have rights and benefits under the consumer laws in your jurisdiction. Without detracting from these rights or

benefits, Canon excludes all liability in respect of the Product for any other loss which is not reasonably foreseeable

from a failure of this Product, which may include liability for negligence, loss of tape/card, loss of images, loss of

expenditure associated with the Product and loss of enjoyment.

10. Instructions for making a warranty claim are included in the enclosed materials. If the warranty claim is not

accepted:

(a) Canon will inform the Customer;

(b) if requested to do so by the Customer, Canon will repair the Product provided you pay the usual charges for

such repair; and

(c) if applicable the Customer will be responsible for all costs associated with collection of the Product from

Canon.

MAKING A WARRANTY CLAIM - RETURN TO CANON FOR REPAIR

The process for a warranty claim is as follows:

1. you must inform Canon or a Canon Authorised Service Provider as soon as the warranty claim arises and provide a

written description of the fault;

2. you must send to Canon or a Canon Authorised Service Provider your original proof of purchase and your written

description of the fault (including image samples and any other relevant material); and

3. subject to the applicable consumer laws in your jurisdiction, you must pay for all packing, freight and insurance

costs for transit of the Product to Canon.

If the warranty claim is accepted Canon will, subject to the applicable consumer laws in your jurisdiction, at its cost:

(a) repair or replace any faulty parts or rectify any faulty workmanship; and

(b) return the Product to you.

To make a warranty claim, please locate a service agent:

Australia: canon.com.au/support/service_agents.html or call Canon on 13 13 83

New Zealand: canon.co.nz/en-NZ/Support-Services/Dealer-Service-Locator or call Canon on 0800 222 666

© CANON INC. 2012 PUB. DIE-0413-000 0158W499

Canon Inc. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

Canon Europa N.V.

Bovenkerkerweg 59-61, 1185 XB Amstelveen, The Netherlands

www.canon-europa.com

Canon UK Ltd

CCI Service Centre, Unit 130

Centennial Park, Borehamwood, Hertfordshire, WD6 3SE, United Kingdom

Telephone 0844-369-0100

Canon Australia Pty Ltd

Tel: 13-13-83 (within Australia only)

(61) 02-9805-2555

www.canon.com.au

Canon New Zealand Ltd

Tel: 0800-222-666 (within New Zealand only)

(64) 09-489-0300

www.canon.co.nz

Canon Singapore Pte. Ltd

1 HarbourFront Avenue, #04-01 Keppel Bay Tower,

Singapore 098632

Tel: (65) 6799 8888

Fax: (65) 6799 8882

Canon Hongkong Company Ltd

19/F, The Metropolis Tower, 10 Metropolis Drive,

Hunghom, Kowloon, Hong Kong

Tel: +852 3191 2333, Fax: +852 2428 3963

Canon Latin America, Inc.

Sales & Enquiries:

703 Waterford Way, Suite 400, Miami, FL 33126 USA

For support concerning the supplied PIXELA's software, please call

PIXELA customer support (see the back cover of the Startup Guide for

PIXELA's software).
