HD Camcorder

Instruction Manual

COPY

Introduction

Important Usage Instructions

Unauthorized recording of copyrighted materials may infringe on the rights of copyright

owners and be contrary to copyright laws.

To reduce the risk of electric shock, do not expose this product to dripping or splashing.

The Mains plug is used as the disconnect device. The Mains plug shall remain readily operable

to disconnect the plug in case of an accident.

While using the compact power adapter, do not wrap it or cover it with a piece of cloth, and do

not place it in confined narrow spaces.

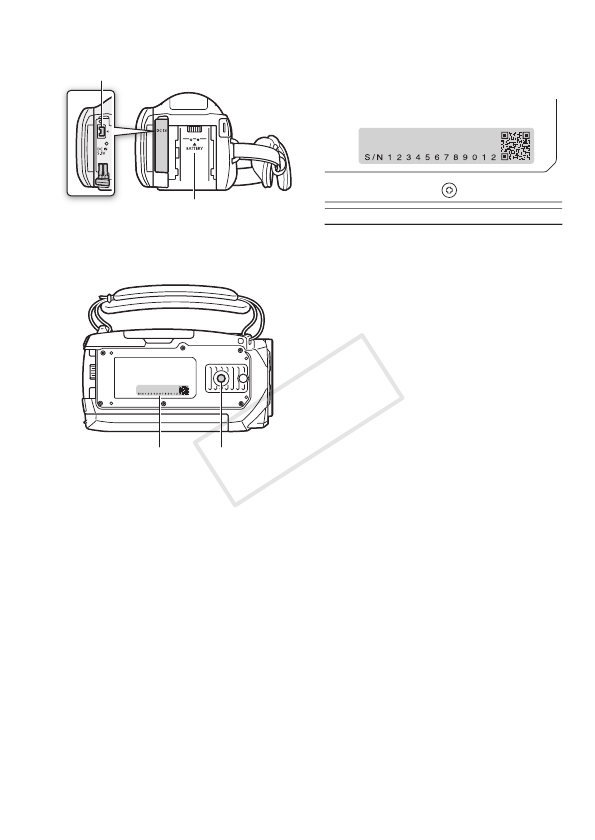

CA-110E identification plate is located on the bottom.

European Union (and EEA) only.

These symbols indicate that this product is not to be disposed of with

your household waste, according to the WEEE Directive (2002/96/EC),

the Battery Directive (2006/66/EC) and/or your national laws

implementing those Directives.

This product should be handed over to a designated collection point, e.g., on an

authorized one-for-one basis when you buy a new similar product or to an authorized

collection site for recycling waste electrical and electronic equipment (EEE) and batteries

and accumulators. Improper handling of this type of waste could have a possible impact

on the environment and human health due to potentially hazardous substances that are

generally associated with EEE. Your cooperation in the correct disposal of this product will

contribute to the effective usage of natural resources.

For more information about the recycling of this product, please contact your local city

office, waste authority, approved scheme or your household waste disposal service or

visit www.canon-europe.com/environment.

(EEA: Norway, Iceland and Liechtenstein)

COPY

REGIONS OF USE

LEGRIA HF M56 is in compliance (as of January 2012) with the radio signal regulations of

the regions listed below. For details on other regions where it can be used, make inquiries

with the contacts listed on the back side of this instruction manual.

* France: Cannot be used outdoors.

Statement on EC directive

REGIONS

Australia, Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,

France*, Germany, Greece, Hong Kong S.A.R., Hungary, Iceland, Ireland, Italy, Latvia,

Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, New Zealand, Norway, Poland,

Portugal, Romania, Russia, Singapore, Slovakia, Slovenia, Spain, Sweden, Switzerland,

United Kingdom

Hereby, Canon Inc., declares that this WM217 is in compliance with the essential requirements

and other relevant provisions of Directive 1999/5/EC.

Please contact the following address for the original Declaration of Conformity:

CANON EUROPA N.V.

Bovenkerkerweg 59-61, 1158 XB Amstelveen, The Netherlands

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

Model

ID0009: LEGRIA HF M56

COPY

Trademark Acknowledgements

• SD, SDHC and SDXC Logos are trademarks of SD-3C, LLC.

• Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States

and/or other countries.

• App Store, iPhone, iTunes, Mac OS and Macintosh are trademarks of Apple Inc., registered in the U.S. and

other countries.

• “x.v.Color” and the “x.v.Color” logo are trademarks.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC in the United States and other countries.

• “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation

and Sony Corporation.

• Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• YouTube is a trademark of Google Inc.

• Facebook is a registered trademark of Facebook, Inc.

• Wi-Fi is a registered trademark of the Wi-Fi Alliance.

• Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo are trademarks of the Wi-Fi Alliance.

• WPS as used on the camcorder's settings, onscreen displays and in this manual signifies Wi-Fi Protected

Setup.

• DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital

Living Network Alliance.

• Other names and products not mentioned above may be trademarks or registered trademarks of their

respective companies.

• This device incorporates exFAT technology licensed from Microsoft.

• “Full HD 1080” refers to Canon camcorders compliant with high-definition video

composed of 1,080 vertical pixels (scanning lines).

• ANY USE OF THIS PRODUCT OTHER THAN CONSUMER PERSONAL USE IN ANY MANNER

THAT COMPLIES WITH THE MPEG-2 STANDARD FOR ENCODING VIDEO INFORMATION FOR PACKAGED MEDIA

IS EXPRESSLY PROHIBITED WITHOUT A LICENSE UNDER APPLICABLE PATENTS IN THE MPEG-2 PATENT

PORTFOLIO, WHICH LICENSE IS AVAILABLE FROM MPEG LA, L.L.C., 250 STEELE STREET, SUITE 300, DENVER,

COLORADO 80206.

• This product is licensed under AT&T patents for the MPEG-4 standard and may be used for encoding MPEG-4

compliant video and/or decoding MPEG-4 compliant video that was encoded only (1) for a personal and non-

commercial purpose or (2) by a video provider licensed under the AT&T patents to provide MPEG-4 compliant

video. No license is granted or implied for any other use for MPEG-4 standard.

COPY

Exciting Features and New Functions

Wi-Fi Functions

(A155)

Audio Scene Select

(A111)

Enjoy the freedom of Wi-Fi

functions by making your

camcorder an active part of your

Wi-Fi home network or by

conveniently accessing Wi-Fi

hotspots to upload your videos

wherever you may be.

• You can save your recordings

wirelessly to a computer in your

home network using the sup-

plied software Network Utility

(A162). You can also send

your recordings wirelessly to an

FTP s erver ( A162), for exam-

ple to send your videos from

your vacation spot to a network-

attached storage drive back

home.

• You can upload your recordings

wirelessly, directly from your

camcorder to YouTube and

Facebook (A166).

• You can play back the record-

ings in your camcorder from

DLNA-compatible TV sets and

other DLNA media players con-

nected to your home network

(A170).

Optimize the audio settings of the

built-in microphone by selecting

the audio scene that matches

your surroundings. Your audience

will feel even more immersed in

the scene during playback.

Cinema-Look Filters

(A69)

Use professional cinema-look

filters to create unique movies

with distinctive looks.

AVCHD and MP4

Recording (A30)

Record movies in AVCHD and play

them back on an HDTV in all their

splendor. Alternatively, record

movies in MP4 for uploading to the

Web and transferring to mobile

devices.

COPY

Smart AUTO (A46)

Smart AUTO automatically selects the best

scene mode for the scene you want to

shoot. You get spectacular recordings

every time without worrying about settings.

Video Snapshot

(A70)

Face Detection

(A97)

Shoot or capture short scenes

and arrange them into a video

clip set to your favorite

background music.

The camcorder automatically

detects people’s faces and

adjusts the focus and other

settings accordingly for beautiful

results.

Memory Save (A143) Image Stabilization

Easily save the whole content of

the built-in memory or a memory

card onto an external hard drive

connected directly to the

camcorder. With no need for a

computer, this is a very

convenient way to save backup

copies of your recordings.

Dynamic IS (A95)

compensates for camcorder

shake when you shoot video

while walking. Powered IS

(A95) will produce stable shots

when you zoom in on distant

subjects (full telephoto).

Intelligent IS (A48) selects the

type of image stabilization for the

recording situation.

COPY

Enjoying Your Recordings on Other Devices

MPEG-2

AVCHD

MP4

Eye-Fi

Connect the camcorder

to an HDTV (A134) Use an Eye-Fi card

(A152) to wirelessly

upload recordings to

your computer or a video

sharing Web site.

Upload MP4 movies to

your computer (A140). Save your recordings.

You can also create discs

from your recordings.*

Standard Definition

Upload AVCHD movies to your computer. 0 You can also

choose to convert your AVCHD movies to standard definition files

(A148) before uploading.

High Definition

Use the supplied PIXELA’s

software (A138).

Upload your AVCHD

movies* (A148) or

MP4 movies

(A154) to the Web.

*0 only.

COPY

Enjoying Your Recordings Using the Camcorder's Wi-Fi Functions

LAN cable

Play video wirelessly directly from the memory on

AVCHD- and DLNA-compatible HDTVs and other

devices connected to the network (A170).

Join a Wi-Fi

network by first

connecting to an

access point

(A157).

Transfer your recordings

wirelessly from the

camcorder to a computer or

FTP server (A162).

Wirelessly connect to a Wi-Fi-enabled iOS

device like an iPhone to upload your

recordings (A167). Because you do not

need to be near your home network, you can

even upload videos while traveling!

Upload your recordings wirelessly

to YouTube and Facebook

(A166) to share your videos

with friends and family.

Upload your recordings to the Web.

COPY

Table of contents  9

Introduction

5 Exciting Features and New Functions

13 About this Manual

15 Getting to Know the Camcorder

15 Supplied Accessories and CD-ROMs

17 Names of Parts

Preparations

20 Getting Started

20 Charging the Battery Pack

23 Preparing the Accessories

25 Adjusting the LCD Screen

26 Basic Operation of the Camcorder

26 Using the Touch Screen

27 Using the Menus

30 Operating Modes

33 First Time Settings

33 Setting the Date and Time

34 Changing the Language

35 Changing the Time Zone

36 Using a Memory Card

36 Memory Cards Compatible for Use with the Camcorder

38 Inserting and Removing a Memory Card

39 0 Selecting the Memory (Built-in Memory/Memory

Card) for the Recordings

39 0 Relay Recording

40 Initializing the Memory

42 Using the Optional Wireless Controller

Table of contents

COPY

10  Table of contents

AUTO Mode

44 Basic Recording

44 Shooting Video and Taking Photos in AUTO Mode

46 About the Smart AUTO function

48 Intelligent IS

49 Zooming

51 Quick Start

Video

53 Basic Playback

53 Playing Back Video

57 3D Flip View

58 The [Index Selection] Screen: Selecting the Content to

Play Back

59 Deleting Scenes and Stories

63 Selecting the Playback Starting Point

65 Onscreen Displays and Data Code

66 Video Stories and Cinema Style

66 Using Story Creator to Create Compelling Stories

69 Cinema Mode and Cinema-Look Filters

70 Video Snapshot

71 Decoration: Adding a Personal Touch

76 Playing Back Stories from the Gallery

78 Rating Scenes

80 Playback with Background Music

82 Copying and Moving Scenes Within/Between Stories

84 Selecting a Story’s Thumbnail Image

84 Changing a Story’s Title

86 Advanced Functions

86 Recording in Manual Mode

88 Selecting the Video Quality (Recording Mode)

91 Selecting the Frame Rate

92 Special Scene Recording Programs

95 Advanced Image Stabilization

95 Powered IS

96 Pre-Recording

97 Face Detection

COPY

Table of contents  11

99 Touch & Track

100 Faders

101 Manually Setting the Shutter Speed or Aperture

103 Manual Exposure Adjustment

104 Automatic Gain Control (AGC) Limit

105 Manual Focus Adjustment

106 Tele Macro

107 White Balance

109 Image Effects

110 Self Timer

111 Audio Scenes and Other Audio Settings

115 Audio Recording Level

116 Using Headphones

118 Using the Mini Advanced Shoe

119 Using an External Microphone

120 Using an External Video Light

121 Capturing Video Snapshot Scenes and Photos from a

Movie

123 Dividing Scenes

Photos

125 Viewing Photos

127 Deleting Photos

129 Slideshow

External Connections

130 Terminals on the Camcorder

131 Connection Diagrams

134 Playback on a TV Screen

135 Saving and Sharing Your Recordings

135 0 Copying Movies and Photos to a Memory Card

138 Saving Recordings on a Computer

143 0 Memory Save: Saving an Entire Memory onto an

External Hard Drive

147 Copying Recordings to an External Video Recorder

148 0 Uploading AVCHD Movies to the Web

154 Uploading MP4 Movies and Photos to the Web

COPY

12  Table of contents

0 Wi-Fi Functions

155 Introduction to Wi-Fi

157 Connecting to a Wi-Fi Network

162 Transferring Files to a Computer or FTP server

166 Uploading Recordings to YouTube and Facebook

167 Uploading Videos Using an iOS Device

170 Wireless Playback on a DLNA-Compatible Device

Additional Information

174 Appendix: Menu Options Lists

174 [Main Functions] Panel

178 [Other Settings] Menus

190 Appendix: Onscreen Icons and Displays

195 Trouble?

195 Troubleshooting

203 List of Messages

214 Do’s and Don’ts

214 Handling Precautions

219 Maintenance/Others

220 Using the Camcorder Abroad

221 General Information

221 Accessories

222 Optional Accessories

228 Specifications

232 Index

COPY

Introduction  13

About this Manual

Thank you for purchasing the Canon LEGRIA HF M56 / LEGRIA

HF M506. Please read this manual carefully before you use the cam-

corder and retain it for future reference. Should your camcorder fail to

operate correctly, refer to Troubleshooting (A195).

Conventions Used in this Manual

• IMPORTANT: Precautions related to the camcorder’s operation.

• NOTES: Additional topics that complement the basic operating

procedures.

• POINTS TO CHECK: Restrictions or requirements regarding the

function described.

•A: Reference page number within this manual.

•0 : Text that applies only to the LEGRIA HF M56.

• The following terms are used in this manual:

When not specified as “memory card” or “built-in memory”, the term

“memory” by itself refers to both.

“Scene” refers to one movie unit from the point you press the

Y button to start recording until you press again to pause

the recording.

“Photo” and “still image” are used interchangeably with the same

meaning.

• The photos included in this manual are simulated pictures taken with

a still camera. Unless indicated otherwise, illustrations and menu

icons refer to the 0.

COPY

14  Introduction

Self Timer

Operating modes:

* For movies only.

1Press .

2 Activate the self timer.

•< will appear on the screen.

• Repeat, selecting [jOff], to turn off the self timer.

Movies: In record pause mode, press Y.

The camcorder starts recording after a 10-second countdown. The

countdown appears on the screen.

[ Other Settings] > r > [Self Timer] >

[iOn <] > [X]

Brackets [ ] are used to refer to

control buttons and menu options

you will touch on the screen and to

other onscreen messages and

displays.

indicates that a function is available in the

operating mode indicated and indicates

that the function is not available. The operating

mode icons are divided into three groups: the

first three icons represent the camera mode,

the second three icons represent the recording

standard, and the last two represent playback

modes. For a detailed explanation refer to

Operating Modes (A30).

The names of physical buttons

and switches on the

camcorder are indicated within

a “button” frame.

For example Y.

The > arrow is used to abbreviate menu selections.

For a detailed explanation on how to use the menus,

refer to Using the Menus (A27). For a concise

summary of all available menu options and settings,

refer to the appendix Menu Options Lists (A174).

COPY

Introduction  15

Gettin g to Kn ow the Camcorder

Supplied Accessories and CD-ROMs

The following accessories are supplied with the camcorder:

*0 only.

XCA-110E Compact Power Adapter

(incl. power cord)

BP-718 Battery PackW

XIFC-300PCU/S USB Cable

HTC-100/S HDMI CableW

XQuick Guide

XWi-Fi Basic Setup Guide*

Stylus PenW

COPY

16  Introduction

The following CD-ROMs and software are supplied with the camcorder:

•PIXELA CD-ROM

-0 You can use VideoBrowser for managing, editing, and playing

back AVCHD movies, and Network Utility when transferring

recordings wirelessly to a computer.

-1 Use Transfer Utility for saving and transferring AVCHD

movies and music files you can use as background music.

- A printed Startup Guide for PIXELA's software is also supplied. Refer

to this Startup Guide for details about the supplied software.

•Canon LEGRIA CD-ROM. Contains the following components.

- Instruction Manual - The full-version instruction manual of the

camcorder (this PDF file).

- ImageBrowser EX - This CD-ROM contains an automatic installer for

the supplied software ImageBrowser EX, which allows you to save

and manage MP4 movies and photos; and upload MP4 movies to

CANON iMAGE GATEWAY**, YouTube and Facebook. This CD-ROM

contains an automatic installer for the supplied software

ImageBrowser EX, which allows you to save and manage MP4 movies

and photos, and share MP4 movies. An Internet connection is

required for installation.

- Music data - Music files that can be used as background music during

playback. These music files are for exclusive use with the supplied

PIXELA’s software. The disc cannot be played back on CD players.

- Image mix data - Image files that can be used with the image mix

function (image mix frames).

*The CD-ROM includes the instruction manual of the software (on PDF file).

**CANON iMAGE GATEWAY is an online service that allows you to share mov-

ies and photos, make photo albums, and more. This service may not be

available in all countries/regions.

COPY

Introduction  17

Names of Parts

1VIDEO SNAP (video snapshot) button

(A70)

2HOME (home) button (A27)

3U (camera/play) button (A32)

4BATTERY RELEASE switch (A21)

5USB terminal (A130, 133, 143, 147)

6HDMI OUT terminal (A130, 131)

7AV OUT terminal (A130, 132)/

×(headphones) terminal (A116)

8START/STOP button (A44)

9Wi-Fi antenna (0 only)

Aq Strap mount (A23)

Aa Grip belt (A23)

As Memory card slot (A38)

Ad Stereo microphone (A115)

Af Remote sensor (A42)

Ag Instant AF sensor (A179)

AfAd Ad Ag

Left side view

8 9

Right side view

Front view

COPY

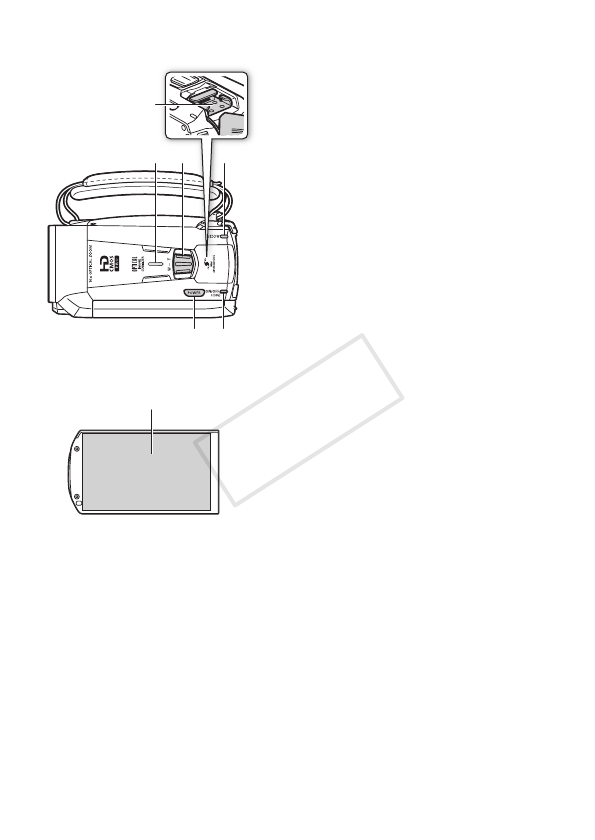

18  Introduction

Ah Speaker (A55)

Aj Zoom lever (A49)

Ak Mini advanced shoe (A118)

Al ACCESS (access) indicator (A44)

Sq POWER button

Sa ON/OFF (CHG) (charge) indicator:

Green – On

Orange – Standby (A51)

Red – Charging (A20)

Ss LCD touch screen (A25, 26)

Top view

AjAh Al

Sq Sa

LCD panel

COPY

Introduction  19

Sd DC IN terminal (A20)

Sf Battery attachment unit (A20)

Sg Serial number

Sh Tripod socket (A215)

SgSh

Bottom view

Back view

COPY

20  Preparations

Preparations

This chapter describes basic operations, such as using the

touch panel, navigating the menus, and first time settings to

help you learn more about your camcorder.

Getting Started

Charging the Battery Pack

The camcorder can be powered with a battery pack or directly using

the compact power adapter.

For approximate charging times and recording/playback times with a

fully charged battery pack, refer to Charging, Recording and Playback

Times (A223).

1 Connect the power cord to the

compact power adapter.

2 Plug the power cord into a

power outlet.

3 Connect the compact power

adapter to the camcorder’s DC

IN terminal.

4 Attach the battery pack to the

camcorder.

Press the battery pack softly into

the battery attachment unit and

slide it up until it clicks in place.







DC IN terminal

COPY

Preparations  21

5 Charging will start when the

camcorder is turned off.

• If the camcorder was on, the

green ON/OFF (CHG) indicator

will go out when you turn off the

camcorder. After a moment,

the ON/OFF (CHG) indicator

will turn on in red (battery pack

charging). The red ON/OFF

(CHG) indicator will go out

when the battery pack is fully

charged.

• If the indicator flashes, refer to Troubleshooting (A199).

To remove the battery pack

1 Slide d in the

direction of the arrow and hold it

pressed down.

2 Slide the battery pack and

then pull it out.

IMPORTANT

• Turn off the camcorder before connecting or disconnecting the com-

pact power adapter. After pressing P to turn off the camcorder,

important data is updated in the memory. Be sure to wait until the green

ON/OFF (CHG) indicator goes out.

• Do not connect to the camcorder’s DC IN terminal or to the compact

power adapter any electrical equipment that is not expressly recom-

mended for use with this camcorder.

ON/OFF (CHG) (charge) indicator

BATTERY RELEASE

switch

COPY

22  Preparations

• To prevent equipment breakdowns and excessive heating, do not con-

nect the supplied compact power adapter to voltage converters for

overseas travels or special power sources such as those on aircraft and

ships, DC-AC inverters, etc.

NOTES

• We recommend charging the battery pack in temperatures between

10 °C and 30 °C. If either the ambient temperature or the battery pack’s

temperature is outside the range of approx. 0 °C to 40 °C, charging will

not start.

• The battery pack will be charged only when the camcorder is off.

• If the power supply was disconnected while charging a battery pack,

make sure the ON/OFF (CHG) indicator has gone out before restoring

the power supply.

• If remaining battery time is an issue, you can power the camcorder

using the compact power adapter so the battery pack will not be con-

sumed.

• Charged battery packs continue to discharge naturally. Therefore,

charge them on the day of use, or the day before, to ensure a full

charge.

• The first time you use a battery pack, fully charge it and then use the

camcorder until the battery pack is completely exhausted. Doing so will

ensure that the remaining recording time will be displayed accurately.

• We recommend that you prepare battery packs to last 2 to 3 times

longer than you think you might need.

COPY

Preparations  23

Preparing the Accessories

Grip Belt and Straps

Fasten the grip belt.

Adjust the grip belt so that you can

reach the zoom lever with your

index finger, and the Y

button with your thumb.

You can attach the supplied stylus

pen to the grip belt.

To remove the grip belt

1 Lift the padded handgrip’s flap and detach the strap from the Velcro

pad.

2 Pull the strap to remove it first from the front bracket on the

camcorder, then to unthread it from the handgrip and finally to

remove it from the rear bracket on the camcorder.









COPY

24  Preparations

To attach an optional wrist strap

Attach the wrist strap to the rear

bracket on the camcorder, adjust

the length and fasten.

You can also attach the wrist strap

to the strap mount on the grip belt

to use both for extra convenience

and protection.

To attach an optional shoulder strap

Pass the ends of the shoulder strap through the strap mount on the grip

belt and adjust the length of the strap.

COPY

Preparations  25

Adjusting the LCD Screen

Rotating the LCD Panel

Open the LCD panel 90 degrees.

• You can rotate the panel 90 degrees downward.

• You can rotate the panel 180 degrees toward the lens. Rotating the

LCD panel 180 degrees can be useful to allow the camcorder to include

yourself in the picture when recording with the self timer.

NOTES

•About the LCD screen: The screen is produced using extremely high-pre-

cision manufacturing techniques, with more than 99.99% of the pixels

operating to specification. Less than 0.01% of the pixels may occasion-

ally misfire or appear as black, red, blue or green dots. This has no

effect on the recorded image and does not constitute a malfunction.

• For details about how to take care of the touch screen, refer to Handling

Precautions (A214), Cleaning (A219).

• You can adjust the screen's brightness using the q > [LCD Bright-

ness] and [LCD Backlight] settings. When the compact power adapter

is connected, [LCD Backlight] will automatically change to [H Bright].

180°

90° Subject can monitor the LCD screen

180°

COPY

26  Preparations

Basic Operation of the Camcorder

Using the Touch Screen

The control buttons and menu items that appear on the touch screen

change dynamically depending on the operating mode and the task

you are performing. With the intuitive touch screen interface you have

all the controls at your fingertips. You can also use the supplied stylus

pen for a more precise operation.

To u c h

Press firmly on an element displayed on the

touch screen.

Used to start playing back a scene in an

index screen, to select a setting from the

menus, to select the subject whom the cam-

corder will recognize as the main subject of

the scene, etc.

Drag

While applying pressure, swipe your finger

up and down or left and right across the

screen.

Used to scroll menus, to browse through

index screen pages or to adjust slider

controls like the volume.

IMPORTANT

• The camcorder uses a pressure-sensitive touch screen. Press

firmly when using touch operations.

• In the following cases, you may not be able to perform touch operations

correctly.

- Using your fingernails or hard-tipped objects other than the supplied

stylus pen, such as ballpoint pens.

- Operating the touch screen with wet or gloved hands.

- Applying excessive force or forcefully scratching the touch screen.

- Attaching commercially available screen protectors or adhesive film

onto the touch screen’s surface.

COPY

Preparations  27

Using the Menus

Many of the camcorder's functions can be adjusted from the [ Main

Functions] panel and [ Other Settings] menus in the HOME menu.

For details about the available menu options and settings, refer to the

appendix Menu Options Lists (A174).

HOME Menu

Operating modes:

The HOME menu is the gateway to

most of the camcorder's functions

and settings. After you press

, the HOME menu will

appear and you can select from

the following control buttons. The

available control buttons depend

on whether the camcorder is in

recording or playback mode.

•[ Main Functions] - This contains functions commonly used while

shooting, such as focus and exposure. Available only in recording

mode.

•[ Other Settings] - Selecting this control button will open up the

[Other Settings] menus, which gives you access to settings such as the

video quality (recording mode) and LCD brightness.

In recording mode

In playback mode

for 0

COPY

28  Preparations

•[ Camera Mode] - From the [ Camera Mode] menu, you will be

able to change whether you record movies in mode (camcorder

automatically takes care of many settings), mode (you can manu-

ally change settings), or mode (using the cinema-look filters, you

can make movies with a cinematic feel). Available only in recording

mode. For details on how to set the camera mode, refer to Recording

(A30).

•[ Recording Standard] - This camcorder can record movies in either

the AVCHD or MP4 recording standard. Use this menu to select the

standard that best suits your needs. You can also use Story Creator

mode (A66) when choosing to record in AVCHD. Available only in

recording mode. For details on how to set the recording standard, refer

to Recording (A30).

•[ Wi-Fi] - 0 Allows you to access the various Wi-Fi functions this

camcorder has to offer. Available only in playback mode. For more

details on Wi-Fi functions, refer to Wi-Fi Functions (A155).

•[G Index Selection] - Use this to switch between the various index

screens in playback mode (A58).

[Main Functions] Panel

Operating modes:

* In mode, access to functions is limited.

The [ Main Functions] panel contains frequently used shooting func-

tions. Press to open the HOME menu and then touch [ Main

Functions] to open the panel. Alternatively, you can touch F in the

upper-left portion of the recording screen. Next, touch the function you

want to set or adjust.

COPY

Preparations  29

You may need to drag your finger up and down along the scroll bar or

touch [ ] and [ ] to find the control button of the desired function.

[Edit] Panel

Operating modes:

Touch [Edit] to display a panel showing available operations (copying,

deleting, etc.), and then touch the operation you want to perform.

[Other Settings] Menus

Operating modes:

* In mode, access to functions is limited.

Touch the control

button of the

desired function

Drag your finger up

and down along the

scroll bar to display

the rest of the panel

In mode

Touch to scroll up

or down

In mode for 0

Touch the control

button of the

desired operation

COPY

30  Preparations

1 Press to open the HOME

menu.

2 Touch [ Other Settings] to open

the [Other Settings] menus.

3 Touch the tab of the desired

menu.

4 Drag your finger up and down to

bring the setting you want to

change into the orange selection bar.

• You can also use the [ ] and [ ] icons for scrolling.

• Menu items not available appear grayed out.

• You can touch any menu item on the screen to bring it directly into

the selection bar.

5 When the desired menu item is inside the selection bar, touch

[].

6 Touch the desired option and touch [X].

You can touch [X] to close the menu at any time.

Operating Modes

Recording

When recording, the camcorder's operating mode is determined by the

[ Camera Mode] and [ Recording Standard] menus in the HOME

menu. First, set the camera mode.

1 Press to open the

HOME menu.

2 Touch [ Camera Mode] and

then touch the desired camera

mode.

3Touch [OK].

COPY

Preparations  31

Next, set the recording standard. The recording standard determines

the type of data the movie is recorded as — namely, AVCHD or MP4.

1 Press to open the HOME menu.

2 Touch [ Recording Standard] and then touch the desired

recording standard.

3Touch [OK].

Camera mode Operation

(AUTO mode)

Let the camcorder take care of most of the settings while you

concentrate on recording (A44). Great for beginners or if you just

prefer not to bother with detailed camcorder settings.

(Manual mode) Enjoy full access to menus, settings and advanced functions (A86).

(Cinema mode)

Give your recordings a cinematic look and use cinema-look filters to

create unique movies (A69).

Recording

standard

Control

button Operation

Movies are recorded in AVCHD, which is designed for

playback on HDTVs. Select this recording standard if you

plan to show off your movies and you want to impress your

audience with fantastic picture quality.

Movies are recorded in AVCHD using Story Creator

(A66), which allows you to create compelling video

stories. Because Story Creator mode records in AVCHD,

your movies will look amazing when played back on an

HDTV.

By recording movies in MP4, your movies are smaller in

size but retain high quality. This is especially useful for

playback on portable devices or sharing on the Web.

COPY

32  Preparations

NOTES

• You can adjust the video quality using the r > [Recording Mode]

setting.

• Some portable devices may not be able to play back MP4 movies

recorded with this camcorder.

Playback

Press the camera/play button

T to switch the camcorder

between camera (recording) mode

and playback mode. You can press

T when the camcorder is off

to turn it on directly in playback

mode.

NOTES

•0 When switching to a playback mode, the memory selected for

playback will be the same currently used for recording.

Playback mode Operation

Playing back movies (A53).

Viewing photos (A125).

COPY

Preparations  33

First Time Settings

Setting the Date and Time

You will need to set the date and time of

the camcorder before you can start

using it. The [Date/Time] screen (date

and time setup screen) will appear auto-

matically when the camcorder’s clock is

not set.

When the [Date/Time] screen appears, the year will be selected.

1 Touch a field you want to change (year, month, day, hours or

minutes).

2Touch [Î] or [Í] to change the field as necessary.

3 Set the correct date and time by changing all the fields in the

same way.

4 Touch [Y.M.D], [M.D,Y] or [D.M.Y] to select the date format you

prefer.

In some screens, the date will be displayed in short form (numbers

instead of month names), but it will still follow the order you selected.

5 Touch [24H] to use 24-hour clock or leave it unselected to use

12-hour clock (AM/PM).

6 Touch [OK] to start the clock and close the setup screen.

NOTES

• You can adjust the date and time later on with the q > [Date/Time]

setting.

• When you do not use the camcorder for about 3 months, the built-in

rechargeable lithium battery may discharge completely and the date

and time setting may be lost. In such case, recharge the built-in lithium

battery (A217) and set the time zone, date and time again.

COPY

34  Preparations

Changing the Language

The default language of the camcorder

is English. You can set it to one of 27

languages.

Operating modes:

1Press .

2 Select the desired language.

* After changing the camcoder’s language to English, select q >

[Language !] to change the language.

NOTES

• Some control buttons, such as [ZOOM] or [PHOTO], will appear in

English regardless of the language selected.

[ Other Settings] > q > [Language !]* >

Desired language > [OK] > [X]

COPY

Preparations  35

Changing the Time Zone

Change the time zone to match your location. The default setting is

Paris.

Operating modes:

1Press .

2 Open the [Time Zone/DST] screen.

3Touch ["] to set the home time zone, or [#] to set the time zone

of your destination when you are traveling.

4Touch [Í] or [Î] to set the desired time zone. If necessary, touch

[$] to adjust for daylight saving time.

5Touch [X] to close the menu.

[ Other Settings] > q > [Time Zone/DST]

COPY

36  Preparations

Using a Memory Card

Memory Cards Compatible for Use with the Camcorder

You can use the following types of commercially available Secure Digi-

tal (SD) cards with this camcorder.

As of December 2011, the movie recording function has been tested

using SD/SDHC/SDXC memory cards made by Panasonic, Toshiba

and SanDisk. For the latest information on cards that can be used, visit

your local Canon Web site.

* When using an SD memory card without a speed class rating, you may not be able

to record movies, depending on the memory card used.

**SD memory cards with a capacity of 64 MB or smaller cannot be used to record

movies.

NOTES

•About the Speed Class: Speed Class is a standard that indicates the mini-

mum guaranteed data transfer speed of memory cards. When you buy

a new memory card, look for the Speed Class logo on the package.

We recommend using memory cards rated SD Speed Class 4, 6 or 10.

SDXC Memory Cards

You can use SDXC memory cards with this camcorder. When using

memory cards with other devices, such as digital recorders, computers

and card readers, make sure that the external device is compatible

with SDXC cards. The table below summarizes compatibility by com-

puter operating system, as of December 2011. For the latest informa-

tion, however, contact the computer, operating system or memory card

manufacturer.

Memory card type: . SD memory card, / SDHC memory card,

0 SDXC memory card

SD Speed Class*:

Capacity: 128 MB or larger**.

COPY

Preparations  37

Compatible operating systems for SDXC memory cards

IMPORTANT

• If you use an SDXC memory card with a computer OS that is not SDXC-

compatible, you may be prompted to format the memory card. In such

case, cancel the operation to prevent data loss.

• After repeatedly recording, deleting and editing scenes (fragmented

memory), it will take longer to write data on the memory and recording

may stop. Save your recordings and initialize the memory.

Eye-Fi Cards

This product is not guaranteed to support Eye-Fi card functions

(including wireless transfer). In case of an issue with an Eye-Fi card,

please check with the card manufacturer.

Also note that an approval is required to use Eye-Fi cards in many

countries or regions. Without approval, use of the card is not permit-

ted. If it is unclear whether the card has been approved for use in the

area, please check with the card manufacturer.

Operating system Compatibility

Windows 7 Compatible

Windows Vista Compatible (requires Service Pack 1 or later)

Windows XP Compatible (requires Service Pack 3 and KB955704 update)

Mac OS X Compatible (requires version 10.6.5 or later)

COPY

38  Preparations

Inserting and Removing a Memory Card

Make sure to initialize (A40) all memory cards before using them with

this camcorder.

1 Turn off the camcorder.

Make sure the ON/OFF (CHG)

indicator is off.

2 Open the memory card slot

cover.

3 Insert the memory card

straight, with the label facing

away from the camcorder, all

the way into the memory card

slot until it clicks.

• Be sure you understand the

information provided in Eye-Fi

Cards (A37) before using an

Eye-Fi card.

4 Close the memory card slot cover.

Do not force the cover closed if the memory card is not correctly

inserted.

To remove the memory card

Push the memory card once to release it. When the memory card

springs out, pull it all the way out.

IMPORTANT

• Memory cards have front and back sides that are not interchangeable.

Inserting a memory card facing the wrong direction can cause a mal-

function of the camcorder. Be sure to insert the memory card as

described in step 3.

COPY

Preparations  39

0 Selecting the Memory (Built-in Memory/Memory Card) for

the Recordings

You can select to record your movies and photos in the built-in mem-

ory or on a memory card. The default memory for recording both is the

built-in memory.

Operating modes:

POINTS TO CHECK

• Be sure you understand the information provided in Eye-Fi Cards

(A37) before using an Eye-Fi card.

1Press .

2 Select the desired memory.

* When selecting the memory, you can check the approximate available recording

time/number of photos, based on currently used settings.

0 Relay Recording

You can activate the relay recording so if the built-in memory becomes

full while recording movies, the recording will continue uninterrupted

on the memory card.

Operating modes:

1 Insert a memory card that contains no video recordings into the

memory card slot.

2Press .

[ Other Settings] > r > [Rec Media for Movies]

or [Rec Media for Photos] > [&] (built-in memory) or

[*] (memory card)* > [X]

COPY

40  Preparations

3 Activate the relay recording.

* The approximate available recording time will now reflect the combined space in

the memories used for relay recording.

NOTES

• There will be a momentary stop in the scene at the point where the

camcorder switches from one memory to another.

• Any of the following actions will deactivate the relay recording function:

- Turning off the camcorder.

- Opening the memory card slot cover.

- Changing the camcorder’s operating mode.

- Changing the memory used for recording movies.

Initializing the Memory

Initialize memory cards when you use them with this camcorder for the

first time. You can also initialize a memory card or the built-in memory

(0 only) to permanently delete all the recordings it contains.

0 At the time of purchase, the built-in memory comes pre-initial-

ized and contains music files for use as background music and images

for use with the image mix function (image mix frames).

Operating modes:

1 Power the camcorder using the compact power adapter.

Do not disconnect the power source or turn off the camcorder until the

initialization is completed.

2Press .

[

Other Settings]

[Rec Media for Movies]

[

]

[Relay Recording]

[

]

COPY

Preparations  41

3 Initialize the memory.

1Touch this option if you want to physically erase all the data rather than just clear

the file allocation table of the memory.

2If you selected the [Complete Initialization] option, you can touch [Cancel] to cancel

the initialization while it is in progress. All recordings will be erased and the memory

can be used without any problem.

IMPORTANT

• Initializing the memory will permanently erase all recordings. Lost origi-

nal recordings cannot be recovered. Make sure you save important

recordings in advance using an external device (A135).

• Initializing a memory card will permanently erase any music files and

images you may have transferred to the card. (0 The music files

and image mix frames that come pre-installed in the built-in memory will

be restored after it is initialized.) To transfer music files from the supplied

LEGRIA CD-ROM to the memory card connected to a computer:

- Windows users: Remove the memory card from the camcorder, connect

it to a computer and use the supplied PIXELA's software. For details,

refer to the Software Guide (PDF file) of the supplied PIXELA’s software.

- Mac OS users: Remove the memory card from the camcorder and

connect it to a computer. Use Finder to transfer music files from the

[MUSIC] folder on the supplied LEGRIA CD-ROM to the memory card

connected to a computer. Refer to About the music files (A231) for

the folder structure of the memory card.

• At the time of purchase, Eye-Fi cards contain the necessary network

configuration software. Be sure to install the software and complete the

required configuration setup before you initialize the Eye-Fi card prior to

using it with this camcorder.

[ Other Settings] > q > [Initialize &/*] >

[&Built-in Mem.] or [* Mem. Card] > [Initialize] >

[Complete Initialization]1 > [Yes]2 > [OK] > [X]

[ Other Settings] > q > [Initialize *] > [Initialize]

> [Complete Initialization]1 > [Yes]2 > [OK] > [X]

COPY

42  Preparations

Using the Optional Wireless Controller

When you use the optional WL-D89 Wireless Controller, you can con-

veniently operate the camcorder from a distance when, for example,

you are using a tripod to achieve a stable shot. To use the wireless

controller, first perform the following procedure to turn on the cam-

corder's remote sensor.

Operating modes:

1Press .

2 Turn on the remote sensor.

3 Point the wireless controller at the camcorder’s remote sensor

when you press the buttons.

You can rotate the LCD panel 180 degrees to view the screen while

using the wireless controller.

[ Other Settings] > q >

[Wireless Remote Control] > [iOn] > [X]

COPY

Preparations  43

Wireless Controller’s Buttons

NOTES

• The wireless controller may not work properly when the remote sensor

is situated under strong light sources or direct sunlight.

1START/STOP button (A44)

2G (index selection) button

• In any index screen (during playback

mode), press to open the [G Index

Selection] screen (A58).

• Press and hold for more than

2 seconds to switch between

shooting and playback mode.

3MENU button (A29, 178)

Functions the same as on the

camcorder.

4DISP. (onscreen display) button

(A65)

Selects whether to display onscreen

information during playback.

5SET button

Selects an onscreen item.

6Ñ (stop) button (A53)

7PHOTO button (A44)

8Zoom buttons (A49)

9Navigation buttons (Í/Î/Ï/Ð)

Aq Ò (play/pause) button (A53)

COPY

44  AUTO Mode

AUTO Mode

This chapter covers how to easily record video and photos in

mode, and how to use basic shooting functions like zoom

and Quick Start. To enjoy full access to menus and more

advanced functions, refer to Recording in Manual Mode

(A86).

Basic Recording

Shooting Video and Taking Photos in AUTO Mode

With mode, you can take great-looking videos and photos by let-

ting the camcorder automatically adjust settings based on the record-

ing situation.

Operating modes:

POINTS TO CHECK

•Before you begin recording, make a test recording first to check that

the camcorder is operating correctly.

1Press P to turn on the

camcorder.

•0 By default, movies

and photos are recorded in

the built-in memory. You

can select the memory that

will be used to record

movies and photos (A39).

• Please read the

IMPORTANT section

(A48) before using an

Eye-Fi card.

2Press .

To change the recording standard, refer to Recording (A30).





COPY

AUTO Mode  45

3 Set the camcorder to mode.

To record video

Press Y to begin recording.

• Press Y again to pause the recording.

• You can also press Y on the optional WL-D89 Wireless Con-

troller.

• The ACCESS indicator will flash from time to time while the scene is

being recorded.

• You can turn on the scene rating option in recording mode with the

r > [Rate Scenes (Recording)] setting.

To take photos

Touch [PHOTO].

• You can record photos simultaneously while recording a movie.

• A green icon ( ) will appear momentarily on the screen and the

ACCESS indicator will flash as the photo is recorded. However, if you

record a photo while recording a movie, the green icon will not appear.

Instead, a Ð icon will appear in the upper right of the screen.

• You can also press Z on the optional wireless controller.

When you have finished recording

1 Make sure that the ACCESS indicator is off.

2 Turn off the camcorder.

3 Close the LCD panel.

[ Camera Mode] > [N] > [OK]

COPY

46  AUTO Mode

About AUTO mode

• Only the following functions are available in mode.

- Zoom (A49).

- Quick Start (A51).

- Video snapshot (A70).

- Face detection (A97) to get beautiful shots of people every

time, tracking the subject even if the person moves.

- Touch & Track (A99) to track other moving subjects, keeping

them in focus and using the best settings to record them.

- Story Creator (A66) to transform your movies into compelling

video stories by following simple scripts for various scenarios.

-Decoration (A71) to add a fun personal touch using stamps,

drawings, image mix and more.

About the Smart AUTO function

In mode, the camcorder will automatically detect certain

characteristics of the subject, background, lighting conditions, etc.

It will then adjust various settings (focus, exposure, color, image

stabilization, image quality, among others), selecting the best set-

tings for the scene you want to shoot. The Smart AUTO icon will

change to one of the following icons.

COPY

AUTO Mode  47

Smart AUTO icons

* The icon in parentheses appears under backlight conditions.

Background →

(color of the icon) Bright*

(gray)

Blue skies*

(light blue)

Vivid colors*

(green/red)

Sunsets

(orange)

Subject ↓

People (stationary) ( ) ( ) ( ) —

People (moving) ( ) ( ) ( ) —

Subjects other than people,

such as landscapes

( ) ( ) ( )

Close objects /

( / )

( / ) —

Background →

(color of the icon)

Dark

(dark blue)

Subject ↓Spotlight Night scene

People (stationary) — —

People (moving) — —

Subjects other than people,

such as landscapes

Close objects / — —

COPY

48  AUTO Mode

IMPORTANT

• Observe the following precautions while the ACCESS indicator is on or

flashing. Failing to do so may result in permanent data loss or damage

to the memory.

- Do not open the memory card slot cover.

- Do not disconnect the power source or turn off the camcorder.

- Do not change the camcorder’s operating mode.

• Be sure to save your recordings regularly (A135), especially after

making important recordings. Canon shall not be liable for any loss or

corruption of data.

• Recordings on an Eye-Fi card will be uploaded automatically after set-

ting the camcorder to playback mode, if you are within the range of a

configured network. Always verify that Eye-Fi cards have been

approved in the country/region of use. See also Using an Eye-Fi card

(A153).

NOTES

•About the power saving mode: If q > [Power Saving Mode] > [Auto

Power Off] is set to [iOn], the camcorder will shut off automatically

to save power when it is powered by a battery pack and is left without

any operation for 5 minutes. Press P to turn on the camcorder.

Intelligent IS

Intelligent IS allows the camcorder to select the best image stabilization option

based on your shooting method. The Intelligent IS icon will change to one of the

following icons. In and modes, you can set the image stabilization

manually (A95).

* You can turn off Powered IS through the [ Main Functions] panel (A 95).

Shooting method Icon

Most general situations; Zooming out (zooming toward

); Following subjects at a distance moving left or right

Ä (Dynamic IS)

Zooming in (zooming toward S)È (Powered IS)*

Close-up of a subject (Macro IS)

Remaining stationary, such as when using a tripod (Tripod mode)

COPY

AUTO Mode  49

• When recording in bright places, it may be difficult to use the LCD

screen. In such cases, you can adjust the LCD backlight with the q

> [LCD Backlight] setting or adjust the brightness of the LCD screen

with the q > [LCD Brightness] setting.

• Under certain conditions, the Smart AUTO icon that appears on the

screen may not match the actual scene. Especially when shooting

against orange or blue backgrounds, the Sunset or one of the Blue

Skies icons may appear and the colors may not look natural. In such

case, we recommend recording in mode (A86).

• Photos are recorded as JPG files. The photo size (1920x1080) and

quality cannot be changed. At this size, a 1 GB memory card can hold

approximately 670 photos. However, the actual number of photos that

can be recorded will vary depending on the subject and shooting condi-

tions.

Zooming

There are three ways you can zoom in and out: using the zoom lever on

the camcorder, using the zoom buttons on the optional WL-D89 Wire-

less Controller or using the zoom controls on the touch screen.

In addition to the 10x optical zoom, in mode, you can turn on the

digital zoom (40x or 200x) with the p > [Digital Zoom] setting.

Operating modes:

Using the Zoom Lever

Move the zoom lever toward T

(wide angle) to zoom out. Move it

toward S (telephoto) to zoom in.

• By default, the zoom lever

operates at a variable speed –

press gently for a slow zoom;

press harder for faster zooms.

• You can also use the zoom

buttons on the optional wireless

controller.

T Zoom out S Zoom in

COPY

50  AUTO Mode

Using the Touch Screen’s Zoom Controls

1 Display the zoom controls on the touch screen.

• The zoom controls appear on the left side of the screen.

2 Touch the zoom controls to operate

the zoom.

Touch anywhere within the T area to

zoom out or anywhere within the S area

to zoom in. Touch closer to the center for

a slow zoom; touch closer to the V/U

icons for faster zooms.

3Touch [X] to hide the zoom controls.

NOTES

• Keep at least 1 m away from the subject. At full wide angle, you can

focus on a subject as close as 1 cm. Using tele macro (A106), you

can focus on a subject as close as 40 cm at full telephoto.

• In or mode, you can also set p > [Zoom Speed] to

one of three constant speeds (3 is the fastest, 1 the slowest). When

[Zoom Speed] is set to [YVariable]:

- When you use the S and T buttons on the optional wireless

controller, the zoom speed will be constant at [ZSpeed 3].

- The zoom speed will be faster in record pause mode than when

actually recording, except when pre-recording (A96) is activated.

•See Specifications (A230) for notes about this function when the

recording program is set to [šSCN: Underwater] or [ŸSCN: Sur-

face].

[FUNC.] > [ZOOM Zoom]

COPY

AUTO Mode  51

Quick Start

When you close the LCD panel with the camcorder on, the camcorder

enters the standby mode. In standby mode the camcorder consumes

only about 1/3 the power used when recording, saving energy when

you are using a battery pack. Additionally, when you open the LCD

panel, the camcorder is ready to start recording in approximately

1 second*, allowing you to record the subject right away.

* The actual time required varies depending on the shooting conditions.

Operating modes:

1 With the camcorder on and in a recording mode, close the LCD

panel.

A beep will sound and the green ON/OFF (CHG) indicator will change

to orange to indicate the camcorder entered standby mode.

2 When you wish to resume recording, open the LCD panel.

The ON/OFF (CHG) indicator turns back green and the camcorder is

ready to record.

IMPORTANT

• Do not disconnect the power source during standby mode (while the

ON/OFF (CHG) indicator is lit in orange).

NOTES

• The camcorder will not enter standby mode if the LCD panel is closed

while the ACCESS indicator is on or flashing or while the HOME menu

or menus contained therein (not including the [ Main Functions]

panel) are being displayed. The camcorder may also not enter standby

mode when the battery charge is too low. Check that the ON/OFF

(CHG) indicator changes to orange.

COPY

52  AUTO Mode

• About standby mode and auto power off:

- The camcorder will power off automatically if left in standby mode for

10 minutes. Press P to turn on the camcorder.

- You can select the length of time until shut-off or turn off the Quick

Start function altogether with the q> [Power Saving Mode] >

[Quick Start (Standby)] setting.

- The usual 5-minute auto power off setting of [Power Saving Mode] is

not applicable while the camcorder is in standby mode.

COPY

Video  53

Video

This chapter covers functions related to movies, including play-

back, advanced shooting, using Story Creator and other

advanced functions. For details about basic video shooting,

refer to AUTO Mode (A44).

Basic Playback

Playing Back Video

You can use the s > [Data Code] setting to choose whether to

display the recording date (and other information, for AVCHD movies)

when you play back videos (A65).

Operating modes:

1Press T.

You can also press and hold

on the optional WL-D89

Wireless Controller for more than

2 seconds to switch between

shooting and playback mode.

2 Open the [ Movies] or

[ Movies] index screen, if

it is not displayed.

[G] > [ Movies] or [ Movies]

COPY

54  Video

3 Look for the scene you want to play back.

Move the zoom lever toward T to show 15 scenes per page; move it

toward S to show 6 scenes per page.

4 Touch the desired scene to play it back.

• For AVCHD movies, the camcorder will play back the scene selected

and continue until the end of the last scene in the index screen. For

MP4 movies, the camcorder will play back only one scene.

• Touch the screen to display the playback controls. During playback,

the playback controls will disappear automatically after a few

seconds without operation. In playback pause, touch the screen

again to hide the playback controls.

!Open the index selection screen.

"Memory being read.

#Recording date.**

$Division line between recording dates.

%Drag your finger left/right for the next/previous index

page*.

&Display the next/previous index page.

'Scene's timeline (A63)**.

(3D Flip View (A57)**.

* While browsing through index pages, a larger scroll bar will appear

at the bottom of the screen for a few seconds. When you have a

large number of scenes it may be more convenient to drag your fin-

ger along the scroll bar.

**Not available for MP4 movies.

COPY

Video  55

During playback:

Adjusting the volume for AVCHD movies

1 During playback, touch the screen to display the playback controls.

2Touch [Ý], drag your finger along the [Speaker Volume]* bar to

adjust the volume and touch [K].

*When q > [AV/Headphones] is set to [Ó Headphones], adjust the [Head-

phone Volume] bar instead.

Adjusting the volume for MP4 movies

1 During playback, touch the screen to display the playback controls.

2 Drag your finger across the volume bar to adjust the volume.

!Jump to the beginning of the scene. Double-tap to jump to the previ-

ous scene*.

"Jump to the beginning of the next scene*.

#Pause the playback.

$Fast playback** backward/forward.

%Display the volume (A55) and background music mix balance

(A80) controls.

&Stop the playback.

'Decoration (A71).

(Volume.

)Recording date.

* Not available for MP4 movies.

**Touch several times to increase the playback speed to approximately 5x → 15x →

60x (for AVCHD movies) or 5x → 15x (for MP4 movies) normal speed.

AVCHD movies MP4 movies

COPY

56  Video

During playback pause:

IMPORTANT

• Observe the following precautions while the ACCESS indicator is on or

flashing. Failing to do so may result in permanent data loss.

- Do not open the memory card slot cover.

- Do not disconnect the power source or turn off the camcorder.

- Do not change the camcorder’s operating mode.

• You may not be able to play back with this camcorder movies recorded

on a memory card using another device and then transferred to a mem-

ory card connected to a computer.

NOTES

• Depending on the recording conditions, you may notice brief stops in

video or sound playback between scenes.

• During fast/slow playback, you may notice some anomalies (blocky

video artifacts, banding, etc.) in the playback picture.

• The speed indicated on the screen is approximate.

• Slow reverse playback will look the same as continuous frame reverse.

!Resume playback.

"Slow playback* backward/forward.

#Capture the displayed frame as a photo (A122)**.

$Decoration (A71)**.

* Touch several times to increase the playback speed 1/8 → 1/4 the

normal speed.

**Not available for MP4 movies.

COPY

Video  57

3D Flip View

Operating modes:

Touch [ ] in the [ Movies] index screen to switch to 3D Flip View.

This fun way of displaying scenes grouped by recording date in a 3D

layout can be useful to flip through a large number of recordings.

!Recording date.

"Drag your finger left to go to the next date with record-

ings.

#Drag your finger up and down to browse through the

scenes recorded in the displayed date.

$Drag your finger right to go to the previous date with

recordings.

%Return to the [ Movies] index screen.

&Current scene / Total number of scenes recorded on the

selected date.

'Touch the scene in the front to play it back.

COPY

58  Video

The [Index Selection] Screen: Selecting the Content to Play Back

From the [G Index Selection] screen you can select the content you

want to play back (original scenes by date or by story, or photos, for

example). 0 You can also select the memory from which you want

to play back your recordings.

Operating modes:

In any index screen:

Tou c h [ G].

During single photo view, touch the screen once to display the controls

then touch [f] to open the [ Photos] index screen.

Options

[y Movies] Scenes recorded in AVCHD organized by

recording date.

[ê Gallery] Scenes recorded in AVCHD organized by story

(A76).

[ Movies]Scenes recorded in MP4.

[ Photos] Photos’ index screen.

[z SD Movies] (0 only when a memory card is selected)

Scenes that were converted to standard definition to upload

them to the Web (A148).

!0 Touch the tab of the desired memory: built-in

memory or memory card.

"Touch a control button to select the content you want to

play back.

COPY

Video  59

NOTES

•0 Fast/slow playback modes are not available for scenes con-

verted to standard definition. Scenes in the [SD Movies] index screen

can only be played back at normal speed.

• You cannot jump to the previous or next scene with MP4 movies.

Deleting Scenes and Stories

You can delete those scenes and stories that you are not interested in

keeping. Deleting scenes allows you also to free up space on the mem-

ory.

Deleting a Single Scene

Operating modes:

1 Play back the scene you wish to delete.

When playing back a scene in the gallery, pause the scene you wish to

delete and then continue to step 2.

2 Touch the screen to display the playback controls.

Two playback modes for AVCHD movies: the [ Movies]

index screen vs. the gallery

In the [ Movies] index screen you can find all the AVCHD mov-

ies you have recorded, conveniently organized by recording date.

When you play back scenes from the [ Movies] index screen

they will be played back in chronological order.

In the gallery, you can find your scenes grouped as video stories. If

you record movies using the Story Creator function (A66), your

scenes will appear in the story you created; scenes recorded with-

out using this function will appear in the [Unsorted] story (or [Video

Snapshot] story, in the case of video snapshot scenes). When you

play back a story from the gallery, scenes will be played back in the

order of the story’s outline, regardless of their recording date.

COPY

60  Video

3 Delete the scene.

Deleting Scenes from the [ Movies] or [ Movies] Index Screen

Operating modes:

1 Open the [ Movies] or [ Movies] index screen.

For AVCHD movies, to delete all the scenes recorded on a specific

date, drag your finger left/right until the desired date appears in the title

bar.

2 Delete the scenes.

* When you select [Select], perform the following procedure to select the individ-

ual scenes you want to delete before touching [Yes].

**Touch [Stop] to interrupt the operation while it is in progress. Some scenes may

be deleted nevertheless.

To select individual scenes

1 Touch on the individual scenes you want to delete.

• A checkmark ! will appear on the scenes you touch. The total

number of selected scenes will appear next to the " icon.

• Touch a selected scene to remove the checkmark. To remove all

checkmarks at once, touch [Remove All] > [Yes].

2 After selecting all the desired scenes, touch [OK].

Options

[date]Delete all the scenes recorded on the date shown in the

control button. For AVCHD movies only.

[Select] Select individual scenes to delete.

[All Scenes] Delete all the scenes.

[Ý] > [Edit] > [Delete] > [Yes] > [OK]

[Edit] > [Delete] > Desired option* > [Yes]** > [OK]

COPY

Video  61

Deleting a Single Scene from a Story

Operating modes:

1 Open the list of scenes of the story that contains the scene you

want to delete.

2 In the [Scene List] screen, drag your finger up/down to select the

scene you want to delete.

3 Touch the orange [ ] icon on the left to open the [Edit Scene]

screen.

4 Delete the scene.

Deleting Scenes from a Story by Rating

Operating modes:

1 Open the information screen of the story that contains the scenes

you want to delete.

2 Open the rating selection screen.

[G] > [ Gallery] > Bring the desired story to the

front > [Scene List]

[] > [Yes] > [OK] > [K]

[G] > [ Gallery] > Bring the desired story to the

front > [Story Details]

[Edit Story] > [Delete]

COPY

62  Video

3 Touch one or more of the rating buttons to select all the

applicable scenes.

• A grayed out rating button indicates that no scenes in the story have

been given that particular rating.

• The number of selected scenes appears on the screen.

• Touch the rating button again to remove those scenes from the

selection.

4 Delete all applicable scenes.

* Touch [Stop] to interrupt the operation while it is in progress. Some scenes may

be deleted nevertheless.

Deleting Stories

Operating modes:

Deleting a story permanently deletes all the scenes it contains. The two

preexisting stories, [Unsorted] and [Video Snapshot], cannot be

deleted.

1 Open the gallery.

2 Select the story you want to delete.

Drag your finger right/left to bring the desired story to the front.

3 Delete the story.

* Touch [Stop] to interrupt the operation while it is in progress. Some scenes may

be deleted nevertheless.

[Set] > [Yes]* > [OK] > [K]

[G] > [ Gallery]

[Story Details] > [Edit Story] > [Delete Story] > [Yes]*

> [OK]

COPY

Video  63

IMPORTANT

• Be careful when deleting recordings. Once deleted, scenes cannot be

recovered.

• Deleting a story permanently deletes all the scenes it contains.

• When deleting scenes, scenes will be removed from the [ Movies]

or [ Movies] index screen and from any stories in the gallery they

may have belonged to, regardless of the method used to delete them.

• Save copies of important scenes before deleting them (A138).

• Observe the following precautions while the ACCESS indicator is on or

flashing (while scenes are being deleted).

- Do not open the memory card slot cover.

- Do not disconnect the power source or turn off the camcorder.

- Do not change the camcorder’s operating mode.

NOTES

• To delete all movies and make all recordable space available again you

may prefer to initialize the memory (A40).

Selecting the Playback Starting Point

If you have a very long scene, you may want to start playing back the

scene from a certain point. You can use the movie timeline to break the

scene to segments at fixed time intervals ranging from 6 seconds to

6 minutes.

Operating modes:

1 Open the [ Movies] index screen.

2 Open the scene’s [Timeline] screen.

The [Timeline] screen appears. The large thumbnail will show the first

frame of the scene. Below it, the timeline ruler shows frames taken

from the scene at fixed intervals.

[I] > Desired scene

COPY

64  Video

3 Touch the desired frame in the timeline ruler to start playing back

the scene from that point.

To change the interval between frames

!Touch twice to return to the index screen.

"Previous/next scene.

#Drag your finger left along the ruler to display the next 5 frames.

$Scene’s recording mode and length.

%Recording date and time.

&Drag your finger right along the ruler to display the previous

5frames.

'Current scene / Total number of scenes.

(Currently selected interval between frames.

[6 sec] > Desired interval > [K]

COPY

Video  65

Onscreen Displays and Data Code

With every scene or photo recorded, the camcorder keeps a data

code. For AVCHD movies, the data code includes date/time of record-

ing, information about the camera setup, etc. For MP4 movies, the

data code is the date of recording. You can choose the information to

be displayed.

Operating modes:

1Press .

2 Select the information to be displayed.

NOTES

• The data code will appear when the screen is touched, regardless of the

selected option.

[ Other Settings] > [y] or [ ] > [Data Code] >

Desired option > [X]

COPY

66  Video

Video Stories and Cinema Style

Using Story Creator to Create Compelling Stories

Story Creator is a helpful function that offers suggestions for typical

scenes in a number of situations. With Story Creator, creating interest-

ing video stories is as easy as selecting one of the story themes, such

as [Travel], [Party] or [Kids & Pets], and following the suggested cate-

gories to record video. During playback, select your story from the gal-

lery to play back the scenes you recorded as a single, compelling video

story (A76).

Operating modes:

Creating a New Story

1Press .

2 Start Story Creator mode.

3 Touch [Create New Story] and select the desired theme.

Drag your finger left/right to bring the desired story theme to the front.

4 Touch [Create Story] and then select the story scene (category).

Initially, the current date will be used as the story’s title, but you can

change it by touching [ì] (A84).

5 Touch [To Recording Screen].

A confirmation screen will appear that shows the selected theme, story

scene (category), shooting advice and the recommended shooting

length.

[ Recording Standard] > [é] > [OK]

[ë] (including the story scene title) > Desired story

scene > Orange [ ] icon on the left

COPY

Video  67

6Touch [OK].

• A new story will be created and the camcorder will enter record

pause mode. The selected story scene category will appear at the

bottom of the screen.

• If you touch [?], a screen showing the selected theme, story scene

(category), shooting advice and the recommended shooting length

will appear.

Recording a Scene within a Story

Press Y to record movies within the selected story scene

(category).

• Use the displayed recommended length as a reference when recording

scenes.

• Scenes will be recorded under the story and story scene currently

selected.

• You can also record video snapshot scenes (A70).

To select a different story scene (category)

1Touch [ë] (including the story scene title) at the bottom of the

screen.

2 Drag your finger up/down to select another category and touch the

orange [ ] icon on the left.

!Shooting tip for the current category.

"Recommended length of scenes in this category.

#Currently selected story scene (category). You can

touch here to return to the list of story scenes.

COPY

68  Video

To exit Story Creator mode

1Press .

2 Touch [ Recording Standard] and then select a different

recording standard.

NOTES

• When recording video snapshot scenes, you can have the camcorder

automatically link the length of video snapshot scenes to the recom-

mended length of story scenes with the r > [Video Snapshot

Length] setting.

• Relay recording is not available during Story Creator mode.

Recording Additional Scenes within an Existing Story

1Press .

2 Start Story Creator mode.

3 Touch [Continue Existing Story] and select the desired story.

Drag your finger left/right to bring the desired story to the front.

4 Touch [Continue Story].

5Touch [ë] (including the story scene title).

The list of story scenes will appear. The numbers on the right will show

how many scenes you have recorded in each story scene (category).

6 Drag your finger up/down to select a category and touch the

orange [ ] icon on the left.

7 Touch [To Recording Screen] and then press Y to

record a scene within the selected story scene.

[ Recording Standard] > [é] > [OK]

COPY

Video  69

Cinema Mode and Cinema-Look Filters

In (cinema) mode, the camcorder will adjust the frame rate and

several other picture-related settings to give your recordings a cine-

matic look. In this mode you can also use a variety of professional cin-

ema-look filters to create unique movies with a distinctive appearance.

Operating modes:

1Press .

2 Set the camcorder to mode.

3 Select the desired cinema-look filter.

* When you select a cinema-look filter other than [Cinema Standard], you can

change the effect level with the following procedure before touching [OK].

• The selected cinema-look filter will be applied and its number will

appear on the control button.

To select the effect level of the cinema-look filter

[Camera Mode] > [] > [OK]

[FILTER 1] > Desired cinema-look filter* > [OK]

[w] > [L] (low), [M] (medium) or [H] (high) > [K]

COPY

70  Video

Options ( Default value)

The camcorder offers 7 cinema-

look filters. Select the desired filter

while previewing the effect on the

screen.

NOTES

• Photos cannot be recorded while the camcorder is set to mode.

Video Snapshot

Record a series of short scenes. Then, play back your video snapshot

scenes set to your favorite music (A80) to create your own fun music

video. You will be surprised how by changing the background music,

you can give your scenes an entirely new feel.

The default length of a video snapshot scene is 4 seconds but you can

change it to 2 or 8 seconds, or to the length recommended for the

selected story scene (category) in Story Creator, with the r >

[Video Snapshot Length] setting.

Operating modes:

[1: Cinema Standard]

[2: Vivid]

[3: Dream]

[4: Cool]

[5: Nostalgic]

[6: Sepia]

[7: Old Movies]

[8: Memory]

[9: Dramatic B&W]

!Filter number (will appear on

the control button)

"Filter name

#Preview the effect on the

screen

$Select the effect level

%Brief description (onscreen

guidance)

COPY

Video  71

1Press V.

• A blue border appears on the

screen.

• Press V again to

return to normal video

recording mode.

2Press Y.

• The camcorder records for a

few seconds (the blue frame

serves as a visual progress

bar*) and then automatically

returns to record pause mode.

• When the camcorder stops recording, the screen will momentarily

turn black as if a camera shutter had released.

* When the recording program is set to [šSCN: Underwater], the visual

progress bar will be red.

NOTES

• Changing the camcorder to playback mode will deactivate the video

snapshot mode.

Decoration: Adding a Personal Touch

Add a new level of enjoyment to

your scenes by decorating

them. You can add animated

graphics, stamps and even your

own freehand drawings. The

supplied stylus pen will be espe-

cially useful for decorating

scenes.

You can decorate scenes as

they are being recorded. For

AVCHD movies, you can also

decorate scenes during play-

back or when converting them to standard definition (0 only;

A149).

COPY

72  Video

Decorating Scenes while Recording

Operating modes:

1 Open the decoration screen.

• The decoration screen will open automatically also when you stow

the LCD panel with the touch screen facing out.

2 Use a tool from the toolbar as explained in the following

procedures.

3Press Y to record movies with your decorations.

You can add decorations even while recording a scene.

4Touch [X] to exit the decoration screen.

!Canvas - The area where you will draw and see your decorations

in action.

"Toolbar.

#[Ó Pens and Stamps] Select the type of pen or stamp and its

color. You can also save a canvas or load a previously saved

canvas.

$[× Animated Stamps] Select animated stamps to add to your

decoration.

%[Ø Captions] Add the date, date and time, story title* or story

theme* as a caption that will be included in the recording.

[FUNC.] > [ÒDecoration]

COPY

Video  73

&[Ü]** (Image Mix) Choose one of 27 different frames to add

onto the canvas. Image mix can be used in combination with the

pens, stamps and animated stamps.

'[Ý]** In recording mode: pause the live video. Touch [Ý] again to

restore the live video. You can add decorations to and record the

frozen image.

In playback mode: pause the playback. Touch [Ð] to resume

playing back the scene.

([ß] Minimize the toolbar to the top of the screen to view almost

all of the canvas. Touch [à] to restore the toolbar.

* Not available in mode.

**Not available in mode and for MP4 movies.

To use [Pens and Stamps]

1Touch [Ó].

The [Pens and Stamps] screen will appear.

2 Select the desired pen or stamp from [Tools].

3 Select white or black from [Colors].

Alternatively, you can touch [Ö] and select a color from the color

palette.

4 Draw freely on the canvas.

Touch [Ó] > [Clear] > [Yes] to clear the canvas and start again.

5 When you finish drawing, save the canvas.

* The freehand drawings and stamps will be saved in the built-in memory (0

only) or on a memory card (1 only).

To load a previously saved canvas

In the decoration screen:

* The camcorder will apply the last freehand drawings and stamps that were saved

in the built-in memory (0 only) or on a memory card (1 only).

[Ó] > [&Save]* or [* Save]* > [Yes] > [K]

[Ó] > [&Load]* or [* Load]* > [Yes] > [K]

COPY

74  Video

To use [Animated Stamps]

1Touch [×].

The [Animated Stamps] screen will appear.

2 Touch one of the control buttons.

3 Touch anywhere on the canvas to place the selected animated

stamp. You can also drag some animated stamps to a different

location.

To use [Captions]

1Touch [Ø].

The [Captions] screen will appear.

2 Touch [Date] or [Time].

When recording a scene using Story Creator, you can also select [Title]

(the story’s title) or [Story Scene] (the story scene category).

3 Select the desired text settings and touch [K].

• Touch [ ] (white text on dark background), [ ] (white text) or [ ]

(black text).

4 Touch the caption and drag it to the desired location.

To use image mix

To use the image mix function when recording on a memory card, you

will need to connect the memory card to a computer and transfer the

image mix data from the supplied LEGRIA CD-ROM to the memory

card in advance.

See About the image files for the Image Mix function (A 231).

Operating modes:

1Touch [Ü] to open the [Select Image] screen.

2 Touch [+] or [-] to select a different image mix frame.

0 You can touch one of the memory icons at the bottom of the

screen to read image mix frames saved in the built-in memory (only

when recording on or playing back scenes from a memory card).

3Touch [K] to mix the selected frame with the live video.

COPY

Video  75

Decorating Scenes during Playback

Operating modes:

1 From the [ Movies] index screen or gallery, play back the

scene you want to decorate.

2 Touch the screen to display the playback controls.

3Touch [Ò] to open the decoration screen.

4 Decorate the scene using the tools from the toolbar as explained

in the previous section.

In playback mode, the decorations will not be saved with the original

recording.

NOTES

• Initializing a memory will erase any [Pens and Stamps] drawing canvas

and image files you may have saved. (0 The image mix frames that

come pre-installed in the built-in memory will be restored after it is initial-

ized.)

• When q > [Autostart Decoration] is set to [i On], the decora-

tion screen will open automatically when you stow the LCD panel with

the LCD screen facing out.

• Animated stamps and captions cannot be used at the same time.

•0 When r > [Rec Media for Movies] is set to [&] (the built-in

memory), you will not be able to select image mix frames saved on a

memory card.

• For AVCHD movies, image mix cannot be selected during playback or

while converting a scene to standard definition (A148; 0 only).

Select the image mix during playback pause or before starting the con-

version.

• For AVCHD movies, decorations will appear in the thumbnails of scenes

in the [ Movies] index screen and gallery. For MP4 movies, decora-

tions will not appear in thumbnails.

COPY

76  Video

Playing Back Stories from the Gallery

You can play back recordings made using Story Creator to play them

back as a single compelling video story following the order of the

story’s script. Regular scenes and video snapshot scenes recorded

without using Story Creator, will appear in the gallery under the

[Unsorted] or [Video Snapshot] stories. When playing back stories from

the gallery, you can choose to play back only scenes with a certain rat-

ing.

Operating modes:

1 Open the gallery.

!Open the [G Index Selection] screen (A58).

"Drag your finger right or left to select a story.

#Story’s theme.

$Selected story (large thumbnail in the front).

%Story’s title (A84).

&Details about the story (number of scenes, total playback time)

and editing options.

'List of scenes recorded in the selected story.

2 Select the story you want to play back.

Drag your finger right/left to bring the desired story to the front.

[G] > [ Gallery]

COPY

Video  77

3 Select the rating of the scenes you want to play back.

4 Touch the story’s thumbnail to start the playback.

• The complete story will be played back from the first scene to the

last. When playback ends, the camcorder will return to the gallery.

• During the playback of a story other than [Unsorted] or [Video

Snapshot], touch the screen and then touch [ë] to display the

scene’s category during playback. Touch the screen and then touch

[ë] again to turn the story scene display off.

• Playback controls are the same as when playing back scenes from

the [ Movies] or [ Movies] index screen (A55).

IMPORTANT

• Observe the following precautions while the ACCESS indicator is on or

flashing. Failing to do so may result in permanent data loss.

- Do not open the memory card slot cover.

- Do not disconnect the power source or turn off the camcorder.

- Do not change the camcorder’s operating mode.

NOTES

• If playback of a scene in the gallery is interrupted, you cannot resume

playback at the point it stopped. The story will start over from the begin-

ning the next time you play it back.

[Story Details] > [Select by Rating] > Desired rating >

[K] > [K]

COPY

78  Video

Rating Scenes

You can rate story scenes immediately after recording them or during

playback. You can then select multiple scenes with the same rating, for

example, in order to play back or copy only your favorite scenes.

Rating Scenes Immediately After Recording

Operating modes:

1Press .

2 Activate the scene rating function.

To rate scenes

Immediately after recording a scene, rating buttons will appear at the

bottom of the screen. Touch one of the rating buttons to rate the scene

from one to three stars. You can touch [Ì] to leave the scene

unrated or [Í] to classify it in a separate category (for example,

just for outtakes).

To turn off the scene rating function

When the rating buttons appear after recording a scene, touch [X] and

then touch [Off]. This will also leave the current the scene unrated.

Rating Scenes from the List of Scenes

Operating modes:

1Press .

[ Other Settings] > r > [Rate Scenes

(Recording)] > [i On] > [X]

COPY

Video  79

2 Open the list of scenes of the story that contains the scenes you

want to rate.

3 In the [Scene List] screen, drag your finger up/down to select the

scene you want to rate.

4 Touch the orange [ ] icon on the left to open the [Edit Scene]

screen.

5 Touch the control button of the desired rating and touch [K]

twice to return to the gallery.

Rating Scenes During Playback

Operating modes:

1 Play back from the gallery the story that contains the scenes you

want to rate.

2 During playback of a scene you want to rate, pause the playback

and rate the scene.

3Touch [Ð] to resume the playback and rate other scenes in the

same way or touch [Ñ] to return to the gallery.

[G] > [ Gallery] > Bring the desired story to the

front > [Scene List]

Touch the screen > [Ý] > [Edit] > [Rating] > Desired

rating > [X]

COPY

80  Video

Playback with Background Music

You can play back movies (or a photo slideshow) using one of the sup-

plied music tracks from the supplied LEGRIA CD-ROM as background

music.

Operating modes:

The supplied LEGRIA CD-ROM contains 3 music tracks you can use as

background music. 0: The music files come pre-installed in the

built-in memory.

You can mix the original audio and the background music and adjust

the background music mix balance to your preference.

POINTS TO CHECK

• To play back scenes or a slideshow of photos recorded on a memory

card, you will need to connect the memory card that contains your

recordings to a computer and transfer the music tracks in advance. See

the NOTES section (A82).

1Press .

2 Open the gallery or [ Movies] index screen.

3Press .

4 Select the music track.

[G] > [ Gallery] or [ Movies]

[ Other Settings]

[Select Music]

[

On]

[Í] or [Î] to select the desired music track

COPY

Video  81

5 Adjust the mix balance between the original sound and the

background music.

Touch [y] (more of the original sound) or [Û] (more of the background

music) or drag your finger along the [Music Balance] bar to adjust the

background music balance as desired.

6Touch [X] and then touch a story or scene to start the playback

with the selected background music.

To adjust the background music balance during playback

1 During playback, touch the screen to display the playback controls.

2Touch [Ý], drag your finger along the [Music Balance] bar to adjust

the background music balance as desired and touch [K].

To delete a music track

In the [Select Music] screen, touch [Í] or [Î] to select the track you

want to delete.

!Select the desired music track.

"Adjust the background music balance.

#Play back the original sound (no background music).

$Delete the music track selected.

%Listen to the music track selected. Touch again (Ñ) to

stop the playback.

[] > [Yes]

COPY

82  Video

IMPORTANT

• If you use copyrighted songs and music tracks in your video creations,

remember that music under copyright may not be used without permis-

sion from the copyright holder, except for cases permitted under appli-

cable laws, such as for personal use. Make sure to follow applicable

laws when using music files.

NOTES

• Initializing a memory card will permanently erase any music files you

may have transferred to the card. (0 The music files that come pre-

installed in the built-in memory will be restored after it is initialized.) To

transfer music files from the supplied LEGRIA CD-ROM to the memory

card connected to a computer:

- Windows users: Remove the memory card from the camcorder,

connect it to a computer and use the supplied software

VideoBrowser (0 only) or Transfer Utility (1 only). For

details, refer to the Software Guide (PDF file) of the supplied PIXELA’s

software.

- Mac OS users: Remove the memory card from the camcorder and

connect it to a computer. Use Finder to transfer music files from the

[MUSIC] folder on the supplied LEGRIA CD-ROM to the memory card

connected to a computer. Refer to About the music files (A231) for

the folder structure of the memory card.

• Transfer music files to the memory card connected to a computer that

contains the recordings you want to play back with background music.

Copying and Moving Scenes Within/Between Stories

You can copy and move scenes in the gallery within the same story

scene (category), between story scenes in the same story, and

between stories recorded in the same memory.

Operating modes:

COPY

Video  83

1 Open the list of scenes of the story that contains the scene you

want to copy or move.

2 In the [Scene List] screen, drag your finger up/down to select the

scene you want to copy/move.

3 Touch the orange [ ] icon on the left to open the [Edit Scene]

screen and touch [Copy] or [Move].

4 Select the destination.

Drag your finger right/left to select the desired story and touch its

thumbnail. Then, drag your finger up/down to select the desired

category and touch the orange [ ] icon on the left. And last, drag your

finger up/down to move the orange bar within the category to select

the position of the scene.

5 Copy or move the scene.

1This step is not necessary when copying/moving a scene into a story scene

category that contains no other scenes.

2When copying a scene, you can touch [Stop] to interrupt the operation while it

is in progress.

3This step is not necessary when moving a scene.

NOTES

• You cannot copy or move scenes to the two preexisting stories,

[Unsorted] and [Video Snapshot].

[G] > [ Gallery] > Bring the desired story to the

front > [Scene List]

[Set]1 > [Yes]2 > [OK]3 > [K]

COPY

84  Video

Selecting a Story’s Thumbnail Image

Initially, the image used as the story’s thumbnail is the first frame of the

first scene in the story. You can set your favorite scene as the thumb-

nail that will represent the story in the gallery.

Operating modes:

1 Open the gallery.

2 Select the story whose thumbnail you want to change.

Drag your finger right/left to bring the desired story to the front.

3 Open the [Story Thumbnail] screen.

4 Locate the frame you want to use as the story’s thumbnail.

Playback controls will appear on the screen (A55). Use any special

playback modes (fast/slow playback, frame reverse/advance) as

necessary to locate the desired image.

5 Touch [Set] to change the story’s thumbnail.

6Touch [K] to return to the gallery.

Changing a Story’s Title

When you first create a story, the current date will be used as the

story’s title but you can change the title later on. The title can be up to

14 characters long (available characters are limited). The title of the two

preexisting stories, [Unsorted] and [Video Snapshot] cannot be

changed.

Operating modes:

[G] > [ Gallery]

[Story Details] > [Edit Story] > [Story Thumbnail]

COPY

Video  85

1 Open the gallery.

2 Select the story whose title you want to change.

Drag your finger right/left to bring the desired story to the front.

3 Open the [Edit Title] screen.

4 Use the virtual keyboard to change the title.

5Touch [OK] > [K] > [K] to return to the gallery.

NOTES

• We recommend using the supplied stylus pen to enter characters.

•0 When you import files with the supplied software VideoBrowser

using the option to join and import music and video files from the gallery,

some special characters in the story's title (/, \, <, >, :, *, ", |, ?) will be

changed to an underscore (_) in the file name.

[G] > [ Gallery]

[Story Details] > [Edit Story] > [Edit Title]

!Switch between letters and numbers/special characters.

"Change the position of the cursor.

#Delete the character to the cursor’s left (backspace).

$Caps Lock. When the numerical keyboard is displayed,

[#%?] switches between set 1 and set 2 of special char-

acters.

COPY

86  Video

Advanced Functions

Recording in Manual Mode

When the camcorder is set to mode, you can enjoy full access to

the menus and manually adjust the exposure, focus, white balance and

many more of the camcorder’s settings to your preference. Even in this

mode, though, the camcorder can help you with the settings. For

example, by using Special Scene recording programs (A92).

Operating modes:

1Press P to turn on the

camcorder.

•0 By default, movies

and photos are recorded in

the built-in memory. You can

select the memory that will

be used to record movies

and photos (A39).

• Please read the IMPORTANT

section (A48) before using

an Eye-Fi card.

2Press .

To change the recording

standard, refer to Recording

(A30).

3 Set the camcorder to mode.

4 Record movies and photos.

The procedure is the same as in mode (A44).





[ Camera Mode] > [n] > [OK]

COPY

Video  87

IMPORTANT

• Observe the following precautions while the ACCESS indicator is on or

flashing. Failing to do so may result in permanent data loss or damage

to the memory.

- Do not open the memory card slot cover.

- Do not disconnect the power source or turn off the camcorder.

- Do not change the camcorder’s operating mode.

• Be sure to save your recordings regularly (A135), especially after

making important recordings. Canon shall not be liable for any loss or

corruption of data.

• Recordings on an Eye-Fi card will be uploaded automatically after set-

ting the camcorder to playback mode, if you are within the range of a

configured network. Always verify that Eye-Fi cards have been

approved in the country/region of use. See also Using an Eye-Fi card

(A153).

NOTES

• The zoom, Quick Start function, power saving modes, etc. operate the

same way in mode as in mode. For details, refer to AUTO

Mode (A44).

• Photos cannot be recorded while the digital zoom is activated (light blue

area on the zoom bar) or while fading in or fading out a scene.

Reviewing the Latest Scene Recorded

You can review the last 4 seconds of the last scene recorded with the

camcorder without switching to playback mode. While reviewing the

latest scene, the picture will be played back without sound.

Operating modes:

[FUNC.] > [v Review Recording]

COPY

88  Video

NOTES

• For MP4 movies, you cannot review the last movie recorded if, after you

recorded the movie, you performed another operation such as opening

a menu.

Selecting the Video Quality (Recording Mode)

The camcorder offers 5 recording modes for recording AVCHD movies

and 2 for MP4 movies. Changing the recording mode will change the

recording time available on the memory. For AVCHD movies, select

MXP or FXP mode for better movie quality; select LP mode for longer

recording times.

For MP4 movies, you can choose one of two bit rates. Bit rate indi-

cates how much information is recorded in 1 second of video. Select

4 Mbps for smaller file sizes and faster uploads.

The following table gives approximate recording times.

Operating modes:

1Press .

2 Select the recording mode.

For MP4 movies, a single scene can be

recorded continuously for 30 minutes. The

icon in the upper left is a reminder of

this. If the file size reaches 4 GB even before

30 minutes has elapsed, however, recording

will stop.

[ Other Settings] > r > [Recording Mode] >

Desired recording mode > [X]

COPY

Video  89

NOTES

• Movies recorded in MXP mode cannot be saved on AVCHD discs. Use

an external Blu-ray Disc recorder to copy MXP movies onto Blu-ray

discs. 0 Alternatively, you can use the supplied software Video-

Browser to create AVCHD discs*.

• The camcorder uses a variable bit rate (VBR) to encode video so the

actual recording times will vary depending on the content of the scenes.

• You cannot create a video disc of MP4 movies that is playable on com-

mercially available players.

* MXP scenes will be converted to an image quality similar to that of FXP scenes.

COPY

90  Video

Approximate recording times  Default value

AVCHD movies in MXP mode are recorded in 1,920 x 1,080 resolution. AVCHD

movies recorded using other recording modes are recorded in 1,440 x 1,080

resolution. MP4 movies are recorded in 1,280 x 720 resolution.

For AVCHD movies:

For MP4 movies:

10 At the time of purchase, the built-in memory contains about 70 MB of

music files (background music), 5 MB of image files (image mix frames) and

about 2 MB of file management data.

2A single scene can be recorded continuously for 12 hours; at that point, the

camcorder will stop for about 3 seconds before resuming recording.

Recording mode →

MXP FXP XP+ SPLP

Memory ↓

4 GB Memory card 20 min. 30 min. 40 min. 1 hr.

10 min.

1 hr.

30 min.

8 GB Memory card/

0 Built-in memory1

40 min. 1 hr. 1 hr.

25 min.

2 hr.

20 min.

3 hr.

16 GB Memory card 1 hr.

25 min.

2 hr.

5 min.

2 hr.

50 min.

4 hr.

45 min.

6 hr.

5 min.

32 GB Memory card 2 hr.

55 min.

4 hr.

10 min.

5 hr.

45 min.

9 hr.

35 min.

12 hr.

15 min.2

Recording mode →

9 Mbps 4 Mbps

Memory ↓

4 GB Memory card 55 min. 2 hr. 5 min.

8 GB Memory card/

0 Built-in memory1

1 hr. 50 min. 4 hr. 10 min.

16 GB Memory card 3 hr. 50 min. 8 hr. 25 min.

32 GB Memory card 7 hr. 40 min. 16 hr. 55 min.

COPY

Video  91

Selecting the Frame Rate

You can change the frame rate (the number of frames recorded per

second) to change the look of your movies. When recording MP4 mov-

ies, the frame rate will be [ 25P].

Operating modes:

1Press .

2 Select the frame rate.

Options ( Default value)

NOTES

• The frame rate can be set independently for and modes.

[µ50i (Standard)]50 fields per second, interlaced. Standard

frame rate of PAL analog TV signals.

[¸PF25] Shooting at 25 frames per second, progressive*.

Using this frame rate will give your recordings a cinematic look.

Recording in mode will further enhance the effect. This is

the default setting for mode.

* Recorded as 50i.

[ Other Settings] > r > [Frame Rate] >

Desired frame rate > [X]

COPY

92  Video

Special Scene Recording Programs

Recording in a very bright ski resort or capturing the full colors of a

sunset or a fireworks display becomes as easy as selecting a Special

Scene recording program.

Operating modes:

Options ( Default value)

[úSCN: Portrait]The camcorder uses a large

aperture, to achieve a sharp focus on the sub-

ject while blurring the background.

[ûSCN: Sports] To record sports scenes such

as tennis or golf.

[üSCN: Night Scene] To record nightscapes

with lower noise.

[ýSCN: Snow] To record in bright ski resorts

without the subject being underexposed.

[þSCN: Beach] To record on a sunny beach

without the subject being underexposed.

[FUNC.] > [Rec. Programs] > [úSCN: Portrait] >

Desired recording program > [X]

COPY

Video  93

NOTES

•[úSCN: Portrait]/[ûSCN: Sports]/[ýSCN: Snow]/[þSCN:

Beach]: The picture may not appear smooth during playback.

•[úSCN: Portrait]: The blur effect of the background increases the

more you zoom in (S).

•[ýSCN: Snow]/[þSCN: Beach]: The subject may become overex-

posed on cloudy days or in shaded places. Check the image on the

screen.

•[ŒSCN: Low Light]:

- Moving subjects may leave a trailing afterimage.

- Picture quality may not be as good as in other modes.

[ÿSCN: Sunset] To record sunsets in vibrant

colors.

[ŒSCN: Low Light] To record in low-light situa-

tions.

[œSCN: Spotlight] To record spotlit scenes.

[ŠSCN: Fireworks] To record fireworks.

[šSCN: Underwater] To record underwater

scenes in natural colors.

[ŸSCN: Surface] To record after getting out of

the water, such as on a boat after diving.

COPY

94  Video

- White points may appear on the screen.

- Autofocus may not work as well as in other modes. In such case,

adjust the focus manually.

•[ŠSCN: Fireworks]:

- To avoid camera blur (blur due to the camcorder moving) we

recommend using a tripod.

- When the optional Wide-converter or Tele-converter is attached to the

camcorder, autofocus will not be effective. Make sure to focus

manually (A105)

•[šSCN: Underwater]/[ŸSCN: Surface]:

- Use these recording programs when making recordings while the

camcorder is in the optional WP-V4 Waterproof Case.

- When using the [šSCN: Underwater] recording program, a red

frame will appear on the edge of the screen.

-The [šSCN: Underwater] recording program is for making

recordings underwater*. When using underwater lighting equipment or

making recordings while on land, we recommend using the [ŸSCN:

Surface] recording program.

- To switch the recording program between [šSCN: Underwater] and

[ŸSCN: Surface] while the camcorder is in the waterproof case,

turn on the camcorder while moving the zoom lever toward S or T.

Keep pushing the zoom lever until the š or Ÿ icon appears on the

screen.

-? will appear on the screen when the camcorder’s temperature

becomes too high. If this happens, turn off the camcorder, take it out

of the waterproof case and keep it in a cool place until the

temperature goes down. If the camcorder becomes too hot, it will turn

off automatically.

- When making recordings underwater with the [šSCN: Underwater]

recording program, the image on the LCD screen will appear redder

than the actual subject. This will not affect the recording.

- When a commercially available wide-converter or other accessory is

attached to the waterproof case, the camcorder may focus on the

accessory. In such case, move the zoom lever toward S to focus on

the subject.

-See Specifications (A230) for additional notes about the [šSCN:

Underwater] and [ŸSCN: Surface] recording programs.

* Underwater is a unique environment that is ever-changing, depending on factors

such as the weather and water conditions. In addition, water absorbs red light,

which causes objects to appear bluer and greener.

COPY

Video  95

Advanced Image Stabilization

The image stabilizer reduces camcorder blur (blur due to the cam-

corder moving) so you can get nice, stable shots. Select the image sta-

bilization mode according to the shooting conditions.

Operating modes:

1Press .

2 Select the IS mode.

Options ( Default value)

[Dynamic]

Compensates for a higher degree of camcorder

shake, such as when shooting while walking, and is more effec-

tive as the zoom approaches full wide angle.

[Standard]Compensates for a lower degree of camcorder

shake, such as when shooting while remaining stationary, and is

suitable for shooting natural-looking scenes.

[jOff] Use this setting when the camcorder is mounted on a

tripod.

Powered IS

You can use Powered IS to make the image stabilization even more

powerful. Powered IS is most effective when you are stationary and

zooming in on far subjects using high zoom ratios (the more you

approach the telephoto end). Holding the LCD panel with your left

hand will add to the stability of the shot.

• By default, the custom control button (A187) is set to

[ÈPowered IS].

[ Other Settings] > p > [Image Stabilizer] >

Desired IS mode > [X]

[FUNC.] > [ÈPowered IS] > [ON] > [X]

COPY

96  Video

NOTES

• If the degree of camcorder shake is too high, the image stabilizer may

not be able to fully compensate.

• For surveying and following shots, when you pan the camcorder from

side to side or tilt it up and down, we recommend setting the IS mode

to [Dynamic] or [Standard].

Pre-Recording

The camcorder will start recording 3 seconds before you press

Y, ensuring you do not miss important shooting opportuni-

ties. This is especially useful when it is difficult to predict when to start

recording.

Operating modes:

1 Activate the pre-recording function.

•z will appear on the screen.

• Repeat, selecting [OFF], to turn off pre-recording.

2Press Y.

The scene recorded in the memory will start 3 seconds before

Y was pressed.

NOTES

• The camcorder will not record the full 3 seconds prior to pressing

Y if the button was pressed within 3 seconds of having

turned on pre-recording or having finished the previous recording.

[FUNC.] > [zPre REC] > [ON] > [X]

COPY

Video  97

• Any of the following actions will deactivate the pre-recording function.

- Leaving the camcorder without any operation for 5 minutes.

- Changing the operating mode.

- Pressing V.

- Opening the decoration screen.

- Closing the LCD panel to set the camcorder to standby mode.

- Touching any of the following control buttons in the [ Main

Functions] panel: [Rec. Programs], [White Balance], [Audio Scene],

[AGC Limit], [Faders], [Decoration] or [Review Recording].

- Opening the [Other Settings] menus.

Face Detection

The camcorder automatically detects people’s faces and uses this

information to select the optimal settings for beautiful videos and pho-

tos.

Operating modes:

* Face detection is always activated in mode.

POINTS TO CHECK

• Select a recording program other than [üSCN: Night Scene],

[ŒSCN: Low Light], [ŠSCN: Fireworks] or [šSCN: Underwater].

By default, face detection is activated. If the function was turned off, per-

form the following procedure to turn it on.

1Press .

2 Activate face detection.

[ Other Settings] > p > [Face Detection &

Tra ckin g ] > [iOn }] > [X]

COPY

98  Video

To select the main subject

If there is more than one person in the picture, the camcorder will auto-

matically select one person it determines is the main subject. The main

subject is indicated by a white face detection frame and the camcorder

will optimize the settings for that person. Other faces will have gray

frames.

Touch a different face on the

touch screen to optimize the

camcorder’s settings for that

person using the Touch &

Track function.

NOTES

• The camcorder may mistakenly detect the faces of non-human sub-

jects. In such case, turn face detection off.

• In certain cases, faces may not be detected correctly. Typical examples

include:

- Faces extremely small, large, dark or bright in relation to the overall

picture.

- Faces turned to the side, at a diagonal or partially hidden.

• Face detection cannot be used when the shutter speed used is slower

than 1/25 or when the digital zoom is activated at more than 40x zoom

(dark blue area on the zoom bar).

• When face detection is activated, the slowest shutter speed used by the

camcorder is 1/25.

Main subject

COPY

Video  99

Touch & Track

When recording a group of people using face detection, the camcorder

will automatically detect one person as the main subject. You can use

Touch & Track to tell the camcorder to track and optimize settings for a

different person. You can also use Touch & Track to always keep in

focus other moving subjects, such as pets or moving vehicles.

Operating modes:

1 Make sure face detection is activated (A97).

Face detection is always activated in mode.

2 Point the camcorder at a moving subject and touch the subject on

the touch screen.

• A white double frame will appear around the subject and track it as it

moves.

• Touch [Cancel £] to remove the frame and cancel the tracking.

NOTES

• Touching somewhere with a color or pattern unique to the subject will

make it easier to track. However, if there is another subject in the vicinity

that shares similar characteristics to the selected subject, the cam-

corder may start tracking the incorrect subject. Touch the screen again

to select the desired subject.

• In certain cases, Touch & Track may not be able to track the subject.

Typical examples include:

- Subjects extremely small or large in relation to the overall picture.

- Subjects too similar to the background.

- Subjects lacking sufficient contrast.

- Fast moving subjects.

- When shooting indoors with insufficient lighting.

COPY

100  Video

Faders

The camcorder offers two professional looking transition effects to

fade-in or fade-out scenes. You have the option to activate the fader

only one time or every time you start or stop recording.

Operating modes:

* You can preview the transition effect on the screen.

• The icon of the selected fader appears in green.

To fade in/out

Press Y in record pause mode (Û) to start recording with

a fade in. Press Y while recording (Ü) to fade out and pause

the recording.

NOTES

• When you apply a fader, not only the picture but also the sound will fade

in or out.

• Faders cannot be used in the following cases:

- While using the [Old Movies] cinema-look filter in mode.

- When recording scenes with decorations.

- When recording video snapshot scenes.

- While pre-recording is activated.

• You can select whether to fade to/from a black screen or a white screen

with the p > [Fader Setting] setting.

[FUNC.] > [R Faders] > Desired fader* > [X]

COPY

Video  101

Manually Setting the Shutter Speed or Aperture

[’ Programmed AE] is the default automatic exposure (AE) recording

program; using it, you can change functions like the white balance or

image effects. Select one of the other AE recording programs to control

the shutter speed or aperture.

Operating modes:

* You can also drag your finger along the dial.

Options ( Default value)

NOTES

•[‚Shutter-Pri. AE]:

- On screen only the denominator is displayed – [‚250] indicates a

shutter speed of 1/250 second, etc.

- When recording in dark surroundings, you can obtain a brighter

picture by using slow shutter speeds; however, image quality may not

be as good and autofocus may not work well.

- The image may flicker when recording with fast shutter speeds.

•[“Aperture-Pri. AE]: The actual range of values available for selection

will vary depending on the initial zoom position.

[’ Programmed AE]The camcorder automatically adjusts the

aperture and shutter speed to obtain the optimal exposure for

the subject.

[‚ Shutter-Pri. AE] Set the shutter speed value. The camcorder

automatically sets the appropriate aperture value.

[“ Aperture-Pri. AE] Set the aperture value. The camcorder auto-

matically sets the appropriate shutter speed.

[FUNC.] > [Rec. Programs] > [‚ Shutter-Pri. AE] or

[“ Aperture-Pri. AE] > [Ï] or [Ð]* to set the desired

shutter speed (‚) or aperture value (“) > [X]

COPY

102  Video

• When setting a numeric value (aperture or shutter speed), the number

displayed will flash if the aperture value or shutter speed is not appropri-

ate for the recording conditions. In such case, select a different value.

• During exposure lock, the aperture value/shutter speed cannot be

changed. Set the aperture value or shutter speed before manually

adjusting the exposure.

Shutter Speed and Aperture Value Guidelines

XWith slower shutter speed you can add a nice

motion blur and sense of movement.

With faster shutter speeds you can “freeze the

action” for powerful images of moving subjects.W

XWith small aperture values only the subject is in

focus and the background is softly blurred. Great

for portraits or to isolate a single object.

With large aperture values every part of

the image is clearly in focus. Good

for landscapes and architectural shots.W

1/20001/10001/5001/2501/1201/501/251/121/6

Low-light situations

Most ordinary conditions

Indoor sports

Fast moving subjects

or shooting from a

moving car or train

Outdoor sports on sunny days

F8.0

F6.7

F5.6

F4.8

F4.0

F3.4

F2.8

F2.4

F2.0

F1.8

More light

Shallow

Ï Lens aperture Ð

Ï Depth of Field Ð

Less light

Deep

COPY

Video  103

Manual Exposure Adjustment

At times, backlit subjects may appear too dark (underexposed) or sub-

jects under very strong lights may appear too bright or glaring (overex-

posed). To correct this, you can adjust the exposure manually or use

the Touch AE function to automatically set the optimal exposure for the

subject you select. This is convenient when the brightness of the sub-

ject you want to shoot is noticeably brighter/darker than the general

brightness of the image.

Operating modes:

POINTS TO CHECK

• Select a recording program other than [ŠSCN: Fireworks].

1 Open the exposure adjustment screen.

2 Touch a subject that appears inside the y frame.

• The Touch AE mark (I) will flash and the exposure will be adjusted

automatically so the area you touched will be correctly exposed. You

have the option to further adjust the exposure manually as

necessary.

• You can touch [n] instead to adjust the exposure manually without

activating the Touch AE function.

• The manual adjustment dial appears and the adjustment value is set

at ±0.

•Touch [n] again to return the camcorder to automatic exposure.

3Touch [Ï] or [Ð] or drag your finger along the dial to set the

exposure adjustment value.

The adjustment range may vary depending on the initial brightness of

the image, and some values may be grayed out.

4Touch [X] to lock the exposure at the selected value.

During exposure lock, y and the selected exposure adjustment value

will appear on the screen.

[FUNC.] > [yExposure]

COPY

104  Video

NOTES

• If the recording program is changed during exposure lock, the cam-

corder will return to automatic exposure.

• When shooting subjects with a strong light source behind them, the

camcorder automatically corrects for the backlight*. You can turn off the

automatic backlight correction with the p > [Auto Backlight Cor-

rection] setting. Note that the automatic backlight correction is not avail-

able in the following cases.

- In mode, when using a cinema-look filter other than [Cinema

Standard].

- When using the [üSCN: Night Scene], [ýSCN: Snow], [þSCN:

Beach], [ÿSCN: Sunset] or [œSCN: Spotlight] recording program.

* Except in mode when using a cinema-look filter other than [Cinema Stan-

dard].

Automatic Gain Control (AGC) Limit

When recording in dark surroundings, the camcorder will automatically

increase the gain to try to get a brighter picture. However, using higher

gain values may result in more noticeable video noise. You can select

the AGC limit to curb the amount of noise by setting the maximum gain

value to be used. The smaller the AGC limit, the picture will be darker

but will have less the noise.

Operating modes:

*Touch [m] (automatic) to remove the limit for the automatic gain control.

**You can also drag your finger along the dial.

• The selected AGC limit will appear on the screen.

[FUNC.] > [x AGC Limit] > [n]* (manual) >

[Ï] or [Ð]** to set the AGC limit > [X]

COPY

Video  105

Manual Focus Adjustment

Autofocus may not work well on the following subjects. In such case,

focus manually.

Operating modes:

POINTS TO CHECK

• Adjust the zoom before you start the procedure.

• Select a recording program other than [šSCN: Underwater] or

[ŸSCN: Surface].

1 Open the manual focus screen.

2 Touch a subject that appears inside the <frame.

• The Touch AF mark (I) will flash and the focusing distance will be

adjusted automatically. You have the option to further adjust the

focus manually as necessary.

• You can touch [D] instead to adjust the focus manually without

activating the Touch AF function.

• The manual focus controls appear.

•Touch [D] again to return the camcorder to autofocus.

• Reflective surfaces

• Subjects with low contrast

or without vertical lines

• Fast moving subjects

• Through wet windows

• Night scenes

[FUNC.] > [<Focus]

COPY

106  Video

3 Touch and hold [F] or [E] to adjust the focus.

• The center of the screen will be magnified to help you focus more

easily. You can also turn off this function with the p > [Focus

Assistance] setting.

• The focusing distance displayed will change as you adjust the focus.

The focusing distance will be displayed for about 2 seconds. You can

change the units used for the distance display with the q >

[Distance Units] setting.

• If you wish to focus on faraway subjects such as mountains or

fireworks, touch and hold [F] until the focusing distance changes

to G.

4Touch [X] to lock the focus at the selected distance.

During manual focus, [D] will appear on the screen.

NOTES

• During manual focus, you can touch inside the frame to activate the

Touch AF function and autofocus on a subject.

• When the recording program is set to [šSCN: Underwater] or

[ŸSCN: Surface], the camcorder will return to autofocus.

•See Specifications (A230) for additional notes about the

[šSCN: Underwater] and [ŸSCN: Surface] recording programs.

Tele Macro

Using tele macro, the camcorder can focus at a shorter distance (up to

40 cm from the subject at full telephoto), allowing you get closer shots

of small subjects like flowers and insects. This function also adds a

soft focus to the background, so the subject not only looks larger but it

also stands out more.

Operating modes:

* In mode or when the recording program is set to [šSCN: Underwater] or

[ŸSCN: Surface], tele macro will be activated automatically when you zoom in to

full telephoto and bring the camcorder up close to the subject.

COPY

Video  107

POINTS TO CHECK

• Select a recording program other than [ŠSCN: Fireworks].

* Touch again to turn off the tele macro function.

• The camcorder will automatically adjust the zoom to the telephoto

end.

NOTES

• Any of the following actions will deactivate the tele macro function.

- Turning off the camcorder.

- Pressing T.

- Setting the camcorder to mode.

- Zooming out toward T (wide angle).

- Changing the recording program to [ŠSCN: Fireworks].

• Tele macro cannot be turned on/off while recording.

White Balance

The white balance function helps you to accurately reproduce colors

under different lighting conditions so that white objects will always look

truly white in your recordings.

Operating modes:

POINTS TO CHECK

• Select a recording program other than the Special Scene recording pro-

grams.

* When you select [Å Custom WB], set the custom white balance with the follow-

ing procedure before touching [X].

[FUNC.] > [ZOOM Zoom] > [W]* (tele macro) > [X]

[FUNC.] > [ÄWhite Balance] > Desired option* > [X]

COPY

108  Video

To set the custom white balance

Point the camcorder at a white object, so it fills the whole screen,

and touch [Set WB].

When the adjustment is completed, Å stops flashing and disappears.

The camcorder will retain the custom white balance even if you turn it off.

Options ( Default value)

NOTES

• When you select the custom white balance:

-Set p > [Digital Zoom] to [j Off].

- Reset the white balance when you change locations or the lighting or

other conditions change.

- Depending on the light source, Å may keep flashing. The result will

still be better than with [ÃAutomatic].

• Custom white balance may provide better results in the following cases:

- Changing lighting conditions

-Close-ups

- Subjects in a single color (sky, sea or forest)

- Under mercury lamps, certain types of fluorescent lights and LED

lights

• Depending on the type of fluorescent light, optimal color balance may

not be obtained with [¿Fluorescent] or [ÀFluorescent H]. If the

color looks unnatural, select [ÃAutomatic] or [ÅCustom WB].

[Ã Automatic]The camcorder automatically sets the white bal-

ance for natural looking colors.

[¼ Daylight] To record outdoors on a bright day.

[½ Shade] To record in shaded places.

[¾ Cloudy] To record on a cloudy day.

[¿ Fluorescent] To record under warm white or warm-white-type

(3-wavelength) fluorescent lighting.

[À Fluorescent H] To record under daylight or daylight-type

(3-wavelength) fluorescent lighting.

[ Tungsten]To record under tungsten and tungsten-type

(3-wavelength) fluorescent lighting.

[Å Custom WB] Use the custom white balance setting to make

white subjects appear white under colored lighting.

COPY

Video  109

Image Effects

You can adjust the color depth, brightness, contrast, and sharpness of

the image.

Operating modes:

POINTS TO CHECK

• Select a recording program other than the Special Scene recording pro-

grams.

1 Open the image effects screen.

2 Touch [ON] and then touch [Color Depth], [Sharpness], [Contrast]

or [Brightness].

Repeat, selecting [OFF], to turn off the image effects.

3Touch [Ï] or [Ð] or drag your finger along the dial to adjust the

effect level.

+ levels: richer colors, sharper image, stronger contrast, brighter

image.

- levels: shallower colors, softer image, softer contrast, darker image.

4Touch [X] to save and apply the customized picture settings.

b will appear on the screen.

[FUNC.] > [Image Effects]

COPY

110  Video

Self Timer

Operating modes:

* For movies only.

1Press .

2 Activate the self timer.

•< will appear on the screen.

• Repeat, selecting [jOff], to turn off the self timer.

Movies: In record pause mode, press Y.

The camcorder starts recording after a 10-second countdown*. The

countdown appears on the screen.

Photos: In record pause mode, touch [PHOTO].

• The camcorder will record the photo after a 10-second countdown*.

The countdown appears on the screen.

• Photos cannot be recorded while the camcorder is set to mode.

* 2 seconds when using the optional WL-D89 Wireless Controller. To start the count-

down using the wireless controller, press Y for movies and Z for

photos.

NOTES

• Once the countdown has begun, any of the following actions will cancel

the self timer.

- Pressing Y, when recording movies.

- Touching [PHOTO], when recording photos.

- Turning off the camcorder.

- Changing the camcorder’s operating mode.

- Closing the LCD panel to set the camcorder to standby mode.

[ Other Settings] > p > [Self Timer] >

[iOn <] > [X]

COPY

Video  111

Audio Scenes and Other Audio Settings

You can have the camcorder optimize the audio settings of the built-in

microphone by selecting the audio scene that matches your surround-

ings. This will greatly enhance the sense of "being there." Alternatively,

you can select [ Custom Setting] in order to adjust the camcorder's

various audio settings to your liking.

See Settings for each audio scene (A112) for the settings used by

each audio scene.

Operating modes:

* When you select [ Custom Setting], set the custom audio settings with the fol-

lowing procedures.

Options ( Default value)

[ Standard] To record most general situations. The camcorder

records with standard settings.

[ Music]To vibrantly record music performances and singing

indoors.

[ Speech] Best for recording human voices and dialog.

[ Forest and Birds] To record birds and scenes in forests. The

camcorder clearly captures sound as it spreads.

[ Noise Suppression] To record scenes while reducing noise from

wind, passing vehicles and similar ambient sound. Ideal for

recording at the beach or in places with a lot of noise.

[ Custom Setting]* Allows you to adjust the audio settings to

your liking. The settings that you can adjust are the [ä Mic. Level]

setting in the [ Main Functions] panel and the following set-

tings in the p menu: [Auto Wind Screen], [Microphone Atten-

uator] (A180), [Built-in Mic Freq. Response] (audio equalizer),

and [Built-in Mic Directionality].

[FUNC.] > [ Audio Scene] > Desired audio scene >

[X]

COPY

112  Video

NOTES

• [ Custom Setting] is not available in mode.

• After setting [ Audio Scene] to [ Custom Setting], if the camera

mode is changed to , this setting will change to [ Standard].

Settings for each audio scene

Auto Wind Screen

The camcorder automatically reduces the background sound of wind

when recording outdoors. You can select from two levels or turn off the

auto wind screen.

POINTS TO CHECK

• Set [ Audio Scene] to [ Custom Setting] (A111).

1Press .

[ä Mic.

Level]

[Microphone

Attenuator]

[Auto Wind

Screen]

[Built-in Mic

Freq.

Response]

[Built-in Mic

Directionality

]

[

Standard]

[n]

(manual): 70

Automatic]

[H High] [h

Normal]

[ Music][n]

(manual): 70

Automatic]

[L Low ] [ê

Boost HF+LF

Range]

[î Wide]

[ Speech][n]

(manual): 86

Automatic]

[H High] [é

Boost MF

Range]

[í

Monaural]

[ Forest

and Birds]

[n]

(manual): 80

Automatic]

[H High] [è Low

Cut Filter]

[î Wide]

[ Noise

Suppression

]

[n]

(manual): 70

Automatic]

[H High] [è Low

Cut Filter]

[í

Monaural]

[ Custom

Setting]

Selected by user

COPY

Video  113

2 Adjust the auto wind screen.

• Repeat, selecting [j Off à], to turn off the auto wind screen.

NOTES

• Some low-frequency sounds will be suppressed along with the sound

of wind. When recording in surroundings unaffected by wind or if you

want to record low-frequency sounds, we recommend setting the auto

wind screen to [j Off à].

Audio Equalizer

You can use the audio equalizer to adjust sound levels by specifically

targeting the high- or low-frequency range and selecting one of 3 avail-

able levels.

Operating modes:

POINTS TO CHECK

• Set [ Audio Scene] to [ Custom Setting] (A111).

1Press .

2 Adjust the audio equalizer.

[ Other Settings] > p > [Auto Wind Screen] >

[H High] or [L Low ] > [X]

[ Other Settings] > p > [Built-in Mic Freq.

Response] > Desired option > [X]

COPY

114  Video

Options ( Default value)

Built-in Microphone Directionality

You can change the directionality of the built-in microphone to have

more control over how sound is recorded.

POINTS TO CHECK

• Set [ Audio Scene] to [ Custom Setting] (A111).

1Press .

2 Adjust the built-in microphone directionality.

Options ( Default value)

[

Normal]Appropriate for balanced sound under most nor-

mal recording conditions.

[ç Boost LF Range] Accentuates the low-frequency range for

more powerful sound.

[

Low Cut Filter]

Filters the low-frequency range to reduce the

noise of blowing wind, a car’s engine and similar ambient sounds.

[é Boost MF Range] Best for recording human voices and dialog.

[ê Boost HF+LF Range] Best, for example, for recording live

music and clearly capture the special sound characteristics of a

variety of instruments.

[í Monaural] Mono recording that emphasizes sound coming

from the front of the camcorder/microphone.

[h Normal]Standard stereo recording; a middle point between

the [Wide] and [Monaural] settings in reach.

[î Wide] Stereo recording of ambient sound over a more exten-

sive area that adds to the sense of presence of movies.

[ï Zoom] Stereo recording with the sound linked to the zoom

position. The larger the subject appears on the screen, the louder

the sound will be.

[ Other Settings] > p > [Built-in Mic Directionality]

> Desired option > [X]

COPY

Video  115

Audio Recording Level

You can adjust the audio recording level of the built-in or an external

microphone. You can display the audio level indicator while recording.

Operating modes:

POINTS TO CHECK

• Set [ Audio Scene] to [ Custom Setting] (A111).

Manual Adjustment of the Audio Recording Level

1 Open the manual audio recording level adjustment screen.

• The audio level indicator and current audio recording level will appear

on the screen.

•Touch [m] (automatic) to return the camcorder to automatic audio

recording levels.

2 Touch and hold [Ï] or [Ð] to adjust the audio recording level as

necessary.

As a guideline, adjust the audio recording level so that the audio level

meter will go to the right of the -12 dB mark (yellow area) only

occasionally.

3Touch [X] to lock the audio recording level at the current level.

[FUNC.] > [ä Mic. Level] > [n] (manual)

Audio level indicator

Audio level adjustment bar

Manual audio level adjustment

Current audio level

COPY

116  Video

To display the audio level indicator

Usually, the audio level indicator will be displayed only after activating

the manual adjustment of the audio recording level. You can choose to

display it also when the audio level is adjusted automatically.

NOTES

• When the audio level meter reaches the red point (0 dB), the sound may

be distorted.

• If the audio level is too high and the sound gets distorted, activate the

microphone attenuator with the p > [Microphone Attenuator] set-

ting.

• We recommend using headphones to check the sound level while

adjusting the audio recording level or when the microphone attenuator

is activated.

•See Specifications (A230) for additional notes about the [š SCN:

Underwater] and [Ÿ SCN: Surface] recording programs.

Using Headphones

Use headphones for playback or to check the audio level while record-

ing. The headphones are connected to the AV OUT/× terminal, which

is used for both the headphones and the audio/video output. Before

connecting the headphones, follow the procedure below to change the

function of the terminal from AV output to × (headphones) output.

Operating modes:

1Press .

2 Change the function of the terminal to headphones output.

[FUNC.] > [ä Mic. Level] > [m] (automatic) >

[Audio Level Indicator] > [X]

[ Other Settings] > q > [AV/Headphones] >

[ÓHeadphones] > [K]

COPY

Video  117

3 Connect the headphones to the AV OUT/× terminal.

4 Adjust the volume as necessary.

* You can also drag your finger along the [Headphones] bar.

•Ó will appear on the screen.

To adjust the volume during playback

In mode, and in mode during slideshow playback, adjust

the headphones volume the same way you adjust the speaker’s vol-

ume (A55, 129).

IMPORTANT

• When using headphones, make sure to lower the volume to an appro-

priate level.

• Do not connect the headphones to the AV OUT/× terminal if the Ó

icon does not appear on the screen. The noise output in such case may

be harmful to your hearing.

NOTES

• Use commercially available headphones with a ∅3.5 mm minijack and

a cable no longer than 3 m.

• Even if [AV/Headphones] was set to [Ó Headphones] in a playback

mode, the function of the AV OUT/× terminal will return automatically to

AV output when you turn off the camcorder.

[Volume] > [Ô] or [Õ]* to adjust the volume > [X]

COPY

118  Video

Using the Mini Advanced Shoe

Using the mini advanced shoe, you can attach to the camcorder a

range of optional accessories to expand its functionality. For details

about optional accessories available for use with your camcorder, refer

to Accessories (A221). For details about how to attach and use the

accessories, refer also to the instruction manual of the accessory used.

1 Open the mini advanced

shoe cover.

2 Attach the optional

accessory to the mini

advanced shoe.

When a compatible accessory

is attached to the mini

advanced shoe, º will

appear on the screen.

NOTES

• Accessories designed for the Advanced Accessory Shoe

cannot be used with this camcorder. Look for video

accessories bearing this logo to ensure compatibility with

the mini advanced shoe.

Example: Attaching an optional DM-100

Directional Stereo Microphone.

COPY

Video  119

Using an External Microphone

When recording in very quiet surroundings, the built-in microphone

may pick up the sound of the camcorder’s internal machinery. In such

case, we recommend using an external microphone.

Operating modes:

Using the SM-V1 Surround Microphone or DM-100 Directional Stereo

Microphone

Using the SM-V1 you can add a sense of depth and presence to your

recordings with 5.1ch surround sound. Using the DM-100 you can

accurately record audio coming directly from the direction you are

recording. In either case, to reduce the amount of noise due to wind,

we recommend that you use the wind screen supplied with the micro-

phone.

Attach the optional SM-V1 Surround Microphone or DM-100

Directional Stereo Microphone to the mini advanced shoe.

Refer to Using the Mini Advanced

Shoe (A118).

º will appear on the screen. For

details about using the optional

external microphone, refer to the

instruction manual of the acces-

sory used.

NOTES

• When an external microphone is connected to the camcorder, p

> [Auto Wind Screen] will automatically be set to [j Off à].

• If the audio level is too high and the sound gets distorted, adjust the

audio recording level manually (A115) or activate the microphone

attenuator with the p > [Microphone Attenuator] setting.

COPY

120  Video

• When using the optional SM-V1 Surround Microphone:

- Change the microphone’s directionality mode with the p >

[Surround Mic Directionality] setting.

- If the sound gets distorted, activate the microphone attenuator with

the p > [Surround Mic Attenuator] setting.

- You can enjoy the full effect of recordings made with 5.1ch surround

sound on HDTVs compatible with 5.1ch surround sound connected

to the camcorder using the supplied HDMI cable. Audio output from

the AV OUT/× terminal (including headphone output) will be

converted to 2ch stereo. The camcorder’s built-in speaker is

monaural.

Using an External Video Light

You can use the optional VL-5 Video Light or VFL-2 Video Flash Light

when you need to record movies in dark locations.

Attach the optional video light to the mini advanced shoe.

• Refer to Using the Mini Advanced Shoe (A118).

•º will appear on the screen when you turn on the optional video light

(ON or AUTO). For details about using the optional video light, refer to

the instruction manual of the accessory used.

• Using a video light drains the power of the battery pack faster than

usual. Make sure you are using fully charged battery packs. While the

video light is on, the remaining battery time on the screen will decrease,

which reflects the video light's usage of the battery pack's power.

When the remaining battery charge is less than approximately 50%, the

video light will turn off.

• The video light cannot be used when the camcorder is being powered

by the compact power adapter.

• The optional VFL-2 Video Flash Light cannot be used as a flash with this

camcorder.

COPY

Video  121

Capturing Video Snapshot Scenes and Photos from a Movie

You can capture video snapshot scenes, single photos or a series of

continuous photos from a previously recorded scene. For example, you

may want to print photos from video recorded at a party or create a

small video clip using video snapshot scenes from the highlights of an

event.

Operating modes:

Capturing a Video Snapshot Scene

1 Play back the scene or story from which you want to capture the

video snapshot scene.

2Press Y to capture the video snapshot scene.

The camcorder captures the video snapshot scene for about 4

seconds (the blue frame serves as a visual progress bar), and then

enters playback pause mode. You can change the length of the video

snapshot scenes you capture to 2 or 8 seconds with the r >

[Video Snapshot Length] setting.

3 Touch the screen and then touch [Ñ] to stop the playback.

NOTES

• A video snapshot scene can be captured only during playback; it can-

not be captured during playback pause mode.

• The captured video snapshot scene is saved to the same memory that

contains the source scene.

• Video snapshot scenes cannot be captured from any of the following

types of scenes.

- Scenes shorter than 1 second

-0 Scenes that were edited using the supplied software

VideoBrowser and were then transferred to a memory card

connected to the computer.

• When the source scene is itself a video snapshot scene, you may not

be able to capture a video snapshot scene depending on the length of

the source scene and the length currently selected for video snapshot

scenes.

COPY

122  Video

• When you start capturing a video snapshot scene less than 1 second

from the end of the scene, the video snapshot scene will be captured

starting from the beginning of the following scene.

• During the playback of video snapshot scenes captured from a previ-

ously recorded movie, you may notice some anomalies in the picture/

sound at the point where the playback switches to a new scene.

Capturing Photos

You can capture a single photo or a series of photos. The size of the

captured photos will be 1920x1080 and it cannot be changed.

Please read the IMPORTANT section before using an Eye-Fi card.

To select the photo capture settings

1Press .

2 Select the photo capture setting.

To capture the photos

1 Play back the scene or story from which you want to capture the

photo.

2 Pause the playback at the point you want to capture.

3 Touch [PHOTO].

To capture a photo sequence, keep touching [PHOTO]. The scene will

be played back frame-by-frame and each frame captured as a

separate photo.

4 Touch the screen and then touch [Ñ] to stop the playback.

IMPORTANT

• When capturing photos on an Eye-Fi card, photos will be uploaded

automatically if you are within the range of a configured network. Always

verify that Eye-Fi cards have been approved in the country/region of

use. See also Using an Eye-Fi card (A153).

[Other Settings] > r > [Photo Capture from Video]

> [Ú Single Photo] or [p Photo Sequence] > [X]

COPY

Video  123

NOTES

• The data code of the photos will reflect the date and time of recording of

the original scene.

• Photos captured from a scene with a lot of fast movement may be

blurred.

• Photos will be recorded on the memory selected for recording photos.

•[p Photo Sequence]:

- Up to 100 photos can be captured at a time.

- The photo sequence capture will stop when the end of the scene is

reached (playback will pause at the beginning of the following scene).

- Photos will be captured at intervals of 1/25 second.

Dividing Scenes

You can divide scenes in order to leave out the best parts and later cut

out the rest.

Operating modes:

1 Play back the scene you want to divide.

2 Pause the playback at the point where you want to divide the

scene.

3 Open the scene division screen.

4 Bring the scene to a precise point, if necessary.

Playback controls will appear on the screen (A55). Use any special

playback modes (fast playback, frame reverse/advance) as necessary

to locate the desired point.

[Edit] > [Divide]

COPY

124  Video

5 Divide the scene.

• The video from the division point to the end of the scene will appear

as a new scene in the index screen.

NOTES

• When advancing/reversing frames while dividing the scenes, the interval

between frames is about 0.5 seconds.

• If the scene cannot be divided at the point where you paused the play-

back, advance/reverse a frame and then divide the scene.

• During the playback of a scene that was divided, you may notice some

anomalies in the picture/sound at the point where the scene was cut.

• The following scenes cannot be divided:

- Video snapshot scenes and other scenes that are too short (less than

3 seconds).

-0 Scenes that were edited using the supplied software

VideoBrowser and were then transferred to a memory card

connected to the computer.

• Scenes cannot be divided within 1 second from the beginning or the

end of the scene.

[µ Divide] > [Yes]

COPY

Photos  125

Photos

Refer to this chapter for details on viewing photos and other

photo-related operations.

Viewing Photos

Operating modes:

1Press T.

2 Open the [Photos] index screen, if it is not displayed.

3 Look for the photo you want to play back.

Move the zoom lever toward T to show 15 photos per page; move it

toward S to show 6 photos per page.

[G] > [Photos]

COPY

126  Photos

4 Touch the photo you wish to view.

• The photo is displayed in single photo view.

• Drag your finger left/right to browse through the photos one by one.

To return to the index screen from single photo view

1 Touch the screen to display the playback controls.

2Touch [f].

!Open the [G Index Selection] screen (A58).

"Memory being read.

#Drag your finger left/right for the next/previous index page*.

$Display the next/previous index page.

* While browsing through index pages, a larger scroll bar will appear at the

bottom of the screen for a few seconds. When you have a large number of

photos it may be more convenient to drag your finger along the scroll bar.

COPY

Photos  127

Photo Jump Function

When you have recorded a large number of photos, you can jump eas-

ily through the photos using the scroll bar.

1 Touch the screen to display the playback controls.

2 Jump through the photos using the scroll bar.

IMPORTANT

• Observe the following precautions while the ACCESS indicator is on or

flashing. Failing to do so may result in permanent data loss.

- Do not open the memory card slot cover.

- Do not disconnect the power source or turn off the camcorder.

- Do not change the camcorder’s operating mode.

• Even if you transfer them to a memory card connected to a computer,

the following image files may not be displayed correctly using the cam-

corder.

- Images not recorded with this camcorder.

- Images edited on a computer.

- Images whose file names have been changed.

Deleting Photos

You can delete those photos that you are not interested in keeping.

Operating modes:

Deleting a Single Photo

1 In single photo view, select the photo you want to delete.

2 Touch the screen to display the playback controls.

[h] > Drag your finger left and right along the scroll

bar > [K]

COPY

128  Photos

3 Delete the photo.

4 Drag your finger left/right to select another photo to delete or

touch [X].

Deleting Photos from the Index Screen

1 Open the [ Photos] index screen.

2 Delete the photos.

* When you select [Select], perform the following procedure to select the individ-

ual photos you want to delete before touching [Yes].

**Touch [Stop] to interrupt the operation while it is in progress. Some photos will

be deleted nevertheless.

To select individual photos

1 Touch on the individual photos you want to delete.

• A checkmark ! will appear on the photos you touch. The total

number of selected photos will appear next to the " icon.

• Touch a selected photo to remove the checkmark. To remove all

checkmarks at once, touch [Remove All] > [Yes].

2 After selecting all the desired photos, touch [OK].

Options

[Select] Select individual photos to delete.

[All Photos] Delete all the photos.

[Edit] > [Delete] > [ Proceed] > [Yes]

[G] > [Photos]

[Edit] > [Delete] > Desired option* > [Yes]** > [OK]

COPY

Photos  129

IMPORTANT

• Be careful when deleting photos. Deleted photos cannot be recovered.

• Photos that were protected with other devices and then transferred to

the memory card when it was connected to a computer cannot be

deleted with this camcorder.

Slideshow

You can play a slideshow of all the photos and even set it to music.

Operating modes:

1 Open the [ Photos] index screen.

2 Select the music track to use during the photo slideshow.

Steps 3 and 4 (A80).

3 Touch the photo that will open the slideshow to display it in single

photo view.

4 Touch the screen to display the playback controls, then touch [Ð]

to play back the slideshow set to the selected music track.

During the photo slideshow

• Touch the screen and drag your finger left and right along the volume

bar to adjust the volume.

• Touch the screen and touch [Ý] to stop the slideshow.

To change the slideshow’s transition effects

1Press .

2 Select the transition effect.

[G] > [Photos]

[ Other Settings] > > [Slideshow Transition] >

[Off], [Dissolve] or [Slide Image] > [X]

COPY

130  External Connections

External Connections

This chapter explains how to connect your camcorder to an

external device such as a TV, VCR, or computer. 0 You can

also use the camcorder's convenient Wi-Fi functions (A155).

Terminals on the Camcorder

Open the LCD panel to access the terminals on the camcorder.

1AV OUT/× Te r m i na l

2HDMI OUT Terminal*

The HDMI OUT terminal offers a high-quality digital connection that combines

audio and video in a single convenient cable. This terminal is an HDMI mini

receptacle. When using a commercially available HDMI cable, make sure the

HDMI cable is Type A to Type C.

3USB Terminal

This terminal is a mini-AB receptacle. You can use the supplied USB cable to

connect to a computer or other digital devices with standard-A receptacles;

0 or use the optional UA-100 USB Adapter to connect to the camcorder

an external hard drive or similar storage device with a standard-A cable

(0 only).

* When connecting an HDMI cable to the camcorder, make sure to align the triangle

marks on the cable’s connector and on the camcorder’s terminal.

COPY

External Connections  131

Connection Diagrams

In the following connection diagrams, the left side shows the terminals

on the camcorder and the right side shows (for reference only) an

example of terminals on a connected device.

Connection !HDMI

Type: Digital Quality: High definition Output only

Connect to a high-definition TV (HDTV) with an HDMI input terminal. If your HDTV supports

HDMI-CEC, you can activate this with the q > [Control for HDMI] setting. You can

check the standard of the current output signal with the q > [HDMI Status]

setting.

HTC-100/S HDMI Cable

(supplied)

(HDMI mini connector) (standard HDMI

connector)

About the HDMITM connection

The HDMI (High-Definition Multimedia Interface) connection (!) is a

convenient all-digital connection using a single cable for both video

and audio. When you connect the camcorder to an HDTV equipped

with an HDMI terminal, you can enjoy video and audio playback at

the highest quality.

- The HDMI OUT terminal on the camcorder is for output only. Do not

connect it to an HDMI output terminal on an external device, as this

may damage the camcorder.

- While the camcorder is connected to an HDTV using connection !,

there will be no video output from the AV OUT/× terminal.

- Correct operation cannot be guaranteed when connecting the

camcorder to DVI monitors.

- Depending on the HDTV, correct playback of personal video content may

not be possible using connection

. Try another connection.

COPY

132  External Connections

Connection "Composite Video

Type: Analog Quality: Standard definition Output only

Connect to a standard TV or a VCR with audio/video input terminals. Change the following

settings on the camcorder:

- s/

> [TV Type] according to the TV set (widescreen or 4:3), if the TV

cannot automatically detect and change the aspect ratio

- q > [AV/Headphones] to [Ò AV]

Connection ,Composite Video (SCART)

In all respects, exactly the same connection as connection ".

Connect to a standard TV or VCR with SCART input terminal. Requires a SCART adapter

(commercially available).

Red

White

Yellow

STV-250N Stereo Video Cable

(optional)

STV-250N Stereo Video Cable

(optional) SCART adapter

(commercially available)

Yellow

White

Red

COPY

External Connections  133

NOTES

• Power the camcorder using the compact power adapter and only then

connect it to the computer using the supplied USB cable in the follow-

ing cases.

- To save your recordings on a computer.

- To save a memory onto an external hard drive.

• Sound from the built-in speaker will be muted while a cable is con-

nected to the HDMI OUT terminal or AV OUT/× terminal.

Connection #USB

Type: Digital data connection Output only

Connect to a computer to save your recordings, to a compatible digital video recorder to

copy your recordings, or to an external hard drive to easily save a perfect copy of an

entire memory (0 only).

USB Cable

(supplied)

Mini-B Standard-A

(computer, digital recorder)

Mini-B

UA-100 USB

Adapter (optional)

USB cable supplied with/

built-into the external storage

Standard-A

External Hard Drive

2 0 only

COPY

134  External Connections

Playback on a TV Screen

Connect the camcorder to a TV to enjoy your recordings with family

and friends. Playback on an HDTV using the HDMI OUT terminal will

ensure the best playback quality.

Operating modes:

1 Turn off the camcorder and the TV.

2 Connect the camcorder to the TV.

Refer to Connection Diagrams (A131) and select the most

appropriate connection for your TV.

3 Turn on the connected TV.

On the TV, select as the video input the same terminal to which you

connected the camcorder. Refer to the instruction manual of the

connected TV.

4 Turn on the camcorder and set it to or mode.

Play back the movies or photos.

NOTES

• To correctly play back movies recorded with x.v.Color (A183) on an

HDTV compatible with this standard, additional settings may be

required on the connected HDTV. Refer to the TV’s instruction manual.

• You can also play video directly from your memory card on AVCHD-

compatible HDTVs and digital recorders with a card slot compatible

with the type of memory used*.

• We recommend powering the camcorder using the compact power

adapter.

• Connection " or ,: When you play back your 16:9 movies on stan-

dard TV sets with a 4:3 aspect ratio, the TV set will switch automatically

to widescreen mode if it is compatible with the WSS system. Otherwise,

change the aspect ratio of the TV manually.

* Refer to the instruction manual of the device. Depending on the device used, cor-

rect playback may not be possible even if the device is AVCHD-compatible. In

such case, play back the recordings on the memory card using the camcorder.

COPY

External Connections  135

Saving and Sharing Your Recordings

0 Copying Movies and Photos to a Memory Card

You can copy your recordings from the built-in memory to a memory

card. Scenes and photos will be copied from the index screen or from

a story in the gallery in the built-in memory to the same index screen or

story on the memory card.

Please read the IMPORTANT section (A138) before using an Eye-Fi

card.

Copying Scenes from the [ Movies] or [ Movies] Index Screen

Operating modes:

1 Open the [ Movies] or [ Movies] index screen.

• Check that you have selected the & (built-in memory) tab.

• For AVCHD movies, to copy all the scenes recorded on a specific

date, drag your finger left/right until the desired date appears in the

title bar.

2 Copy the scenes.

* When you select [Select], perform the following procedure to select the individ-

ual scenes you want to copy before touching [Yes].

** Touch [Stop] to interrupt the operation while it is in progress.

To select individual scenes

1 Touch on the individual scenes you want to copy.

• A checkmark ! will appear on the scenes you touch. The total

number of selected scenes will appear next to the " icon.

• Touch a selected scene to remove the checkmark. To remove all

checkmarks at once, touch [Remove All] > [Yes].

2 After selecting all the desired scenes, touch [OK].

[Edit] > [Copy (&'*)] > Desired option* > [Yes]**

> [OK]

COPY

136  External Connections

Options

Copying Scenes from a Story by Rating

Operating modes:

1 Open the gallery and bring the desired story to the front.

• Check that you have selected the & (built-in memory) tab.

2 Select the rating of the stories you want to copy.

3 Copy all the applicable scenes.

* Touch [Stop] to interrupt the operation while it is in progress.

Copying a Single Photo

Operating modes:

1 In single photo view, select the photo you want to copy.

2 Touch the screen to display the playback controls.

[date]Copy all the scenes recorded on the date shown in the con-

trol button. For AVCHD movies only.

[Select] Select individual scenes to copy.

[All Scenes] Copy all the scenes.

[G] > [ Gallery] > Desired story

[Story Details] > [Select by Rating] > Desired rating >

[K]

[Edit Story]

[Copy (

)]

[Yes]*

[OK]

[

]

COPY

External Connections  137

3 Copy the photo.

4 Drag your finger left/right to select another photo to copy or

touch [X].

Copying Photos from the Index Screen

Operating modes:

1 Open the [ Photos] index screen.

Check that you have selected the & (built-in memory) tab.

2 Copy the photos.

* When you select [Select], perform the following procedure to select the individ-

ual photos you want to copy before touching [Yes].

** Touch [Stop] to interrupt the operation while it is in progress.

To select individual photos

1 Touch on the individual photos you want to copy.

• A checkmark ! will appear on the photos you touch. The total

number of selected photos will appear next to the " icon.

• Touch a selected photo to remove the checkmark. To remove all

checkmarks at once, touch [Remove All] > [Yes].

2 After selecting all the desired photos, touch [OK].

Options

[Select] Select individual photos to copy.

[All Photos] Copy all the photos.

[Edit] > [Copy (&'*)] > [¨Proceed] > [Yes]

[Edit] > [Copy (&'*)] > Desired option* > [Yes]**

> [OK]

COPY

138  External Connections

IMPORTANT

• Observe the following precautions while the ACCESS indicator is on or

flashing. Failing to do so may result in permanent data loss.

- Do not open the memory card slot cover.

- Do not disconnect the power source or turn off the camcorder.

- Do not change the camcorder’s operating mode.

• When copying photos onto an Eye-Fi card, photos will be uploaded

automatically if you are within the range of a configured network. Always

verify that Eye-Fi cards have been approved in the country/region of

use. See also Using an Eye-Fi card (A153).

NOTES

• In the following cases, you will not be able to copy recordings to the

memory card:

- If the memory card slot cover is open.

- If the LOCK switch on the memory card is set to prevent writing.

- If the file numbering is at maximum (A183).

- If there is no memory card in the memory card slot.

• If there is not enough space on the memory card, as many files as pos-

sible will be copied before stopping the operation.

Saving Recordings on a Computer

Movies recorded with this camcorder are saved in the built-in memory

(0 only) or on a memory card. Because space is limited, make

sure to save your recordings on a computer on a regular basis.

This section explains how to save your recordings on a computer using

a USB connection. Use the supplied software VideoBrowser (0

only) or Transfer Utility (1 only) for AVCHD movies and the sup-

plied software ImageBrowser EX for MP4 movies.

0 Refer to Wi-Fi Functions (A155) for details on saving your

recordings wirelessly.

COPY

External Connections  139

Saving AVCHD Movies (Windows only)

With the supplied software VideoBrowser (0 only) or Transfer

Utility (1 only), you can save to your computer the scenes you

have recorded.

Installation

Install the software before you connect the camcorder to the computer

for the first time. Refer to the Startup Guide (supplied leaflet) and follow

the instructions in the Software Guide (PDF file) to install the supplied

PIXELA’s software.

Connecting the Camcorder to a Computer

1 Power the camcorder using the compact power adapter.

2 Open the [ Movies] or [ Gallery] index screen.

3 Connect the camcorder to the computer using the supplied USB

cable.

Connection #-1. Refer to Connection Diagrams (A133).

4 Camcorder: Select [All (for PC only)].

Camcorder: When the connection is successfully established, [USB

Connection] appears on the screen.

5 Computer: The supplied PIXELA's software will start up

automatically.

•VideoBrowser (0 only) : Click in the menu panel to start

transferring files. For details about using the software, click to

open the Software Guide (PDF file).

•Transfer Utility (1 only) : Click [Video file import] to start

transferring files. For details about using the software, click [Help] to

open the Software Guide (PDF file).

COPY

140  External Connections

Saving MP4 Movies and Photos (Windows/Mac OS)

With the supplied software ImageBrowser EX you can save MP4

movies and photos to your computer and easily organize them. The

main system requirements are as follows.

Installation

Install the software before you connect the camcorder to the computer

for the first time. Make sure to install the software even if you have a

different version of ImageBrowser EX on your computer. The auto-

update function of the software may make available to you features

optimized for this camcorder.

The ‘ImageBrowser EX’ User Guide will also be installed with the soft-

ware.

POINTS TO CHECK

• Before installing the software, make sure your computer is connected to

the Internet.

1 Turn on the computer.

2 Insert the LEGRIA CD-ROM into the computer's disc drive.

3 Windows: Open the drive into which you inserted the CD-ROM

using Windows Explorer.

Mac OS: Click the CD-ROM icon on the desktop.

4 Click/Double-click the Disc_Setup.exe icon.

5 In the installer panel, select your language and then click [Easy

Installation].

OS CPU Memory

Windows 7

(SP1, 32/64-bit)

Intel® Core™ 2 Duo,

1.66 GHz

1 GB (for 32-bit)

2 GB (for 64-bit)

Windows Vista

(SP2, 32/64-bit)

1 GB

Windows XP

(SP3, 32-bit only)

1 GB

Mac OS X v10.6 Intel® Core™ Duo,

2.00 GHz

1 GB

COPY

External Connections  141

6 Follow the onscreen instructions.

For Windows users, the User Account Control window appears, follow

the instructions to continue.

To check that the software was installed correctly

You can check that the software was installed correctly by looking for

the ImageBrowser EX icon in the following location.

Windows: From the Start Menu, All Programs > Canon Utilities >

ImageBrowser EX

Mac OS: In the Dock, on the Desktop.

If you cannot find the icon, check your Internet connection and install

the software again.

First-time connection to a computer running Windows

Windows users only: The first time you connect the camcorder to the

computer, you also need to select the CameraWindow auto-launch

setting.

Connecting the Camcorder to a Computer

1 Power the camcorder using the compact power adapter.

2 Open the [ Movies] or [ Photos] index screen.

3 Connect the camcorder to the computer using the supplied USB

cable.

• Connection #-1. Refer to Connection Diagrams (A133).

• Camcorder: When the connection is successfully established, [USB

Connection] appears on the screen.

4 Save the recordings onto the computer.

Refer to relevant sections in the ‘ImageBrowser EX’ User Guide.

COPY

142  External Connections

IMPORTANT

•When the camcorder is connected to a computer:

- Do not open the memory card slot cover and do not remove the

memory card.

- Do not access, change or delete any of the camcorder’s folders or

files directly from the computer as this may result in permanent data

loss. Always use only the supplied software to save your recordings

on the computer and, if necessary, to transfer previously saved video

files to a memory card connected to the computer.

• Observe the following precautions while the ACCESS indicator is on or

flashing. Failing to do so may result in permanent data loss.

- Do not open the memory card slot cover.

- Do not disconnect the USB cable.

- Do not turn off the camcorder or the computer.

- Do not change the camcorder’s operating mode.

• Operation may not work correctly depending on the specifications/set-

tings of your computer.

• If you wish to use the recordings on your computer, make copies of

them first. Use the copied files, retaining the originals.

NOTES

• With the supplied software VideoBrowser (0 only) or Transfer

Utility (1 only) you can also choose to save complete stories from

the gallery. In such case, all the scenes in the story will be merged and

saved as a single video file.

•Users of Windows 7, Windows Vista, Windows XP and Mac OS X: You r cam-

corder is equipped with the standard Picture Transfer Protocol (PTP)

allowing you to transfer photos (JPEG only) simply by connecting the

camcorder to a computer using the supplied USB cable, without having

to install the supplied software ImageBrowser EX.

• If you connect the camcorder to the computer while it is set to

mode, the process of creating scene thumbnails will start automatically.

If your intention was to save photos to the computer, you can touch

[Skip] to stop the process and use the computer’s Safely Remove Hard-

ware function (Windows) or Eject function (Mac OS) to end the connec-

tion to the camcorder. Disconnect the USB cable, set the camcorder to

mode and restore the connection.

COPY

External Connections  143

0 Memory Save: Saving an Entire Memory onto an External

Hard Drive

You can easily save all the movies and photos you recorded onto a

commercially available external hard drive connected directly to the

camcorder*. You can also use the camcorder to play back your record-

ings directly from the hard drive. Initialize the hard drive (A146) when

you use it with this camcorder for the first time.

* If the USB cable supplied with the external hard drive has a standard-A connector,

you will need to use the optional UA-100 USB Adapter or a commercially available

USB adapter.

Operating modes:

Saving a Memory onto an External Hard Drive

1 Power the camcorder using the compact power adapter.

2Press T to set the camcorder to playback mode.

3 Connect the camcorder to the external hard drive using the

optional UA-100 USB Adapter.

Connection #-2. Refer to Connection Diagrams (A133).

4 Save the entire contents of the desired memory.

*Touch [Stop] > [Yes] > [OK] to interrupt the operation while it is in progress.

• After selecting the memory, you can check the name of the folder

that will be created on the hard drive. Every memory save operation

will create a separate memory save folder with the date (in numerical

form) used as the folder name; up to 10 memory save folders can be

created for any given date and up to 300 memory save folders can

be saved on a single hard drive.

[Save to Hard Drive] > Desired memory > [Yes]*

> [OK]

COPY

144  External Connections

Before disconnecting the external hard drive

Before turning off or physically disconnecting the external hard drive,

be sure to safely end the connection to the camcorder to avoid dam-

age to your files. From the [External Hard Drive] screen:

IMPORTANT

• Make sure you power the camcorder with the compact power adapter

before you save a memory to the external hard drive. If the compact

power adapter becomes disconnected, the connection between the

camcorder and the hard drive will end, which may lead to the corruption

of data in the hard drive.

NOTES

• Initialize the external hard drive (A146) when you use it with this cam-

corder for the first time.

• You cannot select both the built-in memory and memory card to save

them simultaneously.

• You cannot use the following types of external hard drives.

- USB-powered portable hard drives

- Hard drives with a capacity over 2 TB

- USB flash drives or media connected to card readers

• If the external hard drive is partitioned, only the first partition will be rec-

ognized.

Playing Back Previously Saved Recordings from the External Hard Drive

1 Power the camcorder using the compact power adapter.

2Press T to set the camcorder to playback mode.

3 Connect the camcorder to the external hard drive using the

optional UA-100 USB Adapter.

Connection #-2. Refer to Connection Diagrams (A133).

[Safely Remove Hard Drive] > [Yes]

COPY

External Connections  145

4 Touch [Play Back from Hard Drive] and select the memory save

folder you wish to play back.

• If you performed multiple memory save operations on the same day

(for example, if you saved the built-in memory and then a memory

card), the folder name of memory save folders following the first one

will end in a numerical suffix.

• The [ Movies] index screen will appear.

5 Play back the movies, stories and photos as you would do any

other memory.

To switch to another memory save folder, touch [X] and then repeat

step 4.

6 When you have finished playing back, be sure to safely end the

connection to the external hard drive before physically disconnecting it.

From the gallery or index screen:

To delete a memory save folder

With the external hard drive connected to the camcorder:

1 Select the memory save folder you want to delete.

2Press .

3 Delete the memory save folder.

4 Safely end the connection to the external hard drive before

physically disconnecting it.

• Be careful when deleting recordings. Once deleted, recordings

cannot be recovered.

• Observe the following precautions while the external hard drive's

access indicator is on or flashing.

- Do not disconnect the USB cable.

- Do not disconnect the camcorder or the external hard drive.

- Do not change the camcorder's operating mode.

[X] > [Safely Remove Hard Drive] > [Yes]

[ Other Settings] > q > [Delete Memory Save

Folder] > [Yes] > [OK]

COPY

146  External Connections

Initializing the External Hard Drive

1 Power the camcorder using the compact power adapter.

Do not disconnect the power source or turn off the camcorder until the

initialization is completed.

2Press T to set the camcorder to playback mode.

3 Connect the camcorder to the external hard drive using the

optional UA-100 USB Adapter.

Connection #-2. Refer to Connection Diagrams (A133).

4Press .

5 Initialize the external hard drive.

1Touch this option if you want to physically erase all the data rather than just

clear the file allocation table of the hard drive. For large-capacity hard drives this

operation can take several hours.

2If you selected the [Complete Initialization] option, you can touch [Cancel] >

[OK] to cancel the initialization while it is in progress. All recordings will be

erased and the hard drive can be used without any problem.

6 Safely end the connection to the external hard drive before

physically disconnecting it.

IMPORTANT

• Initializing the external hard drive will permanently erase all the

data on the hard drive (including your recordings, previous data

not saved with the camcorder, and partitioned drives). Make sure

to copy in advance important data to a computer or other device.

[ Other Settings] > q > [Initialize ] >

[Initialize] > [Complete Initialization]1 > [Yes]2 > [OK]

COPY

External Connections  147

Copying Recordings to an External Video Recorder

Operating modes:

In High Definition

Connect the camcorder to Blu-ray Disc recorders and other AVCHD-

compatible digital video recorders using the supplied USB cable to

make perfect copies of your movies in high definition. If the external

digital video recorder has an SD memory card slot*, you can use the

memory card to copy your movies without connecting the camcorder.

* Make sure the external device is compatible with the type of memory card used.

Connecting

1 Power the camcorder using the compact power adapter.

2 Open the [ Movies], [ Movies] index screen or gallery.

3 Connect the camcorder to the digital video recorder using the

supplied USB cable.

Connection #-1. Refer to Connection Diagrams (A133).

40 Camcorder: Select the memory that contains the scenes

you want to copy.

• Select an option other than [All (for PC only)].

• When the connection is successfully established, [USB Connection]

appears on the screen.

Recording

Details will vary depending on the device used so be sure to refer to

the instruction manual of the digital video recorder.

In Standard Definition

You can copy your movies by connecting the camcorder to a VCR or a

digital video recorder with analog audio/video inputs. Video output will

be in standard definition, although the original scenes are in high defi-

nition.

COPY

148  External Connections

Connecting

Connect the camcorder to the VCR using Connection " or ,. Refer

to Connection Diagrams (A132).

Recording

1 External recorder: Load a blank cassette or disc and set the

recorder to record pause mode.

2 Turn on the camcorder and set it to mode.

• We recommend powering the camcorder using the compact power

adapter.

• Verify that q > [AV/Headphones] is set to [Ò AV].

3 Camcorder: Locate the scene or story you wish to copy and

pause the playback shortly just before the desired scene.

4 Camcorder: Resume playback.

By default, onscreen displays will be embedded in the output video

signal. You can change this using the q > [Output Onscreen

Displays] setting.

5 External recorder: Start recording when the scene you wish to

copy appears; stop recording when it ends.

6 Camcorder: Stop playback.

0 Uploading AVCHD Movies to the Web

In order to share your AVCHD movies on YouTube and Facebook, you

need to convert them. This conversion can be completed in the cam-

corder itself or on a computer using the supplied software Video-

Browser.

MP4 movies do not need to be converted as such in the camcorder or

computer. You can share your MP4 movies (and photos) from a com-

puter using the supplied software ImageBrowser EX (A154).

COPY

External Connections  149

Installation

Install the software before you connect the camcorder to the computer

for the first time. Refer to the Startup Guide (supplied leaflet) and follow

the instructions in the Software Guide (PDF file) to install the supplied

PIXELA’s software.

Converting Scenes into Standard Definition from the [ Movies] Index

Screen

Operating modes:

1 Power the camcorder using the compact power adapter.

2 Make sure there is a memory card in the memory card slot with

sufficient available space.

3 Open the [ Movies] index screen.

• Check that you have selected the & (built-in memory) tab.

• To convert all the scenes recorded on a specific date, drag your

finger left/right until the desired date appears in the title bar.

4Touch [Edit] > [Convert HD'SD (&'*)] and select one of the

options for converting multiple scenes.

• You can convert all the scenes recorded on the date shown in the

control button, select individual scenes to convert or convert all the

scenes.

• When you select [Select], perform the procedure described below to

select the individual scenes you want to convert.

5 Review the conversion settings and touch [Next].

• If a copyright notice appears, read it carefully and touch [OK] if you

agree.

• Before touching [Next], you can touch [w] to change the conversion

settings as described below.

6 Touch [START] to convert the scenes.

• Before touching [START], you can touch [Ò] to decorate the

converted SD movies (A71), or touch [Ý] to adjust the volume

(A55) and background music balance (A81).

• You can also decorate the scenes as they are being converted.

• Touch [STOP] to interrupt the operation while it is in progress.

COPY

150  External Connections

7Touch [OK].

Connect the camcorder to the computer at this point (A151) to

continue uploading the converted videos to the Web.

To select individual scenes (step 4)

1 Touch on the individual scenes you want to convert.

• A checkmark ! will appear on the scenes you touch. The total

number of selected scenes will appear next to the " icon.

• Touch a selected scene to remove the checkmark. To remove all

checkmarks at once, touch [Remove All] > [Yes].

2 After selecting all the desired scenes, touch [OK].

To select the bit rate (step 5)

Using a higher bit rate will result in better video quality for the con-

verted scenes, while a lower bit rate will result in smaller file sizes and

faster uploads.

To automatically divide scenes (step 5)

If you are converting a long scene, you can have the camcorder divide

it into 10-minute SD movies to make uploading easier.

Converting Scenes into Standard Definition from a Story by Rating

Operating modes:

1 Open the gallery and bring the desired story to the front.

• Check that you have selected the & (built-in memory) tab.

[w] > [Bit Rate (Quality)] > Desired option > [K] >

[K]

[w] > [Auto Divide] > [On] > [K] > [K]

[G] > [ Gallery] > Desired story

COPY

External Connections  151

2 Select the rating of the stories you want to convert.

3Touch [Edit Story] > [Convert HD'SD (%)] and continue the

conversion to standard definition from step 5 in the previous

procedure (A149).

NOTES

• When converting scenes from a story:

- All the scenes are merged into one converted SD movie.

- If the converted SD movie is too large, it will be split into smaller

10-minute long movies.

- The maximum total playback time of the scenes to be converted is

12 hours.

Connecting to the Computer and Uploading your Videos

Operating modes:

1 Connect the camcorder to the computer using the supplied USB

cable.

Connection #-1. Refer to Connection Diagrams (A133).

2 Select [All (for PC only)].

3 VideoBrowser will start up automatically.

Click the YouTube icon in the menu panel and follow the software's

instructions to upload your SD movies to the Web. For details about

using the software, click to open the Software Guide (PDF file).

[Story Details] > [Select by Rating] > Desired rating >

[K]

COPY

152  External Connections

IMPORTANT

• While the camcorder is connected to the computer, do not open the

memory card slot cover and do not remove the memory cards.

• Observe the following precautions while the ACCESS indicator is on or

flashing. Failing to do so may result in permanent data loss.

- Do not open the memory card slot cover.

- Do not disconnect the USB cable.

- Do not disconnect the compact power adapter or turn off the

camcorder or the computer.

NOTES

• The time required to convert scenes is approximately equal to the total

playback time of the converted scenes. In most cases this is still faster

than converting the scenes in the computer so we recommend you

convert scenes in the camcorder.

• Movies cannot be converted if the file numbering is at maximum

(A183).

• You can check and play back the converted SD movies from the [SD

Movies] index screen on the memory card.

Uploading your Videos Using an Eye-Fi Card

If you are using an Eye-Fi card, you can automatically upload movies to

your favorite video sharing Web site. You will need to have installed the

software supplied with your Eye-Fi card and completed all the required

configuration setup in advance. Refer to the instruction manual of the

Eye-Fi card. Also, note that not all Eye-Fi cards can upload AVCHD

movies. Check compatibility in advance.

Please read the IMPORTANT section before using an Eye-Fi card.

Operating modes:

1 Insert your Eye-Fi card into the memory card slot and make sure

there is sufficient available space on the memory card.

COPY

External Connections  153

2 Convert the desired movies (A149).

• If you are within the range of a configured network, Web upload will

start automatically.

• The status of the wireless communication is shown by the Eye-Fi

icon as follows:

-•(grayed out) Communication not established

-•(white, flashing) Connecting; •(white, continuously on)

Wireless upload on standby

-•(animated) Wireless upload in progress

-…[Eye-Fi Communication] is set to [j Off]

-‰Wireless upload stopped by the camcorder (A200)

-‹ Error reading from the Eye-Fi card (A199)

• For MP4 movies, step 2 is not necessary. If you are within the range

of a configured network, Web upload will start automatically.

IMPORTANT

Using an Eye-Fi Card

• This product is not guaranteed to support Eye-Fi card functions (includ-

ing wireless transfer). In case of an issue with an Eye-Fi card, please

check with the card manufacturer. Also note that an approval is required

to use Eye-Fi cards in many countries or regions. Without approval, use

of the card is not permitted. If it is unclear whether the card has been

approved for use in the area, please check with the card manufacturer.

• Do not use Eye-Fi cards on airplanes and in other places where wireless

communication is forbidden. Remove the Eye-Fi card from the cam-

corder beforehand.

NOTES

• Depending on the amount of data to be uploaded and the network’s

wireless connection conditions, it can take some time to upload video

files. If the wireless connection is too weak, the wireless upload may fail

and the video files will be registered as incomplete uploads.

• About power saving when using an Eye-Fi card:

- Wireless communication drains the power of the battery pack faster

than usual. We recommend powering the camcorder using the

compact power adapter.

- While files are being uploaded wirelessly, the camcorder’s automatic

power off function will be disabled.

COPY

154  External Connections

• While using an Eye-Fi Card, the ACCESS indicator may flash from time

to time.

• Wireless communication via the Eye-Fi card is available only in playback

mode. Any wireless transfer in progress will be stopped if you set the

camcorder to recording mode.

•0 Wireless communication via the Eye-Fi card is not available

when using the camcorder's Wi-Fi functions.

• You can turn off the wireless communication with the q > [Eye-Fi

Communication]* setting.

• If the LOCK switch on the Eye-Fi card is set to prevent writing, you will

not be able to turn the wireless communication on/off and the status

icon will change to ‹. To use wireless communication make sure the

switch on the Eye-Fi card is not in the LOCK position.

* This menu option will appear only when using an Eye-Fi card.

Uploading MP4 Movies and Photos to the Web

With the supplied software ImageBrowser EX, you can upload your

recordings to YouTube (MP4 movies) and Facebook (MP4 movies and

photos) from your computer. Additionally, you can use CANON iMAGE

GATEWAY* to make photo albums and more.

* This service may not be available in all countries/regions.

Installation

Install the software before you connect the camcorder to the computer

for the first time. The software is compatible with computers running

Windows or Mac OS operating systems. Refer to Saving MP4 Movies

and Photos (Windows/Mac OS) (A140).

Connecting to the Computer and Uploading your Recordings

Refer to the relevant sections in the ‘ImageBrowser EX’ User Guide

(PDF file).

COPY

Wi-Fi Functions  155

Wi-Fi Functions

This chapter contains information about how to operate the

Wi-Fi functions of your camcorder, starting with the Wi-Fi net-

work setup needed to add your camcorder to an existing

Wi-Fi network.

Introduction to Wi-Fi

The camcorder's Wi-Fi functions allow you to send files wirelessly,

which means that you will not need to fuss with cables. You can wire-

lessly connect the camcorder to a Wi-Fi network (wireless LAN) using

an access point (commonly referred to as infrastructure mode) or

directly to an iOS device* without using a wireless access point (com-

monly referred to as ad hoc mode). The steps you will perform will

depend on how you plan to use your recordings. Refer to Glossary

(A173) for a definition of the frequently used terms in this text.

* "iOS device" is used in this text to collectively refer to Wi-Fi-enabled iOS devices.

Wi-Fi connection Infrastructure mode

Connect the camcorder to an access point on a Wi-Fi network (A157). Use this

connection if you plan to save your recordings on a computer or FTP server (A162) and

then upload videos to YouTube and Facebook (A166).

Access point Computer

COPY

156  Wi-Fi Functions

NOTES

• While using Wi-Fi functions, the camcorder's automatic power off func-

tion will be disabled.

Wi-Fi connection Ad hoc mode

Connect the camcorder to an iOS device (A167). Use this connection type if you plan to

upload videos to YouTube and Facebook on the go (A166).

Wi-Fi connection Infrastructure mode

Connect the camcorder to an access point on a Wi-Fi network (A157). Use this

connection if you plan to play back videos on a DLNA-compatible TV (A170) connected

to the network using a LAN cable.

iOS device

Access point

LAN cable

HDTV

About the camcorder's Wi-Fi standard

The camcorder's Wi-Fi standard complies with the IEEE 802.11b/g/n

protocol and operates in the 2.4 GHz band. As such, the maximum

data transfer rate is 11 Mbps for IEEE 802.11b, 54 Mbps for IEEE

802.11g, and 150 Mbps for IEEE 802.11n. Note that these are theo-

retical values and actual data transfer rates may differ.

COPY

Wi-Fi Functions  157

Connecting to a Wi-Fi Network

Wirelessly connecting to a Wi-Fi network via an access point (wireless

router) is commonly referred to as infrastructure mode. If your wireless

router supports Wi-Fi Protected Setup (WPS), setup will be easy and

require minimal configuring. Refer to Wi-Fi Protected Setup below. If

your wireless router does not support WPS or you wish to manually

configure settings, refer to Manual Setup (A160).

Refer also to the instruction manual of your wireless router and other

devices you will use.

General requirements

• Correctly configured Wi-Fi network or hotspot

that uses the 802.11b/g/n protocol.

POINTS TO CHECK

• Using an unprotected Wi-Fi network can expose your files and data to

monitoring by unauthorized third parties. Be aware of the risks involved.

• When using the camcorder's Wi-Fi

functions, do not cover the right side

of the camcorder with your hand or

other object. The Wi-Fi antenna is

located on the right side and covering

it may interfere with wireless signals.

Place the camcorder on a table or

similar surface and then use the Wi-Fi

functions, as shown in the illustration

on the left.

Wi-Fi antenna

COPY

158  Wi-Fi Functions

Operating modes:

Wi-Fi Protected Setup (WPS)

To use WPS to make a connection using infra-

structure mode, make sure your wireless router

has the WPS logo. If your wireless router has a

WPS button, setup will be easy and all automatic.

Some wireless routers that support WPS do not have a dedicated but-

ton but use a PIN code instead. Both cases are explained in the follow-

ing procedure. For setup using a PIN code, you will need to know in

advance how to activate the wireless router's WPS function.

To enter text for the various settings, use the virtual keyboard (A85).

1 Set the camcorder to playback mode and then press .

2 Set up a new connection point.

* To replace the settings of an existing connection point, touch [Edit] instead and

then manually change the settings. To delete the settings, touch [Delete] and

then [Yes].

• You can set up up to three connection points for infrastructure mode

([ 1] to [ 3]). Once set up, you can use the same Wi-Fi network

without any further settings.

3 WPS button setup: Press and hold the WPS button on your

wireless router.

WPS PIN code setup: After a PIN code appears on the

camcorder's screen, enter it into your wireless router's setup

screen.

In most cases, the wireless router’s setup screen is accessed using

your Web browser. For details about how to activate the Wi-Fi

protected setup, refer to the instruction manual of your wireless router.

[Wi-Fi] > [Wi-Fi Setup] > [Network Setup] >

Desired connection point ([ 1] to [ 3]) > [Set Up

New]* > [WPS: Button] or [WPS: PIN Code]

COPY

Wi-Fi Functions  159

4 Within 2 minutes, touch [OK] on the camcorder's screen.

You can touch [Stop] and then [OK] to interrupt the Wi-Fi Protected

Setup while it is in progress.

5 Touch [Automatic] to automatically obtain an IP address.

• To assign the IP address manually, touch [Manual] and perform the

procedure in To manually assign an IP address below.

• A screen to test the settings will appear.

6 Select whether to test the settings.

• You can touch [Check Current Configuration] to review the network

settings.

• If you touched [Yes], a test of the settings will be performed and a

confirmation screen will appear. Touch [OK].

7 Save the settings of the connection point.

* After touching [OK], you can review the network settings. Touch [Wi-Fi Setup]

> [Check Current Configuration] > Desired connection point > [Î] or [Í]

> [K] three times when finished.

To manually assign an IP address (step 5)

After touching [Manual] in step 5:

* An interface similar to the virtual keyboard for text fields (A85) will appear except

it will contain only the keys necessary for this step.

[Yes] > [OK]* > [X]

Touch the field under [IP Address] or [Subnet Mask] >

Enter* the IP address or subnet mask > [OK] > Enter the

default gateway > [OK] > Enter the default primary and

secondary DNS servers > [OK] > Continue to step 6

COPY

160  Wi-Fi Functions

Manual Setup

Perform this procedure to wirelessly connect the camcorder to the

wireless router (using infrastructure mode) if your router does not sup-

port WPS, you wish to manually configure settings, or if your wireless

router's network name (SSID) cannot be detected due to the stealth

function being enabled.

To enter text for the various settings, use the virtual keyboard (A85).

POINTS TO CHECK

• You may need to know in advance the encryption key and other set-

tings of the wireless router. Refer to the wireless router's setup screen or

ask the network administrator.

1 Set the camcorder to playback mode and then press .

2 Set up a new connection point.

* To replace the settings of an existing connection point, touch [Edit] instead and

then manually change the settings. To delete the settings, touch [Delete] and

then [Yes].

• You can set up up to three connection points for infrastructure mode

([ 1] to [ 3]). Once set up, you can use the same Wi-Fi network

without any further settings.

• The camcorder will automatically detect available nearby Wi-Fi

networks and display their SSID.

3Touch [Í] or [Î] to select the desired access point and then

touch [OK].

• Wi-Fi networks with a stealth function that do not broadcast their

network name will not be detected by the camcorder. To use such an

access point, touch [Enter Manually] and perform the procedure

described in To manually enter a wireless access point (A161).

• If the desired access point is protected, the C icon will appear next

to the network name. In such case, continue to step 4; otherwise,

skip to step 5.

[Wi-Fi] > [Wi-Fi Setup] > [Network Setup] >

Desired connection point ([ 1] to [ 3]) > [Set Up

New]* > [Manual Setup]

COPY

Wi-Fi Functions  161

4 Touch the [Encryption Key] control button to enter the encryption

key or password of the wireless access point and then touch [OK].

• If the encryption method of the wireless access point is set to WEP,

the WEP index key will appear on the screen. Select the same index

key of the access point.

5 Touch [Automatic] to automatically obtain an IP address.

• To assign the IP address manually, touch [Manual] and perform the

procedure in To manually assign an IP address (A159).

• A screen to test the settings will appear.

6 Select whether to test the settings.

• You can touch [Check Current Configuration] to review the network

settings.

• If you touched [Yes], a test of the settings will be performed and a

confirmation screen will appear. Touch [OK].

7 Save the settings of the connection point.

* After touching [OK], you can review the network settings. Touch [Wi-Fi Setup]

> [Check Current Configuration] > Desired connection point > [Î] or [Í]

> [K] three times when finished.

To manually enter a wireless access point (step 3)

Enter the details of the wireless access point.

* If you select [Open], you can select [No Encryption] or [WEP]. If you select,

[Open] > [WEP] or [Shared Key WEP], you will need to specify the WEP index

key.

[Yes] > [OK]* > [X]

Enter the access point’s SSID > [OK] > [OK] > Enter

the authentication/encryption method* and, if applicable,

the encryption key of the access point > [OK] >

Continue to step 5

COPY

162  Wi-Fi Functions

NOTES

• The functions available and the setup method will vary depending on

the specifications and characteristics of the Wi-Fi network you want to

use.

• When using Wi-Fi functions, wireless communication with an Eye-Fi

card is not possible.

Transferring Files to a Computer or FTP server

You can wirelessly transfer recordings directly to a computer running

the supplied software Network Utility (Windows only) or an FTP server.

First, set where the files will be transferred to (file transfer destination)

and then transfer the files. If you are transferring files to a computer

running Network Utility, you also have the option of uploading the files

to YouTube and Facebook (A166).

POINTS TO CHECK

• If you have not done so already, complete the Wi-Fi network setup

(A157) in advance.

General requirements

For computers running Windows:

• A computer correctly connected to the same network as the camcorder

with the supplied software Network Utility correctly installed, config-

ured and running ( appears in the notification area, depending on the

OS). Network Utility will be installed automatically after you install

VideoBrowser. For details about the software, refer to the ‘Network

Utility Software Guide’ (PDF file on the PIXELA disc in the folder \Net-

work Utility\Manual\English).

Access point

COPY

Wi-Fi Functions  163

For FTP servers:

• Correctly configured FTP server, such as a Macintosh computer or net-

work-attached storage (NAS) drive. You will need to enter the IP

address, port, user name, password and file transfer destination as part

of the manual setup.

Operating modes:

File Transfer Destination Setup for Windows Computers

1 Power the camcorder using the compact power adapter.

2 Set the camcorder to playback mode and then press .

3 Connect the camcorder to the Wi-Fi network.

* This step is not necessary when the file transfer destination is not configured.

** This step is not necessary when only one connection point is detected.

• Select the connection point corresponding to the Wi-Fi network to

which the computer running Network Utility is also connected.

• If several computers connected to the network are running Network

Utility, a selection screen will appear. In such case, continue to step

3; otherwise, skip to step 4.

4Touch [Í] or [Î] to select the specific computer you want to use

for transferring files wirelessly from the camcorder and then touch

[OK].

5 When the confirmation screen appears, save the settings of the

connection point.

[Wi-Fi] > [Wi-Fi Setup] > [Transfer Destination

Setup] > [Computer (Network Utility)] > [w]* > Desired

connection point** > [OK]**

[Yes] > [OK] > [X]

COPY

164  Wi-Fi Functions

File Transfer Destination Setup for FTP Servers

1 Set the camcorder to playback mode and then press .

2 Connect the camcorder to the Wi-Fi network.

3 Enter the details of the FTP server.

* An interface similar to the virtual keyboard for text fields (A85) will appear

except it will contain only the keys necessary for this step.

• The destination folder may differ depending on the FTP server. Check

the FTP server's settings.

• A confirmation screen will appear.

4 Save the settings of the connection point.

• Before touching [Yes], you can touch [Check Current Configuration]

to review the network settings.

Transferring Recordings

1 Power the camcorder using the compact power adapter.

Do not disconnect the power source or turn off the camcorder until the

transfer is completed.

2 Set the camcorder to playback mode and then press .

3 Touch [ Wi-Fi] and then touch [Transfer Files].

If the memory card slot cover is open, the option will not be available.

Make sure the cover is closed properly.

[Wi-Fi] > [Wi-Fi Setup] > [Transfer Destination

Setup] > [FTP Server]

[w] > Enter* the IP address for [FTP Server] and [21] for [Port]

> [OK] > Enter the user name and password > [OK] >

Enter [/] for [Destination Folder] > [OK]

[Yes] > [OK] > [X]

COPY

Wi-Fi Functions  165

4 Select the memory that contains the recordings you wish to

transfer wirelessly and touch [OK].

• You can select more than one memory.

• Touch [All files] to transfer all the recordings, or [New files] to transfer

only those recordings that have not been previously transferred.

• Once connected, the wireless transfer will begin automatically.

• You can touch [Stop] and then [X] to cancel the wireless transfer

while it is in progress.

5Touch [OK].

IMPORTANT

• Do not open the memory card slot cover during wireless transfer.

• Observe the following precautions when transferring files. Failing to do

so may interrupt the transfer and incomplete files may remain at the

transfer destination.

- Do not disconnect the power source or turn off the camcorder.

- Do not change the camera mode.

• If the file transfer is interrupted, select [New Files] and perform the file

transfer again.

• If incomplete files remain at the transfer destination, check the content

and make sure they are safe to delete before deleting them.

NOTES

• AVCHD movies transferred using Network Utility will be saved in the

Videos folder on the computer by default. If you start VideoBrowser

after you transfer AVCHD movies, the destination folder will automati-

cally be added to the software's Library.

• MP4 movies transferred using Network Utility will be saved in the same

location as AVCHD movies. If you start ImageBrowser EX after you

transfer MP4 movies, the same destination folder will automatically be

added to ImageBrowser EX. If you change the destination folder in

Network Utility before transferring files, make the same change in the

ImageBrowser EX settings.

• Depending on the wireless router's settings and capability, it can take

some time to upload video files.

COPY

166  Wi-Fi Functions

Uploading Recordings to YouTube and Facebook

You can upload movies to YouTube and movies and photos to Face-

book using the supplied software Network Utility running on a Win-

dows computer.

POINTS TO CHECK

• If you have not done so already, complete the Wi-Fi network setup

(A157) and file transfer destination setup (A162) in advance.

General requirements

• A computer correctly connected to a network with the supplied soft-

ware Network Utility correctly installed, configured (including your

YouTube and Facebook account settings) and running ( is in the

notification area, depending on the OS). Network Utility will be installed

automatically after you install VideoBrowser. For details about the soft-

ware, refer to the ‘Network Utility Software Guide’ (PDF file on the PIX-

ELA disc in the folder \Network Utility\Manual\English).

Operating modes:

* Photos can be uploaded to Facebook only.

1 Set the camcorder to playback mode and then open the index

screen that contains the recordings you want to upload.

2 Select the service you wish to upload to.

Access point Computer

[Edit] > [ Network Utility] > Desired service > Touch

the desired recording

COPY

Wi-Fi Functions  167

3 If you are uploading to YouTube, read the YouTube agreement

carefully and touch [I Agree] if you agree.

4 Touch the desired connection point to connect the camcorder to

the network and then touch [OK].

Once connected, or if only one connection point has been set up, the

wireless upload will begin automatically. You can touch [Stop] and then

[X] to cancel the wireless upload while it is in progress.

5Touch [OK].

NOTES

• Depending on the wireless router's settings and capability, it can take

some time to upload video files.

Uploading Videos Using an iOS Device

You can connect the camcorder to an iOS device* to upload your

recordings to YouTube and Facebook even when you are away from

your home network. Make sure you have downloaded and are using

the Movie Uploader app provided by PIXELA, available for free from

the App Store (http://itunes.com/apps/movieuploader). The Wi-Fi con-

nection between the camcorder and iOS device is commonly referred

to as ad hoc mode, meaning that the camcorder will connect directly to

the iOS device without using an access point.

* "iOS device" is used in this text to collectively refer to Wi-Fi-enabled iOS devices.

Operating modes:

Setting Up a Wi-Fi Connection (Ad Hoc Mode)

1 Set the camcorder to playback mode and then press .

iOS device

COPY

168  Wi-Fi Functions

2 Set up a new connection point.

* To replace the current settings, touch [Edit] instead and then manually change

the settings. To delete the settings, touch [Delete] and then [Yes].

3 Enter the details of the connection.

* If you select [Open], you can select [No Encryption] or [WEP]. If you select

[Shared Key WEP], you will need to specify the WEP index key.

**Enter an encryption key of your choosing. The encryption key must be one of

the following.

- 5 or 10 alphanumeric characters

- 10 or 26 hexadecimal characters (0-9, A-F)

4 Touch [Automatic] to automatically obtain an IP address.

5Touch [No].

• You can touch [Check Current Configuration] to review the network

settings.

6 Save the settings of the connection point.

* After touching [OK], you can review the network settings. Touch [Wi-Fi Setup]

> [Check Current Configuration] > Desired connection point > [Î] or [Í]

> [K] three times when finished.

NOTES

• If you attempt to test the settings and the camcorder is able to send a

Wi-Fi signal, then a message will be displayed indicating that the con-

nection was successfully established even when the camcorder has not

established a connection to the iOS device.

[Wi-Fi] > [Wi-Fi Setup] > [Network Setup] > []

> [Set Up New]*

Enter an SSID (up to 32 characters) and channel of your

choosing > [OK] > Enter the authentication/encryption

method* and, if applicable, the encryption key** > [OK]

[Yes] > [OK]* > [X]

COPY

Wi-Fi Functions  169

Uploading Videos

1 Camcorder: Set the camcorder to playback mode and then press

2 Camcorder: Select the ad hoc Wi-Fi connection.

* If the memory card slot cover is open, the option will not be available. Make

sure the cover is closed properly.

3 Camcorder: Touch [OK].

The camcorder will connect as a media server.

4 iOS device: Touch Settings > Wi-Fi and then turn Wi-Fi on.

A list of active networks will appear.

5 iOS device: On the network selection screen, select the network

set in the camcorder. If necessary, enter the password and then

touch Join.

A checkmark will appear next to the selected network.

6 iOS device: Use the Movie Uploader app to upload the

camcorder’s movies.

For details about the Movie Uploader app, visit

http://www.pixela.co.jp/oem/canon/e/movieuploader/ (English only).

7 Camcorder: When you have finished, touch [End] to end the Wi-Fi

connection.

IMPORTANT

• Do not open the memory card slot cover during the wireless connec-

tion.

NOTES

• Depending on the wireless router's settings and capability, it can take

some time to upload video files.

• The procedure above may differ depending on the version of iOS you

are using.

[Wi-Fi] > [DLNA Media Server]* > [] > [OK]

COPY

170  Wi-Fi Functions

Wireless Playback on a DLNA-Compatible Device

If you have a DLNA-compatible player, such as an HDTV, on your home

network, you can watch your recordings* wirelessly. In such case, the

camcorder acts as a digital media server (DMS) and the HDTV acts as

a digital media player (DMP). From the HDTV, you can easily search for

recordings in the camcorder and play them back.

* Many DLNA players do not support playback of MP4 movies.

POINTS TO CHECK

• If you have not done so already, complete the Wi-Fi network setup

(A157) in advance.

General requirements

• An HDTV or other media player certified as a DLNA

Digital Media Player (DMP), correctly configured

and connected to the network. We recommend

using a LAN cable to connect the HDTV or media player. Look for the

DLNA Certified logo on the HDTV and refer to the instruction manual of

the HDTV for details on connecting it to the network.

Operating modes:

1 Set the camcorder to playback mode and then press .

2 Camcorder: Touch [ Wi-Fi] and then touch [DLNA Media

Server].

• If the memory card slot cover is open, the option will not be available.

Make sure the cover is closed properly.

• If only one connection point has been set up, the wireless connection

will be established. Skip to step 4.

Access point

LAN cable

HDTV

COPY

Wi-Fi Functions  171

3 Camcorder: Touch the desired connection point and then touch

[OK].

4 DLNA Digital Media Player: Select your camcorder model from the

list and then play back your recordings.

• The ACCESS indicator blinks during the connection.

• Refer to the DLNA device's instruction manual for details on the

procedure.

5 Play back the videos in the folder that appears (built-in memory or

memory card).

6 Camcorder: When you have finished playing back, touch [End] to

end the Wi-Fi connection.

IMPORTANT

• Do not open the memory card slot cover during the wireless connec-

tion.

If playback is not smooth

If the video's playback is not smooth, you can play back the video in

standard definition.

1 Press .

2 Enable conversion to standard definition.

• Touch [Off] when you want to play back your movies in AVCHD.

[Wi-Fi] > [w] > [On] > [K] > [DLNA Media

Server]

COPY

172  Wi-Fi Functions

NOTES

• Playback may not appear smooth depending on the wireless router's

settings and capability. In such case, try the following.

- Remove any objects between the camcorder and wireless access

point that may interfere with the wireless signal.

- Move the camcorder closer to the wireless access point.

- Turn off the wireless functions of other wireless devices other than the

DLNA-compatible device being used for playback.

- Switch the wireless access point to IEEE 802.11n and activate

channel bonding. Refer to its instruction manual for details.

If these do not improve playback, the cause may be due to conditions

unique to the surrounding area. Use the supplied HDMI cable to

connect the camcorder to the device.

COPY

Wi-Fi Functions  173

Glossary

This is a glossary of some of the basic terms used frequently in this

chapter. The documentation for your wireless router may also con-

tain a glossary you can refer to.

Access point

A wireless access point (WAP) is a device that allows wireless

devices, like your camcorder, to connect to a wired network (includ-

ing to the Internet) using the Wi-Fi standard. In most cases, this will

be your wireless router.

Ad hoc mode

A Wi-Fi connection made directly from one device to another without

using an access point.

DLNA

Digital Living Network Alliance. A standard for easy communication

and content sharing among consumer electronic devices, comput-

ers and mobile devices across a home network.

FTP server

An FTP server is an application running on a computer that allows

users to transfer files to and from that computer.

Infrastructure mode

A Wi-Fi connection in which devices are connected through an

access point.

IP address

Exclusive number assigned to each device connected to the net-

work.

SSID

Service Set Identifier. This is simply the public name of a Wi-Fi net-

work.

WPS

Wi-Fi Protected Setup. Standard for easy and secure setup of Wi-Fi

networks created by the Wi-Fi Alliance.

COPY

174  Additional Information

Additional Information

This chapter contains troubleshooting advice, screen mes-

sages, handling and maintenance tips, and other information.

Appendix: Menu Options Lists

Menu items not available appear grayed out. For details about how to

select an item, refer to Using the Menus (A27). For details about

each function, see the reference page. Menu options without a refer-

ence page are explained after the tables. Underlined menu options

indicate default values. Unless otherwise specified, functions available

for AVCHD movies include movies made using Story Creator mode.

[ Main Functions] Panel

FUNC. Menu

[ Main Functions] Panel - Recording Modes

Control Button Setting options/Function AUTO n A

[Rec. Programs] [’Programmed AE], [‚Shutter-Pri. AE],

[“Aperture-Pri. AE]

–zz92

[úSCN: Portrait], [ûSCN: Sports],

[ü SCN: Night Scene], [ýSCN: Snow],

[þSCN: Beach], [ÿSCN: Sunset],

[ŒSCN: Low Light], [œSCN: Spotlight],

[ŠSCN: Fireworks], [šSCN: Underwater],

[ŸSCN: Surface]

–z–92

[Ä White

Balance]

[ÃAutomatic], [¼Daylight], [½Shade],

[¾Cloudy], [¿Fluorescent],

[ÀFluorescent H], [ Tungsten],

[ÅCustom WB]

–zz107

[<Focus] [D] (manual focus): Toggle on or off, Touch

AF frame

–zz105

[yExposure] [n] (manual exposure): Toggle on or off,

Touch AE frame

–zz103

COPY

Additional Information  175

1The default setting is on in mode and off in other camera modes.

2Some options are available only when recording a story using Story Creator.

[È

Powered IS]1

[ON], [OFF] zzz95

[ZOOM Zoom] Zoom controls, [START]/[STOP] control zzz50

[W] (tele macro): Toggle on or off – zz106

[ Audio

Scene]

[ Standard], [ Music], [ Speech],

[ Forest and Birds],

[ Noise Suppression]

zzz111

[ Custom Setting] – zz

[ä Mic. Level] [m] (automatic), [n] (manual)

[Audio Level Indicator]: Toggle on or off

–zz115

[x AGC Limit] [m] (automatic), [n] (manual) – zz104

[Image Effects] [ON], [OFF]

When [ON] - [Color Depth], [Sharpness],

[Contrast], [Brightness]: ±0 (-2 to +2)

–z– 109

[RFaders] [SOff], [TFade Trigger: Once],

[UFade Trigger: Always],

[VWipe: Once], [WWipe: Always]

–zz100

[Ò Decoration]

[

Pens and Stamps], [

Animated Stamps],

[Ø Captions]2

zzz71

[Ü] (image mix): Toggle on or off,

[Ý] (pause live video)

zz –

[ß] (minimize toolbar) zzz

[z Pre REC] [ON], [OFF] –zz96

[v Review

Recording]

––zz87

Control Button Setting options/Function AUTO n A

COPY

176  Additional Information

[Edit] Panel - Mode

* Option available only for AVCHD movies.

Control Button

[

Movies]

Index

Screen

[

Movies]

Index Screen

[zSD

Movies]

Index Screen

Playback

Pause A

From the built-in

memory:

[Copy (%)]

<date>,

[Select],

[All Scenes]

[Select],

[All Scenes]

– – 135

From the built-in

memory:

[Convert HD'SD

(%)]

<date>,

[Select],

[All Scenes]

–––149

[Delete] <date>,

[Select],

[All Scenes]

[Select],

[All Scenes]

[This Scene],

[All Scenes]

[This Scene] 59

[Divide] – – – z* 123

[Network

Utility]

YouTube,

Facebook

YouTube,

Facebook

YouTube,

Facebook

– 166

COPY

Additional Information  177

In the gallery:

* Operation not available for the two preexisting stories, [Unsorted] and [Video Snap-

shot].

[Edit] Panel - Mode

Control Button

[Edit Story] from

the [Story

Details] screen

[Edit Scene] from

the [Scene List]

screen

Playback Pause A

From the built-in

memory:

[Copy (%)]

<by scene rating> – – 136

From the built-in

memory:

[Convert HD'SD

(%)]

<by scene rating> – – 150

[Delete] or [ ] <by scene rating> [This Scene] [This Scene] 59

[Delete Story]* z––62

[Story Thumbnail]* z––84

[Edit Title]* z––84

[Copy] – z–82

[Move] – z–82

[Divide] – – z123

[Rating] – [É], [Ê], [Ë],

[Ì] (unrated), [Í] (others)

Control Button Index Screen Single Photo View A

From the built-in memory:

[Copy (%)]

[Select], [All Photos] z136,

137

[Delete] z127

[ Network Utility]

Facebook – 154

COPY

178  Additional Information

[ Other Settings] Menus

When the camcorder is in mode, you will not be able to access

the p menu.

p Camera Setup

Menu item Setting options n A

[Self Timer] [i On <], [j Off] zz110

[Digital Zoom] [jOff], [n40x], [o200x] z––

[Zoom Speed] [YVariable], [ZSpeed 3],

[[Speed 2], []Speed 1]

zz49

[AF Mode] [=Instant AF], [@Normal AF] zz –

[Focus Assistance]1[iOn], [jOff] zz –

[Face Detection &

Tracking]

[iOn }], [jOff] zz97

[Auto Backlight

Correction]

[iOn], [jOff] zz104

[Auto Slow Shutter] [iOn], [jOff] zz –

[Conversion Lens] [¾ Tele-converter], [¿ Wide-converter],

[jOff]

zz –

[Fader Setting]1[° Black Screen], [± White Screen] zz100

[Onscreen Markers] [jOff], [3 Level (White)],

[4 Level (Gray)], [5 Grid (White)],

[6 Grid (Gray)]

zz –

[Image Stabilizer] [ Dynamic], [ Standard], [j Off] zz95

[Auto Wind Screen]1[H High], [L Low ], [jOff à]zz112

[Microphone

Attenuator]1

[kAutomatic], [iOn å]zz –

[Built-in Mic Freq.

Response]1

[

Normal], [ç Boost LF Range],

[è Low Cut Filter],

[éBoost MF Range],

[ê Boost HF+LF Range]

zz113

COPY

Additional Information  179

1Option available only for recording movies.

2Option available only when the optional SM-V1 Surround Microphone is attached

to the camcorder after having updated the camcorder’s firmware using the mem-

ory card supplied with the SM-V1.

3For AVCHD movies only.

[Digital Zoom]: Determines the

operation of the digital zoom.

The color of the indicator indi-

cates the zoom.

• When activated, the cam-

corder will switch automatically

to digital zoom when you zoom

in beyond the optical zoom

range.

• With the digital zoom the

image is digitally processed, so

the image resolution will deteriorate the more you zoom in.

[AF Mode]: Select how fast the autofocus will operate.

•With [=Instant AF] the autofocus adjusts quickly to a new subject.

This is convenient, for example, when changing the focus from a near

subject to a far subject in the background, or when recording moving

subjects.

• When the optional Wide-converter or Tele-converter is attached to the

camcorder, it may partially obstruct the Instant AF sensor. Set the AF

mode to [@Normal AF].

• When the recording program is set to [šSCN: Underwater] or

[ŸSCN: Surface],

the AF mode is automatically set to

[@Normal AF].

[Focus Assistance]: When focus assistance is activated, the image at the

center of the screen is magnified to help you focus manually (A105).

• Using focus assistance will not affect the recordings. It will be cancelled

automatically after 4 seconds or when you start recording.

[Built-in Mic

Directionality]1

[í Monaural], [h Normal],

[î Wide], [ï Zoom]

zz114

[Surround Mic

Directionality]1, 2, 3

[

Surround], [

Zoom], [

Shotgun]

zz –

[Surround Mic

Attenuator]1, 2, 3

[iOn å], [jOff] zz –

Menu item Setting options n A

Optical zoom Digital zoom

White Light

blue

Dark

blue

Up to 10x 10x -

40x

40x -

200x

COPY

180  Additional Information

[Auto Slow Shutter]: The camcorder automatically uses slow shutter

speeds to obtain brighter recordings in places with insufficient lighting.

• Minimum shutter speed used: 1/25; 1/12 when the frame rate is set to

[¸PF25] or [ 25P].

• The auto slow shutter can only be activated when the recording pro-

gram is set to [’ Programmed AE], but the setting will not change even

if you set the camcorder to mode.

• If a trailing afterimage appears, set the slow shutter to [jOff].

[Conversion Lens]: When you attach to the camcorder an optional tele-

converter or wide-converter, set the appropriate conversion lens setting to

obtain optimal image stabilization.

• When you select a setting other than [j Off], the AF mode is auto-

matically set to [@ Normal AF].

[Onscreen Markers]: You can display a grid or a horizontal line at the cen-

ter of the screen. Use the markers as a reference to make sure your sub-

ject is framed correctly (vertically and/or horizontally).

• Using the onscreen markers will not affect the recordings.

[Microphone Attenuator]: Helps prevent audio distortions. You can use

this when using an external microphone or [ Audio Scene] is set to

[ Custom Setting].

[k Automatic]: The camcorder will automatically activate the micro-

phone attenuator as necessary for optimal audio recording levels so high

audio levels will not be distorted.

[i On å]: The microphone attenuator will be activated at all times to

reproduce more faithfully the sound dynamics. å will appear on the

screen.

• This menu option is not available when the optional SM-V1 Surround

Microphone is attached to the camcorder. In that case, activate the

microphone attenuator with the [Surround Mic Attenuator] setting.

• When the recording program is set to [šSCN: Underwater] or

[ŸSCN: Surface], the microphone attenuator is automatically set to

[jOff].

[Surround Mic Directionality]: Sets the directionality mode of the optional

SM-V1 Surround Microphone.

[òSurround]: Records 5.1ch surround sound.

[óZoom]: Records 5.1 audio channels. Additionally, the audio is linked

to the zoom position. The larger the subject appears on the screen, the

louder the sound will be as well.

COPY

Additional Information  181

[ôShotgun]: Records monaural audio with a highly directional setting

that is most sensitive to sound coming directly from the front of the cam-

corder/microphone.

[Surround Mic Attenuator]: Helps prevent audio distortions due to high

audio recording levels when the optional SM-V1 Surround Microphone is

attached to the camcorder. When set to [i On å], å will appear

on the screen.

s / Playback Setup

* Option available only for AVCHD movies.

[Data Code]: Displays the date and/or time when the scene or photo was

recorded.

[(Camera Data]: Displays the aperture (f-stop) and shutter speed used

when recording the scene or photo.

[TV Type]: When you connect the camcorder to a TV using the optional

STV-250N Stereo Video Cable, select the setting according to the type of

TV in order to display the picture in full and in the correct aspect ratio.

[+4:3 TV]: TV sets with 4:3 aspect ratio.

[,Wide TV]: TV sets with 16:9 aspect ratio.

• When the TV type is set to [+4:3 TV], during the playback of video

originally recorded with an aspect ratio of 16:9, the picture will not be

displayed fullscreen.

• This option is not available when the camcorder is connected to an

HDTV using the supplied HDMI cable.

Menu item Setting options y A

[Select Music]* [jOff], [iOn]

When [iOn] - list of music tracks,

[Music Balance] [y] [Û]

(Original sound/Background music)

zz80

[Data Code] [j Off], [%Date], [&Time]*,

['Date and Time]*, [(Camera Data]*

zz –

[Slideshow

Transition]

[jOff], [kDissolve], [lSlide Image] –z129

[TV Type] [+4:3 TV], [,Wide TV] zz –

COPY

182  Additional Information

r Recording & Connections Setup

Menu item Setting options y A

[Rec Media for

Movies]

[&] (built-in memory),

[*] (memory card)

zz ––39

[Relay Recording]: [jOff],

[%]

z–––

[¨High Quality 17 Mbps],

[¦High Quality 12 Mbps],

[¤Standard Play 7 Mbps],

[¥Long Play 5 Mbps]

z–––88

[ 9 Mbps], [ 4 Mbps] –z––

[Frame Rate]1[µ 50i (Standard)],

[¸PF25]

z–––91

[Rec Media for

Photos]

[&] (built-in memory),

[*] (memory card)

zzz

2–39

[Photo Capture from

Video]

[oSingle Photo],

[pPhoto Sequence]

––z2– 122

[Video Snapshot

Length]1

[C2 sec], [D 4 sec],

[F8 sec]

z–z2– 70,

121

[Story Length-Based]: Toggle on or

off

z–––

[Rate Scenes

(Recording)]1

[iOn], [jOff] z––––

[Available Space in

Memory]

[&]* (built-in memory),

[*]* (memory card)

*0 only.

zz –––

[Used Space in

Memory]

[&]* (built-in memory),

[*]* (memory card)

*0 only.

––zz –

[x.v.Color]1[iOn -], [jOff] z––––

[File Numbering] [mReset], [nContinuous] zzzz –

COPY

Additional Information  183

1Option not available in mode.

2Option available only for AVCHD movies.

3This is the only option available when an external hard drive is connected to the

camcorder.

[Rate Scenes (Recording)]: When set to [i On], the scene rating scene

will appear after every scene you record.

[Available Space in Memory]/[Used Space in Memory]: Displays a screen

where you can verify how much of the built-in memory (0 only) or the

memory card is currently available for recording or how much is in use (ª

indicates photos).

• Estimated figures about available movie recording time and available

number of photos are approximate and based on the recording mode

currently in use and a photo size of 1920x1080.

• In the information screen of a memory card you can also check its

Speed Class.

•0 The [Total space] shown for the built-in memory indicates actu-

ally usable space. It may be slightly smaller than the nominal built-in

memory capacity listed in the specifications.

[x.v.Color]: Uses a color space with an extended gamut to achieve deeper

colors, closer to real life.

• Use this function to record video only when you intend to play back your

recordings on an HDTV compatible with x.v.Color, connected to the

camcorder using the supplied HDMI cable. If recordings made with

x.v.Color are played back on a non-compatible TV, colors may not be

reproduced correctly.

[File Numbering]: Select the file numbering method to be used on a new

memory card. Photos and MP4 movies are automatically assigned con-

secutive numbers from 0101 to 9900, and stored in folders containing up

to 100 files. Folders are numbered from 101 to 998.

[mReset]: File numbers will restart from 101-0101 every time you insert

a new memory card.

0 [External

Hard Drive Info]3

–––zz –

Menu item Setting options y A

COPY

184  Additional Information

[nContinuous]: File numbers will continue from the number following

that of the last file recorded with the camcorder.

• If the memory card you insert already contains a file with a larger num-

ber, a new file will be assigned a number one higher than that of the last

file on the memory card.

• We recommend using the [nContinuous] setting.

• The file number indicates the name and location of the file on the mem-

ory card. For example, the file name of a photo numbered 101-0107 is

“IMG_0107.JPG”, stored under the folder “DCIM\101CANON” while an

MP4 movie with the same file number will have the file name

“MVI_0107.MP4”.

[External Hard Drive Info]: When the camcorder is connected to an exter-

nal hard drive, this setting displays information about the hard drive.

q System Setup

Menu item Setting options y A

[Output Onscreen

Displays]1

[iOn], [jOff] zzzz –

[Language !] [ ], [Dansk], [Deutsch],

[ ], [English], [Español],

[Français], [Italiano], [Magyar],

[Melayu], [Nederlands], [Norsk],

[Polski], [Português], [ ],

[Suomi], [Svenska], [Türkçe],

[ ], [ ], [ ],

[ ], [ ], [ ]

zzzz34

[LCD Brightness] zzzz –

[LCD Backlight] [H Bright], [M Normal], [L Dim] zzzz –

[LCD Mirror Image] [iOn], [j Off] zz –––

[AV/Headphones] [ÒAV], [ÓHeadphones] zzzz116

[Volume] Speaker:

, Ú

––zz55

Headphones:

, Ö

zzzz116

COPY

Additional Information  185

[Notification Sounds] [÷ High Volume],

[ø Low Volume], [jOff]

zzzz –

[Wireless Remote

Control]

[iOn], [jOff 0]zzzz –

[Custom Control

Button]1

[Rec. Programs],

[ÄWhite Balance], [<Focus],

[yExposure], [ÇPowered IS],

[R Zoom],

[ Audio Scene],

[äMic. Level], [x AGC Limit],

[Image Effects], [RFaders],

[ÒDecoration], [zPre REC],

[vReview Recording]

zz –––

[Autostart

Decoration]

[iOn], [jOff] zz –––

[Power Saving Mode] [Auto Power Off]:

[jOff], [iOn]

zzzz –

[Quick Start (Standby)]:

[Off], [10 min], [20 min], [30 min]

[Initialize

]

[Initialize *]

[& Built-in Mem.]*,

[* Mem. Card]*

*0 only.

zzzz40

[Complete Initialization]:

Toggle on or off

[Initialize ]2

–––zz146

[Delete Memory Save

Folder]2

–––zz145

[Time Zone/DST] ["] (home time zone) or [#]

(travel time zone): [Paris], list of

world time zones

[$] (DST adjustment): Toggle on

or off

zzzz35

Menu item Setting options y A

COPY

186  Additional Information

1Option not available in mode.

2Option available only after connecting an external hard drive to the camcorder.

Option available only after having inserted an Eye-Fi card into the memory card slot.

[Output Onscreen Displays]: When set to [iOn], the camcorder’s

onscreen displays will appear also on the screen of a TV or monitor con-

nected to the camcorder.

[LCD Brightness]: Adjusts the brightness of the LCD screen.

• Changing the brightness of the LCD screen does not affect the bright-

ness of your recordings or the brightness of the playback image on a

TV.

[LCD Backlight]: Sets the screen to one of three brightness levels. You can

use this to make the screen brighter when recording in bright places, for

example.

• Changing the brightness of the LCD screen does not affect the bright-

ness of your recordings or the brightness of the playback image on a

TV.

• Using the bright setting will shorten the effective usage time of the bat-

tery pack.

[Date/Time] [Date/Time]: –

[Date Format]:

[Y.M.D], [M.D,Y], [D.M.Y]

(Y- year, M- month, D- day)

[24H]: Toggle on

(

24-hour clock) or

off (12-hour clock)

zzzz33

[Battery Info] – zzzz –

[Control for HDMI]1[iOn], [jOff] zzzz –

[HDMI Status]1–zzzz –

[Distance Units]1[.meters], [/feet] zz –––

[Demo Mode]1[iOn], [jOff] zz –––

[Firmware] – –––z–

[Reset All] [No], [Yes] zzzz –

[Eye-Fi

Communication]3

[kAutomatic], [jOff] – – zz152

Menu item Setting options y A

COPY

Additional Information  187

[LCD Mirror Image]: When set to [

On], you can rotate the LCD panel

180 degrees to let the subject check the image while you record. While

the LCD panel is rotated toward the subject you will not be able to deco-

rate the scene.

[Notification Sounds]: A beep will accompany some operations like turn-

ing on the camcorder, the self-timer countdown, etc.

• Set this to [jOff] to turn off notification sounds.

• While pre-recording (A96) is activated, the camcorder will not emit

any notification sounds.

[Wireless Remote Control]: Allows the camcorder to be operated with the

optional WL-D89 Wireless Controller.

[Custom Control Button]: On the lower right of the recording screen, a

control button that is a shortcut to one of the functions in the [ Main

Functions] panel is constantly displayed. By changing this setting, you can

change the shortcut, which will allow you to access one of your frequently

used functions quickly and conveniently.

• In mode, this option is set to [Ò Decoration]. In other modes,

the default setting is [È Powered IS].

[Autostart Decoration]: When set to [i On], the decoration screen will

open automatically when you stow the LCD panel with the LCD screen

facing out.

[Power Saving Mode]: Controls the camcorder’s automatic power off set-

tings.

[Auto Power Off]: In order to save power when the camcorder is powered

by a battery pack, it will automatically shut off if left without any operation

for 5 minutes.

• Approximately 30 seconds before the camcorder shuts off, [Auto Power

Off] will appear. Operating any of the camcorder's controls while the

message is displayed will prevent the camcorder from shutting off.

• In standby mode, the camcorder will shut off after the time selected for

the [Quick Start (Standby)] setting.

[Quick Start (Standby)]: Select whether to activate the Quick Start function

(A51) when you close the LCD panel in a recording mode and the

length of time after which the camcorder will end the standby mode and

shut off automatically.

• You can set Quick Start to [Off], for example, if the camcorder is set on

a fixed position and you want to keep recording video with the LCD

panel closed in order to conserve the battery’s power.

COPY

188  Additional Information

[Battery Info]: When you are using a battery pack that is compatible with

Intelligent System, this option displays a screen where you can verify the

battery charge (as a percentage) and the remaining recording time ( ,

mode) or playback time ( , mode).

[Control for HDMI]: Activates the HDMI-CEC (Consumer Electronics Con-

trol) function. When you connect the camcorder to an HDTV compatible

with HDMI-CEC using the supplied HDMI cable, you can control the cam-

corder’s playback using the remote control of the TV.

• If set to [iOn], when the camcorder is connected to a compatible

HDTV using the supplied HDMI cable, the video input on the TV will

automatically be set to the camcorder’s video input. Then, you can use

the up/down/left/right buttons and the OK or SET button on the TV’s

remote control to play back your recordings.

• Depending on the TV set, additional settings may be required on the TV

itself to activate the HDMI-CEC function. Refer to the TV’s instruction

manual.

• Correct operation of the HDMI-CEC function cannot be guaranteed

even when connecting the camcorder to compatible TV sets. If you

cannot use the remote control of the TV, set [Control for HDMI] to

[jOff] and operate the camcorder directly.

• The remote control of the TV can only be used to play back movies or

photos ( or mode only). If the camcorder is connected to the

TV while it is set to , or mode, depending on the TV

used, turning off the TV will automatically turn off the camcorder even if

it is recording at the time.

• We recommend not connecting more than 3 HDMI-CEC compatible

devices at a time.

• This option is not available when the camcorder is connected to an

HDTV using the supplied HDMI cable.

[HDMI Status]: Displays a screen where you can verify the standard of the

output signal from the HDMI OUT terminal.

[Distance Units]: Selects the units to use for the focusing distance display

during manual focus.

[Demo Mode]: The demonstration mode displays the camcorder’s main

features. It starts automatically when the camcorder is powered with the

compact power adapter if you leave it turned on without a memory card

for more than 5 minutes.

• To cancel the demo mode once it has started, press any button or turn

off the camcorder.

COPY

Additional Information  189

[Firmware]: You can verify the current version of the camcorder’s firm-

ware, which is the software that controls the camcorder. This menu option

is usually unavailable.

[Reset All]: Resets all of the camcorder's settings.

COPY

190  Additional Information

Appendix: Onscreen Icons and Displays

Recording Movies (using Story Creator)

1Control button [FUNC.]: Open the

[ Main Functions] panel (A28)

2Smart AUTO (A46)

3Face detection frame (A97)

4Touch & Track frame (A99)

5Control button [PHOTO]: Take a

photo (A44, 86, 122)

6Control button [?]: Displays a

shooting tip for the current story

scene

7Memory operation (A194)

8Intelligent IS (A48)

9Remaining battery time (A194)

Aq Zoom (A50)

Aa Recording mode (A88)

As Recording standard (A30)

Ad Current story scene (category)

(A67); touch to return to the list of

story scenes (A67)

Af Recommended scene length

(A67)

Ag Decoration (A71)

COPY

Additional Information  191

Recording Movies

Manual mode Cinema mode

Ah Recording program (A92)

Aj Manual exposure (A103)

Ak AGC (automatic gain control) limit

(A104)

Al = Instant AF/@ Normal AF

(A179), MF Manual focus

(A105)

Sq Face detection (A97)

Sa White balance (A107)

Ss Audio level indicator (A115)

Sd x.v.Color (A183)

While recording/during playback:

Scene counter (hours : minutes :

seconds) ; < Self timer (A110)

Sg Image stabilizer (A95)

Sh Tele macro (A106)

Sj Remaining recording time

* On the memory card

& In the built-in memory*

( Relay recording* (A39)

* 0 only.

Sk Frame rate (A91)

Sl Image effects (A109)

Dq Microphone attenuator (A180)

Da Audio scene select (A111)

Ds Headphone output (A116)

Dd Custom control button (A187)

Df Level marker (A180)

Dg Remote sensor off (A187)

Dh Fader (A100)

Dj Auto wind screen (A112)

Dk Directionality of the optional SM-V1

Surround Microphone (A 119)

Dl Conversion lens (Tele-converter

shown) (A 180)

Fq Mini advanced shoe (A118)

Fa Control button [FILTER 1]: Cinema-

look filters (A69)

Fs In record pause mode:

Total number of scenes

Fd Pre-recording (A96)

COPY

192  Additional Information

Playing Movies (during playback)

AVCHD movies:

MP4 movies:

Ff Eye-Fi wireless communication

(A152)

Fg Scene number

Fh Playback control buttons (A55)

Fj Data code (A65, 181)

Fk Volume and background music

balance controls (A55, 81)

Fl File number (A183)

Gq Volume controls (A55)

COPY

Additional Information  193

Viewing Photos

Ga Control button [Edit]: Open the Edit

panel (A177)

Gs Current photo / Total number of

photos

Gd Control button [h]: Photo jump

(A127)

Gf Control button [Ð]: Slideshow

(A129)

Gg Control button [f]: Return to the

[ Photos] index screen (A125)

COPY

194  Additional Information

7 Memory operation

Record,

Record pause,

Playback,

Playback pause,

Fast playback,

Fast reverse playback,

Slow playback,

Slow reverse playback,

Frame advance,

Frame reverse.

9 Remaining battery time

• The icon shows a rough estimate of

the remaining charge as a

percentage of the full charge of the

battery pack. The remaining recording/playback time of the battery pack is

displayed, in minutes, next to the icon.

• When the battery charge becomes low, will appear in yellow. When the battery

pack is exhausted, will appear in red. Replace or charge the battery pack.

Depending on the condition of the camcorder or battery, the actual battery charge

may not match what is displayed on the screen.

• When you attach an empty battery pack, the power may turn off without displaying

• Depending on the conditions under which the camcorder and the battery pack are

used, the actual battery charge may not be indicated accurately.

• You can display the charge status of a battery pack with the q > [Battery Info]

setting. If the battery pack is exhausted, the battery information may not be

displayed.

Sj Remaining recording time

When there is no more free space on the memory, [& End] (built-in memory, 0

only) or [*End] (memory card) will be displayed in red and the recording will stop.

100% 75% 50% 25% 0%

COPY

Additional Information  195

Trou b le ?

Troubleshooting

If you have a problem with your camcorder, refer to this section. Some-

times what you think is a malfunction of the camcorder may have the

simplest of solutions - please read the “CHECK THIS FIRST” box

before going on to the more detailed problems and solutions. Consult

your dealer or a Canon Service Center if the problem persists.

CHECK THIS FIRST

Power source

The camcorder will not turn on or it turns off by itself.

- The battery pack is exhausted. Replace or charge the battery pack.

- Remove the battery pack and reattach it correctly.

- When the recording program is set to [Underwater] or [Surface], the camcorder may turn off

automatically if it becomes too hot. Turn off the camcorder and let it cool down.

The camcorder turns off without the battery warning indicator appearing on the screen.

- The battery charge has become low or the battery pack is exhausted. Replace or charge the

battery pack.

Power supply

• Is the battery charged? Is the compact power adapter correctly con-

nected to the camcorder? (A20)

Recording

• Did you turn the camcorder on and correctly set it to a recording

mode? (A44, 86) If you are recording on a memory card, is one cor-

rectly inserted into the camcoder? (A38)

Playback

• Did you turn the camcorder on and correctly set it to playback mode?

(A53, 125) If you are playing back recordings from a memory card,

is one correctly inserted into the camcorder? (A38) Does it contain

any recordings?

Other

• Does the camcorder make a rattling sound? The internal lens fixture

can move when the camcorder is turned off or in a playback mode.

This is not a malfunction.

COPY

196  Additional Information

Cannot charge the battery pack.

- Make sure the camcorder is off so charging can start.

- The temperature of the battery pack is outside its operating range (approximately 0 – 40 °C).

Remove the battery pack, warm it or let it cool down, as necessary, and try charging it again.

- Charge the battery pack in temperatures between approximately 0 °C and 40 °C.

- The battery pack is faulty. Replace the battery pack.

- The camcorder cannot communicate with the battery pack attached. Battery packs not rec-

ommended by Canon for use with this camcorder cannot be charged using this camcorder.

- If you are using a battery pack recommended by Canon for use with this camcorder, there

may be a problem with the camcorder or battery pack. Consult a Canon Service Center.

A noise can be heard from the compact power adapter.

- A faint sound can be heard while the compact power adapter is connected to a power outlet.

This is not a malfunction.

The battery pack is exhausted extremely quickly even at normal temperatures.

- The battery may have reached the end of its battery life. Buy a new battery pack.

Recording

Pressing Y will not start recording.

- You cannot record while the camcorder is writing previous recordings onto the memory (while

the ACCESS indicator is on or flashing). Wait until the camcorder has finished.

- The memory is full or it already contains the maximum number of scenes of AVCHD movies

(3,999 scenes). Delete some recordings (A59, 127) or initialize the memory (A40) to

free some space.

The point where Y was pressed does not match the beginning/end of the

recording.

- There is a slight interval between pressing Y and the actual start/end of record-

ing. This is not a malfunction.

The camcorder will not focus.

- Autofocus does not work on the subject. Focus manually (A105).

- The lens or Instant AF sensor is dirty. Clean the lens or sensor with a soft lens-cleaning cloth

(A219). Never use tissue paper to clean the lens.

When a subject flits across in front of the lens, the image appears slightly bent.

- This is a phenomenon typical of CMOS image sensors. When a subject crosses very quickly in

front of the camcorder, the image may seem slightly warped. This is not a malfunction.

Changing the operating mode between recording (Ü)/record pause (Û)/playback (Ð)

takes longer than usual.

- When the memory contains a large number of scenes, some operations may take longer than

usual. Save your recordings (A138) and initialize the memory (A40).

COPY

Additional Information  197

Movies or photos cannot be recorded properly.

- This may occur as movies and photos are recorded/deleted over time. Save your recordings

(A138) and initialize the memory (A40).

Cannot record a photo while recording movies.

- You cannot take photos in mode, while the digital zoom is activated (A49) or while

fading in or fading out a scene (A100).

After using the camcorder for a long time, it becomes hot.

- The camcorder may become hot after using it continuously for long periods of time; this is not

a malfunction. If the camcorder becomes unusually hot or it becomes hot after using it only

for a short while, it may indicate a problem with the camcorder. Consult a Canon Service Cen-

ter.

Cannot create a new story.

- A memory can contain a maximum of 98 user-created stories. Delete some stories from the

gallery (A62) or select a different memory (A39).

Playback

Cannot copy/move scenes in a story.

- The memory is full. Delete some recordings (A59, 127) to free some space.

Cannot delete a scene.

- You may not be able to delete scenes recorded or edited using another device and then trans-

ferred to a memory card connected to a computer.

Deleting scenes takes longer than usual.

- When the memory contains a large number of scenes, some operations may take longer than

usual. Save your recordings (A138) and initialize the memory (A40).

Cannot capture a video snapshot scene from a movie.

- You cannot capture video snapshot scenes from scenes recorded or edited using another

device and then transferred to a memory card connected to the computer. Also, you cannot

capture scenes that are from movies converted to standard definition (0 only) or MP4

movies.

- The memory is full. Delete some recordings (A59, 127) to free some space.

COPY

198  Additional Information

When playing back scenes/slideshow with background music, the music track is not played

back correctly.

- This can occur when you transfer the music files to a memory card after repeatedly recording

and deleting scenes (fragmented memory). Save your recordings (A138) and initialize the

memory card (A40). Then, transfer the music files first and only then transfer the video

files.

- Music tracks will not play back correctly if the connection was interrupted while transferring

the music files to a memory card. Delete the music tracks and transfer the music files again.

- The transfer rate of the memory card used is too slow. Use a recommended memory card

(A36).

Cannot divide scenes

- You cannot divide scenes recorded or edited using another device and then transferred to a

memory card connected to the computer. Also, you cannot divide scenes that are from movies

converted to standard definition (0 only) or MP4 movies.

- The memory is full. Delete some recordings (A59, 127) to free some space.

Cannot mark individual scenes/photos in the index screen with a checkmark !

- You cannot select more than 100 scenes/photos individually. Select the [All Scenes] or [All

Photos] option instead of [Select].

Indicators and Onscreen Displays

lights up in red.

- Battery pack is exhausted. Replace or charge the battery pack.

appears on the screen.

- The camcorder cannot communicate with the battery pack attached so the remaining battery

time cannot be displayed.

* lights up in red.

- A memory card error occurred. Turn off the camcorder. Remove and reinsert the memory

card. Initialize the memory card if the display does not change back to normal.

- The memory card is full. Replace the memory card or delete some recordings (A59, 127)

to free some space on the memory card.

Even after stopping recording, the ACCESS indicator does not go off.

- The scene is being recorded in the memory. This is not a malfunction.

? appears on the screen.

- The camcorder has become hot while in the [Underwater] or [Surface] recording program.

Turn off the camcorder and let it cool down.

COPY

Additional Information  199

The red ON/OFF (CHG) indicator flashes rapidly ( one flash at 0.5-second

intervals).

- The temperature of the battery pack is outside its operating range (approximately 0 – 40 °C).

Remove the battery pack, warm it or let it cool down, as necessary, and try charging it again.

- Charge the battery pack in temperatures between approximately 0 °C and 40 °C.

- The battery pack is damaged. Use a different battery pack.

- Charging has stopped because the compact power adapter or the battery pack is faulty. Con-

sult a Canon Service Center.

‹ appears on the screen

- The LOCK switch on the Eye-Fi card is set to prevent accidental erasure. Change the position

of the LOCK switch.

- An error occurred when trying to access control data on the Eye-Fi card. Turn the camcorder

off then on again. If the icon appears often, there might be a problem with the Eye-Fi card.

Contact the card manufacturer’s customer care.

Picture and Sound

The screen appears too dark.

- The LCD screen was dimmed. Change the q > [LCD Backlight] setting to [Normal] or

[Bright].

Screen displays turn on and off repeatedly.

- The battery pack is exhausted. Replace or charge the battery pack.

- Remove the battery pack and reattach it correctly.

Abnormal characters appear on the screen and the camcorder does not operate properly.

- Disconnect the power source and reconnect it after a short time. If the problem still persists,

remove the battery pack and disconnect all other power sources from the camcorder. Then,

reset all the camcorder’s settings to default values (A186).

Video noise appears on screen.

- Keep a distance between the camcorder and devices that emit strong electromagnetic fields

(plasma TVs, cellular phones, etc.).

Horizontal bands appear on the screen.

- This is a phenomenon typical of CMOS image sensors when recording under some types of

fluorescent, mercury or sodium lamps. This is not a malfunction. To reduce the symptoms, set

the recording program to [Programmed AE] or [Shutter-Pri. AE] (A101). This is not a mal-

function.

Sound is distorted or is recorded at lower levels.

- When recording near loud sounds (such as fireworks, shows or concerts), sound may become

distorted or it may not be recorded at the actual levels. Activate the microphone attenuator

(A180) or adjust the audio recording level manually (A115).

COPY

200  Additional Information

The picture is displayed correctly but there is no sound from the built-in speaker.

- Speaker volume is turned off. Adjust the volume.

- If the HTC-100/S HDMI Cable or optional STV-250N Stereo Video Cable is connected to the

camcorder, disconnect it.

- The AV terminal is set to headphone output. Set r> [AV/Headphones] to [AV].

Memory Card and Accessories

Cannot insert the memory card.

- The memory card was not facing the correct direction. Turn the memory card over and insert

it.

Cannot record on the memory card.

- The memory card is full. Delete some recordings (A59, 127) to free some space or replace

the memory card.

- Initialize the memory card (A40) when you use it with the camcorder for the first time.

- The LOCK switch on the memory card is set to prevent accidental erasure. Change the posi-

tion of the LOCK switch.

- A compatible memory card must be used to be able to record movies on a memory card

(A36).

- The folder and file numbers for MP4 movies and photos have reached their maximum value.

Set r>[File Numbering] to [Reset] and insert a new memory card.

The optional WL-D89 Wireless Controller will not work.

-Set q> [Wireless Remote Control] to [On].

- Replace the battery of the wireless controller.

Cannot upload files wirelessly using an Eye-Fi card.

-q> [Eye-Fi Communication] is set to [Off] (… appears onscreen). Set it to [Auto-

matic].

- Wireless communication is not available with an Eye-Fi card in recording mode. Set the cam-

corder to playback mode.

-0 Wireless communication is not available with an Eye-Fi card when the camcorder has

established a wireless connection. Make sure the camcorder has ended the connection.

- Opening the LCD panel may help when the wireless connection is not strong enough.

- During wireless transfer, wireless communication may stop when the wireless signal condi-

tions worsen (‰ appears onscreen). Perform wireless transfer in a place with good signal

conditions.

- Contact the card manufacturer’s customer care.

COPY

Additional Information  201

Connections with External Devices

Video noise appears on the TV screen.

- When using the camcorder in a room where a TV is located, keep a distance between the

compact power adapter and the power or antenna cables of the TV.

Playback looks fine on the camcorder but there is no image on the TV screen.

- The video input on the TV is not set to the video terminal to which you connected the cam-

corder. Select the correct video input.

The camcorder is connected using the supplied HDMI cable, but there is no picture or sound

from the HDTV.

- Disconnect the supplied HDMI cable and then restore the connection or turn the camcorder off

and then on again.

The camcorder is connected using the supplied HDMI cable, but HDMI-CEC does not work

(cannot play back using the TV’s remote control).

- Disconnect the HDMI cable and turn off the camcorder and the TV. After a short while turn

them on again and restore the connection.

-q> [Control for HDMI] is set to [Off]. Set it to [On].

- HDMI-CEC is not activated on the connected TV. Activate this function on the TV.

- Even with TV sets compatible with HDMI-CEC the range of functions available differs depend-

ing on the type of TV. Refer to the instruction manual of the connected TV.

The computer does not recognize the camcorder even though the camcorder is connected

correctly.

- Disconnect the USB cable and turn off the camcorder. After a short while, turn it on again and

restore the connection.

- Connect the camcorder to a different USB port on the computer.

Cannot save photos on my computer

- When the memory contains too many photos (Windows – 2,500 photos or more, Macintosh –

1,000 photos or more), you may not be able to transfer photos to a computer. Try using a card

reader to transfer the photos on the memory card. 0 only: To transfer the photos in the

built-in memory, copy them to the memory card in advance (A135).

COPY

202  Additional Information

0 Wi-Fi Functions

Refer also to the instruction manual of your wireless router and other

devices you will use.

Wireless playback on a DLNA-compatible device is not smooth.

- Playback may not be smooth depending on the wireless router's settings and capability.

- In the [Wi-Fi] menu, set [w] to [On] (A171) to play back the movie in standard definition.

- Remove any objects between the camcorder and wireless access point that may interfere

with the wireless signal.

- Move the camcorder closer to the wireless access point.

- Turn off the wireless functions of other wireless devices other than the DLNA-compatible

device being used for playback.

- If these do not solve the issue, the cause may be due the device or conditions unique to the

surrounding area. Use the supplied HDMI cable to connect the camcorder to the device.

Cannot play back a movie on a DLNA-compatible device in AVCHD.

- Some DLNA-compatible devices may play back movies in standard definition.

- In the [Wi-Fi] menu, set [w] to [Off] (A171).

- Remove any objects between the camcorder and wireless access point that may interfere

with the wireless signal.

- Move the camcorder closer to the wireless access point.

- Turn off the wireless functions of other wireless devices other than the DLNA-compatible

device being used for playback.

- If these do not solve the issue, the cause may be due the device or conditions unique to the

surrounding area. Use the supplied HDMI cable to connect the camcorder to the device.

The wireless connection was interrupted while transferring files.

- Incomplete files may remain at the transfer destination. If incomplete files remain at the

transfer destination, check the content and make sure they are safe to delete before deleting

them.

- Select [New Files] and perform the file transfer again.

Cannot connect with the wireless router.

- Check that the wireless router is working correctly.

- The effective communication range between the camcorder and wireless router may vary

depending on the strength of the wireless signal. Try using the camcorder closer to the wire-

less router.

- Cordless phones, microwave ovens, refrigerators and other appliances in the line of sight

between the wireless router and the camcorder may interfere with the wireless signal. Try

using the camcorder in a location farther away from such appliances.

- Wi-Fi networks with a stealth function that do not broadcast their network name (SSID) will

not be detected by the camcorder during the Wi-Fi network setup. Perform the setup manu-

ally (A160) or turn off the stealth function of the wireless router.

COPY

Additional Information  203

List of Messages

0 Refer to List of Messages for Connecting to an External Hard

Drive (A209) for external hard drive related messages. Refer to List of

Messages for Wi-Fi Functions (A210) for Wi-Fi related messages.

Refer to List of Messages for the Optional Video Light (A209) for

video light related messages.

(in alphabetical order)

Back up recordings regularly

- This message may appear when you turn on the camcorder. In the event of a malfunction,

recordings may be lost so back up your recordings regularly.

0 Built-in memory error

- The built-in memory could not be read. Contact a Canon Service Center.

0 Built-in memory is full

- The built-in memory is full (“& End” appears on the screen). Delete some recordings

(A59, 127) to free some space. Alternatively, save your recordings (A138) and initialize

the built-in memory (A40).

0 Built-in memory writing error Attempt to recover the data?

- This message will appear the next time you turn on the camcorder if power supply was acci-

dentally interrupted while the camcorder was writing to the memory. Select [Recover] to try to

recover the recordings.

0 Cannot access the built-in memory

- There is a problem with the built-in memory. Contact a Canon Service Center.

Cannot communicate with the battery pack. Continue using this battery pack?

- You attached a battery pack that is not recommended by Canon for use with this camcorder.

- If you are using a battery pack recommended by Canon for use with this camcorder, there

may be a problem with the camcorder or battery pack. Consult a Canon Service Center.

0 Cannot convert

- Cannot access the memory card. Check the memory card and make sure it is inserted cor-

rectly.

- You inserted a MultiMedia Card (MMC) into the camcorder. Use a recommended memory card

(A36).

- There was an error creating the file name. Set > [File Numbering] to [Reset] and

initialize the memory card (A40) or delete all the photos (A127) and converted SD mov-

ies (A59).

COPY

204  Additional Information

Cannot copy

- The total size of the scenes you selected to copy exceeds the available space on the memory

card. Delete some recordings on the memory card (A59, 127) or reduce the number of

scenes to copy.

- The memory card already contains the maximum number of AVCHD scenes (3,999 scenes).

Delete some scenes (A59) to free some space.

- The gallery already contains the maximum number of stories (98 stories in any one given

memory). Delete some stories (A62) to free some space.

0 Cannot divide the scene. Initialize only using the camcorder.

- Use the supplied software VideoBrowser to save the scene and divide it on the computer.

Cannot enter standby mode now

- The camcorder cannot enter standby mode if the remaining battery charge is too low. Charge

or replace the battery pack (A20).

Cannot load canvas

- The canvas file that was saved on the memory is corrupted.

- Canvas data cannot be read from canvas files created using other devices and then trans-

ferred to a memory card connected to the computer.

Cannot play back

- There is a problem with the memory. If this message appears often without apparent reason,

contact a Canon Service Center.

0 Cannot play back Cannot access the built-in memory

- There is a problem with the built-in memory. Save your recordings (A138) and initialize the

built-in memory using the [Complete Initialization] option (A40). If the problem persists,

contact a Canon Service Center.

Cannot play back Check the memory card

- There is a problem with the memory card. Save your recordings (A138) and initialize the

memory card using the [Complete Initialization] option (A40). If the problem persists, use a

different memory card.

0 Cannot play the movies in the built-in memory Initialize only using the camcorder

- The camcorder's built-in memory was initialized using a computer. Initialize the built-in mem-

ory with this camcorder (A40).

Cannot play the movies on this memory card

- Movies cannot be played back from a 64 MB or smaller memory card. Use a recommended

memory card (A36).

Cannot play the movies on this memory card Initialize only using the camcorder

- The memory card in the camcorder was initialized using a computer. Initialize the memory

card with this camcorder (A40).

COPY

Additional Information  205

Cannot record

- You cannot capture video snapshot scenes from scenes recorded or edited using another

device and then transferred to a memory card connected to the computer.

- There is a problem with the memory. If this message appears often without apparent reason,

contact a Canon Service Center.

0 Cannot record Cannot access the built-in memory

- There is a problem with the built-in memory. Save your recordings (A138) and initialize the

built-in memory using the [Complete Initialization] option (A40). If the problem persists,

contact a Canon Service Center.

Cannot record Check the memory card

- There is a problem with the memory card. Save your recordings (A138) and initialize the

memory card using the [Complete Initialization] option (A40). If the problem persists, use a

different memory card.

0 Cannot record movies in the built-in memory Initialize only using the camcorder

- The camcorder's built-in memory was initialized using a computer. Initialize the built-in mem-

ory with this camcorder (A40).

Cannot record movies on this memory card

- Movies cannot be recorded on a 64 MB or smaller memory card. Use a recommended mem-

ory card (A36).

Cannot record movies on this memory card Initialize only using the camcorder

- The memory card in the camcorder was initialized using a computer. Initialize the memory

card with this camcorder (A40).

Cannot save the canvas

- Cannot save your [Pens and Stamps] drawings on the memory. Save your recordings

(A138) and initialize the memory (A40).

Change the battery pack

- Battery pack is exhausted. Replace or charge the battery pack.

Check the memory card

- Cannot access the memory card. Check the memory card and make sure it is inserted cor-

rectly.

- A memory card error occurred. The camcorder cannot record or display the image. Try remov-

ing and reinserting the memory card, or use a different memory card.

- You inserted a MultiMedia Card (MMC) into the camcorder. Use a recommended memory card

(A36).

- If after the message disappears, * appears in red, perform the following: Turn off the cam-

corder and remove and reinsert the memory card. If * turns back to green you can resume

recording/playback. If the problem persists, save your recordings (A138) and initialize the

memory card (A40).

COPY

206  Additional Information

Do not disconnect the power source. Do not disconnect the USB cable unless you first use

the computer to safely end the connection.

- When the camcorder is in mode and is connected to the computer with the supplied

USB cable, the camcorder cannot be operated. Disconnecting the USB cable or power source

while this message appears may result in permanent loss of the recordings in the camcorder.

Use the computer's Safely Remove Hardware function to end the connection and disconnect

the USB cable before using the camcorder.

File name error

- The folder and file numbers have reached their maximum value. Set r> [File Number-

ing] to [Reset] and delete all the MP4 movies (A60) and photos (A127) on the memory

card or initialize it (A40).

Initialize only using the camcorder

- There is a problem with the file system that prevents accessing the selected memory. Initialize

the memory with this camcorder (A40).

LCD screen has been dimmed Use the [LCD Backlight] setting to change the brightness

- Change the q > [LCD Backlight] setting to [Normal] or [Bright].

May not be possible to record movies on this memory card

- You may not be able to record movies on a memory card without a Speed Class rating.

Replace the memory card with one rated SD Speed Class 2, 4, 6 or 10.

Mem. Card Number of scenes already at maximum

- The memory card already contains the maximum number of AVCHD scenes (3,999 scenes);

no further scenes can be copied onto the memory card. Delete some scenes (A59) to free

some space.

Mem. Card Unable to recognize the data

- The memory card contains scenes recorded using a video configuration that is not supported

(NTSC). Play back the recordings in the memory card with the device originally used to record

them.

Memory card cover is open

- After inserting a memory card, close the memory card slot cover.

Memory card is full

- The memory card is full. Delete some recordings (A59, 127) to free some space or replace

the memory card.

Memory card is write-protected

- The LOCK switch on the memory card is set to prevent accidental erasure. Change the posi-

tion of the LOCK switch.

Memory card writing error Attempt to recover the data?

- This message will appear the next time you turn on the camcorder if power supply was acci-

dentally interrupted while the camcorder was writing to the memory. Select [Recover] to try to

recover the recordings. If you inserted a memory card that contains scenes recorded using

another device, we recommend that you select [No].

COPY

Additional Information  207

Need to recover files from the memory card. Change the position of the LOCK switch on the

memory card.

- This message will appear the next time you turn on the camcorder if power supply was acci-

dentally interrupted while the camcorder was writing on the memory card and later the posi-

tion of the card's LOCK switch was changed to prevent erasure. Change the position of the

LOCK switch.

No memory card

- Insert a compatible memory card into the camcorder (A38).

- The memory card may not be inserted correctly. Insert the memory card all the way into the

memory card slot until it clicks.

0 Not enough available space

- Delete some recordings on the memory card (A59, 127) or select the [3 Mbps] bit rate for

the conversion to SD.

Number of scenes already at maximum

- The maximum number of AVCHD scenes (3,999 scenes) has been reached. Delete some

scenes (A59) to free some space.

Number of stories already at maximum

- The gallery already contains the maximum number of stories (98 stories in any one given

memory). Delete some stories (A62) or change the recording memory for movies (A39).

Recording program: Underwater / Surface

Turn on the camcorder while holding the zoom lever toward T or W to change the recording

program šbŸ.

- Follow the instructions to switch the recording program between [Underwater] and [Surface]

while the camcorder is secured inside the optional WP-V4 Waterproof Case.

Recording was stopped due to insufficient write speed of the memory card

- The data transfer rate was too high for the memory card in use and the recording was

stopped. Replace the memory card with one rated SD Speed Class 2, 4, 6 or 10.

- After repeatedly recording, deleting and editing scenes (fragmented memory), it will take

longer to write data on the memory and recording may stop. Save your recordings (A138)

and initialize the memory (A40).

Scene recorded using another device. Cannot divide the scene.

- Scenes that were not recorded with this camcorder cannot be divided with this camcorder.

- Scenes that were edited using the supplied PIXELA's software (0 only) or other software

cannot be copied or divided.

Scene recorded using another device. Cannot play back the scene.

- Scenes that were not recorded with this camcorder cannot be played back.

Select the desired scene number

- A number of scenes have the same recording date but different file control information. This

can occur for example when you edit movies and write the files back to the camcorder. Select

a number to display the corresponding group of scenes.

COPY

208  Additional Information

0 Some scenes could not be converted

- Some scenes selected for conversion to SD were recorded using another device and then

transferred to a memory card connected to the computer. These scenes were not converted.

- Among the scenes selected for conversion to SD there are scenes recorded with another

device using 24p frame rate and then transferred to a memory card connected to the com-

puter. When converting scenes to SD, leave out scenes recorded using another devices.

Some scenes could not be deleted

- Movies that were protected/edited with other devices and then transferred to a memory card

connected to the computer, cannot be deleted with this camcorder.

Task in progress. Do not disconnect the power source.

- The camcorder is updating the memory. Wait until the operation ends and do not disconnect

the compact power adapter or remove the battery pack.

There are no scenes with the selected rating

- No scenes have been rated yet. Rate the scenes as you like (A78).

- The criteria you used to select scenes by rating resulted in no applicable scenes. Change the

criteria used to select scenes by rating.

This memory card contains scenes. Delete all scenes to use relay recording.

- Save your movies (A138) if necessary, and delete all the movies from the memory card

(A59).

This photo cannot be displayed

- You may not be able to display photos taken with other devices or image files created or

edited on a computer and then transferred to a memory card connected to the computer.

To record video on this memory card, it is recommended to use a recording mode other than

MXP or FXP

- Movies may not be recorded correctly on this memory card if the recording mode is set to

MXP or FXP mode (A88).

Too many photos and MP4 movies. Disconnect the USB cable.

- Disconnect the USB cable. Try using a memory card reader or decrease the number of photos

and MP4 movies on the memory card to fewer than 2,500 (Windows), or 1,000 (Mac OS).

- If a dialog box appeared on the computer screen, close it. Disconnect the USB cable, and

restore the connection after a short while.

0 Total play time is too long

- When converting scenes from a story, the maximum total playback time of the scenes to be

converted is 12 hours. Reduce the number of scenes to be converted to SD.

Unable to recognize the data

- You transferred data to the camcorder recorded using a video configuration that is not sup-

ported (NTSC). Play back the recordings with the device originally used to record them.

Unable to recover data

- Could not recover a corrupted file. Save your recordings (A138) and initialize the memory

using the [Complete Initialization] option (A40).

COPY

Additional Information  209

List of Messages for the Optional Video Light

0 List of Messages for Connecting to an External Hard Drive

Unsupported gallery data detected. Cannot record or edit. Delete gallery data?

- The gallery data of the movies in the selected memory card is not supported. The movies can

be played back but you cannot edit them or record additional scenes to this gallery. Select

[Yes] to delete the unsupported gallery data. Note that after doing so, you will not be able to

play back the movies with the device originally used to record the unsupported gallery data.

Battery charge is low. Cannot use the accessory attached to the mini advanced shoe.

- The battery charge is too low to supply power to the accessory attached to the mini advanced

shoe. Charge the battery pack.

Cannot use the video light while powering the camcorder with the compact power adapter

- Use a fully charged battery pack instead when using the video light.

Cannot use the video light with the attached battery pack

- When using the video light, use the supplied BP-718 or optional BP-727 Battery Pack.

Error writing to external hard drive

- This message will appear the next time you turn on the camcorder if power supply was acci-

dentally interrupted while the camcorder was writing to the external hard drive. Select

[Recover] to try to recover the recordings.

Quickly erases all files and deletes partitions from the external hard drive. Initialize?

- If you initialize the hard drive, all data it contains will be lost, including any partitioned drives.

If necessary, back up data and then initialize the hard drive with the camcorder.

The compact power adapter was disconnected. Could not safely remove the external hard

drive.

- While the camcorder was connected to an external hard drive, the camcorder’s compact

power adapter was disconnected and the connection was ended. Check whether data in the

hard drive was corrupted.

COPY

210  Additional Information

0 List of Messages for Wi-Fi Functions

An error occurred during FTP communication File transfer was not completed

- Turn off the camcorder and FTP server. After a short while, turn them on again and try to send

the data again.

An error occurred while communicating to the computer (Network Utility) File transfer was

not completed

- Cordless phones, microwave ovens, refrigerators and other appliances may interfere with the

wireless signal. Try using the camcorder in a location farther away from such appliances.

- Turn off the camcorder and wireless router. After a short while, turn them on again and try to

send the data again. If the problem persists contact a Canon Service Center.

Cannot connect to FTP server

- Make sure that the camcorder and FTP server have the same IP address configured.

- This message will appear if the encryption key is incorrect when the encryption method is set

to [Open]. The encryption key is case sensitive so make sure to enter it correctly.

- The port number is usually 21 so make sure both the camcorder and FTP server are config-

ured with this setting.

- If the Address setting in the FTP server is not configured, set the DNS server address in the

camcorder. Also, make sure that the server name for the FTP server is correctly entered.

- Turn on the FTP server.

- A firewall may be blocking the connection. Set the firewall to allow the connection. For users

of Windows XP SP2 and later, set Windows Firewall to allow the connection.

- If you are using a wireless gateway router, make sure all of the devices in the network, includ-

ing the camcorder, are configured with the correct gateway address.

- If the FTP server is configured to accept only one particular IP address, change the setting so

that it can accept the camcorder’s TCP/IP IP address.

- The maximum number of connections to the FTP server has been exceeded. Reduce the num-

ber of connections or increase the maximum number.

Cannot log in to FTP server

- Check that the FTP server’s user name and password are correctly configured in the cam-

corder. They are case sensitive so make sure to enter them correctly.

- Make sure permissions for files on the FTP server are set to allow access, reading and writing.

- Make sure name of the destination folder on the FTP server consists only of ASCII characters.

Cannot transfer files to FTP server

- Turn on the FTP server.

- Make sure permissions for files on the FTP server are set to allow access, reading and writing.

- Make sure permissions for the destination folder on the FTP server are set to allow access.

- Increase the FTP server’s available space.

Cannot transfer files to the computer (Network Utility)

- Make sure Network Utility is running properly. If the problem persists turn off the camcorder

and computer. After a short while, turn them on again.

COPY

Additional Information  211

Check the Wi-Fi settings.

- Make sure the camcorder and wireless router are correctly configured.

IP address conflict

- Change the camcorder’s IP address so that it does not conflict with the IP addresses of other

devices connected to the same network.

Multiple access points detected. Try the operation again.

- There are multiple wireless routers (access points) sending out a WPS signal at the same

time. Try the operation again later or perform Wi-Fi Protected Setup using the PIN code option.

No access points found

- Cordless phones, microwave ovens, refrigerators and other appliances may interfere with the

wireless signal. Try using the camcorder in a location farther away from such appliances.

- Make sure that you use the wireless router’s SSID for the camcorder’s Wi-Fi settings.

- A connection cannot be established if the wireless router is using MAC address filtering. In the

camcorder’s [Wi-Fi Setup] screen, use [Check Current Configuration] to check the MAC

address and enter it into the wireless router’s configuration screen.

- Establish a connection using infrastructure mode.

No computers found currently running Network Utility. Turn on the computer and try

searching again.

- Turn on the computer on which you installed the supplied software Network Utility. Then, con-

nect the computer to the Wi-Fi network.

- Install Network Utility if it has not already been installed.

The configured computer (Network Utility) cannot be found

- Turn on the computer on which you installed the supplied software Network Utility. Then, con-

nect the computer to the Wi-Fi network.

Transfer speed changed before connecting

- If the encryption method is set to WEP, IEEE 802.11n cannot be used as the protocol for the

connection so the connection was established using IEEE 802.11b or IEEE 802.11g. To use

IEEE 802.11n, we recommend setting the encryption method to WPA2-PSK AES, WPA-PSK

AES, WPA2-PSK TKIP or WPA-PSK TKIP.

Unable to access configuration files

- Turn off the camcorder. After a short while, turn it on again. If the problem persists contact a

Canon Service Center.

Unable to complete WPS.

- Turn off the camcorder and wireless router. After a short while, turn them on again and try

again. If the problem persists, perform the Wi-Fi network setup manually (A160).

COPY

212  Additional Information

Unable to complete WPS. Try the operation again.

- Some wireless routers require pressing and holding the Wi-Fi Protected Setup (WPS) button.

For details, refer to the instruction manual of your wireless router.

- Make sure to touch [OK] on the camcorder’s screen within 2 minutes of activating the Wi-Fi

Protected Setup signal on the wireless router, whether by pressing the button or by entering

the PIN code.

Unable to connect

- Cordless phones, microwave ovens, refrigerators and other appliances may interfere with the

wireless signal. Try using the camcorder in a location farther away from such appliances.

Unable to obtain an IP address

- If you are not using a DHCP server, configure the camcorder’s Wi-Fi settings manually or

obtain an IP address using the [Manual] setting.

- Turn on the DHCP server. If it is already on, make sure it is functioning properly.

- Make sure the address range for the DHCP server is sufficient.

- Turn on the DNS server. If it is already on, make sure it is functioning properly.

- Make sure that the DNS server’s IP address and the name for that address are correctly configured.

- Set the DNS server’s IP address in the camcorder.

- If you are not using a DNS server, set the DNS address to [0.0.0.0].

- If you are using a wireless gateway router, make sure all of the devices in the network, includ-

ing the camcorder, are configured with the correct gateway address.

Wi-Fi authentication unsuccessful

- Make sure the camcorder and wireless router are using the same encryption method and

encryption key.

- If the wireless router is using MAC address filtering, enter the camcorder’s MAC address in the

wireless router’s configuration screen.

Wi-Fi connection terminated

- Cordless phones, microwave ovens, refrigerators and other appliances may interfere with the

wireless signal. Try using the camcorder in a location farther away from such appliances.

- The camcorder may not be able to connect to the wireless router if too many devices are

accessing the wireless access point.

Wi-Fi error Incorrect authentication method

- Make sure the camcorder and wireless router are correctly configured.

- Make sure the camcorder and wireless router are using the same encryption method and

encryption key.

- If the wireless router is using MAC address filtering, enter the camcorder’s MAC address in the

wireless router’s configuration screen.

Wi-Fi error Incorrect encryption key

- The encryption key is case sensitive so make sure to enter it correctly.

COPY

Additional Information  213

Wi-Fi error Incorrect encryption method

- Make sure the camcorder and wireless router are using the same encryption method.

- If the wireless router is using MAC address filtering, enter the camcorder’s MAC address in the

wireless router’s configuration screen.

Wireless communication is not working correctly

- Cordless phones, microwave ovens, refrigerators and other appliances may interfere with the

wireless signal. Try using the camcorder in a location farther away from such appliances.

- Turn off the camcorder and wireless router. After a short while, turn them on again and per-

form the Wi-Fi network setup again. If the problem persists contact a Canon Service Center.

COPY

214  Additional Information

Do’s and Don’ts

Handling Precautions

Camcorder

Be sure to observe the following precautions to ensure maximum per-

formance.

•Save your recordings periodically. Make sure to transfer your record-

ings to an external device such as a computer or digital video recorder

(A135) and save them on a regular basis. This will protect your impor-

tant recordings in case of damage and create more free space on the

memory. Canon shall not be liable for any data loss.

• Do not carry the camcorder by the LCD panel. Be careful when closing

the LCD panel. When using a wrist strap, do not allow the camcorder to

swing and hit an object.

•Handle the touch screen with care. Do not apply excessive force and,

with the exception of the supplied stylus pen, do not use ballpoint pens

or other hard-tipped tools to operate the touch screen. This may dam-

age the touch screen’s surface or the pressure-sensitive layer beneath

it.

• Do not attach protective film on the touch screen. The touch screen’s

operation is based on detecting applied pressure, so you may not be

able to correctly operate the touch screen with an additional protective

layer.

• Do not leave the camcorder in places subject to high temperatures (like

the inside of a car parked under direct sunlight), or high humidity.

• Do not use the camcorder near strong electromagnetic fields such as

above TVs, near plasma TVs or mobile phones.

•0 Do not use the camcorder’s Wi-Fi functions inside hospitals,

medical clinics or onboard aircraft. In addition, do not use them near

medical equipment or sensitive electronic devices as it may affect their

performance. In the case of pacemakers, keep the camcorder at least

22 cm away from the device.

•0 The camcorder’s Wi-Fi functions may be subject to interference

from devices such as cordless phones and microwave ovens. Keeping

as much distance as possible from these devices or using the cam-

corder’s Wi-Fi functions at a different time of day may reduce such inter-

ference.

COPY

Additional Information  215

• Do not point the lens at strong light sources. Do not leave the cam-

corder pointed at a bright subject.

• Do not use or store the camcorder in dusty or sandy places. The cam-

corder is not waterproof – avoid also water, mud or salt. If any of the

above should get into the camcorder it may damage the camcorder

and/or the lens.

• Be careful of heat generated by lighting equipment.

• Do not disassemble the camcorder. If the camcorder does not function

properly, consult qualified service personnel.

• Handle the camcorder with care. Do not subject the camcorder to

shocks or vibration as this may cause damage.

• When mounting the camcorder on a

tripod, make sure that the tripod’s fas-

tening screw is shorter than 5.5 mm.

Using other tripods may damage the

camcorder.

•When recording movies, try to get a

calm, stable picture. Excessive cam-

corder movement while shooting and extensive use of fast zooms and

panning can result in jittery scenes. In extreme cases, the playback of

such scenes may result in visually induced motion sickness. If you expe-

rience such a reaction, stop the playback immediately and take a rest

break as necessary.

• Do not insert the supplied stylus pen into the mouth. If swallowed, seek

medical assistance immediately.

• Handle the supplied stylus pen with extreme care and keep it out of the

reach of children. If mishandled, the stylus pen can present a risk of

severe eye injury and even blindness.

Long-term storage

If you do not intend to use the camcorder for a long time, store it in a

place free of dust, in low humidity, and at temperatures not higher than

30 °C.

5.5 mm

COPY

216  Additional Information

Battery Pack

• Dirty terminals may cause a poor contact between the battery pack and

the camcorder. Wipe the terminals with a soft cloth.

Long-term storage

• Store battery packs in a dry place at temperatures no higher than

30 °C.

• To extend the battery life of the battery pack, discharge it completely

before storing it.

• Charge and discharge all your battery packs fully at least once a year.

Remaining battery time

When you are using a battery pack that is compatible with Intelligent Sys-

tem, if the remaining battery time displayed is not correct, charge the bat-

tery pack fully. Still, the correct time may not be displayed after a large

number of repeated uses, if a fully charged battery pack is left unused, or

if a battery pack is used for long periods of time in high temperatures. Use

the time shown on the screen as an approximation.

Regarding the use of non-Canon battery packs

• For your safety, battery packs that are not genuine Canon battery packs

will not be charged even if you attach them to this camcorder or to the

optional CG-700 Battery Charger.

• We recommend using genuine Canon battery

packs bearing the Intelligent System mark.

• If you attach to the camcorder battery packs

that are not genuine Canon battery packs, will appear and the

remaining battery time will not be displayed.

DANGER!

Treat the battery pack with care.

• Keep it away from fire (or it might explode).

• Do not expose the battery pack to temperature higher than 60 °C. Do

not leave it near a heater or inside a car in hot weather.

• Do not try to disassemble or modify it.

• Do not drop it or subject it to shocks.

• Do not get it wet.

COPY

Additional Information  217

Memory Card

• We recommend backing up the recordings on the memory card onto

your computer. Data may be corrupted or lost due to memory card

defects or exposure to static electricity. Canon shall not be liable for lost

or corrupted data.

• Do not touch or expose the terminals to dust or dirt.

• Do not use memory cards in places subject to strong magnetic fields.

• Do not leave memory cards in places subject to high humidity and high

temperature.

• Do not disassemble, bend, drop, or subject memory cards to shocks

and do not expose them to water.

• Check the direction before inserting the memory card. Forcing a mem-

ory card into the slot if it is not correctly oriented may damage the mem-

ory card or the camcorder.

• Do not attach any labels or stickers on the memory card.

• Secure Digital (SD) memory cards

have a physical switch to prevent writ-

ing on the card so as to avoid the

accidental erasure of the card’s con-

tent. To write-protect the memory card

set the switch to the LOCK position.

Built-in Rechargeable Lithium Battery

The camcorder has a built-in rechargeable lithium battery to keep the

date/time and other settings. The built-in lithium battery is recharged

while you use the camcorder; however, it will discharge completely if

you do not use the camcorder for about 3 months.

To recharge the built-in lithium battery: Connect the compact power

adapter to the camcorder and leave it connected for 24 hours with the

camcorder off.

LOCK switch

COPY

218  Additional Information

Disposal

When you delete movies or initialize the memory, only the file allocation

table is altered and stored data is not physically erased. When you dis-

pose of the camcorder or memory card or give either to another per-

son, initialize the camcorder's built-in memory (0 only) or memory

card using the [Complete Initialization] option (A40). Fill it up with

unimportant recordings, and then initialize it again using the same

option. This makes recovering the original recordings very difficult.

COPY

Additional Information  219

Maintenance/Others

Cleaning

Camcorder Body

• Use a soft, dry cloth to clean the camcorder body. Never use chemically

treated cloths or volatile solvents such as paint thinner.

Lens and Instant AF Sensor

• If the lens surface or Instant AF sensor is dirty, autofocus may not work

properly.

• Remove any dust or dirt particles using a non-aerosol type blower

brush.

• Use a clean, soft lens-cleaning cloth to gently wipe the lens. Never use

tissue paper.

LCD Touch Screen

• Clean the LCD touch screen using a clean, soft lens-cleaning cloth.

• Condensation may form on the surface of the screen when the temper-

ature changes suddenly. Wipe it with a soft dry cloth.

Condensation

Moving the camcorder rapidly between hot and cold temperatures may

cause condensation (water droplets) to form on its internal surfaces.

Stop using the camcorder if condensation is detected. Continued use

may damage the camcorder.

Condensation may form in the following cases:

• When the camcorder is moved quickly from cold to warm places

• When the camcorder is left in a humid room

• When a cold room is heated rapidly

COPY

220  Additional Information

To avoid condensation

• Do not expose the camcorder to sudden or extreme changes in tem-

perature.

• Remove the memory card and battery pack. Then, place the camcorder

in an airtight plastic bag and let it adjust gradually to temperature

changes before removing it from the bag.

When condensation is detected

The camcorder automatically shuts off.

The precise time required for water droplets to evaporate will vary

depending on the location and weather conditions. As a general rule, wait

for 2 hours before resuming use of the camcorder.

Using the Camcorder Abroad

Power Sources

You can use the compact power adapter to operate the camcorder and to

charge battery packs in any country with power supply between 100 and

240 V AC, 50/60 Hz. Consult a Canon Service Center for information on

plug adapters for overseas use.

Playback on a TV Screen

You can only play back your recordings on TVs compatible with the PAL

system. PAL (or the compatible SECAM system) is used in the following

regions/countries:

Europe: All of Europe and Russia. Americas: Only in Argentina, Brazil,

Uruguay and French territories (French Guiana, Guadeloupe, Martinique,

etc.). Asia: Most of Asia (except in Japan, the Philippines, South Korea,

Taiwan and Myanmar). Africa: All of Africa and African islands. Australia/

Oceania: Australia, New Zealand, Papua New Guinea; most Pacific

islands (except for Micronesia, Samoa, Tonga and US territories like Guam

and American Samoa).

COPY

Additional Information  221

General Information

Accessories

*0 only.

**Supplied with the camcorder; not available as an optional accessory.

(Availability differs from area to area)

Optional accessories not listed below are described in more detail in

the following pages.

1SS-600/SS-650 Shoulder Strap As IFC-300PCU/S** or IFC-400PCU USB

2WS-20 Wrist Strap Cable

6CA-110E Compact Power Adapter Ak HTC-100/S** or HTC-100 HDMI Cable

Aq Stylus Pen** Al STV-250N Stereo Video Cable

Aa Memory card

89 4

SqSa

TV/HDTV

Digital video

recorder

Computer

External

hard drive*

Card

reader/writer

SCART Adapter

COPY

222  Additional Information

NOTES

• Accessories that are compatible with the Advanced Accessory Shoe

cannot be attached to this camcorder. Look for the Mini ADVANCED

SHOE logo to ensure compatibility with the mini advanced shoe.

Optional Accessories

3 WL-D89 Wireless Controller

Use the wireless controller to operate

the camcorder from a distance. This is

especially useful when you wish to

achieve stable shots.

To purchase this accessory, contact

your local Canon office.

4 Battery Packs

When you need extra battery packs,

select one of the following models:

BP-718 or BP-727.

When you use battery packs bearing the

Intelligent System mark, the camcorder

will communicate with the battery and

display the remaining usage time (accurate to 1 minute). You can only use

and charge these battery packs with camcorders and chargers compati-

ble with Intelligent System.

Use of genuine Canon accessories is recommended.

This product is designed to achieve excellent performance when used

with genuine Canon accessories. Canon shall not be liable for any dam-

age to this product and/or accidents such as fire, etc., caused by the

malfunction of non-genuine Canon accessories (e.g., a leakage and/or

explosion of a battery pack). Please note that this warranty does not

apply to repairs arising out of the malfunction of non-genuine Canon

accessories, although you may request such repairs on a chargeable

basis.

COPY

Additional Information  223

5 CG-700 Battery Charger

Use the battery charger to charge the

battery packs.

Charging, Recording and Playback Times

The charging times given in the following table are approximate and vary

according to charging conditions and initial charge of the battery pack.

Recording and playback times given in the following tables are approxi-

mate and vary according to recording mode and charging, recording or

playback conditions. The effective usage time of the battery pack may

decrease when recording in cold surroundings, when using the brighter

screen settings, etc.

The following recording and playback times are for AVCHD movies. The

recording and playback times for MP4 movies (9 Mbps and 4 Mbps) are

the same as those for SP recording mode.

Battery pack→

BP-718 BP-727

Charging conditions↓

Using the camcorder 310 min. 450 min.

Using the CG-700 Battery Charger 220 min. 315 min.

COPY

224  Additional Information

0 Recording AVCHD movies using the built-in memory

Recording AVCHD movies using a memory card

* Approximate times for recording with repeated operations such as start/stop,

zooming, and power on/off.

Battery pack Recording mode

Recording

(maximum)

Recording

(typical)* Playback

BP-718

MXP 120 min. 75 min. 190 min.

FXP 125 min. 80 min. 190 min.

XP+ 125 min. 80 min. 195 min.

SP 130 min. 80 min. 195 min.

LP 130 min. 80 min. 200 min.

BP-727

MXP 185 min. 115 min. 285 min.

FXP 185 min. 120 min. 285 min.

XP+ 190 min. 120 min. 290 min.

SP 195 min. 120 min. 295 min.

LP 195 min. 125 min. 305 min.

Battery pack Recording mode

Recording

(maximum)

Recording

(typical)* Playback

BP-718

MXP 120 min. 75 min. 185 min.

FXP 120 min. 75 min. 185 min.

XP+ 125 min. 80 min. 190 min.

SP 125 min. 80 min. 195 min.

LP 125 min. 80 min. 195 min.

BP-727

MXP 180 min. 115 min. 280 min.

FXP 180 min. 115 min. 280 min.

XP+ 190 min. 120 min. 285 min.

SP 190 min. 120 min. 290 min.

LP 190 min. 120 min. 290 min.

COPY

Additional Information  225

7 TL-H43 Tele-converter

This Tele-converter lens increases the

focal length of the camcorder lens by a

factor of 1.5.

• The image stabilizer is not as effective

when the Tele-converter is attached.

• The minimum focusing distance at full

telephoto with the TL-H43 is 3.3 m.

8 WD-43 Wide-converter

This Wide-converter lens decreases the

focal length by a factor of 0.7, giving you

a wide perspective for indoor shots or

panoramic views.

9 FS-43U II Filter Set

Neutral density and MC protector filters

help you to control difficult lighting condi-

tions.

Ad SM-V1 Surround Microphone

Use 5.1ch surround sound to add a

sense of presence to your movies. You

can link the surround sound to the zoom

position or use the microphone as a

highly directional shotgun microphone

(monaural).

Af DM-100 Directional Stereo

Microphone

This highly sensitive, super-directional

microphone attaches to the camcorder’s

mini advanced shoe. It can be used as

directional microphone (monaural) or

stereo microphone.

COPY

226  Additional Information

Ag VL-5 Video Light

This video light enables you to record

brightly in color even in dark places. It

attaches to the camcorder’s mini

advanced shoe for cable-free operation.

Ah VFL-2 Video Flash Light

This video flash light allows you to

record photos and movies even at night

or in dark places. It attaches to the cam-

corder’s mini advanced shoe for cable-

free operation.

• The VFL-2 cannot be used as a flash

with this camcorder.

Aj UA-100 USB Adapter

0 Allows you to connect to the cam-

corder an external hard drive or similar

storage device with a standard-A cable.

After doing so, you can save an entire

memory onto the device. Check in

advance the USB cable supplied with

your external hard drive.

Sq WP-V4 Waterproof Case

This case allows you to record movies

and take photos underwater without get-

ting the camcorder wet.

COPY

Additional Information  227

Sa SC-2000 Soft Carrying Case

A handy camcorder bag with padded

compartments and plenty of space for

accessories.

This mark identifies genuine Canon video accessories.

When you use Canon video equipment, we

recommend Canon-brand accessories or products

bearing the same mark.

COPY

228  Additional Information

Specifications

LEGRIA HF M56 / LEGRIA HF M506

 — Values given are approximate figures.

System

• Recording System

Movies: AVCHD Video compression: MPEG-4 AVC/H.264;

Audio compression: Dolby Digital 2ch; Dolby Digital 5.1ch*

MP4 Video compression: MPEG-4 AVC/H.264

Audio compression: MPEG-2 AAC-LC (2ch)

* Only when using the optional SM-V1 Surround Microphone.

Photos: DCF (Design rule for Camera File system), compatible with Exif* Ver. 2.3

Image compression: JPEG

* This camcorder supports Exif 2.3 (also called “Exif Print”). Exif Print is a standard for enhancing the

communication between camcorders and printers. By connecting to an Exif Print-compliant printer,

the camcorder’s image data at the time of shooting is used and optimized, yielding extremely high

quality prints.

• Video Signal Configuration

AVCHD: 1080/50i*

MP4: 720P

* Recordings made with the [PF25] frame rate are converted and recorded on the memory as 50i.

• Recording Media

- 0 Built-in memory: 8 GB

- SD, SDHC (SD High Capacity) or SDXC (SD eXtended Capacity) memory card (not included)

• Maximum Recording Time

0 8 GB built-in memory

AVCHD movies:

MXP mode: 40 min. FXP mode: 1 hr. XP+ mode: 1 hr. 25 min.

SP mode: 2 hr. 20 min. LP mode: 3 hr.

MP4 movies:

9 Mbps: 1 hr. 55 min. 4 Mbps: 4 hr. 10 min.

Commercially available 16 GB memory card

AVCHD movies:

MXP mode: 1 hr. 25 min. FXP mode: 2 hr. 5 min. XP+ mode: 2 hr. 50 min.

SP mode: 4 hr. 45 min. LP mode: 6 hr. 5 min.

MP4 movies:

9 Mbps: 3 hr. 50 min. 4 Mbps: 8 hr. 25 min.

• Image Sensor

1/3-type CMOS, 2,370,000 pixels

Effective pixels: 2,070,000 pixels (1920 x 1080)

COPY

Additional Information  229

• LCD Touch Screen: 7.51 cm (3 inch), wide, TFT color, 230,000 dots, touch operation

• Microphone: Stereo electret condenser microphone with multiple directionality settings

• Lens

f=6.1-61 mm, F/1.8-3.0, 10x optical zoom, iris aperture

35 mm equivalent: 43.6 – 436 mm

• Lens Configuration: 11 elements in 9 groups (2 double-sided aspheric elements)

• AF System

Autofocus (TTL + external distance sensor when set to [Instant AF]) or Manual focus

• Filter Diameter: 43 mm

• Minimum Focusing Distance

1 m; 40 cm with tele macro on at full telephoto; 1 cm at full wide angle

• White Balance

Auto white balance, Custom white balance or Preset white balance settings:

Daylight, Shade, Cloudy, Tungsten, Fluorescent, Fluorescent H

• Minimum Illumination

0.1 lx ([SCN: Low Light] recording program, Shutter speed at 1/2)

1.0 lx ([Programmed AE] recording program, Auto slow shutter [On], Shutter speed at 1/25)

• Recommended Illumination: More than 100 lx

• Image Stabilization: Optical-Shift Image Stabilizer

• Size of Video Recordings

AVCHD movies:

MXP, FXP mode: 1920 x 1080 pixels; XP+, SP, LP mode: 1440 x 1080 pixels

MP4 movies: 1280 x 720 pixels

• Size of Photos: 1920 x 1080 pixels

Terminals

• AV OUT/× Terminal

∅ 3.5 mm minijack; output only (dual purpose terminal also for headphones stereo output)

Video: 1 Vp-p / 75 Ω unbalanced

Audio: –10 dBV (47 kΩ load) / 3 kΩ or less

• USB Terminal: mini-AB, Hi-Speed USB); output only

• HDMI OUT Terminal

HDMI mini connector; output only; compatible with HDMI-CEC and x.v.Color

COPY

230  Additional Information

0 Wi-Fi

• Standard: Complies with the IEEE 802.11b/g/n protocol

• Frequency: 2.4 GHz

• Supported channels: 1 - 13

• Encryption methods: WEP-64/WEP-128, TKIP/AES

Power/Others

• Power supply (rated)

3.6 V DC (battery pack), 5.3 V DC (compact power adapter)

• Power consumption

2.6 W (SP mode, AF on)

• Operating temperature: 0 – 40 °C

• Dimensions [W x H x D] (excluding the grip belt)

68 x 64 x 121 mm

• Weight (camcorder body only)

310 g

• When the recording program is set to [Underwater] or [Surface]

- The following functions are not available: face detection (available only for [Surface]), Instant AF, auto

slow shutter, manual audio recording level adjustment, microphone attenuator, zoom speed

adjustment (zoom speed is faster than [Speed 3] when [Zoom Speed] is set to [Variable])

- The following settings are adjusted: white balance, image effects, tele macro

- Minimum focusing distance from the waterproof case lens window

In the water: approx. 75 cm at full telephoto; approx. 5 cm at full wide angle

35 cm with tele macro on at full telephoto

In the air: approx. 1 m at full telephoto; approx. 5 cm at full wide angle

40 cm with tele macro on at full telephoto

CA-110E Compact Power Adapter

• Power supply: 100 – 240 V AC, 50/60 Hz

• Rated output / consumption: 5.3 V DC, 1.5 A / 17 VA (100 V) – 23 VA (240 V)

• Operating temperature: 0 – 40 °C

• Dimensions: 49 x 27 x 79 mm

• Weight: 110 g

COPY

Additional Information  231

BP-718 Battery Pack

• Battery type

Rechargeable lithium ion battery, compatible with Intelligent System

• Rated voltage: 3.6 V DC

• Operating temperature: 0 – 40 °C

• Battery capacity: 1,840 mAh (typical); 6.5 Wh / 1,790 mAh (minimum)

• Dimensions: 30.3 x 24.9 x 40.1 mm

• Weight: 42 g

About the music files

The specifications of the music files compatible with the camcorder

are as follows.

Audio encoding: Linear PCM

Audio sampling: 48 kHz, 16 bits, 2 channels

Minimum length: 1 second

File type: WAV

The music data is saved in the memory under the following folders.

0 In the built-in memory:

\CANON\MY_MUSIC\MUSIC_01.WAV to MUSIC_99.WAV

On the memory card:

\CANON\PRIVATE\MY_MUSIC\MUSIC_01.WAV to

MUSIC_99.WAV

About the image files for the Image Mix function

Image files are saved in the memory under the following folders.

0 In the built-in memory:

\CANON\MY_PICT\MIX_01.JPG to MIX_99.JPG

On the memory card:

\CANON\PRIVATE\MY_PICT\MIX_01.JPG to MIX_99.JPG

Weight and dimensions are approximate. Errors and omissions excepted.

The information in this manual is verified as of July 2012. Subject to change

without notice.

COPY

232  Additional Information

Index

3D Flip View . . . . . . . . . . . . . . . . .57

Abroad, using the camcorder . . . . 220

AGC (automatic gain control)

limit . . . . . . . . . . . . . . . . . . . . . 104

Aperture (f number) . . . . . . . . . . . 101

Aspect ratio of a connected

TV (TV type) . . . . . . . . . . . . . . . 181

Audio recording level . . . . . . . . . . 115

Audio scene select . . . . . . . . . . . 111

Audio settings . . . . . . . . . . . . . . . 111

AUTO mode . . . . . . . . . . . . . . . . .44

Auto slow shutter . . . . . . . . . . . . 180

Auto wind screen . . . . . . . . . . . . . 112

Autofocus (AF):

Instant AF/Normal AF . . . . . . 179

Automatic backlight correction . . . 104

Av (recording program) . . . . . . . . 101

AV OUT/× terminal . . . 116, 130, 132

Background music . . . . . . . . . . . . . 80

Battery pack

Battery information . . . .188, 194

Charging . . . . . . . . . . . . . . . . 20

Remaining charge indicator . .194

Beach (recording program) . . . . . . . 92

Built-in backup battery . . . . . . . . . 217

Camera mode . . . . . . . . . . . . . . . . 30

Capturing photos/video snapshot

scenes from a movie . . . . . . . . . 121

Cinema mode . . . . . . . . . . . . . . . . 69

Cinema-look filters . . . . . . . . . . . . 69

Condensation . . . . . . . . . . . . . . . 219

Connections to external

devices . . . . . . . . . . . . . . . . . . 131

Copying recordings to a memory

card* . . . . . . . . . . . . . . . . . . . . 135

Data code . . . . . . . . . . . . . . . 65, 181

Date and time . . . . . . . . . . . . . . . . 33

Decoration . . . . . . . . . . . . . . . . . . 71

Deleting

Movies . . . . . . . . . . . . . . . . . . 59

Photos . . . . . . . . . . . . . . . . . 127

Dividing scenes . . . . . . . . . . . . . 123

Edit panel . . . . . . . . . . . . . . . 29, 176

Editing stories . . . . . . . . . . . . . 82, 84

Error messages . . . . . . . . . . . . . . 203

External microphone . . . . . . . . . . 119

Eye-Fi card . . . . . . . . . . . . . . . . . 152

Face detection . . . . . . . . . . . . . . . 97

Facebook* . . . . . . . . . . . . . . . . . 166

Faders . . . . . . . . . . . . . . . . . . . . 100

File numbers . . . . . . . . . . . . . . . . 183

Fireworks (recording program) . . . . 93

Frame rate . . . . . . . . . . . . . . . . . . 91

Gallery . . . . . . . . . . . . . . . . . . 59, 76

HD to SD conversion* . . . . . 149, 150

HDMI OUT terminal . . . . . . . 130, 131

HDMI-CEC . . . . . . . . . . . . . . . . . 188

Headphones . . . . . . . . . . . . . . . . 116

HOME button . . . . . . . . . . . . . . . . 27

HOME menu . . . . . . . . . . . . . . . . . 27

Image effects . . . . . . . . . . . . . . . 109

Image mix . . . . . . . . . . . . . . . . . . . 74

Image stabilizer . . . . . . . . . . . . . . . 95

Index screen selection . . . . . . . . . . 58

Initializing the memory . . . . . . . . . . 40

* 0 only.

COPY

Additional Information  233

Intelligent IS . . . . . . . . . . . . . . . . . 48

Language . . . . . . . . . . . . . . . . . . . 34

LCD screen dimmer . . . . . . . . . . . 186

LCD touch screen . . . . . . . . . .25, 26

Low light (recording program) . . . . 93

Main Functions panel . . . . . . 28, 174

Maintenance . . . . . . . . . . . . . . . . 219

Manual exposure . . . . . . . . . . . . . 103

Manual focus . . . . . . . . . . . . . . . 105

Manual mode . . . . . . . . . . . . . . . . 86

Markers . . . . . . . . . . . . . . . . . . . 180

Memory card . . . . . . . . . . 36, 39, 217

Memory save* . . . . . . . . . . . . . . . 143

Microphone attenuator . . . . . . . . 180

Microphone directionality . . . . . . . 114

Mini advanced shoe . . . . . . . . . . 118

Night scene

(recording program) . . . . . . . . . . 92

Notification sounds . . . . . . . . . . . 187

Onscreen display selection . . . . . . 65

Onscreen icons . . . . . . . . . . . . . . 190

Other Settings menus . . . . . . 29, 178

P (recording program) . . . . . . . . . 101

Playback

Movies . . . . . . . . . . . . . . . 53, 76

Photos . . . . . . . . . . . . . . . . . 125

Portrait (recording program) . . . . . .92

Power saving . . . . . . . . . . . . . . . . 48

Powered IS . . . . . . . . . . . . . . . . . . 95

Pre-recording . . . . . . . . . . . . . . . . 96

Quick Start . . . . . . . . . . . . . . . . . . 51

Rating scenes . . . . . . . . . . . . . . . . 78

Recording

Movies . . . . . . . . . . . 44, 69, 86

Photos . . . . . . . . . . . . . . 44, 86

Recording mode . . . . . . . . . . . . . . 88

Recording programs . . . . . . . 92, 101

Recording standard

(AVCHD/MP4) . . . . . . . . . . . . . . 30

Recording time . . . . . . . . . . . . . . . 90

Relay recording . . . . . . . . . . . . . . 39

Remote sensor . . . . . . . . . . . . . . . 42

Resetting all camcorder

settings . . . . . . . . . . . . . . . . . . 199

Reviewing recordings . . . . . . . . . . 87

Saving recordings . . . . . . . . . . . . 135

Transferring to a computer . . 138

Using external

video recorders . . . . . . . . 147

Selecting the memory*

for playback . . . . . . . . . . . . . . 58

for recording . . . . . . . . . . . . . 39

Self timer . . . . . . . . . . . . . . . . . . 110

Serial number . . . . . . . . . . . . . . . . 19

Shutter speed . . . . . . . . . . . . . . . 101

Slideshow . . . . . . . . . . . . . . . . . 129

Smart AUTO . . . . . . . . . . . . . . . . . 46

Snow (recording program) . . . . . . . 92

Sports (recording program) . . . . . . 92

Spotlight (recording program) . . . . 93

Story Creator . . . . . . . . . . . . . . . . 66

Sunset (recording program) . . . . . . 93

Surface (recording program) . . . . . 93

Tele macro . . . . . . . . . . . . . . . . . 106

Te l e ph o to . . . . . . . . . . . . . . . . . . . 49

Time zone/DST . . . . . . . . . . . . . . . 35

Timeline . . . . . . . . . . . . . . . . . . . . 63

To u ch & Tr a c k . . . . . . . . . . . . . . . . 99

To u ch AE . . . . . . . . . . . . . . . . . . 103

* 0 only.

COPY

234  Additional Information

Tou ch A F . . . . . . . . . . . . . . . . . . . 105

Touch screen operations . . . . . . . .26

Tripod . . . . . . . . . . . . . . . . . . . . . 215

Tro ubleshootin g . . . . . . . . . . . . . . 195

Turning off notification sounds . . . 187

Tv (recording program) . . . . . . . . . 101

Underwater (recording program) . . .93

Uploading movies to video sharing

Web sites* . . . . . . . . . . . . . . . . 148

USB terminal . . . . . . . .130, 133, 147

Video snapshot . . . . . . . . . . . . . . . 70

Volume . . . . . . . . . . . . . . . . . . . . . 55

White balance . . . . . . . . . . . . . . .107

Wide angle . . . . . . . . . . . . . . . . . . 49

Wi-Fi functions* . . . . . . . . . . . . . 155

Wireless controller . . . . . . . . . . . . . 42

Yo u Tu b e * . . . . . . . . . . . . . . . . . . 166

Zoom . . . . . . . . . . . . . . . . . . . . . . 49

Digital zoom . . . . . . . . . . . . . 179

Zoom speed . . . . . . . . . 49, 178

* 0 only.
