INSTALLATION 3590 Lock N’ Prox
Battery Powered Cabinet Lock with Built-in Proximity
IS3590-A PCN17034
R10/17GR-1
Pre-Installation Instructions
1. Prior to installing the lock into position, ensure the programming card and user cards/fobs have been initialized.
2. Test card and lock to ensure proximity reader will read through the material that the lock is to be installed on.
3. Cards/Fobs can read through as much as 1” (25mm) of non-metallic materials.
4. DO NOT INSTALL MULTIPLE LOCKS OR EXTERNAL READERS IN CLOSE PROXIMITY (Fig. 6).
5. Ensure that lock body and catch body do not contact when latch engages to ensure proper operation
Initializing the Lock

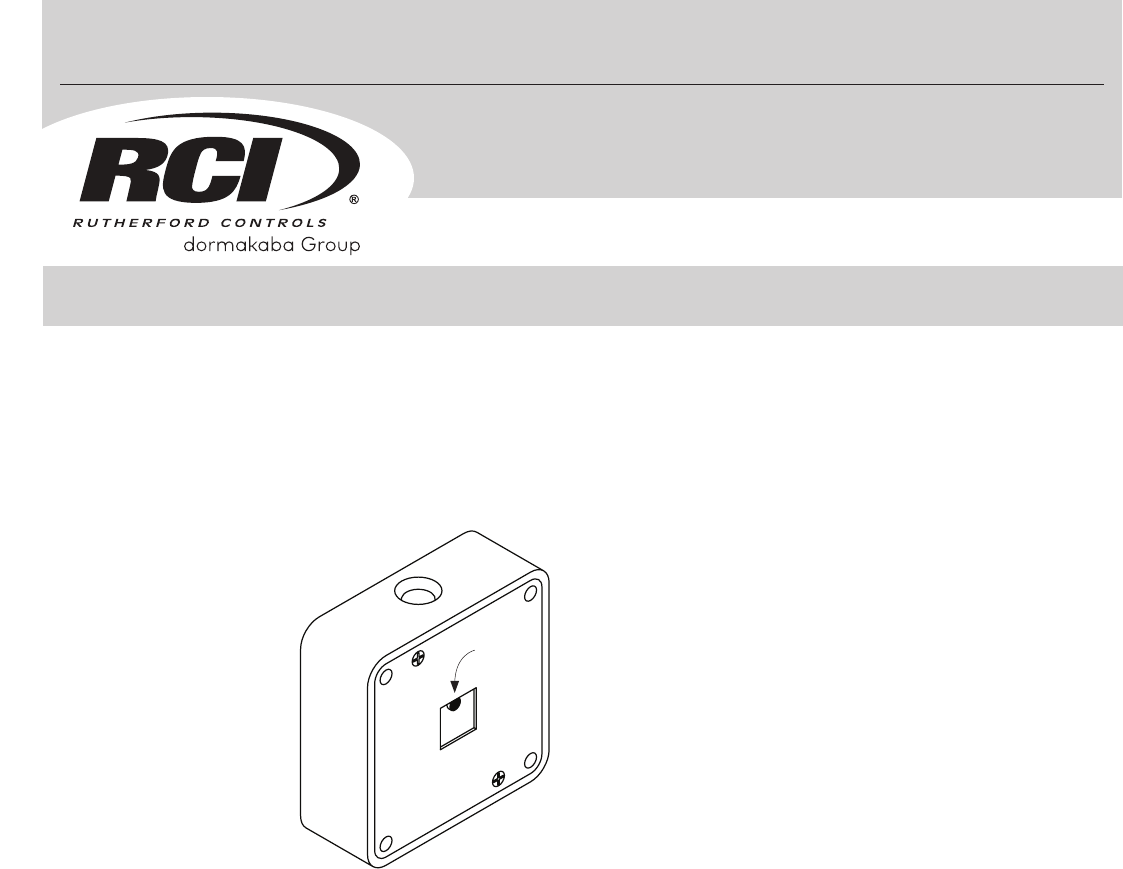

1. Press the programming button
on the back of the lock (Fig. 1).
2. Lock will make a rapid
beeping sound. Present the
programming card to lock
within three seconds.
3. Two short tones indicate the
programming card has been
initialized.
4. Multiple locks can be
programmed using the same
programming card.
Adding User Cards or
Fobs
1. Present the programming card to lock.
2. Lock will make a rapid beeping sound. Present a user card/fob to the
lock within three seconds.
3. Two tones will indicate that the user card/fob has been accepted
4. Lock can now be opened with this card/fob.
5. Additional cards/fobs can be added by repeating steps 1–4.
Deleting a User Card/Fob
1. Present the programming card to the lock.
2. Lock will make a rapid beeping sound. Present user card/fob to the
lock within three seconds.
3. Four rapid tones indicated the card/fob has been successfully
removed.
If user card/fobs have been lost all users will need to deleted and re-
enrolled.
Deleting All User Cards/Fobs
1. Present programming card to lock 16 consecutive times.
2. Sixteen beeps will sound followed by one long tone.
3. All user cards/fobs have been deleted.
Alarm Feature (Optional Alarm Pin must be used)
1. When the alarm feature is enabled the lock will detect if the door is
left ajar or forced open.
2. When the door is left ajar for more than 30 seconds the alarm will
beep for approx. 5 seconds. After the 5 seconds it will increase the
volume of sound. Closing the door or presenting a valid user card will
silence the alarm.
3. If the door is forced open the sounder will sound at full volume
immediately. To silence the alarm a valid user card must be
presented to the lock.
FCC Regulatory Statements
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the Federal Communication
Commission (FCC) rules. These limits are designed to provide
reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment causes harmful interference
to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by doing one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES
OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID
THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
Fig. 1
Programming
Button
© 2017 RUTHERFORD CONTROLS INT’L | dormakaba Group
www.rutherfordcontrols.com • Phone: 1.800.265.6630 • fax: 1.800.482.9795 • e-mail: sales@rutherfordcontrols.com
![](/img.php?id=3681007&img=bg2.png)
1.
Installation Instructions

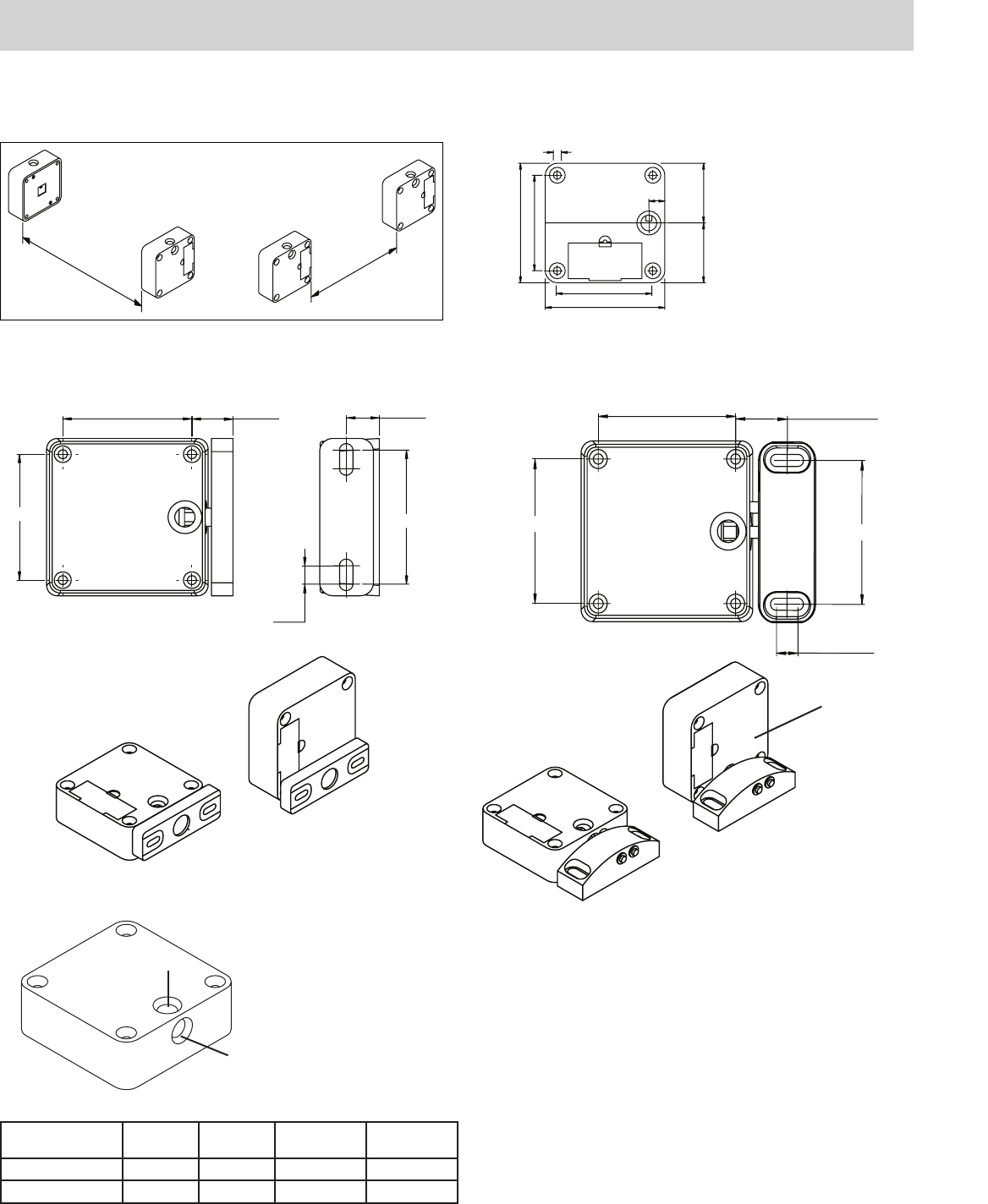

1. Determine proper location for lock and fasten using provided fasteners (Fig. 1 & 2).
2. As these are RFID devices ensure minimum spacing of multiple locks and external antennas is observed to ensure proper functionality and battery life
(Fig. 1).
8" Min.
4" Min.
Fig. 1
60mm
48mm
30mm30mm
4mm
60mm
48mm
8mm
Fig. 2
RIGHT
ANGLE (RA)
STRAIGHT
PIN (ST)
RIGHT ANGLE
ALARM (RAA)
STRAIGHT PIN
ALARM (STA)
PIN ORIENTATION A YES YES NO YES
PIN ORIENTATION B YES YES YES YES
© 2017 RUTHERFORD CONTROLS INT’L | dormakaba Group
www.rutherfordcontrols.com • Phone: 1.800.265.6630 • fax: 1.800.482.9795 • e-mail: sales@rutherfordcontrols.com
Straight Locking Pin Right Angle Locking Pin
1
7
.
00
mm
48.00 mm
7
.
50
mm
48.00 mm
48.00mm
48.00
48.00
14.00
51.00
7.00
15.00
A
B
IF REQUIRED - TO REMOVE SHORT
SPRING PIN REMOVE “C” CLIP
WASHER AND PULL PIN OUT.
ALARM WILL NOT FUNCTION IN THIS
ORIENTATION
Straight Locking Pin
Right Angle Locking Pin
