Stanley Security Solutions, Inc. Wireless Portal Gateway Users Guide

Users Guide

www.stanleyblackanddecker.com/Zeus
QEL 200
User Guide
Wireless & Stand-Alone
Copyright© 2013 Stanley Security Solutions, Inc.
All rights reserved.
Information in this document is subject to change without notice and does not represent a commitment on the
part of Stanley Security Solutions, Inc. The software described in this document are furnished under a license
agreement or nondisclosure agreement.
This publication is intended to be an accurate description and set of instructions pertaining to its subject matter.
However, as with any publication of this complexity, errors or omissions are possible. Please call Stanley Security
Solutions, Inc at (317) 849-2250 if you see any errors or have any questions. No part of this manual and/or
databases may be reproduced or transmitted in any form or by any means, electronic or mechanical, including
photocopying, recording, or information storage and retrieval systems, for any purpose, without the express written
permission of Stanley Security Solutions, Inc.
This document is distributed as is, without warranty of any kind, either express or implied, respecting the
contents of this book, including but not limited to implied warranties for the publication’s quality, performance,
merchantability, or tness for any particular purpose. Neither Stanley Security Solutions, Inc, nor its dealers or
distributors shall be liable to the user or any other person or entity with respect to any liability, loss, or damage
caused or alleged to be caused directly or indirectly by this publication.
QEL 200 is a registered trademark of Stanley Security Solutions, Inc.
Intelli-M is a registered trademark of Innias Inc.
Microsoft, Windows, CE, and ActiveSync are registered trademarks of Microsoft Corporation.
A86094-01 • April 2013
FCC Certication
This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, you can try to correct the interference by taking one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference
to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter (identify the device by certication number, or model number if Category II) has been
approved by Industry Canada to operate with the antenna types listed below with the maximum permissible
gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list,
having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device
Approved antennas are listed below.
Cet appareil est conforme aux normes d’Industrie Canada exempts de licence RSS (s). Son fonctionnement est
soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d’interférences, et (2) cet appareil
doit accepter toute interférence, y compris les interférences pouvant provoquer un fonctionnement indésirable de
l’appareil.
En vertu de la réglementation de l’industrie du Canada, cet émetteur de radio ne peut fonctionner à l’aide d’une
antenne d’un type et un maximum (ou moins) Gain approuvé pour l’émetteur par Industrie Canada. Pour réduire
le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisis an que la
puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communication
réussie.
Cet émetteur radio (identier le périphérique par numéro de certication, ou si le numéro de modèle de catégorie
II) a été approuvé par Industrie Canada pour fonctionner avec les types d’antennes énumérés ci-dessous avec le
gain maximal admissible et impédance d’antenne requise pour chaque type d’antenne indiqué. Types d’antennes
n’est pas inclus dans cette liste, ayant un gain supérieur au gain maximal indiqué pour ce type, sont strictement
interdits pour une utilisation avec cet appareil antennes approuvés sont énumérés ci-dessous.
Approved Antennas
Rubber Duck Antenna (L-Com HG2402RD-RSF, 2.2dBi Gain , 50 Ohms )
Remote Mount Antenna (Maxrad Model MC2400PT, 2.5dBi Gain, 50 Ohms)
Rubber Duck Antenna (Antenna Factor ANT-2.4-CW-RCT-xx, 2.2dBi Gain , 50 Ohms )
This product produces radio frequency energy and was evaluated to and met the general population /
uncontrolled RF exposure limits at a separation distance of 20cm. Installation of this device must be such that the
20cm is ensured.
IMPORTANT! Any changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
4
Contents
Contents
Chapter 1: Overview
8 System Overview
8 System Components
11 System Setup Steps
11 Needed Tools for Setup
Chapter 2: Standalone System
18 Install Standalone Locksets
19 Standalone Management
Chapter 3: Wireless System
68 Components at Work for Wireless System
69 Develop a Site Plan
72 Organize Segment Data
73 Prepare Host Computer
75 Install Gateways
76  Gateway Conguration
77 Install Software
81  Congure Software
Chapter 4: Wireless Management
116 Page Layout
Chapter 5: Service & Upgrade
Chapter 6: Troubleshoot
126 Lockset Installation
128 Gateway
128 Software
Chapter 7: Glossary
Contents
5
Overview
1
8
Overview

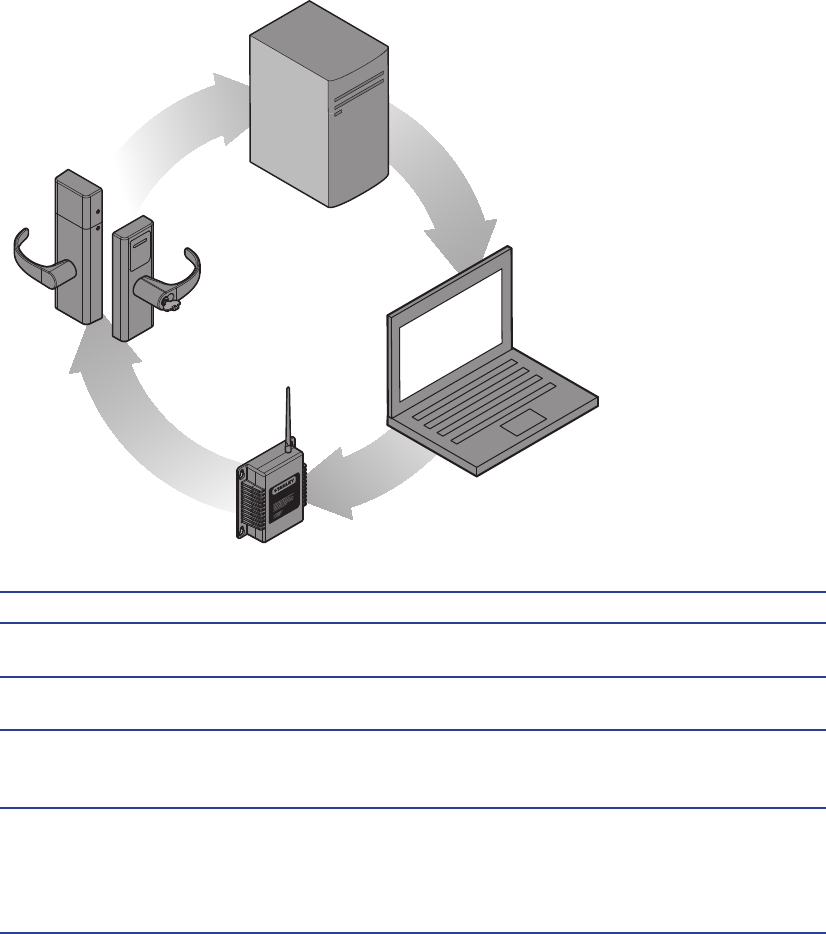

System Overview
Stanley includes two separate systems. The Wireless system combines powerful access
control software with Gateways and Wireless Locksets to allow complete lock control at the
door. This system allows remote access to any environment; no hardwiring is needed.
System Components

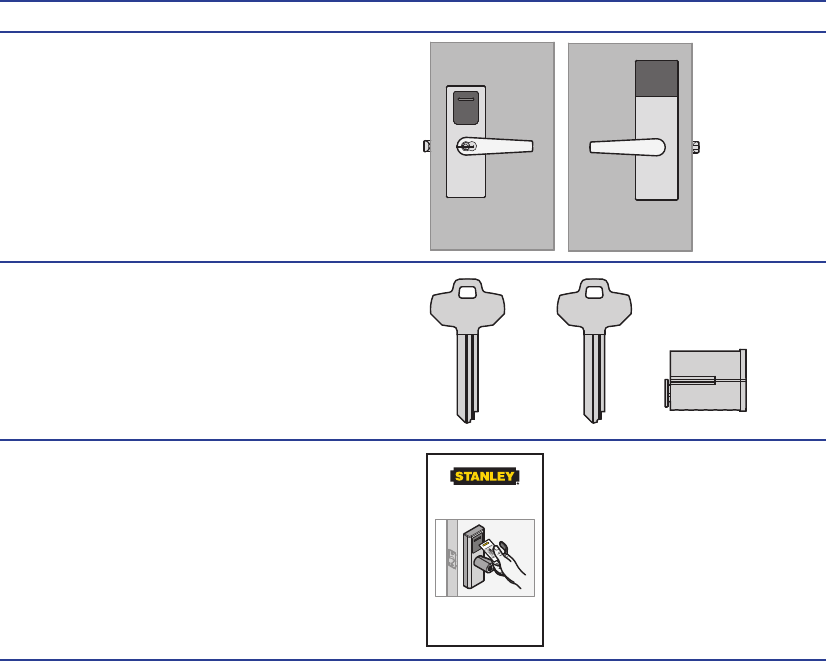

A Stand-Alone system has 3 components:
Component
1 Lockset
Exterior
Exterior
Extérieur
Interior
Interior
Intérieur
2 Core/Keyset
Core
Core
Core
Operator Key
Operator Key
Operator Key
O
C
3 Proximity Cards
Place near reader to grant access
to factory default locksets.
Temporary Operator Card
125 kHz x 26 Bit
Overview
9

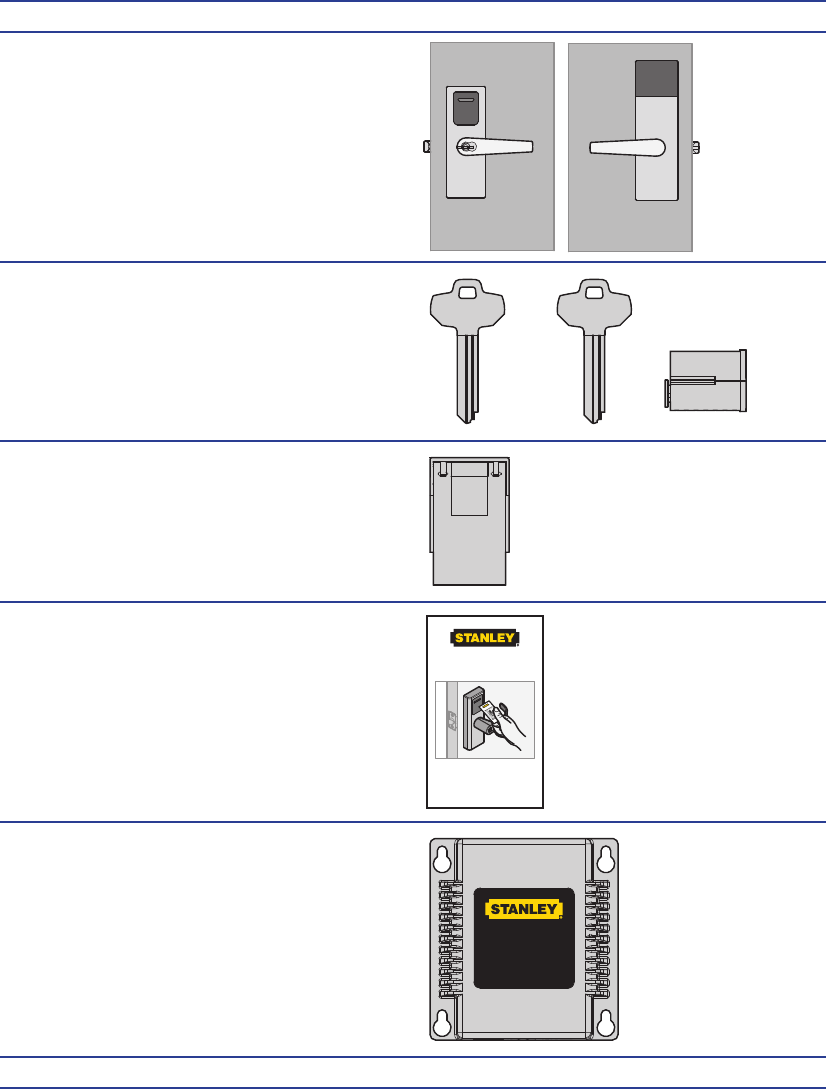

A Wireless system has 9 components:
Component
1 Lockset
Exterior
Exterior
Extérieur
Interior
Interior
Intérieur
2 Core/Keyset
Core
Core
Core
Operator Key
Operator Key
Operator Key
O
C
3 Wireless Card
4 Proximity Cards
Place near reader to grant access
to factory default locksets.
Temporary Operator Card
125 kHz x 26 Bit

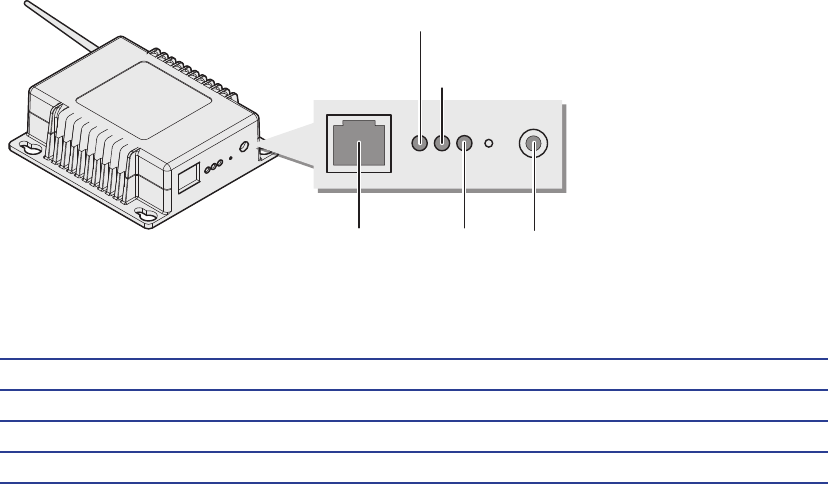

5 Gateway
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
FCC ID: WEF-QZGW001
IC: 7713A-QZGW001
Model: QZGW001
6 Stanley Intelli-M Software
10
Overview
7 Host Computer
8 Mobile Device (optional)
Overview
11
System Setup Steps
Standalone System:
Please see Chapter 2 for Standalone System setup instructions.
1 Install Standalone Locks
2 Standalone Management
Wireless system:
Please see Chapter 3 for Wireless System setup instructions.
1 Develop a Site Plan
2 Organize Segment Data
3 Prepare Host Computer
4 Install Software
5 Install Gateway(s)
6 Connect Gateway(s) to Lock(s)
7 Install Wireless Lock(s)
8 Understand Lockset Modes
9 Congure Software
12
Overview
Standalone System
2
18
Standalone System
Needed Tools for Setup
Steps Tools
1 Install Standalone Lock(s) •  Lockset Installation Instructions and
Template
•  Tools listed in the installation instructions
and template
•  Core/Keyset or Plastic Turn Piece/Core
•  Temporary Operator Card
2 Standalone Management •  Lockset(s) need(s) to be installed
•  Core/Keyset or Plastic Thumb Core
•  Temporary Operator Card
•  Operator Card
•  Shadow Card
Install Standalone Locksets
Steps
1 Check Installation Settings
2 Document Lockset Identication
3 Prepare Doors
4 Install Locksets
Check Installation Settings
Standalone Locksets are for use inside protected areas. For other applications (such
as outdoor use), contact the factory for the appropriate NEMA enclosure. Changes or
modications not expressly approved by Stanley Security Solutions could void the user’s 
authority to operate the equipment.
Note Locks work within a temperature range of -31°F to 151°F. Extreme heat reduces
wireless signal strength and may cause a loss of connectivity.
Standalone System
19
Document Lockset Identication
Record the MAC address and location of where you intend to install before lockset
installation to keep for your personal records.
Image of where the MAC address is located on the lockset
Prepare Doors
Use the template provided with the lockset package to prepare the installation. You can also
nd the template at www.stanley.com/templates.

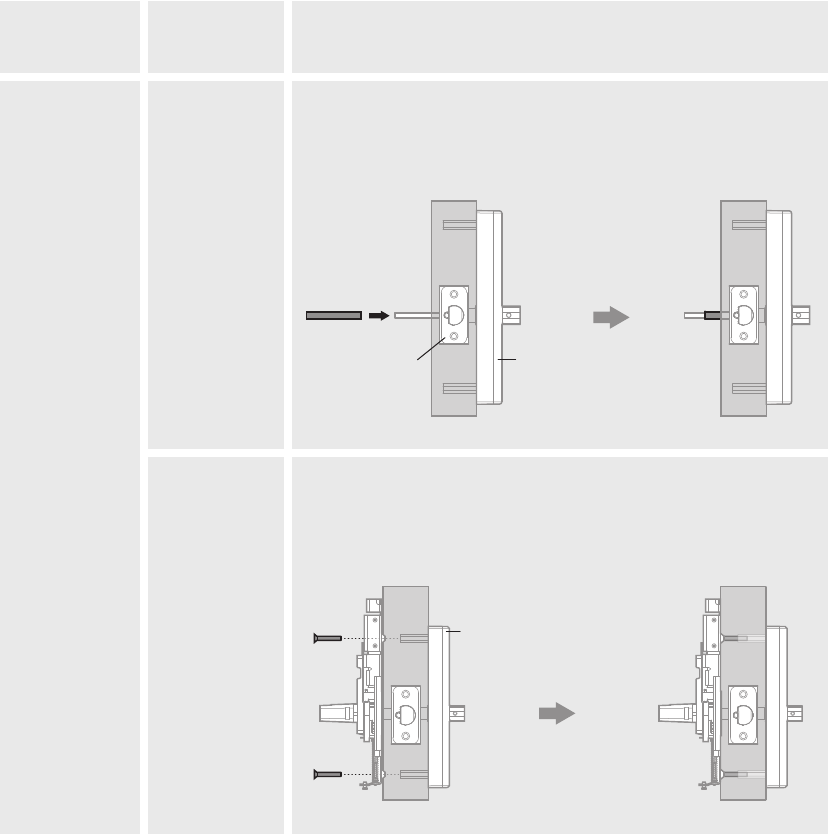

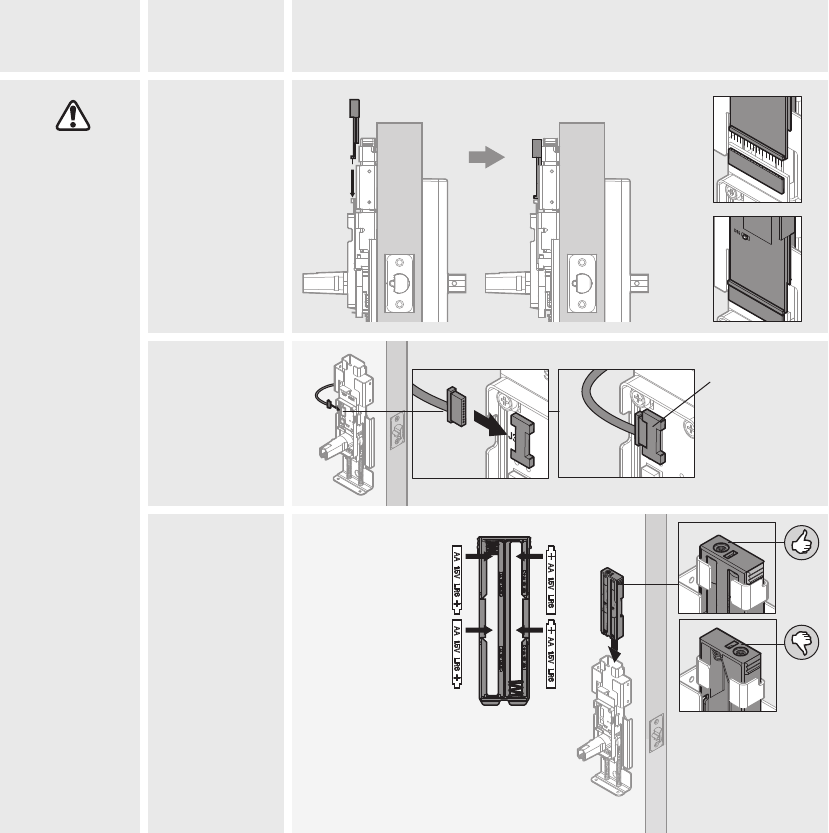

Install Locksets
Use the installation instructions provided with the lockset package. You can also nd 
installation instructions at www.stanley.com/installationinstructions.
Standalone Management
Steps
1 Key Lock/Unlock
2 Card Lock/Unlock
3 Basic Functionality
4 Add/Remove User(s)
5 Battery Functionality

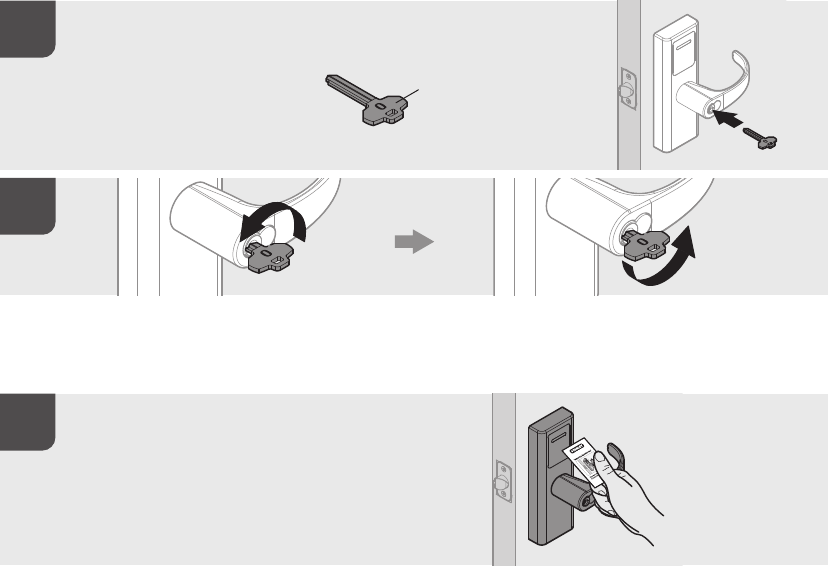

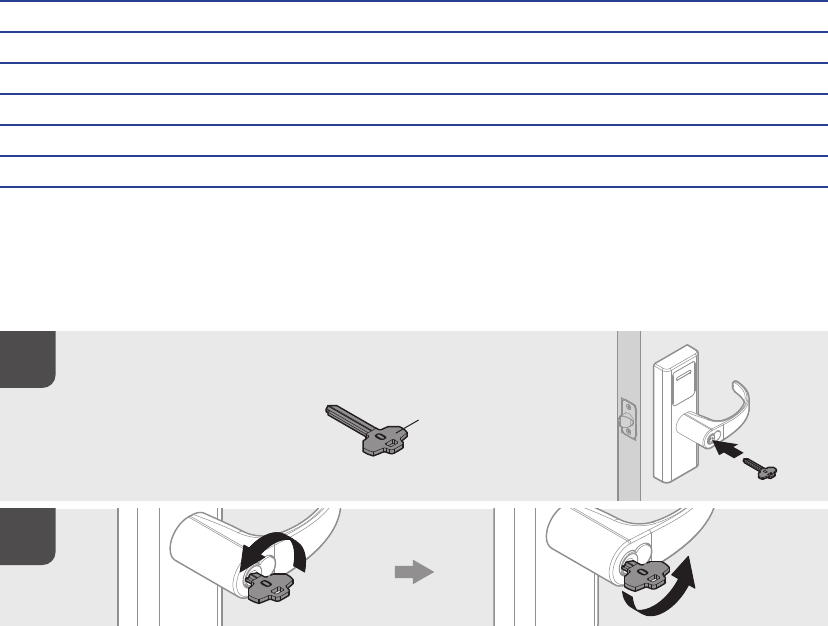

Key Lock/Unlock
Verify lockset operation by following these steps:
Insert the key
that is labled O.
Insert the key that
is labled O.
Insert the key that
is labled O.
Lock
Lock
Lock
Unlock
Unlock
Unlock
Operator Key
Operator Key
Operator Key
20
Standalone System

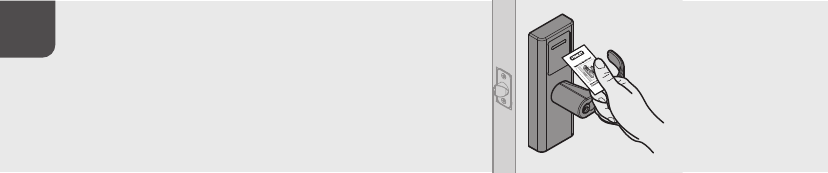

Card Lock/Unlock
1 Present proximity card (do not present card a second time within two seconds).
2 If the lock contains this card data, a visual cue indicating “Single-scan Access Grant” will
occur, accompanied by an audio cue.
3 Lock will perform standard unlock sequence.
4 After a pause of ve seconds, the lock will perform a standard lock sequence.
Basic Functionality
Passage Mode
1 Present a proximity card.
2 If ACL does not contain this card data, a visual cue indicating “Single-scan Access
Denied” will occur, accompanied by an audio cue.
Extended Passage Mode
1 Present proximity card twice in rapid succession.
2 If ACL contains this card data, lock will perform standard unlock sequence.
3 Lock will enter “Passage Mode,” accompanied by a visual cue.
4 If ACL does not contain this card data, a visual cue for “Double-scan Access Denied” will
occur, along with an audio cue.
Return to Normal Mode
1 Present proximity card once (do not present a second time within two seconds).
2 If ACL contains this card data, lock will perform standard lock sequence.
3 Lock will disable “Passage Mode” visual cue and return to normal operating mode.
Place Temp Card near reader to
grant access to factory default
locksets.
Place Temp Card near reader to grant
access to factory default locksets.
Place Temp Card near reader to grant
access to factory default locksets.
Standalone System
21
Add/Remove User(s)
Programing Mode
1 Inserts key, unlocks the lock, then re-locks the lock and unlocks it a second time (do this
within a ve-second window of time).
2 A visual cue for “Enter Programming Mode” will occur, along with an audio cue.
Programming Time Out
1 After putting lock in “Programming Mode,” if there is no proximity card interaction for 10
seconds, the activity will time out.
2 A “Leave Programming Mode” visual cue will occur, along with an audio cue.
3 Lock will return to normal operating mode.
Add User
1 While in “Programming Mode,” present the proximity card (do not present card a second
time within two seconds).
2 The card data will be added to the ACL as a normal operator.
3 A visual cue for “Card Added to Stand-Alone ACL” will occur, along with an audio cue.
4 Programming mode counter will reset to 10 seconds.
Remove User
1 While in “Programming Mode,” present the proximity card twice in rapid succession.
2 The card data will be removed from the ACL.
3 A visual cue for “Card Removed from Stand-Alone ACL” will occur, along with an audio
cue.
4 Programming mode counter will reset to 10 seconds.
Battery Functionality
Replace Battery
1 Open front panel and remove battery pack.
2 Insert new battery pack.
3 If battery power level is sufcient, lock will automatically power up and resume normal 
functionality.
4 If installation is successful, any “Low Battery Mode” visual or audio cues will cease.
22
Standalone System
Low Battery Warning
Both visual and audio “Low Battery Mode” cues will occur when battery power drops below a
specied level
Note At this point a normal load would last two weeks or less (i.e. 6%)
Standalone System
23
24
Standalone System
Standalone System
25
26
Standalone System
Standalone System
27
28
Standalone System
Standalone System
29
30
Standalone System
Standalone System
31
32
Standalone System
Standalone System
33
34
Standalone System
Standalone System
35
36
Standalone System
Standalone System
37
38
Standalone System
Standalone System
39
40
Standalone System
Standalone System
41
42
Standalone System
Standalone System
43
44
Standalone System
Standalone System
45
46
Standalone System
Standalone System
47
48
Standalone System
Standalone System
49
50
Standalone System
Standalone System
51
52
Standalone System
Standalone System
53
54
Standalone System
Standalone System
55
56
Standalone System
Standalone System
57
58
Standalone System
Standalone System
59
60
Standalone System
Standalone System
61
62
Standalone System
Standalone System
63
64
Standalone System
Standalone System
65
66
Standalone System
Standalone System
67
68
Standalone System
Standalone System
69
70
Standalone System
Standalone System
71
67
Wireless System
2
68
Wireless System
Components at Work for Wireless System
Components What It Does
1 Host Computer PC running Stanley Intelli-M software and
gateway conguration for locksets
2 Mobile device (optional) Mobile device running Stanley software and
gateway conguration for locksets
3 Gateway Connects to the Host Computer through a secure
IP address. Transfers data signals from Wireless
locksets to and from the Host Computer.
4 Wireless Lockset Battery-operated lockset equipped with Stanley
technology that controls user access at the door.
Communicates with the Gateway and grants user
requests according to how they are congured in 
the Stanley software.
1
4
3
2
Wireless System
69
Needed Tools for Setup
Steps Tools
1 Develop a Site Plan •  Engineering drawings or segment map
•  Stanley Technology Site Survey Kit
2 Organize Segment Data •  MAC numbers for Gateway(s), Lockset(s),
and Wireless Card(s).
•  Gateway(s) and lockset(s) names and
locations
3 Prepare Host Computer •  64-bit PC operating Windows 7
4 Install Software •  Software Disc
•  Software Quick Start Guide
5 Install Gateway(s) •  Gateway Installation Instructions and
template
•  Tools listed in the installation Instructions
and template
6 Gateway Conguration •  Gateway Webpage
7 Install Wireless Lock(s) •  Lockset Installation Instructions and
template
•  Tools listed in the installation instructions
and template
•  Core/Keyset or Plastic Thumb Core
•  Wireless Card
•  Temporary Operator Card
•  Proximity cards and shadow cards
8 Understand Lockset Modes •  Lockset Quick Start Guide
9 Congure Software •  Software Disc
•  Software Quick Start Guide
70
Wireless System
Develop a Site Plan
Steps
1 Gateway(s) placement
2 Document gateway and lockset identication
3 Position gateways
Gateway(s) Placement
Prior to any installation, a technician must perform a Stanley Site Survey using the Site
Survey Kit. You can nd the Site Survey Kit Quick Start Guide at www.stanley.com/
installationinstructions.
The technician may need you to make a site plan with building dimensions, distances
between buildings, possible obstruction, parking, and other gated access points prior to the
site survey. If one is not available through your facilities maintenance or project engineer,
visit the site to take measurements to create one.
Gateway Specications
The Gateway is a wireless device connected to the Host computer through a secure IP
address, similar to the way your computer is connected to the internet. It transfers data
signals from Wireless Locksets to and from the Host computer. The Gateway recognizes
all Wireless Locksets within its antenna range. One Gateway can control up to 64 Wireless
Locksets.

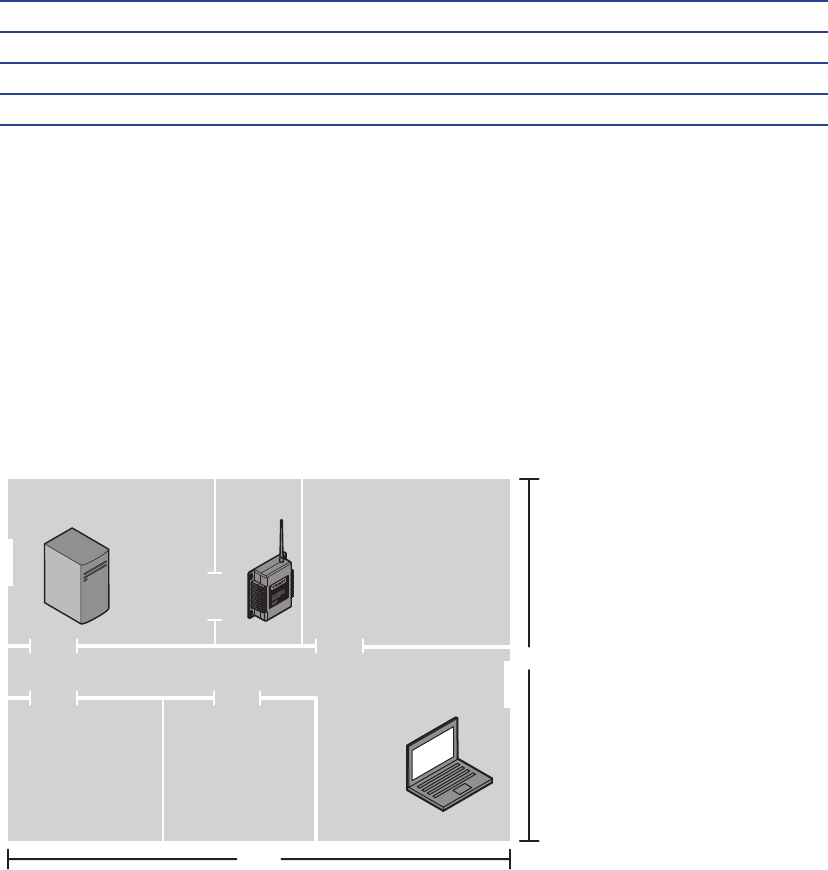

Patient Room
Dentist Office
Receptionist
Surgery Room Patient Room
Closet
250 ft
Host
Gateway
150 ft
Typical Site
Configuration
Typical Site
Conguration
Typical Site
Conguration
Wireless System
71
Gateways provide bi-directional radio frequency communication between Wireless Locksets
and the associated host computer(s). All communications are via secure AES 128-Bit encrypted
2.4 HGz using spread spectrum RF Radio technology. The Gateway communicates to the host
computer through web services via either Ethernet 10/100 BaseT, or an approved commercial RF
carrier-enabling a wireless solution end-to-end.
Range
Transmit range from Gateway to lockset varies based on building construction and wi noise. 
Site characteristics such as reinforced concrete walls could interfere or weaken the signal;
open spaces and low interference can increase signal strength.
Stanley transfers information between devices in the form of data packets over the 2.4
GHz ISM band. This band frequency is very heavily used in many devices such as wireless
computer networks (802.11 b and g) and cordless phones, which increases the risk of
lost packets, that is, packets that do not make it from a lockset to a Gateway because
of interference. Interference can also reduce lockset battery life due to the constant re-
broadcasting of packets and lost connections to the gateways.
To achieve maximum efciency in wireless system, the frequency range must be managed 
effectively. Therefore, the installer must know the positions and channels of all the 2.4 GHz
wireless devices in the segment and ensure channels are assigned to each device so that
there is minimum frequency overlap with adjacent or nearby devices.
Extended Range
It is likely that you will have locations in your segment separated by distances greater than
300 feet. You may want to consider adding a Gateway to extend the transmit range or
purchasing a ceiling mount antenna.
Power Supply
Gateways must be located near lockset(s) and either two options:
1 Access to Ethernet 10/100 Base T network connection.
2 Access to a dedicated power source where they can recieve 24 VDC power from a AC to
DC transformer. Ensure that the gateway is plugged into a 24/7 power circuit that cannot
be turned off at a switch, such as a light switch that might be turned off by a cleaning
crew.
72
Wireless System
Document Gateway and Lockset Identication
It is important to document the Gateway Media Access Control number (MAC address)
address, along with capacities and locations, and to give each device a common name (such
as “Patient Lobby”).
Image of where MAC address is located on gateway-TDB

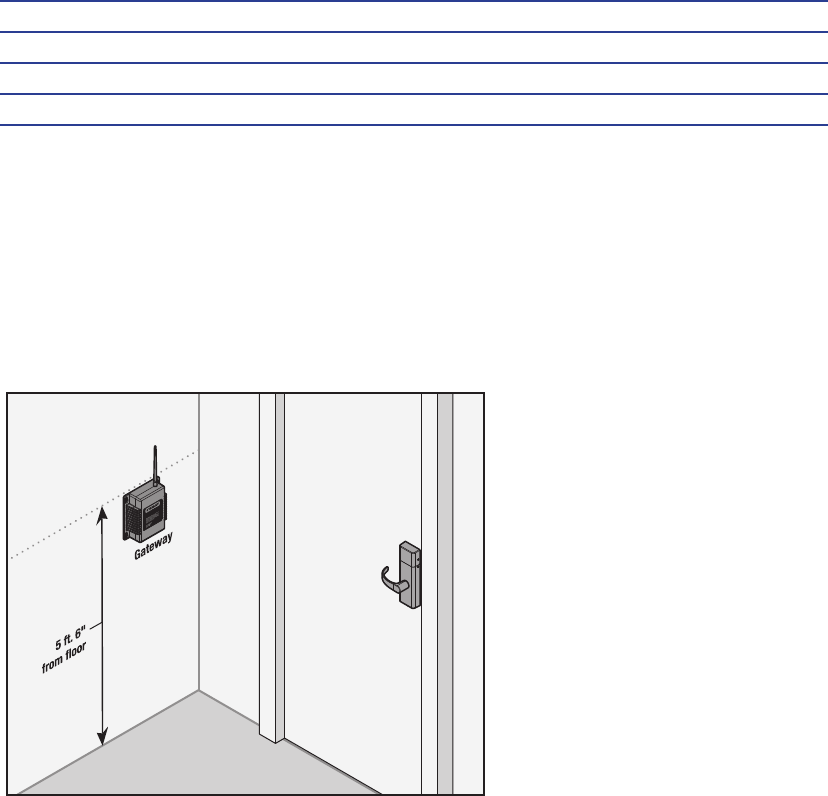

Position Gateways
Position the Gateways for installation, using results from the Stanley Site Survey Kit. It is
important to perform the Site Survey process as many times as necessary to nd the strongest 
position.
Note Test signal strength at all door locations near the edges of the coverage area, also at
any location where there may be physical interference.
Organize Segment Data
Steps
1 Collect Gateway and Lockset Information
2 Collect User Information
Collect Gateway Information
During your site survey, you have documented MAC numbers, names, capacities and
physical locations of all gateways and locksets so you can identify and assign them to the
correct location within the Stanley Intelli-M Software.
Collect User Information
You will need to gather the names of users, dene their access requirements, organize user 
and timezone groups, and decide how to use other congurable features.
Create a table with information about each user, such as: User Type, User Group, Shift, etc.
Last First User Type Bldg. User
Group
Timezone
Alverez Alicia Dentist AAdmin Default
Bennet Ryan Sr. Technician ABasic Default
Ford Sara Technician ABasic Default
Lee James Receptionist ABasic Default
To organize your data, consider the following issues:
Wireless System
73
•  What User Groups will help manage security?
•  Are some shift workers are allowed on site only during specic days/hours?
•  Are some areas ‘off limits’ to certain groups?
•  Do some users need extra time to pass through a door (e.g. because of a food cart or
wheel chair)?
Prepare Host Computer
Steps
1 Ensure Correct Computer Settings
2 Stop Communication Server (if required)
3 Collect User Information
Note You must have administrative rights on your computer to perform many of the tasks
listed here.
Ensure Correct Computer Settings
Stanley software can be installed on the following server operating systems:
•  Microsoft® Windows® Vista® Servers
•  Microsoft Windows Server 2008
Vista Server Conguration
1 Power up the server.
2 Navigate the following path: Start > Control Panel > Programs >Turn Windows Features
On or Off > Internet Information > World Wide Web Services > Application Development
Features.
3 Select ASP.NET. The.NET Extensibility ISAPI Extensions and the ISAPI Filters options
will automatically be selected, as shown in Figure 3.
Image - TBD
4 Click OK.
5 Navigate the following path: Message Queue (MSMQ) Server > Microsoft Message
Queue (MSMQ) Server Core.
6 Select the MSMQ HTTP Support, MSMQ Triggers, and Multicasting Support options, as
shown in Figure 4.
Image - TBD
74
Wireless System
7 Click OK. Close the window when the conguration process isdone.
8 Install the Stanley software by either downloading the Stanley software from www.
stanley.com.
9 Double-click the setup.exe application icon. Click “Run” to launch the installer.
10 Follow the screen prompts to create the Stanley database. When prompted, click Yes.
11 Following the system reboot, click “Run” to continue the installation. The system will
install the .NET Framework. This can take up to 30 minutes.
12 On the Database Server screen, identify the location for the Stanley database server
(refer to Figure 5).
13 Select “Yes…” to install a database server on thiscomputer.
14 Select “No…” to use an existing database server.
Image - TBD
Note If SQL has not been installed, Select “Yes…”When prompted, create a strong
database password. Enter a combination of upper case, lower case, and numbers.
Select “Complete” for the Setup Type. Click the “Install” button. Click “Finish” to close
the Stanley installer.
Windows Server 2008 Conguration
1 Power up the server.
2 Press the Ctrl+Alt+Delete keys, and enter the server password.
3 Navigate the following path: Start > Control Panel > Administrative Tools > Server
Manager.
4 Click “Add Roles” to display the Add a Roll section.
5 Go to the Web Server (IIS) section.
6 Click “Add A Required Feature” and click “Next.”
7 Go to the Application Development section.
8 Select “ASP.NET.”
9 Click “Add Required Role Services” and click “Next.”
10 Click the “Install” button.
11 Click “Features” to display the Features section.
12 Click “Add Features.”
13 Select “Message Queuing” and click “Next.”
14 Click the “Install” button.
Wireless System
75
15 Exit the Conguration window.
16 Go to Installing The Intelli-M Access Software on page 18.
76
Wireless System
Windows Server 2003 and XP Conguration
1 Power up the server.
2 Navigate the following path: Start > Settings > Control Panel.
3 Click “Add or Remove Programs.”
4 Click “Add/Remove Window Components” (which can be found onthe left-side margin).
The Windows Component window will be displayed.
5 Depending on the Operating System installed, select (i.e.,check mark) either “Application
Server” or “Message Queuing” along with “Accessories And Utilities.” Refer to Figure 6.
Then click “Next.”
Image - TBD
Wireless System
77
Install Gateways
Steps
1 Prepare Installation Area
2 Install Gateway
3 Verify Operation
Prepare Installation Area
The most common installation site is in a protected area such as a locked room or above
ceiling level.
Note If a protected area is not available, you may want to use a specially-designed locked
enclosure. Contact your dealer for more information.
Use the template provided with the Gateway package to prepare for installation. You can also
nd the template at www.stanley.com/templates.
Install Gateway
Use the installation instructions provided with the Gateway package. You can also nd 
installation instructions at www.stanley.com/templates.
Verify Operation
Once your gateway has been connected, the gateway will verigy connection depending on
78
Wireless System
it’s power source and connection.
1 If you used a POE Cable only, the gateway leds will light blue and green.
2 If you used a AC to DC adaptor plus a cable, the gateway leds will light green only.
Gateway Conguration
Steps
1 Connect Gateway to Network
2 Congure IP Network Settings
3 Gateway Website
Connect Gateway to Network
Congure IP Network Settings
Gateway Website
Activity
Indicator
Ethernet
Connection
Power
Port
Power
Indicator
Link
Indicator
Wireless System
79
Install Software
Steps
1 Install Software
1 Insert Stanley Intelli-M disc.
2 Double-click the setup.exe application icon.
3 Click “Run” to launch the installer.
4 Follow the screen prompts to create the Stanley Intelli-M database.
5 When prompted, click “Yes.”
6 Following the system reboot, click “Run” to continue the installation.
Note When prompted, create a strong database password. Enter a combination of upper
case, lower case, and numbers.
7 Select “Complete” for the Setup Type.
8 Click the “Install” button.
9 Click “Finish” to close the Intelli-M Access installer.
Install Wireless Locksets
Steps
1 Check Installation Settings
2 Document Lockset Identication
3 Prepare Doors
4 Install Wireless Locksets
5 Test Functionality
Check Installation Settings
Wireless Locksets are for use inside protected areas. For other applications (such as outdoor
use), contact the factory for the appropriate NEMA enclosure. Changes or modications not 
expressly approved by Stanley Security Solutions could void the user’s authority to operate 
the equipment. Make sure to check temperature. Stanley locks will work from -31°F to 151°F.
Note Locks work within a temperature range of -31°F to 151°F. Extreme heat reduces
wireless signal strength and may cause a loss of connectivity.
80
Wireless System
Document Lockset Identication
Record the MAC address before installing device – you will need this when conguring the 
lockset.
Prepare Doors
Use the template provided with the lockset package to prepare the installation. You can also
nd the template at www.stanley.com/templates.
Install Wireless Locksets
Use the installation instructions provided with the lockset hardware. You can also nd 
installation instructions at www.stanley.com/installationinstructions.
Test Functionality
Verify lockset operation by following these steps:
Or use a Temporary Operator Card to test functionality
Insert the key
that is labled O.
Insert the key that
is labled O.
Insert the key that
is labled O.
Lock
Lock
Lock
Unlock
Unlock
Unlock
Operator Key
Operator Key
Operator Key
Place Temp Card near reader to
grant access to factory default
locksets.
Place Temp Card near reader to grant
access to factory default locksets.
Place Temp Card near reader to grant
access to factory default locksets.
Wireless System
81
Congure Software
Steps
1 Terms and Concepts
2 Door Behavior
3 Rules and Privileges
4 Schedules and Holiday Sets
5 Events and Alarms
6 Alarm Acknowledgement
7 Extensibility and Peripherals
8 Quick Setup
9 Create Doors
10 Create a Person
11 Create an Access Privilege
12 Licensing Your System
Terms and Concepts
Door vs. Zone
Image - TBD
The Door occupies a physical space, and its border areas are called Zones. When applying
privileges to a Door you’re granting access to a Zone. 
Upon installation, Intelli-M creates two default Zones: Inside and Outside. In general, they
represent the inside of your building or ofce and the outside of your building or ofce. 
Inside the building you may want secure interior doors . Each secured door also borders two
Zones: the interior of the oor/building and the space you wish to secure. You may re-use the 
Inside Zone for the unsecured side of the door and create a new Zone, (e.g. Dental Records
Room) to serve as the name of the secured space. When conguring access privileges, you 
will grant access to the Dental Records Room Zone, not the Door that borders it.
You can re-use Zones in more than one way.
1 One way is to re-use the Inside Zone because it represents the same physical space as
your perimeter doors (see example above).
2 Another opportunity to re-use a Zone name is when the same people will always have
identical access privileges to multiple areas. For example, if a dentist ofce has three 
patient rooms and the same people always have identical access to these rooms, you
can create a single Zone (e.g. Patient Rooms) to represent this entire space.
82
Wireless System
Muster Zone
Image - TBD
A Muster Zone is a Zone tagged with ‘In Muster’ or ‘Out Muster’. When you tag a Zone with 
‘In Muster’, Intelli-M will track all users who enter that Zone. You can also tag a Zone with 
‘Out Muster’ to track both sides of a Door. 
A special Muster View on the Events Page displays the location of all cardholders in these
Muster Zones in real-time.
Cardholder vs. Group
Image - TBD
Stanley Intelli-M denes a cardholder and congures the cardholder’s access rights. It 
also puts the Cardholder into a Group, similar to how Windows has Users and Groups. All
cardholders must be a member of one Group, and can be a member of multiple Groups.
Access Privileges are applied to Groups, not individual Cardholders. Therefore you can
modify the access privileges of a large number of Cardholders with one conguration 
change. You can also change access privileges for a Cardholder by adding/removing them
from a Group.
Door Types
Image - TBD
A Door Type is a template that describes the input and output conguration gathered into a 
single unit. Intelli-M installs several default Door Types.
Most or all your Doors’ wiring conguration is already described in one of the default Door 
Types, but if you have Doors with atypical needs, you can create your own Door Type.
Door Behavior
Door Behavior declares the Door’s unlock schedule and the mode of the attached card 
reader(s), such as “Card Only” mode or “Card plus PIN” mode.
Stanley Intelli-M creates one behavior by default: the “Always Locked” Behavior. This
Behavior sets the card reader to “Card plus PIN”. This single behavior covers the typical
operating procedures for most of your doors.
Wireless System
83
Rules and Privileges
Image - TBD
Privilege is the combination of a Group (who has access), a Zone (where is access granted),
and a Schedule (when is access granted). You can create as many Privileges as desired.
A Rule is “what to do when something happens.” For example, a Privilege is a type of a Rule
(i.e. “what to do when a card is swiped or a PIN is entered”). Other examples include sending
emails, locking and unlocking any Zone or Door, and energizing or de-energizing one of the
Door’s outputs. (See more information in Advanced Setup and Conguration.)
Schedules and Holiday Sets
Image - TBD
A Schedule is a stand-alone time range that denes a seven-day week. Each day has a set 
of zero or more time ranges that you dene. 
Active Time Range is displayed in blue. Inactive Time Range is displayed in white.
This Schedule can be applied to a Door (via Door Behavior) as an unlock schedule; to a
Person (via Group membership) to dene the hours they may access a Zone; or to a Rule to 
dene when it may be active. 
For example, when a Schedule is applied to a Door, the Door will be unlocked during the
Active Time Range (blue section), and unlocked during the Inactive Time Range (white
section).
A Holiday is a single day in which normal business hours are altered, such as Thanksgiving
or Christmas.
A Holiday Set is a grouping of Holidays in which the altered business hours match.
For example, a Holiday Set might consist of New Year’s, Thanksgiving, the day after 
Thanksgiving, and Christmas Day, when the ofce is closed. 
Another Holiday Set might consist of Christmas Eve and New Year’s Eve because the ofce 
hours are a half day.
Once you’ve established your Holiday Set, you can assign a set of zero or more time ranges 
that dene that Holiday Set. You can then apply that Holiday Set to a Schedule you’ve 
created.
You can assign a complex Schedule to any Door Behavior, Person Group, or Rule.
84
Wireless System
Events and Alarms
By default, Stanley Intelli-M identies an Alarm as the usual access denial events, but you 
can custom an Alarm using the Rules Engine. (See more information in Advanced Setup and
Conguration.)
Alarm Acknowledgement
Image - TBD
Automatic Alarm Acknowledgement allows you determine which events are important.
Extensibility and Peripherals
Image - TBD
A Peripheral is a third-party device that can be plugged into the Intelli-M Rule Engine
allowing integration.
•  A Peripheral can be:
•  a video surveillance DVR
•  an individual IP Camera
•  a hardware I/O device
•  a web service like Google Maps
Each Peripheral is supported by a Plugin, which is a software module which provides the
bridge between Intelli-M and the third party device/service.
Use the Rules Engine to control the Peripheral. For example, you may instruct it to:
•  “Record video on camera X when a card with invalid credentials are swiped at Door Y”
•  “Energize output A when input B is raised”
•  “Show live video in my browser on camera X when even Y occurs”.
Intelli-M provides one Peripheral by default: a 32 channel ethernet-controlled I/O device.
You can create a Rule to force the device’s outputs to a desired state, or use the device’s 
inputs states to lock or unlock doors, send emails, etc.
Reports
Image - TBD
Stanley Intelli-M utilizes Microsoft’s Reporting Services engine and its tools, allowing you to 
customize your reports.
Wireless System
85
Custom-printed cardholder’s badges also utilize the Reporting Services Engine, giving you 
complete control over badge design.
Quick Setup
Follow these simple steps to get your access control up and running in minutes.
Steps
1 Login to Stanley
2 Click All Programs
3 Click Stanley to launch web browser, which will point to the TBD, running under IIS.
You will be presented with a login screen.
4 Use default username, which is admin. The default password is admin. Later in this
chapter you will learn how to change the default password.
Image-TBD
Create a Door
1 Log into the system.
2 Press ‘Conguration’ in upper right corner.. The main page in this section is the Doors 
Page.
3 Click the ‘Create Doors’ in Action pane on left side of window. A pop-up window will 
appear as shown in Figure XX.
Image-TBD
Choose a Door Name
1 Choose appropriate name (e.g. Front Door, Lobby Door).
2 Click the IP Address or Serial Number combo boxes to nd the IP address of your main 
door.
Image-TBD
Choose a Door Type
If your door has a contact to detect the open/close status of the door, choose door type listed
as “1 or 2 Reader IN1 Normally Closed”
If your door does not have this contact, choose door type listed as “1 or 2 Reader IN1
Normally Open”
Image-TBD
86
Wireless System
Choose a Door Behavior
We recommend “Always Locked” as the default behavior.
Image-TBD
Selecting two Zones which Border the Doors
1 The upper two combo boxes tell the system which two Zones the Door borders. The
lower two combo boxes tell the system which Zones have card reader access.
2 Choose “Outside” and “Inside” for the top two combo boxes.
3 Choose “Inside” for Card Reader One (to grant access to the “Inside” Zone).
4 Choose the proper Zone for Card Reader Two.
Note If you have no second reader, it doesn’t matter which Zone you choose. If you have 
two readers and both on the outside, choose “Inside” for Card Reader Two.
Image-TBD
Choose a Time Zone
1 Choose the time zone in which the controller is physically located. (For most installations
this is the currently selected time zone.)
2 Press ‘Create’ and wait a few seconds.
3 The Door will appear in the main Doors viewing area.
4 Three status icons will appear next – the left-most icon will be a yellow triangle.
5 In the icon legend (lower left part of the window) a yellow triangle means the Door’s 
conguration has changed and needs to be updated. (This is normal for the rst-time 
creation of the Door.)
6 If the icon is a red circle, the system could not communicate with the Door using the
information you provided. If this occurs, please refer to the Troubleshooting section at the
end of this document.
Note If you create or update a Door and you see a red wavy line in a eld, hover the 
cursor over that eld and a message will appear explaining the problem. Correct the 
problem and try again.
7 Repeat these steps to create additional Doors.
8 When nished, click ‘Update All Doors’ in the Actions menu on the left side of the 
window.
Wireless System
87
Note At any time you can click on one or more Doors and click the ‘Update’ Action link to 
update specic Doors.
Image-TBD
Create a Person (Add a User)
1 Click ‘Home’ in upper left part of window to go back to Events Page.
Image-TBD
Note These two links, ‘Home’ and ‘Conguration’, take you back and forth between normal 
operating mode and conguration mode. 
2 Click on the ‘People’ tab to start adding people.
Image-TBD
3 You may stay in the ‘Conguration’ section by clicking on ‘Groups’, then clicking on 
‘Person View’ under the Views menu in left part of window. 
Image-TBD
Note The People Page displays all the Cardholders and Users in the system. (Right now
there is likely only one User – Admin – the account you’re currently using.)
Image-TBD
4 Click ‘Create Person’ in the Actions menu. A pop-up window will appear as shown in 
Figure XX.
Image-TBD
5 Enter a First Name and Last Name in the appropriate name elds.
Image-TBD
6 Enter a Site Code and a Card Code.
Image-TBD
Note The Card Code is printed on the card and the Site Code is printed in the paperwork
that came with the cards.
Image-TBD
7 If you do not know the Card Code or Site Code, simply swipe the card at the Door you
created earlier and the Site Code/Card Code will display on the Events Page. Copy these
codes into the two elds. 
88
Wireless System
Image-TBD
8 Place the Person in a Group.
Image-TBD
9 Click the arrow in the Groups tag (or drag & drop) to add a name to the selected Group
(visible below the Card Code boxes).
Image-TBD
10 A list of Group names will slide from the left, exposing the only existing Group
(‘Everyone’). 
Image-TBD
Note To easily nd a Group name in a long list of Groups, click the mouse anywhere in the 
Available Groups window and start typing the name of the Group. The name most
closely matching will automatically select.
11 Repeat these steps to create each additional Person.
12 Each time you create/update a Person or prole, the information will be automatically 
sent to each Door – there is no need to perform a Door Update Action.
Image-TBD
Note  If you create or update a Person and you see a red wavy line in a eld, hover the 
cursor over that eld and a message will appear explaining the problem. Correct the 
problem and try again.
13 Change the Admin password.
14 Select the Admin rectangle.
15 Click ‘Edit Person’ in the Actions menu. A pop-up window will appear displaying the 
Admin information, as shown in Figure XX.
Image-TBD
16 Click ‘Role’ to modify Admin user’s credentials. 
17 Provide a new Password in both Password elds. 
18 Click ‘Save’. 
19 You will automatically log out. You may log back in using the new Password.
Create an Access Privilege
1 Click on ‘Conguration’. 
Image-TBD
Wireless System
89
Note If you are already in the Conguration section, just click ‘Rules’. The Rules Page will 
appear showing a list of default Rules.
2 Select ‘Rules’. 
Image-TBD
3 Simply click the Rules tab if you are already in the Conguration section. The Rules 
Page will appear showing a list of default Rules.
Image-TBD
4 Click the ‘Create Rule’ Action link in the Actions menu. A ‘Create Rule’ pop-up window 
will appear as shown in Figure XX.
Image-TBD
5 The default Rule ‘Access Privilege’ will be selected – you do not need to change the 
combo box.
Image-TBD
6 Choose a Schedule.
Image-TBD
7 Choose the ‘Everyone’ Group. (Remember, the Person/People you created earlier belong 
to this Group.)
Image-TBD
8 Choose a Zone.
9 Choose the ‘Inside’ Zone. (Remember the perimeter Doors you created have their card 
readers providing access to the ‘Inside’ Zone.) 
Image-TBD
10 Click the ‘Create’ button to save your new Access Privilege. 
11 Click the Doors tab again.
12 The new Door/Doors have a yellow triangle which means the conguration has changed 
and an update is needed.
13 Click ‘Update’ or ‘Update All’ Action link to update the Doors.
Image-TBD
14 The Doors are now locked and secured, granting access to the cardholders you created.
90
Wireless System
Licensing Your System
1 Click on ‘Conguration’. 
Image-TBD
2 Click on the ‘System Settings’ link (in the upper right corner of the window). A popup 
window will appear, as shown in Figure XX.
Image-TBD
3 You’ll see the Intelli-M version number along with the trial license key and other 
information. Enter the key you received when you purchased the product and the system
will automatically be licensed.
Wireless System
91
92
Wireless System
Wireless System
93
94
Wireless System
Wireless System
95
96
Wireless System
Wireless System
97
98
Wireless System
Wireless System
99
100
Wireless System
Wireless System
101
102
Wireless System
Wireless System
103
104
Wireless System
Wireless System
105
106
Wireless System
Wireless System
107
108
Wireless System
Wireless System
109
110
Wireless System
Wireless System
111
112
Wireless System
Wireless System
113
114
Wireless System
Service, Upgrades, & Updates
4
122
Service & Upgrade
Outline:
Service
•  Lockset Serviceable Parts
-Paragraph explaining that if someone needs technical support, please call Stanley
Technical Support at (800) 392-5209.
-Standalone Serviceable Parts
-Illustration with parts list
-Wireless Serviceable Parts
-Illustration with parts list
•  Gateway Serviceable Parts
-Illustration with parts list
Upgrade
•  Standalone System to Wireless System
Update
•  Firmware Update
•  Check online for update instructions, templates, and guides.
Service & Upgrade
123
124
Service & Upgrade
Troubleshoot
5
126
Troubleshoot
Occasionally, you may have problems when working with your Stanley QEL 200 System.
Read on for troubleshooting tips. If you need further help, please call Stanley Technical
Support at (800) 392-5209.
Lockset Installation
Problem
Problem
Problem
Cause
Cause
Cause
Solution
Solution
Solution
Interior or exterior
escutcheon does
not seat flush
aganist door.
Inside or outside
escutcheon does not
seat ush aganist
door.
Inside or outside
escutcheon does not
seat ush aganist
door.
Square drive was
not inserted fully.
Square drive was not
inserted fully.
Square drive was not
inserted fully.
Fireplate (F) did
not correctly align
with exterior
escutcheon.
Fireplate (F) did not
correctly align with
outside escutcheon.
Fireplate (F) did not
correctly align with
outside escutcheon.
Square drive must insert through latch and exterior escutcheon.
Square drive must insert through latch and exterior escutcheon.
Square drive must insert through latch and exterior escutcheon.
Exterior
Exterior
Exterior
Escutcheon
Escutcheon
Escutcheon
Exterior Escutcheon
Exterior Escutcheon
Exterior Escutcheon
Interior
Interior
Interior
Bolts (R) must align and connect with exterior escucheon.
Bolts (R) must align and connect with exterior escucheon.
Bolts (R) must align and connect with exterior escucheon.
Latch
Latch
Latch
R
2x
F
K
K
J
Troubleshoot
127
Gateway
Gateway Box
Gateway Conguration
Software
Software Installation
Wireless card (P)
LED does not light
green.
Wireless card (P)
LED does not light
green.
Wireless card (P)
LED does not light
green.
Wireless Card was
not correctly
inserted.
Wireless Card was
not correctly inserted.
Wireless Card was
not correctly inserted.
Wiring was not
properly
connected.
Wiring was not
properly connected.
Wiring was not
properly connected.
Batteries/battery
holder was not
properly
connected.
Batteries/battery
holder was not
properly connected.
Batteries/battery
holder was not
properly connected.
Push wire harness
in to fully connect
pins.
Push wire harness in
to fully connect pins.
Push wire harness in
to fully connect pins.
F
D
F
Check that batteries
and battery holder
were correctly
inserted.
Check that batteries were
correctly inserted into
battery holder.
Check that batteries were
correctly inserted into
battery holder.
P
FK
Wireless locks only.
Wireless locks only.
Wireless locks only.
Problem
Problem
Problem
Cause
Cause
Cause
Solution
Solution
Solution
E
4x
128
Troubleshoot
Troubleshoot
129
130
Troubleshoot
Troubleshoot
131
132
Troubleshoot
Troubleshoot
133
134
Troubleshoot
Troubleshoot
135
136
Troubleshoot
Glossary
6
138
Glossary
access level relationship between lockset(s) and time zone(s),
assigned to a badge ID to grant access during a
specied time
activation/deactivation date date that a credential becomes active or expires.
badge token that carries a cardholder’s data
badge ID access information encoded to a card, usually
numerical, and unique to a user
communication server server application designed to provide network
services to access panels, readers, PCs and
mobile devices
ethernet networking standard
extended unlock extra time of unlock when an authorized credential
is presented
gateway device which securely transfers data signals from
wireless reader locks to/from the Host computer
guest feature that enables you to add/delete cardholders
to a lock without reprogramming it
host computer computer on which Stanley Intelli-M software is
installed
IP address numeric address (like 192.168.1.1) that identies
each device in a TCP/IP network
issue code access information a credential that allows reuse of
the badge ID when a credential is lost, damaged,
or stolen; usually one or two digits, and increments
forward when creating a new credential
MAC address a unique 12-digit number assigned by a device
manufacturer
segment code access information encoded to a card, usually
numerical, and unique to a group of credentials
site survey kit determines optimum Gateway location to verify
signal strength before permanently installing Notes
hardware
Glossary
139
standalone lockset lockset not connected to an access control system;
accessibility local at door
Stanley Intelli-M software wireless access control system
time interval specic range of time; may be comprised of
several individual intervals
timezone dened range of time for various access control
activities
unlock duration brief period of time the lock is unlocked
user individual with a particular access credential
wireless lockset lockset which controls access at the door and
grants user requests according to how they’re
congured in Stanley software
140
Glossary
Glossary
141
142
Glossary

Navigation menu
