dreamGEAR SOUND-6876 HiFi LUXE Bluetooth Speaker User Manual M600D 27th Jan
dreamGEAR, LLC HiFi LUXE Bluetooth Speaker M600D 27th Jan
User manual
ISOUND-6876 User Manual
Dear customer,
Thank you for purchasing the Bluetooth speaker ISOUND-6876. To ensure correct
operation, please read this user manual carefully before operation.
Important Safety Instructions
◆ If you do not operate the speaker for a long time, please charge battery once a month,
in order to prevent the lithium battery from being damaged.
◆ Do not use the speaker in special cold, hot, dusty or humid environments.
◆ Please avoid the speaker dropping or hitting with a hard object, it may cause damage
to the inside battery or other hardware damage.
◆ When low battery, the indicator light will flash and voice guide “Battery Low”, please
charge battery in time.
◆ Keep speaker away from any source of heat/fire.
Features
1. Bluetooth Music and Mobile Hands-free Function
Bluetooth 2.1 stereo music playing, support mobile hands-free function.
2. Aux In
Work as the external speaker by connecting to the audio source of computer, mobile,
PSP/MP3/MP4 etc.
Technical Data
Voltage DC 5V Output 4.5W+4.5W
+8.5W
Net Weight
1296 g
Impedance
6Ω AUX IN Jack
3.5mm Size 147mm*250mm*69m
m
Battery 2200 mAh
Package Contents
Bluetooth Speaker, Micro USB Cable, User Manual, 3.5mm audio cable

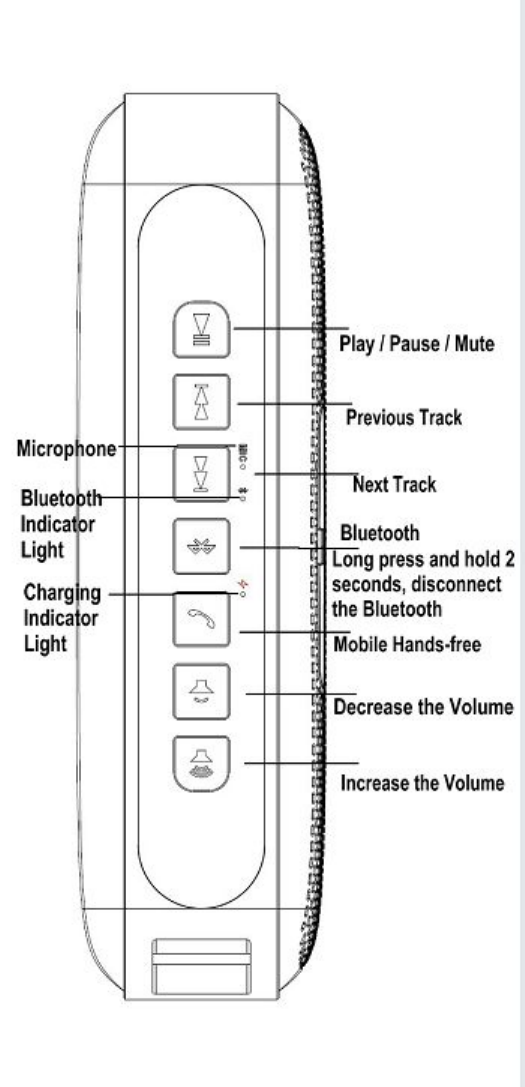

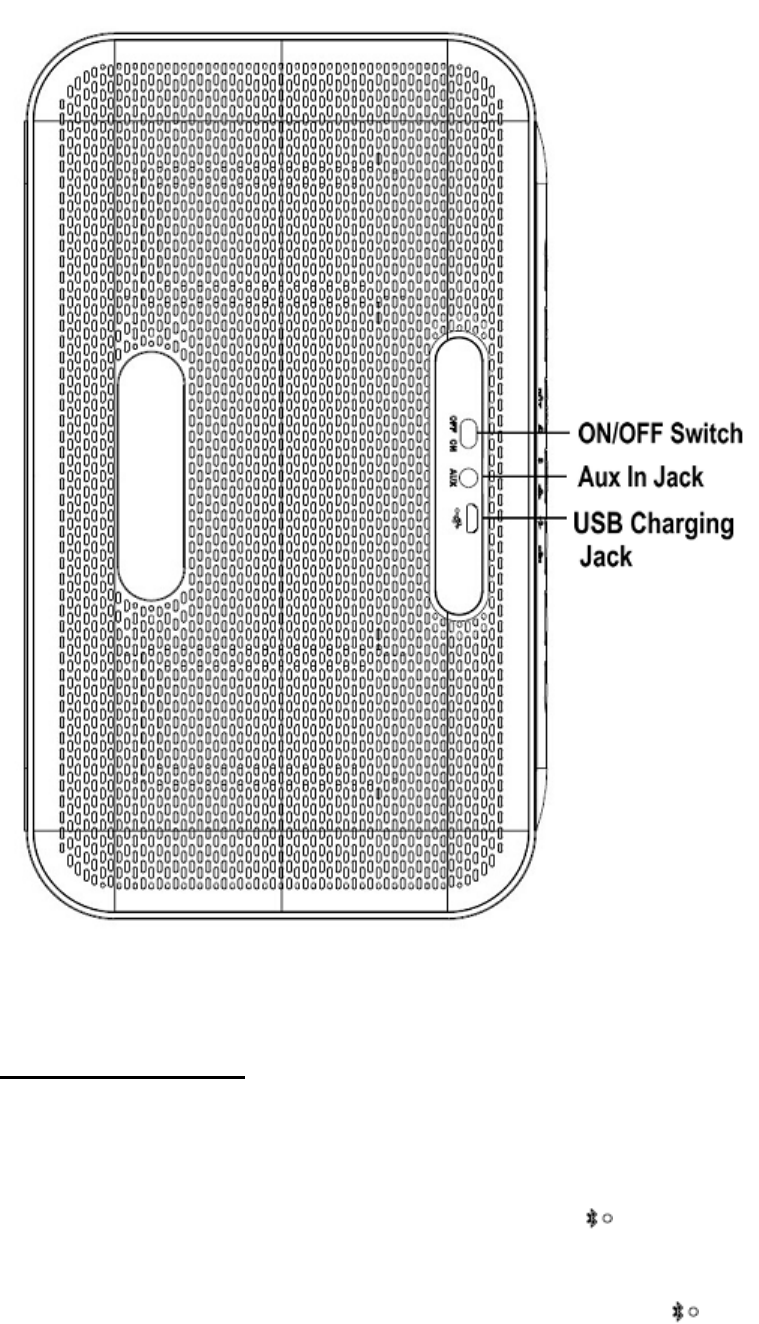

Slot and Keys
Function Instructions
1) Bluetooth
Bluetooth Paired
Under Bluetooth searching status, the Bluetooth indicator light will be keep flashing.
Please turn on the Bluetooth function of your mobile/other devices. And start to search for
Bluetooth devices, the “ISOUND-6876” will be found, please connect it. (The speaker will
voice “Device paired” when connecting and the Bluetooth indicator light will stop
flashing).
Long press the button and hold for 2 seconds can mandatory disconnect the pairing.
Mobile Hands-free function
Under pairing, the speaker also under the mobile hands-free status.
When the mobile call comes in, short press the button to pick up the phone call. Long
press and hold the button for 2 seconds to reject the phone call.
Under the phone conversation, please face to the and also keep the distance
within 60CM for better sound reception.
Under the phone conversation, double press the button can switch sound output
between the speaker and phone.
2) Voice Guide
The speaker with the voice guide: Bluetooth Mode, Aux In Mode, Device paired , device
disconnected,Battery Low.
3) Aux In
Use the 3.5mm audio cable included to connect the speaker to an audio source (PC,
MP3/MP4, mobile phone). The speaker will will disconnect the Bluetooth pairing
automatically and enter “AUX IN” mode (the speaker will prompt “Aux in” mode). The
speaker will play the music from the audio source.
Please Note: We suggest you charge the speaker when using the Aux In function
for better sound enjoyment. But not recommend to use PC USB port to charge the
speaker under AUX In mode, as the computer USB power supply is weak.
4) Charging
Please charge the speaker immediately when the speaker prompt the “Battery Low”.Use
the USB cable included to connect the speaker to a branded good quality 5V/1A adaptor
to charge the battery.
Please note:
◆
Use the good quality adaptor
◆
When the speaker prompt “Battery Low”, the volume will decrease automatically
to protect the speaker’ system. Please charge the speaker immediately. And
increase the volume manually.
◆
Not recommend to use PC USB port to charge the speaker as the computer
USB power supply is weak.
5) Automatic Power Saving Function.
The ISOUND-6876 speaker will enter the standby status when not working after 10
minutes later (in all modes).
(1) The speaker will enter the standby mode when Bluetooth disconnection after 10
minutes.
(2) The speaker will enter the standby mode when pause/mute after 10 minutes.
Please note:
Please pull the ON/OFF Switch to the OFF position if you are not going to use the
speaker. Under standby mode, you need to pull this switch to OFF position and pull
it to the ON position again to power on the speaker.
Troubleshooting
1. What should I do if the speaker can not pair with the Bluetooth device and play
music accordingly?
Please check the specification/ the manual of the Bluetooth device (your mobile or
computer), and check if the device can support the A2DP stereo audio transmission. If
yes, please turn on the A2DP stereo mode.
If there are too many Bluetooth devices, it may not easy for the speaker to be
searched, please turn off other Bluetooth device.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
