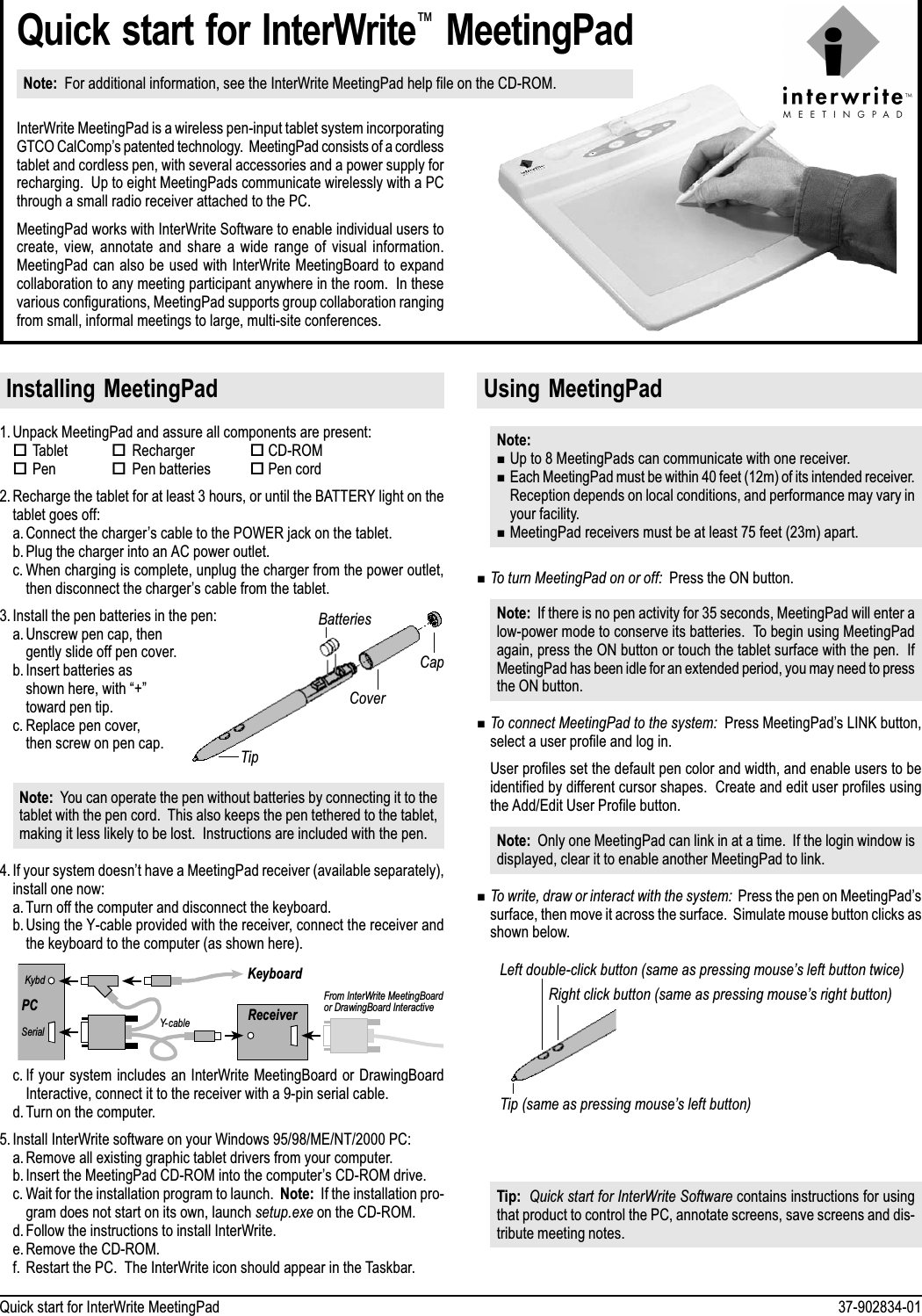

37-902834-01Quick start for InterWrite MeetingPadTipBatteriesCapCoverQuick start for InterWrite MeetingPadNote: For additional information, see the InterWrite MeetingPad help file on the CD-ROM.InterWrite MeetingPad is a wireless pen-input tablet system incorporatingGTCO CalComps patented technology. MeetingPad consists of a cordlesstablet and cordless pen, with several accessories and a power supply forrecharging. Up to eight MeetingPads communicate wirelessly with a PCthrough a small radio receiver attached to the PC.MeetingPad works with InterWrite Software to enable individual users tocreate, view, annotate and share a wide range of visual information.MeetingPad can also be used with InterWrite MeetingBoard to expandcollaboration to any meeting participant anywhere in the room. In thesevarious configurations, MeetingPad supports group collaboration rangingfrom small, informal meetings to large, multi-site conferences.Installing MeetingPad1. Unpack MeetingPad and assure all components are present:oTabletoRechargeroCD-ROMoPenoPen batteriesoPen cord2. Recharge the tablet for at least 3 hours, or until the BATTERY light on thetablet goes off:a. Connect the chargers cable to the POWER jack on the tablet.b. Plug the charger into an AC power outlet.c. When charging is complete, unplug the charger from the power outlet,then disconnect the chargers cable from the tablet.3. Install the pen batteries in the pen:a. Unscrew pen cap, thengently slide off pen cover.b. Insert batteries asshown here, with +toward pen tip.c. Replace pen cover,then screw on pen cap.Note: You can operate the pen without batteries by connecting it to thetablet with the pen cord. This also keeps the pen tethered to the tablet,making it less likely to be lost. Instructions are included with the pen.4. If your system doesnt have a MeetingPad receiver (available separately),install one now:a. Turn off the computer and disconnect the keyboard.b. Using the Y-cable provided with the receiver, connect the receiver andthe keyboard to the computer (as shown here).PCKybdSerialKeyboardReceiverFrom InterWrite MeetingBoardor DrawingBoard InteractiveY- cablec. If your system includes an InterWrite MeetingBoard or DrawingBoardInteractive, connect it to the receiver with a 9-pin serial cable.d. Turn on the computer.5. Install InterWrite software on your Windows 95/98/ME/NT/2000 PC:a. Remove all existing graphic tablet drivers from your computer.b. Insert the MeetingPad CD-ROM into the computers CD-ROM drive.c. Wait for the installation program to launch. Note: If the installation pro-gram does not start on its own, launch setup.exe on the CD-ROM.d. Follow the instructions to install InterWrite.e. Remove the CD-ROM.f. Restart the PC. The InterWrite icon should appear in the Taskbar.Using MeetingPadNote:nUp to 8 MeetingPads can communicate with one receiver.nEach MeetingPad must be within 40 feet (12m) of its intended receiver.Reception depends on local conditions, and performance may vary inyour facility.nMeetingPad receivers must be at least 75 feet (23m) apart.nTo turn MeetingPad on or off: Press the ON button.Note: If there is no pen activity for 35 seconds, MeetingPad will enter alow-power mode to conserve its batteries. To begin using MeetingPadagain, press the ON button or touch the tablet surface with the pen. IfMeetingPad has been idle for an extended period, you may need to pressthe ON button.nTo connect MeetingPad to the system: Press MeetingPads LINK button,select a user profile and log in.User profiles set the default pen color and width, and enable users to beidentified by different cursor shapes. Create and edit user profiles usingthe Add/Edit User Profile button.Note: Only one MeetingPad can link in at a time. If the login window isdisplayed, clear it to enable another MeetingPad to link.nTo write, draw or interact with the system: Press the pen on MeetingPadssurface, then move it across the surface. Simulate mouse button clicks asshown below.Tip: Quick start for InterWrite Software contains instructions for usingthat product to control the PC, annotate screens, save screens and dis-tribute meeting notes.Tip (same as pressing mouses left button)Left double-click button (same as pressing mouses left button twice)Right click button (same as pressing mouses right button)
