Getting Started Interwrite Mobi™
Product Overview
The Interwrite Mobi is a tablet system featuring the patented digitizer and
pen-input technology. Used with the Interwrite Workspace software on a PC
or a Mac, Mobis allow you control the computer by running applications,
opening and editing files, and annotating screen images and presentation
files from anywhere in the room. When used with an Interwrite DualBoard,
Mobis provide the ultimate multi-input collaborative system for the interac-
tive class room or the interactive meeting room.
Interwrite Pen
The electronic Interwrite Pen, when positioned just above (in prox of) or
touching the surface of a powered-on, connected Tablet, controls the move-
ments of the mouse on the computer. The Pen becomes a writing and
drawing instrument when one of the many Workspace Annotation Tools
is selected from the projected Toolbar. When in Annotation Mode, a user
can make notes on a PowerPoint Slide Show, highlight areas of interest on a
spreadsheet, or edit a document using a wide range of pen attributes.
Radio Frequency Technology
The Interwrite Mobi system uses Radio Frequency (RF) wireless technol-
ogy to establish communication between the Tablet and the computer. The
Mobis come with the RF module built into the Tablet, so the only installation
required is the Workspace RF USB Adapter on the computer.
About This Guide
This Getting Started guide describes how to set up your Interwrite Mobi and
Interactive Pen, install the Interwrite Workspace software, and establish a
communication connection with the PC or the Mac. It ends with an over-
view of the Interwrite Workspace software.
Interwrite Mobi™
The KWIK Screen allows for Student Response System information to
display and be used by the instructor for evaluation purposes. It is a color
backlit LCD display that interacts with the computer to display the assess-
ment data. The type of data is dependent on the Student Response System
being used. If one is not installed, the LCD screen will be blank but show
the Mobi Status.
Know What I Know (KWIK) Screen
2Interwrite Mobi™ Getting Started
Installation Overview
This section describes what you will be doing and the order in which you will
be doing it, to facilitate the setup of your Interwrite Mobi and its preparation
for use.
1. Unpack Your Interwrite Mobi
The package includes the Interwrite Mobi and the rechargeable Interwrite
Interactive Pen, a Pen tether, a Mini USB cord, and an eInstructionTM CD and
a Workspace RF USB Adapter.
2. Charge Your Interwrite Mobi and Interactive
Pen
Your Tablet and Pen must be charged before you can use them. Place the
Interactive Pen in the Tablet’s Pen Tray and plug the Mini USB cord into the
Mini USB Jack located at the top of the Tablet and the other end into a USB
Jack at the computer.
3. Install the Interwrite Workspace Software
4. Connect Your Interwrite Mobi
Your Interwrite Mobi must be able to communicate with the Interwrite
Workspace software on your computer. This communication link is estab-
lished wirelessly between radio frequency communication modules—one
built into the Tablet and the other connected to the computer.
Workspace Software
The operation of your Mobi is facilitated by the Interwrite Workspace soft-
ware. The software is installed as part of the process of establishing commu-
nication between the Mobi and the computer and is covered in this guide.
The Workspace software has two operational modes: Lesson Mode and
Office Mode (Windows only).
An Interwrite Mobi, acting as an input device to the computer, remotely
controls the computer from anywhere in the room. When the Interwrite
DualBoard and a video projector are added, the computer’s desktop image
projects onto the Interwrite DualBoard’s surface, and the board, communi-
cates as an input device to the computer.
In this environment, both the person at the Interwrite DualBoard and users
with Tablets seated around the room can interact with the presentation.
3
Getting Started Interwrite Mobi™
Setting Up Your Interwrite Mobi
The Interwrite Mobi communicates with the computer using radio frequency
technology. The RF communications module is built into the Interwrite Mobi.
The Tablet communicates through its built-in RF module with another RF
module installed on the computer. The Interwrite Mobi runs on Li-ion batter-
ies, which provide about 40 hours of wireless operation before they have to
be recharged.

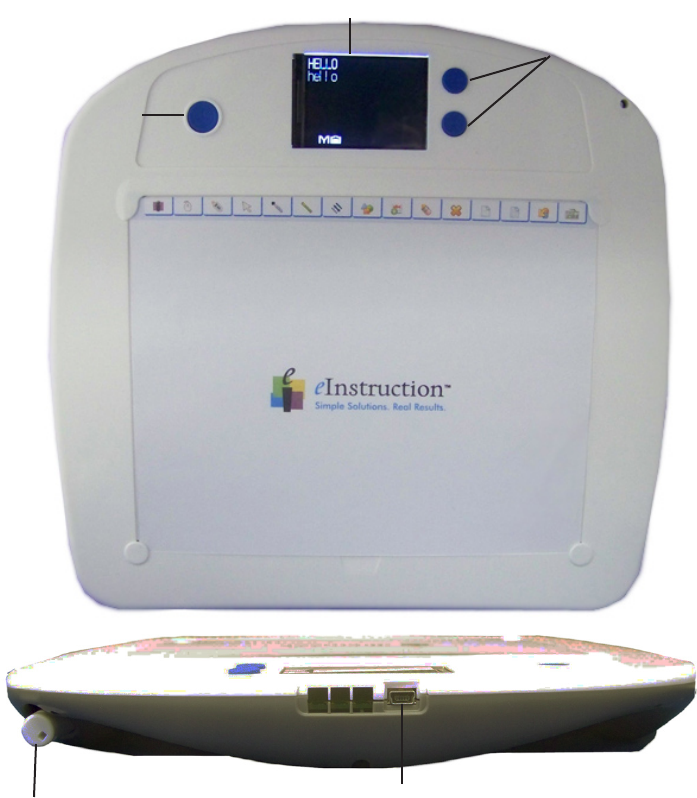

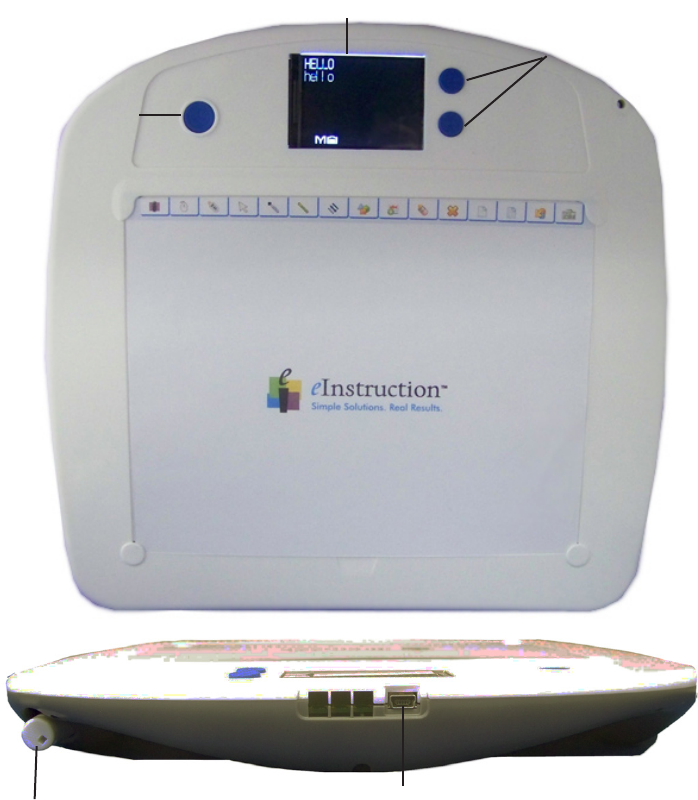

On Off Button
Navigation
Buttons
KWIK Screen
Workspace
Mini USB port for Charging
Pen/ Pen Storage
4Interwrite Mobi™ Getting Started
Charging the Interwrite Mobi and
Interactive Pen
Before you use your Interwrite Mobi and Interactive Pen for the first time,
they should be charged for about three hours. Whenever the Tablet battery
is low and needs to be recharged, the Tablet Battery Status Icon will flash
slowly.
1 Place the Interactive Pen in the Pen Tray.
2 Connect the Mini USB Cable to the Mini USB Jack at the top of the Tablet.
3 Plug the Cable into a USB port on your computer.
The Interwrite Mobi can be used while it is charging.
4 When the Tablet and Pen are charged and the Battery Status displays that
it is charged, unplug the Charger from the Interwrite Mobi.
5 Press the Power Button when the Interwrite Mobi is charged.
The buttons and status indicators are described in more detail in the Operat-
ing the Interwrite Mobi section.
Attaching the Tether to the Tablet and the
Pen
The tether has a loop at each end. One end has a metal ring attached to the
loop – that’s the Pen loop. The other end is the Tablet loop.
1 Thread the Tablet loop up through the hole above the Pen Tray. Thread
the Pen loop through the Tablet loop. Pull to tighten.
The rst thing you should do when you unpack your new
Interwrite Mobi and Interactive Pen is charge them.
The Pen can be charged only when it is placed in the Pen Tray in the
Tablet, and only when the Tablet is being charged. A Pen charge lasts
over 40 hours. You should always charge the Pen when the Tablet is
being charged.
5
Getting Started Interwrite Mobi™
The Electronic Interactive Pen
The Interactive Pen is an input device to the computer. You will use it to
write and draw in Lesson Mode and to control mouse movements in Mouse
Mode by moving the tip of the Pen just above (in prox of) or touching the
Tablet’s workspace surface. When the Pen Tip is in prox or touching the
Tablet’s workspace, it simulates the same effects you would get using the left
mouse button both in Windows and on the Mac.

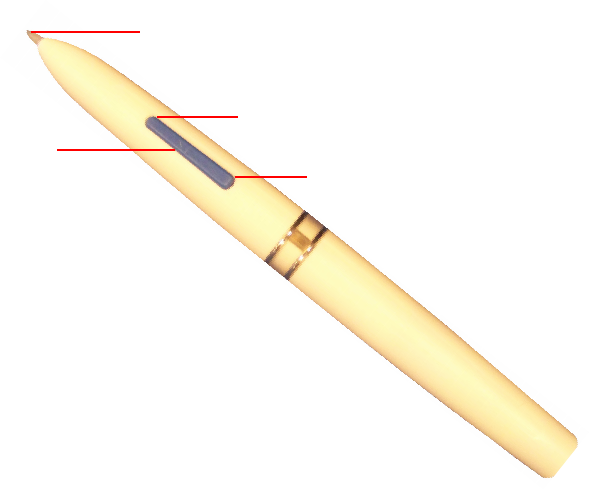

Using the Pen
When the Pen is in prox, press the bottom end of the Rocker Button to
simulate a left mouse button double-click in Windows and on the Mac. Press
the top end of the Rocker Button to simulate a right mouse button click in
Windows and a Ctrl-click on the Mac. In Windows, hold down the bottom
Rocker Button and touch the Pen Tip to the Tablet’s workspace to erase. On
the Mac, with the Pen Tip touching the Tablet’s surface, hold down the bot-
tom Rocker Button to erase.
Sleep Mode
The Pen goes into Sleep Mode after about two minutes of inactivity to
conserve power. Touching the Pen to a surface, or clicking one of its Rocker
Buttons, wakes up the Pen.
Pen Tip – Up or Down
Same as Left Mouse Button on Windows and Mac
Rocker
Button
Bottom Side – Double-Click Mouse Button with
Pen Up Windows and Mac
Top Side – Right Mouse Button (Windows)
Ctrl-Click (Mac)
6Interwrite Mobi™ Getting Started
1 Log in as Administrator.
2 Insert the Interwrite Workspace CD into the CD drive on your PC.
The Installer will autoload. If it doesn’t, click on the Start button
on the Windows Task Bar and select Run from the menu.
Type X:\setup.exe (X represents the CD drive letter).
3 Select the Install Interwrite Workspace Software menu option.
4 Follow the onscreen instructions for the software installation.
Installing the Software on Windows
You will know Interwrite Workspace has
installed successfully by the appearance
of the eInstruction icon in the System
Tray on the Windows Task Bar. (If the icon
does not appear, restart your computer.)
When the Interwrite Workspace icon
appears, it indicates that the eInstruc-
tion Device Manager is now running in
the background on your PC. Click on the
Workspace icon to display the Device
Manager menu options. Device Manager,
in addition to managing the eInstruction
hardware devices, provides direct access
to the Interwrite Workspace software.

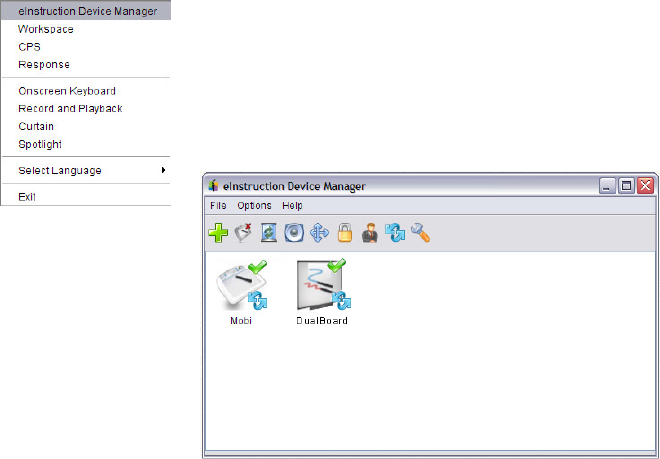

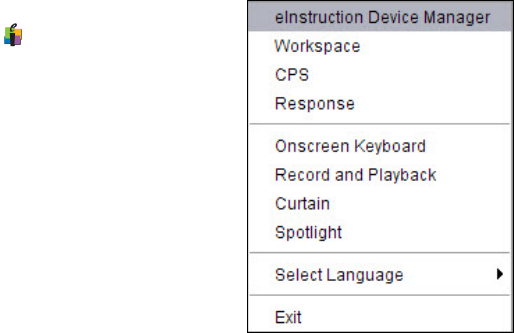

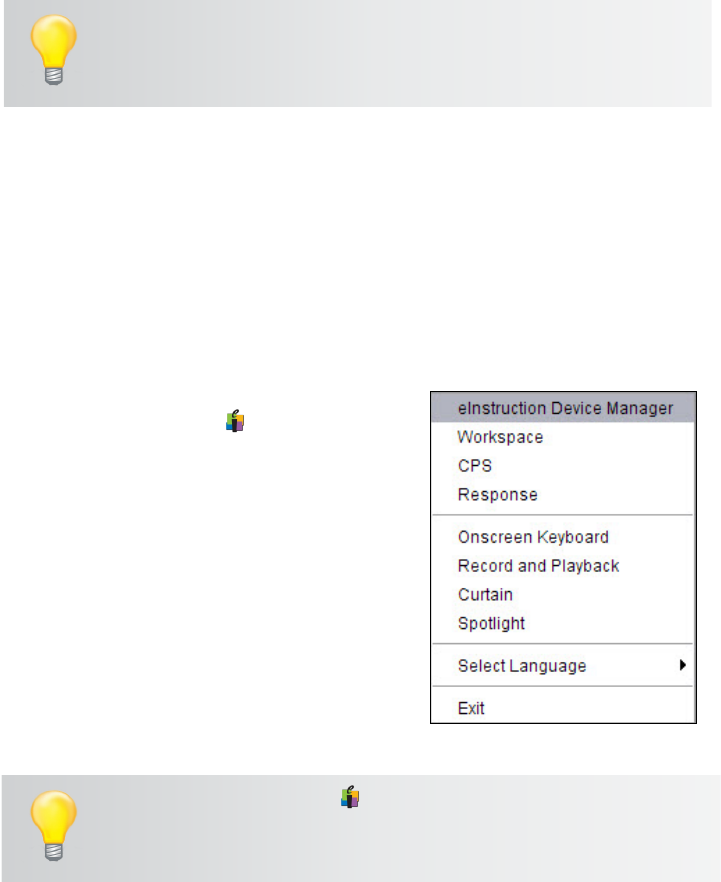

Click the eInstruction icon in the System Tray of the Windows Task
Bar to display the Device Manager Menu. Select the Check for Updates
option. If a new version of Workspace is available, download it now. You
should periodically check for updates.
The Interwrite Workspace software must be installed on Windows by
a user with Administrator privileges. Interwrite Workspace is compat-
ible with Windows 2000, XP, and Vista.
If you are using Windows 98/Me/NT, you must use Interwrite
Workspace version 5.0. For more information, contact Technical
Support to order an installation CD.
7
Getting Started Interwrite Mobi™
Installing the Software on the Mac
The Interwrite Workspace software must be installed on the Mac by
a user with Admin privileges. Interwrite Workspace is compatible
with Mac OS X version 10.4 or higher.
1 Log in as Admin.
2 Insert the Interwrite Workspace CD into the CD-ROM drive on
your Mac. An Interwrite Workspace CD icon will appear on your
desktop.
3 Double-click on the Interwrite icon on the desktop to display the
CD’s contents. Double-click on the Install Interwrite icon.
4 Follow the onscreen instructions for the software installation.
The appearance of the Interwrite
Workspace icon on the Menu bar
indicates that the eInstruction Device
Manager is now running on your Mac.
It will load and run in the background
every time you start up your Mac. Click
on the eInstruction icon to display the
options on the Device Manager Menu,
shown here. Device Manager, in addi-
tion to managing the eInstruction hard-
ware devices, provides direct access to
the Interwrite Workspace software on
the Mac.
8Interwrite Mobi™ Getting Started
Keeping Track of the Workspace RF Hub

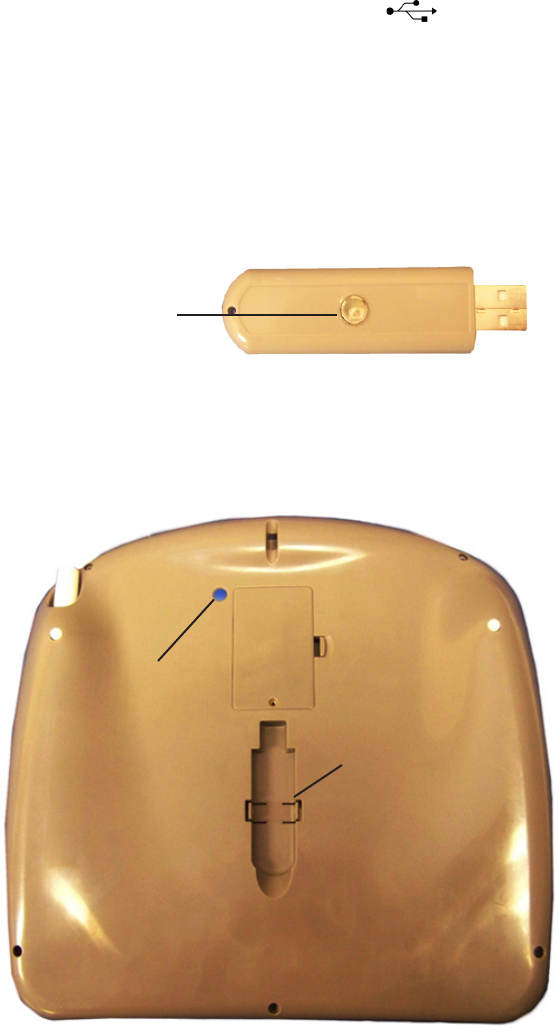

The RF Hub is made to fit into the back of your Mobi Tablet. Place the Hub
into the allotted space. When the Hub is secure it will click into place.
Plug the USB RF Hub into one of the USB ports on your computer.
Installing the USB Workspace RF
Activation Button
Activation Button
The RF Hub performs the following functions:
Supports multiple slates and boards, up to 128 devices simultaneously •
connected
Supports up to a minimum of 10 devices communicating simultaneously•
Connect button to support quick connection and pairing of devices •
without software interaction, the target responsiveness is to connect
within 5 seconds.
RF Hub Space
9
Getting Started Interwrite Mobi™
Connect the Interwrite Devices
The computer automatically detects a cabled Interwrite DualBoard
or Interwrite Panel. However, the wireless Interwrite Devices need
to be discovered in order for it to communicate via radio frequency.
Complete the following steps to connect the Mobi and the com-
puter.
1 Insert the RF Workspace Hub into the USB port on your
computer.
2 Press the button on the Hub to activate it. The Hub will flash
for two minutes as it waits for the Mobi.
3 Turn on the Mobi.
4 Turn the Mobi over and press the blue button next to the
battery opening to activate the Mobi’s RF signal.
The RF Hub receives the Mobi signal and stops flashing,
indicating the devices are communicating.
Viewing Device Manager
If changing the preferences are required for the Mobi, use the eInstruction
Device Manager. Make sure the Interwrite Mobi is powered on.
Complete the following steps to view the Device Manager.
1 Click the eInstruction icon in the System Tray on the
Windows Task Bar to display the Device Manager menu.
2 Click Device Manager. The Interwrite Workspace Device
Manager window opens.
3 Use the icons or Options menu to view or change the
preferences on the Mobi.
10 Interwrite Mobi™ Getting Started
Using the Device Manager Main Window
Once Device Manager is selected from the menu, the Device Manager
main window opens. From this window, you can connect devices, view
properties, identify connected devices, lock or unlock pads, and perform
other management functions.
The following table identifies the icons associated with the Device Manager
main window.
Icon Name Used To
Add Bluetooth Locate and connect Bluetooth devices to the
Workspace software.
Connect or
Disconnect Device
Disconnect the device or devices from communicating
with Workspace.
Remove Device Deletes Device from Device Manager
Beep Identify a specific Interwrite Device. Click Beep to
make the device beep.
Calibrate Board Align the Interwrite Pen position relative to the
projected image on the Interwrite
Board’s surface. Use the Interwrite Pen to tap each
white calibration point as it appears on the blue
screen.
Recalibration is required when either the Interwrite
Board or the projector has been moved.
Lock or Unlock
Device
Prevents all connected devices from inputting to the
current session. Locked Pads remain connected unless
they are powered off.
Select or Deselect
Presenter
Allows for a specific device to control the interaction
of Workspace and has control over the other
connected Interwrite Devices in a session.
Autoconnect Device Connects pre-selected devices when Device Manager
is activated.
Properties Opens the Properties window for the selected
Interwrite Device.
11
Getting Started Interwrite Mobi™
Operating the Mobi
The Interwrite Mobi provides the freedom to interact with a projected
presentation from anywhere in the room. You can write annotations and
run applications remotely, giving you the opportunity to engage others and
encourage participation.
You use the electronic Interactive Pen on the Interwrite Mobi’s workspace,
the area defined by the Tablet Insert, to move the mouse cursor on the
projected image, to select and use Workspace tools, and to click on the
programmable SoftKeys indicated along the top of the Tablet Insert. .
On Off Button
Navigation
Buttons
KWIK Screen
Workspace
Mini USB port for Charging
Pen/ Pen Storage
Top of Mobi
12 Interwrite Mobi™ Getting Started
Operating the Buttons
To operate any of the three buttons, push down or use the Pen vertically above the
button and touch the Pen Tip to the button and hold for several seconds.
On/Off Button
Press the On/Off Button for three seconds to activate the Mobi. The Mobi will go
into Sleep Mode after X minutes of inactivity.
Navigation Buttons
The Navigation Buttons to the right of the KWIK screen allow for moving through
the KWIK Screen options.
Connect Button
The Connect button on bottom of the Mobi allows for it to communicate with the
Workspace RF Hub and is recessed to avoid accidental activation.
Mobi Status Indicators

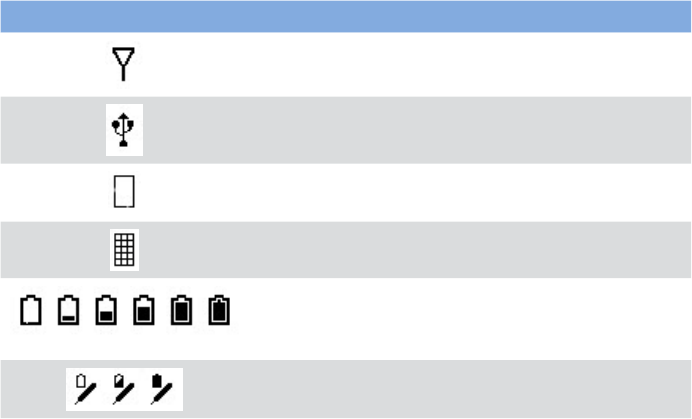

The following table identifies the icons associated with the Mobi status within the
KWIK screen.
Icon Indicates Used To
In Range Mobi is within the Workspace
RF Hub Range
USB Mobi is connected to the
computer via the USB port.
In Prox Pen is within the proximity and
can be detected by the Mobi
In Menu The KWIK screen is in use.
Battery Life
Indicator
Indicates amount of battery life
left before charging.
Pen Life Indicator Indications amount of battery life
left for the Interactive Pen.
13
Getting Started Interwrite Mobi™
Working with the Mobi KWIK Screen
Use the following screens to configure the KWIK screen within Interwrite
Response or the Classroom Performance System (CPS). While using the
Mobi, use the navigational buttons to scroll through the selected reports.

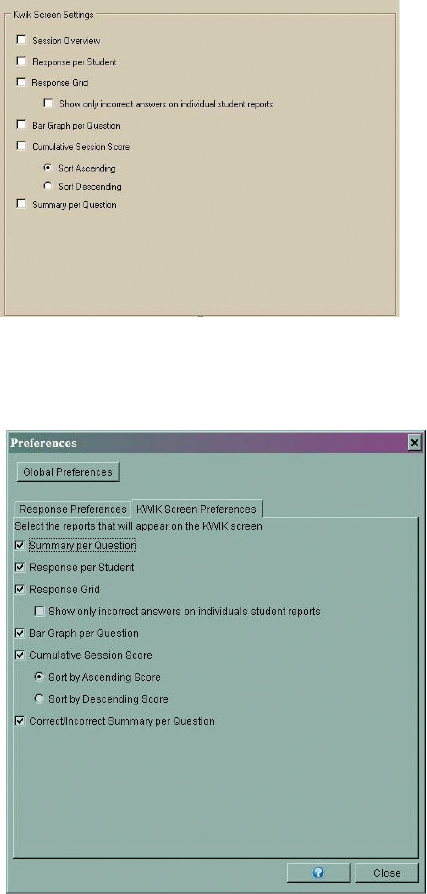

KWIK Screen Settings within CPS
KWIK Screen Settings within Interwrite Response
Select the checkbox to view the Response report on the KWIK screen.
Select the checkbox to view the CPS report on the KWIK screen.
14 Interwrite Mobi™ Getting Started
Replacing the Interwrite Mobi Battery
Pack
The Interwrite Mobi’s battery pack is accessed from the back of the
Tablet.
1 Turn your Interwrite Mobi over and push down on the Tab and lift
the Battery Cover away from the back.
3 Lift the Battery Pack out of the compartment.
4 Discard the old Battery Pack, following the proper disposal
procedures.
5 Insert the battery so that the metal contacts on the battery align
with the metal contacts on the Mobi.
6 Gently push the battery inside until it snaps into place
7 Fit the Battery Cover into the grooves and slide it back into place
until it clicks into place.
Complete the following steps to replace the battery:

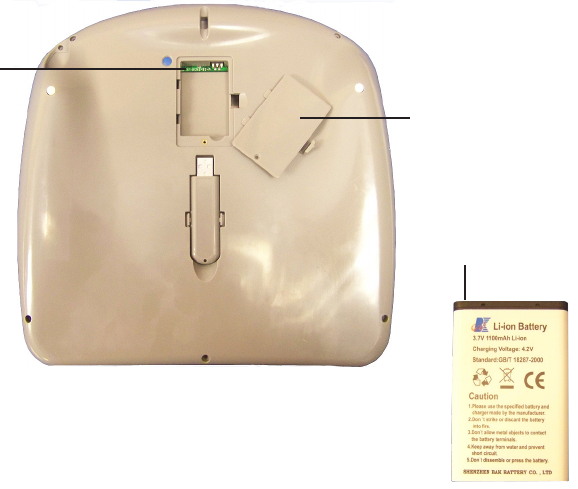

Battery Connector
Battery Cover
Battery
Connector
15
Getting Started Interwrite Mobi™
Getting Started with Interwrite Workspace
The purpose of this document is to give you a feel for the Interwrite system
by showing you how to select and use a tool in Lesson Mode. The Annota-
tion Tools of Lesson Mode consist of freehand tools, text tools and draw-
ing tools. Of the freehand tools, the Pen tool is the most frequently used
Interwrite Workspace Tool. The following pages describe how to select and
configure the Pen tool.
The Interwrite system is at the heart of a successful interactive collaboration,
whether it is in a classroom of fourth graders studying world geography, or in
a boardroom of corporate executives brainstorming a new product launch.
All the tools you will need to stimulate inspiration, connection and participa-
tion can be found in the Interwrite Workspace software. Here’s a quick look
at the Workspace basics to get you started.
Workspace Modes
Interwrite Workspace is run in one of two operational modes, Lesson Mode
or Office Mode (Windows only).
Workspace Tools have been categorized as Annotation Tools, Editing Tools,
Page Tools, Presentation Tools, Multimedia Tools, Navigation Tools, File
Management Tools, and Setup Tools. The Interwrite Workspace Help file
describes all these tools in detail and can be accessed from the Workspace
Menu.
Ofce
Office Mode makes it possible to interact directly with the native files of the
Microsoft Office suite of products, PowerPoint, Word and Excel.
Lesson
Lesson Mode allows you to open and run applications while in Mouse
Mode, using the tip of your electronic Interwrite Pen on the Interwrite Panel
screen to move the cursor. In Lesson Mode, you use the Interwrite Pen to
select Interwrite Workspace Tools from the Toolbar.
16 Interwrite Mobi™ Getting Started
When you start up Interwrite Workspace in Lesson
Mode, the Toolbar displays, along the right side of the
projected desktop image, At that time, Workspace is in
Mouse Mode.
Use your Interwrite Pen to select the Pen tool from the
Toolbar. Select a capture option from the Capture dia-
log, click on the window, or click and drag to capture a
portion of the screen.
Your capture is displayed in the Lesson Window. Or,
you can start up Annotation Mode by selecting one of
the Page Creation Tools.
The page type you select is displayed in the Annotation
Window and the Pen tool is automatically selected.
Once the Lesson Window is open, you can begin writ-
ing or drawing on the page.
Begin an Interwrite Workspace Session
1 When you are ready to begin an Interwrite Workspace session, turn
on your Interwrite Mobi. The Mobi must be active and connected.
You can verify this in Device Manager.
2 You can start Workspace Lesson Mode in one of three ways:
By using your electronic Interwrite Pen to click on the •
Interwrite Workspace icon
On the Windows Task Bar or the Mac’s Menubar to display the •
Device Manager Menu. Select Interwrite Workspace from the
menu.
By using• Start>All Programs>eInstruction>Interwrite
Workspace in Windows.
The Workspace Toolbar displays on the screen.
By default, the Intermediate Toolbar is
shown here. A more advanced toolbar
can be selected in the Customize Toolbar
Preferences option.
17
Getting Started Interwrite Mobi™

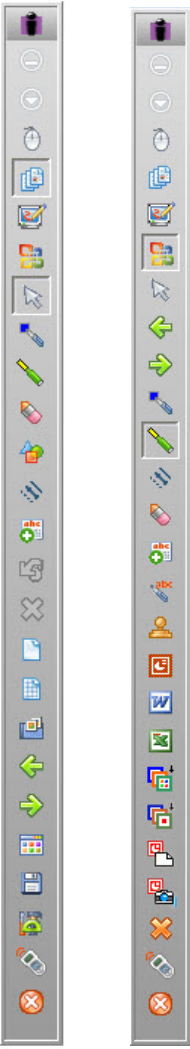

The Interwrite Workspace Toolbars
Workspace Menu
Mouse Mode tool
Pen tool
Shape tool
Highlighter tool
Eraser tool
Selection tool
Create Blank Page
Annotate Over Desktop
Gallery tool
Save
Page Sorter tool
Toolbox
SRS tool
Exit
Line tool
Minimize Toolbar
Type Text tool
Undo Previous Action
Clear
Create Grid Page
Previous Page
Next Page
Lesson Mode
Ofce Mode
Lesson Mode Ofce Mode
Workspace Menu
Mouse Mode tool
Selection tool
Annotate Over Desktop
Minimize Toolbar
Lesson Mode
Ofce Mode
Previous Page
Next Page
Pen tool
Highlighter tool
Line tool
Eraser tool
Freehand Text tool
Type Text tool
Stamper
Launch Microsoft Word
Launch Microsoft Excel
Launch Microsoft PowerPoint
Insert Annotations
Insert Selected Annotations
Add Blank Slide
Insert Slide in PowerPoint
Clear
SRS tool
Exit
18 Interwrite Mobi™ Getting Started
Using the Pen Tool

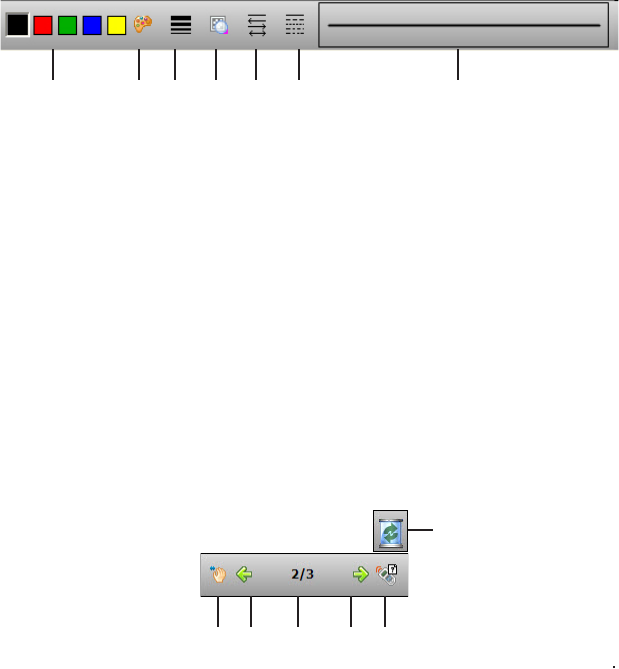

The attributes of the Pen tool can be changed by selecting different op-
tions from the Properties Bar at the bottom of the Annotation Window.
Select the Pen tool’s Down Arrow to display its Tool Settings Menu.
Properties Bar
The Pen tool Properties Bar provides options to change line color,
width, transparency, and line ends and line styles. Each attribute change
is displayed in the Preview Box.
Change the Pen tool’s line color and width to determine how it will af-
fect the look of your annotations. The best way to familiarize yourself
with all the different Interwrite Workspace tools and how they can be
used to enhance your presentations is to experiment with them.
Line transparency
Properties Bar
Line color
Change line color
Line width
Line ends
Dash styles
Preview box
Page Functions
Workspace also provides the ability to move within pages within the
window. Select the functions at the bottom of the screen to pan a page,
move between pages, use the Student Response System (SRS) tool
(optional), or discard annotations.
Pan page
Next
Current location
Previous
Insert question
Trash
19
Getting Started Interwrite Mobi™
Presentation Files
The presentation file is made up of your annotated pages. The Page Cre-
ation and Capture tools are used to create the pages in the presentation
file and the Annotation Tools are used to create the annotations. The pre-
sentation file is automatically saved as a .GWB file.
As soon as Interwrite Workspace goes into Annotation Mode, an untitled
presentation file is created. Unless you give the file a name, it is auto-
matically saved using today’s date as the filename. (Multiple files created
today have 01, 02, 03, etc., appended to the date name.)
An existing presentation file can be opened, its pages can be sorted,
annotations can be added to the existing pages, and new pages can be
added to the file. Your presentation will determine how each presenta-
tion file evolves.
For example, you can prepare a presentation file of blank maps ahead
of time for a geography lesson. Or, you can capture and annotate each
of the monthly earnings spreadsheets as you review the past fiscal year
during a budget meeting. Or, you can run a PowerPoint Slide Show in
Office Mode (Windows only) and annotations can be added to each
slide and saved in the native file.
Building the Presentation File
You can build your presentation file during your presentation, or you can
pre-build it, including the screen captures, images, graphs and text pages
you want to present. However you choose to do it, the process is the
same.
To capture a screen or window, click on the Mouse Mode tool with your
Interactive Pen and arrange the desktop for capture. Select an Annota-
tion Tool, the Pen, for example, indicate your capture preference (by
clicking on either the Partial, Window, or Screen option in the dialog),
and annotate the captured image.
Use the Page Creation Tools to add a blank, gridded, or background im-
age page. By default, Interwrite Workspace is in Autosave mode, so your
annotated pages are automatically saved as you build your presentation
file.
Click the Save tool to save the file using the default filename (current
date), or a name you type on the pop-up Onscreen Keyboard.
20 Interwrite Mobi™ Getting Started
Distributing Presentation Files
The Interwrite Workspace presentation files you create can be printed for
local distribution, or emailed to anyone, anywhere.
Use the Page Sorter tool to review the presentation file. The pages in the
presentation file can be sorted, moved, duplicated, merged, and deleted
using the Page Sorter tool. When the file pages have been arranged to your
satisfaction, you can use Page Sorter’s export option to export it to one of
a number of file formats, or you can close Page Sorter and select an option
from the Workspace File Menu.
The native file format of saved presentation files has the .GWB extension.
GWB files can be read on any computer on which Interwrite Workspace is
installed. For general distribution, we recommend exporting the presentation
file to the PDF format using the Export PDF File tool located in the Toolbox,
or by selecting the Export PDF File option from the Workspace File Menu.
Now everyone can stay in the information loop, whether they were able to
attend the presentation or not.
Additional eInstruction Resources
We invite you to visit the eInstruction Web site at
www.einstruction.com
where we have provided a variety of resources to help make your Interwrite
Workspace experience more rewarding. We especially encourage you to
visit
www.einstruction.com/support_interwrite.htm
and
www.einstruction.com/erc/index.htm.
What are Response and CPS?
Interwrite Response and the Classroom Performance System (CPS) are
Audience Response Systems, comprehensive response systems for electroni-
cally testing, polling, and surveying a group of people. They can be used
in conjunction with Interwrite Workspace to take a survey of the audience
response to the presentation, or to test the level of comprehension after a
lesson presentation, for example. Learn more about Response and CPS by
visiting our Web site.
21
Getting Started Interwrite Mobi™
Manipulation de la batterie et précautions
• Chargeztoujourslabatterieavantlapremièreutilisation.
• Necourt-circuitezjamaisunebatterieetn’eninversezjamaislespolarités.
• N’incinérezpasetnedémontezpaslabatterie.Leurscellulessontcorrosivesetprésentent
un risque pour la peau et les yeux.
• Netirezpassurleslsmétalliquesdelabatterienisursesconnecteurs.Unepression
excessivesurleslsoulesconnecteursrisqued’endommagerlesjointsetlesautres
connexions.
• N’utilisezpasenconjonctionavecd’autrestypesdebatterie.Vousrisquezdeprovoquerdes
fuites ou une explosion pouvant occasionner des blessures corporelles.
• Mettezlabatterieaurebutdemanièreadéquate.
• Remplacez-launiquementparunebatterieidentiqueoudetypeéquivalentrecommendée
pareInstruction,Réf.11-00667-01.
Battery Handling and Precautions
• Alwayschargebatteriespriortorstuse.
• Nevershort-circuitbatteriesorreversepolarity.
• Donotincinerateordismantlebatteries.Cellcomponentsarecorrosiveandmaybeharmful
to skin and eyes.
• Donotpullonbatteryleadwiresorconnectors.Excessiveforceontheleadsorconnectors
candamagetheweldingjointsandotherconnections.
• Donotmixwithotherbatterytypes.Itcouldcauseleaks,oranexplosion,resultingin
personalinjury.
• Disposeofproperly.
• ReplaceonlywiththesameoranequivalentbatterytyperecommendedbyeInstruction,P/N
11-00667-01.
22 Interwrite Mobi™ Getting Started
Gestione e precauzioni relativi alla batteria
• Caricarelebatteriesempreprimadelprimoutilizzo.
• Noncortocircuitaremailebatterieoinvertirelapolarità.
• Nonincenerireosmontarelebatterie.Icomponentideglielementisonocorrosivie
possono essere nocivi alla pelle ed agli occhi.
• Nontirareiliconduttorioiconnettoridellabatteria.Unaforzaeccessivasuiconduttori
o connettori può danneggiare i giunti saldati ed altri collegamenti.
• Nonmescolareconaltritipidibatteria.Potrebbecausareperditeoun’esplosione,avendo
comeconseguenzalesioniapersone.
• Smaltirelabatteriasecondolenormative.
• Sostituiresoloconlostessotipo,ountipoequivalente,dibatteriaconsigliatoda
eInstruction,N/P11-00667-01.
Precauciones y manipulación de baterías
• Carguesiemprelasbateríasantesdeutilizarlasporprimeravez.
• Nuncapongaencortocircuitobateríasoinviertalapolaridad.
• Noincinereodesmontelasbaterías.Loscomponentesdelaceldasoncorrosivosypueden
producirlesionesenlapielylosojos.
• Notiredeloscablesconductoresdelabateríanidelosconectores.Ejercerexcesodefuerza
en los cables conductores o en los conectores puede dañar las uniones soldadas u otras
conexiones.
• Nointercambieconotrostiposdebaterías.Podríaproducirfugas,explosiónocausar
heridas graves.
• Deshechelasbateríasadecuadamente.
• SustituyasóloconbateríasdelmismotipooequivalentesrecomendadasporeInstruction,
P/N11-00667-01
Handhabung des Akku und Vorsichtsmaßnahmen
• LadenSiedenAkkuvordemerstenGebrauchstetsauf.
• SchließenSiedenAkkuniemalskurzundverändernSieniemalsseinePolarität.
• VerbrennenunddemontierenSiekeineAkkus.BestandteiledesAkkusindätzendund
könnenschädlichfür
Haut und Augen sein.
• ZiehenSienichtanAkkuanschlussdrähtenoderAnschlussklemen.Übermäßige
KraftanwendunganAnschlussdrähtenoder-klemmenkanndieSchweißpunkteundandere
Verbindungenbeschädigen.
• BenutzenSiedenAkkunichtzusammenmitanderenBatterien.DieskönnteeinAuslaufen
oder eine
Explosionverursachen,wasPersonenschädenzurFolgehabenkönnte.
• EntsorgenSiedenAkkuordnungsgemäß.
• ErsetzenSiedenAkkunurmitdemgleichenodereinemgleichwertigenBatterietypen,der
voneInstruction,P/N11-00667-01empfohlenwird.
23
Getting Started Interwrite Mobi™
Limited Warranty for the Interwrite Mobi
IeInstruction warrants these products to be free from defects in material and workmanship under the following terms. Complete
and return the enclosed warranty registration card to ensure that your products are covered by this warranty.
Coverage
Parts and labor are warranted for one (1) year from the date of the first consumer purchase for the Interwrite Mobi, electronic Pen, Tablet Charger,
and accessories. This warranty applies to the original consumer purchaser only.
Within the European Union, the warranty period is two (2) years, as mandated by the EU. Contact your local dealer or distributor for additional
warranty information.
Warranty is valid only if original consumer’s purchase or lease date is less than or equal to six months from the original eInstruction sale date. This
information will be captured by the system serial number and confirmed by the reseller’s purchase order.
A nominal Warranty Handling Fee will be charged after the first 90 days of use and calculated from the date of original consumer purchase. This
payment may be made by Visa, MasterCard, or American Express. A copy of the sales receipt or invoice will be required for warranty verification.
Conditions
Except as specified below, this warranty covers all defects in material or workmanship in the products. The following are not covered by the
warranty:
1. Any product on which the serial number has been defaced, modified, or removed (if applicable).
2. Damage, deterioration, or malfunction resulting from:
a. Accident, misuse, abuse, neglect, fire, water, lightening, or other acts of nature, unauthorized product modification for any purpose,
or failure to follow instructions supplied with the product.
b. Repair, or attempted repair, by anyone not authorized by eInstruction.
c. Any damage in shipment of the product (claims must be presented to the carrier).
d. Any other cause which does not relate to a manufacturing defect.
3. Any product not sold or leased to a consumer within six months of eInstruction’s original sale date.
4. Consumable parts, e.g., batteries, dry-erase markers, eraser felt.
eInstruction will pay all labor and material expenses for covered items, but will not pay for the following:
1. Removal or installation charges.
2. Costs for initial technical adjustments (set up), including adjustments of user controls.
3. Certain shipping charges. (Payment of shipping charges is discussed in the next section of this warranty.)
4. Packaging costs. (Customers should keep their boxes.)
Warranty Service Procedures
1. To obtain service on your eInstruction product, contact the Technical Support Department to receive a Return Material Authorization
Number (RMA#) and shipping instructions by calling:
In United States: (480) 443-2214 (MST)
In Europe: +49 (0) 89 370012-0 (CET)
2. Ship the product to eInstruction with the RMA# marked clearly on the outside of the box. eInstruction reserves the right to refuse the
shipment, if not properly marked.
3. Although the consumer must pay any shipping charges to ship the product to eInstruction for warranty service, eInstruction will pay the
return shipping charges for ground shipment. Other shipping options are available at an additional fee.
4. Whenever warranty service is required, the original dated sales invoice (or a copy) must be presented as proof of warranty coverage,
and should be included in shipment of the product. In addition, please include your name, address, telephone number, fax number,
email address, and a description of the problem.
5. If eInstruction determines that the unit is not defective within the terms of the warranty, the consumer shall pay the cost of all freight
charges, as well as any repair charges.
Technical Support
Web-based Technical Support is available free of charge at: www.einstruction.com, where current driver releases, as well as comprehensive
technical support, troubleshooting, Technical Bulletins and FAQs can be found.
Telephone Technical Support is available free of charge to the original consumer for a period of 90 days from the date of purchase of the product.
Please contact our Technical Support Department:
In United States: (480) 443-2214 (MST)
In Europe: +49 (0) 89 370012-0 (CET)
You can also fax your request to:
In United States: (480) 948-5508 (MST)
In Europe: +49 (0) 89 370012-12 (CET)
Our toll-free number in the U.S. is: 800-856-0732 (MST)
Disclaimer of Unstated Warranties
The warranty printed above is the only warranty applicable to this purchase. ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
Assuming the warranty above stated is otherwise applicable, it is expressly understood and agreed that eInstruction’s sole liability, whether
in contract, tort, under any warranty, in negligence, or otherwise, shall be for the repair or replacement of the defective parts, and under no
circumstances shall eInstruction be liable for special, indirect, or consequential damages. The price stated and paid for the equipment is a
consideration in limiting eInstruction’s liability.
Notice
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply
to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state, or province to province.
To obtain service on your eInstruction product, call our Technical Support Department at (480) 443-2214 (MST), or fax us at
(480) 948-5508 (MST); in Europe call +49 (0) 89 370012-0 (CET), or fax us at +49 (0) 89 370012-12 (CET).
We can also be contacted through our Web site at www.einstruction.com (in US), at EUOffice@gtcocalcomp.com (in Germany), or at infos@
calcomp.fr (in France).
Important! All products returned to eInstruction for service must have prior approval in the form of a Return Merchandise Authorization Number
(RMA#), which can be obtained by calling the Technical Support Department.
24 Interwrite Mobi™ Getting Started
37-01277-01 Rev. A
Copyright© 2008 eInstruction
Workspace is a trademark of eInstruction, Inc.
Interwrite is a registered trademark of eInstruction, Inc.
Bluetooth is a trademark of, and is owned by, Bluetooth SIG, Inc., U.S.A.,
and is licensed to eInstruction.
All other products and company names are the trademarks or registered
trademarks of their respective owners.
The information contained in this document is subject to change without notice. eInstruction assumes no responsibility
for technical, or editorial errors, or omissions that may appear in this document, or for the use of this material. Nor
does eInstruction make any commitment to update the information contained in this document. This document
contains proprietary information which is protected by copyright. All rights reserved. No part of this document can
be photocopied or reproduced in any form without the prior, written consent of eInstruction.
www.eInstruction.com/support
Corporate Headquarters
308 N Carroll Blvd.
Denton, TX 76201
Tel: 888.707.6819
Fax: 940.565.0959
Western Office
8224 East Evans Road
Scottsdale, Arizona 85260
Tel: 480.948.6540
Support: 480.443.2214
Fax: 480.948.5508
European Headquarters
36 rue Alfred Nobel
93600 Aulnay sous bois
France
TEL: +33 (0)6 07 12 70 08
FAX: + 33 48 68 60 63
Support: 480.443.2214

Navigation menu
