Installation Manual

NOTES:

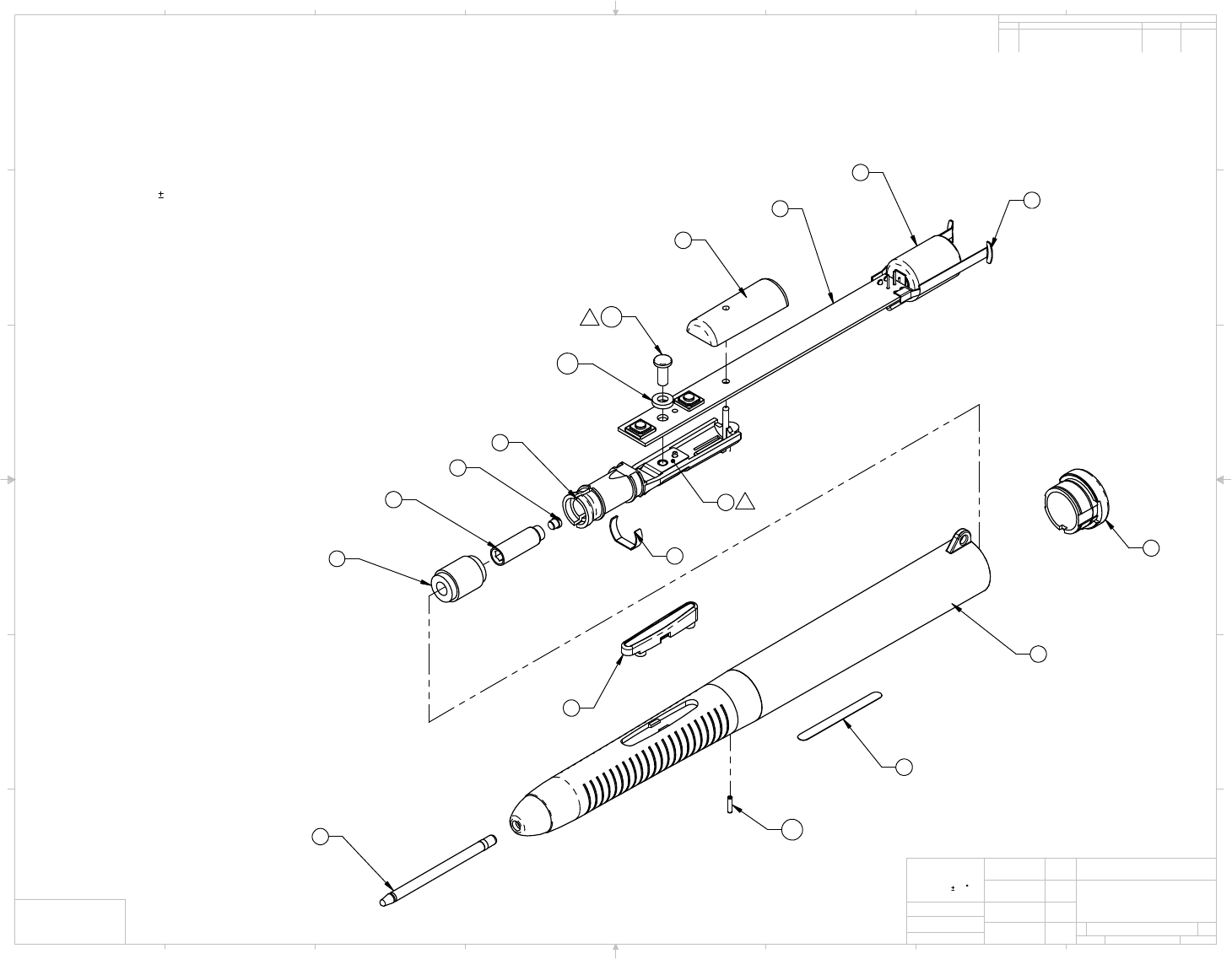

1. REFER TO PROCESS INSTRUCTION (LISTED ON BOM) FOR DETAILED ASSY AND TEST INFORMATION.
2. SOLDER BATTERY LEADS, CHARGING CONTACTS (ITEM 35), AND
COIL WIRES TO PCB PER SHT 2.
3. INSTALL TIP SWITCH (ITEM 20) IN INNER HOUSING (ITEM 33). NOTE THAT THE DIELECTRIC COVERS
THE SILVER TRACES FORWAD OF THE SCREW HOLE IN THIS VIEW.
4. INSTALL RETAINING CLIP (ITEM 37).
5. ATTACH PCB TO INNER HOUSING WITH SCREW AND WASHER
TORQUE TO 1.5 LB-IN .5 LB-IN
6. INSTALL ACTUATOR TIP (ITEM 39) IN TIP HOLDER (ITEM 34), AND INSTALL IN INNER HOUSING
7. PRESS COIL INTO INNER HOUSING
8. ROUTE AND TAPE COIL WIRES AS SHOWN USING .002 THK TAPE
9. INSTALL SPACER (ITEM 40)
10. INSERT SUB ASSEMBY INTO PEN HOUSING (ITEM 30) UNTIL THE LATCH ON THE INNER HOUSING
ENGAGES. THE BATTERY NEG WIRE MUST RESIDE IN THE GROOVE IN THE HOUSING.
11. INSTALL THE END CAP (ITEM 31) BY SNAPING IT INTO PLACE
12. INSTALL SPRING PIN (ITEM 103) IN HOLE IN PEN HOUSING. FLUSH TO .010
SUB-FLUSH
13. INSTALL THE SIDE BUTTON (ITEM 32) BY SNAPPING IT INTO PLACE
14. INSTALL THE TIP (ITEM 36)
15. APPLY FCC LABEL (ITEM 21) AS SHOWN TO BOTTOM OF PEN
IS PROHIBITED
D
C
B
A
A
B
C
D
SCALE NONE
SIZE
EJS
mp3 pen 3.71
DWG. NO.
C
MODEL FILE:
EJS
SHEET 2
REV.
DATE
APPROVALS
DRAWN
CHECKED
ISSUED
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
DECIMALS ANGLES
.XX ± .01
.XXX ± .005
MATERIAL
FINISH
-
-
DO NOT SCALE DRAWING
123
45
6
7
8
87 6 5 4 3 2 1
REVISIONS
REV. DESCRIPTION DATE APPROVED
E
F
E
F
11-00670 C
GTCO CalComp
7125 Riverwood Drive, Columbia MD 21046
OF
RECHARGEABLE PEN
DAG 10/13/04
ASSEMBLY,
1
C
B
A
ECO 4748
ECO 4739
ECO 4698
7-15-05
6-28-05
3-31-05
EJS
.
.
.
.
0.5
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
GTCOCALCOMP. ANY REPRODUCTION
IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF GTCOCALCOMP
PROPRIETARY AND CONFIDENTIAL
36
101
10
31
30
32
37
11
40
34
33
20
102
38
35
39
2 REQD
3
5
103
21
D
C
B
A
A
B
C
D
SCALE NONE
SIZE
MODEL FILE: mp3 pen 3.71
DWG. NO.
C
SHEET 2 OF 2
REV.
DATE
APPROVALS
DRAWN
CHECKED
ISSUED
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
DECIMALS ANGLES
.XX ± .01
.XXX ± .005
MATERIAL
FINISH
-
-
DO NOT SCALE DRAWING
123
45
6
7
8
87 6 5 4 3 2 1
REVISIONS
REV. DESCRIPTION DATE APPROVED
E
F
E
F
11-00670 C
GTCO CalComp
7125 Riverwood Drive, Columbia MD 21046
ASSEMBLY,
RECHARGEABLE PEN
DAG 11/19/04
. . . .
.
.
.
.
0.5
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
GTCOCALCOMP. ANY REPRODUCTION
IN PART OR AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF GTCOCALCOMP
IS PROHIBITED
PROPRIETARY AND CONFIDENTIAL

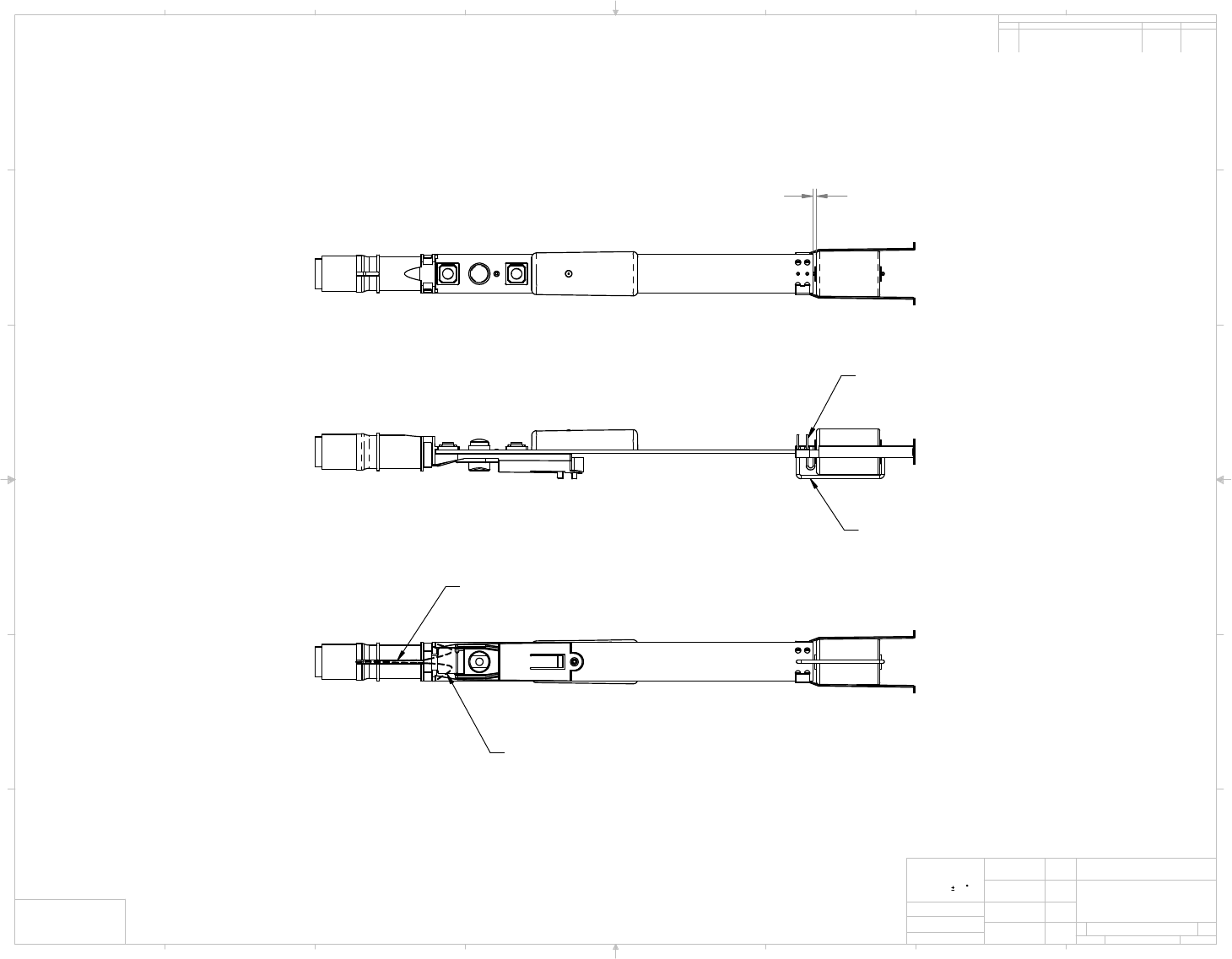

BEND NEG (BLACK) LEAD
AS SHOWN
REMOVE WIRE INSULTATION
AND BEND POS LEAD
AS SHOWN
ROUTE COIL WIRES AS SHOWN
APPLY TAPE HERE
BETWEEN BATT AND PCB
.030 -.00
+.06
