eMoMo Technology ICTRLXXYY Bluetooth Control System User Manual iCtrl EN V03 2
eMoMo Technology Co., Ltd Bluetooth Control System iCtrl EN V03 2
User manual
Application
iCtrl is an App on you cellphone which is used to control the opening/closing of sofa. And you also can use iCtrl
system to pinpoint the most comfortable position in which you found and saved previously.
Constitution:

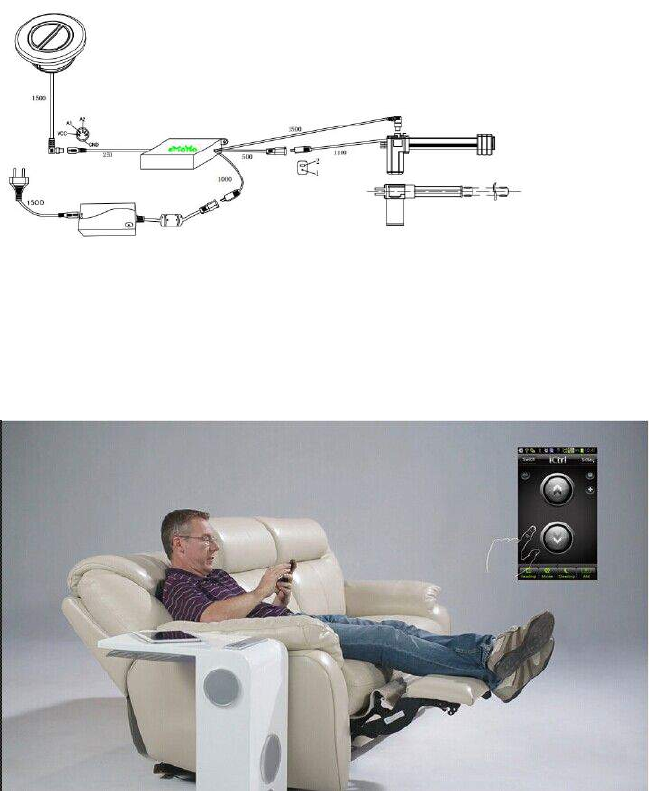

iCtrl system is combined by: 1. Controller; 2. Control Box; 3. Actuator; 4. Power Supply
1.Controller: Use to control the chair open or close.
2.Control Box: Use to transform the signal from controller or smart device to the actuator.
3.Actuator: Make the chair open or close by extend or reducing.
4.Power Supply: To support the power for whole system.
Controller
Control Box
Power Supply
Actuator
An Introduction to iCtrl
iCtrl system is designed to improve the quality of
life of our customers.If you have any opinions
or suggestions about our products, please kindly
log in to send your feedback. You
may refer to the latest information published on
our website.
www.iCtrl.hk
1
Step 2: Turn on the Bluetooth
Android device& iOS device:
Enter Settings and turn on Bluetooth.
2
Step 3: Operating the App
Tap the icon to select devices and operate.
3
The 6 devices recently
connected will be
shown here
The nearby devices
available for connection
will be shown here
Back
Go back
and then
disconnect
Directional
keypad
Tap to enter into
Settings page
Rapid storage/
recover position
Add new memory
positions
Saved position,
scroll up to display
more
Identify / Name a new
memory positon
Control
Once the device is connected, the app will enter the
next screen.
Memory
Storage can be started after adding a position.
Personalize
You may name the device and
positions enter into Settings
and edit the your preferences.
4
Ava il ab le on t he
Demand for smart device:
a) iPhone 4s iPhone 5 iPhone 5S; iPhone 5C
iPod touch 5
iPad 3 iPad 4 iPad Mini iPad Air
b) Andriod 2.2.3 or higher virson
； ； ；
；
； ； ；
Quick Start Guide
Carefully read all instructions before use, so that you
can use this product correctly. Please keep this quick
start guide for future reference.
Step 1：Download App
Searching iCtrl in Apple store or Google play or
visit . www.ictrl.hk
Product compatibility
5
FAQ
Ⅰ.
Ⅱ
Unable to connect the device:
A.If you cannot connect the device after the first
installation, please restart the handheld device.
B.iCtrl disconnects during operation and is unable
to reconnect.
1. Check whether the device
is connected with other
handheld devices.
2. Restart iCtrl software.
3. Restart Bluetooth (Turn
off Bluetooth and wait for
10 seconds until restart).
4. Restart the device.
5. Restart the handheld
device.
. Memory position errors:
A. If power supply is cut off
while the device is oper-
ating, there will be an error
in memory positioning.
B.The device works too freq-
uently. When it returns to
“memory position”, the
position appears as an error.
: Tap and hold the “Down” button in iCtrl
App until movement stops, and then the error will be
resolved.
Solution
Press this button to get
the device back to its
initial position
Create a new position
6
C. No memory position function is available:
While turning on the “Memory position”, the device
will stop running after working for some time without
returning to "Memory position".
Please check whether “Device control box”
and “Actuator / motor” are properly connected (It is
suggested to be done by professionals.).
. Sudden power failure:
When power supply is cut off under proper connection
of the handheld terminal and device, it is necessary to
go through the following operation for reconnecting:
A: Turn off “iCtrl” software completely.
B: Select “Phone – Settings – Bluetooth – Off”.
Solution:
Ⅲ
78
Turn off
Bluetooth
C: Wait 10 seconds, then restart the device
and “iCtrl” software.
Restart iCtrl
Then it will resume normal operation.
Ⅳ. If the APP prompts a notice of a “weak signal”
1. Move closer to the device if the distance is more
than 5 meters(16 ft.).
2. There is metal obstructions between handheld
intelligent terminal and device.
Specifications
Power input 100V~240V
29V 2A
58W
3.0
Power output
Rated power
Bluetooth version
一么么科技有限公司
EMOMO TECHNOLOGY CO.,LTD
