User Manual
User’s Guide
Ecom i.roc® x20 Series Pocket PC
ecom i.roc
®
xyz
ecom RFx11_125kHz
ecom RFx11_134kHz
ecom RFx10_13_56MHz
Juni 2009
Note:
Not all models described are available in all
regions. Model shown in illustrations is i.roc x20
Series Pocket PC.
Copyright© 2009 ecom instruments GmbH.
The contents of this document, either in part or in their entirety, may not be
reproduced, forwarded, distributed or saved in any way without ecom instruments
GmbH prior written consent.
The contents of this document are presented as they currently exist. ecom instruments
GmbH does not provide any express or tacit guarantee for the correctness or
completeness of the contents of this document, including, but not restricted to, the
tacit guarantee of market suitability or fitness for a specific purpose unless applicable
laws or court decisions make liability mandatory. ecom instruments GmbH reserves the
right to make changes to this document or to withdraw it any time without prior notice
Microsoft, Windows, the Windows logo, Outlook, and ActiveSync are trademarks
of Microsoft Corporation in the U.S. and other countries.
ecom i.roc x20 Products are Powered by Windows Mobile
TM
5 software for Pocket PC.
SD Logo is a trademark of Secure Digital.
Credant Logo is a trademark of Credant Technologies.
Bluetooth
TM
is a trademark owned by the Bluetooth SIG, Inc.
All other product names mentioned herein may be trademarks of their respective
companies.
Ecom instruments GmbH Company shall not be liable for technical or editorial errors or
omissions contained herein. The information is provided “as is” without warranty of
any kind and is subject to change without notice. The warranties for Ecom instruments
GmbH products are set forth in the express limited warranty statements accompanying
such products. Nothing herein should be construed as an additional warranty.
This document contains proprietary information that is protected by copyright. No
part of this document may be photocopied, reproduced, or translated to another
language without the prior written consent of Ecom instruments GmbH Company.
_______________________________________________________________
WARNING: Text set off in this manner indicates that failure to follow directions
could result in bodily harm or loss of life.
Body-worn operations are restricted to belt-clips, holsters or similar accessories that
have no metallic component in the assembly
CAUTION: Text set off in this manner indicates that failure to follow directions could
result in damage to equipment or loss of information.
_______________________________________________________________
User’s Guide Ecom i.roc® x20 Series Pocket PC First Edition (Juni 2009)
Contents
1 Contents
2 Getting to Know Your i.roc x20 Pocket PC .................................. 8
2.1 Using the Stylus ....................................................................... 8
2.2 Aligning the Screen .................................................................. 9
2.3 Entering Owner Information ................................................. 12
2.4 Resetting the Device .............................................................. 13
2.5 Routine Care .......................................................................... 16
3 Synchronizing with Your Computer .......................................... 18
3.1 Using Microsoft ActiveSync ................................................... 18
3.2 Synchronizing Your Pocket PC with Your Computer ............. 20
3.3 Copying Files .......................................................................... 22
3.4 Installing Programs ................................................................ 23
3.5 Backing up and Restoring Files .............................................. 23
3.6 Sending and Receiving E-mail ................................................ 24
3.7 Requesting Meetings ............................................................. 24
4 Managing the Battery ............................................................... 25

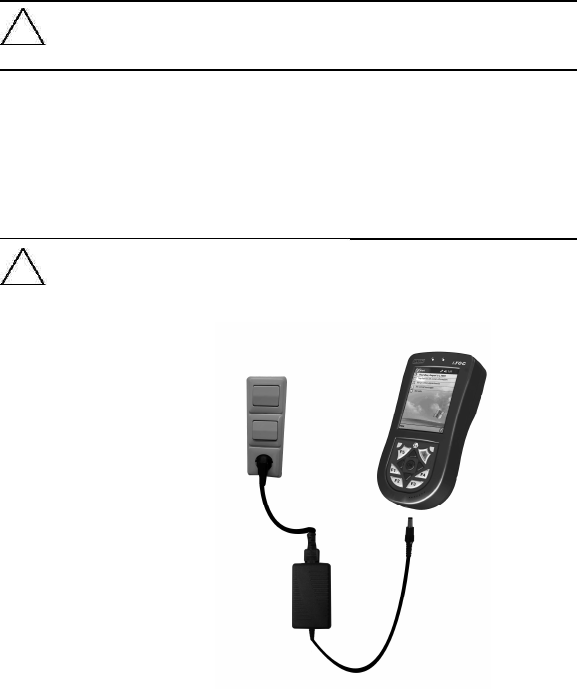

4.1 Charging with the AC Adapter ............................................... 26
4.2 Charging with the ecom Desktop Cradle and AC Adapter ..... 27

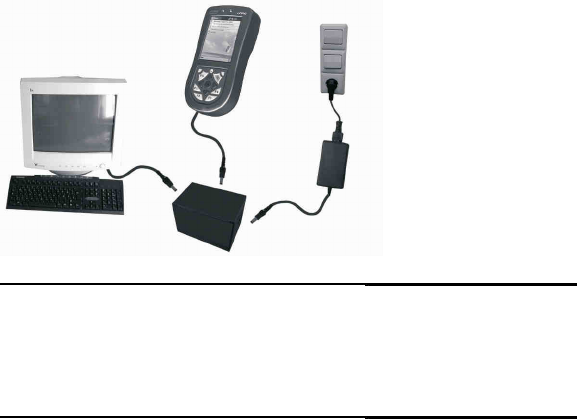

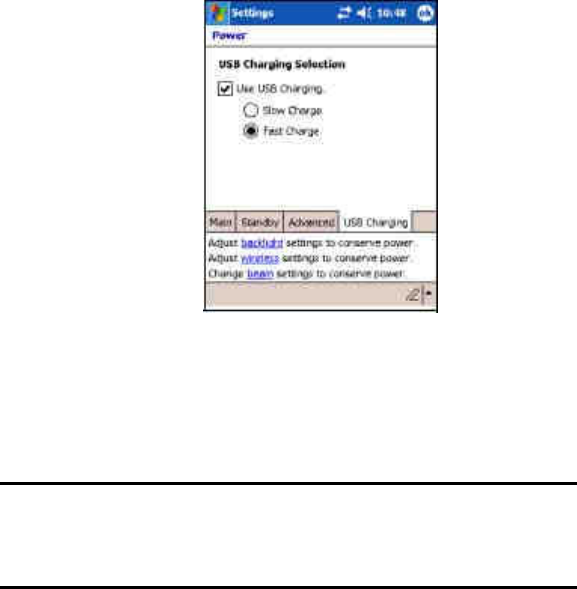

4.3 Charging with the ecom Desktop Cradle and USB Cable ....... 28
4.4 Manually Checking the Battery Charge Level ........................ 29
4.5 Power Saving Tips .................................................................. 30
5 Learning the Basics ................................................................... 33
5.1 Using the Today Screen ......................................................... 33
5.2 Status Icons ............................................................................ 35
5.3 Pop-Up Menus ....................................................................... 36
5.4 Changing the Screen Orientation .......................................... 39
5.5 Opening and Closing Applications ......................................... 40
5.6 Installing Applications ............................................................ 41
5.7 Deleting Applications ............................................................. 42
5.8 Backing Up Information ......................................................... 42
5.9 Using the i.roc x20 FIle Store Folder ...................................... 43
6 Learning Input Methods ........................................................... 45
6.1 Using Input Software ............................................................. 45
6.2 Writing with the Stylus and Microsoft Transcriber ............... 50
7 Applications .............................................................................. 53
7.1 Software Available on the ecom i.roc x20 Pocket PC ............ 53
7.2 Installing Applications ............................................................ 61
7.3 Removing Applications .......................................................... 61
7.4 Using TodayPanel Lite............................................................ 62
7.5 Using ecom Image Zone ........................................................ 64
7.6 Backing Up and Restoring ...................................................... 70
7.7 Using iTask ............................................................................. 71
8 Using Security Features ............................................................ 73
8.1 Using ecom ProtectTools ....................................................... 73
9 Using Wi-Fi (not available on all models) ................................. 79
9.1 Getting Acquainted with Wi-Fi .............................................. 79
9.2 Managing Wireless Network Settings ................................... 83
9.3 Monitoring Signal Strength and Status .................................. 84
9.4 Advanced Network Settings .................................................. 85
9.5 Wi-Fi Terms ............................................................................ 85
9.6 Wi-Fi Security Protocol Utilities ............................................. 93
10 Using Bluetooth ........................................................................ 95
10.1 Getting Acquainted with Bluetooth ...................................... 96
10.2 Powering Bluetooth On or Off ............................................... 98
10.3 Working with Bluetooth Settings .......................................... 99
10.4 Working with Bluetooth Manager ....................................... 107
10.5 Connecting to Other Devices ............................................... 109
10.6 Working with Files ............................................................... 114
10.7 Opening a Connection ......................................................... 117
11 Connecting to the Internet ..................................................... 120
11.1 Connecting to a Private Network ........................................ 121
11.2 Entering an Internet Address .............................................. 121
11.3 Using a Favorites List ........................................................... 122

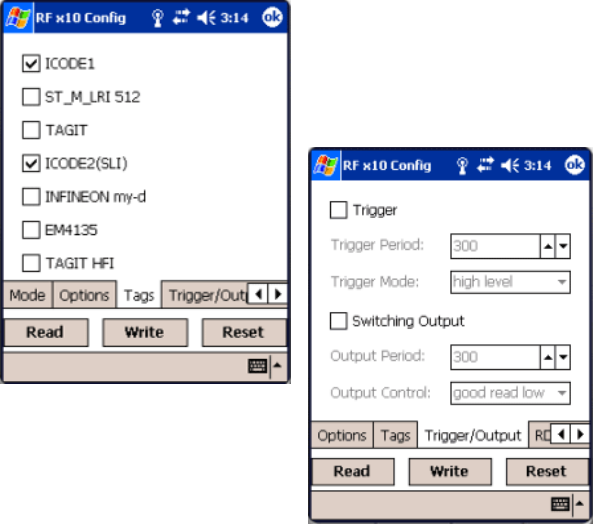

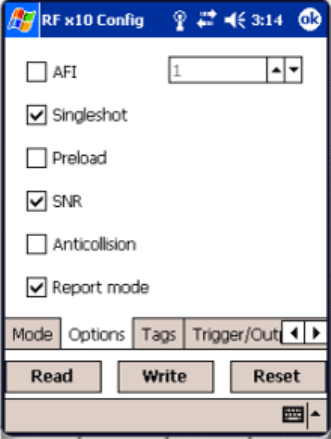

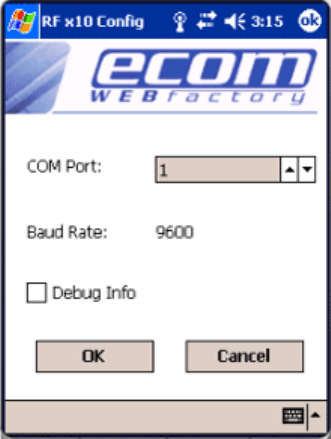

12 RFx1x Software Package ......................................................... 122
12.1 Installation ........................................................................... 122
12.2 General ................................................................................ 123
12.3 Hardware ............................................................................. 124
12.4 Software .............................................................................. 131
13 Troubleshooting ...................................................................... 131
13.1 Common Problems .............................................................. 131
13.2 ActiveSync ............................................................................ 134
13.3 Wi-Fi ..................................................................................... 137
13.4 Bluetooth ............................................................................. 139
14 Regulatory Notices .................................................................. 141
14.1 Federal Communications Commission Notice ..................... 141
14.2 Canadian Notice .................................................................. 143

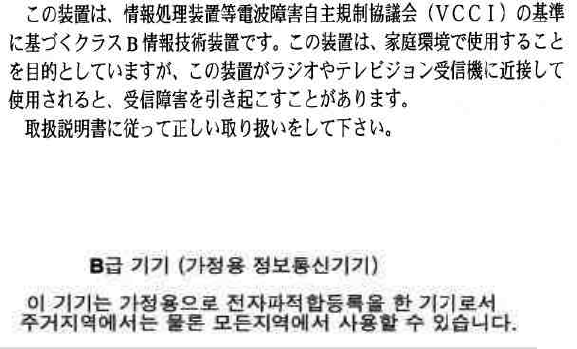

14.3 Japanese Notice ................................................................... 143
14.4 Korean Notice ...................................................................... 143
14.5 European Union Regulatory Notice ..................................... 143
14.6 Battery Warning .................................................................. 146
14.7 Equipment Warning ............................................................. 147
14.8 Airline Travel Notice ............................................................ 147
14.9 Wireless Notices .................................................................. 147
15 Specifications .......................................................................... 150
15.1 System Specifications .......................................................... 150
15.2 Physical Specifications ......................................................... 153
15.3 Operating Environment ....................................................... 153
2
Getting to Know Your i.roc x20
Pocket PC
Congratulations on purchasing your Ecom i.roc® x20 Series Pocket PC.
Use this guide to help you set up your Pocket PC and to learn how it
works.
i.roc x20 Pocket PC to switch between the current application and the
last application you were running.
2.1 Using the Stylus
Your i.roc x20 Pocket PC comes with a stylus that you should use to tap
or write on your screen.
You can perform three basic actions using the stylus:
Tap—Lightly touch the screen to select or open an item. Lift the stylus
after you tap an item. Tapping is equivalent to clicking an item with the
mouse on your computer.
Drag—Place the point of the stylus on the screen and drag an item
across the screen without lifting the stylus until you have completed
the selection. Dragging is equivalent to dragging with the left mouse
button pressed on your computer.

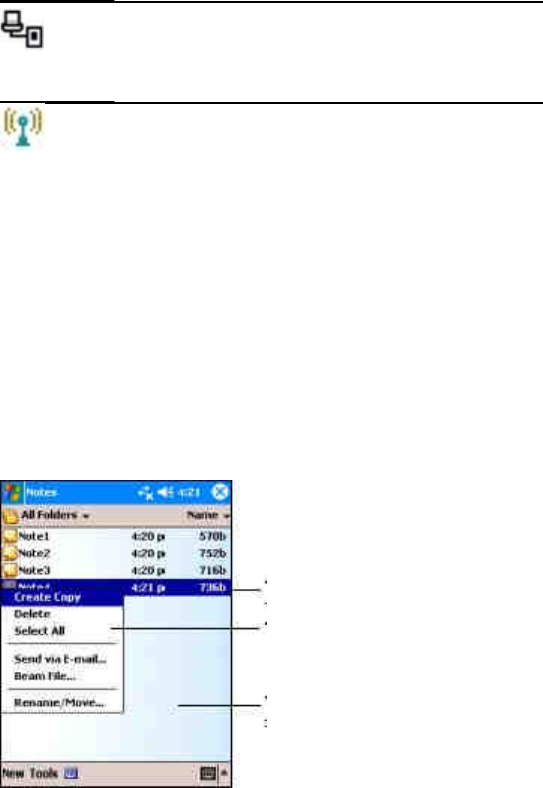

Tap and hold—Hold the stylus pointer on an item for a short time until
a menu displays. Tapping and holding is equivalent to right-clicking
your computer mouse button. When you tap and hold, a circle of red
dots appears around the stylus to indicate that the menu will soon pop
up.
CAUTION: To prevent damage to your i.roc x20 Pocket PC screen, never use any
device other than the stylus that comes with the Pocket PC or an approved
replacement to tap or write on the screen. If you lose or break your stylus, you can
order extras at www.ecom.com/go/i.roc x20accessories.
2.2 Aligning the Screen
When the i.roc x20 Pocket PC is turned on for the first time, you are
guided through a screen alignment process. You must realign your
screen if:
- The Pocket PC does not respond accurately to your taps.
- You perform a full reset of your Pocket PC.
To realign the i.roc x20 Pocket PC screen:
1 From the Start menu, tap Settings > System tab > Screen icon.
2 Tap the Align Screen button.
Shortcut: To access the Align Screen application without
tapping on the screen, press and hold the 5-Way Navigation
button, then press the Calendar button.
3 Tap the cross-hair object at each location. Be precise when
tapping the cross-hair object.
4 Tap OK.
Adjusting Text Size
How much information you see on the screen depends on the text size.
To adjust the text size:
1. Tap Start > Settings > System tab > Screen > Text Size tab.
2. Drag the slider to the desired text size; then tap OK.
Changing the Screen from Portrait to
Landscape Mode
To select Portrait or Landscape screen orientation:
1 Tap Start > Settings > System tab > Screen.
2 Tap Portrait, Landscape (right-handed), or Landscape
(left-handed).
3 Tap OK.
Shortcut: Press and hold the Calendar button for two seconds to
toggle between portrait and landscape modes.
Note:
The Wi-Fi antenna for the ecom i.roc x20 is located in the top of
the device. If you cover up the top of the ecom i.roc x20 after you have
turned on Wi-Fi, signal strength may be affected.
Setting the Date and Time
When you turn on your i.roc x20 Pocket PC for the first time, you are
requested to select your time zone. After setting the time zone, you
still need to set the time and date on your device. All three settings are
located in the Clock Settings screen and can be set at the same time.
Note:
By default, the time on the i.roc x20 Pocket PC is synchronized
with your computer each time the two devices connect using
ActiveSync.
Setting the Time for Home and Locations You Are Visiting
From the Start menu, tap Settings > System tab > Clock & Alarms
icon.

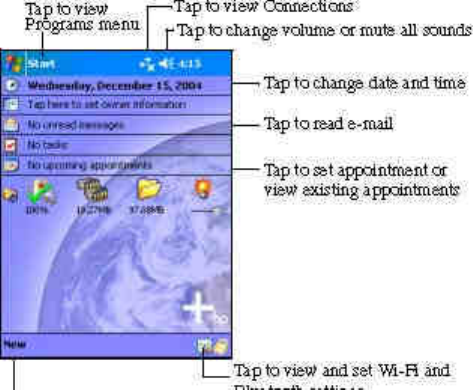

Shortcut: From the Today screen, tap the Clock icon to set the time.
1 Tap either Home or Visiting.
2 Tap the time-zone down arrow, and select the appropriate
timezone
3 Tap the hour, minutes, or seconds, and use the up and down
arrows to adjust the time.
Shortcut: You can also adjust the time by moving the hands of
the clock with the stylus.
4 Tap AM or PM.
5 Tap OK.
6 Tap Yes to save the clock settings.
Setting the Date
1. From the Start menu, tap Settings > System tab > Clock &
Alarms icon.
Shortcut: From the Today screen, tap the Clock icon to set
the date.
2 Tap the down arrow by the date.
3 Tap the left or right arrow to select a month and year.
4 Tap a day.
5 Tap OK.
6 Tap Yes to save the date settings.
You need to reset your time zone, time, and date if:
- The location time (Home or Visiting) needs to be changed.
- All power to the i.roc x20 Pocket PC is lost, which removes all saved
settings.
- You perform a full reset of your i.roc x20 Pocket PC.
Shortcut: From the Today screen, tap the Clock icon to set the time
zone, time, and date.
2.3 Entering Owner Information
You can personalize your i.roc x20 Pocket PC by entering owner
information. To enter owner information:
1. From the Today screen, tap Start > Settings > Personal tab > Owner
Information.
Shortcut: From the Today screen, tap Tap here to set owner
information.
2. Tap in the Name field. A keyboard appears at the bottom of the
screen. Tap on the characters to enter your name.
Note:

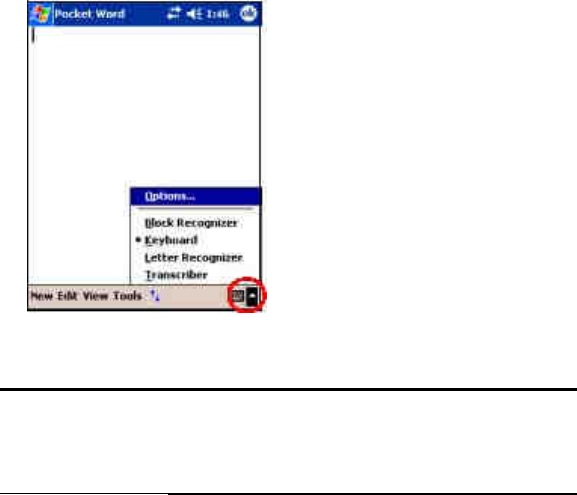

If you prefer, you can use Letter Recognizer, Microsoft
Transcriber, or Block Recognizer to input information. Refer to Chapter
5, “Learning Input Methods,” for more information.
3. Tap the Tab key on the keyboard to move the cursor to the next
field.
4. Continue entering whatever information you want to include.
5. To display owner information at startup, tap the Options tab and
select the Identification information checkbox.
6. Tap on the Notes tab to enter any notes.
7.Tap OK to save the information and return to the Today screen.
2.4 Resetting the Device
Sometimes there is a need to reset your Pocket PC. Resetting the
device is known as performing a “soft” or “hard” reset.
Performing a Soft Reset
(Windows Mobile 2003 SE and Windows Mobile 5)
A soft reset stops all running applications, but does not erase any
programs or saved data. Be sure to save any unsaved data within a
running application before performing a soft reset.
- to perform a soft-reset press both reset buttons on the Keypad
- the Pocket PC restarts and displays the today screen
Performing a Hard Reset
(Windows Mobile 2003 SE)
Perform a hard reset only when you want to clear all user-installed
settings, applications, and data from RAM (Random Access Memory),
where data and applications you have loaded are stored. also after the
battery is completely discharged, the device will operate in the same
way after Hard-Reset. All i.roc x20 are equipped with a so called
Autoinstallation tool, you can reload predefined programs and settings
automatically.
CAUTION: If you perform a hard reset, your Pocket PC loses all data and
programs not saved in i.roc x20 File Store.
Performing a hard reset (Windows Mobile 5)
A Hard Reset stops all running applications, but does not erase any
programs or saved data. Additional to a soft reset all hardsware
registers will be erased.
To perform a Hard Reset press and hold down the F1 and F4
buttons
While holding down these buttons, press the reset buttons for
about two seconds
When the Pocket PC screen begins to fade, release the F1 and
F4 buttons first and then release the reset buttons.
Note: If you simultaneously push and hold the Reset, F1 and F4 buttons
for more than two seconds, the battery disconnects. To restart the
device, either plug the device inti the AC Adapter or press the reset
buttons again.
The Pocket PC resets and powers on.
Performing a Clean-Reset (Windows Mobile 5)
A Clean-Reset cleans all user installed settings, applications and data
from the device.
To perform a Clean-Reset press and hold F1, F3 and the power
buttons
While holding down these buttons, press the reset buttons for
about two seconds
When the Pocket PC restarts release first the F1, F3 and the
power buttons and then release the reset buttons
The Pocket PC resets and powers on
2.5 Routine Care
CAUTION: The screen of your i.roc x20 Pocket PC is made of glass and can be
damaged or broken by drops, impacts, or pressure.
Note:
ecom is not responsible for damage that occurs as a result of your
failure to follow the instructions that came with the ecom branded
product. Refer to the warranty document inlcuded with your i.roc x20
Pocket PC for more information.
You should observe the following practices to protect the screen of
your i.roc x20 Pocket PC from damage:
Do not sit on your i.roc x20 Pocket PC.
When transporting your i.roc x20 Pocket PC in a purse, pocket,
briefcase, etc., ensure the device does not get compressed, bent,
dropped, or hit.
When not in use, close the flip cover on your i.roc x20 Pocket PC
and store it in a case. You can select from a wide variety of case
options at www.ecom.com/go/i.roc x20accessories or
www.casesonline.com.
Do not place anything on top of your Pocket PC.
Do not bang your i.roc x20 Pocket PC against hard objects.
Never use any device other than the stylus that comes with the
Pocket PC or an approved replacement to tap or write on the
screen. If you lose or break your stylus, you can order extras at
www.ecom.com/go/i.roc x20accessories .
Clean your Pocket PC by wiping the screen and the exterior with
a soft, damp cloth lightly moistened only with water.
CAUTION: To reduce the risk of damage to the internal components, do not
spray liquid directly on the screen, or allow excess liquid to drip inside your Pocket PC.
Using soap or other cleaning products on the screen might discolor the finish and
damage it.
3 Synchronizing with Your Computer
3.1 Using Microsoft ActiveSync
Your device can be connected to a computer so you can transfer files
back and forth. In this way, you only have to input data once. Microsoft
ActiveSync is a synchronization program you install on your desktop or
laptop computer to:
Copy files (data, audio, or video) between your device and up
to
two host computers so you always have the latest information
in all locations.
Install programs on your device
Back up and restore device information
Synchronize links
Send and receive e-mail
Request meetings
Installing ActiveSync
CAUTION: For synchronization to work properly, install Microsoft ActiveSync on
your computer (Steps 1 and 2 below) before you connect your i.roc x20 Pocket PC to
your computer (Step 3).
To install Microsoft ActiveSync on your host computer:
1. Insert the Companion CD into the CD tray or slot on your
computer.
2. After the introductory screen displays, click Setup Wizard. The
Setup Wizard detects the programs on your computer, and guides you
step by step so you can install ActiveSync on your computer as well as
other programs on your Pocket PC.
3 Follow the screen recommendations and when prompted,
connect your Pocket PC to your personal computer:
a. Plug the AC Adapter into an electrical outlet 1 and
connect the other end of the AC Adapter to the AC connector on the
ecom Desktop Cradle 2.
b. Slide the bottom of your Pocket PC into the ecom i.roc
x20 Cradle 3 and push firmly to seat it.
CAUTION: To avoid damaging your Pocket PC or the cradle, check to be sure the
Pocket PC and cradle connectors are properly aligned before pushing the Pocket PC
into the ecom Desktop Cradle.
c. Connect the USB Cable to the USB port on your computer 4.
3.2 Synchronizing Your Pocket PC with Your
Computer
With ActiveSync installed on your computer, you can:
Use it any time to create an additional partnership so you can
synchronize information with up to two computers.
Add or delete the type of data (Contacts, Calendar, Messaging,
Tasks, Favorites, Files, Notes, and AvantGo) you want synchronized
with your Pocket PC.
Note:
When you synchronize files, you can drag and drop the selected
files from your computer to the synchronized folder on your i.roc x20
Pocket PC. If you named your device “PC1” when you created your
partnership, then the synchronized folder is named “PC1.” When you
synchronize, the files are automatically moved to and from your i.roc
x20 Pocket PC.
Changing Synchronization Settings
You can modify your synchronization settings for Microsoft
ActiveSync to:
Change when your i.roc x20 Pocket PC synchronizes with your
host computer.
Change the type of connection (serial, USB, or infrared) from
your i.roc x20 Pocket PC to your computer.
Select the files and information to synchronize.
Select the files and information you do not want to synchronize
(for example, e-mail attachments).
Determine how conflicts between information on your i.roc x20
Pocket PC and information on your computer are to be handled.
To change synchronization settings:
1. From the Start menu on your computer, click Programs >
Microsoft ActiveSync > Tools > Options.
a. On the Sync Options tab, select the files and information to
synchronize with your computer.
b. On the Schedule tab, select when your i.roc x20 Pocket PC
synchronizes with your computer.
c. On the Rules tab, determine how conflicts between
information on your i.roc x20 Pocket PC and information on your
computer are to be handled.
2. Tap OK when you are finished.
3. From the File menu, click Connection Settings. Select the type
of connection to be allowed between the i.roc x20 Pocket PC
and the computer.
Using the Infrared Connection
As an alternative to using the desktop cradle, you can synchronize your
Pocket PC and your computer using the infrared connection if you have
an infrared port or an infrared USB adapter installed on your computer.
The infrared connection option works only on computers that have
Microsoft Windows 98SE, Me, 2000, or XP operating systems installed.
To set up an infrared connection to a computer:
1. Synchronize your Pocket PC with your computer using the
desktop cradle before the first time you establish an ActiveSync
connection via infrared.
2. Follow your computer manufacturer’s instructions to install
and set up an infrared port.
3. Remove the Pocket PC from the cradle and line up the infrared
port with the computer infrared port so they are unobstructed and
within 12 inches (30.5 cm) of each other.
4. Initiate a connection by tapping Start > Programs > ActiveSync
> Tools > Connect via IR. Synchronization begins on your device.
5. To disconnect, move the devices away from each other or tap X
in the upper right of the screen to turn off.
3.3 Copying Files
You can copy files to and from your host computer using Explore
in ActiveSync and Windows Explorer.
To copy files:
1. Insert your i.roc x20 Pocket PC into the sync cable.
2. From the Start menu on your computer, click Programs >
Microsoft ActiveSync.
3. Click Explore.
4. Double-click the My Pocket PC.
5. On your computer, right-click the Start menu, and select
Explore.
6. Locate the file to be moved.
Note:
You cannot copy preinstalled files or system files.
7. Drag and drop your files between your i.roc x20 Pocket PC and
your computer. ActiveSync converts the files so that they can be used
by the Pocket Office programs, if necessary.
Note:
Move your files directly into My Documents on your i.roc x20
Pocket PC (or into a folder inside My Documents), so the programs on
your i.roc x20 Pocket PC can locate them.
3.4 Installing Programs
To install programs on your i.roc x20 Pocket PC from your computer
using ActiveSync:
1. Connect your i.roc x20 Pocket PC to your computer using the
sync cable.
2. Follow the instructions on the screen.
3. Check the screen of your i.roc x20 Pocket PC to see if any
further steps are necessary to complete the installation.
3.5 Backing up and Restoring Files
To help reduce the chance of losing information, you should back up
information to your computer regularly. For more information on
backing up and restoring information using Microsoft ActiveSync, refer
to “Using ActiveSync to Backup/Restore” in Chapter 6.
You can synchronize links to Web sites from the Favorites list on your
computer to view them offline with Pocket Internet Explorer.
1. From the Start menu on your computer, click Programs and
double-click the Internet Explorer.
2. Click Favorites to see the list of links to your favorite Web sites.
3. To save a Web site link to Mobile Favorites, open the Web site
and click Create Mobile Favorite.
If you select “Favorites” as an information type to be
synchronized, ActiveSync copies your mobile favorite to your
Pocket PC the next time you synchronize.
4. Follow the instructions in Synchronize information to manually
synchronize your favorite links.
3.6 Sending and Receiving E-mail
You can send and receive e-mail messages by synchronizing your i.roc
x20 Pocket PC with your computer using ActiveSync. If you are using
ActiveSync to send and receive e-mail messages, the name of the
folder you are using is displayed at the bottom of the screen. For more
information on sending and receiving e-mail using ActiveSync, from the
Start menu, tap Help > Messaging.
3.7 Requesting Meetings
You can schedule a meeting and send a meeting request through
ActiveSync. For more information, from the Start menu, tap Help >
Calendar.
3
4
Managing the Battery
Your i.roc x20 Pocket PC is shipped with a rechargeable battery that is
partially charged. It is recommended that you fully charge the Pocket
PC battery before setting up the device, and recharge regularly. Your
Pocket PC uses some power to maintain files in RAM and the clock.
While working at your desk, keep the Pocket PC and AC Adapter
connected through the ecom Desktop Cradle. When you travel, it is
recommended that you carry the AC Adapter, Charger Adapter plug, or
an optional spare battery with you.
CAUTION: Use only an ecom approved battery for your i.roc x20 Pocket PC.
Inserting a battery that does not comply with ecom requirements might cause the
Pocket PC to malfunction and will void the ecom i.roc x20 limited warranty.
The i.roc x20 Pocket PC also has a small internal backup battery that
allows you to change the main battery without losing RAM data (user-
installed programs and data) as long as it is replaced within 15 minutes.
The internal battery can only be removed by qualified ecom Technical
Support.
4.1 Charging with the AC Adapter
The standard AC Adapter works in a standard electrical outlet. You can
also charge your Pocket PC in your automobile with an optional
Automobile Adapter that works in your vehicle’s electrical cigarette
lighter or a 12-volt power outlet.
To purchase an optional Automobile Adapter, refer to the ecom Web
site at:
www.ecom.com/go/i.roc x20accessories
.
CAUTION: Use only ecom recommended AC adapters.
To charge your Pocket PC using the AC Adapter:
1. Insert the AC Adapter plug into the AC Charger adapter 1.
2. Plug the AC Adapter into an electrical outlet 2.
3. Insert the AC Charger adapter into the bottom of the Pocket PC
CAUTION: To avoid damaging your Pocket PC or the AC Adapter, check to be
sure all connectors are properly aligned before connecting them.
4. When the Power button indicator on the front of the Pocket PC turns
solid amber, the device is fully charged and you can disconnect the AC
Adapter. The approximate time to fully charge a drained battery is four
hours.
Note:
A standard battery can be charged in about four hours; an
optional extended battery takes longer.
4.2 Charging with the ecom Desktop Cradle and
AC Adapter
Use the ecom Desktop Cradle to charge your Pocket PC.
Note:
It is not necessary to synchronize your Pocket PC before charging
it.
To charge your Pocket PC using the ecom Desktop Cradle:
1 Plug the AC Adapter into an electrical outlet 1 and connect the
other end of the AC Adapter to the AC connector on the ecom Desktop
Cradle
Slide the bottom of your Pocket PC into the ecom i.roc x20
cradle and push firmly to seat it.
CAUTION: To avoid damaging your Pocket PC or the cradle, check tobe sure the
Pocket PC and cradle connectors are properly aligned before pushing the Pocket PC
into the ecom Desktop Cradle.
Note:
The amber charge light on the front of the Pocket PC blinks while
the battery is recharging and turns solid amber (nonblinking) when the
battery is fully charged.
4.3 Charging with the ecom Desktop Cradle and
USB Cable
An alternative method of charging the Pocket PC is to charge the device
by using a USB cable. However, because this charging method drains
the host battery (i.e., laptop), you must enable USB charging on the
Pocket PC before you can charge the device.
To charge your Pocket PC using the ecom Desktop Cradle and USB
Cable:
1. Turn on USB charging by tapping Start > Settings > System
tab > Power on the Pocket PC.
2. Select the USB Charging tab, and then check Use USB
Charging.
3. Tap OK once USB Charging has been enabled.
4. Connect one end of the USB sync cable to the bottom of the
Pocket PC.
5. Connect the USB cable to an available USB Port on your USB
powered device, such as a laptop.
Note:
The Pocket PC charges slower when using an USB cable than with
an AC Adapter.
4.4 Manually Checking the Battery Charge
Level
To manually monitor the battery power:
1. Tap Start > Settings > System tab.
2. Tap Power > Battery tab.
If the battery charge level is low, connect to AC power using the
ecom Desktop Cradle and the AC Adapter, or change the battery. For
information on purchasing an optional standard or extended battery,
visit the ecom Web site at
To use a shortcut to view your battery charge level, tap the Battery
icon located in the TodayPanel Lite on the Today screen plug in.
Battery Saving Tip: Tap Start > Settings > System tab > Power >
Advanced tab, then tap the Turn off device if not used for checkbox
and set it to turn your i.roc x20 Pocket PC off after a short time of not
being used.
CAUTION: It is recommended that you do not allow the battery installed in your i.roc
x20 Pocket PC to discharge completely. Doing so does not harm your Pocket PC or
battery; however, you will lose all data not stored in File Store (ROM). Discharging the
battery completely is similar to performing a hard reset. Refer to “Performing a Hard
Reset” in Chapter 1 for more information.
4.5 Power Saving Tips
Here are some power saving tips to help save energy in your
Pocket PC battery.
Set the backlight to go off quickly (10 or 30 seconds) after you stop
using your Pocket PC, or implement Power Save mode to turn off
the backlight completely. For more information, refer to “Changing
the Backlight Settings” later in this chapter.
Note:
Adjusting the Backlight Brightness Level slider to the lowest level
that is still useable for the given lighting conditions can be the single
most important thing you can do to preserve battery life.
Leave your Pocket PC connected to AC power at all times when you’re
not using it. For more information, refer to “Charging with the AC
Adapter” earlier in this chapter.
Leave your Pocket PC set to turn off after not being used for a
ashort time. Tap the Battery icon > Advanced tab. On battery
power, set the device to power off in the shortest acceptable
time.
Turn off all wireless activities when not in use. Refer to
“Powering Wi-Fi On or Off” in Chapter 8 and “Powering
Bluetooth On or Off” in Chapter 9.
Turn off the Receive all incoming beams setting and receive
infrared beams manually instead. Refer to Chapter 2,
“Synchronizing with Your Computer.”
You can program an Application Button to turn off the screen
when an MP3 is playing, thus saving battery power used to run
the screen. Tap Start > Programs > Windows Media > Tools >
Settings > Buttons. From the Select Function drop-down list,
tap Screen Toggle. Press a program button, then tap OK. Then,
when listening to music, press that program button to turn off
the screen display.
Power off your Pocket PC when it is being charged to allow it to
charge at a faster rate.
To ensure you always have battery power available, invest in an
extra Standard Battery or Extended Battery. These batteries
can be charged in the optional battery charger. To purchase an
extra battery and/or a battery charger, visit the ecom Web site
at www.ecom.com/go/i.roc x20accessories .
Changing the Backlight Settings
Your new Pocket PC comes with an automatic brightness control
feature that saves up to 25% battery life. The Backlight icon displays on
the Today screen for easy accessibility. In addition to using the
TodayPanel Lite shortcut, you can access the Backlight application by
tapping Start > Settings > System tab > Backlight.
To change the Backlight settings:
1. Tap Start > Settings > System tab > Backlight.
2. On the Battery Power tab, select the Turn off backlight if device is
not used for checkbox and enter the time duration you want to
pass before the backlight turns off.
3. Tap the External Power tab to change the backlight setting for
when you are using an external power source (e.g., cradle, AC
Adapter, etc.).
4. Tap the Brightness tab to change the brightness level on the
Pocket PC when using the Pocket PC on battery or external power.
5. Tap OK when you are finished making your changes.
Note:
The Backlight automatically turns on when you tap on the screen
or press a button.
Disabling Buttons
The Button Lock application allows you to disable all the buttons on
your Pocket PC, except the power button whenever the device is in
Standby mode. By enabling this feature, you can ensure the device is
not accidentally turned on, thus draining your battery.
To enable the button lock feature:
1. Tap Start > Settings > Personal tab > Buttons.
2. Tap the Lock tab and check Disable all buttons except power
button.
Tap OK.
4
5
Learning the Basics
5.1 Using the Today Screen
When you first turn on your i.roc x20 Pocket PC, the
Today screen displays. You can also display it by
tapping Start > Today. Use the Today screen to
view:
Owner information
Upcoming appointments
Unread and unsent messages
Tasks that need to be completed

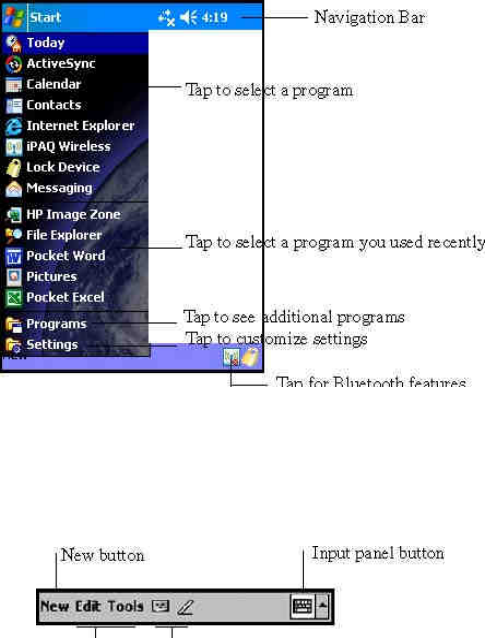

Navigation Bar and Command Bar
The Navigation Bar is located at the top of the screen. It
displays the Start button, active notifications (such as new
e-mail, Wi-Fi connection status, speaker status) and current
time. Use the Start menu to select a program.
The Command bar is located at the bottom of the screen.
The New menu provides shortcuts in creating new
appointments, contacts, tasks, notes, etc. The Input panel
button allows you to enter text.
Menu Buttons
actions
5.2 Status Icons
You may see the following status icons displayed on the
Navigation or Command bar. Tap the icon on the screen to
view more information related to the item.
Icon Status
Active connection to computer or wireless network.
Inactive connection to computer or wireless network.
Microsoft ActiveSync is synchronizing.
Speaker is on.
S
peaker is off (or in mute position).
Battery power is low.
Battery power is very low.
E-mail, SMS or MMS messages received.
Instant messages received.
(Continued)
Icon Status
i.roc x20 Pocket PC is connected with the desktop cradle.
This icon appears only when there is an active connection.
i.roc x20 Wireless icon—Tap to display Wireless screen
Provides a control center to turn all wireless activities on and
off, and to configure their settings.
5.3 Pop-Up Menus
Pop-up menus allow you to quickly perform an action. Use
the pop-up menu to cut, copy, rename, and delete an item,
also send an e-mail or send a file to another device.
To access a pop-up menu, tap and hold the stylus on the
item on which you want to perform the action. When the
menu appears, tap the desired action, or tap anywhere
outside the menu to close it without performing an action.
Tap and hold to display the pop-up
menu
Tap the action you want
Tap outside the menu to close it
without performing an actio
n
Creating Information
From the Today screen, you can create new information,
including:
Appointments
Contacts
Messages
Excel Workbook
Notes
Tasks
Word documents
1. From the Start menu, tap Today > New at the
bottom of the screen.
2. Tap an option to create a new item.
3. Tap OK after you finish creating a new item.
Customizing the Today Screen
From the Settings Today screen, you can:
Add a picture as the background.
Select the information that appears on the Today
screen.
Select the Today screen theme.
Set the order of the information.
Set when to see the Today screen.

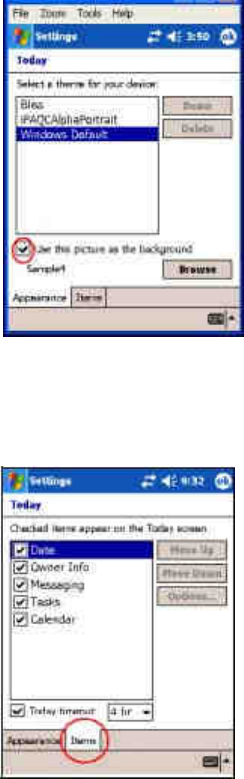

1. Tap Start > Settings > Personal tab > Today.
2. Select Use this picture as the background checkbox.
3. Tap Browse to select a picture from File Explorer.
4. Tap the Items tab to select or reorder the
information on the Today screen.
5. Tap an item to highlight it.
6. Tap Move Up or Move Down to change the order of
items on the Today screen.
Note:
You cannot change the placement of the Date on the
Today screen.
7. Tap the down arrow associated with Today timeout
checkbox to determine how many hours must pass
before the Today screen displays.
8. Tap OK.
5.4 Changing the Screen Orientation
You can change the screen orientation of your Pocket PC
from Portrait to Landscape mode.
To change the screen orientation of your Pocket PC:
1. Tap Start > Settings > System tab > Screen.
2. Tap Portrait, Landscape (right-handed), or
Landscape (left-handed).
3. Tap OK.
Shortcut: Press and hold the Calendar button for two
seconds to toggle between portrait and landscape modes.
5.5 Opening and Closing Applications
Open any application on your i.roc x20 Pocket PC from the
Start menu.
Note:
You can also open an application by assigning it to an
Application Button. To assign Application Buttons, from the
Today screen, tap Start > Settings > Personal tab > Buttons.
To open an application:
1. Tap Start > Programs.
2. Tap the desired application title or logo.
To minimize an open application, tap the x at the top right
of the screen.
Close applications either manually or by using iTask.
Note:
Applications automatically close based on available
memory.
Closing with iTask
1. Press the iTask button (Application Button 4 on the
lower right side of your device).
2. Tap and hold the program to be closed.
3. From the pop-up menu, tap Close This Task.
Closing Manually
1. Tap Start > Settings > System tab > Memory >
Running Programs tab.
2. Tap Stop All or select a particular application, then
tap Stop.
Note:
To bring a currently running program to the
foreground, tap Activate.
5.6 Installing Applications
Install applications on your i.roc x20 Pocket PC from your:
Computer by using Microsoft ActiveSync.
i.roc x20 Pocket PC if the application file has a .cab
extension.
i.roc x20 Pocket PC or your computer by copying an
application file that has an .exe or .cef extension.
To install more applications on your Pocket PC:
1. Use the ecom Desktop Cradle to connect your
Pocket PC to your personal computer.
2. Follow the instructions in the Installation Wizard
provided with the program you want to install.
3. Check the screen on your Pocket PC to see if any
further steps are necessary to complete the
program installation.
5.7 Deleting Applications
To delete applications on your Pocket PC:
1. Tap Start > Settings > System tab > Remove
Programs.
2. Select the checkbox for the program(s) you want to
remove, then tap Remove.
Note
: By removing an application from your Pocket PC, you
increase storage memory (used to store data and document
files) and program memory (used to run programs) on the
device.
5.8 Backing Up Information
Use i.roc x20 Backup or Microsoft ActiveSync Backup to back
up and restore information on your i.roc x20 Pocket PC.
Note:
Your i.roc x20 Pocket PC came preinstalled with i.roc
x20 Backup. However, you must install ActiveSync on your
computer before using ActiveSync Backup.
To help reduce the chance of losing information, you should
back up information on a regular schedule. For more
information on backing up your data, refer to “Using i.roc
x20 Backup to Backup/Restore” in Chapter 6.
5.9 Using the i.roc x20 FIle Store Folder
You can install programs and save files to the i.roc x20 File
Store folder, which is accessed from File Explorer on your
i.roc x20 Pocket PC.
Programs and files stored in i.roc x20 File Store are held in
ROM and are saved if you perform a full reset of your i.roc
x20 Pocket PC or if the battery discharges completely.
CAUTION: If you have ecom ProtectTools enabled and forget your
PIN or password, resetting the device will result in loss of data stored in
i.roc x20 File Store. For more information on ecom ProtectTools, refer to
Chapter 7, “Using Security Features.”
Some devices also come with High Speed File Store, a faster
version of i.roc x20 File Store. If your i.roc x20 Pocket PC has
more than 30 MB of File Store space, it is High Speed File
Store. To find out how much File Store memory is on your
device, from the Today screen, tap the Memory icon >
Storage Card tab. Select i.roc x20 File Store in the drop
down list box. If the amount is 30 MB or more, then you
have High Speed File Store.
To save to i.roc x20 File Store or High Speed File Store:
1. Copy the files to be saved to the i.roc x20 File Store
folder.
2. Tap Start > Programs > File Explorer > My Device >
i.roc x20 File Store.
3. Paste the selected files.
CAUTION: If you format i.roc x20 File Store, do not perform a hard
or soft reset. Doing so may prevent your Pocket PC from operating
normally. For more information on formatting i.roc x20 File Store, refer to
“Performing a Hard Reset” in Chapter 1.
Note:
Before saving files to the i.roc x20 File Store folder, it is
a good idea to determine how much memory is available in
the folder. To view the amount of memory, from the Today
screen, tap the Memory icon > Storage Card tab, then select
i.roc x20 File Store from the drop down menu.
6
Learning Input Methods
6.1 Using Input Software
To input information to your Pocket PC, you can tap the on-screen
keyboard or write with the Letter Recognizer, Microsoft Transcriber, or
Block Recognizer in any application. You can use the stylus to draw and
write on the screen in the Notes application and from any Notes tab in
the Calendar, Contacts, and Tasks applications.
CAUTION: To avoid damaging your i.roc x20 Pocket PC screen, always use a
stylus. Never use a pen or any type of metal pointer on the screen.
Note:
Microsoft Transcriber is a free program that you can download
from the Microsoft Web site.
Changing Word Suggestion Options
As you type or write, the Pocket PC suggests words for you in a box
above the keyboard, Letter Recognizer, or Block Recognizer, but not in
the Transcriber.
You determine:
If words are suggested.
The number of letters you enter before a word is suggested.
The number of words that are suggested per entry.

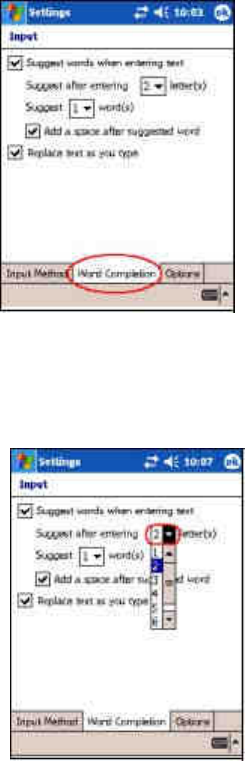

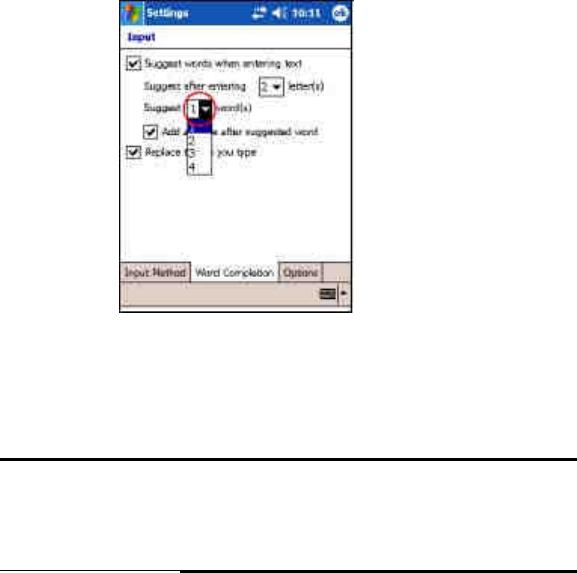

To change settings for word suggestions:
1. Tap Start > Settings > Personal tab > Input.
2. Tap the Word Completion tab.
3. Tap the down arrow associated with letters and select the number
of letters you want to type before a word is suggested.
t
4. Tap the down arrow associated with words and select the
number of words you want suggested.
5. Tap OK
Note:
If you do not want any words suggested, remove the checkmark
by tapping the checkbox next to Suggest Words When Entering Text.
Using the On-Screen Keyboard
Use the stylus to tap letters, numbers, and symbols on the on-screen
keyboard to enter typed text directly onto the screen.
1. From any application, tap the up arrow next to the Input
Panel icon.
2. Tap Keyboard to display a keyboard on the screen.
Note:
To see symbols, tap the
123
key.
3. Tap a letter, symbol, or number to enter information.
4. Tap OK.
Writing with the Stylus and the Letter recognizer
Use the stylus and Letter Recognizer to letters, numbers, and symbols
on the screen. Create words and sentences by writing in uppercase
(ABC), lowercase (abc), and symbols (123) as instructed here.
To write with the stylus and Letter Recognizer:
1. From any application, tap the up arrow next to the Input
Panel icon.
2. Tap Letter Recognizer.
3. Write a letter or symbol between the dashed line and
baseline.
To display in uppercase, write a letter between the hatch
marks labeled ABC.
To display in lowercase, write a letter between the hatch
marks labeled abc.
Write a number or draw a symbol between the hatch
marks labeled 123.
What you write will be converted to text.
Note:
For the Letter Recognizer to work effectively, write characters
between the dashed line and baseline.
If you are writing a letter like “p,” write the top portion within the
dashed line and baseline, and the tail portion below the baseline.
If you writing a letter like “b,” write the bottom portion within the
dashed line and baseline, and the top portion above the dashed line.
Note:
To view help on using Letter Recognizer, open the program and
tap the question mark next to the writing area.
6.2 Writing with the Stylus and Microsoft
Transcriber
Use the stylus and Microsoft Transcriber to write words, letters,
numbers, and symbols anywhere on the screen.
1. From any application, tap the up arrow next to the Input
Panel icon.
2. Tap Transcriber to display the Transcriber Intro screen.
3. Tap OK.
4. Tap New at the bottom of the screen.
5. Begin writing on the screen. What you write will be
converted to text.
Note:
To “teach” Transcriber your style of writing, tap on the “a” icon
at the bottom of the screen to display the Letter Shapes screen and
follow the instructions.
Writing with the Stylus and Block Recognizer
Write letters, numbers, and symbols using the stylus and Block
Recognizer. Create words and sentences by writing letters and
numbers in specific areas.
1. From any application, tap the up arrow next to the Input
Panel button.
2. Tap Block Recognizer.
3. Write a word, letter, or symbol between the hatch marks.
To type text, write a letter between the hatch marks labeled
“abc.”
To type numbers or symbols, write a number or symbol
between the hatch marks labeled “123.”
What you write will be converted to text.
Drawing and Writing on the Screen
Use the stylus as a pen to draw and write on the screen in the Notes
program or from the Notes tab in Calendar, Contacts, or Tasks.
1. Tap Start > Programs > Notes > New.
2. Draw and write on the screen.
3. Tap the Pen icon.
4. Tap OK.
Converting Writing to Text
You can convert your writing to text when you write with the stylus in
the Notes program or from the Notes tab in:
Calendar
Contacts
Tasks
To convert writing to text:
1. From the Start menu, tap Notes or tap the Notes tab in
Calendar, Contacts, or Tasks.
2. Tap a note to open it.
3. Tap Tools.
4. Tap Recognize.
Note:
To convert a particular word or phrase, highlight it before you
tap Recognize. If a word is not recognized, it will not be converted.
5. Tap OK.
7
Applications
7.1 Software Available on the ecom i.roc x20
Pocket PC
The software programs described below are preinstalled on your i.roc
x20 Pocket PC. You can find detailed information for using this software
in the Help files located on your i.roc x20 Pocket PC. To access these
Help files, tap Start > Programs > Help and select an application.
In addition, the Microsoft Pocket PC Basics Help provides instructions
on operating the Pocket PC. To locate Pocket PC Basics, tap Start >
Programs > Help > Pocket PC Basics.
Note:
If your Pocket PC loses power, the preinstalled programs are not
deleted.
To access the following programs, tap Start, then the name
of the program, or tap directly on the Today screen.
Application Function
Microsoft Calendar Schedules appointments, meetings, and other
events, and sets an alarm to remind you of the
appointments. Appointments for the day are
displayed on the Today screen.
Microsoft Contacts Provides a list of colleagues and friends to e-mail and
telephone.
Microsoft Messaging Receives and sends Internet e-mail messages in
Inbox on your i.roc x20 Pocket PC or your computer
if ActiveSync is installed. You must have an e-mail
address provided by your Internet Service Provider
(ISP) or employer to send and receive e-mail.
Microsoft Pocket Internet
Explorer
Browses the Internet and downloads pages through
synchronization or by connecting to the Internet.
Microsoft Tasks Tracks your to-do list.
TodayPanel Lite Allows you to quickly access the battery, memory,
storage, and backlight option on your Pocket PC.
To access the following programs, tap Start > Programs,
then the name of the program.
Application
Function
Microsoft ActiveSync
Synchronizes the information between your Pocket
PC and computer so you have the latest information
in both locations. Be sure you install ActiveSync on
your computer before connecting the cradle and
i.roc x20 Pocket PC to your computer.
Microsoft Calculator Performs calculations and converts currency.
Microsoft File
Explorer
Shows where files are located on your i.roc x20
Pocket PC or storage card(s).
Microsoft Find
Allows you to search for a particular file or file
folder on your i.roc x20 Pocket PC.
How Do I...?
Answers the most frequently asked questions
regarding your i.roc x20 Pocket PC.
ecom
Image Zone
Displays individual images and runs slide shows.
Also displays images from the SD storage card of a
digital camera.
ecom Mobile Printing Enables mobile printing.
Games
Contains games designed for play on the i.roc x20
Pocket PC.
i.roc x20
Backup
Allows you to back up your data to protect it from
loss due to a drained battery, accidental deletion, or
hardware failure.
iTask
Allows you to quickly access the most frequently
used features on your i.roc x20 Pocket PC.
(Continued)
(Continued)
Application Function
Microsoft MSN Messenger Provides a chat environment which allows you to
see who is online, send and receive instant
messages, have an instant message conversation
with a group of contacts, tell contacts that you
are unavailable, and block contacts from seeing
your status or sending you messages.
Microsoft Notes Creates handwritten or typed notes, drawings,
and recordings.
Microsoft Pocket Excel Able to create and edit workbooks or view and
edit Excel workbooks created on your computer.
Microsoft Pocket MSN Allows you to subscribe to a variety of popular
MSN services for your Pocket PC.
Microsoft Pocket Word Creates new documents or views and edits Word
documents created on your computer.
Print Manager Allows you to manage your print jobs.
Microsoft Terminal Services
Client
Logs onto your computer and uses all the
programs available on that computer from your
Pocket PC (Windows 2000 and XP or later).
Microsoft Windows Media
Player 9 Series
Plays digital audio and video files in Windows
Media or MP3 format on your device.
To access the following programs, tap Start > Settings >
Personal tab, then tap the name of the program.
Application Function
Buttons Allows you to program the application buttons to
open your most used programs, customize the way
your Up/Down control repeats, and disable all
buttons except the power button to ensure the
device is not accidentally turned on.
ecom ProtectTools Provides software security on the Pocket PC to
ensure there is little risk of losing sensitive data.
Allows you to use your fingerprint (not available on
some models), a PIN, and/or a password to protect
your data.
Input Define your input method, customize word
completion options, and define your typing style.
Menus Customize your Start menu or define a new menu.
Owner Information Input information about yourself to distinguish your
Pocket PC from others.
Sounds & Notifications Enables/disables sounds for various options such as
events, programs, screen taps, and hardware
buttons as well as defining when notifications occur.
Today Select a theme for the Today screen background and
define which items appear on the Today screen.
To access the following programs, tap Start > Settings >
Personal tab, then tap the name of the program.
Application Function
About Describes which version of Windows Mobile 2003
software is loaded on your i.roc x20 Pocket PC and gives
information on your Device ID and applicable
copyrights.
Audio Defines audio settings.
Backlight Enables changes to the Pocket PC backlight settings such
as brightness, and conserving on battery and external
power.
Certificates Allows you to use personal certificates to positively
identify yourself to others and gives information on
preinstalled root certificates.
Clocks & Alarms Allows you to select time zones, times, and dates for a
home and a visiting location and set up alarms.
Enroll The ecom Certificate Enroller allows you to download
certificates from the ecom Web site if you have proper
authorization.
ecom Asset Viewer Lists detailed information about your system and its
configuration.
ecom Profiles Allows the user to change alerts (ring type and tone or
vibrate mode). For example, if you are in a meeting, you
can change the ring type for incoming calls to vibrate.
iTask Settings Allows you to define the settings that will appear when
you press the iTask button on the front of the device.
(Continued)
(Continued)
Application Function
Memory Review how much memory is available on your device
or on a storage card. Also allows you to review which
programs are currently running and stop or activate
them.
Power See how much main and backup battery power is
remaining on your device, define when the device will
turn off after not being used, and define the standby
period.
Regional Settings Define the language your device uses as well as a
number of other regional specifications such as the
way numbers, currency, time, and dates are displayed.
Remove Programs Allows you to uninstall programs you have installed
yourself.
Screen Define the screen orientation, align the screen, enable
Clear Type, and define the size text appears on your
screen.
Self-Test Runs a basic diagnostic test on the device.
To access the following programs, tap Start > Settings >
Connections tab, then the name of the program.
Application Function
Beam Allows you to determine whether or not to
automatically receive all incoming infrared
beams.
Bluetooth Turn Bluetooth on or off or establish a new
Bluetooth connection.
Bluetooth Phone Manager Manages Internet connections for your Pocket PC
in line with your cell phone and your cell phone
service provider. Also simplifies the Bluetooth
pairing procedure between your Pocket PC and
your cell phone.
Microsoft Connections Connects your Pocket PC to the Internet and
intranet to browse Web sites, sends and receives
e-mail, and synchronizes information using
ActiveSync.
i.roc x20 Wireless Provides a centralized control to all wireless
features on your Pocket PC. Allows you to turn all
wireless features on and off and configure
settings for the Wireless Local Area Network
(WLAN), Bluetooth, etc.
LEAP Allows you to establish LEAP connection settings
if your network uses this security protocol.
Network Cards Configure your network adapters if you use your
network card in two places such as work and
home.
7.2 Installing Applications
Install applications on your i.roc x20 Pocket PC from your:
Computer by using Microsoft ActiveSync
i.roc x20 Pocket PC if the application file has a .cab extension
i.roc x20 Pocket PC or your computer by copying an application
file that has an .exe or .cef extension
To install more applications on your Pocket PC:
1. Use the ecom Desktop Cradle to connect your Pocket PC to
your personal computer.
2. Follow the instructions in the Installation Wizard provided with
the program you want to install.
3. Check the screen on your Pocket PC to see if any further steps
are necessary to complete the program installation.
7.3 Removing Applications
To remove applications on your Pocket PC:
Tap Start > Settings > System tab > Remove Programs.
Select the checkbox for the program(s) you want to remove, and then
tap Remove.
Note:
By removing any application from your Pocket PC, you increase
storage memory (used to store data and document files) and program
memory (used to run programs) on the device.
7.4 Using TodayPanel Lite
TodayPanel Lite is a Today screen plug in that allows you to quickly
view and change a variety of options. The options you can change are:
Icon Name
Description
TodayPanel Lite
Change the TodayPanel Lite options or
the Today screen settings.
Battery power
View the amount of batte
ry power
remaining, set the standby period, set
the time duration for turning off the
Pocket PC, set the USB charging method.
Main memory
View the amount of main memory
available on the Pocket PC. Also you can
view, activate, and stop all running
programs from this screen.
Storage card
memory
View the amount of storage card
memory available or how much memory
is allocated to i.roc x20 File Store. Also
you can view, activate, and stop all
running programs from this screen.
Backlight
View and chan
ge the backlight options
on the Pocket PC.
To use TodayPanel Lite, from the Today screen, tap the icon of your
choice, make the appropriate changes, and tap OK.
TodayPanel Lite also has the flexibility to change the icons to compact
mode, as shown here, which allows more space on the Today screen.
Also, you can change memory and storage settings to display as
percentages instead of file sizes.
To change to compact mode:
1. Tap > Options to open the TodayPanel Lite application.
2. Tap the Display Mode listbox and select Compact.
3. Tap Bar Color... to change the color of the bar and tap OK. To
display the memory and storage as percentages:
1. Tap > Options to open the TodayPanel Lite application.
2. Tap the Display Memory as listbox or the Display Storage as
listbox and select the percentage listed.
3. Tap OK.
To remove the TodayPanel Lite from the Today screen:
1. Tap Start > Settings > Today icon > Items tab.
2. Uncheck the TodayPanel checkbox and tap OK.
7.5 Using ecom Image Zone
When you use ecom Image Zone you can review and share images
from your i.roc x20 Pocket PC. You can also print, send, record, and e-
mail images directly from your Pocket PC, or create slideshows to share
your pictures with friends and family.
When you launch the ecom Image Zone, the following icons are
displayed on the bottom of the screen.
Icon Definition
Tap to view the photo in full screen.
Tap to start slideshow mode.
Tap to change folders.
Tap to delete photo.
Tap to record and attach an audio clip to the photo.
Tap to send the photo using your favorite method.
Tap to print using your favorite method.
Viewing Thumbnail Photos
To view a photo:
1. Tap Start > Programs > ecom Image Zone.
Note:
By default, the viewer opens in Browse mode. Browse mode
displays a thumbnail view of the photos in the current folder.
2. Tap a thumbnail (i.e., a small representation of a larger image) to
select the photo. A preview of the photo and information about it is
displayed.
Note:
To view photos in ecom Image Zone, be sure your scroll bar has
been moved all the way to the left. Otherwise, you might not be able to
see other photos in the thumbnail view.
To view photos in a different folder:
1. Tap File in the Command bar, and then tap Open.
2. Select the folder you want.
3. Tap OK. ecom Image Zone displays the photos from the new
file folder you selected.
Viewing a Photo Full-Screen
To view a photo full-screen and zoom in or out:
1. Tap Start > Programs > ecom Image Zone.
2. Select the photo by tapping on its thumbnail.
3. Tap on the preview window or tap Tools > View Image.
4. Zoom in or out using the tool bar buttons. If the photos are too
large to fit on the screen, you can display other parts of the
photo by dragging the stylus on the screen.
5. Tap OK to close the View Image screen.
Viewing a Slideshow
You can view a slideshow of the photos in a specified folder.
1. Tap Start > Programs > ecom Image Zone.
2. Tap Tools > View Slideshow.
3. Tap anywhere on the screen to display the on-screen controls.
You then can use the on-screen controls to move forward or
backward through the slides or to end the slideshow.
You can control slideshow display options, such as:
Sequence—the order in which photos are displayed
Delay—the amount of time each photo displays before the
slideshow moves to the next photo
Rotation—the slideshow can automatically rotate the photos
so they display on the full screen
Transition Effect—the method used by photos to exit and
enter the slideshow
To change slideshow settings:
1. Tap Start > Programs > ecom Image Zone.
2. Tap Tools > Settings > Slideshow tab.
3. Select the settings and effects you want to use in your
slideshow.
4. Tap OK to exit the menu.
Printing Photos
You can print pictures from ecom Image Zone using Print Manager. To
print a picture:
1. Tap Start > Programs > ecom Image Zone.
2. Select the picture to be printed by tapping on its thumbnail.
3. Tap File > Print.
4. Select Print Manager or ecom Instant Share Printing and tap
Next.
5. Follow the instructions on the screen to print your picture.
Note:
For more information on using ecom Image Zone, tap Start >
Programs > ecom Image Zone > Help.
E-mailing Photos
Using ecom Image Zone, you can e-mail photos to all of your family and
friends. To send photos as e-mail attachments:
1. Tap Start > Programs > ecom Image Zone.
2. Select the photo you want to e-mail.
3. Tap the e-mail icon located at the bottom of the screen.
4. Tap E-mail Attachment, then Next.
5. Enter the e-mail address, then tap Send.
Attaching a Sound File to a Photo
To add sound to a photo:
1. Tap Start > Programs > ecom Image Zone.
2. Select the photo to which you want to attach a sound file by
tapping on its thumbnail.
3. Tap the Cassette icon on the Command bar located at the
bottom of the screen.
4. Tap the Record button on the Sound toolbar.
Icon Name Function
Record
Starts recording sound.
Stop
Stops the current recording.
Play
Plays the recorded sound associated
with a selected photo.
Delete
Deletes the recorded sound
associated with a selected photo.
5. Speak into the microphone or record the sound you want to
associate with the photo.
6. Tap the Stop button on the Sound toolbar.
All photos with associated sound files have a speaker icon on the
thumbnail.
To change audio options:
1. Tap Start > Programs > ecom Image Zone.
2. Tap Tools located on the Command bar at the bottom of the
screen.
3. Tap Settings > Audio tab.
4. . Select your audio options.
Codec settings: PCM or GSM 6.10.
GSM 6.10 provides good voice recording and takes up far less
space than Pulse Code Modulation (PCM).
PCM provides better sound quality but may take up to 86 times
more storage space than GSM 6.10 recordings.
Format: Select sound quality. Higher sound quality recordings take up
more storage space.
5. Tap OK to exit this menu.
7.6 Backing Up and Restoring
Use i.roc x20 Backup or Microsoft ActiveSync Backup to back up and
restore information on your i.roc x20 Pocket PC.
Note:
Your i.roc x20 Pocket PC came preinstalled with i.roc x20 Backup.
However, you must install ActiveSync on your computer before using
ActiveSync Backup.
To help reduce the chance of losing information, you should back up
information on a regular schedule.
CAUTION: Restoring your information replaces the current information on your
i.roc x20 Pocket PC with the information saved in your backup.
Using i.roc x20 Backup to Backup/Restore
To backup/restore using i.roc x20 Backup:
1. Tap Start > Programs > i.roc x20 Backup.
2. Tap the Backup tab or the Restore tab.
3. Select the files and folders to be backed up or restored.
4. Select file location for backed-up data.
5. Set backup or restore options and press OK.
6. Press the Backup or Restore button, and then press the Start
button on the next screen.
Using ActiveSync To Backup/Restore
Use Microsoft ActiveSync Backup to back up and restore information
on your ecom i.roc x20. To help reduce the chance of data loss,
perform a backup on a regular schedule.
Note:
Before using ActiveSync Backup, you must first install ActiveSync
from the Companion CD.
Close all programs on your i.roc x20 Pocket PC before backing up or
restoring your information.
To backup/restore:
1. Connect the i.roc x20 Pocket PC to your computer.
2. From your computer, open Microsoft ActiveSync by clicking
Start > Programs > Microsoft ActiveSync.
3. In ActiveSync, click Tools > Backup/Restore.
4. Select the Backup or Restore tab, then choose your options.
5. Click Backup Now or Restore Now.
7.7 Using iTask
The iTask application, sometimes called i.roc x20 Task Manager, allows
you to quickly access the most frequently used features on your i.roc
x20 Pocket PC.
From iTask you can manage tasks that are already running, launch new
programs, and more. Each task that is currently running on the Pocket
PC shows up in a list.
Tap on a task to bring the current program into the foreground or tap
and hold to bring up the Task Menu.
To start iTask, tap Start > Programs > iTask.
7
8
Using Security Features
The widespread use of Pocket PCs has significantly increased employee
productivity. However, non-secured or inadequately secured Pocket
PCs are creating network security issues for the corporate workplace
when they connect to a secure network.
Valuable information is bypassing network security and being stored on
inadequately secured Pocket PCs. The ecom ProtectTools security
features provide on-device security protection so there is less risk of
losing sensitive information on your Pocket PC.
8.1 Using ecom ProtectTools
ecom ProtectTools helps protect your Pocket PC by providing
authentication and encryption of email, calendar, contacts, notes,
tasks, and/or all files stored in the My Documents folder. It can also be
used to encrypt data stored on expansion cards.
When you enable ecom ProtectTools, you have the option of enrolling
a fingerprint or entering a PIN and/or password to access the Pocket
PC. If you are unable to successfully swipe your fingerprint or you
forget your PIN or password, you can access the device with a backup
question and answer.
CAUTION: ecom ProtectTools helps protect your Pocket PC and the data stored
on it. If you are unable to access your device with any of the above methods, there is
no way to unlock your device. You have to restore your device to factory settings,
resulting in the loss of all data on your i.roc x20 Pocket PC, including data stored in i.roc
x20 File Store. It is recommended that you remember your PIN/password and
question/answer.
Encrypting/Decrypting Data
If your i.roc x20 Pocket PC has been off for longer than the time you
selected during setup, your data is encrypted. When you turn the
device on, you are prompted to authenticate using your fingerprint,
PIN, and/or password. After successful authentication, your data is
decrypted. This may take a few moments depending on the amount of
data you chose to have encrypted. However, encryption runs in the
background, and you can perform other tasks on your i.roc x20 Pocket
PC during this time.
You can monitor the decryption process in two ways:
If you selected Display encryption status on the Encryption
Settings screen during setup, the ecom ProtectTools window
displays the decryption status.
If you choose not to display this status, the
encryption/decryption process proceeds in the background,
allowing you to use your Pocket PC for other purposes.
In either case, a blue lock icon appears in the Taskbar at the
bottom of the Today screen during decryption. When the icon
disappears, decryption is complete. Typically the Pocket PC
responds more slowly during the encryption/decryption
process.
You must authenticate yourself and wait for the decryption process to
complete before synchronizing using Microsoft ActiveSync. If
decryption is not complete before synchronization begins, ActiveSync
may not be initiated. To correct the problem, disconnect and reconnect
the device after decryption is complete.
If you enable Server Synchronization on ActiveSync, it is recommended
that you do not select a Mobile Schedule to automatically initiate
synchronization. Since authentication and decryption are necessary
when the Pocket PC is turned on, automatic synchronization does not
work properly when ecom ProtectTools is enabled. The same problem
may also arise when using other server-based synchronization
products.
Changing Your ecom ProtectTools Settings
If you want to change any of your security information, you can do so
easily. Tap the yellow lock icon in the Taskbar at the bottom of the
Today screen.
Five options are displayed:
Lock Device
Logoff
Change Passwords
Manage Encrypted Folders
Manage Security Settings
Lock Device
Selecting this option allows you to manually lock your Pocket PC,
requiring authentication to access the device. Data and files are not
encrypted.
Logoff
Selecting this option allows you to manually log off your Pocket PC,
requiring authentication to access the device. Data and files are
encrypted.
Change Passwords
To change your fingerprint, PIN or Password:
1. Tap Change Passwords.
2. Swipe your finger or enter your current PIN or password to
authenticate yourself.
3. Select the information you want to change (Fingerprint,
PIN/password or Question/Answer pair), then tap the Change
button.
4. Follow the onscreen instructions to make the change.
Manage Encrypted Folders
By default, all data in the My Documents folder is encrypted. Selecting
Manage Encrypted Folders allows you to choose other folders to store
encrypted data. These can include data stored on expansion cards.
To select other folders to store encrypted data:
1. Tap Manage Encrypted Folders.
2. Tap Encrypted Folder at the bottom of the screen.
3. Tap Add.
4. Enter the name, location, and estimated size of the folder to be
encrypted.
Note:
The size of the folder is its maximum size and cannot be changed.
5. Tap OK. The device formats the new folder.
6. Tap OK.
Note:
You cannot encrypt existing folders.
For more information on managing encrypted folders, refer to ecom
ProtectTools Help. To access encryption Help, from the Today screen,
tap the Yellow Lock icon > Yellow Lock icon in upper-left corner of the
ecom ProtectTools screen > Help > Understanding encryption.
Manage Security Settings
You can disable security or make changes to any of the settings you
selected during setup.
To make changes to security settings:
Tap Manage Security Settings.
Swipe your finger or enter your PIN or password to authenticate
yourself.
To disable security, tap the Disable Security button.
To change any previously selected security settings, tap the
appropriate tab at the bottom of the screen and follow the onscreen
instructions. The screens match those used during the setup process.
For more information, refer to“Setting Up Security” earlier in this
chapter.
Use the Programs tab to select any programs you do not want to stop
running when you log off. For more information, tap the Programs tab,
then tap Help at the bottom of the screen.
9
Using Wi-Fi
9.1 Getting Acquainted with Wi-Fi
With wireless access, you do not need to use cables to connect your
ecom i.roc x20 to the Internet. Instead, access points transmit data to
and from your wireless device. Your ecom i.roc x20 can connect to an
802.11b WLAN or connect directly to other WLAN-enabled devices.
With Wi-Fi, you can:
Access the Internet
Send and receive e-mail
Access corporate network information
Use virtual private networks (VPNs) for secure remote access
Use hotspots for wireless connectivity
Note:
Use of dial-up and wireless Internet, e-mail, corporate networks,
and other wireless communications, such as Bluetooth-enabled
devices, may require separately purchased additional hardware and
other compatible equipment, in addition to a standard Wi-Fi
infrastructure and a separately purchased service contract. Check with
your service provider for availability and coverage in your area. Not all
web content may be available. Some web content may require
installation of additional software.
Powering Wi-Fi On or Off
To use Wi-Fi on your ecom i.roc x20, you need to turn on Wi-Fi and set
up your device.
Note:
The Wi-Fi antenna for the ecom i.roc x20 is located in the top of
the device. If you cover up the top of the ecom i.roc x20 after you have
turned on Wi-Fi, signal strength may be affected.
To turn the Wi-Fi on or off:
1. From the Today screen, tap the i.roc x20 Wireless icon
() in the Command bar located at the bottom of the
screen.
2. Tap the Wi-Fi button.
When Wi-Fi is powered on, the Wi-Fi icon on the i.roc x20
Wireless screen turns from gray to amber, and the Wi-Fi
light-emitting diode (LED), located on the top left corner of
the device, flashes blue indicating one or more radios are
on. When a wireless connection is made, the Wi-Fi icon on
the i.roc x20 Wireless screen turns from amber to green.
Note:
Even though the LED flashes blue to indicate Wi-Fi is turned on, it
does not necessarily mean a connection has been established with
another device or access point.
If Wi-Fi is off, the Wi-Fi icon turns from green or amber to
gray.
Note:
Some Access Points and networks do not support one or more of
the power saving modes that are available. If you cannot connect with
a particular wireless network, try turning off the Wi-Fi Power Save
modes.
Automatically Connecting to a Network
1. If one or more broadcast networks are present, the Network
Indicator icon ( ) appears in the Navigation bar. Tap the
network you want to connect to, and then tap whether the
network connects to the Internet (does not use proxy settings) or
Work (uses proxy settings).
2. If you are prompted for a Network Key (WEP), enter it and tap
Connect. If you are not sure, contact your network
administrator.
CAUTION: A new network that does not request an encryption key may not be a
secure network. To check whether an existing network uses encryption, check the
Encryption Status of the network. Tap Start > i.roc x20 Wireless > Wi-Fi icon >
Manager button. Refer to “Monitoring Signal Strength and Status” later in this chapter
for more information.
Manually Entering New Network Settings
A wireless network can be added either when the network is detected
(the Network Indicator icon is showing in the Navigation bar) or
manually by entering setting information. To manually add a wireless
network:
1. Be sure Wi-Fi is powered on.
2. Tap the Connections icon ( or )> Settings >
Advanced tab > Select Networks button.
3. Enter or select the network name (or tap New) you want to use
to either connect to the Internet using an ISP or a Virtual Private
Network (VPN) for work. Tap OK once completed.
4. Set up your Dialing Rules and Exceptions and press OK.
The next step is to setup your network interface cards.
5. From the i.roc x20 Wireless screen, tap > Settings.
6. Select Add New... in the list box on the General tab to start
configuring wireless networks.
Note:
If a network was detected in step 3, the SSID is automatically
entered and cannot be changed.
7. Enter a SSID into the Network Name box.
8. In the Connects to: box, select where your network connects to
(The Internet or Work).
9. If you want to connect to an ad-hoc connection, tap the This is
a device-to-device (ad-hoc) connection checkbox.
10. If authentication information is needed, from the Configure
Wireless Network screen, tap the Network Key tab.
Note:
To determine whether authentication information is needed, see
your network administrator.
11. To configure the type of network authentication to use, select:
a.
To use Shared Key authentication, t
ap the
Authentication (Shared mode) listbox. Type the
network key in the Network Key: box.
b.
To use data encryption, tap the
Data encryption (WEP
enabled) listbox.
c.
If a network key is provided by your network
automatically, tap the The Key is provided for me
automatically checkbox.
12. For increased security, tap the 802.1x tab and select the Use
IEEE802.1x network access control checkbox. You should only
check this option if it is supported by your network
environment. Ask your network administrator if you are unsure.
13. Select EAP type (PEAP or Smart Card/Certificate) from the
listbox.
14. Once you have completed entering the network settings, tap
OK twice to save your settings and exit this menu.
Searching for Networks to Access
Networks that you have already configured are preferred networks and
can be found on the i.roc x20 Wireless screen > Settings > Wireless
Networks list box. You can choose whether to connect only to
preferred networks or to have your ecom i.roc x20 search for and
connect to any available network (preferred or not).
1. From the i.roc x20 Wireless screen, tap Settings > Wireless tab.
2. In the Networks to access box, tap the type of network you
want to connect to (All Available, Only access points, or Only
computer-to-computer).
3. To connect only to networks that have already been
configured, clear the Automatically connect to non-preferred
networks checkbox.
Note:
If you check the Automatically connect to non-preferred
networks checkbox, your ecom i.roc x20 detects any new networks and
provides you the opportunity to configure them.
9.2 Managing Wireless Network Settings
In managing your wireless networks, sometimes it is necessary to
change network settings. In the next two sections, learn how to view,
edit, and delete available wireless network settings.
Viewing or Editing a Wireless Network
To view or edit an existing or available wireless network:
1. Be sure Wi-Fi is powered on.
2. From the i.roc x20 Wireless screen, tap Settings > Wireless tab.
3. In the Wireless networks box, tap the desired network name.
4. Edit the existing settings as necessary, and then tap OK to save
the changes.
Deleting a Wireless Network
You can delete networks you manually entered. However, if a network
was automatically detected, you will not be able to delete it.
To delete an existing or available wireless network:
1. Be sure Wi-Fi is powered on.
2. From the i.roc x20 Wireless screen, tap Settings > Wireless tab.
3. In the Wireless networks box, tap and hold the network you
want to delete.
4. Tap Remove Settings.
5.
9.3 Monitoring Signal Strength and Status
To view the signal strength between your ecom i.roc x20 and an access
point Wi-Fi connection:
1. Tap the Connections icon ( or ) in the Navigation bar.
2. When the Connectivity box displays, you will be able to view
the type of network the ecom i.roc x20 is connected to (for
example, Work or Internet) and an icon displaying the signal
strength.
Note:
The Signal Strength icon will not be displayed if a connection is
not present.
3. To make changes to the connection settings, tap Settings.
4. To exit the Connectivity box, tap the Hide button.
For more detailed information:
1. Tap Start > i.roc x20 Wireless.
2. Tap the Wi-Fi icon to turn Wi-Fi on.
3. Tap the Manager button.
4. If a wireless connection has been established, you can view
information on signal strength, SSID, Encryption Status, Access
Point, and IP Address.
5. To add a new wireless network, tap the Configure Wireless
Networks button.
6. For more detailed information on your connection status, tap
the Advanced tab.
9.4 Advanced Network Settings
Use the next few sections to learn how to set up and change network
configuration settings so your ecom i.roc x20 can communicate with
other networks.
9.5 Wi-Fi Terms
It is recommended that you become familiar with the following terms
as you begin to use Wi-Fi technology.
Term Definition
802.11 standard An approved standard specification of radio
technology from the Institute of Electrical
and Electronic Engineers (IEEE) used for
wireless local area networks (WLANs).
Device-to-computer or
ad-hoc
A mode that does not use access points. It
provides independent peer-to-peer
connectivity in a wireless LAN.
Domain Name System
(DNS)
The way that Internet domain names are
located and translated into IP addresses. It is
an easy to remember name for an Internet
address. Every website has its own specific IP
address on the Internet.
(Continued)
(Continued)
Term Definition
Encryption An alphanumeric (letters and/or numbers)
conversion process of data primarily used for
protection against any unauthorized person(s).
Hotspots Public or private areas where you can access Wi-Fi
service. These wireless connections can be
located, for example, at a library, cyber cafe,
hotel, airport lounge, or convention center. This
service can be free or sometimes requires a fee.
Infrastructure
Internet Protocol
(IP) Address
Media Access
Control (MAC)
Address
This connection mode uses wireless access points
to connect to networks.
A 128-bit number that identifies each sender or
receiver of information that is sent in packets
across the Internet. For example, when you
request an HTML page or send e-mail, the Internet
Protocol part of TCP/IP includes your IP address in
the message. In this example, this information
identifies your computer as the sender and/or
receiver of information.
A computer’s unique hardware number in a
network, which also can provide security for
wireless networks. When a network uses a MAC
table, only the 802.11 radios (wireless devices)
that have had their MAC addresses added to that
network’s MAC table can access the network.
(Continued)
Term Definition
Security Set Identifier
(SSID)
A sequence of 32 characters uniquely defining (naming)
a WLAN. Basically, each set of wireless devices
communicating with each other is called a basic service
set (BSS). Several BSSs can be joined to form one logical
WLAN, called an extended service set (ESS). An SSID is
the 1-32 alphanumeric, case-sensitive name given to
each ESS.
Wi-Fi Protected Access
(WPA)
The Wi-Fi encryption method that protects
unauthorized network access by utilizing a setup
password (for personal use) or by verifying network
users through a server (for enterprise use).
Windows Internet Naming
Service (WINS)
A way of managing the association of workstation
names and locations with IP addresses
Wired Equivalent Privacy
(WEP)
Basic wireless security provided by Wi-Fi. This security
uses an encryption key that automatically encrypts
outgoing wireless data. On the receiving side, the same
encryption key enables the computer to automatically
decrypt the information so it can be read.
Wireless Access Point
A wireless LAN transceiver or "base station" that can
connect a wired LAN to one or many wireless devices.
In addition, access points can also bridge to each other.
Wireless Fidelity (Wi-Fi)
A certification for wireless LAN products based on the
IEEE 802.11 standard.
Looking Up an IP Address
To find the IP address the wireless network is using:
1. Be sure Wi-Fi is powered on.
2. Connect to a network by tapping the Connections icon
( or )> Settings > Advanced tab > Select Networks
button.
If you have already connected to a network, skip to step 5.
3. Select the network name you want to use to either connect to
the Internet using an ISP or a Virtual Private Network (VPN) for
work. If you need to change or create a new network
management name, tap the Edit... or New... button. Tap OK
once you have completed this step.
4. From the Connections screen, set up your Dialing Rules and
Exceptions and press OK.
5. From the i.roc x20 Wireless screen, tap the Wi-Fi Settings
button > Network Adapters tab.
6. Tap the appropriate adapter to modify the settings. The IP
address appears in the IP Address box.
Changing TCP/IP Settings
Note:
Most Internet Service Providers (ISPs) and private networks now
use dynamically-assigned IP addresses. You will not need to change the
Transmission Control Protocol/Internet Protocol (TCP/IP) settings
unless your ISP or private network does not use dynamically-assigned
IP addresses. If you are not sure if your ISP or private network use
dynamically-assigned IP addresses, check with your network
administrator.
To change TCP/IP Settings:
1. Contact your ISP or network administrator to determine your IP
address, subnet mask, and/or default gateway (if needed).
2. Be sure Wi-Fi is powered on.
3. From the i.roc x20 Wireless screen, tap Settings > Network
Adapters tab.
4. In the My network card connects to... dropdown box, tap
either The Internet or Work.
Note:
If you are connecting to your ISP at home, tap The Internet. If you
are connecting to a private network, such as a corporate network at
work, tap Work.
5. In the Tap an adapter to modify settings box, tap ecom i.roc
x20 Wi-Fi Adapter.
6. Tap the IP Address tab.
7. Tap Use specific IP address and enter the requested
information.
8. Tap OK to save your settings.
Changing DNS and WINS Settings
Note:
Most Internet Service Providers (ISPs) and private networks now
use dynamically-assigned IP addresses. You will not need to change
Domain Name System (DNS) and Windows Internet Naming Service
(WINS) settings unless your ISP or private network does not use
dynamically-assigned IP addresses. If you are not sure, check with your
network administrator.
Servers that require an assigned IP address may also require a way to
map computer names to IP addresses. Your ecom i.roc x20 supports
two name resolution options:
DNS
WINS
To change server settings:
1. Contact your ISP or network administrator to determine which
name resolution to use, obtain the specific server address, and
determine whether alternate addresses are available.
Note:
An alternate address may enable you to connect when the
primary server is unavailable.
2. Be sure the Wi-Fi is on.
3. From the i.roc x20 Wireless screen, tap Settings > Network
Adapters tab.
4. In the My network card connects to... dropdown box, tap
either The Internet or Work.
Note:
If you are connecting to your ISP at home, tap The Internet. If you
are connecting to a private network such as a corporate network at
work, you should tap Work.
5. In the Tap an adapter to modify settings box, tap ecom i.roc
x20 Wi-Fi Adapter.
6. Tap the Name Servers tab and enter the requested
information.
7. Tap OK to save your settings.
Setting Up VPN Server Connections
A VPN connection enables you to securely connect to servers, such as a
corporate network, via the Internet. To set up a VPN server connection:
1. Contact your network administrator for your user name,
password, domain name, TCP/IP settings, and host name or IP
address of the VPN server.
2. Tap the Connections icon ( or )> Settings > Task tab
on the Connections screen.
3. Under My Work Network, tap Add a new VPN server
connection.
4. Follow the instructions on the Make New Connection screen.
Note:
For online Help for any screen in the New Connection wizard or
while changing settings, tap the ?.
Changing VPN Server Connections
1. Be sure Wi-Fi is powered on.
2. Tap the Connections icon ( or )> Settings > Task tab.
3. Under My Work Network, tap Manage existing connections >
VPN tab.
4. Tap the VPN connection you want to change, and then tap Edit.
5. In the Name box, enter new name for the connection (for
example, your company’s name).
6. In the Host name/IP box, enter the VPN server name or IP
address.
7. Next to VPN type, tap the type of authentication to use with
your device (IPSec/L2TP or PPTP). If you aren’t sure which
option to choose, ask your network administrator.
8. Tap Next.
9. If you selected IPSec/L2TP on the previous screen, tap the type
of authentication. If you select A pre-shared key, enter the key
provided by your network administrator, and then tap Next.
Note:
If you selected PPTP in the previous screen, this step is skipped.
10. Enter the user name, password, and domain name provided by
your network administrator.
Note:
If a domain name was not provided, you may be able to connect
without entering one.
11. To change advanced settings, tap the Advanced button.
Note:
You will not need to change advanced settings unless:
The server to which you are connecting does not use
dynamically-assigned IP addresses and you need to enter
your TCP/IP settings, or
You need to change server DNS or WINS settings.
12. Tap the Finish button to save the changes.
Starting VPN Server Connections
To start a connection through a VPN server, be sure Wi-Fi is powered
on and connected, then select the VPN network.
Setting Up Proxy Server Settings
If you are connected to your ISP or private network during
synchronization, your ecom i.roc x20 should download proper proxy
settings from your computer. If these settings are not on your
computer or need to be changed, you will need to set them up
manually. To set up proxy server settings:
1. Contact your ISP or network administrator for the proxy server
name, server type, port, type of Socks protocol used, and your
user name and password.
2. Be sure Wi-Fi is powered on.
3. Tap the Connections icon ( or ) > Settings > Task tab.
4. Under My Work Network, tap Edit my proxy server > Proxy
Settings tab.
5. Tap the This network connects to the Internet and This
network uses a proxy server to connect to the Internet
checkboxes.
6. In the Proxy server box, enter the proxy server name.
7. If you need to change port number or proxy server type
settings, tap the Advanced button and change the desired
settings.
8. Tap OK.
9.6 Wi-Fi Security Protocol Utilities
Your ecom i.roc x20 supports the IEEE 802.1X standard for wireless
encryption for customers whose network supports this feature.
Contact your company’s network administrator to set up the following
features.
802.1X Certificate Enroller
This utility allows you to request a user certificate from a certificate
server. Once the certificate has been received and stored on your ecom
i.roc x20, you can access the network using one of the 802.1X
protocols. Refer to “Manually Entering New Network Settings” earlier
in this chapter for information on selecting one of these protocols.
To retrieve a certificate:
1. Be sure your ecom i.roc x20 has an ActiveSync connection to a
computer on the same network as the certificate server.
2. Tap Start > Settings > System tab > Enroller.
3. Complete the on-screen certificate request form by entering
your name, password, and the server in which you want to
retrieve the certificate.
4. Tap the Retrieve Certificate button to download the certificate
from the server. The status box at the bottom of the screen will
indicate whether the attempt to retrieve the certificate was
successful.
Note:
The enrollment tool is specifically designed to interact with
Microsoft Certificate Servers. Alternate Certificate Authority servers
will require a custom enrollment application which can be developed
using the Embedded Visual C 4.0 tool and the Software Development
Kit for Windows Mobile 2003-based Pocket PCs.
LEAP Registration Utility
Cisco Lightweight Extensible Authentication Protocol (LEAP) is an
802.1X authentication protocol that uses a username and password
pair to authenticate access by a wireless client to a wireless router.
Use of the LEAP registration utility is required to log on to a LEAP-
authenticated network. Most of the other types of secure networks are
set up automatically by the ecom i.roc x20 Wi-Fi connection software.
However, accessing a LEAP-authenticated network requires initial
registration using this utility. Once you have authenticated and
accessed this type of network, a connection can take place
automatically whenever you access the LEAP-authenticated network.
To register the LEAP utility:
1. Tap Start > Settings > Connections tab > LEAP.
2. Tap New to create a LEAP profile. A LEAP profile must contain
the following information:
SSID
Username
Password
Domain
3. Tap Edit to make changes to the selected LEAP profile from the
Wireless LEAP list. Changes to the LEAP profile can also be
made by tapping on an entry in the Wireless LEAP list.
4. Tap Delete to delete the selected LEAP profile from the
Wireless LEAP list.
9
10
Using Bluetooth
Your i.roc x20 Pocket PC comes with built-in Bluetooth technology that
allows short-range connections and provides fast, reliable, and secure
wireless communication.
With Bluetooth powered on, you can send information or perform the
following tasks wirelessly between two Bluetooth devices, within a
range of approximately 30 feet (10 meters):
Exchange contacts, calendar items, and tasks
Send or exchange business cards
Transfer files
Synchronize with a computer through an ActiveSync
connection
Partner with a Bluetooth-enabled cell phone and use the cell
phone as a wireless modem
Connect to other Bluetooth devices (Virtual COM port)
Print to a Bluetooth printer
Create a personal area network (PAN) to chat, play games, etc.
Note:
Use of dial-up and wireless Internet, e-mail, corporate networks,
and other wireless communications, such as Bluetooth-enabled
devices, might require separately purchased additional hardware and
other compatible equipment, in addition to a standard Wi-Fi
infrastructure and a separately purchased service contract. Check with
your service provider for availability and coverage in your area. Not all
Web content may be available. Some Web content might require
installation of additional software.
10.1 Getting Acquainted with Bluetooth
Before you start using Bluetooth to establish wireless connections, take
a few minutes and familiarize yourself with:
Terms used in this chapter
Supported Services
Note:
For more detailed help, refer to the Help files installed on your
i.roc x20 Pocket PC. Tap Start > Programs > Help > Bluetooth.
Understanding Terms
The following Bluetooth terms are used throughout this chapter.
The Term... Means...
Authentication Verification of a numeric passkey before a
connection or activity can be completed
Authorization Approval of a connection or activity before it
can be completed
Bonding (Paired
devices)
Create a trusted connection between your
device and another. After a bond is created,
the two devices become paired. A paired
device does not require authentication or
authorization
Device address Unique electronic address of a Bluetooth
device
Device discovery Location and recognition of another Bluetooth
device
Device name Name that a Bluetooth device provides when
discovered by another device
Data Encryption A conversion process that is used for
protecting data
Link key Code used to securely pair devices
Passkey Code you enter to authenticate connections or
activities requested by other devices
Personal Information
Manager (PIM)
Collection of programs used to manage daily
business tasks (for example: Contacts,
Calendar, and Tasks)
Profiles Collection of Bluetooth settings
Service discovery Determination of which programs you have in
common with other devices
Supported Services
The functions that Bluetooth supports are called services. You can
communicate only with Bluetooth devices that support at least one of
the following services:
Basic Printer profile (BPP)
Dial-up Networking (DUN) profile
File Transfer Protocol (FTP)
Generic Access Profile (GAP)
LAN Access Profile (LAP)
Object Exchange (OBEX) Protocol
Object Push Protocol (OPP)
Personal Area Network (PAN) profile
Serial Port Profile (SPP)
ActiveSync—Uses SPP to connect to ActiveSync on a computer
10.2 Powering Bluetooth On or Off
To turn on Bluetooth:
1. From the Today screen, tap the i.roc x20 Wireless icon located
in the Navigation bar at the bottom of the screen.
2. On the i.roc x20 Wireless screen, tap the Bluetooth icon.
When Bluetooth is turned on, the Bluetooth LED on the front of your
Pocket PC flashes blue.
To turn off Bluetooth, tap the Bluetooth icon again. When Bluetooth is
turned off, the Bluetooth LED turns off and no incoming or outgoing
Bluetooth connections are possible.
Battery Saving Tip:
Turn Bluetooth off when you are not using it.
10.3 Working with Bluetooth Settings
From the tabs in Bluetooth Settings, you can:
Turn Bluetooth on and off
Enter or change your i.roc x20 Pocket PC Bluetooth name
Set your connection preferences
Enable Bluetooth services
Specify security settings
Define settings for sharing and connecting
Select a user profile
View software and port information
Opening Bluetooth Settings
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar.
2. On the i.roc x20 Wireless screen, tap Bluetooth > Settings
button.
Setting Accessibility Properties
Before your Pocket PC interacts with other Bluetooth devices, you need
to enter or change the accessibility properties to define how you want
your Pocket PC to interact.
To access the Accessibility screen:
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar.
2. On the i.roc x20 Wireless screen, tap Bluetooth > Settings >
Accessibility tab.
3. Highlight the name in the Name field and enter your new
Device ID name. The device name is what other devices see on
their screen when they locate your device.
4. Select Allow other devices to connect.
5. Select either All devices or Paired devices only.
CAUTION: Selecting All devices allows any device, even those unknown to you,
to connect to your Pocket PC. After they are connected, security settings for specific
services apply as specified in the Bluetooth Settings. Selecting Paired devices only
allows only devices that you trust to connect to your Pocket PC.
Note:
Paired devices share and exchange an internally generated secure
Link Key before connecting.
6. Select Other devices can discover me if you want to allow
other devices to search and locate your Pocket PC. Otherwise,
leave this box unchecked.
Note:
If another device has your device’s address and you have selected
Other devices can discover me, that device may be able to locate your
device even though you did not select for it to be discovered.
7. Tap OK to save your changes.
Enabling Bluetooth Services
You can use any of the following security options when transferring
files, creating a serial port connection, exchanging business card
information, configuring dial-up networking, and joining a personal
network.
Enable service
Authorization required
Authentication (Passkey) required (with or without encryption
required)
Automatically Enabling Service
To automatically enable service:
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar.

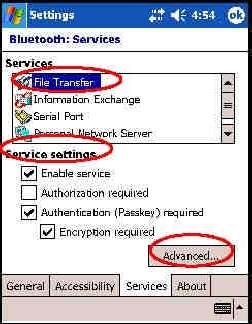

2. Tap Bluetooth > Settings > Services tab.
3. In the Services box, select the service you want to enable: File
Transfer, Information Exchange, Serial Port, Personal Network
Server, Hands free, or Dial-up Networking Server.
4. The Service settings automatically enable the service and
authentication settings. Tap on the appropriate checkbox to
change these settings to your preference.
5. Tap OK to return to the i.roc x20 Wireless Screen if you enabled
Personal Network Server or Dial-up Networking Server.
Note:
If you select Authorization required in the Service Settings, you
must authorize each connection. Your Pocket PC will then always ask
you if the connection should be permitted.

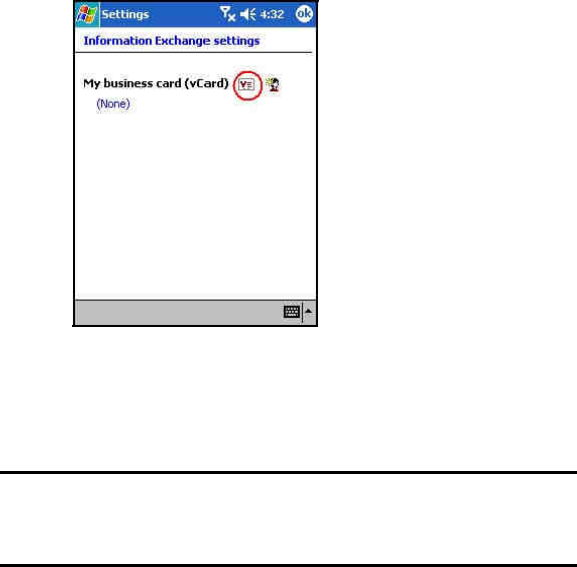

If you enabled File Transfer, Information Exchange, Serial Port, or
Hands free, tap the Advanced... button and follow the directions
below for the appropriate service setting.
File Transfer Advanced Settings
When you enable File Transfer, you need to set a shared folder from
which to transfer outgoing or in which to receive incoming files.
1. Tap the folder icon and locate a desired file folder.
2. Tap OK to save the settings and exit the screen.
3. Tap OK again to return to the i.roc x20 Wireless screen.
Information Exchange Advanced Settings
If you selected Information Exchange and tapped the Advanced button,
the following screen displays.
1. Tap the My business card (vCard) icon.
2. Select your business card information from the Contact
Information List and tap OK to save the settings.
3. Tap OK again to return to the i.roc x20 Wireless screen.
Note:
To create a new business card, tap the Contacts icon next to the
vCard icon and create a new business card. Tap OK when you are
finished.
Serial Port Advanced Settings
If you selected Serial Port and tapped on the Advanced button:
1. Change the Inbound COM Port and Outbound COM Port
numbers if they are incorrect.
2. Tap OK to save the settings and exit the screen.
3. Tap OK again to return to the i.roc x20 Wireless screen.
Hands Free Advanced Settings
If you selected Hands Free and tapped on the Advanced button: The
hands-free settings are automatically set.
1. Tap the checkboxes to select or deselect any settings.
2. Tap OK to save the settings and exit the screen.
3. Tap OK to return to the i.roc x20 Wireless screen.
Requiring Authorization to Access Services
If you elect to require authorization to access services, you must
authorize each connection. Your Pocket PC will then always ask you if
the connection should be permitted.
To require authorization to access services:
1. From the Today screen, tap i.roc x20 Wireless > Bluetooth >
Settings > Services tab.
2. Tap the tab for the service you want to enable: File Transfer,
Information Exchange, Serial Port, Dial-up Networking,
Personal Network Server, or Audio Gateway.
3. Select Authorization required.
4. Tap OK.
Requiring a Passkey or Bond
To establish a secure connection with another device, you can use the
passkey feature or an established bond. You can also add data
encryption to this type of security.
A passkey is a code you enter to authenticate connections requested
by other devices. The passkey must be known and used by both parties
or the connection will not be allowed.
To require a passkey or bond:
1. From the Today screen, tap i.roc x20 Wireless > Bluetooth >
Settings > Services tab.
2. Tap the tab for the service you want to enable: File Transfer,
Information Exchange, Serial Port, Personal Network Server,
Hands free, or Dial-up Networking Server.
3. Select Authentication (Passkey) required.
4. Select Encryption Required if you want to require all data
exchanged between the devices to be encrypted.
5. Tap OK.
Setting a Shared Folder
You can determine the folder that other devices access when they
connect to your Pocket PC.
To select a shared folder:
1. From the Today screen, tap the i.roc x20 Wireless icon >
Bluetooth > Settings > Services tab.
2. Under Services, tap File Transfer.
3. Under Service Settings, select your preferred settings.
4. Tap the Advanced tab.
5. Tap the Folder icon and locate a desired file folder.
6. Tap OK.
Understanding Profiles
Use profiles to quickly enable selected personal settings in multiple
environments.
Creating a Profile
To create a profile:
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar.
2. Tap Bluetooth > Settings > General tab > Profile icon.
3. Tap the New button.
4. Enter a descriptive name.
5. Select an existing profile to use as a template.
6. Tap OK.
Activating a Profile
When a new profile is created, you will need to activate it. To activate a
profile after creating it:
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar > Bluetooth > Settings.
2. From the General tab, select it from the Current Profile down
arrow list.
3. Tap OK.
Saving Bluetooth Configuration Settings in a Profile
To save the Pocket PC Bluetooth configuration settings to any profile:
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar > Bluetooth > Settings.
2. From the General tab, tap the Profile icon.
3. Select a profile from the Add/Delete Profiles list or create a
new one.
4. Tap OK.
5. Set up your Pocket PC. You should specify the desired
connection, sharing, and security settings in all Bluetooth
Services selections.
6. Tap OK to close Bluetooth Services. The changes are
automatically saved.
Renaming a Profile
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar > Bluetooth > Settings.
2. From the General tab, tap the Profile icon.
3. Select a profile from the Add/Delete Profiles list.
4. Tap the Rename button.
5. Enter a new descriptive name.
6. Tap Enter.
7. Tap OK.
Deleting a Profile
1. From the Today screen, tap the i.roc x20 Wireless icon >
Bluetooth > Settings.
2. From the General tab, tap the Profile icon.
3. Select a profile from the Add/Delete Profiles list.
4. Tap the Delete button.
5. Tap Yes to confirm you want to delete the profile.
6. Tap OK.
10.4 Working with Bluetooth Manager
Use Bluetooth Manager to:
Establish connections
Exchange business cards
Control the on-screen display
Display shortcuts
Opening Bluetooth Manager
From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar > Bluetooth > Manager.
The first screen that displays is My Shortcuts.
Locating and Selecting a Device
When you are required to locate a device and connect to it, the
Bluetooth browser searches for other Bluetooth devices.
Pairing Devices
You can pair devices so they must exchange a computer generated
security key prior to each connection. It is generated from a unique
Bluetooth device address, a random number, and a user-defined
password.
After two devices are paired, they have a trusted relationship with each
other. No additional input is needed from the user. Therefore,
connections and activities can be performed between the paired
devices without constant authorization from the user.
To pair devices:
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar > Bluetooth > Manager.
2. Tap Tools > Paired devices.
3. Tap Add.
4. Tap the Lookup icon.
5. Tap a device.
6. Enter a password in the Passkey field.
7. Tap OK.
8. Enter the same password into the other device.
Note:
Some devices, such as mobile phones, need to be placed in a
mode to accept a bond from another device. Refer to that device’s user
instructions for more information.
Unpairing Devices
You can remove a paired relationship between devices.
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar > Bluetooth > Manager.
2. Tap Tools > Paired devices.
3. Tap a device name.
4. Tap Remove.
5. Tap Yes to remove the pairing.
10.5 Connecting to Other Devices
Use ActiveSync, serial and dial-up connections to communicate with
other Bluetooth devices, establish a partnership with a cell phone, and
set up the Bluetooth services it offers.
Identifying the Communications Port
You can identify the virtual COM ports used to create a serial port
connection. You may need to identify these COM ports for activities
such as printing.
Use the inbound COM port when other devices initiate a serial
connection. Use the outbound COM port when you initiate a serial
connection to another device.
To identify the communications port:
1. From the Today screen, tap i.roc x20 Wireless > Bluetooth >
Settings > Services tab.
2. Under Services, tap Serial Port and tap the Advanced... button.
3. Note the names of your inbound and outbound COM ports.
4. Tap OK.
Establishing an ActiveSync Connection
You can set up an ActiveSync partnership with a Bluetooth-enabled
computer by first setting up your computer, then setting up your
Pocket PC.
To establish an ActiveSync partnership with your Bluetooth-enabled
computer, refer to the documentation that came with your computer.
To establish an ActiveSync connection on your Pocket PC:
1. From the Today screen, tap i.roc x20 Wireless > Bluetooth >
Manager.

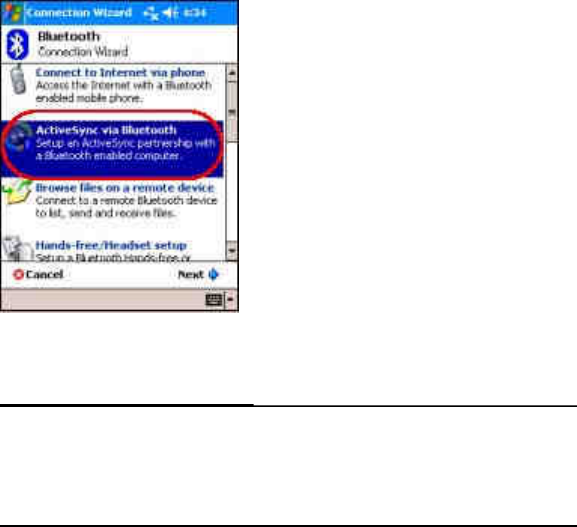

2. Tap New > ActiveSync via Bluetooth > Next.
3. Follow the connection wizard instructions.
Note:
Be sure the ActiveSync COM port setting on your Pocket PC is the
same as the COM port setting used for Bluetooth on your computer.
From the Bluetooth Browser screen, select the computer you want to
synchronize with. Tap Next.

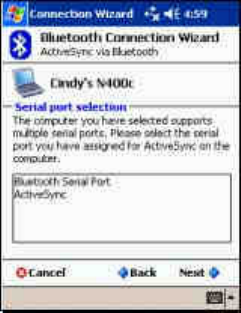

4. Under Serial Port Selection, select the name of the serial port
for the computer selected above, and then tap Next > Finish.
.
Establishing a Serial Connection
Use the wireless Bluetooth serial port connection just as you would a
physical serial cable connection. You must configure the application
that will use the connection to the correct serial port.
To establish a serial connection:
1. From the Today screen, tap the i.roc x20 Wireless icon >
Bluetooth > Manager.
2. Tap New > Explore a Bluetooth device > Next.
3. Follow the connection wizard instructions.
Dial-Up Networking
When you use dial-up networking (DUN), the remote device providing
the dial-up networking service and the remote computer to which you
are connecting must both have telephone access.
Devices that can provide dial-up networking include Bluetooth:
Mobile phones
Desktop computers
Modems
Using Dial-Up Networking
To connect to a device that provides modem access:
1. From the Today screen, tap i.roc x20 Wireless > Bluetooth >
Manager.
2. Tap New > Connect to a Network > Next.
3. Follow the connection wizard instructions.
Note:
After you create the dial-up networking shortcut with a device,
tap and hold the shortcut icon in the My Shortcuts tab of the
Bluetooth Manager, and tap Connect.
4. Tap New Connection.
5. Tap OK.
6. Enter a name in the Connection Name field.
7. Enter a phone number. You must sometimes enter the country
code and area code, depending on where you are calling.
8. Tap OK to begin dialing.
Note:
Some mobile phones require a bond between devices (see the
section “Pairing Devices”).
To connect to the Internet and use Pocket Internet Explorer, you must
first connect to a Bluetooth phone from Bluetooth Manager. To make
this connection the default dial-up connection for Pocket Internet
Explorer:
IMPORTANT: All Bluetooth default connections are made using the
following procedure. Default connections cannot be made through
Bluetooth Settings on the i.roc x20 Wireless screen.
1. From the Today screen, tap Start > Settings >
Connections tab.
2. Tap the Connections icon > Advanced tab.
3. Tap Select Networks.
4. Enable Bluetooth Settings from the dropdown list.
Note:
The Bluetooth modem connection you created can be viewed
only from the Bluetooth Settings on the Connections Task page.
Joining a Personal Area Network
Connect two or more Bluetooth devices to share files, collaborate or
play multiplayer games.
To establish a Personal Area Network connection:
1. From the Today screen, tap i.roc x20 Wireless > Bluetooth >
Manager.
2. Tap New > Join a personal network > Next.
3. Follow the Connection Wizard instructions.
10.6 Working with Files
You can exchange information with a connected device and use the
Bluetooth File Explorer to:
Navigate through the directories.
View files and folders.
Create new folders.
Send and receive files from a remote device.
Delete and rename files on a remote device.
Creating a File Transfer Connection
1. From the Today screen, tap i.roc x20 Wireless > Bluetooth >
Manager.
The first screen that displays is My Shortcuts.
2. Tap New > Browse files on a remote device > Next.
3. Follow the connection wizard instructions.
Note:
The remote device must have Bluetooth turned on and set up to
allow discovery before the connection can occur.
Sending Files
1. Tap and hold the file transfer shortcut icon, and tap Connect.
2. Tap File > Send a File…
3. Locate the file(s) to send.
4. Tap the file(s) to send it.
5. Tap OK.
Creating a Folder on a Remote Device
1. Tap and hold the file transfer shortcut icon, and tap Connect.
2. Navigate to the location you want for the new folder.
3. Tap File > Create a folder.
4. Enter a folder name while New Folder is selected, and tap
Enter.
5. Tap OK.
Receiving a File from a Remote Device
1. Tap and hold a file transfer shortcut icon, and tap Connect.
2. Navigate to the file location on the remote device.
3. Tap the file.
4. Tap File > Get.
5. Tap OK.
Deleting a File from a Remote Device
1. Tap and hold a file transfer shortcut icon, and tap Connect.
2. Navigate to the file location on the remote device.
3. Tap the file.
4. Tap File > Delete.
5. Tap Yes to verify you want to delete the selected file.
6. Tap OK.
Using Business Card Exchange
Using the business card exchange, you can:
Set up your own business card
Send a business card to one or more devices
Request a business card from one or more devices
Exchange business cards with one or more devices
You must establish a default contact name to send or exchange
business card information.
You must first specify your default business card on the Information
Exchange tab in Bluetooth Settings. This name becomes the default for
business card transfers.
Setting Up Your Business Card Information
To set up your business card information:
1. Create a contact in the Contacts program that includes your
name, title, and other relevant information.
2. From the Today screen, tap i.roc x20 Wireless > Bluetooth >
Settings > Services tab.
3. Under Services, select Information Exchange.
4. Tap the Advanced... button.
5. Tap the My business card (vCard) icon.
6. Choose your contact from the list.
7. Tap OK.
Sending Business Cards
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar > Bluetooth > Manager.
2. Tap Tools > Business Card Exchange.
3. Tap the Send icon.
4. Tap the device where you want to send your business card.
5. Tap OK.
Note:
Be sure the receiving device has been enabled to accept the
transfer.
Requesting Business Cards
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar > Bluetooth > Manager.
2. Tap Tools > Business Card Exchange.
3. Tap the Request icon.
4. Tap the device from which you want to request a business card.
5. Tap OK.
Exchanging Business Cards
You can exchange business card information with another device. If
available, the device’s information will be sent directly into your
Contacts list in Pocket Outlook.
To exchange business cards:
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar > Bluetooth > Manager.
2. Tap Tools > Business Card Exchange.
3. Tap the Exchange icon.
4. Tap the device with which you want to exchange your business
card.
5. Tap OK.
10.7 Opening a Connection
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar > Bluetooth > Manager.
2. Tap and hold the icon or list name, and then tap Connect.
3. Tap OK.
Viewing Connection Status
You can view:
Connection’s name
Device’s name
Connection status
Length of connection
Signal strength
To view the connection status:
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar > Bluetooth > Manager.
2. Tap and hold the connection icon or list name.
3. Tap Properties from the menu.
4. Tap OK.
Closing a Connection
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Command bar > Bluetooth > Manager.
2. Tap and hold the connection icon or list name.
3. Tap Disconnect from the menu.
4. Tap OK.
Working with Connections
You can create shortcuts to open and view status information for all
connections.
Creating a Shortcut
Creating a shortcut to one or more services does not establish a
connection. It only places a shortcut to that service on the Shortcut tab
of the Bluetooth Manager.
To create a shortcut:
1. From the Today screen, tap the i.roc x20 Wireless icon in the
Commnd bar > Bluetooth > Manager.
2. Tap New, and then a type of service, and tap Next.
3. Follow the connection wizard instructions.
Note:
Paired devices are designated by a checkmark.
Deleting a Shortcut
1. From the Today screen, tap the i.roc x20 Wireless icon >
Bluetooth > Manager.
2. Tap and hold the connection icon or list name to be deleted.
3. Tap Delete from the menu.
4. Tap Yes to verify the selected shortcut should be deleted.
5. Tap OK.
Viewing Shortcuts
You can view shortcuts as icons or in a list format.
1. From the Today screen, tap the i.roc x20 Wireless icon >
Bluetooth > Manager.
2. Tap View.
3. Tap List or Icon.
4. Tap OK.
11
Connecting to the Internet
Use your i.roc x20 Pocket PC to connect to the Internet or your Work
network.
To send and receive e-mail with Messaging and to view Web sites with
Pocket Internet Explorer, you must set up a remote connection with
devices such as a Secure Digital Input/Output (SDIO) modem card,
Ethernet card, or the wireless 802.11b internal radio. Another option is
to use a Bluetooth-enabled device such as a phone or LAN Access
point.
Note:
Use of dial-up and wireless Internet, e-mail, corporate networks,
and other wireless communications, such as Bluetooth-enabled
devices, might require additional hardware and other compatible
equipment that can be purchase separately, in addition to a standard
Wi-Fi infrastructure and a separately purchased service contract. Check
with your service provider for availability and coverage in your area.
Not all Web content may be available. Some Web content may require
installation of additional software.
Note:
For more information on this subject, refer to the Help file on
your i.roc x20 Pocket PC by tapping Start > Help > Connections.
11.1 Connecting to a Private Network
1. Before you start, be sure to have your server phone number,
user name, and password. This information can be obtained
from your network administrator.
2. Tap Start > Settings > Connections tab > Connections icon.
3. In My Work Network, follow the instructions for each type of
connection. For more information on Bluetooth connections,
refer to Chapter 9, “Using Bluetooth.” For more information on
Wi-Fi connections, refer to “Setting Up VPN Server
Connections” or “Setting Up Proxy Server Settings” in Chapter
8, “Using Wi-Fi.”
11.2 Entering an Internet Address
With Pocket Internet Explorer and a connection to the Internet, you
can view Web sites on your i.roc x20 Pocket PC by typing an address or
Uniform Resource Locator (URL) in the Address bar.
Note:
Web sites that use Hypertext Markup Language (HTML) 4.0,
Dynamic HTML (DHTML), animated Graphic Interchange Format (GIF)
images, and Java applets might not work correctly in Pocket Internet
Explorer without additional software.
To enter an Internet address (URL) on your i.roc x20 Pocket PC:
1. Tap Start > Internet Explorer > Address Bar.
Note:
If the Address Bar is not visible, tap the View tab > Address Bar to
turn it on.
2. Enter the Internet address (URL) into the Internet Explorer
Address bar.
3. Tap the Go icon.
This is the common way to access a Web site on the Internet.
11.3 Using a Favorites List
With Pocket Internet Explorer and a connection to the Internet, you
can view Web sites on your i.roc x20 Pocket PC by selecting one from
your Favorites list.
To select a Web site from your Favorites list:
1. Tap Start > Internet Explorer.
2. Tap the Favorites icon and the Web site you want to view.
12
RFx1x Software Package
12.1 Installation
The device is delivered with installed package.
Please do the following steps to install an update or reinstall the
package after uninstall.
Open “File Explorer”
Please copy the “RF x10 Software Package.ARMV4.CAB” from SD Card
to a temporary folder
Click on “RF x10 Software Package.ARMV4.CAB” file in the temporary
folder.
Please perform a soft reset.
RF x10 Configuration Tool
12.2 General
The RF x10 Configuration Tool is an application based on RF x10 API
which configures both scanner device and keyboard emulator
software.
The screenshots shows the main window before and after a
connection. After a successful connection to a scanner, the device
information will be shown in the main window.
12.3 Hardware
There is a “Hardware” menu for all hardware topics:
There are two entries inside this menu:
Settings
Configure Device
(deactivated if no device is online, it will be activated after a successful
connect)
Settings
Before the application can connect to a scanner device, the serial
communication port number be defined. The default value is 1 for com
port.
The device will be connected with 9600 baud.
After all settings are defined, the user is able to try the connection by
pressing the connect button from the main window. Pressing cancel
button discards modifications.
If debug info check box is checked, a log file will be created in My
Documents folder from pocket pc. This file will contain information
about the methods from RF x10 API used within Configuration Tool
application.
Configure Device
The “Configure Device” dialog contains tab pages grouping similar
options. It also contains three buttons: one for read the configuration
settings of the scanner device, one for write the configuration settings
of the scanner device and one to reset the configuration to the default
factory settings. After a read or a reset operation, the controls from
every page are updated to the corresponding values.
The first page refers to the operation mode of the device and the other
options linked to this operation mode:
In the combo box, you can specify the operation mode in which the
device should work.
There are three possibilities:
Read
Write
Buffered read (for future extension)
If you select read operation mode, there are also two possibilities for
configuring the device depending whether you check SNR option or
not. With this option checked, the device will read only the serial
number of a transponder coming inside scanner’s antenna range. If this
option is not checked, the user is able to specify the start block number
and the number of blocks to be read.
In write operation mode start address and number of blocks have the
same meaning like in read operation mode with SNR not checked. Data
that will be written to a transponder can be specified in the text box
below the “data to write” label.
The block size defines the size of a block from a transponder.
The second page specifies some of the options of the scanner device:
If AFI is activated, you can specify the AFI value through the numeric
up-down control. In AFI mode, only those transponders are read or
written to which AFI match the defined AFI.
If singleshot check box is checked the response will be in the single
shot, otherwise we will have a permanent output.
If the preload check box is checked, in case of a write command, data is
written to the next transponder, otherwise, data is written to the
transponder currently within antenna range.
If SNR checkbox is checked it means that serial number is transmitted
in telegram, otherwise serial number is not transmitted in telegram.
If anticollision check box is checked, it means that the anti-collision is
activated otherwise is deactivated.
If report mode check box is checked, the device works in report mode,
otherwise it works in online mode.
The third page referrers to the transponders type that are supported
by a scanner device:
The fourth page referrers to the
switching and trigger mode types:
This page is for internal purpose only.
If trigger check box is checked, the scanner will read a transponder only
if trigger condition is set, otherwise it reads always. If trigger is set, you
can select one of the four modes of trigger from the combo box below.
You can also specify the trigger period from the corresponding numeric
up-down control.
If switching output check box is set, it means that switching output is
switched automatically, otherwise switching output is not switched. If
switching output is set, you can select one of the four modes of
switching output from the combo box below. You can also specify the
switching output period from the corresponding numeric up-down
control.
12.4 Software
There will be a “Software” menu for all keyboard emulator topics. The
keyboard emulator is described in one of the following chapters.
13
Troubleshooting
Use the following suggestions to troubleshoot problems with the i.roc
x20 Pocket PC.
13.1 Common Problems
Problem Solution
I cannot see
anything on the
screen
Be sure the i.roc x20 Pocket PC is powered on
Reset the device by using the stylus to lightly press
the Reset button
Remove and replace the battery.
I cannot keep my
battery charged
Always keep the i.roc x20 Pocket PC connected to
the AC Adapter when you are not using it
In the backlight settings, adjust the bar to a lower
level to conserve more battery power.
Turn off Bluetooth and Wi-Fi when not in use.
Refer to Chapter 3, “Managing the Battery,” for
battery saving tips.
The backlight keeps
turning off
In Backlight Settings, increase the amount of time
Select the option to turn on the backlight when you
touch the screen or push a button.
(Continued)
Problem Solution
I want to travel with
my i.roc x20 Pocket
PC.
Back up your information. Refer to “Backing Up
Information” in Chapter 4 for more details.
Disconnect all external devices.
Take the AC Adapter and Charger Adapter with
you.
Keep your i.roc x20 Pocket PC in a protective
case and keep it in your carry-on luggage.
I want to travel
internationally with
my i.roc x20 Pocket
PC.
Be sure you have the plug adapter appropriate for the
country you are visiting.
I want to turn off
Bluetooth and Wi-Fi
for air travel
To turn off all wireless features, tap Start > i.roc
x20 Wireless, and then ALL OFF button at the
bottom of the screen.
I want to ship
my i.roc x20
Pocket PC to a
1.
Back up your information.
2. Disconnect all external devices.
repair facility.
3.
Pack your i.roc x20 Pocket PC and any
external devices requested by
Customer Support in protective
packaging. Include any additional
documentation or items as instructed
by Customer Support.
(Continued)
Problem Solution
I cannot connect to
a network.
Be sure Wi-Fi is turned on.
Be sure you have added the necessary server
information.
Be sure the network you are attempting to
connect to is not busy.
If you are using an SDIO Ethernet card, be sure the
proper drivers for your card are installed.
Be sure your user name and password are correct.
Tap Start > Settings > Connections tab >
Connections and check your connection settings.
Tap OK when you are finished to save your
changes.
Be sure the WEP key is correct.
Be sure the IP Address is correct.
Be sure the hardware you are using with your i.roc
x20 Pocket PC is properly configured and
operational.
Reset the device by using the stylus to lightly press
the Reset button.
I want to see the
current date
The current date is displayed at the top of the Today screen.
I cannot see all my
appointments.
Be sure the appointment you created is in the selected
category.
I cannot find the
document or
workbook I saved.
Pocket Word and Excel recognize and display documents in
only one folder below My Documents. For example, if you
created another folder in the Personal folder in My
Documents, the documents in that folder will not be shown.
To find your document or workbook, tap Start > Programs >
File Explorer. Open the folder you created, and then tap the
file in which you are looking.
13.2 ActiveSync
Use the following suggestions to troubleshoot problems with
ActiveSync on your i.roc x20 Pocket PC. For more detailed
information on Microsoft ActiveSync, refer to Chapter 2,
“Synchronizing with Your Computer.”
Problem Solution
My device is
always asking
me for a
password.
Tap Start > Settings > Personal tab > ecom ProtectTools to be
sure the password settings are configured as you want.
I cannot find
files sent to me
by another
device.
Check My Documents, which is the default save location used
to receive files.
Problem Solution
I cannot connect to
my computer using
the Desktop Cradle.
Be sure you have installed Microsoft ActiveSync
3.7.1 or higher on your host computer before
connecting your i.roc x20 Pocket PC to it.
Be sure your i.roc x20 Pocket PC is connected to
the Desktop Cradle, and that the cradle is
connected to your computer.
Be sure your i.roc x20 Pocket PC is securely seated
in the cradle and is making contact with the cradle
connector.
Be sure you are running Microsoft Windows 98SE,
Me, 2000, or XP on your computer.
Uninstall and reinstall ActiveSync.
If you are running personal firewall software, try
disabling it. If you are then able to synchronize,
contact the software vendor for information on
configuring the required exclusions to eliminate
this problem.
I connected my
i.roc x20 Pocket PC
before installing
Microsoft
ActiveSync.
1. Disconnect the i.roc x20 Pocket PC from your
computer.
2. In Windows 98 or 2000, click Start > Settings >
Control Panel > System. The Device Manager
opens automatically. Locate and select the
“unknown” USB device record and click Remove
(Uninstall in Windows 2000).
3. Restart your computer and allow it to detect the
USB device.
4. Install Microsoft ActiveSync 3.7.1 or higher.
5. Reconnect the i.roc x20 Pocket PC to the
computer.
(Continued)
(Continued)
Problem Solution
Microsoft
ActiveSync cannot
locate my i.roc x20
Pocket PC when I
synchronize.
Be sure the device is on.
Be sure all cables are securely connected.
Remove your i.roc x20 Pocket PC from the ecom
Desktop Cradle or disconnect it from the Autosync
Cable, power on the device by pressing the Power
button, then put it back in the synchronization
cradle or connect it to the cable.
Reset the device by using the stylus to lightly press
the Reset button.
Check Connection Settings in ActiveSync on your
computer to ensure the communications port you
are using is active.
I cannot open PC e-
mail in Messaging
after I restore using
Microsoft
ActiveSync.
Use Microsoft ActiveSync to synchronize your i.roc x20
Pocket PC with your computer. For more information, refer
to “Synchronizing Your Pocket PC with Your Computer” in
Chapter 2.
I tried to
synchronize a
workbook and the
file is unresolved in
Microsoft
ActiveSync.
Pocket Excel does not support all Excel formatting;
therefore, Microsoft ActiveSync cannot synchronize the file.
13.3 Wi-Fi
Use the following suggestions to troubleshoot problems with Wi-Fi
issues and your i.roc x20 Pocket PC. For more information on Wi-
Fi, refer to Chapter 8, “Using Wi-Fi.”
Problem Solution
I cannot connect
to an access
point.
Be sure the Wi-Fi is on.
Be sure the device identified the network you want to
connect to.
Be sure you provided any necessary authentication
keys if prompted by the system.
Be sure your i.roc x20 Pocket PC is within range of the
access point.
I am connected
to an access
point, but I
cannot browse
the Internet
If the wireless network you are connected to connects to Work,
the network may require a proxy. To set up the proxy:
1. Ask your network administrator for the proxy
settings.
2. Tap Start > Settings > Connections tab >
Connections icon > Set up my proxy server.
3. Refer to “Setting Up Proxy Server Settings” in Chapter
8 for more information.
I do not see my
wireless network
on my i.roc x20
Pocket PC.
Your wireless network could be a non-broadcasting network
1. Tap Start > Settings > Connections tab > Connections
icon > Settings.
2. Tap the Advanced tab > Select Networks.
3. Follow the instructions on the screen.
My data transfer
rate is too low
If Bluetooth is on, turn it off.
(Continued)
(Continued)
Problem Solution
I cannot connect
to an available
network that
shows in the list
of networks
without a name.
It is likely that the network is a “hidden” or non-SSID broadcast
network. You must know the network name (SSID) to be able to
connect.by the system.
1. Tap Start > Settings > Connections tab >
Connections > Advanced tab > Network Card.
2. Select Add New Settings.
3. Enter the network name (SSID).
4. Select the appropriate values in the Connects to: box.
5. If WEP settings are required, tap the Authentication
tab and enter them.
I cannot connect
reliably to an
available
network or
connections are
frequently
dropped.
Be sure there is ample signal strength available in the area.
13.4 Bluetooth
Use the following suggestions to troubleshoot problems with
Bluetooth on your i.roc x20 Pocket PC. For more information on
Bluetooth, refer to Chapter 9, “Using Bluetooth.”
Problem Solution
I cannot discover
another device.
Be sure Bluetooth is turned on.
Move closer to the device.
Be sure the device you are attempting to connect to
is on and allows access to being discovered by other
devices
I can see other
devices, but I
cannot connect
or exchange
data with them.
Be sure the other device has not restricted your
access.
Try initiating pairing from the other device. Some
Bluetooth-enabled device can only initiate pairing
and cannot respond to pairing requests from other
devices
Other devices
cannot find or
connect to my
device.
Be sure Bluetooth is turned on.
Move closer to the device.
Be sure you have not restricted other devices from
finding yours.
Check your Bluetooth settings to ensure you have
allowed your device to be discovered and others to
connect.
(Continued)
(Continued)
Problem Solution
Other devices do
not receive my
correct business
card information
Be sure you have correctly set up your business card
information in Bluetooth Settings.
Check Bluetooth Settings to be sure you have
restricted this function.
The i.roc x20
Pocket PC
cannot find my
Bluetooth-
enabled Mobile
phone.
Be sure your mobile phone is in discoverable mode.
Contact your mobile phone manufacturer and ask if
there is a firmware upgrade.
Check the settings on your phone to be sure it is set
up to allow other Bluetooth devices to discover and
connect to it.
14
Regulatory Notices
14.1 Federal Communications Commission
Notice
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
Consult the dealer or an experienced radio or television
technician for help
This PDA has been tested and demonstrated compliance when
Bluetooth and WLAN are transmitting simultaneously. This PDA must
not be co-located or operating in conjunction with any other antenna
or transmitter.
Modifications
The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly
approved by Ecom instruments GmbH Company may void the
authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables
with metallic RFI/EMI connector hoods in order to maintain
compliance with FCC Rules and Regulations.
Declaration of Conformity for products marked with the FCC logo—
United States only
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
For questions regarding your product, contact:
Ecom instruments GmbH
Industriestraße 2 , 97959 Assamstadt, Germany
Or, call +49 (0) 62 94 /42 24-0
For questions regarding this FCC declaration, contact:
Ecom instruments GmbH
Industriestraße 2 , 97959 Assamstadt, Germany
Or, call +49 (0) 62 94 /42 24-0
To identify this product, refer to the Part, Series, or Model number
found on the product.
14.2 Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
14.3 Japanese Notice
14.4 Korean Notice
14.5 European Union Regulatory Notice
This product complies with the following EU Directives:
Low Voltage Directive 73/23/EEC
EMC Directive 89/336/EEC
Note:
CE Compliance of this equipment is valid only if powered with an
ecom-provided and CE marked AC adapter.
If this product has telecommunication functionality, it also complies
with the essential requirements of:
■ R&TTE Directive 1999/5/EC.
Compliance with these directives implies conformity to harmonized
European standards (European Norms) which are listed on the EU
Declaration of Conformity issued by Ecom instruments GmbH for this
product or product family.
This compliance is indicated by the following conformity marking
placed on the product:
This marking is valid for non-Telecom products and EU harmonized
Telecom products (e.g., Bluetooth).
This marking is valid for EU non-harmonized Telecom products.
*Notified body number (used only if applicable—refer to the product
label).
The telecommunications functionality of this product may be used in
the following EU and EFTA countries:
Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Slovak Republic, Slovenia, Spain, Sweden,
Switzerland, and United Kingdom.
Notice for Use in France and Italy
Italy:
E'necessaria una concessione ministeriale anche per l'uso del prodotto.
Verifici per favore con il proprio distributore o direttamente presso la
Direzione Generale Pianificazione e Gestione Frequenze.
License required for use. Verify with your dealer or directly with
General Direction for Frequency Planning and Management (Direzione
Generale Pianificazione e Gestione Frequenze).
France:
L'utilisation de cet equipement (2.4GHz Wireless LAN) est soumise a
certaines restrictions: Cet equipement peut etre utilise a l'interieur
d'un batiment en utilisant toutes les frequences de 2400 a 2483.5MHz
(Chaine 1-13). Pour une utilisation en environement exterieur, vous
devez utiliser les frequences comprises entre 2454-2483.5MHz (Chaine
10-13). Pour les dernieres restrictions, voir http://www.art-telecom.fr.
For 2.4 GHz Wireless LAN operation of this product certain restrictions
apply: This product may be used indoors for the entire 2400-2483.5
MHz frequency band (channels 1-13). For outdoor use, only 2454-
2483.5 MHz frequency band (channels 10-13) may be used. For the
latest requirements, see
http://www.art-telecom.fr.
14.6 Battery Warning
WARNING: This computer contains a lithium ion rechargeable battery. To reduce
the risk of fire or burns, do not disassemble, crush, puncture, short external contacts,
or dispose of in fire or water. Replace only with the ecom spare.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
Because of the type of battery used in your i.roc x20 Pocket PC, follow local regulations
regarding the safe disposal of the battery. Your vendor can advise you on local
regulations, and/or the existence of any battery disposal programs in operation.
14.7 Equipment Warning
WARNING: To reduce the risk of personal injury, electrical shock, fire or damage
to the equipment:
Body-worn operations are restricted to belt-clips, holsters or similar accessories that
have no metallic component in the assembly
Plug the AC Adapter into an electrical outlet that is easily accessible at all times.
Disconnect power from the equipment by unplugging the AC Adapter from the
electrical outlet or unplugging the Synchronization cable from the host computer.
Do not place anything on the AC Adapter cord or any of the other cables. Arrange them
so that no one may accidentally step on or trip over them.
Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the
cord by the plug or, in the case of the AC Adapter, grasp the AC Adapter and pull out
from the electrical outlet.
Do not use converter kits sold for appliances to power your i.roc x20 Pocket PC.
14.8 Airline Travel Notice
Use of electronic equipment aboard commercial aircraft is at the
discretion of the airline.
14.9 Wireless Notices
In some environments, the use of wireless devices may be restricted.
Such restrictions may apply aboard airplanes, in hospitals, near
explosives, in hazardous locations, etc. If you are uncertain of the
policy that applies to the use of this device, please ask for authorization
to use it prior to turning it on.
U.S. Regulatory Wireless Notice
WARNING: Exposure to Radio Frequency Radiation The radiated output power
of this device is below the FCC radio frequency exposure limits. Nevertheless, the
device should be used in such a manner that the potential for human contact during
normal operation is minimized. To avoid the possibility of exceeding the FCC radio
frequency exposure limits, human proximity to the antenna should be minimized.
This PDA has been tested and demonstrated compliance when Bluetooth and WLAN
are transmitting simultaneously. This PDA must not be co-located or operating in
conjunction with any other antenna or transmitter.
Canadian Regulatory Wireless Notice
Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired
operation of the device.
Japanese Regulatory Wireless Notice
Brazilian Regulatory Wireless Notice
Este equipamento opera em caráter secundário, isto é, não tem direito
a proteção contra interferência prejudicial, mesmo de estações do
mesmo tipo, e não pode causar interferência a sistemas operando em
caráter primário.
15
Specifications
15.1 System Specifications
Note:
Not all models described are available in all regions.
For more information on specifications for your particular model, on
your i.roc x20 Pocket PC, tap Start > Settings > System tab > ecom
Asset Viewer.
System Feature Description
Processor 520 MHz Intel PXA 270 processor
RAM (Random 64-128 MB SDRAM (50-112 MB user available) Access
Memory)
i.roc x20 File Store 64-128 MB storage (20-80 MB user available)
(non-volatile
memory)
SD I/O slot SD/SDIO/MMC card support
CF slot Type II Compact Flash card support
Display 3.5 inch transflective type TFT color, QVGA, 64K-color
support, LED backlight with power save mode.
Audio Integrated microphone, speaker, 3.5 mm stereo
audio jack, MP3 stereo through audio jack
Infrared (IrDA IrDA, data transfer up to 4 Mb per second and SIR/FIR)
System
Feature Description
External
Power
10 watt maximum output AC Adapter
Bluetooth Class II device; typical 10 meters (30 feet) range
Indicators Radio LED indicator:
(Left LED) LED off = all radios are off
Blue blinking = one or more radios on
(Right LED)
Charge/Notification LED indicator:
4-mode alarm notification:
LED off = not charging and no notifications Amber flash =
charging Green flash = one or more notification events
have occurred
Amber solid = charging complete
Battery
4000mAh
15.2 Physical Specifications
Note:
Weight varies on different models.
US
Metric
Length
7.4 in 180 mm
Width
3.4 in 88 mm
Depth
.1,8 in 48 mm
15.3 Operating Environment
Environment
US Metric
Temperature Operating 32¡ to
104¡ F
-10¡ to
50¡ C
Nonoperating -4¡ to 140¡
F
-20¡ to
60¡ C
Relative
Humidity
Operating up to 90% up to
90%
Nonoperating above
90%
above
90%
Maximum
Altitude
Operating 15,000 ft 0-4572
m
Nonoperating 40,000 ft 0-12,192 m
