FileMaker® Server 16
Installation and Configuration Guide
© 2007–2017 FileMaker, Inc. All Rights Reserved.
FileMaker, Inc.
5201 Patrick Henry Drive
Santa Clara, California 95054
FileMaker, FileMaker Go, and the file folder logo are trademarks of FileMaker, Inc. registered in the U.S. and other countries.
FileMaker WebDirect and FileMaker Cloud are trademarks of FileMaker, Inc. All other trademarks are the property of their respective
owners.
FileMaker documentation is copyrighted. You are not authorized to make additional copies or distribute this documentation without written
permission from FileMaker. You may use this documentation solely with a valid licensed copy of FileMaker software.
All persons, companies, email addresses, and URLs listed in the examples are purely fictitious and any resemblance to existing persons,
companies, email addresses, or URLs is purely coincidental. Credits are listed in the Acknowledgments documents provided with this
software. Mention of third-party products and URLs is for informational purposes only and constitutes neither an endorsement nor a
recommendation. FileMaker, Inc. assumes no responsibility with regard to the performance of these products.
For more information, visit our website at http://www.filemaker.com.
Edition: 01
Contents
Chapter 1
Introduction 6
Requirements for Admin Console 6
Supported client applications 6
About the license key 7
Updating the FileMaker Server license key 7
Where to go from here 8
Chapter 2
Installation quick start 9
Before you begin 9
Considering performance 10
Installing FileMaker Server on a single machine 11
Next steps 17
Chapter 3
Deploying FileMaker Server across multiple machines 18
Master machine components 18
Worker machine components 19
Deployment options 19
Single-machine deployment 19
Multiple-machine deployment 20
Installing on multiple machines 21
Before you begin installing on multiple machines 21
Ports used by FileMaker Server 22
Installing on the master machine 23
Installing on a worker machine 23
Installation notes 28
Next steps 29
Chapter 4
Testing your deployment 30
Using the FileMaker Server Technology Tests page 30
Troubleshooting 32
Deployment assistant reports that the web server test failed 32
Deployment assistant doesn’t start after installation on the master 32
Deployment Assistant doesn’t start after installation on the worker 33
Admin Console doesn’t start after deployment on master machine 33
Cannot start Admin Console from a remote machine 33
Web browsers display a certificate message 33
Clients cannot see databases hosted by FileMaker Server 34
Apache web server used by FileMaker Server stops responding (macOS) 34
Contents 4
Chapter 5
Administering FileMaker Server 35
About FileMaker Server Admin Console 35
Using Admin Console to administer FileMaker Server 35
Starting Admin Console 36
Uploading databases 37
Encrypting databases 37
Encrypting databases in FileMaker Pro Advanced 38
Opening encrypted databases 38
Backing up databases 38
Scheduling database backups 39
Using progressive backup 39
Specifying backup locations 39
Creating a backup to a Windows ReFS volume 39
Verifying the integrity of databases 40
Hosting databases connected to ODBC data sources 40
Enabling ODBC data source single sign-on (Windows) 40
Running server-side scripts 41
System-level scripts 42
FileMaker scripts 42
Script sequences 42
Displaying server statistics 42
Sending messages to FileMaker clients 43
Viewing log file entries in Admin Console 43
Emailing notifications 43
Using the command line interface 44
Command line interface files 44
Command line interface commands 44
Chapter 6
Upgrading or moving an existing installation 46
Step 1. Save your schedules and administrator groups 46
Step 2. Note your FileMaker Server settings 47
Where to note settings for FileMaker Server 47
Step 3. Stop FileMaker Server 47
Step 4. Make a copy of databases, scripts, and plug-ins 47
FileMaker Server 14, 15, and 16 files (default installation) 48
FileMaker Server 14, 15, and 16 files (non-default installation in Windows) 48
Step 5. Uninstall FileMaker Server 48
Windows 48
macOS 49
Step 6. Clear the Java cache and web browser cache 49
Step 7. Install FileMaker Server 16 49
Step 8. Move files to the proper location 49
Step 9. Load your schedules and administrator groups 50
Step 10. Configure your deployment 50
Contents 5
Upgrading the operating system on machines running FileMaker Server 50
Applying security updates or minor operating system updates 50
Applying a major system update 51
Chapter 7
Setting up the web server 53
Requesting an SSL certificate 53
Enabling the IIS web server in Windows 54
Setting up authentication for FMWebSite in IIS 55
Using the Apache web server in macOS 57
Chapter 8
Optimizing your FileMaker Server deployment 58
Selecting the right hardware 58
Virtual servers 59
Setting up and configuring the operating system 59
Setting up and configuring Windows 60
Setting up and configuring macOS 61
Considering database performance 62
Monitoring FileMaker Server 62
Monitoring performance in Windows 62
Monitoring performance in macOS 63
Chapter 9
Using a standby server 64
Standby server requirements 64
Standby server procedures 65
Setting up a standby server 65
Switching the standby configuration roles 68
Using the standby server when the primary server fails 70
Setting primary and standby server host names 70
Disconnecting a standby server 70
Reconnecting a standby server 71
Updating files and folders on the standby server 72
Getting information about the standby configuration 73
Standby server performance considerations 74
Chapter 10
Additional resources 75
Product documentation 75
Customer support and Knowledge Base 75
Check for software updates 75
Index 76
Chapter 1
Introduction
FileMaker Server® is fast, reliable server software for safely sharing FileMaker information among
business teams on iOS, desktops, and the web. FileMaker Server is a dedicated database server
that hosts database files created using FileMaker Pro so that data can be shared and modified by
FileMaker Pro, FileMaker Go®, and FileMaker WebDirect™ clients, and by other client
applications supported by the FileMaker Server Web Publishing Engine.
Before you install, confirm that your machines meet the minimum requirements. See the
FileMaker Server system requirements.
Requirements for Admin Console
FileMaker Server Admin Console is a web-based application that lets you configure and
administer FileMaker Server. You can use Admin Console on machines that have network access
to FileMaker Server and a supported web browser.
Supported client applications
FileMaker Server supports the following client applications:
1FileMaker Pro 14, 15, and 16
1FileMaker Go 14, 15, and 16
1ODBC (Open Database Connectivity) and JDBC (Java Database Connectivity) client
applications using the FileMaker client drivers. The FileMaker ODBC and JDBC drivers are
available in the xDBC folder in the installation disk image and on the FileMaker downloads
page. See FileMaker ODBC and JDBC Guide and FileMaker Pro Help.
1Web browsers (or other applications) accessing data through the Web Publishing Engine
1Web services (or other applications) accessing data through the FileMaker Data API
Make sure users have applied the most recent update of their client software.
Chapter 1 | Introduction 7
FileMaker Server can host up to 125 databases at the same time for the following simultaneous
client connections:
Note Although FileMaker Server allows an unrestricted number of simultaneous connections for
some client types, most operating systems impose their own limits on the number of network
connections and open files that a process may use. This operating system limit sets the effective
limit on the number of simultaneous client connections.
About the license key
FileMaker software comes with a unique, 35-character license key. Do not lose this license key.
Keep the license key in a safe place in case the software ever needs to be reinstalled.
You received an email message with a link to your software download page. Your license key can
be found on that page.The license key is customized for your organization. When installing
software, enter the organization name exactly as it appears on the software download page.
The license key ensures adherence to the single user license agreement, which generally allows
for use of one (1) copy of the Software on one single-machine deployment or on one multiple-
machine deployment at a time (refer to your Software License). If the license key is invalid or if
another copy of the software installed with that same license key is running on the network, the
FileMaker Server software displays an error message.
You can choose to deploy FileMaker Server components across multiple machines that work
together to form a single FileMaker Server deployment. You must have a unique license key for
each deployment or obtain a volume license for more than one deployment. You must license one
copy of FileMaker Server for each deployment.
Updating the FileMaker Server license key
You can enter a new license key for FileMaker Server 16 on the same machine to do the following:
1upgrade from a trial version of FileMaker Server 16
1add support for more FileMaker Go, FileMaker WebDirect, and FileMaker Pro
User Connections clients
To change the FileMaker Server license key of an existing deployment:
1. From the FileMaker Server Admin Console, choose the General Settings > Server
Information tab. See “Starting Admin Console” on page 36.
2. Click Change License Key.
3. Enter the information required, then click Update.
Client Supported connections
FileMaker Pro with individual or volume license Unrestricted
Custom Web Publishing Unrestricted
ODBC and JDBC Unrestricted
FileMaker Go, FileMaker WebDirect, and
FileMaker Pro as clients with the
User Connections License
One connection to use for evaluation purposes
You can purchase additional User Connections client connections
to use in a production environment.
Chapter 1 | Introduction 8
Where to go from here
1To install on a single machine, see chapter 2, “Installation quick start.”
1To install using a multiple-machine deployment, see chapter 3, “Deploying FileMaker Server
across multiple machines.”
1To move from an existing installation of FileMaker Server, see chapter 6, “Upgrading or moving
an existing installation.”
Chapter 2
Installation quick start
This chapter explains how to install FileMaker Server on a single machine. To install on more than
one machine, see chapter 3, “Deploying FileMaker Server across multiple machines.”
Before you begin
Here is a list of things you must do before installing FileMakerServer:
1FileMaker Server requires a web server in all deployments. The web server serves web
publishing clients, hosts the web-based Admin Console application, and handles some data
transfer tasks. FileMaker Server requires that a port for web connections and a port for secure
web connections is available on the web server. The default ports are port 80 and 443, though
you may specify alternative ports during installation. These ports are used by FileMaker Server
even if web publishing is disabled. If the FileMaker Server installer detects existing websites
using these ports, the installer prompts you to either specify alternative ports or let it disable
those websites.
1Windows: The FileMaker Server installer enables the IIS web server if it isn’t already
enabled, then runs the Microsoft Application Request Routing (ARR) installer, creates its
own website in IIS, and configures the website to use the ports specified for web
connections.
1macOS: The web server included in macOS does not need to be enabled. If it is enabled,
ensure that no existing website uses port 80 or 443, or be prepared to specify alternative
ports during installation. The installer creates a separate web server instance and enables it
for FileMaker Server to use on these ports.
See chapter 7, “Setting up the web server.”
1If your server computer has a firewall, open the necessary ports in the firewall so that
FileMaker Server can communicate with administrators and clients:
1Web connections port: 80 by default, but you may specify a different port during installation.
This port is used by Admin Console and for web publishing (HTTP).
1Secure web connections port: 443 by default, but you may specify a different port during
installation. This port is used by Admin Console and for web publishing (HTTPS) if SSL
connections are used.
1Port 5003 for FileMaker clients.
1Port 16000 for server administrators using Admin Console.
1Port 2399 for ODBC and JDBC clients.
1Ports 1895, 3000, 5013, 5015, 8989, 8998, 9889, 9898, 16001, 16002, 16003, 16004,
16020, 16021, 50003, and 50004 must be available on the machine, but not open in the
firewall.
See “Ports used by FileMaker Server” on page 22.
1To upgrade from an earlier version of FileMaker Server, see chapter 6, “Upgrading or moving
an existing installation.”
Chapter 2 | Installation quick start 10
1Locate your license key. See “About the license key” on page 7.
1If you are currently running FileMaker Pro on the same machine, you must quit FileMaker Pro
before installing FileMaker Server.
Also keep in mind the following:
1Server security is important. Review the topic Securing your data in FileMaker Server Help and
the information in the FileMaker Security Guide.
1If the machine has antivirus software installed, you may need to disable or uninstall it before
running the FileMaker Server installer. Don’t enable antivirus software again until after the
Deployment assistant has finished.
Do not allow antivirus software to scan the folders that contain hosted database files or the
folders that contain files for container fields that store data externally.
1You cannot run two different versions of FileMaker Server on the same machine at the same
time.
1Because some DHCP servers cycle IP addresses, FileMaker, Inc., recommends using a static
IP address.
1macOS: Avoid using the macOS Server application to enable any HTTP services while running
FileMaker Server. HTTP services provided by macOS Server can interfere with
FileMaker Server. See “Using the Apache web server in macOS” on page 57.
Considering performance
For best performance, run FileMaker Server on a dedicated machine reserved for use as a
database server. When FileMaker Server is hosting many clients or a large number of database
files, it uses a high level of processor, hard disk, and network capacity. Other processor-intensive
software or heavy network traffic on the same machine will cause FileMaker Server to run more
slowly and degrade the performance for FileMaker clients.
To improve performance:
1Avoid installing FileMaker Server on a machine that is a user’s primary workstation.
1Avoid using the machine running FileMaker Server as an email, print, or network file server.
1Do not use system or third-party backup software to back up databases hosted by
FileMaker Server. Instead use FileMaker Server Admin Console to schedule backups of
databases. See “Backing up databases” on page 38.
1Disable screen savers and sleep (or hibernate and standby) mode on the server. These
features reduce performance or suspend access to hosted databases.
1Use a fast hard disk, multiple-disk RAID system, or reliable Storage Area Network (SAN) for the
hosted databases.
1Turn off operating system indexing services or any third-party file indexing software. These
features reduce performance.
See chapter 8, “Optimizing your FileMaker Server deployment.”
Chapter 2 | Installation quick start 11
Installing FileMaker Server on a single machine
1. Follow your electronic download instructions to download and open the installation disk image,
or insert your product DVD.
2. Windows: If you have Bonjour for Windows installed, make sure that it is running before you run
the FileMaker Server installer.
3. Double-click the installation icon.
1Windows: If a User Account Control alert appears, click Yes.
1macOS: If a security message appears, click Continue.
4. Windows: Select a language.
5. To continue with installation, click Next (Windows) or Continue (macOS).
6. Read the important information displayed. If there is a task you did not do, quit the installer and
do the task.
7. Review and accept the end user license agreement.
8. Select the installation destination.
Note In Windows, you can select a non-default location. See “Installation notes” on page 28.
9. Select FileMaker Server master.
FileMaker Server (macOS)Setup (Windows)
Chapter 2 | Installation quick start 12
10. Choose an option for the FileMaker Server user account (the account under which you want
to run FileMaker Server):
1To use the default account, select Local System (Windows) or fmserver (macOS).
1To use an existing account on this machine, select User Name, enter the account’s user
name and password. You may want to choose this option if you already have an account that
has privileges set as you want—for example, to access network-attached storage.
If the existing user account you specified does not have sufficient privileges for
FileMaker Server to run, the installer displays an error message. See “Installation notes” on
page 28.
11. Specify the ports that FileMaker Server should use for web connections and secure web
connections.
Windows: If the installer detects that the ports required for the web server are currently in use,
the installer prompts you to let it disable the website currently using those ports. To continue
installation, you must click Disable Websites. Or you can click Cancel, disable the website
manually, then run the installer again.
macOS: If the installer detects that the ports required for the web server are currently in use,
the installer lets you know which ports are in use. You can either make the ports available on
your system or choose different ports.
12. Enter the user name, organization, and license key information.
13. Click Install.
1Windows:
If you do not have the Microsoft Visual C++ 2015 Redistributable Package (x64) or a
minimum update of Java Runtime Environment version 8, the FileMaker Server installer
installs them. If you do not have the Microsoft Application Request Routing (ARR) extension
for IIS installed, the FileMaker Server installer installs it.
If you do not have Bonjour for Windows installed, you are prompted to allow the
FileMaker Server installer to install it. Follow the onscreen instructions.
See “Installation notes” on page 28.
Windows macOS
Chapter 2 | Installation quick start 13
1macOS:
Enter your macOS user name and password, then click Install Software.
If you do not have a minimum update of Java Runtime Environment version 8 installed, the
FileMaker Server installer installs it. If Bonjour is not running, you are prompted to run it. See
“Installation notes” on page 28.
FileMaker Server begins to install. This process may take several minutes.

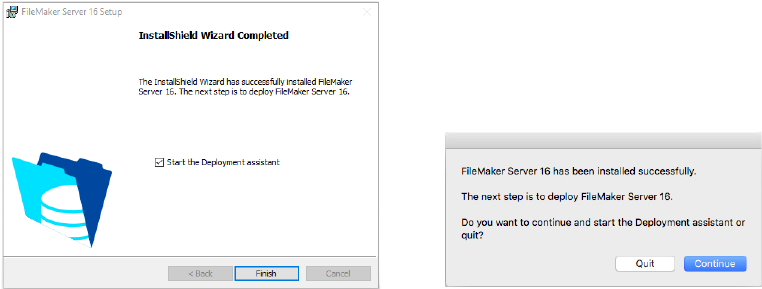

14. After the software has been successfully installed, start the Deployment assistant.
1Windows: In the last step of the installer, select Start the Deployment assistant, then click
Finish.
1macOS: Click Continue.
If necessary, see “Deployment assistant doesn’t start after installation on the master” on
page 32.
You can stop now and start the Deployment assistant later. To deploy FileMaker Server at a later
time:
1Windows: For Windows versions with the Start button, click the Start button > All
Programs > FileMaker Server > FMS 16 Admin Console. For Windows versions with the
Windows Start screen, click FMS 16 Admin Console.
1macOS: Double-click the FMS 16 Admin Console shortcut on the desktop.
1Enter http://localhost:16001/admin-console into a web browser.
The Deployment assistant opens in the web browser. It may take a few minutes for Admin
Console to start and the Deployment assistant to appear.
Note If Admin Console and the Deployment assistant do not start, see “Deployment assistant
doesn’t start after installation on the master” on page 32.
Chapter 2 | Installation quick start 14

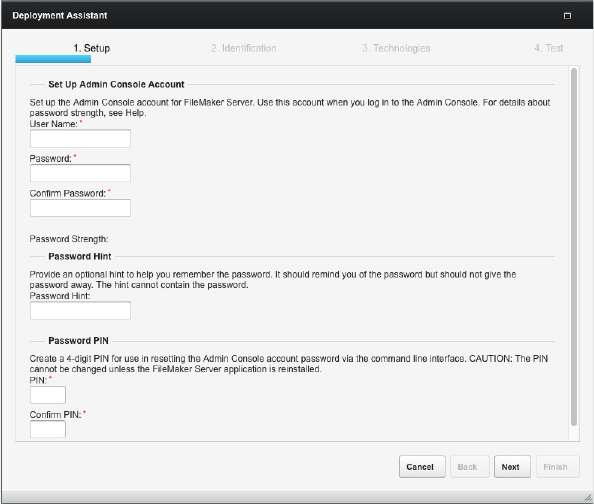

15. In the first step of the Deployment assistant, assign the user name and password you want to
use whenever you log in to Admin Console as the server administrator. The server
administrator is responsible for installing and configuring FileMaker Server as well as managing
the FileMaker Pro databases hosted on FileMaker Server.
Note User names are not case sensitive. Passwords are case sensitive.
Enter a password hint that will help you remember the password. The hint is displayed on the
Admin Console Login page after three failed attempts to enter the user name and password.
Enter a PIN value that can be used to reset the password using the command line interface
(CLI).
Chapter 2 | Installation quick start 15
16. Specify a name, description, and contact information for this deployment of FileMaker Server.
This information will appear on the FileMaker Server Admin Console Start Page. This
information will also be included in the email when the FileMaker Server sends out warning or
error notifications (see “Emailing notifications” on page 43).
Server Name is displayed to FileMaker Pro and FileMaker Go users in the Launch Center.
Chapter 2 | Installation quick start 16

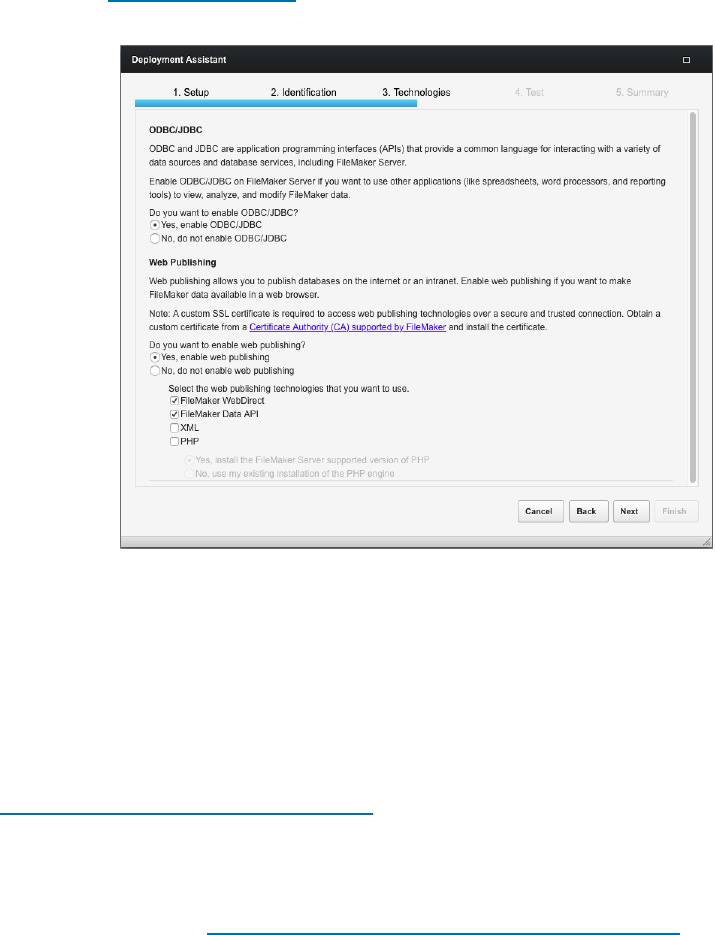

17. To enable a hosted FileMaker Pro file to be a data source via ODBC and JDBC, click Yes,
enable ODBC/JDBC.
Important This feature allows clients to use FileMaker files as data sources using ODBC and
JDBC. This feature is not needed to host FileMaker Pro databases that access ODBC data
sources. See FileMaker Pro Help.
18. To publish FileMaker data on the Internet or an intranet using FileMaker WebDirect, FileMaker
Data API, or Custom Web Publishing, click Yes, enable web publishing. If you are not
enabling web publishing, continue with step 21.
19. Select the web publishing technologies you want to use.
1If you enable the web publishing technologies, use SSL for database connections with a
custom SSL certificate installed.
1You can install the FileMaker Server supported version of the PHP engine (see the
FileMaker Server system requirements), or you can use your own PHP engine. If you already
have a PHP engine installed and choose to use the FileMaker Server supported PHP
engine, your currently installed PHP engine is disabled.
1If you use your own PHP engine, you must manually install the FileMaker API for PHP to use
PHP publishing. See FileMaker Server Custom Web Publishing Guide.
20. If web publishing is enabled and the Deployment assistant successfully communicates with
the web server, you see The web server test was successful.
If the Deployment assistant fails to communicate with the web server, see “Deployment assistant
reports that the web server test failed” on page 32.
21. A deployment summary appears. Click Next to deploy or click Back to change any of your
choices.
Chapter 2 | Installation quick start 17
22. FileMaker Server deployment may take a few minutes. When deployment completes, click
Finish to continue.
23. FileMaker Server Admin Console starts.
If you don’t see FileMaker Server Admin Console, open a web browser and enter:
http://localhost:16001/admin-console
24. In the FileMaker Server Status pane, note the IP address of the server.
Tip Write down the IP address so that you can start Admin Console from another computer, if
needed:
https://[host]:16000/admin-console
where [host] is the IP address of the server.
Next steps
Now that you have deployed FileMaker Server, get started using your new software.
1. Start Admin Console: See “Starting Admin Console” on page 36.

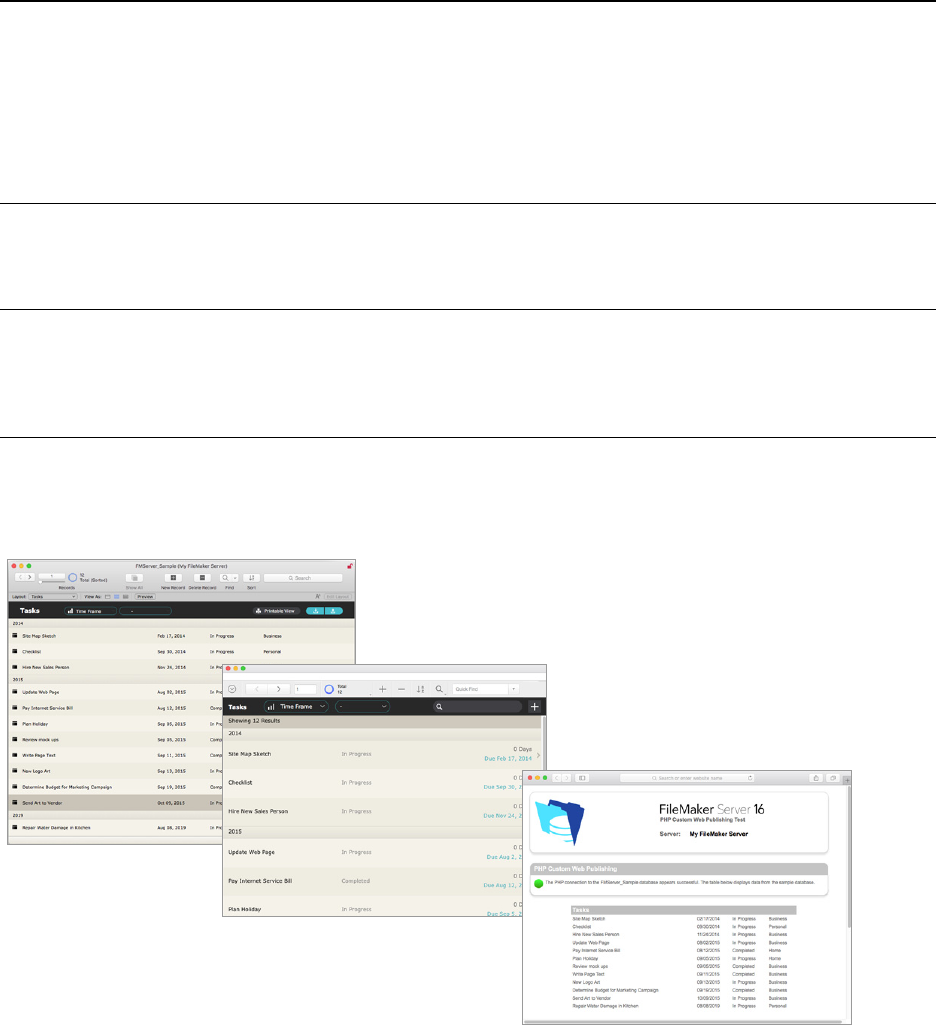

2. Test your installation: See chapter 4, “Testing your deployment.”
3. Register your software: See “Customer support and Knowledge Base” on page 75.
4. Administer FileMaker Server: See chapter 5, “Administering FileMaker Server.”
5. Upload databases: See “Uploading databases” on page 37.
Chapter 3
Deploying FileMaker Server across multiple
machines
FileMaker Server allows you to add worker machines in a multiple-machine deployment to
improve FileMaker WebDirect performance or to enhance the security of server components.
In many environments, a single-machine deployment provides sufficient performance for hosting
FileMaker WebDirect solutions. However, if your server regularly has close to 100
FileMaker WebDirect clients, then you can deploy FileMaker WebDirect worker machines to allow
additional clients to access FileMaker WebDirect solutions.
If you’re not hosting FileMaker WebDirect solutions, you don’t gain performance improvements
from a multiple-machine deployment. But with a multiple-machine deployment, you can place the
most sensitive data residing in the Database Server behind the firewall and give clients access to
worker machines placed in front of the firewall.
Master machine components
The diagram below shows the major components of FileMaker Server.
1Web Server: in Windows, FileMaker Server requires Internet Information Services (IIS), which
is enabled when you install FileMaker Server. In macOS, FileMaker Server uses its own
instance of the Apache web server, so you do not need to enable the Apache instance that is
installed as part of macOS.
1Web Publishing Engine: provides the Custom Web Publishing services and the
FileMaker WebDirect services for databases hosted by FileMaker Server.
1PHP Engine: for Custom Web Publishing with PHP, FileMaker Server requires a PHP engine
to respond to requests from the web server and to process PHP code. FileMaker Server
includes a PHP engine and the FileMaker API for PHP. When PHP code calls the FileMaker
API for PHP, those calls are interpreted and sent to the Web Publishing Engine.
1Database Server: hosts the databases that you share with FileMaker Pro and FileMaker Go
users and publish on the web. In a multiple-machine deployment, the machine running the
Database Server is called the master machine. See the description below.
1Admin Console: runs in a web browser on any client computer from which you want to
configure and administer FileMaker Server.
In a single-machine deployment of FileMaker Server, these components are installed on one
machine. In a multiple-machine deployment, these components are all installed on the master
machine.
Admin Console
Web Server
PHP Engine
Web Publishing
Engine Database Server
FileMaker Server components
Chapter 3 | Deploying FileMaker Server across multiple machines 19
Worker machine components
In a multiple-machine deployment, you deploy FileMaker WebDirect worker machines that include
only two components: a web server and the Web Publishing Engine.
The worker machine does not have an Admin Console. The master communicates with the worker
to configure the settings on all machines and monitor the status and activity of all components.
The Web Publishing Engine on a worker machine does not include Custom Web Publishing
services or the PHP engine; these components are on the master machine. However, a worker
machine can handle these requests from users because it provides routing services.
Important To enhance the security of your database solution, especially when it is available on
the Internet, use a firewall with your FileMaker Server deployment. Also use SSL for the web
server. See FileMaker Security Guide.
Deployment options
You can first deploy on one machine and then add worker machines to accommodate more
FileMaker WebDirect clients if the client load increases over time.
Single-machine deployment
You can deploy FileMaker Server on one machine in two ways: Database Server only or Database
Server and Web Publishing Engine. For information on installing FileMaker Server in a single-
machine configuration, see chapter 2, “Installation quick start.”

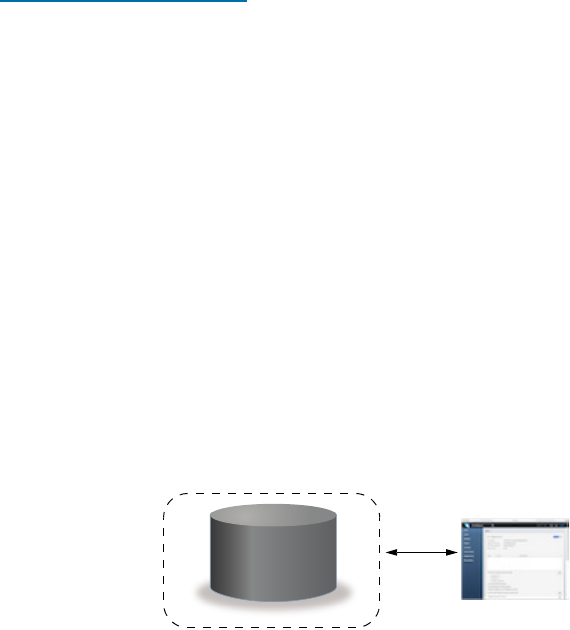

Database Server only
You can install FileMaker Server on one machine with web publishing disabled. With this type of
deployment, you can serve FileMaker Pro, FileMaker Go, and ODBC/JDBC clients but not
FileMaker WebDirect, FileMaker Data API, or Custom Web Publishing clients.
Benefits: This is the easiest deployment to set up and administer if you don't need web publishing.
Note Even when web publishing is disabled, FileMaker Server requires a web server to host the
web-based Admin Console application and to handle some data transfer tasks.
Database Server and Web Publishing Engine
You can install Database Server, the Web Publishing Engine, and all of the associated software
components on the same machine as the web server.
Database Server
Ports 80 and 443 must be open (or alternative ports specified during installation).
Ports 5003 and 16000 must be open.
Port 2399 must be open to support ODBC and JDBC clients.
Ports 1895, 5013, 16001, 16004, 50003, and 50004 must be available.
Admin Console
Chapter 3 | Deploying FileMaker Server across multiple machines 20
Benefits: This is the simplest deployment with web publishing and the one that most
FileMaker Server users will use. This configuration is suitable for small deployments (up to 50
FileMaker Pro and FileMaker Go clients combined) and limited web publishing.
Multiple-machine deployment
You can deploy FileMaker Server on a master machine and then deploy additional
FileMaker WebDirect worker machines as needed depending on the number of
FileMaker WebDirect clients you want to serve.
Benefits: Under normal circumstances, a single-machine deployment can only accommodate up
to 100 FileMaker WebDirect clients. Each worker machine can accommodate an additional 100
FileMaker WebDirect clients.
You can also enhance the security of your deployment by placing the master machine behind a
firewall and placing a worker machine in front of the firewall. When a worker machine receives
FileMaker Data API and Custom Web Publishing requests, they are proxied through the worker
machine to the master machine. FileMaker WebDirect requests are redirected based on the
number of worker machines installed.
Tip To best accommodate FileMaker WebDirect clients, consider the design of
FileMaker WebDirect solutions. See “Considering database performance” on page 62.
Ports 80 and 443 must be open (or alternative ports specified during installation).
Ports 5003 and 16000 must be open.
Port 2399 must be open to support ODBC and JDBC clients.
Ports 1895, 3000, 5013, 8998, 9889, 9898, 16001, 16002, 16003, 16004, 16020, 16021, 50003, and 50004 must be available.
Admin Console
Web Server
PHP Engine
Web Publishing
Engine Database Server
Web Server Module
Chapter 3 | Deploying FileMaker Server across multiple machines 21
Installing on multiple machines
For a multiple-machine deployment, you install FileMaker Server software on each machine.
Install the FileMaker Server software first on the master machine and then on the worker
machines. Then use the Deployment assistant on the worker machine to configure the SSL
certificate and to connect to a master machine.
Before you begin installing on multiple machines
1Ensure that no existing websites on the master or worker machines use port 80 or 443, or be
prepared to enter alternative ports. These ports are used by FileMaker Server on both
machines. If the FileMaker Server installer detects an existing website using these ports, the
installer prompts you to let it disable that website or to specify alternative ports.
1Windows: The FileMaker Server installer enables the IIS web server if it isn’t already
enabled, then runs the Microsoft Application Request Routing (ARR) installer, creates its
own website in IIS, and configures the website to use the ports specified for web
connections.
1macOS: The web server included in macOS does not need to be enabled. If it is enabled,
ensure that no existing website uses port 80 or 443, or be prepared to specify alternative
ports during installation. The installer creates a separate web server instance and enables it
for FileMaker Server to use on these ports.
See chapter 7, “Setting up the web server.”
1When you’re running FileMaker Server in an environment that uses a firewall, be sure to
configure the firewall on each machine to allow FileMaker Server to use ports as indicated in
“Ports used by FileMaker Server” on page 22. Restart each machine after configuring the
firewall.
Web Publishing
Engine
Ports 80 and 443 must be open (or alternative ports specified
during installation).
Ports 3000, 5013, 8989, 8998, 9889, 9898, 16002, 16003,
16020, and 16021 must be available.
Machine 2 (worker)
Web Server
Web Server Module
Ports 5003 and 16000 must
be open in the firewall.
Ports 80 and 443 must be open (or alternative ports specified during installation).
Ports 5003 and 16000 must be open.
Port 2399 must be open to support ODBC and JDBC clients.
Ports 1895, 3000, 5013, 8989, 8998, 9889, 9898, 16001, 16004, 16020, 16021, 50003,
and 50004 must be available.
Admin Console
Web Server
PHP Engine
Web Publishing
Engine Database Server
Web Server Module
Machine 1 (master)
Chapter 3 | Deploying FileMaker Server across multiple machines 22
1To upgrade from an earlier version of FileMaker Server, see chapter 6, “Upgrading or moving
an existing installation.”
1If you already have a single-machine deployment of FileMaker Server 16, you can add a worker
machine to your existing deployment. To add a worker machine, install FileMaker Server on the
worker (see “Installing on a worker machine” on page 23). Then in the Deployment assistant on
the worker machine, connect to the existing server, which becomes the master machine.
1Locate your license key. See “About the license key” on page 7.
1If you are currently running FileMaker Pro on the same machine, you must quit FileMaker Pro
before installing FileMaker Server.
Also keep in mind the following:
1If the machine has antivirus software installed, you may need to disable or uninstall it before
running the FileMaker Server installer. Don’t enable antivirus software again until after the
Deployment assistant has finished.
Do not allow antivirus software to scan the folders that contain hosted database files or the
folders that contain files for container fields that store data externally.
1You cannot run two different versions of FileMaker Server on the same machine at the same
time.
1Because some DHCP servers cycle IP addresses, FileMaker, Inc., recommends using a static
IP address.
1macOS: Avoid using the macOS Server application to enable any HTTP services while running
FileMaker Server. HTTP services provided by macOS Server may interfere with
FileMaker Server. See “Using the Apache web server in macOS” on page 57.
Ports used by FileMaker Server
When running FileMaker Server in an environment that uses a firewall, be sure to configure the
firewall on each machine to allow FileMaker Server to communicate. For a complete list of ports,
see the FileMaker Knowledge Base.
Note Not all of the ports listed need to be open to end users or between all machines or end
users indicated in the “Used by” column in a FileMaker Server deployment. Ports marked
“Available” are used locally on the machine indicated in the “Used by” column; these ports must
not be used for anything else but do not need to be opened in a firewall.
The following illustration shows the ports that must be open in a firewall in order for FileMaker
clients and Admin Console to communicate with FileMaker Server.
Chapter 3 | Deploying FileMaker Server across multiple machines 23
Installing on the master machine
Install FileMaker Server on the master machine first, then on the worker machines. The
instructions for installing on the master machine are the same as on a single machine. See
“Installing FileMaker Server on a single machine” on page 11.
Installing on a worker machine
After installing FileMaker Server on the master machine, install FileMaker Server on the worker
machines. A FileMaker Server deployment can have up to five worker machines. The following
process adds one worker machine to a master machine. Follow the same process for each worker
machine you want to add to your deployment.
Note If you set up a machine as a worker and want to change it to a master, uninstall and then
reinstall FileMaker Server.
1. Follow your electronic download instructions to download and open the installation disk image,
or insert your product DVD.
2. Windows: If you have Bonjour for Windows installed, make sure that it is running before you run
the FileMaker Server installer.
3. Double-click the installation icon.
1Windows: If a User Account Control alert appears, click Yes.
1macOS: If a security message appears, click Continue.
4. Windows: Select a language.
FileMaker Server Clients
FileMaker Pro
Master
machine
FileMaker Go
FileMaker WebDirect
Custom Web Publishing
80*, 443*, 5003
80*, 443*, 5003
ODBC/JDBC
80*, 443*
80*, 443*
2399
Ports that must be open to support client connections
Worker
machine
80*, 443*, 2399,
5003, 16000
80*, 443*, 16002,
16003
Admin Console
16000
* For ports 80 and 443, alternative ports may be specified during installation
FileMaker Data API
443*
FileMaker Server (macOS)Setup (Windows)
Chapter 3 | Deploying FileMaker Server across multiple machines 24
5. To continue with installation, click Next (Windows) or Continue (macOS).
6. Read the important information displayed. If there is a task you did not do, quit the installer and
do the task.
7. Review and accept the end user license agreement.
8. Select the installation destination.
Note In Windows, you can select a non-default location. See “Installation notes” on page 28.
9. Select FileMaker WebDirect worker.
10. Specify the ports that FileMaker Server should use for web connections and secure web
connections.
Windows: If the installer detects that the ports required for the web server are currently in use,
the installer prompts you to let it disable the website currently using those ports. To continue
installation, you must click Disable Websites. Or you can click Cancel, disable the website
manually, then run the installer again.
macOS: If the installer detects that the ports required for the web server are currently in use,
the installer lets you know which ports are in use. You can either make the ports available on
your system or choose different ports.
11. Click Install.
1Windows:
If you do not have the Microsoft Visual C++ 2015 Redistributable Package (x64) or a
minimum update of Java Runtime Environment version 8, the FileMaker Server installer
installs them. If you do not have the Microsoft Application Request Routing (ARR) extension
for IIS installed, the FileMaker Server installer installs it.
If you do not have Bonjour for Windows installed, you are prompted to allow the
FileMaker Server installer to install it. Follow the onscreen instructions.
See “Installation notes” on page 28.
1macOS:
If you do not have a minimum update of Java Runtime Environment version 8 installed, the
FileMaker Server installer installs it. If Bonjour is not running, you are prompted to run it.
For information about Java and Bonjour installation, see “Installation notes” on page 28.
FileMaker Server begins to install. This process may take several minutes.
Chapter 3 | Deploying FileMaker Server across multiple machines 25
12. After the software has been successfully installed, start the Deployment assistant.
1Windows: In the last step of the installer, select Start the Deployment assistant, then click
Finish.
1macOS: Click Continue.
If necessary, see “Deployment Assistant doesn’t start after installation on the worker” on
page 33.
You can stop now and start the Deployment assistant later. To deploy FileMaker Server at a
later time:
1Windows: For Windows versions with the Start button, click the Start button > All
Programs > FileMaker Server > FileMaker WebDirect Worker Deployment Assistant.
For Windows versions with the Windows Start screen, click FileMaker WebDirect Worker
Deployment Assistant.
1macOS: Double-click the FileMaker WebDirect Worker Deployment Assistant shortcut on
the desktop.
1Enter http://localhost:16003 into a web browser on the worker machine.
Chapter 3 | Deploying FileMaker Server across multiple machines 26
13. For Certificate Information, verify that a signed SSL certificate is installed or click Import
Certificate to install a signed SSL certificate.
If Issued To indicates “FMI Default Certificate,” then you are using the FileMaker default
certificate that does not verify the server name. This certificate is intended only for test
purposes. A custom SSL certificate is required for production use. See “Requesting an SSL
certificate” on page 53.
When you have a custom SSL certificate, click Import Certificate to install the custom SSL
certificate on the worker machine.
Chapter 3 | Deploying FileMaker Server across multiple machines 27
14. For Connection Setup, enter:
1the master machine’s host name or IP address. If you use a host name, it should be the fully
qualified host name specified in the custom SSL certificate installed on the master machine.
1the worker machine’s host name or IP address. If you use a host name, it should be the fully
qualified host name specified in the custom SSL certificate installed on the worker machine.
1the server administrator user name and password that you use to log in to Admin Console
on the master machine
Notes
1To change the host name on the master machine, disconnect all worker machines, redeploy
the master machine, then enter the new host name when you connect worker machines.
1To change the host name of a worker machine, remove it from the master machine, change
the host name, then reconnect it to the master machine.
1If a worker machine is connected to the master machine using an IP address, redirects to
the master machine will use an IP address. If a worker machine is connected to the master
machine using a fully qualified domain name, redirects to the master machine will use a fully
qualified domain name.
1Make sure you have completed the Deployment assistant steps for the master machine
before connecting a worker machine. Do not connect a worker machine to a master machine
that has been installed but not deployed.
15. Click Add to Master to connect the worker machine to the master machine. When you see a
message that the worker is successfully connected, the worker has been added to the master
machine. You can verify the connection in the Web Publishing Engine section of Admin
Console on the master machine.
Chapter 3 | Deploying FileMaker Server across multiple machines 28
Notes
1If you are using the FileMaker default certificate or a certificate that does not verify the
server’s host name, you may see an error message. To allow the unverified certificate, select
Connect using the unverified certificate and click Add to Master again.
1If you receive an error saying that the connection timed out, verify that the worker machine
has network access to the master machine.
Installation notes
1For information on the versions of supporting software that are required, see the
FileMaker Server system requirements.
1Windows: You can install FileMaker Server in a non-default location including a non-boot
volume, but not on remote network drives or external removable drives. You cannot install
FileMaker Server to a Windows Desktop path, for example [drive]:\Users\[user]\Desktop.
The path you specify replaces the beginning of the default installation path, \Program
Files\FileMaker\
FileMaker Server. For example, if you specify the My_Path installation folder, the Databases,
Scripts, and Extensions folders are installed as follows:
1\My_Path\Data\Databases
1\My_Path\Data\Scripts
1\My_Path\Database Server\Extensions
1macOS: Do not install FileMaker Server on a target volume that is formatted as a Mac OS
Extended (Journaled, Case-Sensitive) volume. This format is not supported. Format the volume
as Mac OS Extended or Mac OS Extended (Journaled) instead.
Chapter 3 | Deploying FileMaker Server across multiple machines 29
1During installation, if you specify a FileMaker Server user account other than the default, the
specified account must meet the following requirements:
1Windows: The account must be either a local user account or a Windows domain account.
The account must have the same privileges as the Windows system account for local file
access. If you set up additional database or container data folders on remote volumes, the
account must also have full permissions to access these remote folders.
1macOS: The account must be a local user account in macOS and have the same
permissions as the fmserver account for local file access (including membership in the
daemon group). The account must not be from a directory service (for example, Active
Directory or Open Directory). If you set up additional database or container data folders on
remote volumes, the account must also have full permissions to access these remote
folders.
1Bonjour installation:
1Windows: Bonjour is optional. If Bonjour is not installed, the server cannot be displayed to
FileMaker Pro or FileMaker Go users in the Launch Center.
1macOS: If Bonjour is not installed and enabled, then you cannot install FileMaker Server.
1FileMaker Server requires the 64-bit version of the Java Runtime Environment on master and
worker machines.
1Windows: FileMaker Server requires the Microsoft Application Request Routing (ARR)
extension for IIS.
1Windows: Do not uninstall the following while FileMaker Server is installed:
1IIS URL Rewrite Module
1Microsoft Application Request Routing
1Microsoft External Cache for IIS
1Microsoft Visual C++ 2015 Redistributable Package (x64)
Next steps
Now that you have deployed FileMaker Server, get started using your new software.
1. Start Admin Console: See “Starting Admin Console” on page 36.
2. Test your installation: See chapter 4, “Testing your deployment.”
3. Register your software: See “Customer support and Knowledge Base” on page 75.
4. Administer FileMaker Server: See chapter 5, “Administering FileMaker Server.”
5. Upload databases: See “Uploading databases” on page 37.
Chapter 4
Testing your deployment
Using the FileMaker Server Technology Tests page
The easiest way to test your FileMaker Server deployment is to use the FileMaker Server
Technology Tests page.
There are three ways to view the Test page:
1Start Admin Console. Choose Server menu > Open Test Page.
If you see a message that a pop-up was blocked, disable pop-up blocking for this website in
your web browser.
1Open the Test page by typing the following in a web browser:
https://[host]:16000/test
where [host] is the IP address or host name of the master machine.
1Open the Start page by typing the following in a web browser:
https://[host]:16000
Then click the FileMaker Server Technology Tests link under the Troubleshooting heading
on the Admin Console Start Page.
Note You can use the Technology Tests page without logging in to Admin Console.
FileMaker Server Technology Tests page
Chapter 4 | Testing your deployment 31
The tests on the FileMaker Server Technology Tests page access the sample database
(FMServer_Sample.fmp12) using FileMaker Pro or one of the web publishing technologies.
To test Do this
FileMaker Pro Click Test FileMaker Pro.
If FileMaker Pro starts and opens the sample database hosted on FileMaker Server, then the
Database Server is working and responding to requests from FileMaker Pro clients.
You must have FileMaker Pro or FileMaker Pro Advanced installed locally on the machine
where you are conducting the test.
To perform the same test another way, start FileMaker Pro on another machine, choose File
menu > Open Remote. In the Launch Center, click the Hosts tab and select the server you
want to test, and select FMServer_Sample.
FileMaker WebDirect Click Test FileMaker WebDirect.
If another web browser window or tab opens and displays the sample database, then
FileMaker WebDirect is working. If successful, this test shows that the Database Server, Web
Publishing Engine, and web server are working.
Custom Web
Publishing with PHP
Click Test PHP Custom Web Publishing.
If another web browser window or tab opens and displays a table containing data from the
sample database, then Custom Web Publishing with PHP is working. If successful, this test
shows that the Database Server, Web Publishing Engine, web server, PHP engine, and
FileMaker API for PHP are working.
FileMaker Pro
Custom Web Publishing with PHP
FileMaker WebDirect
Successful test pages
Chapter 4 | Testing your deployment 32
Troubleshooting
Deployment assistant reports that the web server test failed
If the Deployment assistant cannot communicate with the web server, you will receive an error
message.
To confirm web server settings:
1. In the Test step in the Deployment assistant, confirm the Protocol, Host address, and Port for
the web server and click Retry.
You may encounter this during initial deployment or when you click Server menu > Edit Server
Deployment.
2. Examine the Web Server Test Results.
1Successful: the result is Web Server Test Passed.
1Unsuccessful: the Deployment assistant could not communicate with the web server. Make
sure that you can access the web server using a web browser from the master machine. To
try to communicate with the web server again, click Retry.
1Still unsuccessful after retry: you can disable web publishing for now so that you can
complete the Deployment assistant. To disable web publishing, click Back until you reach
the Technologies step, then click No, do not enable web publishing.
Deployment assistant doesn’t start after installation on the master
If the Deployment assistant doesn’t start on the master machine after you run the
FileMaker Server installation program, the most common solutions are:
1On the master machine, start the Deployment assistant by double-clicking the
FMS Admin Console shortcut on the desktop or entering http://localhost:16001 in a
web browser.
1Windows: On the master machine, ensure that IIS is enabled (see chapter 7, “Enabling the IIS
web server in Windows”). In IIS Manager, check that the site named FMWebSite has started.
1If the Admin Server process does not respond within 60 seconds to the FileMaker Server
installation program, the following message appears:
The FileMaker Server Admin Console Start page is not available.
If you see this message:
1. Restart the Admin Server process by entering the following command in a command prompt
(Windows) or the Terminal application (macOS):
fmsadmin restart adminserver
2. In Windows, stop and then restart the FileMaker Server service in the Administrative
Tools > Services control panel.
3. If your server computer has a firewall, make sure all required ports are open in the firewall.
(See “Before you begin” on page 9.)
Chapter 4 | Testing your deployment 33
4. If your machine is running slowly, shut down any unnecessary applications.
5. Restart your machine. Open a web browser on the master machine and enter
http://localhost:16001.
Deployment Assistant doesn’t start after installation on the worker
If the Deployment assistant doesn’t start on the worker machine after you run the
FileMaker Server installation program:
1On the worker machine, start the Deployment assistant by double-clicking the FileMaker
WebDirect Worker Deployment Assistant shortcut on the desktop or entering
http://localhost:16003 in a web browser.
Admin Console doesn’t start after deployment on master machine
The most common solutions are:
1On the Admin Console Start Page, click Start Admin Console.
1Open a web browser on the master machine and enter http://localhost:16001.
Cannot start Admin Console from a remote machine
If you cannot start Admin Console from a remote machine but you can from the master machine,
the most common solutions are:
1Ensure that you’re using the correct port in the URL:
https://[host]:16000/admin-console
Admin Console always uses an HTTPS connection on port 16000 from remote machines. You
can also use http://[host]/admin-console, which works because it is redirected to
HTTPS on port 16000. See “Starting Admin Console” on page 36.
1If the master machine has a firewall enabled, open the ports required by FileMaker Server to
communicate with users and administrators. For open ports required by a single-machine
deployment, see “Before you begin” on page 9. Otherwise, see “Before you begin installing on
multiple machines” on page 21.
Web browsers display a certificate message
Most web browsers display a certificate error or warning message when you use an HTTPS
connection to go to any web page hosted by the FileMaker Server web server. This includes
Admin Console, the Start Page, and any FileMaker WebDirect or Custom Web Publishing solution
that uses an HTTPS connection. Displaying this message is expected behavior if your
FileMaker Server deployment uses the SSL certificate provided with FileMaker Server.
1To proceed to the desired page, users can click the option in the web browser to continue.
1To prevent this error message, see “Requesting an SSL certificate” on page 53.
Chapter 4 | Testing your deployment 34
Clients cannot see databases hosted by FileMaker Server
The firewall settings on the master machine may be blocking the display of databases to clients.
See “Before you begin” on page 9 and “Before you begin installing on multiple machines” on
page 21 for information on which ports need to be unblocked in firewalls.
Use FileMaker Pro 14, 15, or 16 and FileMaker Go 14, 15, or 16 to open files that are hosted by
FileMaker Server 16. Make sure users have applied the most recent update of their client
software.
Apache web server used by FileMaker Server stops responding (macOS)
Ensure that no other websites or HTTP services in macOS use the ports required by
FileMaker Server’s web server. For example, if you have the macOS Server application installed
and use it to enable HTTP services such as websites or a wiki, the existing Apache instance
installed in macOS may be reenabled after FileMaker Server is installed.
To ensure the Apache instance used by FileMaker Server works normally, you need to configure
any other HTTP services to use different ports from the ports that FileMaker Server uses, disable
other HTTP services, or uninstall the macOS Server application.
Chapter 5
Administering FileMaker Server
For detailed information about using Admin Console to administer FileMaker Pro databases and
clients that are connected to hosted databases, see FileMaker Server Help.
About FileMaker Server Admin Console
FileMaker Server Admin Console is a web-based application that lets you configure and
administer FileMaker Server, work with and monitor hosted databases and clients, and track
statistical information.
To administer FileMaker Server, use Admin Console on the computer where FileMaker Server is
running or on any computer that has network access to the master machine running
FileMaker Server. To secure remote administration, Admin Console uses Secure Sockets Layer
(SSL) technology to encrypt HTTPS connections from other computers.
Note If you click the Back, Forward, or Refresh (or Reload) button in your browser, Admin
Console exits and the Login page is displayed. Any unsaved changes in Admin Console are lost,
and you must log in again.
Using Admin Console to administer FileMaker Server
Admin Console supports many FileMaker Server administration tasks. You can:
1configure FileMaker Server application properties
1open—or host—a FileMaker Pro database file, making it available to clients on the network
1view information about the files being hosted, like the number of clients accessing each
database
FileMaker Server Admin Console
Navigation pane
Details pane
Help information
Toolbar Menu
Chapter 5 | Administering FileMaker Server 36
1view database statistics in a table or graph
1send messages to connected clients
1close a hosted FileMaker Pro database, making it unavailable to clients
1download a hosted FileMaker Pro database to your local system
1disconnect a selected client from all hosted databases
1pause or resume hosted databases
1create scheduled tasks to back up, verify, and clone hosted databases
1create scheduled tasks to run system scripts, FileMaker scripts, and script sequences that
contain both system scripts and FileMaker scripts
1start or stop the Database Server
1delegate database administration tasks to group administrators, use a Group Launch Center to
list the databases used by an administrator group
1start, stop, or remove a FileMaker WebDirect worker machine
1start or stop the Web Publishing Engine
1start or stop the FileMaker Data API Engine
1configure settings for ODBC and JDBC
1configure settings for FileMaker Data API
1configure settings for FileMaker WebDirect
1configure Custom Web Publishing settings for XML or PHP
See FileMaker Server Help.
Starting Admin Console
Note To use Admin Console, your remote computer needs only a supported web browser; no
additional runtime environments or browser plug-ins are required. See “Requirements for Admin
Console” on page 6.
To start Admin Console:
1. Open a web browser and enter:
https://[host]:16000
where [host] is the IP address or host name of the machine running FileMaker Server as a
master. This is the address you noted when you installed FileMaker Server.
2. Before the Admin Console Start Page appears, your web browser may require you to respond
to a security message. This is normal behavior for the certificate that is included with
FileMaker Server. Click the option to continue to go to the Start Page.
To prevent this message in the future, see “Requesting an SSL certificate” on page 53.
Tip Bookmark the Start Page in your web browser. Come back to this page to access
documentation and other resources.
3. Click Start Admin Console.
Chapter 5 | Administering FileMaker Server 37
4. On the Login page, enter the name and password that you chose in the Deployment assistant
when you initially deployed FileMaker Server. Click Log In.
Note If your web browser prompts you to save your user name and password, you should
decline unless you are sure that access to your web browser is secure.
Admin Console starts and displays the FileMaker Server Status pane. The following are
alternate ways to start Admin Console directly:
Uploading databases
FileMaker provides two ways to upload databases to FileMaker Server:
1In FileMaker Pro, use File menu > Sharing > Upload to FileMaker Server to transfer
FileMaker Pro databases from your computer’s file system to FileMaker Server if both
computers are on the same network. FileMaker Pro uploads database files along with any
externally stored container field objects. FileMaker Server copies the database files to the
specified database folder and sets file permissions and privileges so that you can access the
databases after they are uploaded.
1Manually upload database files to FileMaker Server. You must copy the database files and any
externally stored container field objects to the proper location. In macOS, change the files’
group ownership to belong to the fmsadmin group. See FileMaker Server Help.
Note If any of your databases require a plug-in, see FileMaker Server Help to manage plug-ins.
Encrypting databases
In FileMaker Pro Advanced, you can use the database encryption feature to encrypt the contents
of a database file. Encryption protects the FileMaker database file and any temporary files that are
written to disk. See FileMaker Pro Help.
When you use the database encryption feature, it encrypts the database content by combining the
database file’s encryption password and a randomly generated, universally unique identifier
(UUID), also known as a salt. This unique encryption password encrypts the data when it is stored
on disk so if someone steals a copy of the database, the database’s contents can’t be viewed.
To access Admin Console from Go to
Any computer with network access to the
master machine
https://[host]:16000/admin-console
http://[host]/admin-console (redirects to HTTPS)
Master machine only http://localhost:16001/admin-console
FMS Admin Console shortcut:
1Windows: For Windows versions with the Start button, click the
Start button > All Programs > FileMaker Server > FMS Admin
Console. For Windows versions with the Windows Start screen,
click FMS Admin Console.
1macOS: Double-click the FMS Admin Console shortcut on the
desktop.
Chapter 5 | Administering FileMaker Server 38
Encrypting databases in FileMaker Pro Advanced
In FileMaker Pro, you can restrict user actions while a database is open by setting the user’s
privileges in the file. To protect the database when it is stored on disk, use the database encryption
feature in Developer Utilities (FileMaker Pro Advanced). You can also decrypt or reencrypt a
FileMaker database file with Developer Utilities. See FileMaker Pro Help.
To host an encrypted database file on FileMaker Server for FileMaker clients, you can manually
upload the database to FileMaker Server or use the Upload to FileMaker Server menu command
in FileMaker Pro to transfer the file. In either case, you must open an encrypted database using
Admin Console or the fmsadmin command line interface (CLI). See FileMaker Server Help.
Opening encrypted databases
You can open an encrypted database that is hosted on FileMaker Server by using Admin Console
or a CLI command. When you open the encrypted file from Admin Console, the encryption
password dialog box displays and you must enter the password. Because you opened the
database, FileMaker clients don’t need the encryption password to access that database. See
FileMaker Server Help.
Note Use the list command to check whether a database is encrypted.
Backing up databases
FileMaker, Inc., recommends that you back up your hosted databases. FileMaker Server provides
two ways for you to perform database backups:
1Scheduled backups. With scheduled backups, you use the Schedule assistant to create a
scheduled task that defines which databases are backed up, and how often the databases are
backed up. Every time the scheduled task runs, FileMaker Server checks whether the selected
databases have changed since the last backup. FileMaker Server creates a full copy of the
databases that have changed and creates hard links to the backed up databases that have not
changed.
1Progressive backups. With progressive backups, FileMaker Server starts by creating a full
backup of all hosted databases. After the initial full backup is complete, FileMaker Server
subsequently copies just the changed blocks from the hosted file to the backup folder, on a
frequency based on what you specify for the save interval setting. Because the subsequent
progressive backup copies only the blocks that have changed during the save interval, the
progressive backup can run much more quickly than a scheduled backup, with less impact on
Server performance.
If your database uses container fields that store data externally, you can specify whether to back
up the container file folders. By default the container folders are not backed up. See
FileMaker Server Help.
You can use both scheduled backups and progressive backups to ensure a comprehensive
backup strategy for your hosted databases. When FileMaker Server backs up an encrypted
database, the backup is also encrypted.
Note If you use Time Machine in macOS, exclude FileMaker Server folder items from the Time
Machine backup. Use FileMaker Server Admin Console to back up your database files.
Chapter 5 | Administering FileMaker Server 39
Scheduling database backups
Use the FileMaker Server Schedule assistant to create a scheduled task to:
1back up all hosted databases
1back up hosted databases that are in a specified folder
1back up a specified database
To create a scheduled task for backing up databases, choose the Admin Console Schedules
pane, click , and choose Create a Schedule. Then, choose Back up databases, and specify
whether you want to back up hourly, daily, weekly, or on a custom schedule. You can also select
the maximum number of database backups you want to keep for a scheduled backup.
Database backups are saved in the default backup folder or in a folder that you specify. You can
specify the default backup folder on the Admin Console Database Server > Folders tab.
Note If you are backing up a database to a volume that supports Windows ReFS, see “Creating
a backup to a Windows ReFS volume” on page 39.
When FileMaker Server backs up a database, it copies the database while it is active. Users can
continue to make modifications. When the copy is complete, the database is paused to
synchronize backup files with the current database and then the database is resumed. You can
set options to verify the backup, save a clone of the database without the data, and send email
notifications to clients.
Using progressive backup
To enable progressive backup and specify the folder for progressive backup files, choose the
Admin Console Database Server > Folders tab. For Progressive Backup Folder, select Enable
progressive backups. Enter the number of minutes for Save interval, and enter the location of
the progressive backup folder.
Specifying backup locations
Although you can specify remote volumes for the additional database folders and the container
folders, you can’t specify a backup folder on a remote volume for a scheduled backup or a
progressive backup. The backup locations must be on a drive connected directly to the master
machine running FileMaker Server.
After the backup files are created, you can copy the backup files to a remote volume.
Creating a backup to a Windows ReFS volume
FileMaker Server can make full backups on any local volume that supports Windows Resilient File
System (ReFS); however, the backup process may take more time and require more disk space.
Note Creating backups on remote volumes, including remote ReFS volumes, is not supported.
The ReFS volume must be a local volume. See FileMaker Server Help.
Chapter 5 | Administering FileMaker Server 40
When backing up a database, FileMaker Server checks if the backup volume uses ReFS. If the
file is not being backed up to a ReFS volume, FileMaker Server checks if the selected databases
have changed since the last time that scheduled backup ran. For each scheduled backup task,
FileMaker Server creates a full copy of the databases that have changed and creates hard links
to the backed up databases without any changes.
Because ReFS doesn’t support hard links, FileMaker Server must create a full backup even if the
hosted database file is identical to the most recent backup file.
Verifying the integrity of databases
Use the FileMaker Server Schedule assistant to create a scheduled task to:
1verify all hosted databases
1verify hosted databases that are in a specified folder
1verify a specified database
To create a scheduled task for backing up databases, choose the Admin Console Schedules
pane, click , and choose Create a Schedule. Then, choose Verify databases, and specify how
often you want to verify the databases.
Hosting databases connected to ODBC data sources
FileMaker Server can host FileMaker Pro databases that are connected to external SQL data
sources. In FileMaker Pro, you can work with the ODBC data in much the same way that you work
with data in a FileMaker file. For example, you can add, change, delete, and search external data
interactively.
See FileMaker Server Help for information on using ODBC and JDBC with FileMaker Server and
accessing external ODBC data sources.
Note You do not need to enable the OBDC/JDBC data source feature of FileMaker Server to
host FileMaker Pro databases that access an external SQL data source via ODBC.
Enabling ODBC data source single sign-on (Windows)
If you work with FileMaker Pro databases hosted by FileMaker Server that access ODBC data
from Microsoft SQL Server, you can configure the master machine to enable single sign-on (SSO).
ODBC data source single sign-on allows FileMaker Pro clients to use their Windows-
authenticated login credentials and permissions to access Microsoft SQL Server without logging
in.
To enable ODBC data source single sign-on with FileMaker Server, you must configure the
FileMaker Server service on the master machine to log in using the privileged user account. That
is, this user account must have the Impersonate a client after authentication privilege enabled,
and the account must be an Administrator account and configured in Windows Active Directory on
the network.
Chapter 5 | Administering FileMaker Server 41
Important Before you can enable ODBC data source single sign-on, your Windows domain
administrator must:
1Configure the Account is trusted for delegation security setting for each user’s Windows
user account.
1Configure the Trust this user for delegation and Use Kerberos only security settings for the
privileged user account on the master machine.
1Enable the Impersonate a client after authentication privilege for the privileged user account
on the master machine.
1Configure the ODBC DSN to use Windows authentication on the master machine.
1Configure Microsoft SQL Server to use Windows authentication.
To enable ODBC data source single sign-on on the master machine:
1. Open Control Panel > Administrative Tools > Services > FileMaker Server, then choose
Action > Properties.
2. On the Log On tab, choose This account.
3. For This account, enter the privileged user account on the master machine, then click OK.
4. Open Control Panel > Administrative Tools > Local Security Policy > Local Policies >
User Rights Assignments > Act as part of the operation system.
5. On the Local Security Setting tab, click Add User or Group, then enter the privileged user
account you specified earlier for This account.
6. Click OK, then restart the FileMaker Server service.
Important You must also enable ODBC data source single sign-on in the FileMaker Pro
databases hosted by FileMaker Server. See FileMaker Pro Help.
Running server-side scripts
You can create scheduled tasks to run:
1system-level scripts—for example, Windows batch, Perl, VBScript, and AppleScript
1FileMaker scripts in databases hosted by FileMaker Server
1script sequences that combine a FileMaker script with an optional pre-processing system-level
script and an optional post-processing system-level script
To create a scheduled task for scripts, choose the Admin Console Schedules pane, click , and
choose Create a Schedule. Then, choose System-level script, FileMaker script, or Script
sequence. The Schedule assistant guides you through the rest of the process.
Chapter 5 | Administering FileMaker Server 42
System-level scripts
Script files must be placed in the Scripts folder on the master machine in your FileMaker Server
deployment. To schedule a system-level script to run, start the Schedule assistant as described
above by choosing System-level Script. Next, select the script file you want to run.
System-level scripts can perform whatever tasks you need to perform at the operating system
level on the master machine.
See FileMaker Server Help.
FileMaker scripts
To schedule a FileMaker script to run, start the Schedule assistant as described above by
choosing FileMaker script. Next, select the database that contains the script you want to run, then
the script.
FileMaker scripts can do simple tasks or complex tasks. For example, you can write a FileMaker
script to remove duplicate records or to validate the format of phone numbers. You can schedule
these scripts to run during off hours, perhaps before a daily backup.
Scripts can incorporate conditional decisions (if-else statements) and perform repetitive tasks
(loop statements). You use the Script Workspace feature in FileMaker Pro to build scripts by
selecting from a list of supported FileMaker Pro commands, called script steps, and specifying
options (if necessary).
To find out if a FileMaker script step is supported from a FileMaker Server schedule, select Server
for Show Compatibility in the Script Workspace. See the script step reference in FileMaker Pro
Help.
See FileMaker Server Help.
Script sequences
To create a script sequence, start the Schedule assistant as described above by choosing Script
sequence. Next, select the database that contains the FileMaker script you want to run, then the
script. Next, select an optional pre-processing system-level script, an optional post-processing
system-level script, or both.
See FileMaker Server Help.
Displaying server statistics
You can view a summary of connection statistics and database statistics attributes for
FileMaker Server by choosing Statistics > Server tab. The statistics can help you diagnose
performance and client access issues, and prevent certain processes on FileMaker Server from
running slowly.
You can view the following information:
1Server statistics in the Statistics > Server tab. You can view the statistics in a table and graph
format. The types of information you can view include the percentage of times FileMaker Server
retrieved data from the cache (RAM) rather than the hard disk, percentage of cache unsaved,
the amount of data read from disk, data written to disk, and client call times.
1Client connection information in the Statistics > Clients tab. These statistics are collected
during remote calls made by each FileMaker client, all Web Publishing Engine (WPC) clients,
and all ODBC and JDBC clients.
See FileMaker Server Help.
Chapter 5 | Administering FileMaker Server 43
Sending messages to FileMaker clients
You can send messages to notify FileMaker Pro, FileMaker Go, and FileMaker WebDirect clients
about important events such as server shutdowns, database maintenance, or deadline reminders.
You can send messages to:
1all FileMaker clients or selected FileMaker clients connected to hosted databases
1FileMaker clients connected to any database or selected databases hosted by
FileMaker Server
1FileMaker clients as a scheduled task
To send messages to FileMaker clients, choose the Admin Console Activity > Clients tab, then
select one or more clients from the list. Click , then choose Send Message or Send Message
to All Clients to enter the message.
To send messages to FileMaker clients connected to selected databases, choose the Admin
Console Activity > Databases tab and select a folder or database file. Click , then choose
Send Message (for database files only) or Send Message to All Clients to enter the message.
To create a scheduled task for sending messages, choose the Admin Console Schedules pane,
click , and choose Create a Schedule. Then select Send message, choose databases whose
users will receive the message, create the message, and set up a schedule to deliver it.
Viewing log file entries in Admin Console
FileMaker Server tracks activity, client access, and other information as it operates and stores this
information in log files.
1To view, sort, filter, and export a snapshot of the log file entries, choose the Admin Console Log
Viewer pane, select one or more log file modules for Modules, and select a date range for Start
and End.
1To filter the log file entries displayed in the Log Viewer pane, select a message type (All, Error,
Warning, or Information) for Type.
1To view the most recently logged events, click Refresh.
See FileMaker Server Help.
Emailing notifications
You can configure FileMaker Server to send SMTP email notifications about errors and warnings
as well as completion of scheduled tasks. Emails allow for more timely notification of these events,
without having to locate the information in system or event logs on the computer running
FileMaker Server.
You can send emails:
1when FileMaker Server errors and warnings (optional) occur
1when a scheduled task is finished
Specify your SMTP mail server settings in FileMaker Server, including the SMTP server address,
the port number, user name and password, and the list of email addresses that will receive the
email messages.
Chapter 5 | Administering FileMaker Server 44
Each email notification type is configured separately in FileMaker Server, allowing for different
recipients for each type of email:
1Configure FileMaker Server to send error or warning emails on the Admin Console
General Settings > Email Notifications tab. You can specify a list of email addresses that will
receive error or warning emails on this tab. You can also use Secure Sockets Layer (SSL) data
encryption and Transport Layer Security (TLS) when FileMaker Server connects to the SMTP
email server.
1Enable email notifications when you create a scheduled task with the Schedule assistant. The
scheduled task will send email notifications to the email addresses specified in the Schedule
assistant. The SMTP server used for email notifications is configured on the
General Settings > Email Notifications tab.
See FileMaker Server Help.
Using the command line interface
FileMaker provides the tool fmsadmin for administering FileMaker Server via the command line
interface (CLI). You must be logged on to the computer running FileMaker Server, either directly
or using remote desktop software, to use the CLI. The CLI is available via the command prompt
(Windows) and the Terminal application (macOS). CLI commands can also be used in a script or
batch file.
Command line interface files
The CLI executable fmsadmin is located in the folder:
1Windows: [drive]:\Program Files\FileMaker\FileMaker Server\Database Server\fmsadmin.exe
1macOS: /Library/FileMaker Server/Database Server/bin/fmsadmin
Notes
1Windows: If FileMaker Server is installed in a non-default location, the beginning portion of the
default path shown above, \Program Files\FileMaker\FileMaker Server, is replaced with the
path that was specified during installation. For example: \My_Path\Database Server\
1macOS: A symbolic link to fmsadmin is also installed: /usr/bin/fmsadmin
Command line interface commands
The general format for fmsadmin commands is:
fmsadmin command [options]
The following example authenticates with Admin Console user name admin and the password
pword, and closes all open databases without prompting you to confirm:
fmsadmin close -y -u admin -p pword
Important CLI commands can include the Admin Console name and password. If a command is
used interactively, the user name is visible but the password is not. If a command in a script or
batch file must include a name and password, be sure that only the password owner can view the
script or batch file.
Chapter 5 | Administering FileMaker Server 45
CLI Help
In the CLI, use the help command to see Help pages that list what commands and options are
available and how to use them:
fmsadmin help
Chapter 6
Upgrading or moving an existing installation
You can upgrade an existing installation of FileMaker Server 14 or 15 to FileMaker Server 16. You
can also move an existing installation of FileMaker Server 16 to other machines.
To change the license of an existing deployment of FileMaker Server 16, see “Updating the
FileMaker Server license key” on page 7.
The steps listed below outline the process. See the remaining sections for information about each
step.
Important You must perform the steps in the following sections in order.
1. Save the settings for your schedules and administrator groups. See “Step 1. Save your
schedules and administrator groups” on page 46.
2. Note your existing FileMaker Server settings. See “Step 2. Note your FileMaker Server settings”
on page 47.
3. Stop FileMaker Server. See “Step 3. Stop FileMaker Server” on page 47.
4. Make a copy of any database files and shell script files you used with FileMaker Server. See
“Step 4. Make a copy of databases, scripts, and plug-ins” on page 47.
5. Uninstall FileMaker Server. See “Step 5. Uninstall FileMaker Server” on page 48.
6. Clear the Java cache and web browser cache to clear information from the previous
FileMaker Server install. See “Step 6. Clear the Java cache and web browser cache” on
page 49.
7. Install FileMaker Server 16. See “Step 7. Install FileMaker Server 16” on page 49.
8. Move any database files or script files you used with the previous version of FileMaker Server
to the proper folders within the FileMaker Server folder structure. See “Step 8. Move files to the
proper location” on page 49.
9. Load the settings for your schedules and administrator groups after installation. See “Step 9.
Load your schedules and administrator groups” on page 50.
10. Configure FileMaker Server. See “Step 10. Configure your deployment” on page 50.
If you need to upgrade your machine’s operating system, see “Upgrading the operating system on
machines running FileMaker Server” on page 50.
Step 1. Save your schedules and administrator groups
You can save the settings for your schedules and administrator groups that are configured in the
current installation.
1. Start FileMaker Server Admin Console.
2. Choose Server menu > Save Schedules and Groups. By default, the file is saved in your web
browser’s download folder.
Chapter 6 | Upgrading or moving an existing installation 47
After you install FileMaker Server, you can then load the settings for your schedules and
administrator groups to instantly configure them in the new installation.
Note The default name of the Schedules and Groups settings file matches the version of
FileMaker Server:
1For FileMaker Server 14: fms14_settings.settings
1For FileMaker Server 15: fms15_settings.settings
1For FileMaker Server 16: fms16_settings.settings
You cannot specify a different name when you save the file in Admin Console, but you can change
the filename using your operating system tools after you save the file.
Step 2. Note your FileMaker Server settings
Make a note of your existing FileMaker Server settings because you will have to reenter your
settings manually later. Some examples are:
1Note the name of your FileMaker Server installation (the name FileMaker Pro and
FileMaker Go users see in the Launch Center).
1Save the schedules and groups settings in a file. See “Step 1. Save your schedules and
administrator groups” on page 46.
1Note other settings that you have changed from the defaults and want to reuse in your
FileMaker Server 16 deployment.
1If you are using a custom SSL certificate, save a copy of the serverCustom.pem and
serverKey.pem files stored in the CStore folder so that you can import your custom SSL
certificate later.
Where to note settings for FileMaker Server
Before moving an existing installation of FileMaker Server to another machine, start
FileMaker Server Admin Console (see “Starting Admin Console” on page 36). Note the settings in
the General Settings, Database Server, and Web Publishing panes.
Step 3. Stop FileMaker Server
1. In the Admin Console Status pane, turn off Web Publishing Engine.
Wait until the Web Publishing Engine has stopped.
2. Turn off FileMaker Server.
Wait until the Database Server has stopped.
3. Stop the FileMaker Server service (Windows) or processes (macOS). See FileMaker Server
Help.
Step 4. Make a copy of databases, scripts, and plug-ins
Make a copy of any database files, shell script files, and plug-ins you used with FileMaker Server.
In a default FileMaker Server installation, they are stored on the master machine in the following
folders.
Chapter 6 | Upgrading or moving an existing installation 48
FileMaker Server 14, 15, and 16 files (default installation)
Windows:
1\Program Files\FileMaker\FileMaker Server\Data\Databases
1\Program Files\FileMaker\FileMaker Server\Data\Scripts\
1\Program Files\FileMaker\FileMaker Server\Database Server\Extensions\
macOS:
1/Library/FileMaker Server/Data/Databases/
1/Library/FileMaker Server/Data/Scripts/
1/Library/FileMaker Server/Database Server/Extensions/
FileMaker Server 14, 15, and 16 files (non-default installation in Windows)
When you install FileMaker Server in a non-default location in Windows, the beginning portion of
the default path, \Program Files\FileMaker\FileMaker Server, is replaced with the path you
specified during installation.
\User-specified location\Data\Databases
\User-specified location\Data\Scripts\
\User-specified location\Database Server\Extensions\
Step 5. Uninstall FileMaker Server
After you have noted the settings in your existing installation of FileMaker Server, you can uninstall
FileMaker Server.
Important The uninstall process deletes your settings, so be sure to write down any settings that
you want to save. See “Step 2. Note your FileMaker Server settings.”
Windows
To uninstall a multiple-machine deployment, uninstall the worker machines first.
To uninstall FileMaker Server:
1. Start Windows.
2. Open Control Panel, then click Uninstall a program (or Programs and Features).
3. Select the FileMaker Server product from the list and click Change.
4. When the Installation program starts, click Next.
5. Select Remove, then click Next and Remove.
6. If a User Account Control alert appears, click Yes.
Your database files, script files, and plug-ins are not deleted.
7. Click Finish.
Chapter 6 | Upgrading or moving an existing installation 49
macOS
To uninstall a multiple-machine deployment, uninstall the worker machines first.
To uninstall FileMaker Server 16:
1. Open the /Library/FileMaker Server folder.
2. Double-click the FileMaker Server 16 Uninstaller icon.
3. Click Yes to confirm that you want to uninstall FileMaker Server.
To uninstall FileMaker Server 15:
The FileMaker Server 15 uninstaller is included in the FileMaker Server 16 installation disk image.
You can find FMS 15 Uninstaller in the Extras folder.
Step 6. Clear the Java cache and web browser cache
Even after you uninstall FileMaker Server, the Java cache may retain pointers to FileMaker Server
components that have been uninstalled. In addition, your web browser may retain cached versions
of artwork and HTML files that have been uninstalled.
Clear the Java cache and web browser cache to clear information from the previous
FileMaker Server install.
Step 7. Install FileMaker Server 16
To install FileMaker Server, you must use an account with administrative privileges.
1To deploy on a single machine, see chapter 2, “Installation quick start.”
1To deploy across multiple machines, see chapter 3, “Deploying FileMaker Server across
multiple machines.”
The FileMaker Server installer and the Deployment assistant prompts you for some of the settings
that you noted in “Step 2. Note your FileMaker Server settings” on page 47.
Step 8. Move files to the proper location
Move the script files and plug-ins you used with the previous version of FileMaker Server to the
proper folders within the FileMaker Server 16 folder structure. See “Step 4. Make a copy of
databases, scripts, and plug-ins” on page 47.
Note You can use FileMaker Pro to transfer .fmp12 databases to your new FileMaker Server
deployment. See “Uploading databases” on page 37. To transfer your database files manually,
see FileMaker Server Help.
Important If you are using FileMaker Server 16 and you want to transfer settings by loading the
Schedules and Groups settings file, make sure you have created a folder structure in the new
FileMaker Server installation that is identical to the source server installation. Copy the databases,
scripts, and other solution files from the source installation to the new FileMaker Server
installation, and set the appropriate permissions in macOS. See FileMaker Server Help.
Chapter 6 | Upgrading or moving an existing installation 50
Step 9. Load your schedules and administrator groups
If you are moving from a previous FileMaker Server 14, 15, or 16 installation, you can load the
Schedules and Groups settings file after installation. See “Step 1. Save your schedules and
administrator groups” on page 46.
Important Whenever you load a Schedules and Groups settings file, all existing schedules and
administrator groups settings in the new FileMaker Server installation are deleted and replaced by
the settings in the Schedules and Groups settings file. You cannot merge the schedules and
administrator groups settings from multiple FileMaker Servers.
1. In Admin Console for the new FileMaker Server 16 installation, choose Server menu > Load
Schedules and Groups.
2. Click Choose File and navigate to the folder where you saved the Schedules and Groups
settings file.
3. Select the Schedules and Groups settings file and click Choose.
4. Click Load to load the Schedules and Groups settings file into FileMaker Server.
5. Do one of the following:
1If the Load Successful message appears, no errors occurred.
1If the Load Schedules and Groups Results dialog box appears, note the errors that occurred
so that you can make the necessary corrections, and then click OK.
See FileMaker Server Help.
Step 10. Configure your deployment
You can now start Admin Console and configure your FileMaker Server deployment using the
settings you noted in “Step 2. Note your FileMaker Server settings” on page 47. See
FileMaker Server Help.
As part of the configuration, be sure to import your custom SSL certificate, if you are using SSL.
For information about uploading databases, scheduling backups, and performing other regular
tasks, see chapter 5, “Administering FileMaker Server.”
Upgrading the operating system on machines running FileMaker Server
For a list of supported operating system versions, see the FileMaker Server system requirements.
Applying security updates or minor operating system updates
When applying a security update or minor operating system update—for example, from
macOS 10.12.1 to 10.12.2 or using Windows Update—stop the FileMaker Server processes,
apply the update, and then restart the machine.
1. Save the settings for your schedules and administrator groups. See “Step 1. Save your
schedules and administrator groups” on page 46.
2. Note your existing FileMaker Server settings. See “Step 2. Note your FileMaker Server settings”
on page 47.
3. Stop FileMaker Server. See “Step 3. Stop FileMaker Server” on page 47.
Chapter 6 | Upgrading or moving an existing installation 51
4. Make a copy of any database files and shell script files you used with FileMaker Server. Copy
the files to an external volume. See “Step 4. Make a copy of databases, scripts, and plug-ins”
on page 47.
5. Apply the security update or system update, and then restart the machine.
6. If FileMaker Server wasn’t set up to automatically start, start FileMaker Server manually.
See “CLI Help” on page 45 for the fmsadmin start command or see FileMaker Server Help.
7. Start Admin Console. See “Starting Admin Console” on page 36.
8. Using Admin Console, verify that all FileMaker Server databases are being hosted.
9. Using Admin Console, verify that all FileMaker Server settings, schedules, and groups have
been preserved.
10. Review the FileMaker Server Event.log for any error messages, warning messages, or
unexpected settings changes.
11. If you find any problems, uninstall FileMaker Server and reinstall it, then restore the files and
settings you saved before applying the update. See steps 5 through 11 below for instructions
on how to uninstall and restore.
Applying a major system update
When applying a major operating system update—for example, from OS X 10.11 to macOS 10.12
or from Windows Server 2012 to Windows Server 2012 R2—uninstall FileMaker Server, upgrade
your operating system, and then reinstall FileMaker Server.
1. Save the settings for your schedules and administrator groups. See “Step 1. Save your
schedules and administrator groups” on page 46.
2. Note your existing FileMaker Server settings. See “Step 2. Note your FileMaker Server settings”
on page 47.
3. Stop FileMaker Server. See “Step 3. Stop FileMaker Server” on page 47.
4. Make a copy of any database files and shell script files you used with FileMaker Server. Copy
the files to an external volume. See “Step 4. Make a copy of databases, scripts, and plug-ins”
on page 47.
5. Uninstall FileMaker Server. See “Step 5. Uninstall FileMaker Server” on page 48.
6. Clear the Java cache and web browser cache to clear information from the previous
FileMaker Server install. See “Step 6. Clear the Java cache and web browser cache” on
page 49.
7. Upgrade your operating system.
8. Install FileMaker Server 16. See “Step 7. Install FileMaker Server 16” on page 49.
9. Move any database files or script files you used with the previous version of FileMaker Server
to the proper folders within the FileMaker Server 16 folder structure. See “Step 8. Move files to
the proper location” on page 49.
Chapter 6 | Upgrading or moving an existing installation 52
10. Load the settings for your schedules and administrator groups after installation. See “Step 9.
Load your schedules and administrator groups” on page 50.
11. Configure FileMaker Server. See “Step 10. Configure your deployment” on page 50.
Chapter 7
Setting up the web server
In all deployments, FileMaker Server uses Internet Information Services (IIS) in Windows or
Apache in macOS. The web server serves web publishing clients, hosts the web-based Admin
Console application, and handles some data transfer tasks.
This chapter describes the basics of requesting a custom Secure Socket Layer (SSL) certificate,
enabling the web server, and configuring additional IIS authentication settings. For information
about configuring the web server, see the documentation for the web server.
Requesting an SSL certificate
FileMaker Server uses SSL technology to encrypt HTTPS connections between the web server
and users’ web browsers for Admin Console, FileMaker WebDirect, FileMaker Data API, and
Custom Web Publishing. The Database Server can also use SSL encryption for connections with
FileMaker Pro clients, FileMaker Go clients, and the Web Publishing Engine.
Admin Console provides two settings on the Database Server > Security tab that enable secure
connections with clients:
1Use SSL for database connections – With this setting, all Database Server client connections
use the SSL, except ODBC and JDBC connections.
1Use HSTS for web clients – With this setting, web clients are restricted to HTTPS connections.
For information about using secure connections, see FileMaker Server Help.
SSL uses digital certificates to certify the ownership of the public key used to encrypt data.
FileMaker Server provides a standard SSL certificate signed by FileMaker, Inc., that does not
verify the server name. This certificate is used by all FileMaker Server components that use SSL.
However, because this certificate doesn’t verify the server name, most web browsers will warn
users of a problem with the website’s security certificate. For some web browsers, certificate
issues can affect performance and functionality as well. The FileMaker default certificate is
intended only for test purposes.
A custom SSL certificate is required for production use. If your server does not have a custom SSL
certificate, Admin Console will display security warnings.
You can request a custom SSL certificate that matches your specific server name or domain name
from a trusted certificate authority (CA) supported by FileMaker, Inc., On the Database Server >
Security tab, click the Create Request button to create a certificate signing request
(serverRequest.pem), which you send to a CA, and a private key (serverKey.pem) that you keep
secret. When you receive your signed certificate from the CA, click the Import Certificate button
and use your private key to import the certificate. See FileMaker Server Help.
Alternately, you can use the CLI certificate command to create a certificate signing request
and import the custom SSL certificate. See “CLI Help” on page 45.
The custom SSL certificate file is placed in the CStore folder:
1Windows: [drive]:\Program Files\FileMaker\FileMaker Server\CStore\serverCustom.pem
1macOS: /Library/FileMaker Server/CStore/serverCustom.pem
Chapter 7 | Setting up the web server 54
When the Database Server starts, if it is unable to find a custom SSL certificate, it will use the
default server.pem file. After updating the custom SSL certificate, you must restart the Database
Server.
See the FileMaker Server Help topic “Securing your data.”
Notes
1FileMaker Server supports using a single-domain certificate, a wildcard certificate, or a subject
alternative name (SAN) certificate.
The Admin Console’s Create Certificate Signing Request dialog box can create a request for a
single-domain certificate or a wildcard certificate. To use a SAN certificate, contact a CA to
create the certificate signing request.
1Use FileMaker methods to import the custom SSL certificate: either the Admin Console import
certificate feature or the CLI certificate command. Do not use IIS certificate tools or
OpenSSL certificate tools to import a custom SSL certificate for FileMaker Server’s web server
component because the Database Server and the web server component must use the same
certificate.
1The custom SSL certificate must use base-64 encoding.
1FileMaker Server does not support validation using a certificate revocation list (CRL validation).
1If you are using a multiple-machine deployment, you must request custom SSL certificates for
the master machine and the worker machines. Import a custom SSL certificate on each
machine.
1To remove an imported certificate, use the CLI command fmsadmin certificate delete,
and restart FileMaker Server to apply the change. See “CLI Help” on page 45.
1For information about supported certificates, see the FileMaker Knowledge Base.
Enabling the IIS web server in Windows
The IIS web server must be enabled on the master and worker machines in order for
FileMaker Server to operate.
If the FileMaker Server installer detects that IIS is not enabled, it will enable IIS. The
FileMaker Server installer also installs the Microsoft Application Request Routing (ARR) extension
for IIS if it is not present. However, if you need to enable IIS manually, follow the steps below for
the supported version of Windows you’re using.
To enable IIS in Windows versions with the Start button:
1. Click the Start button > Administrative Tools > Server Manager.
2. Click Add Roles.
3. In the Add Roles wizard, select Web Server (IIS), then click Next.
4. Choose the IIS role services to install. Click Next to accept the defaults.
5. Add any role services as required.
Chapter 7 | Setting up the web server 55
To enable IIS in Windows versions with the Windows Start screen:
1. On the Windows Start screen, choose Server Manager.
2. Click Manage menu > Add Roles and Features.
3. Select Role-based or feature-based installation, then click Next.
4. Select the server, then click Next.
5. Choose Web Server (IIS), then click Next.
6. Choose any additional features, if necessary, then click Next.
7. Click Next.
8. Choose the IIS role services to install. Click Next to accept the defaults.
9. Confirm your selections, then click Install.
To verify the web server is running, enter the following in a web browser on the web server host
machine:
http://localhost
During installation, the FileMaker Server installer checks whether any existing website is using
ports 80 or 443 (the Default Web Site uses port 80 and is enabled when your first enable IIS). If
these ports are in use, the installer prompts you to let it stop the website or to specify alternative
ports. Then, the installer creates its own separate website named FMWebSite and configures it to
use the ports you specify for HTTP and HTTPS. On the master machine, the installer also
configures FMWebSite to use port 16000 for Admin Console via HTTPS.
For information about IIS, see the Microsoft website.
Setting up authentication for FMWebSite in IIS
FileMaker Server handles the authentication for password-protected databases that are published
via Custom Web Publishing. You can choose whether you want to use IIS website authentication
for the FMWebSite site in addition to FileMaker Server authentication.
You can choose from the following configurations:
1Disable IIS authentication. You can disable all IIS authentication methods and use
anonymous access to the FMWebSite site. This is the simplest configuration. See the next
section, “Disabling IIS authentication.”
1Leave IIS authentication enabled and also enable Basic Authentication. You can leave the
current IIS authentication methods enabled for use with other websites, and use Basic
Authentication for the FMWebSite site used by the Web Publishing Engine. You must also set
up Windows user accounts that exactly match the user accounts for the web-published
FileMaker databases. See “Enabling IIS authentication” on page 56.
Disabling IIS authentication
By default, Windows IIS directory security attempts to authenticate all requests that are made
through the IIS web server. The simplest way to use IIS with FileMaker Server is to disable IIS
authentication. If you disable all IIS authentication methods and use anonymous access to
FMWebSite, then you don’t need to add any Windows user accounts.
Chapter 7 | Setting up the web server 56
To disable IIS authentication:
1. Open Control Panel, then choose System and Security > Administrative Tools > Internet
Information Services (IIS) Manager.
2. In Internet Information Services (IIS) Manager, select the FMWebSite site. You may have to
expand some of the nodes to see the websites.
3. In the center pane, double-click Authentication.
4. In the Authentication pane, do the following:
1Ensure that Anonymous Authentication is enabled.
1Disable all other authentication methods.
Enabling IIS authentication
If you enable any of the IIS authentication methods for the IIS web server, you must enable Basic
Authentication for the FMWebSite site, which connects to the Web Publishing Engine. The Web
Publishing Engine uses only Basic Authentication. Other websites on the web server can use the
other IIS authentication methods.
In this configuration, you must also create Windows user accounts on the web server host
machine that contain user names and passwords. These user names and passwords must exactly
match the user names and passwords for all password-protected accounts defined in all FileMaker
databases that are published via Custom Web Publishing.
The following steps show how to install Basic Authentication in each supported version of
Windows and then how to enable authentication.
To install IIS Basic Authentication in Windows versions with the Start button:
1. Click the Start button > Administrative Tools > Server Manager.
2. Click Add Roles.
3. In the Add Roles wizard, select Web Server (IIS), then click Next.
4. Select Web Server > Security. Ensure that Basic Authentication is selected.
5. Click Next until you reach the end of wizard, then click Close.
To install IIS Basic Authentication in Windows versions with the Windows Start screen:
1. On the Windows Start screen, choose Server Manager.
2. Choose Manage menu > Add Roles and Features.
3. Select Role-based or feature-based installation, then click Next.
4. Select the server, then click Next.
5. Choose Web Server (IIS), then click Next.
6. Choose any additional features, if necessary, then click Next.
7. Click Next.
Chapter 7 | Setting up the web server 57
8. Select Web Server > Security. Ensure that Basic Authentication is selected.
9. Click Next until you reach the end of wizard, then click Close.
To enable IIS authentication:
1. Open Control Panel, then choose System and Security > Administrative Tools > Internet
Information Services (IIS) Manager.
2. In Internet Information Services (IIS) Manager, select the FMWebSite site. You may have to
expand some of the nodes to see the websites.
3. In the center pane, double-click Authentication.
4. In the Authentication pane, do the following:
1Enable Anonymous Authentication.
1Enable Basic Authentication.
Using the Apache web server in macOS
You do not need to enable the Apache web server that is installed with macOS, nor do you need
to have the macOS Server application installed. The FileMaker Server installer creates its own
instance of the Apache web server on both the master and worker machines and configures this
web server to use port 80 for HTTP and port 443 for HTTPS (or the alternative ports you specify).
On the master machine, the installer also configures its Apache web server to use port 16000 for
Admin Console via HTTPS. If you have enabled the Apache web server that is already installed
with macOS, the FileMaker Server installer prompts you to make the ports available or to specify
alternative ports before it can continue.
If you have the macOS Server application installed and use it to enable any HTTP services (for
example, websites or a wiki), the existing Apache instance may be reenabled after
FileMaker Server is installed. To ensure the Apache instance used by FileMaker Server works
normally, you may need to configure any other HTTP services to use different ports from the ports
that FileMaker Server uses, disable other HTTP services, or uninstall the macOS Server
application.
Chapter 8
Optimizing your FileMaker Server deployment
This chapter provides tips on selecting the proper hardware, configuring the operating system,
identifying issues that help FileMaker Server run efficiently, and monitoring the server’s
performance. If your company has an IT group, they might be able to provide support and
guidance to keep the server running efficiently.
Selecting the right hardware
Before you select hardware for the server, consider how many users are or will be accessing the
server. If many users are accessing the database, then the hard drive and processor will probably
get heavy usage. A Database Server accessing a great deal of data can take more resources and
needs the right equipment.
Consider these key areas when selecting the hardware:
1Disk subsystem. The disk subsystem is a type of disk storage that has an integrated collection
of disk drives. This subsystem is the most important factor to consider when purchasing
hardware for FileMaker Server because it reads and writes data stored in the database. Having
a fast and optimized disk subsystem to effectively handle both reading and writing the data has
a significant impact on how the database performs. Regardless of the specific drive type you
selected, configure the subsystem to support a Redundant Array of Inexpensive Disks (RAID)
or reliable Storage Area Network (SAN) for the hosted databases.
1Processor. FileMaker Server handles many processor intensive operations, such as finding
information, evaluating unstored calculations, and resolving relationships; therefore, the
processor you choose is almost as important as the disk subsystem. Because FileMaker Server
can take advantage of multiple processors, certain database tasks can be handled by different
processors.
1Network. The network throughput can be measured using various tools on the system, and the
quality of network throughput depends on several factors. These include the type of Network
Interface Card (NIC) installed and the network’s physical infrastructure. While the network
infrastructure may be outside your control, problems happen due to the network configuration,
traffic, and routing. Users can connect to and work with databases over a LAN or a WAN
connection. Connecting to a FileMaker Server hosted database over the Internet or a WAN
requires that several ports be open for TCP.
Chapter 8 | Optimizing your FileMaker Server deployment 59
1Memory. The amount of memory a database uses depends on the size of the database, the
type of database, the number of users, and the database’s complexity. Any one of these factors
can require more memory. Another critical factor for FileMaker Server is the cache.
The maximum allowed database RAM cache size is the smaller positive number of these two
formulas:
1the physical RAM size minus 1024 MB (1 GB)
190% of the physical RAM size
If Web Publishing is enabled in a single-machine configuration, you should set the database
cache to no more than 50% of the maximum.
You specify the database cache size by selecting the Database Server > Databases tab in
Admin Console.
Note During deployment, FileMaker Server configures memory use based on the physical RAM
size. If you add or remove RAM, you need to redeploy so that FileMaker Server can recalculate
optimal memory use for its components.
Virtual servers
Virtualization lets you run multiple instances of an operating system and its specific applications
or services on the same physical hardware because you can use a software application to divide
a server into isolated virtual environments. Some IT departments turn to virtualization to reduce
costs and as a way to use the full potential of the hardware.
FileMaker Server has been tested to run in virtual machines. When using FileMaker Server within
a virtualized environment, you must monitor the machines to determine the stress being placed
upon the physical hardware.
Setting up and configuring the operating system
Keeping the server running reliably and efficiently takes some planning. See the information below
for recommendations on how to set up and configure the operating system, either Windows or
macOS.
Chapter 8 | Optimizing your FileMaker Server deployment 60
Setting up and configuring Windows
Recommendation Do this
Update the operating system
and other key drivers
Make sure the BIOS, firmware, and drivers are updated, including:
1Machine BIOS/Firmware
1Disk Controllers, including RAID Controllers
1Disk drives
1Network Interface Cards (NICs)
1Display adapters
Install Windows updates Check for the latest service patches and updates and install them. See the
FileMaker Server system requirements for supported Windows versions and service
packs.
Configure the disk subsystem Configure the disk array into three logical partitions.
1On the first partition, install the operating system and FileMaker Server.
1On the second partition, store the databases that FileMaker Server will host.
1On the last partition, store local backup files and performance logs.
Don’t use file sharing FileMaker Server's database server accesses the FileMaker database files directly
and handles the network access by FileMaker clients. File sharing is not needed.
Disable unnecessary services Disable services that Windows enables by default that FileMaker Server doesn’t need
to function properly. The FileMaker Server service only needs to access the hard
drives and network.
Disable other Windows
settings
Consider changing these settings when optimizing the system on which
FileMaker Server is going to run:
1Disable indexing for the hosted database volume and the backup volume.
1Disable Shadow Copy (sometimes referred to as Volume Snapshot Service or
VSS) on the hosted database volume.
1Make the virtual memory swap file a static size so Windows doesn’t attempt to
adjust it. Use the recommended file size amount.
Configure the Windows
firewall
Find out which ports need to be open and configure the firewall on the master and
worker machines. See “Before you begin” on page 9 or “Before you begin installing on
multiple machines” on page 21.
Configure virus scanning Do not allow antivirus software to scan the folders that contain hosted database files
or the folders that contain files for container fields that store data externally. Antivirus
software may cause file corruption if you allow real-time or on-access virus scanning
while files are being hosted to users. With real-time scanning, the virus scanner may
spend large amounts of time scanning the database files. This scanning places a
heavy load on the server’s disk, memory, and processor.
Defragment the hard drive Defragment the hard drive partition containing the live database files (not the backups)
routinely; however, don’t defragment the partition while files are being hosted.
Note Close any live hosted files with Admin Console before defragmenting. See
FileMaker Server Help.
Chapter 8 | Optimizing your FileMaker Server deployment 61
Setting up and configuring macOS
Recommendation Do this
Avoid services that may
impact the live, hosted
database
Any service or application that allows the live, hosted database files to be copied or
accessed in any way may cause database corruption. Sometimes files accessed
directly while FileMaker Server is under load become corrupted. To prevent
corruption, you must remove processes, services, or applications that attempt to
access the hosted files.
Don’t use file sharing FileMaker Server's database server accesses the FileMaker database files directly
and manages the network access by FileMaker clients. File sharing is not needed.
Turn off Spotlight Spotlight indexing can impact FileMaker Server’s performance. The Spotlight service
automatically watches when information is written to the hard drive and indexes the
data to allow faster searches for files.
Don’t use Time Machine Time Machine is an application that automatically backs up files, but doesn’t back up
any files that are in use, such as the live FileMaker database files. If you use Time
Machine, it doesn’t corrupt the database files if it was configured to back up those files,
but can be very CPU intensive. You should add the locations where the databases are
stored to the “Do not back up” section of the Time Machine Preferences to avoid
problems.
Don’t enable FileVault FileVault is used to encrypt the entire macOS startup volume. Don’t enable FileVault
on your FileMaker Server machine. This requires an additional layer of software and
more processor work on any data being moved to or from the hard drive. Instead, use
FileMaker Pro Advanced to encrypt databases. See “Encrypting databases” on
page 37.
Make sure Dashboard is not
running
Dashboard allows special apps called widgets to run. Log out or quit Dashboard.
(Dashboard does quit when the user logs out.) By not running Dashboard, server
resources are not consumed with running widgets.
Configure the firewall The macOS firewall is disabled by default. You can enable the firewall by opening the
System Preferences application. Configure the firewall to allow incoming connections
to FileMaker Server. When FileMaker Server is initially deployed, macOS does ask
whether the FileMaker Server component is allowed to accept incoming connections.
Disk Permissions and
S.M.A.R.T. Status
Because macOS is built on UNIX, the underlying permissions for hosted database
files are sometimes set incorrectly. Although the database files are placed in the right
location, they can be inaccessible because FileMaker Server can’t modify the
permissions. Use FileMaker Pro to upload the database file and to properly set the file
permissions. See FileMaker Server Help.
Security By default when a computer running macOS starts, it immediately opens to the
desktop. FileMaker Server doesn’t require anyone to be logged in for it to run.
Configure virus scanning Do not allow antivirus software to scan the folders that contain hosted database files
or the folders that contain files for container fields that store data externally. Antivirus
software may cause file corruption if you allow real-time or on-access virus scanning
while files are being hosted to users. With real-time scanning, the virus scanner may
spend large amounts of time scanning the database files. This scanning places a
heavy load on the server’s disk, memory, and processor.
Chapter 8 | Optimizing your FileMaker Server deployment 62
Considering database performance
FileMaker Server’s performance can be impacted by the design of hosted databases. When you
design your database files, consider the clients that will be using the hosted databases and
consider how to simplify the design for those clients.
To improve performance for all clients, you should limit the use of:
1external tables
1complex table relationships
1unstored calculations
1value lists
1script triggers
1the Perform Script on Server script step
For FileMaker Pro clients, you should optimize layout performance, improve search performance,
reduce conditional formatting, and disconnect users from the server when they are idle. See
FileMaker Pro Help.
For FileMaker WebDirect solutions, limit the number of portals and panel controls, and limit the
number of objects displayed in List View and portals. See “Designing a FileMaker WebDirect
solution” in FileMaker WebDirect Guide.
For Custom Web Publishing solutions, limit the number of records returned for Find requests and
reduce the prevalidation of field data. See FileMaker Server Custom Web Publishing Guide.
To identify performance issues with hosted databases, use the Top call statistics setting
available in Admin Console. See FileMaker Server Help.
Monitoring FileMaker Server
Monitoring the server is important for recognizing and preventing problems.
1When users report a problem, such as a system crash or very slow performance, you need
good monitoring tools to determine what caused the problem.
1By analyzing future hardware needs, taking baseline readings when monitoring a situation, or
gaining a better understanding of the server’s health, you can prevent future problems.
Monitoring performance in Windows
To monitor FileMaker Server in Windows, you can use a tool called Performance Monitor, also
known as perfmon. With the perfmon tool, you can examine how applications that are running
affect your computer's performance, including the memory used, disk access time, and log
statistics on different processes. While some log information shows obvious bottlenecks or stress
points, much of the information might require more detailed analysis. With a little experience, you
can recognize common stress points.
Note To use perfmon, you must have local Administrators group or equivalent privileges in
Windows. See Windows Help and Support.
Chapter 8 | Optimizing your FileMaker Server deployment 63
There are five logs that can help you monitor performance in Windows:
1Processor. Logs the processor activity and idle times. Select % Processor Time as the
primary indicator of processor activity and to display the average percentage of busy time. To
view the time the processor is idle, select % Idle Time.
1Network Interface Counter (NIC). Captures bytes sent and received over each network
adapter, the length of the output packet queue (in packets), and the errors for inbound and
outbound packets.
1Memory. Records the amount of physical memory immediately available for allocation to a
process or for system use. The log also records the Cache Bytes for Memory\System Cache,
cache faults, page faults, the number of read operations, and the pages written to disk.
1Process. Logs statistics on processes, including time, reading and writing rate, page faults,
thread count, virtual address space, and the current size, in bytes, of the memory that this
process has allocated.
1Disk. Captures the disk read time, the disk write time, the percentage of time the disk was idle,
the number of outstanding requests, and the split input and output to the disk.
Note The Windows Event Viewer contains the Application log and the System log, which are
useful for understanding how the server is performing. These can provide insight into activity at
the user, system, and service level.
Reviewing the performance logs
By default the performance logs show you real time statistics of specific counters. To display the
performance logs, open Administrative Tools > Performance Monitor, then navigate to
Monitoring Tools > Performance Monitor.
Monitoring performance in macOS
Monitoring is an important part of any server deployment; FileMaker Server is no exception. The
reasons for performing monitoring are planning, resource management, and troubleshooting.
macOS has four primary tools that you can use for monitoring server performance: Activity
Monitor, the macOS Server application, Top, and System Activity Reporter (SAR).
1Activity Monitor supplies a list of all the processes currently running and information about the
overall activity on the computer.
1The macOS Server application, available in the Mac App Store, provides tools to administer
services on the operating system and provide a graphical interface for monitoring CPU usage,
network traffic, and memory usage. However, be aware of possible conflicts when using macOS
Server to enable any HTTP Services (see “Using the Apache web server in macOS” on
page 57).
1Top is a command-line program that is part of the UNIX engine for macOS. When running Top,
you see a list of the processes that are running on the machine sorted by the process ID.
1SAR is a command-line program installed in macOS by default. It consists of two basic tools,
the System Activity Data Collector (SADC) and the System Activity Reporter (sar). It is designed
to automatically gather data for an extended time period, then analyze that data later. The data
collected by SAR are reports on cumulative statistics counters.
For information about Activity Monitor and macOS Server, see their help systems. For information
about command-line tools, open the Terminal application and look at the manual (man page).
Chapter 9
Using a standby server
A standby server is a redundant FileMaker Server installation that can be brought online to replace
the primary server. If a hardware or software failure prevents the primary server from hosting
databases, you can make the standby server your production server. You can also make the
standby server your production server when you want to make scheduled hardware or software
upgrades to the primary server.
A standby server is essentially a copy of the primary server, set up so that any changes to the
primary server are automatically applied to the standby server. The standby server does not host
databases for clients, but is ready to replace the primary server when needed.
When you create the connection between the primary server and the standby server, the database
files and external container field objects are securely synchronized from the primary server to the
standby server. Any subsequent changes to the primary server databases are saved to
progressive backup files, which are incrementally applied to the standby server.
Important Using a standby server is not a replacement for backing up your hosted databases.
Although you can use a standby server to recover from potential hardware or software failures, a
standby server is not a substitute for a sensible backup and recovery strategy. See “Backing up
databases” on page 38.
Standby server requirements
To set up a standby server, you must have two server machines with identical configurations. The
two server machines must match in the following ways:
1operating system (Windows or macOS) and operating system version
1FileMaker Server version
1FileMaker Server installation folder
1FileMaker Server user account name
1FileMaker Server login credentials
1physical memory size available on the machine (RAM size)
1deployment configuration (single-machine deployment only)
1ports for web connections (HTTP) and secure web connections (HTTPS)
1whether ODBC/JDBC is enabled
1whether web publishing is enabled
1folders containing files for container fields that store data externally
1default database folder path
1additional database folder paths
1local volumes that contain databases
1progressive backup folder path
Chapter 9 | Using a standby server 65
1the setting Enable progressive backups must be enabled on both the primary server and the
prospective standby server
1the FileMaker Server user account must have write permission to the parent folder of the
progressive backup folder path
Notes
1The standby server feature is supported only for single-machine deployments. The standby
server feature is not supported for FileMaker WebDirect worker machines.
1The standby server feature is not supported for deployments that host FileMaker Data API
solutions. FileMaker Data API calls are not forwarded after a switchover operation.
1If your installation uses remote volumes for additional database or container data folders, make
sure that the remote volumes are available before using any of the standby commands. To
verify a folder is accessible, use the fmsadmin list files command.
1In the procedures below, if you are using a container data folder to store container field data
externally, be sure to also select the setting to back up that container data folder. For example,
if you select the Enable container data folder 1 setting, then select the Back up container
data folder 1 setting as well. The standby server feature uses progressive backups to copy
data, and the backups must include the external container data.
Standby server procedures
The procedures in this section describe how to set up and use a standby server configuration.
To complete these procedures, you must use the FileMaker Server command line interface (see
“Using the command line interface” on page 44).
Windows: To run standby commands, open the command prompt window using Run as
Administrator.
Setting up a standby server
This procedure assumes that you have a FileMaker Server single-machine installation already in
production. From the production server, you must be able to open Admin Console and open and
close database files. Start this procedure with that production server up and running. That
production server will be your primary server.
To set up a standby server for your primary server:
1. Install FileMaker Server on the prospective standby server. During deployment, enter the user
name, organization, and license key information that you used for the primary server.
This procedure assumes that you do not already have a FileMaker Server installation that you
want to use as the standby server. If you have a FileMaker Server installation to use as the
standby server, then shut down and restart the prospective standby server before continuing to
the next step. The prospective standby server must be started after the primary server is
already running.
2. Make sure that the prospective standby server configuration matches your primary server
configuration. See “Standby server requirements” on page 64. Even though the prospective
standby reports a license conflict, you can use Admin Console to configure the settings.
Chapter 9 | Using a standby server 66
3. Close all databases on the primary server and the prospective standby server.
4. If you have scripts, manually copy the contents of the scripts folder from the primary server to
the prospective standby server:
1In a Windows default installation, copy the
\Program Files\FileMaker\FileMaker Server\Data\Scripts\ folder.
1In macOS, copy the /Library/FileMaker Server/Data/Scripts/ folder.
5. On the primary server, initiate a connection with the standby server using the standby
connect command:
fmsadmin standby connect standbyhost
where standbyhost is the IP address or host name of the prospective standby server. If you
use the host name, the host name must resolve to a single IP address.
6. Enter the user name and password for the Admin Console account that is defined on the
primary server.
7. Note the setup code that FileMaker Server returns. In the next step, you will enter this setup
code on the standby server. This setup code is valid for one hour.
8. On the standby server, confirm the connection with the primary server using the standby
accept command:
fmsadmin standby accept code
where code is the setup code that FileMaker Server returned from the standby connect
command in the previous step.
9. Enter the user name and password for the Admin Console account that is defined on the
standby server.
10. On the primary server, complete the connection by responding to the command line prompt.
You should see a message that the configuration settings have been transferred to the standby
server.
11. Perform the initial file synchronization from the primary server to the standby server. On the
primary server, run the standby update command:
fmsadmin standby update
By running the standby update command with no arguments, all hosted database files and
folders that are hosted on the primary server are updated on the standby server.
12. On the primary server, open the databases that you want to host. As clients use the hosted
databases, any changes are written to progressive backup files, which are used to
asynchronously transfer incremental file changes to the standby server.
Chapter 9 | Using a standby server 67
Notes
1With standby commands, you can use the CLI -y or --yes option to automatically answer yes
to all command prompts and the -f or --force option to ignore any certificate warning
messages.
1If a database file is on both the primary server and the standby server when you run the
standby connect command, the files must be identical or else the command returns an error.
For example, if your files are on a remote volume and the volume changes the folder timestamp
or dates, then FileMaker Server may determine that the files are not identical and the standby
connection command returns an error.
To waive this requirement, use the --overwrite option. When this option is used, conflicting
databases on the standby server are overwritten when they are updated. Databases that are
on the standby server but not on the primary server are not changed.
1When the standby server is initially connected to the primary server, the primary server’s
license key is transferred to the standby server. If you change the license key on the primary
server, the license key is also updated on the standby server. If you receive a license key
conflict message, restart the primary server, then restart the standby server.
1After you have defined the standby configuration, do not change the FileMaker Server user
account. Changes to the FileMaker Server user account may cause the standby
switchover command to fail.
1After you have defined the standby configuration, database files synchronize from the primary
server to the standby server when they are first opened on the primary server. Opening
database files on a primary server may take longer than on a standalone server because the
files are synchronized to the standby server before they are opened on the primary server.
1The following folders are synchronized from the primary server to the standby server:
1Data/Database folder. If you define additional database folders—additional database
folder 1 or additional database folder 2—they are also synchronized.
1Data/Databases/RC_Data_FMS folder, as long as this folder is not a shared network folder
such as a SAN target. If you define additional container data folders—container data folder 1
or container data folder 2—they are also synchronized.
1CStore folder. However, for security reasons, custom SSL certificates are not copied.
1The contents of other folders—for example, the scripts, documents, backup, and HTTPServer
folders—are not automatically copied to the standby server. You may either manually copy the
folders’ contents or use the standby update command. See “Updating files and folders on
the standby server” on page 72.
1When files are copied from the primary server to the standby server, file attributes are not
retained. For example, even if a file is locked on the primary server, it is unlocked on the standby
server because the “locked” attribute is not retained when the file is copied. Use FileMaker
accounts and privilege sets to secure the database file rather than using the system’s file
attributes to lock the file.
1If a database is removed from the primary server, the database is not automatically removed
from the standby server. To remove the database from the standby server, disconnect the
standby server, remove the database, and then reconnect the standby server.
Chapter 9 | Using a standby server 68
1Once you define a server as a standby server, you cannot configure the standby server’s
settings directly. Changes that you make to the primary server’s configuration settings are
saved on the primary server, and are not transferred to the standby server until a switchover
procedure (described in “Switching the standby configuration roles”) or failover procedure
(described in “Using the standby server when the primary server fails” on page 70).
For security reasons, the settings Use SSL for database connections and Use HSTS for web
clients are not transferred from the primary server to the standby server. Install a custom SSL
certificate and configure these settings on the prospective standby server before running the
standby connect command.
In addition, the settings on the following Admin Console tabs cannot be transferred from the
primary server to the standby server:
1General Settings > ODBC/JDBC
1Web Publishing > General Settings
1Web Publishing > FileMaker WebDirect
1Web Publishing > PHP
1Web Publishing > XML
1Web Publishing > FileMaker Data API
To change these settings, disconnect the standby server, change the settings on both servers,
and then reconnect the standby server.
1If you installed FileMaker Server on the prospective standby server and opened Admin Console
on that machine before opening Admin Console on the primary server, you may receive a
license conflict on the primary server that prevents it from acting as the primary server. To
resolve this issue:
1On the prospective standby server, stop FileMaker Server either using Admin Console or the
CLI command fmsadmin stop server.
1On the primary server, restart FileMaker Server either using Admin Console or the CLI
command fmsadmin restart server.
1On the prospective standby server, start FileMaker Server either using Admin Console or the
CLI command fmsadmin start server.
1Follow the procedure described in “Setting up a standby server” on page 65.
Switching the standby configuration roles
When you switch the roles of your primary server and your standby server, you make the standby
server your production server and the primary server becomes the standby server. This procedure
is called a switchover.
Important Running the standby switchover command while clients are connected to
databases or while scripts are running can cause data loss. Any uncommitted data is lost when
you run the standby switchover command. Notify clients about a planned switchover in
advance, and perform the switchover operation at off-peak times when clients are not connected.
Chapter 9 | Using a standby server 69
To perform a switchover operation:
1. On the primary server, use the standby status command to verify all files:
fmsadmin standby status -s
Fix any issues that are reported before continuing with the rest of this procedure.
2. On the primary server, use the pause command to pause all open databases.
fmsadmin pause
3. On the primary server, use the standby update command to update all databases from the
primary server to the standby server:
fmsadmin standby update
4. On the primary server, run the standby switchover command:
fmsadmin standby switchover
5. After you run the standby switchover command, the former standby server becomes the
new primary server. On the new primary server, use the resume command to resume all
paused databases.
fmsadmin resume
Notes
When you run the standby switchover command on the primary server:
1The primary server pauses all hosted databases and sends all pending progressive backup
files to the standby server.
Note Only the databases that have been opened on the primary server are synchronized with
the standby server. Databases that have never been opened on the primary server are not
copied to the standby server, even if those databases are in one of the database folders on the
primary server. To copy all the files in a database folder, use the standby update command
and specify the folder you want to copy. See “Updating files and folders on the standby server”
on page 72.
1The standby server applies all the pending progressive backup files that it has received, and
then the standby server becomes the production server.
1The former primary server becomes the new standby server.
1In general, hosted databases are resumed for clients to use. However, use Admin Console or
CLI commands to verify that databases are open after the switchover operation completes. If
the former primary server hosted encrypted database files, the encrypted database files do not
automatically open after you switch the roles of your primary and standby servers. You must
manually open encrypted database files after completing the switchover. See “Opening
encrypted databases” on page 38.
1If the primary server is unable to communicate with the standby server, the switchover
operation fails, and the primary server remains the production server.
Chapter 9 | Using a standby server 70
Using the standby server when the primary server fails
If your primary server fails due to a hardware or software issue, or if the primary server becomes
unavailable due to network issues, you can make your standby server the production server in
place of the primary server. This procedure is called a failover.
To perform a failover operation, run this command on the standby server:
fmsadmin standby disconnect
When you run the standby disconnect command on the standby server:
1The standby server is changed to a standalone server and stops synchronizing with the primary
server.
1Because the standby server is no longer communicating with its former primary server, the
standby server does not attempt to change the former primary server to a standalone server. It
only changes itself to a standalone server. However, if the former primary server is able to
communicate with the former standby server and detects that the former standby server is now
a standalone server, the former primary server changes itself to a standalone server as well.
1There may be some data loss if the primary server had not fully synchronized with the standby
server before the primary server failed.
Important Do not to bring both database servers online after the standby server has switched to
a standalone server. When the same database files are simultaneously hosted by two servers,
clients may unknowingly commit data to separate copies of the database files.
Setting primary and standby server host names
To minimize the impact to clients, use alias host names instead of direct IP addresses for the
primary server and the standby server. By planning the host names for each server, you can make
it easier for clients to connect to the production server after switchover and failover operations.
Use the standby hostnames command to set the host names that FileMaker clients use to
access hosted databases. On the primary server, run this command:
fmsadmin standby hostnames primaryHost standbyHost [options]
where primaryHost is the host name for the primary server and standbyHost is the host name
for the standby server. For options, you can use -w or --wait to set the timeout value.
A network administrator needs to configure the environment's Domain Name System (DNS) to
resolve a server host name to both the primary server and standby server addresses.
Disconnecting a standby server
To disconnect a standby server from the primary server:
1. On the primary server, use the pause command to pause all open databases:
fmsadmin pause
2. On the primary server, use the standby update command to update all databases from the
primary server to the standby server:
fmsadmin standby update
Chapter 9 | Using a standby server 71
3. On the primary server, use the standby disconnect command:
fmsadmin standby disconnect
4. On the primary server, use the resume command to resume all paused databases:
fmsadmin resume
When you run the standby disconnect command on the primary server:
1The primary server removes the standby server from synchronization, then the primary server
is changed to a standalone server. The primary server does not need to be restarted after it is
changed to a standalone server. Clients can continue to use hosted databases after you
resume the paused databases.
1The standby server is removed from synchronization, then the standby server is changed to a
standalone server. To prevent both servers from hosting the same databases, the databases
on the former standby server are closed, and the Automatically Open Database Files setting
is disabled on the former standby server.
1If the primary server cannot communicate with the standby server, the primary server still
changes to a standalone server and stops sending updates to the standby server. However, the
standby server remains as a standby server due to the communication error. To complete the
disconnection, run the standby disconnect command on the standby server, and the
standby server is changed to a standalone server.
Reconnecting a standby server
To reconnect servers that you previously disconnected:
1. Ensure that the prospective primary server is a standalone server by running the standby
status command, described in “Getting information about the standby configuration” on
page 73.
1If you see the message “Standby server not configured,” then the server is a standalone
server.
1If you see a message that says the server is a primary or a standby server, then run the
standby disconnect command to change it to a standalone server.
2. Ensure that the prospective standby server is a standalone server by running the standby
status command, described in “Getting information about the standby configuration” on
page 73.
1If you see the message “Standby server not configured,” then the server is a standalone
server.
1If you see a message that says the server is a primary or a standby server, then run the
standby disconnect command to change it to a standalone server.
Chapter 9 | Using a standby server 72
3. After verifying that both servers are standalone servers, follow the procedure described in
“Setting up a standby server” on page 65.
Note If a database file is on both the primary server and the standby server when you run the
standby connect command, the files must be identical or else the command returns an error.
When reconnecting a standby server, you can either delete conflicting databases or use
the --overwrite option. When this option is used, conflicting databases on the standby server
are overwritten when they are updated. Databases that are on the standby server but not on the
primary server are not changed.
Updating files and folders on the standby server
In case of an update error or communication failure, you may need to update specific database
files or folders. Use the standby update command to update files or folders on the standby
server. This command can only be run on the primary server. Before running this command, close
or pause all open databases using fmsadmin close or fmsadmin pause.
Format
fmsadmin standby update [file...] [path...][options]
Options
1If no file or path is specified, the closed and paused databases located in the default database
folder and the additional database folders are updated.
1For file, you can specify a database ID or database name to update that database file, including
any external container field objects. If the specified file is already up-to-date on the standby
server, no updates are transferred. You can specify multiple files, separated by spaces.
1For path, you can specify a directory containing database files that you want to update. You can
use "*" wildcards, but UNIX regular expressions and other types of wildcards are not supported.
Note To use "*" wildcards in macOS, enclose the value for path in quotation marks. For
example: fmsadmin standby update "/folder/*"
The standby server must be able to create the same directory as specified on the primary
server. The root volume of the directory must already exist on the standby server. If the volume
refers to a remote drive, the drive must be mounted before you run the standby update
command. The FileMaker Server user account must have write access to the directory.
The value for path cannot include files in reserved folders:
1the default database folder
1the additional database folders
1the container data folders
Chapter 9 | Using a standby server 73
The value for path can include these folders:
1Data/Backups/
1Data/Documents/
1Data/Scripts/
1Database Server/Extensions
1Use the -r or --recursive option to recursively update folders.
Note To update files that use a filename extension other than .fmp12, you must register the
filename extension in Admin Console on the Database Server > Databases tab before running
the standby update command. See FileMaker Server Help.
Getting information about the standby configuration
You can use the standby status command to get information about the standby configuration
of your server machines. You can run this command on a primary server, a standby server, or a
standalone server that is not using a standby configuration.
Example 1
Example 2
Example 3
Running standby status on a primary server:
fmsadmin standby status -u [admin] -p [pass]
Result
Primary Server: FMS01 (192.168.1.101) This machine
Standby Server: FMS02 (192.168.1.102)
Last Updated: 10-22-2017 02:55:44 PM
Running standby status on the standby server:
fmsadmin standby status -u admin -p pass
Result
Primary Server: FMS01 (192.168.1.101)
Standby Server: FMS02 (192.168.1.102) This machine
Last Updated: 10-22-2017 02:55:44 PM
Running standby status on a standalone server:
fmsadmin standby status -u admin -p pass
Result
Error: 11300 (Server is not connected to standby server)
Chapter 9 | Using a standby server 74
Example 4
Standby server performance considerations
The standby server feature uses progressive backups to communicate changes from the primary
server to the standby server. As a result, performance considerations related to progressive
backups can also apply to standby server performance.
The setting that most affects primary server performance is the value specified for Save interval
on the Database Server > Folders tab. This setting determines how often progressive backups
are created. You can specify a Save interval value between 1 and 99 minutes. However, to avoid
negative performance impact, do not specify a value lower than the default of 5 minutes. If the
standby server feature has a negative performance impact on your primary server, then increase
the Save interval value.
To get status information about the updates to individual database files, use the -s or --
stats option.
fmsadmin standby status -u admin -p pass -s
Result
Primary Server: FMS01 (192.168.1.101) This machine
Standby Server: FMS02 (192.168.1.102)
Last Updated: 10-22-2017 02:55:44 PM
ID File State Last Updated Last Error
1 Contacts.fmp12 Updated 10-22-2017 02:55:44 PM
2 Invoices.fmp12 Update Error 10-21-2017 01:23:14 AM Permission
Denied
3 Orders.fmp12 Updating 10-22-2017 02:55:43 PM
4 Sales.fmp12 Not Updated
Chapter 10
Additional resources
Product documentation
Online Help is accessible from FileMaker Server Admin Console, Help menu > FileMaker Server
Help.
To access FileMaker Server documentation:
1In Admin Console, choose Help menu > FileMaker Server Product Documentation.
1Click the links in the FileMaker Server Admin Console Start Page.
1On the web, go to the Product Documentation Center.
Customer support and Knowledge Base
For help with installation, launch, or reinstallation, visit Support.
For tips, technical advice, and more information about FileMaker Server, visit the FileMaker
Knowledge Base.
To ask questions and get advice from other users, visit the FileMaker Community.
Note Information in the FileMaker Knowledge Base and the FileMaker Community may not be
available in all languages.
Check for software updates
From the FileMaker Server Admin Console Start Page, you can check for software updates. In the
Software Update section, click Check Now. If an update is available, you can click a link to
download the update.
Index
A
accounts
Admin Console login 14
FileMaker Server user
requirements for existing account 29
selecting 12
IIS and Basic Authentication 55
web server 56
Windows user 56
Admin Console
described 18, 35
passwords 14
requirements 6
starting 36
Status pane 17
troubleshooting deployment 33
user names 14
administrator groups
loading configuration 50
saving configuration 46
administrators, contact information 15
alerts, sending to clients 43
antivirus software
during installation 10
performance considerations
macOS 61
Windows 60
Apache web server 53, 57
authentication, setting up (Windows IIS) 55
B
backing up files 39
backups, for migration 47
Basic Authentication 56
Bonjour requirements 29
C
cache size 59
certificate
importing 53
requesting 53
certificates, SSL 33, 53
CLI commands 44
client applications 6
clients
maximum number of 7
sending messages to 43
clone databases 39
close command 44
command line interface 44
configuring
standby server 64
web server 53
connections, adding 7
Custom Web Publishing
enabling 16
testing 30
D
data sources
FileMaker files as 16
ODBC files as 40
data, synchronizing 39
database cache size 59
Database Server
described 18
stopping 47
deploying FileMaker Server
multiple machines
master machine 23
worker machines 23
single machine 14–17
testing deployment 30
Deployment assistant 14
documentation 75
E
email notifications 43
enabling
Custom Web Publishing 16
FileMaker Data API 16
IIS web server 54
ODBC and JDBC 16
PHP 16
web publishing 16
XML 16
encrypted files 37
F
failover 70
FileMaker API for PHP 16
FileMaker Data API
and standby server 65
enabling 16
FileMaker Go
clients supported 6
sending messages to clients 43
FileMaker Pro
clients supported 6
sending messages to clients 43
testing connection to files 30
FileMaker scripts 42
Index 77
FileMaker Server
administering 35
client applications supported 6
components, described 18
deploying
multiple machines 21
single machine 11
Deployment assistant 14
described 6
documentation 75
installing
multiple machines 21–28
single machine 9–17
license key 7
optimizing 58
requirements 6
setting up email notifications 43
testing deployment 30
uninstalling
in macOS 49
in Windows 48
updates 75
upgrading from a previous version 46
user account
requirements for existing account 29
selecting 12
FileMaker Server Admin Console. See Admin Console
FileMaker WebDirect
sending messages to clients 43
testing 30
files
backing up 39
clone databases 39
encrypting 37
maximum number of 7
synchronizing data 39
testing database deployment 30
uploading 37
verifying 40
firewalls, configuring 21
fmsadmin command line interface
close command 44
help command 45
list command 38
restart adminserver command 32
standby command 66
fmsadmin group (macOS) 37
FMServer_Sample.fmp12 31
folders for backups 39
G
groups. See administrator groups
guests. See clients
H
hardware, selecting 58
help command 45
hibernate mode 10
host names, standby server 70
hosting files, maximum number 7
HTTPS
Admin Console 35
port 9
I
IIS Manager 56
IIS web server
enabling 54
enabling IIS authentication 56
setting up authentication 55
importing a certificate 53
indexing software, turning off 10
installing FileMaker Server
moving an installation 46
multiple machines 21–28
recommendations 10
single machine 9–17
Internet Information Services (IIS). See IIS web server
IP addresses
DHCP 10, 22
master machine 17
Start page 36
static 10, 22
J
JDBC
client drivers 6
enabling for FileMaker data sources 16
L
Launch Center 31
license key
entering 7
upgrading from previous versions 46
User Connections 7
limitations
client 7
file 7
list command 38
localhost 37
Log Viewer pane, using 43
M
macOS
configuration tips 61
system requirements 6
macOS Server application 57, 63
master machine
installing on 23
IP address 17
maximum number
of clients 7
of files 7
memory requirements 59
Index 78
messages, sending 43
migrating FileMaker Server from previous versions. See upgrad-
ing FileMaker Server
multiple-machine deployment
and standby server 65
benefits 20
defined 18
installing 21–28
O
ODBC
client drivers 6
enabling for FileMaker data sources 16
ODBC data sources 40
ODBC data source single sign-on 40
optimizing FileMaker Server 58
P
passwords, Admin Console 14
performance
monitoring 42, 62
recommendations 10, 22
PHP
enabling 16
PHP engine, described 18
testing 30
physical RAM size 59
plug-ins 37
ports 22
R
RAM cache, recommended 59
ReFS support 39
requesting a certificate 53
requirements
clients and web browsers 6
hardware and software 6
web servers 18
restart adminserver command 32
S
sample database 31
Schedule assistant 39, 40
schedules
loading configuration 50
saving configuration 46
scheduling
backups 39
email notifications 44
messages 43
scripts 41
verifying 40
scripts
FileMaker 42
script sequence 42
system-level 42
Secure Sockets Layer. See SSL
security
database 19
web browser message 36
server
IP address 17
name 15
settings, noting 47
setup information 14
shell scripts 41
shutdown notifications 43
single sign-on, ODBC data source 40
SMTP 43
SQL data sources 40
SSL 19
SSL certificate 33, 53
standby commands
accept 66
connect 66
disconnect
on primary server 71
on standby server 70
status 73
switchover 69
update 66
standby hostnames command 70
standby server
and FileMaker Data API 65
and multiple-machine deployment 65
disconnecting 70
failover 70
hostnames 70
reconnecting 71
requirements 64
setting up 65
status 73
switching roles 68
using 64
starting Admin Console 36
static IP addresses 10, 22
statistics 42, 62
switchover 68
system requirements
Admin Console 6
FileMaker Server 6
web server 18
T
Technology Tests page 30
trial versions, updating 7
troubleshooting deployment 32
U
uninstalling FileMaker Server
macOS 49
Windows 48
updating FileMaker Server software 75
Index 79
upgrading FileMaker Server
described 46
noting settings 47
uploading files 37
user accounts. See accounts
User Connections License 7
user names, Admin Console 14
V
verifying files 40
virtual servers 59
W
web publishing
enabling 16
setting up web server 53
software components 18
testing deployment 30
Web Publishing Engine
described 18
stopping 47
web server
macOS, Apache 57
setting up 53
testing 30
Windows IIS 54
Windows user accounts 56
Windows
configuration tips 60
directory security 55
ReFS support 39
system requirements 6
user accounts 56
worker machines
changing to master 23
installing on 23
X
XML, enabling 16

Navigation menu
