Filemaker File Maker Pro 5.5 Unlimited Administrator’s Guide Fmu55 Ag En

User Manual: filemaker FileMaker Pro 5.5 Unlimited - Administrator’s Guide Free User Guide for FileMaker Software, Manual

Open the PDF directly: View PDF PDF.
Page Count: 128 [warning: Documents this large are best viewed by clicking the View PDF Link!]

FileMaker
®
Pro 5.5
Unlimited
©1999, 2001 FileMaker, Inc. All Rights Reserved.
FileMaker, Inc.
5201 Patrick Henry Drive
Santa Clara, California 95054
www.filemaker.com
FileMaker is a trademark of FileMaker, Inc., registered in the U.S. and other countries, and the file folder logo is a trademark of FileMaker, Inc. Red
Hat is a registered trademark of Red Hat, Inc., in the U.S. and other countries. All other trademarks are the property of their respective owners. Portions
of some screen shots are reprinted by permission from Microsoft Corporation. Portions of some screen shots are copyright 1996-2000 Netscape
Communications Corp. All rights reserved. These screen shots may not be reprinted or copied without the express written permission of Netscape.
This software is based in part on the work of the Independent JPEG group.
Portions of this software are copyrighted by MERANT. All rights reserved.
All persons and companies listed in the examples are purely fictitious and any resemblance to existing persons and companies is purely coincidental.
Mention of third party companies and products is for informational purposes only and does not constitute an endorsement. FileMaker assumes no
responsibility with regard to the selection, performance, or use of these products. All understandings, agreements or warranties, if any,take place
directly between the vendor and prospective users.
Administrator’s Guide
For Windows, Mac OS X Server, and Red Hat Linux
This page intentionally left blank.
Contents
Preface
Introducing FileMaker Pro 5.5 Unlimited
About this guide
v
Contents of the FileMaker Pro 5.5 Unlimited CDs
vi
Contents of the FileMaker Pro CD
vi
Contents of the FMWSC and Tools CD
vi
Registration and customer support
vii
Where to go for more information
viii

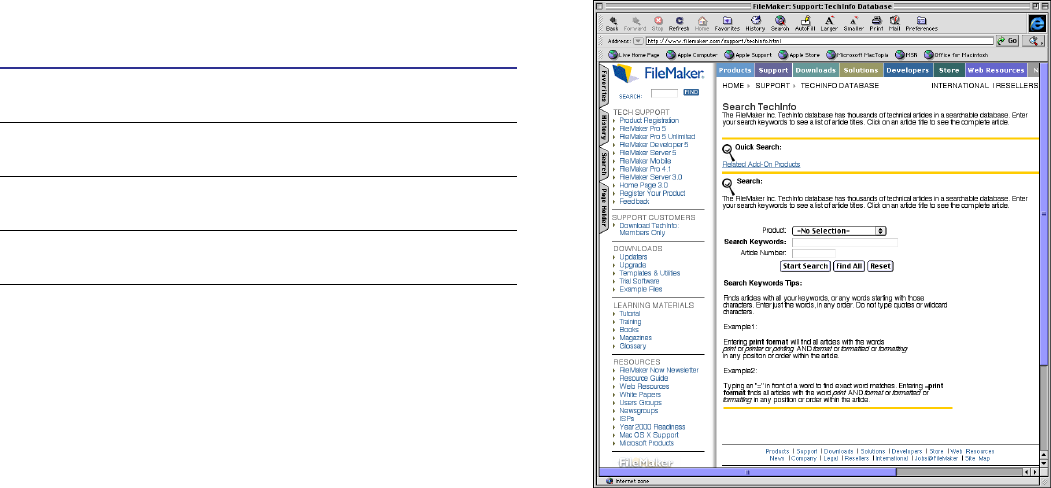

Search the TechInfo database
viii
Chapter 1
Installing the FileMaker Web Server Connector
About the Web Server Connector
1-1

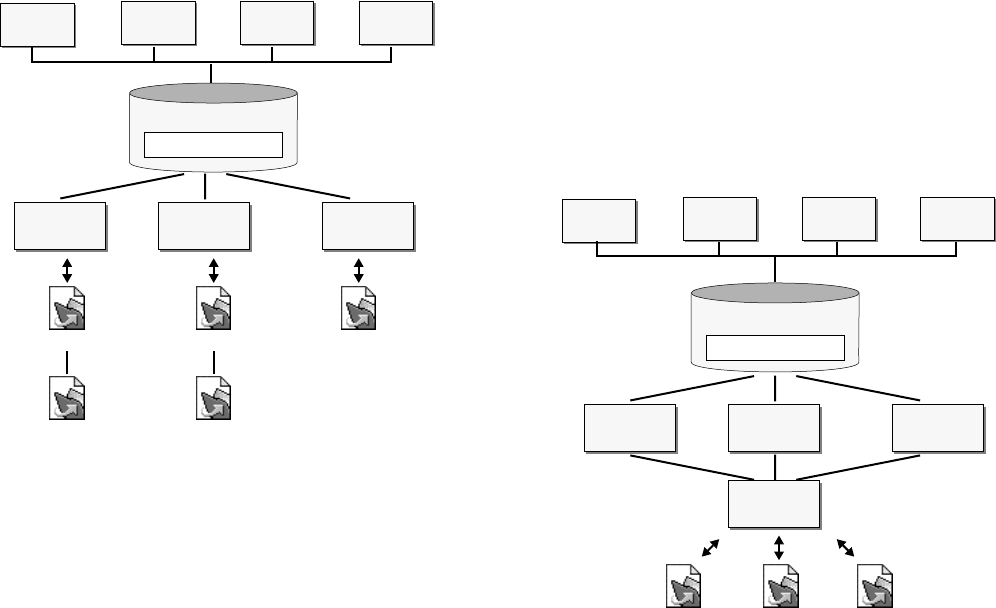

Configuring a RAIC to use with the Web Server
Connector
1-1
Security considerations when using a RAIC
1-3
Where to place database and HTML files
1-3
Requirements for the Web Server Connector
1-3
Requirements on Windows machines
1-3
Requirements on Mac OS X Server machines
1-3
Requirements on Linux machines
1-4
Installing on Windows
1-4
Setting up user names and passwords
1-5
Where files are installed
1-5
Uninstalling the Web Server Connector
1-5
Installing on Mac OS X Server
1-6
Starting the Web Server Connector
1-6
Where files are installed
1-6
Installing on Red Hat Linux
1-7
Starting the Web Server Connector
1-7
Where files are installed
1-7
Uninstalling the Web Server Connector
1-8
Chapter 2
Administering the Web Server Connector
Setting up FileMaker Pro Unlimited
2-1
Configuring the administration account
2-1
Resetting the administrator account
2-2
Configuring the Web Server Connector by host machine or
by database
2-2

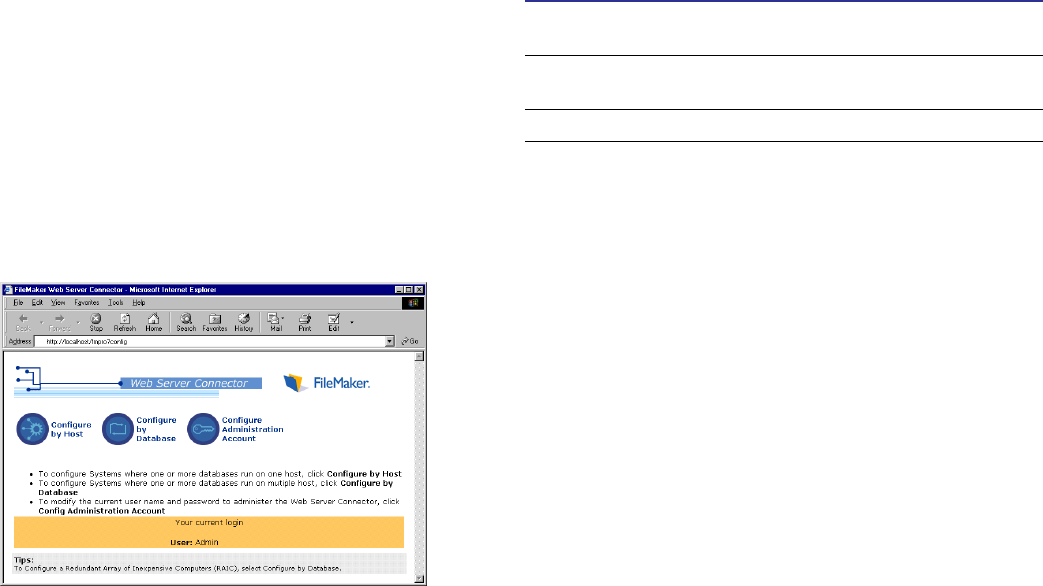

Accessing the Web Server Connector configuration
pages
2-2

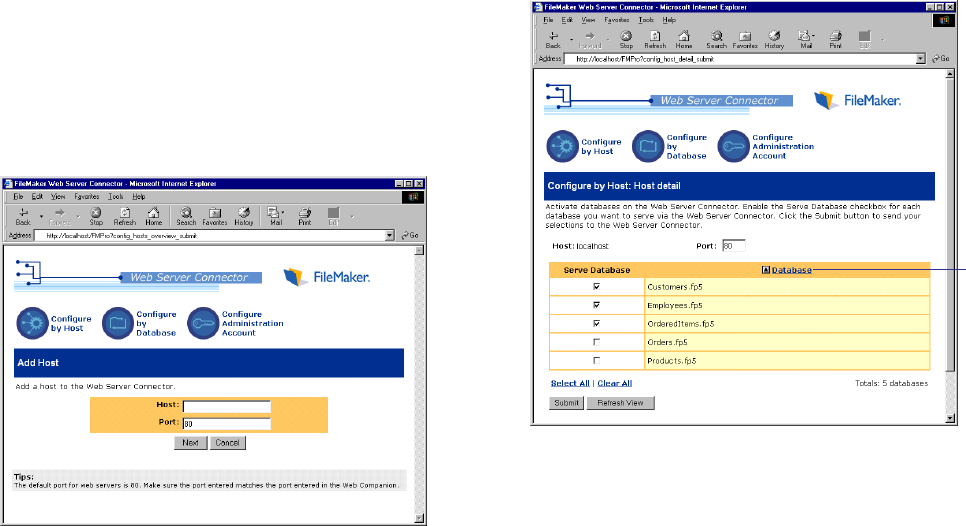

Configuring by host
2-3
Configuring by database
2-4
Using the Web Server Connector log files
2-5
Accessing hosted databases
2-5
Connecting to FileMaker Pro custom web pages
2-5
Connecting to FileMaker Pro instant web pages
2-5
Chapter 3
Publishing your database on the Web
Types of web publishing
3-1
Custom web publishing with XML
3-1
Custom web publishing with JDBC
3-1
Custom web publishing with CDML
3-2
Instant Web Publishing
3-2
Other ways to create custom web sites for your data
3-2
Static web publishing with HTML
3-2
Using the FileMaker Pro Web Companion
3-2
Requirements for web access
3-3
Enabling the Web Companion
3-3

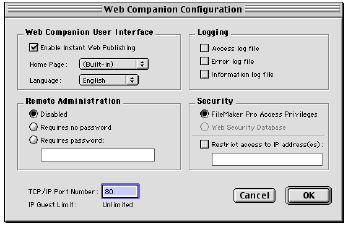

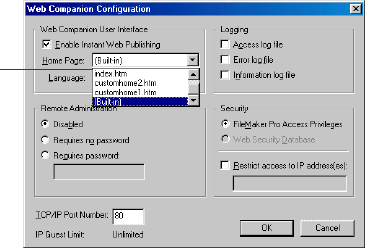

Setting Web Companion configuration options
3-3
Sharing the database via the Web
3-5
Creating a custom home page
3-5
Specifying a custom home page as the default
3-6
iv
FileMaker Pro 5.5 Unlimited Administrator’s Guide
Creating a custom home page for Instant Web Publishing
3-6
About the FileMaker WebPortal object
3-7
Overview of setting up a custom home page for
Instant Web Publishing
3-7
Creating a custom web site using a database layout
3-8
Overview of using a database layout as the
Instant Web Publishing home page
3-8
Using script buttons in Instant Web Publishing
3-9
Suppressing the Instant Web Publishing interface
3-11
Bypassing the Instant Web Publishing home page
3-12
Format filenames for instant web pages
3-13
Web Companion support for Internet media types
3-13
Monitoring your site
3-14

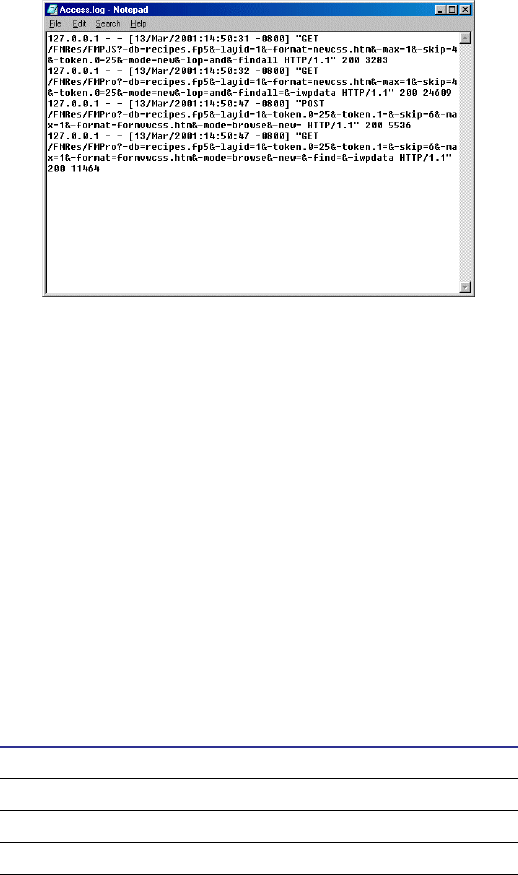

Using the access.log file
3-14
Using the error.log file
3-15
Using the info.log file
3-15

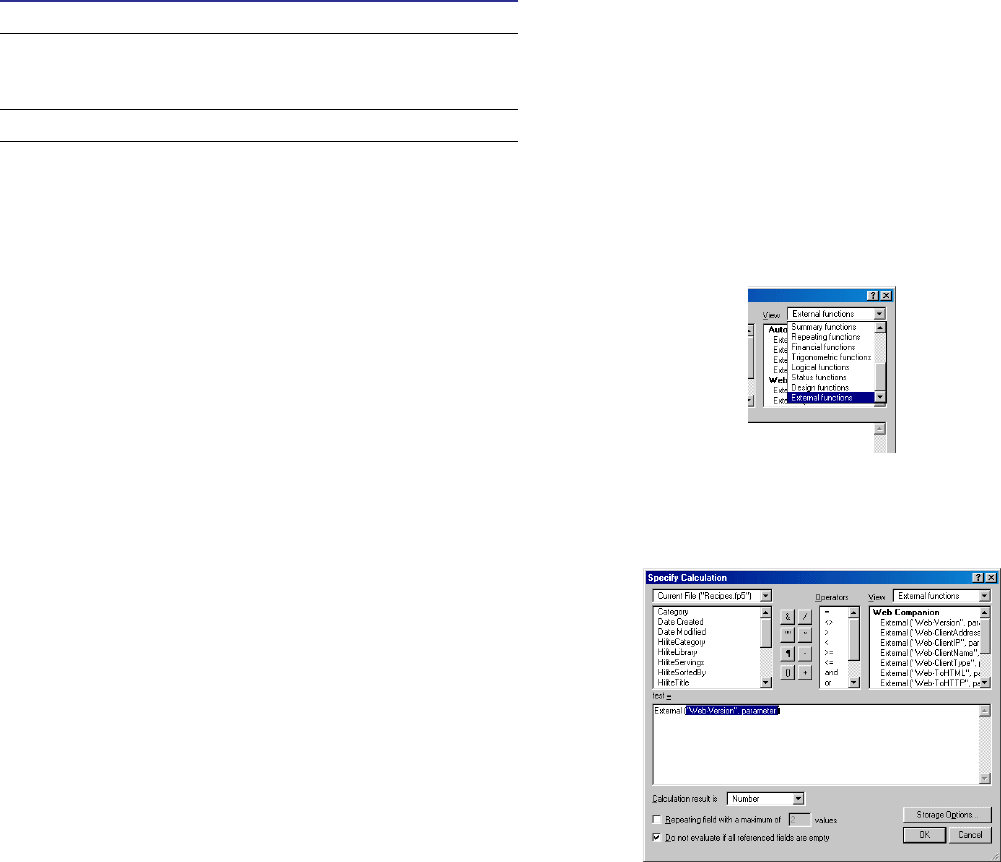

Using the Web Companion external functions
3-15
Exporting data to a static HTML page
3-16
Testing your site without a network connection
3-18
Opening password-protected databases remotely
3-18
Opening and closing databases using XML
3-19
Opening and closing databases using CDML
3-19
Chapter 4
Custom web publishing using CDML
About the CDML examples
4-1
General steps for custom web publishing using CDML
4-2
About CDML format files
4-2
Generating FileMaker Pro CGI requests using CDML
4-3
Request names
4-4
Requests for adding records to a portal
4-4
Requests for editing multiple records in a portal
4-4
Using the CDML Tool and templates
4-5
Using the Templates tab
4-6
Using the Tags tab
4-6
Customizing a format file template
4-7
Categories of CDML tags
4-8
Modified CDML tags
4-9
CDML tags new to FileMaker Pro 5
4-9
Modified CDML tags
4-10
Using an intratag parameter
4-11
About the CDML Reference database
4-11
Creating error messages
4-13
Using an encoding parameter with a CDML replacement tag
4-14
Planning your web site
4-14

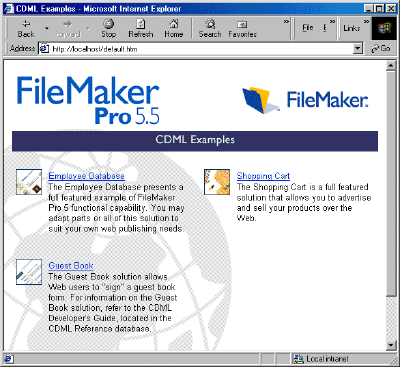

Looking at the three CDML examples
4-15
Employee Database example
4-15

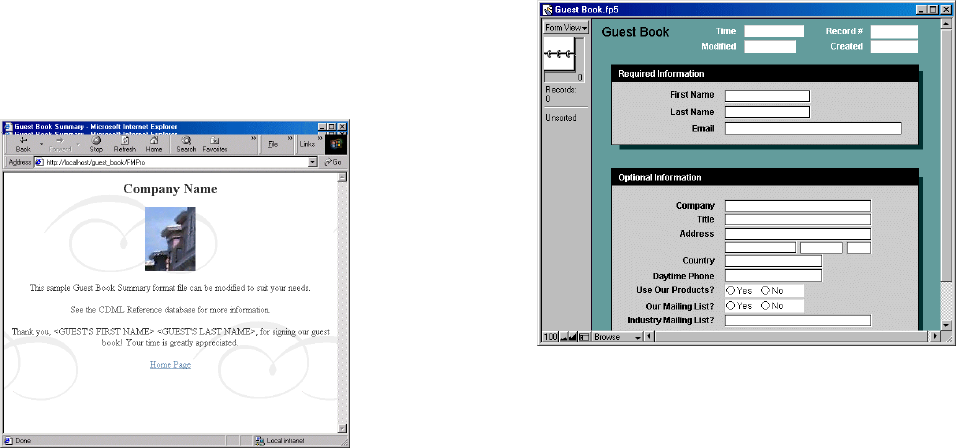

Guest Book example
4-16

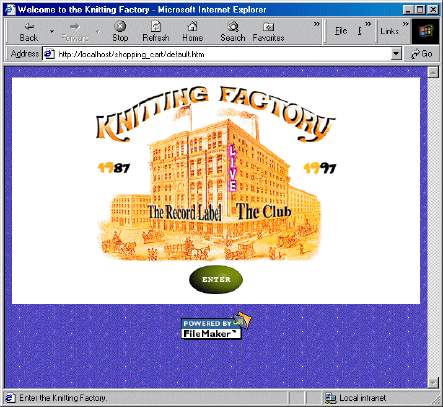

Shopping Cart example
4-17
Chapter 5
Using FileMaker Pro XML to deliver your data
About the XML examples
5-1
General process for custom web publishing using XML
5-2
Generating an XML document
5-2
About XML namespaces
5-3
About FileMaker Pro database error codes
5-3
Using the FMPDSORESULT grammar
5-3
Description of elements in the FMPDSORESULT
grammar
5-4
Example of XML data in the FMPDSORESULT
grammar
5-4
Using the FileMaker Pro Extended XML grammars
5-5
Description of elements in the FMPXMLRESULT
grammar
5-5
Example of XML data in the FMPXMLRESULT
grammar
5-6
Description of elements in the FMPXMLLAYOUT
grammar
5-7
Contents
v
Example of XML data in the FMPXMLLAYOUT
grammar
5-7
About UTF-8 encoded data
5-8
Generating FileMaker Pro CGI requests for an XML document
5-8
Request and parameter names
5-8
Requests for adding records to a portal
5-9
Requests for editing multiple records in a portal
5-9
Using style sheets with your XML document
5-10
Comparing CSS, XSLT, and JavaScript
5-11
Cascading style sheets (CSS) example
5-13
Extensible Stylesheet Language–Transformations
(XSLT) example
5-14
JavaScript scripting language example
5-16

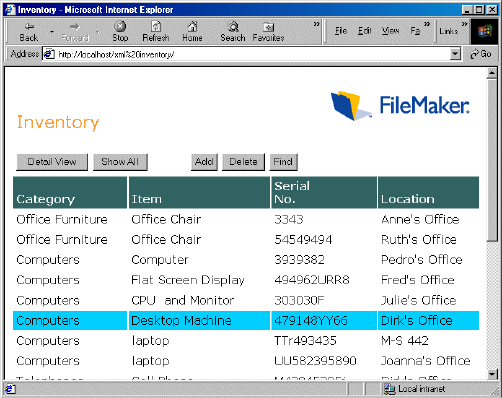

Looking at the XML Inventory example
5-17
Chapter 6
Using Java and JDBC to deliver your data
About the JDBC examples
6-1
About JDBC
6-1
Using the FileMaker JDBC Driver
6-2
About the FileMaker JDBC Driver
6-2
Using a JDBC URL to connect to your database
6-2
Specifying driver properties in the URL subname
6-3
SQL supported by the FileMaker JDBC Driver
6-4
Using DbOpen and DbClose pseudo procedures
6-5
Using the RecordID pseudo column
6-6
Using the ModID pseudo column
6-6
SQL statement examples
6-6
Using a character escape
6-7
FileMaker data type mapping to JDBC SQL and Java
data types
6-7
FileMaker Pro support for Unicode characters
6-7
About the FileMaker JDBC Driver interfaces and extensions 6-7
Example 1: Looking at the FileMaker Pro Explorer application 6-8
Setup requirements 6-8
Install the example and the FileMaker JDBC Driver 6-9
Open and share your databases via the Web 6-9
Run the FileMaker Pro Explorer application 6-9
View the source code of the example 6-10

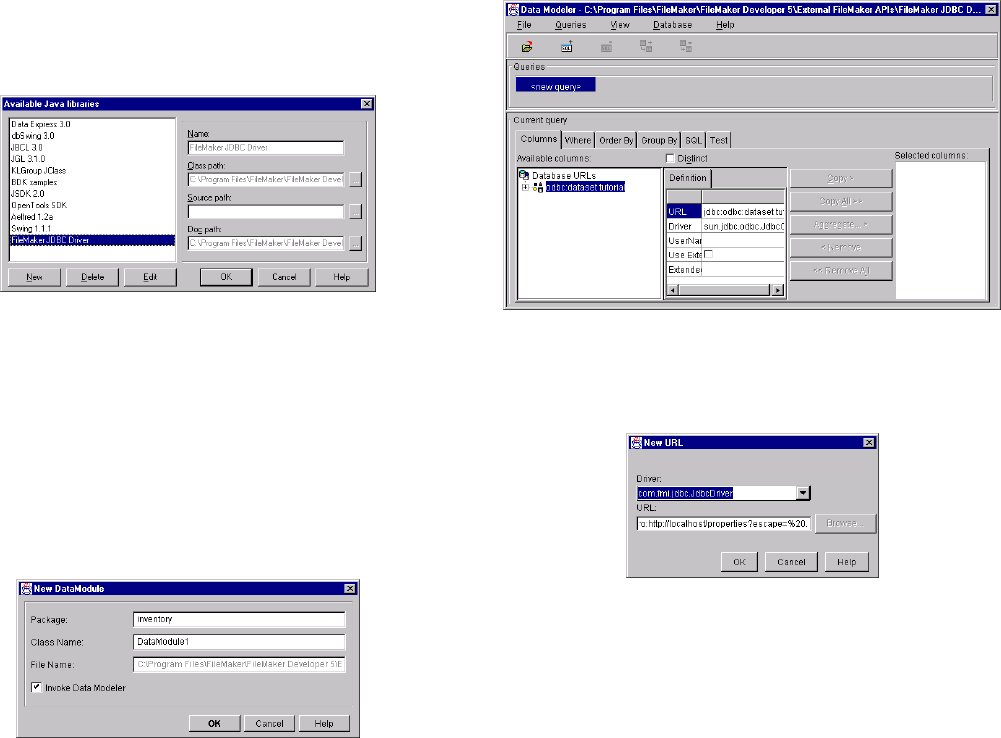

Example 2: Creating the JBuilder Inventory application 6-11
Install the example and FileMaker JDBC Driver 6-11

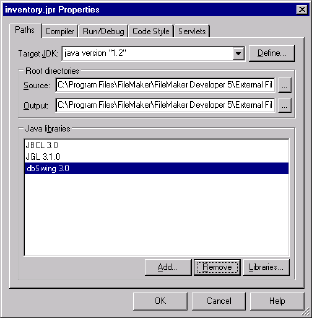

Set up JBuilder to use the FileMaker JDBC Driver 6-11

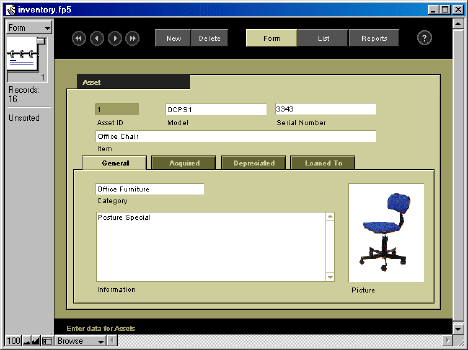

Open and share the Inventory.fp5 database 6-11
Start a new JBuilder project 6-11
Create the data module 6-12
Design the data module 6-12

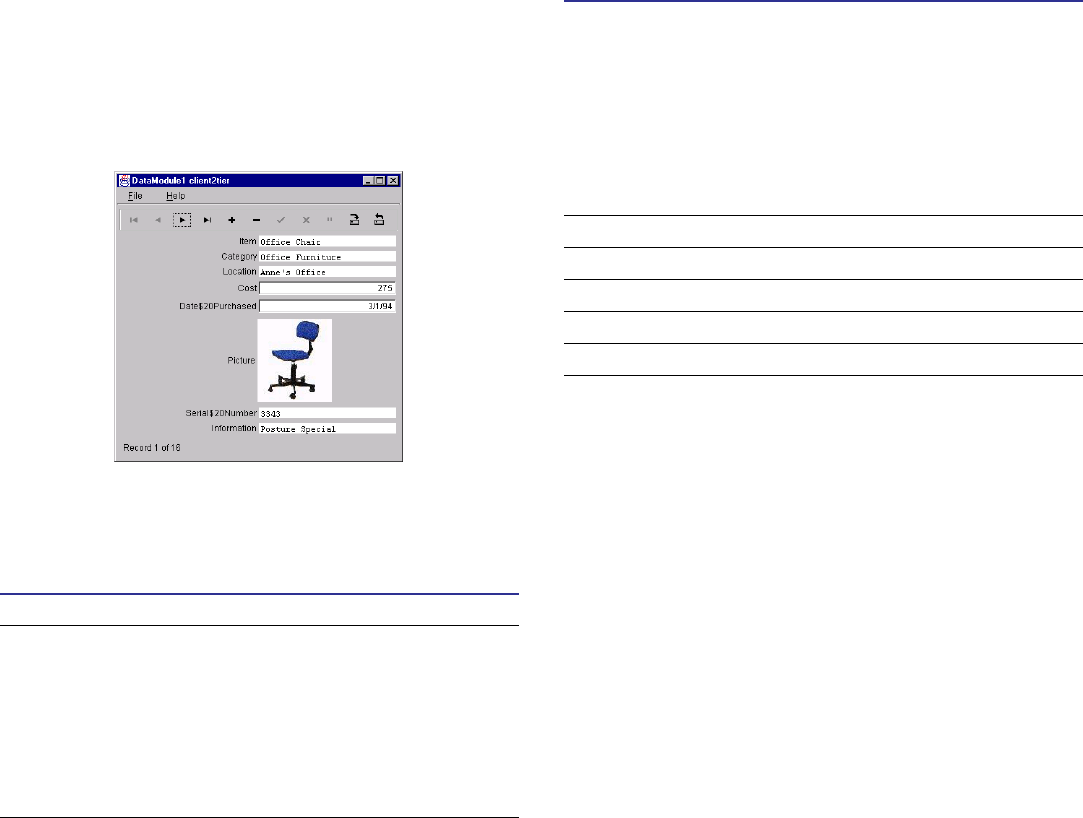

Test the data module 6-13
Generate the application 6-13

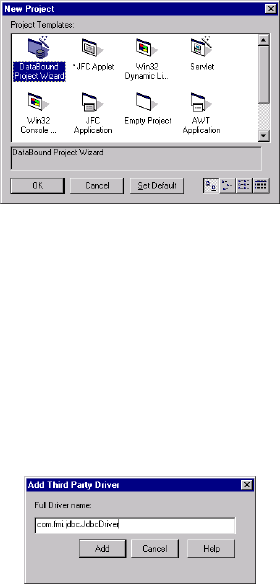

Example 3: Creating the Visual Cafe Inventory application 6-14
Install the example and the FileMaker JDBC Driver 6-15
Set up Visual Cafe to use the FileMaker JDBC Driver 6-15
Open and share the inventory_db database 6-15
Create a new Visual Cafe project 6-15
Using the FileMaker Java classes 6-17
About the FileMaker Java Class Library 6-17
Looking at the Java applet examples 6-18
Appendix A
Valid names used in CGI requests for FileMaker XML data
Generating a –find, –findall, or –findany request A-1
Examples of –find, –findall, and –findany requests A-1
Generating a –view request A-2
Examples of –view requests A-2
Generating a –new request A-2
Examples of –new requests A-2
Generating an –edit request A-3
Examples of –edit requests A-3
Generating a –delete request A-3
vi FileMaker Pro 5.5 Unlimited Administrator’s Guide
Examples of –delete requests A-3
Generating a –dbnames request A-3
Examples of –dbnames requests A-4
Generating a –layoutnames request A-4
Examples of –layoutnames requests A-4
Generating a –scriptnames request A-4
Examples of –scriptnames requests A-4
Generating a –dbopen request A-5
Examples of –dbopen requests A-5
Generating a –dbclose request A-5
Examples of –dbclose requests A-5
Specifying parameters for the request A-6
–db (Database) A-6
–lay (Layout) A-6
–format (Format) A-6
–recid (Record ID) A-6
–modid (Modification ID) A-7
–lop (Logical operator) A-7
–op (Comparison operator) A-7
–max (Maximum records) A-8
–skip (Skip records) A-8
–sortfield (Sort field) A-8
–sortorder (Sort order) A-8
–script (Script) A-9
–script.prefind (Script before Find) A-9
–script.presort (Script before Sort) A-9
–styletype (Style type) A-9
–stylehref (Style href) A-9
–password (Database password) A-10
field name (Name of specific field) A-10
Appendix B
FileMaker Pro values for error codes B-1
Appendix C
Enabling the FileMaker Pro Web Companion in Mac OS X

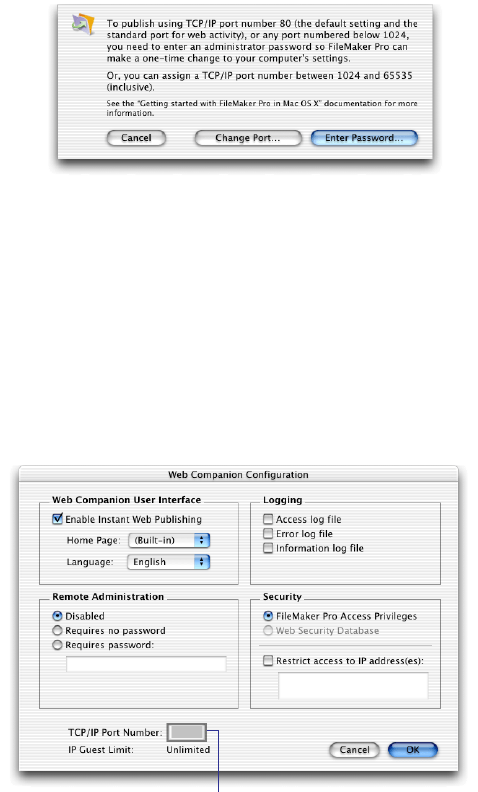

Configuring the Web Companion for use with ports 1024
and higher C-2
Accessing databases that are published to the Web C-3
Index I-1
Preface
Introducing FileMaker Pro 5.5 Unlimited
FileMaker® Pro 5.5 Unlimited is a companion product to
FileMaker Pro 5.5 that allows unlimited web user access to your
FileMaker databases via the Web Companion plug-in.
In addition, the FileMaker Pro 5.5 Unlimited product includes the
following features:
1 The FileMaker Web Server Connector that allows you to combine
the web serving features of the FileMaker Pro Web Companion with
the features of these web servers: Microsoft Internet Information
Server 4.0 and Microsoft Internet Information Server 5.0, Apache on
Mac OS X Server, and Apache on Red Hat® Linux 7.1.
1 FileMaker Pro custom web publishing tools and example files to
help you publish your database on custom web pages using CDML,
XML, or a Java applet.
Note For deploying your custom database solutions over a network,
the FileMaker, Inc. product line also includes FileMaker Server.
FileMaker Server provides multi-protocol support for TCP/IP,
IPX/SPX, and AppleTalk networks for serving up to 125 hosted files
simultaneously to FileMaker Pro guests on Windows 2000,
Windows NT, Mac OS 8.6 to 9.1, Mac OS X, and Red Hat Linux
platforms.
About this guide
This Administrator’s Guide provides instructions and examples for
using FileMaker Pro 5.5 Unlimited.
1 This preface describes the contents of the FileMaker Pro 5.5
Unlimited CDs.
1 Chapter 1 describes how to install the Web Server Connector on
the Microsoft Internet Information Server, Apache on Mac OS X
Server, and Apache on Red Hat Linux web servers.
1 Chapter 2 provides information on configuring the administration
account and administering the Web Server Connector from your web
browser.
1 Chapter 3 gives information on setting up and using the Web
Companion for creating custom web pages.
1 Chapters 4 and 5 and appendixes A and B describe the use of the
FileMaker Pro Web Companion for custom web publishing using
XML or CDML.
1 Chapter 6 describes how to use the FileMaker JDBC Driver to
create FileMaker Pro database-aware Java applications and applets.
It also includes a section on using the proprietary FileMaker Java
Class Library.
1 Appendix C describes how to enable the Web Server Connector in
Mac OS X Server.
For information on installing and configuring Internet Information
Server on Windows 2000 Server, Apache on Mac OS X Server, or
Apache on Red Hat Linux, see the documentation provided with your
web server software.
For information on authoring and using XML, creating Cascading
Style Sheets (CSS) or Extensible Stylesheet Language (XSL)
stylesheets, and authoring web pages in Dynamic HTML (including
scripting such as JavaScript), see the documentation that came with
your authoring tool.
vi FileMaker Pro 5.5 Unlimited Administrator’s Guide
Contents of the FileMaker Pro 5.5
Unlimited CDs
FileMaker Pro 5.5 Unlimited consists of two CDs: one for the
FileMaker Pro software and related files, and one for custom web
publishing and the Web Server Connector.
Contents of the FileMaker Pro CD
The FileMaker Pro CD provides the installer for the FileMaker Pro 5.5
Unlimited software. For installation instructions and for information
on the minimum hardware and software requirements for using
FileMaker Pro 5.5, see the printed FileMaker Pro 5.5 Getting Started
Guide or the FMP 5.5 Getting Started.pdf document on this CD.
The installation code that comes with FileMaker Pro 5.5 Unlimited
is the key to unlimited web user access to the Web Companion.
FileMaker on the Web links
Double-click FileMaker on the Web to open the
Go_FileMaker_Unlimited.html page in your browser. Then, click
the link to go to the web site. There you will find product information
and support, as well as helpful links to other resources.
Contents of the FMWSC and Tools CD
The following tables describe the contents of the FMWSC and
Tools CD.
CDML folder
Custom Workgroup Portal folder
Electronic Documentation folder
The Electronic Documentation folder contains a PDF (Portable
Document Format) version of the FileMaker Pro 5.5 Unlimited
Administrator’s Guide, which you can print from Adobe Acrobat
Reader.
FileMaker JDBC Driver folder
Contents of the
CDML folder Description
CDML Examples Folder containing three folders of example files:
guest_book folder, employee_database folder, and
shopping _cart folder
For information about these examples, see chapter 4,
“Custom web publishing using CDML.”

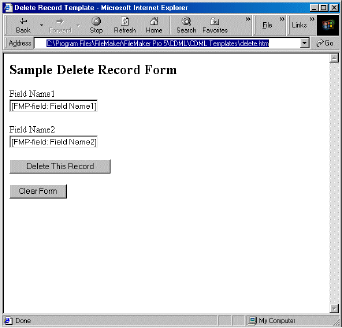

CDML Templates Folder containing nine CDML format files for different
types of interaction with a database

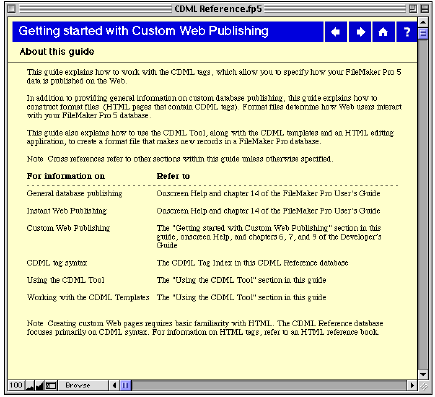

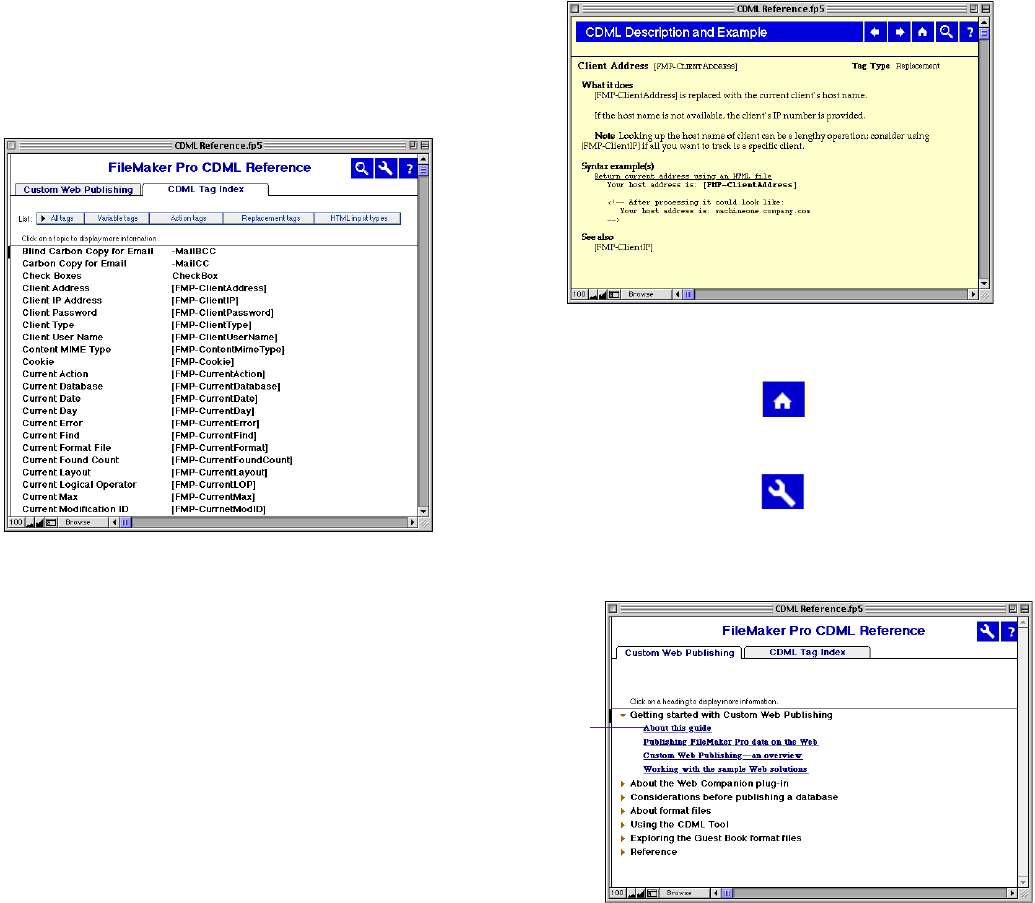

Web Tools Folder containing the CDML Reference.fp5 and
CDML Tool.fp5 databases and the CDML Templates
folder
Contents of the
Custom Workgroup
Portal folder Description
Asset Management.fp5 Sample FileMaker Pro database
Personnel Records.fp5 Sample FileMaker Pro database
customwebportal.mth Custom Workgroup Protal example file
collage3.jpg Graphic file
logo.gif Graphic file
Contents of the
FileMaker JDBC
Driver folder Description
Java Class Library Folder containing Java Documentation and Examples
JDBC Documentation Folder containing HTML based documentation for
JDBC

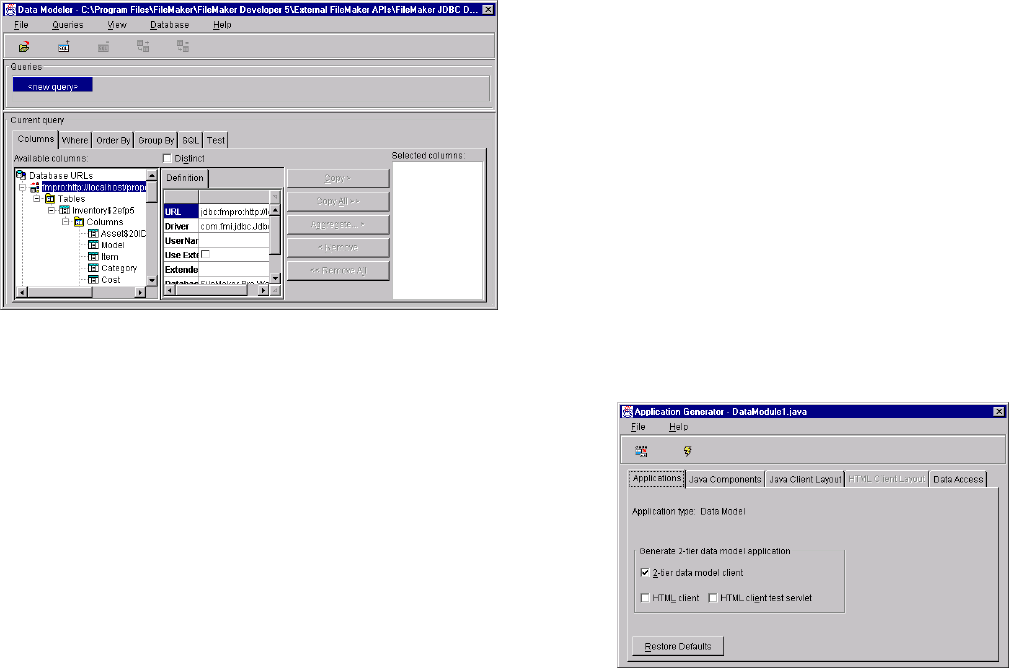

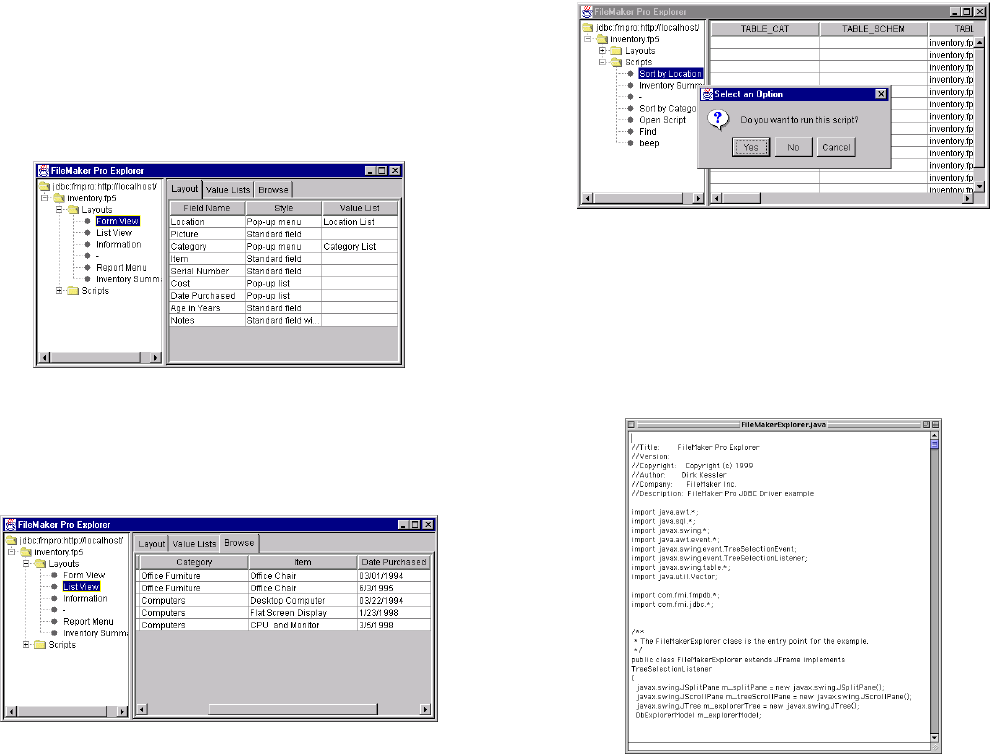

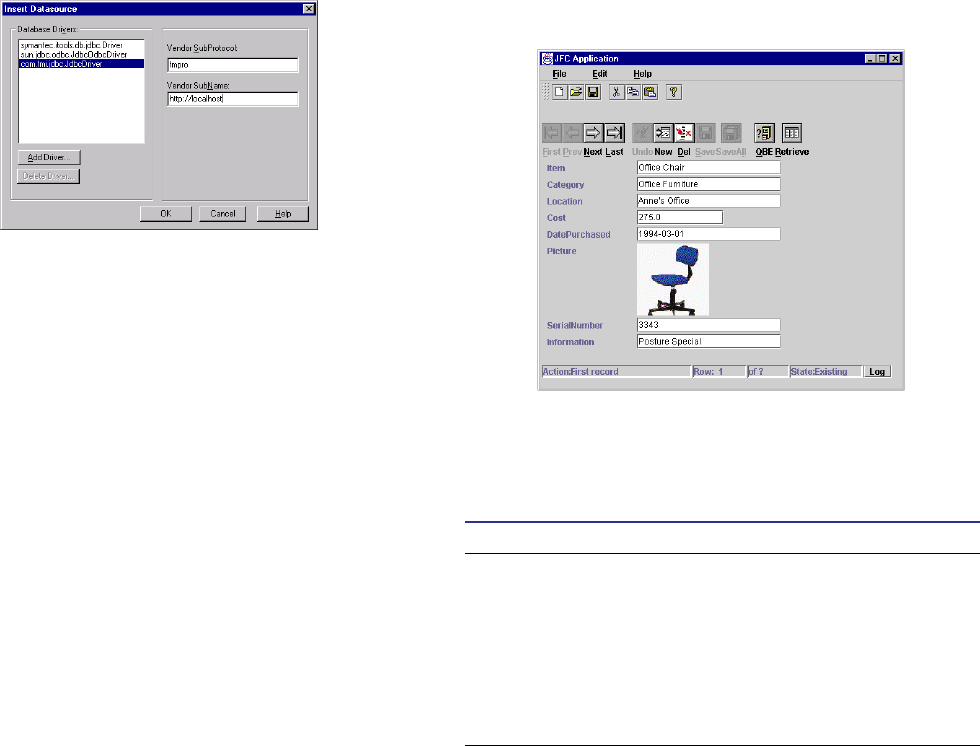

JDBC Examples Folder containing examples for FileMaker Explorer,
JBuilder 3.0 Professional, and Visual Cafe 4.0 Expert
Edition
Contents of the
CDML folder Description
Introducing FileMaker Pro 5.5 Unlimited vii
Unsupported folder
XML folder
Registration and customer support
Please complete and mail the registration card for your FileMaker
product, or register online at www.filemaker.com/register. In
FileMaker Pro, you can choose Help menu > FileMaker on the Web for
a link to the FileMaker, Inc. support pages and the online registration
form.
For information about technical support and customer service, see:
www.filemaker.com (North American customers)
www.filemaker.com/intl (customers outside of North America)
At the web site you will find the FileMaker, Inc. Service Directory,
which provides the service options available to North American
customers, links to FileMaker, Inc. international sites, answers to
frequently asked questions, and access to extensive software
libraries used by technical support staff.
If you do not have access to the Web, please refer to the Technical
Support and Customer Service sheet included in the software box.
North American customers can also call 1-800-965-9090 to learn
about the service options available.
fmpjdbc12.jar The FileMaker JDBC driver
Read Me.doc JDBC read me file
Contents of the
Unsupported folder Description
FMWSC.jar The FileMaker Web Server Connector servlet
FMWSCResources.jar Strings and supporting HTML pages for the Web
Server Connector servlet
Readme.txt Text file containing instructions for recompiling the
.jar file for newer versions of Apache
Contents of the
XML folder Description
Documentation Folder containing the XML Document Type Definitions
(DTDs) for the FileMaker XML grammars:
fmpdsoresult_dtd.htm
fmpxmllayout_dtd.htm
fmpxmlresult_dtd.htm

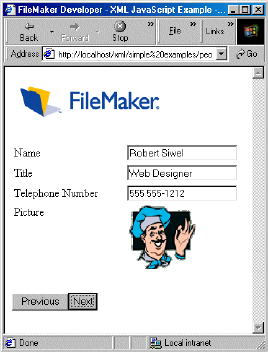

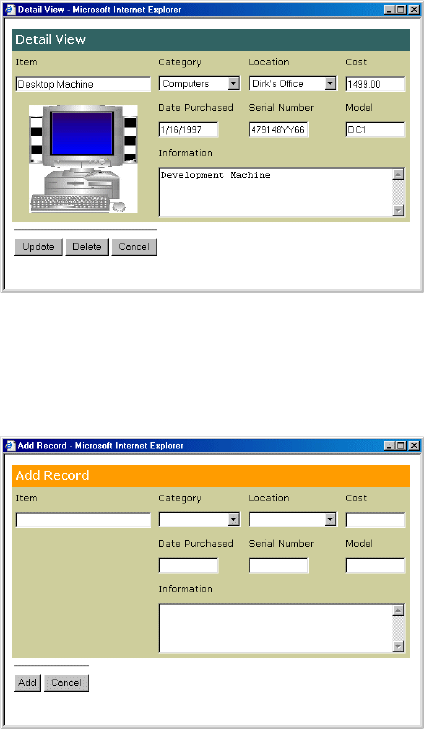

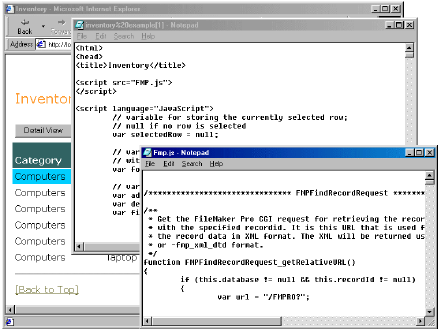

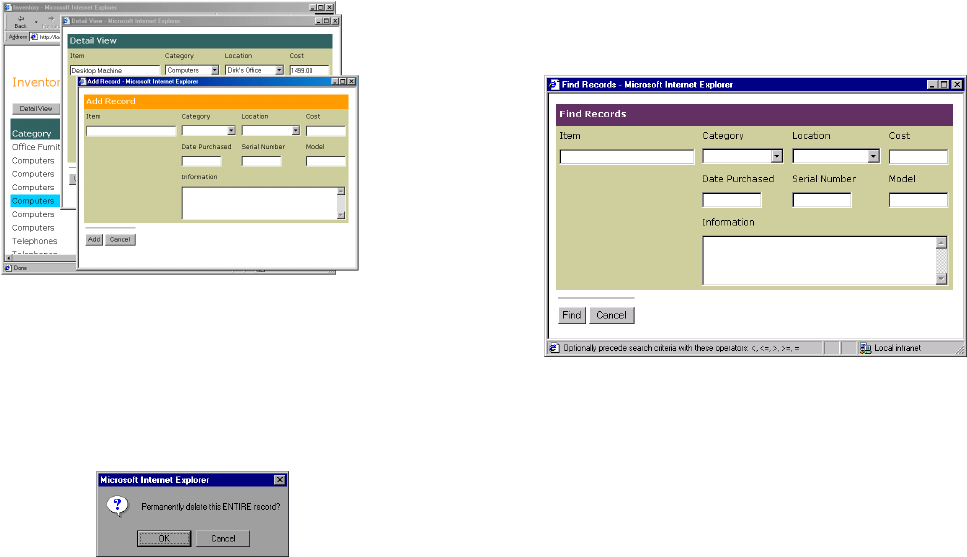

Inventory Example Example of the inventory.fp5 database published on the
Web using XML, the W3C DOM, and JavaScript
Files include : inventory.fp5, default.htm,
detail_view.htm, add_record.htm, find.htm, Filemaker.gif
and FMP.js (JavaScript library for the example)
For information on this example, see chapter 5, “Using
FileMaker Pro XML to deliver your data.”
Contents of the
FileMaker JDBC

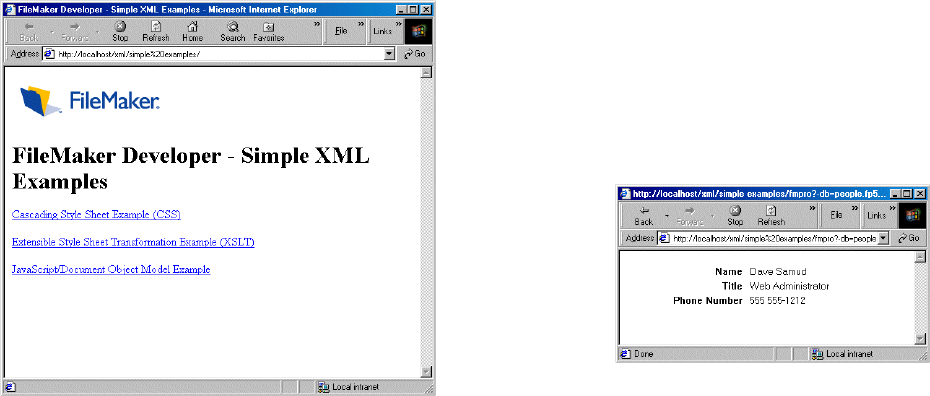

Driver folder Description Simple Examples Three examples of the People.fp5 database published on
the Web using XML with CSS, XSL, and JavaScript
Files include: default.htm, Filemaker.gif, FMP.js,
people.fp5, people_form.css, people_form.xsl, and
people_form.htm.
For information about these examples, see chapter 5,
“Using FileMaker Pro XML to deliver your data.”
Contents of the
XML folder Description
viii FileMaker Pro 5.5 Unlimited Administrator’s Guide
Where to go for more information
Search the TechInfo database
The TechInfo database is a great resource for technical information
about FileMaker, Inc. products. This FileMaker Pro database serves
as a front-line resource for the company’s support technicians as they
field customer inquiries. It collects Q&As, tips, FAQs, bug reports,
update notes, press releases, templates, and a host of other material
valuable for the support professional.
The TechInfo database is available on the product support pages on
the FileMaker, Inc. web site at www.filemaker.com.
For more information on See
New features in
FileMaker Pro 5.5
FileMaker Pro Help or chapter 4 in the
FileMaker Pro 5.5 Getting Started Guide
General information on
Instant Web Publishing
Chapter 14 in the FileMaker Pro 5.5 User’s Guide
Web publishing
enhancements
Chapter 4 in the FileMaker Pro 5.5 Getting Started
Guide
Other resources The FileMaker on the Web link on the
FileMaker Pro CD
Chapter 1
Installing the FileMaker Web Server Connector
The built-in Web Companion in FileMaker Pro 5.5 Unlimited acts as
a CGI (Common Gateway Interface) application and as a web server
by handling browser interactions with FileMaker Pro databases and
serving by web pages and image files to the web browser.
You can extend this functionality by using the FileMaker Web Server
Connector included with FileMaker Pro 5.5 Unlimited. Use the Web
Server Connector with any of the following supported web servers:
1 Microsoft Internet Information Server 5.0
1 Apache 1.3.19 bundled with Mac OS X Server
1 Apache 1.3.19 bundled with Red Hat Linux 7.1 i386
About the Web Server Connector
The FileMaker Web Server Connector is a Java servlet that relays
FileMaker CGI requests for XML, CDML, and other dynamic content
from your web server to one or more computers running
FileMaker Pro Unlimited. This allows you to keep your database files
separate from your static HTML pages, images, and other non-
database files. It also prevents the web browser from making
unnecessary requests to FileMaker Pro Unlimited.
More importantly, the Web Server Connector allows you to use a
RAIC (Redundant Array of Inexpensive Computers) with multiple
copies of FileMaker Pro Unlimited so that more web users can access
your databases at a time.
With the Web Server Connector, you can:
1 take advantage of other plug-ins and features of your web server,
including Secure Socket Layer (SSL) protection and server-side
includes.
1 configure a RAIC to increase throughput and reliability.
1 store static elements such as image files on the web server, and
bypass the FileMaker Pro Web Companion for pages that do not
need to interact with the database.

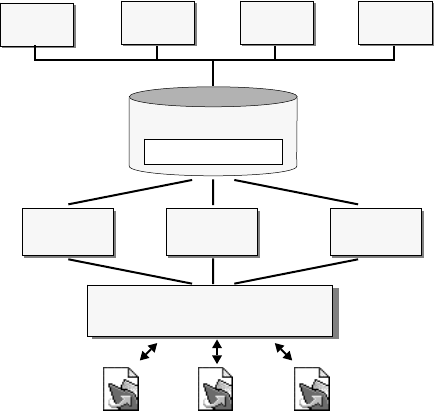

Configuring a RAIC to use with the Web Server Connector
The Web Server Connector uses one or more RAIC machines, with
copies of FileMaker Pro Unlimited installed on each one. In addition,
you can use FileMaker Server or FileMaker Pro 5.5 in your
configuration as a backend database host using peer-to-peer
networking for better load balancing and fail-over protection. (For
information about these products, see www.filemaker.com.)
Note It is possible to run FileMaker Pro Unlimited on the same
machine as the Web Server Connector and the web server software,
but for performance reasons, it’s not recommended.
Here are some of the possible ways to configure your machines:
1 The Web Server Connector on the web server machine and
FileMaker Pro Unlimited hosting databases on another machine.
This is a strong configuration because you’re able to realize all the
server-derived benefits of the Web Server Connector using only two
machines.
1 The Web Server Connector on the web server machine and
FileMaker Pro Unlimited on multiple machines, with each machine
hosting different databases.
This configuration offers good throughput, as multiple hosts ease the
load that would otherwise be given to a single host. It can provide a
means for load balancing if the more active databases are divided
between the machines.
1-2 FileMaker Pro 5.5 Unlimited Administrator’s Guide
1 The Web Server Connector on the web server machine and
FileMaker Pro Unlimited on multiple machines, with each machine
hosting a copy of the same read-only database(s).
This is useful for serving data such as a catalog. If a host crashes or
is brought off-line, the Web Server Connector moves to the next host
in the RAIC and web users are still able to access the database.
However, this configuration is not useful if you want to allow web
users to write to and modify the database.
1 The Web Server Connector on the web server machine, FileMaker
Pro Unlimited on multiple machines, and FileMaker Server on a
machine hosting the databases.
In this configuration, each copy of FileMaker Pro Unlimited accesses
the databases as a guest of FileMaker Server. Web users can read and
write to the databases, the Web Server Connector provides load
balancing and fail-over protection, and FileMaker Server handles tasks
more quickly by off loading functions such as sorting and summary
field calculations to the guest machines. FileMaker Server also
provides added data security with its backup and restore features.
1 The Web Server Connector on the web server machine,
FileMaker Pro 5.5 Unlimited on multiple machines, and FileMaker
Pro 5.5 or FileMaker Pro 5.5 Unlimited on a machine hosting the
databases.
Sales.fp5 Catalog.fp5 Invoices.fp5
Orders.fp5 Clients.fp5
Example of a RAIC with 3 machines (nodes in the RAIC) hosting multiple databases
Web
Browser Web
Browser Web
Browser Web
Browser
Web Server
Web Server Connector
FileMaker Pro
Unlimited FileMaker Pro
Unlimited FileMaker Pro
Unlimited Web
Browser
FileMaker Pro
Unlimited
Sales.fp5 Catalog.fp5Clients.fp5
Web
Browser Web
Browser Web
Browser
FileMaker Pro
Unlimited FileMaker Pro
Unlimited
FileMaker
Server
Example of a RAIC with 3 nodes using FileMaker Server as the backend host
Web Server
Web Server Connector
Installing the FileMaker Web Server Connector 1-3
In this configuration, you use a dedicated copy of FileMaker Pro or
FileMaker Pro Unlimited as the backend host for the databases and
use peer-to-peer networking for each of the FileMaker Pro Unlimited
guests. (If you use FileMaker Pro Unlimited as the backend host,
then you can also use the same machine as a node in the RAIC for
the Web Server Connector.)
When you set up FileMaker Pro Unlimited on each RAIC machine,
you use the network to open the databases and then share each
database via the Web. (See “Sharing the database via the Web” on
page 3-5 for information.)
Security considerations when using a RAIC
To ensure proper authentication, make sure all nodes of the RAIC
have consistent security. For example, you may experience
unexpected behavior if you enable security on one machine but not
on other machines in the RAIC, or if your FileMaker Pro passwords
are different across the nodes of the RAIC.
Where to place database and HTML files
When publishing your FileMaker Pro databases on the Web, place
the database files on the host machine running FileMaker Pro
Unlimited, FileMaker Server, or FileMaker Pro. Store all your
custom web pages that reference the databases in the Web folder
inside the FileMaker Pro 5.5 folder. Static HTML and other files
(such as image files) should reside on the web server machine, as
specified by the web server software. For more information, see
“Requirements for web access” on page 3-3.
Requirements for the Web Server
Connector
To use the Web Server Connector, you need the following equipment
and software.
Requirements on Windows machines
To use the Web Server Connector on Windows systems, you need:
1 a hard disk with at least 10MB of free space
1 a CD or DVD drive
1 Windows 2000 Server
1 Microsoft Internet Information Server 5.0
Requirements on Mac OS X Server machines
To use the Web Server Connector on Mac OS X Server you need:
1 hard disk with at least 1 MB of free space
Web
Browser
FileMaker Pro
Unlimited
Sales.fp5 Catalog.fp5Clients.fp5
Web
Browser Web
Browser Web
Browser
FileMaker Pro
Unlimited FileMaker Pro
Unlimited
FileMaker Pro or FileMaker Pro Unlimited
as backend host
Using FileMaker Pro or FileMaker Pro Unlimited as the backend
host, web users can read and write to the databases
Web Server
Web Server Connector
1-4 FileMaker Pro 5.5 Unlimited Administrator’s Guide
1 a CD or DVD drive
1 Mac OS X Server 10.0.3
1 Apache Web Server 1.3.19
Requirements on Linux machines
To use the Web Server Connector on Linux you need:
1 a hard disk with at least 42 MB of free space
1 a CD or DVD drive
1 Red Hat Linux 7.1 i386
1 Apache Web Server 1.3.19
Installing on Windows
You can use the FileMaker Web Server Connector with Microsoft
Internet Information Server 5.0. Before you install the Web Server
Connector, you must install the Internet Information Server software
on your Windows 2000 machine. (See the documentation for the
server software for information.)
Note Installing the Web Server Connector requires you to restart
your server. Before you begin the installation process, save your
work, exit other open programs, and turn off virus protection
utilities.
To install the Web Server Connector:

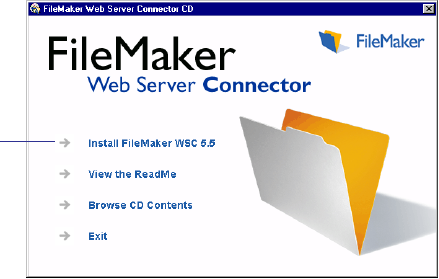

1. Insert the FMWSC and Tools CD into your CD or DVD drive.
2. Click the arrow next to Install FileMaker WSC 5.5 to begin the
installation.
3. In the Welcome screen, click Next.
4. Read the license agreement. If you agree to these terms, select
I accept the terms in the license agreement, then click Next.
5. Personalize this copy of the Web Server Connector by typing your
name, organization name, and by indicating who can access the Web
Server Connector from this computer (only you, or anyone else who
uses this computer). Click Next.
6. Choose Complete in the Setup Type screen to install the Web Server
Connector, then click Next.
7. Click Install to begin the Web Server Connector file installation.
The Web Server Connector stops installation if it detects another,
previously installed servlet engine on your web server. For
information about installing the Web Server Connector with other
servlet engines, see the Readme.txt file in the Unsupported folder on
the FMWSC and Tools CD.
8. Click Finish to close the Setup Wizard.
When the installation is finished, you are asked to restart your
computer.
9. Click Yes to restart now or No if you want to restart later.
Click this
arrow
Installing the FileMaker Web Server Connector 1-5
The Web Server Connector automatically starts after you restart your
computer. For information on configuring the Web Server
Connector with FileMaker Pro Unlimited, see chapter 2,
“Administering the Web Server Connector.”
Setting up user names and passwords
Before you can configure the Web Server Connector with FileMaker
Pro Unlimited, you must enable the Basic (Clear Text) Password
Authentication option in Microsoft Internet Information Server. For
instructions on this procedure, see the documentation included with
your software.
When using the FileMaker Web Server Connector on Microsoft
Internet Information Server, you use a valid user name and password
for Windows 2000. Microsoft Internet Information Server instructs
Windows 2000 to authenticate the user name and password before
passing them on to FileMaker Pro. Do not use high ASCII characters
in user names on Windows NT, because these may cause
authentication failures.
If you use the FileMaker Pro Web Security Database to control user
name and password access, you must establish Windows 2000
accounts with these same user names and passwords. Microsoft
Internet Information Server authenticates these names and passwords
before passing them on to FileMaker Pro. (For information on using
the Web Security Database, see the Web Security.pdf document in the
Web Security folder in the FileMaker Pro 5.5 Folder.)
The same user name and password requirements apply when using
FileMaker Pro access privileges.
Where files are installed
The files for the Web Server Connector are installed in two main
locations: in the FileMaker program folder in a folder named
FileMaker WSC 5.5 and in the Scripts folder inside the Inetpub folder:
Uninstalling the Web Server Connector
To uninstall the Web Server Connector from your Windows
machine:
1. Stop Microsoft Internet Information Server services.
2. Open the Add/Remove Programs control panel.
3. In the Install/Uninstall tab, select FileMaker WSC 5 from the list.
4. Click Add/Remove.
Contents of the
FileMaker WSC 5.5 folder Description
FileMaker WSC Admin URL link file
FMWSC.log The Web Server Connector log file
JSDK License.txt Java Servlet Development Kit license
License.txt FileMaker, Inc. license
FMWSCNative.log The Web Server Connector log file
ReadMe.txt FileMaker, Inc. Read Me file
Contents of the
jre > bin > Security folder Description
Java.security Java runtime environment security file
Contents of the lib folder Description
FMWSC.jar The FileMaker Web Server Connector
servlet
FMWSCResources.jar Strings and supporting HTML pages for
WSC servlet
Servlet.jar The servlet API
Contents of the
Inetpub > Scripts folder Description
FMWSC_NSAPI.dll Plug-in API
1-6 FileMaker Pro 5.5 Unlimited Administrator’s Guide
5. Restart your server.
Note The Uninstall command removes all files that have been installed,
but does not remove any files generated by the Web Server Connector.
Examples of files not removed include .PROPERTIES files, .LOG files,
and ISAPI filter entries, which must all be removed manually.
To remove the ISAPI filter entry:
1. Start the Internet Service Manager application.
2. Right-click on the Internet Information Server icon and choose
Properties from the context menu.
3. From the Master Properties menu, select WWW Service, and click Edit.
4. Click the ISAPI Filters tab.
5. Select fmwsc_isapi and click Remove.
6. Click OK, then click OK again.
7. Restart Internet Information Server to reload your remaining filters.
Installing on Mac OS X Server
Note Before you begin the installation process, save your work, quit any
open programs, and turn off virus protection utilities. Remember to turn
on virus protection utilities again when the installation is complete.
To install the Web Server Connector on Mac OS X Server:
1. If you are not logged in as root, log out and log in as root.
2. Insert the FMWSC and Tools CD into your CD or DVD drive.
3. Double-click the file named FileMaker WSC 5.5 Installer.
4. Read the license agreement. If you agree to these terms, click
Accept.
You see the Web Server Connector Installer dialog box.
It is recommended that you install the Web Server Connector in the
default installation location.
5. Click Install.
6. Click Quit to leave the Installer when the installation is finished.
7. Log out and log in as the user used to administer the machine.
Starting the Web Server Connector
To automatically start up the Web Server Connector, double-click
the file named StartFMWSC.command located in the
FileMaker_WSC_5.5 folder in the Applications folder.
A terminal window opens telling you that the Web Server Connector
is running.
Note If you close the terminal window, the Web Server Connector
will stop.
To manually start the Web Server Connector, open a terminal
window and enter:
# cd /applications/FileMaker_WSC_5.5
# bin/FMWSC_Apache.sh . &
To stop the Web Server Connector, you must kill the
FMWSC_Apache process.
Where files are installed
The files for the Web Server Connector are installed the
FileMaker_WSC_5.5 folder:
Contents of the
FileMaker_WSC_5.5 folder Description
FMWSC.log The Web Server Connector log file (does not
appear until the Web Server Connector is first
run)
Start_FMWSC.command Shell script for starting the Web Server
Connector
Installing the FileMaker Web Server Connector 1-7
Installing on Red Hat Linux
You can use the terminal window or a pseudo terminal (pts) to install
the FileMaker Web Server Connector.
Important You must be logged in as the root user during installation
and when making changes to the Web Server Connector
configuration file. Logging in as root gives you complete access to
all system resources. Be careful when working as the root user. You
could accidentally issue a command that could detrimentally affect
your operating system software.
To install the FileMaker Web Server Connector:
1. Insert the FMWSC and Tools CD into your CD or DVD drive.
2. Switch to the root user by entering the following command at the
shell prompt:
$ su -l root
For information about accessing the shell prompt, see your operating
system documentation.
3. Enter the root password.
The prompt changes to #, indicating that you are now logged in as
the root user.
4. If the installation CD does not mount automatically, enter:
# mount /dev/cdrom /mnt/cdrom
5. Change to the CD directory by entering:
# cd /mnt/cdrom
6. Change to the Linux directory by entering:
# cd linux
7. Enter the following command to install the Web Server Connector
files on your hard disk:
# rpm -ivh fmwsc-5.5-1.i386.rpm
Starting the Web Server Connector
1. To start up the Web Server Connector, enter the following:
# cd /var/fmwsc/bin
# ./fmwsc_apache.sh
path to the www root directory
2. Log out as the root user by entering:
# exit
Where files are installed
Contents of the bin folder Description
FMWSC_Apache.sh Shell script
FMWSC.log The Web Server Connector log file (does not
appear until the Web Server Connector is first
run)
FMWSC.properties The Web Server Connector properties file
(does not appear until the Web Server
Connector is first run)
Contents of the lib folder Description
FMWSC_Apache.jar Apache file for servlet engine
FMWSC.jar The FileMaker Web Server Connector servlet
FMWSCResouces.jar Strings and supporting HTML pages for WSC
servlet
servlet.jar The servlet API
File Description
/var/fmwsc/README The FileMaker, Inc. Read Me file
/var/fmwsc/fmwsc/FMWSC.log The Web Server Connector log file
(does not appear until the Web Server
Connector is first run)
/var/fmwsc/bin/FMWSC_Apache.sh Shell script
/var/fmwsc/install/mod_fmwsc.so Shared object used by Apache
1-8 FileMaker Pro 5.5 Unlimited Administrator’s Guide
Uninstalling the Web Server Connector
To remove all files from your hard disk that were installed by the
Web Server Connector installer:
1. Switch to the root user by entering the following command at the
shell prompt:
$ su -l root
2. Enter the root password.
3. Enter the following command to remove the Web Server
Connector:
# rpm -e fmwsc
Note It is normal for errors such as error: cannot remove /var/fmwsc/
lib - directory not empty to be generated at this point.
4. Log out as the root user by entering:
# exit
/var/fmwsc/install/httpd.fmwsc Appends to the Apache configuration
file
/var/fmwsc/lib/FMWSC.jar The FileMaker Web Server Connector
servlet
/var/fmwsc/lib/FMWSC.properties The Web Server Connector properties
file (does not appear until the Web
Server Connector is first run)
/var/fmwsc/lib/FMWSCResources.jar Strings and supporting HTML pages for
Web Server Connector servlet
/var/fmwsc/lib/FMWSC_Apache.jar Apache file for servlet engine
/var/fmwsc/lib/servlet.jar Servlet API
/var/fmwsc/src/mod_fmwsc.c Source code for the Web Server
Connector Apache module
File Description
Chapter 2
Administering the Web Server Connector
You administer the FileMaker Web Server Connector from your web
browser. FileMaker Pro 5.5 Unlimited and your databases must be
set up on your host machine(s) before you can use the Web Server
Connector. The first time you use the Web Server Connector, you
must configure the administration account. Then you can configure
the Web Server Connector with your FileMaker Pro Unlimited
host(s) either by host machine or by database.
Setting up FileMaker Pro Unlimited
Each host machine that you’re using with the Web Server Connector
must have a copy of FileMaker Pro Unlimited installed on it. (For
information on using FileMaker Pro or FileMaker Server as a backend
host with the Web Server Connector, see “Configuring a RAIC to use
with the Web Server Connector” on page 1-1.)
FileMaker Pro Unlimited must be open and running on your host
machine(s) and the Web Companion must be enabled. Each of your
FileMaker Pro databases must be open and shared via the Web
Companion. For information on where to store your other web site
files, see “Security considerations when using a RAIC” on page 1-3
and “Requirements for web access” on page 3-3.
To set up FileMaker Pro Unlimited on each host machine:

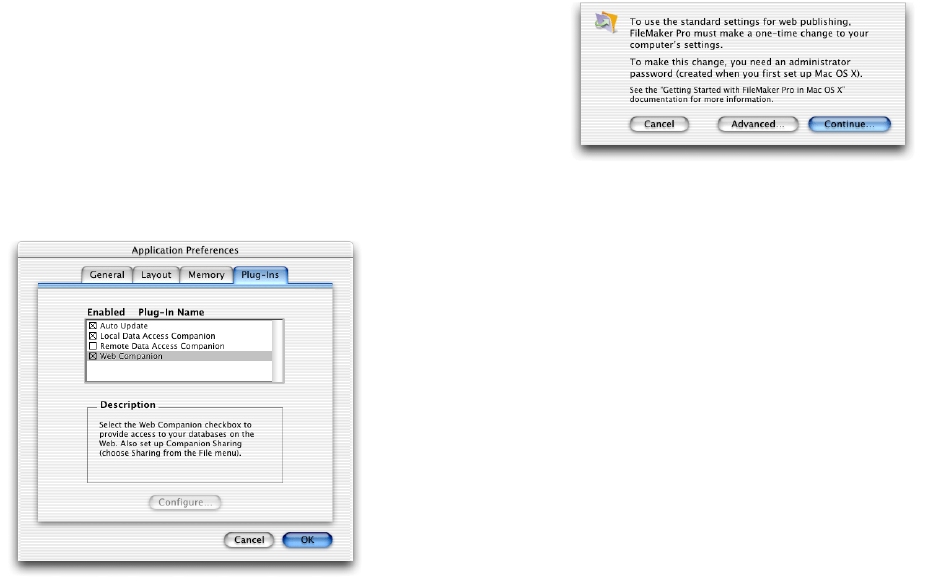

1. Enable the Web Companion.
This only needs to be done once per machine. For information, see
“Enabling the Web Companion” on page 3-3.
2. Configure the Web Companion.
If the host machine is the same as the web server machine, then you
must change the Web Companion’s TCP/IP port number from 80 to
a different number. (The port number 80 is reserved for web servers.)
For information, see “Setting Web Companion configuration
options” on page 3-3.
3. Open and share each database via the Web Companion.
For information, see “Sharing the database via the Web” on page 3-5.
Configuring the administration account
When you use the Web Server Connector for the first time, you must
configure an administration account by entering a user name and
password. The Web Server Connector uses the account name and
password to control access and prevent unauthorized changes.
Because the Web Server Connector runs on top of your web server
software, the user name and password must correspond to those of an
existing account on your web server. For Windows 2000 Server, this
account must also have administrator-level access to the directories
your web pages are stored in.
Important The user account must have Password never expires
selected in the Computer Managment profile.
To access the Web Server Connector configuration pages:
1. Start your web browser.
2. Enter the IP address or domain name of the web server and a
FileMaker CGI request for the FileMaker Web Server Connector:
http://IP address/FMPro?config
http://www.domainname.com/FMPro?config
If the Web Server Connector is on the same machine as the web server
software, then you can enter “localhost” instead of the IP address.
2-2 FileMaker Pro 5.5 Unlimited Administrator’s Guide
http://localhost/FMPro?config
For information on using localhost without a network connection,
see “Testing your site without a network connection” on page 3-18.
Note On Windows 2000, you can also start the Web Server
Connector by choosing Start > Programs > FileMaker WSC - IIS >
FileMaker WSC Admin.
3. On the Initial Security page, enter a user name and password in the
text boxes.
Use the same user name and password as the administrator’s user
name and password set up for your web server’s operating system.
The user name and password must not contain high ASCII
characters. On Windows NT, you enter only a valid user account
name.
Note To log in and administer the Web Server Connector you must
have cookies enabled.
4. If you make a mistake, you can click Clear Fields and then reenter
the user name and password.
5. Click Submit.
The FileMaker Web Server Connector configuration page appears.
Important For security purposes, you should quit the web browser
when you are done administering the Web Server Connector.
Resetting the administrator account
If you forget or lose your Web Server Connector administrator
password, you can reset it by deleting the fmwsc.properties file and
restarting the Web Server Connector. This file is re-created the next
time the Web Server Connector is launched.
The fmwsc.properties file is located as follows:
Note On Windows 2000 and Mac OS X Server you must restart the
computer to recreate the removed Properties file.
Configuring the Web Server Connector by
host machine or by database
You can configure the FileMaker Web Server Connector to send
database requests to each FileMaker Pro Unlimited host or database
in a list. You can change the configuration at any time by accessing
the FileMaker Web Server Connector configuration page.
Accessing the Web Server Connector
configuration pages
You can access FileMaker Web Server Connector configuration
page by entering one of the following requests in your web browser:
http://IP address/FMPro?config
FileMaker Web Server Connector configuration page
Web server Log file location
Internet Information Server c:/program files/filemaker/filemaker wsc 5.5/
lib/ fmwsc.properties
Apache on Mac OS X Server Applications/FileMaker_WSC_5.5/lib/
FMWSC.properties
Apache on Linux /var/fmwsc/lib/FMWSC.properties
Administering the Web Server Connector 2-3
http://www.domainname.com/FMPro?config
http://localhost/FMPro?config
Configuring by host
When you configure the Web Server Connector by host, you specify
which databases on each host machine that you want the Web Server
Connector to send database requests to. This configuration is useful
if you have all of the databases on one or more machines.
To configure the Web Server Connector by host:
1. Click Configure by Host on the FileMaker Web Server Connector
configuration page or in the navigation bar of any page.
2. On the Configure by Host web page, click Add Host.
3. On the Add Host web page, enter the IP address or domain name
of the host machine in the Host text box.
4. In the Port text box, enter the port number that is set in the Web
Companion Configuration dialog box on the host machine.
If the host machine is the same as the web server machine, this port
number must be different than Port 80, which is reserved for web
servers.
5. Click Next.
A list of all the databases that are open and shared via the Web
Companion on the host machine appears in the Host Detail web page.
6. Click the Serve Database checkboxes to enable each database in the
list that you want the Web Server Connector to send requests to. You
can also click Select All to enable all the databases in the list.
To sort the list of databases, click Database at the top of the list.
7. Click Submit.
8. To redisplay the complete list of databases on the host machine,
click Refresh View.
9. Repeat step 3 through step 7 for each host machine.
Add Host web page
Host Detail web page
Click to sort
the list of
databases
2-4 FileMaker Pro 5.5 Unlimited Administrator’s Guide
To remove a database from the list:
1. Select the database in the list.
2. Deselect the Serve Database checkbox.
3. Click Submit.
Configuring by database
When you configure the Web Server Connector by database, you set
up a list of IP addresses or domain names of the machines that are
hosting the database(s). The Web Server Connector will send
database requests in a round-robin fashion to the first available host
in the list. Use this configuration if you are configuring a single
database on multiple hosts.
To configure the Web Server Connector by database:
1. Click Configure by Database on the FileMaker Web Server
Connector configuration page or in the navigation bar of any page.
2. On the Configure by Database web page, click Add Database.
The Database Detail page appears.
3. In the Database Name text box, enter the name of the database that
you want to serve.
Note You can enter the name of a database even if it is not currently
hosted by the web server, as long as it is not made available to web
users until it’s hosted.
4. Enter the IP address or domain name of the host machine in the text
box.
If the host machine is the same as the web server machine, you can
enter localhost for the IP address.
5. In the Port text box, enter the port number that is set in the Web
Companion Configuration dialog box on the host machine.

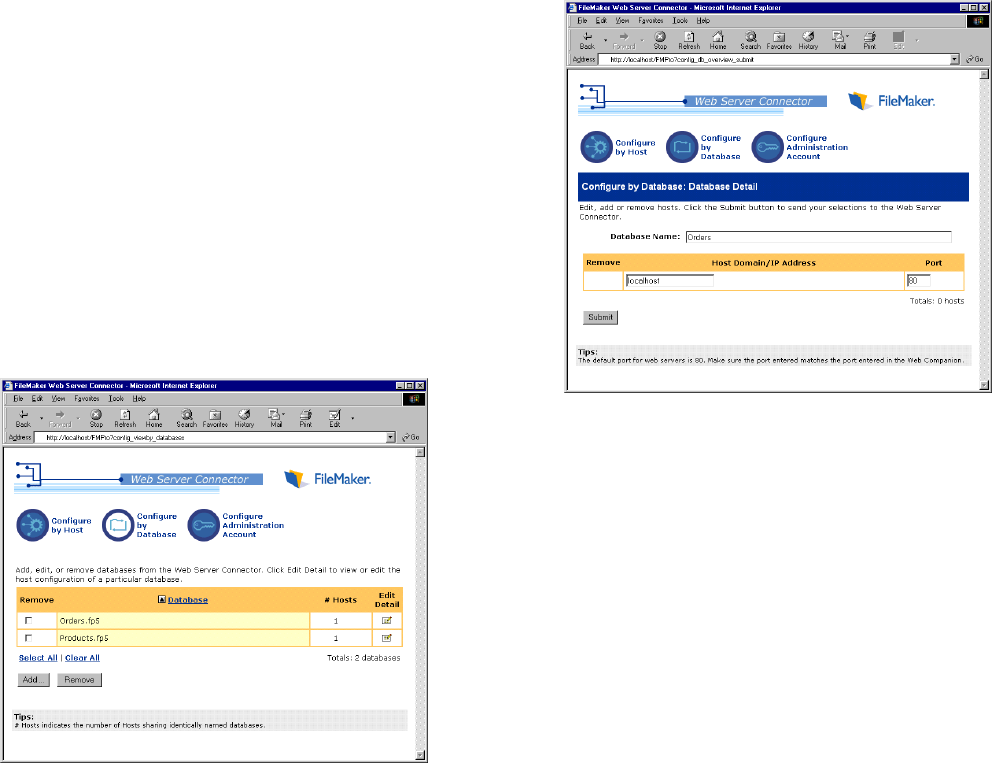

Configure by Database web page
Database Detail web page
Administering the Web Server Connector 2-5
If the host machine is the same as the web server machine, this port
number must be different than Port 80, which is reserved for web
servers.
6. Click Submit.
7. Repeat steps 2 through 6 for each database and host machine you
want to add to the configuration.
To remove a database from the list:
1. Click Configure by Database on the FileMaker Web Server
Connector configuration page or in the navigation bar of any page.
2. Locate the database you want to remove.
3. Select the Remove checkbox next to the database name.
4. Click Remove.
Using the Web Server Connector log files
The Web Server Connector and the Web Companion each generate
log files that are useful for troubleshooting purposes. The Web
Server Connector log files can help you diagnose problems with the
Web Server Connector on your web server, and the Web Companion
log files can help you isolate problems on individual database host
machines.
The Web Server Connector generates two log files: FMWSC.log and
FMWSCNative.log. These files list the date and time of each server
start and close event, as well as all errors reported by the servlet
engine and the relay servlet.
For information about the log files generated by the Web
Companion, see “Web Companion support for Internet media types”
on page 3-13.
The Web Server Connector log files are located on the following web
servers:
Accessing hosted databases
After the databases are hosted by FileMaker Pro 5.5 Unlimited, and
the Web Server Connector is installed and configured, you are ready
to access your FileMaker Pro databases over the Internet or intranet.
Connecting to FileMaker Pro custom web pages
You can use your web browser to view the HTML page or index
page of the databases you want to access:
http://web server IP address or domain name/
mysolution.htm
Use the format 123.456.789.123/mysolution.htm or
www.yourdomainname.com/mysolution.htm for web server IP
address or domain name/mysolution.htm.
For more information see “Creating a custom home page” on
page 3-5.
Connecting to FileMaker Pro instant web pages
Note Instant Web Publishing is not supported under the Web Server
Connector in FileMaker Pro 5.5 Unlimited.
Web server Log file location
Internet Information Server c:/program files/filemaker/filemaker wsc 5.5/
FMWSC.log
c:/program files/filemaker/filemaker wsc 5.5/
FMWSCNative.log
Apache on Mac OS X Server Applications/FileMaker_WSC_5.5/
FMWSC.log
Apache on Linux /var/fmwsc/FMWSC.log
2-6 FileMaker Pro 5.5 Unlimited Administrator’s Guide
1. Point your web browser to the IP address or domain name of the
web server.
http://web server IP address or domain name/
Use the format 123.456.789.123 or www.yourdomainname.com for
web server IP address or domain name.

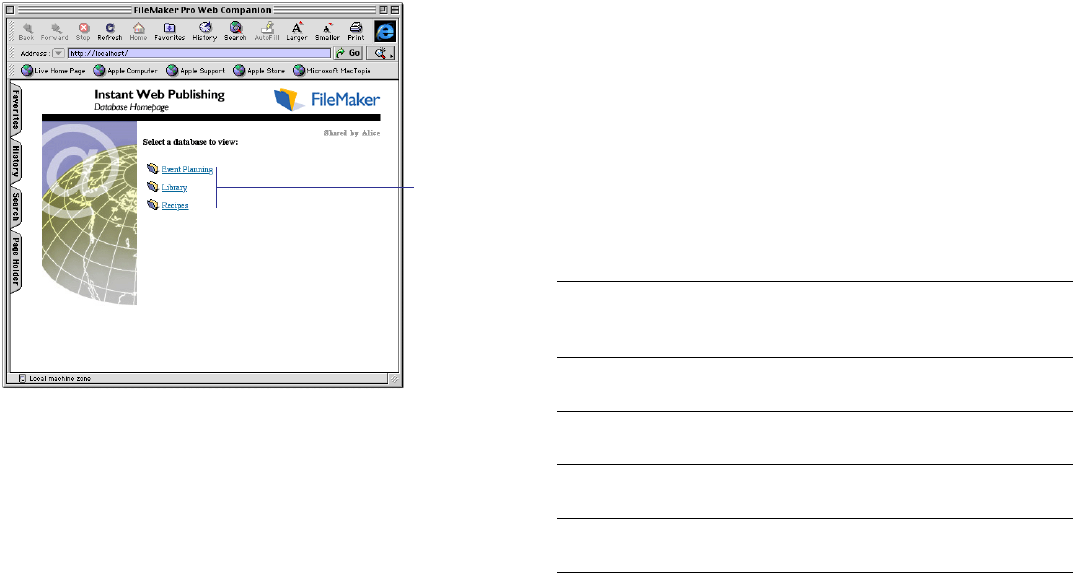

You see the FileMaker Pro default page and a list of links to the
currently shared databases.
2. From the list, click the database you want to access.
For more information see “Creating a custom home page for Instant
Web Publishing” on page 3-6 and “Creating a custom web site using
a database layout” on page 3-8
Note To use Instant Web Publishing, you must dedicate the host
machine(s) for it alone (you can’t also use custom web publishing
from these machines) and configure the Web Companion to accept
Instant Web Publishing requests. See “Setting Web Companion
configuration options” on page 3-3 for information.
Chapter 3
Publishing your database on the Web
The FileMaker Pro Web Companion plug-in makes it possible for
you to publish your database on the Internet or an intranet in several
different ways, giving you more choices and control over the design
and functionality of your web pages.
You can publish your database with:
1 custom web publishing using XML
1 FileMaker Pro database-aware Java applets using the FileMaker
JDBC Driver or the proprietary FileMaker Java Class Library
1 custom web publishing using CDML
1 FileMaker Pro Instant Web Publishing
1 a custom home page using Instant Web Publishing
1 custom web publishing using a database layout
1 static web publishing (exporting data into an HTML table)
When you serve your databases and your instant or custom web
pages via the Web Companion, users can access your databases from
their web browsers using a simple URL.
This chapter gives general information on setting up and using the
Web Companion for creating custom web pages.
Note Instant Web Publishing is not supported under the Web Server
Connector in FileMaker Pro 5.5 Unlimited.
Types of web publishing
Custom web publishing with XML
You can use the Web Companion to generate data from your
FileMaker Pro databases into Extensible Markup Language (XML)
documents. With these XML documents, you can (for example) use
JavaScript and the W3C Document Object Model to dynamically
manipulate data after it has been downloaded from your database.
Many of the actions (such as searching) can be performed without
the need to reconnect to the database, making the web user’s
interaction with the database happen much faster.
For information on custom publishing your database with XML, see
chapter 5, “Using FileMaker Pro XML to deliver your data.”
For a list of XML resources and examples, and an overview of what
XML is and how it can be used with FileMaker Pro, see “XML and
FileMaker 5—a Technology Preview” on the FileMaker support
pages at www.filemaker.com. As a shortcut, double-click FileMaker
on the Web (included on the FileMaker Pro CD).
Custom web publishing with JDBC
The FMWSC and Tools CD provides a JDBC (Java database
connectivity) API-compatible driver that allows you to create
FileMaker Pro database-aware Java applets for your web site using
any Rapid Application Development (RAD) tool. This is an
improvement from using the proprietary FileMaker Java classes that
are not recognizable by RAD tools.
With a FileMaker Pro database-aware Java applet, you can make
your databases function more like they are being used in
FileMaker Pro rather than in a web browser.
3-2 FileMaker Pro 5.5 Unlimited Administrator’s Guide
For information, see chapter 6, “Using Java and JDBC to deliver
your data.”
For a list of JDBC resources, see the product support pages on the
FileMaker, Inc. web site at www.filemaker.com. As a shortcut,
double-click FileMaker on the Web (included on the Filemaker Pro
CD).
Custom web publishing with CDML
The FileMaker Pro Web Companion lets you publish your database
with custom web pages using a proprietary markup language called
CDML. Included with FileMaker Pro 5.5 Unlimited are all the tools,
templates, and examples you need to create your own custom web
pages using CDML. For information, see chapter 4, “Custom web
publishing using CDML.”
Instant Web Publishing
When you use FileMaker Pro Instant Web Publishing, the Web
Companion generates predesigned HTML forms with HREF links to
your database. For general information on web publishing and using
the Instant Web Publishing feature, see chapter 14, “Publishing
databases on the Web,” in the FileMaker Pro User’s Guide or see
FileMaker Pro Help.
Note Instant Web Publishing is not supported under the Web Server
Connector in FileMaker Pro 5.5 Unlimited.
Other ways to create custom web sites for your data
If you want, you can create a custom home page to go with your
instant web pages instead of using the built-in FileMaker Pro Instant
Web Publishing home page. See “Creating a custom home page” on
page 3-5, “Creating a custom home page for Instant Web
Publishing” on page 3-6, and “Creating a custom web site using a
database layout” on page 3-8.
Static web publishing with HTML
You can also publish your data on static web pages if you don’t need
dynamic web access to your database. See “Exporting data to a static
HTML page” on page 3-16.
Using the FileMaker Pro Web Companion
The Web Companion is a plug-in that acts as a Common Gateway
Interface (CGI) application for handling interactions between
FileMaker Pro and your web browser. The Web Companion also
functions as a web server by providing static files (such as HTML
pages and images) to the web browser.
Web users access your database either by accessing the IP address of
the computer running FileMaker Pro Unlimited with their browser
(which takes them to the home page) or by clicking an HREF link
that contains a specific CGI request for FileMaker Pro. The Web
Companion then sends via HTTP (Hypertext Transfer Protocol)
either the default home page or the web page specified in the
FileMaker CGI request.
The Web Companion in FileMaker Pro Unlimited can serve your
databases to an unlimited number of IP addresses at any time. (The
Web Companion in FileMaker Pro can only serve to a maximum of
ten IP addresses in a 12-hour period, as indicated by the IP Guest
Limit of 10 in the Web Companion Configuration dialog box.)
If desired, you can set up your computer for testing without a
constant connection to the Internet or an intranet. For information,
see “Testing your site without a network connection” on page 3-18.
For general information on the Web Companion and about
connecting to the Internet or an intranet, see chapter 14, “Publishing
databases on the Web” in the FileMaker Pro User’s Guide.
Publishing your database on the Web 3-3
Requirements for web access
The host computer must have a copy of FileMaker Pro Unlimited
serving the databases on the Web (preferably with a full-time,
constant connection to the Internet or your intranet). The Web
Companion must be enabled in FileMaker Pro Unlimited.
In addition, your site folders and web pages must be located inside
the Web folder (inside the FileMaker Pro 5.5 application folder) in
order for the Web Companion to serve them on the Web. However,
your databases do not have to be inside the Web folder. They only
need to be open in FileMaker Pro Unlimited and shared via the Web
Companion. For security purposes, it’s a good idea not to have your
databases or other sensitive documents in the Web folder.
Note You can keep your site folders, web pages, and databases in a
different folder anywhere on your hard drive. To do this, replace the
Web folder inside the FileMaker Pro 5.5 folder with a shortcut/alias
named “Web”.
For information and tips on providing security for your databases on
the Web, see the WebSecurity.pdf document in the FileMaker Pro 5.5
Web Security folder.
Enabling the Web Companion
You only need to enable the FileMaker Pro Web Companion plug-in
once. FileMaker Pro Unlimited will attempt to connect to a network
in order to enable the Web Companion — if you do not have a
network connection but want to enable the Web Companion anyway,
see “Testing your site without a network connection” on page 3-18.
Mac OS X To enable the Web Companion on Mac OS X machines,
see appendix C, “Enabling the FileMaker Pro Web Companion in
Mac OS X.”
To enable the Web Companion:
1. In FileMaker Pro, choose Edit menu > Preferences > Application.
2. In the Application Preferences dialog box, click the Plug-Ins tab.
If Web Companion doesn’t appear in the list in the Application
Preferences dialog box, you must install the FileMaker Pro Web
Support component. See the sections on custom installation in the
FileMaker Pro 5.5 Getting Started Guide for information.
3. Select the Web Companion checkbox to enable the Web Companion
plug-in.
4. Select Web Companion and click Configure to set configuration
options, or click OK.
Important FileMaker does not recommend using Mac OS X
machines in a RAIC configuration. If you must, the Mac OS X
machines should be set to port 1024 or higher. For information about
changing ports, see “Configuring the Web Companion for use with
ports 1024 and higher” on page C-2.
Setting Web Companion configuration options
After you’ve enabled the Web Companion, follow these steps to
select various configuration options:
1. On the Plug-Ins tab in the Application Preferences dialog box,
select Web Companion and click Configure.
Enable the Web Companion in the
Application Preferences dialog box
3-4 FileMaker Pro 5.5 Unlimited Administrator’s Guide
2. In the Web Companion Configuration dialog box, choose an
HTML file from the Home Page list so the Web Companion will
automatically display it when web users enter the IP address.
The [Built-in] option displays the “FileMaker Pro Instant Web
Publishing” home page by default. All other HTML files that are
located in the root level of the Web folder appear in this list.
See “Creating a custom home page” on page 3-5 for more
information.
3. For custom web publishing, deselect Enable Instant Web Publishing.
4. If desired, choose a language from the Language pop-up menu for
using localized texts in Instant Web Publishing navigation.
This choice will not affect the language of your data.
Note The Language setting can also be used with the [FMP-
CurrentAction], [FMP-FindOpItem], or [FMP-SortOrderItem]
CDML replacement tags in your custom web pages. See “Using an
encoding parameter with a CDML replacement tag” on page 4-14 for
information.
5. If you want, select one or more Logging options: Access Log File,
Error Log File, and Information Log File.
For information, see “Web Companion support for Internet
media types” on page 3-13.
6. Select a Remote Administration option.
If you want to remotely access the Web folder from a different
computer, for example, to upload or download files using HTTP Put
and Get commands or to change settings in the Web Security
Database, select Requires Password and enter a password in the box.
(If it doesn’t matter who has access to the Web folder and everything
inside it, select Requires no password.)
For more information, see “Opening password-protected
databases remotely” on page 3-18.
7. Select a Security option.
FileMaker Pro Access Privileges is selected by default. For general
information about setting access privileges in FileMaker Pro, see
chapter 9, “Protecting databases with passwords and groups,” in the
FileMaker Pro User’s Guide.
In FileMaker Pro 5.5, you can now secure data on a record-by-record
basis using access privileges. For more information, see the Web
Security.pdf file in the FileMaker Pro 5.5 Web Security folder or see
FileMaker Pro Help.
The Web Security Database option is not available when the
Web Security.fp5 database is not open. For information on the Web
Security database, see the Web Security.pdf file.
8. If desired, select Restrict access to IP address(es) and type the IP
addresses of the computers that are allowed to access the Web folder,
the web pages served by the Web Companion, and your databases.
You can enter multiple IP addresses separated by commas and use an
asterisk as a wildcard for all addresses beginning with the specified
numbers. For example, 1.2.3.4, 5.6.7.8, 3.5.* indicates two IP addresses
and all addresses that begin with “3.5.”
A computer’s IP address is determined by the network administrator
(for an intranet) or an Internet service provider (ISP) account.
9. Specify a TCP/IP port number.
Example of the Web Companion configured
for Instant Web Publishing
Publishing your database on the Web 3-5
By default, web browsers use the TCP/IP port number 80 to
communicate with the web server. If that port is in use, you can use
any number between 1024 and 65535 or the port number 591, which
is registered by FileMaker, Inc. with the Internet Assigned Numbers
Authority (IANA) for use with the FileMaker Pro Web Companion.

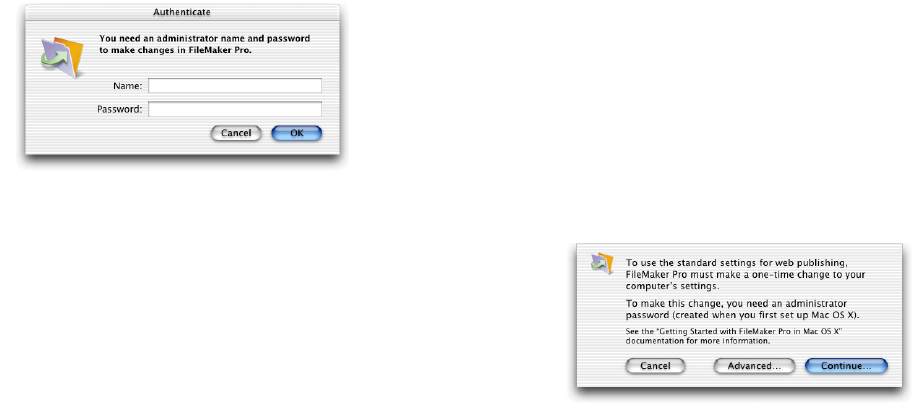

Mac OS X To use port numbers below 1024 on Mac OS X machines,
you’ll need your Mac OS X administrator name and password. See
appendix C, “Enabling the FileMaker Pro Web Companion in
Mac OS X.”
10. Click OK to close the Web Companion Configuration dialog box.
11. Click OK again to close the Application Preferences dialog box.
Sharing the database via the Web
Each database that you’re publishing on the Web must be open and
shared via the Web Companion.
To share a database on the Web:
1. In FileMaker Pro, choose File menu > Open and open the database.
2. Choose File menu > Sharing.
3. Select the Web Companion checkbox.
If the Web Companion option is unavailable (dimmed), you need to
enable the Web Companion. See “Enabling the Web Companion” on
page 3-3.
4. If you’re using Instant Web Publishing for this database, click Set
Up Views and choose a web style and layouts for each view (instant
web page).
5. Click Done to close the Web Companion View Setup dialog box.
6. Click OK to close the File Sharing dialog box.
Creating a custom home page
You can set the Web Companion to open a custom home page by
default rather than the built-in home page (the FileMaker Pro Instant
Web Publishing home page) — whether you’re using Instant Web
Publishing or custom web publishing with CDML or XML.
For Instant Web Publishing, choose a web style
and layouts for each view (instant web page)
3-6 FileMaker Pro 5.5 Unlimited Administrator’s Guide
When web users enter the IP address of the host computer in their
web browsers, the Web Companion will serve either the built-in
home page used for Instant Web Publishing, any web page named
“default.htm,” “default.html,” “index.htm,” or “index.html” that is
located in the root level of the Web folder or in a site folder within
it, or the custom home page you specify in the Web Companion
Configuration dialog box (which must be located in the root level of
the Web folder).
If you’re hosting multiple sites each with its own home page, you can have
each home page named “default.htm” or “index.htm” inside each site
folder within the Web folder, and the Web Companion will display them
when web users enter the name of the site folder after the IP address.
http://17.17.17.17/guest_book
If you want, create a link to the IP address of the site folder—
otherwise, let users know so they can type it in their web browsers.
Note You can enter “localhost” instead of the IP address when
FileMaker Pro and all the files are on your computer. See “Testing
your site without a network connection” on page 3-18.
http://localhost
http://localhost/guest_book
Specifying a custom home page as the default
To specify the custom home page as the default in the Web
Companion Configuration dialog box:
1. Make sure the custom home page is located in the root level of the
Web folder.
The custom home page can be named anything but must be in HTML
format (with the .htm or .html filename extension).
2. In the Web Companion Configuration dialog box, choose your
custom home page from the Home Page list.
Creating a custom home page for Instant
Web Publishing
The simplest and quickest way to publish your FileMaker database
on the Web is to let FileMaker Pro Instant Web Publishing design
your web pages for you. You can create your own web page to
replace the built-in FileMaker Pro Instant Web Publishing home
page and still use the instant web pages generated by the Web
Companion. Your new custom home page can contain anything else
you want to include for your web site, such as web graphics, movies,
and Macromedia Flash animations.
Any .htm or .html
file located in the
root level of the
Web folder
appears in this list
Any .htm or .html
file located in the
root level of the
Web folder
appears in this list
Publishing your database on the Web 3-7
The built-in home page for Instant Web Publishing displays a list of
all the open FileMaker Pro databases that are shared via the Web
Companion. Each database in the list is linked to a FileMaker CGI
request for displaying the database records in different views (instant
web pages), such as Form View.
About the FileMaker WebPortal object
With the enhanced Web Companion in FileMaker Pro 5.5 and
FileMaker Pro 5.5 Unlimited, you can now access the elements of the
Instant Web Publishing home page (such as database names or the URL
to access a Form View of a database) as separate JavaScript objects and
extract data from them to build your own custom home page.
To access elements of the Instant Web Publishing home page, you
need the following FileMaker CGI request:
<SCRIPT LANGUAGE="JavaScript" SRC="FMPro?-webportal">
</SCRIPT>
Note If you are using a Netscape web browser, you must specify
JavaScript 1.4.
This HTML statement places the JavaScript object called WebPortal
inside a window object in your web page. The window.webPortal
object contains the following subobjects:
webPortal.databases = Array of <databaseObject>
webPortal.userName = Name of current FileMaker Pro user
Each <databaseObject> in the array contains the following:
Note A URL for the default Form View for a database can be used
with FileMaker WebPortal objects.
A Custom Web Portal example is included in the Custom
Workgroup Portal folder on the FMWSC and Tools CD.
Overview of setting up a custom home page for Instant
Web Publishing
To create a custom home page using JavaScript:
1. Create an HTML file for your web page using a text editor or
HTML editing program.
Example of the built-in Instant Web Publishing home page
Databases
shared by the
Web
Companion databaseName The string displayed for the link in the Instant Web
Publishing home page
defaultURL The default URL for opening the database in the browser
based on settings made in the Web Companion View
Setup dialog box or the Document Preferences dialog box
formViewURL The URL for opening the database in the Form View
instant web page
tableViewURL The URL for opening the database in the Table View
instant web page
searchViewURL The URL for opening the database in the Search View
instant web page
newViewURL The URL for opening the database in the New Record
View instant web page
3-8 FileMaker Pro 5.5 Unlimited Administrator’s Guide
2. Include a FileMaker CGI request for the FileMaker WebPortal
object:
<SCRIPT LANGUAGE="JavaScript" SRC="FMPro?-webportal">
</SCRIPT>
3. As desired, use scripting to write HTML and text to the document.
4. Save the file with the .htm or .html filename extension and place it
in the root level of the Web folder (inside the FileMaker Pro 5.5
folder).
5. In the Web Companion Configuration dialog box, select Enable
Instant Web Publishing, choose your custom web page from the Home
Page list, and click OK.
Note Instant Web Publishing is not supported under the Web Server
Connector in FileMaker Pro 5.5 Unlimited.
Creating a custom web site using a
database layout
With new features in FileMaker Pro 5.5 and FileMaker Pro 5.5
Unlimited, you can now design your own page layouts for Instant
Web Publishing in Layout mode, and then display the layouts in the
web browser.
First, you create a startup script to hide the Instant Web Publishing
interface. Then you create buttons in the layouts to navigate the web
site and perform database functions. To bypass the Instant Web
Publishing home page, you use a custom home page that contains a
redirect statement for opening the database layout in a particular
instant web page.
Overview of using a database layout as the Instant Web
Publishing home page
To create a custom home page that uses a database layout for the
interface:
1. In Layout mode in FileMaker Pro, design the layout for your
custom home page. Create script buttons for every type of interaction
you want the web user to be able to do on this page. (See “Using
script buttons in Instant Web Publishing” on page 3-9.)
2. Create a startup script that hides the Instant Web Publishing
interface. (See “Suppressing the Instant Web Publishing interface”
on page 3-11.)
3. Enable the Web Companion and configure it for Instant Web
Publishing.
4. Set up file sharing for the database through the Web Companion
(see “Sharing the database via the Web” on page 3-5), and click Set
Up Views in the File Sharing dialog box.
5. In the Web Companion View Setup dialog box, choose either Soft
Gray, Lavender, Wheat, or Blue and Gold 1 for the web style. Then
specify the layout you want used for each view (instant web page).
6. Choose Edit > Preferences > Document and set up FileMaker Pro to
switch to the layout you created in step 1 and perform the startup
script you created in step 2 when the database opens.
When the database is opened in the web browser, the layout that you
select for the Switch to Layout option in the Document Preferences
dialog box overrides all layouts selected in the Web Companion
View Setup dialog box for file sharing.
7. Create a web page with a redirect statement that bypasses the built-
in Instant Web Publishing home page and displays your custom
layout in the browser. (See “Bypassing the Instant Web Publishing
home page” on page 3-12.)
8. Configure the Web Companion to open the web page as the default
home page. (See “Specifying a custom home page as the default” on
page 3-6.)
Publishing your database on the Web 3-9
Now when you enter your computer’s IP address or “localhost” in
the web browser, the Web Companion will display the database
layout for your custom home page in the browser window.
Using script buttons in Instant Web Publishing
You can provide special script buttons in your FileMaker Pro layout
to work with Instant Web Publishing. When web users click on a
button in the browser, the script’s URL is sent to the Web
Companion as a FileMaker CGI request.
If the script is a single script step, an onClick JavaScript event
handler is executed and a URL is generated containing the current
state information in the browser and information from the script step
extracted by the Web Companion.
If the script contains multiple script steps, state information from the
first three supported steps is extracted to construct a JavaScript state
object (scriptState) that encapsulates the result of the executed script.
The resulting information is passed to the JavaScript runtime
application (Instant Web Publishing), which interprets the state
object, builds the resulting URL, and sends the CGI request to the
Web Companion.
Note For information about FileMaker CGI requests made in custom
web publishing, see “Generating FileMaker Pro CGI requests using
CDML” on page 4-3 and “Generating FileMaker Pro CGI requests
for an XML document” on page 5-8.
Requirements for Instant Web Publishing buttons
A button that you’re using in a layout for Instant Web Publishing
may have a single valid script step attached to it or a script containing
1 to 3 valid script steps.
If you’re using multiple text and graphic objects for a button, the
script or script step must be attached to the topmost object in the
group. Create the text and graphic elements first, group them, and
then attach the script to the group.
Single script steps supported for Instant Web Publishing
In FileMaker Pro 5.5 and FileMaker Pro 5.5 Unlimited, the Web
Companion supports the following single script steps for buttons
used in Instant Web Publishing layouts.
FileMaker script step CGI request Description
Open [<Document name>] Open database in
browser window
Equivalent to opening the
database from the Instant
Web Publishing home
page.
The database must be
specified as a script
parameter, and it must be
open in FileMaker Pro.
Open URL [<url>] Set window location
to the specified URL
Use this with a text field
or calculation field with a
text result to construct
target URLs.
The URL must be
complete (e.g. include
http://) and can go to
another web site or
contain a FileMaker CGI
request.
Go to Layout [<Layout
Name>]
Go to specified
layout
This will not affect other
current parameters for
location.
The generated URL link is
based on the default URL
of the database plus any
settings made for startup
script and layout, and
specified record in a
relationship.
Also supported in a multi-
step button.
3-10 FileMaker Pro 5.5 Unlimited Administrator’s Guide
Go to Related Record
[<Relationship Name>]
Go to specified
record in a related
database
The related database must
be open and shared via the
Web Companion, and the
specified record must be
available when the script
is performed.
Go to Record/Request/Page
[n]
Go to record number The record number can be
specified by a constant, by
a field value, or from a
JavaScript prompt.
Also supported in a multi-
step button.
Go to Record/Request/Page
[First]
Go to first record Also supported in a multi-
step button.
Go to Record/Request/Page
[Last]
Go to last record Also supported in a multi-
step button.
Go to Record/Request/Page
[Previous]
Go to previous
record
Also supported in a multi-
step button.
Go to Record/Request/Page
[Next]
Go to next record Also supported in a multi-
step button.
Go to Field [ ] Go to Edit Record
view
Displays the specified
field in the Edit Record
page (without a blinking
insertion point).
Also supported in a multi-
step button.
New Record/Request [ ] Go to New Record
view
Also supported in a multi-
step button.
FileMaker script step CGI request Description
Enter Browse Mode [ ] Go to Form View Allows the web user to go
from an Edit Record,
Search, or New Record
page to Form View
without submitting a CGI
request.
Also supported in a multi-
step button.
Enter Find Mode [ ] Go to Search page Also supported in a multi-
step button.
Show All Records Find all records Also supported in a multi-
step button.
Perform Find Submit -find request This does not restore a
-find request that has been
saved with the script.
Also supported in a multi-
step button.
Exit Record Submit form This submits -edit record,
-new record, and -find
requests.
Also supported in a multi-
step button.
Sort [ ] Go to Sort page Also supported in a multi-
step button.
Delete Record/Request [ ] Delete record with
confirmation alert
View As [View As Table] View current layout
in CSS table
View As [View As Form] View current layout
in CSS form
View As [View As List] View current layout
in CSS table
This is the same as the
View As [View As Table]
script step
FileMaker script step CGI request Description
Publishing your database on the Web 3-11
Note When you use the Go to Related Record script step with Instant
Web Publishing, the sort order of the related database is based on the
Sort View settings in the Web Companion View Setup dialog box
(not on the sort order specified by the relationship). The found set of
records is determined by the relationship — only related records are
in the current found set when the script is performed.
Support for scripts with multiple script steps
The Web Companion supports 1 to 3 script steps in a script button
used for Instant Web Publishing. (Any steps after 3 valid script steps
are ignored.) The script must include a change of mode, layout, or
current record. The script may also include the submission of a form
containing either a -find request or an edited record. The following
script steps can be used in multi-step scripts:
Go to Record
Go to Layout
Go to Field
Sort
Enter Find Mode
Enter Browse Mode
New Record
Show All Records
Exit Record
Perform Find
If the first script step in the script is not one of these supported script
steps, then it is handled as a single script step. If it is not supported
for Instant Web Publishing, then the script is not generated for the
button. If a script contains both supported and unsupported steps,
then parsing of the script will cease as soon as the first unsupported
step is encountered.
Suppressing the Instant Web Publishing interface
You can use a startup script to suppress the automatic page layouts
and navigation controls of Instant Web Publishing in the browser.
When web users click a link on the Instant Web Publishing home
page, your database layout appears instead of the built-in layout of
the instant web page. (To display a database layout instead of the
Instant Web Publishing home page, see “Bypassing the Instant Web
Publishing home page” on page 3-12.)
When you hide the Instant Web Publishing interface, you must
specify one of the following web styles that use cascading style
sheets:
1 Soft Gray
1 Lavender
1 Wheat
1 Blue and Gold 1
The other web styles don’t work with hiding the Instant Web
Publishing interface. For information about web styles, see
“Choosing a web style” in chapter 14 of the FileMaker Pro User’s
Guide or see FileMaker Pro Help.
View As [Cycle] Cycle between Form
and Table views
Open Help Open HTML help This opens the built-in
help for Instant Web
Publishing, called
“FileMaker Pro Web
Companion Help” in a
new browser window.
FileMaker script step CGI request Description
3-12 FileMaker Pro 5.5 Unlimited Administrator’s Guide
You only need the Toggle Status Area [Hide] script step in your
startup script to hide the Instant Web Publishing interface. In
addition, you can combine the Toggle Status Area [Hide] script step
with one of the following script steps in the startup script:
1 Enter Browse Mode: Form View
1 Enter Find Mode: Search page
1 New Record: New Record View
1 View As [View as Table]: Table View
The Freeze Window, Set User Capture, and Refresh Window script
steps can appear before the supported steps, but they will be ignored.
To hide the Instant Web Publishing interface:
1. Choose Scripts > ScriptMaker and type a name for the new script in
the Script Name text box. Then click Create.
2. In the Script Definition dialog box, click Clear All, and select Toggle
Status Area. Choose Hide from the Specify pop-up menu to add the
parameter to the script step. Then click OK.
3. Click Done to close the Define Scripts dialog box.
4. Choose Edit > Preferences > Document.
5. In the Document Preferences dialog box, select the checkbox for
Perform script when opening the database, and choose the script you
named in step 1 from the pop-up menu.
6. Click OK.
For more information, see “Defining scripts” in chapter 10 and
“Setting document preferences” in appendix A of the FileMaker Pro
User’s Guide or see FileMaker Pro Help.
Bypassing the Instant Web Publishing home page
You can bypass the built-in Instant Web Publishing home page so
that the database layout you’ve created appears as the default home
page in the web browser. You do this by writing a redirect statement
in an HTML file that includes a FileMaker CGI request and then
designating the file as the default home page in FileMaker Pro.
For the FileMaker CGI request, you’ll need to know the URL of the
view (instant web page) that you want the database layout to appear
in. You can get this from the browser window by displaying the
database in the Instant Web Publishing home page and moving the
cursor over the link or clicking the link to go to the view.
To bypass the Instant Web Publishing home page:
1. Create an HTML file that contains a redirect statement to your
database layout.
2. Save the HTML file with the .htm or .html extension and place it
in the Web folder.
3. In the Web Companion Configuration dialog box, specify the
HTML file to be the default home page. (See “Setting Web
Companion configuration options” on page 3-3.)

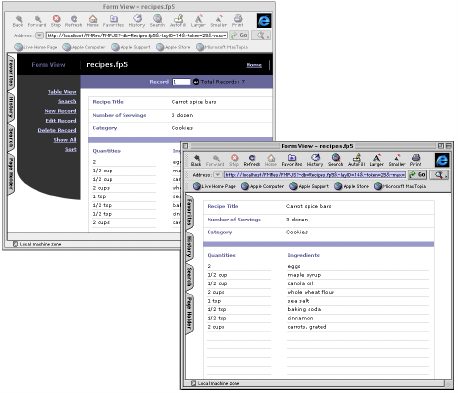

Example of a web page before and after the
Instant Web Publishing interface is hidden
Publishing your database on the Web 3-13
For example, the following redirect statement contains a FileMaker
CGI request for layout ID number 3 in the “MyCustomUI.fp5”
database to open in the Form View instant web page
(formvwcss.htm).
<HTML>
<BODY>
<SCRIPT Language="JavaScript">
window.location ="/FMRes/FMPJS?-db=MyCustomUI.fp5&
-layID=3&-token=25&-max=1&-format=formvwcss.htm&
-mode=browse&-findall"
</SCRIPT>
</BODY>
Note In the Internet Explorer 4.5 for Mac OS browser window, you
must allocate at least 6 MB of memory to the web browser in order
to display the database layout.
Here’s another example of a redirect statement that displays the
database layout in the browser window.
<!DOCTYPE HTML PUBLIC “–//W3C//DTD HTML 4.01 Transitional//EN”
“http://www.w3.org/TR/1999/REC-html1401-19991224/loose.dtd”>
<HTML>
<HEAD>
<META HTTP-EQUIV=”Refresh” Content=”0; URL=/FMRes/FMPJS?
–db=MyCustomUI.fp5&–layID=3&-token=25&-max=1&
-format=formvwcss.htm&-mode=browse&-findall”>
</HEAD>
<BODY>
</BODY>
</HTML>
Note Layout ID numbers are determined by the original creation
order of all the layouts created for the database.
Format filenames for instant web pages
The following table lists the instant web pages and their format
filenames as they apply to those web styles that use cascading style
sheets.
Note When you suppress the Instant Web Publishing controls, your
users will be completely dependent on your buttons and scripts to
manage your database solutions in a browser. You can simulate a
“home” link by creating a button to perform a script composed of the
single step, Open URL [No dialog, “http:/”]. (Note there is only one “/”
after “http:”.) This statement can’t be attached directly to the button
itself, but must be included in a script performed by the button.
Web Companion support for Internet
media types
The Web Companion supports current MIME (Multipurpose
Internet Mail Extensions) types registered for the Internet. The Web
Companion can now serve other types of media files besides HTML
to the web browser with the correct MIME type.
Instant web page Format filename
Form View FormVwCSS.htm
Table View TableVwCSS.htm
Search SearchCSS.htm
New Record NewCSS.htm
Edit Record EditCSS.htm
Delete Record DeleteCSS.htm
Sort SortCSS.htm
Error Err.htm
3-14 FileMaker Pro 5.5 Unlimited Administrator’s Guide
For example, you might want to serve WML (Wireless Markup
Language) documents from your web site. Browsers with the
appropriate plug-in would be able to display the file in the browser
window.
For information about the Internet media type registry, go to
ftp://ftp.iana.org/in-notes/iana/assignments/media-types/.
Monitoring your site
The FileMaker Pro Web Companion generates three types of log
files that you can use for gathering information about web users who
visit your site:
1 access.log
1 error.log
1 info.log
For information on enabling log files, see “Setting Web Companion
configuration options” on page 3-3.
In addition, the Web Companion provides several external functions
for monitoring activity with your databases, which can be used in
your calculation fields and scripts.
Note For information about the log files generated by the Web Server
Connector, see “Using the Web Server Connector log files” on
page 2-5.
Using the access.log file
The access.log file keeps a record of every time someone accesses
the Web Companion from a web browser and lists the hits in NCSA/
CERN-compatible Common Log Format.
When you enable the Access Log File option in the Web Companion
Configuration dialog box, the Web Companion generates an
access.log file and places it in the root level of the FileMaker Pro
folder.
Every time a web user accesses your database, the Web Companion
continuously adds entries to the access.log file.
Note Neither the entries nor the file are automatically deleted, and so
the file may become very large. To save hard disk space on your host
computer, consider archiving the access.log file on a regular
schedule.
The Common Log Format used for the access.log file is:
remotehost rfc931 authuser [date] “request” status bytes
Where Means this
remotehost The remote IP address or hostname
rfc931 Required for UNIX systems
authuser The user name authenticated by the web user
[date] The date and time of the request
Publishing your database on the Web 3-15
Using the error.log file
The error.log file, stored in the root level of the folder containing the
database, is generated by the Web Companion whenever any unusual
errors have occurred. Common errors reported to the web user, such
as “Database not open,” are not recorded in the error.log file.
[08/Jun/1999:16:16:01:53 –0800] Web Security database not open.
Security disabled.
[12/Jul/1999:06:07:02 –0800] ERROR: 6. Could not find email format file.
[23/Jul/1999:11:12:38 –0800] ERROR: 12: Badly formatted URL.
Using the info.log file
The info.log file, stored in the root level of the folder for the
database, contains entries generated by the [FMP-Log] CDML
replacement tag. Whenever web users access FileMaker Pro from
your custom CDML web page, information you’ve included within
a [FMP-Log] tag is recorded by the Web Companion in the info.log
file.
For information about the CDML replacement tags, see chapter 4,
“Custom web publishing using CDML.”
Using the Web Companion external functions
You can use the FileMaker Pro Web Companion external functions
with your calculations or scripts to:
1 check the version of the Web Companion
1 capture information about visitors to your database
1 translate information in your database to HTML or HTTP
To use a Web Companion external function in a calculation field:
1. Be sure the Web Companion is enabled. (See “Enabling the Web
Companion” on page 3-3 for information.)
2. Choose File menu > Define Fields.
3. Type a name for the new calculation field in the Field Name box.
4. For Type, select Calculation, and click Create.
5. In the Specify Calculation dialog box, choose External Functions
from the View pop-up menu.
6. Double-click one of the external functions in the list that begins
with the function prefix “Web-” to add it to the formula box.
“request” The request line exactly as it came from the client
status The HTTP status code returned to the client (for information,
see the World Wide Web Consortium’s web site at
www.w3c.org)
bytes The content length of the document transferred to the client
Where Means this
3-16 FileMaker Pro 5.5 Unlimited Administrator’s Guide
A formula for an external function requires the name of the external
function to call and the function’s parameter.
7. Replace the word “parameter” with the required parameter for the
function (0, field name, or text value).
See the next table for a description of the Web Companion external
functions and their parameters.
8. Continue to build the formula as desired and click OK when you’re
done.
9. Click Done to close the Define Fields dialog box.
For more information, see chapter 11, “Using formulas and
functions,” in the FileMaker Pro User’s Guide or see FileMaker Pro
Help.
Exporting data to a static HTML page
To quickly display the existing data in your FileMaker Pro database
on the Web, you can export it into an HTML table and publish your
database as a static web page. To automate the exporting process on
a regular basis, use a FileMaker Pro script and control the timing for
when the exported table is uploaded to the web site.
Note Images in container fields cannot be exported. To display them
on your web site, place the image files in the Web folder and insert
reference links to them in a text field in the database (or insert image
links in the exported HTML table).
To export the data into an HTML table:
1. Open the FileMaker Pro database and create a sorted found set
with the records you want to export.
If you are going to export subsummary data, include the break field
in the sort order.
2. In Browse mode, choose File menu > Export Records. Type a name
and select a location for the exported file. Then, choose HTML Table
Files (Windows) or HTML Table (Mac OS) for the file type, and click
Save.
External function’s name
and parameter Description of external function
Web-Version, 0 Returns the version of FileMaker Pro Web
Companion that loads when you open
FileMaker Pro
Web-ClientAddress, 0 Returns the domain name (for example,
www.filemaker.com) of a web user whose HTTP
request is currently being processed by the Web
Companion. Returns the web user’s IP address if the
domain name is not available.
Web-ClientIP, 0 Returns the IP (Internet protocol) address of the
web user whose HTTP request is currently being
processed by the Web Companion
Web-ClientName, 0 Returns the value that the web user types for a
user name in the web browser password dialog
box
Web-ClientType, 0 Returns the name and version of the web
browser being used by the web user
Web-ToHTML, field name
Web-ToHTML, text value
Returns the contents of the specified field or text
value encoded in HTML. This is useful, for
example, when you want to modify a data field
with a calculation and then use it as an error
page.
Web-ToHTTP, field name
Web-ToHTTP, text value
Returns the contents of the specified field or text
value encoded in HTTP. This is useful for fields
containing data that should be handled as URLs
in HREF links by the browser. For example,
“Display Art” becomes “Display%20Art.”
External function’s name
and parameter Description of external function
Publishing your database on the Web 3-17
3. In the Specify Field Order for Export dialog box, indicate how you
want FileMaker Pro to export the data by selecting fields in the left
box and moving them to the Field Order box on the right — in the
order that you want them to appear.
4. To export a related field, choose the relationship from the pop-up menu.
The related fields for the relationship you chose are then listed in the
Specify Field Order for Export dialog box.
5. To export one record that subtotals multiple records, click
Summarize by. Then, in the Summarize by dialog box, click to the left
of the field you want to use as the break field. A check mark appears
to the left of the field. (You must have set up one or more summary
fields and sorted by the break field in the database.) Click OK.
In the Export Field Order for Export dialog box, FileMaker Pro
creates italicized temporary export fields in the Field Order list based
on the break fields you specified. For example, if you have a
summary field named Count and you select the break fields Category
and Unit, the export field list contains Count, Count by Category,
and Count by Unit.
6. Select Don't format output if you want to ignore number, date, and
time field formatting (for example, to export a number as 3.7 instead
of as $3.70).
7. Select Format output using current layout if you want to use number,
date, and time field formatting as specified for the included fields on
the current layout (for example, to export a number as $3.70 instead
of as 3.7). Symbols and other non-numeric values are exported as
text.
8. Click Export.
3-18 FileMaker Pro 5.5 Unlimited Administrator’s Guide
FileMaker Pro saves the data in table format in an HTML file. Each
field you specified becomes a column heading in the table and each
record becomes a row.
Testing your site without a
network connection
You can set up your computer to test the Web Companion and your
web site before uploading your site files and databases to the host
web server or dialing up to an Internet service provider (ISP).
To set up your computer to act as a single-machine network, enable
and activate TCP/IP networking. On Windows machines, this is
usually already set up for you (if you can connect to the Internet, then
TCP/IP networking is active). On Mac OS machines, one way to set
up TCP/IP networking is to create a new TCP/IP control panel
configuration that connects via Ethernet to any IP address manually.
(For information on setting up TCP/IP networking, see the
documentation that came with your operating system.)
Once you’ve set up your computer to act as a single-machine
network, you can type http://localhost in your web browser
and the FileMaker Pro Web Companion will serve the HTML pages
that are located in the Web folder as well as any open databases that
are shared via the Web Companion—without connecting to the
Internet or intranet.
Tip To thoroughly test your web site, click on every link that exists
in your custom web pages under every possible situation, with your
databases open, with (and without) any records existing in each
database. Did you catch all the errors and create an error message for
each of them?
Opening password-protected
databases remotely
You can open and close FileMaker Pro databases from your web
browser or other client application by making a –dbopen or –dbclose
request to FileMaker Pro.
Note You can also open and close FileMaker Pro databases remotely
by using the DbOpen and DbClose pseudo procedures with the
FileMaker JDBC Driver. See “Using DbOpen and DbClose pseudo
procedures” on page 6-5 for information.
The databases must be located in the Web folder and the Web
Companion Configuration dialog box must have Remote
Administration enabled. In addition, you should require a remote
administration password to ensure that once databases are opened,
they cannot be closed by an unauthorized user.
The Web Companion uses HTTP basic authentication to enforce web
security. When a –dbopen request is made to FileMaker Pro, the
browser or client application displays the basic user name/password
dialog box where you type admin for the user name and the remote
administration password that you specified in the Web Companion
Configuration dialog box.
For databases that also have an access privileges password, you must
use the –password parameter with the –dbopen request. After you
enter the admin user name and remote administration password, the
Web Companion checks the –password parameter in the request.
Tip For better security, place your databases in subfolders within the
Web folder. This way, unauthorized users will not know the rest of
the path even if they gain access to the Web folder.
Publishing your database on the Web 3-19
Opening and closing databases using XML
Here is an example of making a –dbopen request using an XML
document:
FMPro?–db=secretfolder/employees.fp5&–format=–fmp_xml&
–password= dbpassword&–dbopen
Here is an example of making a –dbclose request using an XML
document:
FMPro?–db=secretfolder/employees.fp5&–format=–fmp_xml&–dbclose
For more information, see “Generating FileMaker Pro CGI requests
for an XML document” on page 5-8 and appendix A, “Valid names
used in CGI requests for FileMaker XML data.”
Opening and closing databases using CDML
To open or close databases remotely using a –dbopen request or
–dbclose request (CDML variable tags), you must also specify a
–format parameter.
If desired, use the [FMP-CurrentError] and [FMP-CurrentDatabase]
tags in the format file to display the results of the request (the
“current database” was successfully opened or the “current
database” could not be opened because of “error #”).
Here is an example of making a –dbopen request:
FMPro?–db=secretfolder/employees.fp5&–format=dbopen.htm&
–password=dbpassword&–dbopen
Here is an example of making a –dbclose request:
FMPro?–db=secretfolder/employees.fp5&–format=dbclose.htm&
–dbclose
For more information, see “Generating FileMaker Pro CGI requests
using CDML” on page 4-3.
This page intentionally left blank.
Chapter 4
Custom web publishing using CDML
The FileMaker Pro Web Companion supports CDML, a proprietary
markup language that enables your HTML pages to interact with a
FileMaker Pro database.
The FMWSC and Tools CD includes:
1 the CDML Tool database and template files to help you insert the
CDML tags into your HTML pages (These HTML pages that contain
CDML tags are referred to as format files.)
1 the CDML Reference database, which describes each CDML tag
and how it’s used in a format file
1 example web sites that publish databases dynamically on the Web
using CDML
If you’re experienced using CDML, see “Modified CDML tags” on
page 4-9 for information about changes to CDML in
FileMaker Pro 5.5 and FileMaker Pro 5.5 Unlimited.
Tip You can also publish your FileMaker Pro databases on the Web
using open standard XML or via Java applets that use the FileMaker
JDBC Driver. See chapter 5, “Using FileMaker Pro XML to deliver
your data” and chapter 6, “Using Java and JDBC to deliver your data.”
About the CDML examples
FileMaker Pro 5.5 Unlimited provides three examples of databases
published on the Web using CDML. The Guest Book example
demonstrates how web users can add records to your database by
“signing” in a guest book. The Employee Database example is a web
site that lets users search the Employees.fp5 database and make
modifications to it. The Shopping Cart example lets web users select
items from a database and add them to a “shopping cart” for
purchase. For information about these CDML examples, see
“Planning your web site” on page 4-14.
Home page of the Guest Book example
4-2 FileMaker Pro 5.5 Unlimited Administrator’s Guide
For additional information and examples using CDML to publish
FileMaker Pro databases on the Web, see the product support pages on
the FileMaker, Inc. web site at www.filemaker.com. As a shortcut to
the site, double-click FileMaker on the Web on the FileMaker Pro CD.
General steps for custom web publishing
using CDML
In general, to publish your FileMaker Pro databases on the Web you
must have a TCP/IP connection to an intranet or Internet Service
Provider, the Web Companion must be enabled, and your databases
must be open and shared via the Web Companion. (For more
information, see chapter 3, “Publishing your database on the Web.”)
1. Design your web site and how web users will interact with your
database. See “Planning your web site” on page 4-14 for ideas.
2. Create a format file for every type of interaction web users will
have with your database, for example, adding records to the
database. Use the CDML Tool to add tags to your format files and
use the format file templates provided by the CDML Tool as a
starting point. See “Using the CDML Tool and templates” on
page 4-5 for information.
3. Create a custom home page for your web site that contains a link
to the first format file you want displayed and the path to the
database.
See “Creating a custom home page” on page 3-5 and “Generating
FileMaker Pro CGI requests using CDML” on page 4-3 for
information.
4. Place the format files and the custom home page in the Web folder,
located inside the FileMaker Pro folder on your computer.
5. In FileMaker Pro, enable the Web Companion, open each database
that you’re publishing, and share it via the Web Companion.
See “Enabling the Web Companion” on page 3-3 and “Sharing the
database via the Web” on page 3-5.
6. In the Web Companion Configuration dialog box, deselect Enable
Instant Web Publishing and choose your custom home page from the
Home Page pop-up menu if desired. (It must be located in the root
level of the Web folder.)
See “Setting Web Companion configuration options” on page 3-3
for information.
7. In a web browser, enter the IP address of the computer that’s
hosting the database.
If you enclosed your pages within a site folder, enter the name of the
folder after the IP address. Otherwise, the Web Companion will
serve the home page that you specified in step 6.
Tip You can create an index page containing a link to every database
site that you’re publishing. Each link can contain the IP address and
site folder so that users don’t have to type it in their web browsers.
When web users click the link, the Web Companion will serve the
index.htm file located in the site folder. For example, an index page
might have these three links:
<P><A HREF="http://17.17.17.17/guest_book">Guest Book</A></P>
<P><A HREF="http://17.17.17.17/employee_database">Employees
</A></P>
<P><A HREF="http://17.17.17.17/shopping_cart">Shopping Cart</A>
</P>
About CDML format files
A format file is an HTML page containing CDML tags. CDML tags
are distinguished by a hyphen (-) or square brackets [ ]. In addition,
a format file may contain FileMaker Pro CGI requests in an HTML
form or HREF link.
For example, every HTML form in a format file that is requesting
data from the database begins with the FMPro form action and the
following hidden INPUT tags.
<FORM ACTION=“FMPro” METHOD=“POST”>
Custom web publishing using CDML 4-3
< INPUT TYPE=“hidden” NAME=“-db” VALUE=“Filename.fp5”>
< INPUT TYPE=“hidden” NAME=“-lay” VALUE=“Layout Name”>
< INPUT TYPE=“hidden” NAME=“-format”
VALUE=“Filename.htm”>
< INPUT TYPE=“hidden” NAME=“-error” VALUE=“Filename.htm”>
Note Format files that contain the “FMPro FMRES” form action are
instant web pages generated by the Web Companion Instant Web
Publishing feature. (See chapter 14, “Publishing databases on the
Web,” in the FileMaker Pro User’s Guide for information about
Instant Web Publishing or see FileMaker Pro Help.)
CDML variable tags are used to specify the parameters of a request:
1 The names -db and -lay in this example (referred to as CDML
variable tags) are used to specify the database and layout for the
request.
1 The -format name specifies the format file you want the Web
Companion to display with the results of the database request.
1 The -error name specifies the format file you want displayed in
case of an error in the request. (For information on other ways to
display an error page, see “Creating error messages” on page 4-13.)
For making requests to the database, the format file must contain a
CDML action tag. For example, a Delete Record format file contains
the -delete action tag in an HTML submit form button.
< INPUT TYPE=“submit” NAME=“-delete” VALUE=“Delete this
record”>
CDML replacement tags act as placeholders for data. For example,
if the current CDML page is based on a record with “Robert Chan”
in FieldName1, the CDML tag [FMP-Field: FieldName1] is replaced
with “Robert Chan”.
< INPUT TYPE=“text” NAME=“Field Name1” VALUE=“[FMP-Field: Field
Name1]”>
Field Name1: Robert Chan
When a format file is displayed statically in the browser rather than
as the result of a FileMaker Pro CGI request, CDML replacement
tags will appear on the page.
FileMaker Pro 5.5 Unlimited includes templates of the commonly used
format files. For information, see “Using the Templates tab” on
page 4-6.
Generating FileMaker Pro CGI requests
using CDML
You use CDML action tags in FileMaker Pro CGI (Common
Gateway Interface) commands to generate requests for data from
your database.

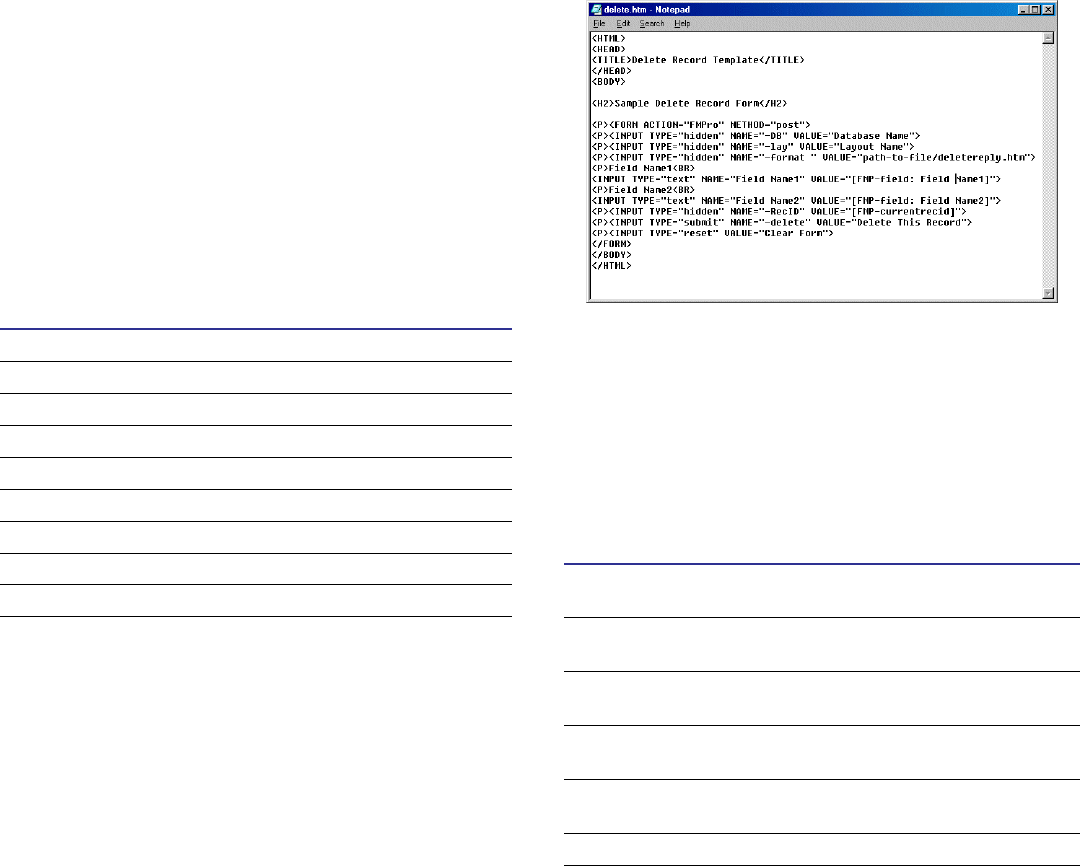

The delete.htm template page displayed
statically in the browser window
4-4 FileMaker Pro 5.5 Unlimited Administrator’s Guide
For example, to generate a –findall request to display all employees
from a database, web users might click on an HREF link containing
the following FileMaker Pro CGI command:
FMPro?–db=Employees.fp5&–lay=FormView&–format=results.htm
&–findall
Or, web users might click on a submit button in an HTML form
containing the FMPro form action and the following hidden INPUT
elements:
<P><FORM ACTION=”FMPro” METHOD=”post”>
<P><INPUT TYPE=”hidden” NAME=”-db” VALUE=”Employees.fp5”>
<P><INPUT TYPE=”hidden” NAME=”-lay” VALUE=”FormView”>
<P><INPUT TYPE=”hidden” NAME=”-format” VALUE=”results.htm”>
The submit button in the form contains the –findall request name:
<P><INPUT TYPE=“submit” NAME=”-findall” VALUE=”Start Search”>
Request names
The name of a request for CDML data is determined by the name of
the CDML action tag in the request. You use CDML variable tags to
specify the parameters of a request.
For a detailed list of the CDML action and variable tags and example
syntax for using them in a FileMaker Pro CGI request, see the Tags
Index in the CDML Reference database (described in “Using the
Tags tab” on page 4-6).
Requests for adding records to a portal
You can use CDML to add records to a portal of related database
files. When you make an –edit request or a –new request that
includes data for a portal, you must specify the layout and the
relationship name for the related database.
Note You can only add one record at a time to a portal, and therefore
must make separate –new requests to add more rows to the portal.
The following is an example of a –new request for adding a record to
a portal, where “Address::” is the name of the database relationship,
and “City.0” is the related field name in the portal:
FMPro?–db=Employees.fp5&–lay=LayoutOne&FirstName=Sam&
LastName= Smith&Address::City.0=Seattle&–format=reply.htm&–new
Requests for editing multiple records in a portal
You only need to make one –edit request to edit multiple records in
a portal. You specify each row (or record) in the portal by adding a
period and a consecutive number (starting with number 1) to the end
of the related field name.
Use this request name
(CDML action tag) To generate this request
–delete Delete record
–duplicate Duplicate record
–edit Edit record
–find Find a record
–findall Find all records
–findany find a random record
–new New record
–dbopen Open database
–dbclose Close database
–view Display format file
Note The -script variable tag (request parameter) is
not designed to work with -view requests.
Use this request name
(CDML action tag) To generate this request
Custom web publishing using CDML 4-5
The following is an example of an –edit request for editing records
in a portal, where “Address::” is the name of the relationship,
“City.1” is the first row in the portal, and “City.2” is the second row
in the portal:
FMPro?–db=Employees.fp5&–lay=LayoutOne&recid=11&
FirstName=Sam&LastName=Smith&Address::City.1=Seattle
&Address::City.2=New York&–format=reply.htm&–edit
The following is an example of another–edit request for editing
records in a portal, in an HTML form:
<FORM ACTION="FMPro" METHOD="POST">
<INPUT TYPE="HIDDEN" NAME="-db"
VALUE="Employees.fp5">
<INPUT TYPE="HIDDEN" NAME="-lay" VALUE="LayoutOne">
<INPUT TYPE="HIDDEN" NAME="-format" VALUE="reply.htm">
<INPUT TYPE="HIDDEN" NAME="-recid" VALUE="11">
<INPUT TYPE="TEXT" NAME="FirstName" VALUE="Sam">
<INPUT TYPE="TEXT" NAME="LastName" VALUE="Smith">
<INPUT TYPE="TEXT" NAME="Address::City.1"
VALUE="Seattle">
<INPUT TYPE="TEXT" NAME="Address::City.2" VALUE="New
York">
<INPUT TYPE="SUBMIT" NAME="-edit" VALUE="Edit Record">
</FORM>
To display records in a portal on your web page, you use a [FMP-
Portal] replacement tag in the format file. For information, see the
CDML Reference database (described in “About the CDML
Reference database” on page 4-11). For an example of displaying
portals in a web page, see the Shopping Cart example (described in
“Shopping Cart example” on page 4-17.)
Using the CDML Tool and templates
The CDML Tool is a special FileMaker Pro database that you can
use with any open database and your HTML authoring program to
copy and paste tags into your format files. It also includes HTML
templates for the main types of format files and comments for how
to use them.
Your databases must be open and shared via the Web Companion.
For information, see “Enabling the Web Companion” on page 3-3
and “Sharing the database via the Web” on page 3-5.
When you specify the name of an open database in the CDML Tool,
the database’s layout, field, and value list names will automatically
appear in pop-up menus for you to choose from. Other database-
specific information will appear as appropriate within the CDML
tags.
To use the CDML Tool:
1. Open the CDML_Tool.fp5 database located in the CDML folder.
FMWSC and Tools > CDML > Web Tools > CDML Tool.fp5
2. Open the database that you’re planning to publish on the Web.
3. In a text editor or HTML authoring program, create a blank page.
Click to update list options
for the selected database
The Templates tab in the CDML Tool
4-6 FileMaker Pro 5.5 Unlimited Administrator’s Guide
4. Arrange the windows so you can easily go between the blank page
and the CDML Tool.
5. In the CDML Tool, select either the Templates tab or the Tags tab
and click the Refresh button. Then choose your database from the
Database pop-up menu, and the layout that you want to use from the
Layouts pop-up menu.
The layout you choose determines which fields will be accessed.
Otherwise, it does not affect the layout of the web page.
Using the Templates tab
1. With the Templates tab selected, choose a format file from the
Format File (Action) pop-up menu for the type of action that you want
users to perform on your database.
For a description of each format file, see “Customizing a format file
template” on page 4-7.
2. Click the Copy to clipboard button.
3. Paste the template into your blank HTML page. (If you’re using an
HTML authoring program, make sure to paste the template into the
HTML source.)
Using the Tags tab
1. With the Tags tab selected, choose a category from the Category
pop-up menu and then click the Refresh button to update the type of
tags listed in the Tags pop-up menu.
For a description of the categories, see “Categories of CDML tags”
on page 4-8.
2. Choose a tag from the Tags pop-up menu.
If the tag has a corresponding list of parameters or value list options,
those values will appear in the Parameters and Value List pop-up
menus.
3. Choose a parameter or value list option, if applicable, and click the
check box on the left to select your choice. When a value list option
is selected, the parameter appears in the CDML Syntax box.
For example, the Check boxes tag in the Fields (Add) Dynamic category
includes a list of encoding parameters you can choose from (Raw,
HTML, Break, Display, and URL) and a choice of two value list
parameters (Value List Name or Yes/No).
[FMP-ValueList: Value List Name]
[FMP-ValueList: Yes/No]
The HTML parameter is selected by default for the [FMP-Field]
replacement tag.
For information, see “Using an encoding parameter with a CDML
replacement tag” on page 4-14 and the individual tag descriptions in
the Tag Index tab of the CDML Reference (described in “About the
CDML Reference database” on page 4-11).
4. View the tag’s syntax in the box at the bottom of the CDML Tool
window.
Click to expand the Tag
Description box
The Tags tab in the CDML Tool
Custom web publishing using CDML 4-7
You can also click the Tag Description arrow to expand the window
and view a description of the tag in another box below.
5. Click the Copy to clipboard button.
6. Paste the tag into your format file.
Customizing a format file template
The CDML Tool provides nine format file templates for the basic
type of actions that web users can perform with your database. These
templates are also included in the CDML Templates folder on the
FMWSC and Tools CD.
To use a format file template:
1. Copy and paste the template from the CDML Tool into the HTML
source of a blank document, or open the template text file from the
CDML Templates folder (inside the CDML folder) in a text editor or
HTML authoring program.
FMWSC and Tools > CDML > Web Tools > CDML Templates
Note When you’re familiar with the template, you may want to
delete the comments (including the comment tags <!-- -->).
2. Use the CDML Tool to add any CDML tags for the fields and other
types of data you’re requesting from the database.
See “Categories of CDML tags” next.
3. Add text, images and links as desired.
4. Name and save the file in your web site.
Choose this
template So web users can do this with your database
Delete.htm Delete a selected record
Delete_reply.htm Receive feedback after deleting a record
Detail.htm View one record in detail on the screen
Edit.htm Make changes to one record
Edit_reply.htm Receive feedback after editing a record
New.htm Add a record
New_reply.htm Receive feedback after adding a record
Results.htm View the results of a search for records
Search.htm Search for specific records
This template Contains these CDML tags
Delete.htm -db, -lay, -format, [FMP-Field: Field Name1], [FMP-
Field: Field Name2], [FMP-CurrentRecID], and -delete
Delete_reply.htm [FMP-LinkRecID: Layout=Layout Name, Format=path-
to-file/default.htm]
Detail.htm -db, -recid, [FMP-CurrentRecID], -lay, -format, [FMP-
Field: Field Name1], [FMP-Field: Field Name2], -edit
Edit.htm -db, -recid, [FMP-CurrentRecID], -lay, -format, [FMP-
Field: Field Name1], [FMP-Field: Field Name2], -edit
Edit_reply.htm [FMP-LinkRecID: Layout=Layout Name, Format=path-
to-file/Detail.htm]
New.htm -db, -lay, -format, -new
The delete.htm format file with all <!--comments--> removed
4-8 FileMaker Pro 5.5 Unlimited Administrator’s Guide
For examples of more complex format files, see the CDML examples
included with FileMaker Pro 5.5 Unlimited. These examples are
described in “Planning your web site” on page 4-14.
Categories of CDML tags
There are three types of FileMaker CDML tags:
1 Action tags — these tags are used to make a specific request to the
database, such as to add a record. Action tags always begin with a
hyphen, such as the -new tag. (See “Generating FileMaker Pro CGI
requests using CDML” on page 4-3 for information.)
1 Variable tags — these tags are used to specify the parameters of a
request, such as the names of the database and the layout. They also
begin with a hyphen, such as the -db and -lay tags.
1 Replacement tags — these tags are used to display data from the
database on a web page. They act as placeholders until a request has
been submitted and the requested data is returned to the page.
Replacement tags always begin and end with a square bracket, for
example, [FMP-Field: First Name].
The CDML Tool organizes the CDML tags and HTML form tags
into 15 categories:
New_reply.htm [FMP-LinkRecID: Layout=Layout Name, Format=path-
to-file/Detail.htm]
Results.htm [FMP-RangeStart], [FMP-RangeEnd],
[FMP-CurrentFoundCount], [FMP-RangeSize],
[FMP-LinkPrevious], [/FMP-LinkPrevious]
[FMP-Record]
[FMP-Field: Field Name1], [FMP-Field: Field Name2]
[FMP-LinkRecID: Layout=layout_name, Format=path-
to-file/detail.htm]
[/FMP-Record]
[FMP-LinkNext], [/FMP-LinkNext]
Search.htm -db, -lay, -format, -op -find
This template Contains these CDML tags
Use tags in
this category For this type of interaction
with FileMaker Pro
Action Delete, duplicate, edit, find, or add a record, find all
records, find a random record, reset a form, or view a
format file containing replacement tags or value lists
Email Display an email form (containing BCC, CC, Format,
From, Host, Subject, To, or All Mail Tags)
Fields (Add)
Dynamic
Display dynamic field name and value list information in
HTML form elements (text field, text area, check box,
radio button, repeating fields, scrolling list) and CDML
replacement tags such as [FMP-ValueList] so web users
can view and modify current FileMaker Pro data on the
web page. When changes are made in the database, the
current information is displayed on the web page.
Fields (Add) Static Display static field name and value list information from
the database in HTML form elements (text field, text
area, check box, radio button, repeating fields, scrolling
list). This information does not change on the web page
regardless of changes made in the database.
Fields (Display) Display dynamic field name and value list information in
HTML form elements (text field, text area, check box,
radio button, repeating fields, scrolling list) and display
field data in [FMP-Field], [FMP-ValueListItem], and
[FMP-RepeatingItem] replacement tags. Web users
cannot edit this data.
Fields (Update) Display dynamic field name and value list information in
HTML form elements (text field, text area, check box,
radio button, repeating fields, scrolling list) and display
field data in [FMP-Field], [FMP-ValueListItem], [FMP-
RepeatingItem], and [FMP-Option] replacement tags
within INPUT and SELECT elements so web users can
edit this data
Find Operators Use an operator (AND/OR, OR, hidden, number/dates, or
text) when performing a –find request
Custom web publishing using CDML 4-9
Modified CDML tags
The FileMaker Pro 5 Web Companion supported the following new
or modified CDML tags. Example syntax for these tags is described
in the CDML Reference database (see “About the CDML Reference
database” on page 4-11 for information).
Note The –fmtfield, –mailfmtfield, and –errorfmtfield variable tags
have been disabled and are no longer available for use because of the
security risk they posed for databases published on the Web.
CDML tags new to FileMaker Pro 5
Hidden Do not display this INPUT tag (–db, –lay,
–db & –lay, –error, –format, or –token)
Links Display a format file based on CDML replacement or
action tags within HREF, MAILTO, and SRC (image)
links
Logical Conditionally display data within the [FMP-If] and
[FMP-Else] replacement tags
Looping Display multiple lines of data within one of these looping
types of replacement tags (Current Find, Current Sort,
Layout Fields, Portal, Record, Repeating Fields, Value
List, or Value Names)
Names Only Display a list of database, field, layout, script, or value list
names from any open database
Replacement Display specific data from the database in one of 44 types
of replacement tags on the web page. For example,
display the web user’s IP address in the [FMP-ClientIP]
replacement tag.
Variables (Add) Generate information from the client (web user’s)
computer based on one of eight replacement tags
received as parameters to a request in the FileMaker Pro
CGI command: [FMP-ClientAddress], [FMP-ClientIP],
[FMP-ClientType], [FMP-ClientUserName], [FMP-
CurrentDate], [FMP-CurrentTime],[FMP-CurrentDay],
and [FMP-CurrentToken]
Variables (Display) Display information in one of 21 replacement tags that
correspond to a specific request parameter. For example,
display the maximum number of records in the [FMP-
MaxRecords] replacement tag as specified by the –max
request parameter (CDML variable tag).
Use tags in
this category For this type of interaction
with FileMaker Pro
New CDML
action tags Description
–dbopen
(action)
Open a database that’s located in the Web folder.
Required parameters: -db, and -format variable tags
Optional parameter: -password
(Remote administration privileges must be set in the Web
Companion Configuration dialog box.)
See “Opening password-protected databases remotely”
on page 3-18 for more information.
–dbclose
(action)
Close a database that’s open in the Web folder or in a site
folder within the Web folder.
Required parameters: -db, and -format variable tags
(Remote administration privileges must be set in the Web
Companion Configuration dialog box.)
See “Opening password-protected databases remotely”
on page 3-18 for more information.
4-10 FileMaker Pro 5.5 Unlimited Administrator’s Guide
Modified CDML tags
New CDML
variable tags Description
–errnum
(variable)
Specify a range or single error number to be handled by
the -error variable tag. You can specify discontinuous
ranges, such as -errnum=500-510& -errnum=900-978.
If no error numbers are specified, all errors are handled
by the –error tag.
See appendix B “FileMaker Pro values for error codes”
for a list of error numbers.
–modid
(variable)
Detect record modification collisions by including the
–modid variable with the –edit action tag. If the
modification ID does not match in an –edit request, then
a new error code 306 is returned (see appendix B,
“FileMaker Pro values for error codes”).
New CDML replacement tags Description
[FMP-CurrentModID]
(replacement)
Used in conjunction with the –modid
request parameter to replace with the
record’s current internal modification ID.
The [FMP-If] tag supports the
CurrentModID and CurrentRecID
parameters as numeric types.
[FMP-CurrentPortalRowNumber]
(replacement)
Replace with the number of the current
portal row.
Use this tag within the [FMP-Portal]
looping tag.
[FMP-CurrentRepeatNumber]
(replacement)
Replace with the number of the current
repetition in a repeating field.
Use this tag within the [FMP-Repeating]
looping tag.
[FMP-ElseIf]
(replacement)
Replace with specified data if the
conditions of the [FMP-If] are not met.
Use this tag with the [FMP-If] tag and a
conditional operator.
[FMP-InlineAction]
(replacement)
Lets you send multiple requests to your
database from within a single format file.
The –format request parameter (CDML
variable tag) is ignored within the inline
request.
[FMP-Log]
(replacement)
Lets you specify comments to be recorded
in the Info.log file each time the page that
contains this tag is accessed through the
Web Companion . (See “Web Companion
support for Internet media types” on
page 3-13 for information.)
Modified CDML tag Description
-token
(variable)
You can use multiple tokens by specifying a
number from 0 to 9 after a period in the variable,
for example, -token.3.
[FMP-CurrentToken]
(replacement)
This replacement tag will now accept a parameter
value of 0 to 9, for example, [FMP-
CurrentToken: 3].
[FMP-If: CurrentToken]
(modified parameter)
The currenttoken parameter of the [FMP-If] tag
can now include a number from 0 to 9, for
example [FMP-If:
CurrentToken:3.eq.{CurrentToken:4}].
[FMP-If:
CurrentPortalRowNumber]
(new parameter)
Use this parameter with the [FMP-If] tag to
specify a number for the current portal row within
the [FMP-Portal] looping tag.
[FMP-If:
CurrentRepeatNumber]
(new parameter)
Use this parameter with the [FMP-If] tag to
specify a number for the current field repetition
within the [FMP-Repeating] looping tag.
New CDML replacement tags Description
Custom web publishing using CDML 4-11
Using an intratag parameter
You can add a parameter to certain replacement tags that is based on
the contents of fields and other items.
Any first parameter that is allowed with the [FMP-If] tag on the left
side of an operator, such as CanDelete, ClientPassword or
ValueListItem, can be used as a third parameter on the right side of an
operator with these replacement tags, as long as they’re within curly
brackets { }. (See the [FMP-If] tag syntax in the CDML Reference for
a description of the first parameters for the [FMP-If] tag.)
Note Some restrictions apply to this new intratag parameter. See the
CDML Reference for a description of each replacement tag and how
the intratag parameter may be used.
Modified replacement tags that allow for the intratag parameter
include:
[FMP-If: {intratag}]
[FMP-Cookie: {intratag}]
[FMP-InlineAction: {intratag}]
[FMP-Log: {intratag}]
[FMP-SetCookie: {intratag}]
[FMP-ContentMimeType: {intratag}]
[FMP-CurrentToken: {intratag}]
[FMP-LinkRecID: {intratag}]
[FMP-Field: {intratag}]
[FMP-Option: {intratag}]
[FMP-Repeating: {intratag}]
[FMP-ValueList: {intratag}]
About the CDML Reference database
The CDML Reference database is divided into two parts:
1 CDML Tag Index — an index for all of the CDML tags with topics
that describe what each tag does and how it appears in syntax
1 Custom Web Publishing — general guidelines for custom web
publishing using CDML
[FMP-If:.and.]
[FMP-If:.or.]
[FMP-If:.xor.]
(new parameters)
Use these parameters (conditional operators) with
the [FMP-If] tag to specify multiple replacement
conditions.
If desired, use this modified [FMP-If] tag along
with the new [FMP-ElseIf] replacement tag.
[FMP-Field: FieldName,
Format] and [FMP-
RepeatingItem: FieldName,
Format]
(new encoding parameter)
Use the Format parameter to generate a higher
resolution HTML for field data. Numbers, dates,
times, and container size are formatted according
to the layout’s format in the database. If no size is
specified in the layout for container fields, then
the size is based on the size of the objects
(pictures or QuickTime movies) within the fields.
The Format parameter should not be used with
fields inside TEXT INPUT or TEXT AREA
elements in an HTML form.
The Format parameter supports Bold, Italic,
Underline, Strikethrough, Superscript, Subscript,
Uppercase, and Lowercase styles in most
browsers.
FileMaker Pro font sizes map to these HTML font
sizes:
8 points or less = -3
9 points = -2
10 points = -1
11 - 13 points = 0 (SIZE is not used)
14 - 17 points = +1
18 - 23 points = +2
24 points or greater = +3
Modified CDML tag Description
4-12 FileMaker Pro 5.5 Unlimited Administrator’s Guide
To view the CDML Reference database:
1. In FileMaker Pro, open the CDML_Reference.fp5 file located
inside the CDML folder.
FMWSC and Tools > CDML > Web Tools > CDML Reference.fp5
2. On the CDML Tag Index tab, click a button to see a list of tags
grouped by one of these categories: All tags, Action tags, Variable tags,
Replacement tags, or HTML Input Types (form elements).
3. Then click a tag to display a topic about it.
Each topic explains how the CDML tag is used and its syntax.
4. Click the home button to return to the FileMaker Pro CDML
Reference screen.
From the home screen, you can open the CDML Tool by clicking the
tool button.
5. Click the Custom Web Publishing tab to view general information
about custom web publishing using CDML.
Click to
view a
topic
Custom web publishing using CDML 4-13
6. Click an arrow or a subject title in the table of contents to view a
list of underlined topic titles. Then click an underlined title to view
the topic.
7. Click an arrow button to continue reading the topics in sequence.
Creating error messages
The FileMaker Pro Web Companion automatically generates an
error page for various errors that occur when web users access a
database. You can specify your own error pages to override the built-
in pages in the following ways:
1 Use the –error variable tag in a FileMaker Pro CGI request to
specify a single error page, which will be displayed for every type of
error that occurs.
1 Use the –error variable tag in the request to specify an error page
that contains [FMP-If] and [FMP-Else] replacement tags and
FileMaker Pro error codes, which determine certain conditions for
displaying an error message.
1 Include –errnum along with the –error tag in the request to specify
a range or single error code. You can use multiple –errnum tags to
specify discontinuous ranges, such as 500-510 and 900-978.
1 Include a specific error page with a filename that the Web
Companion recognizes when it’s located in a folder named “Error”
inside the Web folder.
The –error tag in a FileMaker Pro CGI request overrides both the
built-in error pages and the pages within the Error folder.
For any error page not included in the Error folder, the Web
Companion generates a built-in error page instead.
The Web Companion recognizes these error pages in the Error
folder:
NoResults.htm
ReqFieldMissing.htm
RepRelatedField.htm
UnexpectedError.htm
NotEnoughMemory.htm
DatabaseNotOpen.htm
LayoutNotFound.htm
DataEntryError.htm
DatabaseViolation.htm
FieldViolation.htm
SecurityDisabled.htm
FormatNotFound.htm
FileNotFound.htm
InvalidAddress.htm
4-14 FileMaker Pro 5.5 Unlimited Administrator’s Guide
For a complete list of error code numbers, see appendix B,
“FileMaker Pro values for error codes.”
For examples of error pages, see the gb_error.htm file in the Guest
Book example, the errors.htm file in the Employee Database
example, and the reqfielderror.htm file in the Shopping Cart
example. (See “Looking at the three CDML examples” on page 4-15
for more information.)
FMWSC and Tools > CDML > CDML Examples
Using an encoding parameter with a CDML
replacement tag
You can use a special encoding parameter with certain CDML
replacement tags to specify how the data will be encoded by the web
browser when it is sent to the web page.
[FMP-Field: Information, Break]
The encoding parameters are displayed in the Parameters pop-up
menu in the CDML Tool when the appropriate CDML replacement
is selected. (See “Using the Tags tab” on page 4-6.)
Planning your web site
You’ll need to create a format file for every type of interaction with
FileMaker Pro that you want your web site to provide. As you create
each format file, you’ll need to know
1 what web users will do on the page
1 what type of requests will be made to the database
1 which format file will be displayed as a result of each request
You’ll also need to create pages to display error messages and other
types of feedback.
As you add CDML tags to a format file, you’ll need to know in
advance what the names are of the database, the layout you want to
use, and the next format file in the sequence. A flowchart can be
useful to map out the page links and interactions with each database.
This encoding
parameter Tells the browser to do this
Raw Don’t perform any encoding
HTML Use standard HTML encoding
Format
(new parameter)
Use standard HTML encoding and replace text, numbers,
dates, times, and container size formatting with FileMaker
Pro formats (for example, to add <BOLD> and <ITALIC>
elements)
This new parameter can be used with the [FMP-Field] and
[FMP-RepeatingItem] replacement tags. (See “Modified
CDML tags” on page 4-9.)
Break Use standard HTML encoding and replace soft carriage
returns with the <BR> HTML element
Display Translate text to the language specified in the Web
Companion Configuration dialog box. Use this parameter
with the [FMP-CurrentAction], [FMP-FindOpItem], and
[FMP-SortOrderItem] replacement tags.
For information, see the CDML Reference database
(described in “About the CDML Reference database” on
page 4-11) and “Setting Web Companion configuration
options” on page 3-3.
URL Use URL encoding, which includes converting spaces to
%20.
This encoding
parameter Tells the browser to do this
Custom web publishing using CDML 4-15
Three examples are included with FileMaker Pro 5.5 Unlimited to
give you ideas on how to organize a site. You can also use them as
templates and modify them for your own sites.
Looking at the three CDML examples
The FMWSC and Tools CD includes three CDML examples that
demonstrate ways to publish your databases on the Web using
CDML. These examples are located in the CDML folder:
FMWSC and Tools > CDML > CDML Examples
To examine the three CDML examples:
1. Copy the CDML Examples folder and its contents into the root
level of the Web folder, located inside the FileMaker Pro 5.5
application folder. The contents include one default.htm file, an
Images folder, and the Employee Database, Guest Book, and
Shopping Cart folders.
2. In FileMaker Pro, open each database file inside the three example
folders and make sure that each one is shared via the Web
Companion. See “Enabling the Web Companion” on page 3-3 and
“Sharing the database via the Web” on page 3-5 for information.)
3. In your web browser, type http://localhost or your
computer’s IP address followed by /CDML Examples/ and press
Enter.
http://localhost/CDML Examples/
The Web Companion displays the default.htm file located inside the
CDML Examples folder.
For information on setting up your computer as a localhost, see
“Testing your site without a network connection” on page 3-18.
4. Click the links on the Web Companion Demonstration page to go
to each of the three examples.
5. As you explore each example site, view the HTML source on each
page to see how CDML is used.
Be sure to examine the FileMaker Pro CGI commands in the HREF
links or HTML forms. (See “Generating FileMaker Pro CGI requests
using CDML” on page 4-3.)
Note To see the CDML replacement tags, open the example files
directly in the browser (without using the web site example links).
Employee Database example
The Employee Database example is designed to demonstrate the
most widely used CDML tags. It shows how to
1 search for records in the database
1 select sorting options
Click a link to go to the default.htm file for each CDML example
4-16 FileMaker Pro 5.5 Unlimited Administrator’s Guide
1 browse the database
1 preselect how many records to view at a time
1 add a record to the database
The Employee Database example also provides a demonstration of
the difference between using a static HTML form and dynamic
CDML to display a value list. Examine the difference between two
example links that both go to the same example.htm page but only
one dynamically displays value lists (data) from the database.
The first example link is a simple HREF link to the example.htm
page.
<A HREF=”example.htm”>example</A>
And the CDML replacement tags appear statically on the page.
The second example link contains a FileMaker Pro CGI command
for a CDML -view request. (The -view CDML action tag is usually
used to display format files containing value lists or CDML
replacement tags.)
<A HREF=FMPro?-db=Employees.fp5&-lay=Detail&-
format=example.htm&-view”>example</A>
The CDML replacement tags are replaced with the value lists from
the database.
Guest Book example
The Guest Book example demonstrates how web users can enter
information on a web page (in an HTML form) and submit it to a new
record in a FileMaker Pro database. The HTML form that is used on
the New Record web page includes CDML tags that allow the
database to be accessed and a new record to be created.
Click to search,
browse, and add
records to the
Employees.fp5
database
Click to display the
example.htm page
statically
The New Record page in the Guest Book example
Arrows indicate
required fields
in the database
Custom web publishing using CDML 4-17
Once a guest signs in and sends the information, a summary page is
returned notifying the guest that the information has been received.
The summary page contains [FMP-Field] replacement tags for the
first and last name of the guest that was entered in the new record.
Arrow icons on the New Record page indicate three fields that are
required fields in the database. If any of these fields is left blank
when the information is submitted to the database, then the error
message page (gb_err.htm) is displayed. The error page is specified
on the New Record page in a hidden INPUT element.
<INPUT TYPE="hidden" NAME="-error" VALUE="gb_err.htm">
For information, see “Creating error messages” on page 4-13.
Shopping Cart example
The Shopping Cart example is a complex web site for the Knitting
Factory record label company. The site includes five databases for
searching and browsing the company’s product list, listening to
audio demos, and placing orders.
The site keeps track of each web user by passing CDML tokens from
one web page to the next. Some of the CDML format files use the
[FMP-Include] replacement tag to reference text files and include
their content on the web pages. In addition, the site uses scripting for
easy navigation, which is described in the nav.js JavaScript library.
The Guest Book summary page shows the web
user’s first and last names from the new record
Web users add records to the empty Guest_Book.fp5 database
4-18 FileMaker Pro 5.5 Unlimited Administrator’s Guide
Items that are placed in the Shopping Cart are added to the
OrderedItems.fp5 database. Information that the web user enters on
the customerid.htm page is added to a new record in the
Customers.fp5 database. Items that are finally ordered (when the
web user proceeds to Checkout and clicks Continue) are added to the
Orders.fp5 database. The status of these orders remain open until the
web user enters a Knitting Factory account number and expiration
date.
All format files in these examples are well-commented, explaining
how the CDML tags are used in every step.
The default.htm page in the Shopping Cart Example folder
Chapter 5
Using FileMaker Pro XML to deliver your data
With the enhanced Web Companion, FileMaker Pro 5.5 and
FileMaker Pro 5.5 Unlimited can deliver data from your database to
the Web in Extensible Markup Language (XML) format. In the same
way that HTML has become the standard display language for
communication on the World Wide Web, XML promises to become
the standard language for structured data interchange.
In XML format, FileMaker Pro data can be populated in your web
page programmatically instead of downloading statically from the
server. This gives you more flexibility and a more web-like
application that allows your web users to interact with the data after
it has been downloaded. This also allows the web server to handle
more requests as more processing is done by the browser on web
users’ machines.
About the XML examples
The FMWSC and Tools CD includes an XML example that
demonstrates how you can publish your database on the Web using
XML and Dynamic HTML (including JavaScript). This XML
example is designed to work in the Microsoft Internet Explorer 5 for
Windows web browser. For step-by-step instructions, see “Looking
at the XML Inventory example” on page 5-17.
For examples showing the differences between using stylesheets or
scripting (Dynamic HTML) with your FileMaker Pro XML
documents, see “Comparing CSS, XSLT, and JavaScript” on
page 5-11.
For general information on XML (including a glossary of XML
terms), additional examples that use XML, and links to XML
resources, see the FileMaker, Inc. web site at www.filemaker.com.
As a shortcut to the site, double-click FileMaker on the Web (included
on the FileMaker Pro CD).
List View of the Inventory.fp5 database in the XML Inventory example
5-2 FileMaker Pro 5.5 Unlimited Administrator’s Guide
General process for custom web
publishing using XML
Here’s a simple overview of the process for publishing your
FileMaker Pro database on the Internet or an intranet using XML:
1. You send a FileMaker Pro CGI request (such as to find records in
the database) to the Web Companion through an HTML form, an
HREF link, or a script on your web page. The request can also be
made by typing the URL in the web browser.
See “Generating FileMaker Pro CGI requests for an XML
document” on page 5-8 and appendix A, “Valid names used in CGI
requests for FileMaker XML data.”
2. The Web Companion generates an XML document containing the
results of your request in XML format (for example, a found set of
records from the database and an XML-stylesheet processing
instruction) and returns it to your web browser.
See “Generating an XML document” next.
3. The web browser, with the help of an XML parser, applies any
instructions that you’ve specified via a stylesheet and displays the
data in HTML format.
See “Using style sheets with your XML document” on page 5-10.
Once the XML document is downloaded to your web browser, you
can use stylesheets (such as CSS or XSL) to apply text formatting
styles and object positioning, or scripting (such as JavaScript) to
manipulate the data however you want. See “Comparing CSS,
XSLT, and JavaScript” on page 5-11.
Generating an XML document
When you specify an XML format parameter in your FileMaker Pro
CGI request, the Web Companion generates an XML document
containing data from your database that is formatted by one of two
types of XML grammars (or schemas).
One type (called FMPDSO) gives you more flexibility and control
over individual elements and is ideally suited for use with cascading
style sheets (CSS) or Extensible Stylesheet Language (XSL). The
FMPDSO grammar can also be used with the Microsoft XML Data
Source Object (DSO) in Internet Explorer 4.0 to publish read-only
databases. (The Microsoft XML DSO lets you view but not update
data in XML format.)
The other type of grammar (called FileMaker Extended XML or
FMPXML) provides a broader, richer XML that defines
FileMaker Pro layouts, fields, and value list information. These
grammars can be combined with XSL documents or scripting (such
as JavaScript) to publish dynamic databases on the Web.
All XML data generated by the Web Companion is well-formed and
compliant with the XML 1.0 specification. The document type
definitions (DTDs) for the grammars are provided in HTML documents
for your convenience (included on the FMWSC and Tools CD).
FMWSC and Tools > XML > Documentation
Two of the grammars generated by the Web Companion are used for
retrieving query results and a third is used for retrieving layout
information. Depending on what you specify in your FileMaker Pro
CGI request, the Web Companion will generate an XML document
using one of these grammars:
1 the FMPDSORESULT grammar
1 the FMPXMLRESULT grammar
1 the FMPXMLLAYOUT grammar
Each XML document contains a default XML namespace
declaration for the grammar. (See “About XML namespaces” next.)
You can also specify that the document contain an XML-stylesheet
processing instruction. (See “Using style sheets with your
XML document” on page 5-10.)
Using FileMaker Pro XML to deliver your data 5-3
Use one of these grammars in your document or web page to display
and work with FileMaker data in XML format.
Note XML data generated by the Web Companion is encoded using
UTF-8 format (Unicode Transformation Format 8). For information,
see “About UTF-8 encoded data” on page 5-8.
About XML namespaces
To avoid name collisions, unique XML namespaces help distinguish
XML tags by the application they were designed for. For example, if
your XML document contains two DATABASE elements, one for
FileMaker Pro XML data and another for Oracle XML data, the
namespaces will identify the DATABASE element for each.
The FileMaker Pro Web Companion generates a default namespace
for each grammar. For example, for the FMPDSORESULT
grammar, the following namespace is generated:
xmlns=“http://www.filemaker.com/fmpdsoresult”
About FileMaker Pro database error codes
The FileMaker Pro Web Companion generates an error code at the
beginning of each grammar based on the current error status of the
database. A value of zero (0) is returned for no error.
<ERRORCODE>0</ERRORCODE>
See appendix B, “FileMaker Pro values for error codes” for
information.
Using the FMPDSORESULT grammar
When you specify “–dso_xml” as the format for a FileMaker Pro
CGI request, the Web Companion will generate XML data based on
a database-specific grammar that uses field names as element names.
The FMPDSORESULT grammar is useful for publishing databases
on web pages that are formatted with cascading style sheets or
XSLT. (See “Comparing CSS, XSLT, and JavaScript” on page 5-11
for information.) The FMPDSORESULT grammar is compatible
with the Microsoft XML Data Source Object used by Internet
Explorer 4.0.
The Web Companion will also generate the document type definition
for the grammar if you specify “–dso_xml_dtd” as the format. This
is useful if you want an XML parser to validate the XML before your
document goes to production.
Note Internet Explorer 4.0 directly supports XML with no additional
software required. The XML can be displayed using dynamic data
binding features available in the browser. This is accomplished with
a Java applet that ships with Internet Explorer 4.0, which presents the
XML as a Data Source Object (DSO) to the browser. With the DSO,
the The Internet Explorer 4.0 browser exposes XML data to scripting
languages such as JavaScript or VBScript via the Microsoft
Document Object Model (DOM). Keep in mind that the Microsoft
XML DSO applet does not provide a mechanism for updating the
data, nor does it know anything about FileMaker Pro database
layouts or value lists.
The following is an example of a Microsoft XML DSO applet tag
that you might use in your web page to query FileMaker Pro for
XML data using the FMPDSORESULT grammar—where the “url”
parameter can be any valid FileMaker Pro CGI request containing a
–format parameter equal to “–dso_xml” or “–dso_xml_dtd.” (See
“Generating FileMaker Pro CGI requests for an XML document” on
page 5-8 for a list of valid FileMaker CGI requests.)
5-4 FileMaker Pro 5.5 Unlimited Administrator’s Guide
<applet code=com.ms.xml.dso.XMLDSO.class width=0 height=0
id=xmldso MAYSCRIPT=true>
<PARAM NAME="url" VALUE=fmpro?–db=PhoneList.fp5&
–format=–dso_xml&–find=>
</applet>
Description of elements in the FMPDSORESULT grammar
Each ROW element in the generated FMPDSORESULT grammar
contains a number of FIELD elements that correspond to the field
names in the specified layout.
Spaces or single colons in field names are converted to underscores
in the element names (for example, <FIRST_NAME>). Double colons
in portal fields are converted to periods (for example,
<PHONE.PHONE_NUMBER>). This is done because colons are
reserved in XML for specifying namespaces and spaces are not
allowed in XML element names.
For repeating and portal fields, each FIELD element will contain a
DATA element that corresponds to each repetition or portal record.
Note The content of container fields in the database will be
generated in the form of the relative URL used for retrieving the
content instead of the actual content (such as an image).
To qualify the XML elements for the FileMaker Pro application, the
names of all elements and attributes in this grammar are associated
with the unique XML namespace http://www.filemaker.com/
fmpdsoresult. This namespace is declared in the grammar as the
default namespace.
The following is an example of XML data generated with the
FMPDSORESULT grammar.
Example of XML data in the FMPDSORESULT grammar
<?xml version="1.0" encoding="UTF-8"?>
<FMPDSORESULT xmlns=“http://www.filemaker.com/fmpdsoresult”>
<ERRORCODE>0</ERRORCODE>
<DATABASE>PhoneList.fp5</DATABASE>
<LAYOUT>Web Layout</LAYOUT>
<ROW RECORDID=“3” MODID=“23”>
<FIRST_NAME>John</FIRST_NAME>
<LAST_NAME>Smith</LAST_NAME>
<PHONE.PHONE_NUMBER>
<DATA>555-444-3333</DATA>
<DATA>555-222-9999</DATA>
</PHONE.PHONE_NUMBER>
</ROW>
<ROW RECORDID=“6” MODID=“32”>
<FIRST_NAME>Barbara</FIRST_NAME>
<LAST_NAME>Jones</LAST_NAME>
<PHONE.PHONE_NUMBER>
<DATA>555-666-7777</DATA>
<DATA>555-333-0000</DATA>
<DATA>555-111-7654</DATA>
</PHONE.PHONE_NUMBER>
</ROW>
</FMPDSORESULT>
Note If the –lay parameter is not specified in the FileMaker Pro CGI
request, the LAYOUT element is empty and data for every field in
the database is returned. (See “Generating FileMaker Pro CGI
requests for an XML document” on page 5-8 for information.)
Using FileMaker Pro XML to deliver your data 5-5
Using the FileMaker Pro Extended
XML grammars
The FileMaker Pro Extended XML grammars contain additional
information about field types, value lists and layouts that is not found
in the FMPDSORESULT grammar. Use the FMPXMLRESULT and
FMPXMLLAYOUT grammars if you require layout information or
want the METADATA information provided by these grammars.
Note These grammars are not well suited for cascading style sheets
with positioning. See “Using the FMPDSORESULT grammar” on
page 5-3 if you want to use CSS with your XML data.
When you specify “–fmp_xml” as the format for a FileMaker Pro
CGI request, the Web Companion will generate XML data using
either the FMPXMLRESULT or FMPXMLLAYOUT grammar,
depending on the request you specify in the CGI command:
1 The Web Companion will generate the FMPXMLRESULT
grammar when you specify –edit, –delete, –find, –new,
–dbnames, –layoutnames, –scriptnames or –dbopen as the
FileMaker CGI request.
1 The Web Companion will generate the FMPXMLLAYOUT
grammar when you specify –view as the FileMaker CGI request.
The Web Companion will also generate the document type definition
for the grammar if you specify “–fmp_xml_dtd” as the format. This
is useful if you want an XML parser to validate the XML before your
document goes to production.
For a list of valid FileMaker CGI requests, see “Generating
FileMaker Pro CGI requests for an XML document” on page 5-8.
Note When using XML grammars, you should do a case-insensitive
compare for proper results.
Description of elements in the FMPXMLRESULT grammar
In the generated FMPXMLRESULT grammar, the DATABASE
element contains attributes for the name of the database, the number
of records in the database, the name of the layout that was used to
generate the result set, and the format of dates and times in the XML
document.
The DATEFORMAT attribute specifies the format of dates in the
XML document.
The TIMEFORMAT attribute specifies the format of times in the
XML document.
The METADATA element contains one or more FIELD elements,
each containing information for one of the fields/columns of the
result set—including the name of the field as defined in the database,
the field type, the Yes or No allowance for empty fields (EMPTYOK
attribute) and the maximum number of repeating values
(MAXREPEAT attribute). Valid values for field types are TEXT,
NUMBER, DATE, TIME, and CONTAINER.
Field Full form Short form
Year yyyy (4 digits) yy (2 digits)
Month mm (2 digits) M (1 or 2 digits)
Day dd (2 digits) d (1 or 2 digits)
Field Full form Short form
Hour (1 – 12) hh (2 digits) h (1 or 2 digits)
Hour (1 – 24) kk (2 digits) k (1 or 2 digits)
Minute mm
Second ss
AM/PM a
5-6 FileMaker Pro 5.5 Unlimited Administrator’s Guide
The RESULTSET element contains all of the ROW elements
returned as the result of a query and an attribute for the total number
of records found. Each ROW element contains the field/column data
for one row in the result set—including the record ID for the row, the
modification ID for the row, and the COL element containing the
data for one field/column in the row (where multiple DATA
elements represent one of the values in a repeating or portal field).
Note The content of container fields in the database will be
generated in the form of the relative URL used for retrieving the
content, instead of the actual content (such as an image).
To qualify the XML elements for the FileMaker Pro application, the
names of all elements and attributes in this grammar are associated
with the unique XML namespace http://www.filemaker.com/
fmpxmlresult. This namespace is declared in the grammar as the
default namespace.
The following is an example of XML data generated with the
FMPXMLRESULT grammar.
Example of XML data in the FMPXMLRESULT grammar
<?xml version="1.0" encoding="UTF-8"?>
<?xml-stylesheet type="text/xsl" href="yourstylesheet.xsl"?>
<FMPXMLRESULT xmlns="http://www.filemaker.com/fmpxmlresult">
<ERRORCODE>0</ERRORCODE>
<PRODUCT NAME="Web Companion" VERSION="5.0"
BUILD="10/23/99"/>
<DATABASE NAME="Employees.fp5" RECORDS="23"
DATEFORMAT="MM/dd/yy" TIMEFORMAT="hh:mm:ss"
LAYOUT="summary"/>
<METADATA>
<FIELD NAME="First Name" TYPE="TEXT"
EMPTYOK="NO" MAXREPEAT=”1”/>
<FIELD NAME="Last Name" TYPE="TEXT"
EMPTYOK="NO" MAXREPEAT=”1”/>
<FIELD NAME="Department" TYPE="TEXT"
EMPTYOK="YES" MAXREPEAT=”1”/>
</METADATA>
<RESULTSET FOUND="5">
<ROW RECORDID=”34” MODID=”47”>
<COL>
<DATA>Joe</DATA>
</COL>
<COL>
<DATA>Smith</DATA>
</COL>
<COL>
<DATA>Engineering</DATA>
</COL>
</ROW>
<ROW RECORDID=”78” MODID=”89”>
<COL>
<DATA>Susan</DATA>
</COL>
<COL>
<DATA>Jones</DATA>
</COL>
<COL>
<DATA>Marketing</DATA>
</COL>
</ROW>
</RESULTSET>
</FMPXMLRESULT>
Using FileMaker Pro XML to deliver your data 5-7
The order of the COL elements corresponds with the order of the
FIELD elements in the METADATA element—for example, where
the “First Name”, “Last Name”, and then “Department” elements are
listed in the METADATA, “Joe”, “Smith”, and then “Engineering”
are listed in the same order in the RESULTSET ROW.
Note If the –lay parameter is not specified in the FileMaker Pro CGI
request, the LAYOUT attribute in the DATABASE element is empty
and data for every field in the database is returned. (See “Generating
FileMaker Pro CGI requests for an XML document” on page 5-8 for
information.)
Description of elements in the FMPXMLLAYOUT grammar
In the generated FMPXMLLAYOUT grammar, the LAYOUT
element contains the name of the layout, the name of the database,
and FIELD elements for each field found in the corresponding layout
in the database. Each FIELD element describes the style type of the
field, and contains the VALUELIST attribute for any associated
value list of the field.
The VALUELISTS element contains one or more VALUELIST
elements for each value list found in the layout—each including the
name of the value list and a VALUE element for each value in the
list.
To qualify the XML elements for the FileMaker Pro application, the
names of all elements and attributes in this grammar are associated
with the unique XML namespace http://www.filemaker.com/
fmpxmllayout. This namespace is declared in the grammar as the
default namespace.
The following is an example of XML data generated with the
FMPXMLLAYOUT grammar.
Example of XML data in the FMPXMLLAYOUT grammar
<?xml version="1.0" encoding="UTF-8"?>
<FMPXMLLAYOUT xmlns="http://www.filemaker.com/fmpxmllayout">
<ERRORCODE>0</ERRORCODE>
<PRODUCT NAME="Web Companion" VERSION="5.0v1"
BUILD="10/24/99"/>
<LAYOUT NAME="Web Layout" DATABASE="employees.fp5">
<FIELD NAME="First Name">
<STYLE TYPE="EDITTEXT" VALUELIST="" />
</FIELD>
<FIELD NAME="Last Name">
<STYLE TYPE="EDITTEXT" VALUELIST="" />
</FIELD>
<FIELD NAME="Department">
<STYLE TYPE="POPUPMENU"
VALUELIST="Departments" />
</FIELD>
</LAYOUT>
<VALUELISTS>
<VALUELIST NAME="Departments">
<VALUE>Engineering</VALUE>
<VALUE>Marketing</VALUE>
</VALUELIST>
</VALUELISTS>
</FMPXMLLAYOUT>
5-8 FileMaker Pro 5.5 Unlimited Administrator’s Guide
About UTF-8 encoded data
All XML data generated by the Web Companion is encoded in
UTF-8 (Unicode Transformation 8 Bit) format. This format
compresses data from the standard Unicode format of 16 bits to 8 bits
for ASCII characters. XML parsers are required to support Unicode
and UTF-8 encoding.
UTF-8 encoding includes direct representations of most of the
characters used in English using values of 0-127 for the standard
ASCII set of characters, and provides multibyte encodings for
Unicode characters with higher values. UTF-8 encoded data is
compressed almost in half (lower ASCII characters are compressed
from 2 bytes to 1 byte), which helps data download faster.
Note Because your XML data is UTF-8 encoded, some upper ASCII
characters will be represented by 2 or 3 characters in the text editor—
they will appear as single characters only in the XML parser or
browser.
The UTF-8 encoding format includes the following features:
1 All ASCII characters are one-byte UTF-8 characters. A legal
ASCII string is a legal UTF-8 string.
1 Any non-ASCII character (i.e., any character with the high-order
bit set) is part of a multibyte character.
1 The first byte of any UTF-8 character indicates the number of
additional bytes in the character.
1 The first byte of a multibyte character is easily distinguished from
the subsequent bytes. Thus, it is easy to locate the start of a character
from an arbitrary position in a data stream.
1 It is easy to convert between UTF-8 and Unicode.
1 The UTF-8 encoding is relatively compact. For text with a large
percentage of ASCII characters, it is more compact than Unicode. In
the worst case, a UTF-8 string is only 50% larger than the
corresponding Unicode string.
Generating FileMaker Pro CGI requests for
an XML document
You use FileMaker Pro CGI (Common Gateway Interface)
commands to generate requests for XML data from your database.
For example, to generate a –find request to display all employees
from a database, web users might click on a link containing the
following FileMaker Pro CGI command:
FMPro?–db=employees.fp5&–format= –dso_xml&
–styletype=text/css&–stylehref=stylesheet.css&–find
Request and parameter names
The following tables list the request and parameter names in name/
value pairs you can use in a FileMaker Pro CGI command when
requesting data in XML format.
For more information and examples, see appendix A, “Valid names
used in FileMaker CGI requests for XML data.”
Use this
request name To generate this request
–new New record
–edit Edit record
–delete Delete record
–find Find record(s)
–findall Find all records
–findany find a random record
–view View layout info (in FMPXMLLAYOUT
grammar)
–dbnames Retrieve names of all open and web-shared
databases
–layoutnames Retrieve names of all available layouts for a
specified open, web-shared database
Using FileMaker Pro XML to deliver your data 5-9
Note The -max parameter now returns 0 if the request returns no
records.
Requests for adding records to a portal
When you make an –edit request or a –new request that includes data
for a portal of related database records, you must specify the layout
and the relationship name for the related database.
Note You can only add one record at a time to a portal, and therefore
must make separate –new requests to add more rows to the portal.
The following is an example of a –new request for adding a record to
a portal, where “Address::” is the name of the database relationship,
and “City.0” is the related field name in the portal:
FMPro?–db=employees.fp5&–lay=LayoutOne&FirstName=Sam
&LastName= Smith&Address::City.0=Seattle&–format= –fmp_xml&–new
Requests for editing multiple records in a portal
You only need to make one –edit request to edit multiple records in
a portal. You specify each row (or record) in the portal by adding a
period and a consecutive number (starting with number 1) to the end
of the related field name.
–scriptnames Retrieve names of all available scripts for a
specified open, web-shared database
–dbopen Open a database that’s in the Web folder with
Remote Administration enabled
–dbclose Close a database that’s in the Web folder with
Remote Administration enabled
Use these
parameter names To go with these requests
–db (database name) Required for all requests except –dbnames
–lay (layout name) Required for –view, and with –edit or –new
requests for data in related fields and portals.
Optional for –find, –findall
–format Required for all requests. (Use one of these
formats: –dso_xml, –dso_xml_dtd, –fmp_xml, or
–fmp_xml_dtd)
–recid (record I.D.) Required for –edit and –delete. Optional for –find
–modid (modification I.D.) Optional for –edit
–lop (logical operator) Optional for –find
–op (operator) Optional for –find
–max (maximum records) Optional for –find
–skip (skip records) Optional for –find
–sortorder (sort order) Optional for –find, –findall
–sortfield (sort field) Optional for –find, –findall
–script (perform script) Optional for –find, –findall
–script.prefind
(perform script before
–find)
Optional for –find, –findall
–script.presort (perform
script before sort)
Optional for –find, –findall
Use this
request name To generate this request
–styletype (stylesheet type) Optional for all requests
–stylehref (stylesheet
HREF)
Optional for all requests
–password Optional for –dbopen requests. Specifies the
database’s password.
field name (no hyphen) At least one field name is required for –new and
–edit. Optional for –find. See “field name (Name
of specific field)” on page A-10 for more
information.
Use these
parameter names To go with these requests
5-10 FileMaker Pro 5.5 Unlimited Administrator’s Guide
The following is an example of an –edit request for editing records
in a portal, where “Address::” is the name of the relationship,
“City.1” is the first row in the portal, and “City.2” is the second row
in the portal:
FMPro?–db=employees.fp5&–lay=LayoutOne&recid=11&
FirstName=Sam&LastName=Smith&Address::City.1=Seattle
&Address::City.2=New York&–format= –fmp_xml&–edit
The following is an example of another –edit request for editing
records in a portal, in an HTML form:
<FORM ACTION="fmpro" METHOD="POST">
<INPUT TYPE="HIDDEN" NAME="-db" VALUE="employees.fp5">
<INPUT TYPE="HIDDEN" NAME="-lay" VALUE="LayoutOne">
<INPUT TYPE="HIDDEN" NAME="-format" VALUE="-fmp_xml">
<INPUT TYPE="HIDDEN" NAME="-recid" VALUE="11">
<INPUT TYPE="TEXT" NAME="FirstName" VALUE="Joe">
<INPUT TYPE="TEXT" NAME="LastName" VALUE="Smith">
<INPUT TYPE="TEXT" NAME="Address::City.1" VALUE="San
Jose">
<INPUT TYPE="TEXT" NAME="Address::City.2" VALUE="Santa
Clara">
<INPUT TYPE="SUBMIT" NAME="-edit" VALUE="Edit Record">
</FORM>
Using style sheets with your
XML document
The Web Companion will generate an XML-stylesheet processing
instruction with each grammar if the FileMaker CGI request includes
the –styletype and –stylehref parameters. This allows you to use
cascading style sheets (CSS) or Extensible Stylesheet Language
(XSL) documents for displaying your XML document.
The –styletype parameter is used for setting the value of the type
attribute (type=text/css or type=text/xsl).
The –stylehref parameter is used for setting the value of the HREF
attribute (href=document.css or href=document.xsl).
Here is an example of what a possible FileMaker CGI command
might look like:
http://localhost/fmpro?–db=employees.fp5&–format= –fmp_xml&–find=&
–styletype=text/xsl&–stylehref=document.xsl
Based on this command, the Web Companion will include the
following processing instruction in the XML document:
<?xml-stylesheet type=“text/xsl” href=“document.xsl”?>
The following text is an example of a possible XSL document used
with the FMPXMLRESULT grammar. In this example, the XSL
document converts the XML document into an HTML document by
inserting HTML tags. It builds an HTML table that contains a header
row for all the field names from the METADATA element in the
FMPXMLRESULT grammar, and table rows for all the field data in
the ROW elements of the RESULTSET.
Note This is an example of XSLT that was written to work with
Internet Explorer 5.0 for Windows, not with other browsers using
later versions of XSLT.
<?xml version="1.0"?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/TR/WD-xsl"
xmlns:HTML="http://www.w3.org/Profiles/XHTML-transitional">
<xsl:template>
<xsl:apply-templates/>
</xsl:template>
<xsl:template match="text()">
<xsl:value-of/>
Using FileMaker Pro XML to deliver your data 5-11
</xsl:template>
<xsl:template match="/">
<HTML>
<BODY>
<CENTER>
<TABLE BORDER="0">
<xsl:apply-templates/>
</TABLE>
</CENTER>
</BODY>
</HTML>
</xsl:template>
<xsl:template match="ERRORCODE">
</xsl:template>
<xsl:template match="METADATA">
<TR>
<xsl:apply-templates/>
</TR>
</xsl:template>
<xsl:template match="FIELD">
<TD ALIGN="CENTER" BGCOLOR="#336666">
<FONT FACE="Verdana"
COLOR="#FFFFFF"><B><xsl:value-of
select="@NAME"/></B></FONT>
</TD>
</xsl:template>
<xsl:template match="RESULTSET/ROW">
<TR>
<xsl:apply-templates/>
</TR>
</xsl:template>
<xsl:template match="COL">
<TD BGCOLOR="#00CCFF">
<xsl:apply-templates/>
</TD>
</xsl:template>
<xsl:template match="DATA">
<P><xsl:value-of/></P>
</xsl:template>
</xsl:stylesheet>
Comparing CSS, XSLT, and JavaScript
The FMWSC and Tools CD includes three simple examples that
demonstrate the differences between using cascading style sheets
(CSS), Extensible Stylesheet Language–Transformations (XSLT),
and JavaScript scripting language with your XML documents.
These examples are included in the XML folder:
FMWSC and Tools > XML > Simple Examples
All three examples use a simple database named People.fp5.
5-12 FileMaker Pro 5.5 Unlimited Administrator’s Guide

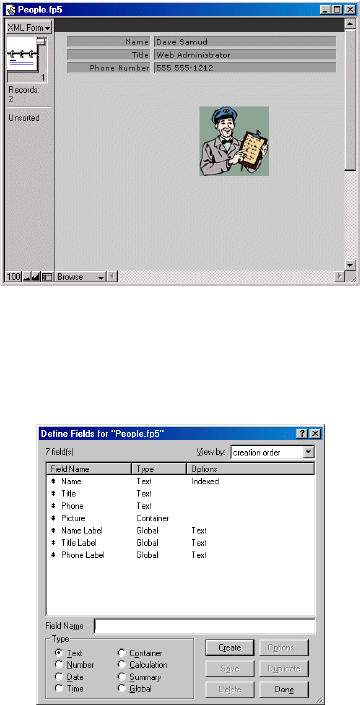

The People.fp5 database contains seven fields — three text fields for
data, three global fields for field labels, and one container field for
pictures.
These three examples were designed to be viewed in the Internet
Explorer 5.0 for Windows web browser. For information on new
browsers that can be used to view the examples, double-click
FileMaker on Web (included on the FMWSC and Tools CD) to go to
the FileMaker product support pages in your browser.
To view the examples:
1. Place a copy of the Simple Examples folder and its files in the Web
folder inside the FileMaker Pro 5.5 application folder on your hard
disk.
FileMaker Pro 5.5 > Web > Simple Examples
Note For security, when actually publishing a database on the Web,
you should not keep the database file in the Web folder unless you
plan to administer it remotely. See “Opening password-protected
databases remotely” on page 3-18 for more information.
2. In FileMaker Pro, open the People.fp5 database and make sure it’s
shared via the Web Companion.
See “Enabling the Web Companion” on page 3-3 and “Sharing the
database via the Web” on page 3-5 for information.
3. In your web browser, type localhost (or your computer’s IP
address) followed by /simple examples/ and press Enter.
http://localhost/simple examples/
http://17.17.17.17/simple examples/
For information on setting up your computer as the localhost, see
“Testing your site without a network connection” on page 3-18.
The seven fields in the People.fp5 database
used for these examples
Using FileMaker Pro XML to deliver your data 5-13
4. On the Default.htm page, click the links to the CSS, XSL, and
Scripting/DOM examples, or view the source to see the FileMaker Pro
CGI requests for the links.
See “Generating FileMaker Pro CGI requests for an XML
document” on page 5-8 for information.
Cascading style sheets (CSS) example
Cascading style sheets (CSS) documents format the text style (font,
size, color, etc.) and positioning of your data in an XML document.
A cascading style sheet can only be applied to the existing data in an
XML document—it cannot be used to transform the data (such as
transforming a URL for a container field into its corresponding
image), or to add additional information (such as labels for each
field) to the XML document.
This example demonstrates the use of a CSS document with an XML
document. The following CGI command was used to generate the
FMPDSORESULT grammar for the People.fp5 database and to
apply the People_form.css stylesheet to the generated XML data:
fmpro?–db=people.fp5&–lay=xml form&–format=dso_xml&
–styletype=text/css&–stylehref=people_form.css&–max=1&–find=
The picture in the container field is not displayed in this example
because the CSS document can only apply styles to the existing data
(the relative URL to the image). It’s not possible to transform the
URL into its corresponding image using cascading style sheets.
The following text is the people_form.css stylesheet, which adds
formatting and positioning to the XML:
/*
* Since FMPDSORESULT is the root element of the XML document,
* any formatting applied to this element will cascade down to all
* other elements in the document. This is a good place to set the
* default formatting options for your page.
*/
FMPDSORESULT
{
font-family: sans-serif;
font-size: 10pt;
}
/*
* Don't display the data for these elements.
*/
To simulate field labels, the CSS document applies boldface
and right-alignment to data in the three global fields
5-14 FileMaker Pro 5.5 Unlimited Administrator’s Guide
ERRORCODE, DATABASE, LAYOUT, Picture
{
visibility: hidden;
}
/*
* Since it is not possible to add additional text to the output
* of the XML document via CSS, we must rely on the XML document to
* provide the labels when displaying the field data. In this case,
* the labels are from global fields defined in the database.
*/
Name_Label
{
position: absolute;
left: 20px;
top: 20px;
width: 150px;
text-align: right;
font-weight: bold;
}
Title_Label
{
position: absolute;
left: 20px;
top: 40px;
width: 150px;
text-align: right;
font-weight: bold;
}
Phone_Label
{
position: absolute;
left: 20px;
top: 60px;
width: 150px;
text-align: right;
font-weight: bold;
}
/*
* The following styles are applied to the actual field data.
*/
Name
{
position: absolute;
left: 180px;
top: 20px;
}
Title
{
position: absolute;
left: 180px;
top: 40px;
}
Phone
{
position: absolute;
left: 180px;
top: 60px;
}
Extensible Stylesheet Language–Transformations (XSLT)
example
Extensible Stylesheet Language–Transformations (XSLT) is a
language for transforming XML documents into other XML
documents. XSLT is part of the overall XSL specification, which
also includes an XML vocabulary for formatting the transformed
XML document (such as applying text styles).
This example demonstrates the use of an XSL document with an
XML document. The following CGI command was used to generate
the FMPDSORESULT grammar for the People.fp5 database and to
apply the People_form.xsl stylesheet to the generated XML data:
fmpro?–db=people.fp5&–lay=xml form&–format=dso_xml&
–styletype=text/xsl&–stylehref=people_form.xsl&–max=1&–find=
Using FileMaker Pro XML to deliver your data 5-15
The three global fields for field labels in the People.fp5 database are
not necessary when you’re using an XSL document. You can use
XSLT to add labels after the XML document has been generated by
FileMaker Pro.
Note You can also include scripting (such as JavaScript) in your
XSL document. See “JavaScript scripting language example” next.
The following text is the people_form.xsl stylesheet, which adds
labels and transforms the URL in the Picture field into an image:
<?xml version="1.0"?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/TR/WD-xsl"
xmlns:fm="http://www.filemaker.com/fmpdsoresult">
<!--
The following two templates have been added for IE5 Windows,
since that browser's XSL processor does not provide defaults for
them.
-->
<xsl:template><xsl:apply-templates/></xsl:template>
<xsl:template match="text()"><xsl:value-of select="."/></
xsl:template
<xsl:template match="fm:FMPDSORESULT">
<html>
<head>
<style type="text/css">
table {font-family: sans-serif; font-size:
10pt; }
td.label { text-align: right; vertical-align:
text-top; font-weight: bold; }
</style>
</head>
<body>
<img src="/xml/simple examples/FileMaker.gif"
/>
<xsl:apply-templates/>
</body>
</html>
</xsl:template>
<xsl:template match="fm:ROW">
<table>
<tr>
<td class="label">Name</td>
<td><xsl:value-of select="fm:Name"/></td>
</tr>
<tr>
<td class="label">Title</td>
<td><xsl:value-of select="fm:Title"/></td>
</tr>
<tr>
<td class="label">Telephone Number</td>
<td><xsl:value-of select="fm:Phone"/></td>
</tr>
<tr>
<td class="label">Picture</td>
<td><xsl:element name="img"><xsl:attribute
name="src"><xsl:value-of select="fm:Picture"/>
</xsl:attribute></xsl:element></td>
</tr>
</table>
</xsl:template>
<!--
Don't display anything for the following elements.
-->
<xsl:template
match="fm:ERRORCODE|fm:DATABASE|fm:LAYOUT">
</xsl:template>
</xsl:stylesheet>
XSL lets you display images in container
fields, format the data, and add field labels
and a logo to the XML document
5-16 FileMaker Pro 5.5 Unlimited Administrator’s Guide
JavaScript scripting language example
Using HTML and a scripting language with your XML document
can allow your web users to interact with the database after it has
been downloaded. For example, a simple onClick scripting event
handler can allow web users to click a button and see different
records in the database.
This example demonstrates the use of the JavaScript scripting
language with an XML document to publish the People.fp5 database
on a web page. It starts with an HTML file, named People_form.htm,
that 1) references the JavaScript library, FMP.js, 2) contains a simple
HTML form with a table for the field and picture rows, and 3) builds
and executes a CGI command to FileMaker Pro to find and
download all the records in the People.fp5 database.
Note The FMP.js JavaScript library was created for the XML
Inventory example, described next, which is a more complex and
sophisticated example of the use of JavaScript and the W3C
Document Object Model with your XML documents.
Once the people_form.htm page is loaded in the browser, the onLoad
event handler performs the “initialize” function, creating an
ActiveXObject and building the FMPFindRequest:
function initialize ( )
{
var xmlDocument = new ActiveXObject (“Microsoft.XMLDOM”);
xmlDocument.async = false;
var findRequest = new FMPFindRequest (“people.fp5”, null, AND,
false);
if (xmlDocument.load(findRequest.getRelativeURL( ) ) )
{
foundSet = new FMPFoundSet (xmlDocument);
populateFields( );
}
else
alert (“Error retrieving records.”);
}
The xmlDocument and findRequest variables are referenced from
the FMP.js JavaScript library. The values in the new
FMPFindRequest are people for the name of the database, null for no
layout, AND for the find criteria’s logical operator, and false for no
XML DTD to be generated as a result of the request.
In the People_form.htm page, the nextRecord and previousRecord
functions are assigned to the onClick event handler of the Next and
Previous buttons respectively, so that when web users click the
buttons, the function is performed and the fields are re-populated
with new data.
With JavaScript, you can manipulate the data
in the XML document to display different
records in the database—after the data has
been downloaded
Using FileMaker Pro XML to deliver your data 5-17
function nextRecord( )
{
if (foundSet.nextRecord( ))
populateFields( );
}
function previousRecord( )
{
if (foundSet.previousRecord( ))
populateFields( );
}
function populateFields( )
{
document.getElementsByName(“Name”) . item(0) . value =
foundSet.getFieldByName (“Name”);
document.getElementsByName(“Title”) . item(0) . value =
foundSet.getFieldByName (“Title”);
document.getElementsByName(“Phone”) . item(0) . value =
foundSet.getFieldByName (“Phone”);
document.getElementsByName(“Picture”) . item(0) . src =
foundSet.getFieldByName (“Picture”);
}
Looking at the XML Inventory example
The XML Inventory example is a demonstration of a web-published
database that uses the FMPXMLRESULT and FMPXMLLAYOUT
grammars and Dynamic HTML (including JavaScript and the W3C
Document Object Model) to display the XML data on the Web.
This example was designed to be viewed in the Internet Explorer 5.0
for Windows web browser. For information on new browsers that
can be used to view the example, double-click FileMaker on the Web
(included on the Filemaker Pro CD) to go to the FileMaker product
support pages in your browser.
The example uses an inventory database for office equipment and
provides two methods for displaying records from the database—in
a list or in a detailed view of each record. Web site visitors can switch
between List View and Detail View, and add, edit, delete, or find
records in the database.
The XML Inventory example includes:
1 a text file containing the JavaScript library used for this
demonstration, named FMP.js
1 the Inventory.fp5 database
1 HTML files for viewing, searching, and adding records to the
database
The Inventory.fp5 database used in the XML Inventory example
5-18 FileMaker Pro 5.5 Unlimited Administrator’s Guide
To view the XML Inventory example:
1. If necessary, copy the Inventory example files from the FMWSC
and Tools CD onto your hard disk.
FMWSC and Tools > XML > Inventory Example
2. Place a copy of the Inventory Example folder and its files in the
Web folder inside the FileMaker Pro 5.5 application folder on your
hard disk.
FileMaker Pro 5.5 > Web > Inventory Example
Note For security, when actually publishing a database on the Web,
you should not keep the database file in the Web folder unless you
plan to administer it remotely. See “Opening password-protected
databases remotely” on page 3-18 for information.
3. In FileMaker Pro, open the Inventory.fp5 database and make sure
it’s shared via the Web Companion.
See “Enabling the Web Companion” on page 3-3 and “Sharing the
database via the Web” on page 3-5 for information.
4. In your web browser, type localhost (or your computer’s IP
address) followed by /inventory example/ and press Enter.
http://localhost/inventory example/
http://17.17.17.17/inventory example/
For information on setting up your computer as the localhost, see
“Testing your site without a network connection” on page 3-18.
The XML Inventory example opens in List View in the browser.
5. Select a record and click the Detail View button.
The currently selected record displays in a separate Detail View
window. It is also possible to open the Detail View window by
double-clicking a record item in the list. To close the Detail View
window, click the Cancel button. To apply edits made to a record in
Detail View, click the Update button.
6. To add a record, click the Add button in the List View window.
A separate Add Record window opens.
7. Enter data for the new record and click Add to add it to the bottom
of the list.
Detail View of a selected record in the browser
Using FileMaker Pro XML to deliver your data 5-19
It is possible to have both the Detail View and Add Record windows
open at the same time. The Detail View and Add Record windows
will automatically close when a visitor clicks the Back or Forward
button in the browser.
8. To delete a record, click the Delete button in the Detail View or List
View window.
A confirmation dialog box provides options to cancel or delete the
currently selected record.
9. Click Cancel.
10. To search for data, click the Find button in the List View window.
A detail view of an empty record opens in a separate window with a
blinking insertion point in the Item field. When web users click
inside the Item, Cost, Date Purchased, Serial Number, or Notes text
boxes, a help string appears in the status bar at the bottom of the
window. The default operator for a search is “begins with” or web
users can type one of the <, <=, >, >=, or = operator symbols in these
boxes.
11. Click in the Cost text box and type >=2000. Then click Find.
Any record containing the amount of $2,000 or greater in the Cost
field is found and displayed in List View.
Detail View and Add Record windows o
p
en at the same time
Click in text boxes to display data entry instructions at bottom of window
5-20 FileMaker Pro 5.5 Unlimited Administrator’s Guide
12. In List View, click Show All to display all the records in the
database, including any records you added.
If you want, you can examine the XML Inventory example’s
JavaScript library as you view the source for the example pages.
1. Start the Microsoft Notepad application (or a similar text editor),
and choose File menu > Open. Locate and open the FMP.js file. (If
necessary, choose All Files (*.*) as the Type.)
FileMaker Pro 5.5 > Web > Inventory Example > FMP.js
2. In the browser window, choose View menu > Source to see the
source markup for the example pages in the Notepad application.
The found set of records is displayed in the List View window
FMP.js text file containing the JavaScript library for this example
Source markup of the Default.htm page (List View)
Using FileMaker Pro XML to deliver your data 5-21
The scripts and functions are well commented in the source and in
the FMP.js library, providing information about each step. It’s useful
to arrange the windows so you can switch between the example
pages in the browser, the source, and the script library.
Tip Use code snippets from the FMP.js JavaScript library for
scripting your own web sites.
For more information about delivering your FileMaker Pro data
using XML, double-click FileMaker on the Web (included on
the FileMaker Pro CD).
This page intentionally left blank.
Chapter 6
Using Java and JDBC to deliver your data
If you’re a Java programmer, you can use the FileMaker JDBC
Driver with any Rapid Application Development (RAD) tool to
visually create your FileMaker Pro database-aware Java application
or applet.
The FileMaker JDBC Driver lets you directly access FileMaker Pro
data using a RAD tool as you’re building your code. Then, the Java
application or applet that uses the FileMaker JDBC Driver can
access FileMaker Pro data via the Web Companion.
About the JDBC examples
FileMaker Pro 5.5 Unlimited provides three examples of Java
applications that use the FileMaker JDBC Driver to connect to a
database. One example is a development-tool-independent Java
application that was created using the basic Java classes and Sun
Microsystems’ Swing 1.1.1. The other two examples are Java front
ends created with the development tools Corel’s (Borland/Inprise)
JBuilder 3.0 Professional for Windows and Symantec’s Visual Cafe
4.0 Expert Edition for Windows.
For step-by-step instructions, see:
1 “Example 1: Looking at the FileMaker Pro Explorer application”
on page 6-8
1 “Example 2: Creating the JBuilder Inventory application” on
page 6-11
1 “Example 3: Creating the Visual Cafe Inventory application” on
page 6-14
The FMWSC and Tools CD also includes the proprietary FileMaker
Java classes and examples of Java applets that use them. For
information, see “Using the FileMaker Java classes” on page 6-17.
For additional information and examples that use Java and JDBC for
general data interchange or for publishing FileMaker Pro data on the
Web, see the product support pages on the FileMaker, Inc. web site
at www.filemaker.com. As a shortcut to the site, double-click
FileMaker on the Web (included on the FileMaker Pro CD).
About JDBC
JDBC is a Java API for executing Structured Query Language (SQL)
statements, the standard language for accessing relational databases.
JDBC is a trademarked name and not an acronym—although it is
thought of as standing for Java Database Connectivity because it is
the ODBC (Open Database Connectivity) equivalent for Java. JDBC
is a low-level interface, which means that it is used to call SQL
commands directly. It is also designed to be used as a base for higher
level interfaces and tools.
Your Java applet or application can talk directly to the database by
using the JDBC driver to communicate with FileMaker Pro. Your
SQL statements are delivered to the database and the results of those
statements are sent back to you. The database can be located on
another machine (the server machine) connected to the network,
while your Java applet or application is located on your machine (the
client machine). This is referred to as a client/server configuration.
6-2 FileMaker Pro 5.5 Unlimited Administrator’s Guide
Using the FileMaker JDBC Driver
You can use the FileMaker JDBC Driver with any Java compiler or
RAD tool to connect with your database while you build the code for
your Java application or applet. After the Java application or applet
has been created, the FileMaker JDBC Driver must be present with
the files or included within the code in order for the application or
applet to communicate with the database.
To use the FileMaker JDBC Driver, your Java application or applet
must register the driver with the JDBC driver manager and you must
specify the correct JDBC URL from within the application or
applet.You need the JDBC URL to make the connection to the
database.
About the FileMaker JDBC Driver
The FileMaker JDBC Driver is a JDBC 1.2 API compatible driver
designed to work with the Java Development Kit (JDK) 1.1.8. It is a
Type 4 driver — a native protocol, pure Java driver that converts
JDBC calls directly into the network protocol used by the database
management system. This type of driver offers all the advantages of
Java including automatic installation (for example, downloading the
JDBC driver with an applet that uses it). The driver will work with
JDK 1.1.8 and Java 2 as long as you only use JDBC 1.2 calls in a
Java 2 environment.
Note Although the driver implements the entire JDBC 1.2 API, it
cannot be classified as a true JDBC-compliant driver because it
supports only a subset of SQL that matches the capabilities of
FileMaker Pro, and is therefore not fully SQL-92 Entry Level
compliant.
The FileMaker JDBC Driver is packaged as a Java archive file (with
the .jar filename extension) containing a collection of class files. The
archive file is named Fmpjdbc12.jar. The path to the file is:
FMWSC and Tools > FileMaker JDBC Driver > Fmpjdbc12.jar
The driver class and main entry point for the driver is named:
com.fmi.jdbc.JdbcDriver
Using a JDBC URL to connect to your database
In Java, most resources are accessed through URLs (Uniform
Resource Locators). A JDBC URL is used to identify the database so
the FileMaker JDBC Driver can recognize and establish a connection
with the database.
The JDBC URL consists of three main parts separated by colons:
jdbc:<subprotocol>:<subname>
The first part in the JDBC URL is always the JDBC protocol
(“jdbc”). The subprotocol is the driver name or the name of the
mechanism that supports multiple drivers. In this case, the
subprotocol is fmpro, which is registered with Sun Microsystems,
Inc. The subname is the IP address of the machine that is hosting
FileMaker Pro.
The FileMaker JDBC Driver connects to FileMaker Pro through an
HTTP connection. The subname in the JDBC URL includes an
HTTP protocol (such as HTTP or HTTPS), an IP address or domain
name, and an optional port number preceded by a colon.
jdbc:fmpro:http://1.184.21.234:80
DBMS
propr
i
etary protoco
l
Java
application
JDBC driver FileMaker
Pro
Client machine Database server
Using Java and JDBC to deliver your data 6-3
The Web Server Connector allows you to encrypt and decrypt your
data via HTTPS.
jdbc:fmpro:https://www.filemaker.com:80
Here is an example of registering the FileMaker JDBC Driver with
the JDBC driver manager and connecting to FileMaker Pro via the
Web Companion —where the open FileMaker Pro database is
named Employees.fp5 and the JDBC URL is
jdbc:fmpro:http://localhost:
import java.sql.*;
class FMPJDBCTest
{
public static void main(String[ ] args)
{
try
{
// register the FMPJDBC driver
Class.forName("com.fmi.jdbc.JdbcDriver");
// establish a connection to FileMaker Pro at a given IP
// address
Connection fmpConnection =
DriverManager.getConnection("jdbc:fmpro:
http://localhost", "some_user", "some_password");
Statement fmpStatement =
fmpConnection.createStatement();
// return a maximum of 50 records
fmpStatement.setMaxRows(50);
ResultSet resultSet = fmpStatement.execute("select \"last
name\", \"first name\" from \"employees.fp5\" where
department='engineering' order by \"last name\"");
System.out.println("Engineering Department");
while (resultSet.next())
System.out.println(resultSet.getString("last name") +
", " + resultSet.getString("first name"));
}
catch(ClassNotFoundException classNotFoundException)
{
System.out.printIn(“Could not load driver”);
}
catch(SQLException sqlException)
{
System.out.printIn(“JDBC Error:” +
sqlException.getMessage());
}
}
}
Note This example is not meant to be compiled.
Specifying driver properties in the URL subname
You can specify the escape, fetchsize, user, and password driver
properties in the subname of the JDBC URL. This is useful when
you’re using a RAD tool that doesn’t support spaces, periods, or
other non-letter characters.
jdbc:fmpro:http://17.184.21.234/properties?escape=%20.&
fetchsize=100&user=fred&password=test
Note These are the same properties that could be passed to the
connection when calling the DriverManager.getConnection method
via the Properties parameter.
6-4 FileMaker Pro 5.5 Unlimited Administrator’s Guide
SQL supported by the FileMaker JDBC Driver
The FileMaker JDBC Driver provides support for certain SQL statements,
a RecordID pseudo column, a ModID pseudo column, DbOpen and
DbClose pseudo procedures, character escaping, and FileMaker data type
mapping to JDBC SQL and Java data types.
The following is a list of the SQL statements and definitions that are
supported by the FileMaker JDBC Driver. Note Items within square brackets [ ] are optional and a vertical
bar | means “or.” An ellipsis (…) indicates that the preceding part of the
statement can be repeated any number of times. Periods and a comma
(.,..) indicate that the preceding part of the statement can be repeated any
number of times with the individual occurrences separated by commas.
The final occurrence should not be followed by a comma.
To update a specific repeating field or field in a portal, add a period
and the number of the row to the end of the field name and enclose
the field name in double quotation marks. For example, to update the
third repetition of the Telephone field for a record in the
Employees.fp5 database, specify the following:
UPDATE “Employees.fp5” SET “Telephone.3”=’(555) 555-5555’ WHERE
recordid=4
Property Description
escape A string containing the characters to be escaped in table name, field
name, and layout name SQL identifiers. The driver will escape all
identifiers returned via any method in the DatabaseMetaData class.
This will allow RAD tools that don't support spaces and periods in
SQL identifiers to work with any FileMaker Pro database. The
driver will automatically escape all identifiers for you. See “Using
a character escape” on page 6-7 for more information.
fetchsize This property allows you to set the number of records that are
retrieved by the driver at any one given time. This is important for
result sets (such as a result set of 20000 records) that are too large
to retrieve all at once without causing memory constraints and
performance problems.
user The user name for the connection
password The password for the connection
SQL statement Definition
SELECT statement SELECT { { * | field_name .,.. } [ , RECORDID [ ,
MODID ] ] }
FROM database_name
[ LAYOUT layout_name ]
[ WHERE { predicate [ { { AND | OR } predicate }
... ] } ]
[ ORDER BY { field_name [ASC | DESC] } .,.. ]
Where predicate equals
{ field_name { = | <> | > | >= | < | <= | LIKE } { value
| ? } } | {field_name IS NULL} | {RECORDID =
{value | ?}}
INSERT statement INSERT INTO database_name [ LAYOUT
layout_name ] ( field_name .,.. )
VALUES ( { value | NULL | ? } .,.. )
UPDATE statement UPDATE database_name [ LAYOUT layout_name ]
SET { field_name = { value | NULL | ? } } .,..
[ WHERE { predicate [ { { AND | OR } predicate }
... ] } ]
Where predicate equals
{ field_name { = | <> | > | >= | < | <= | LIKE } { value
| ? } } | {field_name IS NULL} | {RECORDID =
{value | ?} [ AND MODID = { value | ? } ] }
DELETE statement DELETE FROM database_name
[ WHERE { predicate [ { { AND | OR } predicate }
... ] } ]
Where predicate equals
{ field_name { = | <> | > | >= | < | <= | LIKE } { value
| ? } } | {field_name IS NULL} | {RECORDID =
{value | ?} }
CALL stored
procedure (a script)
statement
{ CALL script_name ( database_name [ , { layout_name
| password } ] ) }
Where the outermost curly brackets { } are part of the
CALL statement syntax.
SQL statement Definition
Using Java and JDBC to deliver your data 6-5
To add a specific repeating field or field in a portal, add a period and
the number zero (0) to the end of the field name and enclose the field
name in double quotation marks. For example, to add the City field
to a portal in the Address relationship:
INSERT INTO “Employees.fp5” LAYOUT “Data Entry” (“Last Name”,
“Address::City.0”) VALUES (‘Jones’, ‘San Jose’)
Using DbOpen and DbClose pseudo procedures
The FileMaker JDBC Driver lets you open and close password-
protected FileMaker Pro databases that have remote administration
privileges and are located in the Web folder.
You only need to establish one connection to open or close your
databases. Use “Admin” as the user name and the password that you
specified in the Web Companion Configuration dialog box for
remote administration. Once the databases are open, you’ll need one
connection per unique database password to access the data.
Tip In order to minimize the number of connections, assign the same
database password for all your databases.
Here is an example for opening and closing a password-protected
database named “inventory.fp5,” where the remote administration
user name is “Admin,” the remote administration password (set in
the Web Companion Configuration dialog box) is “admin,” and the
database password is “inventory.”
import java.sql.*;
/**
public class FMPJDBCSecurity
{
public static void main(String[ ] args)
{
try
{
// register the FMPJDBC driver
Class.forName("com.fmi.jdbc.JdbcDriver");
// establish a connection to FileMaker Pro for remote
// administration purposes. The user name for remote
// administration is always "Admin."
Connection adminConnection =
DriverManager.getConnection("jdbc:fmpro:
http://localhost", "Admin", "admin");
// create a statement for opening the "inventory.fp5"
// database. Since the "inventory.fp5" database is
// password protected, you also need to specify the
// password in the call to the dbopen procedure.
CallableStatement openDbStatement =
adminConnection.prepareCall("{call
dbopen(\"inventory.fp5\", \"inventory\")}");
openDbStatement.execute();
// establish a connection to FileMaker Pro for
// retrieving data from the "inventory.fp5" database.
// The "inventory.fp5" database uses FileMaker Pro
// security, so you don’t need to provide a user name.
// A user name is only necessary for remote
// administration or if the databases is protected via
// the Web Security Database.
Connection inventoryConnection =
DriverManager.getConnection("jdbc:fmpro:
http://localhost", null, "inventory");
Statement inventoryStatement =
inventoryConnection.createStatement();
ResultSet inventoryData =
inventoryStatement.executeQuery("select *
from \"inventory.fp5\"");
// create a statement for closing the "inventory.fp5"
// database
CallableStatement closeDbStatement =
adminConnection.prepareCall("{call
dbclose(\"inventory.fp5\")}");
closeDbStatement.execute();
}
catch(ClassNotFoundException classNotFoundException)
6-6 FileMaker Pro 5.5 Unlimited Administrator’s Guide
{
System.out.println("Could not load driver");
}
catch(SQLException sqlException)
{
System.out.println("JDBC Error: " +
sqlException.getMessage());
}
}
}
Using the RecordID pseudo column
The FileMaker JDBC Driver provides a RecordID pseudo column
(in place of a primary key used by other types of databases) that can
be specified in the column name list of a SELECT statement or in the
WHERE clause of SELECT, UPDATE or DELETE statements. This
lets you guarantee that the statement will operate on a specific
record.
All other columns are ignored when the RecordID pseudo column is
used in a WHERE clause.
UPDATE "Employees.fp5" SET department='engineering' WHERE
recordid=4
Using the ModID pseudo column
Each record in a FileMaker Pro database has a corresponding
modification ID (ModID) number that increases incrementally every
time the record is modified. To detect modification collisions, the
FileMaker JDBC Driver provides a ModID pseudo column that can
be used in the WHERE clause of an UPDATE statement in
conjunction with the RecordID. The Web Companion compares the
ModID in the WHERE clause to the current ModID of the record and
an error is returned if they do not match.
...
Connection connection = DriverManager.getConnection("jdbc:fmpro:
http://localhost", "some_user", "some_password");
Statement statement = connection.createStatement();
// retrieve all of the records where department equals "engineering"
ResultSet resultSet = statement.executeQuery("SELECT recordid,
modid, "last name", "first name" FROM \"Employees.fp5\" WHERE
department='engineering'");
// create an UPDATE statement for changing the department to "software
// engineering"
PreparedStatement preparedStatement =
connection.prepareStatement("UPDATE \"Employees.fp5\" SET
department='software engineering' WHERE recordid=? AND
modid=?");
while (resultSet.next())
{
// set the recordid parameter
preparedStatement.setString(1,
resultSet.getString("RECORDID"));
// set the modid parameter
preparedStatement.setString(2, resultSet.getString("MODID"));
// change the department from "engineering" to "software
// engineering"
preparedStatement.executeUpdate();
}
...
SQL statement examples
The following are some examples of SQL statements, some of which
use RecordID and ModID pseudo columns, and DbOpen and
DbClose pseudo procedures:
SELECT recordid, modid, "last name", "first name", department FROM
"Employees.fp5" WHERE "last name"='smith' AND "first name" = 'joe'
SELECT * FROM "Employees.fp5" WHERE recordid=4
SELECT recordid, modid, * FROM "employees.fp5"
Using Java and JDBC to deliver your data 6-7
SELECT "last name", "first name", "telephone::phone number" FROM
"employees.fp5" LAYOUT "personal info"
UPDATE "Employees.fp5" SET department='engineering' WHERE
recordid=4 AND modid=2
UPDATE "Employees.fp5" LAYOUT "personal info" SET
"telephone::phone number.2"='555-555-5555' WHERE recordid=4
DELETE FROM "Employees.fp5" WHERE recordid=4
{ CALL DbOpen("inventory.fp5", "some password") }
{ CALL DbClose("inventory.fp5") }
{ CALL FindManagers("employees.fp5") }
{ CALL SortByLastName("employees.fp5", "list view") }
Using a character escape
The FileMaker JDBC Driver supports escaping of lower ASCII
characters in column and table name SQL identifiers. This is useful
if your RAD tool doesn’t support characters such as spaces in
column names or periods in table names. The escape sequence starts
with the dollar symbol ($) and is followed by the two-digit hex value
for the character (such as 2E for a period and 20 for a space).
employees.fp5 => employees$2Efp5
last name => last$20name
SELECT last$20name FROM employees$2Efp5
FileMaker data type mapping to JDBC SQL and Java
data types
The FileMaker JDBC Driver uses the following mappings when
converting FileMaker Pro data types to JDBC SQL types or to Java
data types. (For information about these types, see the JDK 1.1.8
documentation web pages at www.javasoft.com.)
FileMaker Pro support for
Unicode characters
FileMaker Pro only supports the Windows Latin 1 and Macintosh
character sets, which are a subset of Unicode. Therefore, any
character data submitted to FileMaker Pro that contains characters
not present in these character sets (such as certain math symbols) will
not be stored properly in your database. FileMaker Pro inserts a
question mark (?) for any character that it does not recognize.
About the FileMaker JDBC Driver
interfaces and extensions
The FileMaker JDBC Driver implements all of the following JDBC
interfaces:
1 CallableStatement
1 Connection
1 DatabaseMetaData
1 Driver
This FileMaker Pro data type Converts to this JDBC SQL type
TEXT java.sql.Types.LONGVARCHAR
NUMBER java.sql.Types.DOUBLE
DATE java.sql.Types.DATE
TIME java.sql.Types.TIME
CONTAINER java.sql.Types.LONGVARBINARY
This FileMaker Pro data type Converts to this Java data type
TEXT java.lang.String
NUMBER java.lang.Double
DATE java.sql.Date
TIME java.sql.Time
CONTAINER java.awt.Image
Repeating and related fields com.fmi.jdbc.Array
This FileMaker Pro data type Converts to this JDBC SQL type
6-8 FileMaker Pro 5.5 Unlimited Administrator’s Guide
1 PreparedStatement
1 ResultSet
1 ResultSetMetaData
1 Statement
The following FileMaker Pro-specific extensions have been added:
The following classes have been added in support of the
FileMaker Pro extensions:
The API documentation for these standard interfaces and the
FileMaker extensions is included in HTML format on the FMWSC
and Tools CD:
FMWSC and Tools > JDBC and Java > JDBC > FileMaker JDBC Driver >
Documentation
Example 1: Looking at the FileMaker Pro
Explorer application
This developer-tool-independent example is a Java application used
for displaying FileMaker Pro database information, similar to the
Windows Explorer and Mac OS Finder applications. You can use the
FileMaker Pro Explorer application along with the FileMaker JDBC
Driver to view any open database on any computer that’s shared via
the Web Companion, by specifying the JDBC URL that includes the
IP address of the computer where FileMaker Pro is running. You can
view the application’s source code in any text editor or Java editing
tool.
The application was created using the basic Java classes to display a
database tree, and FileMaker Pro-specific extensions have been
added to provide detailed information about the fields and layouts.
The user interface was created using the Swing 1.1.1 class library—
an add-on to the Java Development Kit (JDK) 1.1.8.
For information on the Swing class library, go to the Sun
Microsystems web site at www.javasoft.com.
Setup requirements
Included with the example is the swingall.jar file, on the FMWSC
and Tools CD.
FMWSC and Tools > JDBC and Java > JDBC > FileMaker JDBC Driver >
Examples > FileMaker Explorer > swingall.jar
To view the example on Windows machines, you need:
1 Java.exe (included with JDK 1.1.8 for Windows) or equivalent
Java virtual machine installed in the system path on your computer
To view the example on Mac OS machines, you need:
1 MRJ 2.2 or equivalent Java virtual machine installed on your
computer
This JDBC interface Includes this FileMaker Pro extension
java.sql.DatabaseMetaData com.fmi.jdbc.DatabaseMetaDataExt
java.sql.ResultSetMetaData com.fmi.jdbc.ResultSetMetaDataExt
Class name Description
com.fmi.fmpdb.FMPError FileMaker Pro error codes
com.fmi.fmpdb.FMPLayoutField Information associated with a
field on a layout
com.fmi.fmpdb.FMPLayoutFieldEnumerator Class for enumerating the
fields on a layout
com.fmi.fmpdb.FMPLayoutMetaData Metadata for a given layout
com.fmi.jdbc.Array Class used to represent
repeating and related fields
Using Java and JDBC to deliver your data 6-9
Install the example and the FileMaker JDBC Driver
If necessary, install the FileMaker Explorer example and the
FileMaker JDBC Driver.
FMWSC and Tools > FileMaker JDBC Driver > JDBC Examples >
FileMaker Explorer
FMWSC and Tools > FileMaker JDBC Driver > Fmpjdbc12.jar
Open and share your databases via the Web
1. In FileMaker Pro, open any FileMaker Pro database, such as the
Inventory.fp5 database located in the JBuilder example folder:
FMWSC and Tools > FileMaker JDBC Driver > JDBC Examples > JBuilder
3.0 Professional > Inventory.fp5
2. Choose File menu > Sharing, verify that Web Companion is selected,
and click OK to share the database on the Web.
For information about setting up the Web Companion so that it’s
already selected in this dialog box, see “Enabling the Web
Companion” on page 3-3.
Run the FileMaker Pro Explorer application
The FileMaker Pro Explorer application is located in the FileMaker
Explorer folder:
FMWSC and Tools > FileMaker JDBC Driver > Examples > FileMaker
Explorer > FileMakerExplorer.bat
FMWSC and Tools > FileMaker JDBC Driver > Examples > FileMaker
Explorer > FileMakerExplorer
1. Start the FileMaker Pro Explorer application by doing one of the
following:
1 Windows: Choose Start menu > Run and locate and select the
FileMakerExplorer.bat file. Then, add the location of the JDK for
running the application at the end of the command line:
“full path\FileMakerExplorer.bat” c:\jdk1.1.8
1 Mac OS X: Double-click the application icon to start
FileMaker Pro Explorer.
2. Click the root node of the tree in the left side of the FileMaker Pro
Explorer window to select it, and replace the entire text with the
JDBC URL for the computer that is running the database, for
example, type jdbc:fmpro:http://localhost/. Then press
Enter.
See “Using a JDBC URL to connect to your database” on page 6-2
for information.
3. Select Inventory.fp5 (or other database name) on the left side of the
window to see information about it on the right side.
4. Expand the Inventory.fp5 node (folder) to expose the Layouts and
Scripts nodes.
Replace entire text
with the JDBC URL
for the computer
running the
database
6-10 FileMaker Pro 5.5 Unlimited Administrator’s Guide
5. Select Layouts to display the names of the layouts for the
Inventory.fp5 database on the right side of the window.
6. Expand the Layouts node to display a leaf node for each layout.
7. Select the Form View node to display the fields for that layout on the
right side of the window.
8. Click the Browse tab to display the first five records in the
Inventory.fp5 database.
The columns correspond to the fields available for the selected layout.
9. Select the Scripts node to display the names of scripts for the
Inventory.fp5 database on the right side of the window.
When you select a script name, a warning dialog box appears. This gives
you the opportunity to not run the script, which is especially important if
a database includes a script for deleting or modifying records.
View the source code of the example
1. Start your text editor (such as Notepad or SimpleText) or Java
development tool.
2. Open the main class file, FileMakerExplorer.java, in the
FileMaker Explorer folder.
The source code is well commented, describing the methods for each
class used in this example.
Using Java and JDBC to deliver your data 6-11
Example 2: Creating the JBuilder
Inventory application
This example demonstrates how to build a Java front end to a FileMaker
database using the development tool, JBuilder 3.0 Professional for
Windows and the FileMaker JDBC Driver. This example uses a
modified version of the Asset Management.fp5 database that ships with
FileMaker Pro. The following steps are for creating a Java application
that accesses the database, renamed Inventory.fp5.
Install the example and FileMaker JDBC Driver
If necessary, install the JBuilder folder of example files and the
FileMaker JDBC Driver.
FMWSC and Tools > FileMaker JDBC Driver > JDBC Examples > JBuilder
3.0 Professional
FMWSC and Tools > FileMaker JDBC Driver > Fmpjdbc12.jar
The JBuilder 3.0 Professional example folder contains the database
file used in this example and all of the completed files generated by
the JBuilder wizard for the application.
Set up JBuilder to use the FileMaker JDBC Driver
1. In a text editor (such as Notepad), open the Jbuilder.ini file from
the bin folder inside the JBuilder 3.0 Professional application folder.
(Please make a backup copy of this file before proceeding with these
instructions.)
2. In the [Java_VM_Properties] section, add the path of the
Fmpjdbc12.jar file to the end of the Djava.class.path line.
For instructions on installing the FileMaker JDBC driver into the
JBuilder environment, see “Installing and setting up JBuilder for
database applications” in the online JBuilder Help or go to
www.borland.com/devsupport/jbuilder/.
Open and share the Inventory.fp5 database
1. In FileMaker Pro, open the Inventory.fp5 file in the JBuilder 3.0
Professional folder:
FMWSC and Tools > FileMaker JDBC Driver > JDBC Examples > JBuilder
3.0 Professional > Inventory.fp5
2. Choose File menu > Sharing, verify that Web Companion is selected,
and click OK to share the database on the Web.
For information about setting up the Web Companion so that it’s
already selected in this dialog box, see “Enabling the Web
Companion” on page 3-3.
Start a new JBuilder project
1. Start JBuilder 3.0 Professional for Windows.
2. In JBuilder, choose File menu > New Project.
3. In the dialog box, specify the name and location for the project file
(JBuilder Inventory).
4. Choose Project menu > Properties.
5. Click Libraries in the Properties dialog box.
6-12 FileMaker Pro 5.5 Unlimited Administrator’s Guide
6. In the Available Java Libraries dialog box, select the Fmpjdbc12.jar
file. (If the FileMaker JDBC Driver does not appear in this dialog
box, click New to locate the file and add it to the list.) Then click OK.
7. Click OK to close the Properties dialog box.
Create the data module
1. In JBuilder, choose File menu > New.
2. In the New dialog box, select the Data Module icon and click OK.
3. In the New Data Module dialog box, make sure that inventory is in
the Package text box and that the checkbox for Invoke Data Modeler
is selected.
4. Click OK to open the Data Modeler.
Design the data module
1. In the Data Modeler, choose Database menu > Add Connection URL.
2. In the Driver text box, type com.fmi.jdbc.JdbcDriver.
3. In the URL text box, type jdbc:fmpro:http://localhost/
properties?escape=.%20.
Because JBuilder’s Application Generator doesn’t allow for periods
in table names or spaces in column names for certain operations, you
need to add escape properties for them in the subname of the URL.
4. Click OK to close the Add Connection URL dialog box.
5. In the Data Modeler, click the + symbol to expand the URL node
that you added.
Using Java and JDBC to deliver your data 6-13
6. In the User Authentication dialog box, leave the User Name and
Password text boxes blank (the database is not password protected)
and click OK.
JBuilder connects to FileMaker Pro.
7. In the Data Modeler, click the + symbol to expand Tables.
8. Click the + symbol to expand the Inventory$2efp5 table (now
encoded with the period escaped).
9. Click the + symbol to expand Columns.
10. Select each of the following columns and copy it to the right side
of the Data Modeler.
Item
Category
Location
Cost
Date Purchased
Serial Number
Information
Test the data module
1. In the Data Modeler, click the Test tab and click Execute Query.
The data and all of the images from the Inventory.fp5 database are
downloaded into the data module.
2. Choose File menu > Save.
JBuilder saves the data module and automatically adds it to your
project.
3. Choose File menu > Exit.
4. Click Yes to invoke the Application Generator.
Generate the application
1. In the Application Generator, click Restore Defaults and make sure
that 2-tier data model client is selected.
2. Click the Java Client Layout tab.
Because JBuilder requires a unique row identifier for updating and
deleting rows, it automatically adds the RecordID pseudo column to
the list of output columns, which you probably don’t want displayed
in your application.
3. Deselect the Layout check mark for the RecordID identifier.
4. Choose File menu > Generate.
6-14 FileMaker Pro 5.5 Unlimited Administrator’s Guide
5. Click Generate.
The Application Generator generates the source code and adds the
generated files to your project.
6. Click Close All.
7. Choose Run menu > Run Application to execute the example
application.
The field attributes used for the example from the Inventory.fp5
database are described in this table:
Example 3: Creating the Visual Cafe
Inventory application
This example demonstrates how to build a Java front end to a
FileMaker database using the development tool Symantec’s Visual
Cafe 4.0 Expert Edition for Windows and the FileMaker JDBC
Driver. The following steps are for creating a Java application that
accesses the inventory_db database.
Note Because the Visual Cafe DataBound Project Wizard does not
support spaces in database filenames or field names, or periods and
spaces in table names, this example uses a modified version of the
Asset Management.fp5 database that ships with FileMaker Pro,
called inventory_db (with no filename extension).
Field type Field name Field attribute
Text Item User defined entry field
Text Category Value List/Category List (Pop-up menu)
Office Furniture
Computers
Telephones
Vehicles
Copier
Printer
AV
Text Location Value List/Location List (Pop-up menu)
Fred’s Office
Dirk’s Office
Pedro’s Office
Anne’s Office
Julie’s Office
Ruth’s Office
Joanna’s Office
Business Center
Number Cost User defined entry field
Date Date Purchased User defined entry field
Container Picture Graphic import
Text Serial Number User defined entry field
Text Information User defined entry field
Field type Field name Field attribute
Using Java and JDBC to deliver your data 6-15
Install the example and the FileMaker JDBC Driver
If necessary, install the Visual Cafe example and the FileMaker
JDBC Driver.
FMWSC and Tools > FileMaker JDBC Driver > JDBC Examples > Visual
Cafe 4.0 Expert Edition
FMWSC and Tools > FileMaker JDBC Driver > Fmpjdbc12.jar
The Visual Cafe folder contains the modified database file used in
this example and all of the completed files generated by the
DataBound Project Wizard for the application.
Set up Visual Cafe to use the FileMaker JDBC Driver
1. Start Visual Cafe 4.0 Expert Edition for Windows.
2. Choose Tools menu > Environment Options and click the Internal VM
tab. Then click New for the Classpath Settings.
3. Locate the Fmpjdbc12.jar file and add it to the SC.INI CLASSPATH list
to add the FileMaker JDBC Driver to the Visual Cafe environment.
Open and share the inventory_db database
1. In FileMaker Pro, open the inventory_db file in the Visual Cafe
example folder:
FMWSC and Tools > FileMaker JDBC Driver > JDBC Examples > Visual
Cafe 4.0 Expert Edition > inventory_db
2. Choose File menu > Sharing, verify that Web Companion is selected,
and click OK to share the database on the Web.
For information about setting up the Web Companion so that it’s
already selected in this dialog box, see “Enabling the Web
Companion” on page 3-3.
Create a new Visual Cafe project
1. In Visual Cafe, choose File menu > New Project.
2. Select the DataBound Project Wizard template and click OK.
3. In the DataBound Project Wizard, select Application for the project
type and click Next.
4. Select Define another data source and click Next.
5. In the DataBound Project Wizard, click New.
6. In the Insert Datasource dialog box, click Add Driver.
7. In the Add Third Party Driver dialog box, type
com.fmi.jdbc.JdbcDriver and click Add.
8. In the Insert Datasource dialog box, select com.fmi.jdbc.JdbcDriver,
type fmpro in the Vendor SubProtocol box, type
http://localhost in the Vendor SubName box (or the IP
address of the computer hosting the inventory_db database), and
then click Add Driver.
6-16 FileMaker Pro 5.5 Unlimited Administrator’s Guide
9. In the DataBound Project Wizard, select com.fmi.jdbc.JdbcDriver in
the list of data sources and click Next.
10. In the User Authentication dialog box, click OK.
The inventory_db database is not password protected.
11. In the DataBound Project Wizard, select inventory_db in the list of
database tables and views, and click Next.
12. Click Clear to move all the used columns to the Available
Columns list.
13. Select the following columns and move them to the Used
Columns list by selecting each one and clicking Move.
Item
Category
Location
Cost
Date Purchased
Serial Number
Information
14. Click Next.
15. In the DataBound Project Wizard, select Picture and choose
ImageViewer from the Component list to change the UI component
used for displaying the Picture column.
16. Click Finish to generate the code.
17. Choose Project menu > Execute to run the application.
The field attributes used for the example from the inventory_db
database are described in the following table:
Field type Field name Field attribute
Text Item User defined entry field
Text Category Value List/Category List (Pop-up menu)
Office Furniture
Computers
Telephones
Vehicles
Copier
Printer
AV
Using Java and JDBC to deliver your data 6-17
Using the FileMaker Java classes
The FileMaker Pro 4.0 Java classes are designed to retrieve
FileMaker data from your database via the FileMaker Java API.
They do not support SQL and they’re not supported by any RAD
tool. However, if you used these proprietary FileMaker Java classes
from the previous versions of FileMaker Developer 5 or the
FileMaker Pro Developer Edition to create your Java front-ends to
your database, you may wish to continue using them for updating
your Java applications or applets.
Important The Web Companion does not support non-number
characters in number fields when it converts FileMaker Pro data into
the Java class format. Any Java applications or applets that you
created using the FileMaker Pro 4.0 Java classes will lose all
characters other than numbers (such as the dollar sign $) in number
fields when they access a FileMaker Pro database.
The FileMaker Java Class Library is included on the FMWSC and
Tools CD.
FMWSC and Tools > FileMaker JDBC Driver > Java Class Library
About the FileMaker Java Class Library
The FileMaker Java Class Library is a set of Java classes that sends
requests to the FileMaker Pro Web Companion and gives you access
to the results.
FileMaker Java classes communicate with the Web Companion
using standard HTTP (Hypertext Transfer Protocol). The classes
formulate a request string based on the parameters you specify. Then
the classes send the request to the Web Companion. The response is
generated and sent back in the CDML proprietary format and
processed by the FMProResponse class. The Java application or
applet then determines how to display the data.
There are three main Java classes in the library:
1 FMProRequest
1 FMProProxy
1 FMProResponse
Use the FMProRequest class to create objects that submit queries to
the database. You specify the name of the database, layout, and fields
in a FMProRequest object.
Use the FMProProxy class to create objects that execute the queries.
The FMProProxy object is used to send a query from an
FMProRequest object to the computer where FileMaker Pro is
hosting the database, and to receive the result of the query from the
Web Companion. The FMProProxy object then converts the
resulting data into an FMProResponse object.
You can use a FMProProxy object to retrieve the following:
1 the names of all open databases shared via the Web Companion
Text Location Value List/Location List (Pop-up menu)
Fred’s Office
Dirk’s Office
Pedro’s Office
Anne’s Office
Julie’s Office
Ruth’s Office
Joanna’s Office
Business Center
Number Cost User defined entry field
Date Date Purchased User defined entry field
Container Picture Graphic import
Text Serial Number User defined entry field
Text Information User defined entry field
Field type Field name Field attribute
6-18 FileMaker Pro 5.5 Unlimited Administrator’s Guide
1 the names of layouts, fields in a layout, and scripts defined for a
database
1 the images from FileMaker Pro container fields
The FMProResponse class allows you to access the query results.
The information you have access to includes:
1 a result code indicating if the query was successfully processed
1 the number of records returned
1 the total number of records in the database
1 the names, field types, and value lists (if applicable) for each of the
fields on the specified layout, and field data
1 record IDs for the returned records
This information can be retrieved using the various methods
belonging to the FMProResponse object.
Looking at the Java applet examples
There are two examples of Java applets that use the FileMaker Java
classes to communicate with a FileMaker Pro database. The
FMBanner applet is a simple Java applet that displays a textual or
picture-based advertisement based on data from a FileMaker Pro
database. The FMMemoPad applet allows you to browse, edit, find,
sort, and create records in a FileMaker Pro database.
Note To view these examples, you need a web browser that is
compatible with Java 1.1, such as Internet Explorer 4.0 or Netscape
Communicator 4.0 with the JDK 1.1 support patch.
To view the FMBanner applet:
1. Locate the FMBanner folder on the FMWSC and Tools CD.
FMWSC and Tools > FileMaker JDBC Driver > Java Class Library > JDBC
Examples > FMBanner
2. Place a copy of the FMBanner.html and FMBanner.jar files into
the Web folder in the FileMaker Pro 5.5 application folder.
FileMaker Pro 5.5 > Web > FMBanner.html
FileMaker Pro 5.5 > Web > FMBanner.jar
3. In FileMaker Pro, open the FMBanner.fp5 file.
4. Choose File menu > Sharing, verify that Web Companion is selected,
and click OK to share the database on the Web.
For information about setting up the Web Companion so that it’s
already selected in this dialog box, see “Enabling the Web
Companion” on page 3-3.
5. In your web browser, type localhost or your computer’s IP
address followed by /FMBanner.html and press Enter.
http://localhost/FMBanner.html
For information on setting up your computer as a localhost, see
“Testing your site without a network connection” on page 3-18.
Changes you make to the FMBanner.fp5 database are reflected when
the Java applet loads in the browser. Images are displayed in the
Picture field—if no image is in the field, then text from the String
field is displayed. You can set the font type and size of the text, and
change the background color for each advertisement. If you specify
a URL in the URL field, clicking the advertisement will load the
URL. The database contains a Temp Pict field that you can use to
store images that you don’t want to display in the advertisement.
To view the FMMemoPad applet:
1. Locate the FMMemoPad folder on the FMWSC and Tools CD.
FMWSC and Tools > FileMaker JDBC Driver > Java Class Library > JDBC
Examples > FMMemoPad
2. Place a copy of the FMMemoPad.html and FMMemoPad.jar files
into the Web folder in the FileMaker Pro 5.5 application folder.
FileMaker Pro 5.5 > Web > FMMemoPad.html
FileMaker Pro 5.5 > Web > FMMemoPad.jar
3. In FileMaker Pro, open the FMMemoPad.fp5 file.
Using Java and JDBC to deliver your data 6-19
4. Choose File menu > Sharing, verify that Web Companion is selected,
and click OK to share the database on the Web.
For information about setting up the Web Companion so that it
appears selected in this dialog box, see “Enabling the Web
Companion” on page 3-3.
5. In your web browser, type localhost or your computer’s IP
address followed by /FMMemoPad.html and press Enter.
http://localhost/FMMemoPad.html
For information on setting up your computer as a localhost, see
“Testing your site without a network connection” on page 3-18.
6. After the applet has loaded, click Open Memo Pad to display the
digital memo pad in a separate window.
The FMMemoPad applet lets you browse, edit, find, sort, and add
records to the FMMemoPad.fp5 database.
This page intentionally left blank.
Appendix A
Valid names used in CGI requests for FileMaker XML data
This appendix describes the valid names of requests and their
parameters you can use in a CGI (Common Gateway Interface)
command when requesting FileMaker Pro data in XML format.
Included are HREF link and HTML form examples of each request.
For scripting examples of each request, see the JavaScript library,
FMP.js, in the XML Examples folder (on the FMWSC and Tools CD).
The CGI command requesting FileMaker Pro data in XML format
always begins with the action as FMPro? and the format file as either
–dso_xml, –dso_xml_dtd, –fmp_xml, or –fmp_xml_dtd.
The following is a list of the request names and parameters:
Note The name of a database field can also be used in a CGI
command. It is not a parameter or a request name, and therefore is
not preceded by a hyphen (–).
Generating a –find, –findall, or –findany
request
Name/Value Type: Find Record(s) Request
What it does: Submits a search request using defined criteria.
A web user must have browsing access privileges with the database
in order to execute these requests.
Required parameters: –db, –format
Optional parameters: –lay, –recid, –lop, –op, –max, –skip,
–sortorder, –sortfield, –script, –script.prefind, –script.presort, field
name, –styletype, –stylehref
Examples of –find, –findall, and –findany requests
To find a record using a hypertext link:
<a href="FMPro?–db=employees.fp5&–format=–fmp_xml
&Country=USA&–max=1&–find">Find first USA record</a>
To find all records in the database using a hypertext link:
<a href="FMPro?–db=employees.fp5&–format=–fmp_xml &
–findall">Find all records</a>
To find any record using a hypertext link:
<a href="FMPro?–db=employees.fp5&–format=–fmp_xml &
–findany">Find a random record for today’s daily quote</a>
To find some records using a form action:
<form action="FMPro" method="post">
<input type="hidden" name="–db" value="employees.fp5">
Request names Parameter names
–find
–findall
–findany
–view
–new
–edit
–delete
–dbnames
–layoutnames
–scriptnames
–dbopen
–dbclose
–db
–lay
–format
–recid
–modid
–lop, –op
–max
–skip
–sortorder, –sortfield
–script, –script.prefind, –script.presort
–styletype, –stylehref
–password
A-2 FileMaker Pro 5.5 Unlimited Administrator’s Guide
<input type="hidden" name="–format" value="–fmp_xml">
<input type="hidden" name="–max" value="all">
<input type="text" size=12 name="Country" value="USA">
<input type="submit" name="–find" value="Find Records">
</form>
Generating a –view request
Name/Value Type: View Request
What it does: Retrieves layout information from a database and
displays it in the FMPXMLLAYOUT grammar.
Required parameters: –db, –lay, –format (= –fmp_xml)
Optional parameters: –styletype, –stylehref
Examples of –view requests
To retrieve layout information using a hypertext link:
<a href="FMPro?–db=employees.fp5&–lay=LayoutOne&–format= –
fmp_xml&–view">"Take me to a search page"</a>
To retrieve layout information using a form action:
<form action="FMPro" method="post">
<input type="hidden" name="–db" value="employees.fp5">
<input type="hidden" name="–lay" value="LayoutOne">
<input type="hidden" name="–format" value="–fmp_xml">
<input type="submit" name="–view" value="Show Search Page">
</form>
Generating a –new request
Name/Value Type: New Record Request
What it does: Creates a new record and populates that record with
the contents of any field name/value pairs.
A web user must have access privileges for creating records in order
to execute this request.
Required parameters: –db, –format, one or more field name(s)
Optional parameters: –styletype, –stylehref
Note To include new data for a portal, you must also specify the
layout and the relationship name for the related database followed by
two colons. You can only add one row/record to a portal per request.
(See “Note The -max parameter now returns 0 if the request returns
no records.” on page 5-9 for information.)
Examples of –new requests
To create a new record using a hypertext link:
<a href="FMPro?–db=employees.fp5&Country=Australia&
–format= –fmp_xml&–new">
To create a new record using a form action:
<form action="FMPro" method="post">
<input type="hidden" name="–db" value="employees.fp5">
<input type="hidden" name="–format" value=”–fmp_xml”>
<input type="text" size=12 name="Country" value="Australia">
<input type="submit" name="–new" value="New Record">
</form>
Valid names used in CGI requests for FileMaker XML data A-3
Generating an –edit request
Name/Value Type: Edit Record Request
What it does: Updates the record specified by –recid, populating the
fields with the contents of any field name/value pairs.
The –recid parameter indicates which record should be edited. In
order to edit a record, the web user must have editing privileges for
the database.
Required parameters: –db, –format, –recid, one or more field name(s)
Optional parameters: –modid, –styletype, –stylehref
Note To edit records in a portal, you must also include the layout name
and the relationship name followed by two colons. To specify each
record in the portal, include a period and a consecutive number after
the related field name, such as address::city.1 for the first row (record)
in the portal and address::city.2 for the second. (See “Note The -max
parameter now returns 0 if the request returns no records.” on page 5-9
for information.)
Examples of –edit requests
To edit a record using a hypertext link:
<a href="FMPro?–db=employees.fp5&–format=–fmp_xml&
–recid=13&Country=USA&–edit">
To edit a record using a form action:
<form action="FMPro" method="post">
<input type="hidden" name="–db" value="employees.fp5">
<input type="hidden" name="–format" value="–fmp_xml">
<input type="hidden" name="–recid" value="13">
<input type="text" size=12 name="Country" value="Type a country name
here">
<input type="submit" name="–edit" value="Edit This Record">
</form>
Generating a –delete request
Name/Value Type: Delete Record Request
What it does: Deletes the record as specified by –recid parameter.
In order to delete a record, the web user must have record deleting
privileges for the database.
Required parameters: –db, –format, –recid
Optional parameters: –styletype, –stylehref
Examples of –delete requests
To delete a record using a hypertext link:
<a href="FMPro?–db=employees.fp5&–format= –fmp_xml&–recid=4&
–delete">Delete record with ID 4</a>
To delete a record using a form action:
<form action="FMPro" method="post">
<input type="hidden" name="–db" value="employees.fp5">
<input type="hidden" name="–format" value="–fmp_xml">
<input type="hidden" name="–recid" value="4">
<input type="submit" name="–delete" value="Delete This Record">
</form>
Generating a –dbnames request
Name/Value Type: Database Names Request
What it does: Retrieves the names of all databases that are open and
shared via the Web Companion.
Required parameters: –format
A-4 FileMaker Pro 5.5 Unlimited Administrator’s Guide
Optional parameters: –styletype, –stylehref
Examples of –dbnames requests
To retrieve the database names using a hypertext link:
<a href="FMPro?–dbnames &–format= –fmp_xml&–styletype=
text/css&–stylehref=mystylesheet.css”>
To retrieve the database names using a form:
<form action="FMPro" method="post">
<input type="hidden" name="–format" value="–fmp_xml">
<input type="hidden" name="–styletype" value="text/css">
<input type="hidden" name="–stylehref" value="mystylesheet.css">
<input type="submit" name="–dbnames" value="Show Database List">
</form>
Generating a –layoutnames request
Name/Value Type: Layout Names Request
What it does: Retrieves the names of all available layouts for a
specified database that is open and shared via the Web Companion.
Required parameters: –db, –format
Optional parameters: –styletype, –stylehref
Examples of –layoutnames requests
To retrieve the names of available layouts using a link:
<a href="FMPro?–db=employees.fp5&–layoutnames&–format=
–fmp_xml&–styletype=text/css&–stylehref=mystylesheet.css”>
To retrieve the names of available layouts using a form:
<form action="FMPro" method="post">
<input type="hidden" name="–db" value="employees.fp5">
<input type="hidden" name="–format" value="–fmp_xml">
<input type="hidden" name="–styletype" value="text/css">
<input type="hidden" name="–stylehref" value="mystylesheet.css">
<input type="submit" name="–layoutnames" value="Show List of
Layouts">
</form>
Generating a –scriptnames request
Name/Value Type: Script Names Request
What it does: Retrieves the names of all available scripts for a
specified database that is open and shared via the Web Companion.
Required parameters: –db, –format
Optional parameters: –styletype, –stylehref
Examples of –scriptnames requests
To retrieve the names of all scripts using a link:
<a href="FMPro?–db=employees.fp5&–scriptnames&–format=
–fmp_xml&–styletype=text/css&–stylehref=mystylesheet.css”>
To retrieve the names of all scripts using a form:
<form action="FMPro" method="post">
<input type="hidden" name="–db" value="employees.fp5">
<input type="hidden" name="" value="">
<input type="hidden" name="–format" value="–fmp_xml">
<input type="hidden" name="–styletype" value="text/css">
<input type="hidden" name="–stylehref" value="mystylesheet.css">
<input type="submit" name="–scriptnames" value="Show List of Scripts">
</form>
Valid names used in CGI requests for FileMaker XML data A-5
Generating a –dbopen request
Name/Value Type: Open Database Request
What it does: Opens a specified database that’s located in the Web
folder with Remote Administration enabled in the Web Companion
(web users must enter “Admin” as the user name)
Required parameters: –db, –format
Optional parameter: –password
Examples of –dbopen requests
To open a remotely administered database using a link:
<a href="FMPro?–db=employees.fp5&–dbopen&–format=
–fmp_xml&–styletype=text/css&–stylehref=mystylesheet.css”>
To open a remotely administered database using a form:
<form action="FMPro" method="post">
<input type="hidden" name="–db" value="employees.fp5">
<input type="hidden" name="–format" value="–fmp_xml">
<input type="hidden" name="–styletype" value="text/css">
<input type="hidden" name="–stylehref" value="mystylesheet.css">
<input type="submit" name="–dbopen" value="Open Employees
Database">
</form>
For more information, see “Opening password-protected
databases remotely” on page 3-18.
Generating a –dbclose request
Name/Value Type: Close Database Request
What it does: Closes an open database that’s located in the Web
folder with Remote Administration enabled in the Web Companion
(web users must enter “Admin” as the user name)
Required parameters: –db, –format
Examples of –dbclose requests
To close a remotely administered database using a link:
<a href="FMPro?–db=employees.fp5&–dbclose=&–format=
–fmp_xml&–styletype=text/css&–stylehref=mystylesheet.css”>
To close a remotely administered database using a form:
<form action="FMPro" method="post">
<input type="hidden" name="–db" value="employees.fp5">
<input type="hidden" name="–format" value="–fmp_xml">
<input type="hidden" name="–styletype" value="text/css">
<input type="hidden" name="–stylehref" value="mystylesheet.css">
<input type="submit" name="–dbclose" value="Close Employees
Database">
</form>
For more information, see “Opening password-protected
databases remotely” on page 3-18.
A-6 FileMaker Pro 5.5 Unlimited Administrator’s Guide
Specifying parameters for the request
The following are the parameters for requesting FileMaker Pro data
in XML format. Some parameters are required to be present in the
CGI command along with certain requests; others are optional.
–db (Database)
Name/Value Type: Parameter
What it does: Specifies the database that all processing for the
request will refer to.
Value is: Name of the database, including the extension if any. The
FileMaker Pro Web Companion uses only the name of the database;
do not include any path information. The database must be open in
FileMaker Pro.
Required with: All requests except the –dbnames request
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&–find
–lay (Layout)
Name/Value Type: Parameter
What it does: Specifies the layout that is used in the database. The
–lay parameter is used in –find, –findall, and –findany requests to
specify the fields that are returned and in –view requests to specify
the layout information that’s returned.
Value is: Name of the layout to use. If no layout is given, then the layout
is considered to contain all fields in the database (but not related fields).
Required with: –view requests, and –edit or –new requests for data
in related fields or portals
Optional with: –find, –findall, or –findany requests
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&–lay=
LayoutOne&–view
–format (Format)
Name/Value Type: Parameter
What it does: Specifies the XML grammar used for returning the
results of a request.
Value is: –dso_xml, –dso_xml_dtd, –fmp_xml, or –fmp_xml_dtd.
Required with: All requests
Examples:
–recid (Record ID)
Name/Value Type: Parameter
What it does: Defines which record should be operated on. Used
mainly by the –edit, and –delete requests.
Value is: A record ID, which is a unique specifier to a record in a
FileMaker Pro database.
Required with: –edit and –delete requests
To generate this
XML grammar Specify this format
FMPDSORESULT FMPro?–db=employees.fp5&–format=
"–dso_xml"&–find
FMPDSORESULT
+ document type definition
FMPro?–db=employees.fp5&–format=
"–dso_xml_dtd"&–find
FMPXMLRESULT FMPro?–db=employees.fp5&–format=
"–fmp_xml"&–find
FMPXMLRESULT + document
type definition
FMPro?–db=employees.fp5&–format=
"–fmp_xml_dtd"&–find
FMPXMLLAYOUT FMPro?–db=employees.fp5&–format=
"–fmp_xml"&–view
FMPXMLLAYOUT + document
type definition
FMPro?–db=employees.fp5&–format=
"–fmp_xml_dtd"&–view
Valid names used in CGI requests for FileMaker XML data A-7
Optional with: –find requests
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–recid=22&–delete
–modid (Modification ID)
Name/Value Type: Parameter
What it does: Refers to the latest version (incremental counter
number) of the record. This allows you to take necessary measures
to ensure an –edit request is applied to the most current version of the
record, by including a warning and an option to retrieve the most
current record before the –edit request is allowed.
Value is: A modification ID, which is a unique identifier for the
current version of a record in a FileMaker Pro database.
Optional with: –edit requests
Requires: The –recid parameter
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–recid=22&–modid=6&last_name=Jones&–edit
–lop (Logical operator)
Name/Value Type: Parameter
What it does: Specifies how the find criteria are combined as either
an AND or OR –find request.
Value is: Either AND or OR. If the –lop parameter name is not used,
then the find request is assumed to be an AND request.
Optional with: –find requests
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
Last+Name=Smith&Birthdate=2/5/1972&–lop=and&–find
–op (Comparison operator)
Name/Value Type: Parameter
What it does: Specifies the comparison operator to apply to the field
name/value pair that follows it in a –find request.
Value is: The operator to use. There are short and long versions of
each operator. The default operator is "begins with". Valid operators
are as follows:
You can use any FileMaker Pro –find operator by specifying the
begins with (bw) parameter. For example, to specify the "Find
Content Match" (= =) operator, you would specify the begins with
parameter (bw) and then you would place the characters "==" before
the actual search criteria. The required lines would look like this:
<input type="hidden" name="–op" value="bw">
<input type="text" name="FirstName" value="= =Sam">
Optional with: –find requests
Requires: A field name and a value
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–op=eq&FirstName=Sam&–find
Short Long FileMaker Pro equivalent operator
eq equals =word
cn contains "word"
bw begins with word*
ew ends with *word
gt greater than > word
gte greater than or equals >= word
lt less than < word
lte less than or equals <= word
neq not equals omit, word
A-8 FileMaker Pro 5.5 Unlimited Administrator’s Guide
–max (Maximum records)
Name/Value Type: Parameter
What it does: Specifies the maximum number of records that should
be returned.
Value is: A number from 1 through 2147483647, or the word "All".
The default value is 25.
Optional with: –find requests
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–max=10&–find
–skip (Skip records)
Name/Value Type: Parameter
What it does: Tells FileMaker Pro how many records to skip in the
found set.
Value is: A number from 0 through 2147483647, or the word "All".
If the value is greater then the number of records in the found set or
the value is "All" then the last record is displayed. The default value
is 0.
Optional with: –find requests
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–skip=10&–max=5&–find
In this example, the first 10 records in the found set are skipped and
records 11 through 15 are returned.
–sortfield (Sort field)
Name/Value Type: Parameter
What it does: Specifies the field that will be used for sorting. The
–sortfield parameter can been used multiple times to perform
multiple field sorts. The position in which –sortfield appears in the
CGI command will determine the sort order of the fields.
Value is: Name of a FileMaker Pro field.
Optional with: –find or –findall requests
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–sortfield=First+Name&–find
–sortorder (Sort order)
Name/Value Type: Parameter
What it does: Indicates the direction of a sort. If used, –sortorder
must directly follow the –sortfield parameter it applies to.
Value is: The sort order. Valid sort orders are as follows, where
Custom is the value list name:
Optional with: –find or –findall requests
Requires: The –sortfield parameter
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–sortfield=First+Name&–sortorder=descend&–find
Keyword (short) Keyword (long) FileMaker Pro
Equivalent Operator
Ascend Ascending Sort a to z, –10 to 10
Descend Descending Sort z to a, 10 to –10
Custom Sort using the value list associated
with the field on the layout
Valid names used in CGI requests for FileMaker XML data A-9
–script (Script)
Name/Value Type: Parameter
What it does: Specifies the FileMaker Pro script that will be
performed after finding and sorting records (if specified) during
processing of the –find request.
Value is: Name of the script to perform.
Optional with: –find or –findall requests
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–script=Omit+Script&–find
–script.prefind (Script before Find)
Name/Value Type: Parameter
What it does: Specifies the FileMaker Pro script that will be
performed before finding and sorting of records (if specified) during
processing of the –find request.
Value is: Name of the script to perform.
Optional with: –find or –findall requests
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–script.prefind=My+Script&–find
–script.presort (Script before Sort)
Name/Value Type: Parameter
What it does: Specifies the FileMaker Pro script that will be
performed after finding records and before sorting records (if
specified) during processing of the –find request.
Optional with: –find or –findall requests
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–script.presort=OmitOne&–find
–styletype (Style type)
Name/Value Type: Parameter
What it does: Tells the FileMaker Pro Web Companion to generate
an XML-stylesheet processing instruction within the grammar—
setting the value of the type attribute (type=text/css or type=text/
xsl)—so you can use cascading style sheets (CSS) or Extensible
Stylesheet Language (XSL) documents with your XML document.
This parameter is used in conjunction with the –stylehref parameter.
Optional with: All requests
Requires: The –stylehref parameter
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–styletype=text/css&–stylehref=mystylesheet.css&–find
–stylehref (Style href)
Name/Value Type: Parameter
What it does: Tells the FileMaker Pro Web Companion to generate
an XML-stylesheet processing instruction within the grammar—
setting the value of the href attribute (href=document.css or
href=document.xsl)—so you can use cascading style sheets (CSS) or
Extensible Stylesheet Language (XSL) documents with your XML
document. This parameter is used in conjunction with the –styletype
parameter.
Optional with: All requests
Requires: The –styletype parameter
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–styletype=text/xsl&–stylehref=mystylesheet.xsl&–find
A-10 FileMaker Pro 5.5 Unlimited Administrator’s Guide
–password (Database password)
Name/Value Type: Parameter
What it does: Specifies the database password (set in the Access
Privileges > Define Passwords dialog box) to open a database with.
Optional with: The –dbopen request
Example: FMPro?–db=employees.fp5&–dbopen&–password=
dbpassword&–format= –fmp_xml& –styletype=text/css&
–stylehref=mystylesheet.css
field name (Name of specific field)
Name/Value Type: Field name
What it does: Field names are used to control –find criteria or to
modify the contents of a record. When a value for a specific field
needs to be sent to FileMaker Pro, the name portion of the name/
value pair is the name of the field in the FileMaker Pro database.
Field names used in this manner should not start with the hyphen
(–) character.
Name is: Name of the field in the database.
Value is: For –new and –edit requests, the value contains the data for
a record. Multiple occurrences of a field allow the data to be put into
separate repetitions of a repeating field. For –find requests, the value
is a find request on the specified field. For all other requests, these
name/value pairs are not needed.
Required with: –new and –edit requests
Optional with: –find requests
Example: FMPro?–db=employees.fp5&–format= –fmp_xml&
–op=eq&FirstName=Sam&–max=1&–find
Appendix B
FileMaker Pro values for error codes
The FileMaker Pro Web Companion generates an error code for
databases published in XML, JDBC, or CDML format every time
data is requested. The following table describes the value of each
error code, which is based on the type of query to the database. Use
these values to do error handling on your web pages.
For more information, see the Status (CurrentError) function
described in chapter 11 of the FileMaker Pro User’s Guide or type
error messages in the Index tab of FileMaker Pro Help.
Note In FileMaker Pro for Mac OS, if an error occurs while
performing an AppleScript from ScriptMaker, the AppleScript error
code will be returned.
Error code value Description
-1 Unknown error
0 No error (success)
1 User canceled action
2 Memory error
3 Command is unavailable (for example, wrong operating
system, wrong mode, etc.)
4 Command is unknown
5 Command is invalid (for example, a Set Field script step
does not have a calculation specified)
100 File is missing
101 Record is missing
102 Field is missing
103 Relationship is missing
104 Script is missing
105 Layout is missing
200 Record access is denied
201 Field cannot be modified
202 Field access is denied
203 No records in file to print or password doesn't allow print
access
204 No access to field(s) in sort order
205 Cannot create new records; import will overwrite existing
data
206 User does not access to import over all records
207 User does not have access to modify field definitions
300 The file is locked or in use
301 Record is in use by another user
302 Script definitions are in use by another user
303 Paper size is in use by another user
304 Password definitions are in use by another user
305 Relationship or value list definitions are in use by another
user
306 Record modification ID does not match
400 Find criteria is empty
401 No records match the request
402 Selected field is not a match field for a lookup
403 Exceeding maximum record limit for trial version of
FileMaker Pro
404 Sort order is invalid
Error code value Description
B-2 FileMaker Pro 5.5 Unlimited Administrator’s Guide
405 Number of records specified exceeds number of records
that can be omitted
406 Replace/Reserialize criteria is invalid
407 One or both match fields are missing (invalid relationship)
408 Specified field has inappropriate data type for this
operation
409 Import order is invalid
410 Export order is invalid
411 Cannot perform delete because related records cannot be
deleted
412 Wrong version of FileMaker Pro used to recover file
500 Date value does not meet validation entry options
501 Time value does not meet validation entry options
502 Number value does not meet validation entry options
503 Value in field is not within the range specified in
validation entry options
504 Value in field is not unique as required in validation entry
options
505 Value in field is not an existing value in the database as
required in validation entry options
506 Value in field is not listed on the value list specified in
validation entry option
507 Value in field failed calculation test of validation entry
option
508 Invalid value entered in Find mode
509 Field requires a valid value
510 Related value is empty or unavailable
511 Field failed maximum contests validation test
600 Print error has occurred
Error code value Description
601 Combined header and footer exceed one page
602 Body doesn't fit on a page for current column setup
603 Print connection lost
700 File is of the wrong file type for import
701 Data Access Manager can't find database extension file
702 The Data Access Manager was unable to open the session
703 The Data Access Manager was unable to open the session;
try later
704 Data Access Manager failed when sending a query
705 Data Access Manager failed when executing a query
706 EPSF file has no preview image
707 Graphic translator cannot be found
708 Can't import the file or need color computer to import file
709 QuickTime movie import failed
710 Unable to update QuickTime file reference because the
database is read-only
711 Import translator can not be found
712 XTND version is incompatible
713 Couldn't initialize the XTND system
714 Password privileges do not allow the operation
715 Missing Excel named range or spreadsheet
716 ODBC import should not be modifying the data source
800 Unable to create file on disk
801 Unable to create temporary file on System disk
802 Unable to open file
803 File is single user or host cannot be found
804 File cannot be opened as read-only in its current state
805 File is damaged; use Recover command
Error code value Description
FileMaker Pro values for error codes B-3
806 File cannot be opened with this version of FileMaker Pro
807 File is not a FileMaker Pro file or is severely damaged
808 Cannot open file because access privileges are damaged
809 Disk/volume is full
810 Disk/volume is locked
811 Temporary file cannot be opened as FileMaker Pro file
812 Cannot open the file because it exceeds host capacity
813 Record Synchronization error on network
814 File(s) cannot be opened because maximum number is
open
815 Couldn't open lookup file
816 Unable to convert file
817 File’s binding key does not match this runtime application
818 FileMaker cannot network
900 General spelling engine error
901 Main spelling dictionary not installed
902 Could not launch the Help system
903 Command cannot be used in a shared file
904 Command can only be used in a file hosted under
FileMaker Server
950 Adding repeating related fields is not supported
951 An unexpected error occurred
952 Email error message
953 Email error message
971 The user name is invalid
972 The password is invalid
973 The database is invalid
974 Permission Denied
Error code value Description
975 The field has restricted access
976 Security is disabled
977 Invalid client IP address
978 The number of allowed guests has been exceeded (for the
10 guest limit over a 12 hour period)
Error code value Description
This page intentionally left blank.
Appendix C
Enabling the FileMaker Pro Web Companion in Mac OS X
FileMaker Pro Unlimited uses the FileMaker Pro Web Companion
plug-in to serve databases over the Web.
To enable the Web Companion in Mac OS X:
1. Choose the FileMaker Pro application menu > Preferences >
Application.
2. In the Application Preferences dialog, click the Plug-Ins tab.
3. Select the Web Companion checkbox.
After you enable the Web Companion, you must specify which port,
or virtual connection, the Web Companion will use to publish data.
The first time you enable the Web Companion (or if you have
previously enabled the Web Companion and are reinstalling
FileMaker Pro), FileMaker Pro requests permission to make a one-
time change to your computer’s setting to facilitate web publishing
on ports below 1024.
The standard port for web publishing is port number 80 (ports are
numbered between 1 and 65535), and most web servers and browsers
use this port as the default. Port 80 is also the default port for the
FileMaker Pro Web Companion. For security reasons, Mac OS X
restricts access to ports below 1024. To configure the FileMaker Pro
Web Companion to use ports below 1024 while maintaining the Mac
OS X access restrictions on these ports, it is necessary to make a one-
time change to the file permissions of the Web Companion Enabler
to give it the authority to open privileged ports (ports 1-1023). To
make this change, you will need an administrator password, such as
the password created when you first set up Mac OS X.
Note If you use a port other than port number 80 for FileMaker Pro
web publishing, your users will need to append a colon (“:”) and the
number of the port to their URLs to access your web hosted
databases. For more information, see “Accessing databases that are
published to the Web” on page C-3, and the FileMaker Pro Help
topic, “Specifying a port number for web publishing.”
4. If have an administrator password and want to configure the Web
Companion to use standard settings for web publishing
(recommended), click Continue.
C-2 FileMaker Pro 5.5 Unlimited Administrator’s Guide
If you do not have an administrator password, or do not want to
enable the Web Companion at this time, click Cancel. The Web
Companion will not be enabled, and your system settings will remain
unchanged.
If you do not have an administrator password, or want to configure
the Web Companion to use port 1024 or higher, click Advanced. Your
system settings will remain unchanged. See the section “Configuring
the Web Companion for use with ports 1024 and higher” for further
instructions.
5. Enter an administrator name and password in the Authenticate
dialog, and click OK.
6. The administrator name and password you enter can be the same
as the name and password used when Mac OS X was installed, or if
you have administrator privileges but do not know an administrator
password, you can create a new user and password with
administrator privileges. For more information on creating an
account with administrator privileges, see the Mac OS X Help topics,
“Working as an administrator,” and “Changing your password.”
You are finished. The Web Companion is configured to use port 80.
Configuring the Web Companion for use
with ports 1024 and higher
You do not need an administrator password to configure the
FileMaker Pro Web Companion to use ports 1024 and higher. Unlike
ports below 1024, the FileMaker Pro Web Companion can use ports
1024 and above without altering your system’s settings.
Note If you have previously enabled the Web Companion to use
ports below 1024 as described above, your system is already
configured to allow the Web Companion to use any port. Make port
changes directly in the Web Companion Configuration dialog.
To configure the FileMaker Pro Web Companion to use only ports
1024 and above:
1. Choose the FileMaker Pro application menu > Preferences >
Application.
2. In the Application Preferences dialog, click the Plug-Ins tab.
3. Select the Web Companion checkbox.
You see the following dialog.
4. Click Advanced.
Enabling the FileMaker Pro Web Companion in Mac OS X C-3
5. Click Change Port.
You see the Web Companion Configuration dialog.
Note If you click Enter Password in the above dialog, you are
brought to the Authenticate dialog and asked to enter an
administrator password to enable the use of ports below number
1024, as described in the previous section.
6. Enter a port number between 1024 and 65535 in the TCP/IP Port
Number box.
Note The IP Guest Limit should indicate Unlimited. If the IP Guest Limit
does not indicate unlimited guests, you will need to reinstall
FileMaker Pro 5.5 Unlimited using the installation code included
with your copy of FileMaker Pro Unlimited.
7. Click OK to save your changes.
You are finished. The Web Companion is now configured to use the
port you have specified.
Accessing databases that are published to
the Web
When you publish a database to the Web, your users access that
database by entering the host machine’s URL in their web browser.
If the FileMaker Pro Web Companion is configured to use port
number 80, the default port, the URL your users will enter will look
like this:
http://12.34.56.78/
The number “12.34.56.78” is an example; in its place, your users
would enter the actual URL of your host machine.
If the FileMaker Pro Web Companion is configured to use a port
number other than the default, the URL your users will enter will
look like this:
http://12.34.56.78:1024
Again, the number “12.34.56.78:1024” is an example; your users
would enter the actual URL of the host machine, followed by a colon
(“:”) and the port number specified in the FileMaker Pro Web
Companion Configuration dialog.
Enter the TCP/IP port number here
This page intentionally left blank.
Index
A
Access Log File option 3-4, 3-14
administering the Web Server Connector 2-1
Apache Web Server 1-1, 1-4
API (application programming interface)
for FileMaker Pro 4.0 Java Class
Library 6-17
for the FileMaker JDBC Driver 6-8
Java, for executing SQL statements 6-1
AppleScript error codes B-1
applets, Java
FileMaker Pro 6-18
Microsoft XML Data Source Object 5-3
ASCII characters
escaping in SQL identifiers 6-7
in XML documents 5-8
Asset Management.fp5 database 6-11, 6-14
B
basic Java classes 6-1, 6-8
Break encoding parameter 4-14
built-in home page, displaying on the
Web 3-5
C
calculations, using external functions 3-15
CALL stored procedure SQL statements 6-4
cascading style sheets (CSS) 5-10, 5-11, 5-13
CDML
action tags 4-4, 4-8, 4-9
CGI requests 4-3
described 3-2, 4-1
encoding parameters 4-14
error pages 4-13
examples 4-1, 4-15, 4-16, 4-17
FMP-If replacement tag 4-10
FMP-Include tag 4-17
format files 4-1, 4-2
modified tags 4-10
new action tags 4-9
new replacement tags 4-10
new variable tags 4-10
replacement tags 4-8, 4-10
templates 4-7
-token tags 4-10, 4-17
variable tags 4-4, 4-8, 4-10
CDML Reference database
described 4-1, 4-11
using 4-12
CDML tags disabled in 5.5 4-9
CDML Tool
choosing encoding parameters 4-6
described 4-1, 4-5
displaying tag syntax 4-6
parameters and value list options 4-6
tag categories 4-8
Tags tab 4-6
Templates tab 4-5
using 4-5
CGI requests.
See FileMaker Pro CGI requests
character escaping 6-4
com.fmi.jdbc.JdbcDriver driver class 6-2
comment tags
in CDML templates 4-7
in Java examples 6-10
Common Gateway Interface (CGI)
See also FileMaker Pro CGI requests
described 3-2
Common Log Format 3-14
configuring a RAIC 1-1
container fields 3-16
CSS and XML 5-11
custom error pages using CDML 4-13
custom home page
creating with a layout 3-8
creating with JavaScript 3-7
described 4-2
displaying on the Web 3-5
custom web portal example 3-7
custom web publishing
using a database layout 3-1
using CDML 3-1, 3-2, 4-2
using Java 6-1
using XML 3-1, 5-1
customer support, getting vii
D
data type mapping 6-4, 6-7
database error codes 5-3
-db request parameter A-6
-dbnames requests A-3
DbOpen and DbClose pseudo procedures 6-5
-dbopen and -dbclose requests 3-18, A-5
default home page, setting 3-6
default XML namespace declarations 5-2
default.htm 3-6
-delete requests A-3
DELETE SQL statements 6-4, 6-6
developer-tool-independent example 6-8
Display encoding parameter 4-14
Document Object Model (DOM)
Microsoft 5-3
I-2 FileMaker Pro 5.5 Unlimited Administrator’s Guide
W3C 5-16, 5-17
document type definitions (DTDs) 5-2, 5-3,
5-5
double colons in portal fields
in CGI requests 4-4, 5-9
in XML documents 5-4
driver properties, for FileMaker JDBC
URL 6-3
–dso_xml format parameter 5-3
E
–edit requests
CDML examples 4-4
XML examples 5-10, A-3
editing multiple records in portals 4-4, 5-9
elements
in FMPDSORESULT grammars 5-4
in FMPXMLLAYOUT grammars 5-7
in FMPXMLRESULT grammars 5-5
Employee Database CDML example 4-15
encoded XML 5-3, 5-8
encoding parameters for CDML 4-6, 4-14
encrypting data 6-3
error codes B-1
Error Log File option 3-4, 3-15
-errorfrtfield variable tag 4-9
errors
creating error messages 4-13
-errnum CDML variable tag 4-13
-error CDML variable tag 4-13
Error folder 4-13
error pages recognized by the Web
Companion 4-13
specifying FileMaker Pro error
codes 4-13, 5-3, B-1
escape driver property 6-4
escaping of lower ASCII characters 6-7
example CGI requests for XML A-1
examples
comparing CSS, XSL, and
JavaScript 5-11
Employee Database 4-15
FileMaker Pro Explorer 6-8
generated FMPDSORESULT
grammar 5-4
generated FMPXMLLAYOUT
grammar 5-7
generated FMPXMLRESULT
grammar 5-6
Guest Book 4-16
JBuilder Inventory 6-11
registering the FileMaker JDBC
Driver 6-3
Shopping Cart 4-17
using proprietary FileMaker Java
classes 6-18
Visual Cafe Inventory 6-14
XML and CSS 5-13
XML and JavaScript 5-16
XML and XSLT 5-14
XML Inventory 5-17
exporting data into HTML tables 3-16
Extensible Markup Language (XML). See
XML
Extensible Stylesheet Language (XSL). See
XSL stylesheets
Extensible Stylesheet Language–
Transformations (XSLT). See XSLT example
external function plug-ins
Web Companion 3-15
external functions
for web site monitoring 3-15
in calculation fields and scripts 3-15
F
fetchsize driver property 6-4
field name request parameter A-10
field names, spaces in 5-4, 6-3, 6-12
FileMaker Java Class Library
described 3-1
using 6-17
FileMaker JDBC Driver
data type mapping 6-7
described 6-1
driver class and main entry point 6-2
escaping lower ASCII characters 6-7
examples 6-8, 6-11, 6-14
FileMaker extensions 6-8
implementing JDBC 1.2 API 6-2
including with FileMaker Pro Java
applications and applets 6-2
JDBC interfaces 6-7
opening and closing databases 6-5
registering with the JDBC driver
manager 6-2, 6-3
specifying the JDBC URL 6-2
SQL support 6-4
using 6-2
working with JDK 1.1 and Java 2 6-2
FileMaker Pro 4.0 Java classes 6-17
FileMaker Pro CGI requests
adding records to portals 4-4, 5-9
and script buttons 3-9
CDML request and parameter names 4-4
described 3-2
editing multiple records in portals 4-5, 5-9
example CGI requests for XML A-1
for accessing databases 3-2
for CDML 4-3
for XML 5-2, 5-8
using JavaScript 3-9, 5-16
XML request and parameter names 5-8
FileMaker Pro Explorer application
described 6-8
starting 6-9
Index I-3
FileMaker Pro Unlimited
location of files and folders vi
product, described v
registering vii
FileMaker Server v
in RAIC 1-2
FileMakerExplorer.java file 6-10
filenames for instant web pages 3-13
-find requests 5-13, 5-14, A-1
FMBanner applet 6-18
FMBanner.fp5 database 6-18
FMMemoPad applet 6-18
FMMemoPad.fp5 database 6-18
FMP.js JavaScript library 5-16, 5-17, 5-21
FMPDSORESULT grammars 5-3
FMP-If tag 4-10
FMP-Include tag 4-17
Fmpjdbc12.jar file 6-2
FMP-Log tag 3-15
FMProProxy Java class 6-17
FMProRequest Java class 6-17
FMProResponse Java class 6-17
FMPXMLLAYOUT grammars 5-7
FMPXMLRESULT grammars 5-6
-fmtfield variable tag 4-9
FMWSC. See Web Server Connector
FMWSC.log 2-5
fmwsc.properties file 2-2
FMWSCNative.log 2-5
Format encoding parameter 4-14
format files
and web styles 3-13
described 4-2
templates, using 4-7
-format request parameter A-6
functions
Status (CurrentError) B-1
Web- external functions 3-16
G
grammars. See XML
Guest Book CDML example 4-15, 4-16
H
home button in browser 3-13
home pages
built-in 3-5
custom 3-1, 3-5
hosting multiple web sites 3-6
HREF links 3-2, 4-4, 5-2, A-1
HTML
described 5-1
encoding parameter for CDML format
files 4-14
form elements 4-8
form examples for XML A-1
format 5-2
forms 3-2, 4-4, 5-2
hidden INPUT tags 4-9
tables, exporting data into 3-16
translating information into 3-15
with XML and JavaScript 5-16
HTTP (Hypertext Transfer Protocol)
translating information into 3-15
using with FileMaker Java Class
Library 6-17
using with FileMaker JDBC Driver 6-2
I
index.htm 3-6
Information Log File option 3-4, 3-15
INSERT SQL statements 6-4
Instant Web Publishing
custom home pages with 3-1
described 3-2
script steps supported 3-9
Internet Explorer 4.0 5-3, 6-18
Internet Explorer 4.5 3-13
Internet Explorer 5.0 5-12, 5-17
Internet Information Server 1-4
Inventory.fp5 database 5-17, 6-11
inventory_db database 6-14, 6-16
IP addresses 3-4, 4-2
displaying with CDML 4-9
returned by external function 3-16
IP Guest Limit 3-2
ISAPI filter entry, removing 1-6
J, K
Java 2 environments 6-2
Java applets
FMBanner 6-18
FMMemoPad 6-18
Microsoft XML DSO 5-3
Java applications
FileMaker Pro database-aware 6-1
FileMaker Pro Explorer example 6-8
JBuilder Inventory example 6-11
Visual Cafe Inventory example 6-14
Java classes
basic 6-1, 6-8
FileMaker proprietary 6-17
FMProRequest, FMProProxy, and
FMProResponse 6-17
Java Development Kit (JDK) 6-2, 6-8
JavaScript
and custom home page 3-7
and FileMaker Extended XML 5-2
example 5-16, 5-17
versus CSS or XSL 5-11
with Internet Explorer 4.0 5-3
JBuilder 3.0 Professional for Windows 6-1,
6-11
Jbuilder.ini file 6-11
I-4 FileMaker Pro 5.5 Unlimited Administrator’s Guide
JDBC
See also FileMaker JDBC Driver
described 6-1
JDBC 1.2 API 6-2
JDBC URL 6-2
L
-lay request parameter A-6
-layoutnames requests A-4
layouts, creating for custom web sites 3-8
links
HREF 3-2, 3-6, 4-4, 5-2
testing 3-18
to CDML format files 4-2
to IP addresses 3-6
XML example requests A-1
Linux
installing Web Server Connector on 1-7
requirements for WSC 1-4
localhost networking 3-18
log files
generated by the Web Companion 3-14
generated by the Web Server
Connector 2-5
-lop request parameter A-7
M
Mac OS X Server
installing Web Server Connector on 1-6
requirements for WSC 1-3
Mac OS X, enabling Web Companion in C-1
–mailfmtfield variable tag 4-9
mapping data type 6-4, 6-7
-max request parameter A-8
messages
error, examples of 4-14
errors sent by the Web Companion 4-13,
B-1
Microsoft Internet Information Server 1-4
Microsoft Notepad 5-20
Microsoft Windows. See Windows
Microsoft XML Data Source Object
(DSO) 5-2, 5-3
MIME (Multipurpose Internet Mail
Extensions) types 3-13
ModId pseudo column 6-4
-modid request parameter A-7
monitoring web sites
using external functions 3-15
using log files 3-14
MRJ 2.2 6-8
N
namespaces, XML
described 5-3
for the FMPDSORESULT grammar 5-4
for the FMPXMLLAYOUT grammar 5-7
for the FMPXMLRESULT grammar 5-6
NCSA/CERN-compatible Common Log
Format 3-14
Netscape Communicator 4.0 6-18
–new requests
CDML examples 4-4
XML examples 5-9, A-2
Note 4-4
Notepad 6-10, 6-11
O
ODBC (Open Database Connectivity) driver
See also JDBC, FileMaker JDBC Driver
Java equivalent 6-1
onClick JavaScript 3-9
onClick scripting event 5-16
onLoad event handler 5-16
-op request parameter A-7
P, Q
password driver property 6-4
People.fp5 database 5-12
people_form.css stylesheet 5-13
people_form.htm page 5-16
people_form.xsl stylesheet 5-15
plug-ins
third-party 1-1
Web Companion 3-2
port, setting up for Mac OS X C-1
portals
adding records 4-4, 5-9
editing multiple records 4-4, 5-9
primary key. See RecordId pseudo column
protecting databases
in subfolders of the Web folder 3-18
with record-level passwords 3-4
with remote administration
passwords 3-18
with Web Security Database 3-4
publishing on the Web
See also Web Companion
comparing static HTML form with dynamic
CDML 4-16
database error codes B-1
described 3-1
encrypting data 6-3
error pages 4-13
exporting data into HTML tables 3-1, 3-16
FileMaker Pro database-aware Java
applets 3-1, 6-1, 6-18
FileMaker Pro databases 3-1
in Mac OS X C-1
read-only databases 5-2
using CDML 3-1, 3-2, 4-2
using custom home pages 3-5
using Instant Web Publishing 3-2
using JDBC 3-1
using XML 3-1, 5-2
Index I-5
R
Rapid Application Development (RAD)
tools 3-1, 6-1, 6-2
Raw encoding parameter 4-14
-recid request parameter A-6
RecordId pseudo column 6-4
Red Hat Linux. See Linux
registering
FileMaker JDBC Driver 6-2
FileMaker Pro Unlimited vii
Remote Administration option 3-4
requesting data. See FileMaker Pro CGI
requests
requirements for installing WSC 1-3
Restrict access to IP addresses option 3-4
S
schemas. See XML grammars
-script request parameter A-9
-script.prefind request parameter A-9
-script.presort request parameter A-9
scripting languages
See also JavaScript
JavaScript 5-3
VBScript 5-3
-scriptnames requests A-4
scripts
for FileMaker Pro CGI requests 5-2
in layout for custom home page 3-9
using external functions 3-15
searching
databases on the Web 3-1, 4-15
TechInfo database viii
security 3-3, 3-4
SELECT SQL statements 6-4, 6-6
setting up single-machine networks 3-18
sharing
databases via the Web Companion 3-5
Shopping Cart CDML example 4-15, 4-17
SimpleText 6-10
-skip request parameter A-8
-sortfield request parameter A-8
-sortorder request parameter A-8
spaces in field names 5-4, 6-3, 6-12
SQL statements
delivered by JDBC drivers 6-1
supported by FileMaker JDBC Driver 6-4
SQL-92 Entry Level compliant 6-2
static web publishing 3-1, 3-16, 4-16
Status (CurrentError) function B-1
-stylehref request parameter A-9
stylesheets
CSS 5-10, 5-11, 5-13
described 5-2
XML-stylesheet processing
instruction 5-2, 5-10
XSL 5-10, 5-11
XSLT 5-14
–styletype and –stylehref parameters 5-10
-styletype request parameter A-9, A-10
subname, for FileMaker JDBC URL 6-2
subprotocol, for FileMaker JDBC URL 6-2
suppressing Instant Web Publishing
controls 3-11
Swing 1.1.1 6-1, 6-8
Symantec Visual Cafe 6-1
system requirements 1-3
T
TCP/IP port number 3-4
TechInfo database
described viii
searching viii
technical support
for FileMaker Pro Unlimited vii
templates
CDML 4-7
Toggle Status Area script step 3-12
-token tags 4-10, 4-17
trapping errors B-1
U
Unicode characters 5-8, 6-7
uninstalling the Web Server Connector
Linux 1-8
Windows 1-5
UPDATE SQL statements 6-4, 6-6
URL encoding parameter 4-14
URLs (Uniform Resource Locators)
accessing Java resources 6-2
FileMaker JDBC URL 6-2
for FileMaker Pro CGI requests 5-2
loaded by the FMBanner Java applet 6-18
using to access databases 3-1
user driver property 6-4
UTF-8 (Unicode Transformation 8 Bit)
format 5-8
V
VBScript 5-3
-view requests A-2
Visual Cafe 4.0 Expert Edition for
Windows 6-1, 6-14
W
W3C Document Object Model 5-16, 5-17
