heng shang pin technology B4 Bluetooth Headset User Manual Enjoy your hands free communications

Shenzhen heng shang pin technology co., LTD Bluetooth Headset Enjoy your hands free communications

15_HSP-B4 UserMan

1 / 13

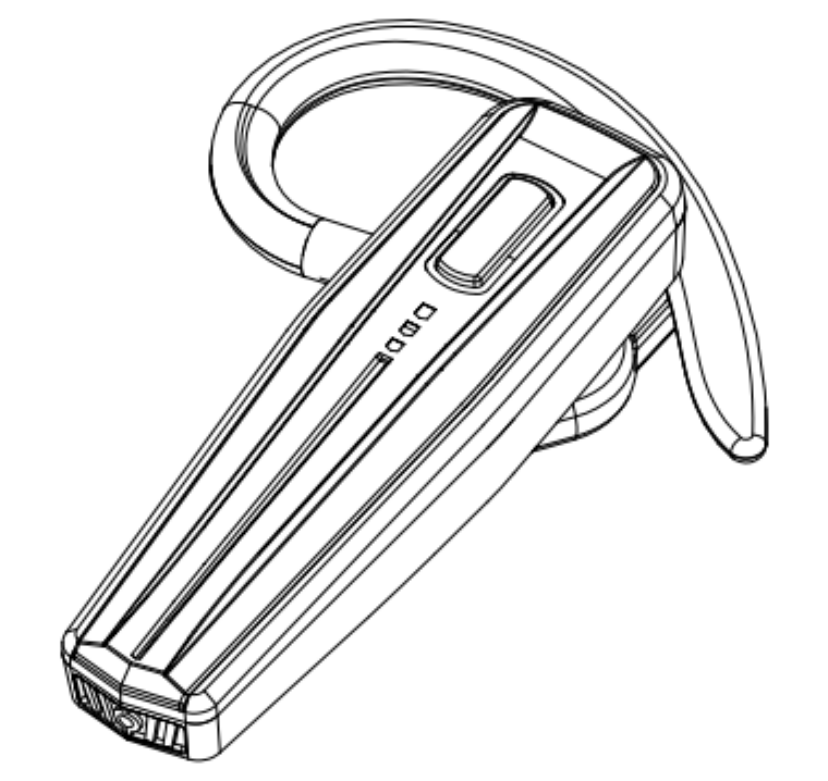

HSP-B4
Bluetooth Headset
User Manual
Enjoy your hands-free communications
2 / 13
1. WELCOME
Thank you for using this wireless Headset. We hope you will enjoy it!
FEATURES
Voice guidance
Battery and pairing status display
HD Voice
Long talk time – Up to 12 hours
Power Nap feature
Wireless freedom - Up to 30m/99ft
Paring right after power on
Voice assistant function & Siri supported
3 / 13

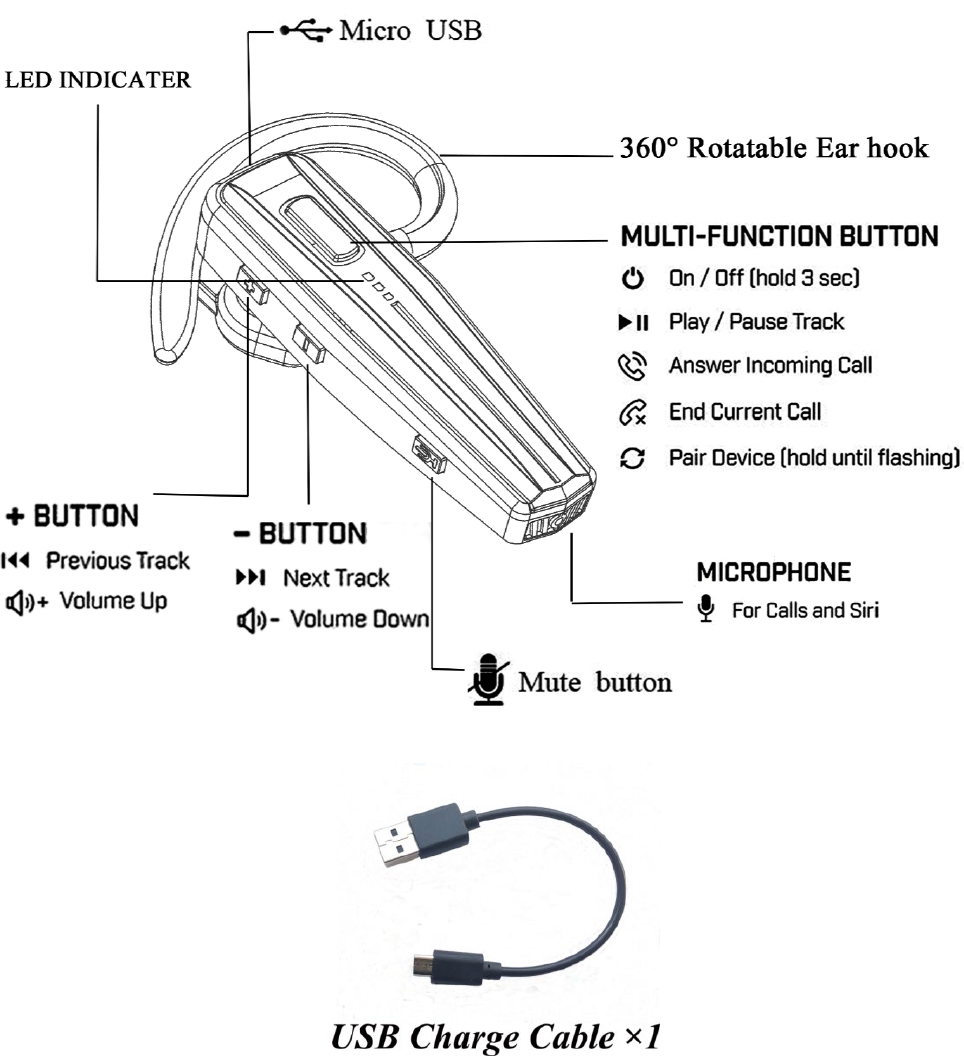

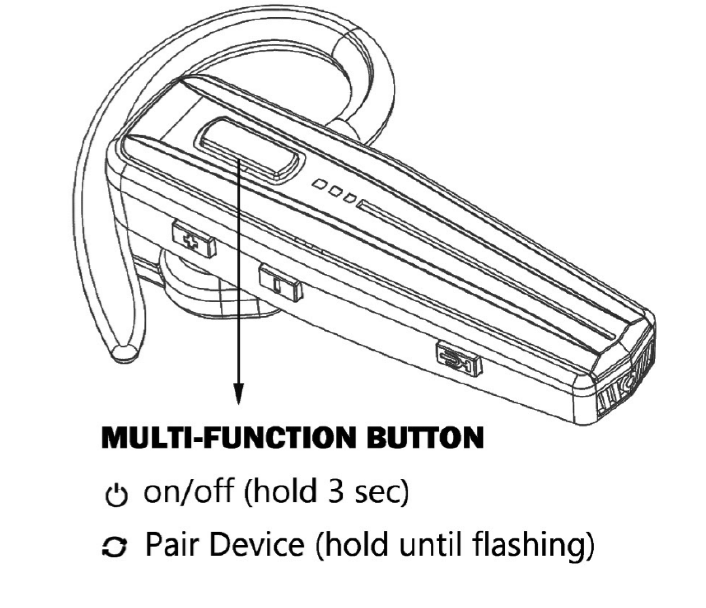

2. HEADSET OVERVIEW
4 / 13
3. HOW TO WEAR

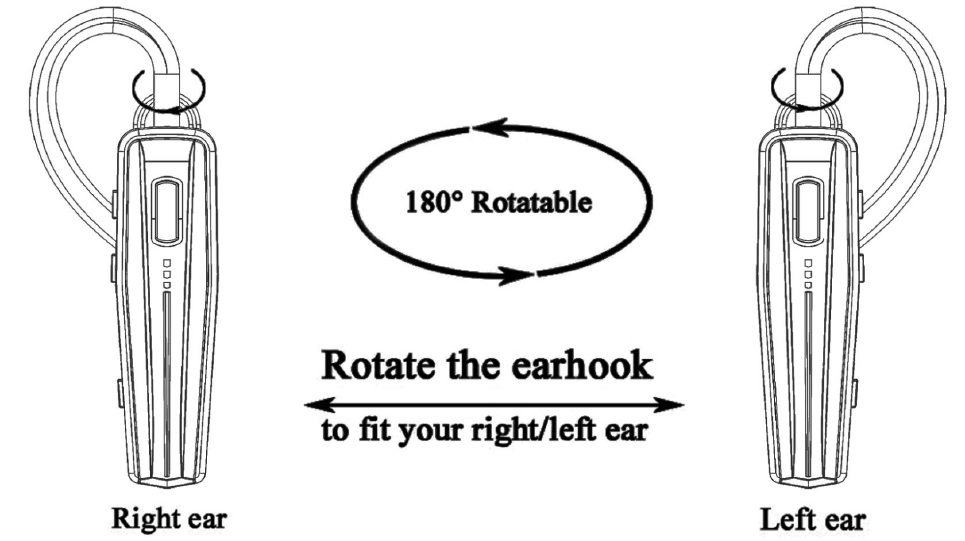

3.1 Worn on Left or Right Ear
The headset can be worn on the left or right ear. To switch ear:
1. Rotate the ear hook 180°
2. Twist it around so the eartip is on the
other side
3. Lower the ear hook
3.2 Adjust the ear hook
1. Lengthen the ear hook, to fit big ears
2. Retract the ear hook, to fit small ears.
5 / 13
4. HOW TO CHARGE THE BATTERY
Plug the headset into any available USB port on your PC by using the USB
cable.
NOTE1: For safety reasons, we designed this headset to be not functional
while it is under charging.
NOTE2: If the output of your charger for this headset is higher than 5V, it will
damage your headset potentially. You must use standard charger(5V or lower)
for your headset.
6 / 13
It takes approx. 2 hours to fully charge the battery.
5. HOW TO CONNECT
5.1 Get Paired
The first time you power on your headset, it begins the pairing process.
1. Wearing your headset, press the “MFB” button for 2-3 seconds. You will
hear “Power ON” and the headset indicator lights flash in red and blue.
2. The indicator lights will flash blue when your headset get paired
successfully; but if the headset failure to match within 3 min, it will power off
automatically.
3. Activate Bluetooth® on your phone and set it to search for new devices.
• iPhone® Settings > Bluetooth > On*
• Android™ > Bluetooth: On > Scan for devices*
NOTE1: Menus may vary by devices.
4. Select “HSP-B4”
If necessary, enter four zeros (0000) for the passcode or accept the
7 / 13
connection.
Once successfully paired, you will hear “connected” and the headset
indicator lights will stop flashing.
5.2 Pair another phone
After pairing your headset with your phone you may want to pair another
phone.
Deactivate Bluetooth® on your first phone.
1. Press and hold the “MFB” button for 2-3 secs. The headset indicator lights
flash red and turn off.
2. Press and hold the “MFB” button for 2-3 secs, the headset indicator lights
flash in red and blue.
3. Activate Bluetooth® on your another phone and set it to search for new
devices.
4. Select “HSP-B4”
If necessary, enter four zeros (0000) for the passcode or accept the
connection. Once successfully paired, the headset indicator lights stop
flashing and you will hear “Connected”.
5. Activate Bluetooth® on your first phone.
6. Press and hold the “MFB” button for 2-3 secs to power off the headset.
7. Press and hold the “MFB” button for 2-3 secs to power on the headset, then
you can get two phones connected with the headset automatically.
NOTE: If your PC does not support Bluetooth function or remind you to install
a driver, you need to use an external Bluetooth USB Adapter.
8 / 13

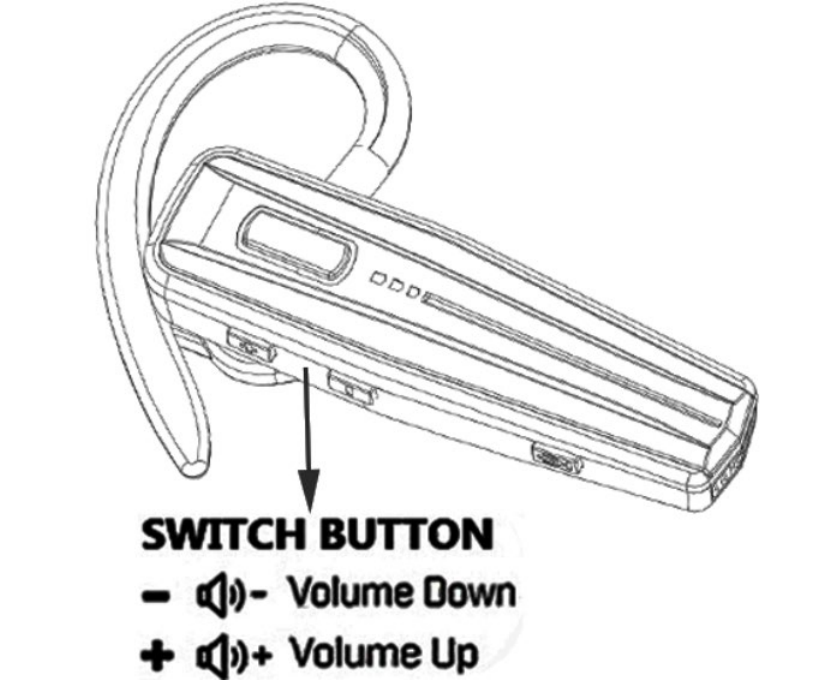

6. HOW TO ADJUST VOLUME
During Music playing or voice calls, shortly tap the button “+” or “-” can
adjust voice volume.
Shortly tap “+” button for once, volume will increase a little, tap
continually can get the volume increased continually, you get the
highest voice when you hear a “BIP”.
Shortly tap “-” button for once,
volume will decrease a little, tap continually can get the volume decreased
continually, you get the lowest voice when you hear a “BIP” .
9 / 13

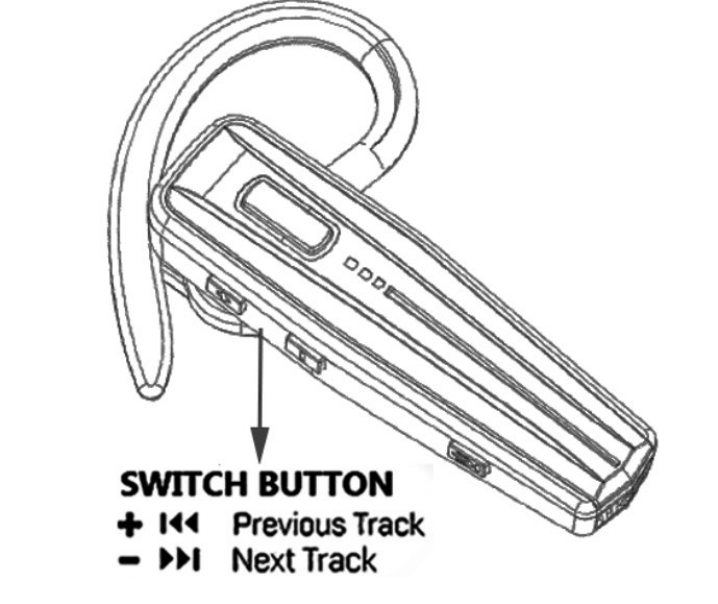

7. HOW TO SWITCH SONGS
During Music Playing, press and hold the Volume button can switch
forward/backward songs.
Press the volume button “-” and hold for 4secs, you will hear a
“BIP” and then forward to next song.
Press the volume button “+” and hold for 4secs, you will hear a
“BIP” and then backward to previous song.

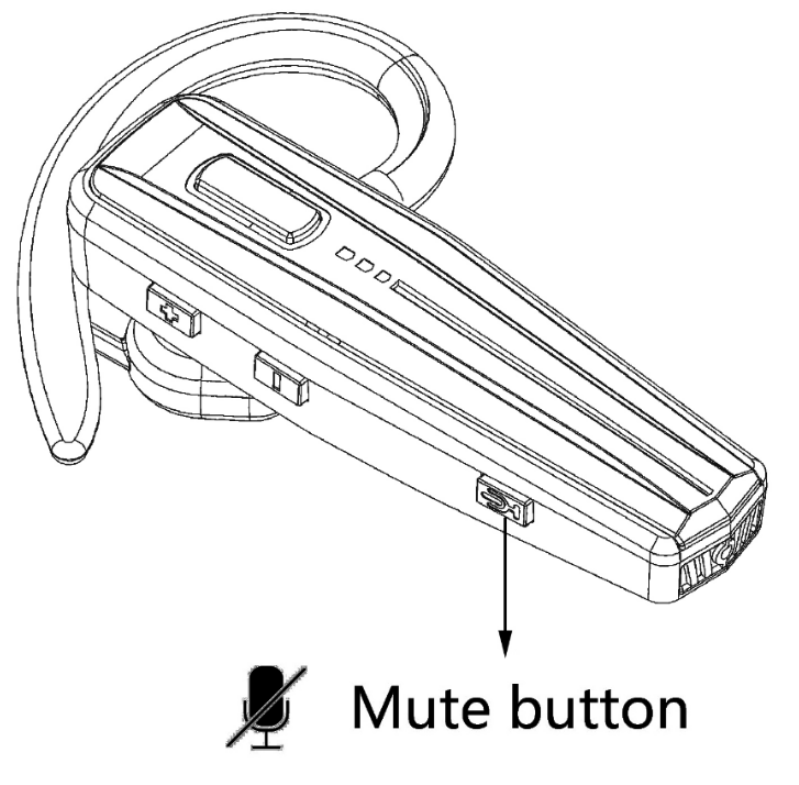

8. HOW TO MUTE DURING CALL
During phone calls, click the mute button can enable/disable mute function.
Click the mute button you will get
voice prompt “mute on” , voice “mute” will prompt every 2 minutes when keep
in mute state.
Click again the mute button you will
get voice prompt “mute off” which means unmuted.
10 / 13
11 / 13
9. USER GUIDE SUMMARY
STEP
Press and hold the “MFB” for 4 secs
Press and hold the “MFB” for 6 secs
Click the Multifunction button
Click the Multifunction button
Press and hold the Multifunction button for 3 secs
Double-click the Multifunction button
Refer to section 6
Play or pause streaming
Click the Multifunction button
Refer to section 7
Restore to factory
Press and hold the Multifunction button for 3 secs
when charging.
10. Q&A
Q Why do I have crackling noise?
A Bluetooth is a radio technology that is sensitive to objects between the
headset and the connected device. Ensure the headset and the connected
device are within range (up to 10 meters or 33 feet).
Q What is the range of the headset?
A This Bluetooth Headset supports the following maximum ranges: 10m/33ft.
Q Why can’t I hear anything?
A You might need to increase the speaker volume, or ensure that the
headset is connected to a device.
Q Why couldn’t my headset connect with the device?
A Check your device’s Bluetooth menu and delete/forget the headset.
Re-connect the headset to your Bluetooth device following the Bluetooth
connection instructions(Section 5).
Q How to take care of my headset?
A Recommend to power off the headset and put it in storage case when not
use.
Avoid storage at extreme temperatures (above 35°C/95°F or below
12 / 13
-20°C/-4°F). It will shorten battery life and may affect headset operation.
Do not expose the headset to rain or other liquids.
11. TECHNICAL SPECIFICATIONS
Wireless Headset
SPECIFICATION
Weight:
0.54ounces
Dimensions:
2.56 * 0.94 * 0.75 inches
Microphones:
Omni-directional silicon mic
Speaker:
Dynamic speaker
Operating range:
30 m (99 ft)
Bluetooth version:
5.0
Paired devices:
1 to 2 at the same time
Supported Bluetooth profiles: A2DP(v1.2), Hands Free Profile (v1.6),
Headset profile(v1.2)
Talk time:
Up to 12 hours
Data Encryption:
128 bits encrypted
Standby time:
Up to 130 hours
Operating temperature:
-10°C to 55°C (14°F to 131°F)
Storage temperature:
-20° C to 35° C (-4 F to 95 F)
Pairing passkey or PIN:
0000
13 / 13
FCC ID: 2ALXX-B4
FCC Warning
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter
