holyiot technology N52-USB Alfa-USB User Manual 001

Shenzhen holyiot technology Co.,LTD Alfa-USB 001

15_NRF52832 UserMan

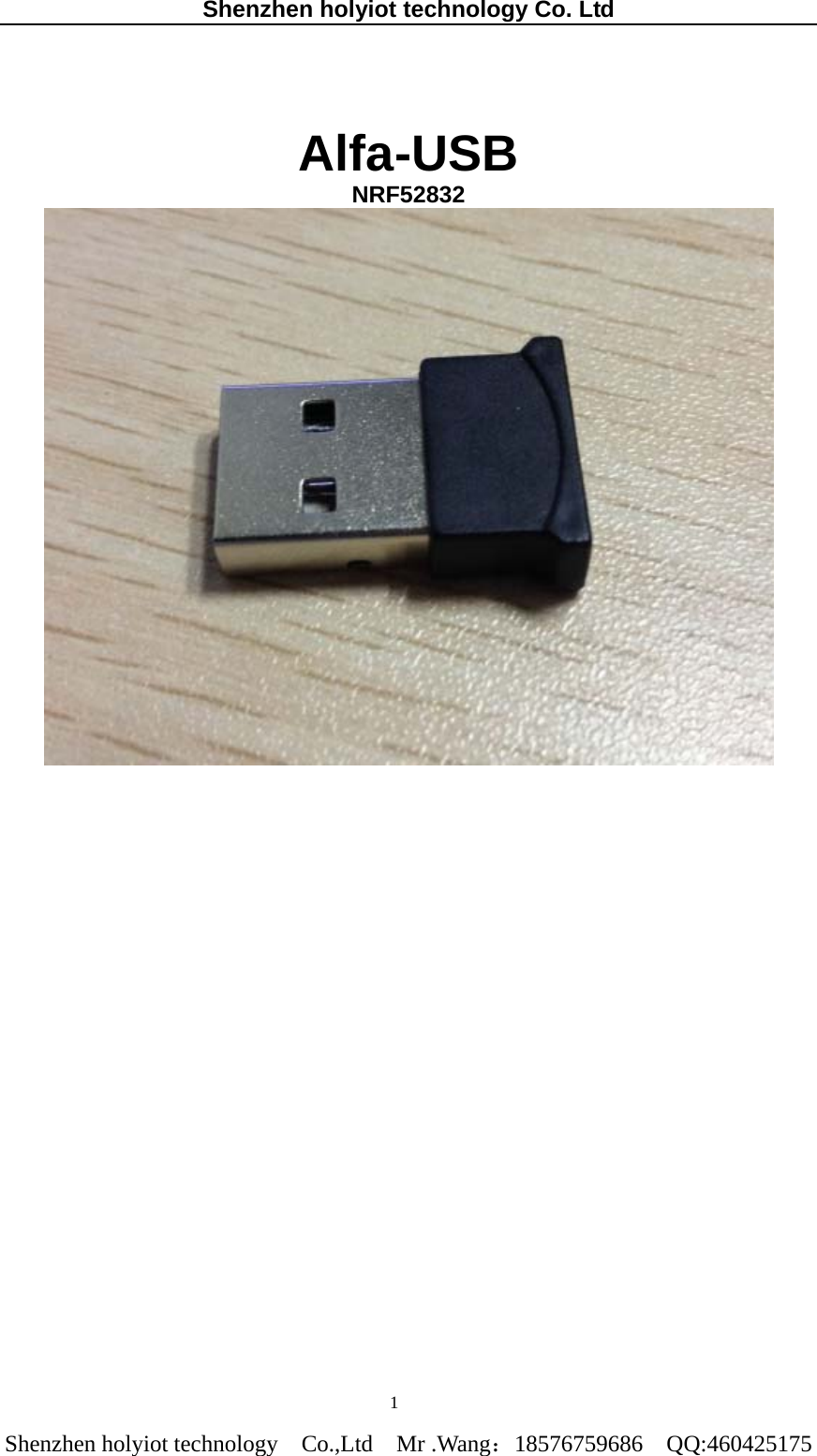

Shenzhen holyiot technology Co. Ltd Shenzhen holyiot technology Co.,Ltd Mr .Wang：18576759686 QQ:460425175 1 Alfa-USB NRF52832

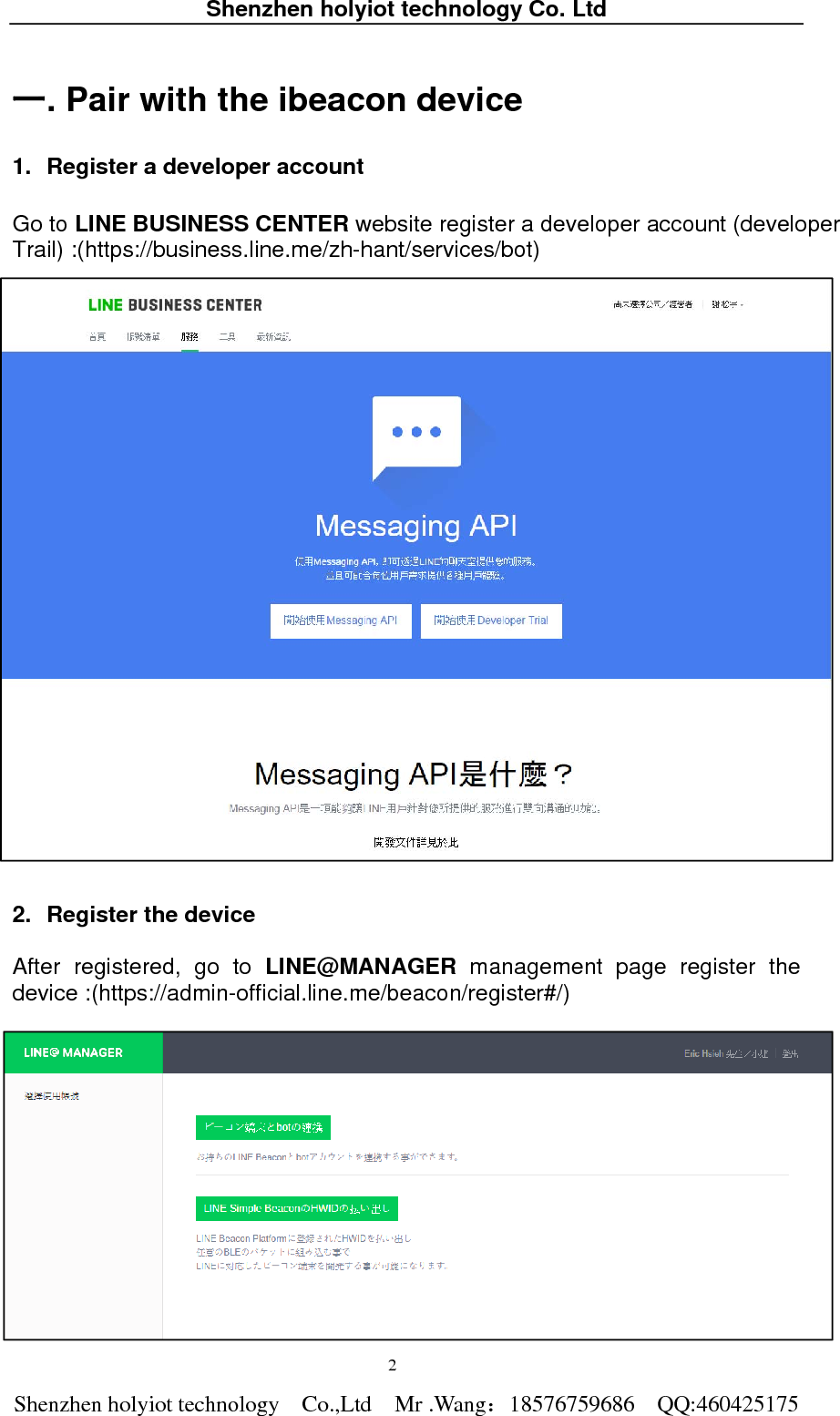

Shenzhen holyiot technology Co. Ltd Shenzhen holyiot technology Co.,Ltd Mr .Wang：18576759686 QQ:460425175 2一. Pair with the ibeacon device 1. Register a developer account Go to LINE BUSINESS CENTER website register a developer account (developer Trail) :(https://business.line.me/zh-hant/services/bot) 2. Register the device After registered, go to LINE@MANAGER management page register the device :(https://admin-official.line.me/beacon/register#/)
Shenzhen holyiot technology Co. Ltd Shenzhen holyiot technology Co.,Ltd Mr .Wang：18576759686 QQ:460425175 3 3. Login account Find out the code which have produce info refer to the manual ,and input the HWID and Password 二. How to use ibeacon 1. Open the System manual Refer to the offical documents, please visit here :https://devdocs.line.me/en/ According to the developer manual, then set the device. Please visit here: https://devdocs.line.me/en/#line-beacon

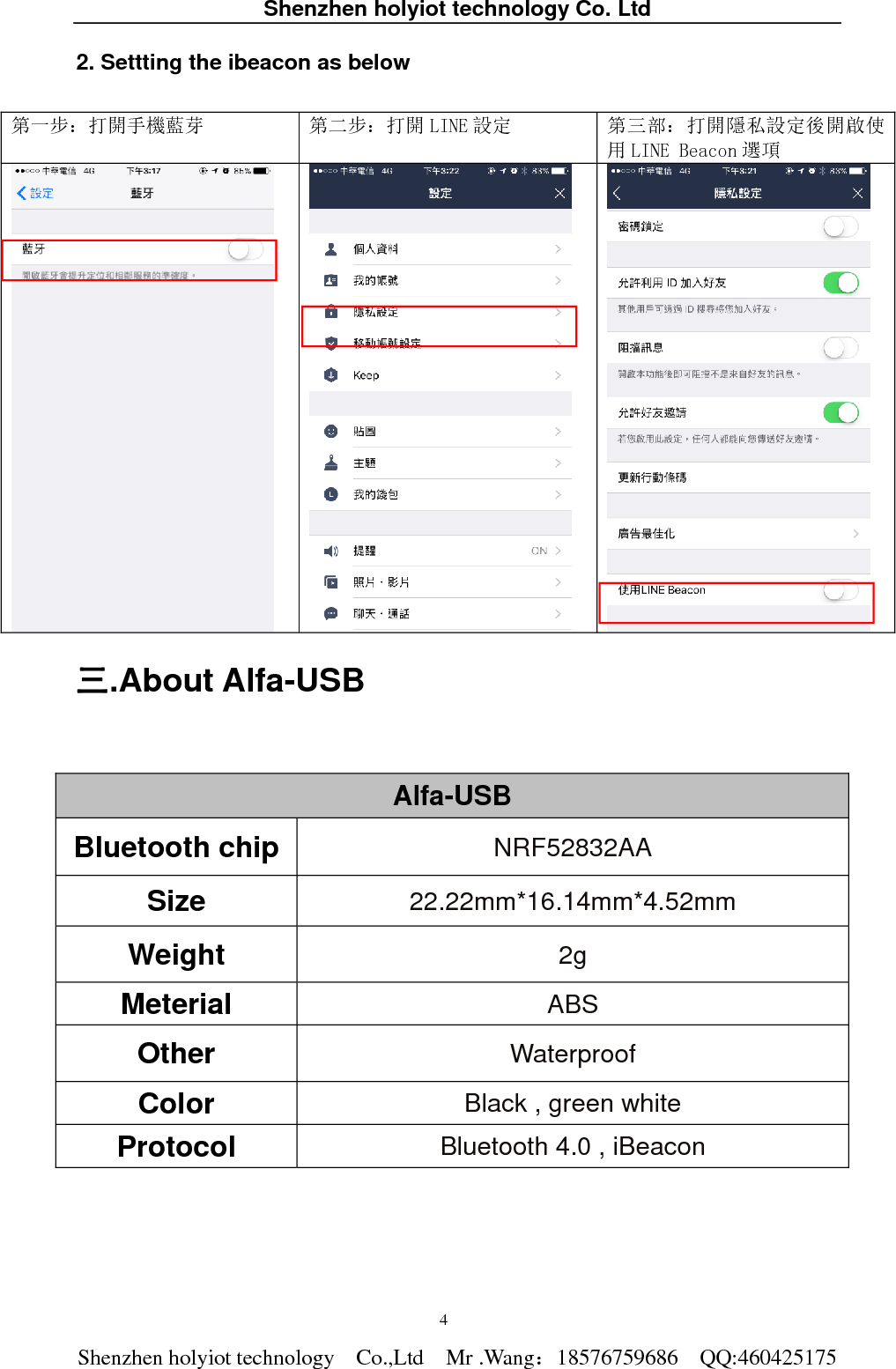

Shenzhen holyiot technology Co. Ltd Shenzhen holyiot technology Co.,Ltd Mr .Wang：18576759686 QQ:460425175 42. Settting the ibeacon as below 第一步：打開手機藍芽 第二步：打開 LINE 設定 第三部：打開隱私設定後開啟使用 LINE Beacon 選項 三.About Alfa-USB Alfa-USB Bluetooth chip NRF52832AA Size 22.22mm*16.14mm*4.52mm Weight 2g Meterial ABS Other Waterproof Color Black , green white Protocol Bluetooth 4.0 , iBeacon

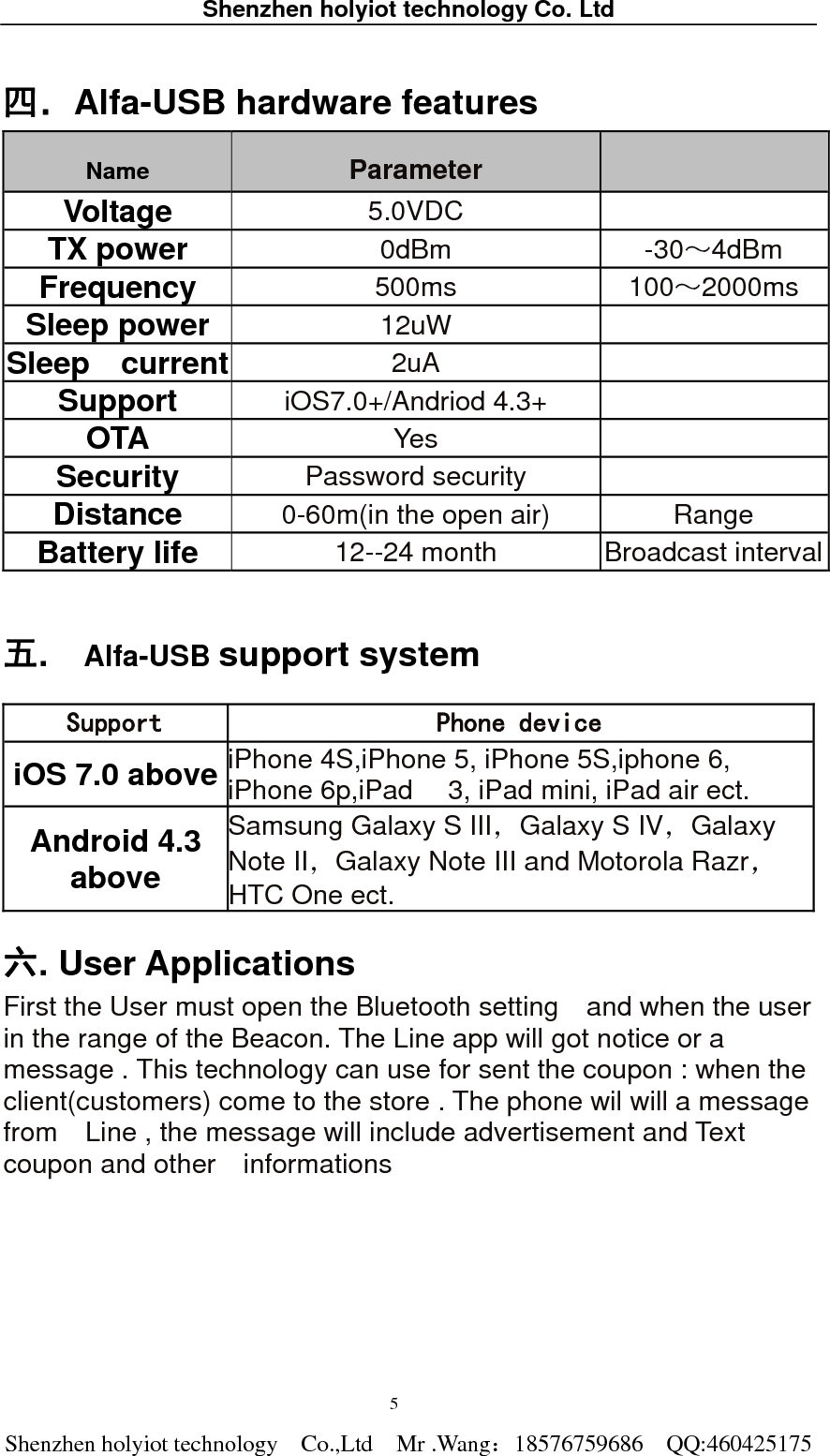

Shenzhen holyiot technology Co. Ltd Shenzhen holyiot technology Co.,Ltd Mr .Wang：18576759686 QQ:460425175 5四．Alfa-USB hardware features Name Parameter Voltage 5.0VDC TX power 0dBm -30～4dBm Frequency 500ms 100～2000ms Sleep power 12uW Sleep current 2uA Support iOS7.0+/Andriod 4.3+ OTA Yes Security Password security Distance 0-60m(in the open air) Range Battery life 12--24 month Broadcast interval 五. Alfa-USB support system Support Phone device iOS 7.0 above iPhone 4S,iPhone 5, iPhone 5S,iphone 6, iPhone 6p,iPad 3, iPad mini, iPad air ect. Android 4.3 above Samsung Galaxy S III，Galaxy S IV，Galaxy Note II，Galaxy Note III and Motorola Razr，HTC One ect. 六. User Applications First the User must open the Bluetooth setting and when the user in the range of the Beacon. The Line app will got notice or a message . This technology can use for sent the coupon : when the client(customers) come to the store . The phone wil will a message from Line , the message will include advertisement and Text coupon and other informations

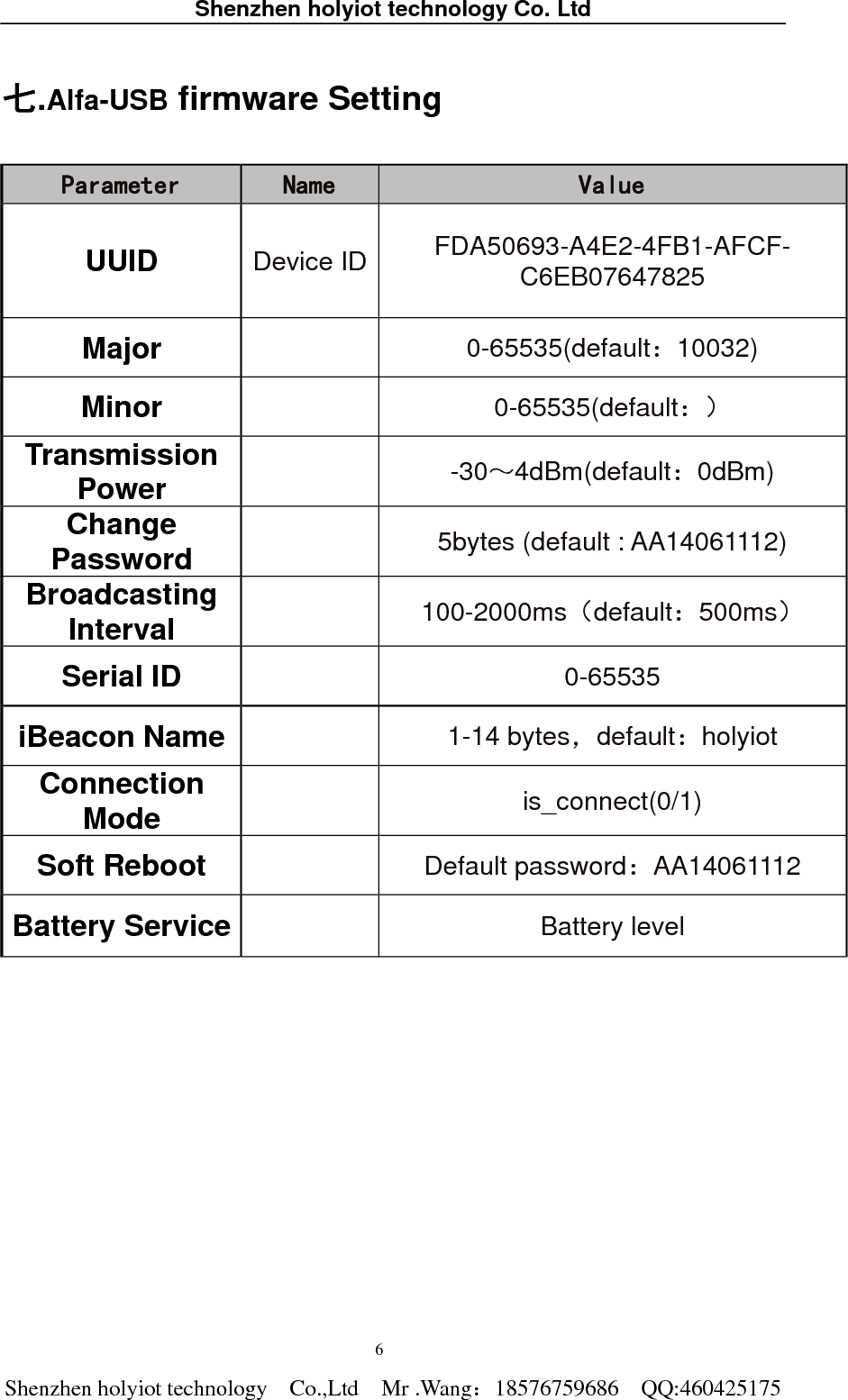

Shenzhen holyiot technology Co. Ltd Shenzhen holyiot technology Co.,Ltd Mr .Wang：18576759686 QQ:460425175 6七.Alfa-USB firmware Setting Parameter Name Value UUID Device ID FDA50693-A4E2-4FB1-AFCF-C6EB07647825 Major 0-65535(default：10032) Minor 0-65535(default：） Transmission Power -30～4dBm(default：0dBm) Change Password 5bytes (default : AA14061112) Broadcasting Interval 100-2000ms（default：500ms） Serial ID 0-65535 iBeacon Name 1-14 bytes，default：holyiot Connection Mode is_connect(0/1) Soft Reboot Default password：AA14061112 Battery Service Battery level

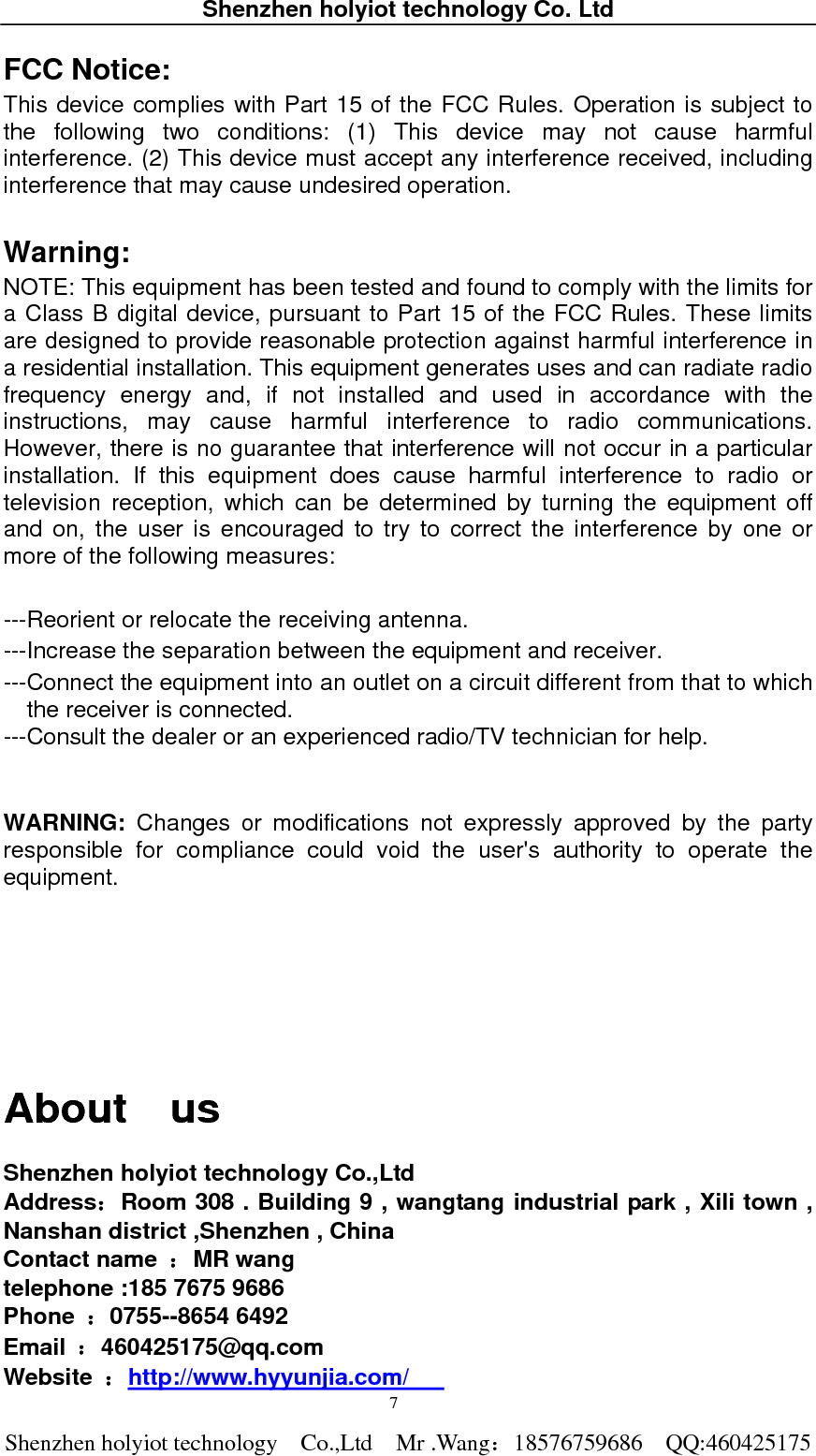

Shenzhen holyiot technology Co. Ltd Shenzhen holyiot technology Co.,Ltd Mr .Wang：18576759686 QQ:460425175 7FCC Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. About us Shenzhen holyiot technology Co.,Ltd Address：Room 308 . Building 9 , wangtang industrial park , Xili town , Nanshan district ,Shenzhen , China Contact name ：MR wang telephone :185 7675 9686 Phone ：0755--8654 6492 Email ：460425175@qq.com Website ：http://www.hyyunjia.com/
