Hp LaserJet Professional M1130/M1210 Software Technical Reference ENWW If Not Then Save

User Manual: hp If not then HP LaserJet Pro M1212nf Printer Software Technical Reference

Open the PDF directly: View PDF PDF.
Page Count: 194 [warning: Documents this large are best viewed by clicking the View PDF Link!]

LASERJET PROFESSIONAL M1130/M1210
MFP SERIES
Software Technical Reference
Additional product information:
www.hp.com/support/ljm1130series
www.hp.com/support/ljm1210series
HP LaserJet Professional M1130/M1210
MFP Series Printers
Software Technical Reference
Copyright and license
© 2016 Copyright HP
Development Company, L.P.
Reproduction, adaptation or translation
without prior written permission is prohibited,
except as allowed under the copyright laws.
The information contained herein is subject
to change without notice.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products
and services. Nothing herein should be
construed as constituting an additional
warranty. HP shall not be liable for technical
or editorial errors or omissions contained
herein.
Edition 2, 2/2016
Trademark Credits
Adobe®, Acrobat® and PostScript® are
trademarks of Adobe Systems Incorporated.
Corel® is a trademark or registered
trademark of Corel Corporation or Corel
Corporation Limited.
Microsoft®, Windows® and Windows NT®
are U.S. registered trademarks of Microsoft
Corporation.
Windows Vista™ is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or other
countries.
UNIX® is a registered of The Open Group.
ENERGY STAR® and the ENERGY STAR
logo® are U.S. registered marks of the
United States Enviromental Protection
Agency.
Table of contents
1 Purpose and scope ......................................................................................................................................... 1
Introduction ........................................................................................................................................... 2
Product comparison ............................................................................................................................. 3
Product features ................................................................................................................................... 4
Product views ....................................................................................................................................... 6

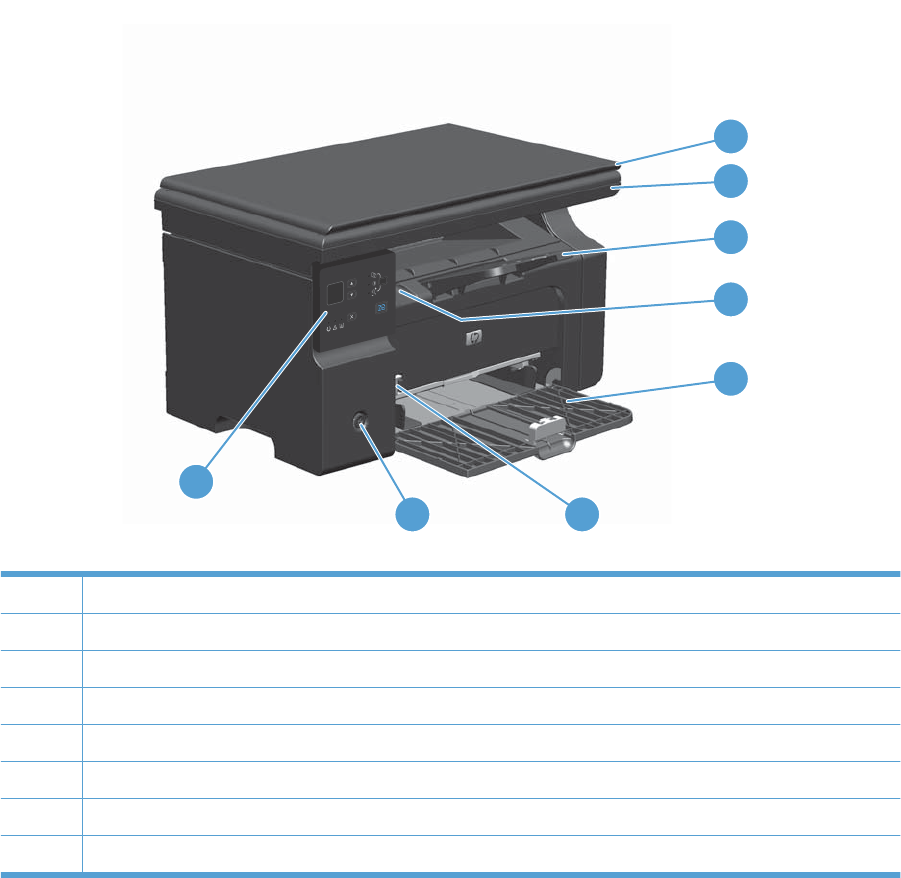

Front view ............................................................................................................................ 6
M1130 Series ...................................................................................................... 6
M1210 Series ...................................................................................................... 7
Back view ............................................................................................................................. 8
M1130 Series ...................................................................................................... 8
M1210 Series ...................................................................................................... 9
Serial number and model number location ........................................................................ 10
Control-panel layout ........................................................................................................... 11
M1130 Series .................................................................................................... 11
M1210 Series .................................................................................................... 12
Printing-system software .................................................................................................................... 13
Operating-system support ................................................................................................ 13
Supported operating systems for Windows ....................................................... 13
Supported printer drivers for Windows .............................................................. 14
Supported utilities for Windows ......................................................................... 14
HP Embedded Web Server (M1210 Series only) ............................. 14
HP Toolbox ....................................................................................... 14
Supported operating systems for Macintosh ..................................................... 15
Supported printer drivers for Macintosh ............................................................ 15
Supported utilities for Macintosh ....................................................................... 15
HP LaserJet Utility ............................................................................ 15
Embedded Web Server .................................................................... 16
Availability and localization ............................................................................................... 16
Software component availability for Windows and Macintosh .......................... 16
Printing-system software on the Web ............................................................... 17
In-box printing-system software CD .................................................................. 17
Printing-system software CD ............................................................ 17
CD Versions ..................................................................................... 18
Documentation ................................................................................................................................... 23
ENWW iii
Printing-system software CD ............................................................................................. 24

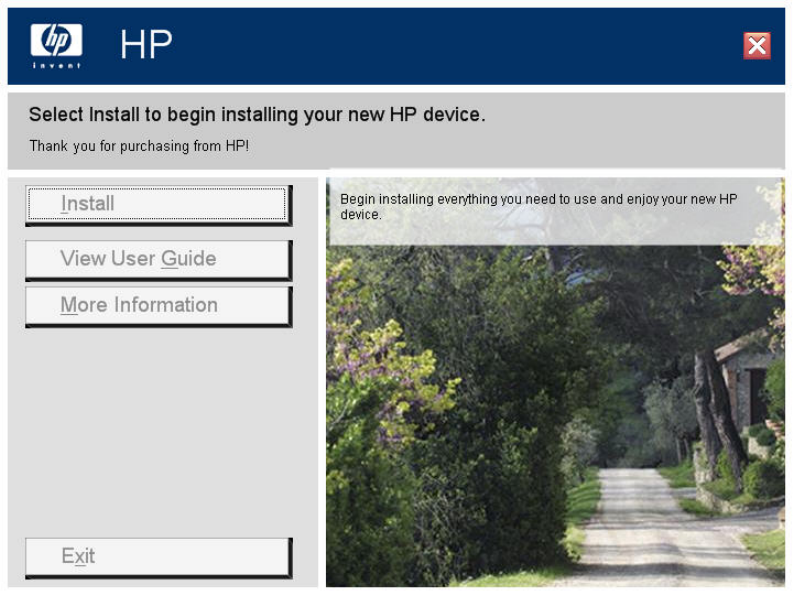

Main CD browser screen ................................................................................... 24
User Documentation ......................................................................................... 25
HP LaserJet Help Navigation ........................................................... 25
User Guide ....................................................................................... 33
More Information .............................................................................. 34
2 Software description .................................................................................................................................... 37
Windows printing-system software ..................................................................................................... 38
Supported operating systems for Windows ....................................................................... 38
Windows system requirements .......................................................................................... 38
Macintosh system requirements ........................................................................................ 39
Printer driver ...................................................................................................................... 39
Select the correct printer driver for Windows ..................................................................... 39
Priority for print settings ..................................................................................................... 39
Change printer-driver settings for Windows ....................................................................... 40
Printing system and installer .............................................................................................. 41
Printing-system software CD for Windows systems .......................................... 41
Installer features ................................................................................................ 42
Driver version numbers for Windows operating systems ................................................... 42
HP Driver Diagnostic Printer Check Tool ........................................................................................... 44
Embedded Web Server M1210 Series only ....................................................................................... 45
HP ToolboxFX .................................................................................................................................... 46
HP ToolboxFX overview .................................................................................................... 46
Starting HP ToolboxFX ..................................................................................... 46
Structure ............................................................................................................ 46
Opening screen ................................................................................................. 47
System requirements ......................................................................................................... 47
HP ToolboxFX folders ........................................................................................................ 47
Device Status .................................................................................................... 48
Help folder ......................................................................................................... 48
User Guide ....................................................................................... 49
Readme ............................................................................................ 49
Fax folder .......................................................................................................... 49
Fax Tasks pane ................................................................................ 50
Fax Phone Book pane ...................................................................... 50
Fax Send Log pane .......................................................................... 52
Fax Receive Log pane ...................................................................... 53
Fax Data Properties pane ................................................................. 55
Other Links ........................................................................................................................ 55
Product Support ................................................................................................ 55
Shop for Supplies .............................................................................................. 55
Product Registration .......................................................................................... 55
iv ENWW
3 Install Windows printing-system components .......................................................................................... 57
Supported operating systems for Windows ........................................................................................ 58
Windows operating system requirements .......................................................................................... 58
Install overview ................................................................................................................................... 58
Software installation types for Windows ............................................................................................. 58
Installation options .............................................................................................................................. 59
Microsoft Windows general installation overview ............................................................................... 60
HP LaserJet Professional M1130/M1210 MFP Series printing-system software for
Windows systems .............................................................................................................. 60
USB installation ................................................................................................. 60
CD installation ................................................................................................... 60

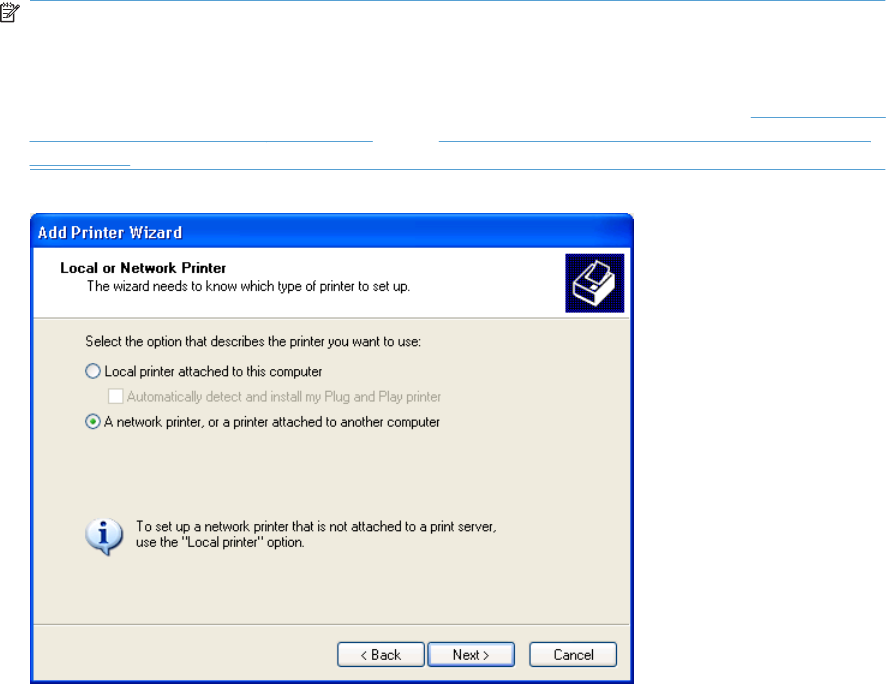

Install the print driver using the Microsoft Add Printer Wizard .......................... 61
Use an existing port for a direct connection ..................................... 63

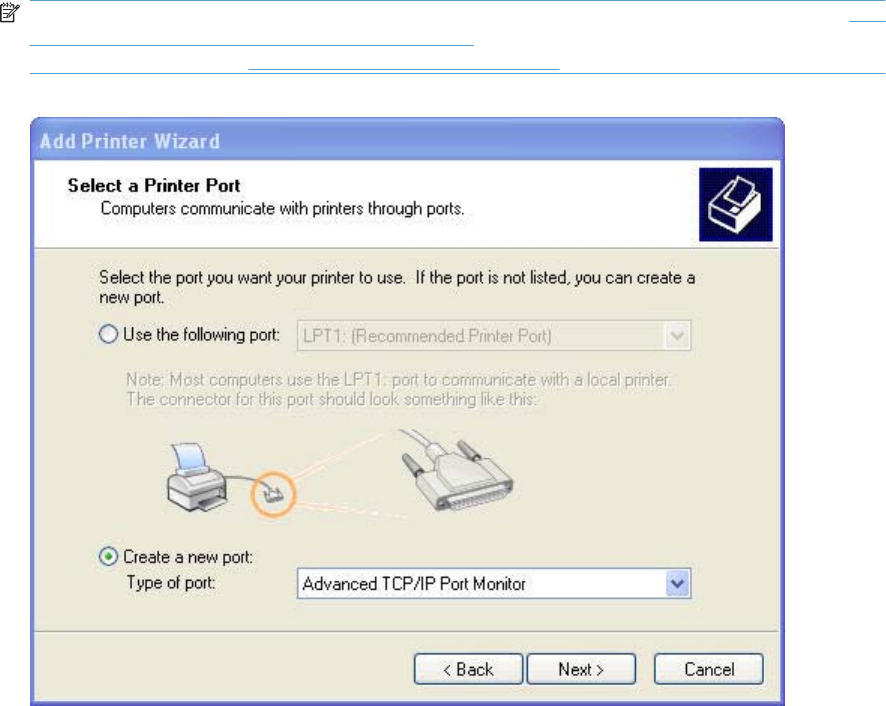

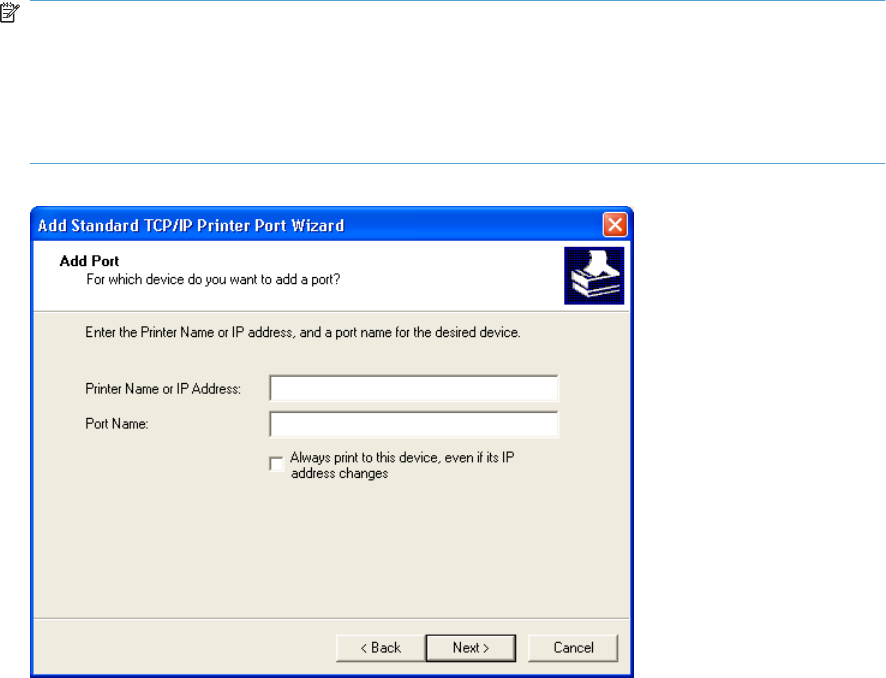

Create a new TCP/IP port for a direct connection ............................ 68
Print server connection ..................................................................... 71
Detailed MS Windows installation instructions ................................................................................... 75
Install the Host-based driver using HP Smart Install ......................................................... 75
Install the print driver for USB and wired network connected products ............. 75
EWS Smart Install (M1210 Series only) ............................................................ 77
Install the Host-based driver from the CD .......................................................................... 81
Install the print driver from the CD for USB connected products ...................... 81
Install the print driver from the CD for wired network connected products ........ 88
Install the HP LaserJet Professional M1130/M1210 MFP Series XPS driver .................... 96
New driver install ............................................................................................... 96
Existing driver install ....................................................................................... 104
Use the Back, Next, Finish, and Cancel buttons ............................................................. 112

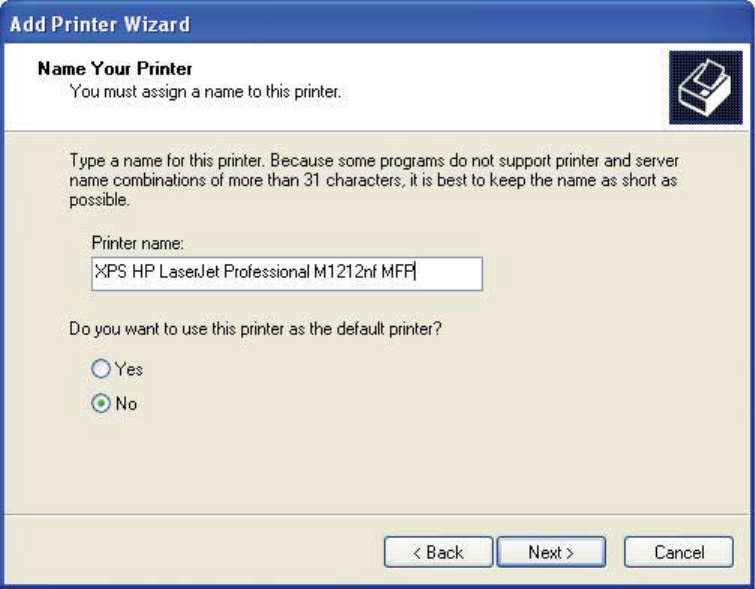

Set a default printer ......................................................................................................... 113
Uninstall software ............................................................................................................................. 114
Uninstall the Host based driver ........................................................................................ 114

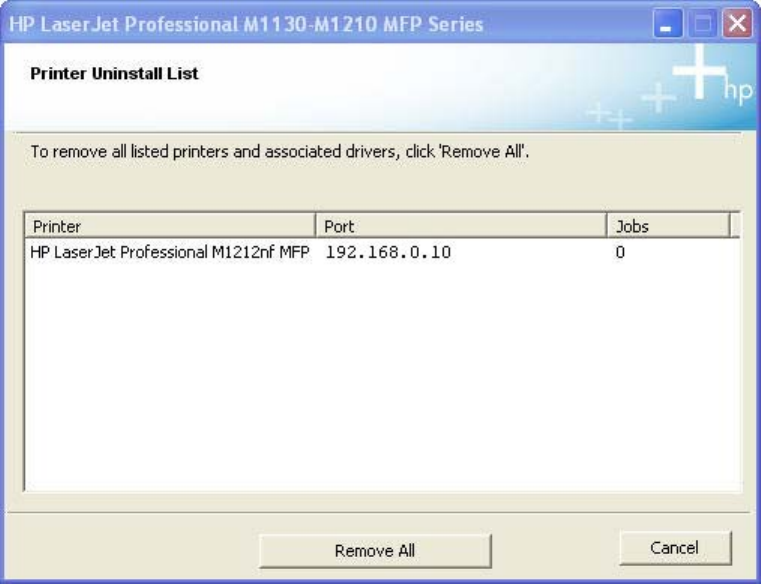

Use the HP Uninstall utility (recommended) ................................................... 114
Use Windows Add or Remove Programs feature ........................................... 114
Uninstall the XPS driver ................................................................................................... 115
4 HP host based print driver for Windows .................................................................................................. 117
Introduction ....................................................................................................................................... 117
Gain access to print drivers .............................................................................................................. 118
Printing Preferences driver tabs ...................................................................................... 118
Properties driver tabs ....................................................................................................... 119
Help system ...................................................................................................................................... 120
“What's this?” Help ........................................................................................................... 120
Incompatible Print Settings messages ............................................................................. 120
Advanced tab features ..................................................................................................................... 121
Print Tasks Quick Sets .................................................................................................... 121
ENWW v
Copies .............................................................................................................................. 122
Copies ............................................................................................................. 122
Printer Features ............................................................................................................... 122
Document preview image ................................................................................................ 122

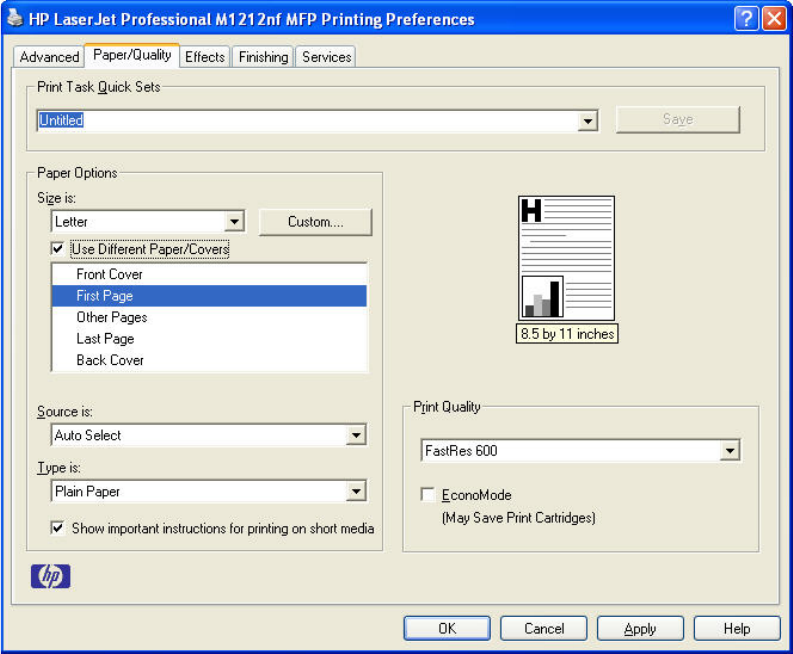

Paper/Quality tab features ................................................................................................................ 124
Print Tasks Quick Sets .................................................................................................... 124
Paper Options .................................................................................................................. 125
Size is .............................................................................................................. 125
Custom Paper Size ......................................................................................... 126
Name .............................................................................................. 126
Size ................................................................................................. 127
Units ............................................................................................... 127
Custom width and height control limits ........................................... 127
Use the short media extender tool .................................................. 127
Use Different Paper/Covers ............................................................................ 127
Source is ......................................................................................................... 128
Type Is ............................................................................................................ 129
Document preview image ................................................................................................ 129
Print Quality ..................................................................................................................... 130
Print Quality drop-down menu ......................................................................... 130
EconoMode check box .................................................................................... 130
Effects tab features .......................................................................................................................... 131
Print Tasks Quick Sets .................................................................................................... 131
Resizing Options .............................................................................................................. 132
Actual size ....................................................................................................... 132
Print document on .......................................................................................... 132
Scale to fit ....................................................................................................... 132
% of normal size .............................................................................................. 133
Document preview image ................................................................................................ 133
Watermarks ..................................................................................................................... 134

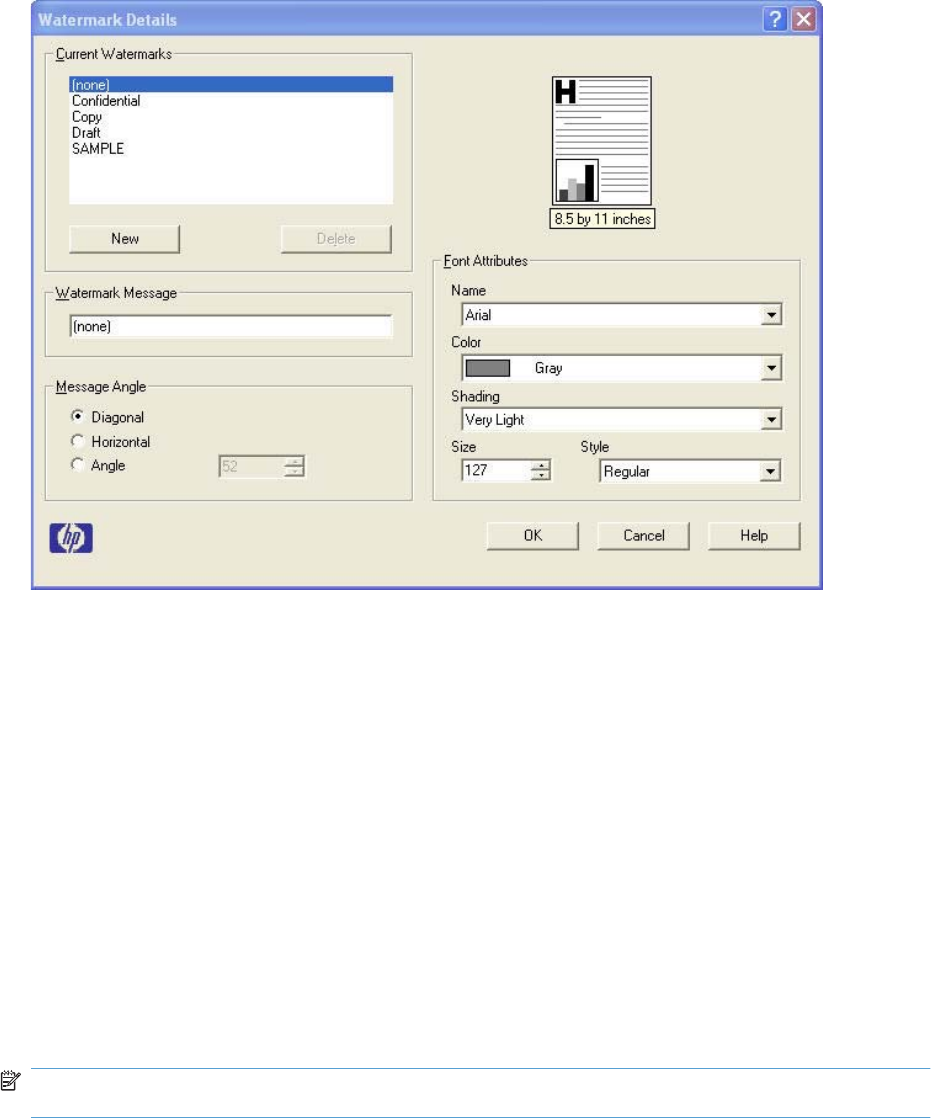

Watermark Details ........................................................................................... 135
Current Watermarks ....................................................................... 135
Watermark Message ...................................................................... 136
Message Angle ............................................................................... 136
Font Attributes ................................................................................ 136
Default watermark settings ............................................................. 137
Finishing tab features ....................................................................................................................... 138
Print Tasks Quick Sets .................................................................................................... 138
Document Options ........................................................................................................... 139
Print on both sides manually ........................................................................... 139
Flip pages up ................................................................................................... 140
Booklet Printing ............................................................................................... 141
Book and booklet printing ............................................................... 141
Pages per sheet .............................................................................................. 141
vi ENWW
Print page borders ........................................................................................... 141
Page order ...................................................................................................... 142
Document preview image ................................................................................................ 142
Orientation ....................................................................................................................... 142
Services tab features ........................................................................................................................ 144
Internet Services .............................................................................................................. 144
Print Information Pages ................................................................................................... 145
Device Settings ................................................................................................................................ 146
Duplex Mode .................................................................................................................... 147
Jam Recovery .................................................................................................................. 147
Status Messages ............................................................................................................. 147
Cleaning Page ................................................................................................................. 148
Print Density .................................................................................................................... 148
Auto-Off Console ............................................................................................................. 148
5 Macintosh software and utilities ............................................................................................................... 149
Supported operating systems for Macintosh .................................................................................... 150
Macintosh system requirements ....................................................................................................... 150
Hardware requirements ................................................................................................... 150
Macintosh printing-system software ................................................................................................. 150
HP LaserJet Professional M1130/M1210 MFP Series PPD ............................................ 150
HP LaserJet Professional M1130/M1210 MFP Series PDE ............................................ 151
HP USB EWS Gateway ................................................................................................... 151
HP LaserJet Utility ........................................................................................................... 151
Supported printer drivers for Macintosh ........................................................................... 151
Priority for print settings for Macintosh ............................................................................ 151
Change printer-driver settings for Macintosh ................................................................... 152
Software for Macintosh computers .................................................................................. 152
HP LaserJet Utility ........................................................................................... 152
Open the HP LaserJet Utility .......................................................... 152
Embedded Web Server ................................................................................... 152
Availability ........................................................................................................................ 152
Printing-system software on the Web ............................................................. 153
In-box printing-system software CD ................................................................ 153
Macintosh partition ......................................................................... 153
Macintosh install and uninstall instructions ...................................................................................... 154
Install the Macintosh printing-system software ................................................................ 154
General installation for Macintosh operating systems ..................................... 154
Detailed Mac OS X installation ........................................................................ 154
Setup instructions ............................................................................................ 164
Setting up a printer with Mac OS X V10.4, V10.5, and V10.6 ........ 165
Troubleshooting the product setup ................................................. 165
Remove the printing-system software from Macintosh operating systems ...................... 166
ENWW vii
6 Engineering Details .................................................................................................................................... 167
Introduction ....................................................................................................................................... 167
Firmware update ............................................................................................................................. 168
Determining the current level of firmware ....................................................................... 168
Download the Firmware Update Utility from the HP Web site ......................................... 168
Run the Firmware Update Utility ...................................................................................... 169
Media attributes ................................................................................................................................ 170
Driver-supported paper sizes ........................................................................................... 170
Driver-supported paper types .......................................................................................... 171
Custom paper sizes ......................................................................................................... 172
Index ................................................................................................................................................................. 173
viii ENWW
List of tables
Table 1-1 HP LaserJet Utility features .............................................................................................................. 16
Table 1-2 Software component availability ...................................................................................................... 16
Table 1-3 Supported printing-system components (AR-ET) ............................................................................ 19
Table 1-4 Supported printing-system components (FI-LT) ............................................................................... 20
Table 1-5 Supported printing-system components (LV-SL) ............................................................................. 21
Table 1-6 Supported printing-system components (SR-ZHT) .......................................................................... 21
Table 1-7 Status-light legend ........................................................................................................................... 28
Table 1-8 Control-panel light patterns .............................................................................................................. 28
Table 4-1 Host based driver custom paper sizes ........................................................................................... 127
Table 4-2 Font Attribute settings for new and preset watermarks ................................................................ 137
Table 4-3 Page orientation ............................................................................................................................. 140
Table 6-1 Supported paper and print media sizes ......................................................................................... 170
Table 6-2 Supported envelopes and postcards ............................................................................................. 170
Table 6-3 Host-based print driver custom paper sizes ................................................................................... 172
ENWW ix
xENWW
List of figures
Figure 1-1 Printing-system software CD – main browser screen ..................................................................... 24
Figure 1-2 View User Guide screen ................................................................................................................ 25
Figure 1-3 More Information screen ............................................................................................................... 34
Figure 2-1 Installation software CD Browser .................................................................................................... 41
Figure 2-2 HP ToolboxFX Status folder – Device Status pane ...................................................................... 48
Figure 2-3 HP ToolboxFX Help folder – Troubleshooting pane (1 of 2) ........................................................ 49
Figure 2-4 HP ToolboxFX Fax folder ............................................................................................................... 50
Figure 2-5 HP Toolbox FX Fax folder – Fax Tasks pane ................................................................................ 50
Figure 2-6 HP Toolbox FX Fax folder – Fax Phone Book pane ..................................................................... 51
Figure 2-7 HP Toolbox FX Fax folder – Fax Send Log pane .......................................................................... 53
Figure 2-8 HP Toolbox FX Fax folder – Fax Receive Log pane ..................................................................... 54
Figure 2-9 HP ToolboxFX Fax folder – Fax Data Properties pane ................................................................ 55
Figure 3-1 CD Browser – Main screen ............................................................................................................. 61
Figure 3-2 Add Printer Wizard – Local or Network Printer screen ................................................................... 62
Figure 3-3 Add Printer Wizard — Select a Printer Port screen ........................................................................ 63
Figure 3-4 Add Printer Wizard — Install Printer Software screen .................................................................... 64
Figure 3-5 Add Printer Wizard — Install from Disk screen ............................................................................... 64
Figure 3-6 Add Printer Wizard — Install Printer Software, screen 2 ................................................................ 65
Figure 3-7 Add Printer Wizard — Name Your Printer screen ........................................................................... 66
Figure 3-8 Add Printer Wizard — Printer Sharing screen ................................................................................ 67
Figure 3-9 Add Printer Wizard — Print Test Page screen ................................................................................ 67
Figure 3-10 Select a Printer Port screen .......................................................................................................... 68
Figure 3-11 Add Advanced TCP/IP Printer Port screen ................................................................................... 69
Figure 3-12 Add Port screen ............................................................................................................................ 70
Figure 3-13 Add Printer Wizard — Local or Network Printer screen ................................................................ 71
Figure 3-14 Add Printer Wizard — Specify A Printer screen ............................................................................ 72
Figure 3-15 Add Printer Wizard — Find Printers screen .................................................................................. 73
Figure 3-16 Add Printer Wizard — Default Printer screen ............................................................................... 73
Figure 3-17 Add Printer Wizard — Browse for Printer screen .......................................................................... 74
Figure 3-18 Welcome to HP Smart Install screen ............................................................................................ 75
Figure 3-19 Printer Connections screen ........................................................................................................... 76
Figure 3-20 Congratulations! Software installation complete ........................................................................... 77
Figure 3-21 Software Installation — Initial screen ....................................................................................... 82
Figure 3-22 Choose Easy Install or Advanced Install screen ........................................................................... 83
ENWW xi
Figure 3-23 Select Printer screen ..................................................................................................................... 84
Figure 3-24 Configure to print using USB screen (part 1) ................................................................................ 85
Figure 3-25 Configure to print using USB screen (part 2) ................................................................................ 86
Figure 3-26 Software installation complete screen (part 1) .............................................................................. 87
Figure 3-27 Software installation complete screen (part 2) .............................................................................. 88
Figure 3-28 Software Installation — Initial screen ....................................................................................... 89
Figure 3-29 Choose Easy Install or Advanced Install screen ........................................................................... 90
Figure 3-30 Select Printer screen ..................................................................................................................... 91
Figure 3-31 Identify Printer screen ................................................................................................................... 92
Figure 3-32 Printers Found screen. .................................................................................................................. 93
Figure 3-33 Confirm Settings screen ................................................................................................................ 94
Figure 3-34 Software installation complete screen (part 1) .............................................................................. 95
Figure 3-35 Software installation complete screen (part 2) .............................................................................. 96
Figure 3-36 Welcome to the HP Smart Install Utility screen ............................................................................ 97
Figure 3-37 HP Smart Install Printer Configuration screen .............................................................................. 98
Figure 3-38 HP Smart Install currently Enabled screen ................................................................................... 98
Figure 3-39 HP Smart Install currently Disabled screen .................................................................................. 99
Figure 3-40 Welcome to the Found New Hardware Wizard screen ........................................................... 100
Figure 3-41 Locate File dialog window ........................................................................................................... 103
Figure 3-42 Add Printer Wizard ...................................................................................................................... 105
Figure 3-43 Local or Network Port screen ...................................................................................................... 106
Figure 3-44 Select a Printer Port screen ........................................................................................................ 107
Figure 3-45 Install Printer Software screen .................................................................................................... 108
Figure 3-46 .................................................................................................................................................... 109
Figure 3-47 Use Existing Driver screen .......................................................................................................... 110
Figure 3-48 Name Your Printer screen .......................................................................................................... 111
Figure 3-49 Completing the Add Printer Wizard screen ................................................................................. 112
Figure 3-50 Installation Cancelled dialog box .............................................................................................. 112
Figure 3-51 Uninstall ...................................................................................................................................... 115
Figure 4-1 An Incompatible Print Settings message .................................................................................. 120
Figure 4-2 The default appearance of the Advanced tab ............................................................................. 121
Figure 4-3 Paper/Quality tab ........................................................................................................................ 124
Figure 4-4 Paper Options group box ........................................................................................................... 125
Figure 4-5 Custom Paper Size dialog box ................................................................................................... 126
Figure 4-6 Effects tab ................................................................................................................................... 131
Figure 4-7 Preview images – Legal on Letter; Scale to Fit off (left) and on (right) ........................................ 133
Figure 4-8 Watermark Details dialog box .................................................................................................... 135
Figure 4-9 Finishing tab ............................................................................................................................... 138
Figure 4-10 Print on Both Sides Instructions dialog box ............................................................................ 140
Figure 4-11 Page-order preview images ....................................................................................................... 142
Figure 4-12 Services tab ............................................................................................................................... 144
Figure 4-13 Device Settings tab - M1212nf model shown ............................................................................. 146
Figure 5-1 Introduction screen ..................................................................................................................... 155
Figure 5-2 Software License Agreement screen ......................................................................................... 156
xii ENWW
Figure 5-3 Agree/Disagree screen ................................................................................................................ 156
Figure 5-4 Product Select screen ................................................................................................................. 157

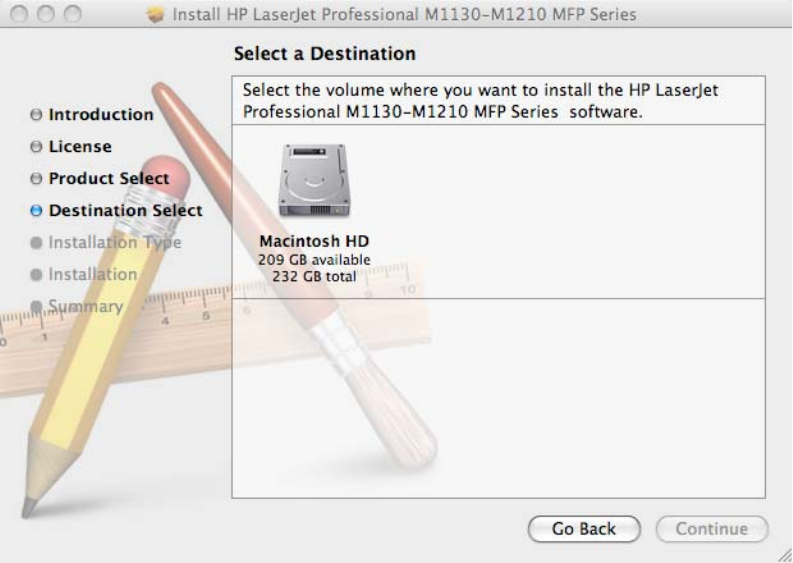

Figure 5-5 Select a Destination screen ........................................................................................................ 158
Figure 5-6 Select a Destination screen ........................................................................................................ 159
Figure 5-7 Standard Install on “Mac HardDrive” screen ............................................................................ 160
Figure 5-8 HP Setup Assistant screen ........................................................................................................... 160
Figure 5-9 HP Setup Assistant screen ........................................................................................................... 161
Figure 5-10 HP Firmware Upgrade Utility — Introduction screen ................................................................ 161
Figure 5-11 HP Firmware Upgrade Utility — Select Device screen .............................................................. 162
Figure 5-12 HP Firmware Upgrade Utility — Finish-Up screen .................................................................... 163
Figure 5-13 HP Director main screen ............................................................................................................. 163
Figure 5-14 HP Director scan settings ........................................................................................................... 164
Figure 6-1 Firmware Update Utility. List of available printers shown screen. ................................................ 169
Figure 6-2 Firmware update successful screen. ............................................................................................ 169
ENWW xiii
xiv ENWW
1 Purpose and scope
ENWW 1
Introduction
This software technical reference (STR) provides information about and troubleshooting tips for the
printing-system software for the product.
This STR is prepared in an electronic format to serve as a quick-reference tool for Customer Care Center
(CCC) agents, support engineers, system administrators, management information systems (MIS)
personnel, and end users, as appropriate.
NOTE: This STR describes drivers that are available from the product firmware and shipped on the
printing-system software CD that comes with the product. This STR does not describe drivers that will
become available on the Web.
The following information is included in this STR:
●Descriptions of drivers, operating systems, and system environments
●Procedures for installing and uninstalling the printing-system software components
For information about the location of information within chapters, see the table of contents. An index is
also provided in this STR.
Additional detailed information about the printing-system software is published in an addendum to this
STR. The following information is available in the addendum:
●Lists of installed files
●System-modification information, such as files added or modified
2 Chapter 1 Purpose and scope ENWW
Product comparison
The product is available in the following configurations.
M1130 Series M1210 Series
●Prints letter-size pages at speeds up to 19 pages per
minute (ppm) and A4-size pages at speeds up to 18 ppm.
●The input tray holds up to 150 sheets of print media or up
to 10 envelopes.
●The output bin holds up to 100 sheets
●2-digit LED control-panel display
●Manual two-sided (duplex) printing and copying.
●Copy from the flatbed scanner
●Full-color scanning
●Hi-Speed USB 2.0 port.
●8-MB random-access memory (RAM).
●Prints letter-size pages at speeds up to 19 pages per
minute (ppm) and A4-size pages at speeds up to 18 ppm.
●The input tray holds up to 150 sheets of print media or up
to 10 envelopes.
●The output bin holds up to 100 sheets
●LCD control-panel display
●Copy from the flatbed scanner or from the document
feeder
●Full-color scanning
●Hi-Speed USB 2.0 port.
●Integrated networking for connecting to a 10/100Base-TX
network.
●V.34 fax modem and 500 Slerex pages.
●Two RJ-11 fax/phone cable ports.
●64-MB random-access memory (RAM).
●35-page document feeder.
ENWW Product comparison 3
Product features
Print ●Prints letter-size pages at speeds up to 19 ppm and A4-size pages at speeds up to
18 ppm.
●Prints at 400x600x2 dots per inch (dpi) with FastRes 600 (default). Supports FastRes 1200
at 600x600x2 dpi for high-quality printing of text and graphics.
●Includes adjustable settings to optimize print quality.
Copy ●Scans at 300 pixels per inch (ppi) and prints with FastRes 600.
●Easily change the number of copies, adjust the lightness or darkness, or reduce or enlarge
the size of copies from the control panel.
●ID Copy feature copies both sides of identification cards, or other small-size documents,
onto the same side of one sheet of paper. M1210 Series only.
Scan ●Provides up to 1200 pixels per inch (ppi) full-color scanning from the flatbed scanner.
●Provides up to 300 ppi full-color scanning from the document feeder.
●Scan from TWAIN-compliant or Windows Imaging Application (WIA)-compliant software.
●Scan from a computer by using HP LaserJet Scan software for Windows or by using
HP Director software for Mac.
Fax (M1210 Series only) ●Full-functionality fax capabilities with a V.34 fax; includes a phone book and delayed-fax
features.
●Stores up to 500 pages in memory.
●Recovers faxes from memory for up to four days following a power failure.
Supported operating
systems
●Windows 7 (32-bit and 64-bit)
●Windows Vista (32-bit and 64-bit)
●Windows XP (32-bit and 64-bit)
●Mac OS X 10.4, 10.5, 10.6
●Windows Server 2003 (32-bit and 64-bit)
●Windows Server 2008 (32-bit and 64-bit)
HP Smart Install Allows easy installation of the product printing software from the product firmware via a USB
or network connection.
Memory ●M1130 Series: Includes 8-megabyte (MB) random-access memory (RAM).
●M1210 Series: Includes 64-MB RAM.
Paper handling ●The input tray holds up to 150 sheets of paper or 10 envelopes.
●The document feeder holds up to 35 sheets of paper.
●The output bin holds up to 100 sheets of paper.
Printer driver features ●Print multiple pages on one sheet.
●Print booklets.
●Scale to fit different paper sizes.
●Print cover pages on different paper.
4 Chapter 1 Purpose and scope ENWW
Interface connections ●Hi-Speed USB 2.0 port.
●RJ-45 network port. (M1210 Series only)
●Two RJ-11 fax/phone cable ports. (M1210 Series only)
Economical printing ●N-up printing (printing more than one page on a sheet) and the manual two sided printing
features save paper.
●EconoMode printer driver feature saves toner.
●Auto-Off mode allows the product to automatically reduce its power consumption after a
user-specified time period. The product returns to the ready state when a button is pressed
or a print job is received.
Archive printing Archive printing feature for printing pages that you plan to store for a long time.
Supplies ●Authentication for genuine HP print cartridges.
●Easy ordering for replacement supplies.
●Supplies status page shows estimated toner level in the print cartridge. Not available for
non-HP supplies.
Self-help Quick-reference pages available from www.hp.com/support/ljm1130series or www.hp.com/
support/ljm1210series.
Accessibility ●All doors and covers can be opened by using one hand.
Security ●Receptacle for a cable-type security lock.
ENWW Product features 5
Product views
Front view
M1130 Series
6
3
5
4
1
2
7
8
1Scanner lid
2Scanner assembly
3Output bin with extension for long paper
4Print-cartridge door lift-tab
5Input tray
6Short media extender tool
7Power button
8Control panel
6 Chapter 1 Purpose and scope ENWW
M1210 Series
8
5
7
10
6
1
2
3
4
9
1Document feeder
2Document feeder output bin
3Scanner lid
4Scanner assembly
5Output bin with extension for long paper
6Print-cartridge door lift-tab
7Input tray
8Short media extender tool
9Power button
10 Control panel
ENWW Product views 7
Back view
M1130 Series
1 2
3
1Slot for a cable-type security lock
2Hi-Speed USB 2.0 port
3Power connection
8 Chapter 1 Purpose and scope ENWW
M1210 Series
1
2
3
5
4
1Slot for a cable-type security lock
2RJ-45 network port
3Hi-Speed USB 2.0 port
4RJ-11 fax ports; the upper port is for a phone line, the lower port is for a telephone handset.
5Power connection
ENWW Product views 9
Serial number and model number location
The serial number and product model number label is at the back of the product.
10 Chapter 1 Purpose and scope ENWW
Control-panel layout
M1130 Series
2 3 4 5
6
1
7
891011
1 LED display screen: Displays the number of copies, the level of darkness for copies, and the percentage of copy-
size reduction or enlargement. It also shows error codes that alert you of problems that require attention.
2Up and down arrows: Increases or decreases the number of copies, the level of darkness for copies, or the
percentage of copy-size reduction or enlargement.
●Press the buttons for less than one second to increase or decrease copy settings by one increment.
●Press the buttons for one second or longer to increase or decrease the level of darkness to the maximum or
minimum value.
●Press the buttons for one second or longer to increase or decrease the number of copies or the percentage of
copy-size reduction or enlargement by 10 increments.
3Reduce/Enlarge copy light: Indicates the copy-size reduction or enlargement feature is active.
4Darker/Lighter copy light: Indicates the copy-darkness feature is active.
5Number Of Copies light: Indicates the number-of-copies feature is active.
6Setup button: Scrolls between the copy settings for number of copies, darkness, and copy size for each job. The
default option is the number of copies. To change the default settings for all jobs, scroll to the setting and then press
and hold the button for 3 seconds. When the light is blinking, adjust the setting. Press this button again to save the
setting.
7Start Copy button: Starts a copy job.
8Cancel button: Cancels the current job, or clears the last setting you made. When the product is in the Ready state,
press this button to reset the copy settings to the default values.
9Toner-level status light: Indicates the level of toner in the print cartridge is low.
10 Attention light: Indicates a problem with the product.
11 Ready light: Indicates the product is ready or is processing a job.
ENWW Product views 11
M1210 Series
4 5 6
1
2
8
3
13 12 11
9
15
7
14
10
1Toner-level status light: Indicates the level of toner in the print cartridge is low.
2Attention light: Indicates a problem with the product. View the LCD display for a message.
3Ready light: Indicates the product is ready or is processing a job.
4 LCD display screen: Displays status information, menus, and messages.
5Copy Settings button: Opens the Copy Settings menu.
6Setup button: Opens the menus.
7Left and right arrows: Enter and navigate through the menus. Decrease or increase the current value on the screen.
Move the screen cursor backward or forward one space.
8OK button: Acknowledges a setting or confirms an action to proceed.
9Cancel button: Cancels the current job, or clears the last setting you made. When the product is in the Ready state,
press this button to reset the copy settings to the default values.
10 Start Copy button: Starts a copy job.
11 Back arrow: Returns to the previous level in the menus.
12 Send Fax button: Starts a fax job.
13 Redial button: Recalls the last digits used for the previous fax job.
14 Darker/Lighter copy button: Adjusts the darkness setting for the current copy job.
15 Numeric keypad: Use the keypad to enter fax numbers or to enter data.
12 Chapter 1 Purpose and scope ENWW
Printing-system software
●Operating-system support
●Availability and localization
Operating-system support
Windows operating systems provide full-featured support for the product. Operating systems that are
not described in this STR provide varying levels of functionality.
Throughout this document, Windows XP is used to denote Windows XP Home Edition and Windows
XP Professional, unless noted otherwise.
Information relating to networking functions is specific to products that have network capabilities.
The printing-system software has not been tested with and is not supported in the following operating
systems:
●Windows 3.1x
●Windows 95
●Windows 98
●Windows 2000
●Windows Millennium Edition (Me)
●Windows NT® 4.0
●IA-64-bit operating systems
Printer drivers for these operating systems are not included in the product firmware, on the printing-
system software CD, and are not available on the Web. Other printer drivers might work with the product,
but some print-driver features and functions might not be available.
For more information about the product, go to the following Web sites:
www.hp.com/support/ljm1130series or www.hp.com/support/ljm1210series
●Supported operating systems for Windows
●Supported printer drivers for Windows
●Supported utilities for Windows
●Supported operating systems for Macintosh
●Supported printer drivers for Macintosh
●Supported utilities for Macintosh
Supported operating systems for Windows
The product supports the following Windows operating systems:
●Windows XP (32-bit and 64-bit)
●Windows Server 2003 (32-bit and 64-bit)
ENWW Printing-system software 13
●Windows Vista (32-bit and 64-bit)
●Windows Server 2008 (32-bit and 64-bit)
●Windows 7 (32-bit and 64-bit)
Supported printer drivers for Windows
●HP LaserJet Professional M1130/M1210 MFP Series Host-based print driver
●HP LaserJet Professional M1130/M1210 MFP Series XPS print driver
The printer drivers include online Help that has instructions for common printing tasks and also describes
the buttons, check boxes, and drop-down lists that are in the printer driver.
NOTE: The host-based driver is the only printer driver that is included with this product; it is included
in the product firmware and on the printing-system CD.
The XPS driver is available by Web download only at www.hp.com/go/ljm1130series_software or
www.hp.com/go/ljm1210series_software
NOTE: For more information about the UPD, see www.hp.com/go/upd.
Supported utilities for Windows
The following utilities for Windows are available for the HP LaserJet Professional M1130/M1210 MFP
Series printer.
HP Embedded Web Server (M1210 Series only)
M1210 Series products are equipped with the HP Embedded Web Server (HP EWS), which provides
access to information about product and network activities. This information appears in a Web browser,
such as Microsoft Internet Explorer, Apple® Safari, or Firefox.
The HP EWS resides on the product. It is not loaded on a network server.
The HP EWS provides an interface to the product that anyone who has a network-connected computer
and a standard Web browser can use. No special software is installed or configured, but you must have
a supported Web browser on the computer. To gain access to the HP EWS, type the IP address for the
product in the address line of the browser.
For a complete explanation of the features and functionality of the HP EWS, see the HP LaserJet M1130/
M1210 Series User Guide, which is available on the printing system software CD.
HP Toolbox
HP Toolbox software is a program that you can use for the following tasks:
●Check the product status.
●Check the supplies status and use HP SureSupply to shop online for supplies.
●Set up alerts.
●View product usage reports.
●View product documentation.
●Gain access to troubleshooting and maintenance tools.
14 Chapter 1 Purpose and scope ENWW
●Configure fax settings
●View PC fax jobs
You can view HP Toolbox software when the product is directly connected to your computer or when it
is connected to a network.
To download HP Toolbox software, use the HP Toolbox link on the printing system software CD that
appears at the end of the driver installation sequence. You can also use your Web browser to go directly
to www.hp.com/go/easyprintercare. This Web site provides updated information about supported
browsers, a list of HP products that support HP Toolbox software, and the HP LaserJet Professional
M1130/M1210 MFP Series User Guide, which provides more information about using the HP Toolbox
software.
Supported operating systems for Macintosh
The product supports the following Macintosh operating systems:
●Mac OS X V10.4, V10.5, and V10.6
NOTE: PPC and Intel® Core Processor Macs are supported.
Supported printer drivers for Macintosh
The HP LaserJet software installer provides PostScript® Printer Description (PPD) files, a CUPS driver,
and the HP Printer Utilities for Mac OS X. The HP printer PPD file, in combination with the CUPS driver,
provides full printing functionality and access to specific HP printer features.
Supported utilities for Macintosh
The following additional software is available for Macintosh for use with the HP LaserJet Professional
M1130/M1210 MFP Series printer.
HP LaserJet Utility
Use the HP LaserJet Utility to set up product features that are not available in the printer driver.
You can use the HP LaserJet Utility when the product is connected with a universal serial bus (USB)
cable.
Open the HP LaserJet Utility
●From the Printer menu, click Printer Utility, or
●From the Print Queue, click the Utility icon.
HP LaserJet Utility features
The HP Printer Utility consists of pages that you open by clicking in the Configuration Settings list.
The following table describes the tasks that you can perform from these pages.
ENWW Printing-system software 15
Table 1-1 HP LaserJet Utility features
Item Description
Print information Pages Allows you to print the following information pages.
●Cleaning Page
●Demo Page
●Configuration Page
●Supply Status Page
●Control-Panel Reference Page
Auto-Off Console Auto-Off is an energy-saving feature of this product. After a user-specified time period, the
product automatically reduces its power consumption (Auto-Off). The product returns to
the ready state when a button is pressed or a print job is received. When the product is in
Auto-Off mode, all of the control-panel LEDs and the power button backlight LED are off.
Although the product lights are off in Auto-Off mode, the product will work normally when
it receives a print job.
HTML Config... Open the EWS for the product (M1210 Series only).
Embedded Web Server
The product is equipped with the HP EWS, which provides access to information about product and
network activities.
Availability and localization
Download the printing-system software from the Web, or order it on a CD from HP fulfillment centers.
NOTE: This STR describes drivers that are included in the product firmware and are also shipped with
the printing-system software CD. This document does not describe any drivers that might be released
by support personnel.
●Software component availability for Windows and Macintosh
●Printing-system software on the Web
●In-box printing-system software CD
Software component availability for Windows and Macintosh
The following table lists the availability of printing-system software components for Windows and
Macintosh computers.
Table 1-2 Software component availability
Component Windows Macintosh
HP Smart Install x
Mac Installer x
Windows Host-based Print Driver x
XPS driver x
16 Chapter 1 Purpose and scope ENWW
Component Windows Macintosh
Mac OS X V10.4, V10.5, V10.6 Print
Driver
x
Scan to application software x x
Usage tracking software x x
OCR application software x x
WIA and TWAIN driver software x x
Print Dialog Extensions x
User Guide (PDF) x
User Guide (CHM) x
SW Install Notes x
Getting Started Guide x x
HP LaserJet Help Navigation x
CD Browser x
Printing-system software on the Web
All software that is contained in the product firmware and on the installation CD is also available on the
Web.
Web deployment is the preferred method for obtaining the latest software. The HP Web site offers an
option for automatic e-mail notification about new software releases.
The printing-system software is available for download at the following Web sites:
www.hp.com/support/ljm1130series or www.hp.com/support/ljm1210series
In-box printing-system software CD
One CD is included in-box with the product. The printing-system software CD contains the following
components:
●Software installer
●User guide
●Install notes
●Support information
Each CD has two partitions, one each for Windows and Macintosh computers.
The files in each partition of the printing-system software CD include documentation files and files that
are required to install and uninstall the printing-system software components.
Printing-system software CD
The root directory in the Windows partition of the printing-system software CD contains the HpSetup.exe
file, the setup.exe file, support files, and language specific directories.
Table 1-2 Software component availability (continued)
ENWW Printing-system software 17
To view the files, insert the printing-system software CD into the CD-ROM drive, right-click Start, click
Explore, and then select the CD-ROM drive.
CD Versions
The printing-system software CD is available in one version and contains the printing-system software
in all supported languages as follows:
CD – supported languages
●AR = Arabic
●BG = Bulgarian
●CA = Catalan (Català)
●CS = Czech (Cesky)
●DA = Danish (Dansk)
●DE = German (Deutsch)
●EL = Greek
●EN = English
●ES = Spanish (Español)
●ET = Estonian (Eesti)
●FI = Finnish (Suomi)
●FR = French (Français)
●HE = Hebrew
●HR = Croatian (Hrvatski)
●HU = Hungarian (Magyar)
●ID = Indonesia (Bahasa)
●IT = Italian (Italiano)
●KK = Kazakh
●KO = Korean
●LT = Lithuanian
●LV = Latvian
●NL = Dutch (Nederland)
●NO = Norwegian (Norsk)
●PL = Polish (Polski)
●PT = Brazilian Portuguese (Português)
●RO = Romanian
18 Chapter 1 Purpose and scope ENWW
●RU = Russian (Russ)
●SK = Slovak
●SL = Slovenian
●SR = Serbian
●SV = Swedish (Svenska)
●TH = Thai
●TR = Turkish (Turkçe)
●UK = Ukranian
●VI = Vietnamese
●ZHCN = Simplified
●ZHTW = Traditional Chinese
Table 1-3 Supported printing-system components (AR-ET)
Component AR BG CA CS DA DE EL EN ES ET
HP Smart Install x x x x x x x x x x
Mac Installer x x x
Windows Host-
based Print Driver
x x x x x x x x x x
XPS driver x x x x x x x x x x
Mac OS X V10.4,
V10.5, V10.6 Print
Driver
x x x
Scan to application
software (Windows)
x x x x x x x x x x
Scan to application
software (Mac)
x x x
Usage tracking
software
x x x x x x x x x x
OCR application
software
x x x x x x x x x x
WIA and TWAIN
driver software
x x x x x x x x x x
Print Dialog
Extensions
x x x x x x x x x x
User Guide (PDF) x x x
User Guide (CHM) x x x x x x x
SW Install Notes
(Windows)
x x x x x x x x x x
SW Install Notes
(Mac)
xxx
ENWW Printing-system software 19
Component AR BG CA CS DA DE EL EN ES ET
HP Smart Install x x x x x x x x x x
Getting Started
Guide
x x x x x x x x x x
HP LaserJet Help
Navigation
x x x x x x x x x x
CD Browser xxxxxxxxxx
Table 1-4 Supported printing-system components (FI-LT)
Component FI FR HE HR HU ID IT KK KO LT
HP Smart Install x x x x x x x x x x
Mac Installer x x
Windows Host-
based Print Driver
x x x x x x x x x x
XPS driver x x x x x x x x x x
Mac OS X V10.4,
V10.5, V10.6 Print
Driver
x x
Scan to application
software (Windows)
x x x x x x x x x x
Scan to application
software (Mac)
x x
Usage tracking
software
x x x x x x x x x x
OCR application
software
x x x x x x x x x x
WIA and TWAIN
driver software
x x x x x x x x x x
Print Dialog
Extensions
x x
User Guide (PDF) x x
User Guide (CHM) x x x x x x x x
SW Install Notes
(Windows)
x x x x x x x x x x
SW Install Notes
(Mac)
x x
Getting Started
Guide
x x x x x x x x x x
HP LaserJet Help
Navigation
x x x x x x x x x x
CD Browser xxxxxxxxxx
Table 1-3 Supported printing-system components (AR-ET) (continued)
20 Chapter 1 Purpose and scope ENWW
Table 1-5 Supported printing-system components (LV-SL)
Component LV NL NO PL PT RO RU SK SL
HP Smart Install x x x x x x x x x
Mac Installer x
Windows Host-
based Print Driver
x x x x x x x x x
XPS driver x x x x x x x x x
Mac OS X V10.4,
V10.5, V10.6 Print
Driver
x
Scan to application
software (Windows)
x x x x x x x x x
Scan to application
software (Mac)
x
Usage tracking
software
x x x x x x x x x
OCR application
software
x x x x x x x x x
WIA and TWAIN
driver software
x x x x x x x x x
Print Dialog
Extensions
x
User Guide (PDF) x
User Guide (CHM) x x x x x x x x
SW Install Notes
(Windows)
x x x x x x x x x
SW Install Notes
(Mac)
x
Getting Started
Guide
x x x x x x x x x
HP LaserJet Help
Navigation
x x x x x x x x
CD Browser xxxxxxxxx
Table 1-6 Supported printing-system components (SR-ZHT)
Component SR SV TH TR UK VI ZHC ZHT
HP Smart Install x x x x x x x x
Mac Installer
Windows Host-
based Print Driver
x x x x x x x x
XPS driver xxxxxxxx
ENWW Printing-system software 21
Component SR SV TH TR UK VI ZHC ZHT
HP Smart Install x x x x x x x x
Mac OS X V10.4,
V10.5, V10.6 Print
Driver
Scan to application
software (Windows)
x x x x x x x x
Scan to application
software (Mac)
Usage tracking
software
x x x x x x x x
OCR application
software
x x x x x x x x
WIA and TWAIN
driver software
x x x x x x x x
Print Dialog
Extensions
User Guide (PDF)
User Guide (CHM) x x x x x x x x
SW Install Notes
(Windows)
x x x x x x x x
SW Install Notes
(Mac)
Getting Started
Guide
x x x x x x x x
HP LaserJet Help
Navigation
x x x x x x x x
CD Browserxxxxxxxx
Table 1-6 Supported printing-system components (SR-ZHT) (continued)
22 Chapter 1 Purpose and scope ENWW
Documentation
The printing-system software CD that is included with the product contains documentation.
Access to the documents depends on the document type and location as follows:
●Some documents can be opened from the CD Browser.
●Some documents appear on the CD and can only be opened by navigating to the folder where they
reside.
●Some documents are available on the Web through links in the CD Browser or CD folders.
Documents are available in the following file formats:
●Portable document format (.PDF)
●Hypertext markup (.HTM). When you click a documentation link to an .HTM document, a Web
browser opens the file on the computer screen.
●Microsoft Compiled HTML Help (.CHM)
ENWW Documentation 23
Printing-system software CD
●Main CD browser screen
●User Documentation
Main CD browser screen
To view documentation and use links to HP support on the printing-system software CD, insert the CD
into the into the CD-ROM drive. The main screen of the CD Browser opens. Move the cursor over each
option to see a description of the option in the right panel.
Figure 1-1 Printing-system software CD – main browser screen
24 Chapter 1 Purpose and scope ENWW
User Documentation
On the main screen of the printing-system software CD Browser, click View User Guide to open the
View User Guide screen. Move the cursor over each option to see a description of the option in the
right panel.
Figure 1-2 View User Guide screen
●HP LaserJet Help Navigation
●User Guide
●More Information
HP LaserJet Help Navigation
General instructions
Click either the M1130 MFP Series button or the M1210 MFP Series button to open the HP LaserJet
Help Navigation application.
The HP LaserJet Help Navigation application provides links to the HP LaserJet Professional M1130/
M1210 MFP Series user guides, shortcuts to frequently used sections of the user guides, links to support
and supplies, and animated help for printer light patterns.
ENWW Documentation 25
Click Browse User Guide to gain access to the product user guide.
●If the product software is installed by a direct USB connection and not from the CD, the user guide
is not installed locally on your computer as part of the installation. Click the Open the latest version
on the web link to download and view the user guide from www.hp.com.
●If the product software is installed from the CD, click Open the user guide on my computer to
open the locally installed version of the user guide. Click the Open the latest version on the
web link to download and view the user guide from www.hp.com.
NOTE: The product user guide is distributed in .CHM format only for Windows operating system
installations and .PDF format only for Mac OS X operating system installations.
HP LaserJet Help Navigation provides the following links to HP support sites.
●Web support — the main support site for your product.
●HP SureSupply — shop for and purchase genuine HP printing supplies
●HP.com — HP's main Web site
HP LaserJet Help Navigation provides the following shortcut links to commonly used sections of the
user guide.
NOTE: Since HP LaserJet Help Navigation contains many of the same help options for both M1130
and M1210 series products, all of the options are listed below. The specific product series name is listed
after the option if the option appears only for that product in HP LaserJet Help Navigation.
●Product specifications
●Quick reference for control-panel buttons and lights
●Printer light patterns (M1130 series)
●Control-panel messages (M1210 series)
●Replace the print cartridge
●Clear a paper jam (M1130 series)
●Load paper trays (M1210 series)
●Print on heavy paper (M1130 series)
●Get IP address of a printer in network (M1210 series)
Click the Everyday Jobs button to gain quick access to the following sections of the user guide.
●Paper and print media (M1130 series)
◦Load paper trays
●Print tasks
◦Cancel a print job
◦Open the printer driver
◦Select a custom page size (M1130 series)
◦
26 Chapter 1 Purpose and scope ENWW
◦Print on both sides (manual duplex)
◦Print multiple pages per sheet
◦Create a booklet (M1130 series)
◦Print on special paper (M1130 series)
●Copy tasks (M1130 series)
◦Make multiple copies
◦Reduce or enlarge copies
◦Copy on both sides
◦Make my copy look better
●Scan tasks
◦Scan a document
◦Make my scan look better
●Fax tasks (M1210nf series)
◦Use the phone book
◦Send a fax
◦Schedule a fax to be sent later
◦Print a stored fax
◦Delete faxes from memory
Click the Manage & Maintain button to gain quick access to the following sections of the user guide.
●Print information pages
●Replace the print cartridge
●Print a cleaning page
●Clean the scanner glass
●Clean the pickup roller
●Clean the separation pad
●Change energy settings
Click the Solve a Problem button to gain quick access to the following sections of the user guide.
●Clear a paper jam
●Interpret light patterns (M1130 series)
●Clear jams from the document feeder (M1210 series)
●Control-panel messages (M1210 series)
ENWW Documentation 27
●Solve image quality problems
●Solve paper handling problems
●Solve copy quality problems
●Solve scan quality problems
●Solve fax problems (M1210 series)
Control panel light patterns
Control panel light patterns communicate different product states.
Interpret control-panel light patterns (M1130 Series only)
If the product requires attention, an error code appears on the control-panel display.
Table 1-7 Status-light legend
Symbol for "light off"
Symbol for "light on"
Symbol for "light blinking"
Table 1-8 Control-panel light patterns
Light status Error code State of the product Action
All lights are off. The product is turned off. Press the power button to turn on the
product.
Ready and attention lights blink. The status lights cycle during the
formatter initialization period or when
the product is processing a cleaning
page.
No action is required. Wait for the
initialization period to end. The product
should enter the ready state when the
initialization period is finished.
Ready light is on. The product is in the ready state. No action is required. The product is
ready to receive a print job.
28 Chapter 1 Purpose and scope ENWW
Light status Error code State of the product Action
Ready light is blinking. The product is receiving or processing
data.
No action is required. The product is
receiving or processing a print job.
Ready light is blinking slowly. The product is in low power mode. No action is required.
Attention light is blinking. E0 Paper is jammed in the product. Clear the jam.
E1 The input tray is empty. Load the tray.
E2 A door is open Verify that the print-cartridge door is
fully closed.
E4 The product memory is full The job is too complex for the product
to print. Simplify the job, or divide it into
multiple files.
E5 The product did not pick up paper from
the tray.
You might need to clean or replace the
pickup roller.
H0 The product is in manual-feed mode. Load the correct paper type and size
into the input tray.
H1 The product is processing a manual
duplex job.
Load the pages into the input tray to
print the second sides.
The attention and toner lights are
blinking.
E3 The print cartridge is missing or is not
installed correctly.
Install the print cartridge.
The toner light is on. The print cartridge has reached the end
of its estimated useful life. When the
supply has reached this condition, the
HP Premium Protection warranty for
that supply has ended.
You do not need to replace the print
cartridge at this time unless print
quality is no longer acceptable.
Table 1-8 Control-panel light patterns (continued)
ENWW Documentation 29
Light status Error code State of the product Action
Attention light is blinking, and ready
light is on.
The product has experienced a
continual error from which it will recover
on its own.
If the recovery is successful, the
product continues to the processing
data state and completes the job.
If the recovery is unsuccessful, the
product continues to the continuable
error state. Try removing any media
from the media path and turning the
product power off, and then on again.
The attention and ready lights are on. E6
E7
E8
E9
The product has experienced a fatal
error from which it cannot recover.
1. Turn off the product or disconnect
the power cord from the product.
2. Wait 30 seconds, and then turn
on the product or reconnect the
power cord to the product.
3. Wait for the product to initialize.
If the error persists, contact
HP customer support.
Interpret control-panel messages (M1210 Series only)
Control-panel message types
Alert and warning messages appear temporarily and might require you to acknowledge the message
by pressing the OK button to resume or by pressing the Cancel button to cancel the job. With certain
warnings, the job might not complete or the print quality might be affected. If the alert or warning message
is related to printing and the auto-continue feature is on, the product will attempt to resume the printing
job after the warning has appeared for 10 seconds without acknowledgement.
Critical error messages can indicate some kind of failure. Turning off and then turning on the power
might fix the problem. If a critical error persists, the product might require service.
Control-panel messages
Control panel message Description Recommended action
50.X Fuser Error
Turn off then on
The product has experienced an internal
hardware error.
1. Turn off the power by using the power
switch, and then wait at least 30
seconds.
2. If a surge protector is being used,
remove it. Plug the product directly into
the wall socket.
3. Turn on the power and wait for the
product to initialize.
If the error persists, contact HP. See
www.hp.com/support/ljm1210series or the
support flyer that came in the product box.
Table 1-8 Control-panel light patterns (continued)
30 Chapter 1 Purpose and scope ENWW
Control panel message Description Recommended action
52 Scanner Error
Turn off then on
The product has experienced a scanner
error.
Turn off the power by using the power switch,
wait at least 30 seconds, and then turn on the
power and wait for the product to initialize.
If a surge protector is being used, remove it.
Plug the product directly into the wall socket.
Use the power switch to turn the product on.
If the error persists, contact HP. See
www.hp.com/support/ljm1210series or the
support flyer that came in the product box.
54.1C Error
Turn off then on
The product has experienced an internal
hardware error.
Turn off the power by using the power switch,
wait at least 30 seconds, and then turn on the
power and wait for the product to initialize.
If a surge protector is being used, remove it.
Plug the product directly into the wall socket.
Use the power switch to turn the product on.
If the error persists, contact HP. See
www.hp.com/support/ljm1210series or the
support flyer that came in the product box.
Comm. error The product experienced a communication
error while attempting to send or receive a
fax.
Verify that the fax phone line is working
correctly.
Try sending or receiving the fax again.
If the error persists, contact HP. See
www.hp.com/support/ljm1210series or the
support flyer that came in the product box.
Device error
Press [OK]
The product experienced an internal
communication error.
This is a warning message only. Job output
might be affected.
Door open The cover above the print cartridge is open. Close the cover.
Engine comm. Error The product has experienced an internal
hardware error.
1. Turn off the power by using the power
switch, and then wait at least 30
seconds.
2. If a surge protector is being used,
remove it. Plug the product directly into
the wall socket.
3. Turn on the power and wait for the
product to initialize.
If the error persists, contact HP. See
www.hp.com/support/ljm1210series or the
support flyer that came in the product box.
Fax recv. error The product was unable to receive an
incoming fax.
Verify that the fax phone line is working
correctly.
Ask the person who sent the fax to send it
again.
If the error persists, contact HP. See
www.hp.com/support/ljm1210series or the
support flyer that came in the product box.
ENWW Documentation 31
Control panel message Description Recommended action
Fax Send error The product was unable to send the fax. Try sending the fax later, or confirm with the
recipient that the receiving fax machine is
ready.
If the error persists, contact HP. See
www.hp.com/support/ljm1210series or the
support flyer that came in the product box.
Jam in <location>
alternates with
Open door and clear jam
The product has detected a jam in the
location indicated in the message.
Clear the jam from the area indicated in the
message, and then follow the control-panel
instructions. Clearing some jams requires
you to open the top cover and remove the
print cartridge.
Load tray 1 PLAIN <SIZE>
alternates with
Cleaning Mode
The product is performing a cleaning cycle. Load the tray with plain paper of the size
indicated. Press the OK button to start the
cleaning cycle.
Load tray <TYPE>, <SIZE> The tray is empty. Load the tray with the correct type and size of
paper.
Manual duplex
alternates with
Load tray1
Press [OK]
The product is processing a manual duplex
job.
To print the second side, place the pages
face down in the tray with the top edge first.
Manual feed <SIZE>, <TYPE>
alternates with
Press [OK] for available media
The product is set for the manual feed mode. Load the tray with the correct size and type of
paper, or press the OK button to use the
paper that is in the tray.
Memory is low
Press [OK]
The product does not have enough memory
to process the job.
If the product is processing other jobs, send
the job again after those jobs have finished.
If the problem continues, turn off the power
by using the power switch, and then wait at
least 30 seconds. Turn on the power and wait
for the product to initialize.
Misprint
Press [OK]
The product has experienced an internal
hardware error.
Press the OK button to continue. Job output
might be affected.
No paper pickup
Press [OK]
The product has experienced an internal
hardware error.
Press the OK button to continue. Job output
might be affected.
Page too complex
Press [OK]
The product could not print the current page
because of its complexity.
Press the OK button to clear the message.
Allow the product to finish the job, or press
the Cancel button to cancel the job.
Printer jam clear paper path The product has detected a jam in the input
tray.
Clear the jam from the area indicated in the
message, and then follow the control panel
instructions.
Settings cleared The product has cleared job settings. Re-enter any appropriate job settings.
32 Chapter 1 Purpose and scope ENWW
User Guide
The HP LaserJet Professional M1130/M1210 MFP Series User Guide describes basic product features.
The user guide is available on the CD in .CHM format only for Windows and .PDF format only for Mac
OS X.
Open the .CHM version of the guide from the printing-system software CD Browser as follows:
1. On the main screen of the printing-system software CD Browser, click User Documentation.
2. Click User Guide (Interactive).
The guide opens as a Windows Help file (.CHM file). This readable, onscreen version of the guide is
provided in accordance with the Americans with Disabilities Act (ADA).
Open the .CHM file (Windows) from the printing-system software CD directory as follows:
1. Insert the printing-system software CD into the CD-ROM drive.
2. Navigate to the Language\<Manuals> folder.
3. Open the following file:
LJM1130-M1210_use_xxww.chm
NOTE: For information about which languages are supported, see Tables 8-11 in this chapter.
NOTE: The "xx" in the file name corresponds to the language. For French, the file name is LJM1130-
M1210_use_frww.chm.
Open the .PDF file (Mac) from the printing-system software CD directory as follows:
1. Insert the printing-system software CD into the CD-ROM drive.
2. Double-click the Documentation folder.
3. Open either of the following files.
LJM1130-M1210_use_xxww.pdf
NOTE: For information about which languages are supported, see Tables 8-11 in this chapter.
NOTE: The "XX" in the file name corresponds to the language. For French, the file name is
LJM1130-M1210_use_frww.pdf.
4. When the file is open, click File, and then click Save As... to save a copy of the file to another
location.
ENWW Documentation 33
More Information
Click More Information to view the printing system install notes and to access the product support Web
site.
Figure 1-3 More Information screen
Install Notes
The HP LaserJet Professional M1130/M1210 MFP Series Printing-System Install Notes (.HTM) contains
important information about device features, instructions for installing the printing-system software, and
technical assistance.
Open the install notes from the printing-system software CD Browser as follows:
1. On the main screen of the CD Browser, click More Information.
2. Click Install Notes.
Open the .HTM file directly:
1. Insert the printing-system software CD into the CD-ROM drive.
2. Navigate to the <language>\MANUALS folder.
3. Open the following file:
1130SeriesInstallNotes.htm
34 Chapter 1 Purpose and scope ENWW
Product Support Website
Visit the product support Web site to gain quick access to online support pages, software updates, FAQs,
and more.
ENWW Documentation 35
36 Chapter 1 Purpose and scope ENWW
2 Software description
●Windows printing-system software
●HP Driver Diagnostic Printer Check Tool
●Embedded Web Server M1210 Series only
●HP ToolboxFX
ENWW 37
Windows printing-system software
●Supported operating systems for Windows
●Windows system requirements
●Macintosh system requirements
●Printer driver
●Select the correct printer driver for Windows
●Priority for print settings
●Change printer-driver settings for Windows
●Printing system and installer
●Driver version numbers for Windows operating systems
Supported operating systems for Windows
The product supports the following Windows operating systems:
●Windows XP (32-bit and 64-bit)
●Windows Server 2003 (32-bit and 64-bit)
●Windows Vista (32-bit and 64-bit)
●Windows Server 2008 (32-bit and 64-bit)
●Windows 7 (32-bit and 64-bit)
Windows system requirements
The HP printing-system software has the following minimum system requirements for Windows 7,
Windows Vista, Windows XP, and Windows Server 2003.
●1 GHz processor
●1 GB RAM
●700 MB free hard disk space
All Windows operating systems also have the following requirements:
●A CD-ROM, DVD drive, or Internet connection with which to install the printing-system software
●A dedicated USB 1.1 or USB 2.0 connectivity port, or network connection, to communicate with
the product
38 Chapter 2 Software description ENWW
Macintosh system requirements
The HP printing-system software has the following minimum system requirements for the Mac OS X
V10.4, V10.5, and V10.6 operating systems:
●PowerPC G3, G4, G5, or Intel processors
●1 GB RAM
●200 MB available hard disk space
NOTE: PPC and Intel Core Processor Macs are supported.
All Macintosh operating systems also have the following requirements:
●A CD-ROM, DVD drive, or Internet connection with which to install the printing-system software
●A dedicated USB 1.1 or USB 2.0 connectivity port, or network connection, to communicate with
the product
Printer driver
Printer drivers provide access to product features, such as printing on custom-sized paper, resizing
documents, and inserting watermarks.
NOTE: The most recent drivers are available at www.hp.com/support/ljm1130series or www.hp.com/
support/ljm1210series.
Select the correct printer driver for Windows
Printer drivers provide access to the product features and allow the computer to communicate with the
product (by using a printer language). Check the installation notes and readme files on the product CD
for additional software and languages.
HP LaserJet Professional M1130/M1210 Printer series Host-based print driver
●The recommended print driver for most Windows applications. The Host-based driver is installed
by default and recommended for most users.
HP LaserJet Professional M1130/M1210 Printer series XPS print driver
●Recommended for capturing and printing screen output exactly as it is rendered on the screen.
Priority for print settings
Changes to print settings are prioritized depending on where the changes are made.
NOTE: The names of commands and dialog boxes might vary depending on your software program.
●Page Setup dialog box: Click Page Setup or a similar command on the File menu of the program
you are working in to open this dialog box. Settings changed here override settings changed
anywhere else.
●Print dialog box: Click Print, Print Setup, or a similar command on the File menu of the program
you are working in to open this dialog box. Settings changed in the Print dialog box have a lower
priority and do not override changes made in the Page Setup dialog box.
ENWW Windows printing-system software 39
●Printer Properties dialog box (printer driver): Click Properties in the Print dialog box to open
the printer driver. Settings changed in the Printer Properties dialog box do not override settings
anywhere else in the printing software.
●Default printer driver settings: The default printer driver settings determine the settings used in
all print jobs, unless settings are changed in the Page Setup, Print or Printer Properties dialog
boxes.
●Printer control-panel settings: Settings changed at the printer control panel have a lower priority
than changes made anywhere else.
Change printer-driver settings for Windows
Change the settings for all print jobs
until the software program is closed
Change the default settings for all
print jobs
Change the product configuration
settings
1. On the File menu in the software
program, click Print.
2. Select the driver, and then click
Properties or Preferences.
The steps can vary; this procedure is
most common.
1. Windows Vista and Windows 7:
Click Start, click Control Panel,
and then in the category for
Hardware and Sound click
Printer.
-or-
Windows XP, Windows Server
2003, and Windows Server 2008
(using the default Start menu
view): Click Start, and then click
Printers and Faxes.
-or-
Windows XP, Windows Server
2003, and Windows Server 2008
(using the Classic Start menu
view): Click Start, click Settings,
and then click Printers.
2. Right-click the driver icon, and then
select Printing Preferences.
1. Windows Vista and Windows 7:
Click Start, click Control Panel,
and then in the category for
Hardware and Sound click
Printer.
-or-
Windows XP, Windows Server
2003, and Windows Server 2008
(using the default Start menu
view): Click Start, and then click
Printers and Faxes.
-or-
Windows XP, Windows Server
2003, and Windows Server 2008
(using the Classic Start menu
view): Click Start, click Settings,
and then click Printers.
2. Right-click the driver icon, and then
select Properties.
3. Click the Device Settings tab.
40 Chapter 2 Software description ENWW
Printing system and installer
The printing-system files and installers come in both the product firmware and on CD. The recommended
installation method for the printing-system files is via a direct USB connection between the product and
computer using HP Smart Install.
●Printing-system software CD for Windows systems
●Installer features
Printing-system software CD for Windows systems
The HP LaserJet Professional M1130/M1210 MFP Series products come with a printing-system CD.
The printing-system CD includes product drivers and related components but is not required for the
installation of drivers. The recommended driver installation is via direct USB connection to the product.
In supported Windows operating systems, insert the printing-system CD in the CD-ROM drive to open
an interactive CD Browser. Use the CD Browser to install the drivers and related components and to
gain access to online user documentation, a customization utility, and optional HP software.
Figure 2-1 Installation software CD Browser
If the screen does not appear when you insert the printing-system CD into the CD-ROM drive, follow
these steps to open the CD Browser:
1. Click Start.
2. Click Run.
3. Click Browse… and navigate to the root directory of the software CD.
4. Double-click the SETUP.EXE file to start the installer.
ENWW Windows printing-system software 41
The main screen of the CD Browser contains installation and documentation options in the left panel.
Move the cursor over each option to see a description of the option in the right panel.
NOTE: The options available for each product might differ from those in the figure.
Install. Opens the HP Smart Installer. The HP Smart Installer installs the HP LaserJet Professional
M1130/M1210 Printer series Host-based print driver, the recommended driver. To install additional
drivers,
View User Guide. Provides access to the HP laser Jet M1130_M1210 user guide.
More Information. This option provides access to the Install Notes, and to the Product Support Website.
Click Back to return to the main CD Browser screen.
NOTE: To view documentation in .PDF format, Adobe® Acrobat® Reader must be installed on the
computer. Adobe Acrobat Reader is available at the following Web site:
http://www.adobe.com
Installer features
HP Smart Install is designed to provide a simple and consistent installation method for the printing-
system software in supported Windows operating systems.
HP Smart Install offers the following features:
●An interactive software interface.
●Network connection is integrated so that you can install drivers and connect to a networked product
in a single process.
●The selection dialog box sets the operating-system language as the default language. You can use
the installer to select any of the languages on the Admin CD.
All of the printing-system components are installed by using the HP Smart Install installer. The installer
automatically detects the language of choice and the operating system.
Driver version numbers for Windows operating systems
Access to driver version numbers varies, depending on the operating system in which the printing system
is installed.
NOTE: For a list of product drivers, updated HP printing-system software, and product-support
information, go to:
www.hp.com/support/ljm1130series or www.hp.com/support/ljm1210series
42 Chapter 2 Software description ENWW
In supported Windows operating systems, follow these steps to find driver-version information:
1. Click Start, and then do one of the following:
Windows XP: Click Control Panel, and then double-click the Printers and Other Hardware icon.
-or-
Windows Server 2003 and Windows XP Professional: Select Settings, and then select Printers
and Faxes.
-or-
Windows Vista: Click Control Panel, click Hardware and Sound, and then click Printers.
-or-
Windows Server 2008: Click Start, click Control Panel, and then open the Printers folder.
-or-
In Windows 7, click the Start button, click Control Panel, and then click Devices and Printers.
2. Right-click the product driver icon.
3. Click Properties.
4. Click the About tab.
ENWW Windows printing-system software 43
HP Driver Diagnostic Printer Check Tool
Use the HP Driver Diagnostic Printer Check Tool, a Web-based diagnostic software program, to
determine whether the correct and most current printer driver for the product is in use. Use the following
steps to gain access to the HP Driver Diagnostic Printer Check Tool:
1. Open a Web browser.
2. Go to the following Web site:
www.hp.com/go/drivercheck
When the HP Driver Diagnostic Printer Check Tool runs, the products that are currently installed on the
computer appear in a list. The tool gathers information about the products, drivers, and system setup
in order to diagnose the software driver configuration and check the printer driver.
When the HP Driver Diagnostic Printer Check Tool is open, select the HP product that you want to check.
The tool verifies whether the latest printer driver is being used, provides feedback if an incorrect printer
driver is being used, and indicates whether an updated printer-driver version is available. Click the latest
printer-driver version to download and install it.
The data that the HP Driver Diagnostic Printer Check Tool gathers is stored anonymously so that HP can
analyze and continuously improve its diagnostic tools. No private data is gathered from the computer.
44 Chapter 2 Software description ENWW
Embedded Web Server M1210 Series only
The M1210 Series is equipped with the HP Embedded Web Server (HP EWS), which provides access
to information about product and network activities. This information appears in a Web browser, such
as Microsoft Internet Explorer, Apple Safari, or Firefox.
The HP EWS resides on the product. It is not loaded on a network server.
The HP EWS provides an interface to the product that anyone who has a network-connected computer
and a standard Web browser can use. No special software is installed or configured, but you must have
a supported Web browser on the computer. To gain access to the HP EWS, type the IP address for the
product in the address line of the browser.
For a complete explanation of the features and functionality of the HP EWS, see the HP LaserJet M1130/
M1210 Series User Guide, which is available on the Admin CD.
ENWW Embedded Web Server M1210 Series only 45
HP ToolboxFX
This section provides information about the following topics:
●HP ToolboxFX overview
●System requirements
●HP ToolboxFX folders
●Other Links
HP ToolboxFX overview
HP ToolboxFX allows users to communicate with and manage the product. HP ToolboxFX provides the
following capabilities:
●A view of the current status of the product
●A view of the current status of the product consumables
●Device Alert functionality, notifying the end user when particular events or conditions occur at the
product
●Access to troubleshooting information
●Access to some product settings, as an alternative to accessing them through the product control
panel
Starting HP ToolboxFX
Start HP ToolboxFX by using any of the following methods:
●Double-click the HP ToolboxFX icon in the Windows system tray.
●Click Start, click Programs, click HP, click HP LaserJet Professional M1130/M1210 MFP
Series, and then click HP ToolboxFX.
●Right-click the HP ToolboxFX icon in the Windows system tray, and then click Open HP
ToolboxFX.
Structure
HP ToolboxFX consists of a single framework divided into several sections.
●Heading banner. Each pane that appears in HP ToolboxFX has a heading banner at the top that
includes the HP logo.
●Devices pane. The Devices pane is visible on the left-hand side of the HP ToolboxFX window.
The Devices pane shows the HP products that are available to the host computer system, and
folders for the types of information available about each product.
●Main content area. Click any of the products or folders listed in the Devices Pane to see
information about that product in the main content area of the HP ToolboxFX window.
46 Chapter 2 Software description ENWW
●Toolbar. A toolbar appears at the top of the main content area. This toolbar contains controls for
printing, refreshing the page, ordering supplies, and getting help.
●Other Links pane. The Other Links pane is visible in the lower-left corner of the HP ToolboxFX
window. The Other Links pane contains links to the HP Instant Support, Product Support, and
Product Registration pages on the HP Web site.
Opening screen
The opening screen that appears in the HP ToolboxFX section depends on the installed configuration
of HP ToolboxFX. If HP ToolboxFX is installed for a single HP LaserJet product, the Device Status page
for that HP LaserJet product appears when the toolbox is opened. To go to the Device Status page for
a product, double-click the product. If multiple products that are supported by HP ToolboxFX are
installed, they will appear in the left pane.
System requirements
HP ToolboxFX is currently supported on the following operating systems:
●Windows XP (32-bit and 64-bit)
●Windows Server 2003 (32-bit and 64-bit)
●Windows Vista (32-bit and 64-bit)
●Windows Server 2008 (32-bit and 64-bit)
●Windows 7 (32-bit and 64-bit)
HP ToolboxFX also requires Microsoft .NET Framework 2.0 on the client computer, which happens
automatically during installation of the product solutions software (if HP ToolboxFX is not already
installed).
HP ToolboxFX folders
The HP ToolboxFX folders section describes the following:
●Device Status
●Help folder
●Fax folder
ENWW HP ToolboxFX 47
Device Status
The Device Status pane shows product status messages from the product.
Figure 2-2 HP ToolboxFX Status folder – Device Status pane
NOTE: This product includes a Supplies Status section and a Supplies Information section on the
Device Status screen. These sections provide information about the estimated toner level, the
approximate pages remaining based on the estimated toner level, and the HP part number for easy
reference when ordering new consumables.
Help folder
The Help folder contains the following panes:
●User Guide
●Readme
48 Chapter 2 Software description ENWW
User Guide
The following options are available in the User Guide pane:
●Interactive Version. Click the Interactive User Guide button to open the HP LaserJet Help
Navigation application.
●Printer-Friendly Version. Click the Printer-Friendly User Guide button to open a version of the
user guide optimized for printing.
Figure 2-3 HP ToolboxFX Help folder – Troubleshooting pane (1 of 2)
Readme
Click the Readme folder to open the product Readme file in HP Toolbox.
Fax folder
You can use the panes in the Fax folder to perform fax tasks from your computer.
The Fax folder contains the following panes:
●Fax Tasks pane
●Fax Phone Book pane
●Fax Send Log pane
●Fax Receive Log pane
ENWW HP ToolboxFX 49
●Fax Data Properties pane
Figure 2-4 HP ToolboxFX Fax folder
Fax Tasks pane
Use the Faxe Tasks pane to set options for received faxes.
NOTE: Click Apply for the changes to take effect.
Figure 2-5 HP Toolbox FX Fax folder – Fax Tasks pane
Fax Phone Book pane
The Fax Phone Book pane shows the product phone book data.
50 Chapter 2 Software description ENWW
The maximum number of characters that a name can have in a phone book entry is 16. Only 12 of these
characters are displayed on the product control panel, because four characters are used to display the
phone book entry number (for example, 011:).
The maximum number of characters that a telephone number can have is 50. This includes special
characters that are used to insert pauses into the dial sequence.
Figure 2-6 HP Toolbox FX Fax folder – Fax Phone Book pane
Use the Fax Phone Book page to add or remove individuals or groups on your speed-dial list, import
phone books from a variety of sources, and update and maintain the contact list.
●To add an individual contact to the speed-dial list, select the row of the speed-dial number that you
want to specify. Type the contact name in the Contact name window. Type the fax number in the
Fax number window. Click Add.
●To add a group of contacts to the speed-dial list, select the row of the speed-dial number that you
want to specify. Click Add/Group. Double-click a contact name from the list on the left to move it
to the group list on the right, or select a name on the left and then click the appropriate arrow to
move it to the group list on the right. You can also use those two methods to move names from
right to left. When you have created a group, type a name in the Group name window, and then
click Apply.
●To edit an existing individual speed-dial entry, click anywhere on the row containing the contact
name to select it, and then click Update. Make any required changes, and then click Apply.
●To edit an existing group speed-dial entry, click anywhere on the row containing the group name
to select it, and then click Update Group. Make any required changes, and then click Apply.
●To delete an entry from the speed-dial list, select the item and then click Delete.
●To move speed-dial entries, select the entry and then click Move, or select Move and then specify
the entry in the dialog box. Either select Next empty row or specify the number of the row where
you want to move the entry.
NOTE: If you specify a row that is occupied, then the new entry will overwrite the existing entry.
ENWW HP ToolboxFX 51
●To import contacts from a phone book that exists in Lotus Notes, Outlook, or Outlook Express, use
the following procedure:
1. Click Import/Export Phone Book.
2. Select the Import option, and then click Next.
3. Select the appropriate software program, navigate to the appropriate file, and then click
Finish.
To export contacts from a phone book, use the following procedure:
1. Click Import/Export Phone Book.
2. Select the Export, and then click Next.
3. Enter the file name or browse to the file to which you want to export contacts, and then click
Finish.
You can also select individual entries from the phone book instead of importing the entire phone
book.
●To delete all entries, click Delete All, and then click Yes.
In addition to numerical digits, the following are valid characters for fax numbers:
●(
●(
●+
●-
●*
●#
●R
●W
●.
●,
●<space>
NOTE: Click Apply for the changes to take effect.
Fax Send Log pane
The Fax Send Log pane lists all recently sent faxes and information about them, including the date and
time sent, job number, fax number, page count, and the results.
The Results column provides the fax status. If the fax attempt was unsuccessful, this column provides
a description of why the fax was not sent.
Click any column heading to re-sort the information in that column in ascending or descending order.
52 Chapter 2 Software description ENWW
Click the Refresh button to view new fax data. The following information for each fax appears in the
logs:
●Date and time
●Job number
●Fax number
●Pages
●Result
NOTE: A maximum of 40 fax log entries are listed.
Figure 2-7 HP Toolbox FX Fax folder – Fax Send Log pane
Fax Receive Log pane
The Fax Receive Log pane provides a list of all recently received faxes and information about them
including the date and time received, job number, fax number, page count, and results.
The Results column provides the fax status. If the fax attempt was unsuccessful, this column provides
a description of why the fax was not sent.
The Fax Receive Log pane can be used to block future faxes. Check the Block Faxes box next to a
received fax listed on the log, or click the Go to Junk Faxes page link to go to that pane, which is
described below.
Click the Refresh button to view new fax data. The following information for each fax appears in the
logs:
●Date and time
●Job number
●Fax number
ENWW HP ToolboxFX 53
●Pages
●Result
NOTE: A maximum of 40 fax log entries are listed.
NOTE: The Fax Receive Log pane is not self-refreshing. If left open, newly-received faxes will not
appear until the screen is refreshed.
Figure 2-8 HP Toolbox FX Fax folder – Fax Receive Log pane
54 Chapter 2 Software description ENWW
Fax Data Properties pane
Use the Fax Data Properties pane to manage the space used to store faxes on your computer.
●Select Delete fax data files older than: to specify the number of days faxes are stored on your
computer.
●Select Limit total data storage size to: to specify the amount of storage your computer allocates
for fax data storage.
Figure 2-9 HP ToolboxFX Fax folder – Fax Data Properties pane
Other Links
●Product Support
●Shop for Supplies
●Product Registration
Product Support
Select Product Support to get to a Web page with links to online support for the product.
Shop for Supplies
The Shop for Supplies link connects to a Web page that can be used to order supplies online. The
supplies come not come from HP but from a choice of resellers. Supplies are preselected. Use the
options on this screen to change quantities or order additional items. The selected items are dropped
into the shopping cart, ready for checkout. This process ensures that the correct supplies are ordered
from the selected reseller.
Product Registration
The Product Registration link connects to a Web page to register the product.
ENWW HP ToolboxFX 55
56 Chapter 2 Software description ENWW
3 Install Windows printing-system
components
The HP LaserJet Professional M1130/M1210 MFP Series comes with software and installers for
Microsoft Windows and Apple Macintosh systems. For information about Macintosh software, see
Macintosh software and utilities on page 149. Linux and UNIX systems support the HP LaserJet
Professional M1130/M1210 MFP Series, and software is available on the Web. This chapter provides
procedures for installing and uninstalling the HP LaserJet Professional M1130/M1210 MFP Series
printing-system software for Windows operating systems.
●Supported operating systems for Windows
●Windows operating system requirements
●Install overview
●Software installation types for Windows
●Installation options
●Microsoft Windows general installation overview
●Detailed MS Windows installation instructions
●Uninstall software
ENWW 57
Supported operating systems for Windows
The HP LaserJet Professional M1130/M1210 MFP Series printer supports the following Windows
operating systems:
●Windows XP (32-bit and 64-bit)
●Windows Server 2003 (32-bit and 64-bit)
●Windows Vista (32-bit and 64-bit)
●Windows Server 2008 (32-bit and 64-bit)
●Windows 7 (32-bit and 64-bit)
Windows operating system requirements
The HP printing-system software has the following minimum system requirements for Windows 7,
Windows Vista, Windows XP, and Windows Server 2003.
●1 GHz processor
●1 GB RAM
●700 MB free hard disk space
NOTE: Windows 95, Windows 98, Windows Me, and Windows NT are not supported.
All Windows operating systems also have the following requirements:
●A CD-ROM, DVD drive, or Internet connection with which to install the printing-system software
●A dedicated USB 1.1 or USB 2.0 connectivity port, or network connection, to communicate with
the product
Install overview
The software for the HP LaserJet Professional M1130/M1210 MFP Series product is available from the
product firmware or from the printing-system software CD. HP Smart Install installs the HP LaserJet
Professional M1130/M1210 MFP Series printing-system software from the product firmware onto the
hard disk and updates Windows files. HP Smart Install is the recommended installation method.
For all supported operating systems, each install option presents a series of screens that guide you
through the installation process.
Software installation types for Windows
The HP LaserJet Professional M1130/M1210 MFP Series printing-system software can be installed in
the following ways:
●HP Smart Install: Recommended, included in the product firmware. HP Smart Install starts
automatically when the product is connected to a computer by USB. HP Smart Install can also be
started from the product's EWS for M1210 Series products.
●CD install: Optional installation method.
58 Chapter 3 Install Windows printing-system components ENWW
Installation options
The HP LaserJet Professional M1130/M1210 MFP Series printing-system software can be installed
when the product is connected to the computer in the following configurations:
●Directly connected via a USB port
●Connected via a wired network
ENWW Installation options 59
Microsoft Windows general installation overview
HP LaserJet Professional M1130/M1210 MFP Series printing-system
software for Windows systems
HP LaserJet Professional M1130/M1210 MFP Series printing-system software can be installed either
via a direct USB connection to the product or from the printing-system software CD
USB installation
NOTE: This installation type is supported for Windows only.
The HP Smart Install allows you to install the product driver and software by connecting the product to
a computer through a USB cable.
NOTE: The installation CD is not required during a HP Smart Install. Do not insert the software
installation CD into the computer CD drive.
1. Turn the product on.
2. Connect the USB cable.
3. The HP Smart Install program should start automatically. Follow the onscreen instructions to install
the software.
●If the HP Smart Install program does not start automatically, AutoPlay might be disabled on
the computer. Browse the computer and double-click the HP Smart Install drive to run the
program. If you cannot find the HP Smart Install drive, use the product installation CD to install
the software.
●If the program prompts you to select a connection type, select the connection type you will
use to print to the product after installation.
CD installation
In supported Windows environments (Windows 7, Windows Server 2003, Windows Server 2008,
Windows XP, and Windows Vista), insert the printing-system software CD in the CD-ROM drive to open
an interactive CD Browser. Use the CD Browser to install the drivers and related components, and to
gain access to online user documentation and optional HP software.
If the installation screen does not appear when you insert the printing-system software CD into the CD-
ROM drive, follow these steps to open the CD Browser:
1. On the Start menu, click the Run option.
2. Type the following: X:\SETUP.EXE (where X is the letter of the CD-ROM drive).
3. Click the OK button.
The main screen of the software CD Browser contains installation and documentation options in the left
panel. Move the cursor over each option to see a description of the option in the right panel. The following
60 Chapter 3 Install Windows printing-system components ENWW
figure shows the main screen of the HP LaserJet Professional M1130/M1210 MFP Series printing-
system software CD.
Figure 3-1 CD Browser – Main screen
Click Install to start the CD installer. By default, the CD installer installs the HP LaserJet Professional
M1130/M1210 MFP Series Host-based print driver, the driver recommended for most users.
NOTE: For more information about HP LaserJet Professional M1130/M1210 MFP Series printer
drivers, see HP host based print driver for Windows on page 117.
Install the print driver using the Microsoft Add Printer Wizard
NOTE: You can return to the previous screen by clicking the < Back button, or exit the Add Printer
Wizard by clicking the Cancel button.
Select one of the following three options to install the print driver using the Microsoft Add Printer Wizard:
●Use an existing port for a direct connection: The product is connected to the computer using a
USB cable or is connected via the network without using a print server and the printer port already
exists.
ENWW Microsoft Windows general installation overview 61
Follow these instructions to select the correct connection option:
1. On the Start menu, click the Settings option, and then perform one of the following:
Windows XP Home: Click the Printers and Other Hardware Devices option.
Windows XP Professional, Windows Server 2003, and Windows 2008: Click the Printers
and Faxes option.
Windows Vista: Under the Hardware and Sound category, click the Printer option.
Windows 7: Click the Devices and Printers option.
2. Click the Add a printer option. The Add Printer Wizard opens.
3. Click the Next button on the Add Printer Wizard welcome dialog box.
4. If the product is connected to the computer using a USB cable or is connected via the network
without using a print server, select the Local printer attached to this computer option, and
then click the Next > button.
NOTE: If you select the Automatically detect an install my Plug and Play printer check
box prior to clicking the Next > button, the computer will automatically install the print driver.
NOTE: If the product is connected via the network using a print server, select the A network
printer, or a printer attached to another computer option (Point and Print installation), and
then click the Next > button. For detailed installation instructions, see Print server
connection on page 71.
Figure 3-2 Add Printer Wizard – Local or Network Printer screen
●Create a new TCP/IP port for a direct connection: The product is connected via the network
without using a print server and the printer port does not exist.
●Print server connection: The product is connected via the network using a print server.
62 Chapter 3 Install Windows printing-system components ENWW
Use an existing port for a direct connection
Use these instructions when the product is connected to the computer using a USB cable or when
printing via the network without using a print server.
1. If the product is connected to the computer using a USB cable or is connected via the network
without using a print server and the printer port already exists, select the Use the following port
option, select the product name, print path, or IP address of the product from the Use the following
port drop-down list, and then click the Next > button.
NOTE: If the printer port does not appear in the Use the following port drop-down list, see
Create a new TCP/IP port for a direct connection on page 68. If the product is connected via the
network using a print server, see Print server connection on page 71.
Figure 3-3 Add Printer Wizard — Select a Printer Port screen
ENWW Microsoft Windows general installation overview 63
2. (Optional) Click the Windows Update button to display a list of drivers that can be downloaded
from the Microsoft Windows Update Web site.
If the appropriate model of HP LaserJet Professional M1130/M1210 MFP Series is already listed,
select it and click the Next > button. If the product is not listed, click the Have Disk button to continue
to the Install From Disk screen.
Figure 3-4 Add Printer Wizard — Install Printer Software screen
3. If the correct path to the CD-ROM drive is listed in the Copy manufacturer's files from text box,
click the OK button. If not, click the Browse button to continue to the Locate File screen.
Figure 3-5 Add Printer Wizard — Install from Disk screen
4. Navigate to your CD-ROM drive, and then select the .INF file for your product.
5. Click the OK button to continue to the Install Printer Software screen.
64 Chapter 3 Install Windows printing-system components ENWW
6. Select the appropriate model of HP LaserJet Professional M1130/M1210 MFP Series from the list
and click the Next > button to continue to the Name Your Printer screen.
Figure 3-6 Add Printer Wizard — Install Printer Software, screen 2
ENWW Microsoft Windows general installation overview 65
7. You can either type a name for the product in the Printer name text box or use the default name
provided.
Select the Yes option to use this printer as the default printer or select the No option to keep the
existing product as the default printer.
Click the Next > button to continue to the Printer Sharing screen.
Figure 3-7 Add Printer Wizard — Name Your Printer screen
66 Chapter 3 Install Windows printing-system components ENWW
8. Select either the Do not share this printer option, or select the Share name: option and type
share name, and then click the Next > button to continue to the Print Test Page screen.
Figure 3-8 Add Printer Wizard — Printer Sharing screen
9. Select the Yes option if you want to print a test page after the software is installed. Select the No
option if you do not want to print a test page after the software is installed.
Click the Next > button to continue to the Completing the Add Printer Wizard screen.
Figure 3-9 Add Printer Wizard — Print Test Page screen
10. Review the installation details, and then click the Finish button to complete the Add Printer Wizard.
ENWW Microsoft Windows general installation overview 67
Create a new TCP/IP port for a direct connection
Perform the following when the product is connected via the network without using a print server and a
printer port does not exist:
1. If the printer port does not appear in the Use the following port drop-down list, select the Create
a new port option.
●If the Advanced TCP/IP Port Monitor option appears in the Type of port drop-down list,
select this option, and then click the Next button. The Welcome to the Add Standard TCP/
IP Printer Port Wizard dialog box appears.
●If the Advanced TCP/IP Port Monitor option does not appear in the Type of port drop-down
list, select the Standard TCP/IP Port option from the Type of port drop-down list, and then
click the Next button. The Welcome to the Add Standard TCP/IP Printer Port Wizard dialog
box appears.
NOTE: If the printer port already appears in the Use the following port drop-down list, see Use
an existing port for a direct connection on page 63. If the product is connected via the network
using a print server, see Print server connection on page 71.
Figure 3-10 Select a Printer Port screen
68 Chapter 3 Install Windows printing-system components ENWW
2. Click the Next > button.
Figure 3-11 Add Advanced TCP/IP Printer Port screen
ENWW Microsoft Windows general installation overview 69
3. Type the product's IP address or host name in the Printer Name or IP Address text box, and then
click the Next button.
NOTE: The default port name is the name that you typed in the Printer Name or IP Address
text box. You can change this name by typing a new name in the Port Name text box.
NOTE: The Always print to this device, even if its IP address changes check box is only
available if you select the Advanced TCP/IP Port Monitor option from the Select a Printer Port
dialog box. This feature allows the computer to communicate with the product using the MAC
address of the network card rather than the IP address.
Figure 3-12 Add Port screen
4. Review the installation details, and then click the Finish button to complete the Add Printer Wizard.
70 Chapter 3 Install Windows printing-system components ENWW
Print server connection
Perform the following when the product is connected via the network using a print server:
1. If the product is connected via the network using a print server, select the A network printer, or
a printer attached to another computer option, and then click the Next > button.
NOTE: If the product is connected to the computer using a USB cable, or is connected via the
network without using a print server, select the Local printer attached to this computer option,
and then click the Next > button. You can also select the Automatically detect and install my
Plug and Play printer check box prior to clicking the Next > button to have the computer
automatically install the print driver. For detailed installation instructions, see either Use an existing
port for a direct connection on page 63 or see Create a new TCP/IP port for a direct connection
on page 68.
Figure 3-13 Add Printer Wizard — Local or Network Printer screen
ENWW Microsoft Windows general installation overview 71
2. Select either the Find a printer in the directory option, the Connect to this printer (or to browse
for a printer, select this option and click Next) option, or the Connect to a printer on the
Internet or on a home or office network option, and then click the Next > button.
Figure 3-14 Add Printer Wizard — Specify A Printer screen
If you select the Find a printer in the directory option and then click the Next > button, you will
continue to the Find Printers dialog box.
If you select the Connect to this printer (or to browse for a printer, select this option and click
Next) option and then click the Next > button, you will continue to the Browse for Printer dialog
box.
If you select the Connect to a printer on the Internet or on a home or office network option
and then click the Next > button, you will continue to the Completing the Add Printer Wizard
dialog box.
72 Chapter 3 Install Windows printing-system components ENWW
Select one of the following options:
a. (Find a printer in the directory option only)
Specify search attributes to find your product on the network, and then click the Find Now
button to search the specified location for your product. Once the search has completed, select
the product, and then click the OK button to continue to the Default Printer dialog box.
Figure 3-15 Add Printer Wizard — Find Printers screen
Select either the Yes option to use this printer as the default printer, or select the No option
to keep the existing product as the default printer, and then click the Next > button to continue
to the Completing the Add Printer Wizard dialog box.
Figure 3-16 Add Printer Wizard — Default Printer screen
ENWW Microsoft Windows general installation overview 73
b. (Connect to this printer (or to browse for a printer, select this option and click Next)
option only)
Specify the print path for the product and then click the Next > button. The computer will
search the network for shared products. Select the product from the list and then click the
Next > button to continue to the Completing the Add Printer Wizard dialog box.
Figure 3-17 Add Printer Wizard — Browse for Printer screen
c. (Connect to a printer on the Internet or on a home or office network option only)
Type the URL for the product, and then click the Next > button. Follow the onscreen
instructions to connect to the product, and then you will continue to the Completing the Add
Printer Wizard dialog box.
3. Review the installation details, and then click the Finish button to complete the Add Printer Wizard.
74 Chapter 3 Install Windows printing-system components ENWW
Detailed MS Windows installation instructions
The dialog boxes shown here appear in the Windows XP Professional installation sequence. The order
and appearance of dialog boxes can vary among operating systems.
Install the Host-based driver using HP Smart Install
●Install the print driver for USB and wired network connected products
●EWS Smart Install (M1210 Series only)
Install the print driver for USB and wired network connected products
1. Connect the product to the computer using a USB cable. The Welcome to HP Smart Install screen
appears. Select whether to accept, or review before accepting, the software End User License
Agreement, and then click the Install button.
Figure 3-18 Welcome to HP Smart Install screen
ENWW Detailed MS Windows installation instructions 75
2. On the Printer Connections screen, select Configure to print over the Network or Configure
to print using USB. Click the Next button.
Figure 3-19 Printer Connections screen
▲For product installations configured to print over the network, follow these steps.
i. Connect your product to the network if not already connected.
ii. The Network Connection Successful screen appears. Click the Next button.
76 Chapter 3 Install Windows printing-system components ENWW
3. The Congratulations! Software installation complete screen appears. Click the Next button to
register your product and print a test page. Deselect Register your product to continue without
registering your product.
Figure 3-20 Congratulations! Software installation complete
4. Click the Finish button to complete the installation.
NOTE: For M1210nf models, the fax configuration setup will start.
5. The HP LaserJet Help Navigation application appears after the installation is complete.
EWS Smart Install (M1210 Series only)
1. Connect the product to the network and turn the power on.
2. Obtain the IP address for your product by printing a product configuration page.
a. On the product control panel, press the Setup button.
b. Use the arrow buttons to select the Reports menu, and then press the OK button.
c. Use the arrow buttons to select the Config report option, and then press the OK button.
3. Locate the IP address on the configuration page. Enter the IP address in the Address field of a
Web browser and navigate to the EWS for the product.
ENWW Detailed MS Windows installation instructions 77
4. Click the HP Smart Install tab on the EWS, and then click the Download button.
5. A download dialog window for the setup file opens. Click Save File.
6. Open the downloaded file, and then click the Run button on the dialog window that appears.
78 Chapter 3 Install Windows printing-system components ENWW
7. The License Agreement screen appears. Select I accept the terms of the license agreement
and then click the Next button.
ENWW Detailed MS Windows installation instructions 79
8. The Congratulations! Software installation complete screen appears upon successful
installation of the driver.
9. Select Register your product and Print Test Page, and then click the Next button. A Web browser
opens to the HP Product Registration page, and a test page prints at the product.
80 Chapter 3 Install Windows printing-system components ENWW
10. The Congratulations! Software installation complete screen appears with links to download HP
Smart Web Printing and the XPS driver.
11. Click the Finish button.
NOTE: For M1210nf models, the fax configuration setup will start.
12. The HP LaserJet Help Navigation application opens.
Install the Host-based driver from the CD
●Install the print driver from the CD for USB connected products
●Install the print driver from the CD for wired network connected products
Install the print driver from the CD for USB connected products
A series of dialog boxes appear during installation of the HP LaserJet Professional M1130/M1210 MFP
Series printing-system software in Windows environments.
NOTE: You can return to the previous dialog box by clicking Back or exit the HP LaserJet Professional
M1130/M1210 MFP Series printing-system software installation by clicking Cancel wherever these
options appear in the installation sequence.
1. Close all programs.
2. Make sure the USB cable is not connected between the product and the computer. Insert the
HP LaserJet Professional M1130/M1210 MFP Series printing system software CD into the CD-
ROM drive. The software installer detects the language of the operating system, and then displays
the main menu of the CD Browser program in the same language.
ENWW Detailed MS Windows installation instructions 81
If the installer program has not started after 30 seconds, complete these steps.
a. On the Start menu, click Run.
b. Type the following: X:\SETUP.EXE (where X is the letter of the CD-ROM drive).
c. Click OK.
Figure 3-21 Software Installation — Initial screen
82 Chapter 3 Install Windows printing-system components ENWW
3. Click Install to begin the installation process. The Choose Easy Install or Advanced Install
screen appears.
Figure 3-22 Choose Easy Install or Advanced Install screen
The Choose Easy Install or Advanced Install screen contains links to the following information.
●The software End User License Agreement – use this link to view the end user license
agreement.
●The HP recommended software package – use this link to view information about the
HP Customer Participation Program.
●Click Here For The HP Privacy Policy – use this link to view the HP Privacy Policy.
4. Select Easy Install (recommended). Using Easy Install (recommended) allows the installation
agreements and default settings to be accepted without being prompted for them during the
installation. Advanced Install allows you to read, and manually accept, each of the installation
agreements. Click the Next button to continue the installation.
ENWW Detailed MS Windows installation instructions 83
5. Select an appropriate printer model on the Select Printer screen and click the Next button.
Figure 3-23 Select Printer screen
84 Chapter 3 Install Windows printing-system components ENWW
6. Select Configure to print using USB and then click the Next button.
Figure 3-24 Configure to print using USB screen (part 1)
ENWW Detailed MS Windows installation instructions 85
7. Connect a USB cable between the computer and the product when prompted on the Configure
to print using USB screen.
Figure 3-25 Configure to print using USB screen (part 2)
86 Chapter 3 Install Windows printing-system components ENWW
8. The Congratulations! Software installation complete screen appears upon successful
installation of the driver.
Figure 3-26 Software installation complete screen (part 1)
9. Select Register your product and then click the Next button. A Web browser opens to the HP
Product Registration page.
ENWW Detailed MS Windows installation instructions 87
10. The Congratulations! Software installation complete screen appears with links to download HP
Smart Web Printing and the XPS driver.
Figure 3-27 Software installation complete screen (part 2)
11. Click the Finish button.
12. The HP LaserJet Help Navigation application opens.
Install the print driver from the CD for wired network connected products
The recommended installation (Easy Install) installs the HP LaserJet Professional M1130/M1210 MFP
Series Host based printer driver, screen fonts, and user guide.
A series of dialog boxes appear during installation of the HP LaserJet Professional M1130/M1210 MFP
Series printing-system software in Windows environments.
NOTE: You can return to the previous dialog box by clicking Back or exit the HP LaserJet Professional
M1130/M1210 MFP Series printing-system software installation by clicking Cancel wherever these
options appear in the installation sequence.
1. Close all programs.
2. Insert the HP LaserJet Professional M1130/M1210 MFP Series printing system software CD into
the CD-ROM drive. The software installer detects the language of the operating system, and then
displays the main menu of the CD Browser program in the same language.
If the installer program has not started after 30 seconds, complete these steps.
a. On the Start menu, click Run.
b. Type the following: X:\SETUP.EXE (where X is the letter of the CD-ROM drive).
88 Chapter 3 Install Windows printing-system components ENWW
c. Click OK.
Figure 3-28 Software Installation — Initial screen
ENWW Detailed MS Windows installation instructions 89
3. Click Install to begin the installation process. The Choose Easy Install or Advanced Install
screen appears.
Figure 3-29 Choose Easy Install or Advanced Install screen
The Choose Easy Install or Advanced Install screen contains links to the following information.
●The software End User License Agreement – use this link to view the end user license
agreement.
●The HP recommended software package – use this link to view information about the
HP Customer Participation Program.
●Click Here For The HP Privacy Policy – use this link to view the HP Privacy Policy.
4. Select Easy Install (recommended). Using Easy Install (recommended) allows the installation
agreements and default settings to be accepted without being prompted for them during the
installation. Advanced Install allows you to read, and manually accept, each of the installation
agreements. Click the Next button to continue the installation.
90 Chapter 3 Install Windows printing-system components ENWW
5. Select an appropriate printer model on the Select Printer screen and click the Next button.
Figure 3-30 Select Printer screen
ENWW Detailed MS Windows installation instructions 91
6. To locate your product on the network, choose whether to Select from a list of detected printers
(Recommended) or Specify a printer by address on the Identify Printer screen and then click
the Next button.
NOTE: If you choose to Specify a printer by address, you will be presented with screens for
manually entering an IP, MAC, or hostname address for locating your product on the network.
Figure 3-31 Identify Printer screen
92 Chapter 3 Install Windows printing-system components ENWW
7. On the Printers Found screen, select your product and then click the Next button.
Figure 3-32 Printers Found screen.
ENWW Detailed MS Windows installation instructions 93
8. The Confirm Settings screen appears, displaying the network settings for the selected product.
Click the Next button to proceed.
Figure 3-33 Confirm Settings screen
94 Chapter 3 Install Windows printing-system components ENWW
9. The Congratulations! Software installation complete screen appears upon successful
installation of the driver.
Figure 3-34 Software installation complete screen (part 1)
10. Select Register your product and then click the Next button. A Web browser opens to the HP
Product Registration page, and a test page prints at the product.
ENWW Detailed MS Windows installation instructions 95
11. The Congratulations! Software installation complete screen appears with links to download HP
Smart Web Printing and the XPS driver.
Figure 3-35 Software installation complete screen (part 2)
12. Click the Finish button.
NOTE: For M1210nf models, the fax configuration setup will start.
13. The HP LaserJet Help Navigation application opens.
Install the HP LaserJet Professional M1130/M1210 MFP Series XPS driver
New driver install
Use the following procedure to install the XPS driver when no instances of the HP LaserJet Professional
M1130/M1210 MFP Series driver are installed.
1. Extract the XPS zip file to a folder location.
2. Plug the USB cable into the printer and the computer, then power on the printer.
3. The XPS driver must be installed using the Windows Add New Hardware wizard.
If HP Smart Install is enabled for the product, it will start automatically when the USB connection
is made between the product and the computer and prevent the Windows Add New Hardware
wizard from starting.
96 Chapter 3 Install Windows printing-system components ENWW
Disable HP Smart Install for the product using the following steps.
a. Navigate to the folder that contains the extracted XPS files and start the HP Smart Install Utility
by double clicking SIUtility.exe (or SIUtiltiy64.exe for 64 bit operating systems) in the UTIL
folder.
b. On the Welcome to the HP Smart Install Utility click the Printer button.
Figure 3-36 Welcome to the HP Smart Install Utility screen
ENWW Detailed MS Windows installation instructions 97
c. Select the printer from the list and then click the Next button.
Figure 3-37 HP Smart Install Printer Configuration screen
d. On the This Printer's HP Smart Install is currently Enabled dialog click the Disable HP
Smart Install on the selected Printer button.
Figure 3-38 HP Smart Install currently Enabled screen
e. On the message box that appears, click Yes to confirm the disabling ofHP Smart Install.
98 Chapter 3 Install Windows printing-system components ENWW
f. Click the Close button on the This Printer's HP Smart Install is currently Disabled screen.
Figure 3-39 HP Smart Install currently Disabled screen
g. Click the Close button on the Choose the printer to configure HP Smart Install screen.
h. Click the Close button on the Welcome to the HP Smart Install Utility screen.
i. Unplug the USB cable from the printer and then plug it back in.
ENWW Detailed MS Windows installation instructions 99
4. On the Welcome to the Found New Hardware Wizard screen, select No beneath Can Windows
connect to Windows Update to search for software?.
Figure 3-40 Welcome to the Found New Hardware Wizard screen
100 Chapter 3 Install Windows printing-system components ENWW
5. On the next Found New Hardware Wizard screen, select Install from a specific location
(Advanced) and then click the Next button.
6. Select Don't search, I will choose the driver to install. and then click the Next button.
ENWW Detailed MS Windows installation instructions 101
7. Ensure that Show compatible hardware is selected. Select your printer in the Printers list, and
then click the Have Disk... button.
102 Chapter 3 Install Windows printing-system components ENWW
8. Navigate to the location of the XPS .inf file, select the XPS .inf file (example: HPM1210XPS.INF),
and then click the Open button.
Figure 3-41 Locate File dialog window
9. Click the OK button on the Install From Disk dialog
10. Click the Next button. The driver installation proceeds automatically.
ENWW Detailed MS Windows installation instructions 103
11. Click the Finish button to complete the installation and to close the Add New Hardware Wizard.
Existing driver install
Use the following procedure to install the XPS driver when an instance of the HP LaserJet Professional
M1130/M1210 MFP Series driver is installed.
1. Extract the XPS zip file to a folder location.
2. Click Start, and then do one of the following:
Windows XP: Click Control Panel, and then double-click the Printers and Other Hardware icon.
-or-
Windows Server 2003 and Windows XP Professional: Select Settings, and then select Printers
and Faxes.
-or-
Windows Vista: Click Control Panel, click Hardware and Sound, and then click Printers.
-or-
Windows Server 2008: Click Start, click Control Panel, and then open the Printers folder.
-or-
Windows 7: Click Start, click Control Panel, and then click Devices and Printers.
104 Chapter 3 Install Windows printing-system components ENWW
3. Right click in the Printers and Faxes window and select Add Printer. The Add Printer Wizard
screen opens.
Figure 3-42 Add Printer Wizard
ENWW Detailed MS Windows installation instructions 105
4. On the Local or Network Printer screen, select Local printer attached to this computer, and
then click the Next button.
Figure 3-43 Local or Network Port screen
106 Chapter 3 Install Windows printing-system components ENWW
5. On the Select a Printer Port screen, select Use the following port: and then select the port your
HP LaserJet Professional M1130/M1210 MFP Series uses. Click the Next button.
Figure 3-44 Select a Printer Port screen
ENWW Detailed MS Windows installation instructions 107
6. On the Install Printer Software screen, select your printer in the Printers list, and then click the
Have Disk... button.
Figure 3-45 Install Printer Software screen
108 Chapter 3 Install Windows printing-system components ENWW
7. Navigate to the location of the XPS .inf file, select the XPS .inf file (example: HPM1210XPS.INF),
and then click the Open button.
Figure 3-46
8. Click the OK button on the Install From Disk dialog and then click the Next button.
ENWW Detailed MS Windows installation instructions 109
9. On the Use Existing Driver screen, select Keep existing driver (recommended) and then click
the Next button.
Figure 3-47 Use Existing Driver screen
110 Chapter 3 Install Windows printing-system components ENWW
10. On the Name Your Printer screen, enter or a name for the printer or use the existing name. Select
whether to use this printer as your default printer. Click the Next button.
Figure 3-48 Name Your Printer screen
11. On the Printer Sharing screen, select whether to share this printer. Click the Next button.
12. On the Print Test Page screen, select whether to print a test page. Select the Next button.
ENWW Detailed MS Windows installation instructions 111
13. Click the Finish button on the Completing the Add Printer Wizard screen to complete the
installation.
Figure 3-49 Completing the Add Printer Wizard screen
Use the Back, Next, Finish, and Cancel buttons
The following buttons appear on various dialog boxes during the installation process.
●Back. Click this button to return to the previous dialog box.
●Next. After you select any options on a given screen, click this button to proceed to the next step
in the installation sequence.
●Finish. Click this button to complete the installation process and proceed to the Additional
Options screen.
●Cancel. Click this button to exit the installer without installing the product. When you click
Cancel, the Installation Cancelled dialog box opens, stating that the installation was cancelled.
Figure 3-50 Installation Cancelled dialog box
Click Finish to close the installer.
112 Chapter 3 Install Windows printing-system components ENWW
Set a default printer
1. In Windows Vista, click the Start button, click Control Panel, and then click Hardware and
Sound. Under the Printers section, click Change default printer.
In Windows XP, Windows Server 2003, and Windows Server 2008, click Start, click Control
Panel, and then click Printers and Faxes (Windows XP Professional) or Printers and other
hardware devices (Windows XP Home).
Windows 7: Click Start, click Control Panel, and then click Devices and Printers.
2. Right-click the product that you want to set as the default printer.
3. Click Set As Default. A check mark appears next to the menu option.
ENWW Detailed MS Windows installation instructions 113
Uninstall software
●Uninstall the Host based driver
●Uninstall the XPS driver
Uninstall the Host based driver
●Use the HP Uninstall utility (recommended)
●Use Windows Add or Remove Programs feature
Use the HP Uninstall utility (recommended)
1. Click the Start button, select All Programs, select HP, select your product name, and then click
the Uninstall utility.
2. The Printer Uninstall List screen appears. Select the product, or products, to uninstall and then
click Remove One or Remove All to initiate the uninstall process.
Use Windows Add or Remove Programs feature
Use these instructions to uninstall the product using the Windows Add or Remove Programs feature.
NOTE: You must have Administrator privileges to uninstall the product using Add or Remove
Programs.
1. In Windows Vista, click the Start button, click Control Panel, and then click Add or Remove
Programs.
In Windows XP, Windows Server 2003, and Windows Server 2008, click Start, click Control
Panel, and then double-click Add or Remove Programs.
In Windows 7, click the Start button, click Control Panel, and then click Programs and
Features.
114 Chapter 3 Install Windows printing-system components ENWW
2. Click the entry for the HP LaserJet Professional M1130/M1210 MFP Series product, and then click
Remove. The following screen appears.
Figure 3-51 Uninstall
Select the product, or products, to uninstall and then click Remove One or Remove All to initiate
the uninstall process.
Uninstall the XPS driver
1. In Windows 7, click the Start button, click Control Panel, and then click Devices and Printers.
2. In Windows Vista, click the Start button, click Control Panel, and then click Hardware and
Sound. Under the Printers section, click Change default printer.
In Windows XP, Windows Server 2003, and Windows Server 2008, click Start, click Control
Panel, and then click Printers and Faxes (Windows XP Professional) or Printers and other
hardware devices (Windows XP Home).
Windows 7: Click Start, click Control Panel, and then click Devices and Printers.
3. Right-click the XPS HP LaserJet Professional XXXX product and select Delete to delete the XPS
driver print que.
4. From the File menu select Server Properties.
5. In the Print Server Properties window click the Drivers tab.
6. Locate the driver named XPS HP LaserJet Professional XXXX and then click the Remove button.
ENWW Uninstall software 115
116 Chapter 3 Install Windows printing-system components ENWW
4 HP host based print driver for Windows
Introduction
This chapter describes the features of the HP LaserJet Professional M1130/M1210 MFP Series Host
based Print Driver for Windows XP (32-bit and 64-bit), Windows Server 2003 (32-bit and 64-bit),
Windows Vista (32-bit and 64-bit), Windows Server 2008 (32-bit and 64-bit), and Windows 7 (32-bit and
64-bit),.
You can control print jobs from several places:
●The product control panel
●The software program print dialog box
●The driver user interface
Generally, for features that are duplicated in more than one location (for instance, you can select the
paper input tray from any of them), settings that are established in the software program take precedence
over print-driver settings. Print-driver settings, in turn, override product control-panel settings.
When you install the printing-system software in Microsoft Windows XP, Microsoft
Windows Server 2003, Microsoft Windows Vista, Windows Server 2008, or Windows 7, the HP Host
based Print Driver is the recommended driver and installs by default from the product firmware or CD
Browser.
Topics:
●Gain access to print drivers
●Help system
●Advanced tab features
●Paper/Quality tab features
●Effects tab features
●Finishing tab features
●Services tab features
●Device Settings
ENWW Introduction 117
Gain access to print drivers
Depending on the operating system on which you are installing the print drivers, you can gain access
to the print drivers and different print-driver interfaces in several ways.
To gain access to the print-driver settings from within most software programs, follow these steps:
1. Click File.
2. Click Print.
3. Click Properties.
The appearance and names of the driver tabs can vary, depending on the operating system. These
driver settings apply only while that software program is open.
You can control the drivers directly from the Printers folder. Here you have access to two sets of driver
tabs: the Printing Preferences tabs and the Properties tabs. The settings that you make on the
Printing Preferences driver tabs control the driver default settings for each user's profile. Installable
options can be configured in the Properties driver tabs.
Printing Preferences driver tabs
The Printing Preferences driver tabs change the default settings that are used across all software
programs. To gain access to these tabs, follow these steps:
1. Windows Vista: Click Start, click Control Panel, click Hardware and Sound, and then click
Printers.
Windows XP and Windows Server 2003: Click Start, click Settings, and then click Printers and
Faxes.
Windows Server 2008: Click Start, click Control Panel, and then open the Printers folder.
Windows 7: Click Start, click Control Panel, and then click Devices and Printers.
2. Right-click the product name.
3. Click Printing Preferences.
The following Printing Preferences print-driver tabs are available:
●Advanced
●Paper/Quality
●Effects
●Finishing
●Services
118 Chapter 4 HP host based print driver for Windows ENWW
Properties driver tabs
This set of tabs controls the driver behavior and driver connections. To gain access to the Properties
tabs, follow these steps:
1. Windows Vista: Click Start, click Control Panel, click Hardware and Sound, and then click
Printers.
Windows XP and Windows Server 2003: Click Start, click Settings, and then click Printers and
Faxes.
Windows Server 2008: Click Start, click Control Panel, and then open the Printers folder.
Windows 7: Click Start, click Control Panel, and then click Devices and Printers.
2. Right-click the product name.
3. Click Properties.
The following Properties print-driver tabs are available:
●General
●Sharing
●Ports
●Advanced
●Color Management
●Security
●About
ENWW Gain access to print drivers 119
Help system
The HP Host based print driver includes a full-featured Help system to provide assistance with printing
and configuration options.
“What's this?” Help
Windows XP, Windows Server 2003, Windows Server 2008, Windows Vista, and Windows 7 support
What's this? Help. You can gain access to What's this? Help messages in any of the following ways:
●Right-click a feature or control. A pop-up Help window appears.
●Click the ? question mark button in the upper-right corner of the frame, next to the X, to change
the cursor to an arrow with a question mark. When you use this special cursor to select a control,
the pop-up Help window for that control appears.
●Click a feature or control, and then press the F1 key. The Help window for the currently selected
control appears.
Incompatible Print Settings messages
Incompatible Print Settings (constraint) messages are unsolicited messages that appear in response
to specific print-driver selections. These messages alert you to selections that are illogical or impossible
given the product capabilities or the current settings of other controls.
NOTE: Constraint messages are limited, and the underlying software architecture might accept some
settings that are illogical or impossible for the product to perform. Sending a job with incompatible
settings can lead to unexpected results. If print jobs do not print as expected, check the product
documentation for the product capabilities.
In supported Windows operating environments, some technically invalid print-driver configurations result
in warning messages. Duplexing, for example, is not possible when the Transparency paper type is
selected. The following figure shows an Incompatible Print Settings message.
Figure 4-1 An Incompatible Print Settings message
To resolve the conflicting settings, click Restore my previous settings. and then click OK. The driver
resets the conflicting control back to its previous state.
If you want to keep the conflicting setting, click Keep this setting, and I will change it later. and then
click OK.
NOTE: In this example, the conflict can be resolved manually. If the conflict is not resolved when the
driver is closed, then the same message appears again when a print job is sent to the product.
120 Chapter 4 HP host based print driver for Windows ENWW
Advanced tab features
NOTE: The Advanced tab is in the Printing Preferences tab set. For information about how to gain
access to these tabs, see Printing Preferences driver tabs on page 118.
Use the Advanced tab to change the layout of printed pages. Use this tab to configure special controls
that are not commonly used, as well as to control features such as paper size and copies in the driver
(although most current software programs support these features in the Print dialog box or through the
page settings in the software program). The following figure shows the Advanced tab.
Figure 4-2 The default appearance of the Advanced tab
The Advanced tab contains the following controls:
●Print Tasks Quick Sets
●Copies
●Printer Features
●Document preview image
Print Tasks Quick Sets
The Print Tasks Quick Sets drop-down list appears on all tabs except the Services tab.
Print Tasks Quick Sets allow separate groups of print settings to be saved under specified names for
reuse.
ENWW Advanced tab features 121
Follow these steps to create a Print Task Quick Set.
●Open the printer driver, and then click the Properties or Preferences button.
●Select the print options for the new quick set.
●Type a name for the quick set, and then click Save.
Follow these steps to use a Print Tasks Quick Set.
●Open the printer driver, and then click the Properties or Preferences button.
●In the Print Tasks Quick Sets drop-down list , select one of the quick sets, and then click OK to
print the job with the predefined settings.
Copies
The Copies control contains the Copies setting.
Copies
Copies: Specifies the number of copies to print. This driver setting is useful for software programs that
do not provide a copy count. If a copies setting is available in the software program, set the copy count
in the software program.
The number of copies that you request appears in the Copies option. You can select the number by
typing in the text box or by using the up and down arrows to the right of the text box. Valid entries are
numbers from 1 to 999. The copies value will not advance from the maximum number (999) to 1 when
the up arrow is used, or change from 1 to the maximum number (999) when the down arrow is used.
When you click another group box or leave the Advanced tab, invalid entries into the text box (such as
non-numerical input, numbers less than 1, or numbers greater than the maximum allowed) are changed
to the last valid value that appeared in the text box. The default number of copies is 1.
Because you can set the number of copies that you want from some software programs, conflicts
between the software program you are using and the driver can arise. In most cases, the software
program and the driver communicate, so that the number of copies set in one location (such as the
program) will appear in the other (such as the driver). For some programs, this communication does not
take place, and the copies values are treated independently. For these programs, setting 10 copies in
the program and then setting 10 copies in the driver will result in 100 copies (10 x 10) being printed. It
is recommended that you set the number of copies in the program, whenever possible.
Printer Features
The Printer Features control contains a checkbox for activating the Print All Text as Black feature.
Document preview image
The document preview image is a line-drawn image of a page that represents graphics and text. The
document preview image is always oriented so that the contents of the page are right-side-up. The
document preview image appears in the upper-right corner of the following Printing Preferences driver
tabs:
●Advanced
●Paper/Quality
122 Chapter 4 HP host based print driver for Windows ENWW
●Effects
●Finishing
Switching between tabs does not change the location or appearance of the document preview image.
When you move the mouse over the document preview image, the mouse cursor changes from an arrow
to a gloved hand. You can toggle between portrait and landscape page orientation by clicking the image.
ENWW Advanced tab features 123
Paper/Quality tab features
NOTE: The Paper/Quality tab is in the Printing Preferences tab set. For information about how to
gain access to these tabs, see Printing Preferences driver tabs on page 118.
Use the Paper/Quality tab to specify paper size, type, and source. You can also use this tab to specify
different paper selections for the front cover, first page, other pages, last page, and back cover of the
document. The following figure shows the Paper/Quality tab.
Figure 4-3 Paper/Quality tab
The Paper/Quality tab contains the following control sets:
●Print Tasks Quick Sets
●Paper Options
●Document preview image
●Print Quality
Print Tasks Quick Sets
The Print Tasks Quick Sets drop-down list appears on all tabs except the Services tab.
Print Tasks Quick Sets allow separate groups of print settings to be saved under specified names for
reuse.
124 Chapter 4 HP host based print driver for Windows ENWW
Follow these steps to create a Print Task Quick Set.
●Open the printer driver, and then click the Properties or Preferences button.
●Select the print options for the new quick set.
●Type a name for the quick set, and then click Save.
Follow these steps to use a Print Tasks Quick Set.
●Open the printer driver, and then click the Properties or Preferences button.
●In the Print Tasks Quick Sets drop-down list , select one of the quick sets, and then click OK to
print the job with the predefined settings.
Paper Options
The settings in the Paper Options group box on the Paper/Quality tab apply to all of the pages of the
document. The following figure shows the Paper Options group box and the selections that are available
by default.
Figure 4-4 Paper Options group box
The settings in the Paper Options group box are described in the following order:
●Size is
●Custom Paper Size
●Use Different Paper/Covers
●Source is
●Type Is
Size is
The Size is: drop-down menu lists all of the supported paper sizes.
Because paper-size settings in most software programs override driver settings, it is generally best to
use the driver to set the paper size only when you are printing from software programs that do not include
a paper-size setting, such as NotePad, or when you are producing a book or a booklet that does not
require different paper sizes.
ENWW Paper/Quality tab features 125
NOTE: Certain software programs can override the size command and specify different paper sizes
within a single document.
When you change the print-driver setting to a paper size that is not currently loaded in the product, a
control-panel message appears that prompts you to load the paper size.
For information about paper sizes, see Engineering Details on page 167.
NOTE: Several aper sizes are listed in the paper size drop-down menu that are physically too large
for the printer, such as 16k. These sizes are included for scaling purposes– the printer scales down the
printed output from a larger original size used by a software program.
Custom Paper Size
The Custom Paper Size dialog box appears when you click Custom… on the Paper/Quality tab. The
following figure shows the initial appearance of the Custom Paper Size dialog box.
Figure 4-5 Custom Paper Size dialog box
Name
Use the Name text box to type a name for a new custom paper size or to rename an existing paper size.
The text that appears in the Name text box is one of the following::
●The name of the any custom paper size that is selected on the Paper/Quality tab.
●"Custom" if a standard paper size has been selected on the Paper/Quality tab.
●Any text that has been typed into the Name text box. This text remains in the text box until the new
size is saved or the dialog box is closed.
If you type a new name into the Name text box but then do not click Save, you can change the
Width: and Length: values without losing the name. However, if you close the dialog box without clicking
Save, any unsaved name or size values are lost without warning.
126 Chapter 4 HP host based print driver for Windows ENWW
Size
The Width: and Length: values can be changed by typing numeric strings into the edit boxes.
Any entry that is too large is rounded down to the maximum valid entry, while any entry that is too small
is rounded up to the minimum valid entry.
If units are in millimeters, the custom paper-size range minimum is the limit rounded up to the nearest
whole millimeter. The custom paper-size range maximum is the limit rounded down to the nearest whole
millimeter. Any non-numerical entry reverts to the last valid entry. Width and length entries are validated
when the focus changes.
The resolution of each control is 1/100 of a millimeter or 1/100 of an inch, depending on the current
measurement units.
Units
To change measurement units, click the button which displays either Use Inches or Use Millimeters.
Custom width and height control limits
The minimum paper size for this product is 98.4 x 148.0 mm (3.87 x 5.83 in) and the maximum is 215.9
x 355.6 mm (8.5 x 14.0 inches). The following table summarizes paper size limits for each paper-
handling device.
Table 4-1 Host based driver custom paper sizes
Tray Dimensions Minimum Maximum
Tray 1 (150-sheet
multipurpose)
Width 98.4 mm (3.87 inches) 215.9 mm (8.5 inches)
Height 148.0 mm (5.83 inches) 355.6 mm (14.0 inches)
Use the short media extender tool
This product is equipped with a short media extender tool for loading short media into the product. A
help video plays automatically when a selection is made from the Size is: drop-down list that qualifies
as short media. The help video illustrates how to use the short media extender tool.
Use Different Paper/Covers
Select User Different Paper/Covers to assign different paper types for the pages in your printed
document.
ENWW Paper/Quality tab features 127
The following page or cover selections, and their paper source and type or cover type, are available.
●Front Cover: Add a Blank or Preprinted Cover
●First Page: Source is:, Type is:, and Show important instructions for printing on short
media.
●Other Pages: Source is:, Type is:, and Show important instructions for printing on short
media.
●Last Page: Source is:, Type is:, and Show important instructions for printing on short
media.
●Back Cover: Add a Blank or Preprinted Cover
Source is
The Source Is: setting specifies the source tray to use for printing a document.
The Source Is: drop-down menu can contain the following options, depending on what has been
installed on the product:
●Auto Select
●Manual Feed
The default setting is Auto Select. When this setting is selected, the product uses the source tray that
supports the paper size that you have selected. If you select a setting other than Auto Select, make
128 Chapter 4 HP host based print driver for Windows ENWW
sure that the correct paper size is loaded in the source tray. For information about paper sources, see
Engineering Details on page 167.
Type Is
The Type Is: drop-down menu contains the paper types the product is capable of processing.
The Type is: dialog box contains the following paper types:
●Plain Paper
●Light (60-74 g/m2)
●Mid-Weight (96-110 g/m2)
●Heavy (111-130 g/m2)
●Extra Heavy (131-175 g/m2)
●Transparency
●Labels
●Letterhead
●Envelope
●Preprinted
●Prepunched
●Color
●Bond
●Recycled
●Rough
●Vellum
The default setting is Plain Paper, and the program selects the paper type. If you select a different
setting, make sure that the correct paper type is loaded in the input tray. For more information about
paper types, see Engineering Details on page 167.
When you change the print-driver setting to a paper type that is not currently loaded in the product, a
control-panel message appears that prompts you to load the paper type.
Document preview image
The document preview image is a line-drawn image of a page that represents graphics and text. The
document preview image is always oriented so that the contents of the page are right-side-up. The
document preview image appears in the upper-right corner of the following Printing Preferences driver
tabs:
●Advanced
●Paper/Quality
ENWW Paper/Quality tab features 129
●Effects
●Finishing
Switching between tabs does not change the location or appearance of the document preview image.
When you move the mouse over the document preview image, the mouse cursor changes from an arrow
to a gloved hand. You can toggle between portrait and landscape page orientation by clicking the image.
Print Quality
The Print Quality section contains the following controls:
●Print Quality drop-down menu
●EconoMode check box
Print Quality drop-down menu
Use this control to select a print quality. Numeric values are in dots per inch (dpi).
The Print Quality drop-down menu contains the following resolution options.
M1130 Series printer
●FastRes 600: Prints using 400x600x2 resolution, is faster than full 1200 x 1200 resolution, but has
slightly lower print quality.
●FastRes 1200: Prints using 600x600x2 resolution, is faster than full 1200 x 1200 resolution, but
has slightly lower print quality.
M1210 Series printer
●FastRes 600: Prints using 400x600x2 resolution, is faster than full 1200 x 1200 resolution, but has
slightly lower print quality.
●FastRes 1200: Prints using 600x600x2 resolution, is faster than full 1200 x 1200 resolution, but
has slightly lower print quality.
EconoMode check box
Click the EconoMode check box to allow the printer to use less toner/ink on each page. This extends
the life of your print cartridge and reduces your cost per page, but it reduces print quality. This option
may work only if a genuine HP print cartridge is installed. HP print cartridges are able to measure the
life of the mechanical parts as well as the toner/ink. When Economode is used frequently, the mechanical
parts may wear out before the toner/ink does. This may result in toner/ink spillage, which could damage
your printer. Using genuine HP print cartridges avoids this problem.
130 Chapter 4 HP host based print driver for Windows ENWW
Effects tab features
NOTE: The Effects tab is in the Printing Preferences tab set. For information about how to gain
access to these tabs, see Printing Preferences driver tabs on page 118.
Use the Effects tab to create unique paper effects such as scaling and watermarks. The following figure
shows the Effects tab.
Figure 4-6 Effects tab
The Effects tab contains the following controls:
●Print Tasks Quick Sets
●Resizing Options
●Document preview image
●Watermarks
Print Tasks Quick Sets
The Print Tasks Quick Sets drop-down list appears on all tabs except the Services tab.
Print Tasks Quick Sets allow separate groups of print settings to be saved under specified names for
reuse.
ENWW Effects tab features 131
Follow these steps to create a Print Task Quick Set.
●Open the printer driver, and then click the Properties or Preferences button.
●Select the print options for the new quick set.
●Type a name for the quick set, and then click Save.
Follow these steps to use a Print Tasks Quick Set.
●Open the printer driver, and then click the Properties or Preferences button.
●In the Print Tasks Quick Sets drop-down list , select one of the quick sets, and then click OK to
print the job with the predefined settings.
Resizing Options
The Resizing Options group box consists of the following controls:
●Actual size (default)
●Print document on:
●Scale to fit
●% of actual size:
Actual size
Actual Size is the default setting. It prints the document without changing the document size.
Print document on
Click the Print Document On: option to format the document for one paper size and then print the
document on a different paper size, with or without scaling the image to fit the new paper size.
Print Document On: control is disabled by either of the following conditions:
●The % of actual size: value is selected.
●The Pages per sheet: value (on the Finishing tab) is not 1.
When Print Document On: is selected, the drop-down menu shows the paper sizes on which you can
print. The list contains all of the standard paper sizes that the selected paper source supports and any
custom sizes that you have created. When Print document on: is selected, Scale to fit is automatically
selected. Clear this check box if you do not want your document reduced or enlarged to fit on the selected
paper.
Scale to fit
The Scale To Fit option box specifies whether each formatted document page image is scaled to fit the
target paper size. By default, Scale To Fit is selected when Print document on: is selected. If the
setting is turned off, then the document page images will not be scaled and are instead centered at full
size on the target paper. If the document size is larger than the target paper size, then the document
132 Chapter 4 HP host based print driver for Windows ENWW
image is clipped. If it is smaller, then it is centered within the target paper. The following figure shows
the effect that Scale To Fit has on a document formatted for Legal-size paper but printed on Letter.
Figure 4-7 Preview images – Legal on Letter; Scale to Fit off (left) and on (right)
When the size for which the document is formatted (that is, the logical size) differs from the target size,
the preview image uses a dashed gray line to show the boundaries of the logical page in relation to the
target paper size.
% of normal size
The % of Normal Size: option provides a slider bar for scaling the percentage setting. The default setting
is 100%. Actual size is defined as the paper size that is selected within the driver or the size that the
driver receives from the software program (if the software program does not negotiate the paper size
with the driver). The driver scales the page by the appropriate factor and sends it to the product.
The limits of the range are from 25% to 400%, and any values outside the range are adjusted to those
limits as soon as the focus is removed from the control (that is, when the Tab key is pressed or another
control is selected).
Any change to the scale also changes the page preview, which increases or decreases from the upper-
left corner of the preview.
The slider bar controls the scale directly. The value in the edit box changes as the slider bar is dragged,
and the document preview image is updated to the new image scale. Each click on the arrows increases
or decreases the scale by 1%. Each click on the slider bar affects the scale by 10%.
To achieve an exact scaling value, either use the slider bar to approximate the value that you want and
then use the arrows to refine the value, or type the value into the edit box.
The following settings disable % of Normal Size:
●Print document on: (on the Effects tab) is selected
●Pages per sheet: (on the Finishing tab) is not 1
Document preview image
The document preview image is a line-drawn image of a page that represents graphics and text. The
document preview image is always oriented so that the contents of the page are right-side-up. The
document preview image appears in the upper-right corner of the following Printing Preferences driver
tabs:
●Advanced
●Paper/Quality
ENWW Effects tab features 133
●Effects
●Finishing
Switching between tabs does not change the location or appearance of the document preview image.
When you move the mouse over the document preview image, the mouse cursor changes from an arrow
to a gloved hand. You can toggle between portrait and landscape page orientation by clicking the image.
Watermarks
Use the Watermarks feature to select a watermark, create a new watermark (text only), or edit an
existing watermark. The following watermarks are preset in the driver:
●(none)
●Confidential
●Copy
●Draft
●SAMPLE
The drop-down menu shows alphabetically sorted watermarks that are currently available on the system,
plus (none) which indicates that no watermark is selected. This is the default setting. Any watermark
that is selected from this list appears in the preview image.
When the First page only check box is selected, the watermark is printed only on the first page of the
document. The First page only check box is disabled when the current watermark selection is
(none).
Watermarks are applied to logical pages. For example, when Pages per sheet: is set to 4 and First
page only is turned off, four watermarks appear on the physical page (one on each logical page).
134 Chapter 4 HP host based print driver for Windows ENWW
Watermark Details
Click Edit, and the Watermark Details dialog box appears.
Figure 4-8 Watermark Details dialog box
The dialog box shows a preview image and provides options for creating a new watermark and
controlling the message angle and font attributes.
Click OK to accept all of the changes that are made in the Watermark Details dialog box. However,
clicking Cancel does not cancel all of the changes. If you make changes to a watermark and then select
a different watermark or click New, all of the changes are saved, and only the current, unsaved changes
can be canceled.
Current Watermarks
The Current Watermarks group box contains a list of available watermarks, both predefined
watermarks that are available in the driver and any new watermarks that you have created.
To create a new watermark, click New. The new watermark appears in the Current Watermarks list
and in the Watermark Message edit box as "Untitled" until you type a new name in the Watermark
Message edit box. The new name then appears in the Current Watermarks group box, in the
Watermark Details dialog box, and in the Watermarks group box on the Effects tab.
To delete a watermark, select the watermark in the Current Watermarks list and click Delete. At the
warning that appears, click Cancel to keep the watermark, or click OK to delete it.
NOTE: When you reach the limit of 30 watermarks in the Current Watermarks list at one time, the
New button is disabled.
To edit an existing watermark, select the watermark in the Current Watermarks list. If you change the
Watermark Message for that watermark, you are, in effect, creating a new watermark.
ENWW Effects tab features 135
Watermark Message
The Watermark Message is also the name that identifies the watermark in the Current Watermarks
list, except when more than one watermark has the same message. For example, you can have several
different watermarks with the message DRAFT, each with a different typeface or font size. When this
occurs, the string is appended with a space, a pound sign, and a number (for example, Draft #2). When
a number is added, the number 2 is used first, but if the resulting name is also in the list, then the number
increases until the name is unique (Draft #3, Draft #4, and so on).
Message Angle
Use the controls in the Message Angle group box to print the watermark in different orientations on the
page. All settings center the watermark string within the page; the selection of a particular setting affects
only the angle of the string placement. The following settings are available:
●Diagonal. This is the default setting. Select this setting to place the text along a line that spans the
lower-left to upper-right corners of the page.
●Horizontal. Select this setting to place the text along a line that spans the mid-left and mid-right
edges of the page.
●Angle. Select this setting to place the text at the specified angle across the page. Use the numeric
spin box to select the angle.
Font Attributes
Use the controls in the Font Attributes group box to change the font and the shading, size, and style
of the font.
The Font Attributes group box contains the following controls:
●Name
The Name: drop-down menu lists fonts that are currently installed on the system. The default is
language dependent.
●Color
Sets the color of the watermark. The only watermark color option available on this product is
Gray.
●Shading
The default Shading: setting for new and preset watermarks is Very light. The following range of
shades is available from the Shading drop-down menu:
◦Lightest
◦Very light (default)
◦Light
◦Medium light
◦Medium
◦Medium dark
◦Dark
136 Chapter 4 HP host based print driver for Windows ENWW
◦Very dark
◦Darkest
These values represent the intensity of the gray that is used. Light produces a lightly saturated
gray watermark, Lightest produces the lightest shade of watermark, and Darkest produces a black
watermark.
●Size
Font sizes from 1 to 999 points are available from the Size menu. The default point size is language
dependent.
●Style
The following settings are available:
◦Regular
◦Bold
◦Italic
◦Bold Italic
●The default Style: setting for new and preset watermarks is Regular.
Default watermark settings
The following table shows Font Attribute settings for new and preset watermarks.
Table 4-2 Font Attribute settings for new and preset watermarks
Setting New watermark Preset watermark
Name Arial Varies by language
Shading Very light Very light
Size 90 Varies by language
Style Bold Regular
Click OK to accept all of the changes that have been made in the Watermark Details dialog box. Clicking
Cancel does not cancel all of the changes. If you make changes to a watermark and then select a
different watermark or click New, all of the changes are saved, and only the current, unsaved changes
can be canceled.
ENWW Effects tab features 137
Finishing tab features
NOTE: The Finishing tab is on the Printing Preferences tab set. For information about how to gain
access to these tabs, see Printing Preferences driver tabs on page 118.
Use the Finishing tab to print booklets and control the paper output. The following figure shows the
Finishing tab.
Figure 4-9 Finishing tab
The Finishing tab contains the following controls:
●Print Tasks Quick Sets
●Document Options
●Document preview image
●Orientation
Print Tasks Quick Sets
The Print Tasks Quick Sets drop-down list appears on all tabs except the Services tab.
Print Tasks Quick Sets allow separate groups of print settings to be saved under specified names for
reuse.
138 Chapter 4 HP host based print driver for Windows ENWW
Follow these steps to create a Print Task Quick Set.
●Open the printer driver, and then click the Properties or Preferences button.
●Select the print options for the new quick set.
●Type a name for the quick set, and then click Save.
Follow these steps to use a Print Tasks Quick Set.
●Open the printer driver, and then click the Properties or Preferences button.
●In the Print Tasks Quick Sets drop-down list , select one of the quick sets, and then click OK to
print the job with the predefined settings.
Document Options
The Document Options group box contains the following controls:
●Print on both sides manually
●Flip pages up
●Booklet Printing
●Pages per sheet
●Print page borders
●Page order
Print on both sides manually
Select the Print on Both Sides (Manually) check box to print on the second side of supported media.
Select the paper type that corresponds to the paper that you are using for the print job. The following
paper types have a different print modes when you manually print on the second side:
●Plain
●Preprinted
●Letterhead
●Prepunched
●Bond
●Recycled
●Colored
●Rough
Cardstock paper can be manually printed on the second side, but no change occurs to the print mode.
Transparencies and labels should never be manually printed on the second side.
ENWW Finishing tab features 139
To print a multiple-page document, follow these steps:
1. Select the Print on Both Sides (Manually) check box.
2. Click OK. The even-number pages of the document print.
3. When the control panel shows the MANUALLY FEED message, insert the stack of paper (on which
the even-number pages have been printed) as indicated in the following figure.
Figure 4-10 Print on Both Sides Instructions dialog box
When you have completed the steps that appear in the dialog box, the second half of the print job prints
on the back side of the stack of paper. The driver does not require the program to specifically support
odd- and even-page printing, because the driver coordinates this function.
Flip pages up
Use the Flip pages up check box to specify the duplex-binding option. By default, the Flip pages up
check box is not available. It is available only when Print on both sides is selected. The following table
demonstrates the results of selecting this check box, depending on the paper orientation selected on
the Finishing tab.
Table 4-3 Page orientation
Orientation (Finishing tab) Flip pages up selected Flip pages up not selected
Portrait Short-edge binding Long-edge binding
Landscape Long-edge binding Short-edge binding
When Print on both sides is selected, the document preview image changes to show a spiral binding
along either the left edge or the top edge of the page. In addition, a folded-over corner appears in the
lower-right portion of the preview image, indicating that printing occurs on the back side. An arrow on
the folded-over corner points in the direction that the pages would be flipped if they were bound together.
140 Chapter 4 HP host based print driver for Windows ENWW
Short-edge binding is for print jobs with pages that read by flipping over like the pages of a calendar.
Long-edge binding is for print jobs with pages that read by turning like the pages of a book.
Booklet Printing
The Booklet Printing: drop-down menu, visible when Print on both sides is selected, offers choices
that are based on the current paper size. The default setting for the Booklet Printing: drop-down menu
is Off. The other settings have the following format, where [paper size] depends on the paper size that
is set on the Paper/Quality tab:
●Left Edge Binding
●Right Edge Binding
When you select Left Edge Binding or Right Edge Binding, the document preview image changes to
show the location of the binding. If the Pages per sheet: setting is on the default setting of 1, it
automatically changes to 2 pages per sheet. If you manually change the Pages per Sheet setting to
4, 6, 9, or 16 pages per sheet, the Booklet Printing: is disabled. See Pages per sheet on page 141
for more information.
Book and booklet printing
The product supports book and booklet printing.
A booklet is a print job that places two pages on each side of a sheet that can then be folded into a
booklet that is half the size of the paper. Use the Booklet Printing: drop-down menu on the
Finishing tab to control booklet settings.
NOTE: Booklet folding is a manual process. The product does not fold.
Pages per sheet
Use the Pages per sheet: option to select the number of pages that you want to print on a single sheet
of paper. If you choose to print more than one page per sheet, the pages appear smaller and are
arranged on the sheet in the order that they would otherwise be printed. The Pages per sheet: drop-
down menu provides the following settings:
●1 page per sheet (default)
●2 pages per sheet
●4 pages per sheet
●6 pages per sheet
●9 pages per sheet
●16 pages per sheet
NOTE: When you select an option other than 2 pages per sheet, booklet printing is unavailable.
Print page borders
Related controls indented beneath Pages per sheet: are Print page borders and Page order:, which
become active when Pages per sheet: is greater than 1.
Print page borders sets a line around each page image on a printed sheet to help visually define the
borders of each logical page.
ENWW Finishing tab features 141
Page order
The Page order: drop-down menu contains the following options:
●Right, then Down
●Down, then Right
●Left, then Down
●Down, then Left
The preview document image reflects changes in these settings, as shown by the examples in the
following figure.
Figure 4-11 Page-order preview images
●2 pages per sheet
●4 pages per sheet
●6 pages per sheet
●9 pages per sheet
●16 pages per sheet
Document preview image
The document preview image is a line-drawn image of a page that represents graphics and text. The
document preview image is always oriented so that the contents of the page are right-side-up. The
document preview image appears in the upper-right corner of the following Printing Preferences driver
tabs:
●Advanced
●Paper/Quality
●Effects
●Finishing
Switching between tabs does not change the location or appearance of the document preview image.
When you move the mouse over the document preview image, the mouse cursor changes from an arrow
to a gloved hand. You can toggle between portrait and landscape page orientation by clicking the image.
Orientation
Orientation refers to the layout of the image on the page and does not affect the way that paper feeds
into the product. The orientations that you can specify are portrait, landscape, and rotated. The default
orientation is Portrait.
142 Chapter 4 HP host based print driver for Windows ENWW
NOTE: Because nearly all software programs establish orientation the page orientation in the driver
is useful only for the few software programs that do not set it.
The Orientation group box contains the following options:
●Portrait. The top edge of the document is the shorter edge of the paper.
●Landscape. The top edge of the document is the longer edge of the paper.
●Rotate by 180 degrees. This creates a landscape or portrait orientation in which the image is
rotated 180°. This setting is useful for printing prepunched paper.
You can toggle orientation between portrait and landscape by clicking the document preview image. If
you select the Rotate by 180 degrees check box, no change occurs in the document preview image.
ENWW Finishing tab features 143
Services tab features
NOTE: The Services tab is on the Printing Preferences tab set. For information about how to gain
access to these tabs, see Printing Preferences driver tabs on page 118.
The Services tab is shown in the following figure.
Figure 4-12 Services tab
The Services tab contains the following group boxes:
●Internet Services
●Print Information Pages
Internet Services
The Internet Services group box contains the Select a destination drop-down menu with the following
options:
●Support and troubleshooting. This is the main Web site for product support.
●Product manuals. View or download product manuals.
●Check for driver updates. Automatically check to see whether the correct and most up-to-date
print drivers are installed.
●Shop for supplies. Shop online for product supplies.
144 Chapter 4 HP host based print driver for Windows ENWW
If you have Internet access, select any of these items and then click Go! to open the corresponding
HP Web page.
Print Information Pages
Use the Print Information Pages section of the Services tab to print the following information pages.
●Demo Page
●Config Page
●Supply Status Page
●"Control-Panel Reference Page
ENWW Services tab features 145
Device Settings
Gain access to the product's Device Settings by following these steps.
1. Windows Vista and Windows 7: Click Start, click Control Panel, and then in the category for
Hardware and Sound click Printer.
-or-
Windows XP, Windows Server 2003, and Windows Server 2008 (using the default Start menu
view): Click Start, and then click Printers and Faxes.
-or-
Windows XP, Windows Server 2003, and Windows Server 2008 (using the Classic Start menu
view): Click Start, click Settings, and then click Printers.
2. Right-click the driver icon, and then select Properties.
3. Click the Device Settings tab.
Figure 4-13 Device Settings tab - M1212nf model shown
The following settings can be configured on the Device Settings tab.
●Duplex Mode
●Jam Recovery
●Status Messages
146 Chapter 4 HP host based print driver for Windows ENWW
●Cleaning Page
●Print Density
●Auto-Off Console
NOTE: Click the Apply button on the Device Settings tab to apply any changed settings.
Duplex Mode
Use the Duplex Mode section to set duplex settings.
●M1130/M1210 series products have the option to Allow Manual Duplexing. Allow Manual
Duplexing is selected by default.
Jam Recovery
When the Jam Recovery feature is turned on, the product reprints any pages that are damaged during
a jam. The default setting for Jam Recovery is Off.
Status Messages
When the Status Messages feature is turned on, status messages related to the operation of the product
appear. The default, and recommended, setting for Status Messages is On.
ENWW Device Settings 147
Cleaning Page
Use the Cleaning Page feature to remove excess toner and paper particles that accumulate on the fuser
assembly and rollers.
Follow these steps to print a Cleaning Page.
1. On the Device Settings tab, press the Start button in the Cleaning Page section. The HP LaserJet
Cleaning Utility starts.
2. Make sure the product is idle and the Ready LED on the product is on.
3. Load overhead transparency or copier grade paper (18lb - 24lb or 70g/m
2
- 90g/m
2
) with a smooth
surface.
4. Press the OK button. The cleaning process will take about two minutes to finish.
Print Density
Use the Print Density setting to optimize and improve image quality. The default setting for Print
Density is 3.
Auto-Off Console
Auto-Off is an energy-saving feature of this product. After a user-specified time period, the product
automatically reduces its power consumption (Auto-Off). The product returns to the ready state when a
button is pressed or a print job is received. When the product is in Auto-Off mode, all of the control-panel
LEDs and the power button backlight LED are off.
Auto-Off is enabled by default and the default time interval setting is five minutes. Change Auto-Off
settings by selecting a time interval in the Auto-off after: drop-down menu. Disable Auto-Off by
deselecting Automatically turn off device after inactivity.
NOTE: Although the product lights are off in Auto-Off mode, the product will work normally when it
receives a print job.
148 Chapter 4 HP host based print driver for Windows ENWW
5 Macintosh software and utilities
●Supported operating systems for Macintosh
●Macintosh system requirements
●Macintosh printing-system software
●Macintosh install and uninstall instructions
ENWW 149
Supported operating systems for Macintosh
The product supports the following Macintosh operating systems:
●Mac OS X V10.4, V10.5 and V10.6
NOTE: PPC and Intel Core Processor Macs are supported.
Macintosh system requirements
Hardware requirements
●256 MB RAM
●150 MB HD free space
●CD-ROM
●USB
Macintosh printing-system software
The printing-system software for Macintosh is composed of an HP-created postscript (PS) printer
definition file (PPD) and a Printer Dialog Extension (PDE) file that work together with the Macintosh OS
printing system. These files are used by the Macintosh OS printing system to determine default printer-
driver settings and to allow the user to select between the various print options and settings. An HP-
supplied Macintosh printer configuration utility is provided, which allows the user to access the
HP Embedded Web Server (HP EWS) for additional configuration and product status monitoring. The
following are provided on the printing-system CD:
●The HP LaserJet Installer for Macintosh
The following components are installed by the HP LaserJet Installer for Macintosh:
●HP LaserJet Professional M1130/M1210 MFP Series PPD
●HP LaserJet Professional M1130/M1210 MFP Series PDE
●HP USB EWS Gateway
●HP LaserJet Utility
HP LaserJet Professional M1130/M1210 MFP Series PPD
A postscript printer description (PPD) file is a text file that contains keywords and other information to
specify printer features, options, and settings. PPD files are created by printer vendors for a specific
postscript printer or printer family. PPD files are created by printer vendors to describe the set of printer
features available for their postscript printers. On the Macintosh, PPD files provide all the information
necessary to describe a postscript printer’s features, including options and default settings. They also
contain the postscript code used to invoke those features.
150 Chapter 5 Macintosh software and utilities ENWW
HP LaserJet Professional M1130/M1210 MFP Series PDE
A Print Dialog extension file can specify one or more PDEs to load in the Print dialog box to provide
HP printer specific features. A printing dialog extension (PDE) is a way to extend the Print dialog box in
Mac OS X with custom printer features.
A PPD file and printing dialog extension (PDE) for a printer are bound to a printer queue when the queue
is created.
HP USB EWS Gateway
For network connected printers, the EWS can be accessed directly by typing the network IP address or
DNS name of the product into the Web browser. HP USB EWS Gateway software, which is automatically
installed, allows a Web browser to access the product’s EWS if the product is connected using a USB
cable. Click the Utility button when using a USB connection to access the EWS though the Web
browser.
HP LaserJet Utility
Use the HP LaserJet Utility to configure, administer, and set up product features that are not available
from the printer driver. You can use the HP LaserJet Utility with HP printers connected via USB, and
ethernet.
Supported printer drivers for Macintosh
The HP installer provides Postscript Printer Description (PPD) files, Printer Dialog Extensions (PDEs),
and the HP Printer Utility for use with Macintosh computers.
The PPDs, in combination with the Apple postscript printer drivers, provide access to device features.
Use the Apple postscript printer driver that comes with the computer.
Priority for print settings for Macintosh
Changes to print settings are prioritized depending on where the changes are made:
NOTE: The names of commands and dialog boxes might vary depending on your software program.
●Page Setup dialog box: Click Page Setup or a similar command on the File menu of the program
you are working in to open this dialog box. Settings changed here might override settings changed
anywhere else.
●Print dialog box: Click Print, Print Setup, or a similar command on the File menu of the program
you are working in to open this dialog box. Settings changed in the Print dialog box have a lower
priority and do not override changes made in the Page Setup dialog box.
●Default printer driver settings: The default printer driver settings determine the settings used in
all print jobs, unless settings are changed in the Page Setup, Print, or Printer Properties dialog
boxes.
●Printer control-panel settings: Settings changed at the printer control panel have a lower priority
than changes made anywhere else.
ENWW Macintosh printing-system software 151
Change printer-driver settings for Macintosh
Change the settings for all print jobs
until the software program is closed
Change the default settings for all
print jobs
Change the product configuration
settings
1. On the File menu, click Print.
2. Change the settings that you want
on the various menus.
1. On the File menu, click Print.
2. Change the settings that you want
on the various menus.
3. On the Presets menu, click Save
as and type a name for the preset.
These settings are saved in the
Presets menu. To use the new settings,
you must select the saved preset option
every time you open a program and print.
1. From the Apple menu, click System
Preferences and then Print &
Fax.
2. Click Options & Supplies.
3. Click the Driver menu.
4. Select the driver from the list, and
configure the installed options.
Software for Macintosh computers
HP LaserJet Utility
Use the HP LaserJet Utility to set up product features that are not available in the printer driver.
You can use the HP LaserJet Utility when the product uses a universal serial bus (USB) cable or is
connected to a TCP/IP-based network.
Open the HP LaserJet Utility
Open the HP Printer Utility in Mac OS X V10.4 and V10.5, and V10.6
1. Open the Finder, click Applications, click Utilities, and then double-click Printer Setup Utility.
2. Select the product that you want to configure, and then click Utility.
1. In System Preferences, click the Printer & Fax icon.
2. Select the printer and then click the Open Print Queue... button..
3. Click the Utility icon.
Embedded Web Server
The product is equipped with the HP Embedded Web Server (HP EWS), which provides access to
information about device and network activities. For a complete explanation of the features and
functionality of the HP EWS, see the product user guide, which is available on the printing-system
software CD.
Availability
This STR provides information about the availability of the printing-system software and related software
and firmware. Printing-system software on a CD is available from HP fulfillment centers.
●Printing-system software on the Web
●In-box printing-system software CD
152 Chapter 5 Macintosh software and utilities ENWW
Printing-system software on the Web
All software that is contained on the installation CDs is also available on the Web.
Web deployment is the preferred method for obtaining the latest software. The HP Web site offers an
option for automatic e-mail notification about new software releases.
NOTE: This STR describes drivers that are shipped on the printing-system software CD that comes
with the product. This STR does not describe drivers that will become available on the Web.
The printing-system software is available for download at the following Web site:
www.hp.com/support/ljm1130series or www.hp.com/support/ljm1210series
In-box printing-system software CD
One CD is included in-box with the product. The printing-system software CD contains the following
components:
●Software installer
●Links to the HP Universal Print Drivers on the Web
●User guides
●Support information
The CD is divided into two partitions, one for each of the following operating systems:
●Windows
●Macintosh
The files in each partition of the printing-system software CD include documentation files and files that
are required to install and uninstall the printing-system software components. Use the printing-system
software CD to install the printing-system software.
●Macintosh partition
Macintosh partition
The HP Macintosh printing-system software files reside in the Macintosh partition. The HP LaserJet
Installer for Macintosh is at the root of the Macintosh CD partition. The user manuals (.PDF) are grouped
by language and are in the Documentation directory on the Macintosh partition of the software CDs.
ENWW Macintosh printing-system software 153
Macintosh install and uninstall instructions
●Install the Macintosh printing-system software
●Remove the printing-system software from Macintosh operating systems
Install the Macintosh printing-system software
On a Macintosh computer, the printing-system software installation procedures are the same for a
network administrator, a network client, or a single user. Install the printing-system software on any
computer that has access rights to the product. The computer user must also have administrative rights
on the computer to install the printing-system software.
●General installation for Macintosh operating systems
●Detailed Mac OS X installation
●Setup instructions
General installation for Macintosh operating systems
1. If you are connecting the product to a network, connect the network cable to the network port. If
you are connecting the product to a computer by using the USB cable, connect the USB cable.
2. Insert the printing-system software CD into the CD-ROM drive.
NOTE: If the HP LaserJet installer browser screen does not open automatically when the CD is
inserted into the CD-ROM drive, double-click the product CD image on the desktop to open the
installer browser screen.
3. In the HP LaserJet installer browser screen, double-click the product .dmg icon, then double-click
the .pkg icon. This begins the printing-system installation.
NOTE: In the HP LaserJet installer browser screen, double-click the Documentation icon to gain
access to the manuals. Select a language folder and locate the available guides which are in .PDF
format. The user guide is a .PDF file that is named LJM1130–M1210_use_xxww.pdf, where “xx”
is a language abbreviation
4. The Introduction screen appears. Click Continue and then follow the onscreen instructions to
complete the printing-system software installation.
NOTE: When the printing-system software is installing, be patient. The installer must perform an
initial search of the computer, which can take up to 1 minute. During this time, the installer might
appear to be stalled.
5. When the printing-system software installation is complete, click Close.
6. Continue with the steps for setting up a product.
Detailed Mac OS X installation
This section provides information about the Macintosh printing-system software installation dialog-box
sequence.
154 Chapter 5 Macintosh software and utilities ENWW
NOTE: If you are connecting the product to a network, connect the network cable to the network port.
If you are connecting the product to a computer by using the USB cable, connect the USB cable.
1. Insert the printing-system software CD into the CD-ROM drive.
If the HP LaserJet installer browser screen does not open automatically when the CD is inserted
into the CD-ROM drive, double-click the product CD image on the desktop to open the installer
browser screen.
2. In the HP LaserJet installer browser screen, double-click the product .dmg icon, then double-click
the .pkg icon. This begins the printing-system installation.
NOTE: In the HP LaserJet installer browser screen, double-click the Documentation icon to gain
access to the product user guide. The user guide is a .PDF file named LJM1130–
M1210_use_xxww.pdf, where “xx” is a language abbreviation.
Figure 5-1 Introduction screen
ENWW Macintosh install and uninstall instructions 155
3. Click Continue. The Software License Agreement screen appears.
Figure 5-2 Software License Agreement screen
4. Click Print… to open the Page Setup screen and print a copy of the License Agreement.
Click Save to open the system Save screen and save the License Agreement to disk.
Click Go Back to return to the previous screen.
Read the Software License Agreement and then click Continue.
5. The Agree/Disagree screen appears.
Figure 5-3 Agree/Disagree screen
Click Disagree to end the installation and close the installer or click Agree to continue the
installation.
156 Chapter 5 Macintosh software and utilities ENWW
6. The Product Select screen appears. Select the product to install and then click the Continue
button.
Figure 5-4 Product Select screen
ENWW Macintosh install and uninstall instructions 157
7. The Select a Destination screen appears.
Figure 5-5 Select a Destination screen
Select the location to install the software and then click the Continue button.
158 Chapter 5 Macintosh software and utilities ENWW
8. The Select a Destination screen changes with your selected installation destination and lists the
space available, and the space required for the installation.
Figure 5-6 Select a Destination screen
Click Go Back to go back to the previous screen.
Click Continue to continue the installation.
ENWW Macintosh install and uninstall instructions 159
9. The Standard Install on “Mac HardDrive” screen appears. Click the Install button to continue
installing the software. Click the Change Install Location... button to install the software in a
different location. Click the Go Back button to return to the previous installation screen.
Figure 5-7 Standard Install on “Mac HardDrive” screen
10. The HP Setup Assistant screen appears. Click the Continue button.
Figure 5-8 HP Setup Assistant screen
160 Chapter 5 Macintosh software and utilities ENWW
11. The Select Your Device screen appears. Select whether your product is connected via USB or a
wired network, select your product, and then click the Continue button.
Figure 5-9 HP Setup Assistant screen
12. For M1212nf MFP products, follow the HP Setup Assistant steps to configure the fax.
13. The HP Firmware Upgrade Utility screen appears to guide the firmware upgrade process. Click
the Continue button.
Figure 5-10 HP Firmware Upgrade Utility — Introduction screen
ENWW Macintosh install and uninstall instructions 161
14. Select whether your product is connected via USB or a wired network, select your product, and
then click the Continue button.
For products installed to print over a network, select your product by its IP address. If the product
does not appear in the list, click the Create button and enter the IP address manually.
Figure 5-11 HP Firmware Upgrade Utility — Select Device screen
15. The Download Firmware screen appears, detailing the current firmware for the product and the
firmware version that will be upgraded. Click the Continue button.
162 Chapter 5 Macintosh software and utilities ENWW
16. The Finish-Up screen appears after the firmware upgrade is complete. If the product didn't not
restart after the firmware upgrade, wait 5 seconds and turn the power back on to the product. Click
the Finish button.
Figure 5-12 HP Firmware Upgrade Utility — Finish-Up screen
17. The HP Director main screen appears. Use HP Director to configure and perform scan, email, and
fax functions for the product. Also use HP Director to save and restore NVRAM settings, uninstall
the product, and view the product user guide.
Figure 5-13 HP Director main screen
ENWW Macintosh install and uninstall instructions 163
18. Click the Scan button to modify scan settings and perform a scan.
Figure 5-14 HP Director scan settings
19. Click the Email button to scan a document and send it as email.
20. Click the Fax button to scan a document and send it as a fax.
21. Click the Maintain Device button to save or restore NVRAM settings.
22. Click the Remove Device button to uninstall the product.
23. Click the User's Guide button to view the product user guide.
24. Click the Close button on the Install Succeeded screen to exit from the installer software.
NOTE: HP Director, HP Firmware Upgrade Utility, HP Scan, HP Setup Assistant, and HP
Uninstaller can be accessed from a Finder window in the Applications folder within the HP LaserJet
M1130/M1210 MFP Series folder.
NOTE: After installing the printing-system software, the product must be set up.
Setup instructions
This section contains information about the following topics:
●Setting up a printer with Mac OS X V10.4, V10.5, and V10.6
●Troubleshooting the product setup
164 Chapter 5 Macintosh software and utilities ENWW
Setting up a printer with Mac OS X V10.4, V10.5, and V10.6
Complete these steps after completing the printing-system software installation.
1. If you are installing the product using a USB connection, verify the USB cable is connected between
the product and the computer. Turn on the product. If you are installing using a network connection,
verify that the network cable is connected to the product and that the product is on.
2. In the Applications folder (in the Finder utility), open the System Preferences folder, and then
open Printer & Fax.
3. If you are installing the product using a USB connection, verify that the product appears in the
printer list. The Name column in the printer list should display the product name. If this is the case,
the USB setup is complete.
If the product does not appear, or if the correct information does not appear in the field, see
Troubleshooting the product setup on page 165.
If you are installing the product using a network connection, continue with the following steps.
4. Click the add + icon beneath the Printer List to open the Printer Browser screen.
5. Select your product model from the list of printers with Bonjour as the Kind. Click the Add button.
Troubleshooting the product setup
If the product does not appear in the printer list after an installation:
Complete each one of these solutions in the order given, and restart the setup process after each one
to see if the issue has been resolved.
●Verify that the USB or network cable is connected between the product and the computer and that
the product is powered on.
●Try disconnecting and reconnecting the cable. If the computer has more than one USB port, try a
different USB port.
●Turn the product off and then back on.
●Turn the computer off and then back on.
●If you are using a USB hub on the computer, disconnect any other USB devices from the hub.
If the wrong PPD appears in the Kind column in the printer list after installation:
1. Unplug the USB cable.
2. Delete the print queue with the incorrect type (for example, Generic PostScript Printer).
3. Reinstall the printing-system software.
4. Turn the computer off and then on.
5. Reconnect the USB cable from the computer to the product.
If these steps do not resolve the problem, delete the incorrect print queue, click Add, choose the product
from the list, and then browse manually for the product PPD.
ENWW Macintosh install and uninstall instructions 165
Remove the printing-system software from Macintosh operating systems
1. Open Finder.
2. Navigate to Applications/HP Laserjet Professional M1130 MFP Series/ or Applications/HP
Laserjet Professional M1210 MFP Series/.
3. Double-click HP Uninstaller.app. The uninstaller will run and remove the software.
166 Chapter 5 Macintosh software and utilities ENWW
6 Engineering Details
Introduction
This chapter presents engineering detail for the following topics:
●Firmware update
●Media attributes
ENWW Introduction 167
Firmware update
The HP LaserJet Professional M1130/M1210 MFP Series products may require periodic updates to their
firmware.
The process for updating firmware involves three steps:
1. Determine the current level of firmware that is installed on the product.
2. Obtain the Firmware Update Utility from the HP Web site.
3. Run the Firmware Update Utility to update the new firmware on the product.
Determining the current level of firmware
To determine the current level of firmware, view the configuration page.
Follow these steps to print a product configuration page.
1. On the product control panel, press the Setup button.
2. Use the arrow buttons to select the Reports menu, and then press the OK button.
3. Use the arrow buttons to select the Config report option, and then press the OK button.
On the printed Configuration Page, look in the section marked "Product Information" for the firmware
date code. It will look similar to this: Firmware datecode: 20091029.
Download the Firmware Update Utility from the HP Web site
To download the Firmware Update Utility, go to one of the following URLs:
www.hp.com/support/ljm1130series or www.hp.com/support/ljm1210series
168 Chapter 6 Engineering Details ENWW
Run the Firmware Update Utility
1. Start the Firmware Update Utility. Select the product to update the firmware from the list of available
printers, and then click the Next button.
Figure 6-1 Firmware Update Utility. List of available printers shown screen.
2. Click the Yes button to confirm the firmware update on the dialog screen that appears.
3. The following dialog screen appears upon successful updating of the firmware.
Figure 6-2 Firmware update successful screen.
ENWW Firmware update 169
Media attributes
This section includes the following information about paper attributes:
●Driver-supported paper sizes
●Driver-supported paper types
●Custom paper sizes
Driver-supported paper sizes
The following tables list the features and attributes of various paper listed under the Size Is: drop-down
menu on the Paper tab. The list order can vary, depending on the product and operating system. The
list contains all of the following sizes, and might contain sizes from other drivers.
Table 6-1 Supported paper and print media sizes
Size Dimensions Input tray Document feeder
Letter 216 x 279 mm (8.5 x 11 in)
Legal 216 x 356 mm (8.5 x 14 in)
A4 210 x 297 mm (8.27 x 11.69 in)
Executive 184 x 267 mm (7.25 x 10.5 in)
A5 148 x 210 mm (5.83 x 8.27 in)
A6 105 x 148 mm (4.13 x 5.83 in)
B5 (JIS) 182 x 257 mm (7.17 x 10.12 in)
16k 184 x 260 mm (7.24 x 10.23 in)
195 x 270 mm (7.68 x 10.62 in)
197 x 273 mm (7.75 x 10.75 in)
Custom Minimum: 76 x 127 mm
(3 x 5 in)
Maximum: 216 x 356 mm
(8.5 x 14.0 in)
Minimum: 147 x 211 mm
(5.8 x 8.3 in)
Maximum: 216 x 356 mm
(8.5 x 14.0 in)
Table 6-2 Supported envelopes and postcards
Size Dimensions Input tray
Envelope #10 105 x 241 mm (4.13 x 9.49 in)
Envelope DL 110 x 220 mm (4.33 x 8.66 in)
Envelope C5 162 x 229 mm (6.93 x 9.84 in)
Envelope B5 176 x 250 mm (6.7 x 9.8 in)
Envelope Monarch 98 x 191 mm (3.9 x 7.5 in)
Postcard (JIS) 100 x 148 mm (3.94 x 5.83 in)
Double postcard (JIS) 148 x 200 mm (5.83 x 7.87 in)
170 Chapter 6 Engineering Details ENWW
Driver-supported paper types
The following table shows the paper types that the HP LaserJet Professional M1130/M1210 MFP Series
print-drivers support.
Input tray The input tray supports the following paper types:
●Plain
●Light (60-74 g/m2)
●Mid-Weight (96-110 g/m2)
●Heavy (111-130 g/m2)
●Extra Heavy (131-175 g/m2)
●Transparency
●Labels
●Letterhead
●Envelope
●Preprinted
●Prepunched
●Color
●Bond
●Recycled
●Rough
●Vellum
Document feeder The document feeder supports paper types that are within the following weight range:
●60-90 g/m2 (16-24 lb bond)
NOTE: For a complete list of specific HP-brand paper that this product supports, go to www.hp.com/
sbso/product/supplies.
ENWW Media attributes 171
Custom paper sizes
The following table shows custom paper sizes that are available for the HP LaserJet Professional
M1130/M1210 MFP Series product.
Table 6-3 Host-based print driver custom paper sizes
Tray Dimensions Minimum Maximum
Input tray Width 98.4 mm (3.9 in) 216 mm (8.5 in)
Length 148 mm (5.8 in) 356 mm (14.0 in)
Document feeder Width 148 mm (5.83 in) 216 mm (8.5 in)
Length 210 mm (8.27 in) 297 mm (11.69 in)
172 Chapter 6 Engineering Details ENWW
Index
A
accessibility features 5
accessibility, documentation 33
Acrobat Reader
viewing documentation 23
ADA (Americans with Disabilities
Act) compliance 33
Add Printer installation 61
Add Printer Wizard, detailed install
existing port for a direct
connection, using 63
print server connection 62
TCP/IP port for direction
connection, creating 63
Adobe Acrobat Reader
viewing documentation 23
Americans with Disabilities Act
(ADA) compliance 33
autorun CD-ROM, Windows 42,
60
B
Back button, Windows installation
dialog boxes 112
Basic Installation
choosing 42
bin, output
capacity 4
locating 6
booklet printing
Booklet Printing settings 141
browsers supported, HP
ToolboxFX 47
C
Cancel button, Windows installation
dialog boxes 112
capacity
document feeder 4
output bin 4
cartridge-door release, locating 6
CD
CD, about 24
Install 60
install Windows printing-system
software from 60
languages, CD 18
User CD 17
Windows installation from 24
CD install 81, 88
CD-ROM
directory structure,
Macintosh 153
installer, Windows printing-
system software 41
installing Macintosh printing-
system software 154
common installer, features 42
components, software
Macintosh 16, 150
Windows 16
configuration page
Macintosh 16
constraint messages
print drivers 120
control panel
buttons and lights 11, 12
message types 30
messages, troubleshooting 30
settings 39, 151
status-light patterns 28
D
default printer, setting 113
Device Status screen, HP
ToolboxFX 48
diagnostics
troubleshoot 144
directory structure
Admin CD 17
directory structure, CD-ROM
Macintosh 153
disk space requirements
Macintosh 150
Windows 38
document feeder
capacity 4
locating 6
documentation
User Guide 33
viewing 23
dots per inch (dpi)
specifications 4
download
firmware 168
downloading
printing-system software 17
dpi (dots per inch)
specifications 4
drivers
Add Printer installation 61
quick sets (Windows) 121,
124, 131, 138
drivers, install
HP Privacy Policy 83, 90
license agreement 83, 90
recommended software 83,
90
E
error messages
control panel 30
F
fax ports, locating 9
features
HP ToolboxFX 46
firmware
determine current level 168
ENWW Index 173
download Firmware Update
Utility 168
update 168
firmware updates
about 168
determine current firmware
level 168
downloading 168
Full Installation
choosing 42
H
Help
print drivers 120
Help button, Windows installation
dialog boxes 112
Help folder, HP ToolboxFX 48
Host-based Print Driver
features 117
settings 117
HP Driver Diagnostic Printer Check
Tool 44
HP Embedded Web Server 14
HP EWS
about 45
HP LaserJet Utility, Macintosh
about 15, 152
Configuration Settings list 15
open 15, 152
HP Toolbox
description 14
downloading 14
supported browsers 14
supported operating
systems 14
HP ToolboxFX
browsers supported 47
Device Status pane 48
features 46
Help folder 48
opening page 47
Product Registration
screen 55
Product Support screen 55
sections 46
Shop for Supplies screen 55
starting 46
system requirements 47
User Guide 49
HTML files, viewing 23
I
Incompatible Print Settings
messages. See constraint
messages
input tray
locating 6
installation
Add Printer 61
CD install 81, 88
Macintosh printing-system
software 154
options 59
screenes, Mac OS X 154
system requirements for
Macintosh 150
system requirements for
Windows 38, 58
troubleshooting
Macintosh 165
Windows CD-ROM 24
Windows printing-system
software 58
installers
common, features 42
Windows 41, 60
interface ports
locating 8, 9
types included 5
L
languages
CD 18
light patterns
control panel 28
M
Macintosh
hardware requirements 150
Macintosh operating systems
directory structure, CD-
ROM 153
driver settings 152
HP LaserJet Utility 15, 152
installing printing-system
software 154
removing software 166
screenes, Mac OS X printing-
system software
installation 154
software 152
software components 150
support 13
supported versions 15, 150
Macintosh OS
troubleshooting setup 165
manuals. See documentation
memory
included 152
installation requirements for
Windows operating
systems 38
Macintosh requirements 150
specifications 4
messages
constraint, print drivers 120
control panel 30
Microsoft Windows. See Windows
operating systems
model
number, locating 10
models, feature comparison 3
N
network port
locating 9
O
online help
HP ToolboxFX 48
operating systems
availability of software
components 16
supported 13, 38, 39
supported for Macintosh 15
supported Macintosh
versions 150
output bin
capacity 4
locating 6
P
pages per minute 4
paper
custom sizes 172, ix
duplex binding settings, print
drivers 140
orientation 142
settings, print drivers 125
types and sizes
supported 170
174 Index ENWW
PDF files
viewing 23
ports
locating 8, 9
types included 5
PostScript Printer Description
(PPD) files
included 152
PPDs, Macintosh
troubleshooting 165
print cartridges
door release, locating 6
print drivers
custom paper sizes 172
paper supported 170
print on both sides
manually 139
printer drivers
Advanced tab content 121
Advanced tab contents 121
Booklet Printing settings,
Finishing tab 141
change Macintosh
settings 152
check for most current in
use 44
Copies settings, Advanced
tab 122
Document Options settings,
Finishing tab 139
document preview image 122,
129, 133, 142
Effects tab content 131
Finishing tab contents 138
Flip Pages Up setting, Finishing
tab 140
gain access to settings 118
Help system 120
incompatible print settings
messages 120
Internet Services options,
Services tab 144
Macintosh 150
Macintosh settings 151
Orientation settings, Finishing
tab 142
Page Order settings, Finishing
tab 142
Pages per Sheet setting,
Finishing tab 141
Paper Options settings, Paper/
Quality tab 125
Paper source setting, Paper/
Quality tab 128
Paper type setting, Paper/
Quality tab 129
Paper/Quality tab
contents 124
print information pages,
Services tab 145
Printer features content 122
Printing Preferences tab, driver
access 118
Properties tab, driver
access 119
Resizing Options settings,
Effects tab 132
Services tab content 144
settings 39
settings for Windows 40
supported for Windows 14,
39
version numbers for
Windows 42
Watermarks settings, Effects
tab 134
What's this? Help 120
printer, setting default 113
Printing Preferences
driver tabs 118
printing-system software,
HP Privacy Policy
HP Privacy Policy 83, 90
printing-system software, install
license agreement 83, 90
printing-system software,
recommended
recommended software 83,
90
priority, settings 39, 151
problem-solving
control-panel messages 30
status-light patterns 28
product
serial number, locating 10
product comparison 3
Product Registration screen, HP
ToolboxFX 55
Product Support screen, HP
ToolboxFX 55
Properties driver tabs
gain access to 119
Q
quick sets 121, 124, 131, 138
R
registration, product 55
removing Macintosh
software 166
resolution
specifications 4
S
screen-readable
documentation 33
screenes, printing-system software
installation
Mac OS X 154
serial number, locating 10
settings
drivers, Macintosh 152
for Windows drivers 40
priority 39, 151
Shop for Supplies screen, HP
ToolboxFX 55
software
availability of components 16
embedded Web server 14
HP Embedded Web
Server 45
HP LaserJet Utility 15, 152
HP Toolbox 14
Macintosh 152
settings 39, 151
supported operating
systems 13, 38, 150
uninstalling Macintosh 166
Windows 13, 38
specifications
features 4
speed
print specifications 4
status
HP Printer Utility,
Macintosh 15
status screen, HP ToolboxFX 48
status-light patterns 28
supplies
status, viewing with HP LaserJet
Utility 15
ENWW Index 175
supplies, ordering 55
support, product 55
supported
operating systems 13
utilities for Macintosh 15
system requirements
HP ToolboxFX 47
Windows 38
T
TCP/IP port creation 63
ToolboxFX. See HP ToolboxFX
tray
capacity 4
trays
locating 6
troubleshooting
control panel messages 30
diagnostics 144
HP driver Diagnostic Printer
Check Tool 44
Macintosh setup 165
U
uninstall
Macintosh software 166
products 114
updating firmware. See firmware
update
USB port
locating 8, 9
type included 5
User Guide 33
User Guide folder, HP
ToolboxFX 49
V
version numbers, Windows
drivers 42
view HP Privacy Policy 83, 90
view recommended software 83,
90
view software license
agreement 83, 90
W
watermarks
settings 134
Web sites
downloading software 17
Firmware Update Utility 168
HP Driver Diagnostic Printer
Check Tool 44
Internet Services options,
Services tab 144
Windows operating systems
Add Printer installation 61
CD for 24
CD-ROM, print system 41, 60
default printer, setting 113
documentation 23
driver settings 40
driver versions 42
drivers supported 14
Host-based Print Driver
features 117
installation options 59
installation overview 60
installing printing-system 58
support 13
supported 58
supported versions 13, 38
system requirements 38, 58
176 Index ENWW
