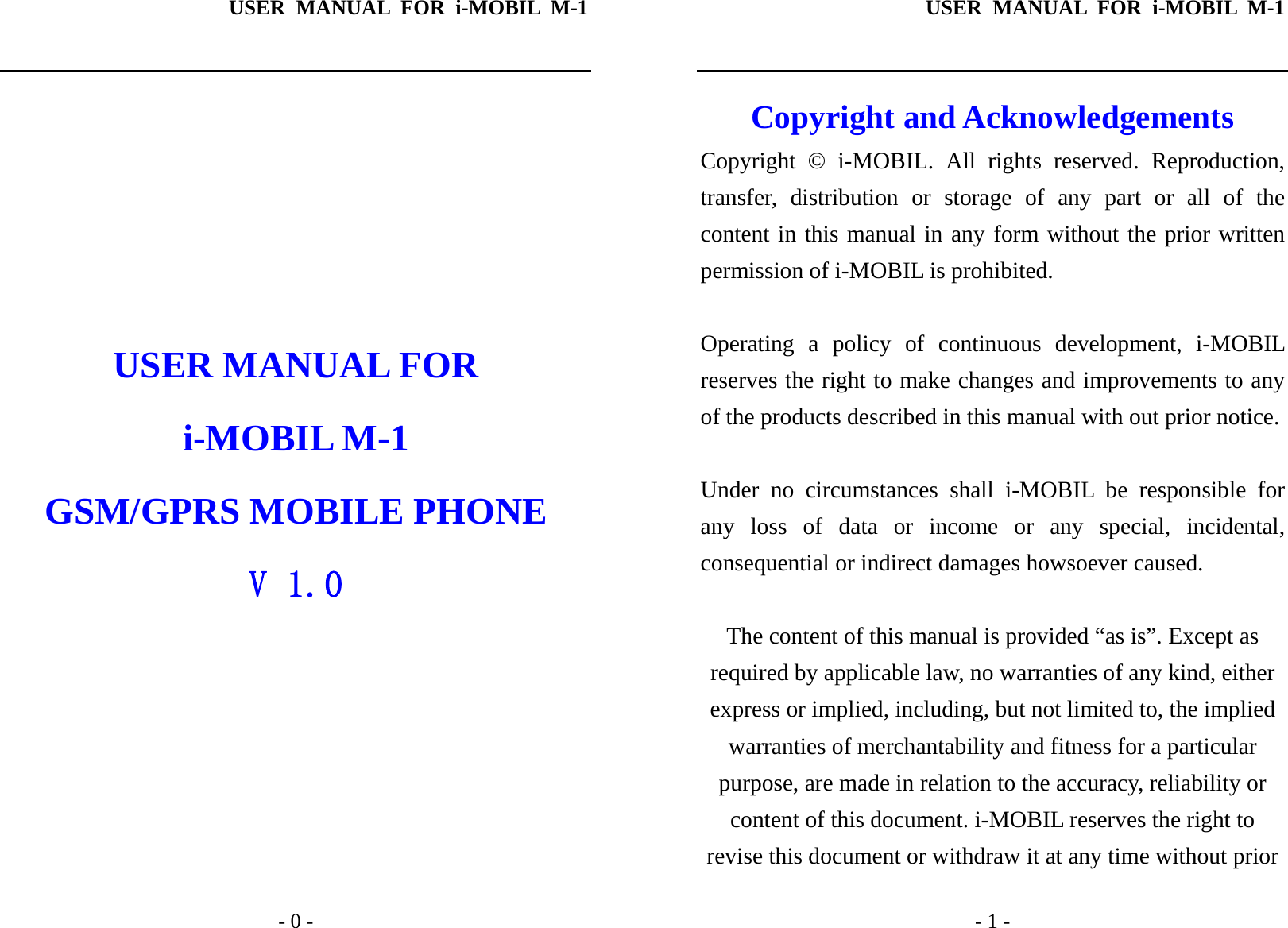

USER MANUAL FOR i-MOBIL M-1 - 0 - USER MANUAL FOR i-MOBIL M-1 GSM/GPRS MOBILE PHONE V 1.0 USER MANUAL FOR i-MOBIL M-1 - 1 - Copyright and Acknowledgements Copyright © i-MOBIL. All rights reserved. Reproduction, transfer, distribution or storage of any part or all of the content in this manual in any form without the prior written permission of i-MOBIL is prohibited. Operating a policy of continuous development, i-MOBIL reserves the right to make changes and improvements to any of the products described in this manual with out prior notice. Under no circumstances shall i-MOBIL be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The content of this manual is provided “as is”. Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or content of this document. i-MOBIL reserves the right to revise this document or withdraw it at any time without prior

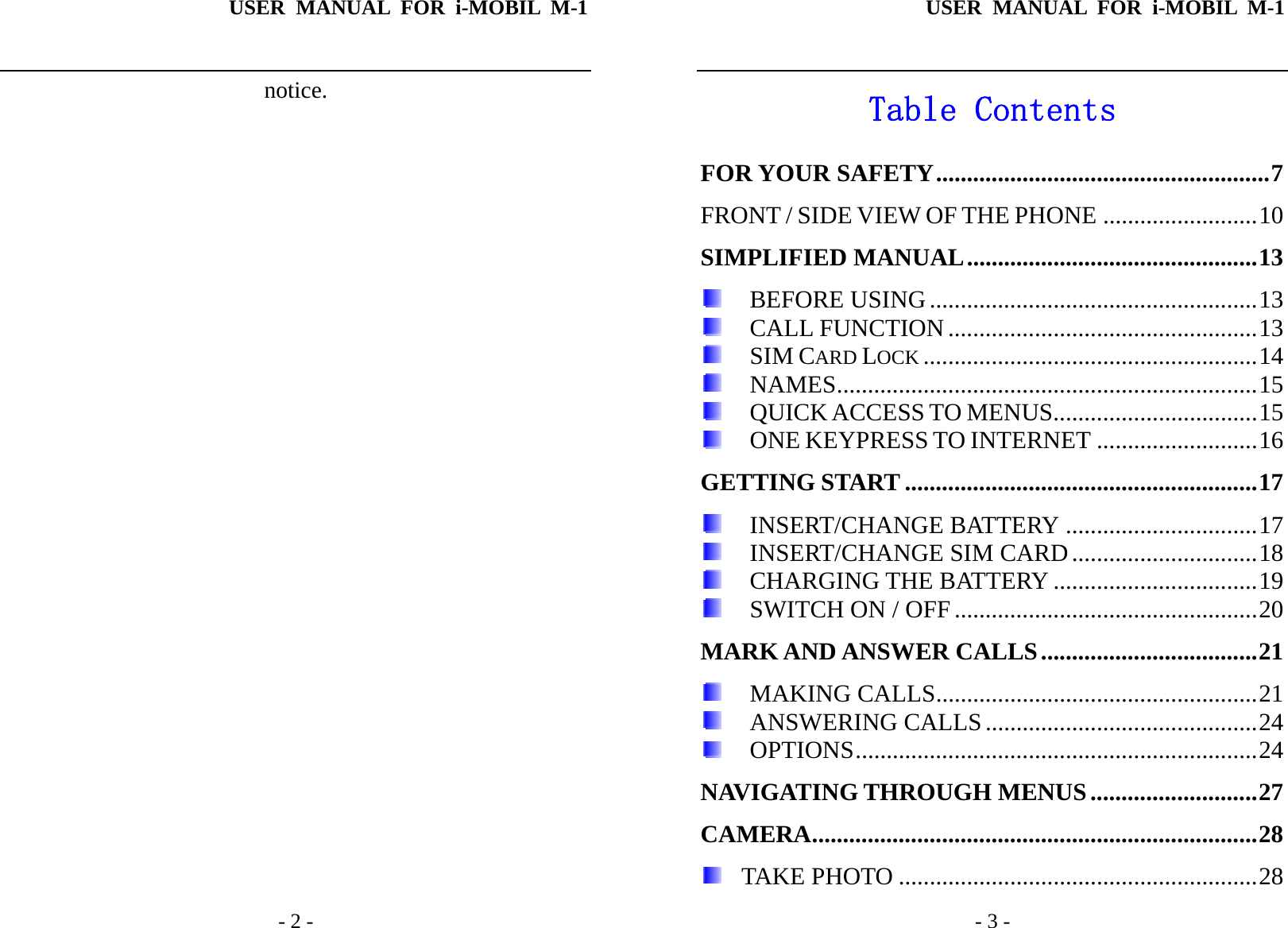

USER MANUAL FOR i-MOBIL M-1 - 2 - notice.USER MANUAL FOR i-MOBIL M-1 - 3 - Table Contents FOR YOUR SAFETY......................................................7 FRONT / SIDE VIEW OF THE PHONE .........................10 SIMPLIFIED MANUAL...............................................13 BEFORE USING .....................................................13 CALL FUNCTION ..................................................13 SIM CARD LOCK ......................................................14 NAMES....................................................................15 QUICK ACCESS TO MENUS.................................15 ONE KEYPRESS TO INTERNET ..........................16 GETTING START .........................................................17 INSERT/CHANGE BATTERY ...............................17 INSERT/CHANGE SIM CARD ..............................18 CHARGING THE BATTERY .................................19 SWITCH ON / OFF .................................................20 MARK AND ANSWER CALLS...................................21 MAKING CALLS....................................................21 ANSWERING CALLS............................................24 OPTIONS.................................................................24 NAVIGATING THROUGH MENUS...........................27 CAMERA........................................................................28 TAKE PHOTO ..........................................................28

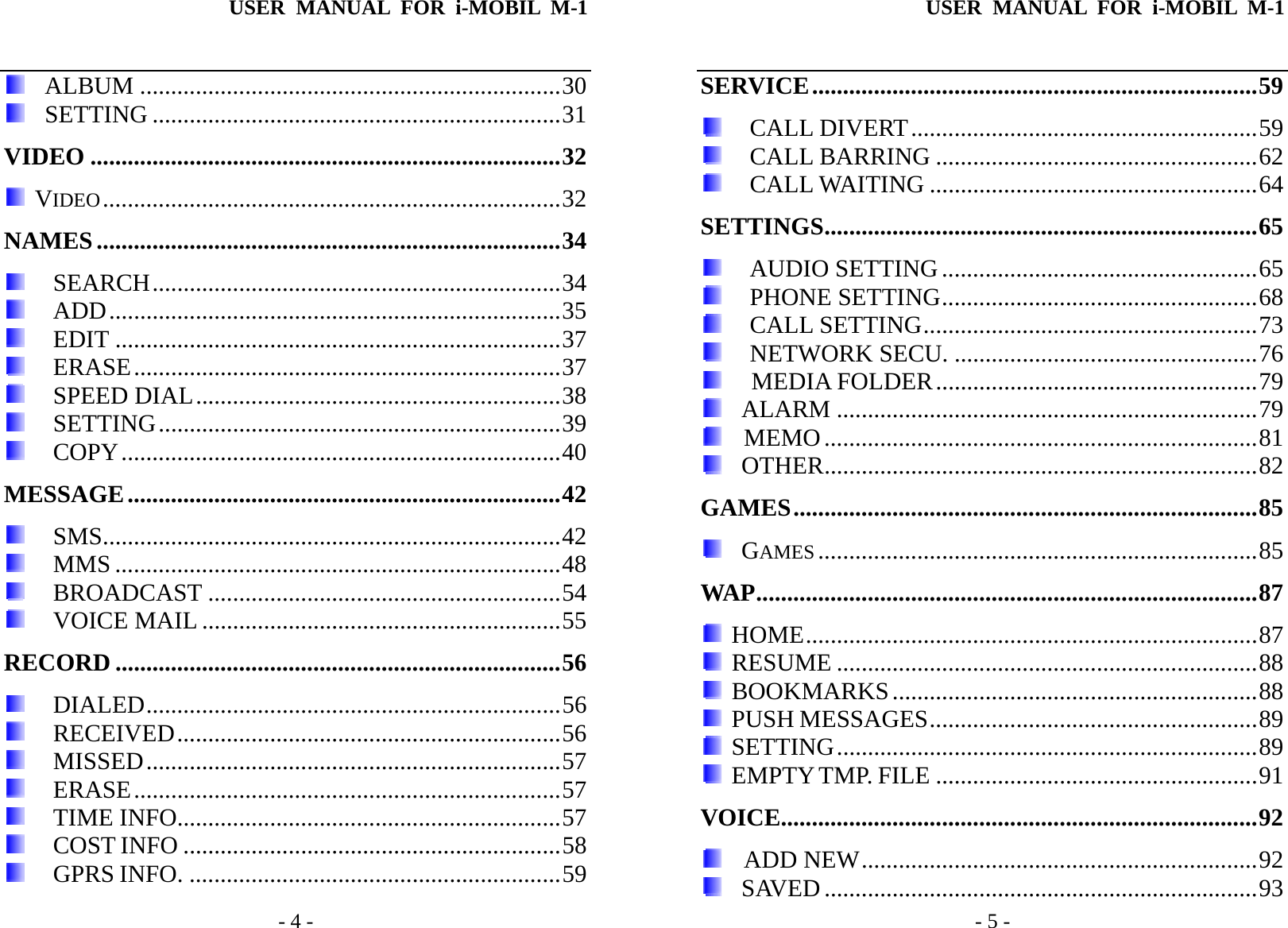

USER MANUAL FOR i-MOBIL M-1 - 4 - ALBUM ....................................................................30 SETTING ..................................................................31 VIDEO ............................................................................32 VIDEO..........................................................................32 NAMES...........................................................................34 SEARCH..................................................................34 ADD.........................................................................35 EDIT ........................................................................37 ERASE.....................................................................37 SPEED DIAL...........................................................38 SETTING.................................................................39 COPY.......................................................................40 MESSAGE......................................................................42 SMS..........................................................................42 MMS ........................................................................48 BROADCAST .........................................................54 VOICE MAIL ..........................................................55 RECORD ........................................................................56 DIALED...................................................................56 RECEIVED..............................................................56 MISSED...................................................................57 ERASE.....................................................................57 TIME INFO..............................................................57 COST INFO .............................................................58 GPRS INFO. ............................................................59 USER MANUAL FOR i-MOBIL M-1 - 5 - SERVICE........................................................................59 CALL DIVERT........................................................59 CALL BARRING ....................................................62 CALL WAITING .....................................................64 SETTINGS......................................................................65 AUDIO SETTING ...................................................65 PHONE SETTING...................................................68 CALL SETTING......................................................73 NETWORK SECU. .................................................76 MEDIA FOLDER....................................................79 ALARM ....................................................................79 MEMO......................................................................81 OTHER......................................................................82 GAMES...........................................................................85 GAMES .......................................................................85 WAP.................................................................................87 HOME.........................................................................87 RESUME ....................................................................88 BOOKMARKS...........................................................88 PUSH MESSAGES.....................................................89 SETTING....................................................................89 EMPTY TMP. FILE ....................................................91 VOICE.............................................................................92 ADD NEW................................................................92 SAVED ......................................................................93

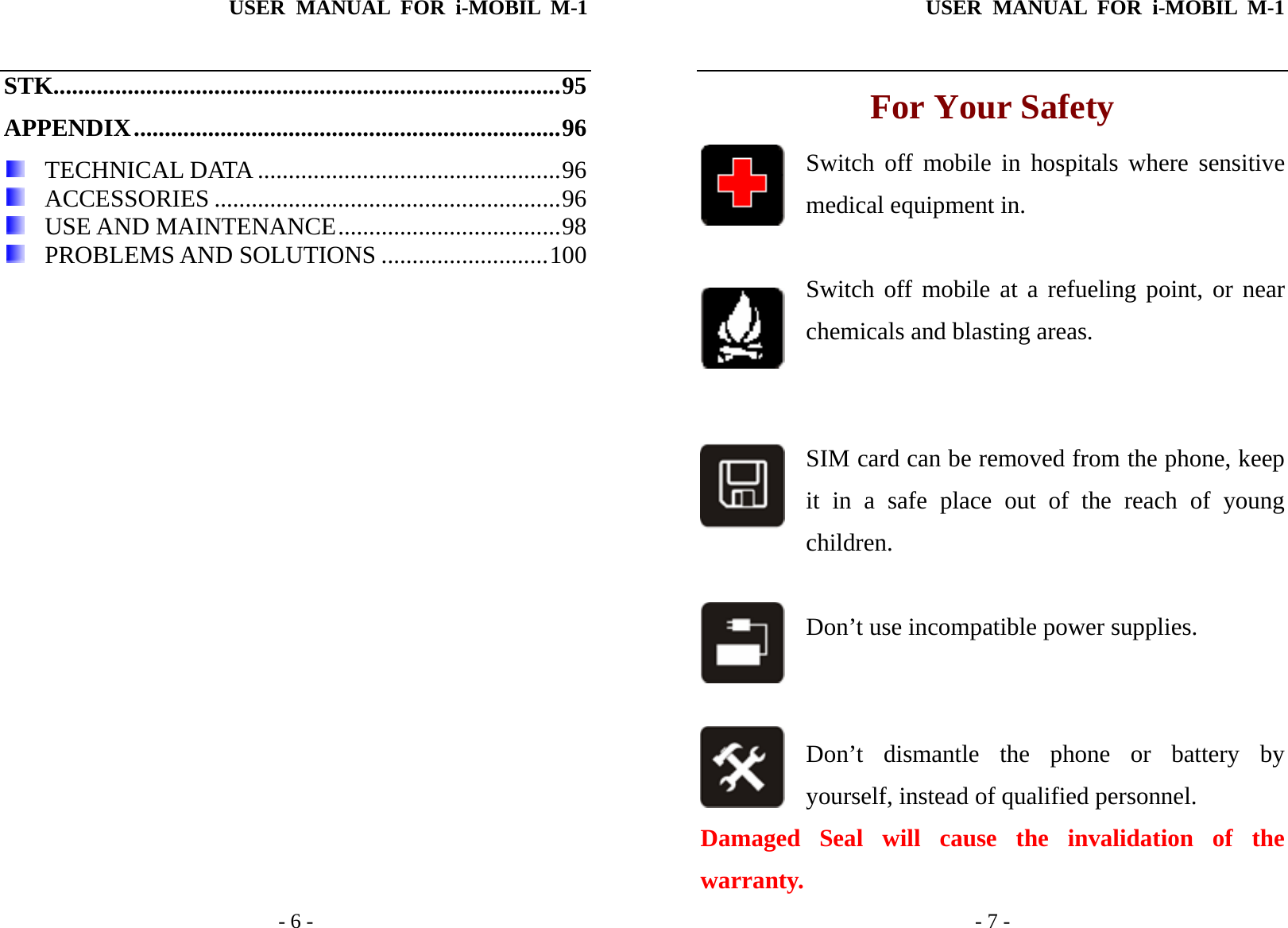

USER MANUAL FOR i-MOBIL M-1 - 6 - STK..................................................................................95 APPENDIX.....................................................................96 TECHNICAL DATA .................................................96 ACCESSORIES ........................................................96 USE AND MAINTENANCE....................................98 PROBLEMS AND SOLUTIONS ...........................100 USER MANUAL FOR i-MOBIL M-1 - 7 - For Your Safety Switch off mobile in hospitals where sensitive medical equipment in. Switch off mobile at a refueling point, or near chemicals and blasting areas. SIM card can be removed from the phone, keep it in a safe place out of the reach of young children. Don’t use incompatible power supplies. Don’t dismantle the phone or battery by yourself, instead of qualified personnel. Damaged Seal will cause the invalidation of the warranty.

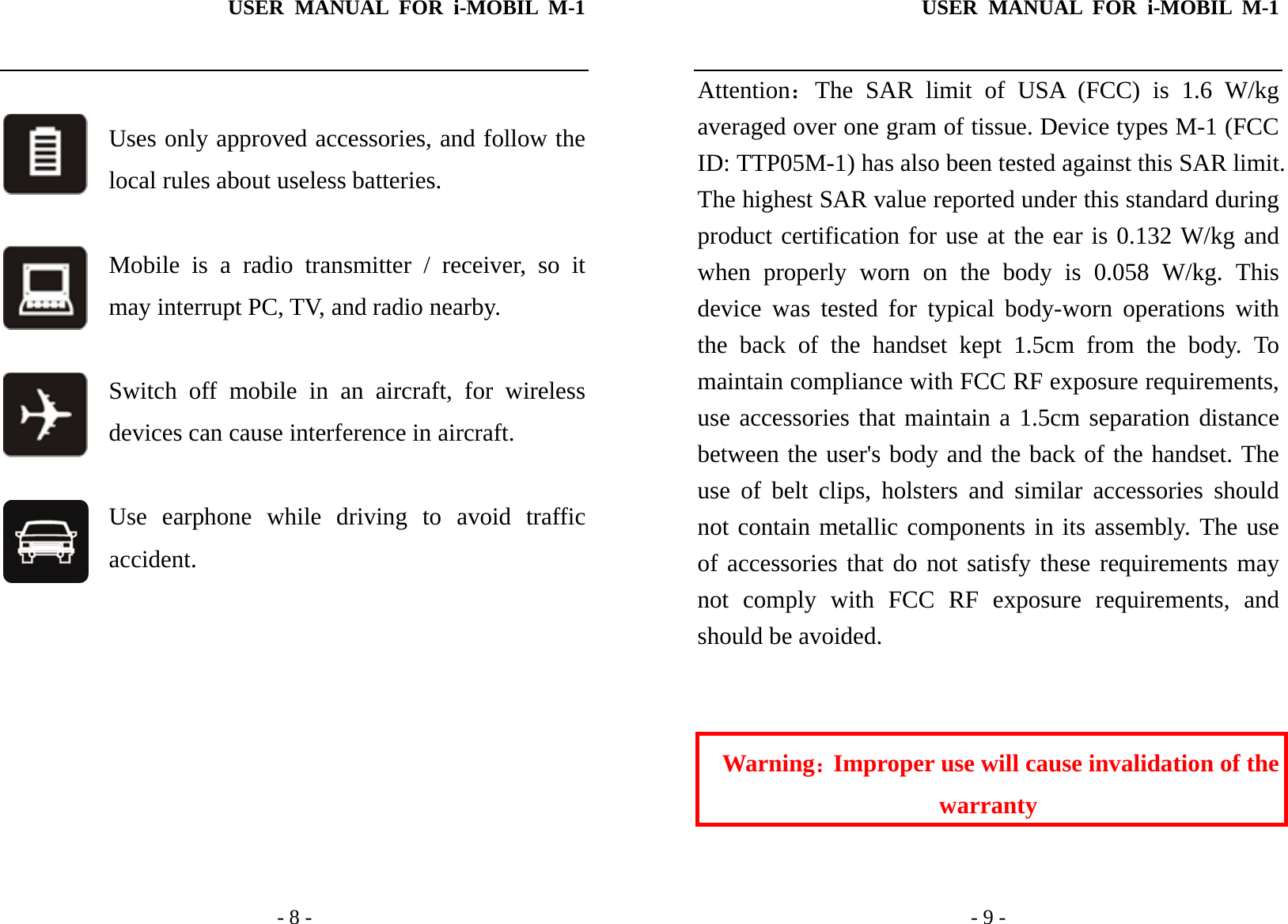

USER MANUAL FOR i-MOBIL M-1 - 8 - Uses only approved accessories, and follow the local rules about useless batteries. Mobile is a radio transmitter / receiver, so it may interrupt PC, TV, and radio nearby. Switch off mobile in an aircraft, for wireless devices can cause interference in aircraft. Use earphone while driving to avoid traffic accident. USER MANUAL FOR i-MOBIL M-1 - 9 - Attention：The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types M-1 (FCC ID: TTP05M-1) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.132 W/kg and when properly worn on the body is 0.058 W/kg. This device was tested for typical body-worn operations with the back of the handset kept 1.5cm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 1.5cm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Warning：Improper use will cause invalidation of the warranty

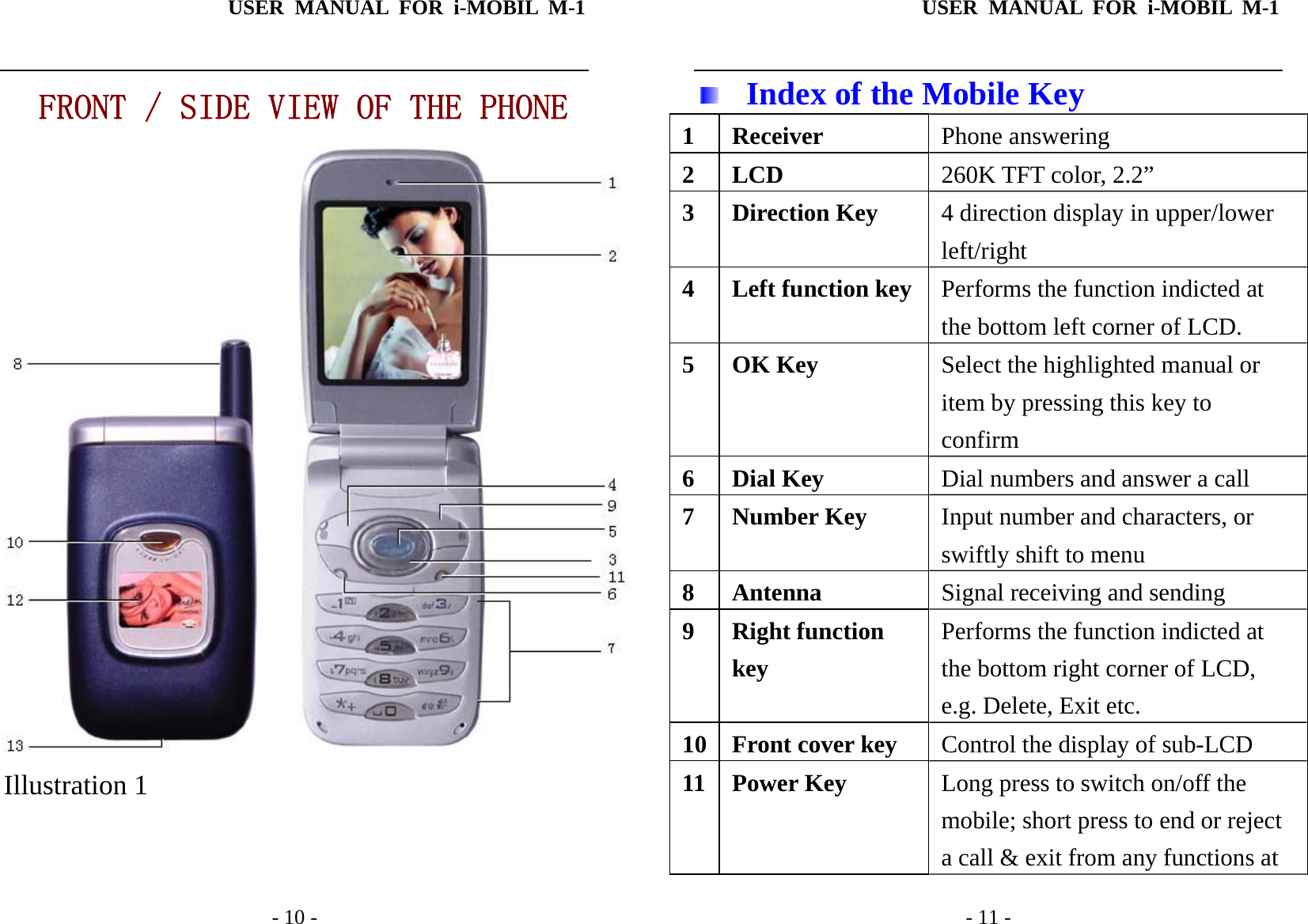

USER MANUAL FOR i-MOBIL M-1 - 10 - FRONT / SIDE VIEW OF THE PHONE Illustration 1USER MANUAL FOR i-MOBIL M-1 - 11 - Index of the Mobile Key 1 Receiver Phone answering 2 LCD 260K TFT color, 2.2” 3 Direction Key 4 direction display in upper/lower left/right 4 Left function key Performs the function indicted at the bottom left corner of LCD. 5 OK Key Select the highlighted manual or item by pressing this key to confirm 6 Dial Key Dial numbers and answer a call 7 Number Key Input number and characters, or swiftly shift to menu 8 Antenna Signal receiving and sending 9 Right function key Performs the function indicted at the bottom right corner of LCD, e.g. Delete, Exit etc. 10 Front cover key Control the display of sub-LCD 11 Power Key Long press to switch on/off the mobile; short press to end or reject a call & exit from any functions at

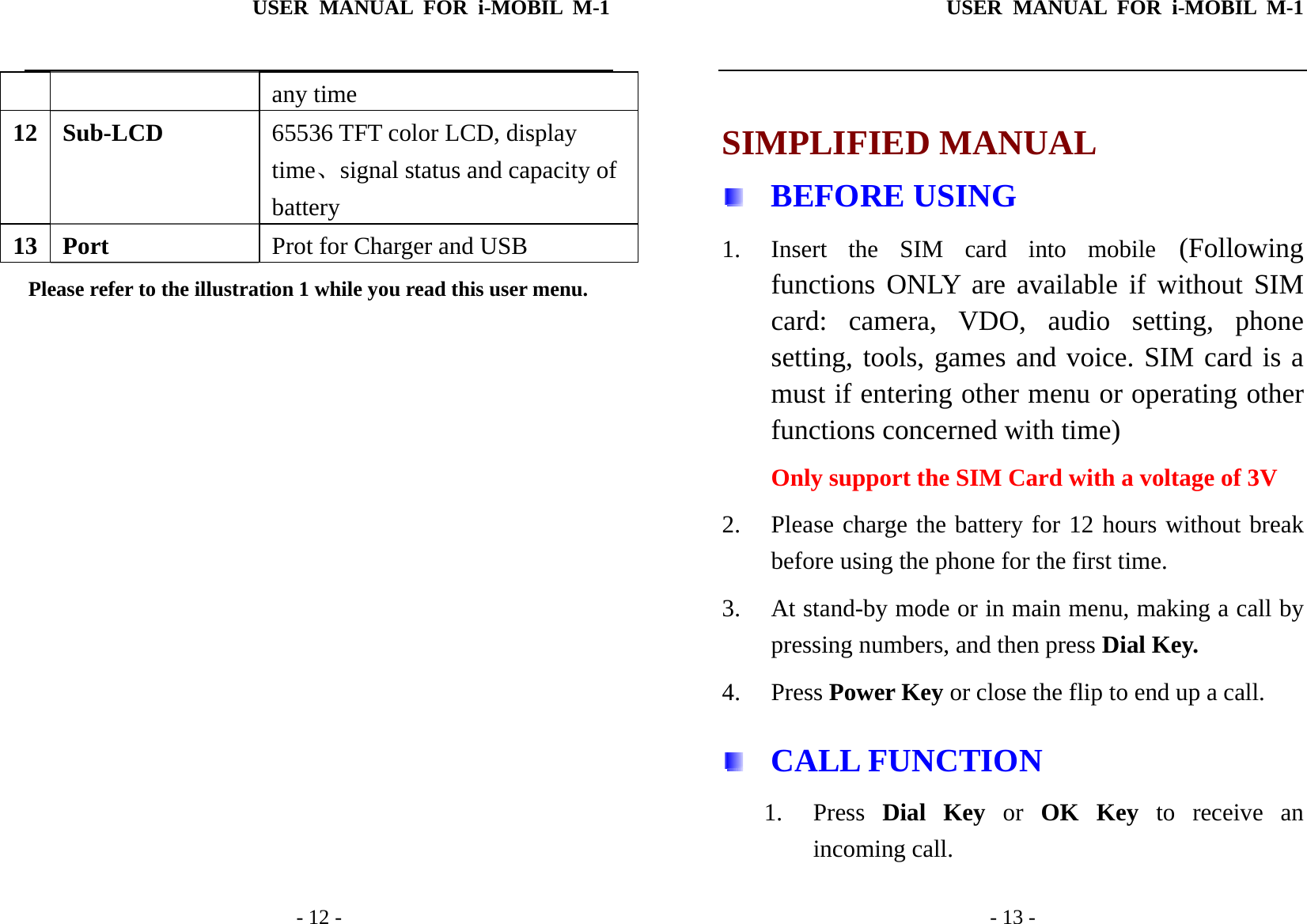

USER MANUAL FOR i-MOBIL M-1 - 12 - any time 12 Sub-LCD 65536 TFT color LCD, display time、signal status and capacity of battery 13 Port Prot for Charger and USB Please refer to the illustration 1 while you read this user menu. USER MANUAL FOR i-MOBIL M-1 - 13 - SIMPLIFIED MANUAL BEFORE USING 1. Insert the SIM card into mobile (Following functions ONLY are available if without SIM card: camera, VDO, audio setting, phone setting, tools, games and voice. SIM card is a must if entering other menu or operating other functions concerned with time) Only support the SIM Card with a voltage of 3V 2. Please charge the battery for 12 hours without break before using the phone for the first time. 3. At stand-by mode or in main menu, making a call by pressing numbers, and then press Dial Key. 4. Press Power Key or close the flip to end up a call. CALL FUNCTION 1. Press Dial Key or OK Key to receive an incoming call.

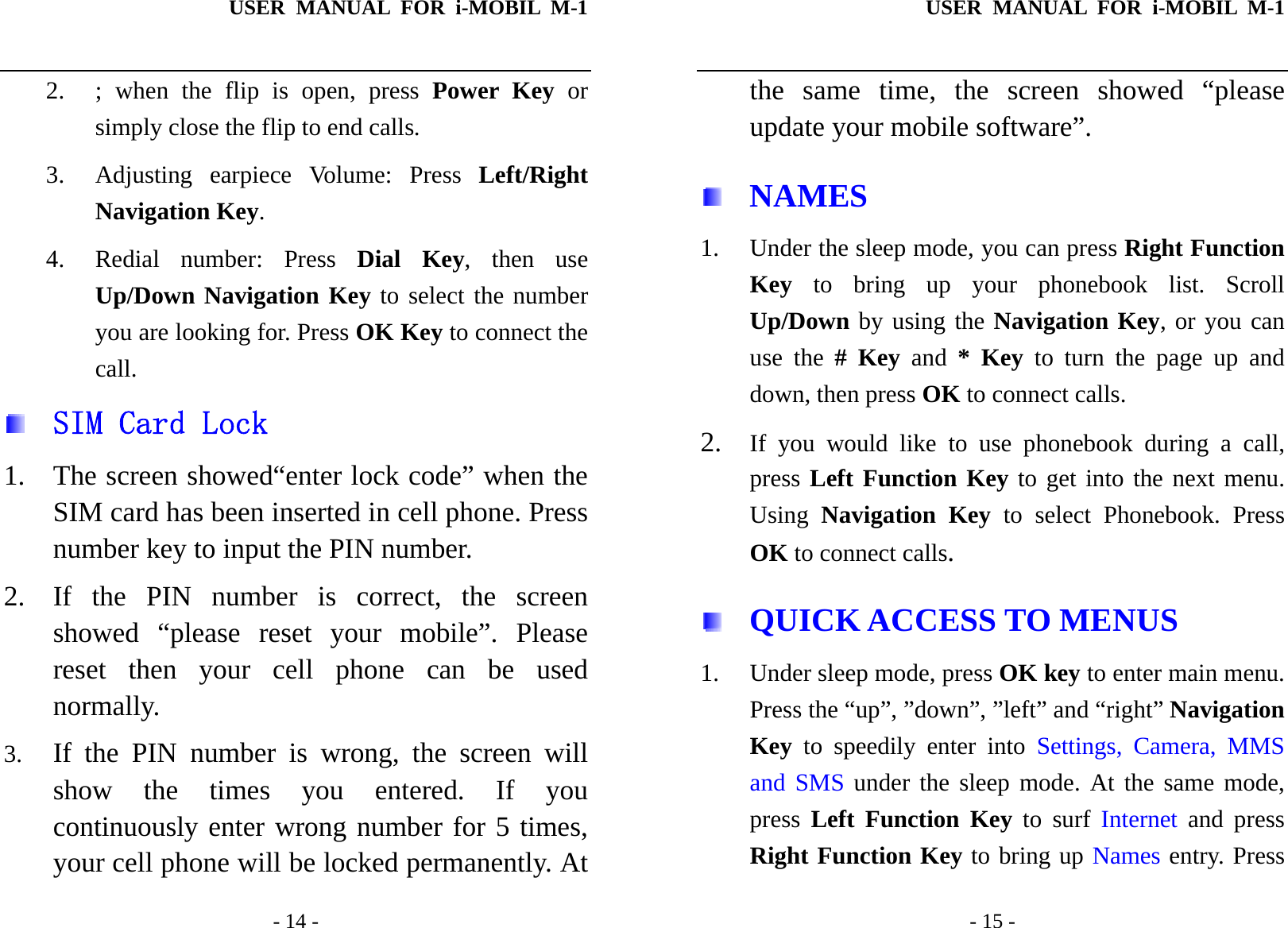

USER MANUAL FOR i-MOBIL M-1 - 14 - 2. ; when the flip is open, press Power Key or simply close the flip to end calls. 3. Adjusting earpiece Volume: Press Left/Right Navigation Key. 4. Redial number: Press Dial Key, then use Up/Down Navigation Key to select the number you are looking for. Press OK Key to connect the call. SIM Card Lock 1. The screen showed“enter lock code” when the SIM card has been inserted in cell phone. Press number key to input the PIN number. 2. If the PIN number is correct, the screen showed “please reset your mobile”. Please reset then your cell phone can be used normally. 3. If the PIN number is wrong, the screen will show the times you entered. If you continuously enter wrong number for 5 times, your cell phone will be locked permanently. At USER MANUAL FOR i-MOBIL M-1 - 15 - the same time, the screen showed “please update your mobile software”. NAMES 1. Under the sleep mode, you can press Right Function Key to bring up your phonebook list. Scroll Up/Down by using the Navigation Key, or you can use the # Key and * Key to turn the page up and down, then press OK to connect calls. 2. If you would like to use phonebook during a call, press Left Function Key to get into the next menu. Using Navigation Key to select Phonebook. Press OK to connect calls. QUICK ACCESS TO MENUS 1. Under sleep mode, press OK key to enter main menu. Press the “up”, ”down”, ”left” and “right” Navigation Key to speedily enter into Settings, Camera, MMS and SMS under the sleep mode. At the same mode, press Left Function Key to surf Internet and press Right Function Key to bring up Names entry. Press

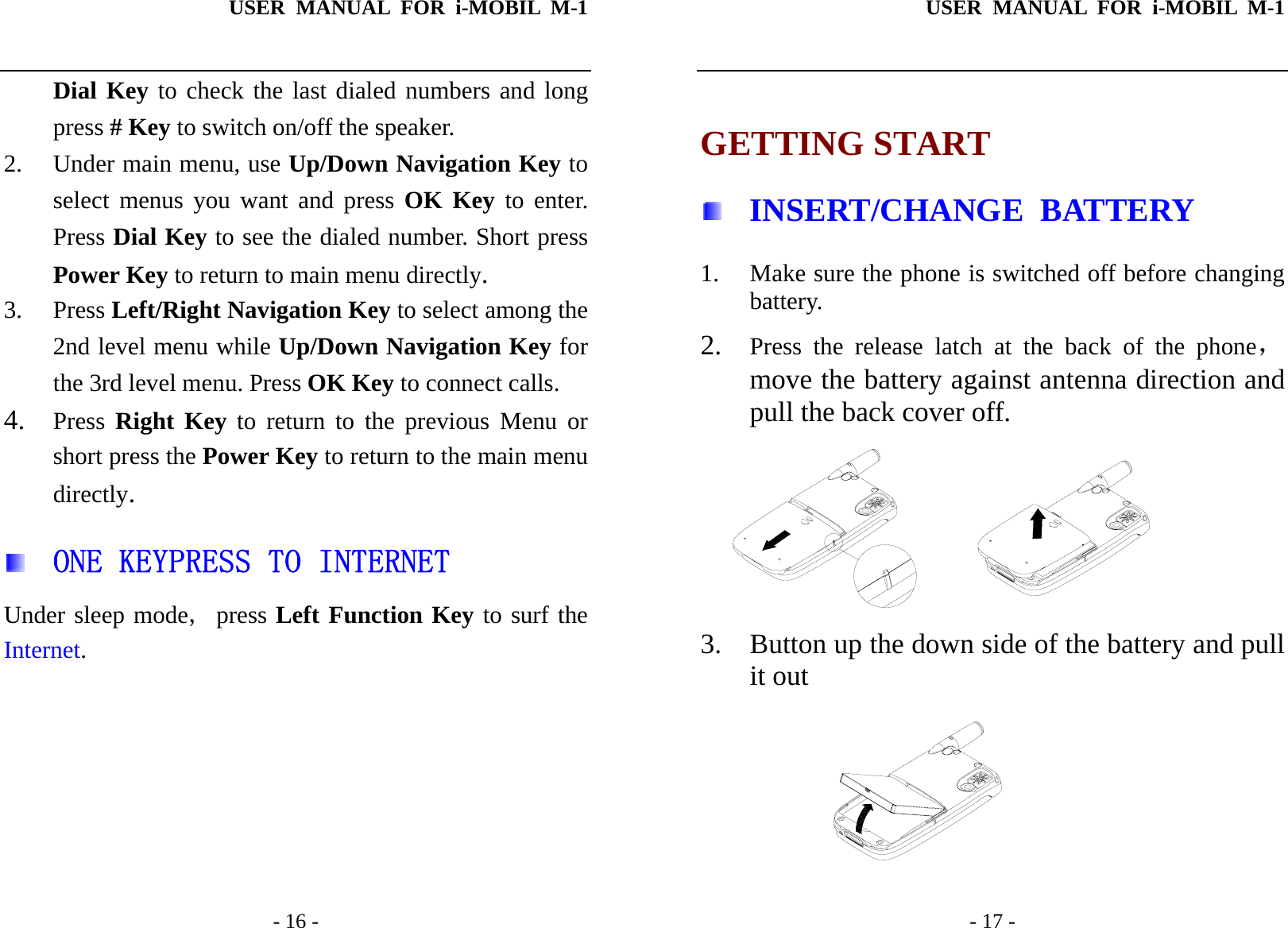

USER MANUAL FOR i-MOBIL M-1 - 16 - Dial Key to check the last dialed numbers and long press # Key to switch on/off the speaker. 2. Under main menu, use Up/Down Navigation Key to select menus you want and press OK Key to enter. Press Dial Key to see the dialed number. Short press Power Key to return to main menu directly. 3. Press Left/Right Navigation Key to select among the 2nd level menu while Up/Down Navigation Key for the 3rd level menu. Press OK Key to connect calls. 4. Press Right Key to return to the previous Menu or short press the Power Key to return to the main menu directly. ONE KEYPRESS TO INTERNET Under sleep mode, press Left Function Key to surf the Internet. USER MANUAL FOR i-MOBIL M-1 - 17 - GETTING START INSERT/CHANGE BATTERY 1. Make sure the phone is switched off before changing battery. 2. Press the release latch at the back of the phone，move the battery against antenna direction and pull the back cover off. 3. Button up the down side of the battery and pull it out

USER MANUAL FOR i-MOBIL M-1 - 18 - 4. Put the upper side of the battery to the relevant place of the phone and they push down the battery to insert the battery. 5. Place the back cover to right place then push it up. INSERT/CHANGE SIM CARD 1. Make sure your phone is switched off and the battery is removed before you insert/change the SIM card. 2. Slightly pull out the SIM card drawer, slide SIM card inside with golden side of the card facing upwards，then push the drawer back to the USER MANUAL FOR i-MOBIL M-1 - 19 - right place；repeats all the steps when change the SIM card. This phone only supports 3 volt SIM cards. This phone only supports 3 volt SIM cards. CHARGING THE BATTERY 1. Make sure the battery is inserted into the phone correctly before charging. 2. Connect the lead of the charger to the socket on the bottom of the phone and plug to an AC wall socket Warning: Please DO NOT remove the battery while charging!

USER MANUAL FOR i-MOBIL M-1 - 20 - 3. The animation charging is displayed when the phone is turned off. The phone can work while charging. Please keep charging the battery continuously for 12 hours when you use the phone for the first time and make sure the battery has been fully charged. 4. Black screen will appear during charging if the voltage of the battery is too low (e.g. Not in use for a long time, etc.).The animation Charging will appear after several minutes. SWITCH ON / OFF 1. Long press the Power Key to turn on or off the mobile phone. 2. Enter PIN code if asked (shown as ****). Please refer to Settings/Network Secu. /PIN for more information. USER MANUAL FOR i-MOBIL M-1 - 21 - MARK AND ANSWER CALLS MAKING CALLS Making Calls by Pressing Number Key 1. Press the phone number by using Number Key under sleep mode or main menu mode. Press “up” & “down”, and “left” & “right” Navigation Key to move the cursor if you need to edit the number. You can press the Right Key one time to clear one number left to the cursor. Or long press this key to delete all. After you finish entering the number, press Dial Key to connect. When you see the word of “Connecting” changing to “Talk” on LCD, start talking over the phone. 2. If you make a long distance call, long press the * Key until change to “+” which is the prefix for the international dialing code; then follow by entering the number. After you finish entering the number, press Dial Key to connect the call.

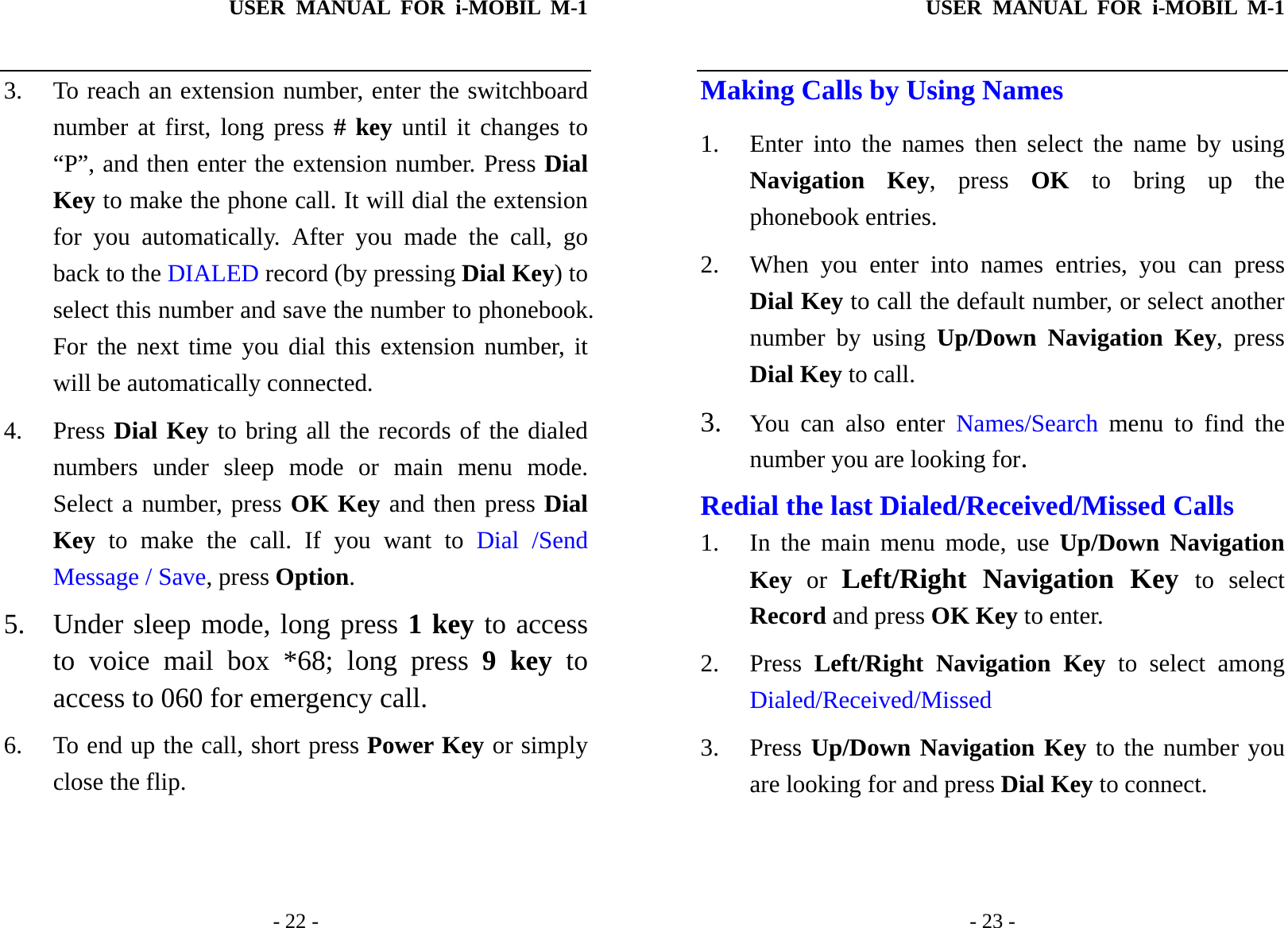

USER MANUAL FOR i-MOBIL M-1 - 22 - 3. To reach an extension number, enter the switchboard number at first, long press # key until it changes to “P”, and then enter the extension number. Press Dial Key to make the phone call. It will dial the extension for you automatically. After you made the call, go back to the DIALED record (by pressing Dial Key) to select this number and save the number to phonebook. For the next time you dial this extension number, it will be automatically connected. 4. Press Dial Key to bring all the records of the dialed numbers under sleep mode or main menu mode. Select a number, press OK Key and then press Dial Key to make the call. If you want to Dial /Send Message / Save, press Option. 5. Under sleep mode, long press 1 key to access to voice mail box *68; long press 9 key to access to 060 for emergency call. 6. To end up the call, short press Power Key or simply close the flip. USER MANUAL FOR i-MOBIL M-1 - 23 - Making Calls by Using Names 1. Enter into the names then select the name by using Navigation Key, press OK to bring up the phonebook entries. 2. When you enter into names entries, you can press Dial Key to call the default number, or select another number by using Up/Down Navigation Key, press Dial Key to call. 3. You can also enter Names/Search menu to find the number you are looking for. Redial the last Dialed/Received/Missed Calls 1. In the main menu mode, use Up/Down Navigation Key or Left/Right Navigation Key to select Record and press OK Key to enter. 2. Press Left/Right Navigation Key to select among Dialed/Received/Missed 3. Press Up/Down Navigation Key to the number you are looking for and press Dial Key to connect.

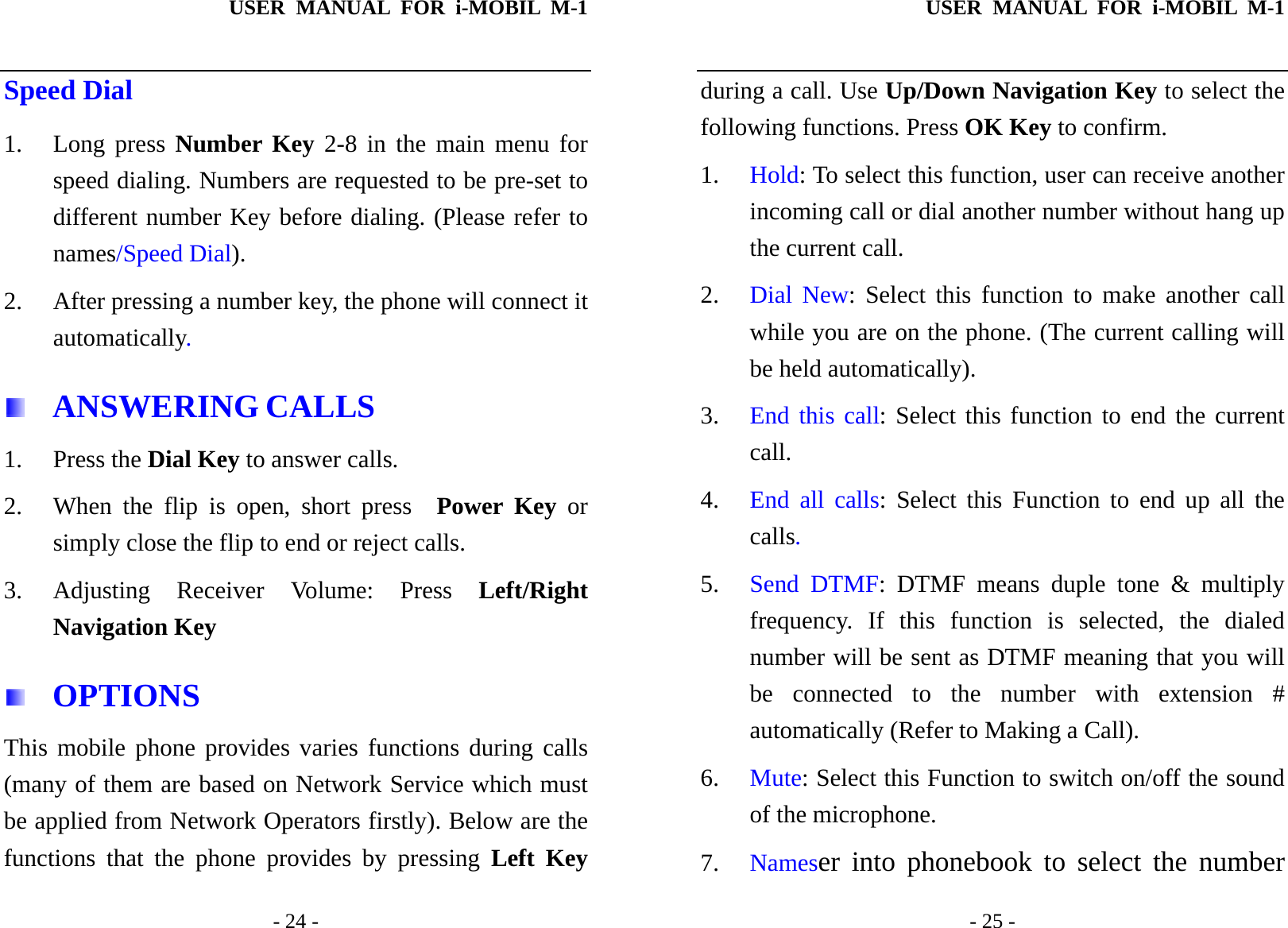

USER MANUAL FOR i-MOBIL M-1 - 24 - Speed Dial 1. Long press Number Key 2-8 in the main menu for speed dialing. Numbers are requested to be pre-set to different number Key before dialing. (Please refer to names/Speed Dial). 2. After pressing a number key, the phone will connect it automatically. ANSWERING CALLS 1. Press the Dial Key to answer calls. 2. When the flip is open, short press Power Key or simply close the flip to end or reject calls. 3. Adjusting Receiver Volume: Press Left/Right Navigation Key OPTIONS This mobile phone provides varies functions during calls (many of them are based on Network Service which must be applied from Network Operators firstly). Below are the functions that the phone provides by pressing Left Key USER MANUAL FOR i-MOBIL M-1 - 25 - during a call. Use Up/Down Navigation Key to select the following functions. Press OK Key to confirm. 1. Hold: To select this function, user can receive another incoming call or dial another number without hang up the current call. 2. Dial New: Select this function to make another call while you are on the phone. (The current calling will be held automatically). 3. End this call: Select this function to end the current call. 4. End all calls: Select this Function to end up all the calls. 5. Send DTMF: DTMF means duple tone & multiply frequency. If this function is selected, the dialed number will be sent as DTMF meaning that you will be connected to the number with extension # automatically (Refer to Making a Call). 6. Mute: Select this Function to switch on/off the sound of the microphone. 7. Nameser into phonebook to select the number

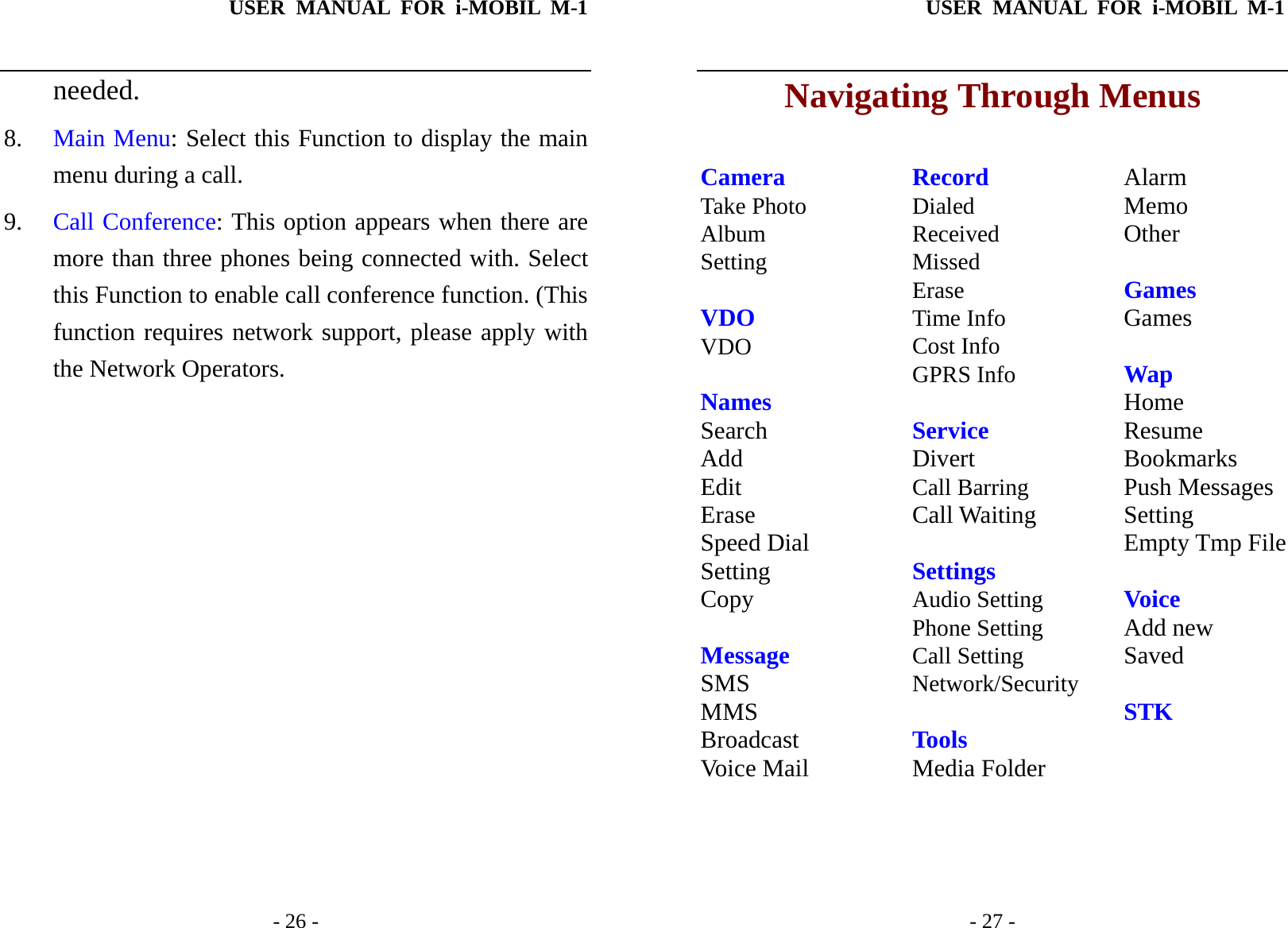

USER MANUAL FOR i-MOBIL M-1 - 26 - needed. 8. Main Menu: Select this Function to display the main menu during a call. 9. Call Conference: This option appears when there are more than three phones being connected with. Select this Function to enable call conference function. (This function requires network support, please apply with the Network Operators. USER MANUAL FOR i-MOBIL M-1 - 27 - Navigating Through Menus Camera Take Photo Album Setting VDO VDO Names Search Add Edit Erase Speed Dial Setting Copy Message SMS MMS Broadcast Voice Mail Record Dialed Received Missed Erase Time Info Cost Info GPRS Info Service Divert Call Barring Call Waiting Settings Audio Setting Phone Setting Call Setting Network/Security Tools Media Folder Alarm Memo Other Games Games Wap Home Resume Bookmarks Push Messages Setting Empty Tmp File Voice Add new Saved STK

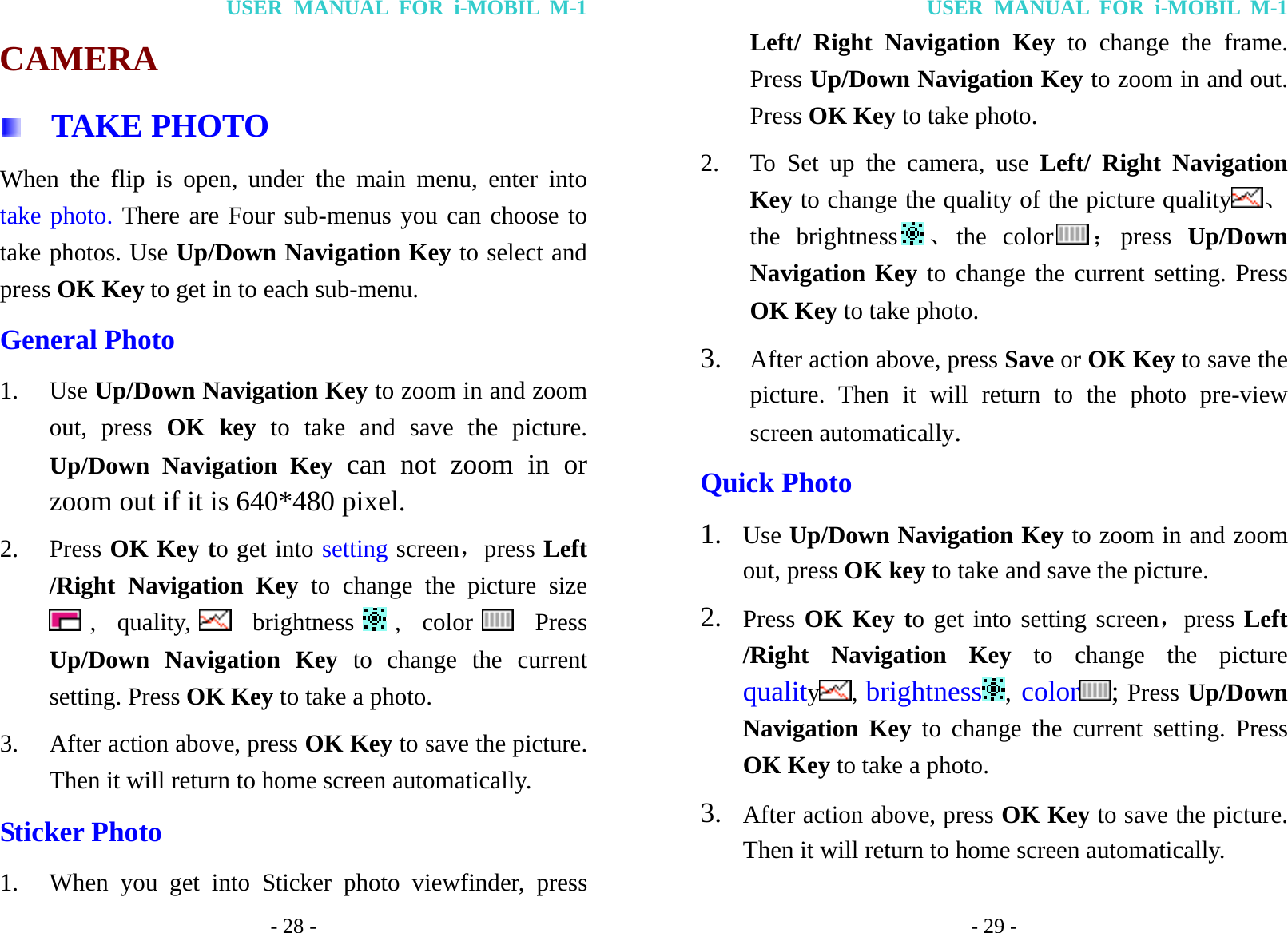

USER MANUAL FOR i-MOBIL M-1 - 28 - CAMERA TAKE PHOTO When the flip is open, under the main menu, enter into take photo. There are Four sub-menus you can choose to take photos. Use Up/Down Navigation Key to select and press OK Key to get in to each sub-menu. General Photo 1. Use Up/Down Navigation Key to zoom in and zoom out, press OK key to take and save the picture. Up/Down Navigation Key can not zoom in or zoom out if it is 640*480 pixel. 2. Press OK Key to get into setting screen，press Left /Right Navigation Key to change the picture size , quality, brightness , color Press Up/Down Navigation Key to change the current setting. Press OK Key to take a photo. 3. After action above, press OK Key to save the picture. Then it will return to home screen automatically. Sticker Photo 1. When you get into Sticker photo viewfinder, press USER MANUAL FOR i-MOBIL M-1 - 29 - Left/ Right Navigation Key to change the frame. Press Up/Down Navigation Key to zoom in and out. Press OK Key to take photo. 2. To Set up the camera, use Left/ Right Navigation Key to change the quality of the picture quality 、the brightness 、the color ；press Up/Down Navigation Key to change the current setting. Press OK Key to take photo. 3. After action above, press Save or OK Key to save the picture. Then it will return to the photo pre-view screen automatically. Quick Photo 1. Use Up/Down Navigation Key to zoom in and zoom out, press OK key to take and save the picture. 2. Press OK Key to get into setting screen，press Left /Right Navigation Key to change the picture quality, brightness , color ; Press Up/Down Navigation Key to change the current setting. Press OK Key to take a photo. 3. After action above, press OK Key to save the picture. Then it will return to home screen automatically.

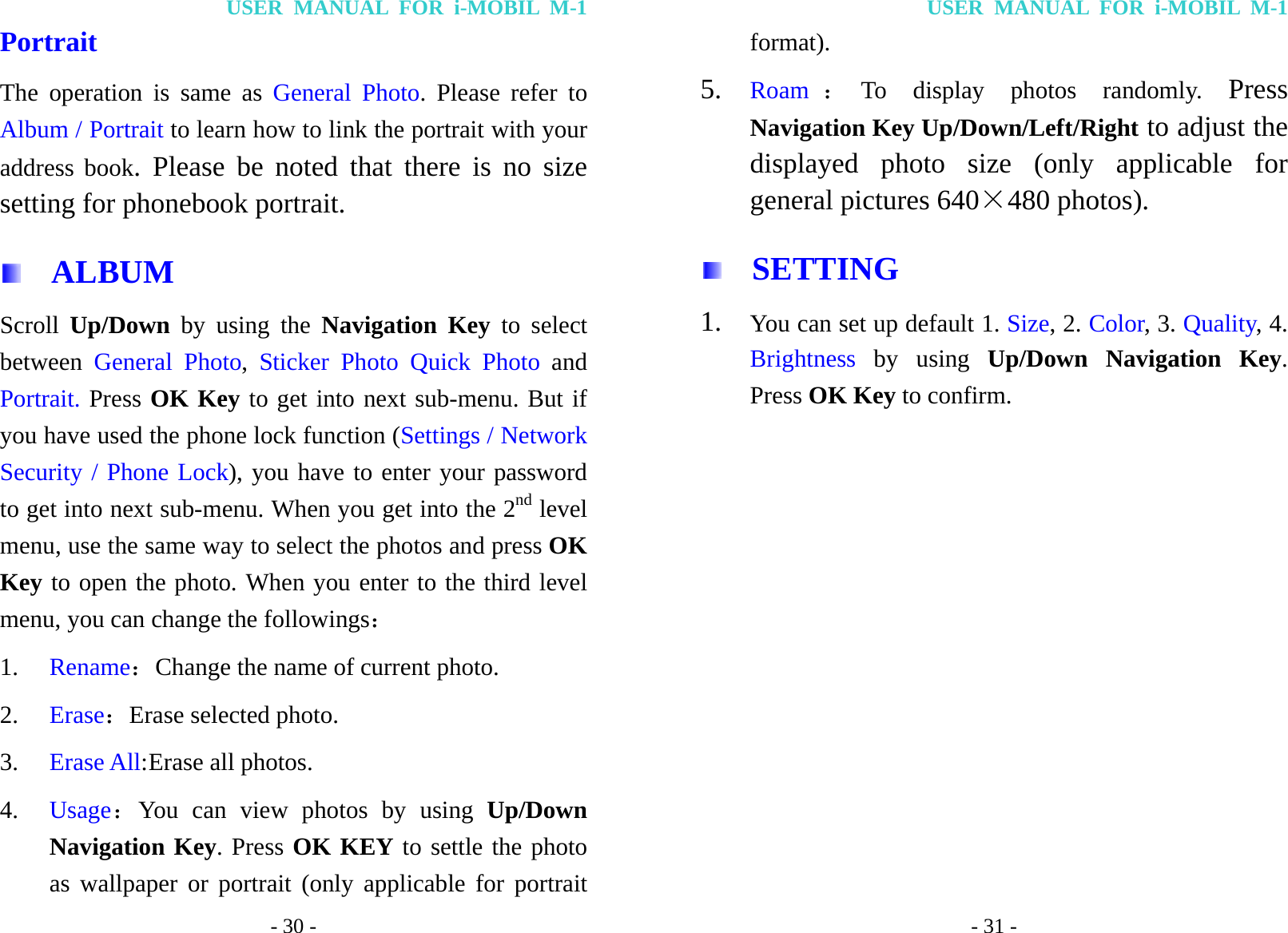

USER MANUAL FOR i-MOBIL M-1 - 30 - Portrait The operation is same as General Photo. Please refer to Album / Portrait to learn how to link the portrait with your address book. Please be noted that there is no size setting for phonebook portrait. ALBUM Scroll Up/Down by using the Navigation Key to select between General Photo, Sticker Photo Quick Photo and Portrait. Press OK Key to get into next sub-menu. But if you have used the phone lock function (Settings / Network Security / Phone Lock), you have to enter your password to get into next sub-menu. When you get into the 2nd level menu, use the same way to select the photos and press OK Key to open the photo. When you enter to the third level menu, you can change the followings： 1. Rename：Change the name of current photo. 2. Erase：Erase selected photo. 3. Erase All: Erase all photos. 4. Usage：You can view photos by using Up/Down Navigation Key. Press OK KEY to settle the photo as wallpaper or portrait (only applicable for portrait USER MANUAL FOR i-MOBIL M-1 - 31 - format). 5. Roam ：To display photos randomly. Press Navigation Key Up/Down/Left/Right to adjust the displayed photo size (only applicable for general pictures 640×480 photos). SETTING 1. You can set up default 1. Size, 2. Color, 3. Quality, 4. Brightness by using Up/Down Navigation Key. Press OK Key to confirm.

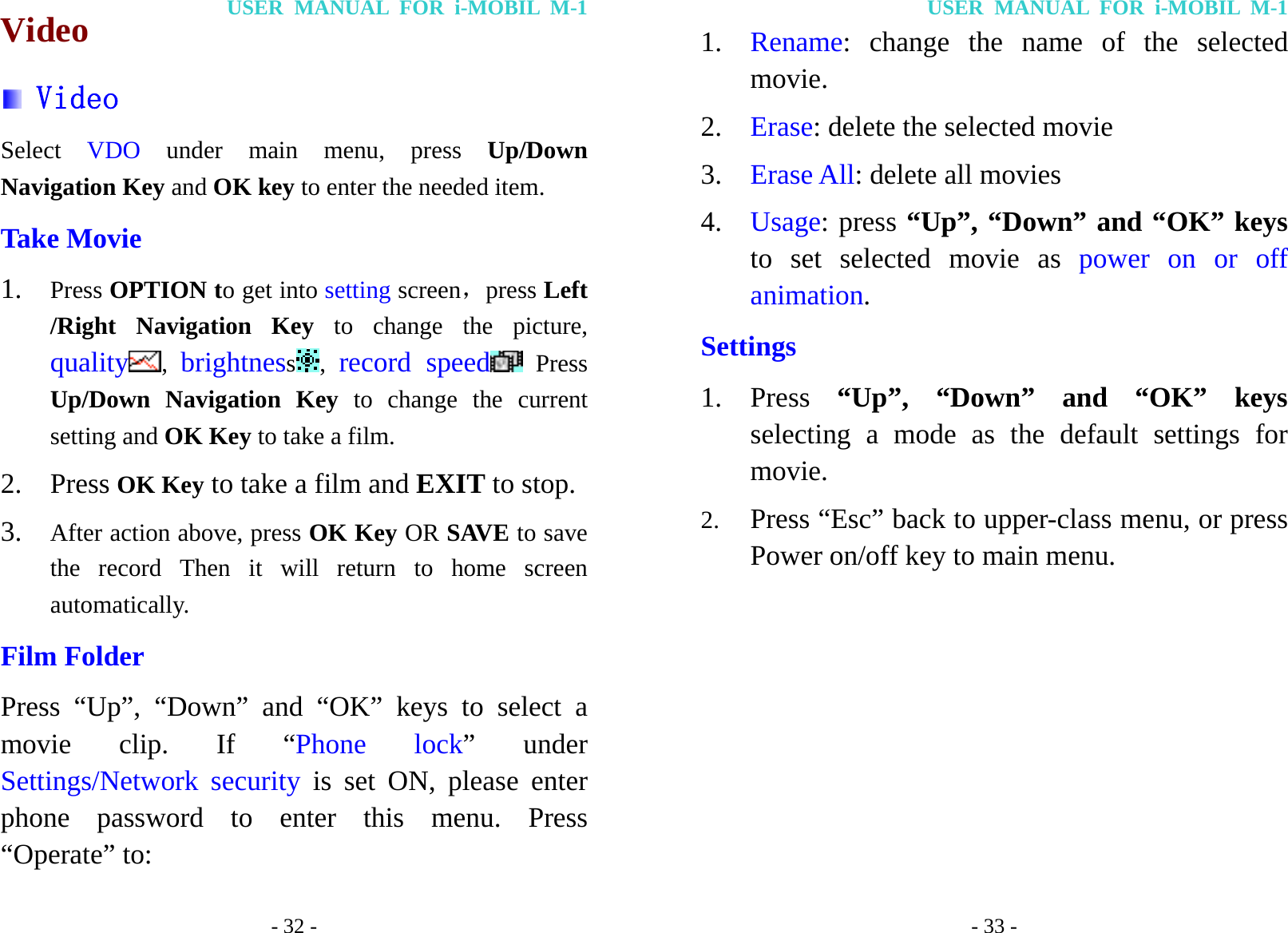

USER MANUAL FOR i-MOBIL M-1 - 32 - Video Video Select VDO under main menu, press Up/Down Navigation Key and OK key to enter the needed item. Take Movie 1. Press OPTION to get into setting screen，press Left /Right Navigation Key to change the picture, quality , brightness, record speed Press Up/Down Navigation Key to change the current setting and OK Key to take a film. 2. Press OK Key to take a film and EXIT to stop. 3. After action above, press OK Key OR SAVE to save the record Then it will return to home screen automatically. Film Folder Press “Up”, “Down” and “OK” keys to select a movie clip. If “Phone lock” under Settings/Network security is set ON, please enter phone password to enter this menu. Press “Operate” to: USER MANUAL FOR i-MOBIL M-1 - 33 - 1. Rename: change the name of the selected movie. 2. Erase: delete the selected movie 3. Erase All: delete all movies 4. Usage: press “Up”, “Down” and “OK” keys to set selected movie as power on or off animation. Settings 1. Press “Up”, “Down” and “OK” keys selecting a mode as the default settings for movie. 2. Press “Esc” back to upper-class menu, or press Power on/off key to main menu.

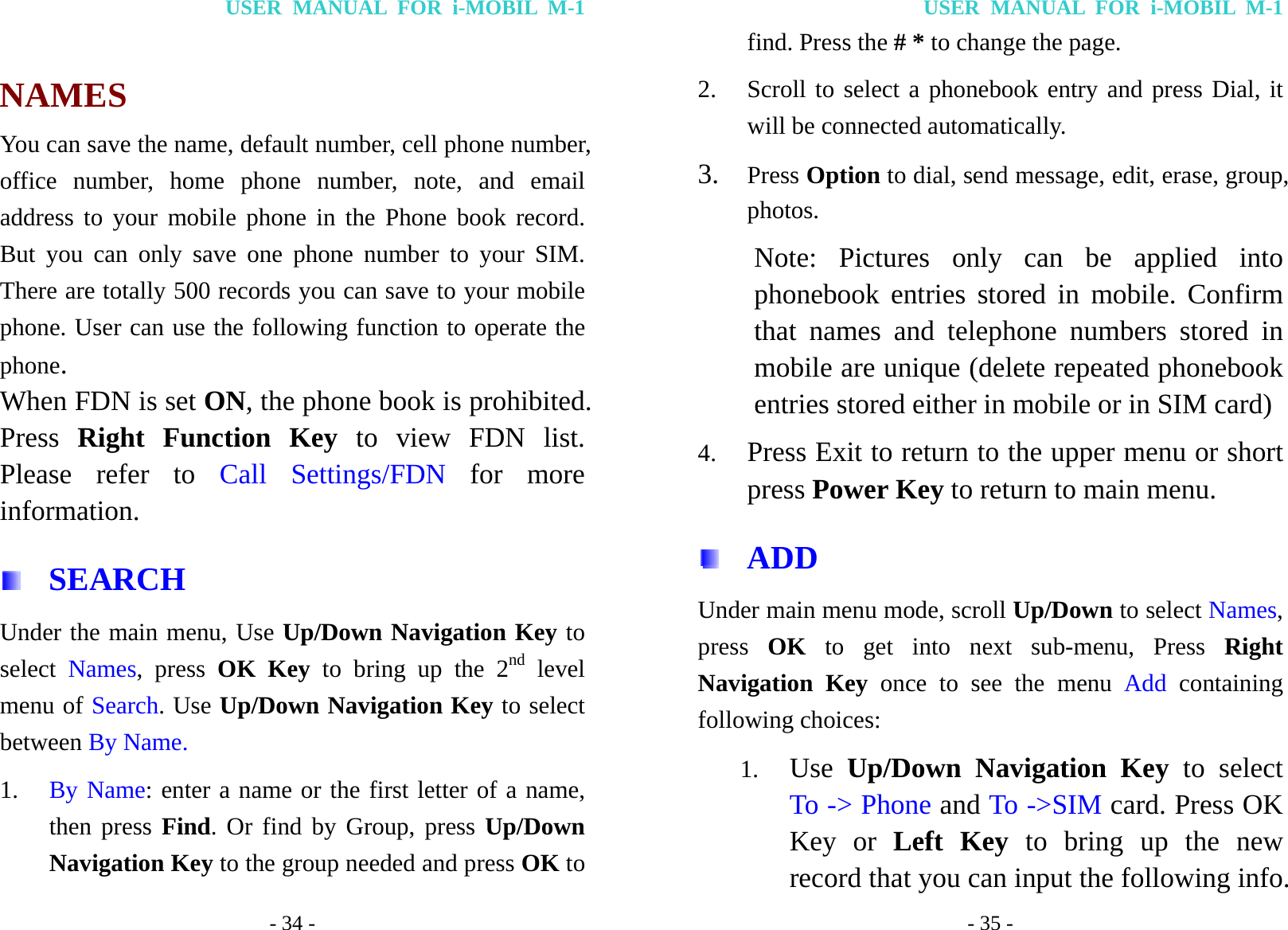

USER MANUAL FOR i-MOBIL M-1 - 34 - NAMES You can save the name, default number, cell phone number, office number, home phone number, note, and email address to your mobile phone in the Phone book record. But you can only save one phone number to your SIM. There are totally 500 records you can save to your mobile phone. User can use the following function to operate the phone. When FDN is set ON, the phone book is prohibited. Press Right Function Key to view FDN list. Please refer to Call Settings/FDN for more information. SEARCH Under the main menu, Use Up/Down Navigation Key to select Names, press OK Key to bring up the 2nd level menu of Search. Use Up/Down Navigation Key to select between By Name. 1. By Name: enter a name or the first letter of a name, then press Find. Or find by Group, press Up/Down Navigation Key to the group needed and press OK to USER MANUAL FOR i-MOBIL M-1 - 35 - find. Press the # * to change the page. 2. Scroll to select a phonebook entry and press Dial, it will be connected automatically. 3. Press Option to dial, send message, edit, erase, group, photos. Note: Pictures only can be applied into phonebook entries stored in mobile. Confirm that names and telephone numbers stored in mobile are unique (delete repeated phonebook entries stored either in mobile or in SIM card) 4. Press Exit to return to the upper menu or short press Power Key to return to main menu. ADD Under main menu mode, scroll Up/Down to select Names, press OK to get into next sub-menu, Press Right Navigation Key once to see the menu Add containing following choices: 1. Use Up/Down Navigation Key to select To -> Phone and To ->SIM card. Press OK Key or Left Key to bring up the new record that you can input the following info.

USER MANUAL FOR i-MOBIL M-1 - 36 - Please also input the area code when you entry the numbers by using the Number Key. 1. 1st Line: To enter a name. 2. 2nd Lind: To enter default number (This number will be recognized by the mobile when you select the record and press Dial Key, Otherwise you have to use Up/Down Navigation Key to select other number which you listed in each record, such Office number, Home number, etc.) 3. 3rd Line: To enter a mobile number. 4. 4th Line: To enter an office number. 5. 5th Line: To enter a home number. 6. 6th Line: To enter personal info (such as birthday, company name, etc.). 7. 7th Line: To enter an email address. 2. Press “#” Key to change the Input method. When finishing the entry, press Left Key or OK to save the record. 3. Press Right Key to return to the previous menu or short press the Power Key to the main menu. USER MANUAL FOR i-MOBIL M-1 - 37 - EDIT You can edit your record by pressing the Right Navigation Key twice under the menu of Names to get into Edit menu. 1. All the records will be listed under the screen of Edit. Use Up/Down Navigation Key to select the record you want to edit. You can use the “#” Key and “*” Key to turn page down and up to select the records. Press OK to get into the record screen and scroll up and down to select the info you want to change. 2. Use Right Key to delete old info, then re-enter new info. 3. After finishing the edit, press OK or Left Key to save and back to the edit sub-menu again. 4. Press Right Key to return to the previous menu or short press Power Key to the main menu. ERASE You can erase your record by pressing the Right Navigation Key three times under the menu of Names to get into the Erase menu.

USER MANUAL FOR i-MOBIL M-1 - 38 - 1. One by One: Press OK to get into Erase menu. Use Up/Down Navigation Key to select the record you want to delete. Press OK Key to confirm. 2. SIM Card: If you want to erase all the records in you SIM Card, select SIM Card and press OK to confirm. 3. Phone: To erase all the records that saved in your mobile phone, select Phone, and Press OK to confirm. 4. Press Right Key to return to the previous menu or short press the Power Key to the main menu. SPEED DIAL You can set up your speed dial number by pressing the Right Key four times under the menu of Names to get into the speed dial menu. You can set up 8 speed dial numbers from #2 to #8 1. Use Up/Down Navigation Key to select the speed dial number you would like to set up. The number has not been set up will be displayed as “Empty”, press OK Key to bring up the name list. Use Up/Down Navigation Key to select a name entry in which you will a number as Speed Dial number. Press OK Key USER MANUAL FOR i-MOBIL M-1 - 39 - to confirm. If you select the number that has been set up before, press Left Key or OK Key to get into next sub-menu: a) Edit: press OK or Left Key to bring up all the name records. Use Up/Down Navigation Key or “#” Key and “*” Key to turn one page down or up. Select the name you would like to set up a speed dial number, press OK to confirm. b) Erase: To erase the saved speed dial record, select the speed dial number, press OK, then select Erase, press OK to erase the setting. The word of the record name will be changed back to “Empty”. 2. Press Right Key to return to the previous menu or short press Power Key to the main menu. SETTING You can set up your phone book by pressing the Right Navigation Key five times under the menu of Names to get into the Setting menu. 1. Status: You can check your phonebook status by pressing OK. After you get into the next screen, you

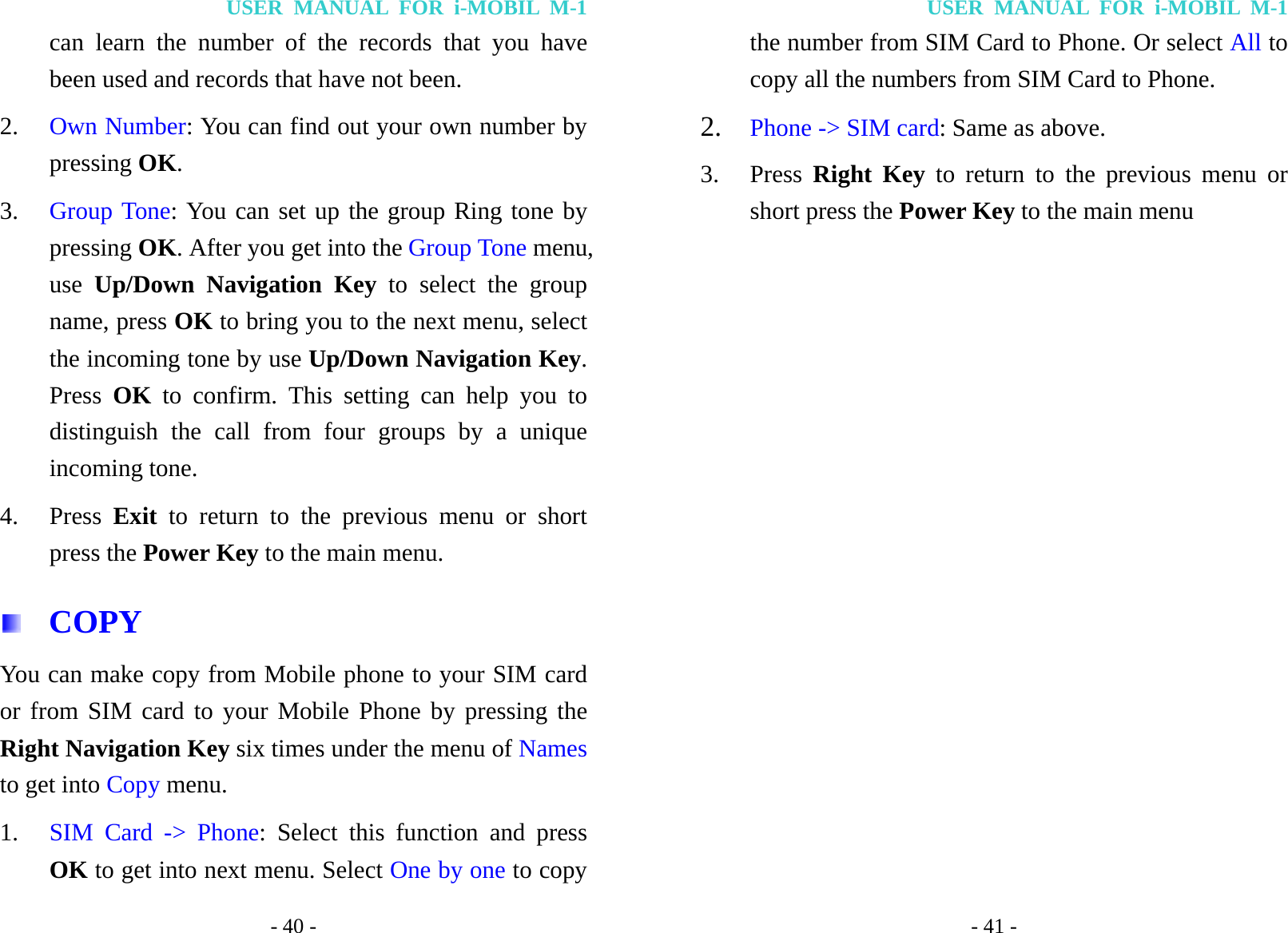

USER MANUAL FOR i-MOBIL M-1 - 40 - can learn the number of the records that you have been used and records that have not been. 2. Own Number: You can find out your own number by pressing OK. 3. Group Tone: You can set up the group Ring tone by pressing OK. After you get into the Group Tone menu, use Up/Down Navigation Key to select the group name, press OK to bring you to the next menu, select the incoming tone by use Up/Down Navigation Key. Press OK to confirm. This setting can help you to distinguish the call from four groups by a unique incoming tone. 4. Press Exit to return to the previous menu or short press the Power Key to the main menu. COPY You can make copy from Mobile phone to your SIM card or from SIM card to your Mobile Phone by pressing the Right Navigation Key six times under the menu of Names to get into Copy menu. 1. SIM Card -> Phone: Select this function and press OK to get into next menu. Select One by one to copy USER MANUAL FOR i-MOBIL M-1 - 41 - the number from SIM Card to Phone. Or select All to copy all the numbers from SIM Card to Phone. 2. Phone -> SIM card: Same as above. 3. Press Right Key to return to the previous menu or short press the Power Key to the main menu

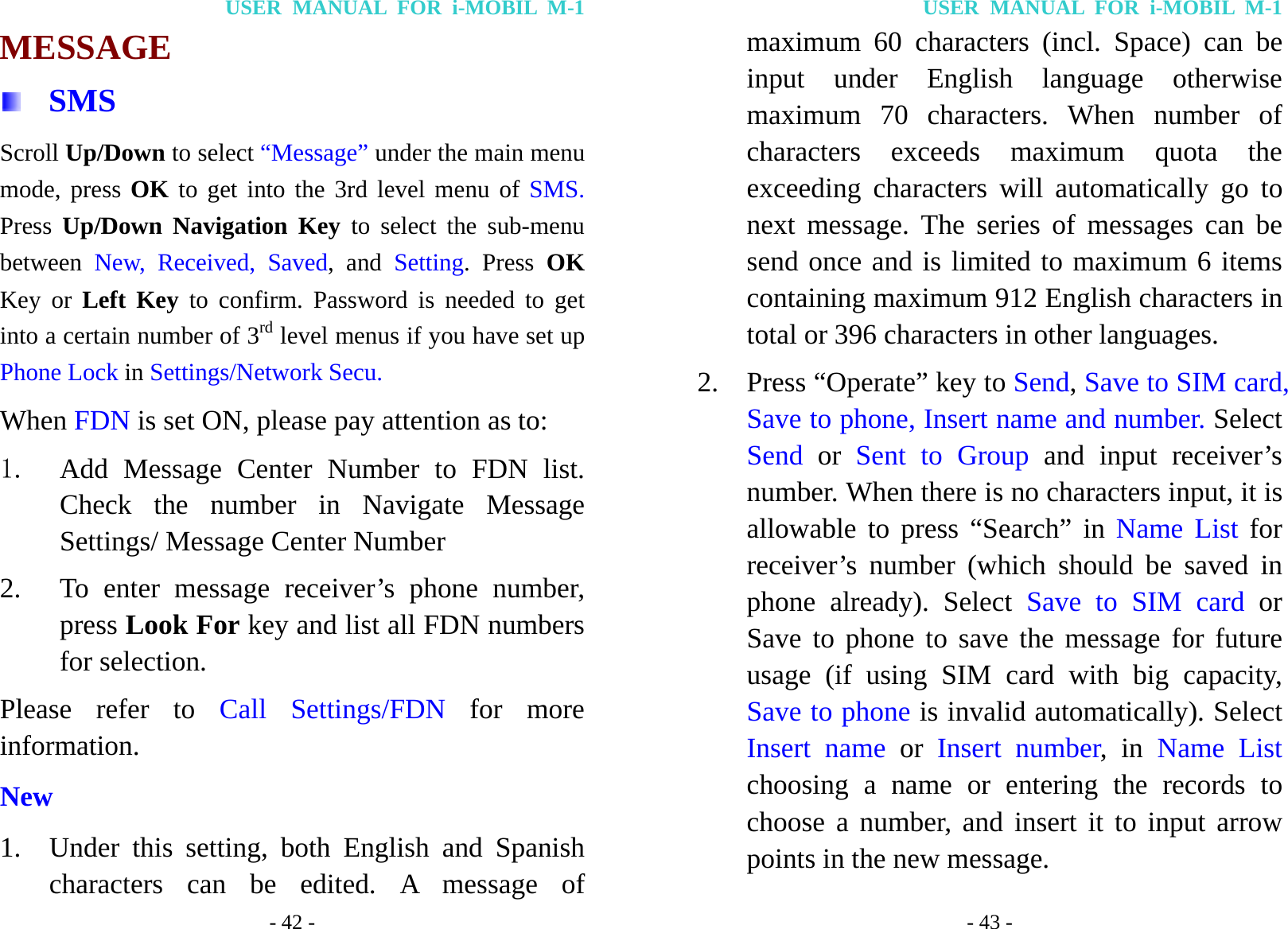

USER MANUAL FOR i-MOBIL M-1 - 42 - MESSAGE SMS Scroll Up/Down to select “Message” under the main menu mode, press OK to get into the 3rd level menu of SMS. Press Up/Down Navigation Key to select the sub-menu between New, Received, Saved, and Setting. Press OK Key or Left Key to confirm. Password is needed to get into a certain number of 3rd level menus if you have set up Phone Lock in Settings/Network Secu. When FDN is set ON, please pay attention as to: 1. Add Message Center Number to FDN list. Check the number in Navigate Message Settings/ Message Center Number 2. To enter message receiver’s phone number, press Look For key and list all FDN numbers for selection. Please refer to Call Settings/FDN for more information. New 1. Under this setting, both English and Spanish characters can be edited. A message of USER MANUAL FOR i-MOBIL M-1 - 43 - maximum 60 characters (incl. Space) can be input under English language otherwise maximum 70 characters. When number of characters exceeds maximum quota the exceeding characters will automatically go to next message. The series of messages can be send once and is limited to maximum 6 items containing maximum 912 English characters in total or 396 characters in other languages. 2. Press “Operate” key to Send, Save to SIM card, Save to phone, Insert name and number. Select Send or Sent to Group and input receiver’s number. When there is no characters input, it is allowable to press “Search” in Name List for receiver’s number (which should be saved in phone already). Select Save to SIM card or Save to phone to save the message for future usage (if using SIM card with big capacity, Save to phone is invalid automatically). Select Insert name or Insert number, in Name List choosing a name or entering the records to choose a number, and insert it to input arrow points in the new message.

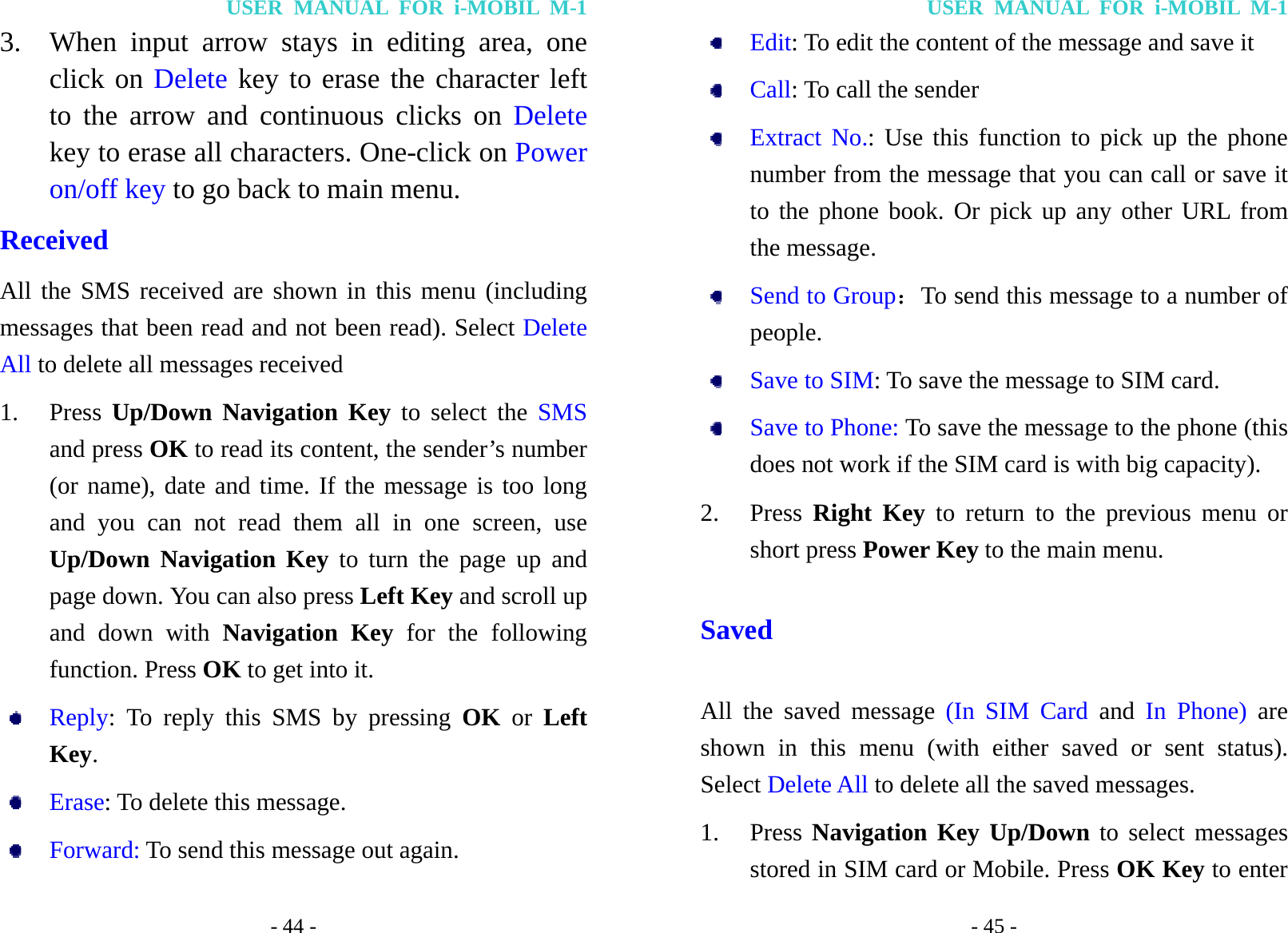

USER MANUAL FOR i-MOBIL M-1 - 44 - 3. When input arrow stays in editing area, one click on Delete key to erase the character left to the arrow and continuous clicks on Delete key to erase all characters. One-click on Power on/off key to go back to main menu. Received All the SMS received are shown in this menu (including messages that been read and not been read). Select Delete All to delete all messages received 1. Press Up/Down Navigation Key to select the SMS and press OK to read its content, the sender’s number (or name), date and time. If the message is too long and you can not read them all in one screen, use Up/Down Navigation Key to turn the page up and page down. You can also press Left Key and scroll up and down with Navigation Key for the following function. Press OK to get into it. Reply: To reply this SMS by pressing OK or Left Key. Erase: To delete this message. Forward: To send this message out again. USER MANUAL FOR i-MOBIL M-1 - 45 - Edit: To edit the content of the message and save it Call: To call the sender Extract No.: Use this function to pick up the phone number from the message that you can call or save it to the phone book. Or pick up any other URL from the message. Send to Group：To send this message to a number of people. Save to SIM: To save the message to SIM card. Save to Phone: To save the message to the phone (this does not work if the SIM card is with big capacity). 2. Press Right Key to return to the previous menu or short press Power Key to the main menu. Saved All the saved message (In SIM Card and In Phone) are shown in this menu (with either saved or sent status). Select Delete All to delete all the saved messages. 1. Press Navigation Key Up/Down to select messages stored in SIM card or Mobile. Press OK Key to enter

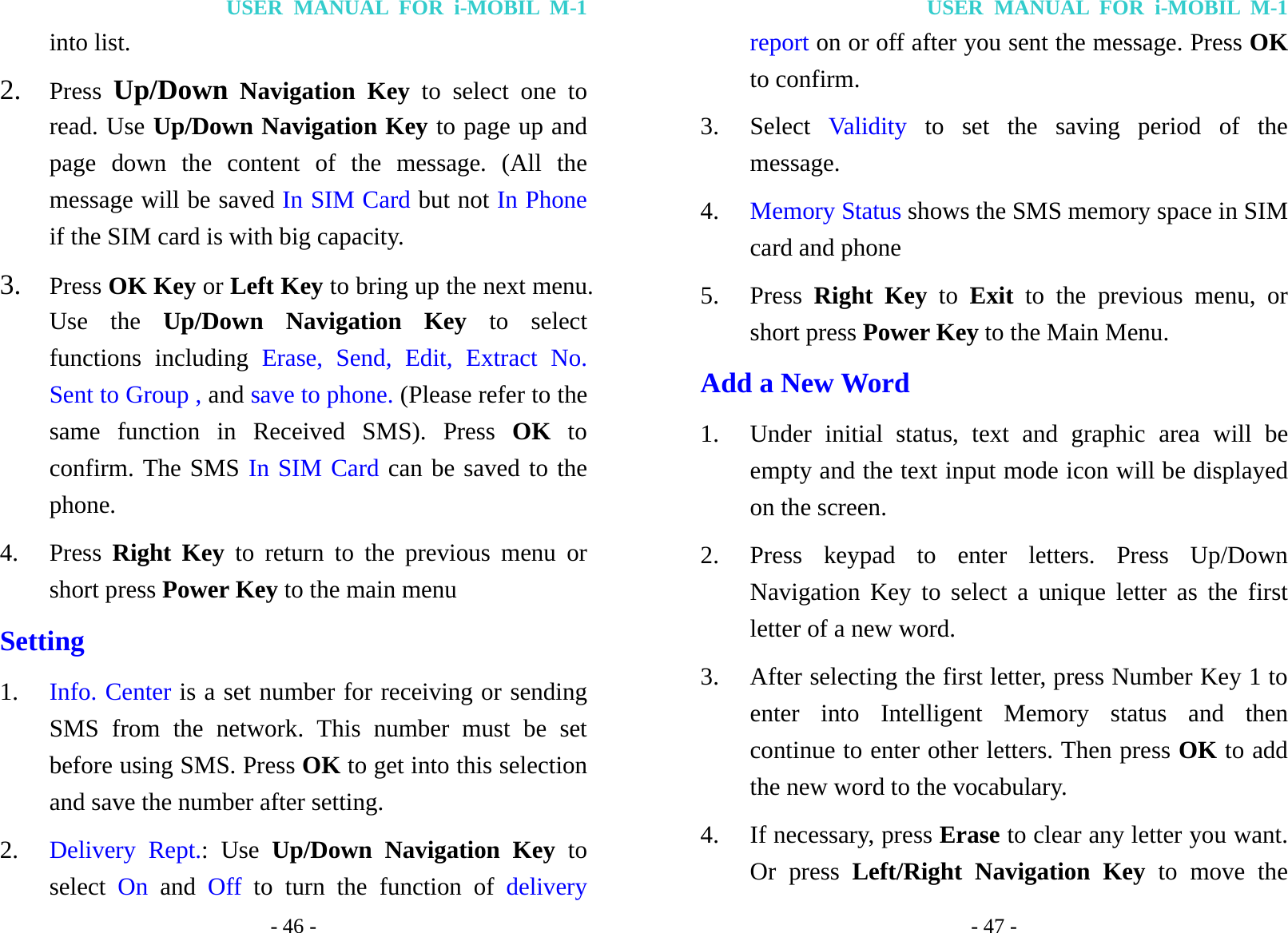

USER MANUAL FOR i-MOBIL M-1 - 46 - into list. 2. Press Up/Down Navigation Key to select one to read. Use Up/Down Navigation Key to page up and page down the content of the message. (All the message will be saved In SIM Card but not In Phone if the SIM card is with big capacity. 3. Press OK Key or Left Key to bring up the next menu. Use the Up/Down Navigation Key to select functions including Erase, Send, Edit, Extract No. Sent to Group , and save to phone. (Please refer to the same function in Received SMS). Press OK to confirm. The SMS In SIM Card can be saved to the phone. 4. Press Right Key to return to the previous menu or short press Power Key to the main menu Setting 1. Info. Center is a set number for receiving or sending SMS from the network. This number must be set before using SMS. Press OK to get into this selection and save the number after setting. 2. Delivery Rept.: Use Up/Down Navigation Key to select On and Off to turn the function of delivery USER MANUAL FOR i-MOBIL M-1 - 47 - report on or off after you sent the message. Press OK to confirm. 3. Select Val id ity to set the saving period of the message. 4. Memory Status shows the SMS memory space in SIM card and phone 5. Press Right Key to Exit to the previous menu, or short press Power Key to the Main Menu. Add a New Word 1. Under initial status, text and graphic area will be empty and the text input mode icon will be displayed on the screen. 2. Press keypad to enter letters. Press Up/Down Navigation Key to select a unique letter as the first letter of a new word. 3. After selecting the first letter, press Number Key 1 to enter into Intelligent Memory status and then continue to enter other letters. Then press OK to add the new word to the vocabulary. 4. If necessary, press Erase to clear any letter you want. Or press Left/Right Navigation Key to move the

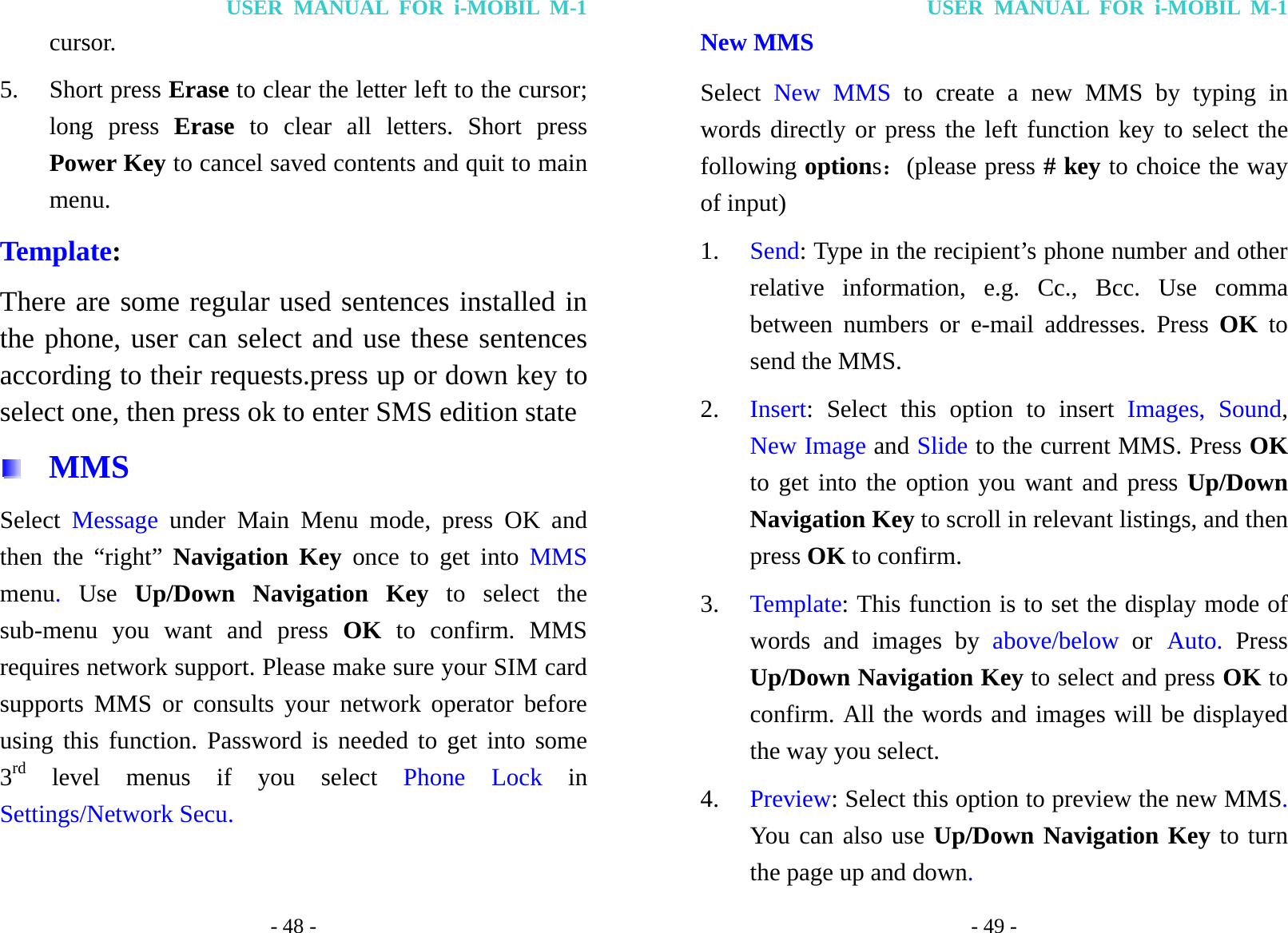

USER MANUAL FOR i-MOBIL M-1 - 48 - cursor. 5. Short press Erase to clear the letter left to the cursor; long press Erase to clear all letters. Short press Power Key to cancel saved contents and quit to main menu. Template: There are some regular used sentences installed in the phone, user can select and use these sentences according to their requests.press up or down key to select one, then press ok to enter SMS edition state MMS Select Message under Main Menu mode, press OK and then the “right” Navigation Key once to get into MMS menu. Use Up/Down Navigation Key to select the sub-menu you want and press OK to confirm. MMS requires network support. Please make sure your SIM card supports MMS or consults your network operator before using this function. Password is needed to get into some 3rd level menus if you select Phone Lock in Settings/Network Secu. USER MANUAL FOR i-MOBIL M-1 - 49 - New MMS Select New MMS to create a new MMS by typing in words directly or press the left function key to select the following options：(please press # key to choice the way of input) 1. Send: Type in the recipient’s phone number and other relative information, e.g. Cc., Bcc. Use comma between numbers or e-mail addresses. Press OK to send the MMS. 2. Insert: Select this option to insert Images, Sound, New Image and Slide to the current MMS. Press OK to get into the option you want and press Up/Down Navigation Key to scroll in relevant listings, and then press OK to confirm. 3. Template: This function is to set the display mode of words and images by above/below or Auto. Press Up/Down Navigation Key to select and press OK to confirm. All the words and images will be displayed the way you select. 4. Preview: Select this option to preview the new MMS. You can also use Up/Down Navigation Key to turn the page up and down.

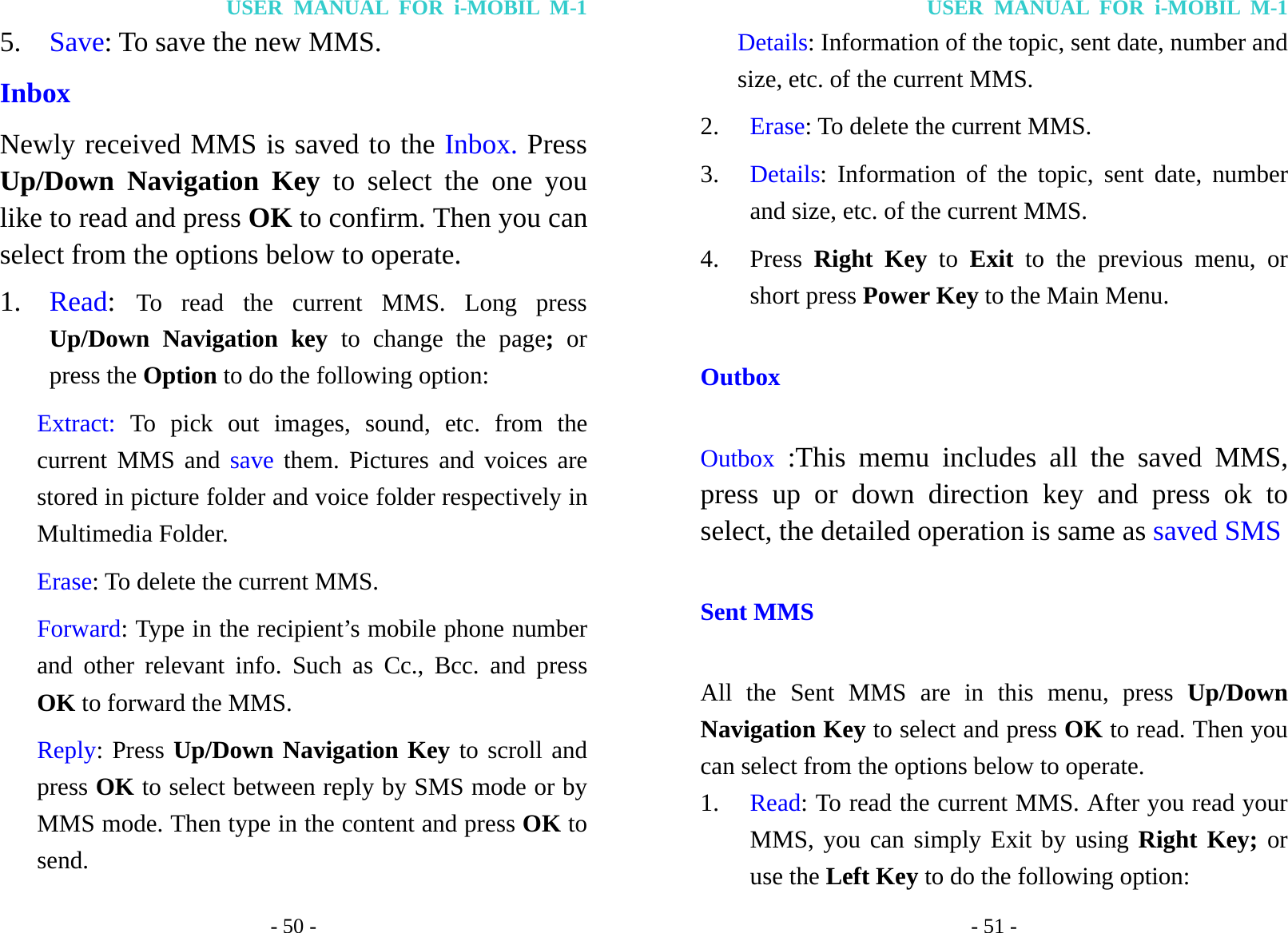

USER MANUAL FOR i-MOBIL M-1 - 50 - 5. Save: To save the new MMS. Inbox Newly received MMS is saved to the Inbox. Press Up/Down Navigation Key to select the one you like to read and press OK to confirm. Then you can select from the options below to operate. 1. Read: To read the current MMS. Long press Up/Down Navigation key to change the page; or press the Option to do the following option: Extract: To pick out images, sound, etc. from the current MMS and save them. Pictures and voices are stored in picture folder and voice folder respectively in Multimedia Folder. Erase: To delete the current MMS. Forward: Type in the recipient’s mobile phone number and other relevant info. Such as Cc., Bcc. and press OK to forward the MMS. Reply: Press Up/Down Navigation Key to scroll and press OK to select between reply by SMS mode or by MMS mode. Then type in the content and press OK to send. USER MANUAL FOR i-MOBIL M-1 - 51 - Details: Information of the topic, sent date, number and size, etc. of the current MMS. 2. Erase: To delete the current MMS. 3. Details: Information of the topic, sent date, number and size, etc. of the current MMS. 4. Press Right Key to Exit to the previous menu, or short press Power Key to the Main Menu. Outbox Outbox :This memu includes all the saved MMS, press up or down direction key and press ok to select, the detailed operation is same as saved SMS Sent MMS All the Sent MMS are in this menu, press Up/Down Navigation Key to select and press OK to read. Then you can select from the options below to operate. 1. Read: To read the current MMS. After you read your MMS, you can simply Exit by using Right Key; or use the Left Key to do the following option:

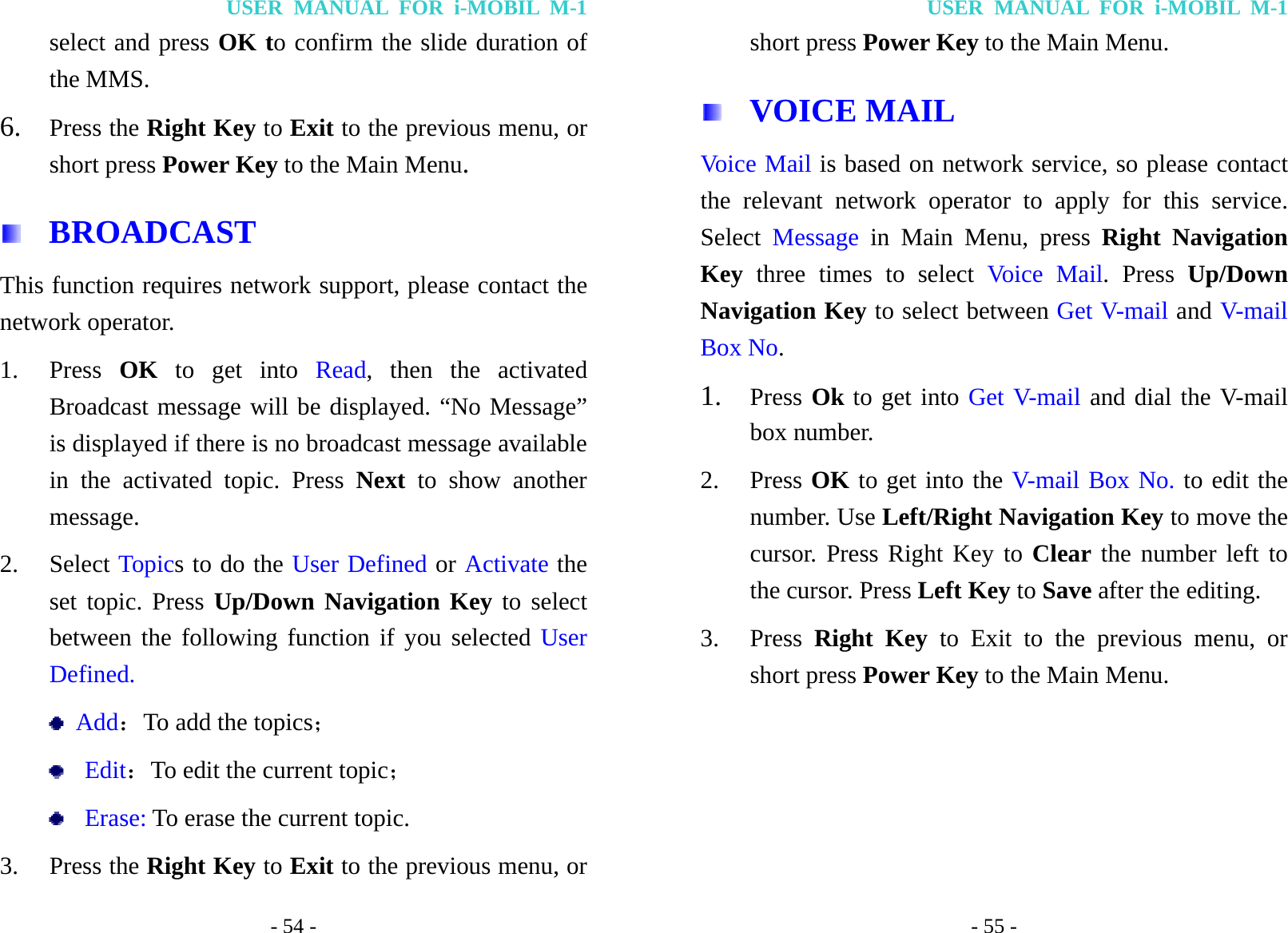

USER MANUAL FOR i-MOBIL M-1 - 54 - select and press OK to confirm the slide duration of the MMS. 6. Press the Right Key to Exit to the previous menu, or short press Power Key to the Main Menu. BROADCAST This function requires network support, please contact the network operator. 1. Press OK to get into Read, then the activated Broadcast message will be displayed. “No Message” is displayed if there is no broadcast message available in the activated topic. Press Next to show another message. 2. Select Topics to do the User Defined or Activate the set topic. Press Up/Down Navigation Key to select between the following function if you selected User Defined. Add：To add the topics； Edit：To edit the current topic； Erase: To erase the current topic. 3. Press the Right Key to Exit to the previous menu, or USER MANUAL FOR i-MOBIL M-1 - 55 - short press Power Key to the Main Menu. VOICE MAIL Voice Mail is based on network service, so please contact the relevant network operator to apply for this service. Select Message in Main Menu, press Right Navigation Key three times to select Voice Mail. Press Up/Down Navigation Key to select between Get V-mail and V-mail Box No. 1. Press Ok to get into Get V-mail and dial the V-mail box number. 2. Press OK to get into the V-mail Box No. to edit the number. Use Left/Right Navigation Key to move the cursor. Press Right Key to Clear the number left to the cursor. Press Left Key to Save after the editing. 3. Press Right Key to Exit to the previous menu, or short press Power Key to the Main Menu.

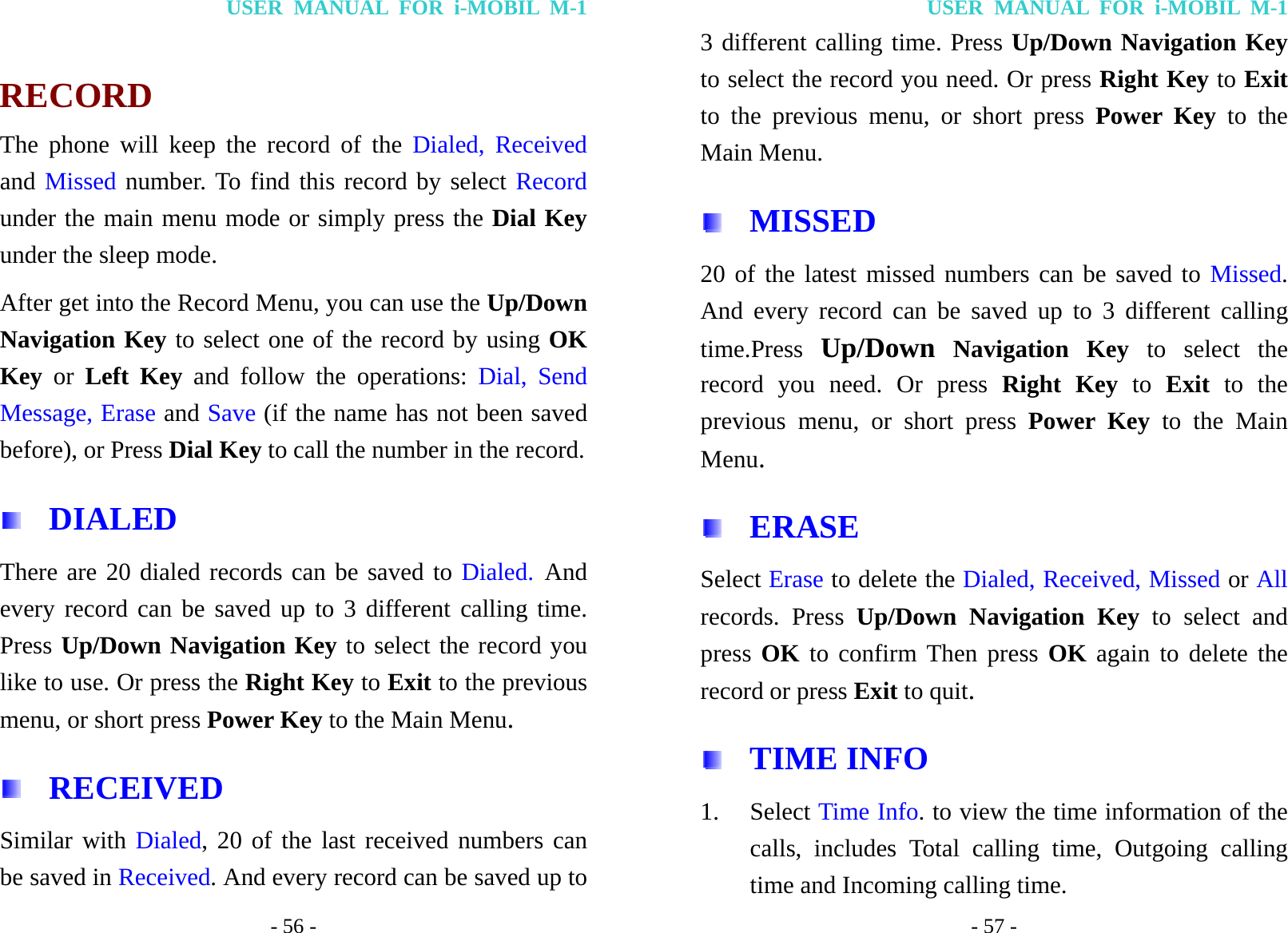

USER MANUAL FOR i-MOBIL M-1 - 56 - RECORD The phone will keep the record of the Dialed, Received and Missed number. To find this record by select Record under the main menu mode or simply press the Dial Key under the sleep mode. After get into the Record Menu, you can use the Up/Down Navigation Key to select one of the record by using OK Key or Left Key and follow the operations: Dial, Send Message, Erase and Save (if the name has not been saved before), or Press Dial Key to call the number in the record. DIALED There are 20 dialed records can be saved to Dialed. And every record can be saved up to 3 different calling time. Press Up/Down Navigation Key to select the record you like to use. Or press the Right Key to Exit to the previous menu, or short press Power Key to the Main Menu. RECEIVED Similar with Dialed, 20 of the last received numbers can be saved in Received. And every record can be saved up to USER MANUAL FOR i-MOBIL M-1 - 57 - 3 different calling time. Press Up/Down Navigation Key to select the record you need. Or press Right Key to Exit to the previous menu, or short press Power Key to the Main Menu. MISSED 20 of the latest missed numbers can be saved to Missed. And every record can be saved up to 3 different calling time.Press Up/Down Navigation Key to select the record you need. Or press Right Key to Exit to the previous menu, or short press Power Key to the Main Menu. ERASE Select Erase to delete the Dialed, Received, Missed or All records. Press Up/Down Navigation Key to select and press OK to confirm Then press OK again to delete the record or press Exit to quit. TIME INFO 1. Select Time Info. to view the time information of the calls, includes Total calling time, Outgoing calling time and Incoming calling time.

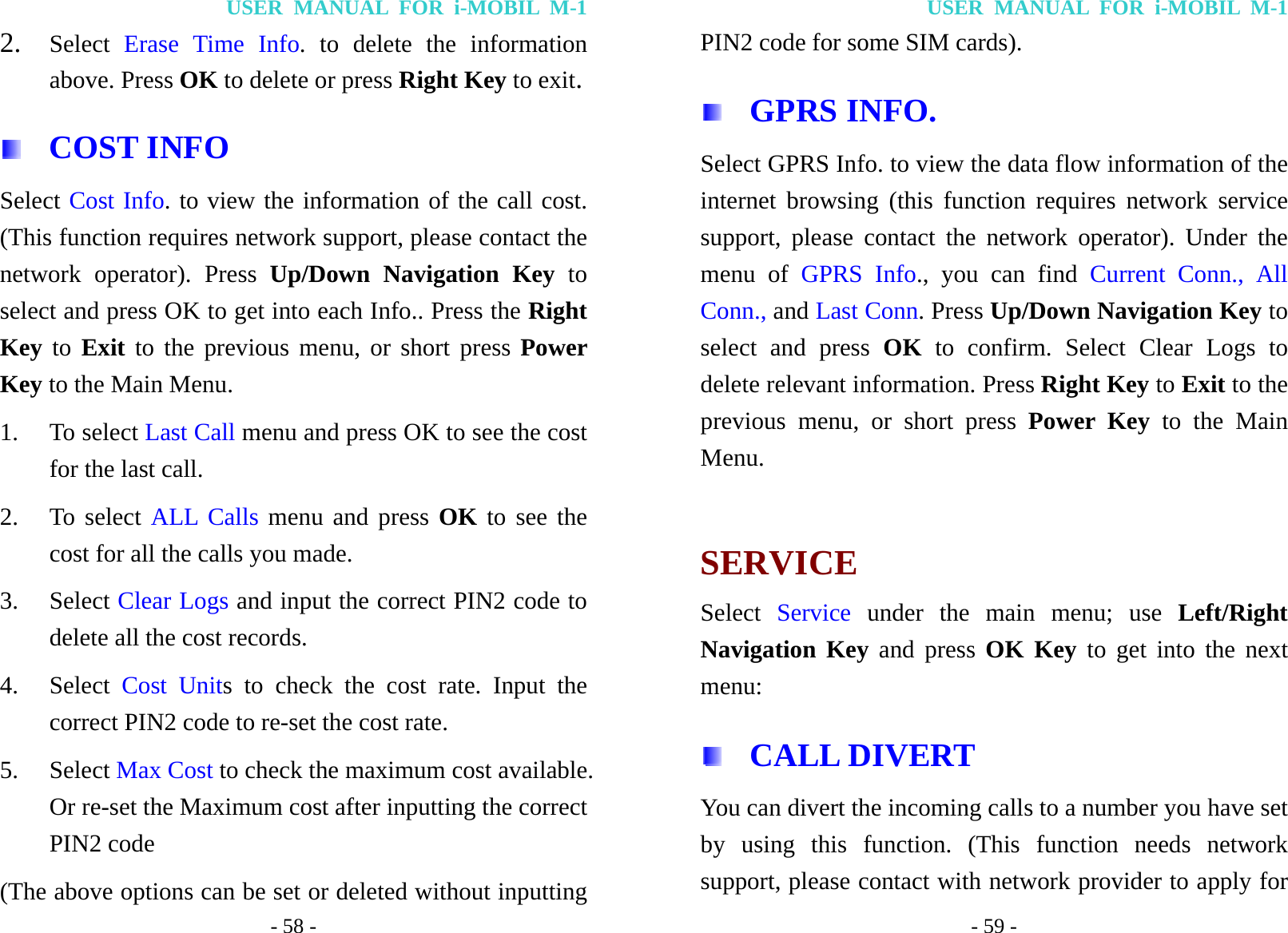

USER MANUAL FOR i-MOBIL M-1 - 58 - 2. Select Erase Time Info. to delete the information above. Press OK to delete or press Right Key to exit. COST INFO Select Cost Info. to view the information of the call cost. (This function requires network support, please contact the network operator). Press Up/Down Navigation Key to select and press OK to get into each Info.. Press the Right Key to Exit to the previous menu, or short press Power Key to the Main Menu. 1. To select Last Call menu and press OK to see the cost for the last call. 2. To select ALL Calls menu and press OK to see the cost for all the calls you made. 3. Select Clear Logs and input the correct PIN2 code to delete all the cost records. 4. Select Cost Units to check the cost rate. Input the correct PIN2 code to re-set the cost rate. 5. Select Max Cost to check the maximum cost available. Or re-set the Maximum cost after inputting the correct PIN2 code (The above options can be set or deleted without inputting USER MANUAL FOR i-MOBIL M-1 - 59 - PIN2 code for some SIM cards). GPRS INFO. Select GPRS Info. to view the data flow information of the internet browsing (this function requires network service support, please contact the network operator). Under the menu of GPRS Info., you can find Current Conn., All Conn., and Last Conn. Press Up/Down Navigation Key to select and press OK to confirm. Select Clear Logs to delete relevant information. Press Right Key to Exit to the previous menu, or short press Power Key to the Main Menu. SERVICE Select Service under the main menu; use Left/Right Navigation Key and press OK Key to get into the next menu: CALL DIVERT You can divert the incoming calls to a number you have set by using this function. (This function needs network support, please contact with network provider to apply for

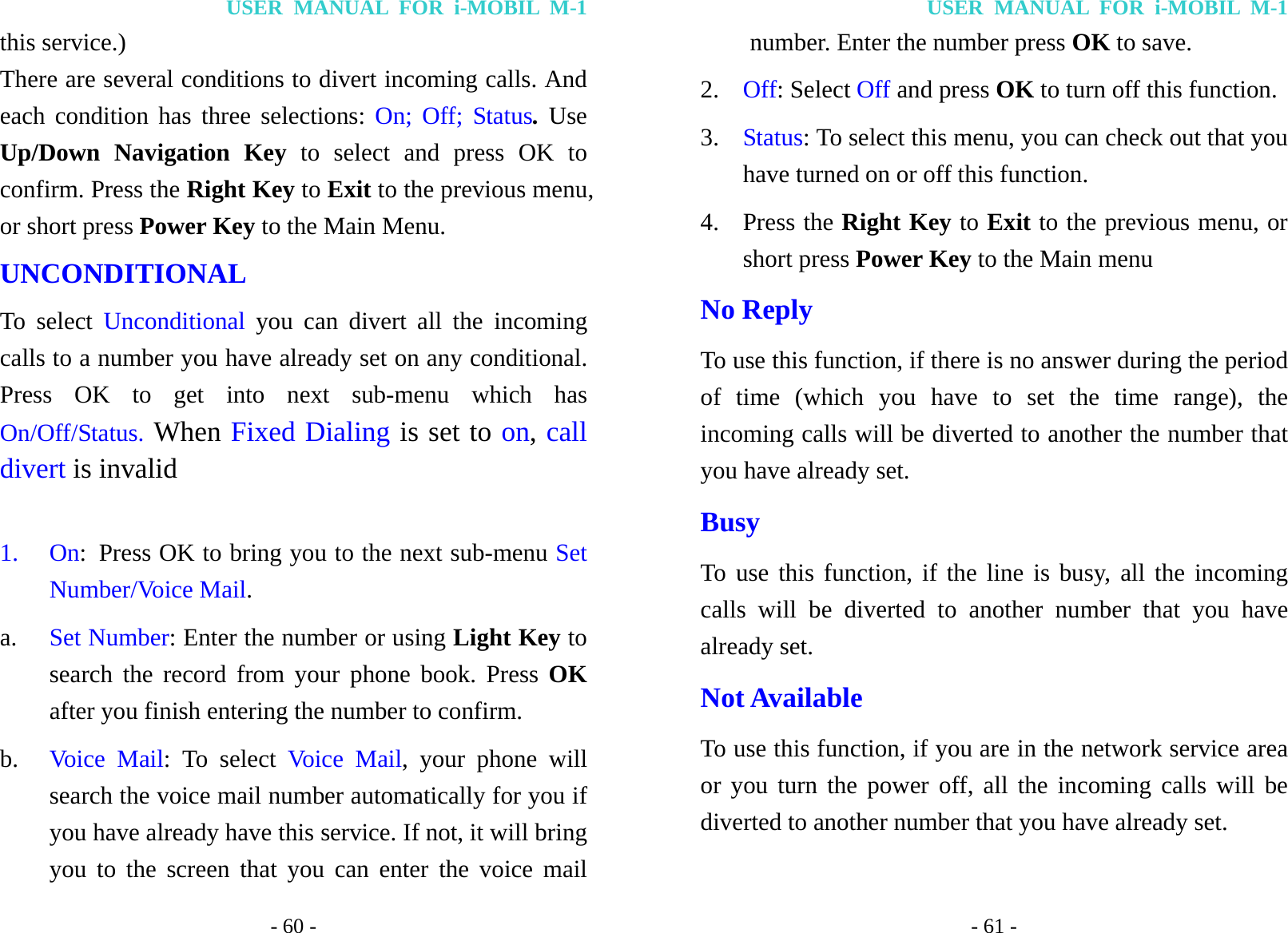

USER MANUAL FOR i-MOBIL M-1 - 60 - this service.) There are several conditions to divert incoming calls. And each condition has three selections: On; Off; Status. Use Up/Down Navigation Key to select and press OK to confirm. Press the Right Key to Exit to the previous menu, or short press Power Key to the Main Menu. UNCONDITIONAL To select Unconditional you can divert all the incoming calls to a number you have already set on any conditional. Press OK to get into next sub-menu which has On/Off/Status. When Fixed Dialing is set to on, call divert is invalid 1. On: Press OK to bring you to the next sub-menu Set Number/Voice Mail. a. Set Number: Enter the number or using Light Key to search the record from your phone book. Press OK after you finish entering the number to confirm. b. Voice Mail: To select Voice Mail, your phone will search the voice mail number automatically for you if you have already have this service. If not, it will bring you to the screen that you can enter the voice mail USER MANUAL FOR i-MOBIL M-1 - 61 - number. Enter the number press OK to save. 2. Off: Select Off and press OK to turn off this function. 3. Status: To select this menu, you can check out that you have turned on or off this function. 4. Press the Right Key to Exit to the previous menu, or short press Power Key to the Main menu No Reply To use this function, if there is no answer during the period of time (which you have to set the time range), the incoming calls will be diverted to another the number that you have already set. Busy To use this function, if the line is busy, all the incoming calls will be diverted to another number that you have already set. Not Available To use this function, if you are in the network service area or you turn the power off, all the incoming calls will be diverted to another number that you have already set.

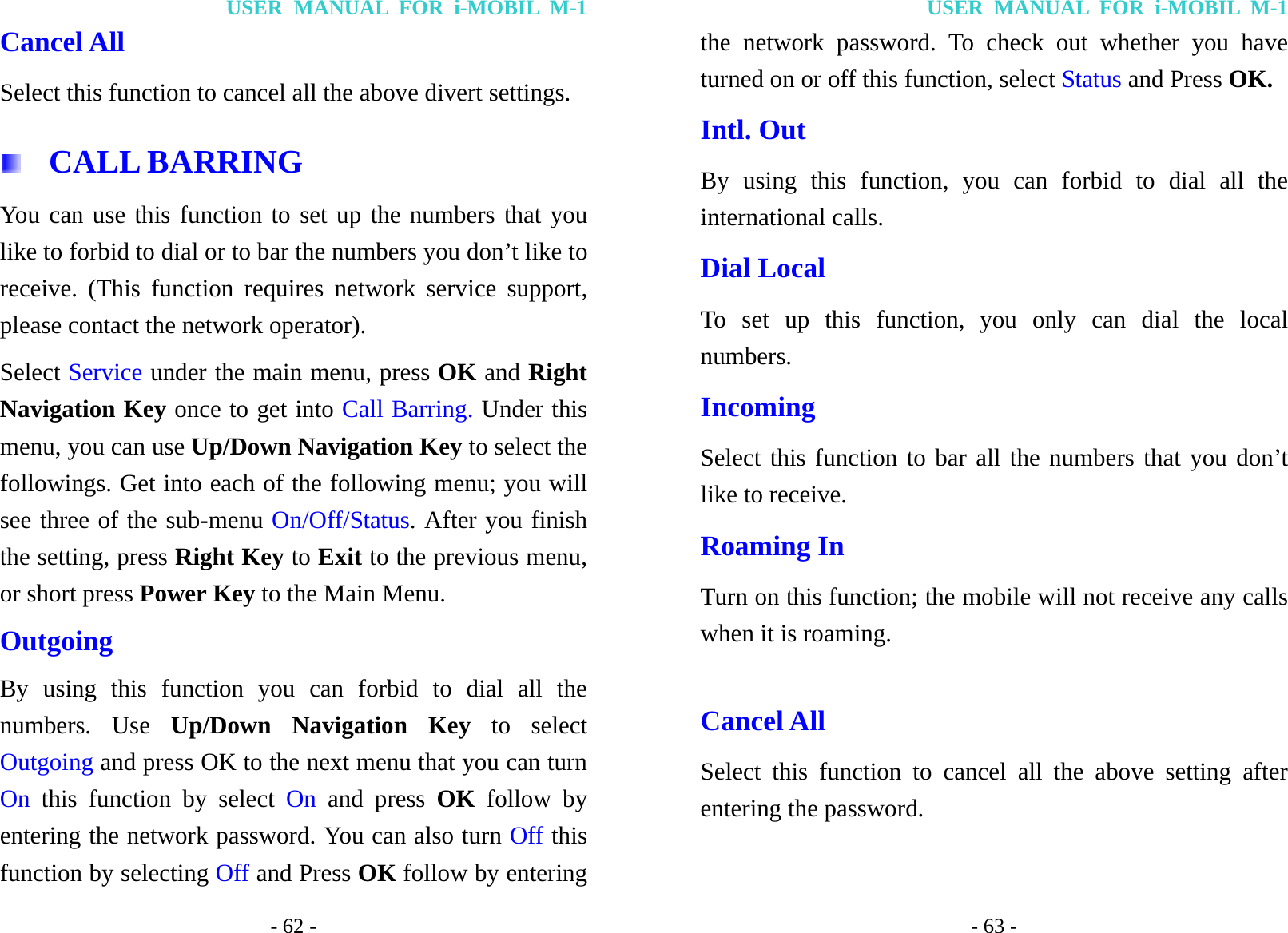

USER MANUAL FOR i-MOBIL M-1 - 62 - Cancel All Select this function to cancel all the above divert settings. CALL BARRING You can use this function to set up the numbers that you like to forbid to dial or to bar the numbers you don’t like to receive. (This function requires network service support, please contact the network operator). Select Service under the main menu, press OK and Right Navigation Key once to get into Call Barring. Under this menu, you can use Up/Down Navigation Key to select the followings. Get into each of the following menu; you will see three of the sub-menu On/Off/Status. After you finish the setting, press Right Key to Exit to the previous menu, or short press Power Key to the Main Menu. Outgoing By using this function you can forbid to dial all the numbers. Use Up/Down Navigation Key to select Outgoing and press OK to the next menu that you can turn On this function by select On and press OK follow by entering the network password. You can also turn Off this function by selecting Off and Press OK follow by entering USER MANUAL FOR i-MOBIL M-1 - 63 - the network password. To check out whether you have turned on or off this function, select Status and Press OK. Intl. Out By using this function, you can forbid to dial all the international calls. Dial Local To set up this function, you only can dial the local numbers. Incoming Select this function to bar all the numbers that you don’t like to receive. Roaming In Turn on this function; the mobile will not receive any calls when it is roaming. Cancel All Select this function to cancel all the above setting after entering the password.

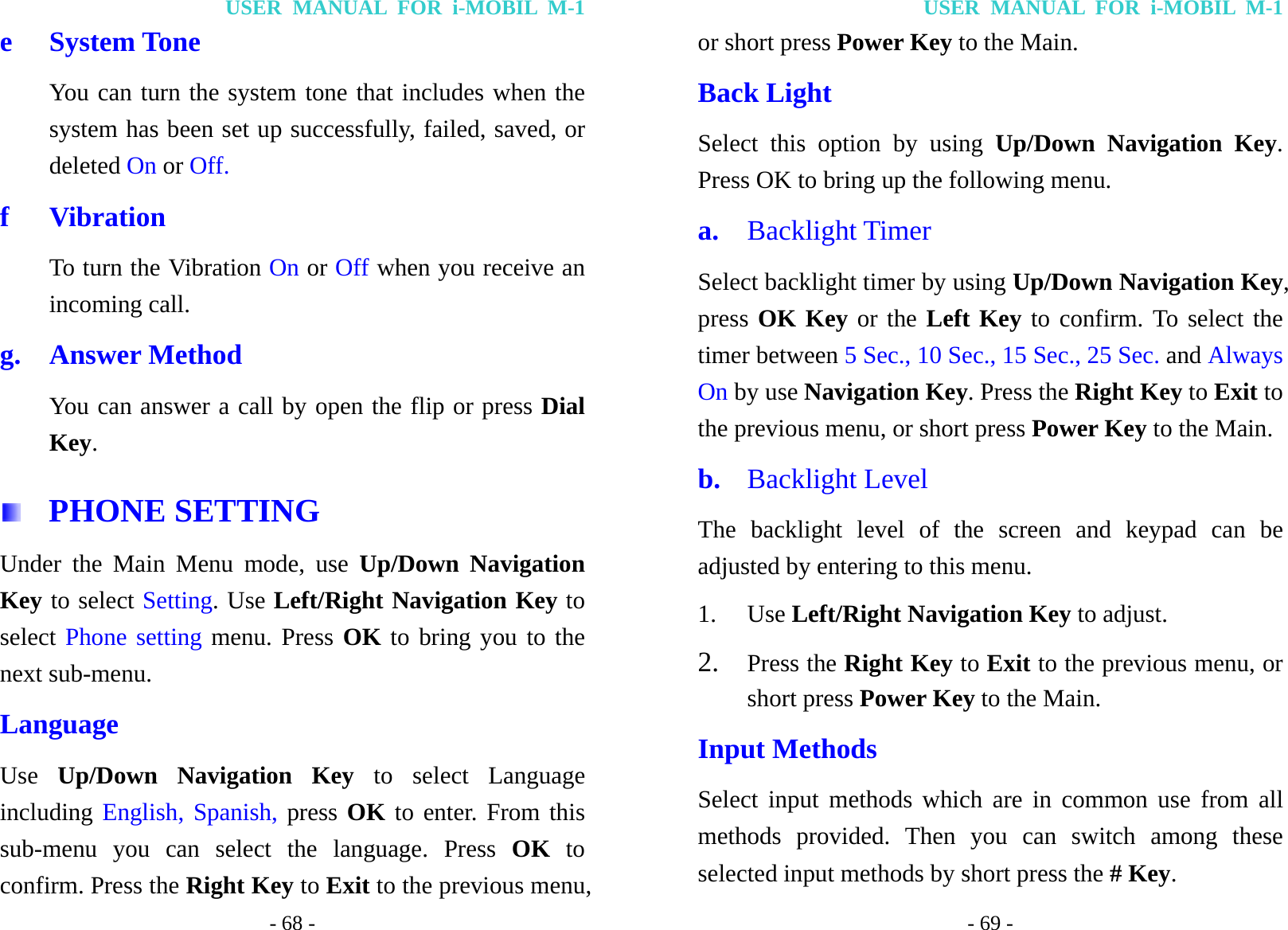

USER MANUAL FOR i-MOBIL M-1 - 68 - e System Tone You can turn the system tone that includes when the system has been set up successfully, failed, saved, or deleted On or Off. f Vibration To turn the Vibration On or Off when you receive an incoming call. g. Answer Method You can answer a call by open the flip or press Dial Key. PHONE SETTING Under the Main Menu mode, use Up/Down Navigation Key to select Setting. Use Left/Right Navigation Key to select Phone setting menu. Press OK to bring you to the next sub-menu. Language Use Up/Down Navigation Key to select Language including English, Spanish, press OK to enter. From this sub-menu you can select the language. Press OK to confirm. Press the Right Key to Exit to the previous menu, USER MANUAL FOR i-MOBIL M-1 - 69 - or short press Power Key to the Main. Back Light Select this option by using Up/Down Navigation Key. Press OK to bring up the following menu. a. Backlight Timer Select backlight timer by using Up/Down Navigation Key, press OK Key or the Left Key to confirm. To select the timer between 5 Sec., 10 Sec., 15 Sec., 25 Sec. and Always On by use Navigation Key. Press the Right Key to Exit to the previous menu, or short press Power Key to the Main. b. Backlight Level The backlight level of the screen and keypad can be adjusted by entering to this menu. 1. Use Left/Right Navigation Key to adjust. 2. Press the Right Key to Exit to the previous menu, or short press Power Key to the Main. Input Methods Select input methods which are in common use from all methods provided. Then you can switch among these selected input methods by short press the # Key.

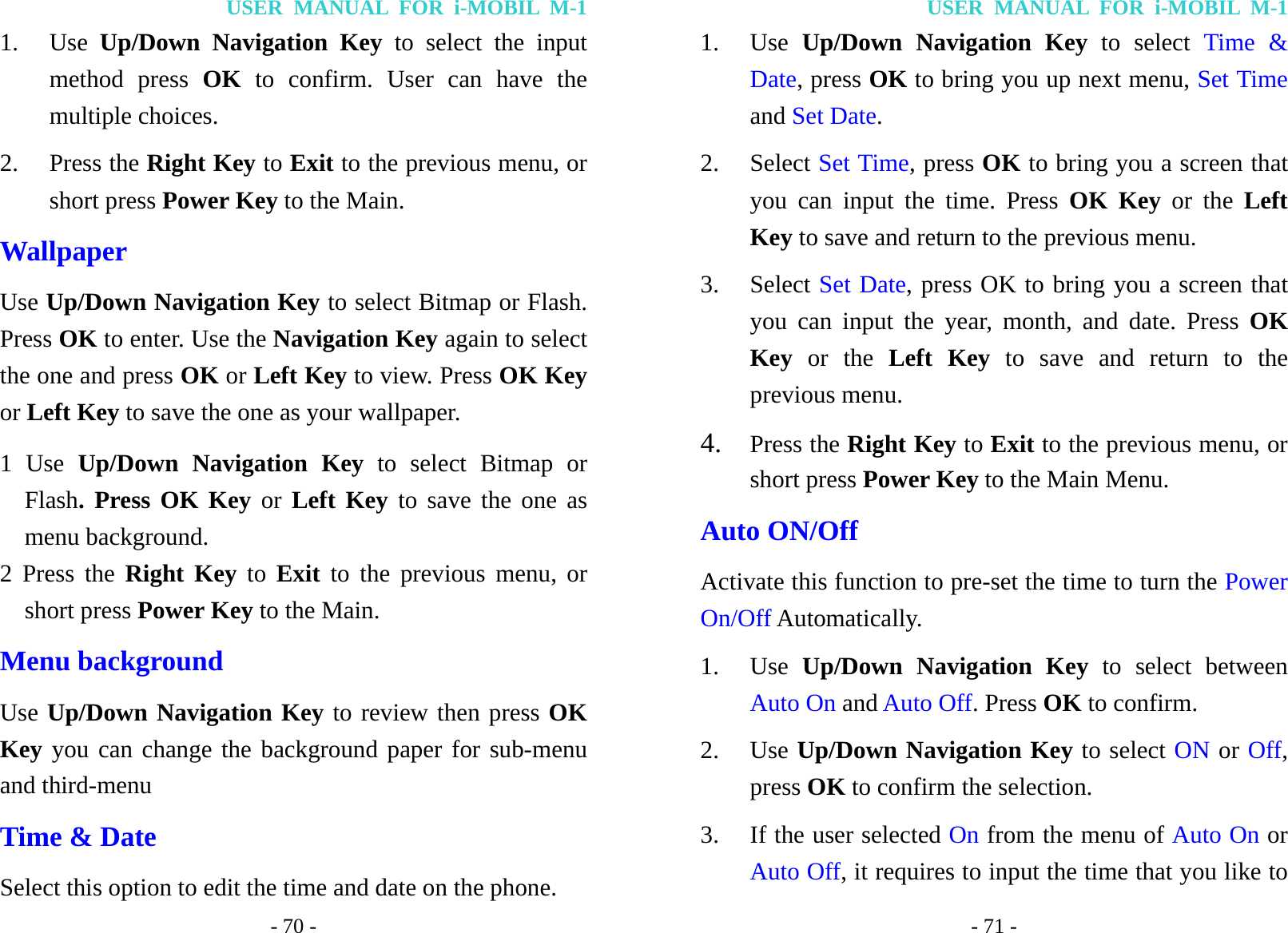

USER MANUAL FOR i-MOBIL M-1 - 70 - 1. Use Up/Down Navigation Key to select the input method press OK to confirm. User can have the multiple choices. 2. Press the Right Key to Exit to the previous menu, or short press Power Key to the Main. Wallpaper Use Up/Down Navigation Key to select Bitmap or Flash. Press OK to enter. Use the Navigation Key again to select the one and press OK or Left Key to view. Press OK Key or Left Key to save the one as your wallpaper. 1 Use Up/Down Navigation Key to select Bitmap or Flash. Press OK Key or Left Key to save the one as menu background. 2 Press the Right Key to Exit to the previous menu, or short press Power Key to the Main. Menu background Use Up/Down Navigation Key to review then press OK Key you can change the background paper for sub-menu and third-menu Time & Date Select this option to edit the time and date on the phone. USER MANUAL FOR i-MOBIL M-1 - 71 - 1. Use Up/Down Navigation Key to select Time & Date, press OK to bring you up next menu, Set Time and Set Date. 2. Select Set Time, press OK to bring you a screen that you can input the time. Press OK Key or the Left Key to save and return to the previous menu. 3. Select Set Date, press OK to bring you a screen that you can input the year, month, and date. Press OK Key or the Left Key to save and return to the previous menu. 4. Press the Right Key to Exit to the previous menu, or short press Power Key to the Main Menu. Auto ON/Off Activate this function to pre-set the time to turn the Power On/Off Automatically. 1. Use Up/Down Navigation Key to select between Auto On and Auto Off. Press OK to confirm. 2. Use Up/Down Navigation Key to select ON or Off, press OK to confirm the selection. 3. If the user selected On from the menu of Auto On or Auto Off, it requires to input the time that you like to

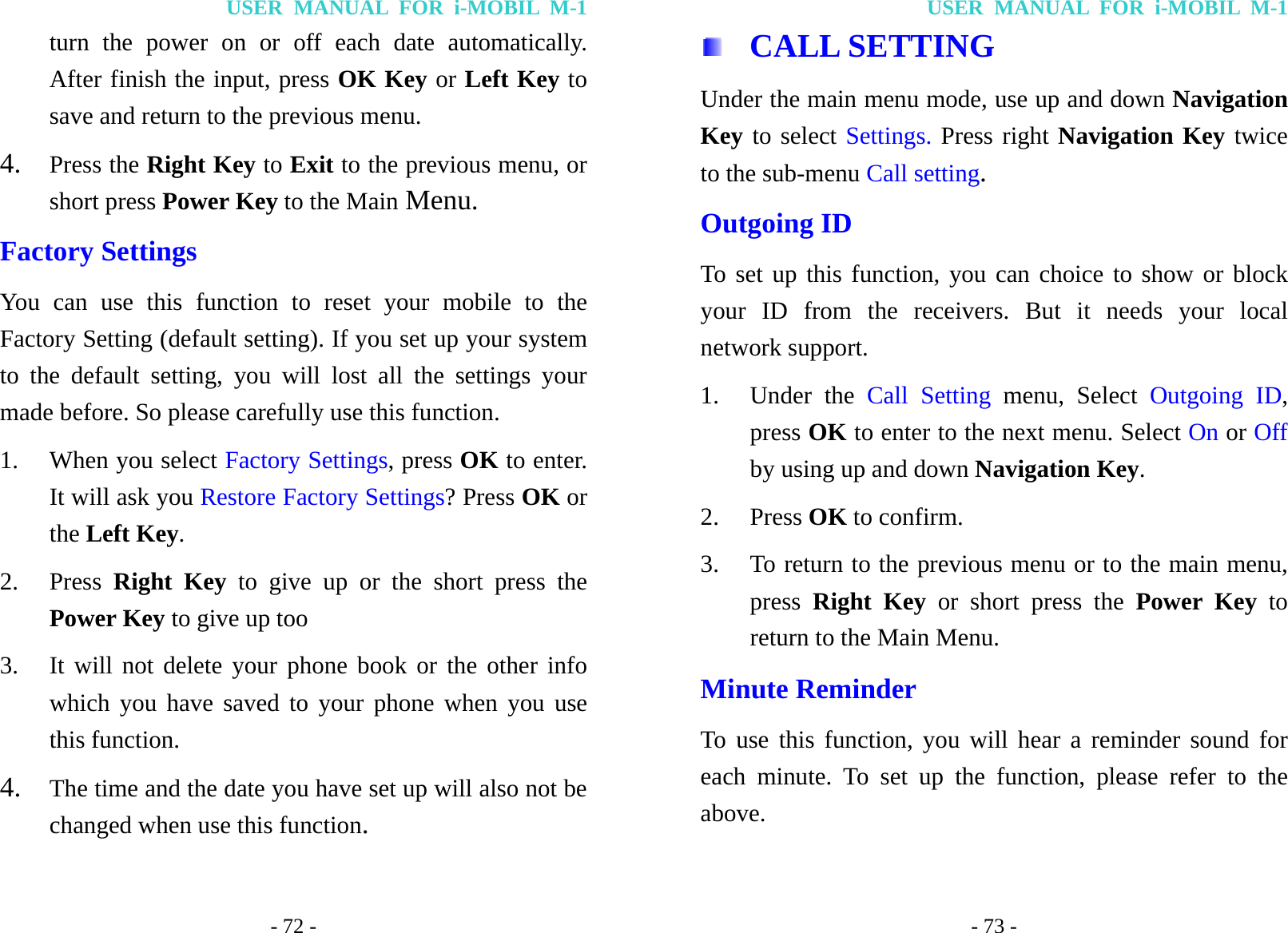

USER MANUAL FOR i-MOBIL M-1 - 72 - turn the power on or off each date automatically. After finish the input, press OK Key or Left Key to save and return to the previous menu. 4. Press the Right Key to Exit to the previous menu, or short press Power Key to the Main Menu. Factory Settings You can use this function to reset your mobile to the Factory Setting (default setting). If you set up your system to the default setting, you will lost all the settings your made before. So please carefully use this function. 1. When you select Factory Settings, press OK to enter. It will ask you Restore Factory Settings? Press OK or the Left Key. 2. Press Right Key to give up or the short press the Power Key to give up too 3. It will not delete your phone book or the other info which you have saved to your phone when you use this function. 4. The time and the date you have set up will also not be changed when use this function. USER MANUAL FOR i-MOBIL M-1 - 73 - CALL SETTING Under the main menu mode, use up and down Navigation Key to select Settings. Press right Navigation Key twice to the sub-menu Call setting. Outgoing ID To set up this function, you can choice to show or block your ID from the receivers. But it needs your local network support. 1. Under the Call Setting menu, Select Outgoing ID, press OK to enter to the next menu. Select On or Off by using up and down Navigation Key. 2. Press OK to confirm. 3. To return to the previous menu or to the main menu, press Right Key or short press the Power Key to return to the Main Menu. Minute Reminder To use this function, you will hear a reminder sound for each minute. To set up the function, please refer to the above.

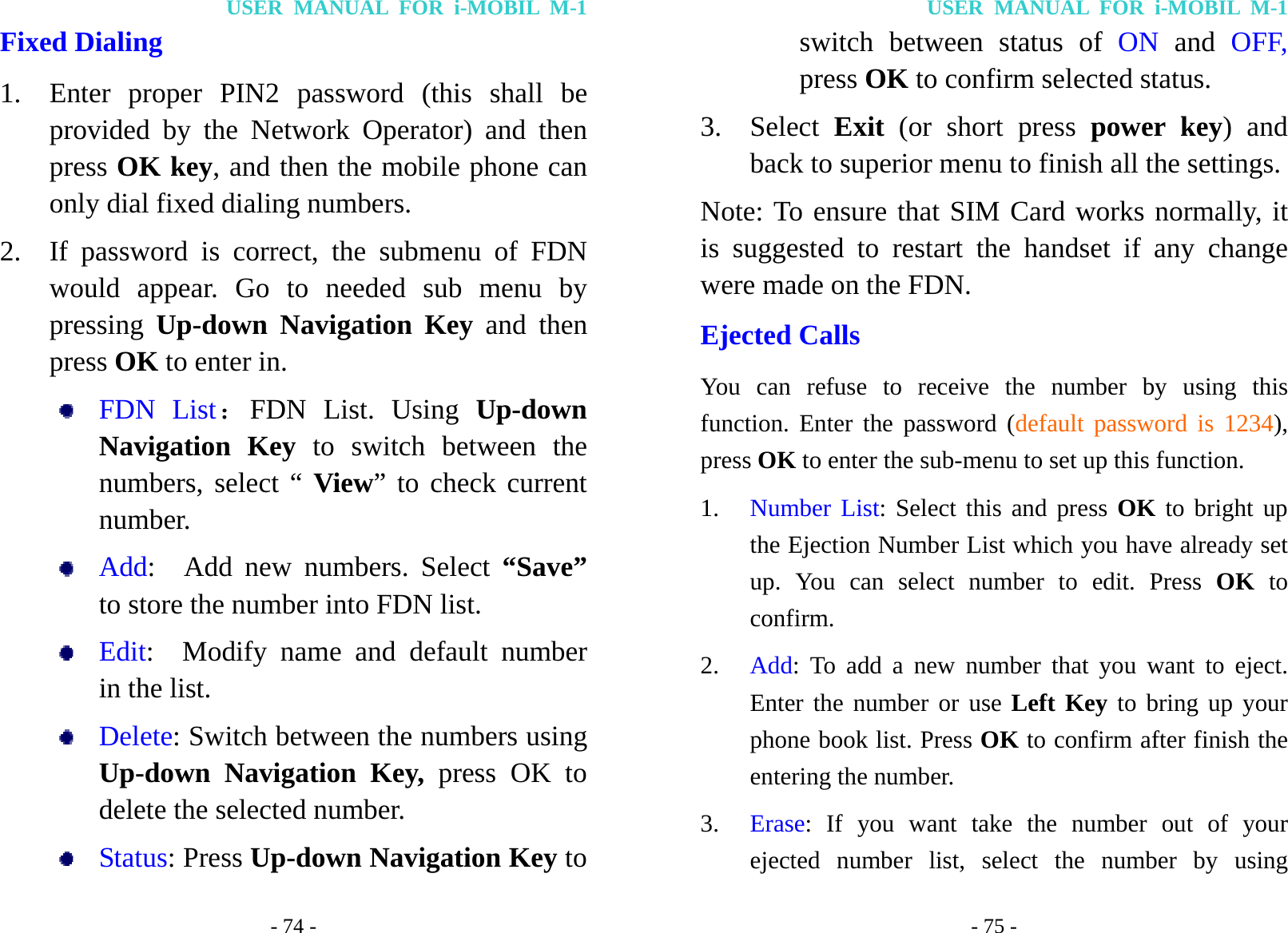

USER MANUAL FOR i-MOBIL M-1 - 74 - Fixed Dialing 1. Enter proper PIN2 password (this shall be provided by the Network Operator) and then press OK key, and then the mobile phone can only dial fixed dialing numbers. 2. If password is correct, the submenu of FDN would appear. Go to needed sub menu by pressing Up-down Navigation Key and then press OK to enter in. FDN List：FDN List. Using Up-down Navigation Key to switch between the numbers, select “ View” to check current number. Add: Add new numbers. Select “Save” to store the number into FDN list. Edit: Modify name and default number in the list. Delete: Switch between the numbers using Up-down Navigation Key, press OK to delete the selected number. Status: Press Up-down Navigation Key to USER MANUAL FOR i-MOBIL M-1 - 75 - switch between status of ON and OFF, press OK to confirm selected status. 3. Select Exit (or short press power key) and back to superior menu to finish all the settings. Note: To ensure that SIM Card works normally, it is suggested to restart the handset if any change were made on the FDN. Ejected Calls You can refuse to receive the number by using this function. Enter the password (default password is 1234), press OK to enter the sub-menu to set up this function. 1. Number List: Select this and press OK to bright up the Ejection Number List which you have already set up. You can select number to edit. Press OK to confirm. 2. Add: To add a new number that you want to eject. Enter the number or use Left Key to bring up your phone book list. Press OK to confirm after finish the entering the number. 3. Erase: If you want take the number out of your ejected number list, select the number by using

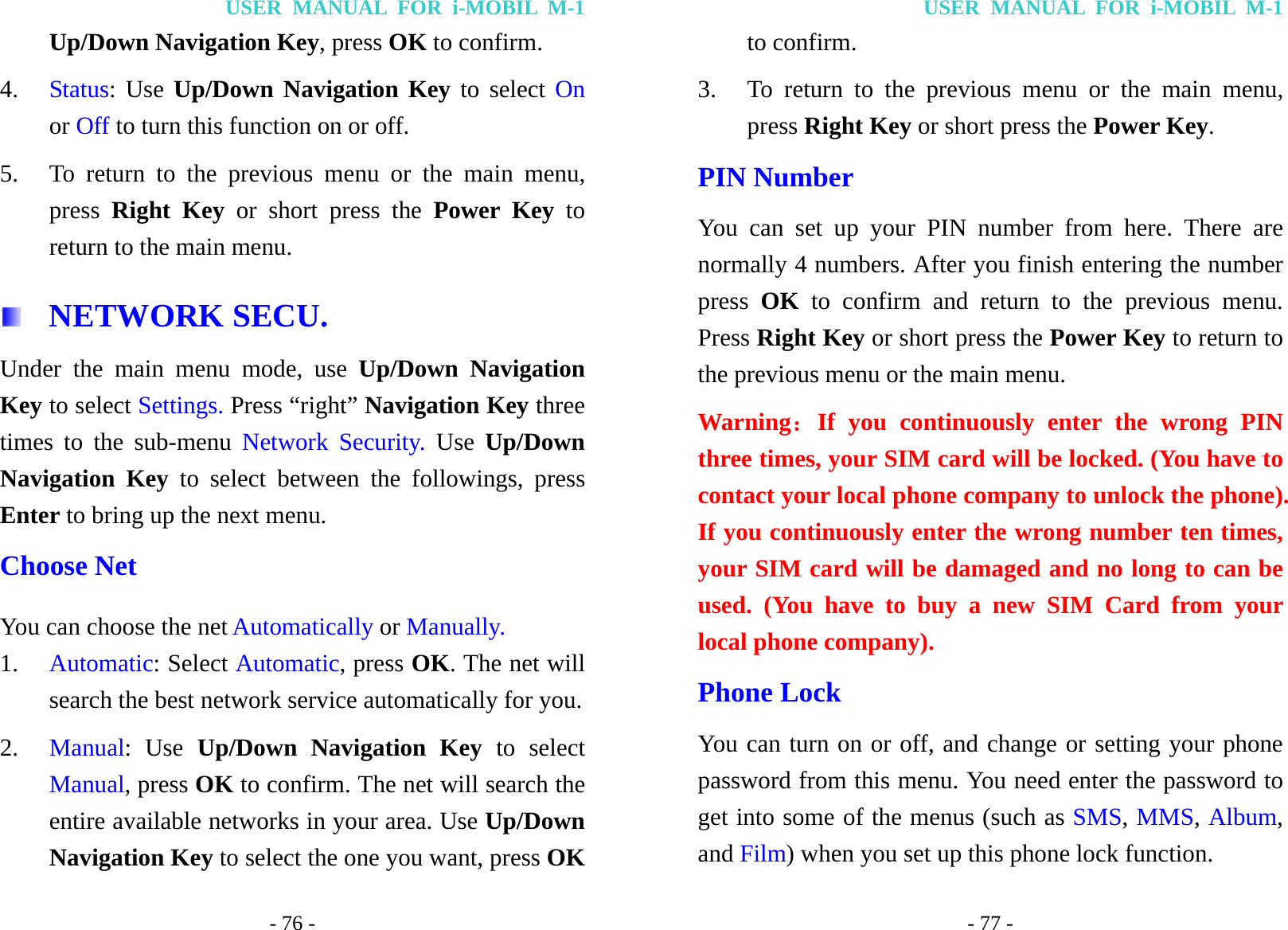

USER MANUAL FOR i-MOBIL M-1 - 76 - Up/Down Navigation Key, press OK to confirm. 4. Status: Use Up/Down Navigation Key to select On or Off to turn this function on or off. 5. To return to the previous menu or the main menu, press Right Key or short press the Power Key to return to the main menu. NETWORK SECU. Under the main menu mode, use Up/Down Navigation Key to select Settings. Press “right” Navigation Key three times to the sub-menu Network Security. Use Up/Down Navigation Key to select between the followings, press Enter to bring up the next menu. Choose Net You can choose the net Automatically or Manually. 1. Automatic: Select Automatic, press OK. The net will search the best network service automatically for you. 2. Manual: Use Up/Down Navigation Key to select Manual, press OK to confirm. The net will search the entire available networks in your area. Use Up/Down Navigation Key to select the one you want, press OK USER MANUAL FOR i-MOBIL M-1 - 77 - to confirm. 3. To return to the previous menu or the main menu, press Right Key or short press the Power Key. PIN Number You can set up your PIN number from here. There are normally 4 numbers. After you finish entering the number press OK to confirm and return to the previous menu. Press Right Key or short press the Power Key to return to the previous menu or the main menu. Warning：If you continuously enter the wrong PIN three times, your SIM card will be locked. (You have to contact your local phone company to unlock the phone). If you continuously enter the wrong number ten times, your SIM card will be damaged and no long to can be used. (You have to buy a new SIM Card from your local phone company). Phone Lock You can turn on or off, and change or setting your phone password from this menu. You need enter the password to get into some of the menus (such as SMS, MMS, Album, and Film) when you set up this phone lock function.

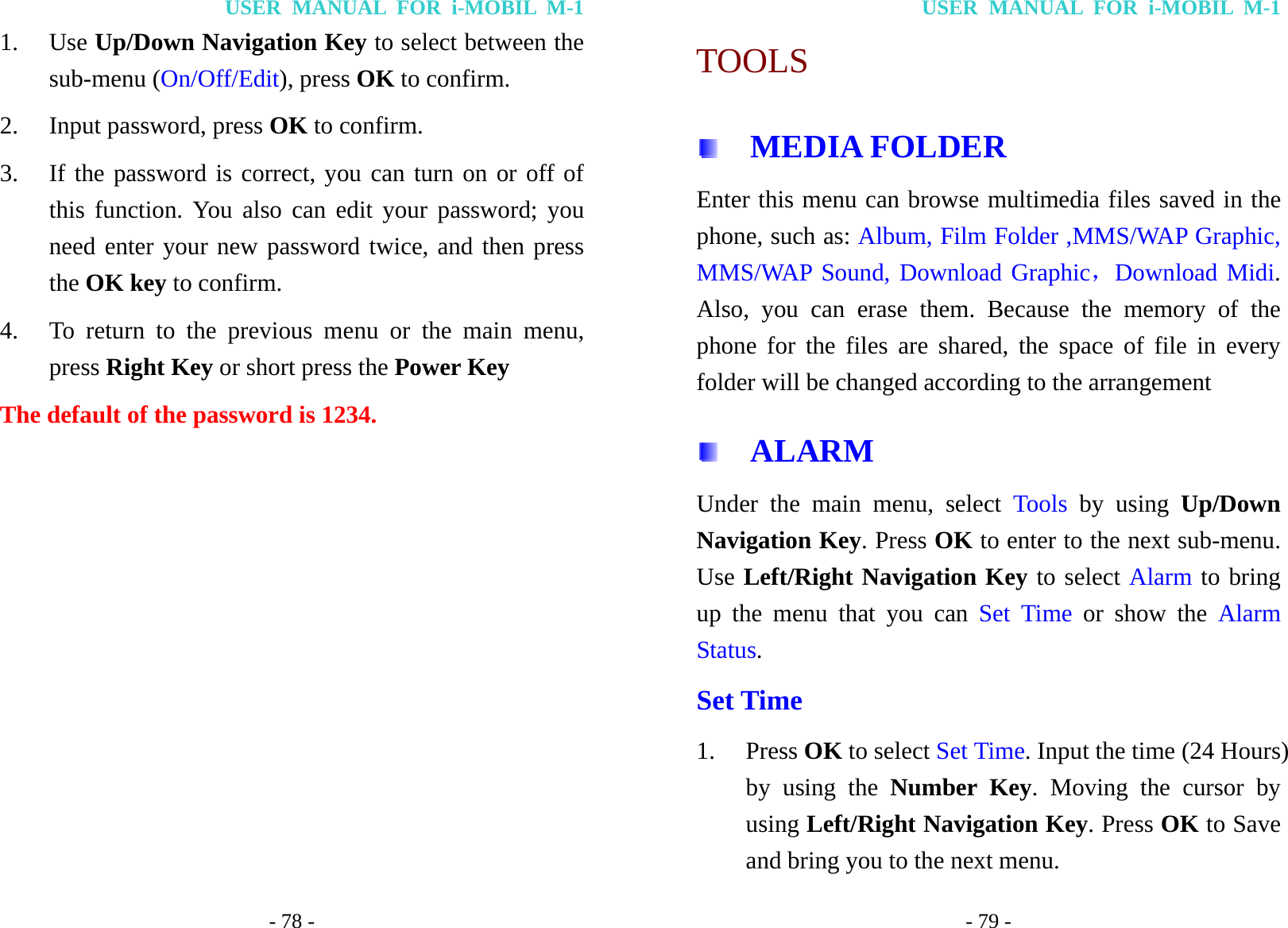

USER MANUAL FOR i-MOBIL M-1 - 78 - 1. Use Up/Down Navigation Key to select between the sub-menu (On/Off/Edit), press OK to confirm. 2. Input password, press OK to confirm. 3. If the password is correct, you can turn on or off of this function. You also can edit your password; you need enter your new password twice, and then press the OK key to confirm. 4. To return to the previous menu or the main menu, press Right Key or short press the Power Key The default of the password is 1234.USER MANUAL FOR i-MOBIL M-1 - 79 - TOOLS MEDIA FOLDER Enter this menu can browse multimedia files saved in the phone, such as: Album, Film Folder ,MMS/WAP Graphic, MMS/WAP Sound, Download Graphic，Download Midi. Also, you can erase them. Because the memory of the phone for the files are shared, the space of file in every folder will be changed according to the arrangement ALARM Under the main menu, select Tools by using Up/Down Navigation Key. Press OK to enter to the next sub-menu. Use Left/Right Navigation Key to select Alarm to bring up the menu that you can Set Time or show the Alarm Status. Set Time 1. Press OK to select Set Time. Input the time (24 Hours) by using the Number Key. Moving the cursor by using Left/Right Navigation Key. Press OK to Save and bring you to the next menu.

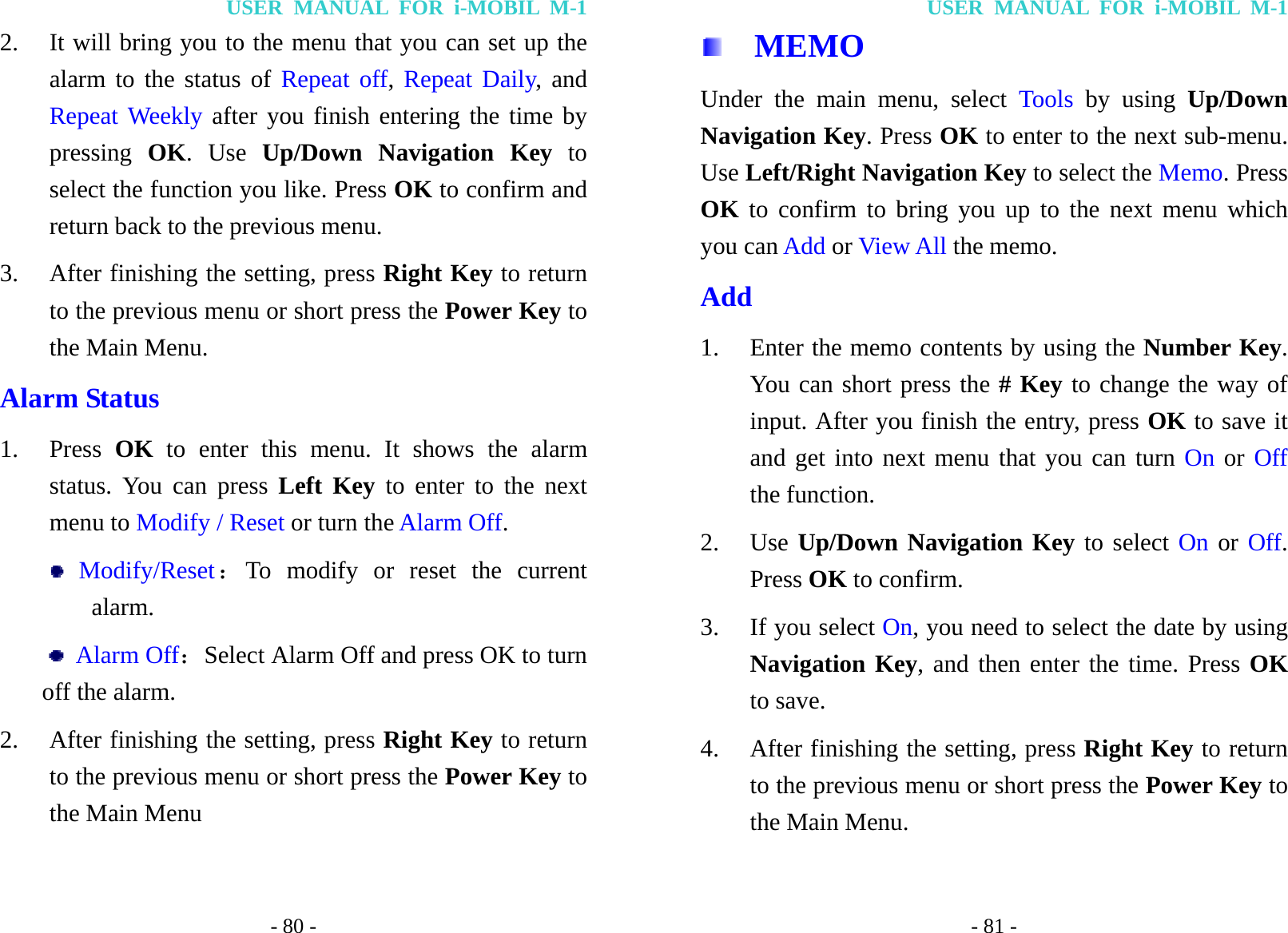

USER MANUAL FOR i-MOBIL M-1 - 80 - 2. It will bring you to the menu that you can set up the alarm to the status of Repeat off, Repeat Daily, and Repeat Weekly after you finish entering the time by pressing OK. Use Up/Down Navigation Key to select the function you like. Press OK to confirm and return back to the previous menu. 3. After finishing the setting, press Right Key to return to the previous menu or short press the Power Key to the Main Menu. Alarm Status 1. Press OK to enter this menu. It shows the alarm status. You can press Left Key to enter to the next menu to Modify / Reset or turn the Alarm Off. Modify/Reset：To modify or reset the current alarm. Alarm Off：Select Alarm Off and press OK to turn off the alarm. 2. After finishing the setting, press Right Key to return to the previous menu or short press the Power Key to the Main Menu USER MANUAL FOR i-MOBIL M-1 - 81 - MEMO Under the main menu, select Tools by using Up/Down Navigation Key. Press OK to enter to the next sub-menu. Use Left/Right Navigation Key to select the Memo. Press OK to confirm to bring you up to the next menu which you can Add or View All the memo. Add 1. Enter the memo contents by using the Number Key. You can short press the # Key to change the way of input. After you finish the entry, press OK to save it and get into next menu that you can turn On or Off the function. 2. Use Up/Down Navigation Key to select On or Off. Press OK to confirm. 3. If you select On, you need to select the date by using Navigation Key, and then enter the time. Press OK to save. 4. After finishing the setting, press Right Key to return to the previous menu or short press the Power Key to the Main Menu.

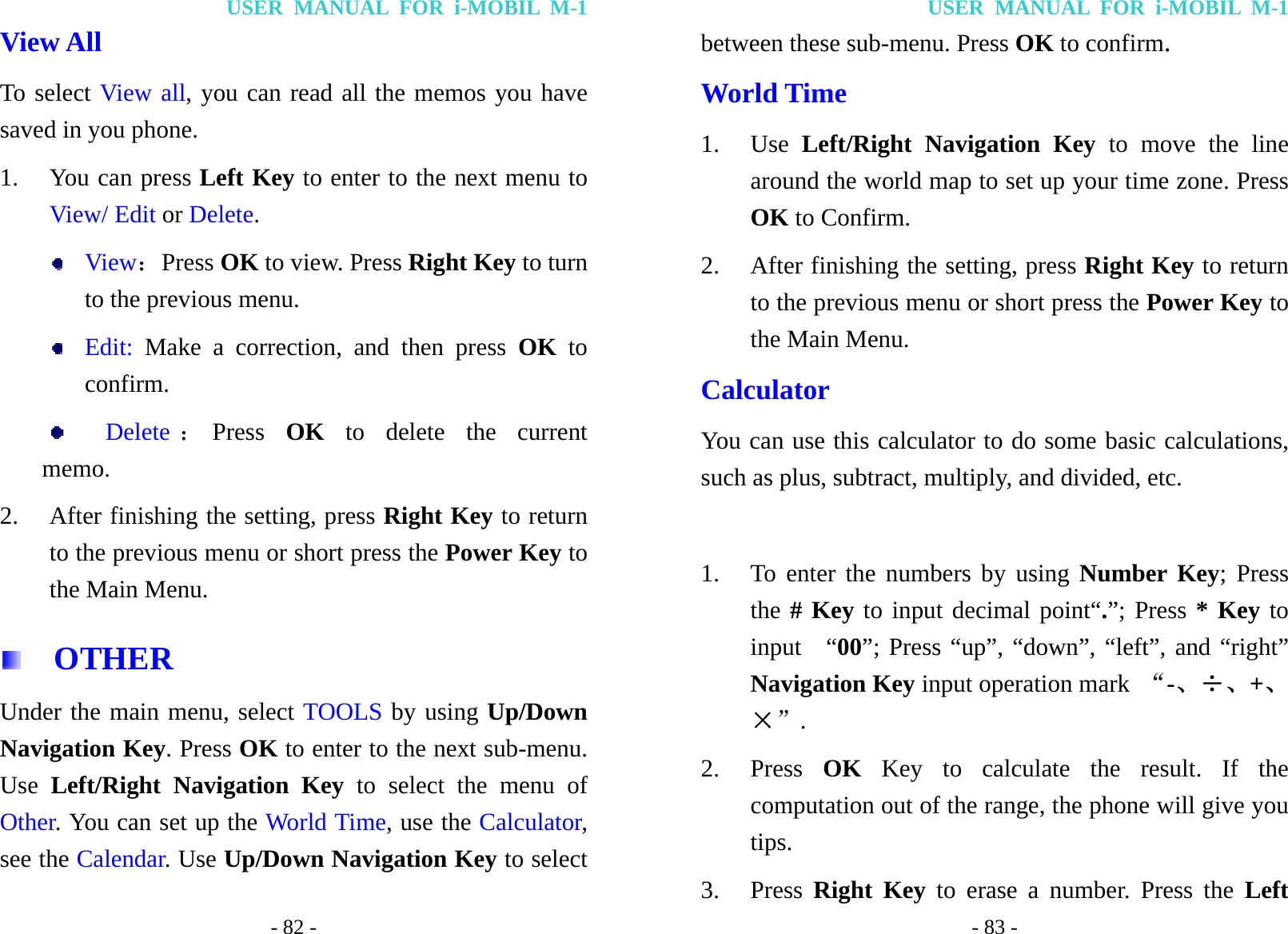

USER MANUAL FOR i-MOBIL M-1 - 82 - View All To select View all, you can read all the memos you have saved in you phone. 1. You can press Left Key to enter to the next menu to View/ Edit or Delete. View：Press OK to view. Press Right Key to turn to the previous menu. Edit: Make a correction, and then press OK to confirm. Delete ：Press OK to delete the current memo. 2. After finishing the setting, press Right Key to return to the previous menu or short press the Power Key to the Main Menu. OTHER Under the main menu, select TOOLS by using Up/Down Navigation Key. Press OK to enter to the next sub-menu. Use Left/Right Navigation Key to select the menu of Other. You can set up the World Time, use the Calculator, see the Calendar. Use Up/Down Navigation Key to select USER MANUAL FOR i-MOBIL M-1 - 83 - between these sub-menu. Press OK to confirm. World Time 1. Use Left/Right Navigation Key to move the line around the world map to set up your time zone. Press OK to Confirm. 2. After finishing the setting, press Right Key to return to the previous menu or short press the Power Key to the Main Menu. Calculator You can use this calculator to do some basic calculations, such as plus, subtract, multiply, and divided, etc. 1. To enter the numbers by using Number Key; Press the # Key to input decimal point“.”; Press * Key to input “00”; Press “up”, “down”, “left”, and “right” Navigation Key input operation mark “-、÷、+、×”. 2. Press OK Key to calculate the result. If the computation out of the range, the phone will give you tips. 3. Press Right Key to erase a number. Press the Left

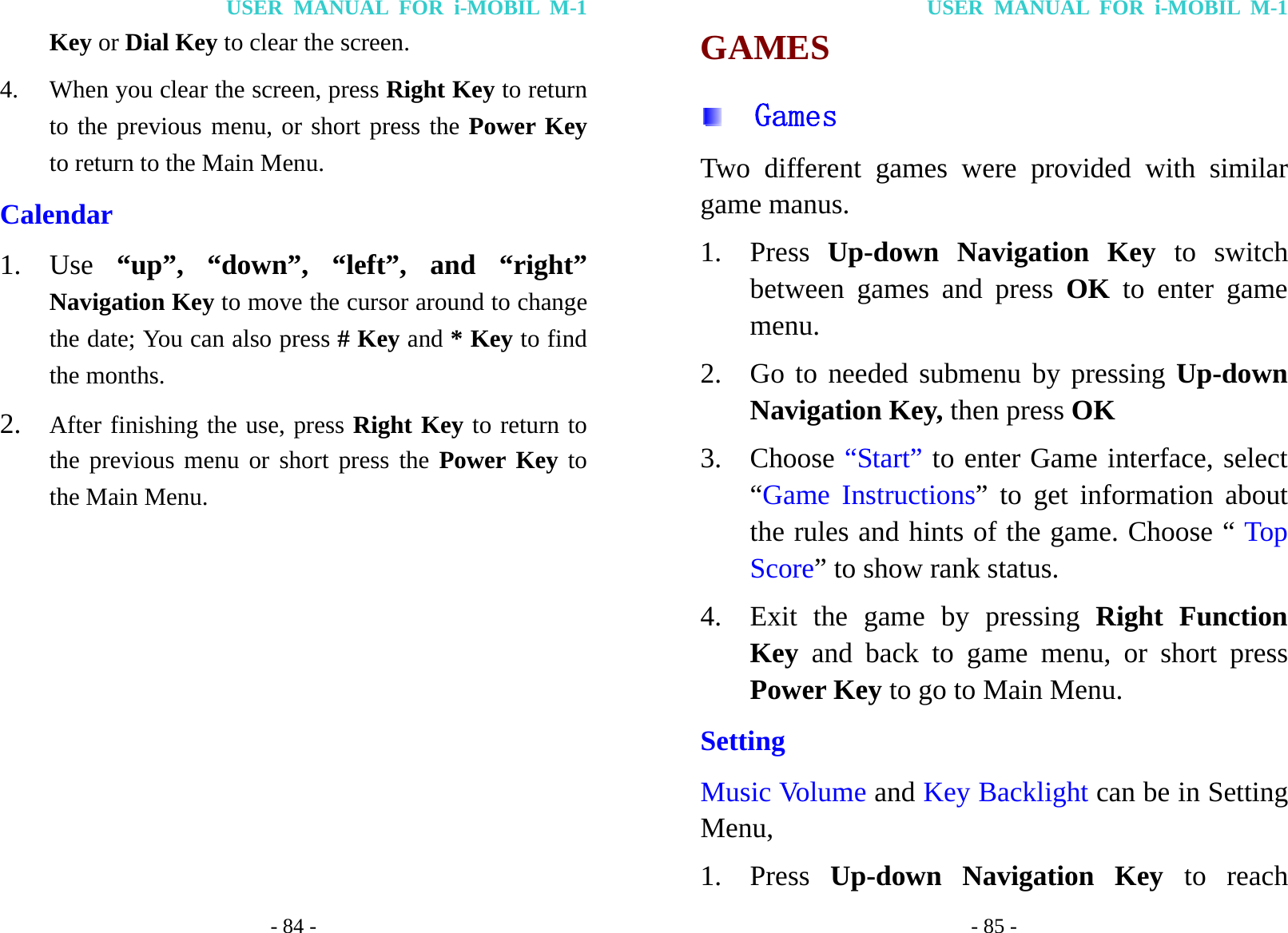

USER MANUAL FOR i-MOBIL M-1 - 84 - Key or Dial Key to clear the screen. 4. When you clear the screen, press Right Key to return to the previous menu, or short press the Power Key to return to the Main Menu. Calendar 1. Use “up”, “down”, “left”, and “right” Navigation Key to move the cursor around to change the date; You can also press # Key and * Key to find the months. 2. After finishing the use, press Right Key to return to the previous menu or short press the Power Key to the Main Menu. USER MANUAL FOR i-MOBIL M-1 - 85 - GAMES Games Two different games were provided with similar game manus. 1. Press Up-down Navigation Key to switch between games and press OK to enter game menu. 2. Go to needed submenu by pressing Up-down Navigation Key, then press OK 3. Choose “Start” to enter Game interface, select “Game Instructions” to get information about the rules and hints of the game. Choose “ Top Score” to show rank status. 4. Exit the game by pressing Right Function Key and back to game menu, or short press Power Key to go to Main Menu. Setting Music Volume and Key Backlight can be in Setting Menu, 1. Press Up-down Navigation Key to reach

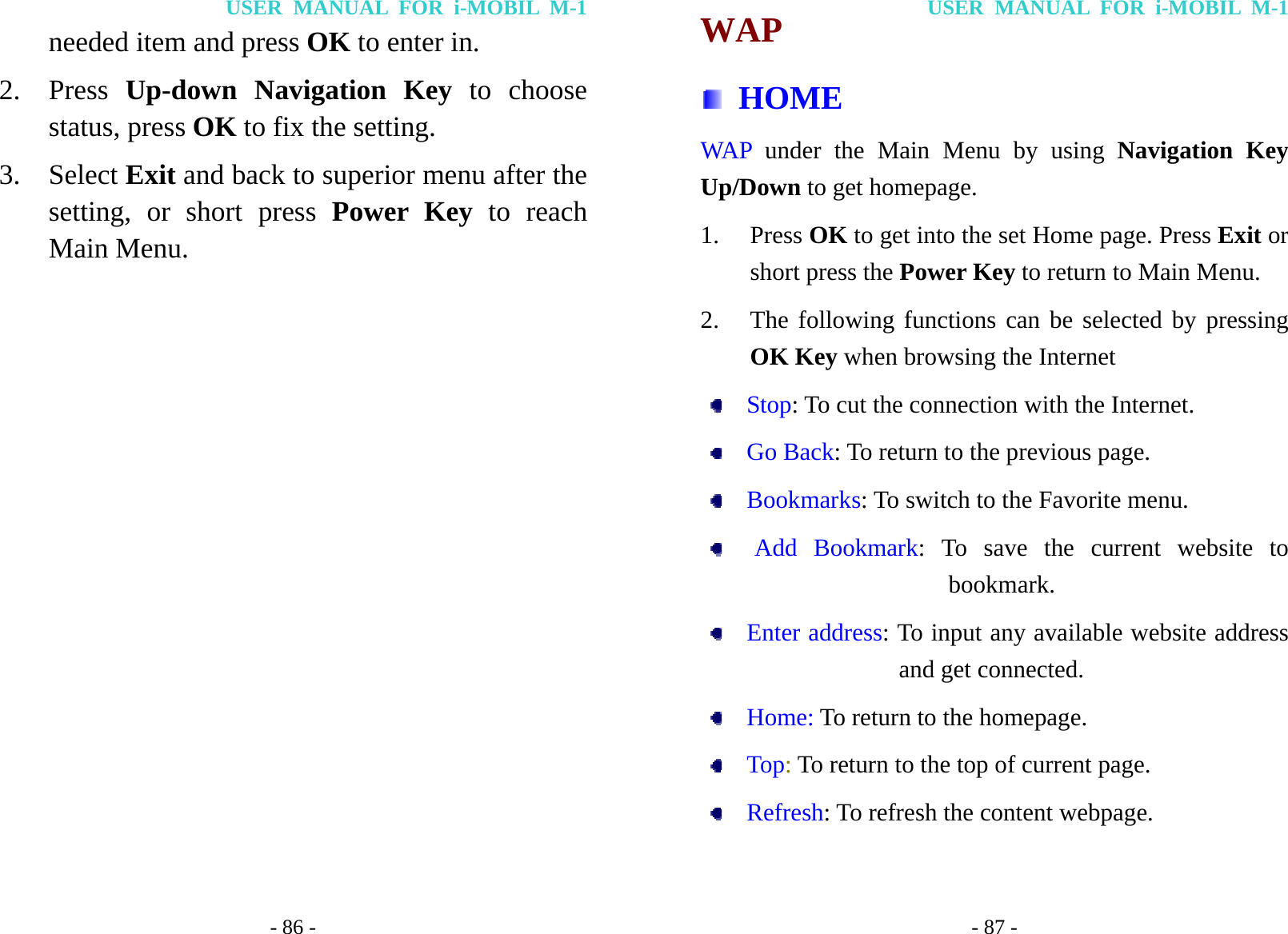

USER MANUAL FOR i-MOBIL M-1 - 86 - needed item and press OK to enter in. 2. Press Up-down Navigation Key to choose status, press OK to fix the setting. 3. Select Exit and back to superior menu after the setting, or short press Power Key to reach Main Menu. USER MANUAL FOR i-MOBIL M-1 - 87 - WAP HOME WAP under the Main Menu by using Navigation Key Up/Down to get homepage. 1. Press OK to get into the set Home page. Press Exit or short press the Power Key to return to Main Menu. 2. The following functions can be selected by pressing OK Key when browsing the Internet Stop: To cut the connection with the Internet. Go Back: To return to the previous page. Bookmarks: To switch to the Favorite menu. Add Bookmark: To save the current website to bookmark. Enter address: To input any available website address and get connected. Home: To return to the homepage. Top: To return to the top of current page. Refresh: To refresh the content webpage.

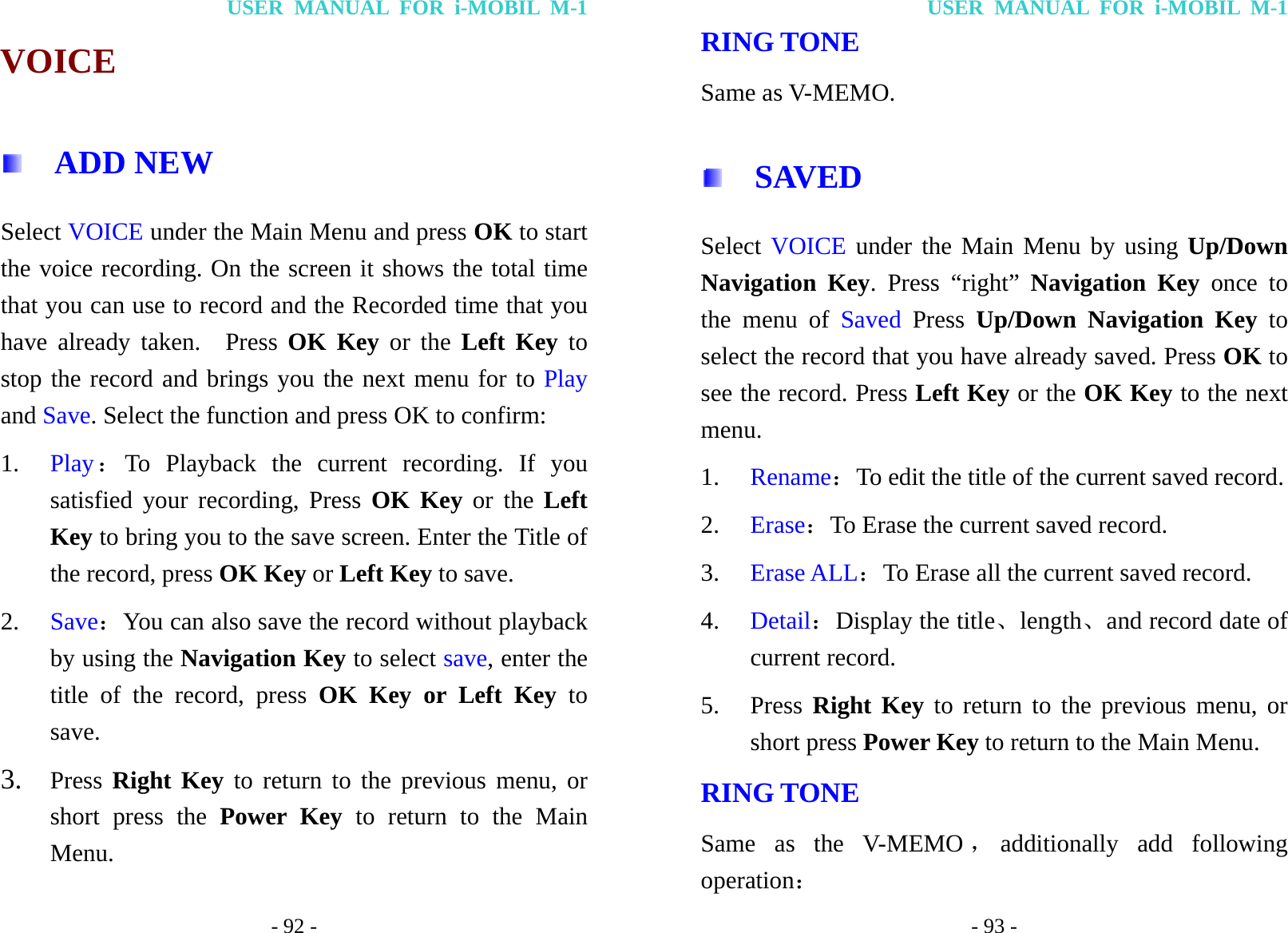

USER MANUAL FOR i-MOBIL M-1 - 92 - VOICE ADD NEW Select VOICE under the Main Menu and press OK to start the voice recording. On the screen it shows the total time that you can use to record and the Recorded time that you have already taken. Press OK Key or the Left Key to stop the record and brings you the next menu for to Play and Save. Select the function and press OK to confirm: 1. Play：To Playback the current recording. If you satisfied your recording, Press OK Key or the Left Key to bring you to the save screen. Enter the Title of the record, press OK Key or Left Key to save. 2. Save：You can also save the record without playback by using the Navigation Key to select save, enter the title of the record, press OK Key or Left Key to save. 3. Press Right Key to return to the previous menu, or short press the Power Key to return to the Main Menu. USER MANUAL FOR i-MOBIL M-1 - 93 - RING TONE Same as V-MEMO. SAVED Select VOICE under the Main Menu by using Up/Down Navigation Key. Press “right” Navigation Key once to the menu of Saved Press Up/Down Navigation Key to select the record that you have already saved. Press OK to see the record. Press Left Key or the OK Key to the next menu. 1. Rename：To edit the title of the current saved record. 2. Erase：To Erase the current saved record. 3. Erase ALL：To Erase all the current saved record. 4. Detail：Display the title、length、and record date of current record. 5. Press Right Key to return to the previous menu, or short press Power Key to return to the Main Menu. RING TONE Same as the V-MEMO ，additionally add following operation：

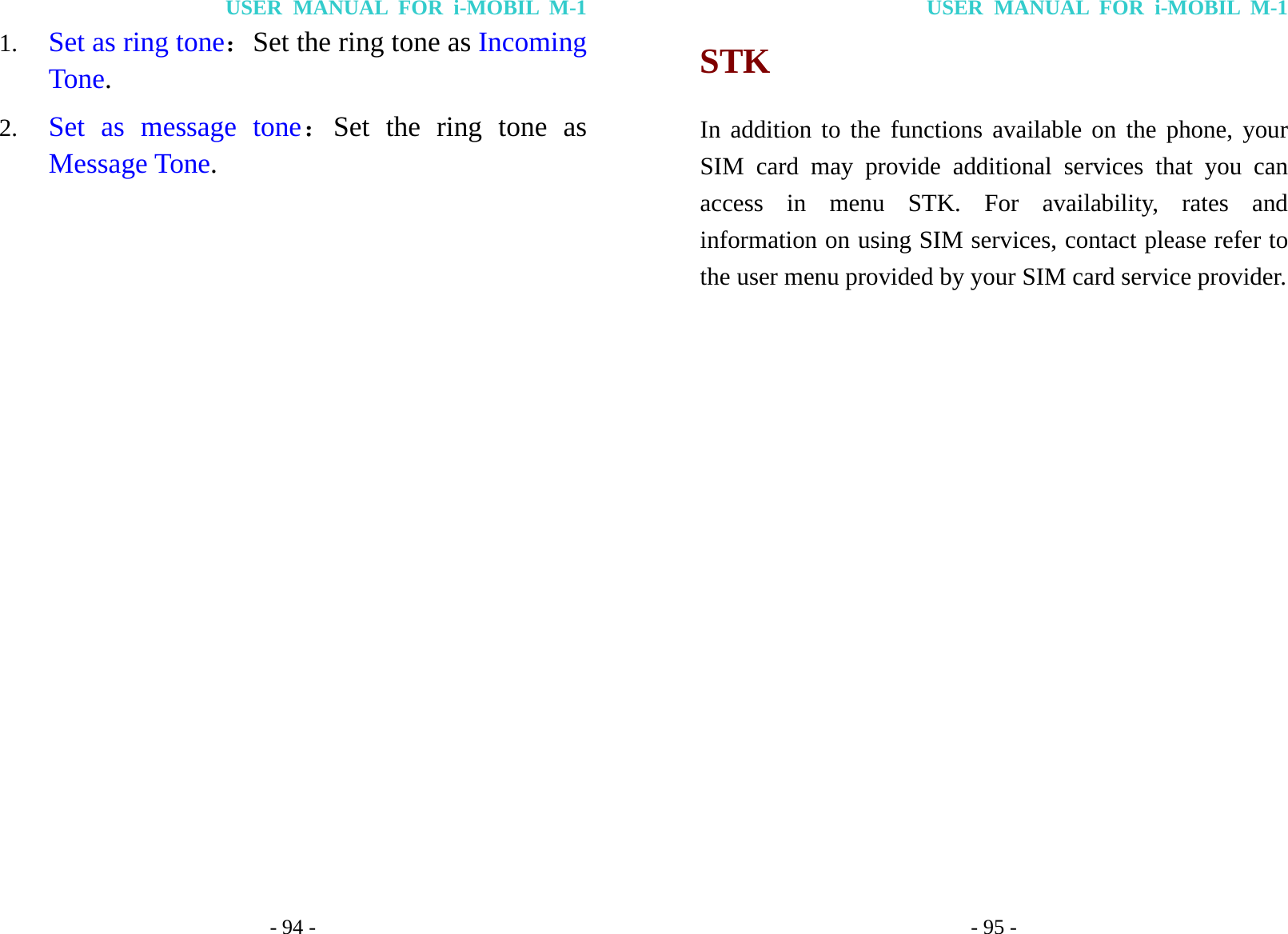

USER MANUAL FOR i-MOBIL M-1 - 94 - 1. Set as ring tone：Set the ring tone as Incoming Tone. 2. Set as message tone：Set the ring tone as Message Tone. USER MANUAL FOR i-MOBIL M-1 - 95 - STK In addition to the functions available on the phone, your SIM card may provide additional services that you can access in menu STK. For availability, rates and information on using SIM services, contact please refer to the user menu provided by your SIM card service provider.

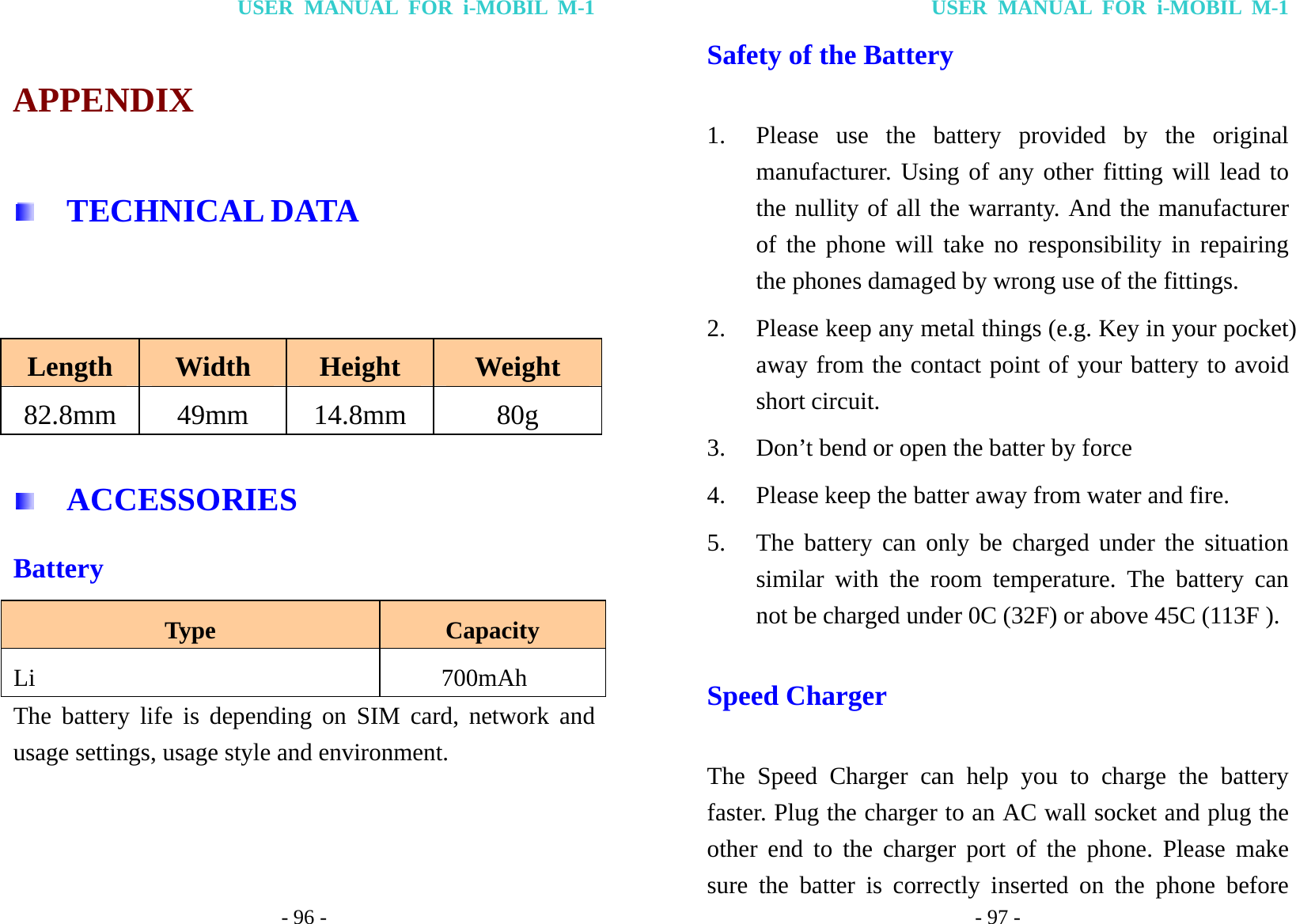

USER MANUAL FOR i-MOBIL M-1 - 96 - APPENDIX TECHNICAL DATA Length Width Height Weight 82.8mm 49mm 14.8mm 80g ACCESSORIES Battery Type Capacity Li 700mAh The battery life is depending on SIM card, network and usage settings, usage style and environment. USER MANUAL FOR i-MOBIL M-1 - 97 - Safety of the Battery 1. Please use the battery provided by the original manufacturer. Using of any other fitting will lead to the nullity of all the warranty. And the manufacturer of the phone will take no responsibility in repairing the phones damaged by wrong use of the fittings. 2. Please keep any metal things (e.g. Key in your pocket) away from the contact point of your battery to avoid short circuit. 3. Don’t bend or open the batter by force 4. Please keep the batter away from water and fire. 5. The battery can only be charged under the situation similar with the room temperature. The battery can not be charged under 0C (32F) or above 45C (113F ). Speed Charger The Speed Charger can help you to charge the battery faster. Plug the charger to an AC wall socket and plug the other end to the charger port of the phone. Please make sure the batter is correctly inserted on the phone before

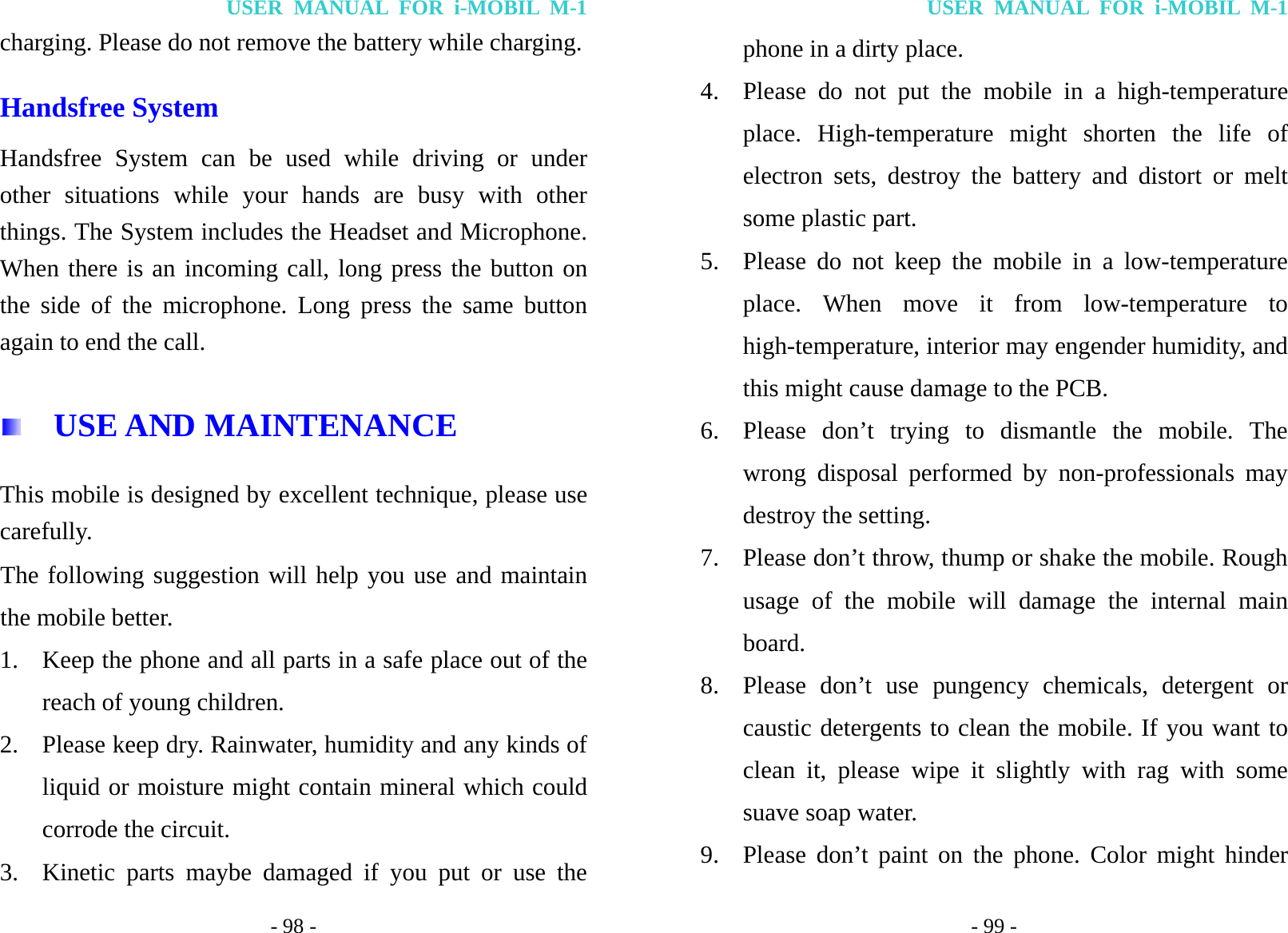

USER MANUAL FOR i-MOBIL M-1 - 98 - charging. Please do not remove the battery while charging. Handsfree System Handsfree System can be used while driving or under other situations while your hands are busy with other things. The System includes the Headset and Microphone. When there is an incoming call, long press the button on the side of the microphone. Long press the same button again to end the call. USE AND MAINTENANCE This mobile is designed by excellent technique, please use carefully. The following suggestion will help you use and maintain the mobile better. 1. Keep the phone and all parts in a safe place out of the reach of young children. 2. Please keep dry. Rainwater, humidity and any kinds of liquid or moisture might contain mineral which could corrode the circuit. 3. Kinetic parts maybe damaged if you put or use the USER MANUAL FOR i-MOBIL M-1 - 99 - phone in a dirty place. 4. Please do not put the mobile in a high-temperature place. High-temperature might shorten the life of electron sets, destroy the battery and distort or melt some plastic part. 5. Please do not keep the mobile in a low-temperature place. When move it from low-temperature to high-temperature, interior may engender humidity, and this might cause damage to the PCB. 6. Please don’t trying to dismantle the mobile. The wrong disposal performed by non-professionals may destroy the setting. 7. Please don’t throw, thump or shake the mobile. Rough usage of the mobile will damage the internal main board. 8. Please don’t use pungency chemicals, detergent or caustic detergents to clean the mobile. If you want to clean it, please wipe it slightly with rag with some suave soap water. 9. Please don’t paint on the phone. Color might hinder

USER MANUAL FOR i-MOBIL M-1 - 100 - the kinetic and affect normal manipulate. 10. Use the substituted antenna we provide, or other eligible antenna. Usage of disapproved antenna or other parts might damage the mobile. 11. If the mobile was wetted, please switch it off and remove the battery. Make sure the mobile has dried for 24 hours before using it again. 12. When you use the mobile, please turn down the volume, the backlight ; and reduce the displaying time of the keypad’s backlight. All the above operation will help you to elongate the standby time. 13. Keep metal (except the charger port and data cable port originally provided) away from the charger port of the mobile to avoid short circuit. PROBLEMS AND SOLUTIONS Problems: Solutions: Display “Locked” when the Wrong PIN number input, USER MANUAL FOR i-MOBIL M-1 - 101 - phone is on. contact with the “Network Operator”. No Signal level is displayed Lost connection with the network. The phone may be in a place without network service. Please move to another location or contact your service centre for help. No reaction of the keypad or slow reaction The operation speed of the screen is slow under low temperature which is normal. Please try again in a place warmer. No display on the screen while charging Low battery, or out of the temperature range (0-45 ). ℃Please wait for couple minutes or move the mobile to a warmer place to recharge again. “Not Provided” or “Not Set” is displayed on the screen while using some function. Many functions can only be used after applying the services. Please contact the network operator for

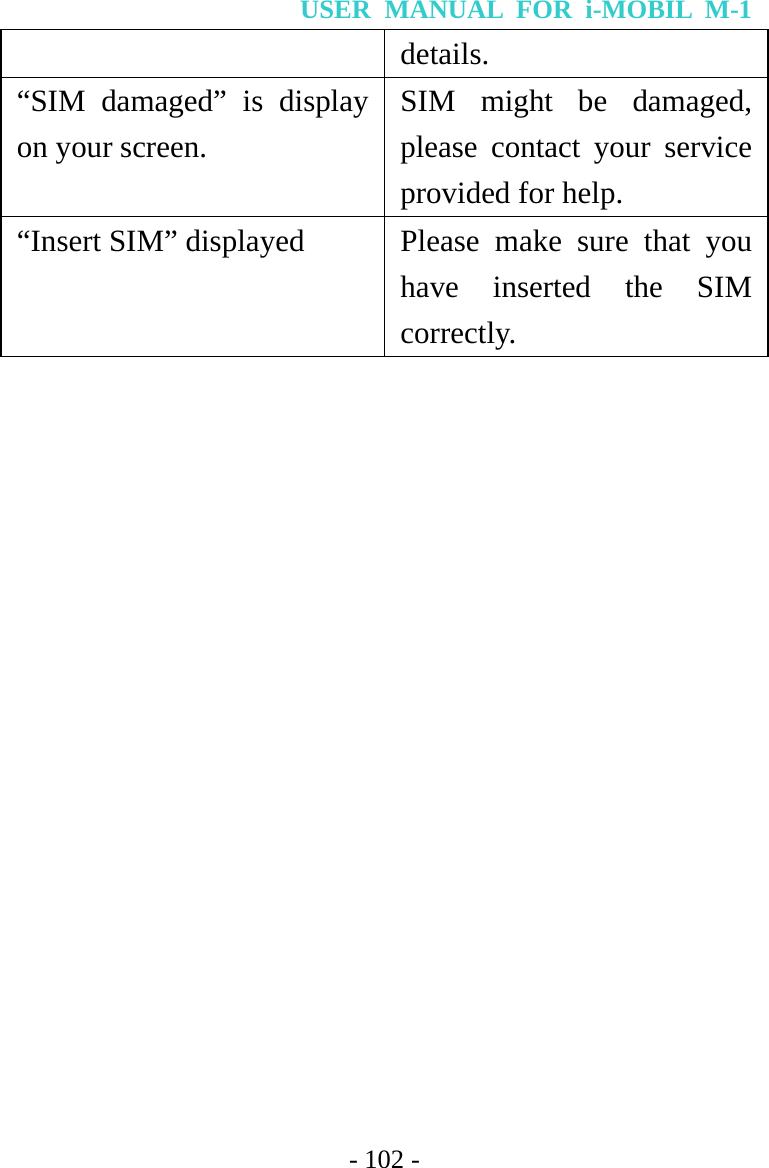

USER MANUAL FOR i-MOBIL M-1 - 102 - details. “SIM damaged” is display on your screen. SIM might be damaged, please contact your service provided for help. “Insert SIM” displayed Please make sure that you have inserted the SIM correctly.
