i MOBIL de C V 06M-2 Mobile Phone User Manual User s Manual for YUS
i-MOBIL S.A. DE C.V. Mobile Phone User s Manual for YUS
User Manual
USER MANUAL FOR
M-2
GSM/GPRS MOBILE PHONE
(Version 1.0)
User Manual for i-MOBIL M-2
1
Contents
SAFETY PRECAUTIONS................................................4
Overview of the Phone.............................................7
Index of the Mobile Key ...........................................8
GETTING STARTED......................................................11
CALLING .......................................................................17
Making Calls ...........................................................17
Answering & Rejecting Calls ..................................19
MENU STRUCTURE .....................................................21
MULTIMEDIA.................................................................24
MP3.........................................................................24
Camera ...................................................................26
Movie ......................................................................31
Voice Memo ............................................................33
Media Folder ...........................................................36
NAMES..........................................................................37
Search ...................................................................37
Add ........................................................................38
Edit.........................................................................40
User Manual for i-MOBIL M-2
2
Copy ......................................................................41
Move ......................................................................41
Erase .....................................................................42
Speed Dial .............................................................43
MESSAGE .....................................................................45
SMS .......................................................................45
MMS........................................................................51
Broadcast...............................................................56
Voice Mail ..............................................................57
RECORD........................................................................58
Dialed.....................................................................58
Received................................................................58
Missed ...................................................................59
Erase .....................................................................60
Time Info................................................................60
Cost Info ................................................................60
GPRS Info..............................................................61
SERVICE .......................................................................63
Call Divert ..............................................................63
Call Barring ............................................................65
Call Waiting............................................................67
SETTINGS .....................................................................69
User Manual for i-MOBIL M-2
3
Audio Setting .........................................................69
Phone Setting ........................................................71
Call Setting ............................................................75
Network Security....................................................77
Sync........................................................................80
Assistant .................................................................80
GAMES..........................................................................84
Games....................................................................84
WAP...............................................................................87
Home......................................................................87
Enter URL ...............................................................89
Favourites ...............................................................89
Push Messages Inbox.............................................90
Tools........................................................................90
History.....................................................................92
APPENDIX.....................................................................93
Technical Data ........................................................93
SAR Information......................................................94
Use and Maintenance .............................................95
Problems and Solutions ..........................................97
User Manual for i-MOBIL M-2
4
Safety precautions
Switch off in Hospitals or where sensitive
medical equipment is used.
Switch off mobile at a refueling point, or
near chemicals and blasting areas.
Remember to make backup copies of all
important data.
.
User Manual for i-MOBIL M-2
5
Use only approved power supplies with
this product.
Only qualified personnel may repair this
equipment.
Any damage to the security seal will cause the
warranty to be invalidated.
Uses only approved accessories, and
dispose of batteries in accordance with
regulations.
All wireless phones may suffer from radio
interference, which may affect
performance.
User Manual for i-MOBIL M-2
6
Switch off in aircraft. Your mobile phone is
a radio transmitter and may interfere with
the aircraft systems.
Do not use a handheld phone while
driving.
Warning：Improper use will cause the warranty
to be invalidated.
User Manual for i-MOBIL M-2
7

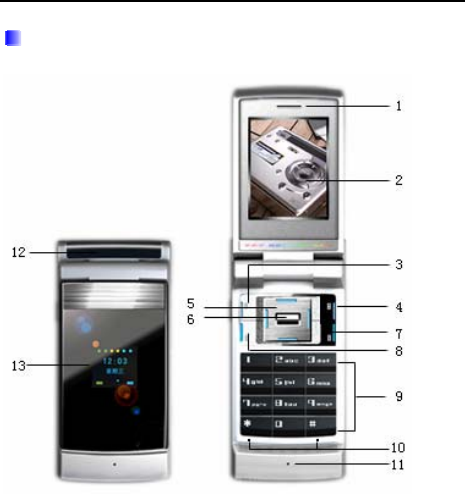

Overview of the Phone
User Manual for i-MOBIL M-2
8
Index of the Mobile Key
1 Earpiece For listening
2 LCD 260K TFT
3 Left Function Key Press to select options that
appears in the display .
User Manual for i-MOBIL M-2
9
4 Right Function
Key
Press to select options that
appears in the display .
5 Navigation Key Move through the
menus ,lists and texts .
6 OK Key For confirmation
7 Power Key Switched off:press and
hold to switch on .
During a conversation or in
an application : press
briefly to finish .
In menus : press briefly to
go back a level ,Press and
hold to return to standby
mood .
In standby mood : press
and hold to switch off the
key .
8 Dial Key To make and accept calls,
and access the calls list.
9 Number Keys Enter digits.
User Manual for i-MOBIL M-2
10
Press and hold 0 to enter
the international prefix+.
Press and hold # to make
the speaker off.
10 Speaker To display Hi-Fi ring tones.
11 Microphone For speaking.
12 7-color LED To set different colors when
having incoming calls.
13 Outer LCD To display time, signal
strength and battery status.

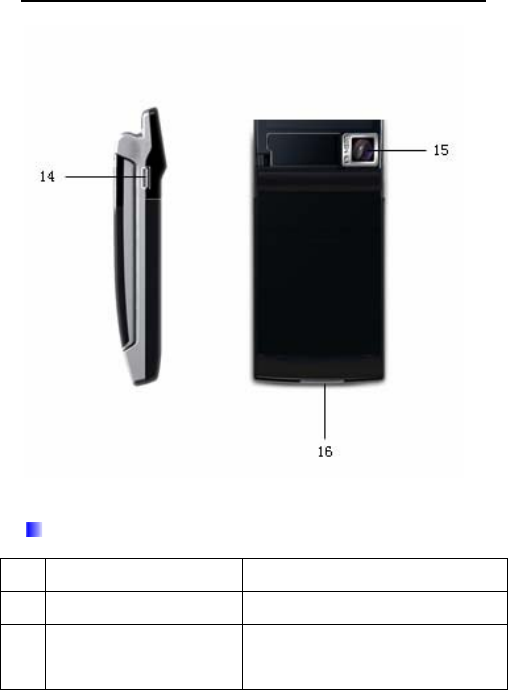

14 Side Key When having an incoming
call , press to silence the
rong tone.
Press and hold to reject the
call.
15 Camera 1300K pixels, Auto focus,
Built-in camera.
16 Plug scket For charger and data
cable.
User Manual for i-MOBIL M-2
11
Getting started

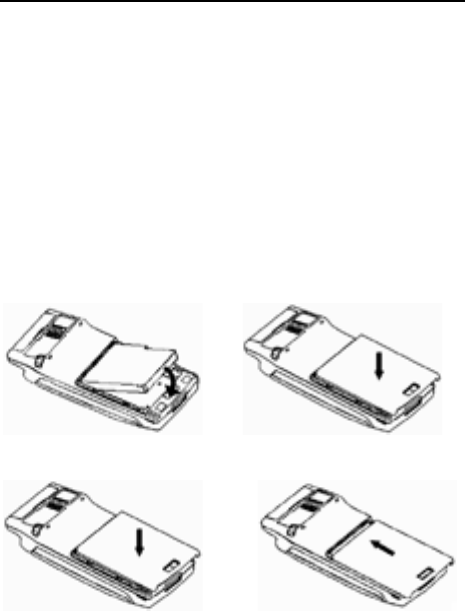

Install the Battery
1. Switch off the phone.
2. Remove the cover downwards .
3. Insert the battery in the direction of the arrow and
place the cover as shown below.
User Manual for i-MOBIL M-2
12

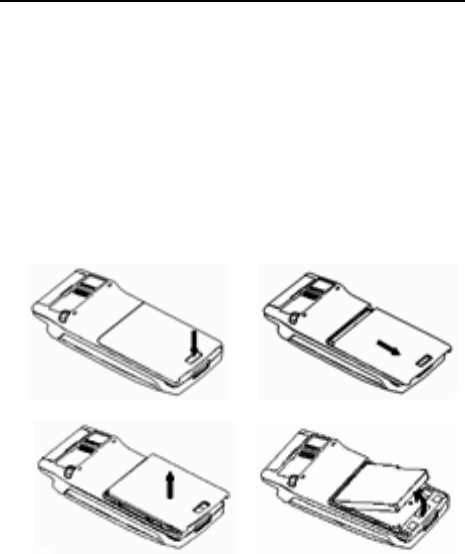

Remove the Battery
1. Switch off the phone.
2. Press the button on the back. Pull and remove the
cover.
3. Lift the battery out.
User Manual for i-MOBIL M-2
13

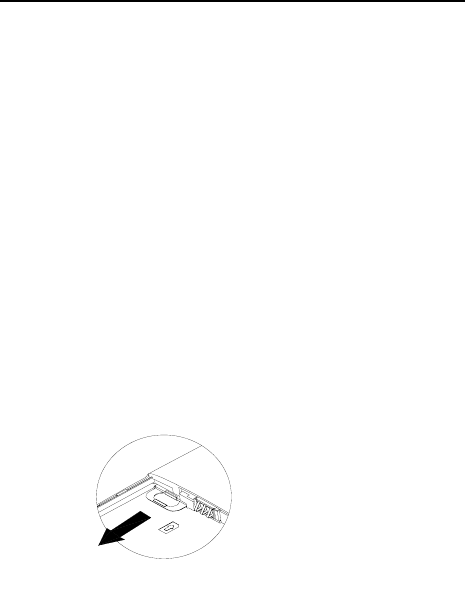

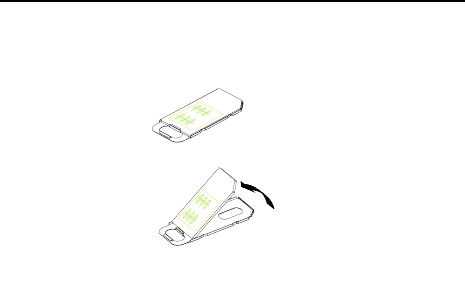

Insert the SIM Card
Warning :This phone supports 3 volt SIM cards only.
1.Make sure the phone is switched off before removing
SIM card.
2.Pull out the SIM card holder carefully and place the SIM
card with golden side contacts facing upwards.(make sure
the angled corner is in the correct position).
User Manual for i-MOBIL M-2
14
Charge battery
WARNING:
Please DO NOT remove the battery while the phone is
charging!

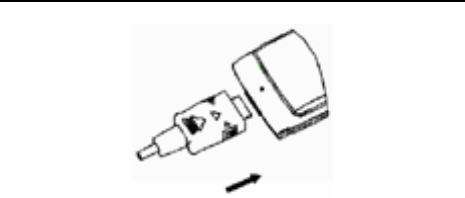

1.Plug the charger lead into the socket on the bottom of
the phone as shown below.
2.Connect the charger into a mains power socket.
User Manual for i-MOBIL M-2
15
The battery bar keeps scrolling while charging (even
when the phone is switched off).
Note:
1.You will need to charge the battery for 12 hours before
you use the phone for the first time to ensure the optimum
battery life.
2.You can use the phone while charging.
3.If the phone’s battery is totally discharged, it may take a
few minutes before the battery bar displays on the screen.
User Manual for i-MOBIL M-2
16
Switch On / Off
1 Press and hold the Power key to switch the mobile
phone On/Off.
2.When you switch on, the phone may ask you to enter
your PIN code for security reasons.
3. Enter the PIN code if asked (displayed as ****).PLS see
the detail explanation on page 114
User Manual for i-MOBIL M-2
17
Calling
Making Calls
Making Calls by Pressing Number Key
1. In the main menu, enter the phone number using the
Number Keys. The entered number can be edited
using the Navigation Key and ‘Clear’ Key. Press
and hold the‘Clear’ Key to delete all digits on the left
of the cursor.
2. To make International Calls, press and hold the *
Key to enter a “+”.
3. To enter a ‘P’(pause), press and hold the # Key.
4. Press the Dial Key to dial the numbers shown on the
screen.
5. To end the call, press the Power Key.
6. Press ‘Dial’ to display the 20 last-dialed numbers.
User Manual for i-MOBIL M-2
18
Scroll to the number you want to redial by using the
Navigation Key and press OK to select it. The call
details are shown, if OK is pressed again this
number can be Dialed, Sent a message, Erased or
Saved to memory.
Making Calls by Using Names
1. In the main menu, press Right Function Key to
enter the names menu.
2. Select the name by using the Navigation Key and
press OK to show the details or press Dial key to call
the default number .
3. You can select an alternative number stored against
this entry by pressing OK and using the Navigation
Keys to select an alternative number,
Note:
It is also possible to search the directory for a name
using the Alphabetical search. When in the names list,
press the Alphanumeric Key of the first letter of the
User Manual for i-MOBIL M-2
19
required name, and the list will jump to entries starting
with that letter.
Answering & Rejecting Calls
1. Press the Dial Key to answer calls.
Options when answering a call
This mobile phone provides a number of functions during
a call (many of them are based on Network Service which
need Network Operators support , if they do not work,
please contact your local service provider).
The following features are available during a call:
1. Hold: Put the current call on hold, allowing you to
make or receive a second call.
2. Dial New: Allows you to make another call while you
are involved in a call. (The current call will be held
automatically).
User Manual for i-MOBIL M-2
20
3. End this call: Select this function to end the current
call (allowing you to swap to a call waiting).
4. Send DTMF: Allows you to send further dialing digits
during a call (some networks allow this feature
automatically).
5. Mute: Disables the microphone in your handset to
allow a private aside without the person on the call
hearing you.
6. Names: Enter into contacts list to select the number
needed.
7. Main Menu: Select this Function to display the main
menu during a call.
User Manual for i-MOBIL M-2
21
Menu Structure
The main menu has nine icons,
Multimedia
MP3
Camera
Movie
V-meno
Media folder
Names
Search
Add
Edit
Copy
Move
Erase
Speed Dial
Setting
Message
SMS
MMS
Boardcast
User Manual for i-MOBIL M-2
22
Voice mail
Record
Dialled
Received
Missed
Erase
Time Info
Cost Info
GPRS Info
Service
Call divert
Call barring
Call waiting
Settings
Audio Setting
Phone Setting
Call Setting
Network &Security
Extras
Sync
Assistant
Games
User Manual for i-MOBIL M-2
23
Games
WAP
Home
Enter URL
Favorites
Push message
In box
Tools
History
User Manual for i-MOBIL M-2
24
MULTIMEDIA
MP3
Select Multimedia and enter into MP3 menu. You can
change the MP3 settings using this procedure.
Shortcut: In the main menu, press Navigation Key Left to
enter into the MP3.
Music List
1. Select Music List and scroll to the music you want to
listen. Press OK to play the selected music.
2. In the playing mode, push the Navigation Key
upward to increase the volume and downward to
lower the volume.
3. Press to change the play mode and equalizer of
User Manual for i-MOBIL M-2
25
the current music.
4. Press to jump to the previous piece;
5. Press to pause the current playing;
6. Press to jump to the next one
7. Press to stop playing and quit.
8. In the playing mode, press Power Key or close the
clamshell to enter into the background playing mode.
Play Mode
Select the mode you want from the four. Scroll to play
mode and press OK.
There are four play modes for choosing Sequence,
Random, Sequence repeat and Random repeat.
Equalizer
Select the mode you want. Scroll to Equalizer and press
OK.
User Manual for i-MOBIL M-2
26
There are nine equalizer for choosing normal, rock, jazz,
classic , country, SRS , FOCUS.,TRUBASS and WOWXT.
Volume
You can adjust the music volume in this item.
1. Scroll to Volume and press OK. Press the
Navigation Key left or right to adjust the volume.
2. Press OK to save the setting or Quit to cancel and
back to the previous menu.
Camera
The camera within this product have been tested and
found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
User Manual for i-MOBIL M-2
27
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
Activating the Camera
Select Multimedia in the main menu, press the
Navigation Key left or right to scroll to Camera.
Capture
Select capture. Choose General Photo, Sticker Photo or
Quick Photo and press OK.
General Photo
1. Press the Navigation Key up or down to Zoom in or
Zoom out. Press OK to take a photo.
User Manual for i-MOBIL M-2
28
2. Press Left Function Key to enter into Setting. Press
Navigation Key left or right to choose from
Brightness, Quality, Color and Size. Press
Navigation Key up or down to change the default
settings.
3. Press OK or Left Function Key to save the photo,
or press Right Function Key to quit without
saving. The photos will be saved in the Multimedia
Album.
Sticker Photo
Sticker photo shows a cartoon character and allows
you to ‘frame’ a picture in the characters face.
1. Scroll to Sticker Photo and select a cartoon. Press
OK to take a photo.
2. Press Left Function Key to enter into Setting. Press
Navigation Key left or right to choose from
Brightness, Quality, Color and Size. Press
Navigation Key up or down to change the default
settings.
User Manual for i-MOBIL M-2
29
3. Press OK or Left Function Key to save the photo,
or press Right Function Key to quit without
saving. The photos will be saved in the Multimedia
Album.
Quick Photo
1. Scroll to Quick Photo and press OK to take quick
photos.
2. Press Left Function Key to enter into Setting. Press
Navigation Key left or right to choose from
Brightness, Quality, Color and Size. Press
Navigation Key up or down to change the default
settings.
3. Press OK or Left Function Key to save the photo, or
press Right Function Key to quit without saving.
The photos will be saved in the Multimedia Album.
Album
In Camera menu, select Album. Choose General Photo,
User Manual for i-MOBIL M-2
30
Sticker Photo or Quick Photo and press OK to enter into
the relevant album. If you have used the phone lock
function (Settings / Network Security / Phone Lock), you
will have to enter the phone password.
When you are viewing a picture, press Left Function Key
to:
1. Rename: Change the name of the current photo.
2. Erase: Erase the current photo.
3. Erase All: Erase all the photos.
4. Usage ,you can set the photo as the portrait in the
phonebook. or set the photo as the wallpaper.
5. Roam: Press the Navigation Key left/right or
up/down to choose the part displayed on the screen.
Setting
The procedure is to change the settings of the camera.
Select Settings, scroll to the option you want.
User Manual for i-MOBIL M-2
31
Movie
Select Multimedia in the main menu, press the
Navigation Key left or right to scroll to Video.
Take Movie
1. Select Take Movie.
2. Press Left Function Key to enter into movie setting.
Press Navigation Key left or right to select from
Brightness , Quality , and Rec. Speed , and
up or down to change the default setting.
3. Press OK to take a movie.
4. Press OK or Left Function Key to save the movie,
or press Right Function Key to quit without saving.
The movie will be saved in the Multimedia Album.
Film Folder
1. Select Film Folder.
2. Select a movie. If you have used the phone lock
function(Settings / Network Security / Phone Lock),
User Manual for i-MOBIL M-2
32
you will have to enter the phone password.
3. Press Left Function Key to:
1. Rename: Change the name of the current
movie.
2. Erase: Erase the current movie.
3. Erase All: Erase all the movies.
4. Usage: Set the current movie as the power on
or power off animation.
Setting
The procedure is to change the settings of the Movie.
There are three options available which are Quality,
Brightness and Rec. Speed. Select Settings, scroll to the
option you want.
1. Press the Navigation Key up or down to select an
option.
2. Press OK to save, or Exit to return to the previous
menu.
User Manual for i-MOBIL M-2
33
Voice Memo
Select Multimedia in the main menu, press OK and Select
V-memo by pressing the Navigation Key left or right.
Add New
Press Add New, and press OK to choose creating a Voice
Memo, Ring Tone .
Voice Memo
In this Menu, it shows the total time that you can use to
record, and the recorded time which you have already
used. Press OK to stop recording. Select Play or Save
and press OK to confirm:
1. Play: To play the current record.
2. Save: To save the current record.
3. Press Exit to return to the previous menu, or press
the Power Key to return to the Main Menu.
User Manual for i-MOBIL M-2
34
Ring Tone
The procedure for recording a ring tone is identical to the
voice memo. When the ring tone is saved it appears in the
list of ring tones which can be selected
Saved :
You can listen to the saved Voice memos and ring tones.
Voice Memo
Scroll to Saved and press OK. Select a recorded voice
memo and press OK or Left Function Key to choose:
1. Rename: To edit the name of the current saved
record.
2. Erase: To delete the current saved record.
3. Erase all: To delete all the saved records.
4. Detail: Display the name, length and the date of
User Manual for i-MOBIL M-2
35
current record.
5. Press Exit to return to the previous menu, or press
the Power Key to return to the Main Menu.
Ring Tone
Scroll to Saved and press OK. Select a recorded ring tone
and press OK or Left Function Key to choose:
1. Rename: To edit the name of the current saved
record.
2. Erase: To delete the current saved record.
3. Erase all: To delete all the saved records.
4. Incoming Tone: Set the current record as incoming
tone.
5. Detail: Display the name, length and the date of
current record.
User Manual for i-MOBIL M-2
36
Media Folder
In the Multimedia menu, scroll to Media Folder and press
OK.
In the Media Folder you can manage MP3, Album, Film
Folder, Graphic Library, Melody Library and Voice Memo,
and also you can see Memory status here.
Note:
The memory for these folders is shared. Use of one or
more of these features may reduce the memory available
for the remaining features sharing memory. Your phone
may display a message that the memory is full when you
try to use a shared memory feature. In this case, delete
some of the information or entries stored in the shared
memory features before continuing.
User Manual for i-MOBIL M-2
37
Names
The information in the contacts list can be saved either in
the Phone or the SIM card.
Entries saved in the SIM card can only store the name
and one number. If the SIM card is moved to a new
handsets, then the information saved on is available in
the new handset.
Entries saved in the Phone can store the contacts; name,
main, mobile, office, home numbers, and email address.
The phone can store up to 500 entries in the handset.
The number of entries which can be stored on the SIM
card
depends upon its capacity.
Search
In the main menu, use the Navigation Key to highlight
Names and press OK. Scroll to Search and press OK.
User Manual for i-MOBIL M-2
38
1. Search By Name: Enter the first letter(s) of a name,
then press Search.
2. Search By Group: use the Navigation Key to
highlight the required group and press OK.
3. When in the names list, you can scroll up or down
using the Navigation Key, or jump a page at a time
by pressing the # Key or the * Key.
4. With the name highlighted, it can be dialed by
pressing the dial Key, or press Left function key , it
can be; Dialed, Sent message, Edited, Erased or
Grouped.
5. Press Exit to return to the above menu or short press
power key to return to the main menu.
Add
In the main menu, use the navigation Key to highlight
Names and press OK. Scroll to Add and press OK.
To save in the phone
User Manual for i-MOBIL M-2
39
1st Line: Enter a name.
2nd Lind: To enter default number (This
number will be used by the mobile when you
select the record and press dial).
3rd Line: Enter a mobile number.
4th Line: Enter an office number.
5th Line: Enter a home number.
6
th Line: Enter the Info
7th Line: Enter an E-mail address.
To save in the SIM card
1st Line: Enter a name.
2nd Lind: Enter default number
1. When the contact entry is complete, press Save
or OK to store the record.
2. Press Exit to return to the previous menu or
short press the Power Key to go to the main
menu.
User Manual for i-MOBIL M-2
40
Edit
In the main menu, use the Navigation Key to highlight
Names and press OK. Scroll to Edit and press OK.
1. The contacts list is shown. The symbol on the right
hand side of the screen beside the contacts
indicates if the entry is stored in the SIM or the
phone.
2. To find an entry, use the navigation Keys up or
down , or enter the first letter(s) of the required
name.
3. To jump one ‘page’ of entries at a time, press the * or
# Key.
4. Press OK to select the contact to be edited. When
the changes are complete, press Save to store the
edited information.
5. Press Exit to return to the previous menu or short
press the Powerl Key to go to the main menu.
User Manual for i-MOBIL M-2
41
Copy
In the main menu, use the Navigation Key to highlight
Names and press OK. Select Copy and press OK.
1. Choose either SIM → Phone or Phone → SIM, press
Ok to select.
2. The entire contents of one contacts list can be
copied in one action, by selecting ‘All’, or you can
just select specific entries to be copied, if ‘One by
one’ is selected.
Note: If you copy the entries, then the handset may show
duplicate entries, the original and the copy.
Move
In the main menu, use the Navigation Key to highlight
Names and press OK. Select Move and press OK.
1. Choose SIM → Phone or Phone → SIM, press Ok to
User Manual for i-MOBIL M-2
42
select.
2. The entire contents of one contacts list can be
moved in one action, by selecting ‘Move All’, or you
can just select specific entries to be moved, if ‘One
by one’ is selected.
Erase
In the main menu, use the Navigation Key to highlight
Names and press OK. Scroll to Erase and press OK.
You can erase the entries at a time, the entire SIM card’s
contact list, or the entire phone’s contact list.
1. One by one: This option takes you to the full
contacts list, where you can select the entry to be
Erased. With the entry to be erased highlighted,
press OK. Press OK again
The entry can be erased .
2. SIM Card: If you want to erase all the records in you
User Manual for i-MOBIL M-2
43
SIM Card, select SIM Card and press OK to confirm.
All entries will be permanently deleted!
3. Phone: To erase all the records that are saved in
your mobile phone, select Phone, and Press OK to
confirm. All entries will be permanently deleted!
4. Press Exit to return to the previous menu or short
press the Power Key to go to the main menu.
Speed Dial
In the main menu, use the Navigation Key to highlight
Names and press OK, scroll to Speed dial and press OK.
You can set up 7 speed dial numbers from key 2 to key8,
which are dialed by long pressing the appropriate number
Key in the
Standby mood.
To create a speed dial entry:
1. Select an empty speed dial location.
2. Press the Add function Key, then will display the
User Manual for i-MOBIL M-2
44
contacts list, allow you to create a speed dial link to
the contact.
To edit an existing Speed dial entry, highlight the entry and
press option.
3. Press Exit to return to the previous menu or short
press the Power Key to go to the main menu.
Setting
In the main menu, use the Navigation Key to highlight
Names and press OK, scroll to Setting and press OK.
1. Status: Show the memory usage for the contact lists
in the phone and SIM card.
2. Own Number: Display the mobile number associated
with the SIM card. (Line 1 and Line 2 are displayed,
as some SIM cards can have two numbers).
3. Group Tone: Allow a different ring tone to be
allocated to each of the pre-defined groups on the
handset.
User Manual for i-MOBIL M-2
45
MESSAGE
SMS
In the main menu, use the Navigation Key to highlight
Messages and press OK:
New
Note:
The phone can ‘join together’ SMS messages to enable
you to enter one message of up to 912 characters,
including spaces. Please note this large message will be
sent as separate smaller messages,
Additional special character are obtained by pressing the
‘*’ Key and navigating to the required symbol then
pressing OK to insert it.
The total number of characters typed is shown in the
information bar on the top of the LCD.
User Manual for i-MOBIL M-2
46
Input methord (need to confirm )
1. The phone is defaulted to multi-tap text entry,
2. Pressing the ‘#’ Key will step through.
The text entry modes include; ABC for capital letters,
abc for lower case letters, 123 for numeric entry and
→En for predictive text mode.
Press Option to Send, Save , insert Name, Insert Number.
Send to Group.
Received
All the SMS text messages received are shown in this
menu (including messages that are read and unread.).
1. Select the SMS and press Received to read its
content and show the sender’s number (or name),
date and time. If the message is too long and you
cannot read them all in one screen, press the
Navigation Key up or down to view all the
information.
2. Pressing OK, or Left function key when reading a
message allows you to:
User Manual for i-MOBIL M-2
47
1. Reply: To reply this SMS text message.
2. Erase: To delete this message.
3. Forward: To forward this message to another
phone.
4. Save: To save the message.
5. Edit: To edit the content of the message and
save it
6. Call: To call the sender .
7. Send to Group: To send this message to a
group of people.
8. Extract no.: to extract useful data such as
phone number or number from the messages
9. Extract URL: to extract URL from the message.
3. Press Exit to return to the previous menu, or press
the Power Key to return to the main menu.
User Manual for i-MOBIL M-2
48
Sent
All the sent messages are shown in this menu. And you
can delete all the sent messages by select Delete All.
1. Select a message and press Read to read its
content and show the sender’s number (or name),
date and time. If the message is too long and you
cannot read them all in one screen, press the
Navigation Key up or down to view all the
information.
2. Pressing OK, or Option when reading a message
allows you to:
1. Erase: To erase this message.
2. Send : To send this message.
3. Save: To save this message.
4. Edit : To edit the content of the message and
save it
5. Extract no.: to extract useful data such as
phone number or number from the messages
User Manual for i-MOBIL M-2
49
6. Extract URL: to extract URL from the message.
7. Send to Group: To send this message to a
group of people.
3. Press Exit to return to the previous menu, or press
the Power Key to return to the main menu.
Saved
All the saved messages (in the SIM Card or in
phone)are shown in this menu.
Select the messages stored, pressing OK, or Option when
allows you to:
1. Erase: To erase this message.
2. Send : To send this message.
3. Edit : To edit the content of the message and
save it
4. Extract no.: to extract useful data such as
phone number or number from the messages
5. Extract URL: to extract URL from the message.
6. Send to Group: To send this message to a
User Manual for i-MOBIL M-2
50
group of people.
Setting
1. Info. Center : the network telephone number for
receiving or sending SMS text messages. Editing
this number may result in you being unable to send
or receive SMS messages.
2. Delivery Rept.: If you turn the delivery report on,
when a message has been received, you will receive
a notification message from the network confirming
receipt.
3. Saving priority: choose to save the message in the
SIM card or in phone.
4. Validity: set the time that the network will try to
deliver your message for. If you set this to a low
value, the network may not be able to deliver the
message before it times out and is deleted.
5. Memory Status shows the SMS memory space in
SIM card and phone
User Manual for i-MOBIL M-2
51
Press Exit to return to the previous menu, or press the
Power Key to return to the main menu.
Template
Some useful expressions are listed here , which can be
used widely during editing a message.
MMS
Select Message in the Main Menu, press OK and then
scroll to MMS menu.
Please make sure your SIM card supports MMS and
consults your network operator before using this function.
Before using MMS for the first time, you must ensure that
the correct network settings have been selected. From the
MMS menu, select ‘Setting’, ‘MMS Profile’. Please select
you network provider from the list..
New MMS
When a new MMS is created, the phone is in text entry
mode, and you can type, just like a SMS text message. To
add pictures or sounds, press ‘Options’ and select ‘Insert’.
User Manual for i-MOBIL M-2
52
From here you can insert images or sounds that have
been stored in the handset.
The message is made of a number of slides, each slide
containing a maximum of some text, a picture and a
sound. To insert more information a new slide must be
‘Inserted’ into the message from the Insert menu.
When the message is complete, press the Options Key or
OK key to
1. Send: Type in subject, then scroll down using the
navigation Keys and enter the recipient’s phone
number and other relative information, Press Send
to send the MMS.
2. Insert: To insert images, sound, new images or slide
to the current MMS. Select the object you want to
insert and press OK to confirm.
3. Te mp la te : This function sets the display mode of
words and images by Above below or Auto. Press
the Navigation Key to select and press OK to
confirm.
User Manual for i-MOBIL M-2
53
4. Preview: Select this option to preview the created
MMS.
5. Save: To save the new MMS.
Inbox
When an MMS is received, the handset can
auto-download it .
MMS can be much larger than SMS text messages, so
may take a little while to download.
1. Read: To read the current MMS press OK. If the
MMS has more than one slide, press and hold
Navigation Key to go to the next slide in the
message. Press the Option to do the following:
Extract: To pick out images, sound, etc. from
the current MMS and save them. Pictures and
sounds are stored in Multimedia Folders.
Erase: To delete the current MMS.
Forward: Type in the recipient’s mobile phone
number and other relevant info. Such as Cc.,
User Manual for i-MOBIL M-2
54
Bcc. and press OK to forward the MMS.
Reply: Press the Navigation Key and press
OK to select between reply by SMS mode or by
MMS mode. Then type in the content and press
OK to send.
Dial: to dial the phone number of current MMS
sender.
2. Erase: To delete the current MMS.
3. Details: Information on the topic, sent date, number
and size, etc. of the current MMS.
Outbox
All the MMS you have created, but not yet sent are saved
in the outbox.
Sent MMS
All the MMS messages that have been sent are stored
User Manual for i-MOBIL M-2
55
here and can be viewed by pressing the Navigation Key
to select, then press OK or Option to Read, Erase, Show
the details or Edit the MMS
Saved MMS
All the Saved MMS are in this menu, push Navigation
Key to select the MMS and press OK or options to Read,
Erase, Show the details, Edit the MMS or send the
MMS.
Setting
1. MMS profile: In order to use the MMS service, you
must:
Have the service on your network
Have the correct network settings in your MMS
profile on the handset.
2. Delivery Rept. to send a report when an MMS you
have sent has been received; Read Rept. to send a
report when an MMS you have sent has been read.
User Manual for i-MOBIL M-2
56
3. Validity: This is the time the Network will keep trying
to deliver your MMS. If the network is unable to
deliver the MMS in this time it will be automatically
deleted.
4. Download status: If the handset is set to ‘immediate
Download’ then the handset will download any
message it is notified of immediately (this may incur
a Network charge). Manual Download, allows you to
download the message manually, or delete it without
downloading it.
5. Slide Duration: MMS messages can be made up of a
number of slides (each slide can contain one picture,
one sound file and one text file). The handset can
automatically step through each slide, or allow you
to manually step onto the next slide. This setting
adjusts the display time of each slide.
Broadcast
This function requires Network support, please contact
the Network operator to confirm if this service is available.
User Manual for i-MOBIL M-2
57
1. Select Read, to view any received broadcast
messages (You must have selected a topic from the
Topics menu before you can receive broadcast
messages)
2. Select Topics and you can customize the Broadcast
categories.
Press Exit to return to the previous menu, or press the
Power Key to return to the main menu.
Voice Mail
Voice Mail is a Network Service, so please ensure you
have the service provided by your network operator.
1. Press Ok to enter the Voice mail menu
2. Get V-mail will dial the number stored in the ‘V-mail
box number (option 2).
Press OK to get into the V-mail Box No.
User Manual for i-MOBIL M-2
58
RECORD
The phone keeps a record of the Dialled ,Received and
Missed calls.
Each record includes a full set of call details including the
time, date and duration of a call.
Dialed
In the main menu, scroll to Record by pressing the
Navigation Key up or down and press OK. A full list of
the last 20 dialed calls is shown.
1. Press OK to redial the selected number.
2. Press Left Function Key to get the detailed
information of the dialed calls. And press again to
have the following options: Dial, Send Message,
Erase and Save.
Received
In the Record menu, scroll to Received by pressing the
User Manual for i-MOBIL M-2
59
Navigation Key. A full list of the last 20 received calls is
shown.
1. Press OK to dial back the selected number.
2. Press left function key to get the detailed
information of the received calls. And press again to
have the following
options: Dial, Send Message, Erase and Save.
Missed
In the Record menu, scroll to Missed by pressing the
Navigation key. A full list of the last 20 received calls is
shown.
1. Press OK to dial the selected number.
2. Press left function key to get the detailed information
of the missed calls. And press again to have the
following options: Dial, Send Message, Erase and
Save.
User Manual for i-MOBIL M-2
60
Erase
In the Record menu, scroll to Erase. Choose from the
options Dialled, Received, Missed and All to delete the
content of each list.
Time Info
In the Record menu, scroll to Time Info.
1. Select Time Info. to view the time information of the
calls. The list includes: Total, Outgoing and Incoming
(calculating Total/Outgoing/Incoming call time).
2. Select Erase Time Info. to delete all the call time
information.
Cost Info
In the Record menu, scroll to Cost Info. Select Cost Info.
to view the information of the call cost. (This function
requires Network support, please contact your Network
operator).
Select Last Call menu and press OK to see.
User Manual for i-MOBIL M-2
61
1. Select Last Call and press OK to view the cost for
the last call.
2. Select ALL Calls and press OK to see the cost for all
the calls you made.
3. Select Clear Logs and input the correct PIN2 code to
delete all the cost records.
4. Select Cost Units to check or set the cost rate.
5. Select Max Cost to check or set the maximum cost.
GPRS Info.
In this procedure, you can consult the information of data
volume including the current connection, all connections
and last connection. (This function needs the support of
network, please contact your local service provider for
detailed information.)
In the Record menu, scroll to GPRS Info. And press OK.
1. Select Current Conn. to view the information on the
current connection.
User Manual for i-MOBIL M-2
62
2. Select All Conn. to view the information on all
connections.
3. Select Last Conn. to view the information on the last
connection.
4. Select Clear Logs to delete all the information on
connection.
User Manual for i-MOBIL M-2
63
SERVICE
This procedure allows you to configure the network
service options offered by your service provider.
In the main menu, select Service and press to enter.
Call Divert
You can divert the incoming calls to a number you have
set by using this function. (The service is supported by the
network, please contact your service provide for detailed
information.)
In the Service menu, select Call Divert.
Unconditional
Diverts all calls to the number you have set regardless of
the handset status.
User Manual for i-MOBIL M-2
64
Select Unconditional and press OK.
1. On: Press OK to Set Number or Voice Mail.
Set Number: Enter the number you want to divert to.
Voice Mail: If you phone has stored the voicemail
number, it will automatically divert your calls to
Voicemail. Or else, it will prompt you to enter one.
2. Off: Select Off and press OK to turn off unconditional
divert.
3. Status: Select Status and press OK to view the status
of current unconditional divert.
No Reply
Diverts calls if the incoming call is not answered.
Busy
Divert calls if the line is busy, all the incoming calls will be
diverted to another number that you have set.
Not Available
Divert all calls to a number you have set if your handset
User Manual for i-MOBIL M-2
65
cannot find a network, e.g. Out of service area, or if the
handset is turned off.
Cancel All
Select this function to cancel all the diversion.
Call Barring
In the Service menu, scroll to Call Barring.
Outgoing
Press OK to have the following options:
1. Select On to forbid dialing out any call.
2. Select Off to turn off the restrain.
3. Select Status to check the current restraint status on
outgoing.
Intl. Out
Scroll to Intl. Out and press OK to have the following
options:
User Manual for i-MOBIL M-2
66
1. Select On to forbid dialing out International calls.
2. Select Off to turn off the restrain.
3. Select Status to check the current restraint status on
international calls.
Dial Local
Scroll to Dial Local and press OK to have the following
options:
1. Select On to forbid dialing to the numbers outside the
local network.
2. Select Off to turn off the restrain.
3. Select Status to check the current restraint status on
local calls.
Incoming
Scroll to Incoming and press OK to have the following
options:
1. Select On to forbid receiving any call.
2. Select Off to turn off the restrain.
User Manual for i-MOBIL M-2
67
3. Select Status to check the current restraint status on
incoming calls.
Roaming In
Scroll to Roaming In and press OK to have the following
options:
1. Select On to forbid receiving any call when roaming.
2. Select Off to turn off the restrain.
3. Select Status to check the current restraint status on
roaming.
Cancel All
Scroll to Cancel All to cancel all barring settings.
Password
The Call barring feature normally requires a Network
password. Please contact your local service provider for
detailed information.
Call Waiting
In the Service menu, scroll to call waiting and press OK to
User Manual for i-MOBIL M-2
68
have the following options:
1. Select On to turn on the call waiting function. The
incoming call icon will display on the screen when
there is another coming call during a call.
2. Select Off to turn off the function.
3. Select Status to check the current configure on call
waiting.
User Manual for i-MOBIL M-2
69
SETTINGS
In the main menu, scroll to Settings and press OK.
Audio Setting
In this procedure, you can set different ringing tone to
replace the default.
Incoming Tone
In the Audio Setting menu, select Incoming Tone and
press OK. You can set different ringing tones to five
groups including Other, Family, VIP, Friend and
Colleague.
1. Select a group and press OK.
2. Select a ring tone from Default or Extend tone. Press
OK to confirm or Exit to cancel.
Message Tone
Select a message alert tone from Default or Extend tone.
Press OK to confirm or Exit to cancel.
User Manual for i-MOBIL M-2
70
Alert Tone
Select an Alert tone from Default or Extend tone. Press
OK to confirm or Exit to cancel.
Profile
In the Audio Setting menu, scroll to Profile to have the
following options: Normal, Meeting, Outdoor, VIP and
Silent. You can Set Profile or Edit Profile on each profile.
Set Profile
1. Select a profile and press OK.
2. Select Set Profile and press OK.
Edit Profile
1. Select a mode and press OK.
2. Select Edit Profile and press OK.
Volume
You can adjust the volume of Speaker, Ring Tone and
Message Tone by pressing the Navigation Key left or
right. Press OK to confirm and Exit to cancel.
User Manual for i-MOBIL M-2
71
Keypad Tone
Select Keypad Tone and press OK to turn on/off keypad
tone.
Power On Tone
Select Power On Tone and press OK to turn on/off power
on tone.
System Tone
Select System Tone and press OK to turn on/off system
alert tone as saved or deleted a file.
Vibration
Select Vibration and press OK to turn on/off vibrator.
Ans method
Select Flip on or After press to answer .
Phone Setting
In the Settings menu, scroll to Phone Setting.
Language
Select Language and press OK. Select a language you
want and press OK.
User Manual for i-MOBIL M-2
72
Display Setting
This procedure allows you to configure the Back Light,
Wallpaper, Signal lamp and wallpaper.
Back Light
Scroll to Back Light and press OK.
1. Select Backlight Timer to choose the duration of the
backlight when pressing any key.
2. Select Backlight Level to set the brightness of the
backlight.
Signal lamp
Scroll to Signal lamp and press OK.
1. Select Idle signal lamp to set .The optional are
White ,Off , Red, Green ,Blue ,Orange ,Cambridge
blue,Purple. Press OK to confirm.
2 Select Ring signal lamp to set the group of Ring
signal lamp.
User Manual for i-MOBIL M-2
73
Wallpaper
The wallpaper is the background that appears on the idle
screen. There are 5 pre-loaded wallpapers.
Scroll to Wallpaper and press OK.
1. Select Default to get into the default folder.
2. Select Extend to get into the media folder.
3. Select a wallpaper you want and press OK to
confirm.
Input Methods
When entering text in SMS text messaging, MMS
Messaging, the directory etc. there are different text entry
modes. The different modes can be selected during text
entry by a short press on the ‘#’ Key.
Select the input methods you want and press OK.
Time & Date
Select this option to edit the time and date on the phone.
1. Scroll to Time & Date, press OK
2. Select Set Time, press OK. Please enter the time in
User Manual for i-MOBIL M-2
74
12/24-hour mode.
3. Press OK to save the entry.
4. Select Set Date, press OK. Please enter the date,
Day, Month Year.
5. Select Set Time Format, press OK. Select 12 hours
or 24 hours.
6. Select Set Date Format, press OK. You can choose
the display mode of date.
Auto On/Off
This feature allows the handset to turn itself on and off at
times of your choosing.
To use the feature, set it to On and then enter the time for
the ‘On’ and ‘Off’ events.
Factory Settings
You can use this function to reset your mobile to the
Factory Setting (default setting). If you set up your system
to the default setting, you will lose all the setting changes
User Manual for i-MOBIL M-2
75
you have made.
It will not delete your phone book or the other information
which you have saved to your phone.
The time and the date you have set up will also not be
changed.
Call Setting
In the Settings menu, scroll to Call Setting and press OK.
Outgoing ID
Enables you to release or block your telephone number
being sent to the people you are calling. This feature must
be supported by your service provider.
Minute Reminder
If this feature is enabled, you will hear a quiet beep in your
ear for every minute you are involved in a call. It is not
heard by the person you are speaking to.
Fixed dialling
This is a Network feature and must be supported by your
User Manual for i-MOBIL M-2
76
Network operator. Accidental operation is locked by a
Network PIN (PIN 2) which must be obtained from your
Network operator.
When enabled, only certain numbers can be dialed, which
can be selected as follows:
Number List: Lists all the numbers that can be
dialed.
Add: You can add more numbers from this
menu. Press Save to confirm after you have
entered the number.
Edit: You can edit the names and numbers on
the list.
Erase: Select the number you want to erase
from your Fixed Number List. Press OK to confirm.
Status: Select On or Off, and press Ok to turn
this function on or off.
User Manual for i-MOBIL M-2
77
Rejected Calls
Scroll to Rejected Calls and press OK. Please enter your
phone password. (The original password is 1234.) Select
the calls you want to reject and press OK.
Network Security
In the Settings menu, scroll to Network Security and press
OK.
Choose Net
You can choose the way of your handset connecting to
the network Automatically or Manually.
1. Automatic: The phone will search for a proper
network service.
2. Manual: Select Manual and press OK. The handset
will list all the available networks for your choice.
Band mode
You can choose the band mode EGSM/DCS or PCS only.
User Manual for i-MOBIL M-2
78
PIN
You can set a Personal Identification Number from this
menu, which will prevent unauthorized access to your SIM.
Normally PIN code are 4 digits.
Warning: If you enter the wrong PIN three times, your
SIM card will be locked and you will have to contact
your Network provider to get an Unlock code.
If you enter the wrong PIN ten times, your SIM card
will be damaged and no long be used. (You will have
to buy a new SIM Card)
Phone Lock
You can protect some areas of your phone with a Phone
Lock PIN code, e.g. SMS, MMS, Album. (The default
password is 1234.)
PIN2
6-digit security code is originally set to 000000. Your
User Manual for i-MOBIL M-2
79
service provider may reset these codes before you
receive the phone ,if the coded are not reset ,You can edit
the PIN here ,enter the old PIN2 first ,then you can
change a new PIN2.
User Manual for i-MOBIL M-2
80
EXTRAS
Sync.
In the main menu, select Extras and press OK.
1. Select USB HD to connect the handset to PC.
2. Select Wap Camera to get connection and work as
web camera.
3. Select Connect PC to connect .
Assistant
In the Extras menu, scroll to Assistant and press OK.
Alarm
Select Alarm and press OK. Select Set Time to set time
for an alarm or Alarm Status to check the status of alarm
setting.
User Manual for i-MOBIL M-2
81
Activate Alarm
Select an alarm, press Dial key (Option) or Scroll
key to access operation menu.
Active: Activate the current alarm.
Modify/Reset: Edit or set the current alarm.
Alarm status: View the status of the current
alarm.
Close all: Close all the activated alarms.
Memo
In the Assistant menu, select memo and press OK.
Allows a text Memo to be created, as a ‘Stand alone’
reminder, or associated with a date and time. A memo
cannot be created and attached to a date that has already
passed.
User Manual for i-MOBIL M-2
82
Add
1. Enter the memo text.
2. You can short press the # Key to change the text
entry mode. After you have completed the memo
entry, press OK to save it.
3. Use the Navigation Key up or down to select
Reminder alert or No reminder .
View All
Allow you to view all of the memos that are stored on the
handset.
World Time
Allow you to nominate the time zone in which the phone is
being used.
1. Press the Navigation Key left or right to move the
line around the world map to select your time zone.
User Manual for i-MOBIL M-2
83
Press OK to Confirm.
Calculator
The calculator offers basic mathematical functions which
can be selected using the navigation Key. Pressing the
OK Key will perform the calculation and display the result.
To exit the calculator, press the power Key.
Calendar
Select Calendar to Display a monthly view calendar.
User Manual for i-MOBIL M-2
84
GAMES
Games
In the main menu, scroll to Games and press OK.
The handset has two pre-loaded games (it is not possible
to download additional games).
The two loaded games are Tet ri s and Jumper.
The Music and Key backlight for both games are
controlled from the setting Menu.
Tetris
The objective of the game is to fit together the puzzle
pieces as they fall from the top of the screen. If there are
no gaps in a row across the screen, the row will be
deleted, creating more space at the top of the screen.
User Manual for i-MOBIL M-2
85
The game is controlled by the Navigation Keys.
A falling piece can be moved left or right with the left or
right Navigation Keys.
Pressing the up Navigation Key will rotate the piece.
Pressing the down Key will cause the pieces to fall to the
bottom of the screen rapidly.
The player’s score increases with every piece that the
player is able to locate in the ‘wall’.
The game is over when there is no more room at the top
of the screen for a new piece to enter the screen.
Jumper
The objective of the game is to launch the golden ball
from the lower cup, catching it in the next cup up, and so
climbing the ladder of cups.
The golden ball is launched by pressing the OK Key.
The higher you climb to higher your score.
Setting
Select Setting and press OK. Select Music Volume to
User Manual for i-MOBIL M-2
86
adjust the volume of the game and Key Backlight to adjust
the brightness of backlight.
User Manual for i-MOBIL M-2
87
WAP
The WAP browser, allows you to access and surf the
mobile Internet.
You must ensure that the appropriate network settings
have been selected before the Wap service will work.
From the idle screen, select the WAP option and select
Option 5, Tools, and from the profiles, select your Network.
Then from the Data connections menu (Option 5, Tools,
option 2) please select your network.
(Note: some networks have different settings for Pay As
You Go, PAYG and Contract, please ensure you select
the correct settings).
Home
Select WAP in the main menu, select Home and press
OK.
The WAP browser will now connect to the homepage for
your network provider. Under the Options Key you can:
User Manual for i-MOBIL M-2
88
z Refresh: To refresh the content webpage.
z Back: To return to the previous page.
z Stop: Select Stop to end the connection to the
WAP service.
z Image: Select Image to send or save the
image.
z Enter URL: To input any available website
address and get connected.
z Add To Favourites: To save the current website
to your favourites list.
z Set As Homepage: To set the current website
as homepage.
z History: To view the history of the WAP session
z Favourites: To show the Favorite menu
z Home: To return to the homepage.
z Main Menu: To return to the previous page that
you have just visited.
2. Press Exit to the previous menu or short press the
User Manual for i-MOBIL M-2
89
power key to return to the main menu.
Enter URL
Select WAP in the Main Menu. Press OK, and press
Option to view the sub-menus. (The browser must be
connected to the internet at this time).
Using the text input, enter the name of the URL site you
want to visit. There are three options:
Standard phrases: To select the general network
format.
Add to Favourites: To add the current website
address to Favourites.
Save as Homepage: To save the current page as
homepage.
3. Press Exit to go to the previous menu.
Favourites
Select WAP in the main menu. Press the Navigation Key,
and select Favourites to view the menu.
User Manual for i-MOBIL M-2
90
1. Select saved website from your favourites list.
Push Messages Inbox
Some services like ring tones deliver information to your
handset as Push messages. If you receive a push
message it will go into this in box.
Tools
Profiles
Please ensure you select the Network entry from the
list that matches the SIM card you are using.
Data connections
In this procedure, you can choose from GPRS Telcel or
Tel ce l. .
Cache
Cache memory allows your handset to store information
about WAP sites that you visit regularly and can speed up
access times.
User Manual for i-MOBIL M-2
91
1. Select the cache mode. Press Option to enable this
feature.
2. Press Exit to return to the previous menu.
Cookies
Cookies can be used to obtain information about you
when you visit a WAP site. We recommend for security
reasons, you leave cookies disabled.
1. Select the cookies mode. Press Option to set.
2. Press Exit to return to the previous menu.
Clear History
Clear the history logs of the phones WAP browsing
activity.
Settings
Allow you to enable and disable graphics support. We
recommend you leave this enabled.
User Manual for i-MOBIL M-2
92
Security
Press Select to view security certificate of the website.
Statistics
To sum up data flow received and sent. Press Exit to
return to the previous menu.
History
In the main menu, select WAP. Press Option to enter:
1. Select the sub-menu. Press Option to set the
records.
2. Press Exit to the previous Menu
User Manual for i-MOBIL M-2
93
APPENDIX
Technical Data
Length Width Height Weight
98mm 46mm 17mm 80g
(including
battery)
Accessories
Battery
Type Capacity
Li – ion 700mAh
The battery life is depending on SIM card, network and
usage settings, usage style and environment.
User Manual for i-MOBIL M-2
94
Safety of the Battery
1. Please use the battery approved by the original
manufacturer. Use of any other battery will invalidate
the warranty.
2. Please ensure that any metal objects are not
inserted into the connector on the bottom of the
phone, e.g. Keys when the phone is in your pocket.
3. Do not try to open the battery case.
4. Please keep the battery away from water and fire.
5. Please ensure the battery is charged in a normal
operating temperature, being 0C (32F) to above 45C
(113F ).
SAR Information
The SAR limit of USA (FCC) is 1.6 W/kg averaged over
one gram of tissue. Device types M-2 (FCC ID:
User Manual for i-MOBIL M-2
95
TPP06M-2) has also been tested against this SAR limit.
The highest SAR value reported under this standard
during product certification for use at the ear is 0.682
W/kg and when properly worn on the body is 0.093 W/kg.
This device was tested for typical body-worn operations
with the back of the handset kept 1.5cm from the body. To
maintain compliance with FCC RF exposure requirements,
use accessories that maintain a 1.5cm separation
distance between the user's body and the back of the
handset. The use of belt clips, holsters and similar
accessories should not contain metallic components in its
assembly. The use of accessories that do not satisfy
these requirements may not comply with FCC RF
exposure requirements, and should be avoided.
Use and Maintenance
1. Keep the phone and all parts in a safe place out of
User Manual for i-MOBIL M-2
96
the reach of young children.
2. Please keep dry. Exposure to rainwater, very high
humidity and any kinds of liquid may damage the
phone.
3. Please ensure the phone is kept clean. If abrasive
dirt contaminates the slide mechanism or other
moving parts, damage may result.
4. There are no customer serviceable parts inside the
phone. If the case is opened by a non authorized
person the warranty will be invalidated.
5. Please do not use chemical cleaning agents. If the
phone requires cleaning wipe it with a clean soft
cloth.
6. If your phone should get wet, please switch it off and
remove the battery. Make sure the mobile has dried
for 24 hours before using it agai
User Manual for i-MOBIL M-2
97
Problems and Solutions
Problems: Solutions:
Display “Locked” when the
phone is on.
Wrong PIN number input,
contact with your local
service provider.
No Signal level is displayed Lost connection with the
Network. The phone may
be in a place without
network service. Please
move to another location or
contact your service centre
for help.
No reaction of the Keypad
or slow reaction
The operation speed of the
screen is slow at very low
temperatures. Please try
again in a place warmer.
No display on the screen
while charging
Very low battery, or out of
the temperature range
(0-45 degrees C). Please
User Manual for i-MOBIL M-2
98
wait for couple minutes or
move the mobile to a
warmer place to continue
charging.
“Not Provided” or “Not Set”
is displayed on the screen
while using some function.
Many functions can only be
used after subscribing to
the services on the
Network.
“SIM card error” is display
on your screen.
SIM might be damaged,
please contact your service
provided for help.
“Insert SIM” displayed Please make sure that you
have inserted the SIM
correctly and that it is fully
inserted.
