i.Tech BlueBAND
User Guide
(Version 1 – 28-Apr-2005)
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 11 of 27
(Page 0)
Contents
i.Tech BlueBAND Overview…..……………..………………………………………2
Getting Started………………..……………..………………………………………3
Charging Your Earphone…………………………………………………………….4-5
Nominal Charging Time…………………………………………………………5
Talk & Standby Time………………………………………………………….5
Low Battery……………………………………………………………………...5
Turning Your Earphone On and Off………………………………………………….6
Pairing Your Earphone..…..………………………………………………………7-8
Using Your Earphone………………………………………………………………9-10
Answering a Call…………………………………………………………………9
Answering a Call when Listening to Stereo Audio………………………………9
Ending a Call……………………………………………………………………..9
Rejecting a Call…………………………………………………………………..9
Dialing from Your Mobile Handset……………………………………………...9
Voice Dialing from Your Earphone………………………………………....10
Last Number Redialing from Your Earphone………………………………10
Listening to Stereo Audio fromYour PC / Device……………………………..10
Adjusting the Volume………………………………………………………………...11
Resetting / Removing the Pairing …………………………………………………...11
Care and Maintenance……………………………………………………………12-13
Safety Information……………………………………………………………………14
Troubleshooting……………………………………………………...……………….15
Product Specifications………………………………………………………………..16
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 12 of 27
(Page 1)

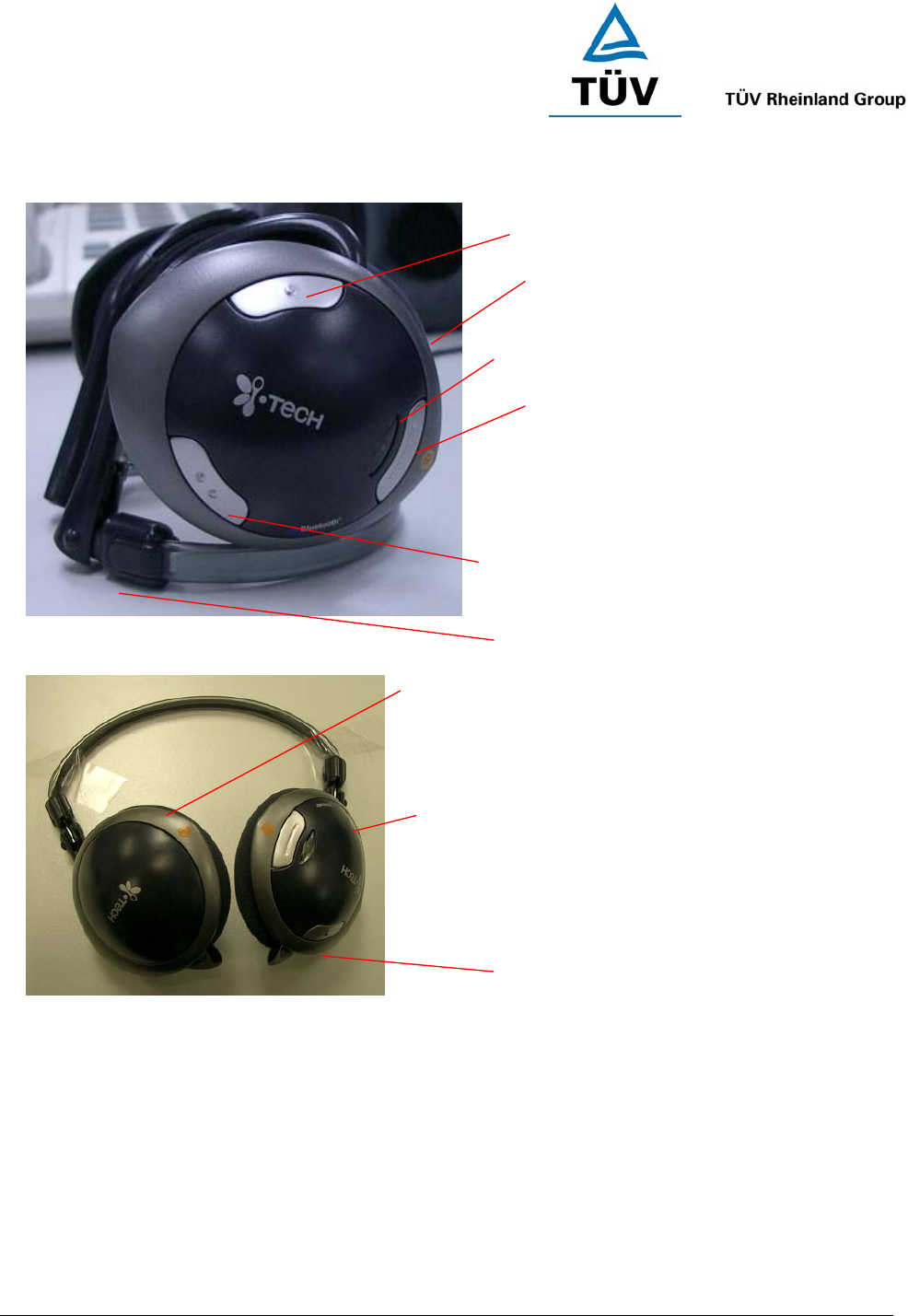

i.Tech BlueBAND Overview
Fig. 1 (Right Channel Earphone)
Fig. 2 (Left Channel Earphone)
Getting Started
To use your i.Tech BlueBAND earphone (“Earphone”), please follow these simple steps:
Charge your earphone
Pair your earphone with a Bluetooth-enabled mobile handset or music player
Built-in rechargeable battery
Dual color LED Indicator
Multifunction Button (MFB)
Volume Key (+)
Volume Key (-)
Right Audio Channel
Left Audio Earphone
Charging Socket
A
djustable-pitch Arm
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 13 of 27
(Page 2)

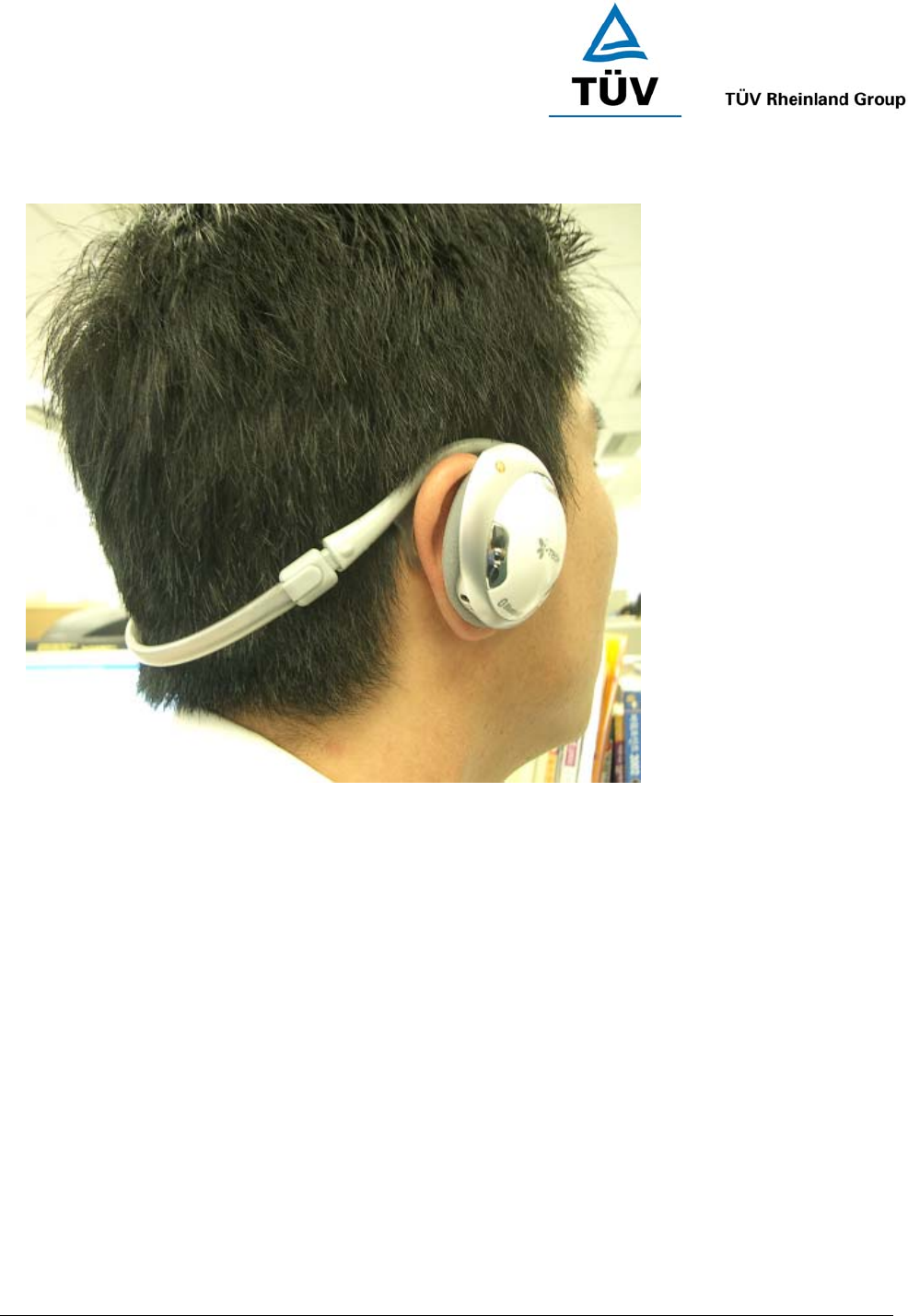

Wearing Your i.Tech BlueBAND
Fig. 3 Wearing your Earphone
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 14 of 27
Page 3

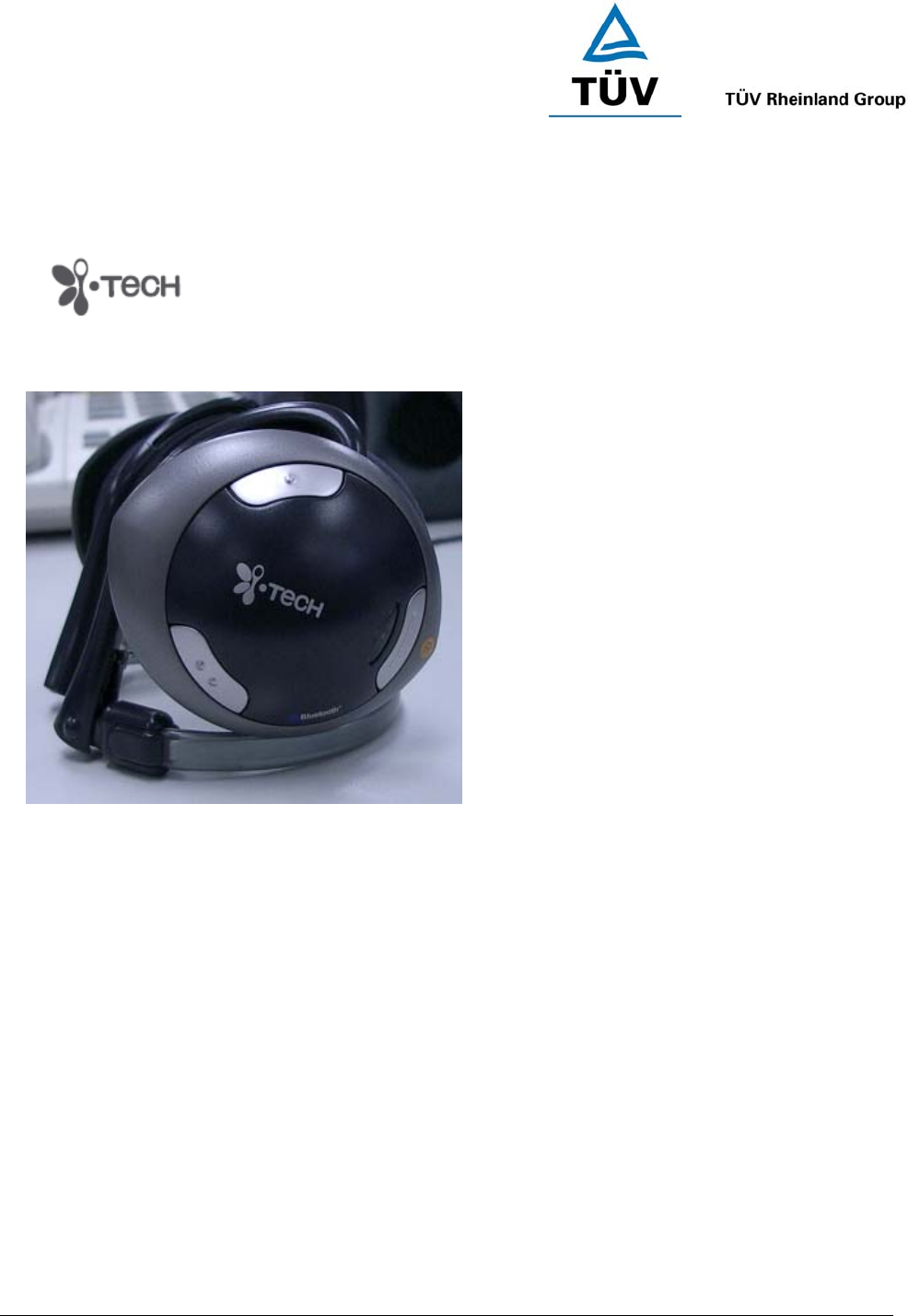

Charging Your Earphone
Fig. 4
The Earphone comes with a built-in rechargeable battery. Prior to using the headset, it is recommendable to
charge the battery fully for the first time.
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 15 of 27
Page 5
Charging Your Earphone
Connect the charger to an AC wall outlet and the charger plug to the headset’s charging socket (fig.4). The LED
will be red while charging.
IMPORTANT Charging indication will be delayed for a few seconds if the headset has not been used for
a long time or the battery is drained.
Nominal Charging Time
Charging the battery fully is normally within 3 hours. When the battery is fully charged, the LED will turn blue
and remains on for 30 minutes. Disconnect the charger from AC wall outlet and the headset. Press and hold the
MFB (fig.1) for 2 seconds to turn the headset on, please refer to “Turning Your Earphone On and Off” on the
next page. For pairing, please refer to “Pairing your earphone”.
Talk & Standby Time
The fully charged battery offers up to 6 hours talk time and up to 150 hours standby time. When no calls are in
progress, the headset remains turned on in standby mode.
Low Battery
When the headset is on and the battery becomes low, the LED flashes red and the headset emits a beep every
1 minute. Please recharge the battery as described above.
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 16 of 27
Page 6
Turning Your Earphone On and Off
Turning On the Earphone
Press and hold the MFB for 2 seconds until you hear a short beep. The LED will flash blue.
IMPORTANT Press the MFB again each time you turn on the headset to reactivate pairing so that the
connection between the headset and the mobile handset is resumed. For pairing, please refer to “Pairing
Your Earphone” on page 7-8.
Turning Off the Earphone
Press and hold the MFB for 3 seconds until you hear a long beep. The LED flash stops.
IMPORTANT To disconnect the Bluetooth connection, please firstly turn of your headset by pressing
the MFB key.
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 17 of 27
Page 7

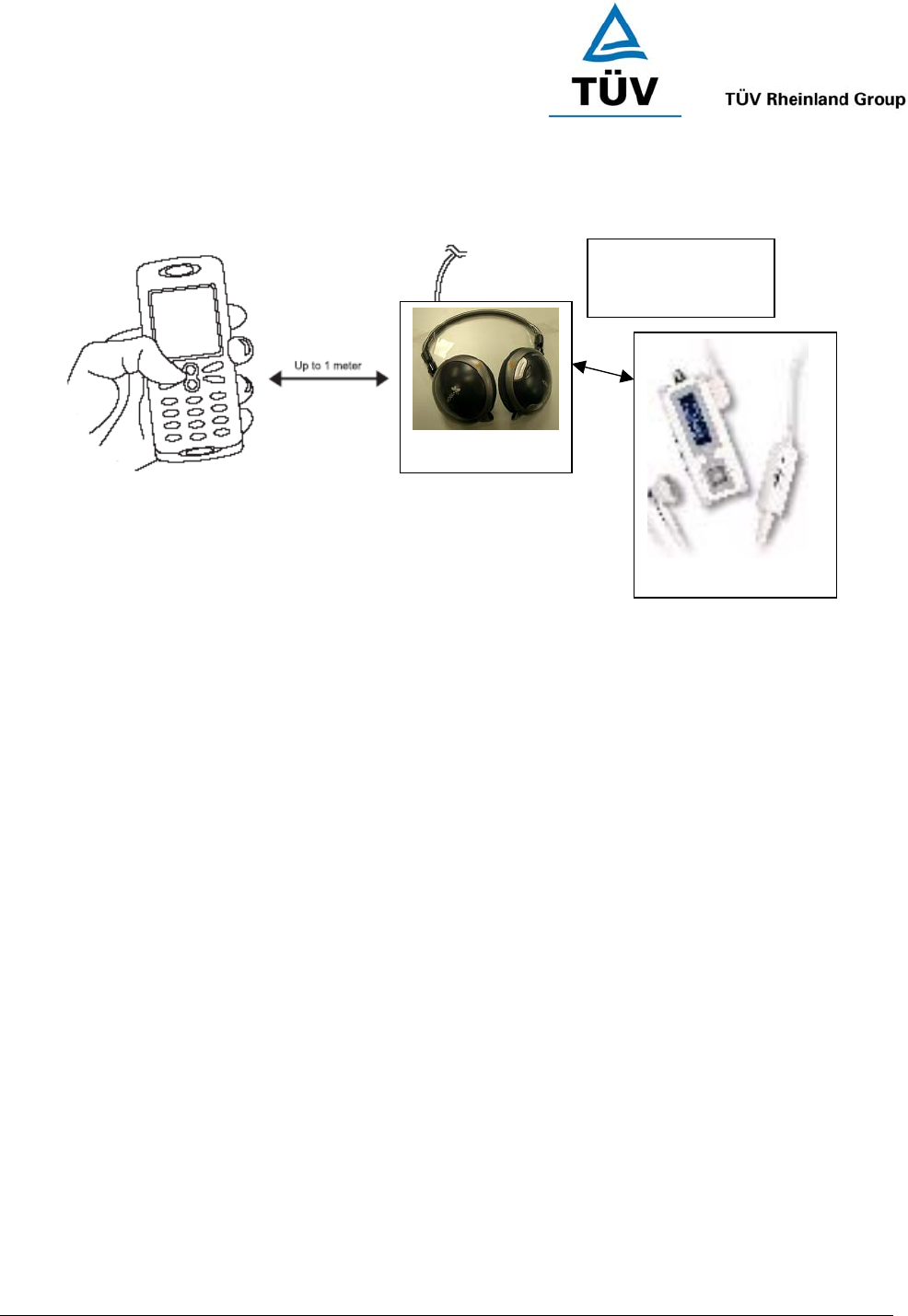

Pairing Your Earphone
Prior to using your Earphone for the first time, you must pair it with a Bluetooth-enabled mobile handset or Music
Player (The “Device”).
The information on the next page describes pairing instruction for typical Bluetooth-enabled mobile handset or
music player. Earphone pairing procedure is subject to different models of mobile handsets and music player.
Up to 1 meter
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 18 of 27
Page 8
Pairing Your Earphone
1. Place the Earphone and the device where they are easily viewable by no more than 1 meter apart.
2. Ensure the earphone is OFF.
3. Press and hold the MFB until the earphone LED alternately flashes blue and red.
4. Activate your mobile handset’s Bluetooth function by referring to your mobile handset user guide for details.
5. Set the device to search for Bluetooth devices within about 1 meter as instructed in the mobile handset user
guide and select “i.Tech BlueBAND” from the list.
6. Enter the preprogrammed passkey “8888” and press “OK” to pair your earphone and device. When the
pairing is complete, the headset LED will flash blue rapidly for 5 times followed by a long beep.
7. Go back to your device’s main menu. For certain device models, a headset / audio icon will be shown on the
screen. You should now be able to make and receive calls using your earphone and listen stereo music via
your earphone.
IMPORTANT If the pairing cannot be completed within 2 minutes while the pairing mode is activated, the
headset LED flashes purple red with 3 beeps and the headset is turned off. Please repeat Steps 2 to 7 to
pair the headset and the mobile handset again.
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 19 of 27
Page 9
Using Your Earphone
Answering a Call
When there is an incoming call, you will hear ringing through the earphone. Press the MFB to accept the call or
answer the call via your mobile handset in the normal way.
Answering a Call when Listening to Stereo Audio
Press the MFB once to answer the call and when finished, press the MFB once to resume stereo audio.
If the other party you are speaking to ends the call, stereo audio will automatically resume without having to
pressing the MFB.
NOTE To receive stereo audio from your mobile handset or PDA, please make sure they support the
Bluetooth A2DP profile.
Ending a Call
Press the MFB to end your call or end the call via your mobile handset in the normal way.
Rejecting a Call
To reject an incoming call during ringing of the headset, press and hold the Volume Key for 2 seconds until you
hear 2 beeps.
Dialing from Your Mobile Handset
Simply make calls on your mobile handset in the normal way.
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 20 of 27
Page 10
Using Your Earphone
Voice Dialing from Your Earphone
If your mobile handset is equipped with a voice dialling function, simply press the MFB on your headset and
when you hear a beep, say the voice tag.
IMPORTANT Please make sure to record voice tag into the mobile handset first before using voice
dialling function.
Last Number Redialling from Your Headset
Press the MFB on your headset twice.
IMPORTANT The above functions are only applicable to mobile handsets with Bluetooth Handsfree
Profile. Functionality varies depending on the mobile handset model you have. Please refer to your
mobile handset user guide for additional information.
Listening to Stereo Audio from Your PC / Device
By connecting you earphone to your PC through i.Tech mini Bluetooth USB Dongle v1.2, you can listen to stereo
audio from your PC (please refer USB Dongle v1.2 Quick User Guide).
By connecting you earphone to your Bluetooth-enabled music devices, you can listen to stereo music from your
music devices (please also refer your music player user guide).
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 21 of 27
Page 11

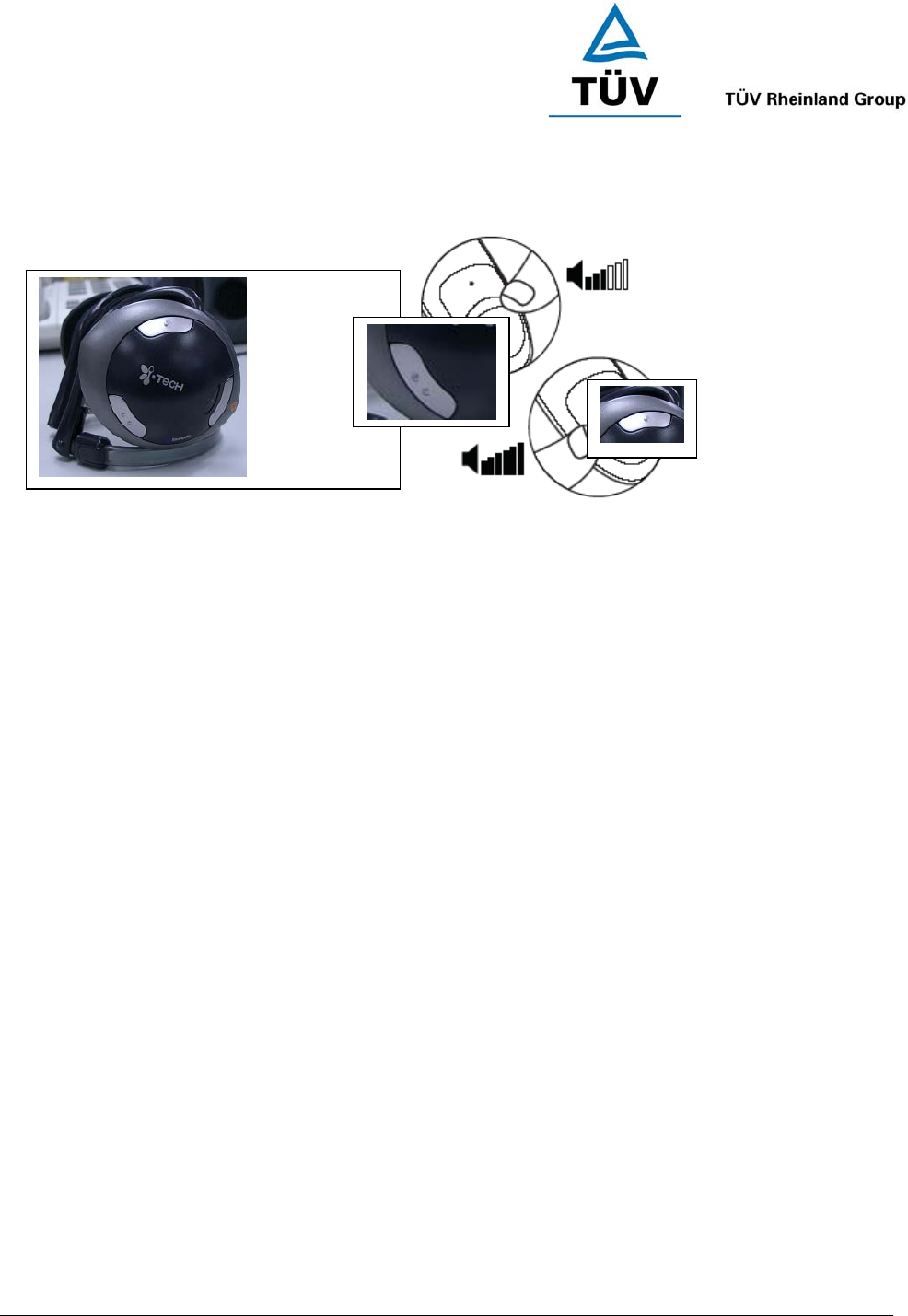

Adjusting the Volume
Press the Volume Key repeatedly until you reach the desired volume level.
Resetting / Removing the Pairing
You may want to reset the headset to its original settings. This also clears all current pairings.
1. Ensure the headset is OFF.
2. Press and hold the Volume Key until the LED alternately flashes blue and red rapidly.
3. Release the
Volume Key.
4. Press and hold the Volume Key again until you hear 2 beeps.
5. Recharge the headset for a few seconds
The headset is turned off and returns to the original settings. All current pairings are cleared.
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 22 of 27
Page 12
Care and Maintenance
Earphone
Consider turning your earphone off before placing it in your pocket or bag. If the MFB is accidentally
depressed, your mobile handset may place an unintended call.
Do not expose the earphone to liquid, moisture or humidity as it is not waterproof.
Do not use abrasive cleaning solvents to clean the earphone.
Do not expose the earphone to extremely high or low temperatures.
Do not dispose of the earphone in a fire as it will result in explosion.
Do not expose your earphone to contact with sharp objects as this will cause scratches and damage.
Do not stick anything inside the earphone as this may damage internal components.
Do not attempt to disassemble the earphone as it does not contain serviceable components.
If you do not use the earphone for long periods, be sure to store it in a dry place, free from extreme
temperatures and dust.
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 23 of 27
Page 13
Built-in Battery
Do not attempt to replace the earphone’s battery yourself as it is in-built and is not changeable.
Charge the battery in accordance with the instruction supplied with this user guide.
Only use the manufacturer supplied charger when charging the earphone.
Charging
Only use the manufacturer supplied charger when charging the earphone.
Do not disassemble the charger as it may expose you to dangerous voltages of other risks. Incorrect
reassembly can cause electric shock when the earphone is subsequently used.
Do not use the charger outdoors or in damp areas.
Only charge the earphone’s built-in battery in accordance with the instructions of this user guide.
Avoid charging the earphone in extremely high and low temperatures.
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 24 of 27
Page 14
Safety Information
Check local laws regarding use of a mobile handset and earphone while driving. If you use the earphone
while driving, ensure your attention and focus remains on your responsibility of driving safely.
Never allow children to play with the earphone – small parts may be a choking hazard.
Observe all signs that require an electrical device or RF radio product to be switched off in designated
areas. These could include hospitals, blasting areas, and potentially explosive atmospheres.
Turn off your earphone prior to boarding an aircraft. Do not use your earphone in an aircraft.
Never mount or store your earphone over any air bag deployment area as serious injury may result when
an air bag deploys.
Do not open or mutilate the built-in battery.
Dispose of batteries according to local regulations. Do not dispose as household waste
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 25 of 27
Page 15
Troubleshooting
If you are unable to connect your earphone and mobile handset, please try the following:
Ensure your earphone is turned off and is properly charged.
Ensure the earphone is paired with your mobile handset.
Ensure your mobile handset’s Bluetooth feature is activated. Please refer to your mobile handset user
guide for specific instruction.
Ensure the earphone is within a maximum of 10 meters of your mobile handset(s) and there are no
obstructions, such as walls or other electronic devices in between.
If the above steps do not solve your problem, please recharge the earphone and remove your mobile handset
battery for a while.
The i.Tech BlueBAND Earphone is compliant with and adopts the Bluetooth Specification 1.2. However,
interoperability between the device and other Bluetooth-enabled products is not guaranteed because it depends
on compatibility. For more information on the compatibility between the device with other Bluetooth-enabled
products, please check with the manufacturer or browse http://www.itechdynamic.com
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 26 of 27
Page 16
Product Specifications
Bluetooth Specification: Version 1.2 Class 2
Bluetooth Profile Supported: Earphone, Handsfree and A2DP
Range of Frequency: 2.4GHz Spectrum
Dimensions: 90mm (L) x 80mm (W) x 119mm (H)
Nominal Charging Time: Within 3 hours
Talk Time*: Up to 6 hours
Standby Time*: Up to 150 hours
Weight: 67.6 grams
*may vary due to users’ operation mode and mobile phone settings
www.tuv.com
Test Report No.: 14008928 001 Appendix 4 page 27 of 27
(Back Cover)
© 2005 Hutchison Harbour Ring Enterprises Limited
All rights in this publication are reserved and no part may be reproduced without the prior written permission of
the publisher. The contents of this publication are believed to be correct at the time of going to press, but any
information, specifications, products or services mentioned may be modified, supplemented or withdrawn without
further notice.
The Stylized i.Tech logos are trademarks owned by Hutchison Harbour Ring Enterprises Limited or its affiliates.
Bluetooth® and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc, USA and licensed to i.Tech
Dynamic Limited.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
i.Tech declares under our sole responsibility that the earphone is in conformity with the provisions of the
following Council Directives: 1999/5/EC
Printed in China
