i.Tech Dynamic Limited Bluetooth Headset Users Manual
Users Manual

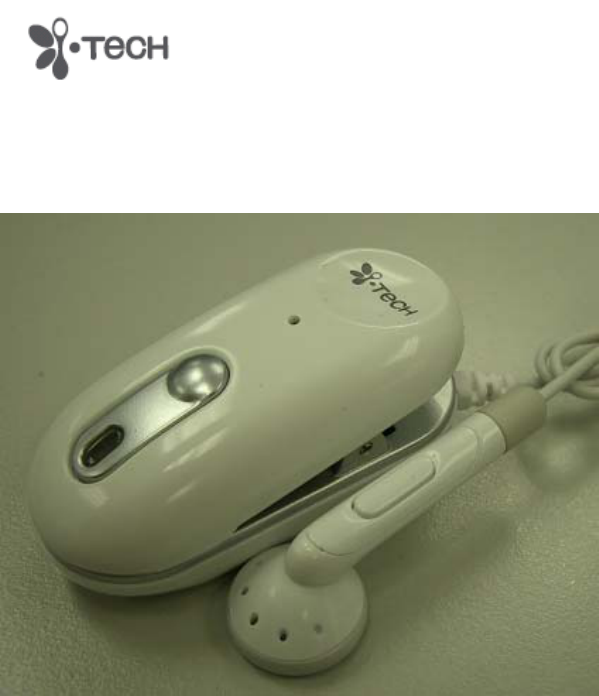

(Cover)
i.Tech Clip IIe
User Guide
(Page 0)
Contents
i.Tech Clip IIe Headset………..……………..………………………………………1
Getting Started………………..……………..………………………………………2
Charging Your Headset…………………………………………………………….3-4
Nominal Charging Time…………………………………………………………4
Talk & Standby Time…………………………………………………………….4
Low Battery……………………………………………………………………...4
Turning Your Headset On and Off…………………………………………………….5
Pairing Your Headset……….………………………………………………………6-7
Using Your Headset……………………………………………………………… ...8-9
Answering a Call…………………………………………………………………8
Ending a Call……………………………………………………………………..8
Dialling from Your Mobile Handset……………………………………………...8
Muting a Call…...……………………………………………………………….8
Voice Dialling from Your Headset……………………………………………...9
Last Number Redialling from Your Headset……………………………………9
Adjusting the Volume………………………………………………………………...10
Resetting the Headset………………………………………………………………...10
Care and Maintenance……………………………………………………………11-12
Safety Information……………………………………………………………………13
Troubleshooting……………………………………………………...……………….14
Product Specifications………………………………………………………………..15
(Page 1)

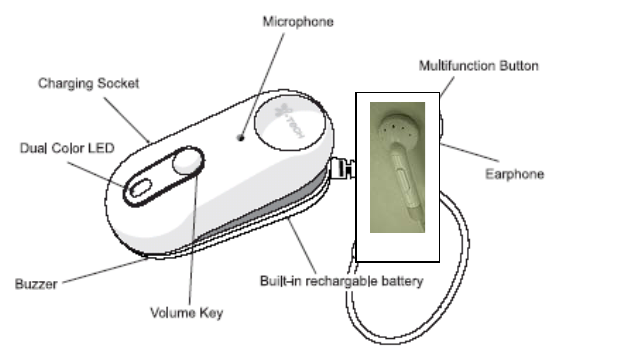

Bluetooth Buzzer Clip Headset Overview
Fig. 1
(MFB)
Getting Started (Page 2)
To use your i.Tech Clip IIe headset (“the headset”), please follow these simple steps:
Charge your headset
Pair your headset with a Bluetooth-enabled mobile handset
(Page 3)
Charging Your Headset
Fig. 2
The Headset comes with a built-in rechargeable battery. Prior to using the headset, it
is recommendable to charge the battery fully for the first time.
(Page 4)
Connect the charger to an AC wall outlet and the charger plug to the headset’s
charging socket (fig.2). The LED will be red while charging.
IMPORTANT Charging indication will be delayed for a few seconds if the
headset has not been used for a long time or the battery is drained.
Nominal Charging Time
Charging the battery fully is normally within 3 hours. When the battery is fully
charged, the LED will turn blue and remains on for 30 minutes. Disconnect the
charger from AC wall outlet and the headset. Press and hold the MFB (fig.1) for 2
seconds to turn the headset on, please refer to “Turning Your Headset On and Off” on
the next page.
Talk & Standby Time
The fully charged battery offers up to 10 hours talk time and up to 200 hours standby
time. When no calls are in progress, the headset remains turned on in standby mode.
Low Battery
When the headset is on and the battery becomes low, the LED flashes red and the
headset emits a beep every 1 minute. Please recharge the battery as described above.
(Page 5)
Turning Your Headset On and Off
Turning On the Headset
Press and hold the MFB for 2 seconds until you hear a short beep. The LED will
flash blue.
IMPORTANT Press the MFB again each time you turn on the headset to
reactivate pairing so that the connection between the headset and the mobile
handset is resumed. For pairing, please refer to “Pairing Your Headset” on page
6-7.
Turning Off the Headset
Press and hold the MFB for 3 seconds until you hear a long beep. The LED flash
stops.
IMPORTANT To disconnect the Bluetooth connection, please firstly turn of
your headset by pressing the MFB key.
(Page 6)
Pairing Your Headset
Prior to using your Headset for the first time, you must pair it with a
Bluetooth-enabled mobile handset.
The information on the next page describes pairing instruction for typical
Bluetooth-enabled mobile handset. Headset pairing procedure is subject to different
models of mobile handsets.
(Page 7)
Pairing Your Headset
1. Place the headset and the mobile handset where they are easily viewable by no
more than 1 meter apart.
2. Ensure the headset is OFF.
3. Press and hold the MFB until the headset LED alternately flashes blue and red.
4. Activate your mobile handset’s Bluetooth function by referring to your mobile
handset user guide for details.
5. Set the mobile handset to search for Bluetooth devices within about 1 meter as
instructed in the mobile handset user guide and select “i.Tech Clip IIe” from the
list.
6. Enter the preprogrammed passkey “0000” and press “OK” to pair your headset
and mobile handset. When the pairing is complete, the headset LED will flash
blue rapidly for 5 times followed by a long beep.
7. Go back to your mobile handset’s main menu. For certain mobile handset models,
a headset icon will be shown on the screen. You should now be able to make and
receive calls using your headset.
IMPORTANT If the pairing cannot be completed within 2 minutes while the
pairing mode is activated, the headset LED flashes purple red with 3 beeps and
the headset is turned off. Please repeat Steps 2 to 7 to pair the headset and the
mobile handset again.
(Page 8)
Using Your Headset
Answering a Call
To answer a call, wait for the headset and the buzzer to ring, then press the MFB to
accept the call or answer the call via your mobile handset in the normal way.
If you want to stop the buzzer from ringing, press the Volume Key once. The headset
continues to ring.
Ending a Call
Press the MFB to end your call or end the call via your mobile handset in the normal
way.
Dialling from Your Mobile Handset
Simply make calls on your mobile handset in the normal way.
Muting a Call
Press the Volume Key for 2 seconds to mute your call and also press the Volume Key
for 2 seconds to deactivate the muting function while conversation.
(Page 9)
Using Your Headset
Voice Dialling from Your Headset
If your mobile handset is equipped with a voice dialling function, simply press the
MFB on your headset and when you hear a beep, say the voice tag.
IMPORTANT Please make sure to record voice tag into the mobile handset
first before using voice dialling function.
Last Number Redialling from Your Headset
Press the MFB on your headset twice.
IMPORTANT The above functions are only applicable to mobile handsets with
Bluetooth Handsfree Profile. Functionality varies depending on the mobile
handset model you have. Please refer to your mobile handset user guide for
additional information.
(Page 10)
Adjusting the Volume
Press the Volume Key repeatedly until you reach the desired volume level.
Resetting the Headset
You may want to reset the headset to its original settings. This also clears all current
pairings.
1. Ensure the headset is OFF.
2. Press and hold the Volume Key until the LED alternately flashes blue and red
rapidly.
3. Release the
Volume Key.
4. Press and hold the Volume Key again until you hear 2 beeps.
5. Recharge the headset for a few seconds
The headset is turned off and returns to the original settings. All current pairings are
cleared.
(Page 11)
Care and Maintenance
Headset
Consider turning your headset off before placing it in your pocket or bag. If the
MFB is accidentally depressed, your mobile handset may place an unintended
call.
Do not expose the headset to liquid, moisture or humidity as it is not waterproof.
Do not use abrasive cleaning solvents to clean the headset.
Do not expose the headset to extremely high or low temperatures.
Do not dispose of the headset in a fire as it will result in explosion.
Do not expose your headset to contact with sharp objects as this will cause
scratches and damage.
Do not stick anything inside the headset as this may damage internal
components.
Do not attempt to disassemble the headset as it does not contain serviceable
components.
If you do not use the headset for long periods, be sure to store it in a dry place,
free from extreme temperatures and dust.
(Page 12)
Built-in Battery
Do not attempt to replace the headset’s battery yourself as it is in-built and is not
changeable.
Charge the battery in accordance with the instruction supplied with this user
guide.
Only use the manufacturer supplied charger when charging the headset.
Charging
Only use the manufacturer supplied charger when charging the headset.
Do not disassemble the charger as it may expose you to dangerous voltages of
other risks. Incorrect reassembly can cause electric shock when the headset is
subsequently used.
Do not use the charger outdoors or in damp areas.
Only charge the headset’s built-in battery in accordance with the instructions of
this user guide.
Avoid charging the headset in extremely high and low temperatures.
(Page 13)
Safety Information
Check local laws regarding use of a mobile handset and headset while driving. If
you use the headset while driving, ensure your attention and focus remains on
your responsibility of driving safely.
Never allow children to play with the headset – small parts may be a choking
hazard.
Observe all signs that require an electrical device or RF radio product to be
switched off in designated areas. These could include hospitals, blasting areas,
and potentially explosive atmospheres.
Turn off your headset prior to boarding an aircraft. Do not use your headset in an
aircraft.
Never mount or store your headset over any air bag deployment area as serious
injury may result when an air bag deploys.
Do not open or mutilate the built-in battery.
Dispose of batteries according to local regulations. Do not dispose as household
waste
(Page 14)
Troubleshooting
If you are unable to connect your headset and mobile handset, please try the
following:
Ensure your headset is turned off and is properly charged.
Ensure the headset is paired with your mobile handset.
Ensure your mobile handset’s Bluetooth feature is activated. Please refer to your
mobile handset user guide for specific instruction.
Ensure the headset is within a maximum of 10 meters of your mobile handset(s)
and there are no obstructions, such as walls or other electronic devices in
between.
If the above steps do not solve your problem, please recharge the headset and remove
your mobile handset battery for a while.
The i.Tech Clip IIe Headset is compliant with and adopts the Bluetooth Specification
1.2. However, interoperability between the device and other Bluetooth-enabled
products is not guaranteed because it depends on compatibility. For more information
on the compatibility between the device with other Bluetooth-enabled products,
please check with the manufacturer or browse http://www.itechdynamic.com
(Page 165)
Product Specifications
Bluetooth Specification: Version 1.2 Class 2
Bluetooth Profile Supported: Headset and Handsfree Profiles
Range of Frequency: 2.4GHz Spectrum
Dimensions: 54.6mm (L) x 24.8mm (W) x 23.6mm (H)
Nominal Charging Time: Within 3 hours
Talk Time*: Up to 10 hours
Standby Time*: Up to 200 hours
Weight: 22.5 grams
*may vary due to users’ operation mode and mobile phone settings
(Back Cover)
© 2005 Hutchison Harbour Ring Enterprises Limited
All rights in this publication are reserved and no part may be reproduced without the
prior written permission of the publisher. The contents of this publication are believed
to be correct at the time of going to press, but any information, specifications,
products or services mentioned may be modified, supplemented or withdrawn without
further notice.
The Stylized i.Tech logos are trademarks owned by Hutchison Harbour Ring
Enterprises Limited or its affiliates.
Bluetooth® and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc,
USA and licensed to i.Tech Dynamic Limited.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
i.Tech declares under our sole responsibility that the headset is in conformity with the
provisions of the following Council Directives: 1999/5/EC
Printed in China
