i-Key 4 TX Quick Reference Guide
Compliance
i-Key products are compliant with the following organizations
INTRODUCTION
The i-Key 4 TX is a long range access control transmitter that behaves exactly
like a proximity card, but with range of up to 25 metres. i-Key 4 has 4
buttons, allowing many functions to be controlled by the one pendant.
Additionally, the TX can be supplied with a micro disc inside which acts as a
proximity card allowing long range access to roller shutters via the
pushbuttons and regular door access by presenting the pendant to a regular
access control reader.
BUTTONS i-Key TX Pendant

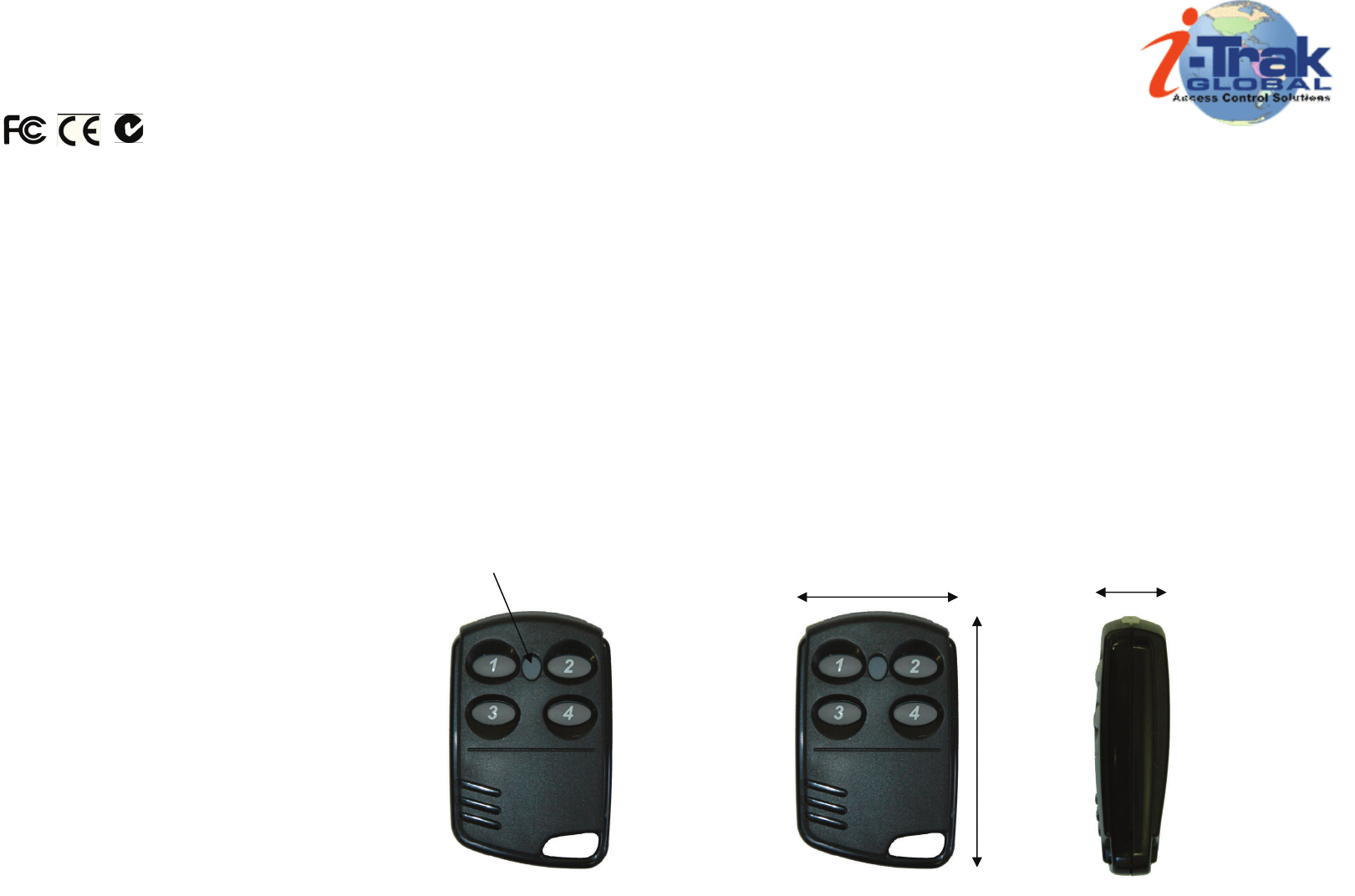

The diagram details the pendant button layout.
BATTERY REPLACEMENT
To replace the batteries on the i-Key 4 TX simply
unscrew the two screws at the top and bottom on
the rear of the pendant. The keyring does not
have to be removed. Replace the battery with a
CR2032 battery and ensure the polarity is correct.
Always check the seal is in place before
reassembly.
SPECIFICATIONS
Dimensions: 36mm (W) x 16mm (D) x 56mm (H)
Power: CR2032 lithium battery
ORDERING CODES
i-Key 4 TX 4 button Transmitter
i-Key 4 TX/EM 4 button Transmitter with EM disc
i-Key 4 TX/H 4 button Transmitter with HID Proximity disc
i-Key 4 TX/IC 4 button Transmitter with HID i-Class disc
i-Key 4 TX/IN 4 button Transmitter with Indala disc
i-Key 4 TX/K 4 button Transmitter with Keri disc
i-Key 4 TX/M 4 button Transmitter with Mifare disc
i-Key 4 TX/TC 4 button Transmitter with Tecom disc
DIMENSIONS
LED (illuminates when a
button is pressed)
36mm
56mm
16mm
