iBaby Labs IBB-B2 Video Doorbell User Manual
iBaby Labs, Inc. Video Doorbell
User Manual
Includes Pictures

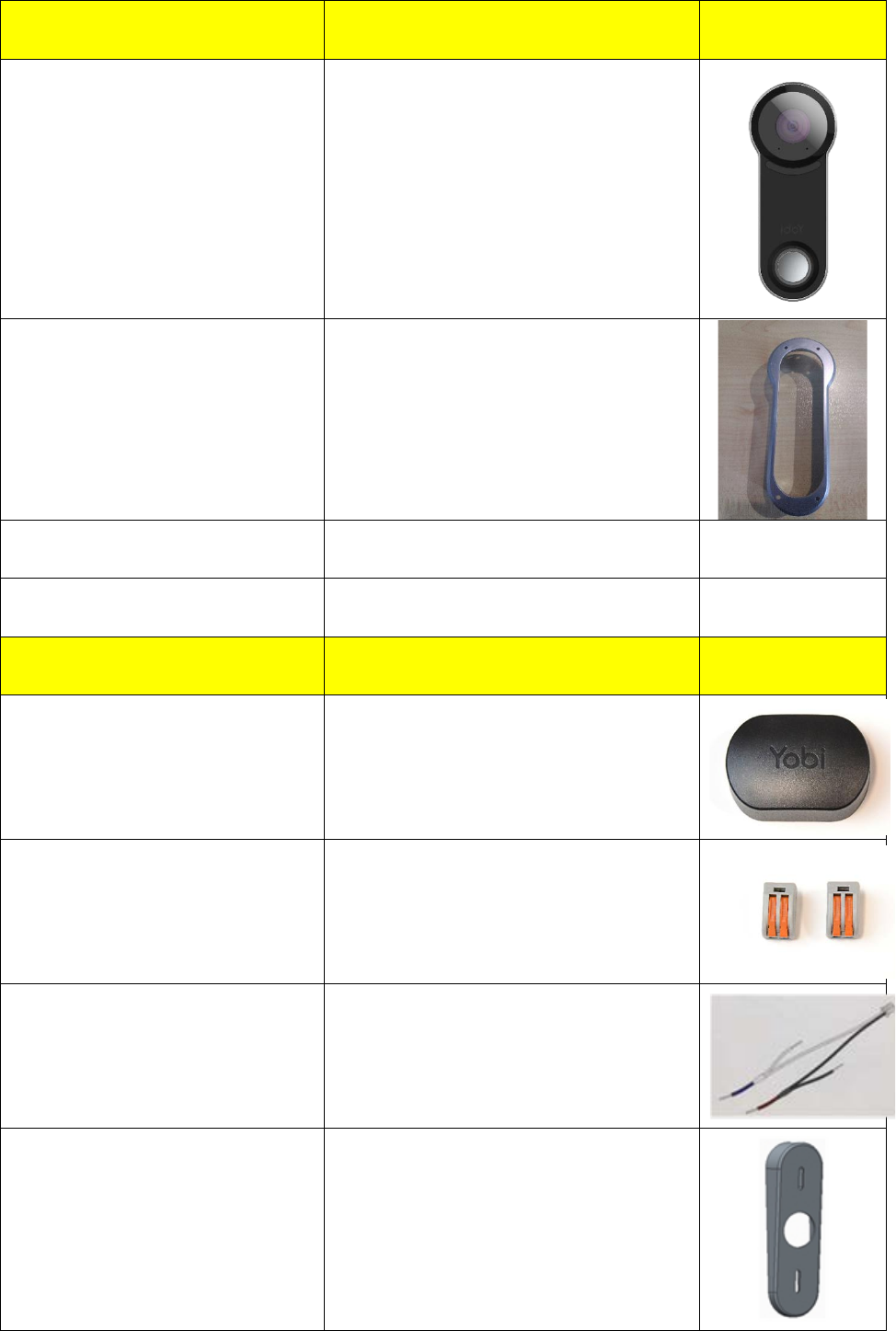

1 Video Doorbell B2
1 Support Case
1 USB Cable
1 Quick Start Guide
Parts List
Pictures
1 Power Kit
2 Cable Clips
2 Cable Harness

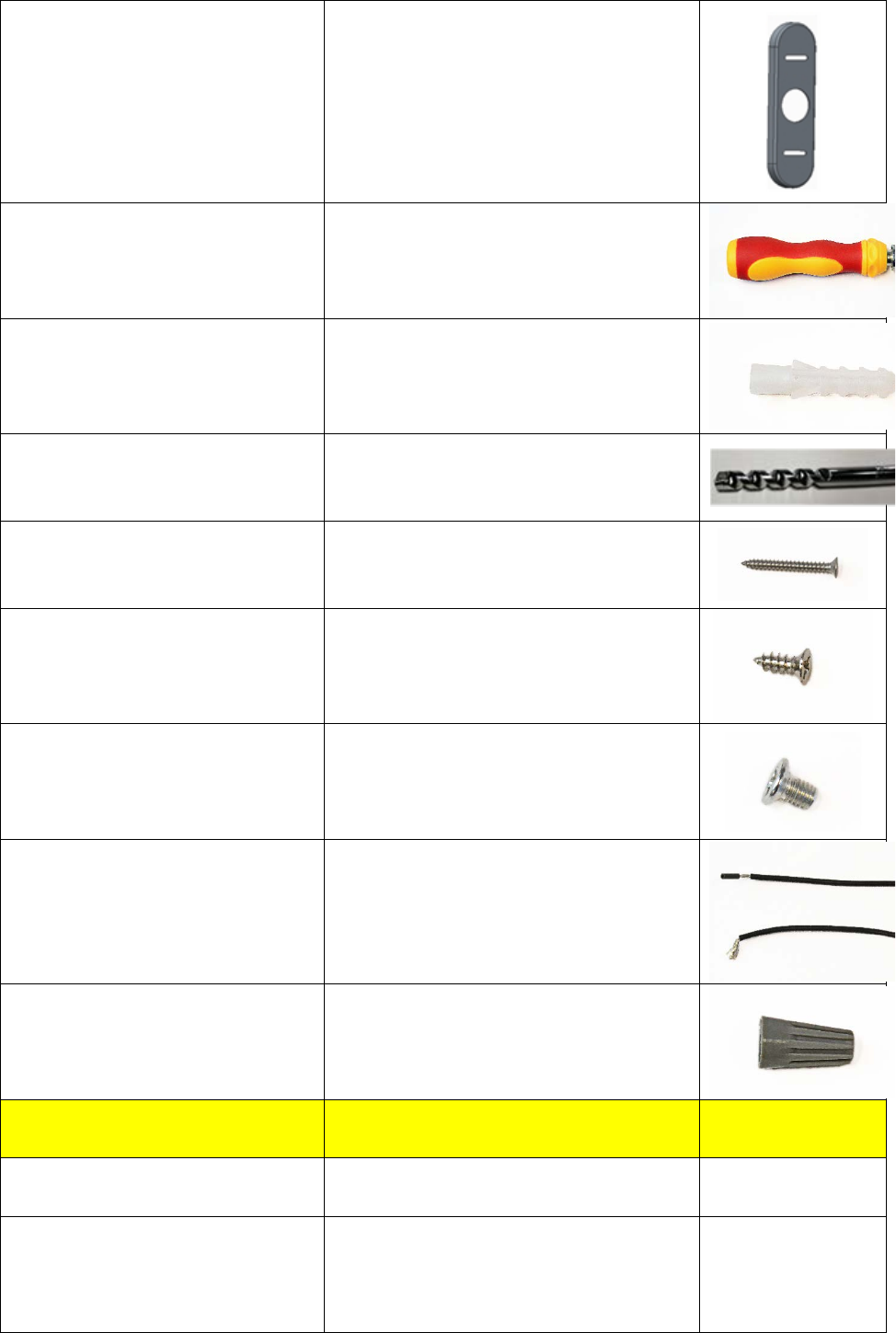

1 Auxiliary Supports
(up-down direction)
1 Auxiliary Supports
(left-right direction)
1 Phillips
6 Anchors
1 Drill Bit
6 Mounting Screws (long)
6 Mounting Screws (short)
2 Security Screws
2 Extra Wires
2 Wire Nuts
Setup steps
1.Power Kit Installation
Step 1
Power Supply
Choose between battery or
AC as your power supply. *
If you choose battery, please
skip to the next manual.
*
A rechargeable battery
comes included. Please
remember to charge the
battery,which
needs four
hours to be charged fully.
Step 2
AC Power Installation
Remove the casing from
your Home Doorbell System.
For your safety, please shut
off your home’s electrical
power supply before you
begin the installation.
Step 3
Unplug the Wire Labeled
“Front”
Locate the two wires labeled
“Front” and “Transformer”.
Once you find them, loosen
the screw on the wire
labeled “Front” and unplug
it.
Step 4
Plug the Wire labeled
“Front” into the Cable Clip
a)With your finger apply
light pressure to lift the
orange lever.
b)Insert the “Front” wire
and snap the lever down.
Tip：The black wire is already
inserted into the wire clip
when you get them.
Step 5
Attach the brown wire
Attach the brown end of the
black wire to the “Front”
terminal.
Step 6
Repeat this process with the
blue/white wire
Remove the “Transformer”
wire on your doorbell and
connect it to the second
cable clip. Then, connect the
blue end of the wire to the
“Transformer” terminal on
your doorbell.
Step 7
Securely Fasten the Power
Kit
Find a safe location for your
power kit to live without it
interfering with any other
parts of your doorbell.
*If necessary, use the
adhesive on the back of the
power kit.
Step 8
Return Doorbell Casing to
Original Position
You’re now ready to install
your Yobi B2 doorbell to the
front of your home. To do so,
please read the steps in the
next manual.
2.Installing Your Yobi B2
Step 1
Box Components
Step 2
Installing Anchors to
Different Surfaces (optional)
If your surface is stucco,
brick, or concrete, use the
provided screwdriver bit to
drill holes and insert the
anchors.
*If you’re installing on wood,
skip this step and save the
anchors for future use.
Step 3
Install the support on the
wall
Use provided Phillips-Head
screwdriver to position the
support onto your wall with
the 4 long mounting screws.
Step 4
Install the auxiliary support
if necessary
Install the auxiliary support
with the four short
mounting screws using the
provided Phillips-head
screwdriver.
Step 5
Power on the doorbell
To power on the doorbell,
click the power button
located on the back.
Step 6
Connecting the wires
(Optional)
Screw your Yobi Doorbell to
the connection wires on
your wall. (Each wire can
connect to any screw).
*If the wires aren’t long
enough to screw, use the
extra wire and wire nuts
provided.
Step 7
Security Screw
Secure Your Yobi Doorbell
with the security screw
provided.
3.Perform the in-app setup
Step 1
Download the Yobi App
Download the Yobi App from
the Apple App Store or
Google Play Store.
Step 2
Follow the in-app setup
process
Select “Add a New Device”
from the Yobi app to begin
installation.
Step 3
Buy Wi-Fi Extender If
Necessary
If your Wi-Fi Signal isn’t
strong enough, we
encourage you to purchase
the Yobi Chime & Wi-Fi
Extender.
Features
Face Recognition
Passive Infrared Sensors
(PIR)
180° Field of View
1080p Full HD with 30FPS &
720p HD
Night Vision
Video Two-Way Talk
Motion and Sound Alerts
Long Standby
Weather-resistant and
Waterproof
Cloud Storage
‘
FCC Caution
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
This compliance to FCC radiation exposure limits for an uncontrolled environment, and minimum
of 20cm separation between antenna and body.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
