iBaby Labs IBB-H1 Home Monitor User Manual iBaby H1 V1 1
iBaby Labs, Inc. Home Monitor iBaby H1 V1 1
User manual
iBaby Monitor
Model: H1
User Manual
FCC Caution..............................................................................................................10
2
2
Index
1Introduction ............................................................................................................................... 3
1.1The package contents ..................................................................................................... 3
1.2Product Features ............................................................................................................. 3
1.3Product Specifications .................................................................................................... 4
2Appearance and Interface ...................................................................................................... 6
2.1Appearance ..................................................................................................................... 6
2.2Back of the camera ......................................................................................................... 6
3Set-up and Installation ............................................................................................................ 7
4Returns and Exchanges ......................................................................................................... 9
4.1 What is your return policy? ............................................................................................... 9
4.2 Can I exchange an item? ................................................................................................... 9
5
3
3
1 Introduction
The iBaby monitor works with your iPod touch, iPhone or iPad so you can see and hear
your baby anytime, anywhere as long as you are connected to the internet (including
Wi-Fi, 3G/4G network, etc.). From your free app, you set motion/sound alerts, zoom in
and snap photos so you never miss an important moment.
"This product is meant for providing convenience for baby monitoring. The manufacturer is
not responsible for any legal liability caused by negligence. "
1.1 The package contents
9 1 Camera
9 1 Power Adapter
9 1 Quick Installation Guide
1.2 Product Features
9 Supports 802.11b/g/n protocol for wireless monitoring.
9 It works on TCP/IP network protocols.
9 Users can browse video with an iPod Touch, iPhone and iPad, android devices.
9 Selectable video resolution for comprehensive network bandwidth & mobile device
9 Local lullaby storage & playing.
9 Half duplex two-way talkback
9 High performance P2P technology for high reliable connectivity.
9 Video & audio recording (local , iBaby cloud) , sharing (Facebook ,Youtube,etc).
9 Pan & tilt support
9 Supports Micro SD Card Recording
9 Supports UPNP, P2P, and port forwarding automatically on the router.
4
4
1.3 Product Specifications
Model: Helmet H1
Features
P2P Support P2P
Cloud Storage Support the pictures stored in the cloud
CPU
OS Embedded Linux OS
CPU 32Bit RSIC Embedded Processor
Video
Compression H.264 baseline
Frame rate Max.30fps
Resolution HD(1280*720),VGA(640*480),QVGA(320*240)
Image Rotation Brightness, contrast, resolution is adjustable, Mirror /Flip
Lens f=3.6mm, F=2.0, Fixed Iris
Lighting
Minimum
illumination
0 Lux(IR on automatically)
Lighting 10pcs 12ML Infrared LEDs, 6m distance
Audio
Compression G711
Audio In One way input / Internal Microphone
Audio Out One way output / Internal Speaker
User Access Support 12 users visiting on the same time
Protocol TCP/IP，HTTP， UDP， DHCP，UPNP,NTP,P2P
IP address DHCP IP address
WIFI Protocol Support 802.11b/g/n
Encryption Support WEP/WPA/WPA2 encryption
Setting
Monitor automatically get the IOS device is currently connected Wi-Fi
account and password
USB interface Connect with IOS devices
antenna port One external antenna port
PTZ
Motor Built-in motor control
Coverage Horizontal ：350°， Vertical ：70°
Other
Shape material Plastic
Work Indoors
5
5
2 Appearance and Interface
environment
Power DC5V 1.5A
Reset One
Product power Daytime 2.5W，night 3W
Operating
environment
Temperature：0~40 °C，humidity：30℃ ≤75%
Storage
environment
Temperature：-40℃～55℃，humidity：40℃ ≤90%
Size
Monitor size: 113mm(L)*111mm(W)*131mm(H)
Package size: 220mm(L)*164mm(W)*141mm(H)
Weight Weight ： 358g
Package
contents
Power Adapter , Quick start guide, Warranty card, Bracket and
Screw
Software Software IOS6.0 or later，Android4.0 or later
Certification Certification FCC CE ROSH RCM
6
6

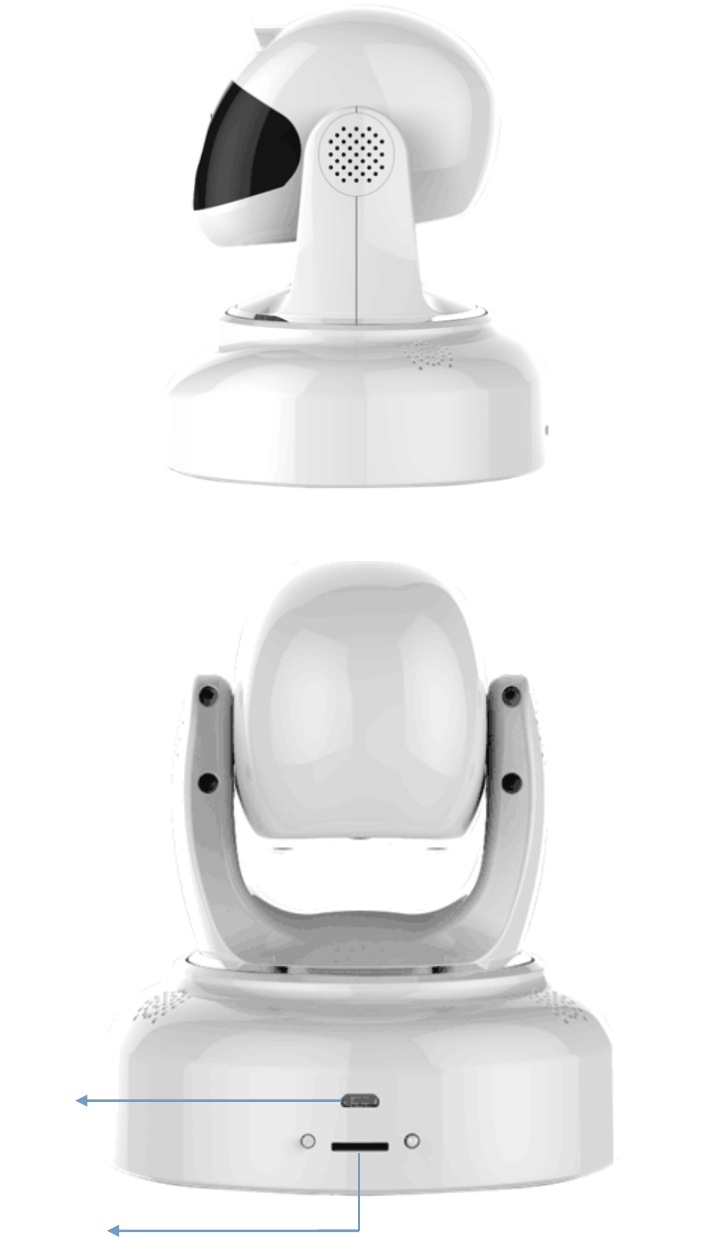

2.1 Appearance
2.2 Back of the camera
1 Power Input Socket: Connect Power adaptor, the adaptor‘s output is 5V 1.5A.
2
1
7
7
2 SD Card Socket: Supports Micro SD Card Recording
3 Set-up and Installation
a. Ensure your Android device is connected to your Wi-Fi network.
b. Download iFamCare App from Google Play to your supported mobile
device.
c. Close all of your smart phone apps running in the background.
d. Plug the power cable to the baby monitor, wait for 60 seconds until the
red LED lights start flashing.
e. Connect your Android smart phone and baby monitor with a USB cable.

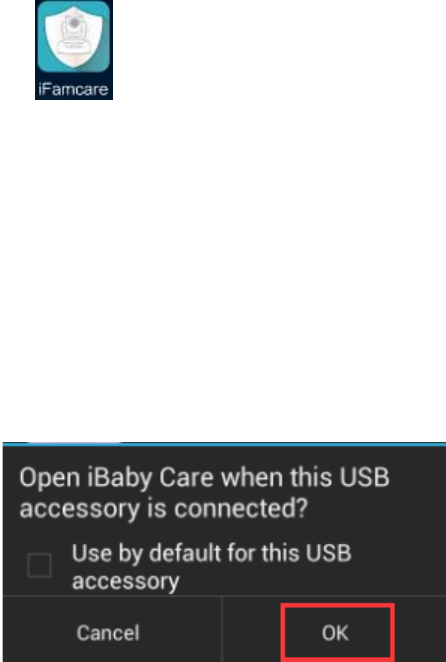

f. Select ‘OK’ when asked, ‘Open iFamCare when this USB accessory is
connected?’.
g. Create an account and log in.
8
8

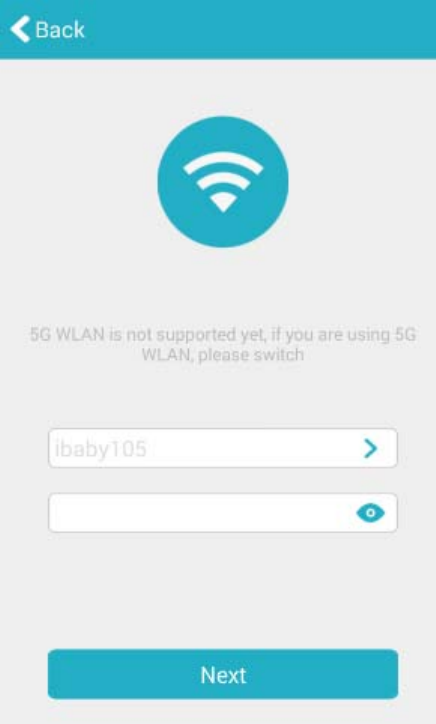

h. Type in your Wi-Fi password, and click ‘Next’ button, make sure your
password is correct.
9
9
i. Proceed to follow the simple onscreen instructions to complete the
setup.
4 Returns and Exchanges
4.1 What is your return policy?
Defective merchandise may be returned to us within 30 days from the date merchandise
was received. Item(s) must be returned in the condition received or, understandably, we
will not be able to accept your return. We will credit your refund to the original credit card,
with shipping and handling charges deducted from the refund amount.
4.2 Can I exchange an item?
Exchanges are only allowed when the merchandise is defective or damaged upon receipt.
5 FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for
10
10
compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 8 inches between the radiator & your body.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
