Users Manual
1
Tango
A5
www.iDroidUSA.com
USER MANUAL
+ MOBILE INTERNET &
PICTURE MESSAGING
APN SETTINGS
FOR ALL WIRELESS CARRIERS
IN USA
+ LIMITED WARRANTY
**User Manual in Española, French, Dutch and German is available for Download on
our website: www.iDroidUSA.com
Facebook Page: www.facebook.com/iDroidUSA
Twitter: www.twitter.com/iDroidUSA
Support Number: (215) 589-7118
Support Email: sales@iDroidUSA.com
2
Notice
Reproduction or distribution of this manual in any form is prohibited without prior
written consent from the Company. The Company retains the right to modify and
improve on any product described within this handbook without prior notice.
Regardless of the circumstances, the Company shall not assume any liability for any
data loss or any other type of losses; or for any special event or accidental damage
caused directly or indirectly to or by the device.
The content of this manual is provided as is and does not offer any kind of warranties,
express or implied, for the accuracy, reliability of the content including, but not limited
to, the implied warranty of merchantability and practical guarantee for a particular
purpose unless specified by applicable law. The Company reserves the power to amend
or withdraw any clause or warranty, in full, at any time without prior notice in this
manual.
The pictures in this manual are for reference only; if any individual picture does not
match with the product please refer to the product material provided within this
handbook as a standard. Many network functions described in this manual are special
services provided by individual Network Service Providers which are independent of
the Company. Please consult your Network Service Provider to enable the network
functions on your device.
The Company retains the power of final interpretation of this manual. If the content of
this manual does not match the description of your phone please contact to your device
provider
The Company reserves the right to change product specifications without prior notice
The manufacturer reserves the right to modify the technical product specifications
without prior notice
3
Table of Content
I – Safety Notice 4
II- Getting Started 6
• Power Up & Shut Down - 6
• Battery Charging - 6
III – Function Menu 8
• Contacts - 8
• Messaging - 8
• Phone Features - 8
• Memory Card - 10
• WLAN - 10
• Bluetooth - 11
• Air Gesture - 12
• Wake Up Gesture - 12
IV – Applications/Apps
• Browser - 13
• E-mail - 13
• Settings - 13
• Camera - 17
• Music - 18
• File Manager - 18
V – Statement of Toxic & Hazardous Substances - 19
VI – Common Trouble Shooting Tips - 20

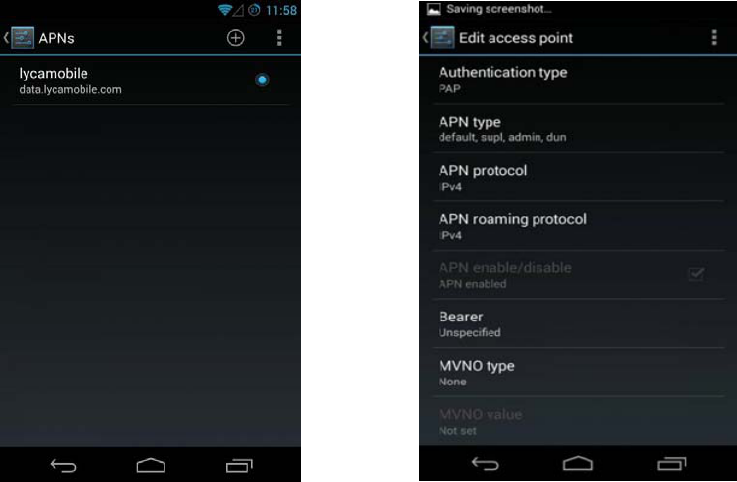

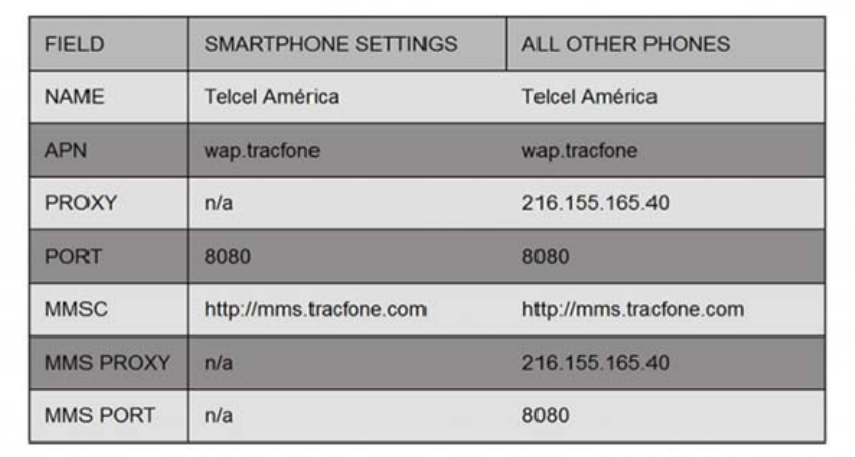

VII- Mobile Internet & MMS APN Settings Guide - 27
VIII – Limited Warranty - - 47
4
I - Safety Notice
WARNING: Please read carefully. The manufacturer will not be responsible in case
of improper use of the device. The Company reserves the right to revise this manual
content without prior notice.
¾ Your Smartphone provides the “Airplan Mode” function by default. You may
choose to apply the “Airplan Mode” when travelling by airplane although most
airlines recommend that you completely shut your phone down before takeoff.
Please follow airline instructions on this matter.
¾ Switch the device off near fuel pumps, chemicals, or any highly flammable or
blast prone areas. Keep the device away from the children.
¾ While driving please obey local laws and regulations with regards to
Smartphone use. Your Smartphone has a built-in hands-free function which can
be used while driving. Under poor driving conditions, please stop the car before
you dial or pick up the phone.
¾ Switch off your Smartphone in the hospital or other areas where the use of
cellular devices is prohibited. The Smartphones can affect the normal work of
electronic equipment and medical devices, such as pacemakers, hearing aids and
other medical electronics equipment.
¾ Non-original accessories and components are not provided with repair warranty
qualification.
¾ Please do not disassemble your phone by yourself, if your Smartphone is out of
order, please contact your supplier.
¾ Please do not charge the Smartphone before battery is installed. This may short-
circuit the battery.
¾ Smartphones should be charged in a ventilated and cool environment, away
from flammable and explosive materials.
¾ In order to demagnetization your device, please keep the Smartphone away from
magnetic material, such as disks, credit card etc.
¾ Keep the device dry. Precipitation, humidity, and all types of liquids or moisture
can contain minerals that will corrode electronic circuits. If your device does get
wet, remove the battery, and contact the supplier.
¾ Do not use the Smartphone in temperatures that are too high or too low; do not
expose the Smartphone to strong sunlight or high humidity.
5
¾ Do not use liquid or wet cloth with strong detergent to clean the device.
¾ This Smartphone provides camera, video recording and sound recording
functions; please follow the relevant laws and regulations to use those functions.
The Company will not be responsible for photographs, video recordings and
sound recordings that violate any laws or are taken without proper authorization.
¾ While using the network functions, please be wary of files which may contain
viruses, do not install any photos and ring tones which have been damaged. If a
virus does occur and affects the device our company will not be responsible.
¾ Please dispose of batteries according to local regulations, please recycle when
possible. Please do not dispose as household waste.
6
II - Getting Started

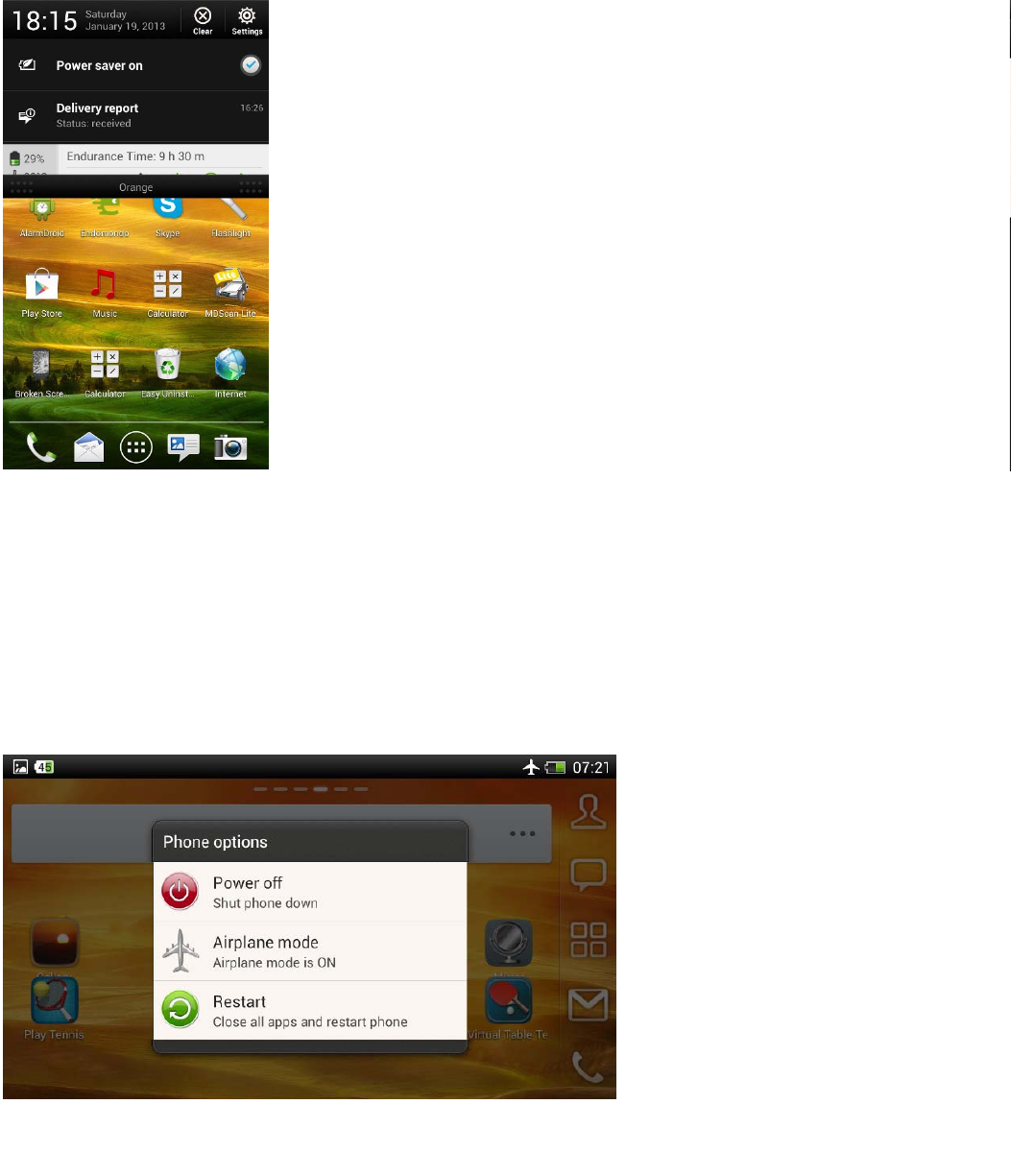

2.1 Power Up and Shut Down
To turn your device on or off, place your finger on the Power key and hold for five
seconds.
If you power up the device before having inserted the SIM card, the Smartphone will
display “No SIM Card” on the screen. After you’ve inserted the SIM card, the phone
will automatically check if the SIM is useable.
When you place a passcode on your Smartphone the following will be displayed in this
order:
Input Phone Lock Code
- If you set the Phone Lock.
Input PIN Code
- If you set the SIM Lock.
Searching
- The phone will conduct a search to find the appropriate network connections.
2.2 Battery Charging
¾ Plug the charger connector with the Smartphone and plug the charger into an
electrical outlet.
¾ At this time the charge level icon will repeatedly flash at the top right corner of
the mobile phone’s screen; if you’re charging your Smartphone while it’s
powered off, an indication will appear on the screen to show that your phone is
indeed in charging mode. If the Smartphone was used even after there was
insufficient power to do so, it might take some time, when charging in powered
off mode, for the screen indicator to appear.
¾ When the battery level icon does not flash anymore, this means that the battery is
fully charged. If charging while powered off, there will still be an indication on
the screen to show that the charging is complete. This process usually takes more
7
than 2.5 hours (The first three times you recharge, it is recommended that you
charge for up to 14 hours, as this will help extend battery life).The Smartphone
and charger may become warm during charging; this is normal.
¾ When charging is complete, unplug the charge connector from the electrical
outlet and the mobile phone.
ATTENTION:
Charging must be performed in a well-ventilated area with temperatures between -
10˚C and +45˚C. The factory charger supplied in the box must be used. Using an
unapproved charger could be dangerous in addition to being in breach of the
provisions of the repair warranty.
If the mobile phone automatically shuts down, or indicates that “Battery Is Low” you
should immediately charge the battery. If the battery has not been entirely used up
before charging, the mobile phone will automatically decrease the recharging period.
8
III - Function Menu
3.1 Contacts
You can use the Phonebook function to save Contact Information directly in to your
Smartphone or even save it to your SIM Card. You can also view or manage all of your
contacts in one space.
NOTICE: The storage capacity on your SIM Card will determine how many numbers
can be saved. Contact you Network Service Provider for this information.
3.2 Messaging
You can send or receive SMS and MMS through the Messaging function.
3.3 Phone Features
Calling
Press the Phone icon to enter the Dial Up interface. Enter the phone number manually
on the numerical keypad, including the area code, or select a number from your
Contacts to make a call. The call status information is always displayed during the call
and the numerical keypad can be easily accessed for further numerical input. For
international calls, press the “0” key to switch, until the international phone prefix “+”
appears on the screen, enter the country code and full number you wish to call.
Speed Dial
To set Speed Dial numbers edit the Contact Information in your Contacts to assign
Speed Dial numbers 2 through 9. The number 1 key comes preset as the Voice Mail
shortcut key. In the Dialer Interface, hold the shortcut dial number keys corresponding
with your list of Speed Dial numbers. The required number will appear on screen. Press
the Call button to start the call.
Call Using Contacts Interface
¾ Press the Home key, click on the Contacts icon to open your contact list.
9
¾ Press the Menu key and Search for the contacts in the Contact List. You can
type in the Contact name and search automatically or you can scroll through
the alphabetically sorted contacts to search manually.
¾ Click on the contact and select their number. Press the Call icon to start the
call.
Call from the Call Log
¾ Press the Home key, click on Dial icon to open the dialer.
¾ Click on the Call Records list. You can also choose the Call Log from contact
interface call records.
¾ Click a number in the Call Log; select the Call icon card to make the call.
Call from the Message
¾ Press the Home key, click on the Messaging icon to open the messaging
interface.
¾ Click to select and open the needed messages or conversation.
¾ Click on the required number. If the message contains multiple numbers, the
phone can be activated automatically to the options menu and you choose the
contact information required. Click on the Call icon to dial.
Emergency Calls
Whether you have installed the SIM Card or not, the phone can still call the emergency
number for help.
Answer a Call
When you receive a call your screen will light up displaying the number that is calling;
if it is someone from your Contact List the name will be displayed; there will be two
Call icons, one green and one red. Slide the Green icon to the right to answer the call. If
you are driving or already have the headset plugged in, you can also use the button on
the headset to answer the call.
End the Call
When you receive an unwanted call slide the Red icon to the left to refuse or dismiss the
call. You can end the call at any time during your conversation by clicking the End Call
icon at the bottom of your display screen.
Call Options
10
While in Call Mode, you can do the following operations:
¾ Mute - To stop transmitting the user’s voice.
¾ Hold - Put a call on pause.
¾ Un-hold - Resume the call placed on hold.
¾ Speaker - Activate or turn off the PA.
¾ Contacts - Enter Contacts menu.
¾ Add Call - Add a new call to your existing call; conference calls.
¾ Dial Pad - Begin to dial new call.
¾ End Call - End the call.
3.4 Using the Mobile Phone Memory Card as U Disk
¾ Use the USB line to connect your Smartphone with your PC computer.
The status bar will notify when the connection is made.
¾ Open the notice panel. It will give you various options in which you can
open the files or the media in your Smartphone.
¾ In the notification panel, touch “USB connected”, and then touch "turn on
USB storage".
NOTICE :
When your device is connected to your PC computer, the Smartphone will not be
able to identify memory CARDS. You will not be able to use some of the Smartphone
applications, such as the camera.
3.5 WLAN
Provide as far as 300 feet WLAN (100 M) wireless network access range. If you want to
use the Smartphone WLAN, you have to connect to wireless access point or "hot spots".
NOTICE: The availability of WLAN signal coverage will depend on the quantity,
infrastructure, and other factors which determine how well the signals penetrate the
object and device.
Open the WLAN and Connect to a Wireless Network
¾ Press the Home key, click on Setting and select the Networks & Wireless.
11
¾ Select WLAN check box to open Wi-Fi. The phone will automatically scan
for wireless networks available in your area.
¾ Click on the Wi-Fi settings. Then WLAN network will display a list of
WLAN to find the network of the name and security Settings of wireless
networks in your area.
¾ Select one of the WLAN networks to connect. When you select an open
network the Smartphone will be connect to the network automatically. If
the selected network is WEP, WPA/WPA2 encrypted it will demand a
corresponding password before connection can be made.
Connecting to Other WLAN Networks
¾ In the Wireless and Network settings select the WLAN settings. Find the
WLAN networks displayed in the WLAN network list.
¾ Touch other WLAN networks to connect to other networks.
NOTICE:
In addition to WLAN Networks your Smartphone can also connect to the GPRS
Internet. GPRS is available on your SIM Card by default and you can manually select
the specific location by following this route: Settings -> SIM management -> Data
Connection. Activate the GPRS or contact your Network Service Provider for more
information.
3.6 Bluetooth
Turn on Bluetooth or set the phone can be detected
¾ Press the Home key and click on Settings.
¾ Click on Wireless & Network settings and the select the Bluetooth
function. The phone will automatically scan for Bluetooth devices in your
area. The Bluetooth icon will show on the top right status bar when
active. To manually scan for devices touch the Scan for Devices option.
¾ All the equipment will show up in Bluetooth Devices list below.
¾ Your device needs to be made manually detectable. Select the check box
can be detected so that within the scope of other Bluetooth devices can
find the phone.
¾ Devices can be detected for as long as two minutes at a time before they
need to be made ‘visible’ again.
12
Matching and Connecting the Bluetooth Headset
¾ Press the Home key and click on Settings.
¾ Click on Wireless & Network settings, then select Bluetooth settings, then
select the Bluetooth check box, to activate Bluetooth. Set your Smartphone
to scan within the scope of the Bluetooth, and you will find all devices
available in the display.
¾ Connect to the Headset device.
¾ In the list of Bluetooth devices tap and hold the hands-free headset when
it is connected.
¾ Long press and select Disconnect & Un-Pair to successfully disconnect.
3.7 Air Gesture
Your smartphone comes with the Air Gesture function whereby you can browse
through various tabs and pages by moving your palm inches above your Smartphone
screen. Like any added function the Air Gesture is also subject to activation and
deactivation.
¾ Press the Home key and select the Settings icon.
¾ Select the Device Settings and choose Air Gesture.
¾ You will be given a check box option for activation or deactivation. Select the
check box to activate Air Gesture; unselect the check box for deactivation.
3.8 Wake Up Gesture
Your Smartphone has the Wake Up Gesture. This function allows you to open your
phone from Sleep mode in to any mode that you desire. You simply trace the letters
recommended on to your blank screen and your phone will open in the mode you
instructed. For example; tracing a C will open your Smartphone automatically in the
Camera mode. M will open Music, W will take you to the Browser.
¾ Activate the Wake Up Gesture by pressing your Home key and select the
Settings icon.
¾ Select the Device Settings and choose Wake Up Gesture.
13
¾ You will be given a check box option for activation or deactivation. Select the
check box to activate Wake Up Gesture; unselect the check box for deactivation.
IV – Applications/Apps
4.1 Browser
Click the Browser icon to open the browser. In the Browser, you can open the page by
the following methods:
¾ Click on the Browser Address Bar. A keypad will appear. Type in the website
address; for example www.iDroidUSA.com and press the Search button.
¾ Touch the Menu key and select Bookmarks. Choose from your Bookmark
library or select the History option and select a website from your resent
Browser activities.
4.2 Email
Select the E-mail icon and enter your E-mail address and login password. Choose
communication protocol; Select data account (edit wireless local area network or SIM
Card to connect to the E-mail network); Set receiving server and sending server
addresses; Edit user name ( if username is not given the device will use the email
address as a default or generate one); Save Settings and enter the Mailbox interface to
write and receive mail.
4.3 Settings
SIM Management
¾ SIM Information: Choose SIM card to enable or disable it.
¾ Default: SIM Cards are set up with Voice Call, Messaging and Data
Connection by default.
¾ General Setting: Set the SIM card to roaming.
Wireless & Networks
14
¾ Airplane Mode: Disables all wireless connection.
¾ Wi-Fi: Turn on or off as desired.
¾ Wi-Fi Settings: Set up and manage wireless access points, etc.
¾ Wi-Fi Direct Settings: Set up and manage WLAN Direct.
¾ Bluetooth: Open/Close Bluetooth.
¾ Bluetooth Settings: Manage connection settings and device name etc.
¾ Tethering & Portable Hotspots: Gives you the option to move data connection
through Smartphone USB or as a portable WLAN hot share.
¾ VPN Settings: Setup and manage virtual private network.
¾ Mobile Networks: Check the mobile data usage, set access point name and
network operators.
¾ GPRS Transfer Prefer: Gives you the option to move data connection through
Smartphone USB to share.
Call Settings
¾ Voice Call
¾ IP Call
¾ Other Settings
Audio Profiles
Allows you to set a Profile without having to tinker with your phone too much. The
Profiles can be edited manually to your preference. The Profiles are as follows:
¾ General
¾ Silent
¾ Meeting
¾ Outdoor
Display
¾ Wallpaper: Set a wallpaper of your preference on your Smartphone.
¾ Brightness: Set the brightness of the phone display. The Brighter the display
the more battery it will consume. The Battery Saving mode sets the Brightness
to its lowest consumption.
¾ Auto-Rotate Screen: Set up to view horizontal pictures or articles with ease.
¾ Animation: Display window animation settings.
¾ Screen Timeout: Automatically adjust screen lock options and the delay time.
Location
15
¾ Use Wireless Network: The use of mobile network in application check
position.
¾ Use GPS Satellites: Accurate location at street level.
¾ GPS EPO Assistance: Use GPS auxiliary material (EPO) to accelerate the GPS
positioning.
¾ EPP Settings: View the modified EPO configuration information.
¾ A-GPS: Use auxiliary data to accelerate the GPS positioning.
¾ A-GPS: View the modified A-GPS Settings.
Security
¾ Screen Unlock: Use design, PIN or password lock screen.
¾ SIM Card Lock: Can open/close lock a SIM card and change the SIM card
PIN.
¾ Passwords: You can choose to see characters of the password you’re entering.
¾ Device Administration: Add or delete device manager.
¾ Credential Storage: Allows the application to access security vouchers and
other documents.
¾ Install From SD Card: From the SD card installed encryption certificate.
¾ Set Password: Set or modify the password for documents stored.
¾ Clear Storage: Remove all of the contents of the documents stored and reset
the password.
Applications
¾ Unknown Sources: Settings are available to install the electronic market to
provide application. The Google PlayStore comes pre-loaded in your device.
¾ Manage Applications: Install, manage, delete and un-installation Applications
as the need arises.
¾ Running Services: Check and control the currently running Applications.
Constantly running Application can result in a slow device.
¾ Storage Use: Check the Application Manager for storage space.
¾ Battery Use: Check the power consumption.
¾ Development: Set the Application development options, set USB debugging,
keep sensei state and allow simulation place Settings.
Accounts & Sync
16
¾ Background Data: Synchronizes online data through your email address for
easy sending and receiving of data through your Smartphone and your PC
computer.
¾ Auto-Sync: Automatic synchronization of Application data the frequency of
which you can choose in the Settings.
Privacy
You can reset Factory Data and personalize your Smartphone. Your Smartphone is
private and protects your private information by giving you options to lock your phone
and provides a backup on Google Cloud.
Storage
¾ SD Card: Insert the SD card to view total and available space. After you eject
the SD card the display will remove itself.
¾ Erase SD Card: To remove data from the SD card you must manually delete
the data.
¾ Internal Storage: Your Smartphone has inbuilt storage as well, the size and
availability of which is displayed in your Storage Settings.
Language & Keyboard
¾ Language Settings: The device comes with several Language Input options.
You can select the language and user dictionary that you are most
comfortable with.
¾ Keyboard Settings: Your Android Keyboard can easily switch between
alphabets, symbols and the numeric keyboard.
¾ Input method: You can choose from either the Android keyboard, or other
input methods.
Voice Input & Output
¾ Text-to-Speech Settings: Set your phone to type your texts for you by
activating the Text-to-Speech function. Press the small Microphone icon and
dictate your text.
¾ Default Settings: By setting your Smartphone to Default Engine you can
install Voice Data, Speech Rate, and Language.
¾ Engines: Pico TTS settings.
Date & Time
17
¾ Automatic: Your Network Provider offers time and date data to be saved on
your Smartphone as soon as you put your SIM Card in.
¾ Set Date: You can manually edit date by selecting the option in the Date and
Time settings.
¾ Select Time Zone: You can also manually choose the time zone. Once you’ve
clicked the bar where the time zone is added a drop down menu will display
the time zones all across the world and you can choose one.
¾ Set Time: You can also manually set a time.
¾ Use 24-Hour Format: You can choose from the 24 Hour clock or the 12 Hour
clock; it is up to your preference.
¾ Select Date Format: Similarly you can chose how you view your date on your
Smartphone.
Schedule Power On/Off
You can choose to schedule a Power Off for your Smartphone whereby you select a
time and duration for which your device will automatically power off without your
manually having to do so. Similarly you can schedule a Power On for your Smartphone.
About Phone
¾ System Updates: Your Operating System will go through regular updates
automatically when connected to a Wireless or GPRS Netwrok.
¾ Status: Keep a regular check on iDroid Hub for your devices updates and
new versions.
¾ About Battery: Your factory provided battery was manufactured for your
device only. Do not use it for any other device and do not use unauthorized
batteries for your device. This will greatly weaken the device and the battery.
¾ Legal Information: You can check the legal information online at
www.iDroidUSA.com
4.4 Camera
¾ Select the Camera icon to enter the Camera interface. During the view-finding
mode, adjust the lens to allow what is being photographed to appear in the
viewfinder.
¾ After framing the picture you wish to take, keep the camera steady and press
to take pictures.
18
¾ After taking photos. Click the photo preview on the bottom right and you can
open the menu for the following operation:
A) You can share the photo via MMS, E-mail or Bluetooth, etc.
B) Click the photo for more operation, such as deleting
¾ You can also change the mode from Picture to Video by pressing the Video
icon. You can also switch between the front and back cameras.
4.5 Music
¾ Select the Music Player icon to enter your music interface. You can choose
from Songs, Artists or Albums or make Playlists of your own.
¾ The Player includes all kinds of functions like Play, Pause, Skip Back and
Forwards, with a tracking line which can be slid to go forward in the track
and back to back. The volume setting is also available on that single page
interface.
4.6 File Manager
In the main menu click on the File Manager icon to enter the memory card interface
which shows all of the files in your Smartphone. These can pre-loaded files,
downloaded, or shared via Bluetooth or email. You can organize your files the way they
suit you. The File Manager has the options to make new folders, copy, view, cut, delete,
rename, share and details of documents etc.
19
V - Statement of Toxic and Hazardous Substances or Elements
According to local laws and regulations your devices battery cannot be disposed of
with regular household waste and special steps must be taken to dispose of it at the end
of its lifespan. When your product reaches the end of its life take it to a special collection
center. Your effort will ensure that the battery is recycled in a manner that conserves the
environment is not harmed and protects human health.
PartNames
ToxicandHazardousSubstancesorElements
Lead
(Pb)
M
ercur
y(Hg)
C
a
d
mium
(Cd)
h
exav
alent
chromi
um
(Cr(VI)
)
P
o
l
y
b
ro
minated
bipheny
ls (PBB)
po
l
y
b
rom
i
nate
d
diphenyl ethers
(PBDE)
PCBBoard
andAccessories×
○ ○ ○ ○ ○
Plastic
○
○ ○ ○ ○ ○
Metal
×
○ ○ ○ ○ ○
Battery
×
○ ○ ○ ○ ○
Other
×
○ ○ ○ ○ ○
○：Thisindicatesthatthecontentofthistoxicorhazardous
substanceinallhomogeneousmaterialsofthepartisbelowthe
requirementlimitSJ/T11363‐2006standards.
×：Thisindicatesthatthistoxicorhazardoussubstance,atleastin
partsofahomogeneousmaterial,containstoxicorhazardoussubstancehas
contentbeyondSJ/T11363‐2006standardsandlimitrequirements.
Thisisaproductofthe"EnvironmentalProtection
UsePeriod"isintendedfor10yearsofuseasthe
logoontheleftshows.Thebatteryandother
replaceablepartsthatcomeundertheEFUPlifespan
mayberelatedtoaproduct'senvironmental
responsibility.TheEnvironmentalProtectionUse
Periodisvalidonlywhentheuseofthisproductis
conductedundernormalcircumstancesasdescribed
inthemanual.
20
COMMON TROUBLE SHOOTING TIPS
Problem: The battery runs flat too fast
This is one of the most often Android problems. Unfortunately, we have to face the fact that our
Android device will never run for as long as old simple mobile phones used to some years
ago. This is the price we have to pay for having the smartest devices in the world.
However, we can always do something to extend the battery life here and there and, overall, the
above price won't be so high! :)
Solution: To put it simply, you have to get rid of anything that's eating up your battery
unnecessarily. In most cases, this will be WiFi (enabled and not used), GPS, a number of
unnecessary apps running in the background, screen brightness set to maximum or ads from
free apps and games for Android. You should also use some battery app to manage apps or/and
some Android app killer.
If your battery is running flat and you cannot charge your phone, you should turn Power Saver. In
my IDROID, you can activate it by dragging the top part of the screen down and then checking
Power Saver (see the screenshots below).
21
P: A small popup menu doesn't appear after holding the power button
Problem: This is also one of the most often encountered Android problems. When you hold the
power button for a few seconds, a small Phone options menu (like the one on the screenshot)
will or, at least, should appear.
This menu allows you to power off your phone, turn off or on airplane mode or restart your phone.
However, in my previous phone (IDROID Desire S) at some point this function simply stopped
working and the phone wouldn't react to holding the power button.
Solution: This Android problem is a real pain in the neck. Unfortunately, restarting the phone or
turning it off and on didn't help. The only thing that worked was restoring factory settings.
22
To do that, do go Settings > Backup & reset > Reset Phone. Before you do that, remember to
backup your settings with either a third party app or use the default function also available
under Backup & reset > Backup & restore.
Backlight turns on and off on its own
Problem: This is not the most serious problem in the world but it can be a bit annoying when
your phone, out of the blue, turns the screen on in the middle of the night just to turn it off in a
few seconds. I guess it can also significantly reduce the battery life.
Solution:
Restored factory settings. To do that, go to Settings > Backup & reset > Reset Phone. Remember
about backup.
The phone doesn't respond at all
Problem: It may happen that your Android phone or Android tablet will not respond at all. I
ended a call, the phone froze so I waited, waited, waited. The screen turned off and the phone
behaved as if it was turned off). In such a situation, we usually remove the battery.
Solution: When the phone is unresponsive, it's usually a good idea to restart it. You can do that
by holding the power button for a few seconds and then tapping Restart phone. This solves the
problem in most cases.
23
You can also remove the battery (if you have one), which always helps. After that the phone
automatically restarted and everything went back to normal.
Android corrects my words without even asking
Problem: Have you ever happened to send a totally stupid SMS to someone just because your
Android device knew better what you wanted to type?
In most cases, this doesn't happen very often but once it does you may want to get rid of the
auto-correct feature.
Solution: You may want to turn off auto correction. Not all Android devices are equipped with
that feature by default (my iDroid was just suggesting words, not auto-correcting them, but
when I installed SwiftKey keyboard the function was enabled).
To turn it off, go to Settings > Language & input >Android Keyboard > Auto correction and
select "off."
I use a third party launcher but it occasionally switches back to the default
one (e.g. YANDEX 3D)
24
Problem: You decided to use a third party launcher (e.g. Nova Launcher or GO Launcher) but
every time you switch between apps or, worse, restart your phone it switches back to the default
launcher and you lose all your settings, widgets etc.
This is very annoying but you can easily get rid of that problem.
Solution: All you have to do is set your third party launcher as a default launcher and the
problem will disappear. Just tape the Home button two times (quickly) and the phone will
ask Complete the action using so choose your launcher and press Always.
Someone's bothering me. How do I block them?
Problem: We gave our number to the wrong person who's now bothering us. There has been
some fuss and you are receiving calls from a person from the other side of the globe. You are
receiving tons of SMS ads, which is driving you crazy. Whatever your problem is, if you have an
Android device, you can easily get rid of it.
Solution: Thanks to Android being the most popular mobile platform in the world, you have a
great number of apps to choose from, including apps for blocking calls and SMS.
I recommend using SPC, a very simple but powerful app with advanced options, such as,
blocking calls, SMS, blacklists, white lists and many more. If you want to discover more call
blockers, check free call blocker for Android.
25
The screen orientation changes too often
Problem: Some people simply cannot stand it when the screen orientation of their Android phone
changes whenever they lie down or make a quick hand movement when typing. This, in fact, can
be a bit irritating, but you can easily deal with it.
Solution: All you have to do is turn off the auto rotate option. To do that, go
to Settings > Display, gestures & buttons and uncheck Auto rotate screen. Done! The screen will
never rotate without your permission!
26
Tango
A5
MOBILE INTERNET AND PICTURE MESSAGING
APN SETTINGS GUIDE
Notice
The Handset is preloaded with TWEAKKER App that assists you with the Mobile
Internet Settings and Configuration for your Wireless Service Provider on the Unlocked
iDroid Handset. You can either Use TWEAKKER or Use the Manual Settings given in
this document for Every Wireless Company in United States of America. This document
is the copyrighted of iDroid USA ™
27
Wireless Service Providers in the USA
1. AT&T
2. Cricket Wireless/AIO
3. AirVoice Wireless
4. Black Wireless
5. Brightspot (T)
6. Cellular Abroad
7. Consumer Cellular
8. H2O Mobile
9. Jolt Mobile
10. Lyca Mobile (T)
11. Metro PCS (T)
12. NET10
13. PTel (T)
14. Pure Talk USA
15. Ready SIM (T)
16. Red Pocket Mobile
17. Roam Mobility (T)
18. Simple Mobile (T)
19. Skyview Wireless
20. Solavei (T)
21. Spot Mobile (T)
22. Speed Talk Mobile (T)
23. Straight Talk
24. T-Mobile
25. TelCel America
26. TruPhone
27. Ultra Mobile (T)
28
APN Settings & Configuration
1. AT&T APN Setting for Android Details:
¾ Name: AT&T
¾ APN: wap.cingular
¾ Proxy: <Leave in Blank>
¾ Port: <Leave in Blank>
¾ Username: wap@cingulargprs.com
¾ Password: cingular1
¾ Server: <Leave in Blank>
¾ MMSC: http://mmsc.cingular.com
¾ MMS proxy: wireless.cingular.com
¾ MMS port: 80
¾ MCC: 310
¾ MNC: 410
¾ Authentication type: <Leave in Blank>
¾ APN type: default,supl,mms OR Internet
¾ APN Protocol: Leave it on the Default one
AT&T APN settings for android Step by Step setup:
How will you enter the above settings for the AT&T APN setting for android on your
device?
Below are the detailed step by step instructions you should Follow to add these AT&T
APN Settings for Android Device:
¾ On the Android’s Main Menu, select Settings
¾ In the Settings section, look for Wireless Connections. Tap on it.
¾ Now tap on More.
¾ Then select the option where it says Mobile Networks.
¾ Now tap on Access Point Names.
¾ Using the Option button select New APN.
¾ Enter all the values listed above for the AT&T APN setting for Android.
¾ Hit the option button and Hit SAVE.
¾ Open your google Chrome browser and you should be able to browse on the
internet now!
29
2. Cricket Wireless / AIO Wireless
Android Configuration
You should get new Cricket settings automatically pushed to your device after you
insert the Cricket SIM Card, but if for some reason you need the Manual Configuration
instructions (also called APN settings) they are listed below.
A) Tap Settings and enter the Mobile Networks/Mobile Data interface. From there
select the Access Point Names, tap on New APN (you may have to tap Menu button to
see this option).
B) Enter the following APN info:
¾ Name: Internet
¾ APN: ndo
¾ Proxy: Not Set
¾ Port: Not Set
¾ Username: Not Set
¾ Password: Not Set
¾ Server: Not Set
¾ MMSC: http://mmsc.aiowireless.net MMS Proxy: proxy.aiowireless.net
¾ MMS Port: 80
¾ MCC: 310
¾ MNC: 150
¾ Authentication type: Not Set APN type: default,mms,fota,hipri,supl
Note: For the above APN type be sure to enter it exactly as it is listed and don't
include any spaces!
¾ Tap Save for the new APN.
¾ Go back one screen to the APN list and tap the dot to enable this APN.
¾ Reboot the device.
¾ Test data and MMS.
3. AirVoice Wireless Android APN Settings
DATA Configuration
30
¾ On the device, go to the Menu
¾ Select Settings
¾ Select Wireless & Networks (or Wireless Controls)
¾ Select Mobile Networks
¾ Select Access Point Name
¾ Press Menu
¾ Select New APN
≈ For the Name: Mobile Web
• Tap OK
≈ For the APN: att.mvno
• Tap OK
≈ For the Proxy: 66.209.11.33
• Tap OK
≈ For the Port: 80
• Tap OK
≈ For the Username: LEAVE BLANK
≈ For the Password: LEAVE BLANK
≈ For the APN Type: default (or select INTERNET if available)
• Tap OK
Note: Make sure input is in lowercase letters.
¾ Save the APN and, if necessary, select Access Point Names and tap the Radio
button next to Mobile Web to set the profile as default
¾ Press the Menu key
¾ Select Save
¾ Return to the Home screen and power the device off and on.
MMS Configuration
¾ On the device, go to the Menu
31
¾ Select Settings
¾ Select Wireless & Networks (or Wireless Controls)
¾ Select Mobile Networks
¾ Select Access Point Name
¾ Press Menu
¾ Select New APN
≈ For the Name: Mobile MMS
• Tap OK
≈ For the APN: att.mvno
• Tap OK
≈ For the Username:
≈ For the Password:
≈ For the MMSC: http://mmsc.cingular.com
• Tap OK
≈ For the MMS Proxy: 66.209.11.33
• Tap OK
≈ For the MMS port: 80
• Tap OK
≈ For the APN Type: mms
• Tap OK
≈ If available, for the Authentication Type: select PAP
• Select OK
¾ Press the Menu key
¾ Select Save
Once you have completed the steps listed above, and power-cycled the device, your
Data and MMS should be ready for use. If you are still unable to access the Web please:
32
¾ Turn your WiFi OFF.
¾ Visit “Wireless and Networks” to make sure your DATA ROAMING is ON and
Enable 3G is ON.
¾ If you are still experiencing any issues, please contact Customer Service from a
phone other than your AirVoice Wireless device to make sure your account is set
up accordingly.
4. Black Wireless APN Settings
On your phone please go to the following menu:
Menu > Settings> Wireless & Networks > Mobile Networks > Access Point Names
¾ NEW APN:
¾ Name: Black Wireless
¾ APN: att.mvno
¾ Proxy: 66.209.11.33
¾ Port: 80
¾ Username: BLANK
¾ Password: BLANK
¾ Server: BLANK
¾ MMSC: http://mmsc.cingular.com
¾ MMS Proxy: 66.209.11.33
¾ MMS Port: 80
¾ MCC: 310
¾ MNC: 410
¾ Authentication Type: PAP
¾ APN Type: Default,mms,supl,agps,fota
5. Brightspot Mobile APN Settings
Set up Brightspot Internet and Picture Messaging on Your Android Phone
¾ Check mobile network settings and reset APN
¾ From the Home screen, press the Menu key.
¾ Touch Settings.
33
¾ Touch Wireless & Networks, or Wireless Controls (option name depends on
software version.)
¾ Verify that the Airplane Mode or Flight Mode check box is not selected.
¾ If you see a Mobile Network check box, verify it is selected.
¾ Touch Mobile Networks.
¾ If you see the following check boxes, verify they are selected:
• Data Enabled
• Use Packet Data
• Data Roaming
Note: This incurs charges if you roam internationally.
¾ Touch Access Point Names or APNs.
¾ Press the Menu key.
¾ Touch Reset to default.
¾ Press the Home key.
¾ Test the Data Connection and access the Web to verify it is working correctly.
If these steps did not resolve the issue and you still cannot access the Web, proceed to
Step 2.
Verify and Update the APN Settings
¾ From the Home screen, press the Menu key.
¾ Touch Settings.
¾ Touch Wireless & Networks or Wireless Controls.
¾ Tap on Mobile Networks.
¾ Touch Access Point Names or APNs.
¾ If there is a Brightspot (or T-Mobile) APN, touch it. If not, press the Menu key,
and touch New APN.
¾ Verify and update the following settings for the Data APN:
• Name: Brightspot (or T-Mobile)
• APN: multibrand
• Proxy: <Leave blank>
• Port: <Leave blank>
• Username: <Leave blank>
• Password: <Leave blank>
• Server: <Leave blank>
• MMSC: HTTP://BRTSPT.MMSMVNO.COM/MMS/WAPENC
• MMS proxy: <Leave blank>
34
• MMS port: <Leave blank>
• MMS protocol: WAP 2.0 (Most phones do not have this field)
• MCC: 310
• MNC: 260
• Authentication type: <Leave blank>
• APN type: default,supl,mms
Important: The APN type must be entered EXACTLY as shown.
Note: On some Android phones, this field must be selected rather than typed. On
these phones, choose the option for Internet + MMS.
• APN Protocol: Ipv4
• Enable/Disable APN: APN Enabled
• Bearer: Unspecified
¾ 8. Press the Menu key.
¾ 9. Touch Save.
¾ 10. In the list of APNs, delete all others that appear if possible.
Exception: Do not delete the FOTA APN.
To Delete an APN, Follow These Steps:
¾ Touch the APN you want to delete.
¾ Press the Menu key.
¾ Touch Delete APN.
¾ Select to activate the Brightspot or T-Mobile APN with the correct settings. A
green circle will indicate it is activated.
¾ Turn the phone off and back on.
¾ Test the data connection and access the web to verify it is working correctly. If
not, repeat steps above to edit the APN to set the APN type to <blank>.
6. Cellular Abroad APN Settings
Android OS Phone Setup
¾ Select Menu > Settings > Wireless & Networks > Mobile Networks
¾ Leave Data Roaming unchecked
¾ Select Access Point Names
35
¾ In APNs screen, bring up the menu screen and select Add new or New
APN
¾ Set the following case-sensitive options:
• Name: TIM Italia
• APN: ibox.tim.it
• Proxy: <leave blank>
• Port: <leave blank>
• Username: <leave blank>
• Password: <leave blank>
• Server: <leave blank>
• MMSC: <leave blank>
• MMS proxy: <leave blank>
• MMS port: <leave blank>
• MCC: Do not edit this record
• MNC: Do not edit this record
• Authentication type: "None"
• APN type: Leave blank, or choose "Internet" if given a dropdown list
¾ Tap the menu screen again and select "Save" or "Save APN"
¾ Your new APN should appear in the list on the "APNs" screen
¾ Do not activate this APN until you arrive in Italy to avoid expensive roaming
fees.
¾ To activate your data account, tap the dot next to the APN name to turn it green.
¾ Once activated, you can start browsing.
7. Consumer Cellular
There’s a 2-step process involved in setting up 4G LTE on your Android smartphone.
Before you get started, please be sure your phone is compatible with 4G LTE. You may
need to consult your phone’s user manual to determine if your phone is 4G LTE capable.
Configure your phone to work with Consumer Cellular’s 4G LTE network. Each phone
is different, so you will need to refer to your phone's user manual to find out how to
change the following settings:
¾ Proxy Address: <blank>
¾ Proxy Port: <blank>
¾ Proxy Push: Enabled
¾ Authentication Type: Secure
36
¾ User Name: <blank>
¾ Password: <blank>
¾ APN: ccdata
¾ MMSC: http://mmsc.mobile.att.net
¾ MMS Proxy: proxy.mobile.att.net
¾ MMS Port: 80
¾ Authentication Type: <blank>
¾ APN Type: default, mms, supl
¾ DNS Assignment: Network Assigned
When you’ve completed the steps above, please be sure to call our customer service
department at 888-345-5509, as we’ll need to alter your account accordingly.
Other Notes:
¾ Our Connect! service is a great deal for casual data use. However we do not offer
unlimited plans for heavy data use, such as watching videos or listening to
streaming audio.
¾ Please understand that, while our Customer Service representatives do
everything they can to help solve customers' problems, we can’t guarantee every
cell phone model can be configured with our data service.
¾ Many phones that are compatible with our service will allow you to modify the
settings and begin using our picture messaging and web service. However, there
are some phones that will not work. If you have difficulties we can help you
select one of our affordable data capable phones that will arrive fully
programmed.
8. H2O Mobile
Configure your phone manually using the settings specified below
Note: Requires an unlocked, AT&T compatible GSM handset
Phone Settings
Description Value
Proxy Gateway IP Address proxy.mvno.H2OMobileweb.com 66.209.11.33
Proxy Gateway Port 80
WAP APN att.mvno
37
WAP Homepage URL http://www.H2OMWeb.com
MMS APN att.mvno
MMS URL http://mmsc.cingular.com
9. Jolt Mobile
Data Configuration
¾ On the Device, go to the Menu
¾ Select Settings
¾ Select Wireless & Networks or Wireless Controls
¾ Select Mobile Networks
¾ Select Access Point Name
¾ Select Menu
¾ Select New APN
• For the Name: Enter Mobile Web Tap OK
• For the APN: Enter att.mvno Tap OK
• For the Proxy: Enter 66.209.11.33 Tap OK
• For the Port: Enter 80 Tap OK
• For the Username: leave blank
• For the Password: leave blank
• For the Username: leave blank
• For the APN Type: as default or internet Tap OK (make sure the "default" is in
lowercase letters)
• Save the APN and, if necessary, select Access Point Names and tap the radio
button next to Mobile Web to set the profile as Default
• Press the Menu key
• Select Save
• Return to the Screen
MMS Configuration
¾ On the device, go to the Menu
¾ Select Settings
¾ Select Wireless & Networks (or Wireless Controls)
¾ Select Access Point Name
38
¾ Press Menu
¾ Select New APN
• For the Name: Enter Mobile MMS Tap OK
• For the APN: Enter att.mvno Tap OK
• For the Username Leave Blank
• For the Password: Leave Blank
• For the MMSC: enter http://mmsc.cingular.com Tap OK
• For the MMS Proxy: enter 66.209.11.33 Tap OK
• For the APN Type: as MMS Tap OK (Make sure mms is in lowercase letters)
• If Available for the Authentication Type: select PAP Select OK
¾ Press the Menu key
¾ Select Save
¾ Return to Home Screen
10) LYCA Mobile
Username: Imus
Password: Plus
39
Click SAVE & Reboot your Phone.
11. METRO PCS
APN Settings
¾ Name: MetroPCS
¾ APN: fast.metropcs.com
¾ Proxy: Not set
¾ Port: Not set
¾ User Name: Not set
¾ Password: Not set
¾ Server: Not set
¾ MMSC: http://metropcs.mmsmvno.com/mms/wapenc
¾ MMS Proxy: Not set
¾ MMS Port: Not set
¾ MCC: 310
¾ MNC: 260
¾ Authentication Type: None
¾ APN Type: default,mms,supl
¾ APN Protocol: IPv4
¾ APN Roaming Protocol: IPv4
¾ Enable/Disable APN: APN enabled
¾ Bearer: Unspecified
40
12. NET10
Follow the following steps:
Settings>Network>Acces Point Names> Click on Menu and Select ‘Add new APN’
Enter these settings:
¾ Name: NET10
¾ Apn: tfdata
¾ Port: 80
¾ Mmsc: http://mms-tf.net
¾ Mms Proxy: mms3.tracfone.com
¾ Mms Port: 80
If you see a field in your phone that was not listed here, leave it EMPTY or with the
Defaults. CLICK SAVE AT END.
Restart Your Phone!
13. PTEL
Before getting started, make sure your WiFi is turned OFF, and the phone is not in
Airplane Mode.
¾ Go to 'Settings' on your phone
¾ Go to 'Wireless & Networks'
¾ Go to 'Mobile Network'
¾ Go to 'Access Point Name'
¾ Press 'Menu' and select 'New APN'
¾ Enter the following settings (case sensitive):
¾ Name: PTEL Mobile
¾ APN: wholesale
¾ Proxy: [leave blank]
¾ Port: [leave blank]
¾ Username: [leave blank]
¾ Server: [leave blank]
¾ MMSC: http://wholesale.mmsmvno.com/mms/wapenc
41
¾ MMS Proxy: [leave blank]
¾ MMS Port: [leave blank]
¾ Authentication Type: [leave blank]
¾ APN Type: blank or internet and MMS
¾ Press menu and select 'Save'
¾ Make sure you select the 'PTEL Mobile' profile you just created
Next, you will need to remove the other APN's that are listed on your phone. To do that,
just select each APN, press the menu button and then select 'Delete APN'. Delete all of
the APN's until PTEL Mobile is the only one left.
Some Android™ phone models may not allow you to delete all of the APN's, or delete
the default APN. So you may want to visit the Google Play Store and download an
APN manager app. There are plenty of great free ones available.
14. Pure Talk
¾ Press Menu
¾ Select Settings
¾ Select Wireless & Networks
¾ Select Mobile Networks
¾ Check Data enabled
¾ Select Access Point Names
¾ Press Menu
¾ Select New APN
Enter the following information:
¾ Name: Pure TalkUSA
¾ APN: att.mvno
¾ Proxy: proxy.mvno.telrite.com
¾ Port: 80
¾ Username: <Not set>
¾ Password: <Not set>
¾ Server: <Not set>
¾ MMSC: http://mmsc.cingular.com
¾ MMS Proxy: proxy.mvno.telrite.com
¾ MMS Port: 80
42
¾ MCC: 310
¾ MNC: 410
¾ Authentication Type: <Not set>
¾ APN type: <Not set>
¾ Press Menu
¾ Select Save
¾ Reboot phone
15. Ready SIM Wireless
Internet on Android
¾ Select Settings
¾ Select Wireless and Networks
¾ Select Mobile Networks
¾ Select Access point Names
¾ Press Menu
¾ Press New APN or hit + symbol
Enter the following settings
¾ Name: Ready SIM (This is just a label so the wording does not matter)
¾ APN: roam
All other fields need to be left blank or whatever the default settings are
¾ Press Menu and Save
¾ Ensure the new Ready SIM APN is selected
¾ Restart your phone
MMS Settings for Picture Messaging and Video Messaging
¾ Insert the Ready SIM in to phone
¾ Select Settings
¾ Select Wireless and Networks
¾ Select Mobile Networks
¾ Select Access Point Names
¾ Press Menu
43
¾ Press New APN or + symbol
¾ In the new APN screen, enter the word ‘ready’ under name and the word
‘wholesale’ under APN (Username & Password blank)
¾ In the MMSC field enter: http://wholesale.mmsmvno.com/mms/wapenc
¾ If you are prompted to enter the MCC and MNC please use MCC: 310, MNC: 260
¾ Press Menu and Save
¾ Ensure the new Roam Mobility APN is selected
¾ Restart your phone if you are unable to use Data after a couple minutes
16. Red Pocket
Data and MMS
¾ Name: Red Pocket Mobile
¾ APN: att.mvno
¾ Proxy: proxy.mvno.rpmobileweb.com
¾ Port: 80
¾ Username: Blank
¾ Password: Blank
¾ Server: 66.209.11.33
¾ MMSC: http://mmsc.cingular.com
¾ MMS Proxy: proxy.mvno.rpmobileweb.com
¾ MMS Port: 80
¾ MMS Protocol: Blank
¾ MCC: 310
¾ MNC: 410
¾ Authentication type: Not set
¾ APN type: default,supl,mms
¾ Bearer: Unspecified
¾ Make sure "Mobile Data" is checked under Mobile Networks.
¾ Data Roaming should be off or unchecked.
17. Roam Mobility
Android Internet
¾ Insert Roam SIM in to phone
44
¾ Select Settings
¾ Select Wireless and Networks
¾ Select Mobile Networks
¾ Select Access Point Names
¾ Press Menu
¾ Press New APN or + symbol
¾ In the new APN screen, enter the word roam under name and APN (Username &
Password should be blank)
¾ If you are prompted to enter the MCC and MNC please use MCC: 310, MNC: 260
¾ Press Menu and Save
¾ Ensure the new Roam Mobility APN is selected
¾ Restart your phone
Picture & Video Messaging Settings (MMS)
¾ Insert the Roam SIM in to phone
¾ Select Settings
¾ Select Wireless and Networks
¾ Select Mobile Networks
¾ Select Access Point Names
¾ Press Menu
¾ Press New APN or + symbol
¾ In the new APN screen, enter the word ‘roam’ under name and the word
‘wholesale’ under APN (Username & Password blank)
¾ In the MMSC field enter: http://wholesale.mmsmvno.com/mms/wapenc
¾ If you are prompted to enter the MCC and MNC please use MCC: 310, MNC: 260
¾ Press Menu and Save
¾ Ensure the new Roam Mobility APN is selected
¾ Restart your phone if you are unable to use data after a couple minutes
18. Simple Mobile
Android 4.0 & 4.1 (Ice Cream Sandwich & Jelly Bean) - Internet and MMS
¾ Pull down the notifications screen & tap on Settings
¾ Tap on Mobile Data (some phones say "more"
¾ Tap Mobile Networks (some phones have "Access Point Names" here)
¾ Tap Access Point Names
45
¾ Press the menu button
¾ Select New APN
• Name: SIMPLE Mobile
• APN: simple
• Proxy:<Not set>
• Port:<Not set>
• Username:<Not set>
• Password:<Not set>
• Server:<Not set>
• MMSC: http://smpl.mms.msg.eng.t-mobile.com/mms/wapenc
• MMS Proxy:<Not set>
• MMS Port:<Not set>
• MCC: 310
• MNC: 260
• APN Type: default,supl,mms,admin
• If no APN settings are present, a restore to factory default settings may be
required.
¾ Select Menu and Save
¾ Go back one screen to the APN list and tap on the dot to Enable the SIMPLE
Mobile APN
¾ Restart phone & you're set!
19. SkyView Wireless
SkyView Wireless APN Settings
¾ Name: SkyView Wireless
¾ APN: att.mvno
¾ Proxy: 66.209.11.33
¾ Port: 80
¾ Username: Leave blank
¾ Password: Leave blank
¾ Server: Leave blank
¾ MMSC: http://mmsc.cingular.com
¾ MMS Proxy: Leave blank
¾ MMS Port: Leave blank
¾ MCC: Leave blank
46
¾ MNC: Leave blank
¾ APN Type: Leave blank
20. SOLAVEI
Step 1 - Attempt Automated Setup
Solavei Phone Settings have the ability to send settings to your device Over The Air
(OTA). We recommend you attempt to setup your phone with this before trying manual
data setup.
Please follow the below steps:
¾ Enter your IMEI or search for your phone in the Solavei Phone Settings and
select it.
¾ Depending on the compatibility of your device you will either be asked to enter
your phone number, or follow some manual instructions, if the latter then you
can use Step 2 below as a reference.
¾ Once you've entered your phone number and completed the Captcha box
(number confirmation), click Confirm.
¾ From there wait for the configuration message to appear on your phone.
¾ Once you've received it follow the prompts to install the settings, you may be
asked to install multiple times, but not more than two.
¾ The password is always 1234
Note: It can take up to 5 minutes for the OTA configuration message to get to your
phone. If you do not receive the OTA message, please attempt the manual setup steps
located below.
If you are still unable to access data and/or MMS after the installation, please try the
below generic Android data settings.
Step 2 - Generic Android Internet and MMS Settings
If you are unable to find the OTA for your particular Android phone below are some
generic settings that may work for you. If you don't have a specific field, just leave as
default and move to the next step.
¾ On the device, tap the Menu icon.
¾ Select Settings.
47
¾ Select Wireless & networks.
¾ Make sure Wi-Fi is Off (you can change this later) and Mobile network is On (or
checked).
¾ Tap on Mobile network.
¾ Tap on Access Point Names.
¾ Press the Menu key and tap Reset to Default.
¾ Press the Menu key and tap New APN
¾ Select Name: enter ‘solavei’ and tap OK.
¾ Select APN: enter ‘solavei’ and tap OK.
¾ Enter the user name and password listed below. If no value is listed, leave the
field blank.
• User name: <leave blank>
• Password: <leave blank>
¾ Select MMSC: enter http://solavei.mmsmvno.com/mms/wapenc and tap OK.
¾ Select MMS proxy: <leave blank>
¾ Select MMS port: <leave blank>
¾ Select MMS protocol: WAP 2.0
¾ MCC: 310
¾ MNC: 260
¾ Select : Authentication type: Not set
¾ Select APN type: default,mms (No spaces. Needs to match exactly)
• Alternate: default,mms,hipri,supl,admin,mobile
¾ APN Protocol: IPv4 or IPv4/IPv6
¾ APN Roaming Protocol: IPv4
¾ APN Enable/Disable: APN enabled.
¾ MVNO Type: IMSI
¾ MVNO Value: 310260x
¾ Press the Menu key and select Save
¾ Press the radio button next to Solavei to set the profile as default.
¾ Delete all non-Solavei APN's after saving the Solavei APN.
¾ At this time, turn the phone Off and then back On again.
¾ Test the settings by sending a picture message to yourself.
¾ Tap the Menu icon.
¾ Tap Browser.
¾ Enter a non-Google web site to test.
48
21. SPOT MOBILE
Configuring Data
You should be able to use everything as soon as you pop in your Spot Mobile USA SIM
Card. If you find a particular feature that is not working we have provided the steps
and settings you can enter manually.
Internet
¾ APN: wholesale
¾ Username: leave blank
¾ Password: leave blank
MMS
¾ APN: wholesale
¾ Username: leave blank
¾ Password: leave blank
¾ MMS Proxy: 216.155.165.50
¾ MMS Center: http://wholesale.mmsmvno.com/mms/wapenc
22. Speed Talk Mobile
Android 4.0, 4.1 & 4.2 (Ice Cream Sandwich & Jelly Bean) – Internet and MMS
¾ Pull down the notifications screen & tap on Settings
¾ Tap on Mobile Data (some phones say “more”)
¾ Tap Mobile Networks (some phones have “Access Point Names” here)
¾ Tap Access Point Names
¾ Press the Menu button
¾ Select New APN
• Name: stm
• APN: pwg
• Proxy:
• Port:
• Username:
• Password:
• Server:
• MMSC:http://pwg.mmsmvno.com/mms/wapenc
49
• MMS Proxy:
• MMS Port:
• MCC: 310
• MNC: 260
¾ Select Menu and Save
¾ Go back one screen to the APN list and tap on the dot to Enable the PWG Mobile
APN
¾ Restart phone & you’re set!
23. Straight Talk Wireless
Enter the following APN info if you are using Straight Talk AT&T service:
¾ Name: straight talk
¾ APN: tfdata
¾ Proxy: Not Set
¾ Port: Not Set
¾ Username: Not Set
¾ Password: Not Set
¾ Server: Not Set
¾ MMSC: http://mms-tf.net
¾ MMS Proxy: mms3.tracfone.com
¾ MMS Port: 80
Some have tweaked the following as well:
¾ MCC: 310
¾ MNC:410
¾ Auth Type: PAP
¾ APN type: default,supl,mms,hipri
¾ IPv4
¾ IPv4
¾ Bearer: uspecified
¾ MVNO type: None
Enter the following APN info if you are using Straight Talk T-Mobile service:
¾ Name: straight talk
¾ APN: wap.tracfone
50
¾ Proxy: Leave blank
¾ Port: 8080
¾ Username: Not Set
¾ Password: Not Set
¾ Server: Not Set
¾ MMSC: http://mms.tracfone.com
¾ MMS Proxy: Leave blank
¾ MMS Port: Leave blank
• Save your new APN.
• Reboot your phone by powering it off and then back on.
• Enjoy your service on Straight Talk.
24. T-Mobile
Here are the specific T-Mobile APN Settings you’ll need to add:
¾ APN: epc.tmobile.com and fast.t-mobile.com
¾ Proxy: (blank)
¾ Port: (blank)
¾ username: (blank)
¾ password: (blank)
¾ Server: wap.voicestream.com
¾ MMSC: http://mms.msg.eng.t-mobile.com/mms/wapenc
¾ MMS Proxy: 216.155.165.50
¾ MMS Port: (blank)
¾ MCC: 310
¾ MNC: 260
¾ Authentication Type: (not set)
¾ APN Type: default
¾ APN Protocol: IPv4
¾ Bearer: unspecified
25. TELCEL AMERICA
Create a new APN (Access Point Name). Enter only the settings listed below:
51
¾ Select the APN you just created.
¾ Delete any old APN from your phone if possible
26. TRUPHONE
Enter APN (Data) Settings Manually
¾ From the Home screen, press 'Menu' and go to the Settings area on your device
¾ Go to 'Wireless & networks', then 'Mobile networks', then 'Access Point Names',
which will take you to the APN screen
¾ Within this screen, you may already have other APNs, or the screen may be
blank. Press Menu and select 'Add new APN'
¾ Enter 'Truphone' as the Name, and 'truphone.com' as the APN. All other fields
should be left blank. Save and return to the APN screen
¾ Check your new APN is active, with a colored button next to it. If not, simply
click on it to activate it. You will now be ready to start using data.
27. ULTRA MOBILE
¾ From the Home screen, press 'Menu' and go to the Settings area on your device
52
¾ Go to 'Wireless & networks', then 'Mobile networks', then 'Access Point Names',
which will take you to the APN screen
¾ Within this screen, you may already have other APNs, or the screen may be
blank. Press Menu and select 'Add new APN'
• Name – Ultra
• APN – wholesale
• Proxy – blank
• Port – blank
• Username – blank
• Server – blank
• MMSC – http://wholesale.mmsmvno.com/mms/wapenc
• MMS Proxy – blank
• MMS Port – blank
• MCC – 310
• MNC – 260
• Authentication Type – blank
• APN Type- default,supl,mms
53
Warning Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
‐‐ Reorient or relocate the receiving antenna.
‐‐ Increase the separation between the equipment and receiver.
‐‐ Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
‐‐ Consult the dealer or an experienced radio/TV technician for help.
15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference,
(2) this device must accept any interference received, including interference that may
cause undesired operation.
SAR tests are conducted using standard operating positions accepted by the FCC/IC
with the phone transmitting at its highest certified power level in all tested frequency
bands, although the SAR is determined at the highest certified power level, the actual
SAR level of the phone while operating can be well below the maximum value, in
general, the closer you are to a wireless base station antenna, the lower the power
output.
54
The SAR limit of (FCC/IC) is 1.6 W/kg averaged over one gram of tissue. Device types:
A5 has also been tested against this SAR limit. The highest SAR value reported under
this standard during product certification for use at the ear is 0.273W/kg and when
properly worn on the body is 0.791W/kg. This device was tested for typical body-worn
operations with the back of the handset kept 10.0mm from the body. To maintain
compliance with FCC RF exposure requirements, use accessories that maintain a
10.0mm separation distance between the user's body and the back of the handset. The
use of belt clips, holsters and similar accessories should not contain metallic
components in its assembly.
Non-compliance with the above restrictions may result in violation of RF exposure
guidelines.
Use Conditions:
This device complies with Industry Canada licence-exempt RSS standard(s):
Operation is subject to the following Two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device. CAN ICES-3 (B)/NMB-3(B)
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.
55
LIMITED WARRANTY POLICY**
What Warranty Covers:
iDROID offers limited manufacturer warranty from defects in material and
workmanship during the warranty period. If a product proves to be defective in
material or workmanship during the warranty period. iDROID will, at its sole
option, repair or replace the product with a similar product. Replacement
Product or parts may include remanufactured or refurbished parts or
components. The replacement will be covered by the balance of the time
remaining on the customer’s original limited warranty. iDROID provides no
warranty for the third-party software included with the product or installed by
the customer.
How Long the Warranty is Effective:
USA/CANADA/MEXICO:
iDriod products are warranted for one (1) year for parts and labor from day of
purchase. Only Applicable on authorized Devices for USA/CANADA/MEXICO.
European Union:
iDriod products are warranted for two (2) years for parts and labor from day of
purchase. Only Applicable on authorized Devices for Europe.
Who the Warranty Protects:
This warranty is valid only for the first consumer purchaser. You must show proof of
purchase.
The Warranty does not Cover Damage, Deterioration or Malfunction resulting from:
• Accident, misuse, neglect, fire, water, lightning, cracked display, and deep
scratches or signs of impact, or other acts of nature, unauthorized product
modification, or failure to follow instructions supplied with the product.
• Repair or attempted repair by anyone not authorized by iDROID.
• Damage to or loss of any programs, data or removable storage media.
• Software or data loss occurring during repair or replacement.
• Any damage of the product due to shipment.
56
• Removal or installation of the product.
• Causes external to the product, such as electric power fluctuations or
failure.
• Use of supplies or parts not meeting iDROID’s specifications.
• Normal wear and tear.
• Failure of owner to perform periodic product maintenance as stated in
User Guide.
• Any other cause that does not relate to a product defect.
• Damage caused by static (non-moving images displayed for lengthy
periods of time (also referred to as image burn –in).
• Damage to, or abuse of the coating on the surface of the display through
inappropriate cleaning as described in product User Guide.
NOTE: Warranty Coverage does not cover Accessories, Chargers, Cables, Stylus and
Buttons!
For Information on obtaining Warranty service, Visit our Website at
www.iDroidUSA.com/warranty
More Technical Support Questions & Answers:
www.iDroidUSA.com/
** Latest Warranty Policy available on the Website iDroidUSA.com
