iDTRONIC M900 Embedded UHF Module M900 User Manual

iDTRONIC GmbH Embedded UHF Module M900

User Manual

SOLTEC Soluzioni Tecnologiche S.r.l.
UHF
RFID System

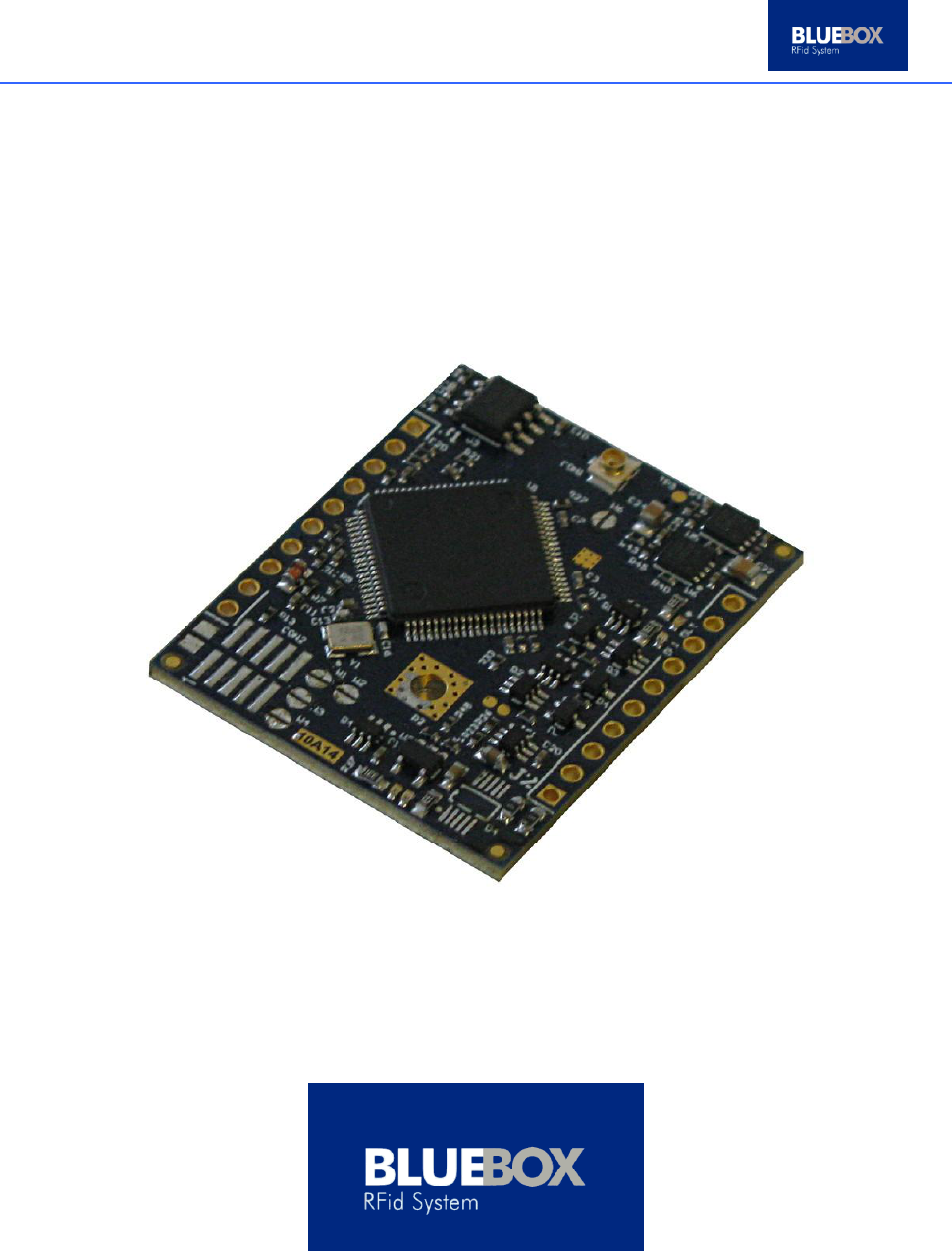

BLUEBOX OEM UHF
1 RF PORT, 500mW RF POWER
TECHNICAL CONSTRUCTION FILE
SOLTEC Soluzioni Tecnologiche S.r.l.
OEM UHF 1CH 500mW - TCF Index – Rev. 00 Page 1 of 5
BLUEBOX OEM UHF
1 RF PORT, 500mW RF POWER
TECHNICAL DOCUMENTATION
The documents listed in the following table form the Technical Construction File
of the 1-Port 500mW BLUEBOX OEM UHF module.
Description
File
Revision
A
TCF index (this document)
A - OEM UHF 1Port
500mW - TCF index.pdf
00 of
05.06.2015
B
List of products / items coding
B - OEM UHF 1Port
500mW - items.pdf
C
Module description
C - OEM UHF 1Port
500mW - desc.pdf
00 of
05.06.2015
D
10B14 electronic board description
D - 10B14_desc_00.pdf
E
10B14 board schematic, variant 00
(board all populated)
E - 10B14 Schematic
_00_R0.pdf
0 of
16.12.2014
F
10B14 pcb documentation
F - 10B14 PCB Print.pdf
G
10B14 pcb assembly
G - 10B14 PCB Assembly
16.12.2014
H
10B14 component part list, variant 00
(board all populated)
H -
10B14_lpc_00_REV0.2.pdf
I
10B14 component part list, variant 01
(for item 1061U)
I -
10B14_lpc_01_REV0.2.pdf
0.2 of
05.06.2015
J
10B14 component part list, variant 02
(for item 1071U)
J -
10B14_lpc_02_REV0.2.pdf
K
10B14 component part list, variant 03
(for item 1061U-S)
K -
10B14_lpc_03_REV0.pdf
0 of
05.06.2015
L
10B14 component part list, variant 04
(for item 1071U-S)
L -
10B14_lpc_04_REV0.pdf
M
Module manual
M - B1U003103E - OEM
UHF 1CH 500mW 103
eng.pdf
1.03 of
13.04.2015
N
Module datasheet
N - BD1U003000E - OEM
UHF 1CH 500mW Rev 0
eng.pdf
O
Module shield
O - MME00077.pdf
25.11.2014
SOLTEC Soluzioni Tecnologiche S.r.l.
OEM UHF 1CH 500mW – Module Description – Rev. 00 Page 2 of 5

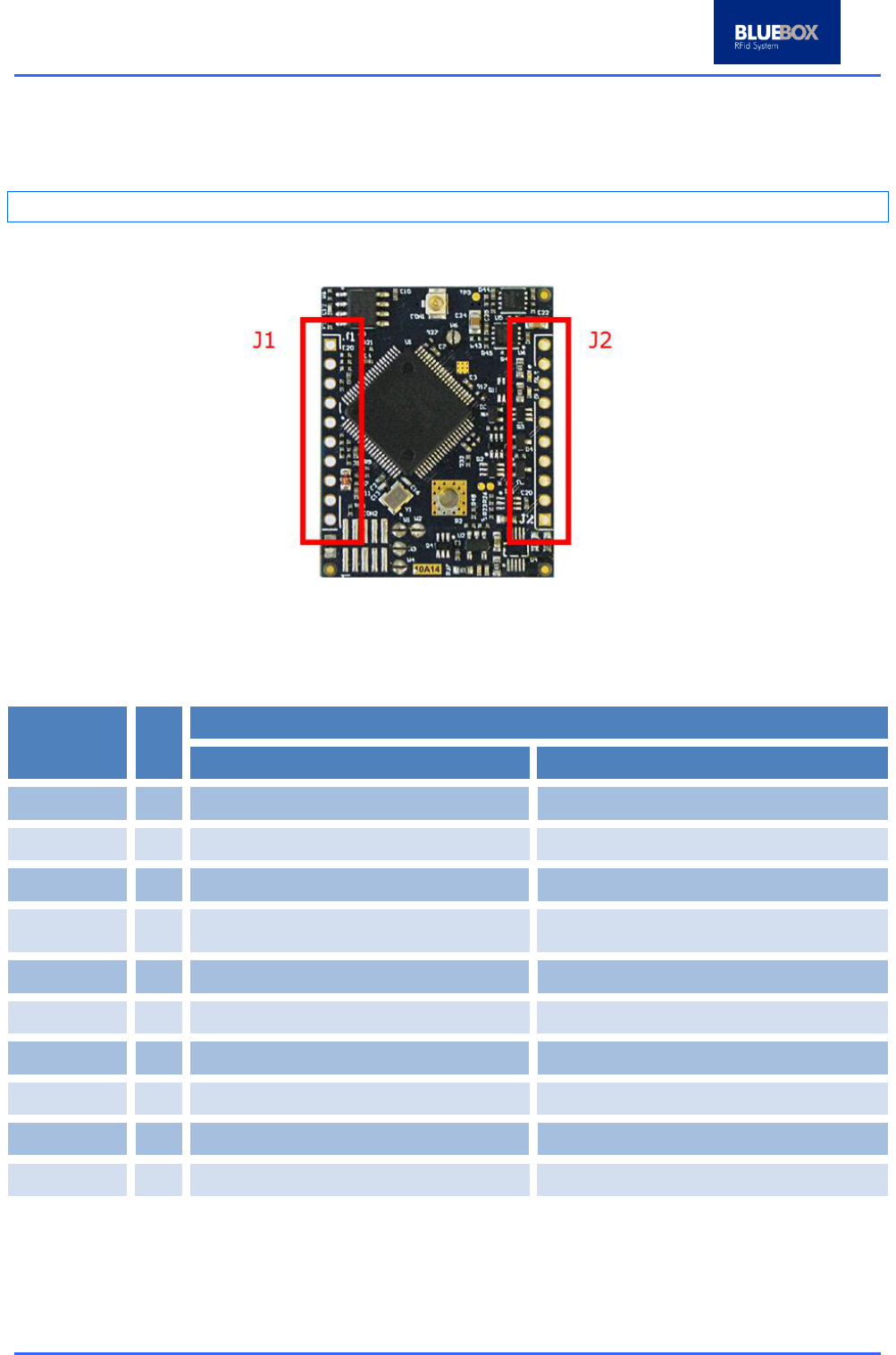

Connections
Connections on J1:
Pin
No
Description
1061U
1071U
n.c.
1
Not connected
Not connected
n.c.
2
Not connected
Not connected
n.c.
3
Not connected
Not connected
- Vin
(Gnd)
4
DC power supply GND
DC power supply GND
n.c.
5
Not connected
Not connected
n.c.
6
Not connected
Not connected
n.c.
7
Not connected
Not connected
n.c.
8
Not connected
Not connected
n.c.
9
Not connected
Not connected
n.c.
10
Not connected
Not connected
SOLTEC Soluzioni Tecnologiche S.r.l.
OEM UHF 1CH 500mW – Module Description – Rev. 00 Page 3 of 5
Connections on J2:
Pin
No
Description
1061U
1071U
RX
1
TTL serial line (from host)
RS232 serial line (from host)
TX
2
TTL serial line (to host)
RS232 serial line (to host)
TEST
3
Do not connect!!!
Do not connect!!!
I/O 1
4
‘Universal’ digital Input / Output
‘Universal’ digital Input / Output
n.c.
5
Not connected
Not connected
I/O 2
6
‘Universal’ digital Input / Output
‘Universal’ digital Input / Output
Led 2
7
‘Red’ external led
‘Red’ external led
Led 1
8
‘Green’ external led
‘Green’ external led
- Vin (Gnd)
9
DC power supply return
DC power supply return
+ Vin
10
DC power supply DC 5 V +/- 5%
DC power supply DC 5 V +/- 5%
Notes:
Power supply the board with a low noise LDO voltage regulator (for
example AS1364 from Austrian Microsystems) to avoid reader
performance reduction due to noise interferences.
IMPORTANT pin 3 must be leaved unconnected (ABSOLUTLY DO NOT
CONNECT)
External LEDs wiring: anodes respectively on pin 7 and pin 8, cathodes
on pin 9 (GND); when activated, the LED is +5V powered through a
limiting 330 resistor mounted on the module
SOLTEC Soluzioni Tecnologiche S.r.l.
B1U003103E OEM UHF 1CH 500mW Manual – Rev. 1.03 Page 4 of 5

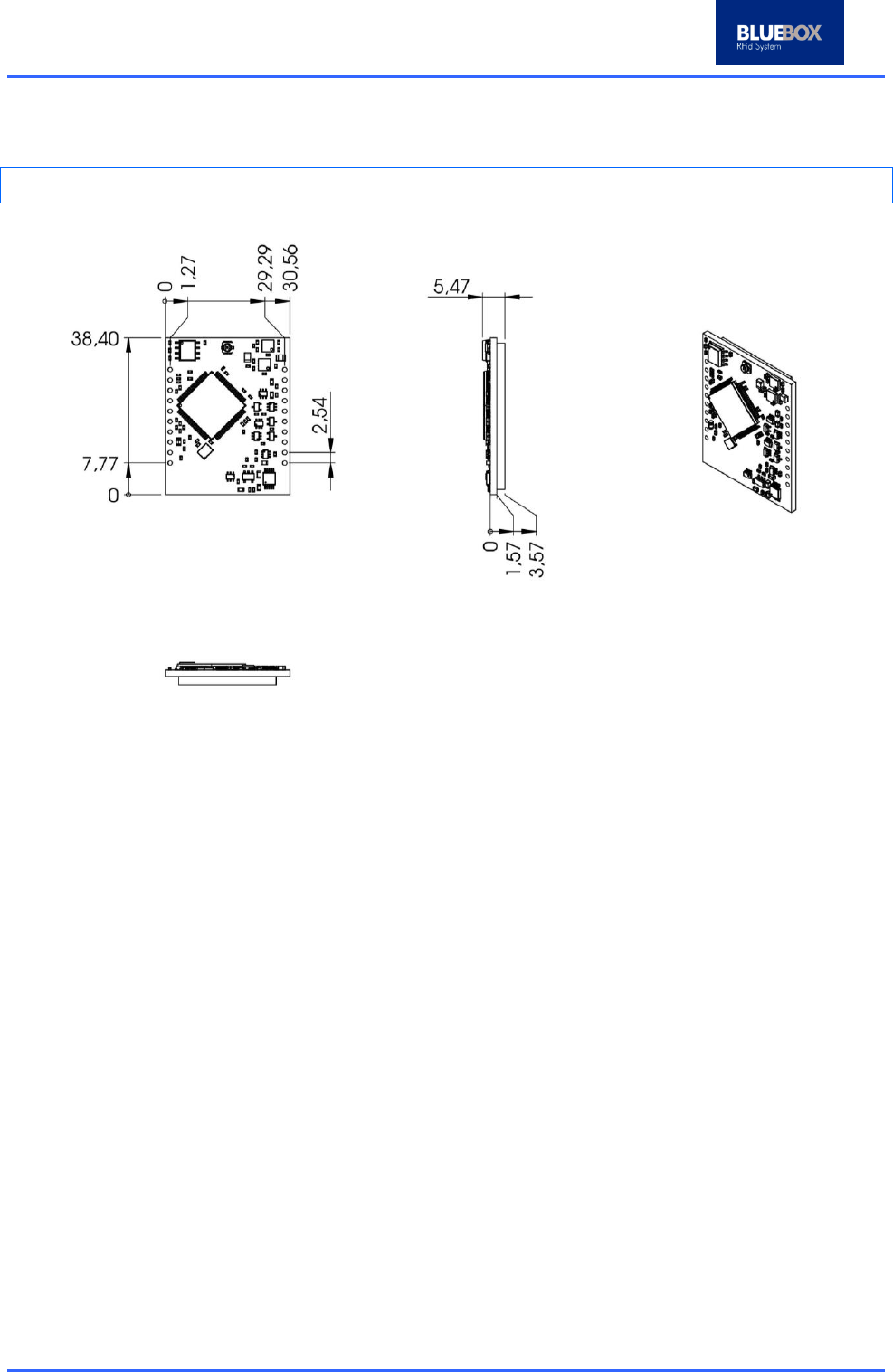

Mechanical Drawings
Dimensions in mm.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device, for example, USB dongle like
transmitters is forbidden.
This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and
user body.
If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is
installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC
ID: S6A-M900 Or Contains FCC ID: S6A-M900”
when the module is installed inside another device, the user manual of this device must contain below warning statements;
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the
product.
SOLTEC Soluzioni Tecnologiche S.r.l.
OEM UHF 1CH 500mW – Module Description – Rev. 00 Page 5 of 5
Antenna information
Manufacturer: Shenzhen ARuiShi Technology Co. Ltd.
M/N:C-5M
Antenna gain: 1.5dBi
