B1U002103E Embedded UHF Module M950 Page 1 of 7
Embedded
UHF Module
M950
B1U002103E Embedded UHF Module M950 Page 2 of 7
Preface
iDTRONIC GmbH reserves the right to make changes to its products or services
or to discontinue any product or service at any time without notice. iDTRONIC
GmbH provides customer assistance in various technical areas, but does not
have full access to data concerning the use and applications of customer's
products. Therefore, iDTRONIC GmbH assumes no liability and is not
responsible for customer applications or product or software design or
performance relating to systems or applications incorporating iDTRONIC GmbH
products. In addition, iDTRONIC GmbH assumes no liability and is not
responsible for infringement of patents and/or any other intellectual or
industrial property rights of third parties, which may result from assistance
provided by iDTRONIC GmbH. iDTRONIC GmbH products are not designed,
intended, authorized or warranted to be suitable for life support applications or
any other life critical applications that could involve potential risk of death,
personal injury or severe property or environmental damage. With the edition
of this document, all previous editions become void. Indications made in this
manual may be changed without previous notice. Composition of the
information in this manual has been done to the best of our knowledge.
iDTRONIC GmbH does not guarantee the correctness and completeness of the
details given in this manual and may not be held liable for damages ensuing
from incorrect or incomplete information. Since, despite all our efforts, errors
may not be completely avoided, we are always grateful for your useful tips.
The installation instructions given in this manual are based on advantageous
boundary conditions. iDTRONIC GmbH does not give any guarantee promise
for perfect function in cross environments. The companies or products
mentioned in this document might be brands or brand names of the different
suppliers or their subsidaries in any country. This document may be
downloaded onto a computer, stored and duplicated as necessary to support
the use of the related iDTRONIC GmbH products. Any other type of duplication,
circulation or storage on data carriers in any manner not authorized by
iDTRONIC GmbH represents a violation of the applicable copyright laws and
shall be prosecuted.
Safety Instructions / Warning - Read before start-up!
The device may only be used for the intended purpose designed by the
manufacturer. The operation manual should be conveniently kept
available at all times for each user.
Unauthorized changes and the use of spare parts and additional devices
that have not been sold or recommended by the manufacturer may
cause fire, electric shocks or injuries. Such unauthorized measures shall
exclude any liability by the manufacturer.
B1U002103E Embedded UHF Module M950 Page 3 of 7
The liability-prescriptions of the manufacturer in the issue valid at the
time of purchase are valid for the device. The manufacturer shall not be
held legally responsible for inaccuracies, errors, or omissions in the
manual or automatically set parameters for a device or for an incorrect
application of a device.
Repairs may be executed by the manufacturer only.
Only qualified personnel should carry out installation, operation, and
maintenance procedures.
Use of the device and its installation must be in accordance with national
legal requirements and local electrical codes.
When working on devices the valid safety regulations must be observed.
B1U002103E Embedded UHF Module M950 Page 4 of 7
1 Introduction

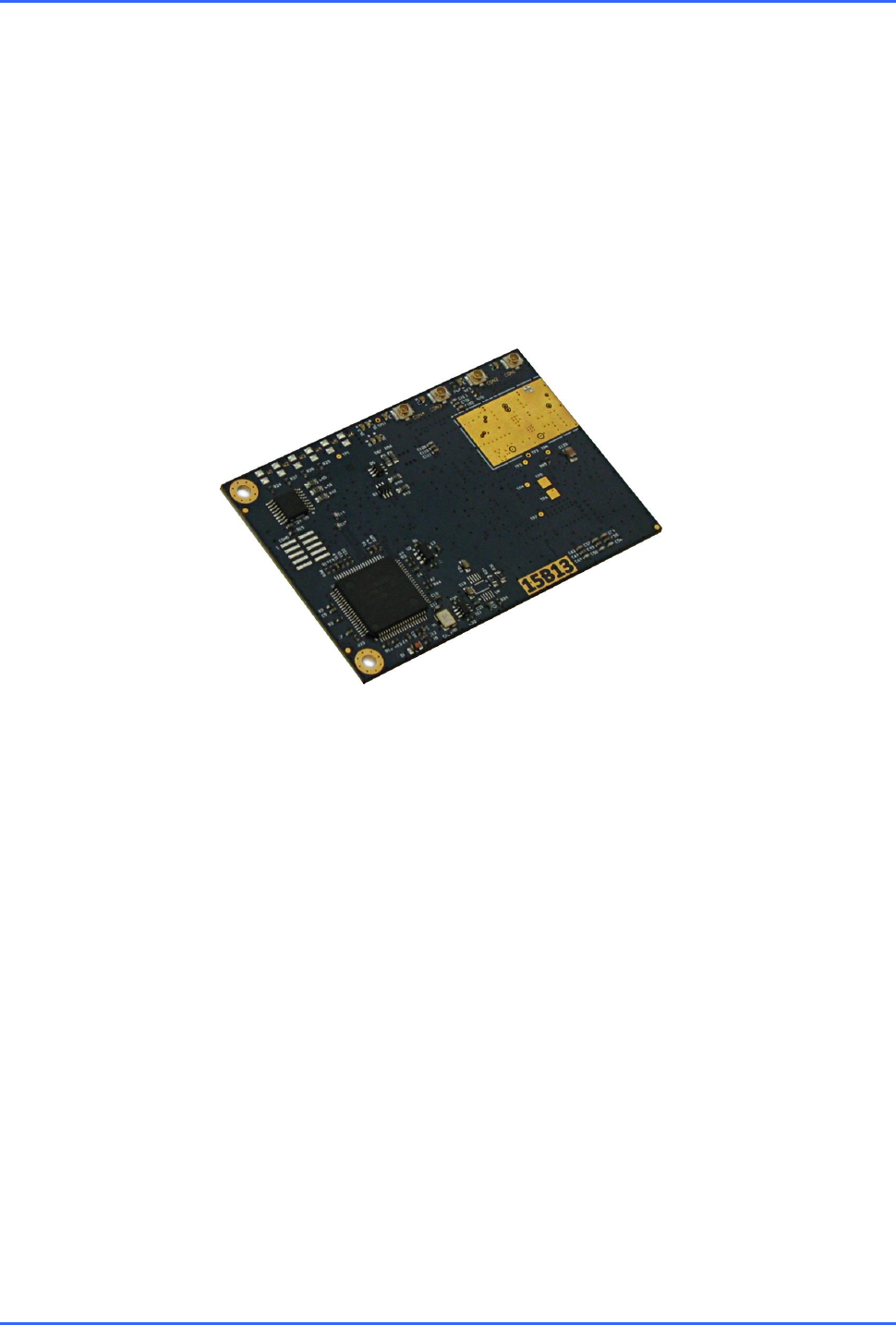

The Embedded UHF Module M950 module, hereinafter named M950, is a
little (dimensions 66.00 x 45.00 x 6.50 mm) read/write RFID device for
industrial application and is suitable to be integrated in equipments that
require 902.75 MHz – 927.25 MHz RFID technology. The M950 module
communicates with a ‘host’ system (typically the equipment in which it is
integrated) through a RS232 serial line (item 1051U) or a CMOS/TTL serial line
(item 1041U) and acts as a joint through a set of commands between the host
system and a RFID tag present near the antenna. A 'master/slave' protocol is
used for the communication between the ‘host’ system and the M950 module.
Through the serial line, it is also possible to configure the functional
parameters and to upgrade the firmware, the ‘BLUEBOX Show’ program of the
SDK is foreseen to explicate these operations. Furthermore, the M950 module
is able to handle two digital I/O. The M950 module is furnished without the
antenna that must be arranged by the user. The connections are available on
two rows of twelve solder pins (pitch 2.54 mm). The M950 integrates an
antenna matching network and an auto-tuning procedure which allows to
improve its performances with different antennas in different environments.
The M950 module is available in two versions that are characterised by the
electrical characteristics of the serial line, as depicted in the following table:
Ordering Code
Communication Interface
1041U
RS232-TTL
1051U
RS232
B1U002103E Embedded UHF Module M950 Page 5 of 7
2 Mechanical View (in mm)
1
Reading distance depends on transponder type, antenna and environmental conditions.
B1U002103E Embedded UHF Module M950 Page 6 of 7
FCC Requirement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device, for example, USB dongle like
transmitters is forbidden.
This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and
user body.
If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is
installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC
ID: S6A-M950 Or Contains FCC ID: S6A-M950”
when the module is installed inside another device, the user manual of this device must contain below warning statements;
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the
product.
B1U002103E Embedded UHF Module M950 Page 7 of 7
Antenna information
Manufacturer: Shenzhen ARuiShi Technology Co. Ltd.
M/N:C-10M
Antenna gain: 3dBi
