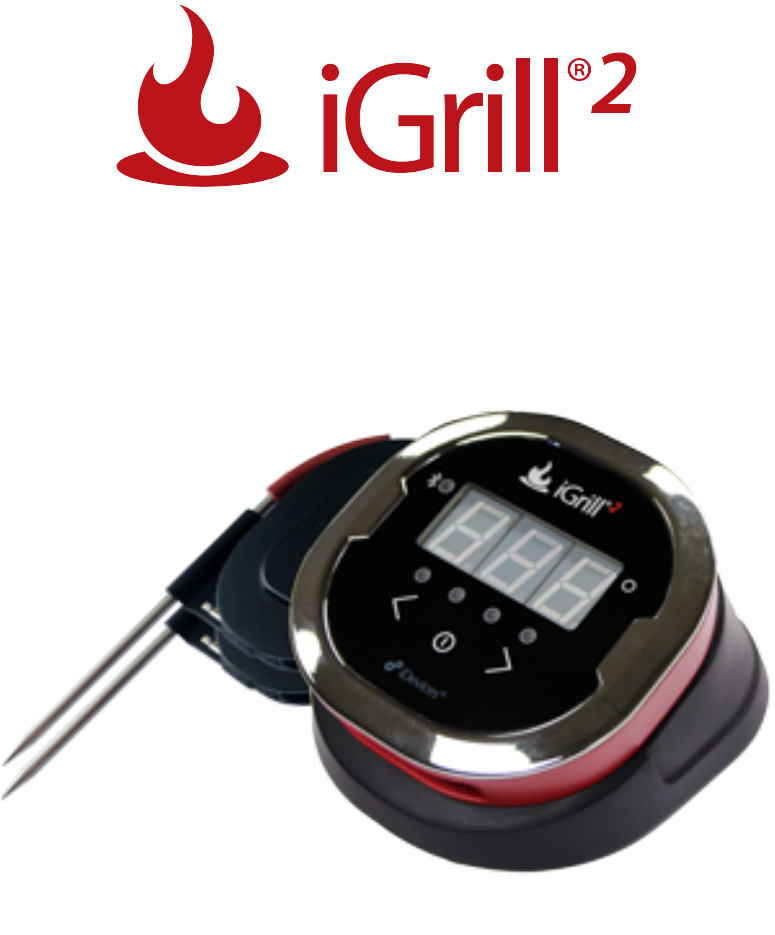

iDevices BRCM1078 Bluetooth Wireless Grilling Thermometer User Manual iGrill2Manual v1 0

iDevices, LLC Bluetooth Wireless Grilling Thermometer iGrill2Manual v1 0

15_iGrill2 UserMan

User Manual
Updated for iDevices® Connected and iOS 7
iDevices, LLC iGrill2 User Manual
v1.0
3
3
Table of Contents
1.!In the Box ........................................................................................................ 4!
2.!Quick Start Instructions ................................................................................. 4!
3.!Getting Started ............................................................................................... 5!
3.1!iDevices Connected App ................................................................................ 5!
3.2!Batteries ........................................................................................................... 5!
3.3!Powering On & Off ......................................................................................... 6!
3.4!Connecting ....................................................................................................... 6!
3.6!Probe Use ......................................................................................................... 8!
4.!Using the iGrill2 .............................................................................................. 9!
4.2!Probe Toggle Buttons ..................................................................................... 9!
4.3!Proximity Sensor ........................................................................................... 10!
4.4!Custom & Preset Alarms ............................................................................... 10!
4.5!Renaming Probes .......................................................................................... 11!
4.6!Timer Tool ...................................................................................................... 11!
4.7!Globe Tool ..................................................................................................... 12!
4.8!Graph Tool ..................................................................................................... 12!
5.!Problem Solving .......................................................................................... 12!
6.!Frequently Asked Questions: .................................................................... 14!
6.1!I don’t have a device with which to pair my iGrill2. Can I still use it? ..... 14!
6.2!What should I do if I’m having trouble connecting? ................................ 14!
6.3!I’m frozen on my home screen when I attempt to enter the iDevices
Connected app. What should I do? ...................................................................... 14!
7.!Disclaimer .................................................................................................... 15!
8.!Regulations .................................................................................................. 15!
iDevices, LLC iGrill2 User Manual
v1.0
4
4
1. In the Box
Inside your iGrill2 box, you will find:
• 1 iGrill2
• 2 AA Batteries
• 2 Pro Meat Probes
• 2 Probe Wraps
• 2 Colored Probe Indicators
• 1 Optional Magnetic Disc
• Quick Start Guide
2. Quick Start Instructions
1. Download the iDevices Connected app from the App Store℠ and launch it
from your iPad® (generation 3+), iPad® mini, iPhone® (generation 4S+) or
iPod touch® (generation 5+).
2. Enable Bluetooth on your smart device under ‘Settings’.
3. Separate the iGrill2 from its base by firmly holding the base with one hand
and gently pulling the top of the iGrill2 upwards with the other hand.
4. On the underside of the iGrill2, depress and remove the battery door. Insert
the two supplied AA batteries with their negative terminals compressing a
spring and reinstall the battery door.
5. Clip the iGrill2 top back into its base.
6. Plug one or more probes into the probe ports.
7. Press the iGrill2 power button located at the bottom of the faceplate
between the < and > buttons for 2 seconds. The iGrill2’s display will
animate and a single beep will sound, indicating that the device has
powered on.
8. Open the iDevices Connected app to connect to your iGrill2. Click on the
iDevices logo in the gray toolbar at the top of the app. Select your iGrill2
from the dropdown menu.
9. You are ready to use your iGrill2!
iDevices, LLC iGrill2 User Manual
v1.0
5
5
3. Getting Started
3.1 iDevices Connected App
The iDevices Connected app provides all of the functionality and customization
you’ll need to get the most out of your iGrill2. The iDevices Connected app is
compatible with the following devices:
• iPad® mini (all generations)
• iPad® (3rd & higher)
• iPhone® (4S & higher)
• iPod® touch (5th gen & higher)
You must be running iOS 7+ on your device to use the iDevices Connected
app. Please visit the App Store℠ and search “iDevices Connected” to download
the free iDevices Connected app. Once you’ve downloaded the app, you’ll
have access to links for instructional videos, step-by-step instructions and FAQ’s
for troubleshooting
3.2 Batteries
To prepare your iGrill2 for its first use, follow these steps:
• Separate the iGrill2 from its base by holding the base with one hand and
gently pulling the iGrill2 upwards with the other hand.
• On the underside of the iGrill2, depress and remove the battery door.
• Insert the two supplied AA batteries with their negative terminals
compressing a spring and reinstall the battery door.
NOTE:
• The same steps are used to replace the batteries in the iGrill2
iDevices, LLC iGrill2 User Manual
v1.0
6
6
3.3 Powering On & Off
To turn on the iGrill2, follow these steps:
• Press the power button located at the bottom of the faceplate between
the < and > buttons.
• The iGrill2’s display will animate, and a single beep will be heard,
indicating it has powered on.
To turn off the iGrill2, follow these steps:
• Press and hold down the power button located at the bottom of the
faceplate between the < and > buttons for 3 seconds. The display will
show “OFF”.
• Upon releasing the power button, the iGrill2 will turn off.
Auto Shut-Off
• The iGrill2 will stay powered on for 5 minutes before automatically
turning off if there are no probes installed and it is not connected to a
smart device.
• The iGrill2 will stay powered on for 8 hours before automatically turning
off if not paired to a smart device and probes are installed.
• The iGrill2 will stay powered on until the battery is depleted if at least 1
probe is installed and it is paired with a smart device.
3.4 Connecting
To connect your iGrill2 to your iPad, iPhone or iPod touch, follow these steps:
• Open Settings
• Tap Bluetooth
• Set Bluetooth to On
• While turned on, place your iGrill2 next to your Apple device and open
the iDevices Connected app. Your device will automatically recognize
any available iGrill2 devices and display them in the device list. You can
view your device list by tapping the iDevices logo at the top of the app.
• Select your iGrill2 from the device list menu. You will then be sent a
pairing request. When you accept, your device will pair with the iGrill2
and you are ready to configure your settings and start grilling!
iDevices, LLC iGrill2 User Manual
v1.0
7
7
To connect an additional iGrill2 (or other iDevices product) device to your iPad,
iPhone or iPod touch follow these steps:
• While turned on, place your iGrill2 (or other iDevices product)
next to your Apple device and open the iDevices Connected app.
• Tap on the grey bar located at the top of the screen to expose the
device menu. Select the product you would like to pair with from the
device menu. Your Apple device will display a pairing request. Once
accepted, your Apple device will pair with the additional product and
you are ready to configure your settings and start grilling!
3.5 Mounting
• The iGrill2’s base is magnetic for convenient positioning on a cool
portion of your grill, smoker or other magnetic surfaces.
• The iGrill2 can be taken out of its base, rotated 180° and placed back
into its base for two different viewing angles.
• The iGrill2 comes with an optional magnetic disc with adhesive on one
side. This allows the iGrill2 to magnetically mount to a non-magnetic
surface. The magnetic disc has a protective cover on its face to protect it
from being scratched.
To mount your magnetic disc, please follow the below steps:
• Clean the surface thoroughly where the magnetic disc will be adhered to
ensure proper bonding.
• Remove the film covering the adhesive on the magnetic disc (not the
scratch protection film on the face of the disc).
• Adhere the magnetic disc to your desired surface.
• Let the magnetic disc bond to the surface for at least 24 hours before
mounting the iGrill2 to it.
NOTE:
• The base of the iGrill2 is not designed to withstand high heat and it
must be placed on a cool surface. If the surface is too hot to touch, it’s
too hot for the base!
iDevices, LLC iGrill2 User Manual
v1.0
8
8
3.6 Probe Use
• Acceptable Temperature Range: -22°F to 700°F (-30ºC – 371ºC)
• The iGrill2 probes should always be inserted into the center of the item
being cooked for an accurate temperature reading.
• The iGrill2 colored probe indicators are for visual identification of the
probe(s) within the app and cosmetic purposes only. They are not
designed for heat safety.
• The iGrill2 probes should be cleaned by hand with a dishcloth, standard
dishwashing soap and warm water. The probes are not dishwasher safe.
Take precaution not to get the probe’s wiring wet.
• The iGrill2 probe wraps allows for convenient storage of your probes
and are magnetic so that they can be stored under your iGrill2 when not
in use.
NOTE:
• Be sure to avoid water exposure to the probes’ wiring as well as the area
where the probes’ wiring meets the probes. The iGrill2 probes are not
waterproof and damage may result from water exposure. Probes should
never be submersed in water.
• When using a Pro Meat Probe, be sure to route the probe wire where it
will not be exposed to flames or temperatures exceeding 572° or 300ºC.
iGrill2 comes equipped with two Pro Meat Probes which can be exposed
to temperatures as high as 700ºF or 371ºC.
• Temperatures below -22°F or above 572°F (-30C – 300C) will not display
in the iDevices Connected app and will cause the probe to disappear
from connection.
3.7 Probe Wrap Use
To wrap your iGrill2 probe on the probe wrap:
• Hold the probe wrap so that the clip segment is on the bottom left and
the iDevices logo is legible in the center of the probe wrap.
• Snap the probe into the probe wrap’s clip, ensuring that the probe’s
body follows the contour of the probe wrap and leaves a ½ inch gap
between the probe and the wire channel of the probe wrap. The tip of
the probe should be pointing downward.
• Wrap your probe’s wire clockwise around the probe wrap.
• When you reach the adapter end of the probe wire, it can be inserted
into the probe wrap’s wire channel to secure the wrapping.
iDevices, LLC iGrill2 User Manual
v1.0
9
9
4. Using the iGrill2
4.1 Display
The iGrill2’s display contains the following:
Display
• Displays temperature of currently active probe.
• Displays “DC” for temperatures below set range or below -22°F (-30ºC).
• Displays “DH” for temperatures above set range or above 572°F (300ºC).
• Displays “OFF” during power off sequence.
• Animates during power on sequence and during reset.
Bluetooth LED
• Blinks blue when discoverable and awaiting pairing.
• Illuminates solid blue when paired.
Probe Indicator LEDs
• Far left side LED illuminates to indicate Probe 1 temperature being
displayed.
• Middle left side LED illuminates to indicate Probe 2 temperature being
displayed.
• Middle right side LED illuminates to indicate Probe 3 temperature being
displayed.
• Far right side LED illuminates to indicate Probe 4 temperature being
displayed.
4.2 Probe Toggle Buttons
The iGrill2 has two buttons adjacent to the power button to toggle between
probes when there is more than one probe connected.
• Pressing the < or > button will switch from the currently displayed probe
temperature (as indicated by the illuminated probe indicator LED) to the
next probe temperature in that direction.
• Holding either the < or > button down for 1 second will activate a cycle
that will continuously cycle through displaying each probe’s
temperature.
• Pressing the <, >, or power button while the alternating display cycle is
activated will disable the display cycle.
iDevices, LLC iGrill2 User Manual
v1.0
10
10
4.3 Proximity Sensor
The use of Bluetooth Smart allows the iGrill2 to sense when a paired device
moves in or out of range. The iGrill2 will automatically wake and sleep at the
below distances to conserve power:
• Sleep ~ 30 feet away
• Wake ~ 5 feet away
4.4 Custom & Preset Alarms
Manage Apple device alarms:
If you are having issues hearing the alarms from the iDevices Connected app,
try these steps:
• Open Settings on your device.
• Tap “Notification Center”.
• Choose the iDevices Connected app and make sure to enable
notifications, including “Sounds” and “Alerts”.
NOTE:
• Make sure the volume settings for your phone are properly set. If your
sounds are off or set at a low setting, you may not hear the alarm
properly.
Manage iDevices Connected app alarms:
Within the app, tap the three dashes (---) to the right of a connected probe’s
running temperature. This will bring you to your “Choose Preset” options.
Preset Alarms:
The iDevices Connected app offers preset alarms for many types of meats and
cooking temperatures. Tapping a preset alarm will set it.
Custom Preset Alarms:
Custom preset alarms can be made in two styles, peak and range.
Peak: Alarm will sound when probe temperature reaches set peak
temperature.
Range: Alarm will sound when probe temperature is above the highest
temperature or below the lowest temperature.
iDevices, LLC iGrill2 User Manual
v1.0
11
11
Creating a custom preset alarm:
• Tap “Create New”.
• Name your preset under “Alarm Title”.
• Set temperature(s).
• Tap “Save”.
NOTE:
• Your custom preset will be saved in the “My Peak Presets” and “My
Range Presets” sections of the alarm screen.
• The iDevices Connected app will not display temperatures below -22°F
(-30°C) or above 572°F (300ºC).
• When your target temperature has been reached, the iGrill2 will produce
an audible tone and the iDevices Connected app alarm will alert you
with a notification.
• When a temperature reading goes outside your target range, the iGrill2
will produce an audible tone and display “DC” or “DH” (indicating a
temperature that is below or above range, respectively) and the iDevices
Connected app alarm(s) will alert you.
4.5 Renaming Probes
A probe can be renamed by tapping the number of the probe to the left of the
running temperature.
4.6 Timer Tool
Create a new timer:
• Under “More” located at the bottom of the screen tap the “Timers” icon.
• Tap “Create New” to create a new timer.
• Add a timer title.
• Set desired time length using scroll wheels.
• Tap “Save” to save the timer for future use.
• Swipe the timer on to begin counting down.
iDevices, LLC iGrill2 User Manual
v1.0
12
12
4.7 Globe Tool
The globe tool will show other users of the iDevices Connected app. Tapping
on a pin will display a user-posted message and picture. Take a look at what
other cooks around the world have made to ignite ideas for your next grilling
adventure!
* You will only show up on the Globe if you share via Facebook.
4.8 Graph Tool
The iDevices Connected app’s graph illustrates the temperature progression
over time for your probe as you cook.
Tapping the export icon in the top right will export the graph as a CSV file.
Email the graph to compare previous cooks!
5. Problem Solving
The following information covers some of the most common troubleshooting
issues with the iGrill2. If you need further assistance, please review the iGrill2
FAQ page at http://idevicesinc.com/support/ or contact a member of our
Customer Support Team at support@idevicesinc.com.
5.1 My iGrill2 won’t turn on.
If your iGrill2 is brand new, please be sure that the batteries have been inserted
correctly with their negative terminals each compressing a spring. If this does
not resolve the issue or if your iGrill2 is not brand new, please try replacing the
batteries with a pair of brand new AA batteries. If you are still unable to turn on
your iGrill2 after following these steps, please contact our customer support
team for assistance.
5.2 I’m having difficulty pairing my iGrill2 with my Apple
device.
If the iGrill2 device appears in your Bluetooth settings with the status "Not
Connected", follow these steps from your Bluetooth settings menu:
iDevices, LLC iGrill2 User Manual
v1.0
13
13
• Tap the blue (i) the right of the iGrill2 device name.
• Select the option "Forget this Device".
• Turn Bluetooth OFF on your device.
• Completely shut down your device.
• Separate the iGrill2 from its base by firmly holding the base with one
hand and gently pulling the iGrill2 upwards with the other hand.
• While still powered on, depress and remove the iGrill2 battery door,
press the reset button down with a pin for 5 seconds and reinstall the
battery door.
• Replace the battery cover.
• Power up your device and turn Bluetooth back on.
• Click on the iDevices logo in the gray toolbar at the top of the app.
Select your iGrill2 from the dropdown menu. Your device will pair with
the iGrill2 and you are ready to configure your settings and start
cooking!
If you do not see the iGrill2 device in your Bluetooth settings, please ensure
that you are using the iDevices Connected app since the iGrill2’s pairing and
connection are handled by the app. If you experience further problems, please
contact our customer support team for further assistance.
5.3 I’m experiencing a problem with the iDevices
Connected app for iOS.
If you are experiencing a problem with the iDevices Connected app for iOS,
please try following the steps below to resolve any potential problems on the
device-side.
• Make sure the iGrill2 is paired with your Apple device via Bluetooth®
and a temperature probe is plugged into the unit.
• Tap the Home button on the device (iPhone®/iPad®/iPod® touch).
• From the Home screen, double tap the Home button again. This will
zoom out of the home screen and display any/all previously running
apps on the Apple device.
• Swipe to locate the “iDevices Connected” App.
• Touch the “iDevices Connected” App image and swipe it upward to
close the existing session.
• Tap the Home button on the Apple device to close the Multitasking Bar.
• Re-open the iDevices Connected app by tapping the app icon on the
Home screen.
iDevices, LLC iGrill2 User Manual
v1.0
14
14
If you are still experiencing a problem after completing these steps, please
contact our customer support team for further assistance.
6. Frequently Asked Questions:
6.1 I don’t have a device with which to pair my iGrill2.
Can I still use it?
The iGrill2 has a display to show its temperature readings and it can be used to
view the current temperature from the inserted probes. The alarm settings,
timer tool, globe tool, graph tool and probe renaming features for the iGrill2
require the use of the iDevices Connected app and a compatible Bluetooth
Smart Ready device.
6.2 What should I do if I’m having trouble connecting?
If the first pairing seems to be taking a long time or fails, please ensure that you
are using the iDevices Connected app to pair your iGrill2. The iDevices
Connected app handles the connectivity of the iGrill2, so it will not appear in
your device’s Bluetooth menu until it has been paired within the app. Visit the
App Store℠ to download the iDevices Connected app.
If the re-pairing seems to be taking a long time or fails, return to your device’s
Bluetooth settings and select the (i) option next to the iGrill2. Now you can
complete the following steps to pair your device:
• Select “Forget this Device”.
• Close Settings.
• Close out of the iDevices Connected app.
• Reopen the iDevices Connected app.
If you are still experiencing an issue after completing these steps, please
contact our customer support team for further assistance.
6.3 I’m frozen on my home screen when I attempt to
enter the iDevices Connected app. What should I do?
iDevices, LLC iGrill2 User Manual
v1.0
15
15
Go to your iPhone/iPad/iPod touch home screen and double-click your home
button. Close your open apps by swiping each app towards the top of the
device. Make sure to close the iDevices Connected app. This will allow you to
re-launch the app correctly. If you continue to have issues please contact our
customer support team for further assistance.
7. Disclaimer
The appliance is not to be used by children or persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they
have been given supervision or instruction.
Children should be supervised and instructed not to play with the appliance.
For detailed instructions regarding the iDevices Connected app, please
download the iDevices Connected app User Manual from the iDevices website
www.idevicesinc.com.
8. Regulations
FCC COMPLIANCE STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
INFORMATION TO USER:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy. If not installed and used in accordance with the instructions, it may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try and correct the interference by one or more of the following
measures:
iDevices, LLC iGrill2 User Manual
v1.0
16
16
-Reorient or relocate the receiving antenna
-Increase the distance between the equipment and the receiver
-Connect the equipment to outlet on a circuit different from that to which the
receiver is connected
-Consult the dealer or an experienced radio/TV technician for help.
Canada – Industry Canada (IC)
This device complies with Industry Canada license-exempt RSS Standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada exempts de licence standard
RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) cet
appareil ne doit pas provoquer d’interférences et (2) cet appareil doit accepter
toute interference, y compris celles pouvant causer un mauvais fonctionnement
de l’appereil.

Navigation menu
