iFIT Health and Fitness 363005 MP10QCFSG Module User Manual

Icon Health and Fitness, Inc. MP10QCFSG Module

user Manual

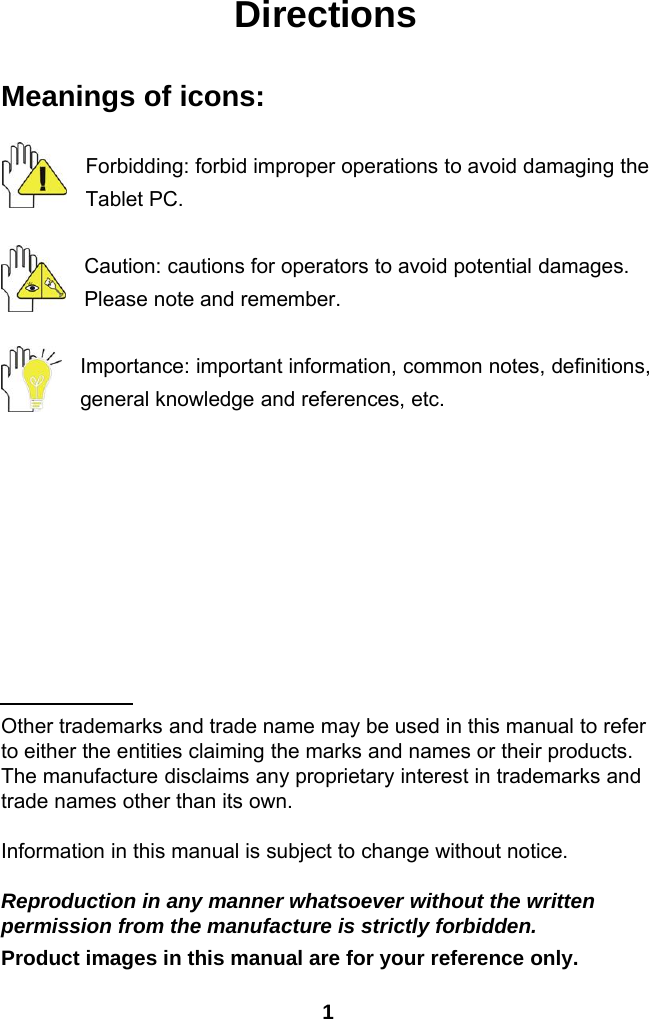

1DirectionsMeanings oficons:Forbidding: forbid improper operations to avoid damaging theTablet PC.Caution: cautions for operators to avoid potential damages.Please note and remember.Importance: important information, common notes, definitions,general knowledge and references, etc.Other trademarks and trade name may be used in this manual to referto either the entities claiming the marks and names or their products.The manufacture disclaims any proprietary interest in trademarks andtrade names other than its own.Information in this manual is subject to change without notice.Reproduction in any manner whatsoever without the writtenpermission from the manufacture is strictly forbidden.Product images in this manual are for your reference only.

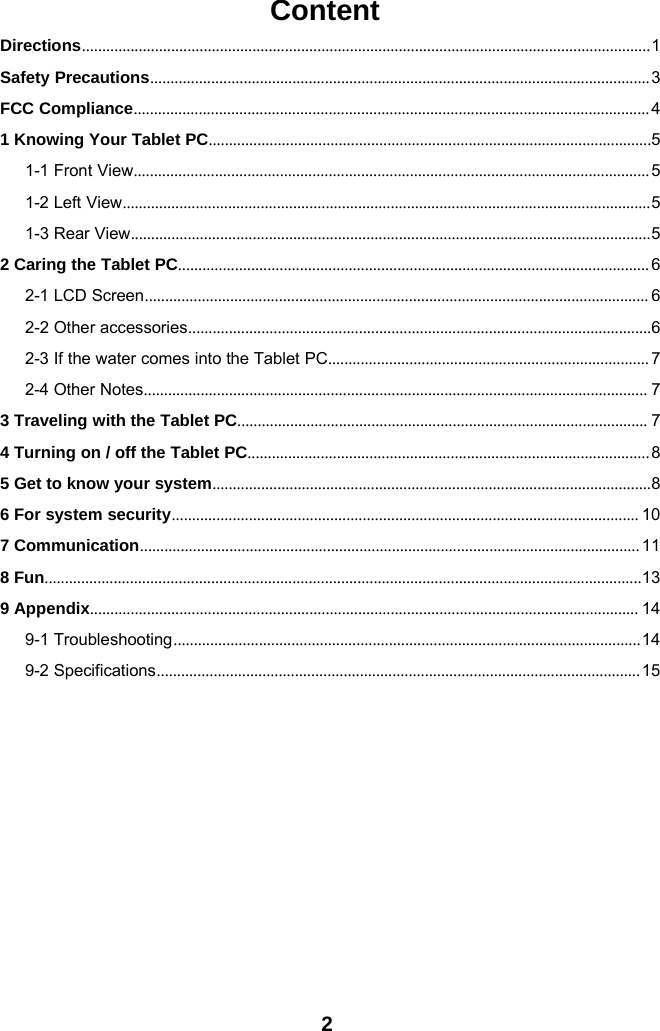

2ContentDirections............................................................................................................................................1Safety Precautions...........................................................................................................................3FCC Compliance...............................................................................................................................41 Knowing Your Tablet PC.............................................................................................................51-1 Front View...............................................................................................................................51-2 Left View..................................................................................................................................51-3 Rear View................................................................................................................................52 Caring the Tablet PC.................................................................................................................... 62-1 LCD Screen............................................................................................................................ 62-2 Other accessories..................................................................................................................62-3 If the water comes into the Tablet PC............................................................................... 72-4 Other Notes............................................................................................................................ 73 Traveling with the Tablet PC..................................................................................................... 74 Turning on / off the Tablet PC...................................................................................................85 Get to know your system............................................................................................................86 For system security................................................................................................................... 107 Communication........................................................................................................................... 118 Fun...................................................................................................................................................139 Appendix....................................................................................................................................... 149-1 Troubleshooting...................................................................................................................149-2 Specifications.......................................................................................................................15

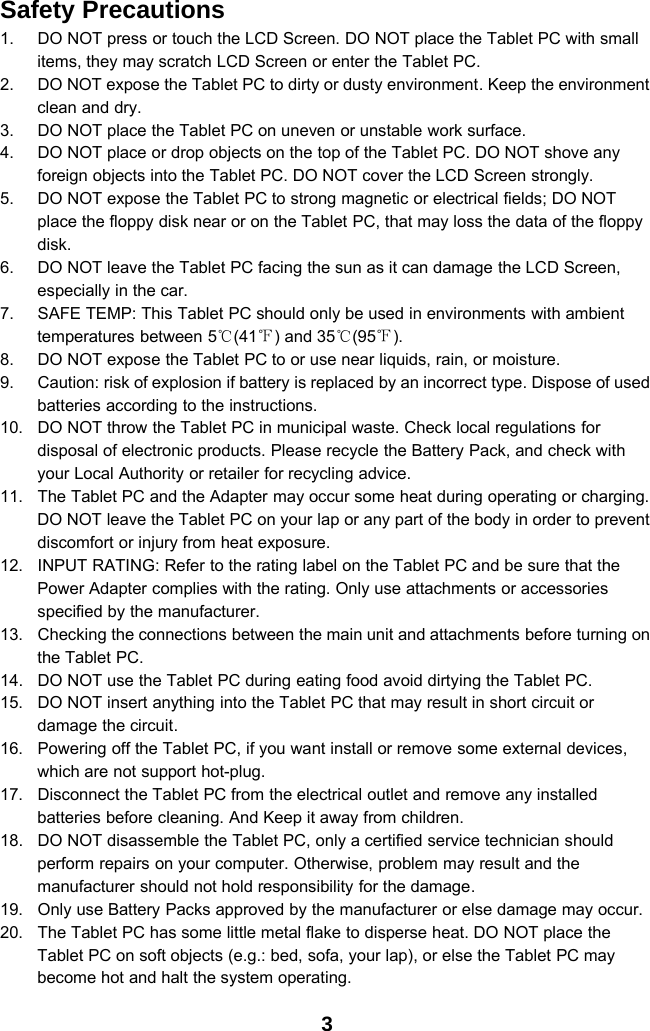

3Safety Precautions1. DO NOT press or touch the LCD Screen. DO NOT place the Tablet PC with smallitems, they may scratch LCD Screen or enter the Tablet PC.2. DO NOT expose the Tablet PC to dirty or dusty environment. Keep the environmentclean and dry.3. DO NOT place the Tablet PC on uneven or unstable work surface.4. DO NOT place or drop objects on the top of the Tablet PC. DO NOT shove anyforeign objects into the Tablet PC. DO NOT cover the LCD Screen strongly.5. DO NOT expose the Tablet PC to strong magnetic or electrical fields; DO NOTplace the floppy disk near or on the Tablet PC, that may loss the data of the floppydisk.6. DO NOT leave the Tablet PC facing the sun as it can damage the LCD Screen,especially in the car.7. SAFE TEMP: This Tablet PC should only be used in environments with ambienttemperatures between 5℃(41℉) and 35℃(95℉).8. DO NOT expose the Tablet PC to or use near liquids, rain, or moisture.9. Caution: risk of explosion if battery is replaced by an incorrect type. Dispose of usedbatteries according to the instructions.10. DO NOT throw the Tablet PC in municipal waste. Check local regulations fordisposal of electronic products. Please recycle the Battery Pack, and check withyour Local Authority or retailer for recycling advice.11. The Tablet PC and the Adapter may occur some heat during operating or charging.DO NOT leave the Tablet PC on your lap or any part of the body in order to preventdiscomfort or injury from heat exposure.12. INPUT RATING: Refer to the rating label on the Tablet PC and be sure that thePower Adapter complies with the rating. Only use attachments or accessoriesspecified by the manufacturer.13. Checking the connections between the main unit and attachments before turning onthe Tablet PC.14. DO NOT use the Tablet PC during eating food avoid dirtying the Tablet PC.15. DO NOT insert anything into the Tablet PC that may result in short circuit ordamage the circuit.16. Powering off the Tablet PC, if you want install or remove some external devices,which are not support hot-plug.17. Disconnect the Tablet PC from the electrical outlet and remove any installedbatteries before cleaning. And Keep it away from children.18. DO NOT disassemble the Tablet PC, only a certified service technician shouldperform repairs on your computer. Otherwise, problem may result and themanufacturer should not hold responsibility for the damage.19. Only use Battery Packs approved by the manufacturer or else damage may occur.20. The Tablet PC has some little metal flake to disperse heat. DO NOT place theTablet PC on soft objects (e.g.: bed, sofa, your lap), or else the Tablet PC maybecome hot and halt the system operating.

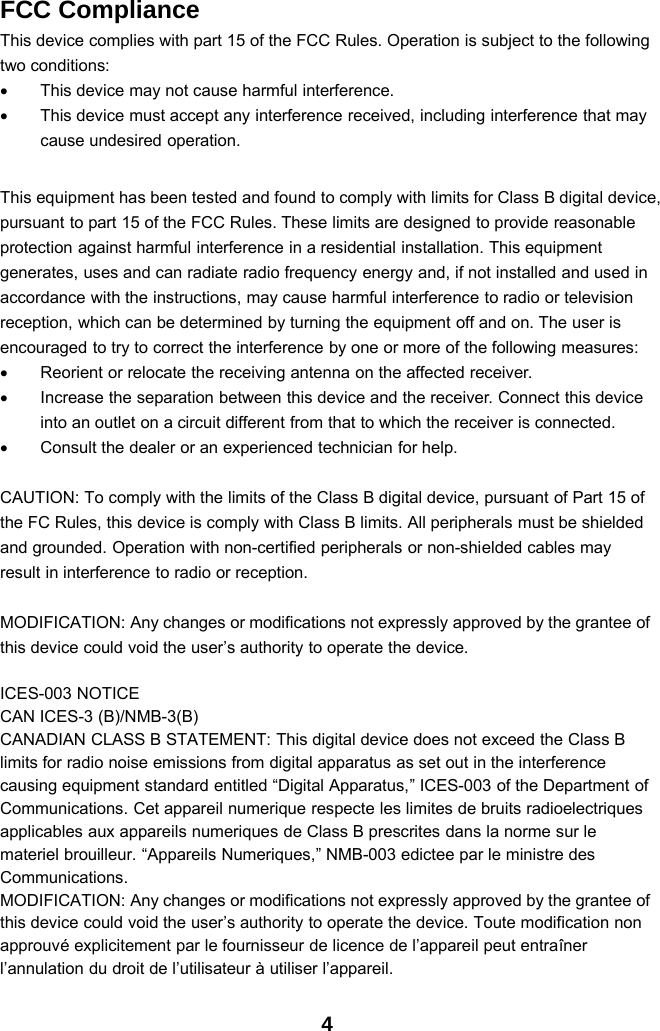

4FCC ComplianceThis device complies with part 15 of the FCC Rules. Operation is subject to the followingtwo conditions:•This device may not cause harmful interference.•This device must accept any interference received, including interference that maycause undesired operation.This equipment has been tested and found to comply with limits for Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipmentgenerates, uses and can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off and on. The user isencouraged to try to correct the interference by one or more of the following measures:•Reorient or relocate the receiving antenna on the affected receiver.•Increase the separation between this device and the receiver. Connect this deviceinto an outlet on a circuit different from that to which the receiver is connected.•Consult the dealer or an experienced technician for help.CAUTION: To comply with the limits of the Class B digital device, pursuant of Part 15 ofthe FC Rules, this device is comply with Class B limits. All peripherals must be shieldedand grounded. Operation with non-certified peripherals or non-shielded cables mayresult in interference to radio or reception.MODIFICATION: Any changes or modifications not expressly approved by the grantee ofthis device could void the user’s authority to operate the device.ICES-003 NOTICECAN ICES-3 (B)/NMB-3(B)CANADIAN CLASS B STATEMENT: This digital device does not exceed the Class Blimits for radio noise emissions from digital apparatus as set out in the interferencecausing equipment standard entitled “Digital Apparatus,” ICES-003 of the Department ofCommunications. Cet appareil numerique respecte les limites de bruits radioelectriquesapplicables aux appareils numeriques de Class B prescrites dans la norme sur lemateriel brouilleur. “Appareils Numeriques,” NMB-003 edictee par le ministre desCommunications.MODIFICATION: Any changes or modifications not expressly approved by the grantee ofthis device could void the user’s authority to operate the device. Toute modification nonapprouvé explicitement par le fournisseur de licence de l’appareil peut entraînerl’annulation du droit de l’utilisateur à utiliser l’appareil.

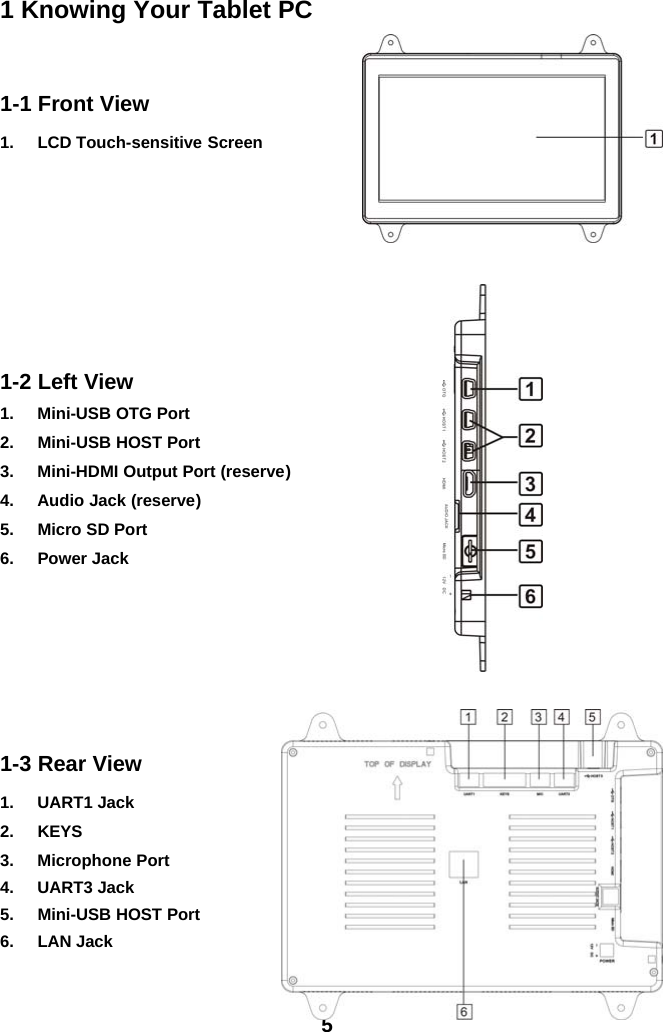

51 Knowing Your Tablet PC1-1 Front View1. LCD Touch-sensitive Screen1-2 Left View1. Mini-USB OTG Port2. Mini-USB HOST Port3. Mini-HDMI Output Port (reserve)4. Audio Jack(reserve)5. Micro SD Port6. Power Jack1-3 Rear View1. UART1 Jack2. KEYS3. Microphone Port4. UART3 Jack5. Mini-USB HOST Port6. LAN Jack

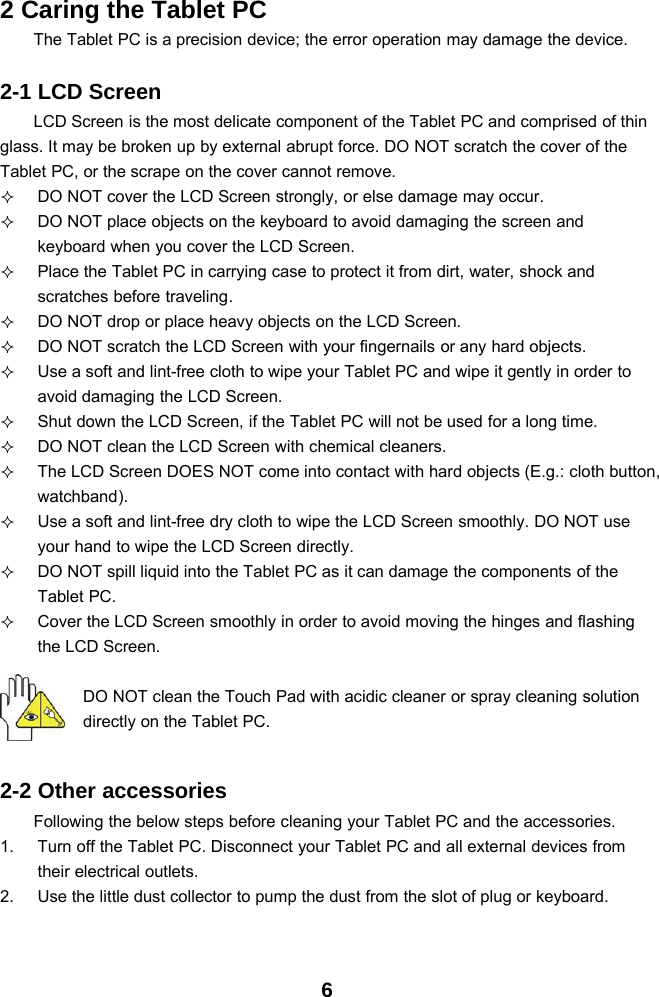

62 Caring the Tablet PCThe Tablet PC is a precision device; the error operation may damage the device.2-1 LCD ScreenLCD Screen is the most delicate component of the Tablet PC and comprised of thinglass. It may be broken up by external abrupt force. DO NOT scratch the cover of theTablet PC, or the scrape on the cover cannot remove.DO NOT cover the LCD Screen strongly, or else damage may occur.DO NOT place objects on the keyboard to avoid damaging the screen andkeyboard when you cover the LCD Screen.Place the Tablet PC in carrying case to protect it from dirt, water, shock andscratches before traveling.DO NOT drop or place heavy objects on the LCD Screen.DO NOT scratch the LCD Screen with your fingernails or any hard objects.Use a soft and lint-free cloth to wipe your Tablet PC and wipe it gently in order toavoid damaging the LCD Screen.Shut down the LCD Screen, if the Tablet PC will not be used for a long time.DO NOT clean the LCD Screen with chemical cleaners.The LCD Screen DOES NOT come into contact with hard objects (E.g.: cloth button,watchband).Use a soft and lint-free dry cloth to wipe the LCD Screen smoothly. DO NOT useyour hand to wipe the LCD Screen directly.DO NOT spill liquid into the Tablet PC as it can damage the components of theTablet PC.Cover the LCD Screen smoothly in order to avoid moving the hinges and flashingthe LCD Screen.DO NOT clean the Touch Pad with acidic cleaner or spray cleaning solutiondirectly on the Tablet PC.2-2 Other accessoriesFollowing the below steps before cleaning your Tablet PC and the accessories.1. Turn off the Tablet PC. Disconnect your Tablet PC and all external devices fromtheir electrical outlets.2. Use the little dust collector to pump the dust from the slot of plug or keyboard.

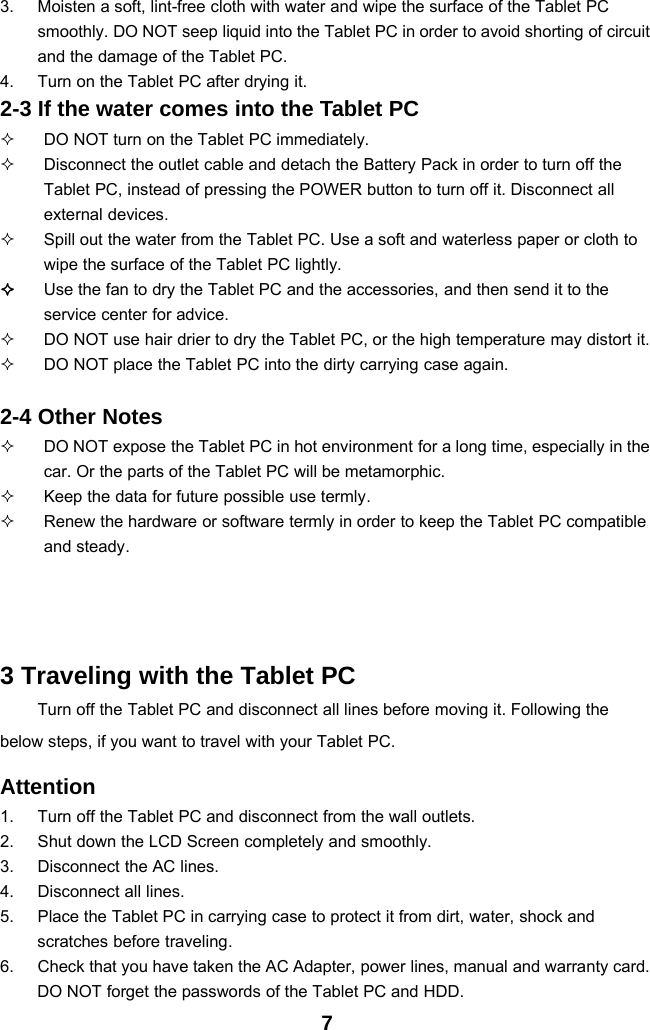

73. Moisten a soft, lint-free cloth with water and wipe the surface of the Tablet PCsmoothly. DO NOT seep liquid into the Tablet PC in order to avoid shorting of circuitand the damage of the Tablet PC.4. Turn on the Tablet PC after drying it.2-3 If the water comes into the Tablet PCDO NOT turn on the Tablet PC immediately.Disconnect the outlet cable and detach the Battery Pack in order to turn off theTablet PC, instead of pressing the POWER button to turn off it. Disconnect allexternal devices.Spill out the water from the Tablet PC. Use a soft and waterless paper or cloth towipe the surface of the Tablet PC lightly.Use the fan to dry the Tablet PC and the accessories, and then send it to theservice center for advice.DO NOT use hair drier to dry the Tablet PC, or the high temperature may distort it.DO NOT place the Tablet PC into the dirty carrying case again.2-4 Other NotesDO NOT expose the Tablet PC in hot environment for a long time, especially in thecar. Or the parts of the Tablet PC will be metamorphic.Keep the data for future possible use termly.Renew the hardware or software termly in order to keep the Tablet PC compatibleand steady.3 Traveling with the Tablet PCTurn off the Tablet PC and disconnect all lines before moving it. Following thebelow steps, if you want to travel with your Tablet PC.Attention1. Turn off the Tablet PC and disconnect from the wall outlets.2. Shut down the LCD Screen completely and smoothly.3. Disconnect the AC lines.4. Disconnect all lines.5. Place the Tablet PC in carrying case to protect it from dirt, water, shock andscratches before traveling.6. Check that you have taken the AC Adapter, power lines, manual and warranty card.DO NOT forget the passwords of the Tablet PC and HDD.

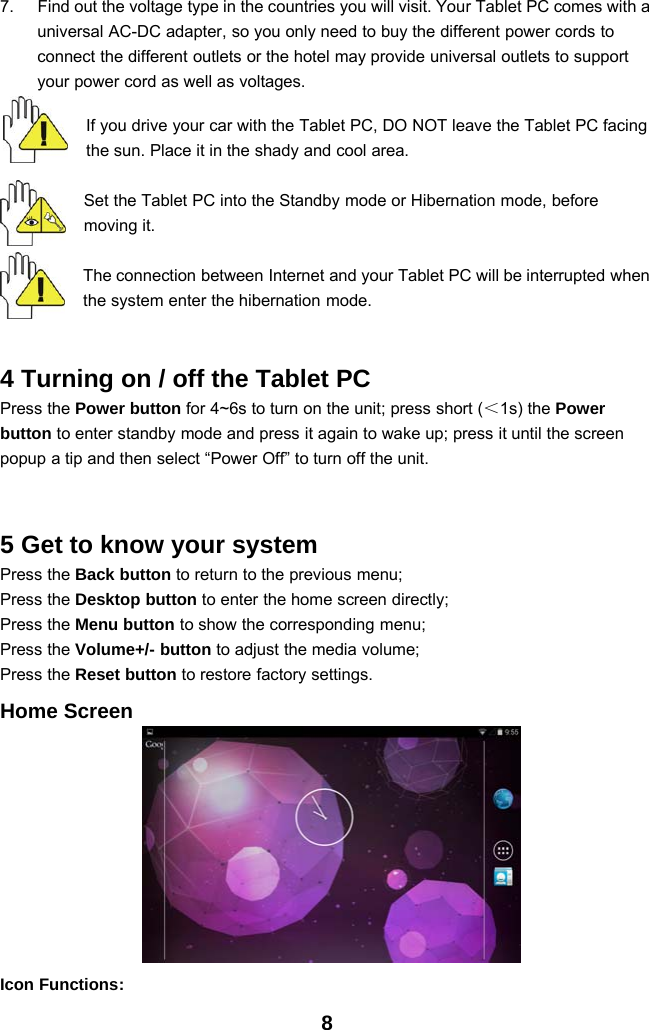

87. Find out the voltage type in the countries you will visit. Your Tablet PC comes with auniversal AC-DC adapter, so you only need to buy the different power cords toconnect the different outlets or the hotel may provide universal outlets to supportyour power cord as well as voltages.If you drive your car with the Tablet PC, DO NOT leave the Tablet PC facingthe sun. Place it in the shady and cool area.Set the Tablet PC into the Standby mode or Hibernation mode, beforemoving it.The connection between Internet and your Tablet PC will be interrupted whenthe system enter the hibernation mode.4 Turning on / off the Tablet PCPress the Power button for 4~6s to turn on the unit; press short (＜1s) the Powerbutton to enter standby mode and press it again to wake up; press it until the screenpopup a tip and then select “Power Off” to turn off the unit.5 Get to know your systemPress the Back button to return to the previous menu;Press the Desktop button to enter the home screen directly;Press the Menu button to show the corresponding menu;Press the Volume+/- button to adjust the media volume;Press the Reset button to restore factory settings.Home ScreenIcon Functions:

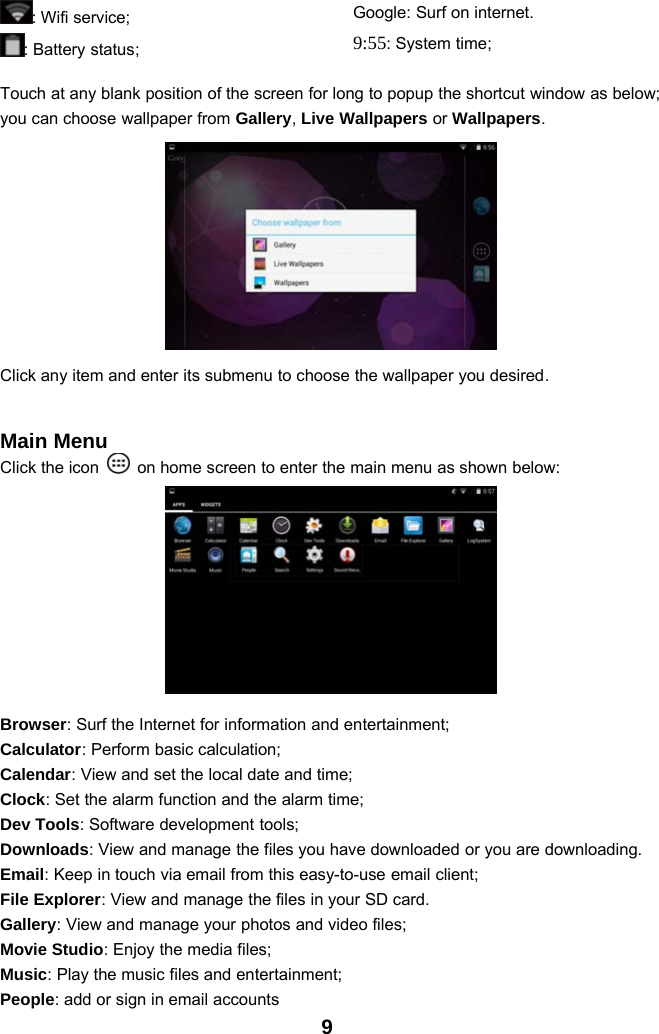

9:Wifiservice;: Battery status;Google: Surf on internet.9:55:Systemtime;Touch at any blank position of the screen for long to popup the shortcut window as below;you can choose wallpaper from Gallery,Live Wallpapers or Wallpapers.Click any item and enter its submenu to choose the wallpaper you desired.Main MenuClick the icon on home screen to enter the main menu as shown below:Browser: Surf the Internet for information and entertainment;Calculator: Perform basic calculation;Calendar: View and set the local date and time;Clock: Set the alarm function and the alarm time;Dev Tools: Software development tools;Downloads: View and manage the files you have downloaded or you are downloading.Email: Keep in touch via email from this easy-to-use email client;File Explorer: View and manage the files in your SD card.Gallery: View and manage your photos and video files;Movie Studio: Enjoy the media files;Music: Play the music files and entertainment;People: add or sign in email accounts

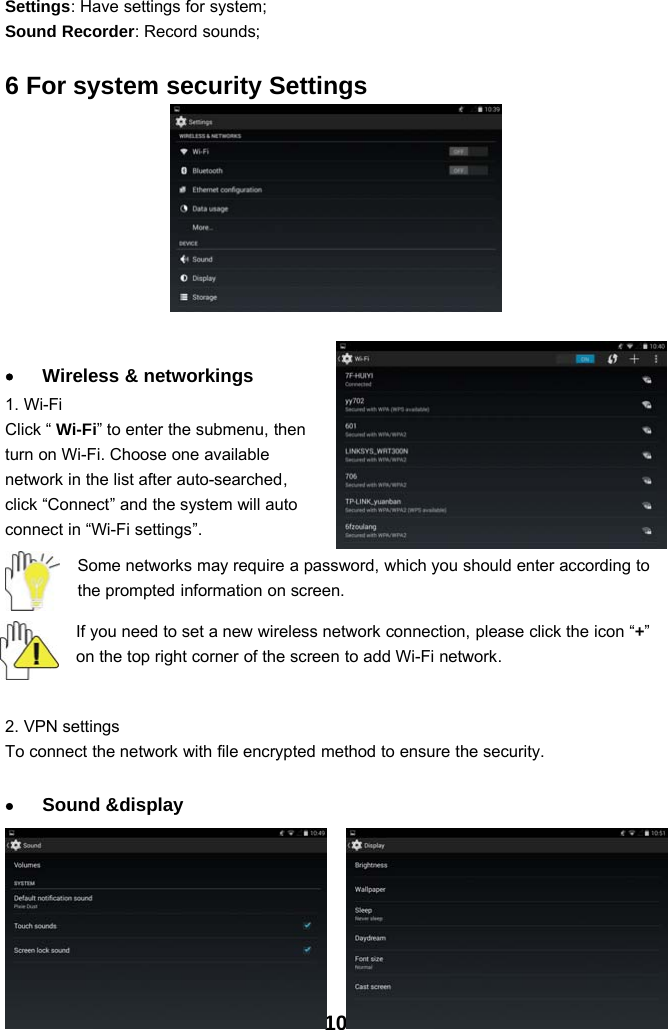

10Settings: Have settings for system;Sound Recorder: Record sounds;6 For system security Settings•Wireless & networkings1. Wi-FiClick “ Wi-Fi” to enter the submenu, thenturn on Wi-Fi. Choose one availablenetwork in the list after auto-searched,click “Connect” and the system will autoconnect in “Wi-Fi settings”.Some networks may require a password, which you should enter according tothe prompted information on screen.If you need to set a new wireless network connection, please click the icon “+”on the top right corner of the screen to add Wi-Fi network.2. VPN settingsTo connect the network with file encrypted method to ensure the security.•Sound &display

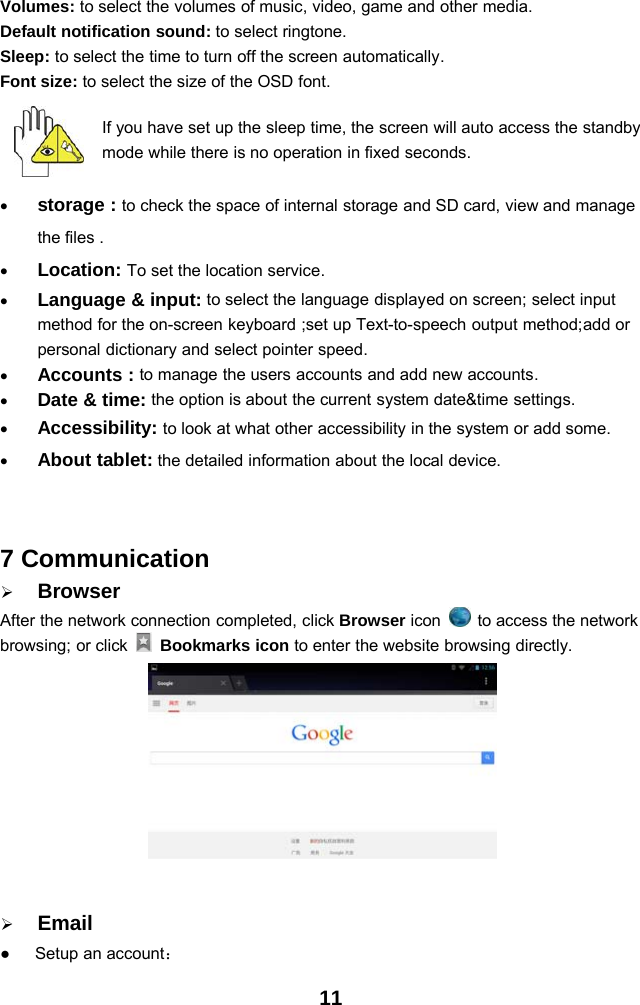

11Volumes: to select the volumes of music, video, game and other media.Default notification sound: to select ringtone.Sleep: to select the time to turn off the screen automatically.Font size: to select the size of the OSD font.If you have set up the sleep time, the screen will auto access the standbymode while there is no operation in fixed seconds.•storage : to check the space of internal storage and SD card, view and managethe files .•Location: To set the location service.•Language & input: to select the language displayed on screen; select inputmethod for the on-screen keyboard ;set up Text-to-speech output method;add orpersonal dictionary and select pointer speed.•Accounts : to manage the users accounts and add new accounts.•Date & time: the option is about the current system date&time settings.•Accessibility: to look at what other accessibility in the system or add some.•About tablet: the detailed information about the local device.7 Communication¾BrowserAfter the network connection completed, click Browser icon to access the networkbrowsing; or click Bookmarks icon to enter the website browsing directly.¾Email●Setup an account：

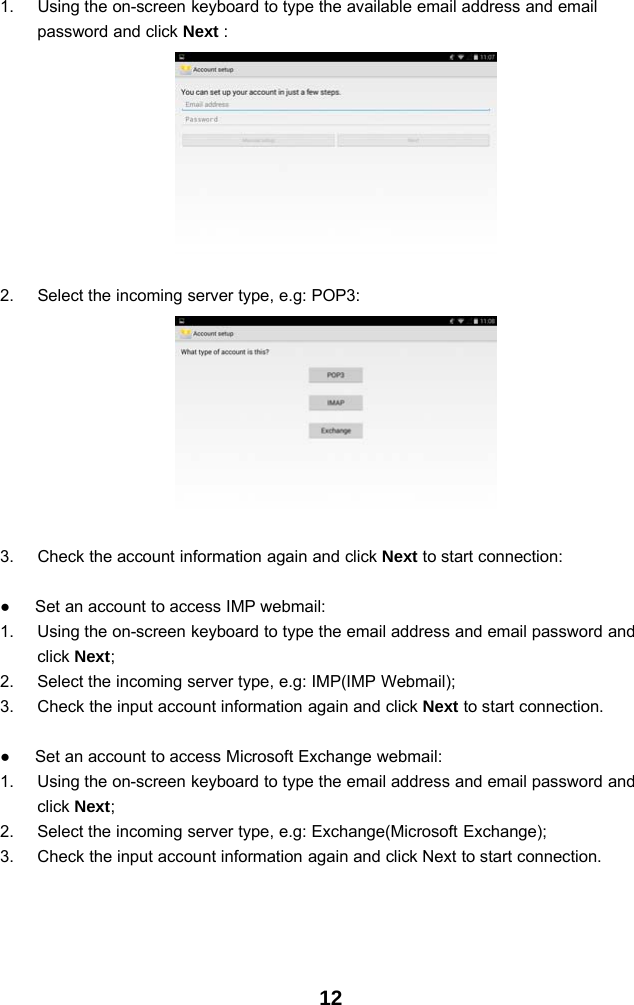

121. Using the on-screen keyboard to type the available email address and emailpassword and click Next :2. Select the incoming server type, e.g: POP3:3. Check the account information again and click Next to start connection:●Set an account to access IMP webmail:1. Using the on-screen keyboard to type the email address and email password andclick Next;2. Select the incoming server type, e.g: IMP(IMP Webmail);3. Check the input account information again and click Next to start connection.●Set an account to access Microsoft Exchange webmail:1. Using the on-screen keyboard to type the email address and email password andclick Next;2. Select the incoming server type, e.g: Exchange(Microsoft Exchange);3. Check the input account information again and click Next to start connection.

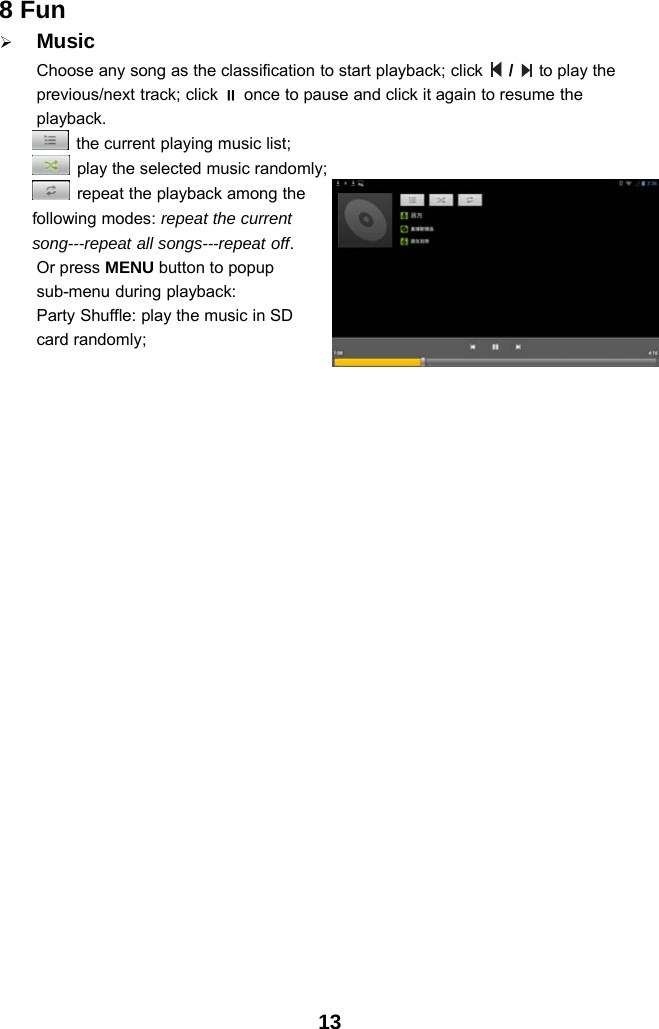

138Fun¾MusicChoose any song as the classification to start playback; click /to play theprevious/next track; click once to pause and click it again to resume theplayback.the current playing music list;play the selected music randomly;repeat the playback among thefollowing modes: repeat the currentsong---repeat all songs---repeat off.Or press MENU button to popupsub-menu during playback:Party Shuffle: play the music in SDcard randomly;

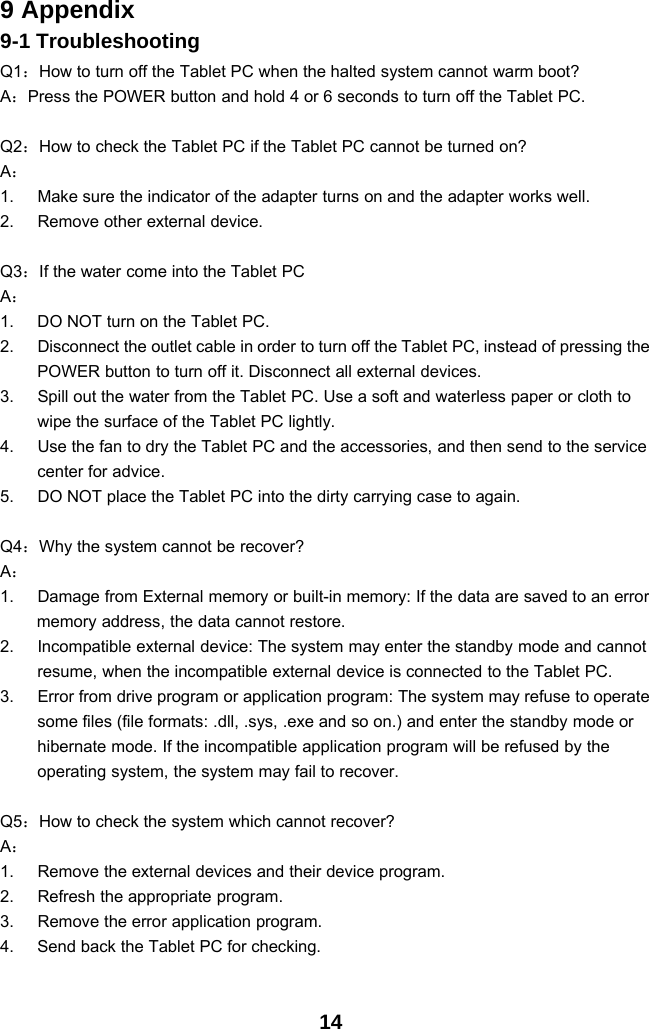

149 Appendix9-1 TroubleshootingQ1：How to turn off the Tablet PC when the halted system cannot warm boot?A：Press the POWER button and hold 4 or 6 seconds to turn off the Tablet PC.Q2：How to check the Tablet PC if the Tablet PC cannot be turned on?A：1. Make sure the indicator of the adapter turns on and the adapter works well.2. Remove other external device.Q3：If the water come into the Tablet PCA：1. DO NOT turn on the Tablet PC.2. Disconnect the outlet cable in order to turn off the Tablet PC, instead of pressing thePOWER button to turn off it. Disconnect all external devices.3. Spill out the water from the Tablet PC. Use a soft and waterless paper or cloth towipe the surface of the Tablet PC lightly.4. Use the fan to dry the Tablet PC and the accessories, and then send to the servicecenter for advice.5. DO NOT place the Tablet PC into the dirty carrying case to again.Q4：Why the system cannot be recover?A：1. Damage from External memory or built-in memory: If the data are saved to an errormemory address, the data cannot restore.2. Incompatible external device: The system may enter the standby mode and cannotresume, when the incompatible external device is connected to the Tablet PC.3. Error from drive program or application program: The system may refuse to operatesome files (file formats: .dll, .sys, .exe and so on.) and enter the standby mode orhibernate mode. If the incompatible application program will be refused by theoperating system, the system may fail to recover.Q5：How to check the system which cannot recover?A：1. Remove the external devices and their device program.2. Refresh the appropriate program.3. Remove the error application program.4. Send back the Tablet PC for checking.

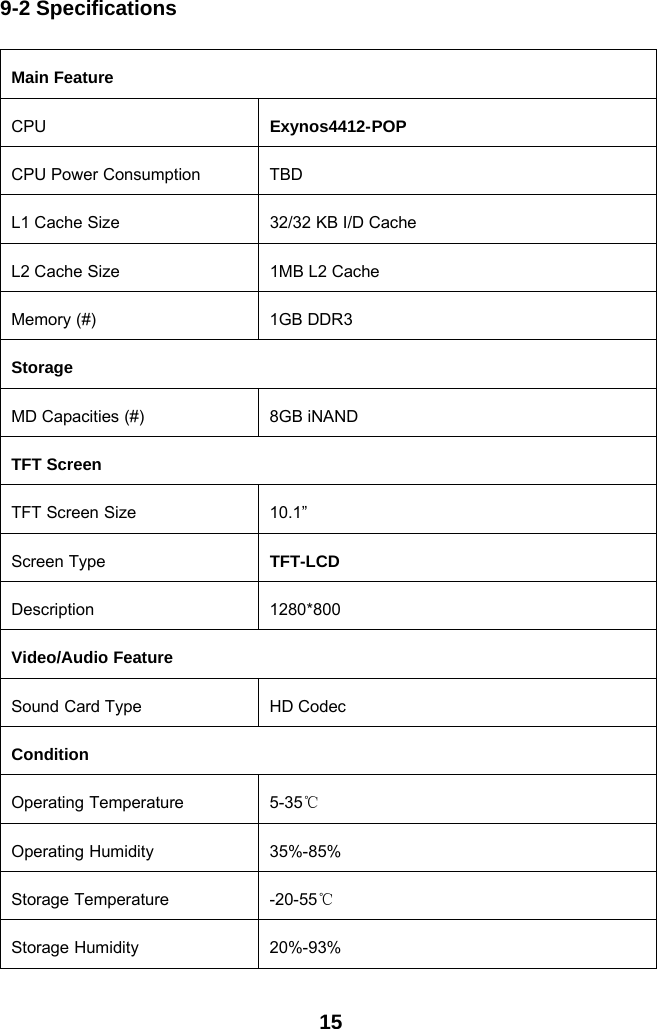

159-2 SpecificationsMain FeatureCPU Exynos4412-POPCPU Power Consumption TBDL1 Cache Size 32/32 KB I/D CacheL2 Cache Size 1MB L2 CacheMemory (#) 1GB DDR3StorageMD Capacities (#) 8GB iNANDTFT ScreenTFT Screen Size 10.1”Screen Type TFT-LCDDescription 1280*800Video/Audio FeatureSound Card Type HD CodecConditionOperating Temperature 5-35℃Operating Humidity 35%-85%Storage Temperature -20-55℃Storage Humidity 20%-93%

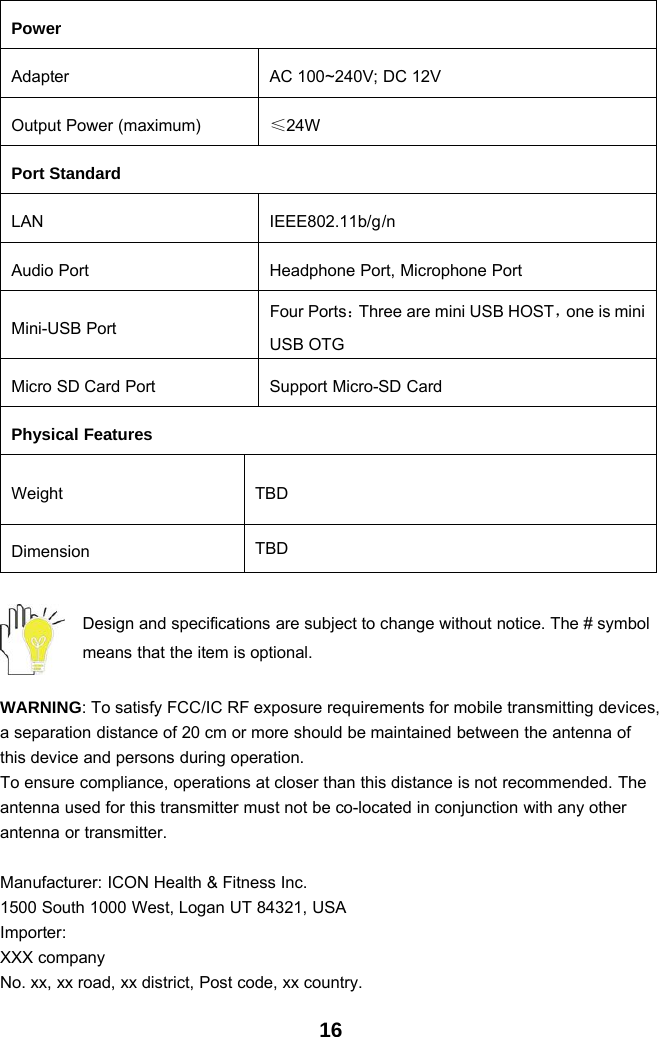

16PowerAdapter AC 100~240V; DC 12VOutput Power (maximum) ≤24WPort StandardLAN IEEE802.11b/g/nAudio Port Headphone Port, Microphone PortMini-USB PortFour Ports：Three are mini USB HOST，one is miniUSB OTGMicro SD Card Port Support Micro-SD CardPhysical FeaturesWeight TBDDimension TBDDesign and specifications are subject to change without notice. The # symbolmeans that the item is optional.WARNING: To satisfy FCC/IC RF exposure requirements for mobile transmitting devices,a separation distance of 20 cm or more should be maintained between the antenna ofthis device and persons during operation.To ensure compliance, operations at closer than this distance is not recommended. Theantenna used for this transmitter must not be co-located in conjunction with any otherantenna or transmitter.Manufacturer: ICON Health & Fitness Inc.1500 South 1000 West, Logan UT 84321, USAImporter:XXX companyNo. xx, xx road, xx district, Post code, xx country.
