iKeyless AFK41B1 Keyless Entry Remote User Manual Manual
iKeyless, LLC Keyless Entry Remote Manual
iKeyless >
Manual
5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598
Certification Exhibit
FCC ID: X32-AFK41B1
IC: 8797A-AFK41B1
FCC Rule Part: 15.231
IC Radio Standards Specification: RSS-210
ACS Project Number: 17-0061
Manufacturer: iKeyless, LLC
Model: 300-0482
Manual
300-0482
User Manual – Draft
Jan 2017
Button Functions
Trunk
Lock
Unlock
Driver's
Side Door
Passenger's
Side Door
Panic
Note: Remotes come in
3, 4, 5, & 6 button versions
with some functions removed
Programming Instructions
1) Press and hold Lock and Panic until LED comes on and stays on
2) Release buttons
3) Enter code with Lock, Panic, and Unlock
a) Example: Code 231, press Lock twice, Panic three times, Unlock once
b) Example: Code 232, press Lock twice, Panic three times, Unlock twice
4) Exit programming by once again pressing Lock and Panic until LED blinks

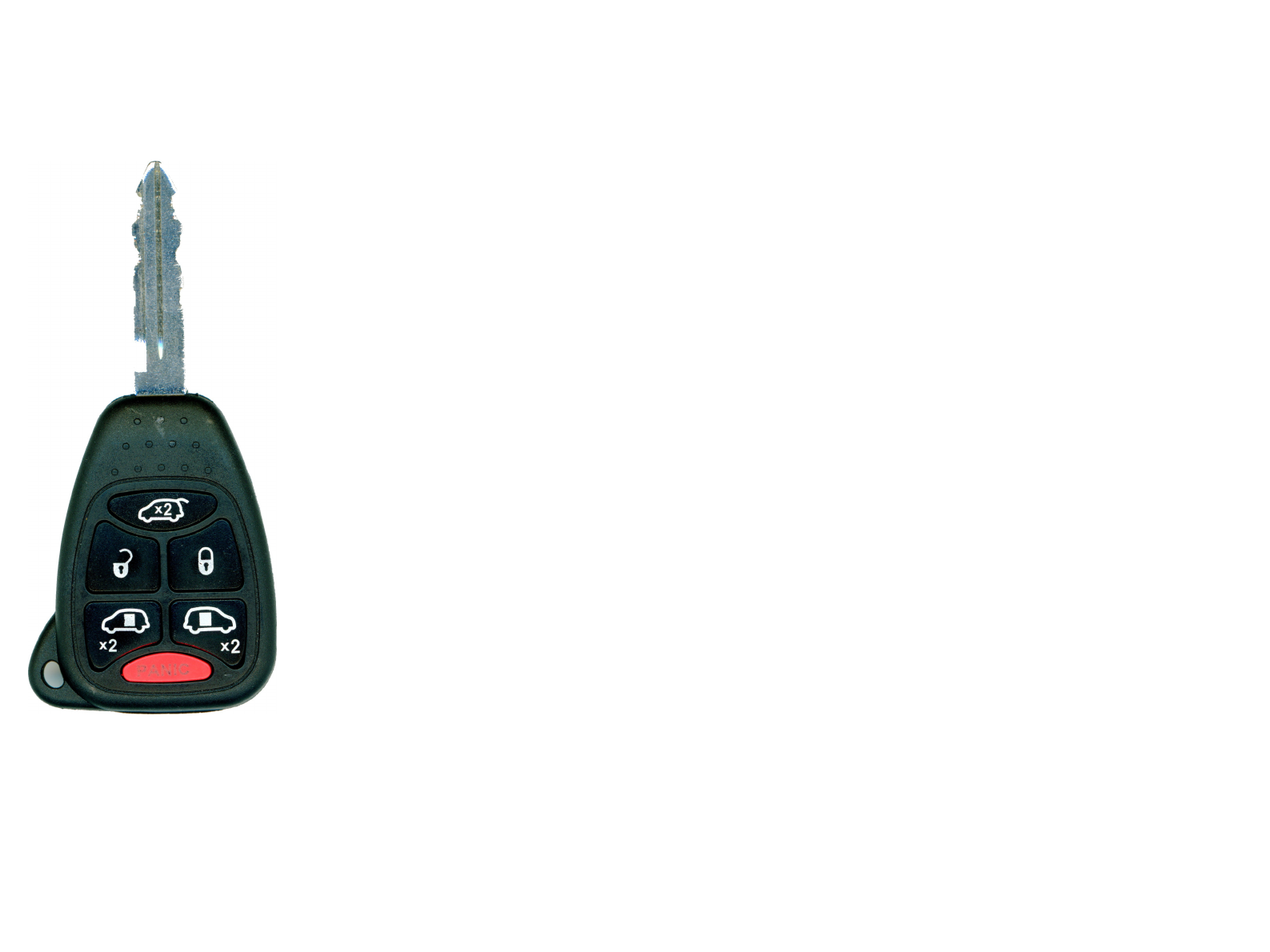

Using the Remote
Make sure you are within range of the vehicle before using remote.
●Press Lock to lock all doors
●Press Unlock to unlock the driver's door
Press Unlock again within 5 seconds to unlock all doors
●Press and hold the Trunk button for longer than 0.5 seconds to open trunk
●Press the driver or passenger sliding door button twice to open
●Press and hold the Panic button for longer than 0.5 seconds to sound alarm
Press any button to disable alarm
Note: The exact behavior in response to each button press may vary
depending on the vehicle. Consult the vehicle manual for more information.

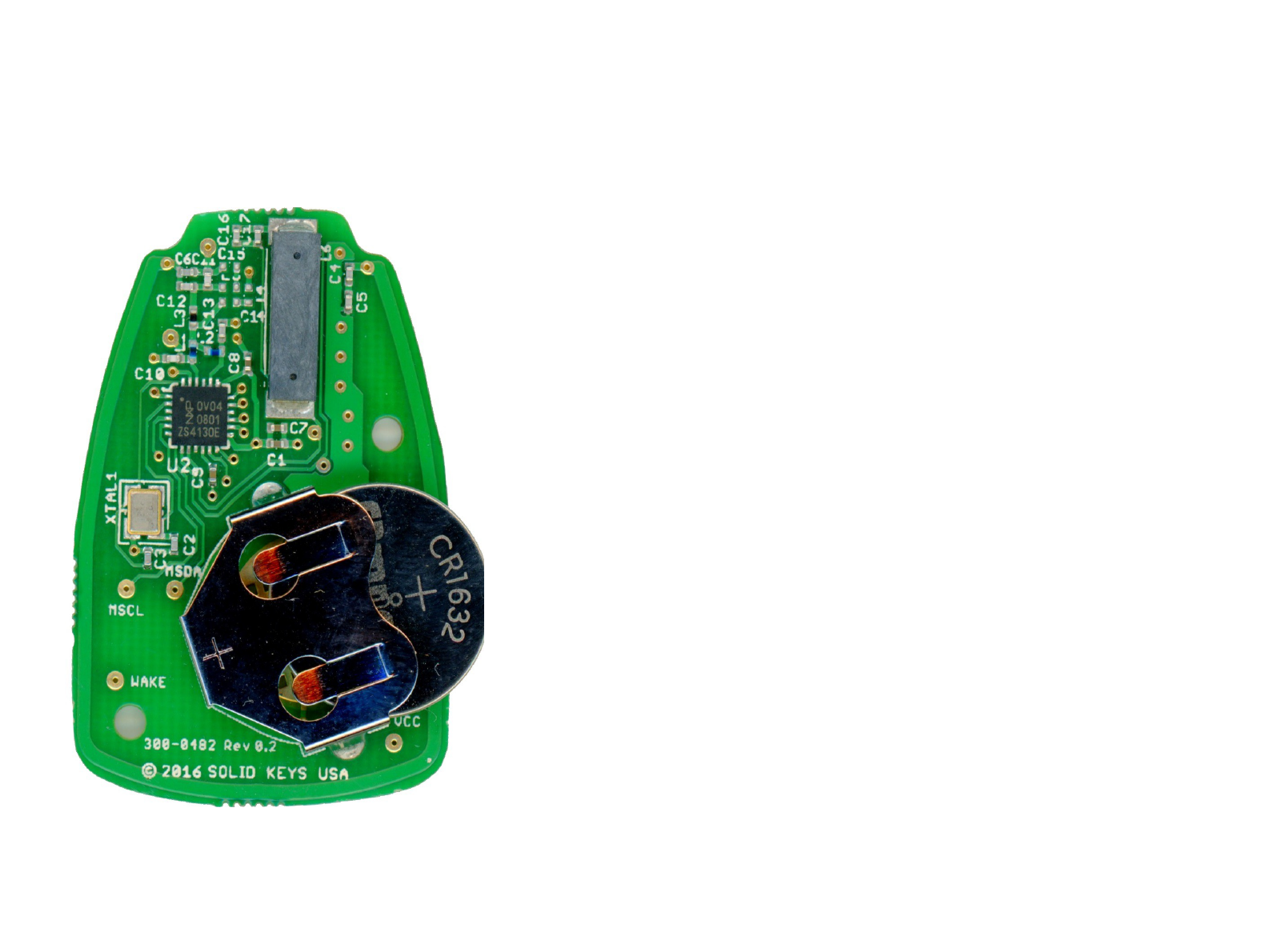

Battery Replacement
To replace battery;
1) Pry two halves of shell apart
2) Replace battery with CR1632 cell with “+” terminal
facing up towards battery retaining clip
3) Replace PCB with battery facing back shell
4) Press two halves of shell back together.
FCC Regulatory Statement
Model: 300-0482
FCC ID: X32-AFK41B1
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this device not expressly approved by iKeyless, LLC could void the user’s
authority to operate the equipment.
IC Regulatory Statement
Model: 300-0482
IC: 8797A-AFK41B1
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to
other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication. This device complies with Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une
antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but
de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type
d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante. Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
