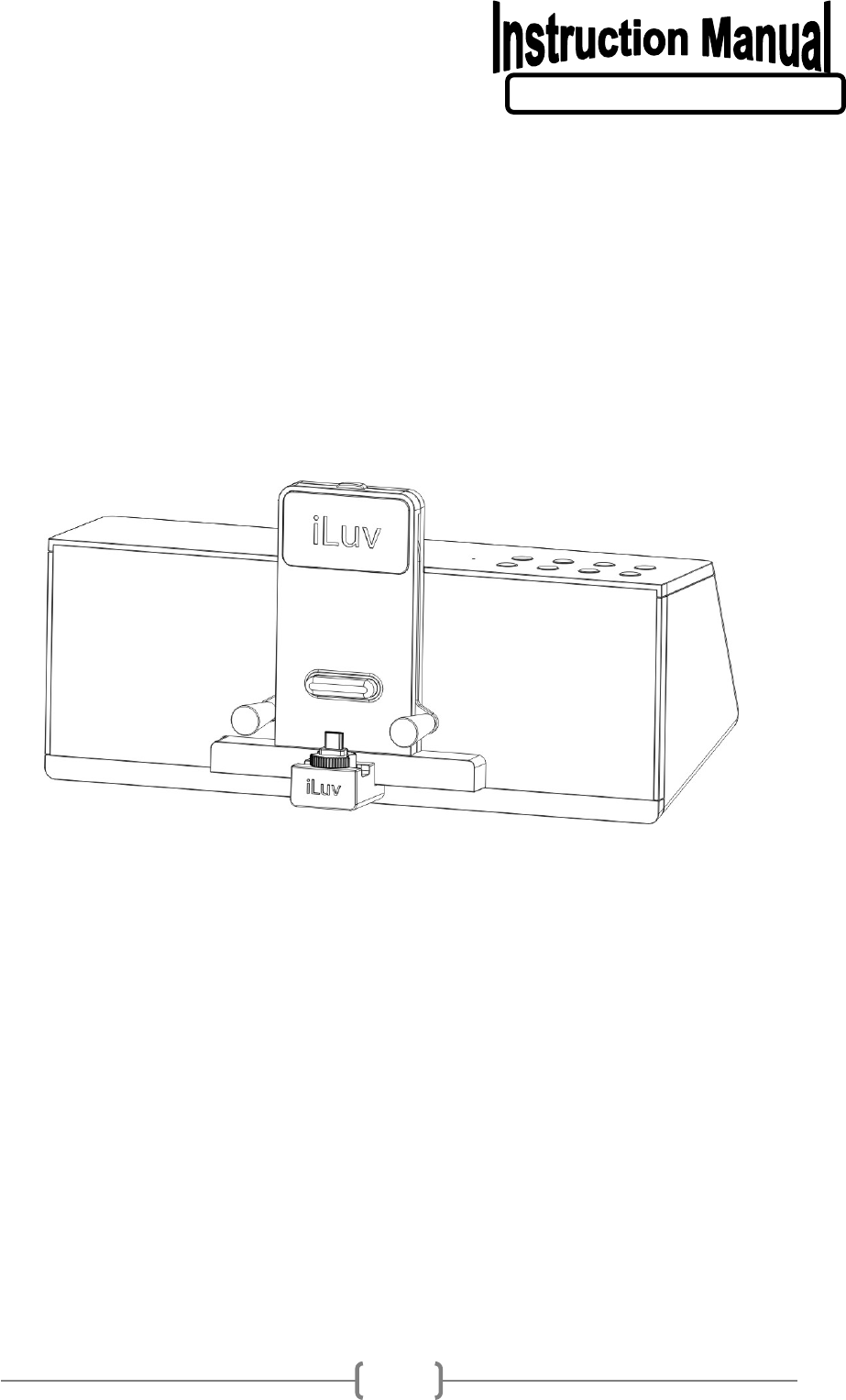

USERS MANUAL
0
iMM377/ iMM378
Wireless Stereo Speaker Dock for Smartphone
Please read before usin
g
this unit
1

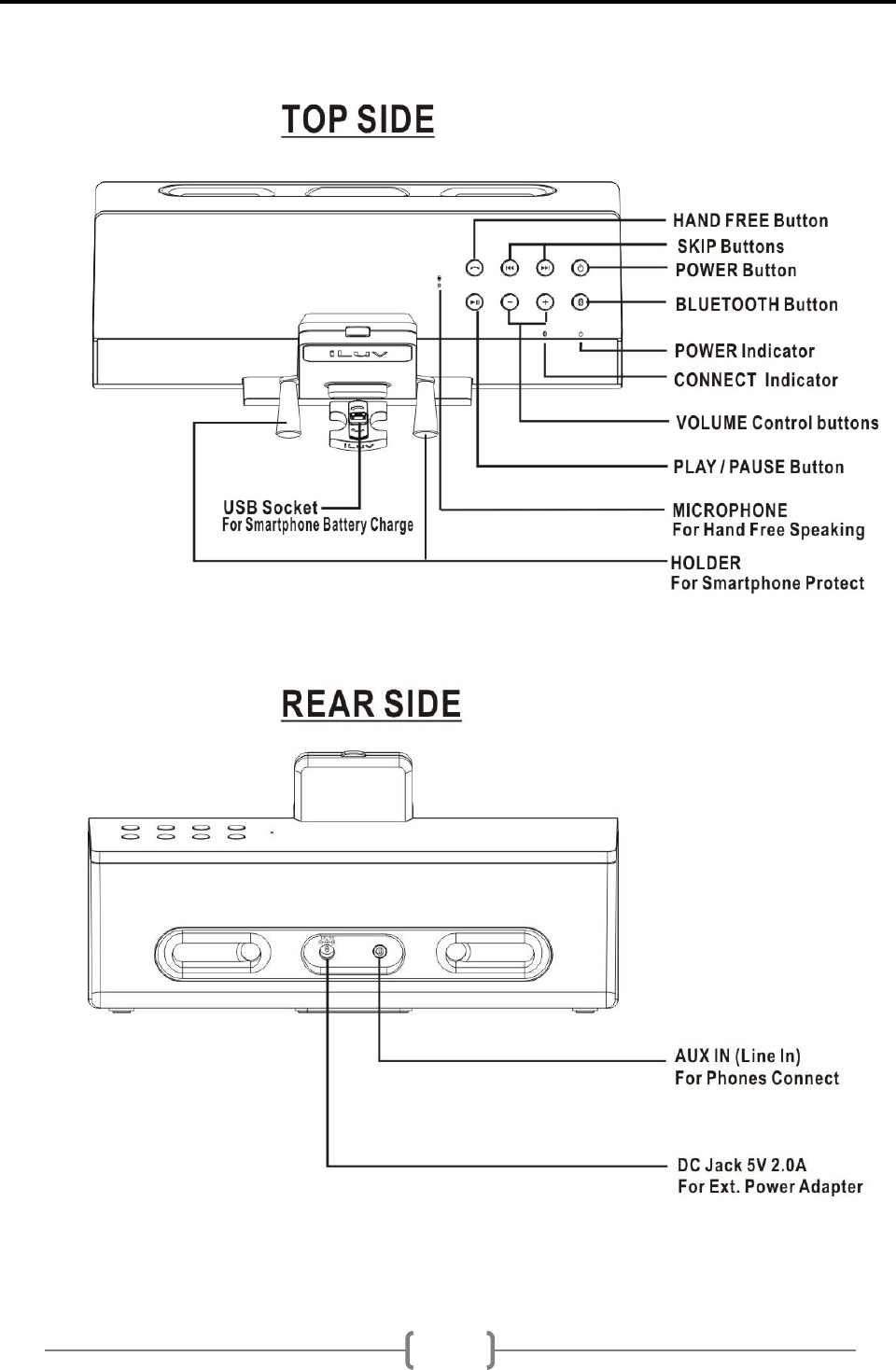

CONTROL LOCATION
2

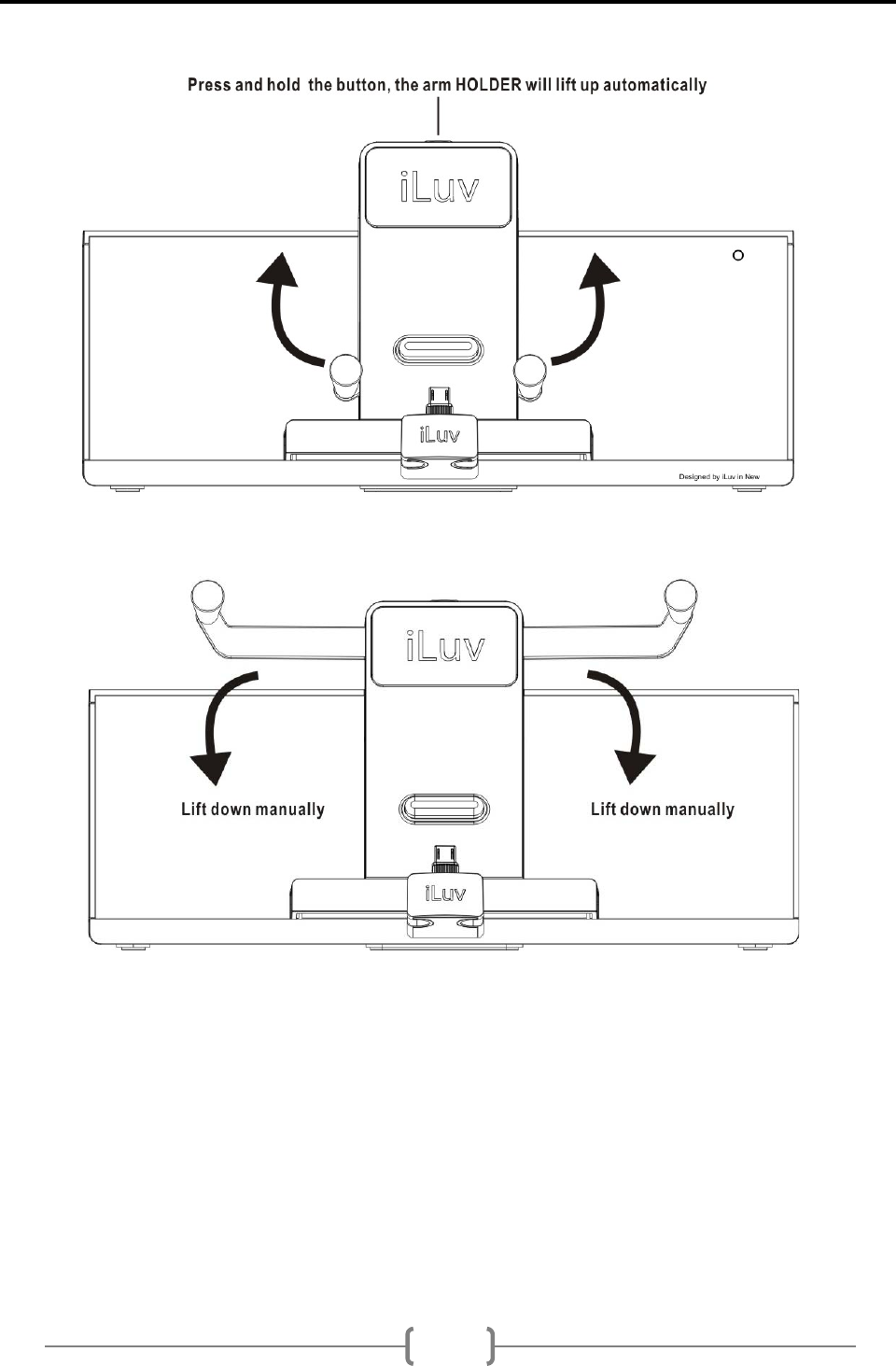

USING THE ARM HOLDER
3
FCC NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the follow:-
1) This device may not cause harmful interference, and
2) This device must accept any including interference that may cause undesired
operation.
The manufacturer is not responsible for any radio or TV interference caused by uncouth.
Such modifications could void the user's authority to operate the equipment.
BATTERY CHARGE
This Bluetooth Speaker can charge your Smartphone battery by USB socket follow below
step:
1. Move USB socket of unit to left or right and rotate the angle to match your Smartphone.
2. Carefully connect USB to your Smartphone USB socket.
3. After connected, your Smartphone battery will charge automatically.
OPERATION (BLUETOOTH CONNECT)
You can connect your Bluetooth Speaker and Smartphone by Bluetooth.
1. Press the POWER button to turn on your Bluetooth Speaker.
2. Press BLUETOOTH button of your Bluetooth Speaker and the CONNECT indicator
will flash.
3. Use your Smartphone to search name of Bluetooth (F-3088)
a) If your mobile cannot search the name, press the CONNECT button again.
4. After search the name, press icon (F-3088) of mobile to enter.
5. To choose ALWAYS CONNECT or YES and press to confirm.
6. Select music file from your Smartphone.
7. Press the PLAY/PAUSE button of main unit to start playing.
8. In music playing, press the PLAY/PAUSE button to pause playing and press again to
resume.
9. Press SKIP NEXT / SKIP PREVIOUS button to select next or previous file playing.
10. Press
VOLUME
buttons to adjust the volume sound of Bluetooth Speaker.
4
HAND FREE FOR YOUR MOBILE
Your Bluetooth speaker has hand free function.
1) Follow BLUETOOTH CONNECT instruction.
2) If mobile call ring sounds, press the HAND FREE button once to answers the incoming
call.
3) During incoming call, press the HAND FREE button once to disconnect the call.
If music playing before incoming call, the music will play again after disconnect the call.
Set up you line in port (AUX IN)
This will allow you to broadcast the external unit’s sound through your Bluetooth Speaker.
CONNECTION:
1. Plug a 3.5mm audio cable (not included) into your MP3 or MP4 player phones jack or
line out port and connect the other end (3.5mmjack) into the AUX- IN port at the rear of
unit.
2. Make sure both units are turned on.
3. Set your device to start playing.
4. This will allow you to broadcast the external device sound through your unit’s speakers.
5. Press
VOLUME
buttons to adjust the volume sound of Bluetooth Speaker.
FCC Note：
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user's
authority to operate the equipment.
The antenna used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operated in conjunction with
any other antenna or transmitter.
