iPush Technology ITV38 Android TV Box User Manual v1 0
Shenzhen iPush Technology Co., Ltd. Android TV Box v1 0
User Manual-v1.0
1
Android TV Box Manual
《Fast usage instruction》
2
Content
Power on
1. Connect power
Outer connection equipment
2. Connect television
3. Connect mouse
Use
4. Connect internet
5. Fix resolution of the screen
6. Fix voice
7. Copy files
8. Install and delete the apps
Update software
3
Power on
Connect power
1. Put the power supply into the jack
2. Connect one head of the USB into power supply, and the
other into the Micro USB interface of the Android TV Box
Manual
3. The Android TV Box Manualcan begin to work normally

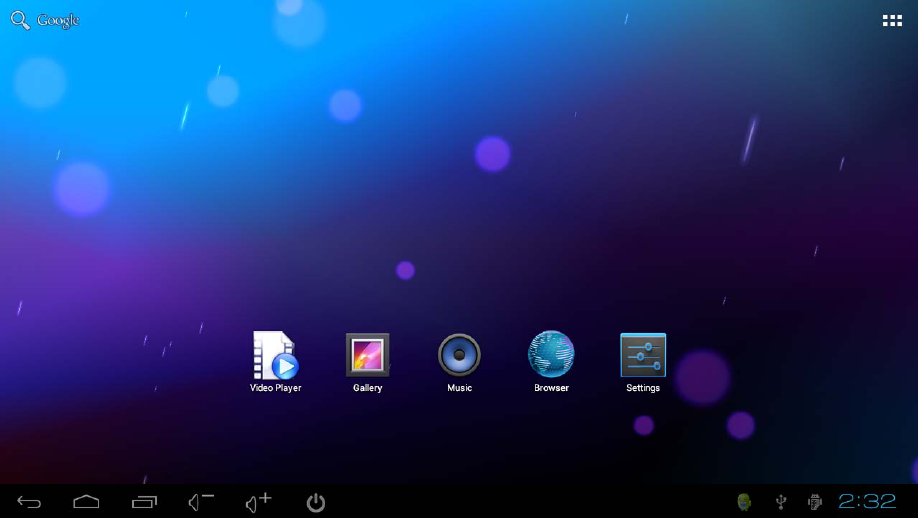

4. Wait until the Android TV Box Manualtotally powered on, the
TV screen will show the primary desktop（see below picture)
4
If it does not work, please check the connection of the power or
the connection of the HMDI cable between the HDMI jack of
the TV and the HDMI port of the Android TV Box Manual
Outer connection equipment
Connect television
1. Put the Android TV Box ManualHDMI plug into the TV's
HDMI jack. Or use the HDMI wire to connect the TV and
Android TV Box.
2. Turn on TV, find the TV program menu with the monitor and
select the corresponding HDMI of the "signal origin". (Refer to
the TV instruction for the detailed information)
Connect mouse
1. The mouse is used to control Mini Pc .It is the same usage as
it is used with a computer. An ordinary wired mouse is enough.
Or a standard 2.4G wireless mouse is OK. Connecting the
mouse with Android TV Box ManualUSB.
Note: After normally power on, click the mouse once on the
left (not twice) to run the program or select on the menu.
5
Use
Connect internet
Android TV Box Manualis equipped with Wi-Fi. It is can be
connected to the Internet through Wi-Fi. For the first use, set the
Wi-Fi wireless net.

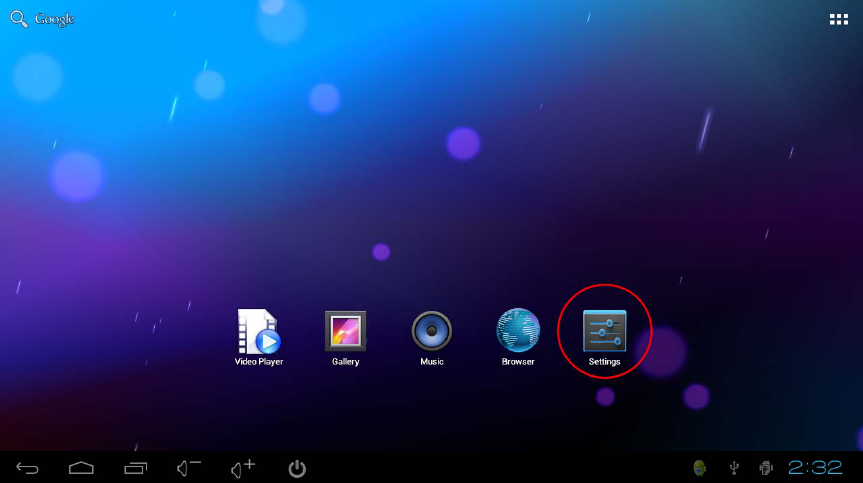

1. Click "Setting" once.
6

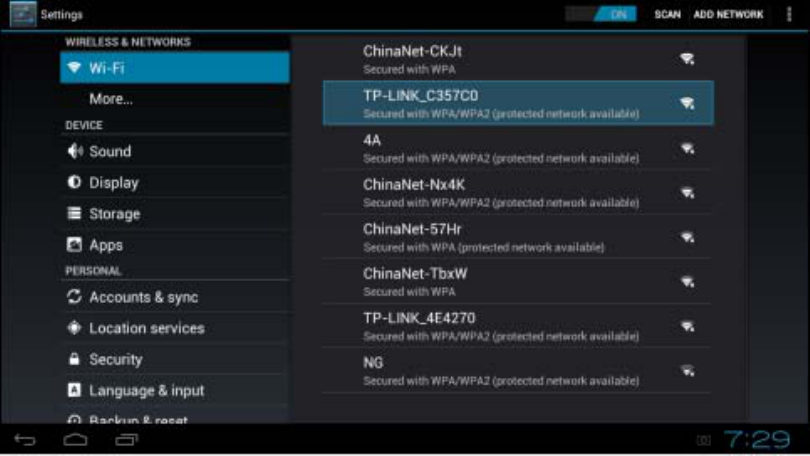

2. In the menu‘Setting->Wi-Fi’, select Wi-Fi, choose Wi-Fi
router name,
7
3. After keying in the code (if there is), select "Connection" to
finish connection. The Wi-Fi icon will appear after finishing all
the actions.

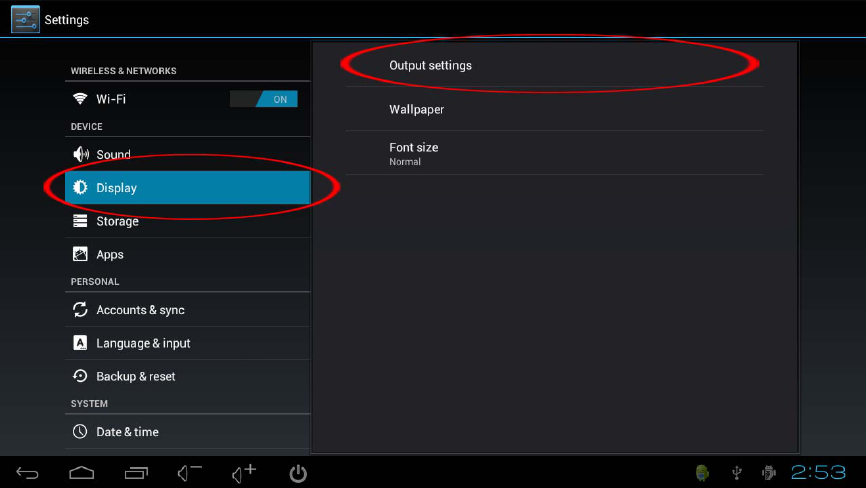

Fix resolution of the screen
If the HDMI output of TV screen is not complete, entering
"Display-output settings" and fix the resolution of the screen by
mouse. Entering "output settings-Resolution", and set it as
automatic selection.
8

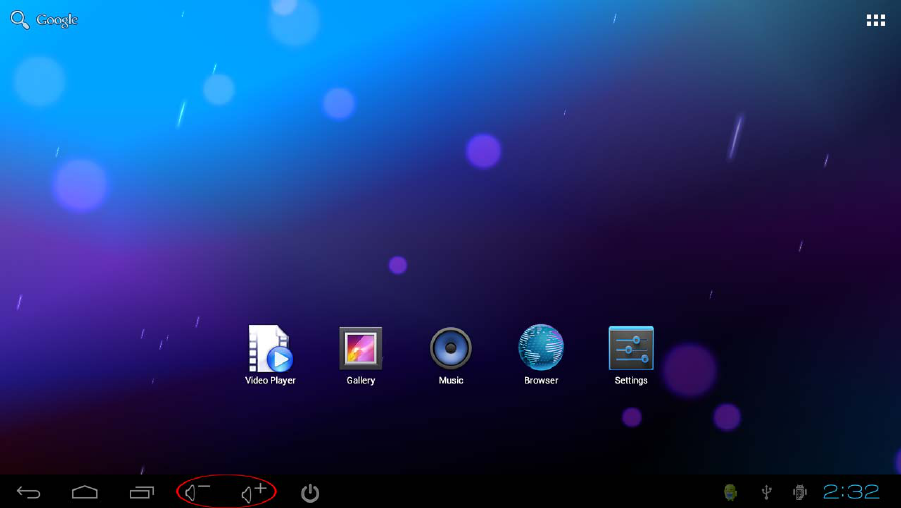

Fix voice
Click the mouse once on the voice icon to up and down the
voice.
9
Copy files (connect with the computer)
1. Insert the Android TV Box ManualUSB wire into computer
USB, wait it to power on.

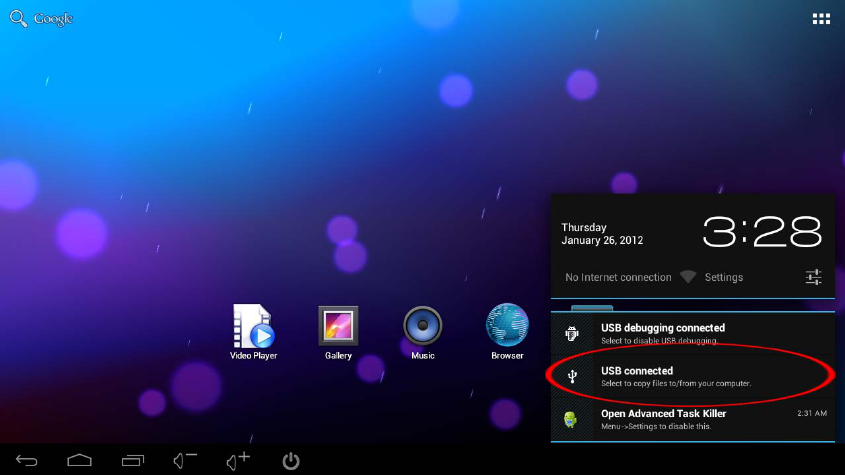

2. Click the mouse on the right below corner of the screen, then
the menu appears; click the items in the red circle.
10

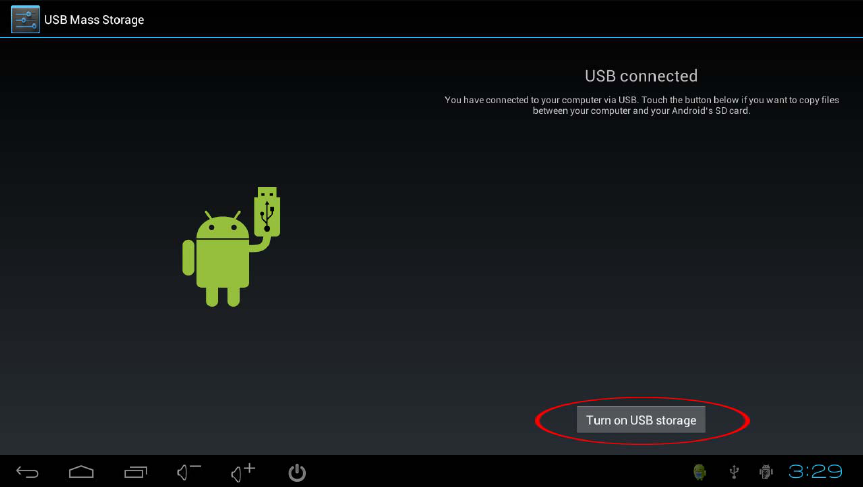

3. After the below desktop appears, click the button in the red
circle.
11
4. In the computer, wait for the driver（like U flash) appears. The
usage is the same as U flash.
Install and delete the apps
Install the apps：
1. Click the right above corner, the installed apps will appear.
12

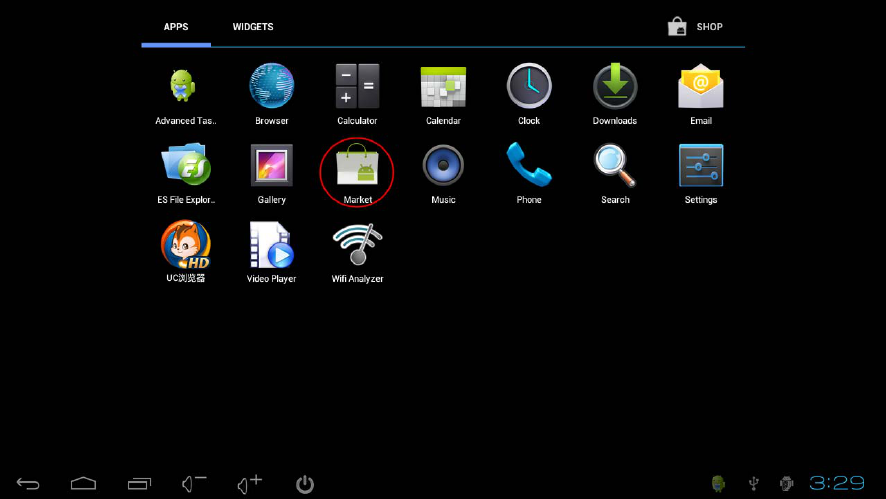

2. Choose "electronic market" (or choose to use another
"software market" to choose to install apps.)
13
3. If it is the first time to run the "electronic market", then it
needs to key in the Google email account to be the electronic
market" account.
Delete apps：

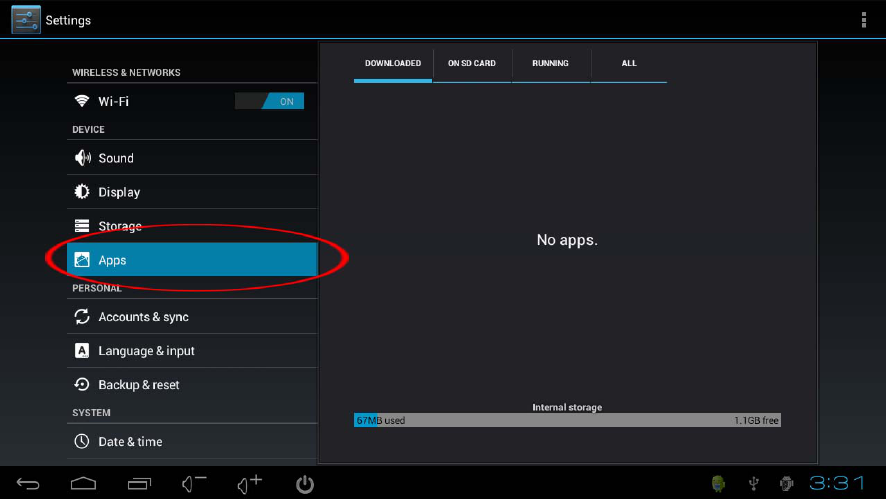

1. Running "Setting", the downloaded and installed apps will
appear. Click the unloading apps, the apps and its information
desktop will appear. Then click "Unloading"
14
Update software
1.Copy the update file into the Android TV Box Manualsave
content. (Note: the update file is named update. zip and its name
can not be changed)

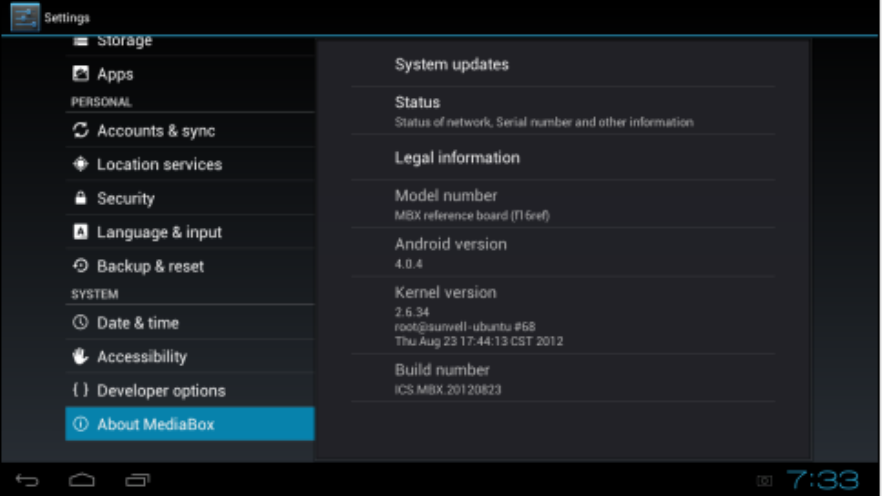

2. Running "Setting", select "About box ", chose "System
update"
15

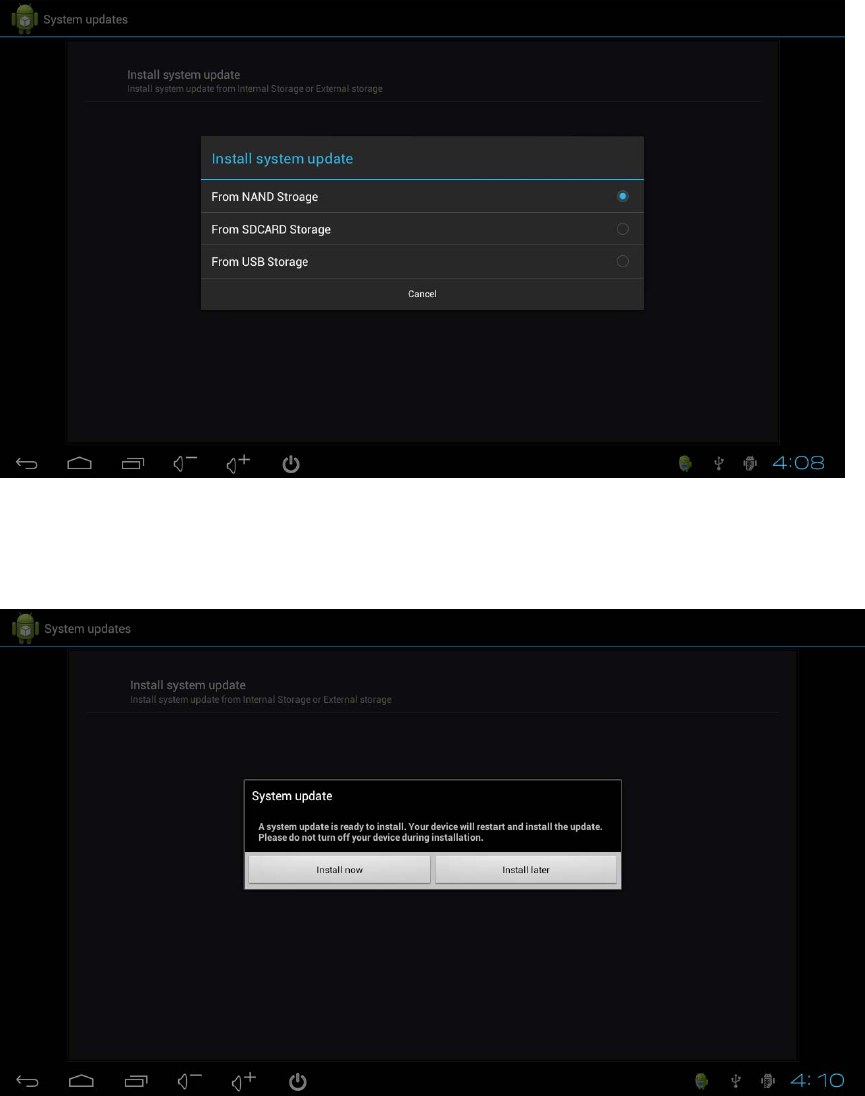

3.Enter‘System update’, chose ‘From NAND Storage’
4. Warning to start to update by reset
16
5. Enter the update mode, after the scroll bar finished, it will
reset, and update finish.
Common problems:
1. If the mouse is connected, but it is not showed on the screen,
please check the connection of the mouse. If it is the 2.4G
wireless mouse, please check if it need the correctly installed
butterfly(some not standard mouse are not suitable for Android
TV Box，please contact the mouse supplier)
2. If the wireless net is already settled, but you can still not able
to connect the net, please check the right below corner whether
the icon is totally grey. If the signal is weak, please contact the
net supplier.
5. When needing to key in words and no soft keyboard appears,
please click the "Keyboard" icon on the right below corner and
choose to close the "Physical Keyboard"
6. Some apps are designed specially for cell phone, so they can
not be shown completely.
7. If some apps can not work, it may be the reason that they
are not optimized for Android
17
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void the
user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
18
interference by one or more of the followingmeasures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
RF Exposure Information
This device meets the government’s requirements for exposure
to radio waves. This device is designed and manufactured not to
exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the
U.S. Government. This device complies with FCC radiation
exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum
distance 20cm between the radiator and your body.
