DC-02
3DoF Bluetooth Controller
Manual
Ver 0.1
©2017-2018iStar Technology
This document contains information that is proprietary to iStar Technology This document is commercially confidential and must
NOT be disclosed to third parties without prior consent. The information provided herein is believed to be reliable. But production
testing may not include testing of all parameters. iStar Technology reserves the right to change information at any time without
notification.
iStar Technology Co.,Ltd
DC-02
www.istar-technology.com
2 / 8
Contents
1. Inside the package .............................................................................................................................................. 3
2. Specification ......................................................................................................................................................... 3
3. Overview ............................................................................................................................................................... 3
4. On/Off/LED ........................................................................................................................................................... 4
5. Low power alarm & Charge ............................................................................................................................... 4
6. Controller sketch ................................................................................................................................................. 4
7. App download ...................................................................................................................................................... 5
8. Put your phone into VR Box .............................................................................................................................. 5
9. Pairing ................................................................................................................................................................... 6
10. Troubleshooting ................................................................................................................................................. 7
iStar Technology Co.,Ltd
DC-02
www.istar-technology.com
3 / 8
1. Inside the package
1. User manual *1
2. Warranty card *1
3. Controller *1
2. Specification
BT version
BLE4.0
Work range
10 meters
Work time
30 hs (Test after battery full charged)
Stand by time
240 days (Test after battery full charged)
Charge time
2 hs (From 0-100%)
Battery capacity
350mAh
Buttons life time
Touch pad button: 500,000
Other buttons：100,000
Operate temperature
0-40℃
Store temperature
10-30℃
3. Overview
DC02 is a 3DOF Bluetooth LE controller with 32mm effective touch area
touch-pad, powered by rechargeable lithium-ion battery, and compatible with
Google Daydream VR platform.
Note: This controller need to be used together with VR box, recommend to use the VR box which may adjust
pupillary distance & object distance.
iStar Technology Co.,Ltd
DC-02
www.istar-technology.com
4 / 8
4. On/Off/LED
1. Press Home button for 3 seconds to turn on the controller & enter pairing mode, green LED flash.
2. Controller will enter sleep mode if do not receive any connect request in 60 seconds.
3. Press any buttons to wake up controller and enter pairing mode from sleep mode.
4. Long press Home button for 10 seconds to shut down controller, green LED will flash 3 times rapidly.
5. Low power alarm & Charge
1, When battery voltage lower than 10%, Red LED flash. (0.03s on, 0.47s off);
2, Red LED breathing light when charging, and Red LED off after full charged.

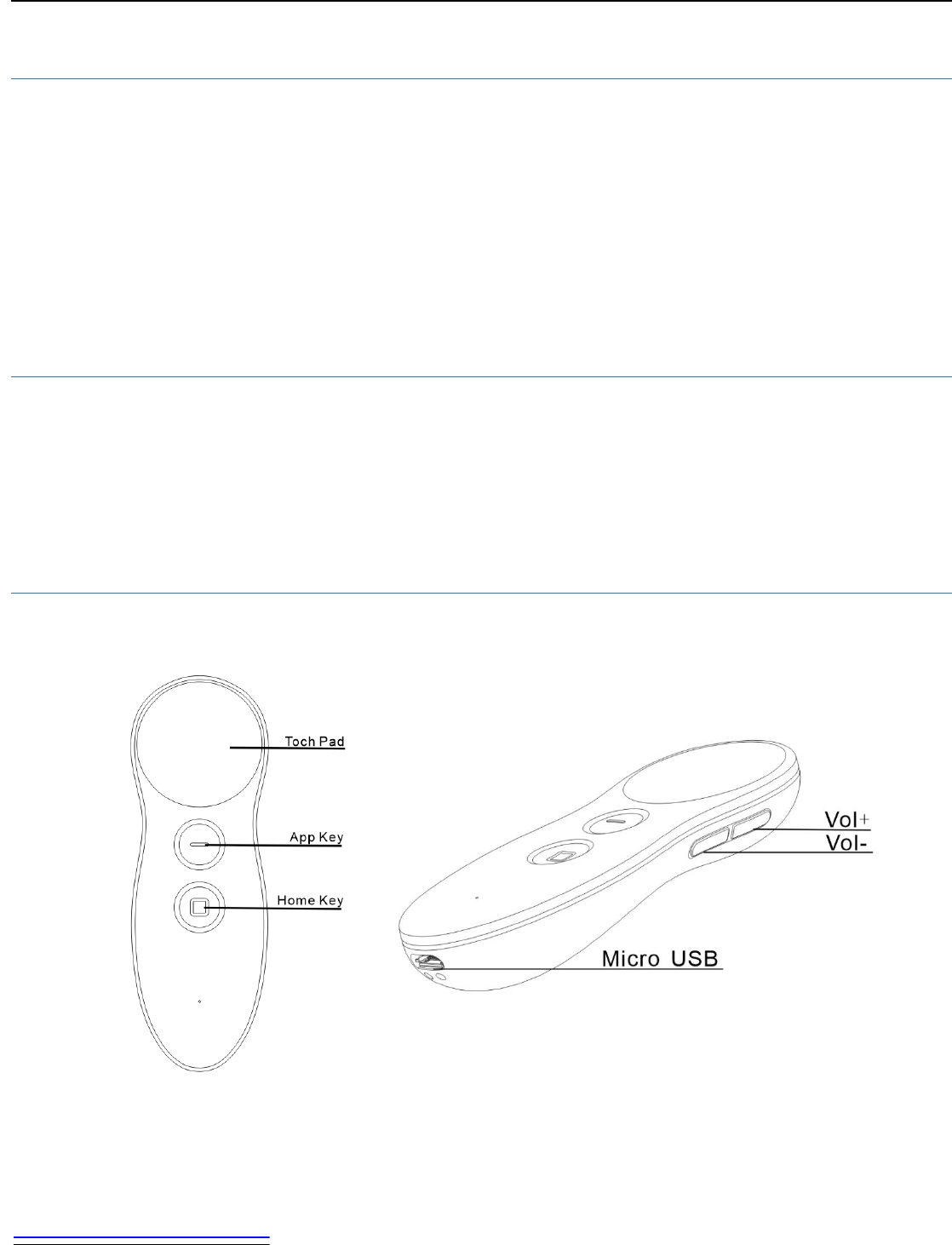

6. Controller sketch
iStar Technology Co.,Ltd
DC-02
www.istar-technology.com
5 / 8
7. App download

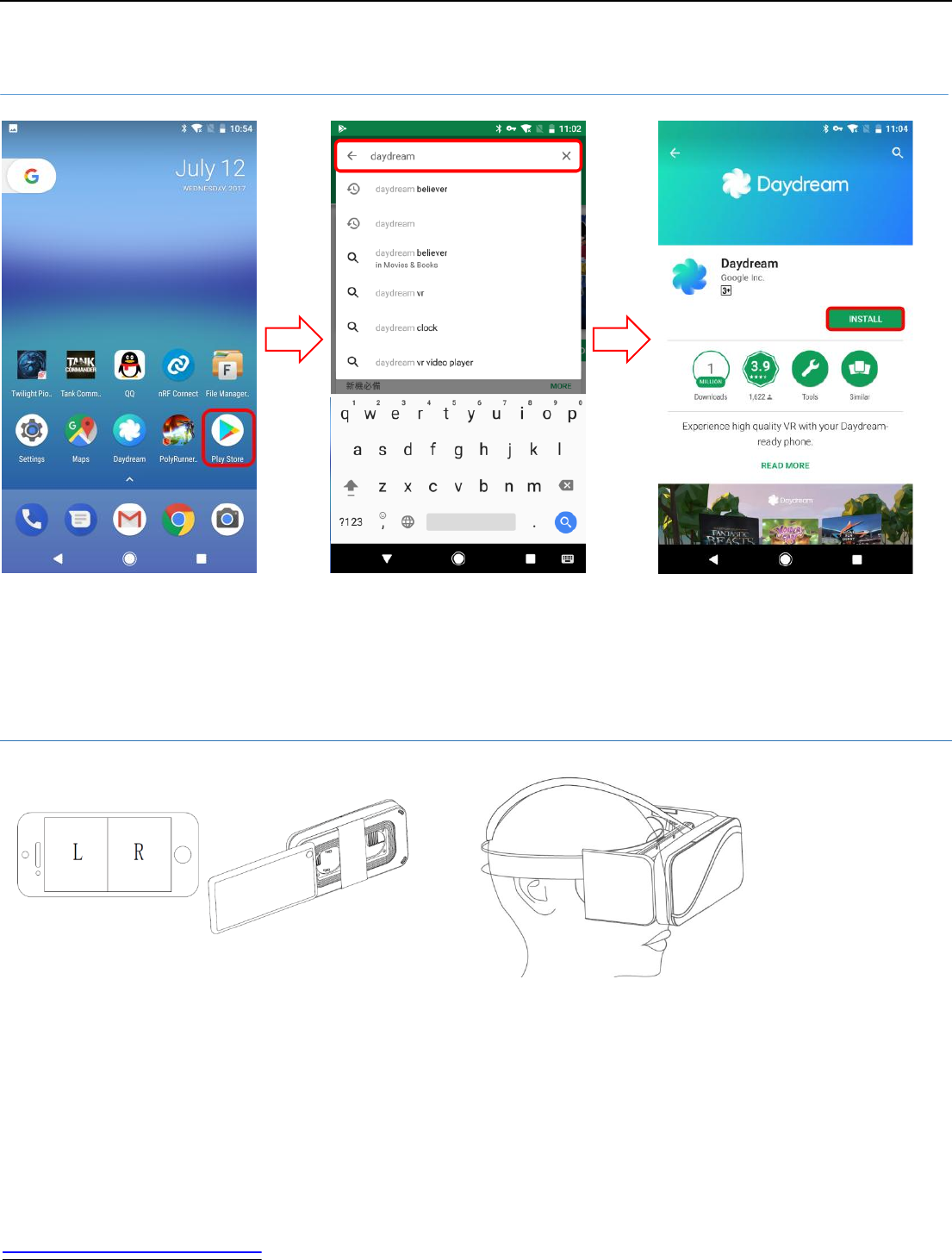

Play Store Search Daydream Install Daydream
Daydream App installed, open Daydream App, follow the prompts to complete registration and login.
8. Put your phone into VR Box
Refer to the VR Box manual Wear VR Box correctly
Install the phone properly to VR Box Use the adjust button to
make the screen clear.
iStar Technology Co.,Ltd
DC-02
www.istar-technology.com
6 / 8
9. Pairing
Firstly, turn on Bluetooth: Setting Bluetooth On

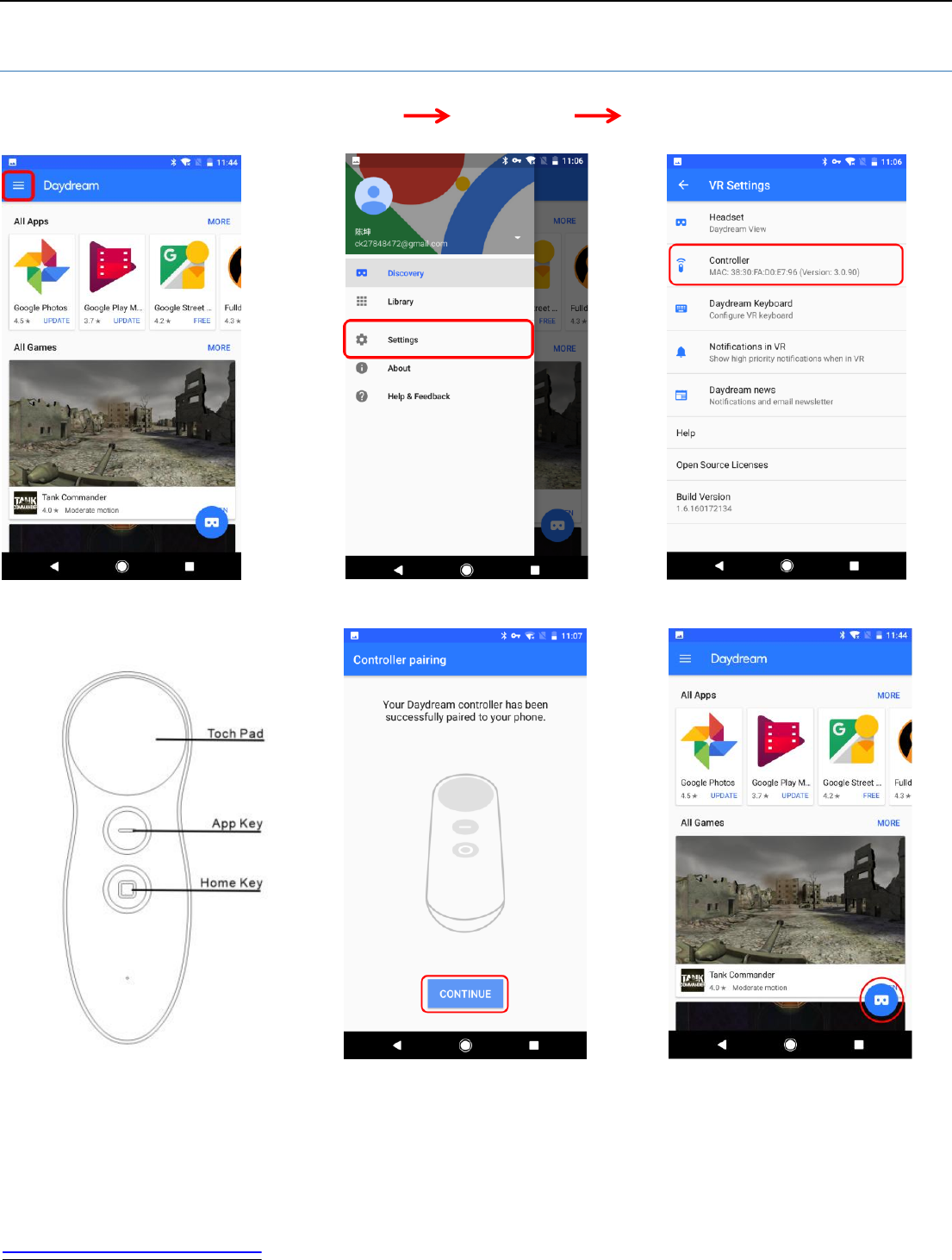

1, Open Daydream App and select “Menu” 2, Open Settings 3, Select Controller
4, Follow the prompt, press Controller Home 5, After pairing successful, press 6, Retrun to main page, press VR key
Enter pairing mode, green LED blink CONTINUE to enter Daydream
iStar Technology Co.,Ltd
DC-02
www.istar-technology.com
7 / 8
10. Troubleshooting
1. The controller can’t work after connected with phone.
Please use Daydream App -> Settings to connect with controller;
Try to long press Home button (not longer than 10 seconds);
Reboot Daydream App；
Shut down controller, and turn on again.
2. Controller can’t enter pairing mode.
Try to long press Home button for 3 seconds;
Press any buttons to enter pairing mode;
Charge your controller.
3. Controller can’t turn on.
Charge your controller.
4. Daydream App black screen in use
Unlock the phone again
Restart Daydream App
iStar Technology Co.,Ltd
DC-02
www.istar-technology.com
8 / 8
FCC statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable exposure condition without restriction
FCC ID: 2AP4T-DC02
