1 Preliminary note
This document is part of the device and contains information about the correct
handling of the product�
This document is intended for specialists� These specialists are people who are
qualified by their training and their experience to see risks and to avoid possible
hazards that may be caused during operation or maintenance of the device�
Read this document before use to familiarise yourself with operating conditions,
installation and operation� Keep this document during the entire duration of use of
the device�
1.1 Symbols used
Instructions
Cross-reference
Important note
Non-compliance can result in malfunction or interference�
Information
Supplementary note
2 Safety instructions
2.1 General
Observe the operating instructions� Non-observance of the instructions, operation
which is not in accordance with use as prescribed below, wrong installation or
incorrect handling can affect the safety of operators and machinery
The installation and connection must comply with the applicable national and
international standards� Responsibility lies with the person installing the device�
The device must only be installed, connected and put into operation by a qualified
electrician as the safe function of the device and machinery is only guaranteed
when installation is correctly carried out�
Disconnect the unit externally before handling it�
In case of malfunction of the device or uncertainties please contact the
manufacturerTampering with the device can seriously affect the safety of
operators and machineryThis is not permitted and leads to an exclusion of liability
and warranty
5
UK
2.2 Radio equipment
In general, radio equipment must not be used in the vicinity of petrol stations, fuel
depots, chemical plants or blasting operations�
Do not transport and store any flammable gases, liquids or explosive
substances near the unit�
2.3 Interference of electronic and medical devices
Operation can affect the function of electronic devices that are not correctly
shielded�
Disconnect the device in the vicinity of medical equipment�
Contact the manufacturer of the corresponding device in case of any
interference�
3 Functions and features
In connection with the evaluation unit DTE10x the read/write head ANT410/
ANT411 enables non-contact reading and/or writing of the RFID transponders (ID
tags) conforming to the system�
The data is converted into digitally coded values and provided to the evaluation
unit�
4 Functions
4.1 Operating principle
The ID tags are operated passively, i�e� without batteryThe energy required for
operation is supplied by the read/write head�
The physical principle of the energy transfer is based on inductive coupling� The
integrated antenna coil in the read/write head generates a magnetic field which
partly penetrates the antenna coil of the ID tag� A voltage is generated by induction
that supplies the data carrier with energy
6

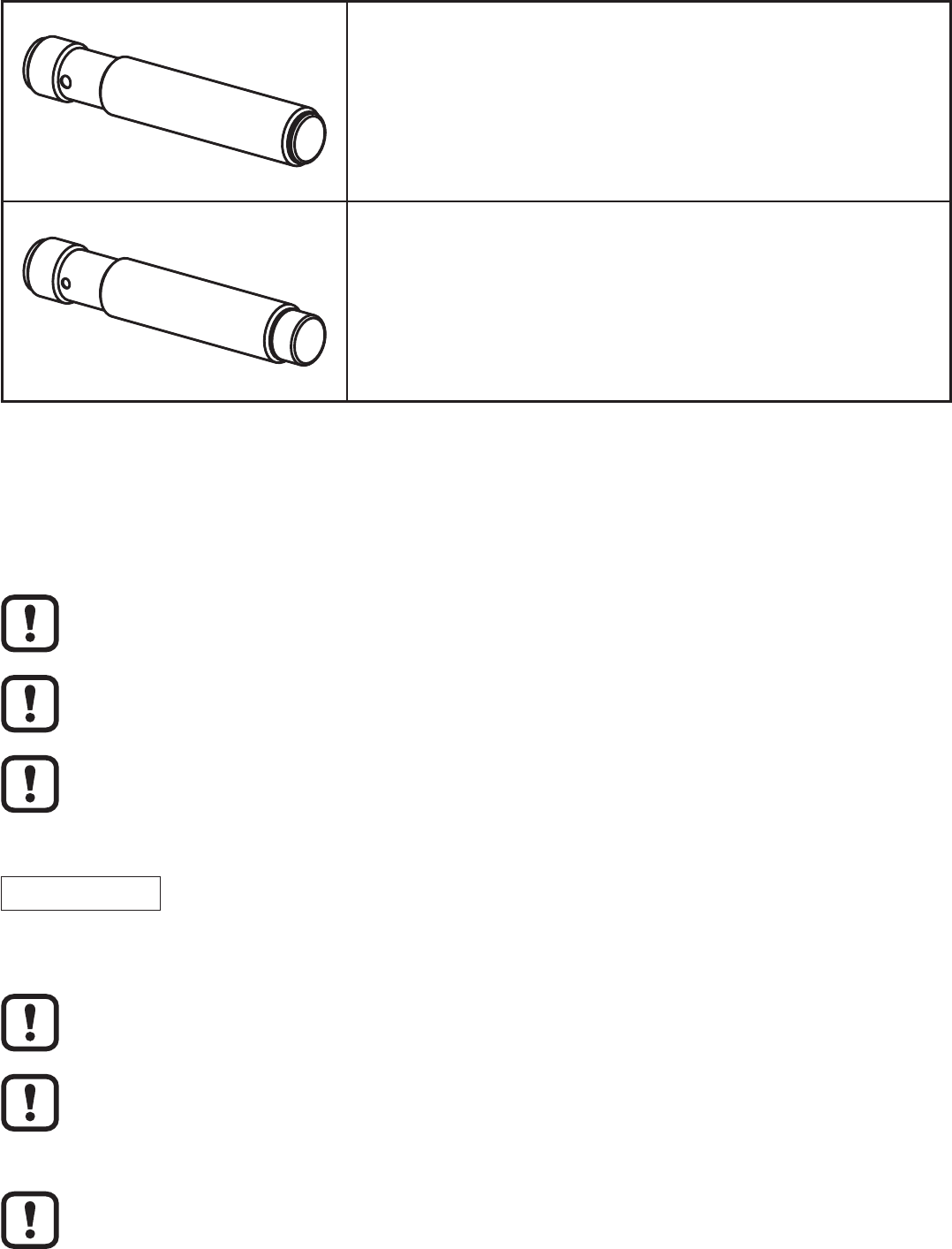

4.2 Overview
Art� no�:
Function:
Type designation:
Operating frequency:
Type:
ANT410
Read/write head
DTRHF FBRWIDUS03
13�56 MHz
M12, flush mountable
Art� no�:
Function:
Type designation:
Operating frequency:
Type:
ANT411
Read/write head
DTRHF FNRWIDUS03
13�56 MHz
M12, non-flush mountable
5 Installation
5.1 General installation instructions
When mounting several read/write heads adhere to the minimum distances
between the systems�
Flush mounting of a read/write head in metal reduces the read/write
distance�
The immediate vicinity of powerful HF emission sources such as welding
transformers or converters can affect operation of the read/write heads�
Information on the available mounting accessories is available on our website at:
www�ifm�com → Data sheet search → e.g. ANT410 → Accessories
5.2 Notes on ID tag mounting
If the ID tags are mounted in/on metal, the read/write distance is reduced�
For positioning the ID tags the read/write heads are marked with an
antenna symbol on the active face� It designates the middle of the
integrated antenna coil and has to correspond with the middle of the ID tag�
The orientation of the read/write head antenna axis must correspond with
the axis of the ID tag coil�
7
UK
The best way to position the available ID tags and on mounting in metal is
available on our website:
www�ifm�com → Data sheet search → e.g. ANT410 → More information
(General information about mounting and operation)
5.3 Avoiding interference
The device generates a modulated electrical field with a frequency of 13�56 MHz�
To avoid interference of the data communication no other devices generating
interference emission in this frequency band must be operated in the vicinity� Such
devices are for example frequency converters and switched-mode power supplies�

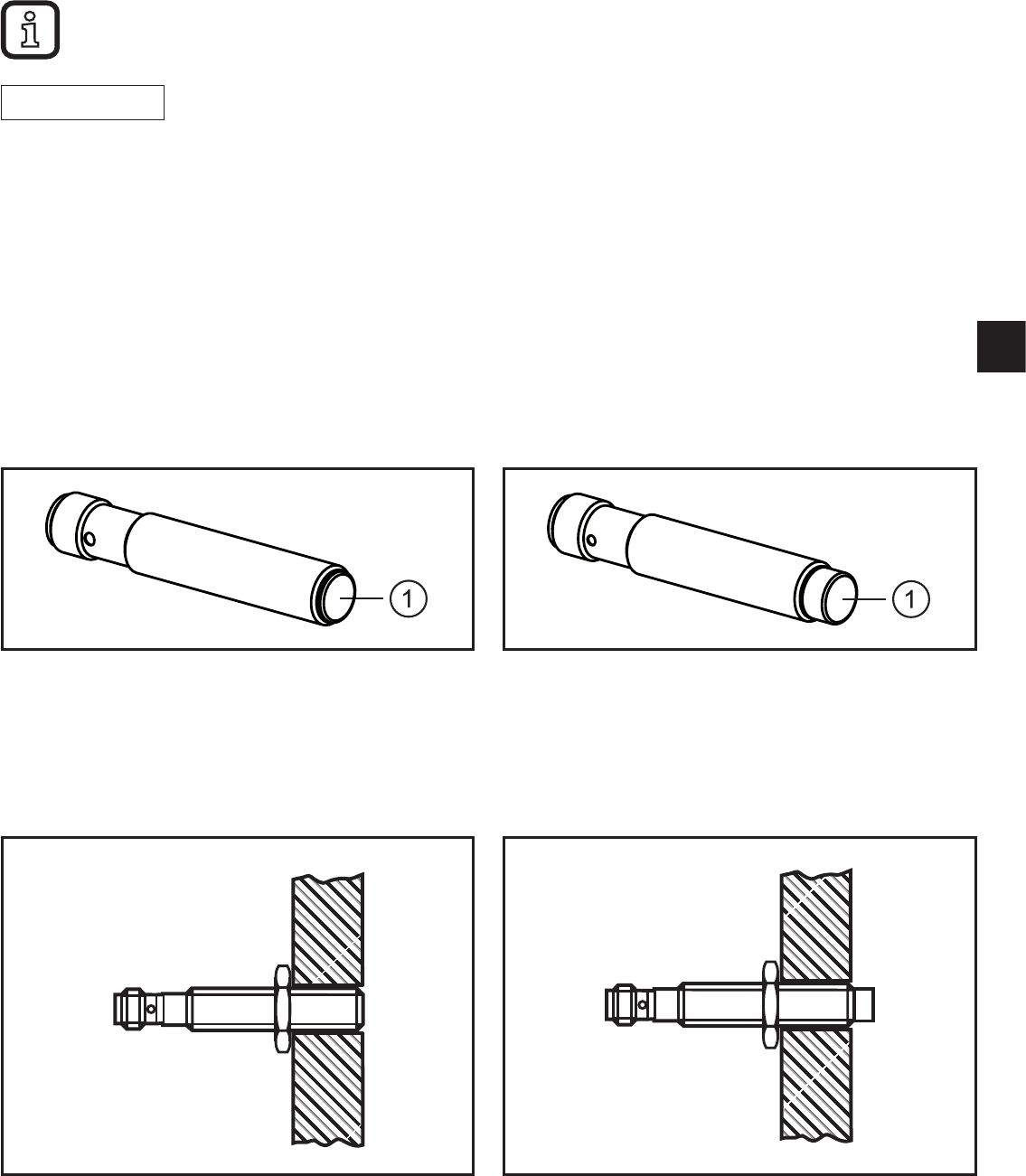

5.4 Mechanical design
1: Sensing face
5.5 Fixing
Fix the device using the supplied nuts (M12)�
flush (ANT410) non-flush (ANT411)
8

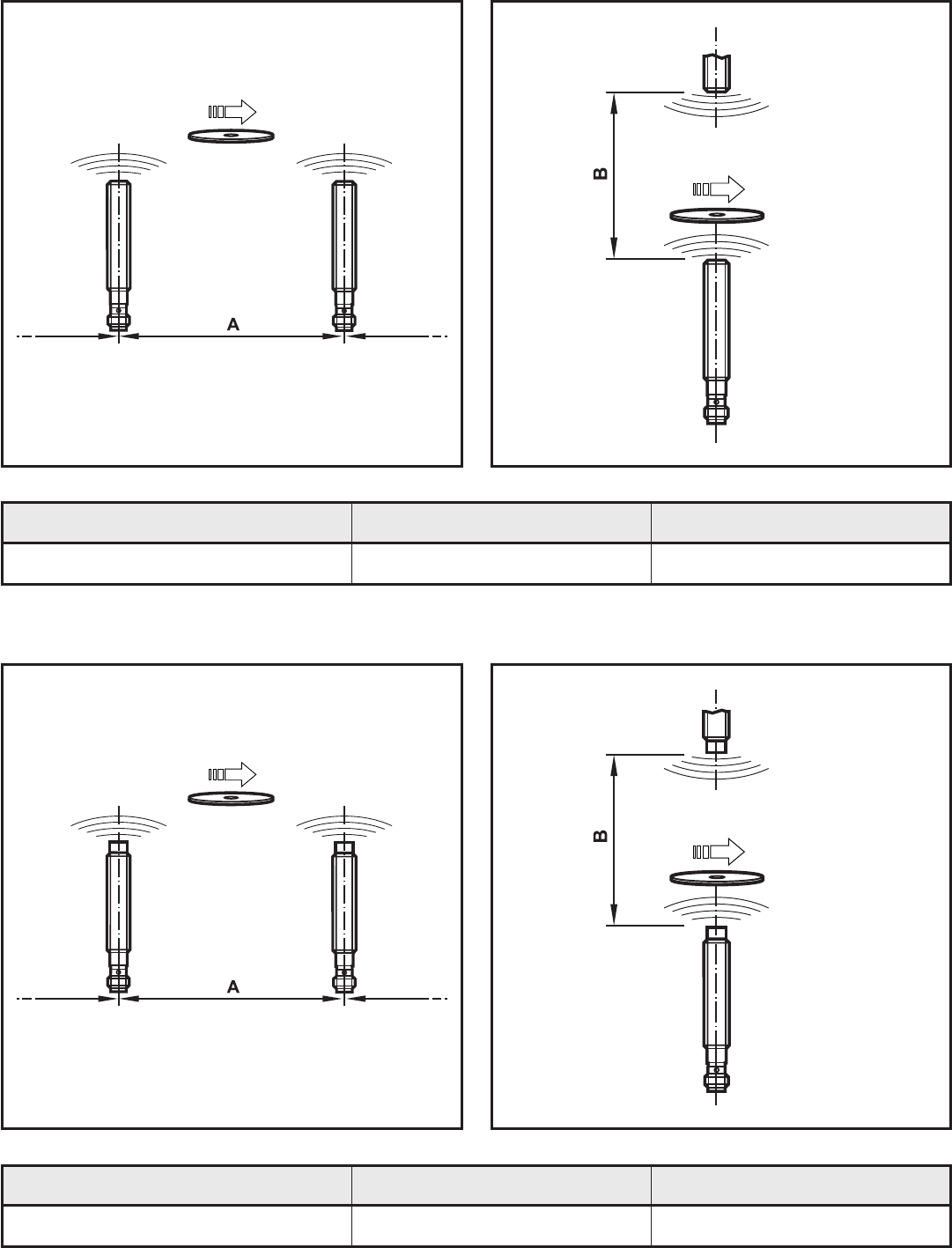

5.6 Mounting distances
5.6.1 ANT410
Operating mode Distance side (A) Distance front (B)
For reading and writing ≥ 20 mm ≥ 40 mm
5.6.2 ANT411
Operating mode Distance side (A) Distance front (B)
For reading and writing ≥ 25 mm ≥ 90 mm
9
UK

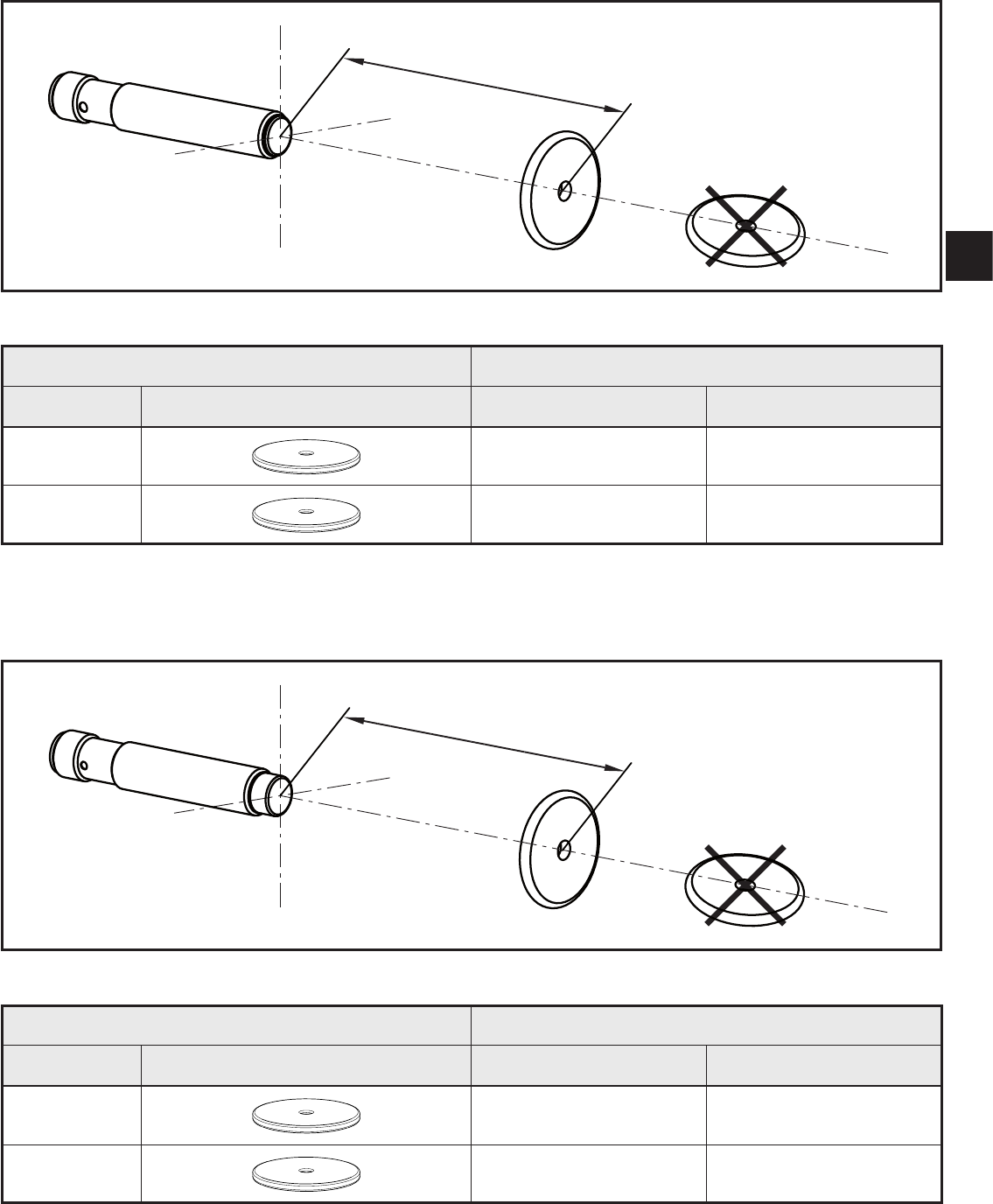

5.7 Positioning of the ID tags
5.7.1 ANT410
D
Align the ID tag on the antenna central axis�
Distance read/write head (D)
ID tag Type metal plastics
E80370 - 0���10 mm
E80371 5���10 mm 0���16 mm
All indications apply to static read/write operations�
5.7.2 ANT411
D
Align the ID tag on the antenna central axis�
Distance read/write head (D)
ID tag Type metal plastics
E80370 0���14 mm 0���16 mm
E80371 0���20 mm 0���24 mm
All indications apply to static read/write operations�
10
6 Electrical connection
6.1 Wiring

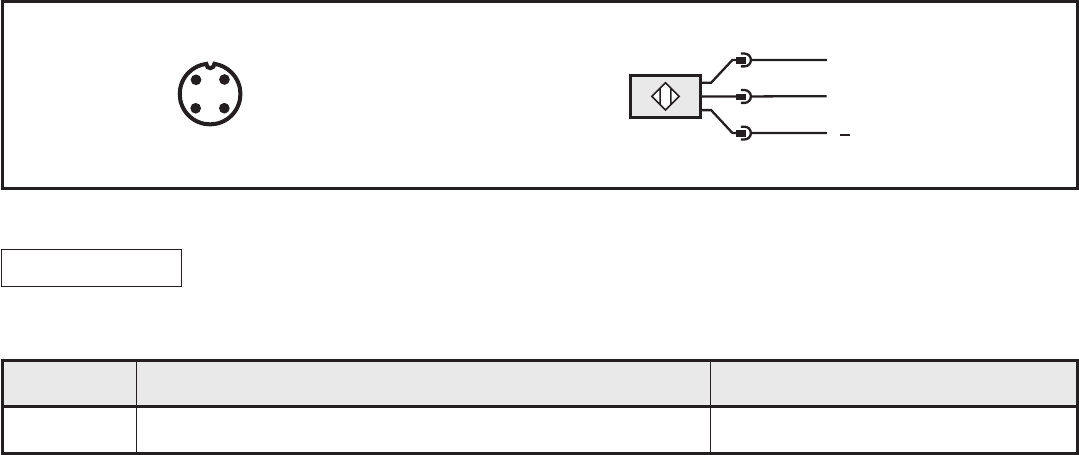

Connect the device to the evaluation unit DTE10x using the M12 connection�
Voltage is supplied via the evaluation unit�

L+
1
3
4
L
DATA
A selection of sockets is available on our website at:
www�ifm�com → Data sheet search → e.g. ANT410 → Accessories
Cables with the following characteristics are suitable for the connection:
Length Ohmic resistance (feed + return line) Effective cable capacity
< 20 m max. 3Ω max� 3 nF
6.2 UL approval
For units with cULus approval and the scope of validity cULus:
Supply the device from an isolating transformer having a secondary UL- listed
fuse rated
a) 5 A at voltages of 0���20 Vrms (0���28�3 Vp)
b) 100/Vp at voltages of 20���30 Vrms (28�3���42�4 Vp)
11
UK
7 Display elements

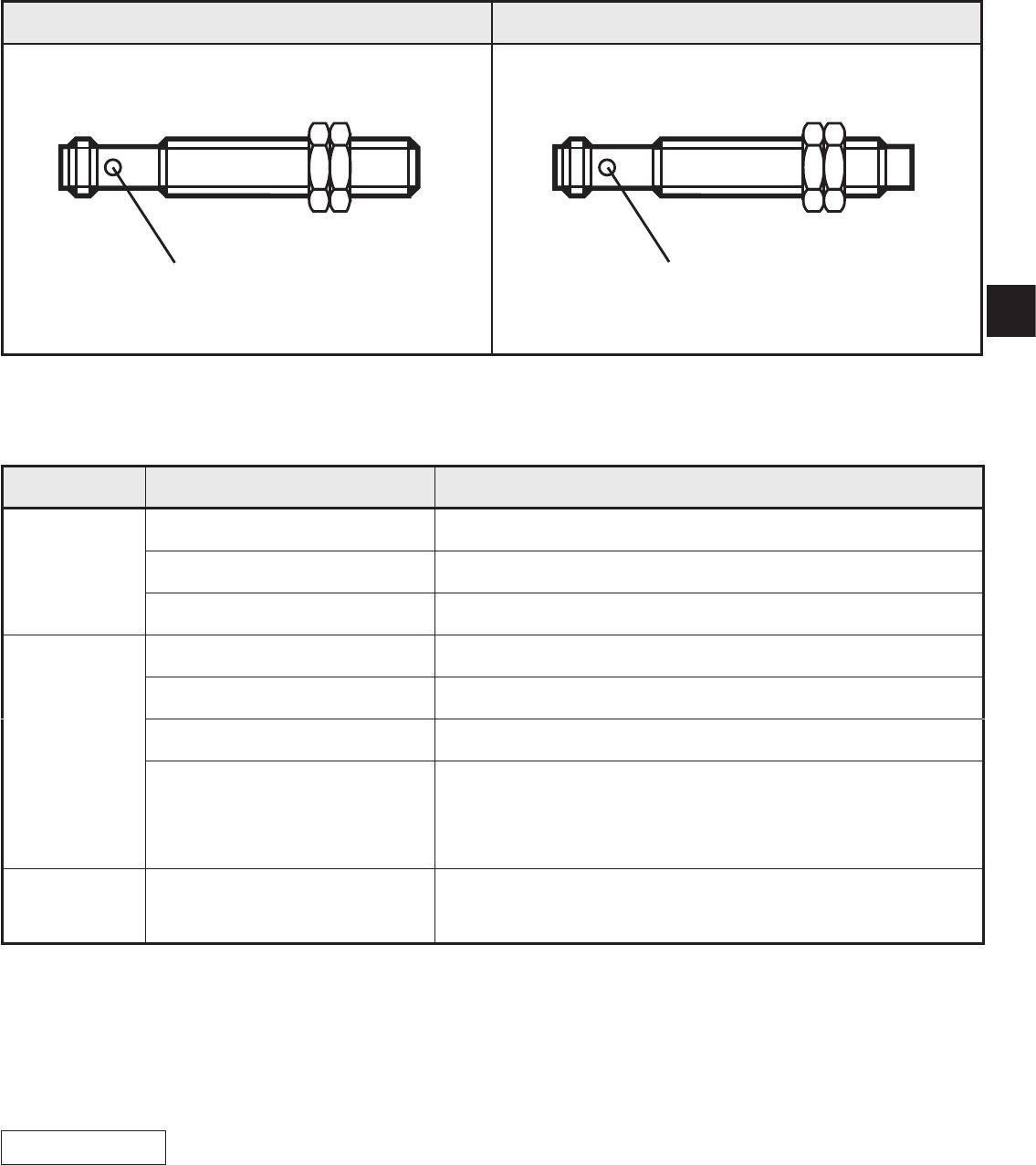

ANT410 ANT411
LED 2 x 180° LED 2 x 180°
LED green: operating voltage
LED yellow: ID tag
LED Status Description
Green ON Operating voltage OK
OFF Operating voltage missing
FLASHING SLOWLY Deactivated
Yellow ON (permanently) ID tag detected
ON (pulse) ID tag read/written successfully
FLASHING QUICKLY Error when reading/writing on ID tag
OFF No ID tag in the field
or faulty ID tag in the field
or invalid ID tag in the field
Green +
yellow
FLASHING
ALTERNATELY
error in communication or device fault
8 Operation
The read/write head is configured via the connected evaluation unit DTE10x� You
can find more information about the operation in the manual:
www�ifm�com → Data sheet search → e.g. DTE100 → Operating instructions
12

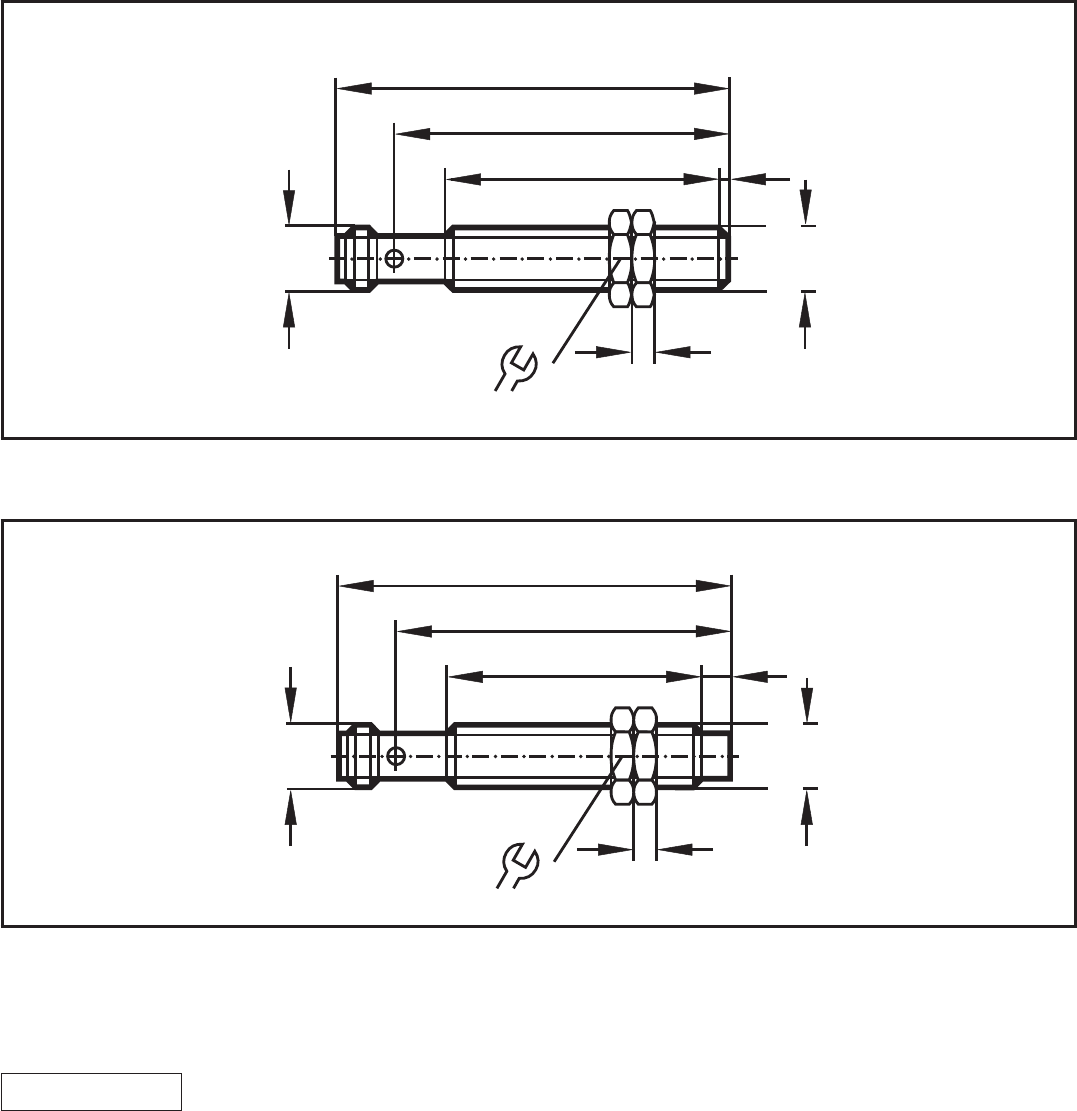

9 Dimensions
9.1 ANT410
59
70
49
M12x1
17
4
M12 x1
1
9.2 ANT411
45
M12x1
17
4
5
M12 x1
59
70
10 Technical data
The data sheets are available on our website at:
www�ifm�com → Data sheet search → e.g. ANT410
11 Maintenance, repair and disposal
Do not open the housing as the device does not contain any components
which must be maintained by the userThe device must only be repaired by the
manufacturer
Dispose of the device in accordance with the national environmental
regulations�
13
UK
12 Approvals/standards
12.1 Radio approvals
12.1.1 Overview
The overview of the approval status of a unit is available on our website at:
www�ifm�com → Data sheet search → e.g. ANT410 → More information
12.1.2 Europe
Intended use: Use in all EU countries
12.1.3 Notices FCC
NOTICE:
This device complies with Part 15 of the FCC Rules� Operation is subject to the
following two conditions:
1� this device may not cause harmful interference, and
2� this device must accept any interference received, including interference that
may cause undesired operation�
NOTICE:
Changes or modifications made to this equipment not expressly approved by
(manufacturer name) may void the FCC authorization to operate this equipment�
12.1.4 Notices IC
This device complies with Industry Canada license-exempt RSS standards�
Operation is subject to the following two conditions:
1� the device may not cause interference, and
2� the user of the device must accept any interference received, including
interference that may cause undesired operation�
12.1.5 Administrative Regulations on Low Power Radio Waves
Radiated Devices warning
Article 12
Without permission granted by the NCC, any company, enterprise, or user is
not allowed to change frequency, enhance transmitting power or alter original
characteristic as well as performance to a approved low power radio-frequency
devices�
14
Article 14
The low power radio-frequency devices shall not influence aircraft security
and interfere legal communications; If found, the user shall cease operating
immediately until no interference is achieved�
The said legal communications means radio communications is operated in
compliance with the Telecommunications Act�
The low power radio-frequency devices must be susceptible with the interference
from legal communications or ISM radio wave radiated devices�
12.2 EC declaration of conformity
You can find the EC declaration of conformity on our website at:
www�ifm�com → Data sheet search → e.g. ANT410 → More information
15
UK

Navigation menu
