1 Preliminary note
This document is part of the device and contains information about the correct
handling of the product.
This document is intended for specialists. These specialists are people who are
qualified by their training and their experience to see risks and to avoid possible
hazards that may be caused during operation or maintenance of the device.
Read this document before use to familiarise yourself with operating conditions,
installation and operation. Keep this document during the entire duration of use of
the device.
1.1 Symbols used
►Instructions
→Cross-reference
Important note
Non-compliance can result in malfunction or interference.
Information
Supplementary note
2 Safety instructions
2.1 General
Observe the operating instructions. Non-observance of the instructions, operation
which is not in accordance with use as prescribed below, wrong installation or
incorrect handling can affect the safety of operators and machinery.
The installation and connection must comply with the applicable national and
international standards. Responsibility lies with the person installing the device.
The device must only be installed, connected and put into operation by a qualified
electrician as the safe function of the device and machinery is only guaranteed
when installation is correctly carried out.
Disconnect the unit externally before handling it.
In case of malfunction of the device or uncertainties please contact the
manufacturer. Tampering with the device can seriously affect the safety of
operators and machinery. This is not permitted and leads to an exclusion of liability
and warranty.
5
UK
2.2 Radio equipment
In general, radio equipment must not be used in the vicinity of petrol stations, fuel
depots, chemical plants or blasting operations.
►Do not transport and store any flammable gases, liquids or explosive
substances near the unit.
2.3 Interference of electronic and medical devices
Operation can affect the function of electronic devices that are not correctly
shielded.
►Disconnect the device in the vicinity of medical equipment.
►Contact the manufacturer of the corresponding device in case of any
interference.
3 Functions and features
In connection with the evaluation unit DTE10x the read/write head ANT513
enables non-contact reading and/or writing of the RFID transponders (ID-TAGs)
conforming to the system.The data is converted into digitally coded values and
provided to the evaluation unit.
4 Functions
4.1 Operating principle
The ID tags are operated passively, i.e. without battery. The energy required for
operation is supplied by the read/write head.The physical principle of the energy
transfer is based on inductive coupling. The integrated antenna coil in the read/
write head generates a magnetic field which partly penetrates the antenna coil of
the ID tag. A voltage is generated by induction that supplies the data carrier with
energy.
6

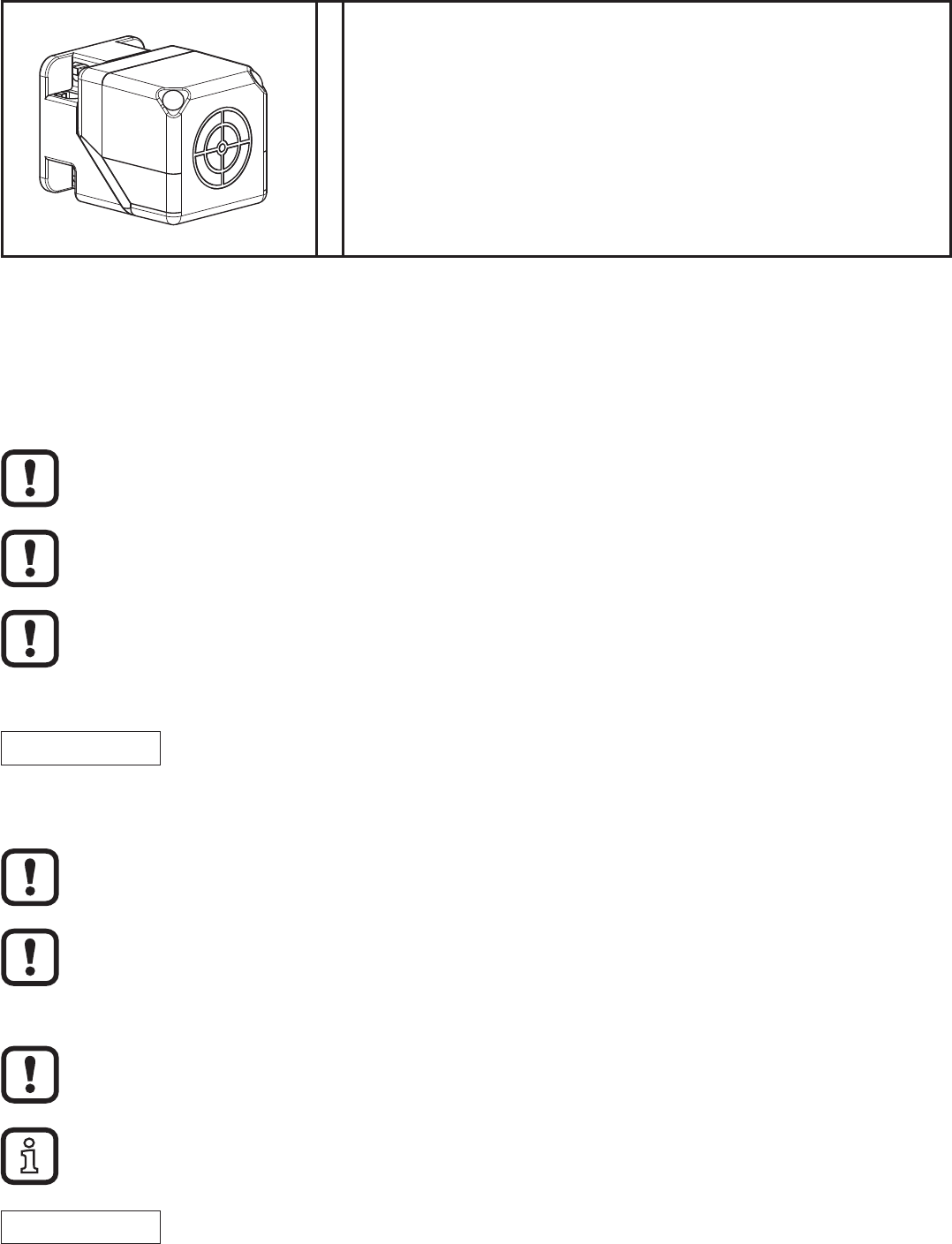

4.2 Overview
Art. no.:
Function:
Type designation:
operating frequency:
H X W X D [mm]:
ANT513
read/write head
DTRHF MCRWIDUS03
13.56MHz
40 x 40 x 54
5 Installation
5.1 General installation instructions
When mounting several read/write heads adhere to the minimum distances
between the systems.
Flush mounting of a read/write head in metal reduces the read/write
distance.
The immediate vicinity of powerful HF emission sources such as welding
transformers or converters can affect operation of the read/write heads.
Information on the available mounting accessories is available on our website at:
www.ifm.com → data sheet search → ANT513 → Accessories
5.2 Notes on ID tag mounting
If the ID tags are mounted in/on metal, the read/write distance is reduced.
For positioning the ID tags the read/write heads are marked with an an-
tenna symbol on the active face. It designates the middle of the integrated
antenna coil and has to correspond with the middle of the ID tag.
The orientation of the read/write head antenna axis must correspond with
the axis of the ID tag coil.
The best way to position the available ID tags and on mounting in metal is
available on our website:
www.ifm.com → data sheet search → ANT513 → Additional data
(General information about mounting and operation)
7
UK
5.3 Avoiding interference
The device generated a modulated electrical field with a frequency of 13.56 kHz.
To avoid interference of the data communication no other devices generating
interference emission in this frequency band must be operated in the vicinity. Such
devices are for example frequency converters and switched-mode power supplies.
5.4 Mechanical design
On delivery the sensing face is facing the front.
2
1
1: Antenna head (can be aligned)
2: Fixing element
Factory setting

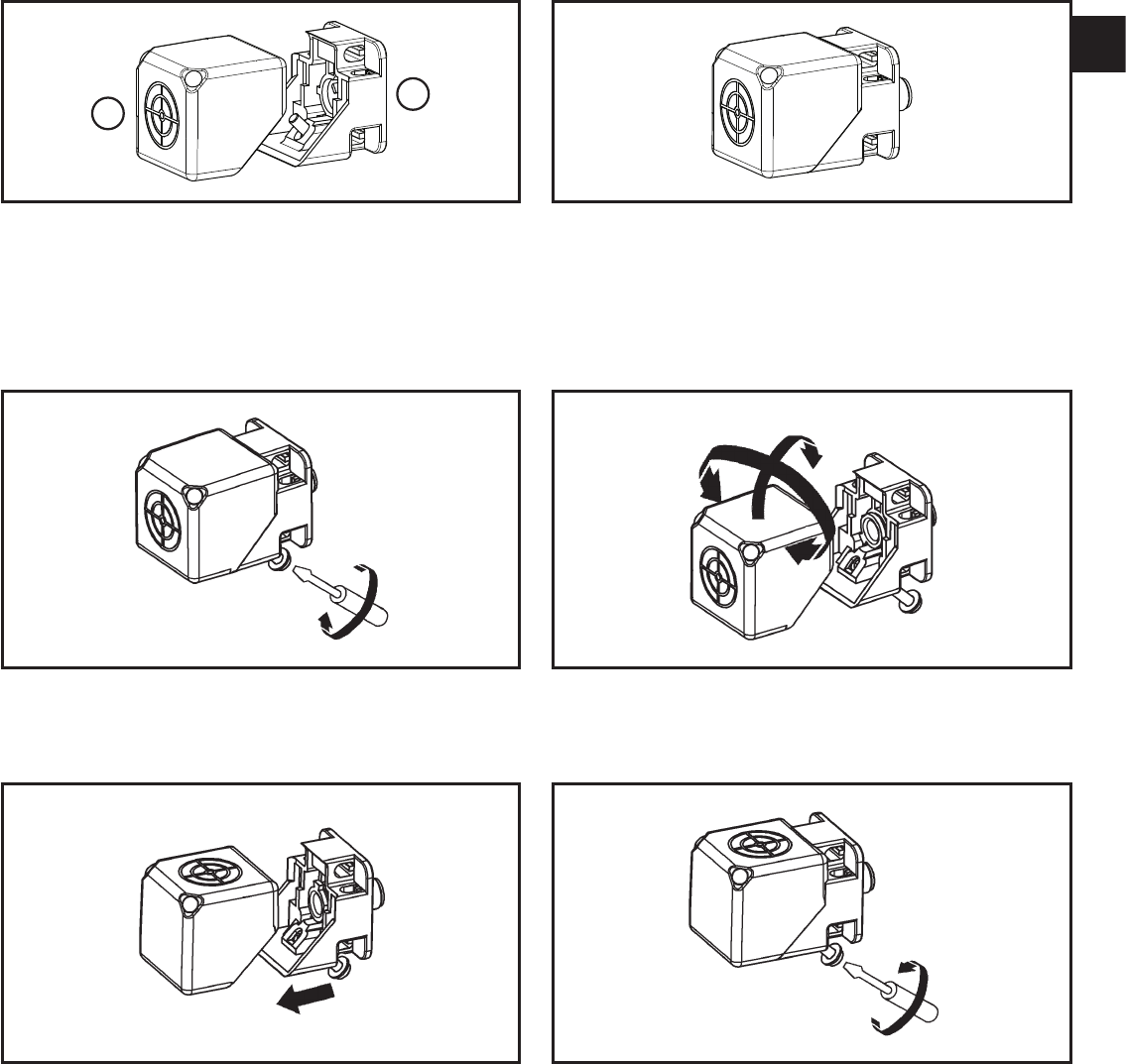

5.5 Alignment of the sensing face
180° 90°
1. Loosen the screw. 2. Remove the antenna head from the fixing
element and turn it.
3. Attach the fixing element to the antenna
head.
4. Tighten the screw.
8
5.6 Fixing
►The device is fixed with 2 M5 screws and nuts. Order non flush or flush.
non flush flush

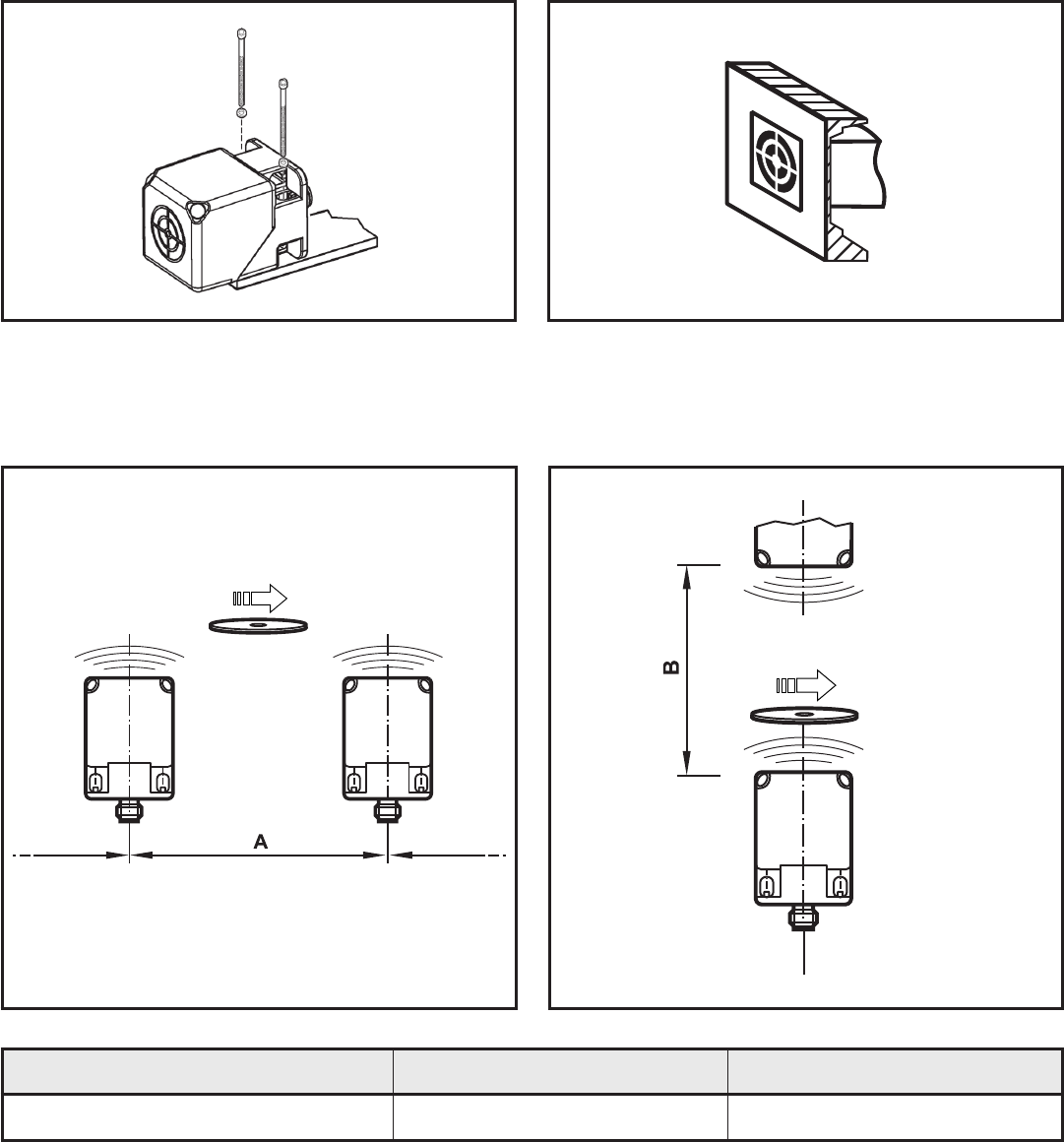

5.7 Mounting distances
Operating mode Distance side (A) Distance front (B)
For reading and writing ≥ 300 mm ≥ 250 mm
9
UK

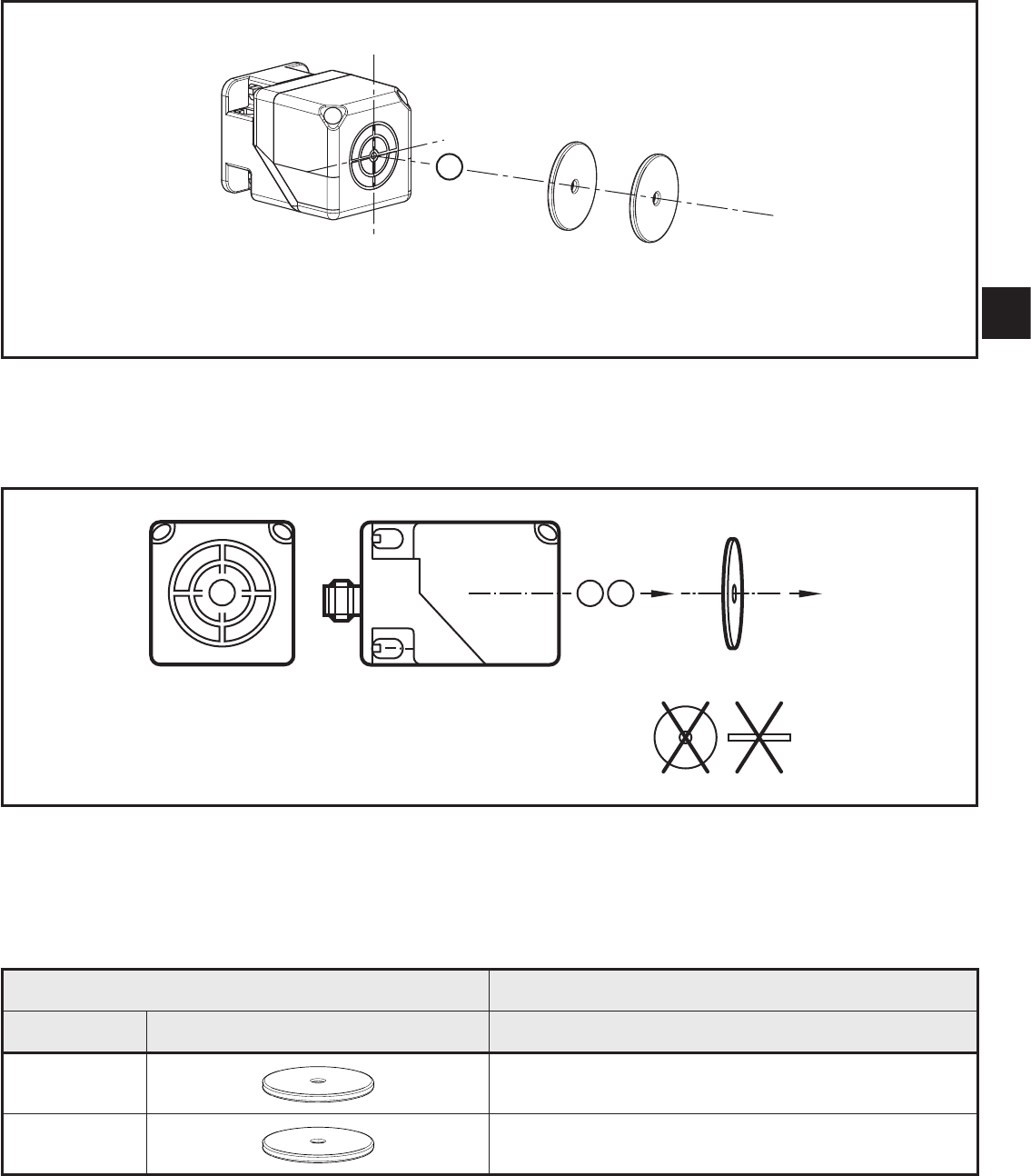

5.8 Positioning of the ID tags
E80370 E80371
1
1: front side
5.9 Orientation of the ID tags
21
2
1: antenna axis ANT513 = ID tag axis
2: middle of the antenna ATN513x = middle of the ID tag
5.10 Read/write distances
Installation read/write head
ID tag Type Non flush
E80370 55
E80371 60
All indications apply to static read/write operations. If not otherwise stated they refer to ID
tag installation in a non-metallic environment. All indications in mm.
10
6 Electrical connection

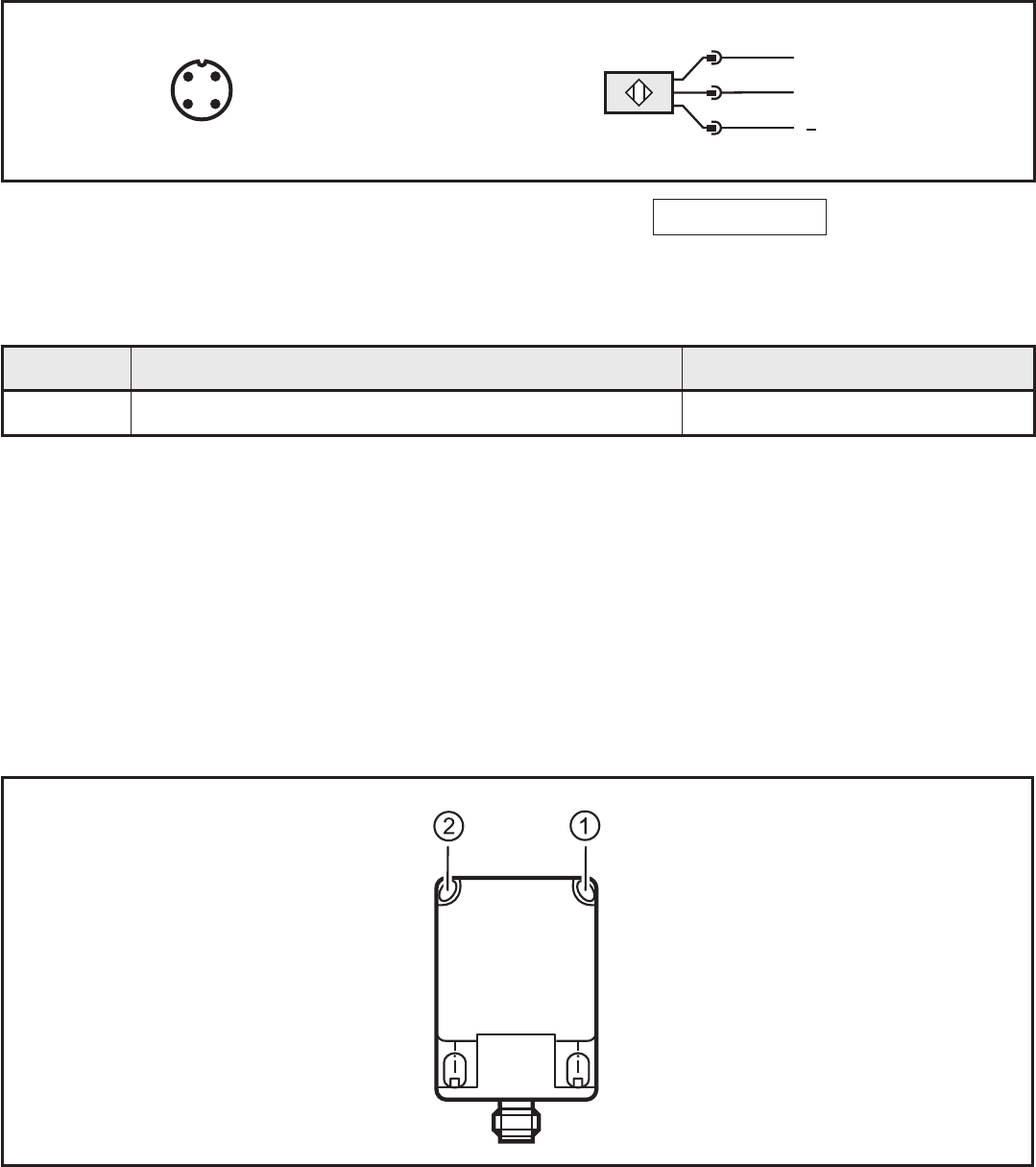

6.1 Wiring
►Connect the device to the evaluation unit DTE10x using the M12 connection.
Voltage is supplied via the evaluation unit
4
21
3
L+
1
3
4
L
DATA
A selection of sockets is available on our website at: www.ifm.com → data sheet
search → ANT513 → Accessories
Cables with the following characteristics are suitable for the connection:
Length Ohmic resistance (feed + return line) Effective cable capacity
20 m max. 3Ωmax. 3 nF
6.2 UL approval
►Supply the device from an isolating transformer having a secondary UL- listed
fuse rated
a) 5 A at voltages of 0...20 Vrms (0...28.3 Vp)
b) 100/Vp at voltages of 20...30 Vrms (28.3...42.4 Vp)
7 Display elements
1: green (operating voltage)
2: yellow (ID tag)
11
UK
LED Status Description
green ON operating voltage OK
OFF operating voltage missing
FLASHING SLOWLY deactivated
yellow ON (permanently) ID tag detected
ON (pulse) ID tag read/written successfully
FLASHING QUICKLY error when reading/writing on ID tag
OFF no ID tag in the field_or faulty ID tag in the field
or invalid ID tag in the field
green +
yellow
FLASHING ALTERNATELY error in communication or device fault
8 Operation
The read/write head is configured via the connected evaluation unit DTE10x. You
can find more information about the operation in the manual:
www.ifm.com → data sheet search → DTE10x → Operating instructions

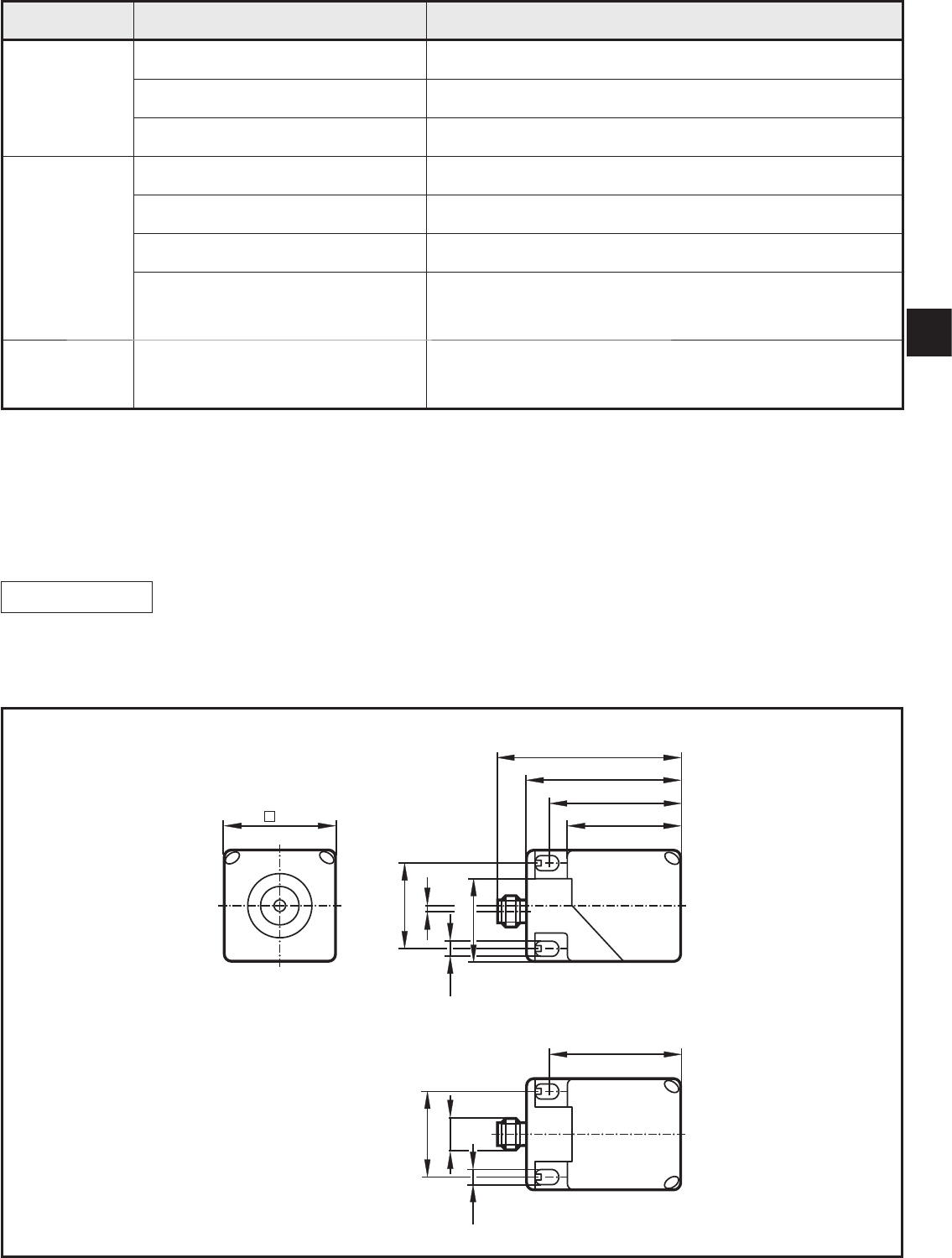

9 Dimensions
40
66
40
54
M12 x1
30
30
2
46
46
5,5
5,5 29,5
12
10 Technical data
The data sheets are available on our website at: www.ifm.com → data sheet
search → ANT513
11 Maintenance, repair and disposal
►Do not open the housing as the device does not contain any components
which must be maintained by the user. The device must only be repaired by the
manufacturer.
►Dispose of the device in accordance with the national environmental
regulations.
12 Approvals/standards
12.1 Radio approvals
12.1.1 Overview
The overview of the approval status of a unit is available on our website at:
www.ifm.com → data sheet search → ANT513 → Approvals
12.1.2 Europe
Intended use: Use in all EU countries
12.1.3 Notices FCC
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
12.2 EC declaration of conformity
You can find the EC declaration of conformity on our website at: www.ifm.com →
data sheet search → e.g. ANT513 → Approvals
