welcome to IKE 4
The all-in-one eld-data collection solution
setup guide
Learn more at www.ikegps.com

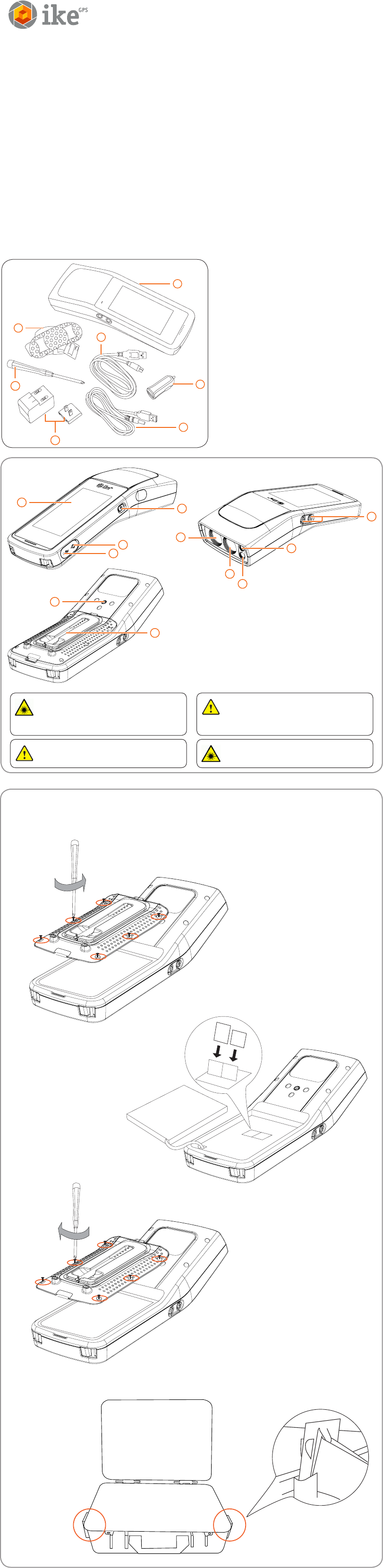

1 IKE device
2 USB car charger
3 power cable
4 micro USB cable
5 AC charger with plug adapter
6 screwdriver
7 shoulder strap for hard case
8 hard case (not shown)
A SIM card and SD card are not included.
IMPORTANT: The IKE 4 device is
designed to be used with the IKE Tripod.
It should not be used while being held by
hand, or placed close to the user’s body.
1 LCD display 7 camera
2 power button 8 laser receive lens
3 power port 9 laser transmit lens
4 USB port 10 stylus pen thread
5 volume buttons 11 tripod screw thread
6 ash
assemble
1
SIM
SD
1
2
3
4
11
10
9
8
7
6
5
WARNING This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. In order to avoid the
possibility of exceeding the FCC radio frequency exposure limits,
human proximity to the antenna shall not be less than 20cm during
normal operation.
WARNING This device contains an eye safe class 1M laser product.
Invisible laser radiation is emitted from (and received into) the front
apertures. Avoid staring into the laser beam. This product complies with
IEC60825-1 Ed 2.0 and 21CFR1040.10 except for deviations pursuant to
Laser Notice No.50, dated July 26 2001.
CAUTION Use of controls or adjustments, or performance of
procedures other than those specied herein may result in hazardous
radiation exposure.
WARNING LASER RADIATION
DO NOT EXPOSE USERS OF TELESCOPIC OPTICS
CLASS 1M LASER PRODUCT
6
5
1
2
3
7
4

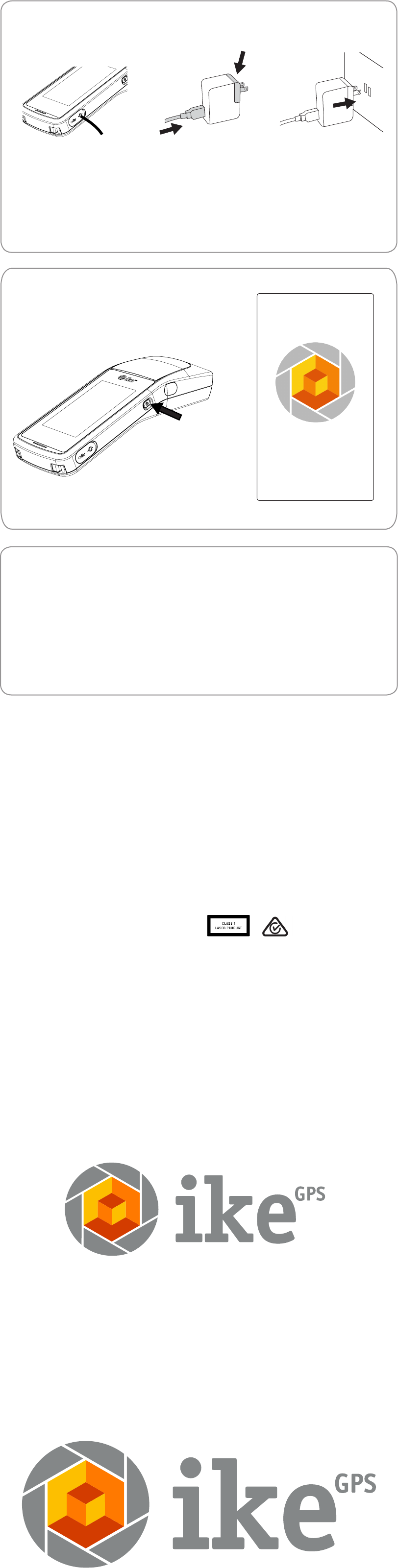

1 connect the power
cable to the power
port on the device.
2 attach the required
plug adapter to the
AC charger.
3 connect the power
cable to the AC
charger.
4 connect the AC
charger to a power
outlet. Charge for
a minimum of four
hours.
www.ikegps.com
power up
website
view detailed instructions on using IKE at
www.ikegps.com
charge
2
3
4
FCC Information
FCC ID: 2ACBG4000
Model: IKE-IK04-L
This device complies with Part 15 of the FCC Rules.
Bluetooth Information
FCC ID: 2ACBG4000
IC ID: 11952A-4000
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including
interference that may cause undesired operation.
Warning: Changes of modication to this unit not expressly
approved by party responsible for compliance could void the
user’s authority to operate the equipment. Note: This equipment
has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Industry Canada
This device complies with Industry Canada’s licence-exempt
RSSs. Operation is subject to the following two conditions:
• This device may not cause interference; and
• This device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes:
• l’appareil ne doit pas produire de brouillage;
• l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
This equipment complies with FCC/IC radiation exposure limits
set forth for an uncontrolled environment and meets the FCC
radio frequency (RF) Exposure Guidelines in Supplement C to
OET65 and RSS-102 of the IC radio frequency (RF) Exposure
rules. This equipment has very low levels of RF energy that are
deemed to comply without testing of specic absorption ratio
(SAR)
Class 1 Laser Product
IEC60825-1:2014 (3rd Edition)
Caution: This instrument emits a non-visible laser beam.
The laser beam emitted is Laser Class 1 per IEC 60825-1
and complies with 21 CFT 1040.10 and 1040.11 except for
deviations pursuant to Laser Notice 50, date June 24, 2007
Caution: Hazardous Radiation. Use of controls or adjustments
or performance of procedures other than those specied herein
may result in hazardous radiation exposure.
Caution: while the laser tool s in operation, be careful not to
expose your eyes to the emitting laser lens. Exposure to a laser
beam for an extended time may be hazardous to your eyes.
Warning: the following label samples are placed on your laser
tool to inform of the laser class for your convenience and safety.
Please reference the Product Manual for the specics on a
particular product model.
press and hold for
a few seconds
