INSTRUCTION BOOK

AK300

User Guide

Package Contents

AK300 at a Glance

Power Management

Charging

Connections

Firmware Upgrade

Getting Started _01

Basic Operations

Home Screen

Notification Bar

Store

AK Connect

Listening to Music

Playlist Management

USB DAC Installation

CD Ripping

Using Bluetooth

Settings

Connecting to a Wireless Network

Equalizer Setup

Using the Device _02

Safety Precautions

Troubleshooting

Certifications

Specifications

Registered Trademarks

Disclaimers

Miscellaneous _03

CONTENTS

User Guide

AK300

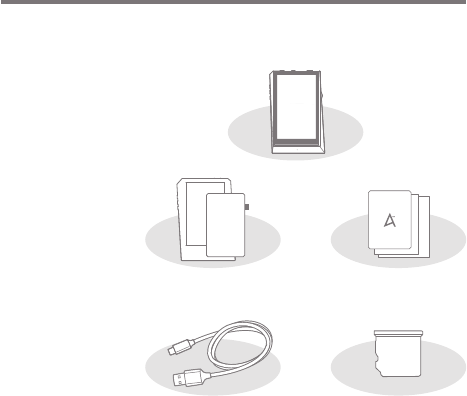

microSD Card Slot Cover

Micro-USB Cable

Leather Case & Protective Film: Protect the device and its

screen. The warranty for the leather case guarantees the

quality of the leather.

Micro-USB Cable: Connect the device to a computer or

charge the device.

Quick Start Guide: Basic overview of device functionality.

Warranty Card: The warranty card is required for customer

and technical support. Do not misplace the card.

User Guide: The User Guide can be downloaded from the Astell&

Kern website. [http://www.astellnkern.com/ > Support > Download].

MicroSD Card Slot Cover: The cover is used to protect the microSD

card slot when not in use. It is installed on the product by default.

Contents may be changed without prior notice to improve the

performance or quality of the product.

Package

Contents

Leather Case (with warranty)

& Protective Film

Getting Started 02

Quick Start Guide

& Warranty Card

Play/Pause

LCD

Touchscreen

microSD

Card Slot

Home

Button

Volume

Next/

Fast-Forward

Previous/

Rewind

Earphones / Optical Port: Output sound to connected

earphones. Music can be played back on a S/PDIF-capable

external device by using an optical cable.

Power: Turn the screen on and off.

Long press - Turn the device on and off.

Balanced Out: Output sound to earphones or headphones

that support balanced audio connections. Connect to an

external audio device by using both the earphone port

(ground) and balanced audio port (LR) in conjunction.

Micro-USB Port: Connect to a computer or recharge the

device.

Expansion Unit Balanced Out: Output sound to an

expansion device that supports balanced audio connections.

Previous/Rewind: Play the previous song or restart the song.

Long press - Rewind.

Getting Started 03

User Guide

The appearance of the product as well as the printed and

engraved information may vary depending on the model.

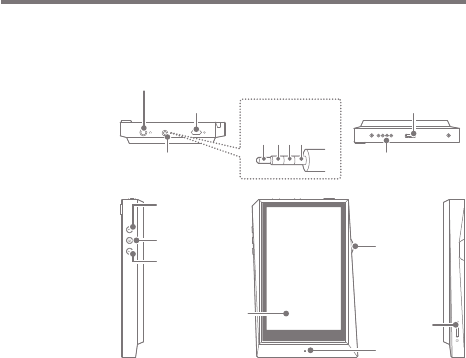

AK300 at

a Glance

Earphones / Optical Port Power

Power Micro-USB Port

Balanced

Audio Port

Expansion Unit

Balanced Out

Balanced Audio

Pin Map

R- R+ L+ L-

User Guide

This device has an automatic shutdown feature to reduce battery

consumption. The device will turn off after a defined period if there

is no user input. [ - Power Saving - Automatic Shutdown] (See p.

42)

This device has an automatic timeout feature to reduce battery

consumption. The screen will turn off after a defined period of time

if there is no user input. [ - Power Saving - Screen Timeout] (See

p. 42)

Turn the Screen On/Off

1. While the screen is on, press the [ ] button to turn

off the screen.

2. Press the [ ] button again to turn off the screen.

Turn On/Off

1. Long-press the [ ] button to turn on the device.

2. While the device is on, long-press the [ ] button to

display a shutdown confirmation message.

3. Press [Confirm] to turn off the device.

Power

Manage-

ment

Getting Started 04

Play/Pause: Play or Pause a song.

Long press - Show the playback screen.

Next/Fast-Forward: Skip to the next song.

Long press: Fast-forward.

LCD Touchscreen: Display with touch control.

Volume: Control the volume by turning the wheel.

microSD Card Slot: Insert a microSD card and access its files.

Home Button: Show the home screen.

Getting Started 05

User Guide

1. Connect the device to the PC using the supplied Micro USB

cable. Charging starts.

Reset Function

1. In cases of unexpected device failure or freeze, press the

[ ] button for 12 seconds to force a shutdown. The

device can be restarted after a shutdown.

The device can be restarted after a shutdown.

Resetting the device will not affect the stored data or time setting.

Do not use the reset function while the product is in use. Doing so

may corrupt the data on the device.

Charging time: up to 8 hours (fully discharge, power OFF)

You may have to turn on a computer to start charging depending on

computer specifications.

When charging via PC connection, the charging time may vary

depending on whether the device is turned on or off.

If a computer goes into standby/sleep mode, the device may not be

charged depending on computer specifications.

The built-in battery will gradually lose capacity over time according

to the number of charges/discharges.

Do not use any micro-USB cable other than the one supplied with

the device. Doing so may cause a malfunction.

Charging time: up to 4 hours (fully discharge, power OFF)

When using a high-speed charger that is supported with various

voltages such as 5V/9V/12V, the charging may not proceed normally

and it may cause the product to malfunction.

Charging using PC

1. Charging is possible by using the 5V 2A output adapter

(sold separately).

Charging using the adapter

Charging

User Guide

Connec-

tions

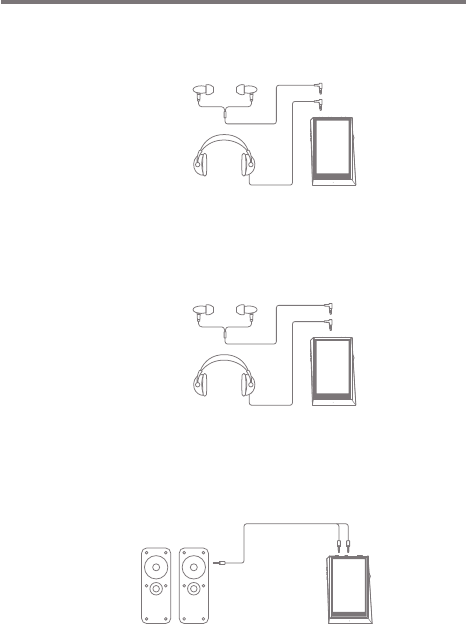

Earphones/Headphones

1. Connect earphones or headphones to the earphones port.

Getting Started 06

Balanced Earphones/Headphones

1. Connect supported earphones or headphones to the

balanced port.

Balanced Audio Device

1. Connect to an external audio device by using the Earphones

port and Balanced port in conjunction.

Earphones Port

(Ground)

Balanced Port (LR)

User Guide

Getting Started 07

Connecting to a Computer

1. Turn on the device and your PC.

2. Connect the device to your PC as a standard USB device

by using a micro-USB cable. [ - Connect USB]

Media Device (USB Drive): Transfer files from a PC to

the device.

DAC input: Listen to music located on a PC through the

device. (See p. 34)

Optical Out

1. Music can be played back on a S/PDIF-capable external

audio device by using an optical cable.

DSD format is converted to PCM when using Optical Out.

The volume will be fixed at the maximum level.

Mac users need to download and install the MTP program from the

Astell&Kern website. [http://www.astellnkern.com Support >

Download]

For an optimal connection, quit any unnecessary programs before

connecting the device to the computer.

Only use the micro-USB cable supplied with the device. Doing so

may cause a malfunction.

User Guide

Getting Started 08

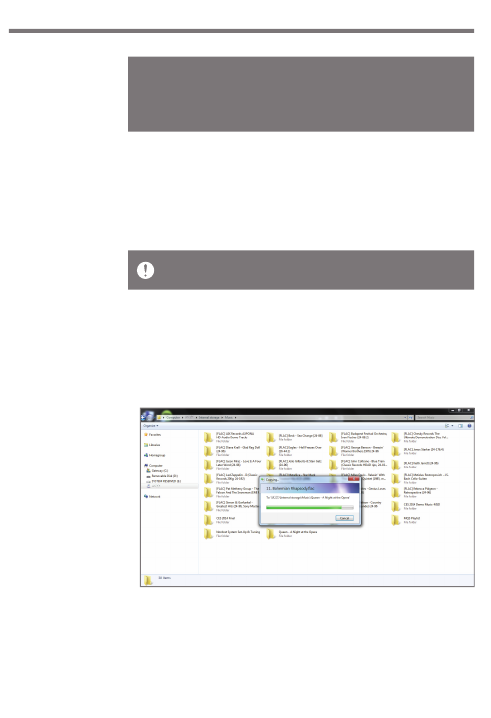

Copy Files/Folders to the Device

1. To copy files/folders from your computer, select the desired

files/folders and drag & drop them into the USB device.

Disconnecting from the Computer

1. Verify that all operations are completed before attempting

to disconnect the device from the computer.

Disconnecting the device from the computer during an operation

(e.g. file transfer) may corrupt data on the device.

Windows XP users require Service Pack 2 and Windows Media

Player 10 to be installed for the computer to recognize the USB

device.

Download necessary Service Packs and Windows Media Player from

the Microsoft website. http://www.microsoft.com

Make sure that the micro-USB cable is securely connected.

Note that removing the micro-USB cable or turning off the device or

computer during a file transfer may corrupt data on the device.

File transfer speeds may be affected depending on the computer

and/or OS environment.

Getting Started 09

User Guide

Insert/Remove a microSD Card

1. Refer to the diagram and

gently insert a microSD

card into the microSD

card slot.

Delete Files/Folders on the Device

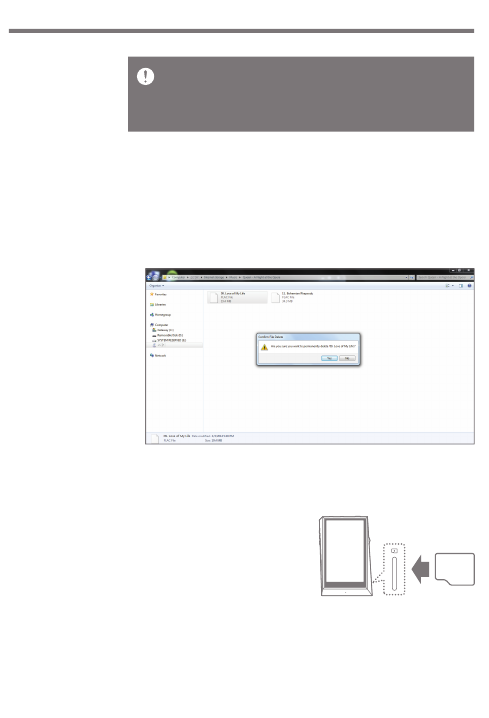

1. Right-click the desired file/folder, and then select [Delete].

2. Select [Yes] in the [Confirm File/Folder Deletion] window

to delete the selected file/folder.

Getting Started 10

User Guide

Maximum supported microSD card capacity: 128GB

Notes on inserting 128GB microSD card.

Do not force the microSD card into the slot. Doing so may cause

damage to the device and/or microSD card.

Do not repeatedly insert/remove the microSD card.

If the microSD card is improperly inserted, it may become immovable

or cause damage to the device.

Notes on removing a microSD card

Be sure to safely unmount and remove the microSD card from the

device. Not following the proper procedure may corrupt data and

cause serious damage to the system.

Do not remove the microSD card while it is in use. Doing so may

cause data corruption/deletion, malfunction, and damage to the

microSD card.

Miscellaneous

If the device is unable to recognize the microSD card and/or

malfunctions, format the memory card before use. We recommend

using the FAT32 format.

Using microSD cards other than the recommended brands may

cause device malfunction.

A microSD card is not included with this device. Please purchase

separately.

Recommended microSD Cards

Brand : SanDisk, Transcend

2. To safely remove a microSD card,

select [Safely remove SD card]

from the Notification Bar or select

[Unmount SD card] from [ -

System Information].

3. Gently press the microSD card

to release it from the slot.

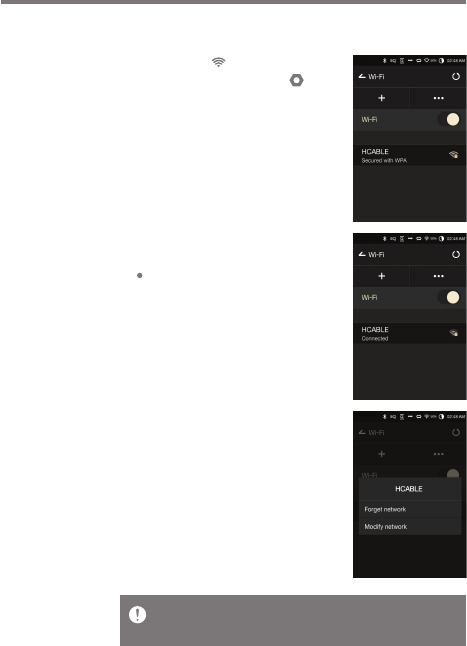

Refer to page 44 of the manual for more information on connecting

to a wireless network.

The firmware upgrade may not initialize if the battery level is too

low. (A minimum battery level of 50% is required.)

Moving to another screen during a file download will cancel the

download.

Do not disconnect from the wireless network while downloading a

firmware upgrade. Doing so may cause data corruption and/or

damage to the system.

If an error occurs or the notice in the Notification Bar disappears

during an upgrade, download the firmware update again through

[ - Update - System Update].

Getting Started 11

User Guide

Wi-Fi Update / OTA (Over-the-Air)

1. Connect to a wireless network.

2. When a new firmware version is available, the screen will

display a Firmware Update Guide window.

3. Select [Update] and choose the items for update.

4. Follow the on-screen instructions and proceed with the

firmware upgrade.

Firmware

Upgrade

To prevent damage, do not use a sharp object or use excessive force

when touching the screen.

The [Home] button on the AK300 is pressure-sensitive and can be

operated with light pressure.

Using the Device 12

Basic

Operations

LCD Touchscreen

1. This device features an LCD touchscreen that allows you

to perform operations by touch.

Interact with the device by touching the screen to access

various features.

User Guide

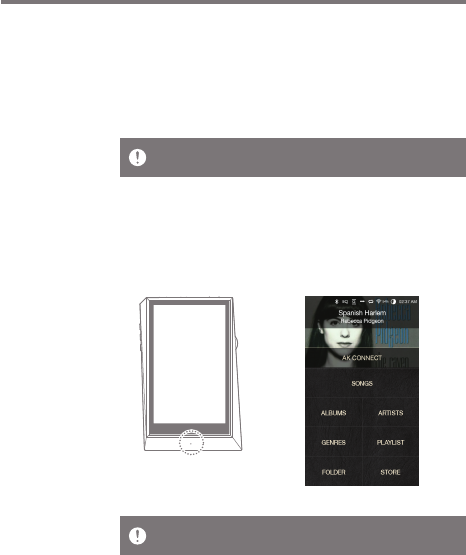

Return to the Home Screen

Home Screen

1. Press the [Home] button at any time to return to the

Home Screen.

Using the Device 13

User Guide

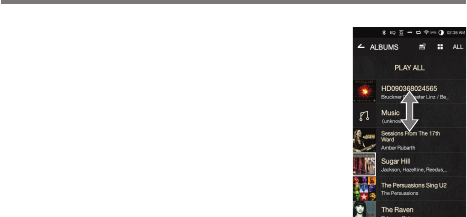

Navigating Up/Down in a List

1. Scroll through the list by dragging

the list screen [up] and [down].

Using the Device 14

User Guide

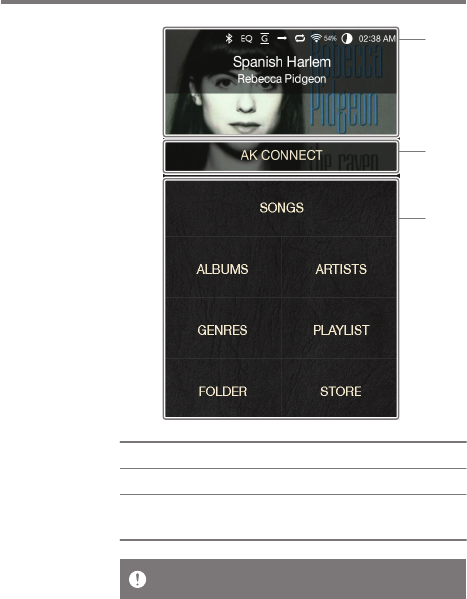

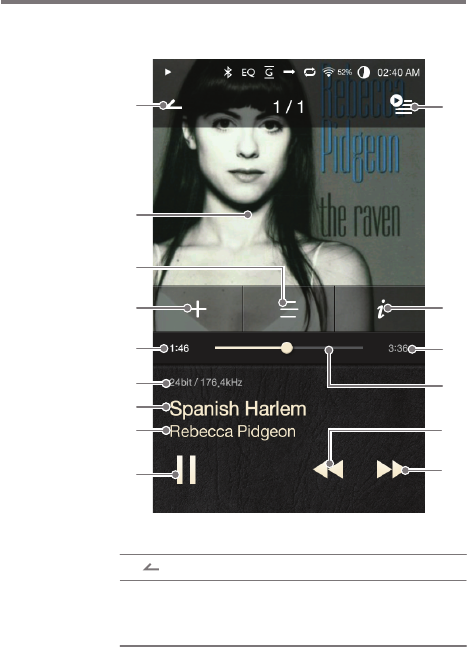

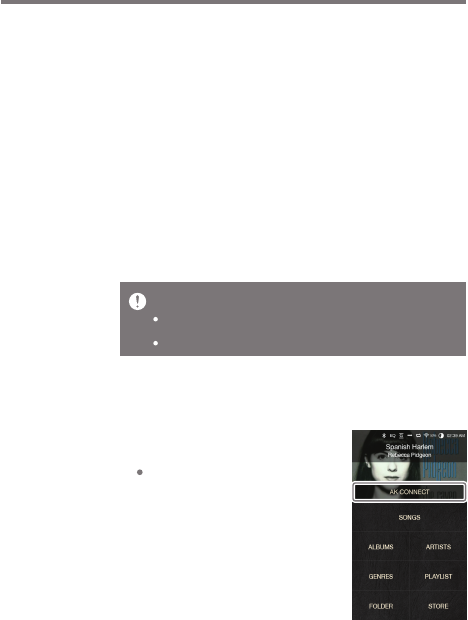

Currently playing song information.

Launches AK Connect.

View the list of songs by different

search options.

Current Song

AK CONNECT

Search Options

Home

Screen

The search options can be long-pressed and dragged to change

their locations.

Using the Device 15

User Guide

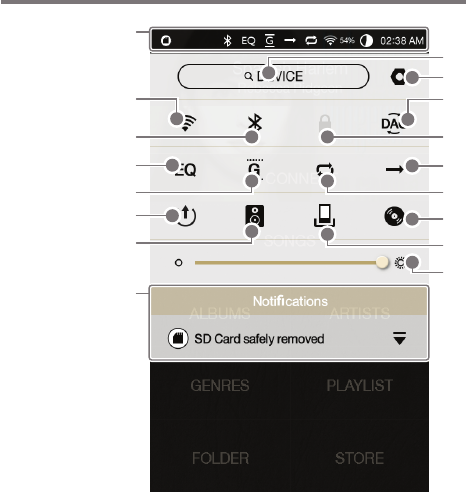

Notification

Bar

Using the Device 16

User Guide

Expand or collapse the

notification bar by dragging the

bar down or up, respectively.

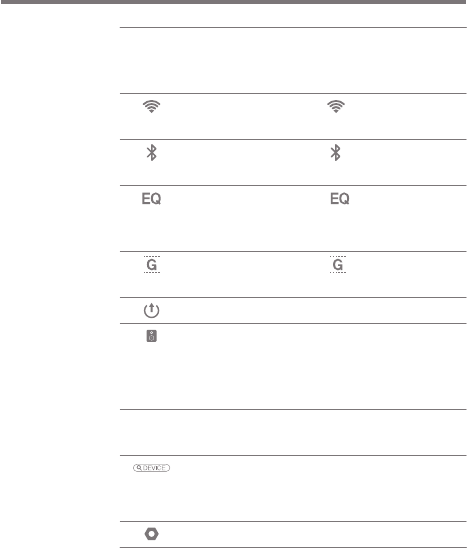

Press [ ] to turn Wi-Fi on

or off.

Press [ ] to turn Bluetooth

on or off.

Press [ ] to turn the EQ

on or off. The most recent EQ

settings are applied by default.

Press [ ] to turn Gapless

Playback on or off.

Turn Line Out on or off.

Turn Wi-Fi speakers on or off.

(Must be on the same network.)

(The icon will become enabled

when AK Connect is turned on.)

Notification contents are

displayed in this area.

Enter keywords to display a

list of items containing the

search terms.

Displays a list of settings.

Notification Bar

Wi-Fi

Bluetooth

Gapless

Playback

Line Out

Wi-Fi Speakers

Notifications

Display

File Search

Settings

Long-press [ / / ] to move to the corresponding screen.

Using the Device 17

User Guide

PC Connection

Mode

Screen Lock

Play Mode

Repeat Mode

Ripper Power

Cradle &

Amp

Screen

Brightness

Select the appropriate mode

when connected to a computer.

:USB drive mode for

transferring media files.

:Listen to music located on

a PC through the device.

Press [ ] to turn the screen lock

on or off. The volume wheel is disabled

when the screen lock icon is activated.

Press [ ] to cycle through

different play modes.

:Sequential playback.

:Shuffle playback.

Press [ ] to cycle through

different Repeat modes.

:Repeat the entire playlist.

:Repeat the current song.

:Disable repeat.

Turn the CD Ripper on or off.

(Enabled when connected to

the AK CD Ripper.)

Output sound through the cradle’s

Balanced Out port. (Enabled when

connected to the AK Cradle.)

Turn amp functionality on or off.

(Enabled when an amp is connected.)

Use the adjustment bar to

control the display brightness.

%*4,

Refer to page 44 of the manual for more information on connecting

to a wireless network.

Using the Device 18

User Guide

Purchasing Music

1. Connect to a wireless network.

2. Select [Store] from the home screen.

3. Select the desired store.

4. Check the user guide or help menu within each store for

detailed information.

Conveniently purchase music from the Store when

connected to a wireless network.

Purchasing

Music from

a Store

System Requirements

PC Minimum System Requirements

OS : Windows XP, Windows 7/8/10 (32 & 64-bit)

Mac Minimum System Requirements

OS X 10.7 (Lion) or later

Using the Device 19

User Guide

MQS Streaming Server Installation

1. Visit the Astell&Kern website and download the server

installer that corresponds to your operating system.

[http://www.astellnkern.com > Support > Download].

2. Run the downloaded installer and follow the on-screen

instructions.

3. Check the User Guide within the program for detailed

information on using the MQS Streaming Server.

The AK300 can access and play back music files stored on

a computer on the same network as well as output sound

through Astell&Kern speakers.

CONNECT

Connecting to the AK Connect Server

1. Turn on the server and connect to

the same network as the AK300.

Run the MQS Streaming Server

on your computer.

2. Turn on [AK Connect] from the

device settings.

3. Press [AK Connect] from the home

screen.

Using the Device 20

User Guide

4. A list of servers on the same

network as the AK300 will be

displayed.

5. Scroll the screen left and right to

select a server. The selected server

will be connected and the server

home screen will be displayed.

6. Select a search option at the

bottom of the server home screen

to display a list of music.

Refer to page 44 of the manual for more information on connecting

to a wireless network.

Using the Device 21

User Guide

Streaming and Downloading from the Music Server

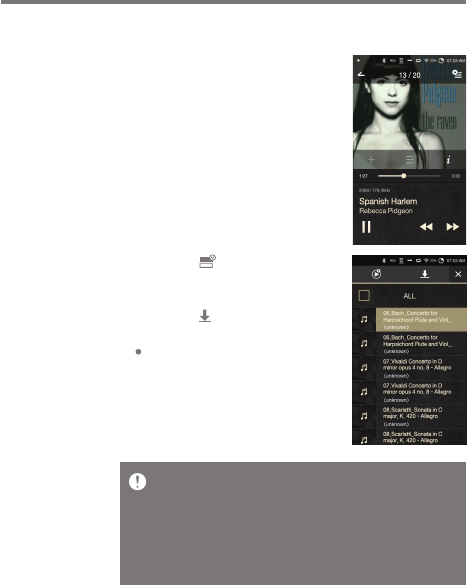

1. Select a search option from the

server Home Screen to display

a list of music.

2. Select a song to begin streaming.

3. Press the [ ] button at the

upper-right corner of the music list.

4. Select the desired music, and then

press the [ ] button at the top of

the screen to begin downloading.

A message on the Notification

Bar will indicate a completed

download.

Depending on network conditions, song loading may be slow or

streaming may stutter.

Server response may be slow when the server computer is under

load.

Depending on network conditions and server status, the AK300's

performance may be affected when streaming and downloading at

the same time.

Terminating music streaming or pressing the item being

downloaded within the Notification Bar will stop the downloading.

Using the Device 22

User Guide

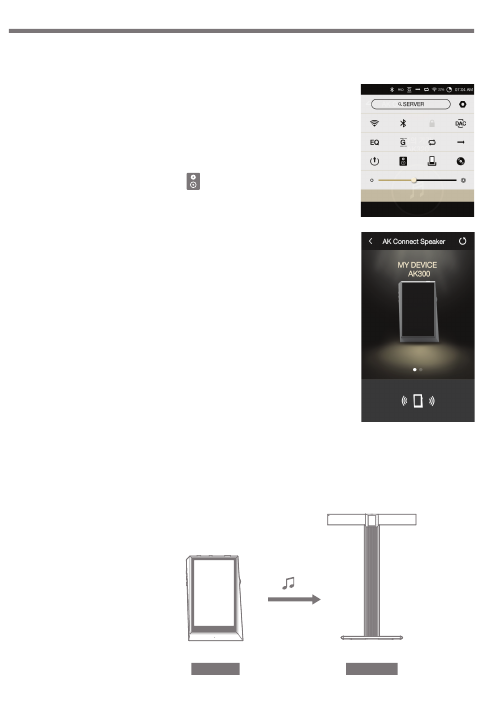

Selecting Speakers

AK Connect Usage Examples

1. Turn on the speaker(s) to be

connected, and then connect it to

the same network as the AK300.

2. Turn on [AK Connect] from the

device settings.

3. Press [ ] from the notification

bar to display a list of speakers

available on the same network

as the AK300.

4. Scroll the screen left and right to

select a speaker. The selected

speaker will be connected, and

music will be played back through

the speaker.

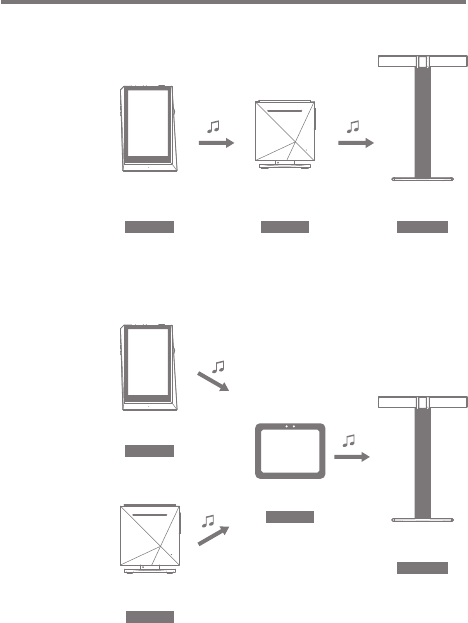

Example 1

LIBRARY SPEAKER

AK T1AK300

Using the Device 23

User Guide

Example 2

Example 3

AK500N

LIBRARY REMOTE SPEAKER

AK T1AK300

REMOTE & LIBRARY

AK300

SPEAKER

AK500N

Using the Device 24

User Guide

Example 4

Example 5

LIBRARY SPEAKER

AK T1AK300 AK500N

REMOTE

SPEAKER

AK T1

LIBRARY

AK300

REMOTE

AK Connect APP

AK500N

LIBRARY

Press [ ] at the top of the music list to display music

options.

: Add the selected file after the current/last song of

the current playlist.

: Add the selected file to the playlist.

: Copy the selected file.

: Move the selected file.

: Delete the selected file.

Select an album cover from the home screen to begin

playback.

Turn the [Volume Wheel] to adjust the volume.

Press [ ] during playback to pause and [ ] to resume

playback.

You can also pause/resume playback by pressing the

[ ] button on the device.

Press [ / ] during playback for the previous/next song.

Play the previous/next song by pressing the [ / ] button

on the device.

Long-press [ / ] during playback to rewind/fast-forward.

Rewind/fast-forward by pressing the [ / ] button on

the device.

Using the Device 25

User Guide

Listening

to Music

Selecting Music

1. Select a search option at the bottom of the home screen

to display the playlist.

2. Select a song from the list to begin playback.

Listening to Music

Select [Folder] to search music by folder.

Continuous Playback: Approximately 10 hours (Basis: FLAC, 16-bit,

44 kHz, unbalanced output, volume 80, EQ off, LCD off)

Supported Formats: PCM [8~192kHz(8/16/24bit)], DSD 64/128

Using the Device 26

User Guide

Drag the progress bar to the desired location during

playback.

Press the [Home] button on the device to go to the Home

Screen.

Press the album cover during playback to display an

additional screen.

: Display the previous screen.

: Display the current playlist.

Press [ ] next to the playlist to edit the playlist

order.

Press [ ] at the top of the music list to display

music options.

: Add the selected file to the playlist.

: Delete the selected file from the playlist.

: Add the current song to the playlist.

: Display lyrics for the current song.

: Display current song information.

Using the Device 27

User Guide

Playlist Screen

Using the Device 28

User Guide

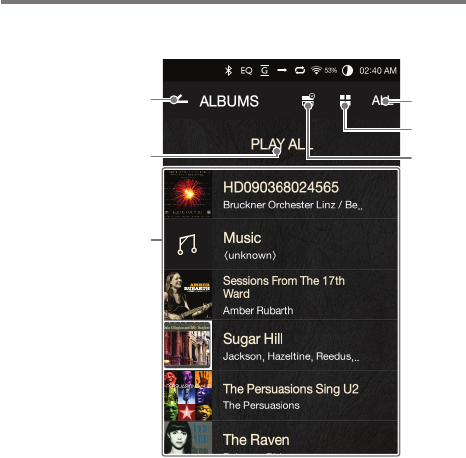

Indicates the current location.

Press to return to the previous screen.

Play all songs from the current playlist.

Displays the playlist for the current location.

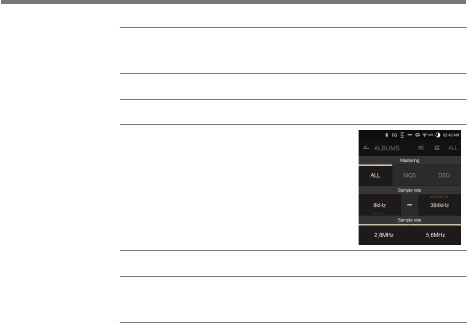

Select a method for

sorting the playlist.

Select a view type for the list of albums.

Select the checkbox to apply playlist

options.

Current

Location

Play All

Playlist

List Sorting

List View

Music

Options

Using the Device 29

User Guide

Music Player Screen

Return to the previous screen.

Display album covers.

Press the album cover to show

additional functions.

Previous Screen

Album Cover

Using the Device 30

User Guide

Lyrics for the current song.

Add the current song to a playlist.

Indicates song duration.

Displays bitrate and sampling

frequency data.

Song title information.

File name is displayed when

ID3Tag is unavailable.

Artist name.

Play or pause the current song.

Displays the current playlist.

Displays current song information.

Indicates the song’s total duration.

Press to switch from elapsed

time to remaining time.

Indicates song progress.

Drag the indicator to move to

the desired time.

Short press: Previous song.

Long press: Rewind the current

song.

Short press: Next song.

Long press: Fast-forward the

current song.

Lyrics

Add to Playlist

Song Progress

Details

Title

Artist

Play/Pause

Playlist

Details

Song Duration

Progress Bar

Previous/

Rewind

Next/

Fast-Forward

Using the Device 31

User Guide

Playlist

Manage-

ment

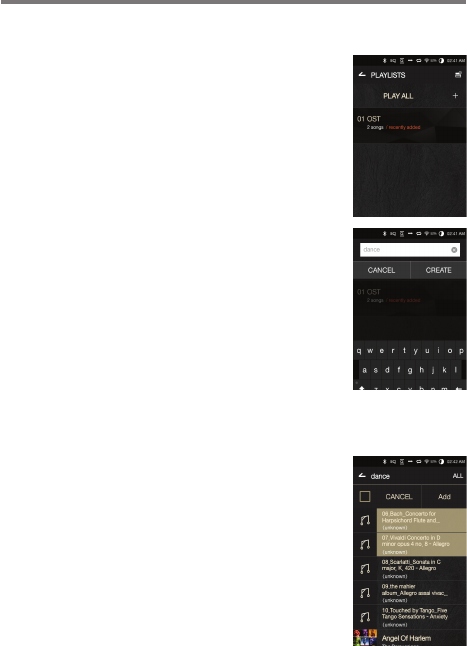

Creating a Playlist

1. Press [Playlist - Playlists] from the

home screen to display a list of

playlists.

2. Press [+] at the upper-right corner

of the screen.

3. Enter a name for the playlist,

and then press [Add] to create

a new playlist.

Adding a Song to a Playlist

1. Press [Playlists] to display a list

of playlists.

2. Select a playlist and press [+ Add]

to display a list of songs.

3. Select the desired song, and then

press [+ Add] to add the song to

the selected playlist.

Using the Device 32

User Guide

Removing a Song from a Playlist

1. Press [Playlists] to display a list

of playlists.

2. Select the desired playlist, and

then press [ ] at the top of

the screen.

3. Select the desired song, and then

press [ ] to remove the song

from the selected playlist.

Editing the Playlist Order

1. Press [ ] next to the playlist

to modify the playlist order.

Playing a Playlist

1. Press [Playlists] to display a list

of playlists, and then press [ ]

at the top of the screen.

Select the desired playlist for playback.

3. Press [ ] at the top of the screen

to add the selected playlist after

the current/last song of the current

playlist.

Using the Device 33

User Guide

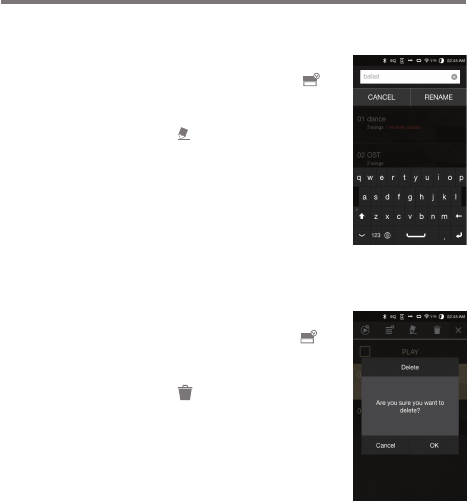

Renaming a Playlist

Deleting a Playlist

1. Press [Playlists] to display a list

of playlists, and then press [ ]

at the top of the screen.

2. Select the playlist to be deleted.

3. Press [ ] at the top of the screen

to delete the selected playlist.

1. Press [Playlists] to display a list

of playlists, and then press [ ]

at the top of the screen.

2. Select a playlist to be renamed.

3. Press [ ] at the top of the screen

to display a rename window.

4. Enter a name for the playlist, and

then press [Rename] to save the

playlist under a new name.

Using the Device 34

User Guide

USB DAC

Installation

USB DAC Specifications

Supported OS

Windows XP (32/64-bit) / Windows 7 (32/64-bit) /

Windows 8 (32/64-bit) / Windows 10(32bit/64bit)

OS X 10.7 (Lion) or later

USB DAC Support Specifications

Supported Formats: WAV, FLAC, WMA, MP3, OGG,

APE (Normal, High, Fast), AAC, ALAC, AIFF, DFF, DSF

Sample Rate: 44.1 kHz – 96 kHz

Bit Rate: 16-bit/24-bit

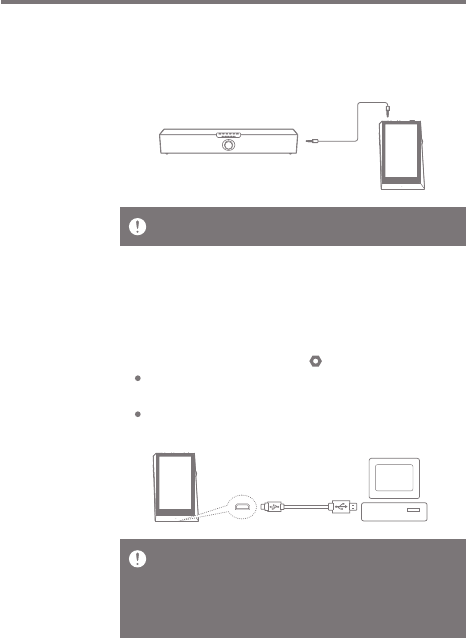

Control the volume with the AK300's volume wheel.

The USB DAC functionality allows the AK300 to be

recognized as a sound card on a computer. Music from the

computer is played through the device’s earphones port for

an enhanced listening experience.

Sound will not play back for files that exceed the supported formats.

Volume control is unavailable when the LCD screen is turned off

during USB DAC connection.

The Previous, Play, and Next buttons are unavailable during USB

DAC connection.

Playback may stutter when computer performance is slow or the

USB connection is experiencing heavy usage.

There may be issues with audio-to-video synchronization during

video playback depending on the sound quality and operating

environment.

Optical output (S/PDIF) is unavailable during USB DAC connection.

Volume cannot be adjusted via the Windows volume control. The

volume wheel on the device or volume control on the appropriate

program must be used to adjust the volume.

Using the Device 35

User Guide

CD Ripping Connect the AK Ripper (sold separately) to rip CDs.

Turning the AK Ripper On/Off

1. Set [ - CD Ripping] to On.

2. After connecting the product, pull down the notification

bar and press the CD ripping icon to use the AK Ripper.

3. While the AK Ripper is turned on, pull down the notification

bar and press the CD ripping icon to stop the AK Ripper

operation.

Automatic CD Ripping

1. Connect the AK Ripper and insert a CD.

2. The metadata (ID3 tags) for the inserted CD will be retrieved

via Gracenote.

3. CD ripping will begin automatically after the metadata

has been retrieved.

4. When finished, press [OK] on the results prompt to

complete automatic CD ripping.

Manual CD Ripping

1. When the AK Ripper is connected and a CD is inserted,

the [CD Ripping] menu will be activated on the home screen.

2. Press the [CD Ripping] menu and select the desired file

format (FLAC or WAV).

3. The Gracenote database will be searched for matching

CD metadata after the file format is selected.

4. When the database search is complete, press [Start] to

begin CD ripping.

5. Rip only selected songs.

To search the Gracenote database, the AK300 must be connected to

the Internet via Wi-Fi. The database access time may vary

depending on the network environment.

Please note that metadata for certain CDs may not be available on

the Gracenote database.

You may not access the Home screen while CD ripping is in

progress.

The AK Connect service will be disabled during CD ripping. The

service will automatically restart when CD ripping is completed.

Music playback will be disabled during CD ripping, and tracks that

have been ripped will not be available for playback until the entire

CD has been ripped.

You can set the desired file format and ripping speed from the [

- CD Ripping] menu.

Several attempts at correction will be made for data with errors

when the feature is enabled under [ - CD Ripping - Error

Correction]. Please note that the CD ripping speed will be affected

when this feature is enabled.

Using the Device 36

User Guide

CD Ripping Results

: Indicates that CD ripping is complete, or that although

an error occurred, CD ripping was successfully

completed via error correction.

: Indicates that the song currently being ripped can be

canceled via user input.

: Indicates that CD ripping failed due to a scratch on

the CD or other similar reasons. Also indicates that

CD ripping was canceled due to user interruption.

Using the Device 37

User Guide

Using

Bluetooth

Connect a Bluetooth device to listen to music wirelessly.

Turning Bluetooth On/Off

A Bluetooth device must be paired

with the AK300 prior to use. Refer

to the Bluetooth device's instruction

manual for details.

1. Select [ ] from the home screen,

or select [On/Off] from [ -

Bluetooth].

Bluetooth Pairing

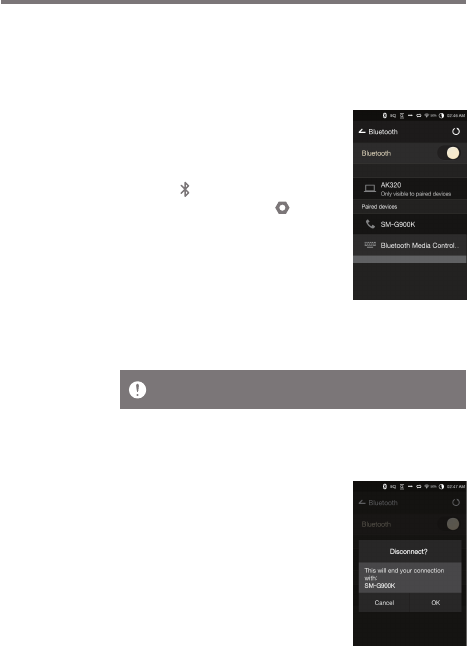

1. Select the appropriate Bluetooth device from the list of

available devices.

Terminating a Bluetooth Connection

1. Press the connected Bluetooth

device and confirm the message

prompt to disconnect the device.

A Bluetooth device must be paired with the AK300 prior to use.

Refer to the Bluetooth device's instruction manual for details.

Using the Device 38

User Guide

Bluetooth Support Specifications

Profile: A2DP, aptX

Device performance may be affected during Hi-Fi playback.

(48 kHz or lower is recommended.)

Do not turn off the device while connected to Bluetooth.

Power cycle the Bluetooth device in case of malfunction.

Pairing methods may differ for each individual Bluetooth device.

Always refer to the respective instruction manual for details.

When connecting the product to a Bluetooth device, the distance

between the two must be within 20 cm.

Audio quality will degrade with longer distances, and the pairing

may disconnect at a distance of 2 m (6.5 ft) or more. (Distances may

vary depending on device and environment.)

Crosstalk may be heard while using Bluetooth.

For multipoint devices, make the necessary connections prior to

use.

Car audio Bluetooth connections are not supported.

Malfunction, noise, and other undesirable effects may occur due to

the device's battery level and the environment.

If signal interference affects data transmission. (e.g. holding the

device while wearing a Bluetooth device, holding the device while

holding another electronic device, etc.)

If the device or Bluetooth headset's radio transmitters are touching

parts of the body.

If the transmission strength is affected by walls, corners,

partitions, etc.

If devices using the same frequencies cause interference. (e.g.

medical devices, microwave ovens, Wi-Fi, etc.)

Areas with an excessive amount of interference or weak signals.

(e.g. elevators, underground, etc.)

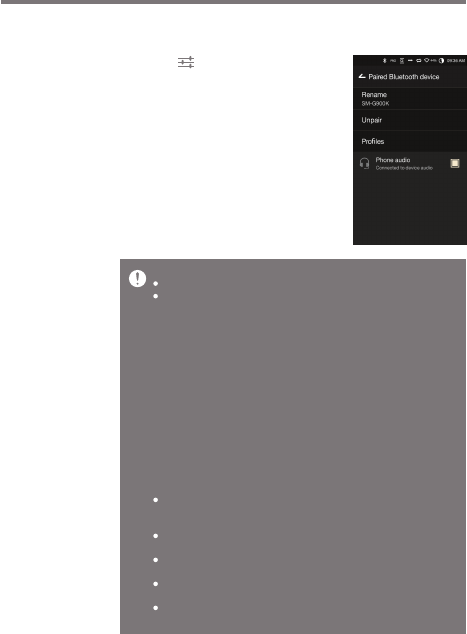

Removing a Bluetooth Pairing

1. Press [ ] to the right of the

paired device to be redirected

to the settings screen.

2. Select [Remove Pairing] to

complete the process.

Using the Device 39

User Guide

Settings Set up the device according to the user's needs. The settings

menu may vary depending on the firmware version.

Setup

1. Select [ ] from the home screen notification bar.

2. Select the desired item for setup.

Wi-Fi

Change wireless network settings and turn Wi-Fi on or off.

Bluetooth

Connect a Bluetooth device to listen to music wirelessly.

Refer to page 44 of the manual for more information on setting a

wireless network.

Refer to [Using Bluetooth] on page 37 of the manual for more

information on setting up a Bluetooth connection.

AK CONNECT

Set whether to use AK Connect.

Using the Device 40

User Guide

Gapless Playback

Play the next song without any interruptions/silence.

Gapless playback is only supported between two files

with identical bit rates, sample rates, and channels.

Line Out

Turn Line Out on or off.

Enabling Line Out and pressing [Line Out] on the volume

control window will lock the volume level at maximum.

Equalizer

Set the equalizer according to the user's preferences.

Pro EQ: EQ Preset recommended by professionals.

User EQ: Adjust the frequencies according to the user's

preferences.

Left-Right Balance

Adjust the left-right balance for earphones/headphones.

Do not use earphones with the Line Out feature enabled. Doing so

may cause permanent hearing loss.

Supported Formats for EQ: PCM [8 – 192 kHz (8/16/24-bit)]

DSD [64/128]

Using the equalizer may negatively affect device performance.

Refer to pages 45 - 47 of the manual for more information on using

the equalizer.

Using the Device 41

User Guide

Device Name

Set the name of the device.

The maximum name length is 30 characters.

CD Ripping

Set the automatic CD ripping function as well as the file

format and ripping speed.

Theme

Change the theme.

Date & Time

Set the current date and time.

Amp

Set the amplification level when connected to the AK Amp.

Language

Select the display language.

Supported languages: English, Korean, Japanese,

Chinese (Simplified/Traditional), French, Russian, German

Screen Brightness

Adjust screen brightness settings.

Using the Device 42

User Guide

Download

Select a folder for downloaded files.

USB Connection

Media Device (USB Drive): Connect to a computer to

transfer media files.

DAC Input: Listen to music located on a PC through the

device.

Power

Automatic Shutdown: The device will turn off after a

defined period if there is no user input.

Screen Timeout: The screen will turn off after a defined

period when there is no user input.

Sleep Timer: Music playback will stop, and the device will

turn off after a defined period.

Keyboard

Select the keyboard language.

Supported languages: English, Korean, Japanese,

Chinese (Simplified/Traditional), Russian

The default folder is set when using AK Connect to download files.

When [Select Folder] is selected, the user is prompted to choose a

download folder each time a file is downloaded.

Using the Device 43

User Guide

System Information

System Information: View model number, firmware version,

and data storage information. The microSD card can be

mounted/dismounted, and data can be deleted.

System Restore

Database Initialization: Reset the internal database.

The database initialization time may vary depending on

the number of files stored on the device.

Default Settings: Revert all user settings back to their

original settings.

Factory Reset: Delete all user data and restore the device

to its original factory settings.

Update

System Update: Update the system when a new version

is found.

Application Update: Update the default applications

(including the Store) when new versions are found.

Formatting the microSD card will delete all data on the memory

card. Be sure to backup any important files before formatting.

When formatting the microSD card from a computer, be sure to

select the FAT32 system.

Using the Device 44

User Guide

Connecting

to a

Wireless

Network

2. Select the desired AP to connect

to the wireless network.

Additional information

(encryption key, index, etc.)

may be required depending

on the network settings.

3. Long-press the network name

and select [Network Settings] to

edit specific network settings.

Connecting to a Network

1. Long-press [ ] from the

Notification Bar or select [ -

Wi-Fi] to display a list of access

points (AP).

Networks requiring browser or other additional certifications are

not supported.

Channels 1 through 11 are supported.

Using the Device 45

User Guide

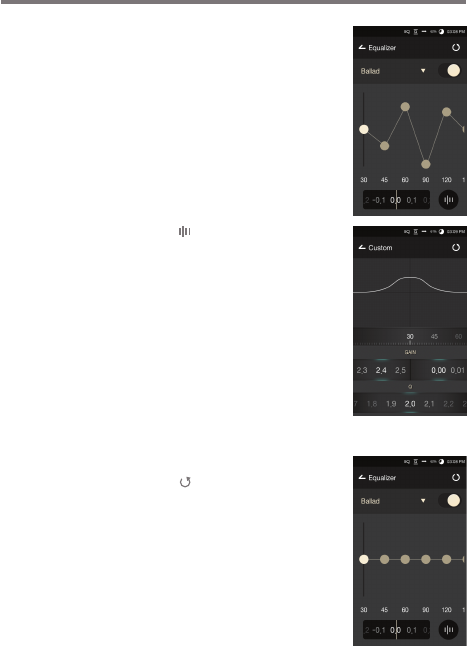

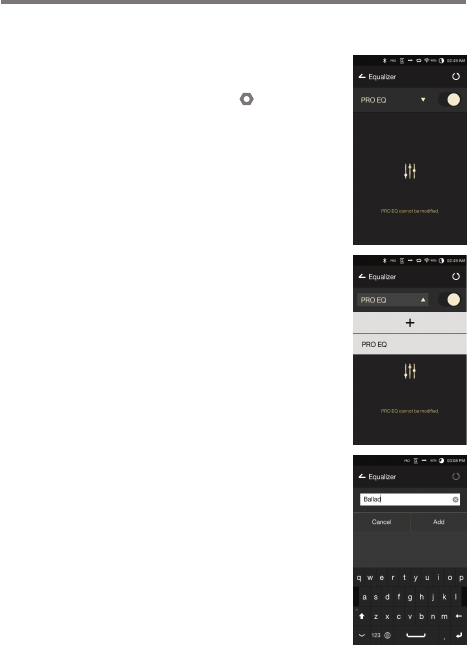

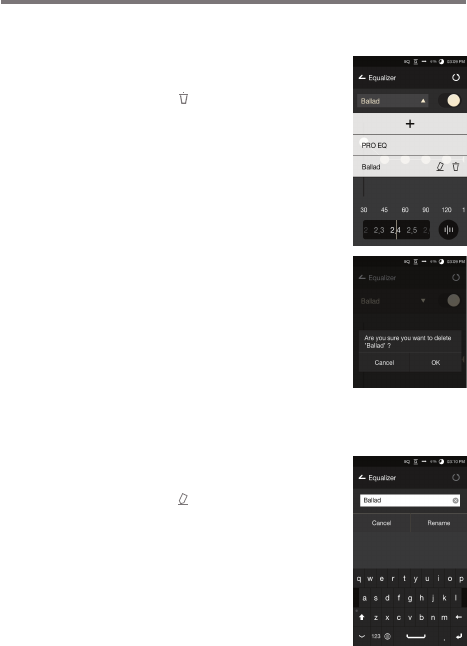

2. Press [Pro EQ] at the upper-left

corner of the screen and select

[ + ].

3. Enter a name for the custom

EQ settings and select [Add].

Equalizer

Setup

Equalizer Setup

1. Long-press [EQ] from the

Notification Bar, or turn on

the feature from [ - Equalizer].

Using the Device 46

User Guide

Resetting the Equalizer

1. Select the desired EQ setting and

press [ ] at the top of the screen

to revert the EQ to its default

settings.

4. Adjust the frequencies up and down

according to the user's preferences.

5. The number values at the lower-

left corner of the screen can be

adjusted for fine-tuning.

6. Press [ ] at the lower-right

corner of the screen to display

the PEQ settings screen.

The frequency, gain, and Q

values can be adjusted according

to the user’s preferences.

Using the Device 47

User Guide

Deleting an Equalizer

1. Press [Pro EQ] at the upper-left

corner of the screen.

2. Press [ ] next to the desired

item to delete the selected

equalizer.

Renaming an Equalizer

1. Press [Pro EQ] at the upper-left

corner of the screen.

2. Press [ ] next to the desired

item and enter a new name for

the selected equalizer.

3. Press [Rename] to apply the

changes.

Miscellaneous 48

User Guide

Safety

Precautions

Device

When a plug is inserted into the earphones, balanced, or

USB port, do not apply any force or shock to the plug.

Do not insert any metal objects (coins, hairpins, etc.) or

flammable debris into the device.

Do not place heavy objects on the device.

In case the device gets wet (rain, water, chemicals,

medicine, cosmetics, sweat, moisture, etc.), do not power

on the device and allow it to dry thoroughly. Contact the

nearest iriver Customer Support Center.

(Malfunctions due to exposure to liquids will be repaired

for a fee regardless of the warranty period and such

damage may not be repairable.)

Avoid exposing the device to direct sunlight or extreme

temperatures (-5Ⳅ - 40Ⳅ; 23°F - 104°F) such as the

inside of a car during the summer.

Do not store or use in hot and humid places such as saunas.

Avoid places with excess moisture, dust, or smoke.

Do not use for extended period on blankets, electric

blankets, or carpet.

Do not place near a fire or in a microwave.

Never attempt to disassemble, repair, or alter the product.

Do not store for extended periods in a confined space

with the power on.

Do not place the device near magnetic objects (magnets,

televisions, monitors, speakers, etc.).

Never use chemicals or cleaning products on the device

since they can damage the paint and surface coating.

Avoid dropping or subjecting the device to a strong

impact (excessive vibration, etc.).

Do not press multiple buttons simultaneously.

Do not disconnect the micro-USB cable during data transfer.

When connecting the micro-USB cable, use a USB port

on the back of the PC. Connecting to a defective or

damaged USB port may damage the device.

Displaying one image for an extended period may cause

screen burn-in (afterimage).

Miscellaneous 49

User Guide

Other

Do not use earphones/headphones or operate the product

while operating any type of vehicle. It is not only dangerous

but may be a violation of the law in certain regions.

Do not use the product during physical activities (driving,

walking, hiking, etc.).

Always use in a safe environment to avoid the risk of accidents.

Always be aware of your surroundings when using the

device while moving.

Avoid using the device during thunderstorms to reduce

the possibility of electric shock.

If there is a ringing in the ears during or immediately after

use, reduce the volume or discontinue using the product

and obtain medical advice.

Do not listen to music at excessive volumes for extended periods.

Do not use the earphones/headphones at excessive volumes.

Be careful not to get the earphones/headphones caught

in other objects.

Do not sleep with earphones in your ears or leave them in

for extended periods.

Trouble-

shooting

Check for solutions to common problems.

1. The device won't turn on.

The battery may need to be recharged. Charge the

device for at least one hour and try again.

Reset the device and try again. (See p. 5)

Using poor quality protective films or adhesive stickers on

the screen may cause damage.

Do not insert any foreign objects into the earphones port.

If playing for extended periods, the device can be very hot,

so please keep in mind when using.

Miscellaneous 50

User Guide

2. The device will not charge when connected to a computer

via USB cable.

Use a USB port on the back of the computer, and check

that the USB port is functioning properly.

Check that the USB cable is connected correctly.

3. The computer won't recognize the device or an error

occurs when connected.

Use a USB port on the back of the computer.

Check that the USB cable is connected correctly.

For Windows XP, verify that Service Pack 2 (or higher)

and Windows Media Player 10 (or higher) are installed.

Check if the device connects properly on a different computer.

4. The screen turns off repeatedly.

The screen turns off automatically after a defined period

to reduce battery consumption. Set the time at [ -

Power Saving - Screen Timeout].

5. The screen does not display images properly.

Check the screen for debris.

6. There is no sound, or there is static/interference.

Check that the volume setting is above [0].

Check that the earphones are plugged in properly, and

make sure debris isn't obstructing the port connection.

Check if the music file is corrupted.

Verify that the audio settings have been properly set.

(Balanced out, line out, etc.)

7. A file does not play, or the product is unstable when a

certain file is used.

The following may occur due to the condition of the file:

Playback is unstable or difficult.

The product may not work normally.

The file may sound different from a computer.

There may be a difference in the performance of

playback or other functions.

There may be differences in the playable specs.

A file conversion or use of a different file is recommended.

Miscellaneous 51

User Guide

Certifi-

cations

KC / FCC / CE / TELEC

Class B Device (Communication equipment for residential use):

This is a Class B Device and is registered for EMC requirements

for residential use. This device can be used in residential

and all other areas.

iriver Limited retains the rights to patents, trademarks, copyrights,

and other intellectual property rights related to this manual.

No contents of this user manual may be duplicated or

reproduced in any format or by any means without the prior

approval of iriver.

Using or reproducing, in whole or part, the contents of this

document is subject to penalties.

Software, audio, video, and any other copyrighted contents

are protected in accordance with relevant copyright laws.

The user accepts all legal responsibility for the unauthorized

reproduction or distribution of the copyrighted contents from

this product.

Companies, organizations, products, people, and events

used in the examples are not based on actual data.

iriver has no intention to be associated with any company,

institution, product, person, or incident through this instruction

manual, and no such inference should be made.

It is the responsibility of the user to comply with applicable

The AK300 was designed and audio-tuned under the

advisement of MSD.

FCCID: PPE31

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any

interference received, including interference that may cause

undesired operation.

Miscellaneous 52

User Guide

(b) For a Class B digital device or peripheral, the instructions furnished

the user shall include the following or similar statement, placed in a

prominent location in the text of the manual: NOTE: This equipment

has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference

in a residential installation.

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help

Body-Worn operation

This device was tested for typical body-worn operations with the back

of the portable music player kept 5mm. from the body. To maintain

compliance requirements, use only belt-clips, holsters or similar

accessories that maintain a 5mm separation distance between the

user’s Body and the back of the Portable music player, including the

antenna. The use of belt-clips, holsters and similar accessories should

not contain metallic components in its assembly. The use of

accessories that do not satisfy these requirements may not comply

with CE RF exposure requirements, and should be avoided.

Body-worn accessory exposure conditions “Specific information must

be included in the operating manuals to enable users to select

body-worn accessories that meet the minimum test separation

distance requirements. Users must be fully informed of

the operating requirements and restrictions, to the extent that the

typical user can easily understand the information, to acquire the

required body-worn accessories to maintain compliance. Instructions

on how to place and orient a device in body-worn accessories, in

accordance with the test results, should also be included in the user

instructions. All supported bodyworn accessory operating

configurations must be clearly disclosed to users through conspicuous

instructions in the user guide and user manual to ensure unsupported

operations are avoided. All body-worn accessories containing metallic

components must be tested for compliance and clearly identified in the

operating manual. The instruction must inform users to avoid using

other body-worn accessories containing metallic components to

ensure RF exposure compliance.”

Miscellaneous 53

User Guide

Specifi-

cations

AK300

PPE31

Midnight Black

Aluminum

4-inch WVGA (480x800) Touch Screen

WAV, FLAC, WMA, MP3, OGG, APE (Normal, High, Fast),

AAC, ALAC, AIFF, DFF, DSF

PCM : 8kHz ~ 192kHz (8/16/24bits per Sample)

DSD : DSD64, Stereo/ DSD128, Stereo

Unbalance 1.98 Vrms/ Balance 1.98 Vrms (Condition No Load)

AKM AK4490 x 1 (Single DAC)

Support up to 24bit / 192kHz Bit to Bit Decoding

Type-B micro-USB Input (Charging & data transfer (PC & Mac)) /

Connection Mode: MTP (Media Device)

Phones (3.5 mm) / Optical Out (3.5 mm) /

Balanced Out (2.5 mm, only 4-pole supported)

802.11 b/g/n (2.4 GHz)

V4.0 (A2DP, AVRCP) APT-x

2.95”(75.15 mm)[W] x 4.42”(112.4 mm)[H] x 0.60”(15.45 mm)[D]

7.23 oz(205g)

Firmware Upgrade Supported (OTA)

±0.075dB (Condition: 20Hz~20kHz) Unbalance /

±0.075dB (Condition: 20Hz~20kHz) Balance

±0.56.dB (Condition: 10Hz~70kHz) Unbalance /

±0.55.dB (Condition: 10Hz~70kHz) Balance

116dB @ 1kHz, Unbalance/ 116dB @ 1kHz, Balance

130dB @ 1kHz, Unbalance/ 130dB @ 1kHz, Balance

0.0008% @ 1 kHz, Unbalanced / 0.0007% @ 1 kHz, Balanced

0.0007% 800 Hz 10 kHz (4:1) Unbalanced /

0.0006% 800 Hz 10 kHz (4:1) Balanced

Balanced Out 2.5 mm (1 ohm) / Phones 3.5 mm (2 ohm)

30 ps (Typ.) / Reference Clock Jitter (VCXO Clock) 0.2 ps (Typ.)

0.2ps (VCXO Clock)

64GB[NAND]

microSD (Max. 128 GB) x 1

3,100mAh 3.7V Li-Polymer Battery

Windows XP, Windows 7,8,10(32/64bit)

MAC OS X 10.7. and up

General Specifications

Product Name

Model

Body Color

Body Material

Display

Supported Audio

Formats

Sampling Rate

Output Level

DAC

Decoding

Input

Outputs

Wi-Fi

Bluetooth

Dimensions

Weight

Feature Enhancements

Audio Specifications

Frequency Response

S/N

Crosstalk

THD+N

SMPTE IMD

Output Impedance

Clock Jitter

Reference Clock Jitter

Storage Capacity

Built-in Memory

External Memory

Battery

Capacity

Supported OS

Miscellaneous 54

User Guide

Disclaimers

The manufacturer, importer, and distributor shall not be

liable for damages including accidental and personal injury

due to the improper use or operation of this product.

The information in this user manual was written based on

current product specifications. The manufacturer, iriver

Limited, is adding new complementary features and will

continue to apply new technologies in the future.

All specifications may be changed without prior notice.

There is no warranty against data loss due to the use of this

product.

Registered

Trademarks

Windows 2000, Windows XP, Windows 7, Windows 8,

Windows 10 and Windows Media Player are trademarks of

Microsoft Corp.

and the aptX logo are trade marks of CSR plc or one of its

group companies and may be registered in one or more

jurisdictions.

Risk of explosion if battery is replaced by an incorrect type. Dispose

of used batteries according to the instructions.

Iriver Astell & Kern AK 300 User Guide AK300 IM ENG

Navigation menu

Versions of this User Manual:

Views

Navigation
