INSTRUCTION BOOK
AK320
User Guide
Package Contents
AK320 at a Glance
Power Management
Charging
Connections
Firmware Upgrade
02
03
04
05
06
11
Getting Started _01
Basic Operations
Home Screen
Notification Bar
Store
AK Connect
Listening to Music
Playlist Management
USB DAC Installation
CD Ripping
Using Bluetooth
Settings
Connecting to a Wireless Network
Equalizer Setup
12
14
15
18
19
25
31
34
35
37
39
44
45
Using the Device _02
Safety Precautions
Troubleshooting
Copyright
Certifications
Specifications
Registered Trademarks
Disclaimers
48
49
51
51
53
54
54
Miscellaneous _03
CONTENTS
User Guide
AK320
microSD Card Slot Cover
Micro-USB Cable
Leather Case & Protective Film: Protect the device and its
screen. The warranty for the leather case guarantees the
quality of the leather.
Micro-USB Cable: Connect the device to a computer or
charge the device.
Quick Start Guide: Basic overview of device functionality.
Warranty Card: The warranty card is required for customer
and technical support. Do not misplace the card.
User Guide: The User Guide can be downloaded from the Astell&
Kern website. [http://www.astellnkern.com/ > Support > Download].
MicroSD Card Slot Cover: The cover is used to protect the microSD
card slot when not in use. It is installed on the product by default.
Contents may be changed without prior notice to
improve the performance or quality of the product.

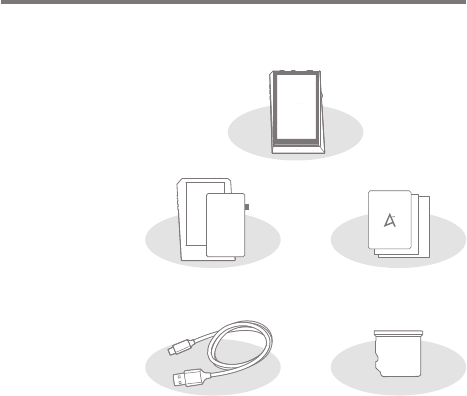

Package
Contents
Leather Case (with warranty)
& Protective Film
Getting Started
02
Quick Start Guide
& Warranty Card
Play/Pause
LCD
Touchscreen
microSD
Card Slot
Home
Button
Volume
Next/
Fast-Forward
Previous/
Rewind
Earphones / Optical Port: Output sound to connected
earphones. Music can be played back on a S/PDIF-capable
external device by using an optical cable.
Power: Turn the screen on and off.
Long press - Turn the device on and off.
Balanced Out: Output sound to earphones or headphones
that support balanced audio connections. Connect to an
external audio device by using both the earphone port
(ground) and balanced audio port (LR) in conjunction.
Micro-USB Port: Connect to a computer or recharge the
device.
Expansion Unit Balanced Out: Output sound to an
expansion device that supports balanced audio connections.
Previous/Rewind: Play the previous song or restart the song.
Long press - Rewind.
Getting Started
03
User Guide
The appearance of the product as well as the printed and
engraved information may vary depending on the model.

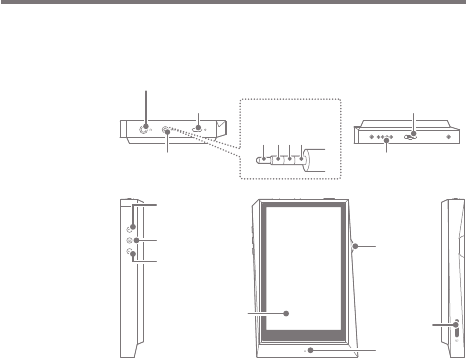

AK320 at
a Glance
Earphones / Optical Port Power
Power Micro-USB Port
Balanced
Audio Port
Expansion Unit
Balanced Out
Balanced Audio
Pin Map
R- R+ L+ L-
User Guide
This device has an automatic shutdown feature to reduce
battery consumption. The device will turn off after a defined
period if there is no user input. [ - Power Saving - Automatic
Shutdown] (See p. 42)
This device has an automatic timeout feature to reduce battery
consumption. The screen will turn off after a defined period of
time if there is no user input. [ - Power Saving - Screen
Timeout] (See p. 42)
Turn the Screen On/Off
1. While the screen is on, press the [ ] button to turn
off the screen.
2. Press the [ ] button again to turn off the screen.
Turn On/Off
1. Long-press the [ ] button to turn on the device.
2. While the device is on, long-press the [ ] button to
display a shutdown confirmation message.
3. Press [Confirm] to turn off the device.
Power
Manage-
ment
Getting Started
04
Play/Pause: Play or Pause a song.
Long press - Show the playback screen.
Next/Fast-Forward: Skip to the next song.
Long press: Fast-forward.
LCD Touchscreen: Display with touch control.
Volume: Control the volume by turning the wheel.
microSD Card Slot: Insert a microSD card and access its files.
Home Button: Show the home screen.
Charging time: up to 4 hours (fully discharge, power OFF)
Using a quick charger supporting 5V, 9V and 12V will not charge
the battery and may cause damage to the device.
1. Connect the device with 5V 2A adapter (sold separately)
using the Micro USB Cable.
Charging using the adapter
Charging time: up to 10 hours (fully discharge, power OFF)
You may have to turn on a computer to start charging depending
on computer specifications.
When charging via PC connection, the charging time may vary
depending on whether the device is turned on or off.
If a computer goes into standby/sleep mode, the device may not
be charged depending on computer specifications.
The built-in battery will gradually lose capacity over time
according to the number of charges/discharges.
Do not use any micro-USB cable other than the one supplied
with the device. Doing so may cause a malfunction.
1. Connect the device to the PC using the supplied Micro
USB cable. Charging starts.
Charging using PC
Charging
Getting Started
05
User Guide
Reset Function
1. In cases of unexpected device failure or freeze, press the
[ ] button for 12 seconds to force a shutdown. The
device can be restarted after a shutdown.
The device can be restarted after a shutdown.
Resetting the device will not affect the stored data or time
setting.
Do not use the reset function while the product is in use. Doing
so may corrupt the data on the device.
User Guide
Connec-
tions

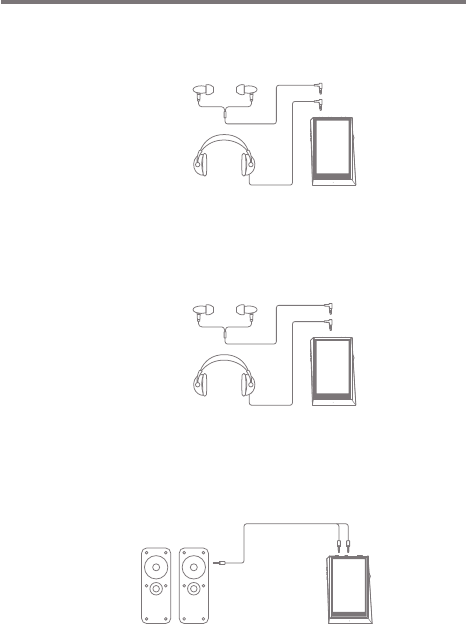

Earphones/Headphones
1. Connect earphones or headphones to the earphones port.
Getting Started
06
Balanced Earphones/Headphones
1. Connect supported earphones or headphones to the
balanced port.
OR
OR
Balanced Audio Device
1. Connect to an external audio device by using the
Earphones port and Balanced port in conjunction.
Earphones Port
(Ground)
Balanced Port (LR)
User Guide
Getting Started
07

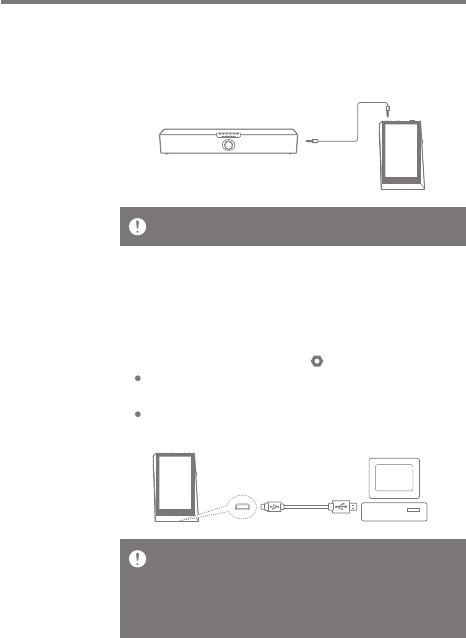

$POOFDUJOHUPB$PNQVUFS
1. Turn on the device and your PC.
2. Connect the device to your PC as a standard USB device
by using a micro-USB cable. [ - Connect USB]
Media Device (USB Drive): Transfer files from a PC to
the device.
DAC input: Listen to music located on a PC through the
device. (See p. 34)
0QUJDBM0VU
1. Music can be played back on a S/PDIF-capable external
audio device by using an optical cable.
DSD format is converted to PCM when using Optical Out.
The volume will be fixed at the maximum level.
Mac users need to download and install the MTP program from
the Astell&Kern website. [http://www.astellnkern.com Support >
Download]
For an optimal connection, quit any unnecessary programs
before connecting the device to the computer.
Only use the micro-USB cable supplied with the device. Doing so
may cause a malfunction.
User Guide
Getting Started
08

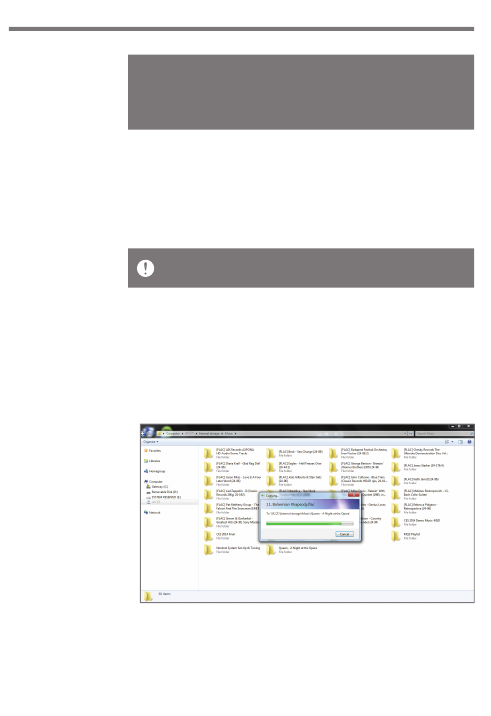

Copy Files/Folders to the Device
1. To copy files/folders from your computer, select the
desired files/folders and drag & drop them into the USB
device.
Disconnecting from the Computer
1. Verify that all operations are completed before attempting
to disconnect the device from the computer.
Disconnecting the device from the computer during an
operation (e.g. file transfer) may corrupt data on the device.
Windows XP users require Service Pack 2 and Windows Media
Player 10 to be installed for the computer to recognize the USB
device.
Download necessary Service Packs and Windows Media Player
from the Microsoft website. http://www.microsoft.com
Make sure that the micro-USB cable is securely connected.
Note that removing the micro-USB cable or turning off the
device or computer during a file transfer may corrupt data on the
device.
File transfer speeds may be affected depending on the computer
and/or OS environment.
Getting Started
09
User Guide

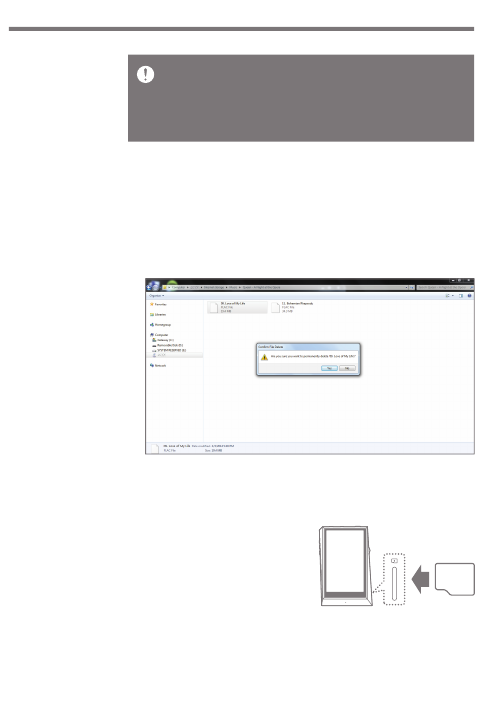

Insert/Remove a microSD Card
1. Refer to the diagram and
gently insert a microSD
card into the microSD
card slot.
Delete Files/Folders on the Device
1. Right-click the desired file/folder, and then select [Delete].
2. Select [Yes] in the [Confirm File/Folder Deletion] window
to delete the selected file/folder.
Getting Started
10
User Guide
Maximum supported microSD card capacity: 128GB
Notes on inserting 128GB microSD card.
Do not force the microSD card into the slot. Doing so may
cause damage to the device and/or microSD card.
Do not repeatedly insert/remove the microSD card.
If the microSD card is improperly inserted, it may become
immovable or cause damage to the device.
Notes on removing a microSD card
Be sure to safely unmount and remove the microSD card from
the device. Not following the proper procedure may corrupt
data and cause serious damage to the system.
Do not remove the microSD card while it is in use. Doing so
may cause data corruption/deletion, malfunction, and damage
to the microSD card.
Miscellaneous
If the device is unable to recognize the microSD card and/or
malfunctions, format the memory card before use. We
recommend using the FAT32 format.
Using microSD cards other than the recommended brands
may cause device malfunction.
A microSD card is not included with this device. Please
purchase separately.
Recommended microSD Cards
Brand : SanDisk, Transcend

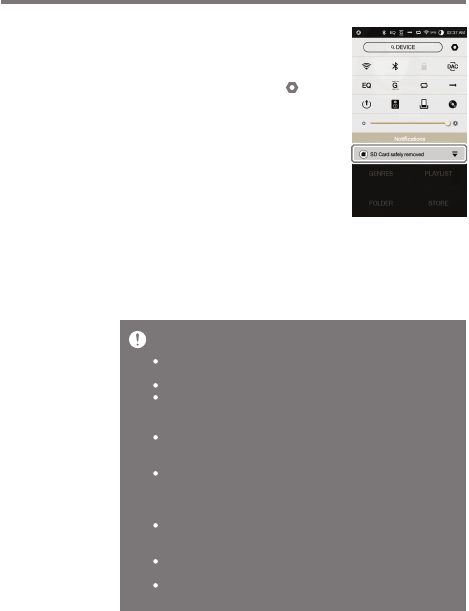

2. To safely remove a microSD card,
select [Safely remove SD card]
from the Notification Bar or select
[Unmount SD card] from [ -
System Information].
3. Gently press the microSD card
to release it from the slot.
Refer to page 44 of the manual for more information on
connecting to a wireless network.
The firmware upgrade may not initialize if the battery level is too
low. (A minimum battery level of 50% is required.)
Moving to another screen during a file download will cancel the
download.
Do not disconnect from the wireless network while downloading
a firmware upgrade. Doing so may cause data corruption and/or
damage to the system.
If an error occurs or the notice in the Notification Bar disappears
during an upgrade, download the firmware update again through
[ - Update - System Update].
Getting Started
11
User Guide

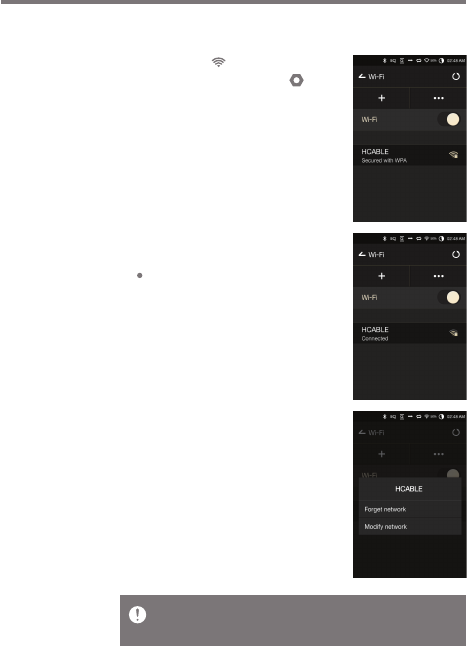

Wi-Fi Update / OTA (Over-the-Air)
1. Connect to a wireless network.
2. When a new firmware version is available, the screen will
display a Firmware Update Guide window.
3. Select [Update] and choose the items for update.
4. Follow the on-screen instructions and proceed with the
firmware upgrade.
Firmware
Upgrade
To prevent damage, do not use a sharp object or use excessive
force when touching the screen.
The [Home] button on the AK320 is pressure-sensitive and can
be operated with light pressure.
Using the Device
12
Basic
Operations
LCD Touchscreen
1. This device features an LCD touchscreen that allows you
to perform operations by touch.
Interact with the device by touching the screen to access
various features.
User Guide
Return to the Home Screen
Home Screen

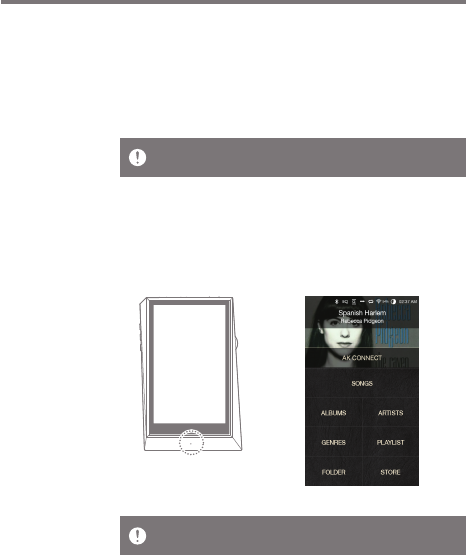

1. Press the [Home] button at any time to return to the
Home Screen.
Using the Device
13
User Guide

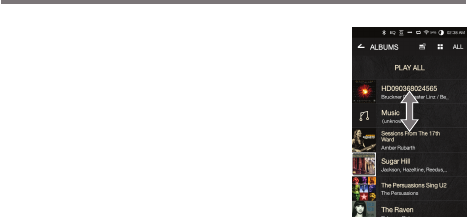

Navigating Up/Down in a List
1. Scroll through the list by dragging
the list screen [up] and [down].
Using the Device
14
User Guide
Currently playing song information.
Launches AK Connect.
View the list of songs by different
search options.
Current Song
AK CONNECT
Search Options
1
2
3
1
2
3
Home
Screen
The search options can be long-pressed and dragged to change
their locations.
Using the Device
15
User Guide
Notification
Bar
8
2
4
10
11
9
13
12
3
14
15
16
17
5
6
7
1
Using the Device
16
User Guide
Expand or collapse the
notification bar by dragging the
bar down or up, respectively.
Press [ ] to turn Wi-Fi on
or off.
Press [ ] to turn Bluetooth
on or off.
Press [ ] to turn the EQ
on or off. The most recent EQ
settings are applied by default.
Press [ ] to turn Gapless
Playback on or off.
Turn Line Out on or off.
Turn Wi-Fi speakers on or off.
(Must be on the same network.)
(The icon will become enabled
when AK Connect is turned on.)
Notification contents are
displayed in this area.
Enter keywords to display a
list of items containing the
search terms.
Displays a list of settings.

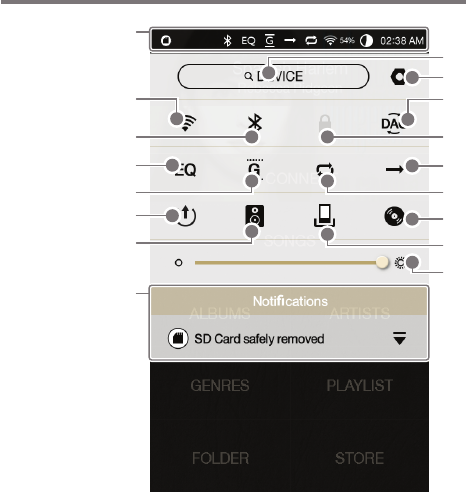

Notification Bar
Wi-Fi
Bluetooth
EQ
Gapless
Playback
Line Out
Wi-Fi Speakers
Notifications
Display
File Search
Settings
1
2
3
4
5
6
7
8
9
10
Long-press [ / / ] to move to the corresponding screen.
Using the Device
17
User Guide
PC Connection
Mode
Screen Lock
Play Mode
Repeat Mode
Ripper Power
Cradle
Screen
Brightness
11
12
13
14
15
16
17
Select the appropriate mode
when connected to a computer.
:USB drive mode for
transferring media files.
:Listen to music located on
a PC through the device.
Press [ ] to turn the screen
lock on or off. The volume wheel
is disabled when the screen is
locked.
Press [ ] to cycle through
different play modes.
:Sequential playback.
:Shuffle playback.
Press [ ] to cycle through
different Repeat modes.
:Repeat the entire playlist.
:Repeat the current song.
:Disable repeat.
Turn the CD Ripper on or off.
(Enabled when connected to
the AK CD Ripper.)
Output sound through the cradle’s
Balanced Out port. (Enabled when
connected to the AK Cradle.)
Use the adjustment bar to
control the display brightness.
%*4,
Refer to page 44 of the manual for more information on
connecting to a wireless network.
Using the Device
18
User Guide
Purchasing Music
1. Connect to a wireless network.
2. Select [Store] from the home screen.
3. Select the desired store.
4. Check the user guide or help menu within each store for
detailed information.
Conveniently purchase music from the Store when
connected to a wireless network.
Purchasing
Music from
a Store
System Requirements
PC Minimum System Requirements
OS : Windows XP, Windows 7/8 (32 & 64-bit)
Mac Minimum System Requirements
OS X 10.7 (Lion) or later
Using the Device
19
User Guide
MQS Streaming Server Installation
1. Visit the Astell&Kern website and download the server
installer that corresponds to your operating system.
[http://www.astellnkern.com > Support > Download].
2. Run the downloaded installer and follow the on-screen
instructions.
3. Check the User Guide within the program for detailed
information on using the MQS Streaming Server.
The AK320 can access and play back music files stored on
a computer on the same network as well as output sound
through Astell&Kern speakers.
AK
CONNECT
Connecting to the AK Connect Server

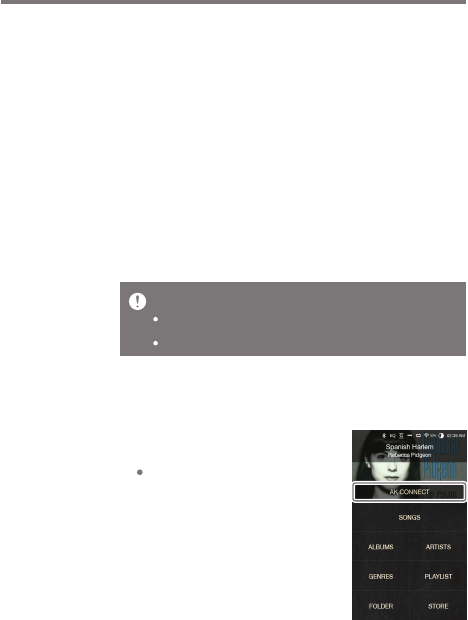

1. Turn on the server and connect to
the same network as the AK320.
Run the MQS Streaming Server
on your computer.
2. Turn on [AK Connect] from the
device settings.
3. Press [AK Connect] from the home
screen.
Using the Device
20
User Guide

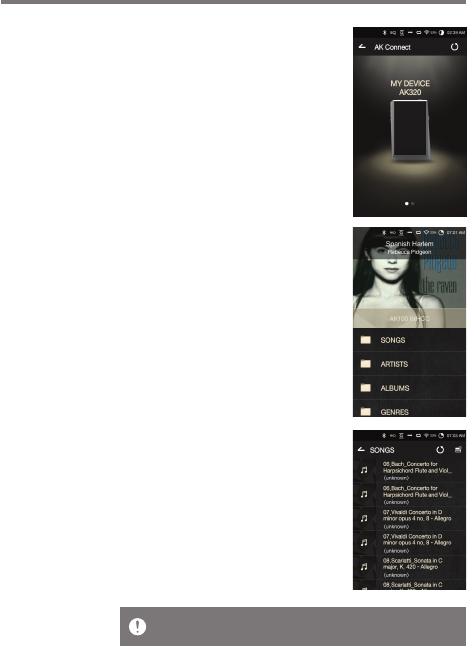

4. A list of servers on the same
network as the AK320 will be
displayed.
5. Scroll the screen left and right to
select a server. The selected server
will be connected and the server
home screen will be displayed.
6. Select a search option at the
bottom of the server home screen
to display a list of music.
Refer to page 44 of the manual for more information on
connecting to a wireless network.
Using the Device
21
User Guide
Streaming and Downloading from the Music Server

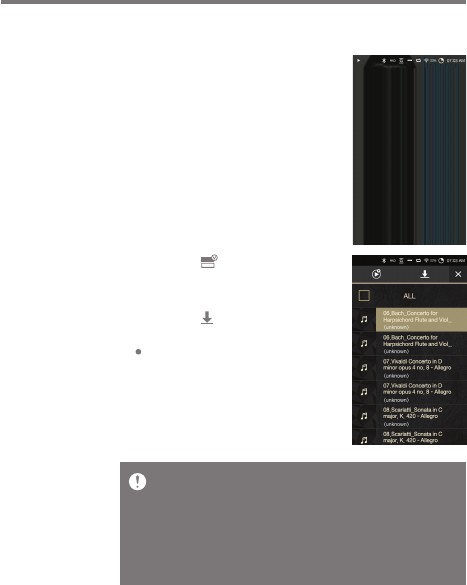

1. Select a search option from the
server Home Screen to display
a list of music.
2. Select a song to begin streaming.
3. Press the [ ] button at the
upper-right corner of the music list.
4. Select the desired music, and then
press the [ ] button at the top of
the screen to begin downloading.
A message on the Notification
Bar will indicate a completed
download.
Depending on network conditions, song loading may be slow or
streaming may stutter.
Server response may be slow when the server computer is
under load.
Depending on network conditions and server status, the
AK320's performance may be affected when streaming and
downloading at the same time.
Terminating music streaming or pressing the item being
downloaded within the Notification Bar will stop the downloading.
Using the Device
22
User Guide
Selecting Speakers
AK Connect Usage Examples
1. Turn on the speaker(s) to be
connected, and then connect it to
the same network as the AK320.
2. Turn on [AK Connect] from the
device settings.

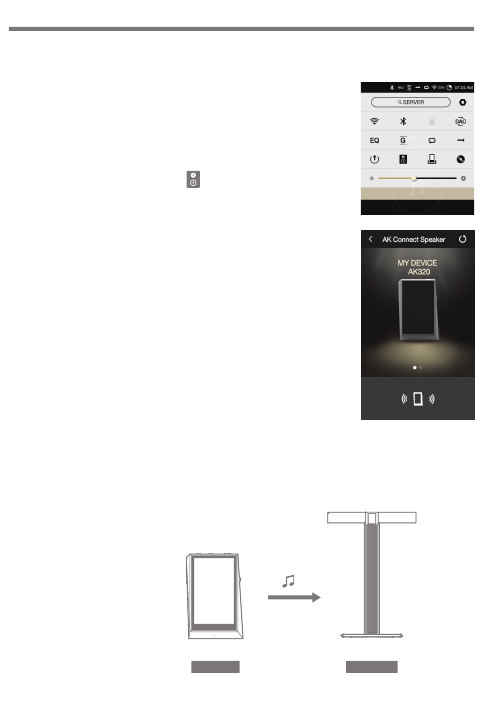

3. Press [ ] from the notification
bar to display a list of speakers
available on the same network
as the AK320.
4. Scroll the screen left and right to
select a speaker. The selected
speaker will be connected, and
music will be played back through
the speaker.

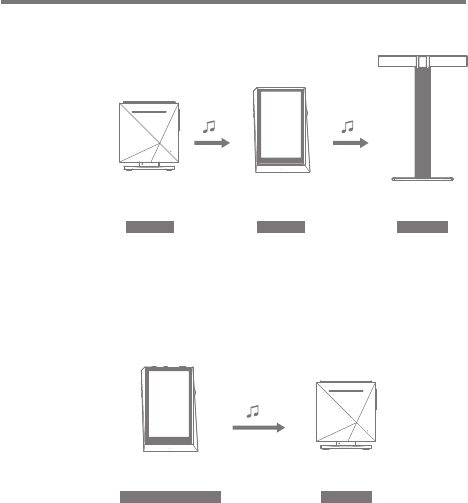

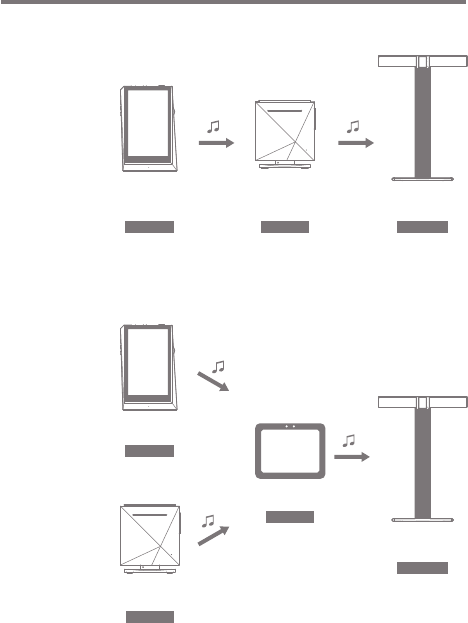

Example 1
LIBRARY SPEAKER
AK T1AK320
Using the Device
23
User Guide
Example 2
Example 3
AK500N
LIBRARY REMOTE SPEAKER
AK T1AK320
REMOTE & LIBRARY
AK320
SPEAKER
AK500N
Using the Device
24
User Guide
Example 4
Example 5
LIBRARY SPEAKER
AK T1AK320 AK500N
REMOTE
SPEAKER
AK T1
LIBRARY
AK320
or
REMOTE
AK Connect APP
AK500N
LIBRARY
Press [ ] at the top of the music list to display music
options.
: Add the selected file after the current/last song of
the current playlist.
: Add the selected file to the playlist.
: Copy the selected file.
: Move the selected file.
: Delete the selected file.
Select an album cover from the home screen to begin
playback.
Turn the [Volume Wheel] to adjust the volume.
Press [ ] during playback to pause and [ ] to resume
playback.
You can also pause/resume playback by pressing the
[ ] button on the device.
Press [ / ] during playback for the previous/next song.
Play the previous/next song by pressing the [ / ] button
on the device.
Long-press [ / ] during playback to rewind/fast-forward.
Rewind/fast-forward by pressing the [ / ] button on
the device.
Using the Device
25
User Guide
Listening
to Music
Selecting Music
1. Select a search option at the bottom of the home screen
to display the playlist.
2. Select a song from the list to begin playback.
Listening to Music
Select [Folder] to search music by folder.
Continuous Playback: Approximately 10 hours (Basis: FLAC,
16-bit, 44 kHz, unbalanced output, volume 80, EQ off, LCD off)
Supported Formats: PCM [8~192kHz(8/16/24bit)], DSD 64/128
Using the Device
26
User Guide
Drag the progress bar to the desired location during
playback.
Press the [Home] button on the device to go to the Home
Screen.
Press the album cover during playback to display an
additional screen.
: Display the previous screen.
: Display the current playlist.
Press [ ] next to the playlist to edit the playlist
order.
Press [ ] at the top of the music list to display
music options.
: Add the selected file to the playlist.
: Delete the selected file.
: Add the current song to the playlist.
: Display lyrics for the current song.
: Display current song information.
Using the Device
27
User Guide
Playlist Screen
1
2
4
5
6
3
Using the Device
28
User Guide
Indicates the current location.
Press to return to the previous screen.
Play all songs from the current playlist.
Displays the playlist for the current location.

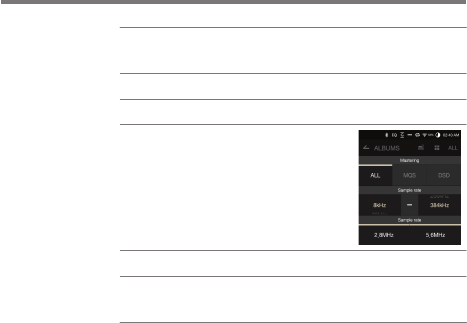

Select a method for
sorting the playlist.
Select a view type for the list of albums.
Select the checkbox to apply playlist
options.
Current
Location
Play All
Playlist
List Sorting
List View
Music
Options
1
2
3
4
5
6
Using the Device
29
User Guide
2
1
12
11
10
6
5
4
3
7
8
9
13
14
15
Music Player Screen
Return to the previous screen.
Display album covers.
Press the album cover to show
additional functions.
Previous Screen
Album Cover
1
2
Using the Device
30
User Guide
Lyrics for the current song.
Add the current song to a playlist.
Indicates song duration.
Displays bitrate and sampling
frequency data.
Song title information.
File name is displayed when
ID3Tag is unavailable.
Artist name.
Play or pause the current song.
Displays the current playlist.
Displays current song information.
Indicates the song’s total duration.
Press to switch from elapsed
time to remaining time.
Indicates song progress.
Drag the indicator to move to
the desired time.
Short press: Previous song.
Long press: Rewind the current
song.
Short press: Next song.
Long press: Fast-forward the
current song.
Lyrics
Add to Playlist
Song Progress
Details
Title
Artist
Play/Pause
Playlist
Details
Song Duration
Progress Bar
Previous/
Rewind
Next/
Fast-Forward










Using the Device
31
User Guide
Playlist
Manage-
ment
Creating a Playlist

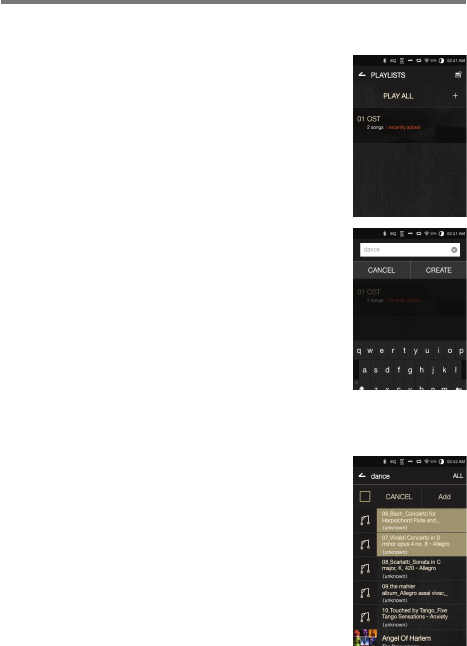

1. Press [Playlist - Playlists] from the
home screen to display a list of
playlists.
2. Press [+] at the upper-right corner
of the screen.
3. Enter a name for the playlist,
and then press [Add] to create
a new playlist.
Adding a Song to a Playlist
1. Press [Playlists] to display a list
of playlists.
2. Select a playlist and press [+ Add]
to display a list of songs.
3. Select the desired song, and then
press [+ Add] to add the song to
the selected playlist.
Using the Device
32
User Guide

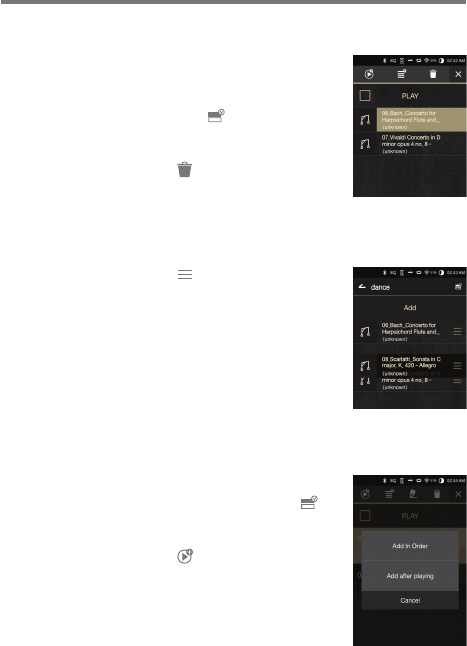

Removing a Song from a Playlist
1. Press [Playlists] to display a list
of playlists.
2. Select the desired playlist, and
then press [ ] at the top of
the screen.
3. Select the desired song, and then
press [ ] to remove the song
from the selected playlist.
Editing the Playlist Order
1. Press [ ] next to the playlist
to modify the playlist order.
Playing a Playlist
1. Press [Playlists] to display a list
of playlists, and then press [ ]
at the top of the screen.
2.
Select the desired playlist for playback.
3. Press [ ] at the top of the screen
to add the selected playlist after
the current/last song of the current
playlist.
Using the Device
33
User Guide

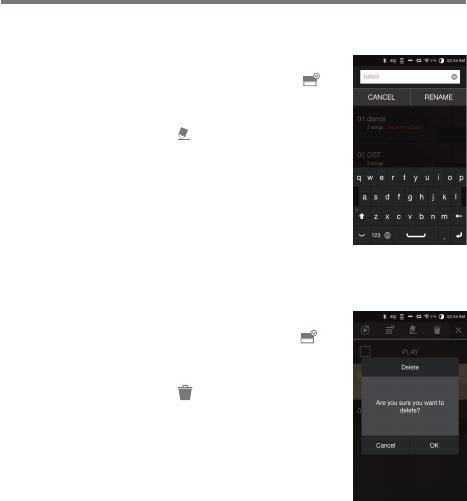

Renaming a Playlist
Deleting a Playlist
1. Press [Playlists] to display a list
of playlists, and then press [ ]
at the top of the screen.
2. Select the playlist to be deleted.
3. Press [ ] at the top of the screen
to delete the selected playlist.
1. Press [Playlists] to display a list
of playlists, and then press [ ]
at the top of the screen.
2. Select a playlist to be renamed.
3. Press [ ] at the top of the screen
to display a rename window.
4. Enter a name for the playlist, and
then press [Rename] to save the
playlist under a new name.
Using the Device
34
User Guide
USB DAC
Installation
USB DAC Specifications
Supported OS
Windows XP (32-bit) / Windows 7 (32/64-bit) /
Windows 8 (32/64-bit) / Windows 10(32bit/64bit)
USB DAC Support Specifications
Supported Formats: WAV, FLAC, WMA, MP3, OGG,
APE (Normal, High, Fast), AAC, ALAC, AIFF, DFF, DSF
Sample Rate: 44.1 kHz – 96 kHz
Bit Rate: 16-bit/24-bit
Control the volume with the AK320's volume wheel.
The USB DAC functionality allows the AK320 to be
recognized as a sound card on a computer. Music from the
computer is played through the device’s earphones port for
an enhanced listening experience.
Sound will not play back for files that exceed the supported
formats.
Volume control is unavailable when the LCD screen is turned off
during USB DAC connection.
The Previous, Play, and Next buttons are unavailable during USB
DAC connection.
Playback may stutter when computer performance is slow or the
USB connection is experiencing heavy usage.
There may be issues with audio-to-video synchronization during
video playback depending on the sound quality and operating
environment.
Optical output (S/PDIF) is unavailable during USB DAC
connection.
Volume cannot be adjusted via the Windows volume control. The
volume wheel on the device or volume control on the
appropriate program must be used to adjust the volume.
Using the Device
35
User Guide
CD Ripping Connect the AK Ripper (sold separately) to rip CDs.
Turning the AK Ripper On/Off
1. Set [ - CD Ripping] to On.
2. After connecting the product, pull down the notification
bar and press the CD ripping icon to use the AK Ripper.
3. While the AK Ripper is turned on, pull down the notification
bar and press the CD ripping icon to stop the AK Ripper
operation.
Automatic CD Ripping
1. Connect the AK Ripper and insert a CD.
2. The metadata (ID3 tags) for the inserted CD will be retrieved
via Gracenote.
3. CD ripping will begin automatically after the metadata
has been retrieved.
4. When finished, press [OK] on the results prompt to
complete automatic CD ripping.
Manual CD Ripping
1. When the AK Ripper is connected and a CD is inserted,
the [CD Ripping] menu will be activated on the home screen.
2. Press the [CD Ripping] menu and select the desired file
format (FLAC or WAV).
3. The Gracenote database will be searched for matching
CD metadata after the file format is selected.
4. When the database search is complete, press [Start] to
begin CD ripping.
5. Rip only selected songs.
To search the Gracenote database, the AK320 must be
connected to the Internet via Wi-Fi. The database access time
may vary depending on the network environment.
Please note that metadata for certain CDs may not be available
on the Gracenote database.
You may not access the Home screen while CD ripping is in
progress.
The AK Connect service will be disabled during CD ripping. The
service will automatically restart when CD ripping is completed.
Music playback will be disabled during CD ripping, and tracks
that have been ripped will not be available for playback until the
entire CD has been ripped.
You can set the desired file format and ripping speed from the [
- CD Ripping] menu.
Several attempts at correction will be made for data with errors
when the feature is enabled under [ - CD Ripping - Error
Correction]. Please note that the CD ripping speed will be
affected when this feature is enabled.
Using the Device
36
User Guide
CD Ripping Results
: Indicates that CD ripping is complete, or that although
an error occurred, CD ripping was successfully
completed via error correction.
: Indicates that the song currently being ripped can be
canceled via user input.
: Indicates that CD ripping failed due to a scratch on
the CD or other similar reasons. Also indicates that
CD ripping was canceled due to user interruption.
Using the Device
37
User Guide
Using
Bluetooth
Connect a Bluetooth device to listen to music wirelessly.
Turning Bluetooth On/Off
A Bluetooth device must be paired
with the AK320 prior to use. Refer
to the Bluetooth device's instruction
manual for details.

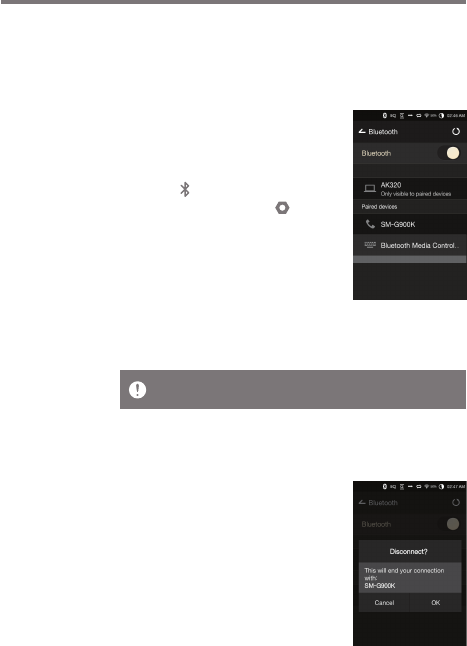

1. Select [ ] from the home screen,
or select [On/Off] from [ -
Bluetooth].
Bluetooth Pairing
1. Select the appropriate Bluetooth device from the list of
available devices.
Terminating a Bluetooth Connection
1. Press the connected Bluetooth
device and confirm the message
prompt to disconnect the device.
A Bluetooth device must be paired with the AK320 prior to use.
Refer to the Bluetooth device's instruction manual for details.
Using the Device
38
User Guide
Bluetooth Support Specifications
Profile: A2DP, aptX
Device performance may be affected during Hi-Fi playback.
(48 kHz or lower is recommended.)
DSD playback is unavailable via Bluetooth.
Do not turn off the device while connected to Bluetooth.
Power cycle the Bluetooth device in case of malfunction.
Pairing methods may differ for each individual Bluetooth device.
Always refer to the respective instruction manual for details.
When connecting the product to a Bluetooth device, the
distance between the two must be within 20 cm.
Audio quality will degrade with longer distances, and the pairing
may disconnect at a distance of 2 m (6.5 ft) or more. (Distances
may vary depending on device and environment.)
Crosstalk may be heard while using Bluetooth.
For multipoint devices, make the necessary connections prior to
use.
Car audio Bluetooth connections are not supported.
Malfunction, noise, and other undesirable effects may occur due
to the device's battery level and the environment.
If signal interference affects data transmission. (e.g. holding
the device while wearing a Bluetooth device, holding the
device while holding another electronic device, etc.)
If the device or Bluetooth headset's radio transmitters are
touching parts of the body.
If the transmission strength is affected by walls, corners,
partitions, etc.
If devices using the same frequencies cause interference. (e.g.
medical devices, microwave ovens, Wi-Fi, etc.)
Areas with an excessive amount of interference or weak
signals. (e.g. elevators, underground, etc.)

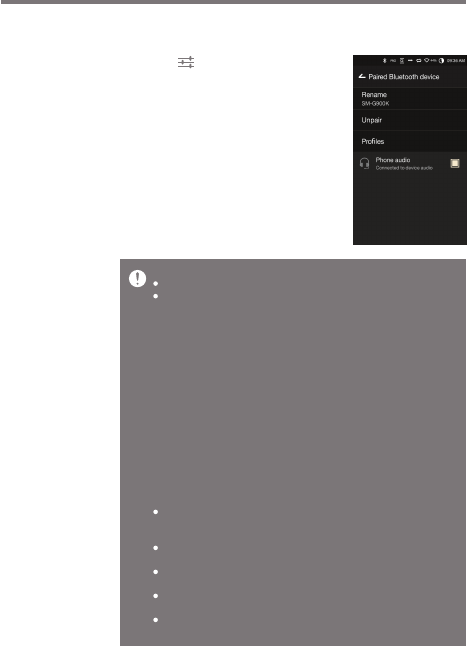

Removing a Bluetooth Pairing
1. Press [ ] to the right of the
paired device to be redirected
to the settings screen.
2. Select [Remove Pairing] to
complete the process.
Using the Device
39
User Guide
Settings Set up the device according to the user's needs. The settings
menu may vary depending on the firmware version.
Setup
1. Select [ ] from the home screen notification bar.
2. Select the desired item for setup.
Wi-Fi
Change wireless network settings and turn Wi-Fi on or off.
Bluetooth
Connect a Bluetooth device to listen to music wirelessly.
Refer to page 44 of the manual for more information on setting a
wireless network.
Refer to [Using Bluetooth] on page 37 of the manual for more
information on setting up a Bluetooth connection.
AK CONNECT
Set whether to use AK Connect.
Using the Device
40
User Guide
Gapless Playback
Play the next song without any interruptions/silence.
Gapless playback is only supported between two files
with identical bit rates, sample rates, and channels.
Line Out
Turn Line Out on or off.
Enabling Line Out and pressing [Line Out] on the volume
control window will lock the volume level at maximum.
Equalizer
Set the equalizer according to the user's preferences.
Pro EQ: EQ Preset recommended by professionals.
User EQ: Adjust the frequencies according to the user's
preferences.
Left-Right Balance
Adjust the left-right balance for earphones/headphones.
Do not use earphones with the Line Out feature enabled. Doing
so may cause permanent hearing loss.

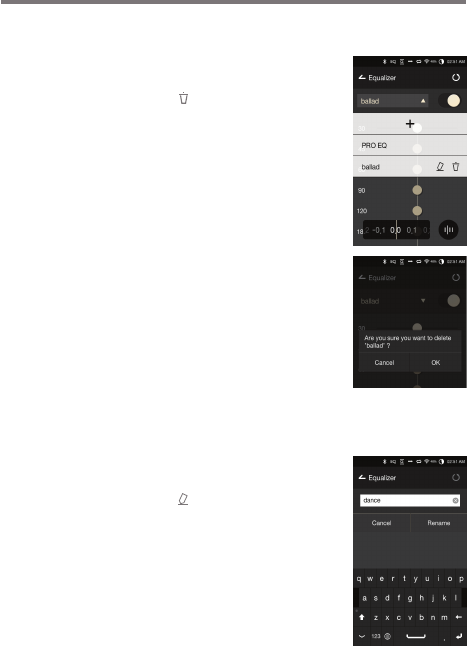

Supported Formats for EQ: PCM [8 – 192 kHz (8/16/24-bit)] DSD
Using the equalizer may negatively affect device performance.
Refer to pages 45 - 47 of the manual for more information on
using the equalizer.
Using the Device
41
User Guide
Device Name
Set the name of the device.
The maximum name length is 30 characters.
CD Ripping
Set the automatic CD ripping function as well as the file
format and ripping speed.
Theme
Change the theme.
Date & Time
Set the current date and time.
Amp
Set the amplification level when connected to the AK Amp.
Language
Select the display language.
Supported languages: English, Korean, Japanese,
Chinese (Simplified/Traditional), French, Russian, German
Screen Brightness
Adjust screen brightness settings.
Using the Device
42
User Guide
Download
Select a folder for downloaded files.
USB Connection
Media Device (USB Drive): Connect to a computer to
transfer media files.
DAC Input: Listen to music located on a PC through the
device.
Power
Automatic Shutdown: The device will turn off after a
defined period if there is no user input.
Screen Timeout: The screen will turn off after a defined
period when there is no user input.
Sleep Timer: Music playback will stop, and the device will
turn off after a defined period.
Keyboard
Select the keyboard language.
Supported languages: English, Korean, Japanese,
Chinese (Simplified/Traditional), Russian
The default folder is set when using AK Connect to download
files. When [Select Folder] is selected, the user is prompted to
choose a download folder each time a file is downloaded.
Using the Device
43
User Guide
System Information
System Information: View model number, firmware version,
and data storage information. The microSD card can be
mounted/dismounted, and data can be deleted.
System Restore
Database Initialization: Reset the internal database.
The database initialization time may vary depending on
the number of files stored on the device.
Default Settings: Revert all user settings back to their
original settings.
Factory Reset: Delete all user data and restore the device
to its original factory settings.
Update
System Update: Update the system when a new version
is found.
Application Update: Update the default applications
(including the Store) when new versions are found.
Formatting the microSD card will delete all data on the memory
card. Be sure to backup any important files before formatting.
When formatting the microSD card from a computer, be sure to
select the FAT32 system.
Using the Device
44
User Guide
Connecting
to a
Wireless
Network
2. Select the desired AP to connect
to the wireless network.
Additional information
(encryption key, index, etc.)
may be required depending
on the network settings.
3. Long-press the network name
and select [Network Settings] to
edit specific network settings.
Connecting to a Network
1. Long-press [ ] from the
Notification Bar or select [ -
Wi-Fi] to display a list of access
points (AP).
Networks requiring browser or other additional certifications are
not supported.
Channels 1 through 11 are supported.
Using the Device
45
User Guide

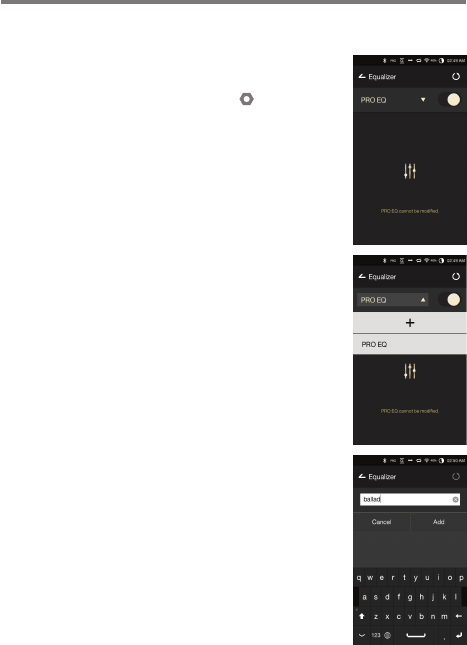

2. Press [Pro EQ] at the upper-left
corner of the screen and select
[ + ].
3. Enter a name for the custom
EQ settings and select [Add].
Equalizer
Setup
Equalizer Setup
1. Long-press [EQ] from the
Notification Bar, or turn on
the feature from [ - Equalizer].
Using the Device
46
User Guide
Resetting the Equalizer
1. Select the desired EQ setting
and press [ ] at the bottom
of the screen to revert the EQ
to its default settings.

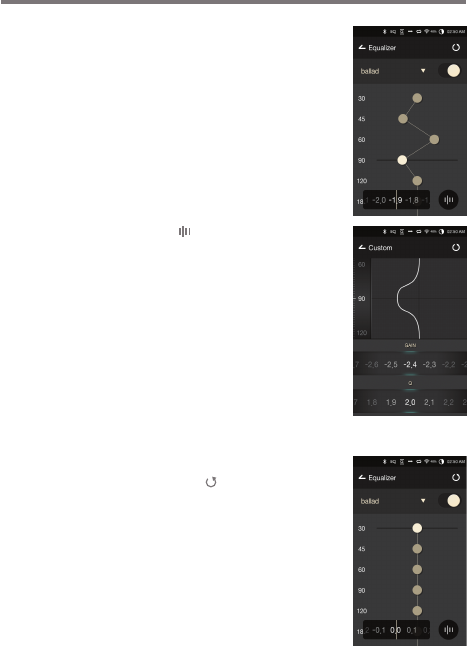

4. Adjust the frequencies left and
right according to the user's
preferences.
5. The number values at the lower-
left corner of the screen can be
adjusted for fine-tuning.
6. Press [ ] at the lower-right
corner of the screen to display
the PEQ settings screen.
The frequency, gain, and Q
values can be adjusted according
to the user’s preferences.
Using the Device
47
User Guide
Deleting an Equalizer
1. Press [Pro EQ] at the upper-left
corner of the screen.
2. Press [ ] next to the desired
item to delete the selected
equalizer.
Renaming an Equalizer
1. Press [Pro EQ] at the upper-left
corner of the screen.
2. Press [ ] next to the desired
item and enter a new name for
the selected equalizer.
3. Press [Rename] to apply the
changes.
Miscellaneous
48
User Guide
Safety
Precautions
Device
When a plug is inserted into the earphones, balanced, or
USB port, do not apply any force or shock to the plug.
Do not insert any metal objects (coins, hairpins, etc.) or
flammable debris into the device.
Do not place heavy objects on the device.
In case the device gets wet (rain, water, chemicals,
medicine, cosmetics, sweat, moisture, etc.), do not power
on the device and allow it to dry thoroughly. Contact the
nearest iriver Customer Support Center.
(Malfunctions due to exposure to liquids will be repaired
for a fee regardless of the warranty period and such
damage may not be repairable.)
Avoid exposing the device to direct sunlight or extreme
temperatures (-5Ⳅ - 40Ⳅ; 23°F - 104°F) such as the
inside of a car during the summer.
Do not store or use in hot and humid places such as saunas.
Avoid places with excess moisture, dust, or smoke.
Do not use for extended period on blankets, electric
blankets, or carpet.
Do not place near a fire or in a microwave.
Never attempt to disassemble, repair, or alter the product.
Do not store for extended periods in a confined space
with the power on.
Do not place the device near magnetic objects (magnets,
televisions, monitors, speakers, etc.).
Never use chemicals or cleaning products on the device
since they can damage the paint and surface coating.
Avoid dropping or subjecting the device to a strong
impact (excessive vibration, etc.).
Do not press multiple buttons simultaneously.
Do not disconnect the micro-USB cable during data transfer.
When connecting the micro-USB cable, use a USB port
on the back of the PC. Connecting to a defective or
damaged USB port may damage the device.
Displaying one image for an extended period may cause
screen burn-in (afterimage).
Miscellaneous
49
User Guide
Other
Do not use earphones/headphones or operate the product
while operating any type of vehicle. It is not only dangerous
but may be a violation of the law in certain regions.
Do not use the product during physical activities (driving,
walking, hiking, etc.).
Always use in a safe environment to avoid the risk of accidents.
Always be aware of your surroundings when using the
device while moving.
Avoid using the device during thunderstorms to reduce
the possibility of electric shock.
If there is a ringing in the ears during or immediately after
use, reduce the volume or discontinue using the product
and obtain medical advice.
Do not listen to music at excessive volumes for extended periods.
Do not use the earphones/headphones at excessive volumes.
Be careful not to get the earphones/headphones caught
in other objects.
Do not sleep with earphones in your ears or leave them in
for extended periods.
Trouble-
shooting
Check for solutions to common problems.
1. The device won't turn on.
The battery may need to be recharged. Charge the
device for at least one hour and try again.
Reset the device and try again. (See p. 5)
Using poor quality protective films or adhesive stickers on
the screen may cause damage.
Do not insert any foreign objects into the earphones port.
Miscellaneous
50
User Guide
2. The device will not charge when connected to a computer
via USB cable.
Use a USB port on the back of the computer, and check
that the USB port is functioning properly.
Check that the USB cable is connected correctly.
3. The computer won't recognize the device or an error
occurs when connected.
Use a USB port on the back of the computer.
Check that the USB cable is connected correctly.
For Windows XP, verify that Service Pack 2 (or higher)
and Windows Media Player 10 (or higher) are installed.
Check if the device connects properly on a different computer.
4. The screen turns off repeatedly.
The screen turns off automatically after a defined period
to reduce battery consumption. Set the time at [ -
Power Saving - Screen Timeout].
5. The screen does not display images properly.
Check the screen for debris.
6. There is no sound, or there is static/interference.
Check that the volume setting is above [0].
Check that the earphones are plugged in properly, and
make sure debris isn't obstructing the port connection.
Check if the music file is corrupted.
Verify that the audio settings have been properly set.
(Balanced out, line out, etc.)
7. A file does not play, or the product is unstable when a
certain file is used.
The following may occur due to the condition of the file:
Playback is unstable or difficult.
The product may not work normally.
The file may sound different from a computer.
There may be a difference in the performance of
playback or other functions.
There may be differences in the playable specs.
A file conversion or use of a different file is recommended.
Miscellaneous
51
User Guide
Certifi-
cations
KC / FCC / CE / TELEC
Class B Device (Communication equipment for residential use):
This is a Class B Device and is registered for EMC requirements
for residential use. This device can be used in residential
and all other areas.
Copyright
iriver Limited retains the rights to patents, trademarks, copyrights,
and other intellectual property rights related to this manual.
No contents of this user manual may be duplicated or
reproduced in any format or by any means without the prior
approval of iriver.
Using or reproducing, in whole or part, the contents of this
document is subject to penalties.
Software, audio, video, and any other copyrighted contents
are protected in accordance with relevant copyright laws.
The user accepts all legal responsibility for the unauthorized
reproduction or distribution of the copyrighted contents from
this product.
Companies, organizations, products, people, and events
used in the examples are not based on actual data.
iriver has no intention to be associated with any company,
institution, product, person, or incident through this instruction
manual, and no such inference should be made.
It is the responsibility of the user to comply with applicable
copyright laws.
©1999-2015 iriver Limited. All rights reserved.
The AK320 was designed and audio-tuned under the
advisement of MSD.
FCCID: PPM31
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Miscellaneous
52
User Guide
(b) For a Class B digital device or peripheral, the instructions furnished
the user shall include the following or similar statement, placed in a
prominent location in the text of the manual: NOTE: This equipment
has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help
Body-Worn operation
This device was tested for typical body-worn operations with the back
of the portable music player kept 5mm. from the body. To maintain
compliance requirements, use only belt-clips, holsters or similar
accessories that maintain a 1cm separation distance between the
user’s Body and the back of the Portable music player, including the
antenna. The use of belt-clips, holsters and similar accessories should
not contain metallic components in its assembly. The use of
accessories that do not satisfy these requirements may not comply
with CE RF exposure requirements, and should be avoided.
Body-worn accessory exposure conditions “Specific information must
be included in the operating manuals to enable users to select
body-worn accessories that meet the minimum test separation
distance requirements. Users must be fully informed of
the operating requirements and restrictions, to the extent that the
typical user can easily understand the information, to acquire the
required body-worn accessories to maintain compliance. Instructions
on how to place and orient a device in body-worn accessories, in
accordance with the test results, should also be included in the user
instructions. All supported bodyworn accessory operating
configurations must be clearly disclosed to users through
conspicuous instructions in the user guide and user manual to ensure
unsupported operations are avoided. All body-worn accessories
containing metallic components must be tested for compliance and
clearly identified in the operating manual. The instruction must inform
users to avoid using other body-worn accessories containing metallic
components to ensure RF exposure compliance.”
Miscellaneous
53
User Guide
Specifi-
cations
AK320
PPM31
Gun Metal
Aluminum
4-inch WVGA (480x800) Touch Screen
WAV, FLAC, WMA, MP3, OGG, APE (Normal, High, Fast),
AAC, ALAC, AIFF, DFF, DSF
PCM : 8kHz ~ 192kHz (8/16/24bits per Sample)
DSD : DSD64, Stereo/ DSD128, Stereo
Unbalanced 2.2 VRMS / Balanced 2.3 VRMS (Condition: No Load)
AKM AK4490 x 2 (Dual DAC)
Support up to 24bit / 192kHz Bit to Bit Decoding
Type-B micro-USB Input (Charging & data transfer (PC & Mac)) /
Connection Mode: MTP (Media Device)
Phones (3.5 mm) / Optical Out (3.5 mm) /
Balanced Out (2.5 mm, only 4-pole supported)
802.11 b/g/n (2.4 GHz)
v4.0 (A2DP, AVRCP), aptX
2.95”(75.15 mm)[W] x 4.42”(112.4 mm)[H] x 0.64”(16.45 mm)[D]
7.65 oz. (217g)
Firmware Upgrade Supported (OTA)
±0.053dB (Condition: 20 Hz – 20 kHz) Unbalanced /
±0.053 dB (Condition: 20 Hz – 20 kHz) Balanced
±0.56 dB (Condition: 10 Hz – 70 kHz) Unbalanced /
±0.55 dB (Condition: 10 Hz – 70 kHz) Balanced
116 dB @ 1 kHz, Unbalanced / 117 dB @ 1 kHz, Balanced
130 dB @ 1 kHz, Unbalanced / 135 dB @ 1 kHz, Balanced
0.0008% @ 1 kHz, Unbalanced / 0.0007% @ 1 kHz, Balanced
0.0007% 800 Hz 10 kHz (4:1) Unbalanced /
0.0006% 800 Hz 10 kHz (4:1) Balanced
Balanced Out 2.5 mm (1 ohm) / Phones 3.5 mm (2 ohm)
30 ps (Typ.) / Reference Clock Jitter (VCXO Clock) 0.2 ps (Typ.)
0.2ps (VCXO Clock)
128GB[NAND]
microSD (Max. 128 GB) x 1
3,400 mAh 3.7 V Li-Polymer Battery
Windows XP, Windows 7,8,10 (32bit/64bit)
MAC OS X 10.7. and up
General Specifications
Product Name
Model
Body Color
Body Material
Display
Supported Audio
Formats
Sampling Rate
Output Level
DAC
Decoding
Input
Outputs
Wi-Fi
Bluetooth
Dimensions
Weight
Feature Enhancements
Audio Specifications
Frequency Response
S/N
Crosstalk
THD+N
SMPTE IMD
Output Impedance
Clock Jitter
Reference Clock Jitter
Storage Capacity
Built-in Memory
External Memory
Battery
Capacity
Supported OS
Supported OS
Miscellaneous
54
User Guide
Disclaimers The manufacturer, importer, and distributor shall not be
liable for damages including accidental and personal injury
due to the improper use or operation of this product.
The information in this user manual was written based on
current product specifications. The manufacturer, iriver
Limited, is adding new complementary features and will
continue to apply new technologies in the future.
All specifications may be changed without prior notice.
There is no warranty against data loss due to the use of this
product.
Registered
Trademarks
Windows 2000, Windows XP, Windows 7, Windows 8,
Windows 10 and Windows Media Player are trademarks of
Microsoft Corp.
© 2012 CSR plc and its group companies. The aptX® mark
and the aptX logo are trade marks of CSR plc or one of its
group companies and may be registered in one or more
jurisdictions.

Navigation menu
