B5A-1995-00 b (K)© 2017 JVC KENWOOD Corporation
DNX994S
DNX874S
GPS NAVIGATION SYSTEM
INSTRUCTION MANUAL
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best performance from your new
GPS Navigation System.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space
provided below. Refer to the model and serial numbers whenever you call upon your KENWOOD dealer for information or
service on the product.
Model DNX994S/ DNX874S Serial number
US Residence Only
Register Online
Register your KENWOOD product at www.kenwoodusa.com
• Updated information (the latest Instruction Manual, system updates, new
functions, etc.) is available from
<http://www.kenwood.com/cs/ce/>.
• The Instruction manual is subject to change for modification of
specifications and so forth. Be sure to download the latest edition of the
Instruction manual for reference.
<http://manual.kenwood.com/edition/im392/>
2
Contents
Before Use 4
Precautions ................................................................... 4
Safety Precautions
and Important Information .................................... 5
How to read this manual ......................................... 6
Basic Operations 7
Functions of the Buttons on the Front Panel ... 7
Turning on the Unit ................................................... 8

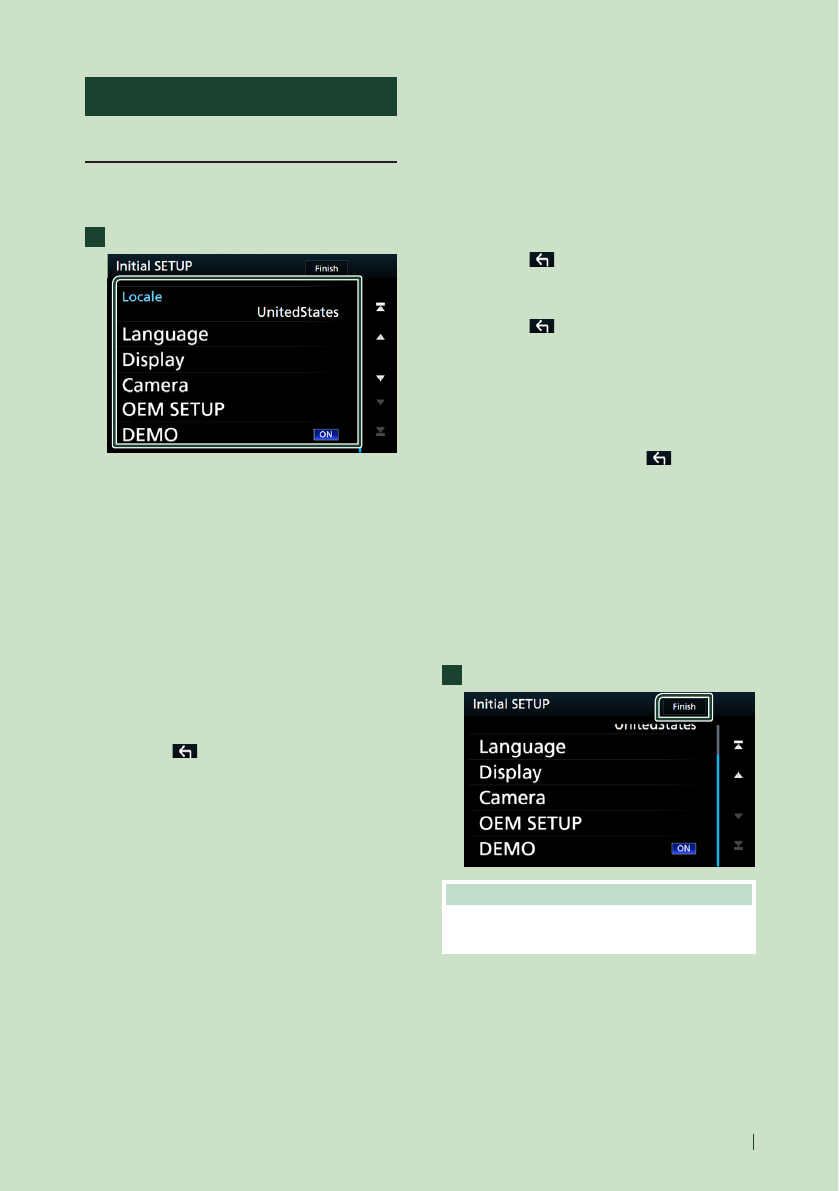

Initial Settings .............................................................. 9
Adjusting the volume .............................................10
Monitor Angle Control ...........................................10
Touch screen operations .......................................11
HOME screen descriptions ....................................11
Source selection screen descriptions ................12
Source control screen descriptions ...................14
Popup menu ..............................................................15
List screen ...................................................................15
Navigation Operation .............................................16
Disc 20
Playing a disc .............................................................20
DVD/ VCD Basic Operation ....................................20
Music CD/ Disc media Basic Operation ............22
Search Operation ......................................................23

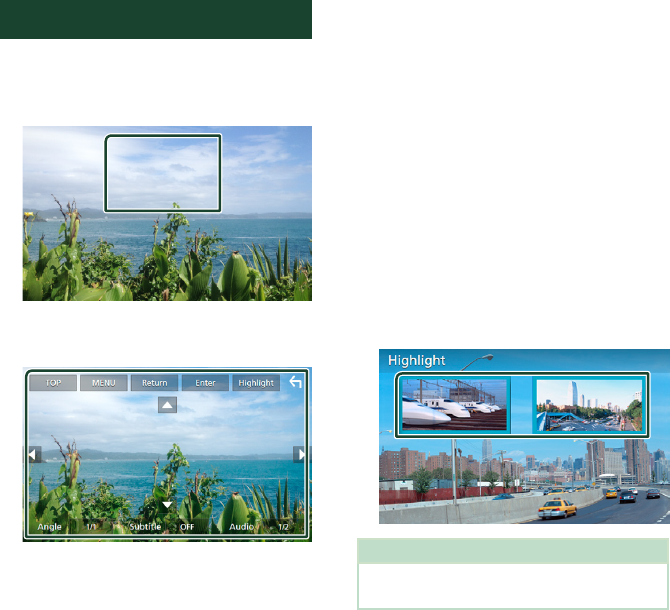

DVD Disc Menu Operation ....................................24
DVD Setup ...................................................................25
USB/SD card 26
Connecting a USB device ......................................26
Inserting the SD card ..............................................26
USB/SD card Basic Operation ...............................27
Search Operation ......................................................28
iPod/iPhone 29
Preparation .................................................................29
iPod/iPhone Basic Operation ...............................30
Search Operation ......................................................31
APPS—Android Auto™/
Apple CarPlay 32

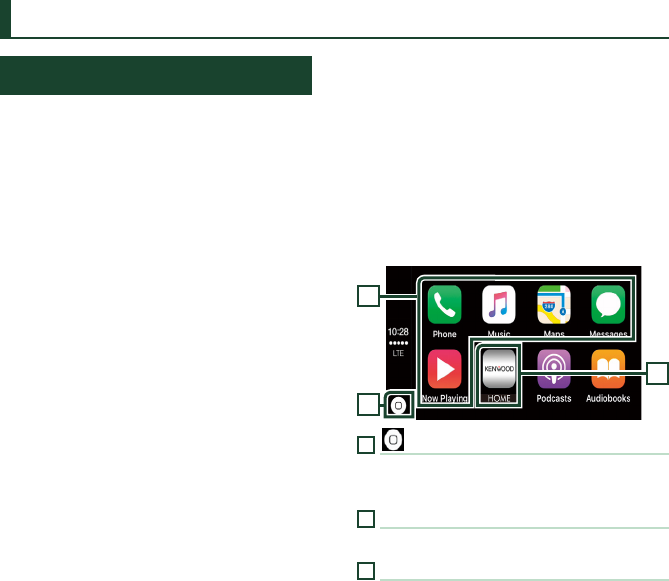

Apple CarPlay Operation .......................................32
Android Auto™ Operation .....................................33
Pandora® Operation ................................................35
Spotify Operation .....................................................37
HD Radio™ Tuner 39
HD Radio Tuner Basic Operation .........................39
Receive Mode ............................................................41
Memory Operation ..................................................41
Selecting Operation ................................................42
Bookmark ....................................................................43
Alert Message ............................................................45
SiriusXM® 46
SiriusXM® Basic Operation ....................................46
Storing Channels in Preset Memory ..................48
Preset select ...............................................................48
Direct search ..............................................................49
Category/Channel search ......................................49
Replay ...........................................................................50
TuneMix™ ....................................................................50
SmartFavorites, TuneStart™ ..................................50
TuneScan™ ..................................................................51
Traffic & Weather Now™ .........................................51
Content Alerts............................................................52
SportsFlash™ ..............................................................52
SiriusXM Setup ..........................................................53
3English
Bluetooth Control 58
Information for using Bluetooth® devices .......58
Register from the Bluetooth unit ........................59
Bluetooth Setup ........................................................60
Playing Bluetooth Audio Device .........................62
Using Hands-Free Unit ............................................64

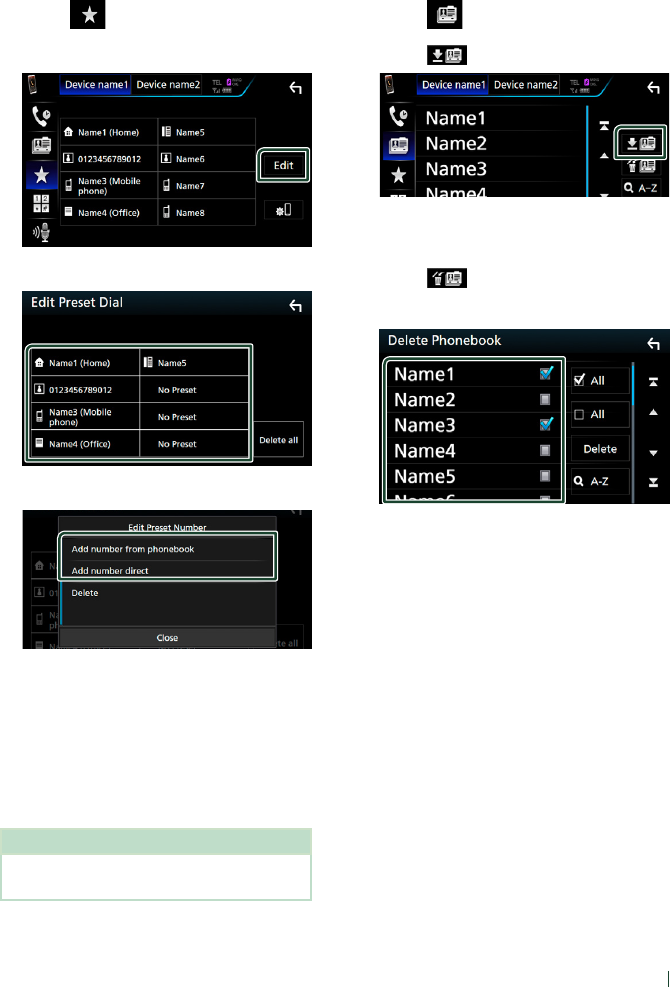

Hands-Free Setup .....................................................68
Other External Components 69
View Camera ..............................................................69

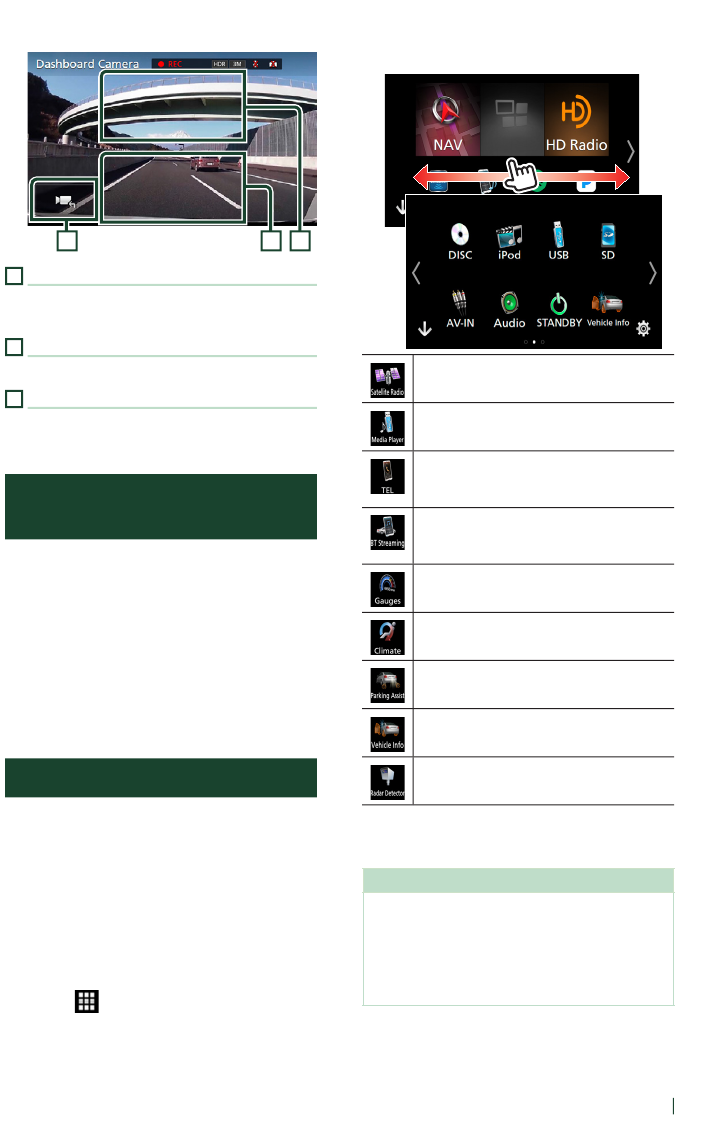

Use Dashboard Camera..........................................70
External audio/video players—AV-IN ...............71
OEM Features Operation .......................................71
Setting Up 72
Monitor Screen Setup .............................................72
System Setup .............................................................72
User Interface Setup ................................................73
Special Setup .............................................................74
Display Setup .............................................................74
AV Setup ......................................................................76
Controlling Audio 77
Speaker/ X’over setup .............................................77
Controlling General Audio ....................................78
Equalizer Control ......................................................79
Volume Offset ............................................................80
Zone Control ..............................................................80
Sound Effect ...............................................................81
Listening Position/ DTA ..........................................82
Remote control 84
Battery Installation ...................................................84
Functions of the Remote control Buttons .......85
Connection/Installation 88
Before Installation ....................................................88
Installing the unit .....................................................90
Troubleshooting 96
Problems and Solutions .........................................96
Error Messages ..........................................................96
Appendix 98
Playable Media and Files........................................98
Region Codes in the World ................................ 100
DVD Language Codes .......................................... 101
Specifications .......................................................... 102
About this Unit ....................................................... 105
Before Use
4
Before Use
Precautions
# WARNINGS
Ñ To prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metal
tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any extended
period.
• If you experience problems during installation,
consult your KENWOOD dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories,
check with your KENWOOD dealer to make
sure that they work with your model and in
your area.
• You can select language to display menus,
audio file tags, etc. See User Interface Setup
(P.73).
• The Radio Data System or Radio Broadcast
Data System feature won’t work where the
service is not supported by any broadcasting
station.
• The unit may not function properly if the
connectors between the unit and front panel
are dirty. Detach the front panel and clean the
connector with a cotton swab gently, being
careful not to damage the connector.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with the sharp tip.
Ñ Cleaning the unit
• If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth. If
the faceplate is stained badly, wipe the stain
off with a cloth moistened with neutral cleaner,
then wipe it again with a clean soft dry cloth.
NOTE
• Applying spray cleaner directly to the unit may
affect its mechanical parts. Wiping the faceplate
with a hard cloth or using a volatile liquid such
as thinner or alcohol may scratch the surface or
erase screened print.
Ñ Lens fogging
When you turn on the car heater in cold
weather, dew or condensation may form on
the lens in the disc player of the unit. Called
lens fogging, this condensation on the lens
may not allow discs to play. In such a situation,
remove the disc and wait for the condensation
to evaporate. If the unit still does not operate
normally after a while, consult your KENWOOD
dealer.
Ñ Precautions on handling discs
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc
with tape stuck on it.
• Do not use disc type accessories.
• Clean from the center of the disc and move
outward.
• When removing discs from this unit, pull them
out horizontally.
• If the disc center hole or outside rim has burrs,
use the disc only after removing the burrs with
a ballpoint pen etc.
• Discs that are not round cannot be used.
• 8-cm (3 inch) discs cannot be used.
• Discs with coloring on the recording surface or
discs that are dirty cannot be used.
• This unit can only play the CDs with
.
• This unit may not correctly play discs which do
not have the mark.
• You cannot play a disc that has not been
finalized. (For the finalization process see your
Before Use
5English
writing software, and your recorder instruction
manual.)
Ñ Acquiring GPS signal
The first time you turn on this unit, you must
wait while the system acquires satellite signals
for the first time. This process could take up
to several minutes. Make sure your vehicle
is outdoors in an open area away from tall
buildings and trees for fastest acquisition.
After the system acquires satellites for the first
time, it will acquire satellites quickly each time
thereafter.
Ñ About the front panel
When removing the product from the box or
installing it, the front panel may be positioned
at the angle shown in (Fig. 1). This is due to the
characteristics of mechanism the product is
equipped with.
When the product is first powered on works
properly, the front panel will automatically move
into the position (initial setting angle) shown in
(Fig. 2).
(Fig. 1) (Fig. 2)
Ñ Caution for Smartphone Users
Simultaneously running multiple applications
on your smartphone while screen sharing places
heavy demand on the microprocessor of the
phone, potentially affecting communication and
performance.
For best results while pairing with your Kenwood
receiver, please be sure to close any unused
applications by performing the following steps:
Android operating system example:
• Turn off WiFi in phone settings menu.
• Close all open applications before connecting
for in-car use. Hold the <Home> key and select
<Close all> to close all open applications.
• Clear RAM Memory of the Android phone
before connecting for in-car use. Hold the
<Home> key and select <Task Manager> then
select <RAM> then select <Clear memory> to
clear current memory processes.
<Home> Key
Safety Precautions and
Important Information
Read this information carefully before starting to
operate the KENWOOD Car Navigation System
and follow the instructions in this manual.
Neither KENWOOD nor Garmin shall be liable for
problems or accidents resulting from failure to
observe the instructions in this manual.
# WARNING
Failure to avoid the following potentially
hazardous situations could result in an
accident or collision resulting in death or
serious injury.
When navigating, carefully compare information
displayed on the navigation system to all
available navigation sources, including
information from street signs, visual sightings,
and maps. For safety, always resolve any
discrepancies or questions before continuing
navigation.
Always operate the vehicle in a safe manner.
Do not become distracted by the navigation
system while driving, and always be fully aware
of all driving conditions. Minimize the amount of
time spent viewing the screen of the navigation
system while driving, and use voice prompts
when possible.
Do not enter destinations, change settings, or
access any functions requiring prolonged use
of the navigation system controls while driving.
Stop your vehicle in a safe and legal manner
before attempting such operations.
Keep the system volume at a low enough level
to be able to hear outside noises while driving.
If you can no longer hear outside noises, you
may be unable to react adequately to the traffic
situation. This may cause accidents.
The navigation system will not display the
correct current position of the vehicle the first
time it is used after purchase, or if the vehicle
battery is disconnected. GPS satellite signals
will soon be received, however, and the correct
Before Use
6
position will be displayed.
Be careful of the ambient temperature. Using the
navigation system at extreme temperatures can
lead to malfunction or damage. Also note that
the unit can be damaged by strong vibration,
by metal objects, or by water getting inside the
unit.
# CAUTION
Failure to avoid the following potentially
hazardous situations may result in injury or
property damage.
The navigation system is designed to provide
you with route suggestions. It does not reflect
road closures or road conditions, weather
conditions, or other factors that may affect safety
or timing while driving.
Use the navigation system only as a navigational
aid. Do not attempt to use the navigation system
for any purpose requiring precise measurement
of direction, distance, location, or topography.
The Global Positioning System (GPS) is operated
by the United States government, which is solely
responsible for its accuracy and maintenance.
The government system is subject to changes
that could affect the accuracy and performance
of all GPS equipment, including the navigation
system. Although the navigation system is a
precision navigation device, any navigation
device can be misused or misinterpreted and,
therefore, become unsafe.
Ñ IMPORTANT INFORMATION
Vehicle Battery Preservation
This navigation system can be used when the
ignition key is turned to ON or ACC. To preserve
the battery, however, it should be used with
the engine running whenever possible. Using
the navigation system for a long time with the
engine switched off can cause the battery to run
down.
Map Data Information
One of the goals of Garmin is to provide
customers with the most complete and
accurate cartography that is available to us at
a reasonable cost. We use a combination of
governmental and private data sources, which
we identify in product literature and copyright
messages displayed to the consumer. Virtually
all data sources contain some inaccurate or
incomplete data. In some countries, complete
and accurate map information is either not
available or is prohibitively expensive.
How to read this manual
• The screens and panels shown in this manual are
examples used to provide clear explanations of the
operations.
For this reason, they may be different from the actual
screens or panels used, or some display patterns may
be different.
• In this manual, each model name is
abbreviated as follows.
– DNX994S:
– DNX874S:
If above icons are showed, read the article
applicable to the unit you use.
• Indication language: English indications are used
for the purpose of explanation. You can select the
indication language from the [SETUP] menu. See
User Interface Setup (P.73).
Basic Operations
7English
Basic Operations
Functions of the Buttons on the Front Panel
9
8
1 2 3 4 5 6 7
NOTE
• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason,
they may be different from the actual panels.
• In this manual, each model name is abbreviated as follows.
– DNX994S:
– DNX874S:
If above icon is showed, read the article applicable to the unit you use.
Number Name Motion
1
Remote
Sensor
• Receives the remote control signal.
2
S, R
(Volume)
• Adjusts volume.
The volume will go up until 15 when you keep pressing R.
3
NAV • Displays the navigation screen.
4
HOME • Displays the HOME screen (P.11).
• Pressing for 1 second turns the power off. *
• When the power off, turns the power on.
* The function of the button when held varies depending on the "Manual Power OFF"
setting. (P.74)
5
MENU • Displays the popup menu screen.
• Pressing for 1 second switches view camera display on/off. (P.69)
– The camera whose view is displayed first changes according to the "Camera
Setup" setting and the shift lever position in the shift gate.
6
• Displays the APP (CarPlay/ Android Auto) screen.
• Pressing for 1 second displays the Voice Recognition screen (P.65).
7
G• Displays the Angle Adjust screen.
– DISC EJECT: Ejects the disc.
– OPEN: Fully opens the panel to the location of the SD card slot.
• When the panel is opened, pressing closes the panel.
• To forcibly eject the disc, press it for 2 seconds and touch [DISC EJECT] after the
message is displayed.
Basic Operations
8
Number Name Motion
8
Disc insert
slot
• A slot to insert a disc media.
9
SD card slot • A slot to insert an SD card.
• You can play audio/visual file in the card. *
• An SD card slot for upgrading the map. For how to upgrade the map, refer to the
instruction manual of the navigation system.
* If the map update file remains in the SD card, you cannot play audio/visual file.
Turning on the Unit
The method of turning on is different depending on the model.
1
Press the [HOME] button.
h The unit is turned on.
●To turn off the unit:
1
Press the [HOME] button for 1 second.
NOTE
• If it is your first time turning the unit on after installation, it will be necessary to perform Initial setup (P.9).
• The function of the button when held varies depending on the "Manual Power OFF" setting. (P.74)
Basic Operations
9English
Initial Settings
Initial setup
Perform this setup when you use this unit first
time.
1
Set each item as follows.
■Locale
Select the country for the navigation system.
The language, the distance unit, and the
gasoline unit are set.
1Touch [Locale].
2Select the desired country.
■Language
Select the language used for the control
screen and setting items. Default is “American
English (en)”.
1Touch [Language].
2Touch [Language Select].
3Select the desired language.
4Touch [
].
For detailed operation, see User Interface
Setup (P.73).
■Display
Set the button illumination color.
If it is hard to see the image on the screen
even after adjusting the front panel angle,
adjust the viewing angle.
1Touch [Display].
2Touch [Key Color].
3Select the desired color.
4Touch [
].
5Touch [Viewing Angle].
6Select an angle
7Touch [
].
For detailed operation, see Display Setup
(P.74).
■Camera
Set the parameters for the camera.
1Touch [Camera].
2Set each item and touch [
].
For detailed operation, see Camera Setup
(P.69).
■OEM SETUP
This function requires a commercial adaptor.
Consult your KENWOOD dealer for details.
■DEMO
Set the demonstration mode. Default is “ON”.
1Touch [DEMO] and set ON or OFF.
2
Touch [Finish].
NOTE
• These settings can be set from the SETUP menu.
See Setting Up (P.72).
Basic Operations
10
Calendar/clock settings
1
Press the [MENU] button.
h Popup menu appears.
2
Touch [SETUP].
h SETUP Menu screen appears.
3
Touch [User Interface].
h User Interface screen appears.
4
Set each item as follows.
Scroll the page to show the item.
■Clock
NAV-SYNC (Default): Synchronizes the clock
time with navigation.
Manual: Sets the clock manually.
■Time Zone
If you have selected [Manual] for Clock,
select the time zone.
■Clock Adjust
If you select [Manual] for Clock, adjust the
date and time manually. (P.73)
Adjusting the volume
To adjust the volume (0 to 40),
Press [R] to increase, and press [S] to decrease.
Holding [R] increases the volume continuously
to level 15.
Monitor Angle Control
You can adjust the position of the monitor.
1
Press the [G] button.
h Angle Adjust screen appears.
2
Select a below number that represents
your desired angle setting.
Default is “0”.
■Off Position
You can store the current monitor angle as
the angle during power off. Touch [Memory]
when the desired angle is selected.
Basic Operations
11English
Touch screen operations
To perform operations on the screen, you need
to touch, touch and hold, flick or swipe to
select an item, display setting menu screen or
to change the page, etc.
●Touch
Touch the screen gently to
select an item on the screen.
●Touch and hold
Touch the screen and keep
your finger in place until
the display changes or a
message is displayed.
●Flick
Slide your finger quickly
to the left or right on the
screen to change the page.
You can scroll the list screen
by flicking the screen up/
down.
●Swipe
Slide your finger up or down
on the screen to scroll the
screen.
HOME screen descriptions
Most functions can be performed from the
HOME screen.
5
4
6 7
1 2 3
1
• Displays the control screen of current source.
2
• Widget
– You can change the widget by touching
[
]/[ ] or flicking left or right on the
widget area.
– Touch the widget to display the detailed
screen.
3
• Page indication for widgets
4
• Current source information
5
• Displays the source selection screen. (P.12)
6
• Short-cut playback source icons (P.13)
7
• Displays the Hands Free screen. (P.64)
• When connecting as Apple CarPlay or
Android Auto, it works as a phone provided
in Apple CarPlay or Android Auto.
Display the HOME
1
Press the [HOME] button.
h HOME screen appears.
Basic Operations
12
Source selection screen
descriptions
You can display all playback sources and
options on the source selection screen.
3 5
2
4
1
1
• Changes the playback source.
For playback sources, see P.12.
2
• Changes the page. (Touch []/[ ].)
You can also change the page by flicking left
or right on the screen.
3
• Returns to previous screen.
4
• Page indication
5
• Displays the SETUP Menu screen. (P.72)
Select the playback source
1
Touch [ ] on the HOME screen.
From the screen, you can select the
following sources and functions.
• Displays the navigation screen. (P.16)
• Switches to the Android Auto/ Apple
Car Play screen from the connected iPod
touch/iPhone/Android device.*1 (P.32)
• Switches to the HD Radio broadcast.
(P.39)
• Switches to the SiriusXM® satellite radio
broadcast. (P.46)
• Plays a Bluetooth audio player. (P.58)
• Plays a disc. (P.20)
• Plays an iPod/iPhone. (P.29)
• Plays files on a USB device. (P.26)
• Plays files on an SD card. (P.26)
• Switches to the Pandora. (P.35)
• Switches to the Spotify. (P.37)
• Switches to an external component
connected to the AV-IN input terminal.
(P.71)
• Displays the Audio screen. (P.77)
• Puts the unit in standby. (P.13)
*1 When iPhone compatible with CarPlay is
connected, [Apple CarPlay] is displayed.
When an Android device compatible with
Android Auto is connected, [Android Auto] is
displayed.
• For sources and information displayed when
an ADS adapter is connected, see OEM
Features Operation (P.71).
Basic Operations
13English
To select the playback source on the
HOME screen
The 3 items displayed on the source selection
screen as the large icons are shown on the
HOME screen.
You can change items displayed on this area
by customizing the source selection screen.
(P.13)
To select the playback source on the
source control screen
Display source selection buttons by touching
[ ]/[ ] or flicking left or right on the source
control screen, then select a playback source.
Put the unit in standby
1
Touch [ ] on the HOME screen.
2
Touch [STANDBY].
Customize Short-cut buttons on
HOME screen
You can arrange the position of the source
icons as you like.
1
Touch [ ] on the HOME screen.
2
Touch and hold the icon which you want
to move to go into the customizing
mode.
3
Drag it where you want to move.
Basic Operations
14
Source control screen
descriptions
There are some functions which can be
operated from most screens.
Indicators
1
2 3 4
Navigation information
Short-cut buttons
1
Connected Bluetooth device information.
• : Lights up when quick charging battery
of the connected iPod/ iPhone/ Smartphone.
2
All sources icon
Displays all sources.
3
Secondary screen
• [
]/[ ] : The Secondary screen changes every
time you touch it. You can also change the
Secondary screen by flicking left or right on
the screen.
• Indicators: Displays the current source
condition and so on.
– ATT: The attenuator is active.
– DUAL: The dual zone function is on.
– MUTE: The mute function is active.
– LOUD: The loudness control function is on.
• Navigation information: Displays the current
location and the direction. The screen changes
to the navigation screen when you touch here.
• Short-cut buttons: The source changes to the
one you have set as a short-cut. For the short-
cut setting, refer to Customize Short-cut
buttons on HOME screen (P.13).
4
[Û]
Touch to display the Hands Free screen. (P.64)
When connecting as Apple CarPlay or Android
Auto, it works as a phone provided in Apple
CarPlay or Android Auto.
Basic Operations
15English
Popup menu
1
Press the [MENU] button.
h Popup menu appears.
2
Touch to display the popup menu.
567
The contents of the menu are as follows.
• Displays the Screen Adjustment screen.
(P.72)
• Turns the display off. (P.15)
• Displays the view camera. (P.69)
• Displays the SETUP Menu screen.
(P.72)
• Displays the Audio Control Menu screen.
(P.77)
• Displays the control screen of current
source. Icon feature differs depending on
the source.
5
• Close the popup menu.
6
7
• See HOME screen descriptions
(P.11).
Turn off the screen
1
Select [Display OFF] on the pop-up
menu.
List screen
There are some common function keys in the
list screens of most sources.
61 2
3 4 5
1
Displays list type selection window.
2
Displays music/movie file list.
3
Text scroll
Scrolls the displayed text.
4
etc.
Keys with various functions are displayed here.
• : Plays all tracks in the folder containing
the current track.
• : Jump to the letter you entered
(alphabet search).
• : Moves to the upper hierarchy.
5
[ ] / [ ] / [ ] / [ ] Page scroll
You can change the page to display more items
by pressing [
]/[ ].
• [
]/[ ] : Displays the top or bottom page.
6
Return
Returns to previous screen.
NOTE
• Buttons which cannot be activated from the list
screen are not displayed.
Basic Operations
16
Navigation Operation
For details on the navigation function, please
refer to the Navigation Instruction Manual.
Display the navigation screen
1
Press the [NAV] button.
h The navigation screen appears.
How to Use the Navigation System
1
Operate the desired function from the
Main Menu screen.
5
123
4
1
GPS satellite strength.
2
Finds a destination.
3
Views the map.
4
Uses the Apps such as ecoRoute and Help.
5
Adjusts the settings.
NOTE
• You can get additional information about
using the navigation system from Help. To
display Help, touch [Apps] and then touch
[Help].
NOTE
• For more information about your navigation
system, download the latest version of
the Owner’s Manual from http://manual.
kenwood.com/edition/im392/
2
Enter your destination and start the
guidance.
Finding points of interest
1Touch [Where To?].
2Select a category and a subcategory.
3Select a destination.
4Touch [Go!].
NOTE
• To enter letters contained in the name, touch
the Search bar and enter the letters.
3
Follow your route to the destination.
NOTE
• The speed limit icon feature is for information
only and does not replace the driver’s
responsibility to abide by all posted speed
limit signs and to use safe driving judgment
at all times. Garmin and JVC KENWOOD will
not be responsible for any traffic fines or
citations that you may receive for failing to
follow all applicable traffic laws and signs.
Your route is marked with a magenta
line. As you travel, your navigation
system guides you to your destination
with voice prompts, arrows on the map,
and directions at the top of the map. If
you depart from the original route, your
navigation system recalculates the route.
Basic Operations
17English
5
6 7 8 9
1
2
3
4
1
Views the Next Turn page or the junction
view page, when available.
2
Views the Turn List page.
3
Views the Where Am I? page.
4
Stops the currents route.
5
Displays traffic information on the route.
6
Returns to the Main menu.
7
Displays a different data field.
8
Views the Trip Computer.
9
Displays more options.
NOTE
• Touch and drag the map to view a different
area of the map.
• A speed limit icon could appear as you travel
on major roadways.
●Adding a stop
1While navigating a route, touch [ ] and
then touch [Where To?].
2Search for the extra stop.
3Touch [Go!].
4Touch [Add to Active Route] to add this
stop before your final destination.
●Taking a detour
1While navigating a route, touch [ ].
2Touch [ ].
■Manually avoiding traffic on your route
1From the map, touch [ ].
2Touch [Traffic On Route].
3If necessary, touch the arrows to view
other traffic delays on your route.
4Touch [ ] > [Avoid].
■Viewing the traffic map
1The traffic map shows color-coded traffic
flow and delays on nearby.
■About traffic
• Traffic service is not available in some areas or
countries.
• Garmin and JVC KENWOOD are not
responsible for the accuracy or timeliness of
the traffic information.
• You can receive INRIX traffic information and
weather forecast by connecting your iPhone or
Android smartphone in which the “KENWOOD
Traffic Powered By INRIX” application is
installed.
For details, see “KENWOOD Traffic Powered By
INRIX” application.
■Updating maps
You can purchase updated map data from
Garmin.
1Go to www.garmin.com/kenwood.
2Select Update.
3Follow the on-screen instructions.
Basic Operations
18
Control audio from the navigation
screen
You can control audio sources while the
navigation screen is displayed.
Also, you can view the navigation information
while the source control screen is displayed.
(P.14)
1
While playing the audio, touch [ ]/ [
]/ [ ] in the navigation screen.
Each time you touch the icon, the screen
switches as follows.
Displays the navigation and control keys of
the current source.
Displays the navigation and current video
playback display.
NOTE
• The screen switches between playback screen
and view camera each time the viewing area
is touched.
Returns to the full navigation screen.
NOTE
• For details on control keys, refer to the
instructions in each section.
• [
] : It does not appear if the control keys like
AV-IN, etc. are not exist.
• Touching the source icon in the bottom of the
screen displays the full audio screen.
Basic Operations
19English
Navigation Setup
1
Press the [MENU] button.
h Popup menu appears.
2
Touch [SETUP].
h SETUP Menu screen appears.
3
Touch [Navigation].
h Navigation SETUP screen appears.
4
Set each item as follows.
■NAV Mute
Mutes the volume of rear speakers during
voice guidance of the navigation system.
Default is “ON”.
■NAV Interrupt Speaker
Selects speakers used for voice guidance of
the navigation system.
• Front L: Uses the front left side speaker for
voice guidance.
• Front R: Uses the front right side speaker
for voice guidance.
• Front All (Default): Uses both front
speakers for voice guidance.
■NAV Voice Volume
Adjusts the volume for voice guidance of the
navigation system. Default is “24”.
KENWOOD Traffic Powered By
INRIX
You can receive INRIX traffic information and
weather forecast by connecting your iPhone or
Android smartphone in which the “KENWOOD
Traffic Powered By INRIX” application is
installed to this unit.
Preparation
• Install the latest version of the KENWOOD Traffic
Powered By INRIX application on your iPhone or
Android.
– iPhone: Search for "KENWOOD Traffic Powered
By INRIX" in the Apple App Store to find and
install the most current version.
– Android: Search for "KENWOOD Traffic Powered
By INRIX" in Google play to find and install the
most current version.
• For details, see “KENWOOD Traffic Powered By
INRIX” application.
1
Register the Smartphone.
To connect a smartphone via Bluetooth,
register it as the Bluetooth device and
do the App (SPP) profile setting of the
connection beforehand. See Register from
the Bluetooth unit (P.59) and Connect
the Bluetooth unit (P.61).
2
Press the [NAV] button.
h Navigation screen appears.
Touch [Apps] on the Main Menu screen
and then an icon of your desired content
For details, see Navigation system
manual.
Disc
20
Disc
Playing a disc
Ñ Insert a disc
1 Press the [G] button.
2 Touch [DISC EJECT].
h The panel opens.
3 Insert the disc into the slot.
h The panel closes automatically.
The unit loads the disc and playback
starts.
Ñ Eject a disc
1 Press the [G] button.
2 Touch [DISC EJECT].
When removing a disc, pull it horizontally.
3 Press the [G] button.
DVD/ VCD Basic Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• Set the remote control mode switch to DVD
mode before starting operation for DVD and VCD,
see Switch the operation mode (P.85).
• The screen shot below is for DVD. It may be
different from the one for VCD.
1 When the operation buttons are not
displayed on the screen, touch the
7
area.
Control screen
1
2
3
4
5
Video screen
7
6
8
6
1
Information display
Displays the following information.
• Title #, Chapter #: DVD title and chapter
number display
• Track #/Scene #: VCD track or scene number
display. Scene # is displayed only when
Playback control (PBC) is on.
• Linear PCM, etc.: Audio format
• [Hide]: Hides the control screen.
Disc
22
[PBC] (VCD only)
Turn Playback control (PBC) on or off.
Audio] (VCD only)
Change the audio output channel.
Music CD/ Disc media Basic
Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• Set the remote controller mode switch to AUD
mode before starting operation for Music CD
and audio files, see Switch the operation mode
(P.85).
• In this manual, “Music CD” will be referred to as
the general CDs which include music tracks in.
“Disc media” will be referred to as CD/DVD disc
which includes audio or video files.
• The screen shot below is for disc media. It may be
different from the one for CD.
Control screen
4
3
5
2
6
1
7
Content list panel
8
4
1
[ ] / [ ]
• [
] : Repeats the current track/folder. Each
time you touch the key, repeat mode switches
in the following sequence;
Track/ File repeat ( ), Folder repeat ( )
(Disc media only), Repeat all ( )
• [
] : Randomly plays all tracks in current
folder/disc. Each time you touch the key,
random mode switches in the following
sequence;
Track random ( ) (Music CD only), Folder
random ( ) (Disc media only), Random off
( )
2
Track information
Displays the information of the current track/ file.
Only a file name and a folder name are displayed
if there is no tag information. (Disc media only)
3
Function bar
• [1] (Disc media only) : Searches file. For details
on search operation, see File search (P.23).
• [E] [F] : Searches the previous/next
content.
Touch and hold to fast forward or fast
backward. (It will be cancelled automatically
after about 50 seconds.)
• [DH] : Plays or pauses.
• [
] : Displays the Graphic Equalizer screen.
(P.79)
4
Function panel (Disc media only)
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel.
• [
] [ ] : Searches previous/next folder.
5
Content list
Touch on the right side of the screen to display
the Content list. Touch again to close the list.
6
Indicator Items
• IN: A disc is inserted.
White: A Disc is inside the unit.
Orange: Error at the disc player
• VIDEO: Identifies the video file.
• MUSIC: Identifies the music file.
7
Artwork (Disc media only)
/Play mode indicator/ Playing time
The jacket of the currently playing file is
displayed.
D, B, etc.: Current play mode indicator
• The meanings of each icon are as follows; D
(play), B (fast forward), A (fast backward),
H (pause).
8
Content list panel
Displays the playing list. When you touch a track/
file name on the list, playback will start.
Disc
23English
Video screen
10
99
9
Searching file area (Video file only)
Touch to search the next/previous file.
10
Key display area (Video file only)
Touch to display the control screen.
Search Operation (Disc media
only)
You can search music or video files by the
following operations.
NOTE
• If you use a remote control, you can jump directly
to the desired track with entering the track
number. For details, see Direct search mode
(P.85).
Ñ File search
You can search a file according to hierarchy.
1 Touch [1].
h Folder List screen appears.
2 Touch the desired folder.
h When you touch a folder its contents are
displayed.
3 Touch desired item from the content list.
h Playback starts.
NOTE
• For operations in the list screen, see List screen
(P.15).
Disc
24
DVD Disc Menu Operation
You can set up some items in the DVD-VIDEO
disc menu.
1 Touch illustrated area during playback.
h Menu Control screen appears.
2 Perform desired operation as follows.
■Displays the top menu
Touch [TOP].*
■Displays the menu
Touch [MENU].*
■Displays the previous menu
Touch [Return].*
■Enters selected item
Touch [Enter].
■Enables direct operation
Touch [Highlight] to enter the highlight
control mode (P.24).
■Moves the cursor
Touch [R], [S], [C], [D].
■Switches the subtitle language
Touch [Subtitle]. Each time you touch this
key, language is switched.
■Switches the audio language
Touch [Audio]. Each time you touch this key,
language is switched.
■Switches the picture angle
Touch [Angle]. Each time you touch this key,
picture angle is switched.
* These keys may not function depending on
the disc.
Ñ Highlight control
Highlight control lets you control the DVD
menu by touching the menu key directly on
the screen.
1 Touch [Highlight] in the Menu Control
screen.
2 Touch desired item on the screen.
NOTE
• The highlight control is cleared automatically if
you do not operate for a constant time.
USB/SD card
26
USB/SD card
Connecting a USB device
1 Connect the USB device with the USB
cable. (P.94)
2 Press the [HOME] button.
3 Touch .
4 Touch [USB]. (P.12)
Ñ Disconnect the USB device
1 Press the [HOME] button.
2 Touch a source other than [USB].
3 Detach the USB device.
Ñ Usable USB device
You can use a mass-storage-class USB device on
this unit.
The word “USB device” appearing in this manual
indicates a flash memory device.
●About file system
The file system should be the one of the
following.
• FAT16 • FAT32 • exFAT• NTFS
NOTE
• Install the USB device in the place where it will
not affect safe driving.
• You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups of the audio files used with this
unit. The files can be erased depending on the
operating conditions of the USB device.
We shall have no compensation for any damage
arising from any erased data.
Inserting the SD card
1 Press the [G] button.
2 Touch [OPEN] to the panel fully opens.
3 Insert the SD card into the slot until it
clicks.
4 Press the [G] button.
5 Press the [HOME] button.
6 Touch .
7 Touch [SD]. (P.12)
Ñ Remove the SD card
1 Press the [G] button.
2 Touch [OPEN] to the panel fully opens.
3 Push the SD card until it clicks and then
remove your finger from the card. The
card pops up so that you can pull it out
with your fingers.
4 Press the [G] button.
Ñ Usable SD card.
The unit is capable of playback of SD/SDHC/
SDXC memory cards complying with the SD,
SDHC or SDXC standard. A special adapter is
required to use a miniSD card, miniSDHC card,
microSD card, microSDHC, or microSDXC card.
The MultiMedia Card (MMC) cannot be used.
USB/SD card
27English
USB/SD card Basic Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• Set the remote controller mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.85).
Control screen
4
3
5
2
6
1
7
Content list panel
8
4
1
[ ] / [ ]
• [
] : Repeats the current track/folder. Each
time you touch the key, repeat mode switches
in the following sequence;
File repeat ( ), Folder repeat ( ), Repeat
all ( )
• [
] : Randomly plays all tracks in current
folder. Each time you touch the key, random
mode switches in the following sequence;
File random ( ), Random off ( )
• When a high-resolution source is played, its
format information is displayed.
2
Track information
Displays the information of the current file.
Only a file name and a folder name are displayed
if there is no tag information.
3
[Function bar
• 1] : Searches track/file. For details on search
operation, see Search Operation (P.28).
• E] [F] : Searches the previous/next track/
file.
Touch and hold to fast forward or fast
backward. (It will be cancelled automatically
after about 50 seconds.)
• [DH] : Plays or pauses.
• [
] : Displays the Graphic Equalizer screen.
(P.79)
4
Function panel
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel.
• [
] [ ] : Searches previous/next folder.
• [USB DEVICE CHANGE]
Switches to another USB device when two USB
devices are connected.
5
Content list
Touch on the right side of the screen to display
the Content list. Touch again to close the list.
6
Indicator Items
• VIDEO: Identifies the video file.
• MUSIC: Identifies the music file.
7
Artwork/ Play mode indicator/ Playing
time
The jacket of the currently playing file is
displayed.
• D, B, etc.: Current play mode indicator
The meanings of each icon are as follows;
D (play), B (fast forward), A (fast
backward), H (pause).
8
Content list panel
Displays the playing list. When you touch a track/
file name on the list, playback will start.
Video screen
10
99
9
Searching file area (Video file only)
Touch to search the next/previous file.
10
Key display area (Video file only)
Touch to display the control screen.
USB/SD card
28
Search Operation
You can search music or video files by the
following operations.
1 Touch [1].
2 Touch [S].
3 Select the list type.
NOTE
• For operations in the list screen, see List screen
(P.15).
Ñ Category search
You can search a file by selecting category.
1 Touch [Category List].
2 Select whether you search by audio files
or video files .
3 Touch the desired category.
h The list corresponding to your selection
appears.
4 Touch to select desired item in the list.
Repeat this step until you find the desired
file.
Ñ Link search
You can search a file of same artist/album/
genre as the current track.
1 Touch [Link Search].
2 Touch the desired tag type. You can select
from artist, album and genre.
h The list corresponding to your selection
appears.
3 Touch desired item from the content list.
Ñ Folder search
You can search a file according to hierarchy.
1 Touch [Folder List].
2 Touch the desired folder.
When you touch a folder its contents are
displayed.
3 Touch to select desired item in the list.
Repeat this step until you find the desired
file.
iPod/iPhone
29English
iPod/iPhone
Preparation
Ñ Connectable iPod/iPhone
The following models can be connected to
this unit.
Made for
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPod touch (6th generation)
• iPod touch (5th generation)
NOTE
• Latest compatible list of iPod/iPhone. For details,
see www.kenwood.com/cs/ce/ipod/.
• By connecting your iPod/iPhone to this unit with
an optional accessory iPod connection cable
KCA-iP103, you can supply power to your iPod/
iPhone as well as charge it while playing music.
However, the power of this unit must be on.
• If you start playback after connecting the iPod,
the music that has been played by the iPod is
played first.
Ñ Connect iPod/iPhone
Wired connection
Preparation
• Connect an iPod/iPhone with the KCA-iP103
(optional accessory) while CarPlay is not
connected.
• With a CarPlay-capable iPhone, turn off CarPlay
by operating the iPhone at functional setup
before connecting iPhone. For details of the
setup method, contact the manufacturer of the
terminal.
• Plug the iPod/iPhone into the gray USB terminal
with the KCA-iP103 (optional accessory).
• Only one iPod/iPhone can be connected.
1 Connect the iPod/iPhone using KCA-
iP103. (P.95)
2 Press the [HOME] button.
3 Touch [ ].
4 Touch [iPod]. (P.12)
●To disconnect the iPod/iPhone connected
with the cable:
1 Detach the iPod/iPhone.
Bluetooth connection
Pair the iPhone through Bluetooth.
Preparation
• To connect an iPhone via Bluetooth, register it as
the Bluetooth device and do the profile setting of
the connection beforehand. See Register from
the Bluetooth unit (P.59) and Connect the
Bluetooth unit (P.61).
• Connect an iPhone on Bluetooth while CarPlay
and an iPod/iPhone are not connected on USB.
iPod/iPhone
30
iPod/iPhone Basic Operation
NOTE
• Set the remote controller mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.85).
Control screen
3
4
2
5
Content list panel
1
7
6
1
[ ] / [ ]
• [
] : Repeats the current track/album. Each
time you touch the key, repeat mode switches
in the following sequence;
Song repeat ( ), All songs repeat ( )
• [
] : Randomly plays all tracks in current
album. Each time you touch the key, random
mode switches in the following sequence;
Song random ( ), Album random ( ),
Random off ( )
2
Track information
• Displays the information of the current file.
• Touch to display the category list screen. See
Category search (P.31).
3
[Function bar
• 1] : Searches track/file. For details on search
operation, see Search Operation (P.31).
• E] [F] : Searches the previous/next track/
file. Touch and hold to fast forward or fast
backward. (It will be cancelled automatically
after about 50 seconds.)
• [DH] : Plays or pauses.
• [
] : Displays the Graphic Equalizer screen.
(P.79)
4
Content list
Touch on the right side of the screen to display
the Content list. Touch again to close the list.
5
Indicator Items
• MUSIC: Identifies the music file.
6
Artwork/ Play mode indicator/ Playing
time
The jacket of the currently playing file is
displayed.
• D, B, etc.: Current play mode indicator
The meanings of each icon are as follows;
D (play), B (fast forward), A (fast
backward), H (pause).
7
Content list panel
Displays the playing list. When you touch a track/
file name on the list, playback will start.
iPod/iPhone
31English
Search Operation
You can search music files by the following
operations.
1 Touch [1].
2 Touch [S].
3 Select the list type.
NOTE
• For operations in the list screen, see List screen
(P.15).
Ñ Category search
You can search a file by selecting category.
1 Touch [Category List].
2 Touch the desired category.
h The list corresponding to your selection
appears.
3 Touch to select desired item in the list.
Repeat this step until you find the desired
file.
Ñ Link search
You can search a file of same artist/album/
genre/composer as the current track.
1 Touch [Link Search].
2 Touch the desired tag type. You can select
from artist, album, genre and composer.
h The list corresponding to your selection
appears.
3 Touch desired item from the content list.
APPS—Android Auto™/Apple CarPlay
32
APPS—Android Auto™/Apple CarPlay
Apple CarPlay Operation
CarPlay is a smarter, safer way to use your
iPhone in the car. CarPlay takes the things
you want to do with iPhone while driving and
displays them on the screen of the product.
You can get directions, make calls, send and
receive messages, and listen to the music
from iPhone while driving. You can also use
Siri voice control to make it easier to operate
iPhone.
For details about CarPlay, visit https://ssl.
apple.com/ios/carplay/.
Compatible iPhone devices
You can use CarPlay with the following iPhone
models.
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
• iPhone 5c
• iPhone 5
Ñ Preparation
1 Connect iPhone using KCA-iP103 via USB
(Black) terminal. (P.95)
When iPhone compatible with CarPlay is
connected to the USB (Black) terminal, the
Bluetooth smartphone currently connected
is disconnected.
2 Unlock your iPhone.
Ñ Operation buttons and
available Apps on the home
screen of CarPlay
You can use the Apps of the connected iPhone.
The items displayed and the language used
on the screen differ among the connected
devices.
To enter CarPlay mode, touch [Apple CarPlay]
icon in the source selection screen. (P.12)
3
1
2
1
[ ]
• Displays the home screen of CarPlay.
• Touch and hold to activates Siri.
2
Application buttons
Starts the application.
3
[HOME]
Exits the CarPlay screen and displays the Home
screen.
To exit the CarPlay screen
1 Press the [HOME] button.
APPS—Android Auto™/Apple CarPlay
33English
Ñ Use Siri
You can activate Siri.
1 Press the [ ] button for 1 second.
Press for 1 second
2 Talk to Siri.
To deactivate
1 Press the [ ] button.
Ñ Switch to the Apple CarPlay
screen while listening to
another source
1 Press the [ ] button.
NOTE
• If sound is output using Apple CarPlay when the
Apple CarPlay screen is displayed, the source is
switched to Apple CarPlay.
Android Auto™ Operation
Android Auto enables you to use functions of
your Android device convenient for driving.
You can easily access route guidance, make
calls, listen to music, and access convenient
functions on the Android device while driving.
For details about Android Auto, visit https://
www.android.com/auto/ and https://support.
google.com/androidauto.
Compatible Android devices
You can use Android Auto with Android
devices of Android version 5.0 (Lollipop) or
later.
NOTE
• Android Auto may not be available on all devices
and is not available in all countries or regions.
Ñ Preparation
1 Connect an Android device via USB
terminal. (P.95)
To use the hands-free function, connect the
Android device via Bluetooth.
When an Android device compatible
with Android Auto is connected to the
USB terminal, the device is connected via
Bluetooth automatically, and the Bluetooth
smartphone currently connected is
disconnected.
2 Unlock your Android device.
APPS—Android Auto™/Apple CarPlay
34
Ñ Operation buttons and
available Apps on the Android
Auto screen
You can perform the operations of the Apps of
the connected Android device.
The items displayed on the screen differ
among the connected Android devices.
To enter Android Auto mode, touch [Android
Auto] icon in the source selection screen.
(P.12)
1
1
Application/information buttons
Starts the application or displays information.
To exit the Android Auto screen
1 Press the [HOME] button.
Ñ Using voice control
1 Press the [ ] button for 1 second.
Press for 1 second
To cancel
1 Press the [ ] button.
Ñ Switch to the Android Auto
screen while listening to
another source
1 Press the [ ] button.
NOTE
• If sound is output using Android Auto when the
Android Auto screen is displayed, the source is
switched to Android Auto.
APPS—Android Auto™/Apple CarPlay
35English
Pandora® Operation
You can listen to the Pandora® on this unit
by controlling the application installed in the
iPhone or Bluetooth device.
To enter Pandora source, touch [Pandora] icon
in the source selection screen. (P.12)
Preparation
• Install the latest version of the Pandora®
application on your iPhone, Android or BlackBerry.
iPhone: Search for "Pandora" in the Apple App
Store to find and install the most current version.
Android: Visit the Google play and search for
Pandora to install.
BlackBerry: Visit www.pandora.com from the
built in browser to download the Pandora
application.
• iPhones are connected on either USB or
Bluetooth.
• Android or BlackBerry devices are connected on
Bluetooth.
• To connect a smartphone via Bluetooth, register
it as the Bluetooth device and do the App (SPP)
profile setting of the connection beforehand. See
Register from the Bluetooth unit (P.59) and
Connect the Bluetooth unit (P.61).
3
1
2
1
Artwork/ Playing time
• The picture data is displayed if available from
current content.
• For confirmation of play time.
2
Function bar
• [
] : Searches for a station. For details on
searching, see Station list screen (P.35).
• [
] (Thumbs down) : Thumbs down to the
current contents and skip to the next contents.
• [
] (Thumbs up) : Registers the current
contents as favorite content.
• [D] , [H] : Plays or pauses the content of the
current station.
• [F] : Skips the current song.
(Note this function is disabled when the
Pandora skip limitation is exceeded.)
• [
] (Bookmark Song) : Bookmarks a song in
the current contents.
• [
] : Creates a new station. See Creates a
new station (P.36).
• [
] : Displays the Graphic Equalizer screen.
(P.79)
3
Content information
Displays the information of the current content
being played.
Ñ Station list screen
You can perform the following functions from
this screen.
1 Touch [ ].
h Station List screen appears.
■Selects the station
Touch the station name in the list.
■Sort the list by registered date
Touch [By Recent]. The list is sorted to begin
with the last registered station.
■Sort the list in alphabetical order
Touch [By Name]. You can select the desired
letter from the list which corresponds to the
station name to help narrow the search.
NOTE
• You can operate Pandora by using the remote
control. However, only playing, pausing, and
skipping are available.
APPS—Android Auto™/Apple CarPlay
36
Ñ Creates a new station
1 Touch [ ].
2 Touch desired item.
■Create station from artist
Creates a new station based on an artist
being played.
■Create station from track
Creates a new station based on a song being
played.
■Create station from genre
Displays the genre list screen.
Genre list screen
1 Touch [Create station from genre].
2 The selected genre is created as a new
station.
About Pandora®
iPhone or iPod touch
• Install the latest version of the Pandora
application on your iPhone or iPod touch. (Search
for “Pandora” in the Apple App Store to find and
install the most recent version.)
Android™
• Visit the Google play and search for Pandora to
install.
BlackBerry®
• Visit www.pandora.com from the built in browser
to download the Pandora application.
• Bluetooth must be built in and the following
profiles must be supported.
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
NOTE
• In the application on your device, log in and
create an account with Pandora.
(If you are not already a registered user, an
account can also be created at www.pandora.
com.)
• Establish an Internet connection.
• Pandora is only available in certain countries.
Please visit http://www.pandora.com/legal for
more information.
• Because Pandora® is a third-party service, the
specifications are subject to change without
prior notice. Accordingly, compatibility may
be impaired or some or all of the services may
become unavailable.
• Some functions of Pandora® cannot be operated
from this unit.
• For issues using the application, please contact
Pandora® at pandora-support@pandora.com.
APPS—Android Auto™/Apple CarPlay
37English
Spotify Operation
You can listen to the Spotify on this unit by
controlling the application installed in the
iPhone or Android.
To enter Spotify source, touch [Spotify] icon in
the source selection screen. (P.12)
Preparation
• Install the latest version of the Spotify application
"Spotify" on your iPhone or Android.
iPhone: Search for "Spotify" in the Apple App
Store to find and install the most current version.
Android: Search for "Spotify" in Google play to
find and install the most current version.
• iPhones are connected on either USB or
Bluetooth.
• Android devices are connected on Bluetooth.
• To connect a smartphone via Bluetooth, register
it as the Bluetooth device and do the App (SPP)
profile setting of the connection beforehand. See
Register from the Bluetooth unit (P.59) and
Connect the Bluetooth unit (P.61).
1
2
3
4
1
Artwork/ Playing time
• The picture data is displayed if available from
current content.
• For confirmation of play time.
2
Function bar
• [
] : Displays the Menu screen
• [
] : New radio station that relates to the
artist of the currently playing song is selected
and playback starts.
• [
] , [ ] : Skips the current song.
• [
] , [ ] : Plays or pauses the content of the
current station.
• [
] : Saves currently playing song to My
Music.
• [
] : Displays the Graphic Equalizer screen.
(P.79)
3
Content information
Displays the information of the current content
being played.
4
[ ] / [ ] / [ ] / [ ]
• [ ] : Thumbs down to the current contents
and skip to the next contents.
• [ ] : Registers the current contents as favorite
content.
• [ ] : Repeats the current song.
• [ ] : Randomly plays all song in current
playlist.
Ñ Selecting a track
1 Touch [ ].
h Menu screen appears.
2 Select the list type, then select a desired
item.
■Selects the category and station
Touch the category and station name in the
list.
■[ Top]
Returns to the first hierarchy of the list.
■[ Up]
Returns to the previous list.
APPS—Android Auto™/Apple CarPlay
38
About Spotify®
iPhone or iPod touch
• Install the latest version of the Spotify application
on your iPhone or iPod touch. (Search for “Spotify”
in the Apple App Store to find and install the
most recent version.)
Android™
• Visit Google play and search for “Spotify” to install.
Note
• Ensure you are logged in to your smartphone
application. If you do not have an Spotify account,
you can create one for free from your smartphone
or at www.spotify.com.
• Because Spotify is a third-party service, the
specifications are subject to change without
prior notice. Accordingly, compatibility may
be impaired or some or all of the services may
become unavailable.
• Some functions of Spotify cannot be operated
from this unit.
• For issues using the application, contact Spotify at
www.spotify.com.
• Establish an Internet connection.
HD Radio™ Tuner
39English
HD Radio™ Tuner
HD Radio Tuner Basic
Operation
Most functions can be controlled from the
source control screen.
To enter HD Radio source, touch [HD Radio]
icon in the source selection screen. (P.12)
NOTE
• Set the remote control mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.85).
• HD Radio broadcasting is for North American
sales area only.
• The screen shot below is for tuner. It may be
different from the one for HD Radio broadcasting.
Control screen
3
6
4
5
2
Preset list screen
7
1
9
8
10
1
Indicator display
While receiving an HD Radio station, it lights
with orange when the audio is digital and lights
with gray when it is analog. While receiving an
analog station, it is off.
2
Information display
Displays the information of the current station:
Frequency and Channel
Touching [
] allows you to switch between
Content A, Content B and Content C.
Content A: Station name, Song Title, Artist Name
Content B: Station Message, Radio Text
Content C: PTY Genre, Album Name
3
[AUTO1] / [AUTO2] / [MANUAL]
Switches the seek mode in the following
sequence; [AUTO1], [AUTO2], [MANUAL].
• [AUTO1]: Tunes in a station with good
reception automatically.
• [AUTO2]: Tunes in stations in memory one
after another.
• [MANUAL]: Switches to the next frequency
manually.
4
Function bar
• [E] [F] : Tunes in a station. The method of
frequency switching can be changed (see 3
in table).
• [CHS] [CHR] : Selects a channel.
• [1] : Display the Channel List screen. See
Channel search (P.42).
• [
] : Display a list of registered bookmarks.
See Bookmark list (P.44).
• [
] : Displays the Graphic Equalizer screen.
(P.79)
5
Preset key
Recalls the memorized station or channel.
• Touch on the right side of the screen to display
the Preset list. Touch again to close the list.
6
Function panel
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel. For details on the keys, see Function
panel (P.40).
7
The picture data or station Logo data is
displayed if available from current content.
8
[FM] [AM]
Switches the band.
HD Radio™ Tuner
40
9
Preset list
Recalls the memorized station or channel.
When touched for 2 seconds, stores the current
receiving station or channel in memory.
10
Indicator Items
• MC: A multicast digital broadcast is being
received.
• ANALOG: An analog broadcast is being
received.
• DIGITAL: A digital broadcast is being received.
• ST: A stereo broadcast is being received.
• EA:
White: Emergency Alert is on.
No light: Emergency Alert is off.
Orange: Interrupting or in snooze/ignore
state.
Ñ Function panel
1 Touch on the left side of the screen.
The functions of each key are as follows.
[10key Direct]
Display the direct station/ channel search screen.
For details, see Direct search (P.42).
[AME]
Presets stations automatically. For details, see
Auto memory (P.41).
[RCV]
Change the HD Radio reception mode. For
details, see Receive Mode (P.41).
[PTY] (FM only)
Searches a program by setting program type. For
details, see Search by program type (P.43).
[
]
Stores the information about the song being
received. See Bookmark (P.43).
[Emergency Alerts]
Turn on or off the alert message. See Alert
Message (P.45).
[Alert Message Log]
Displays the alert message received. See Alert
Message (P.45).
• Adjacent to traditional main stations are
HD2/HD3 Channels, providing new original
programming on the FM dial
• A music & product discovery feature that
enables users to store information about
content on the radio, and can deliver
interactive information via QR codes
• Crystal clear, CD-like digital audio quality to
consumers; eliminates background noise
• Provides song name, artist, station ID, and
other relevant data to enrich the listening
experience
• Visual images, such as album art of over-the-air
broadcasts from HD Radio stations
• Delivers critical and life-saving messages to the
public during emergency situations
HD Radio™ Tuner
42
Selecting Operation
Ñ Preset select
You can list and select memorized station or
channel.
1 Touch on the right side of the screen.
Select a station or channel from the list.
Ñ Direct search
You can tune in by entering the desired
frequency or channel number.
1 Touch on the left side of the screen.
Touch [10key Direct].
2 Select the search method.
3 Enter the frequency or channel number.
4 Touch [Enter].
NOTE
• To clear the number you entered, touch [BS].
Ñ Channel search
You can specify the desired channel.
1 Touch [1].
2 Select the desired content from the list.
NOTE
• Touch [Info Change] in the channel list. Select
the sequence of the list (Song title, artist name,
album name).
HD Radio™ Tuner
44
Ñ Bookmark list
Displaying a list of registered bookmarks and
detailed information and QR code of the song.
1 Touch [ ].
2 Select the desired bookmark from the list.
h The bookmark information appears.
■[ Delete]
Deletes the bookmarks being displayed.
Bookmark delete
Deleting a bookmark.
1 Touch [Delete].
2 Select the bookmark to delete from the
list.
■[; All]
Select all bookmarks.
■[ All]
Erases all check marks.
3 Touch [Delete].
h Confirmation message appears.
4 Touch [Yes].
h Deletes all the selected bookmark(s).
HD Radio™ Tuner
45English
Alert Message
This function is to receive alert messages. First,
you need to turn on the “Emergency Alerts”.
(P.40)
Ñ When an Alert Message comes
[Snooze]
The alert message is erased. Same alert message
cannot be displayed for next 10 minutes.
[Ignore]
The alert message is erased. Same alert message
cannot be displayed for next 12 hours.
Ñ Display of the received Alert
Message
You can read the received alert message
afterward.
1 Touch on the left side of the screen.
Touch [Alert Message Log].
2 Select the desired Alert Message from
the list.
h The Alert Message appears.
3 Touch [Close].
SiriusXM®
46
SiriusXM®
SiriusXM® Basic Operation
Only SiriusXM® brings you more of what you
love to listen to, all in one place. Get over 140
channels, including commercial-free music
plus the best sports, news, talk, comedy
and entertainment. Welcome to the world
of satellite radio. A SiriusXM Vehicle Tuner
and Subscription are required. For more
information, visit www.siriusxm.com.
To enter SiriusXM source, touch [SiriusXM]
icon in the source selection screen. (P.12)
Activating subscription
• Check your Radio ID.
The SiriusXM Satellite Radio ID is required for
activation and can be found by tuning to Channel
0 as well as on the label found on the SiriusXM
Connect tuner and its packaging.
The Radio ID does not include the letters I, O, S
or F.
• Activate the SiriusXM Connect Vehicle Tuner
using one of the two methods below:
– For users in the U.S.A.
Online: Visit www.siriusxm.com/activatenow
Phone: Call SiriusXM Listener Care at 1-866-
635-2349
– For users in Canada:
Online: Visit www.siriusxm.ca/activatexm
Phone: Call XM customer Care at 1-877-438-
9677
NOTE
• Set the remote control mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.85).
• To use SiriusXM® Satellite Radio, the optional
accessory is necessary.
Control screen
3
6
4
2
5
Preset list screen
1
8
7
1
Indicator display
Displays the “Mix” (TuneMix™), “Scan”
(TuneScan™), (Traffic&Weather),
(SportsFlash™) indicator and the received
signal strength of the SiriusXM tuner.
2
Information display
Displays the information of the current channel:
Channel Name
Touching [
] allows you to switch between
Content A and Content B.
Content A: Artist Name, Song Title, Content Info
Content B: Category Name, Channel Description,
Similar Channels
[ ] : Touch for 2 seconds to registers the artist
of the current song as a Content Alert.
[ ] : Touch for 2 seconds to registers the
current song as a Content Alert.
For details, see Content Alerts (P.52).
3
[SEEK]
Switches the seek mode in the following
sequence; [SEEK1], [SEEK2].
SEEK1: Tunes channels one after the other.
SEEK2: Selects channels in preset (memory) one
after the other.
SiriusXM®
48
[TuneScan]*3
Hear a few seconds of the songs from each
of the SmartFavorite music channels on
the current preset band. See TuneScan™
(P.51).
[TuneMix]*4
When you turn it ON, the preset channels
on P1-P6 are shuffled to provide a playback
which is a blend of songs from your favorite
channels. See TuneMix™ (P.50).
[SportsFlash]*4
Displays during SportFlash™. To cancel
the SportFlash interruption and return
to the previous channel, touch it. See
SportsFlash™ (P.52) and SportsFlash™
setup (P.56).
*1 Compatible with SXV300 or later tuner
models. It may take a few minutes after power
on to get the first full report for your city.
Traffic channels are not available in Canada.
*2 When SXV200 or SXV100 is connected with
this unit.
*3 Compatible with SXV200 or later tuner models.
*4 Compatible with SXV300 or later tuner models.
Storing Channels in Preset
Memory
You can store the current channel in memory.
1 Tune to a channel you wish to store in
memory.
2 Touch on the right side of the screen.
3 Touch and hold for 2 seconds (until you
hear a beep) the preset number [SXM(1-
4) P(1-6)] in which you want to store the
channel.
Preset select
You can list and select memorized station or
channel.
To select from the preset list
1 Touch on the right side of the screen.
Select a channel from the list.
SiriusXM®
49English
Direct search
You can tune to a channel directly.
1 Touch on the left side of the screen.
Touch [Direct Channel].
2 Enter the channel number and touch
[Enter].
NOTE
• To clear the number you entered, touch [BS].
Category/Channel search
You can specify the desired category and
select a channel.
1 Touch [1].
2 Select a category.
h Channel list appears.
3 Select the desired content from the list.
NOTE
• All the channels in the selected category appear.
• Touching [All-Channels] displays all the
channels.
• Touch [Info Change] in the channel list. Select
the sequence of list as follows;
Channel name, artist name, song title, category
name, content info
• Categories which have the prefix “Featured - “ are
Featured Favorites.
• Featured Favorites are groups of channels that
are created by the SiriusXM Programming
department allowing you to discover new
channels. Featured Favorite channels are dynamic
and can change often, allowing you to discover
new channels.
SiriusXM®
50
Replay
You can replay the last 60 minutes of the
current channel.
1 Touch [L] or [Replay] on the function
panel.
■[E] [F]
Press to skip to the previous/next track.
Press and hold to rewind or fast forward. (It
will be cancelled automatically after about
50 seconds.)
■[DH]
Plays or pauses.
■[CHS] [CHR]
Tune in a channel.
■Replay time bar/ Play mode indicator
Display recorded capacity and playback
position.
D, B, etc.: Current play mode indicator
■[1]
Display a list of recorded data on a program
basis.
2 Touch [1] to display an Instant Replay list.
■Instant Replay List
Touching this plays back the displayed
program.
■[Info Change]
Touch [Info Change]. Select the sequence of
the list as follows;
Artist name, Song title, Category name, and
Content info
To return to live music/content
1 Touch on the left side of the screen.
2 Touch [Live].
TuneMix™
TuneMix™ plays a unique blend of songs from
your Preset music channels from the current
SiriusXM Preset Band, allowing you to build a
custom channel from as few as two to as many
as 6 music channels. You can even skip songs
you don’t want to hear.
Touch on the left side of the screen.
1 Touch on the left side of the screen.
Touch [TuneMix] to set ON or OFF.
NOTE
• Compatible with SXV300 or later tuner models.
SmartFavorites, TuneStart™
Preset channels 1 through 6 of the current
band are SmartFavorites channels.
The SiriusXM Vehicle Tuner automatically
buffers the broadcast audio content of the
SmartFavorites channels in the background.
You can rewind and replay up to 30 minutes of
any of the missed news, talk, sports or music
content when you tune to a SmartFavorites
channel. (see Replay (P.50))
When tuning from a SmartFavorites channel,
songs will play from the beginning of each
track (TuneStart™). You can enable/disable
TuneStart. (see TuneStart™ (P.57))
NOTE
• Compatible with SXV200 or later tuner models.
SiriusXM®
51English
TuneScan™
TuneScan™ is a feature that plays samples
from the starts of multiple buffered songs
from each of the SmartFavorites channels that
predominantly play music selections.
You have easy access to a large sampling of
music content and can enjoy hearing a full
song when stopping the scan on a song of
interest.
1 Touch on the left side of the screen.
2 Touch [TuneScan] to begin scanning your
SmartFavorites channels.
You will hear a few seconds of the songs
from each of the SmartFavorite channels.
3 Touch [TuneScan] again while your
favorite song is being played to start
listening to that song.
h Scan finishes and continues playing the
song.
NOTE
• To cancel TuneScan™, Touch on the left side of the
screen. Touch [TuneScan].
• Touch and hold [TuneScan] to cancel TuneScan,
the channel before starting TuneScan will be
played.
• Compatible with SXV200 or later tuner models.
Traffic & Weather Now™
Traffic & Weather Now™ allows you to access
the latest report whenever you want to hear
it. Select your city at the set up menu Select a
City for Traffic & Weather (P.57).
1 Touch on the left side of the screen.
2 Touch [Traffic & Weather].
The report starts from the beginning. To stop
and return to the previous channel, touch it
again.
Indicator display
• (White) : Played already.
• (Green) : New information arrived.
• (Purple) : Playing.
• (Gray) : No information.
NOTE
• Compatible with SXV200 or later tuner models.
SiriusXM®
52
Content Alerts
When a broadcast program related to the
registered artist, song or team starts, a
message appears to allow you to switch the
current channel to the relevant channel.
1 When the broadcast of the registered
content starts, an Alert screen appears.
■[Jump]
Touch to display the Alert Content List
screen.
■[Ignore]
Touch to cancel the Content Alerts.
2 Select a content from the list.
NOTE
• Touch [Info Change]. Select the sequence of the
channel list as follows;
Artist Alert, Song Alert, GameAlert™
• To learn how to register artists and songs the
Team alert function, see 2. Information display of
SiriusXM® Basic Operation (P.46).
• To learn how to set up the Content Alerts
function, see Content Alerts setup (P.55).
SportsFlash™
SportsFlash™ will notify you when a big play
happens during a game with one of your
favorite sports teams. Choose to tune in and
hear the play unfold like it was live. Continue
listening to the game, or you can return to
your previous channel.
1 When a big play happens during one of
the games, an Alert screen appears.
■[Jump]
Touch to tune to that channel and play back
the big play.
■[Ignore]
Touch to cancel this specific Sports Flash
Alert. Touching [Ignore] will ignore this
specific alert but will allow future alerts for
this game.
■[Cancel]
Touch to cancel the SportsFlash alert. No
alerts from this game will be displayed
afterward.
NOTE
• Compatible with SXV300 or later tuner models.
• To learn how to set up the SportsFlash alert
function, see SportsFlash™ setup (P.56).
SiriusXM®
54
Ñ Parental Control
Parental Control is a feature that provides the
user with the ability to prevent unauthorized
access to mature content and user selected
channels.
1 Touch [Parental Control] in the SiriusXM
SETUP screen.
2 Touch [Mature], [User] or [OFF].
■[OFF]
Deactivates the parental mature and user
locks.
■[Mature]
Locks channels classified as “mature” only.
■[User]
Locks only the selected channels.
3 Enter the parental code you originally
input in Parental code (P.53) and touch
[Enter].
When selecting [User]
This allows you to limit access to any SiriusXM
channel (Parental Lock Channel).
1 Touch [Parental Lock Channel Selection]
in the SiriusXM SETUP screen.
h Parental Pass Check screen appears.
NOTE
• You need to set up a Parental code (P.53)
beforehand.
2 Enter the parental code you originally
input in Parental code (P.53) and touch
[Enter].
h Parental Lock Category Select screen
appears.
3 Touch the desired category from the list.
h Displays all the channels in the selected
category.
NOTE
• Touch [All-Channels] to display all the
channels.
• To delete the parental lock channel setting,
touch [Disable All] and then touch [YES] on
the confirmation screen.
4 Touch each channel on the list and set to
ON or OFF.
On: If you wish to set the lock.
Off: If you wish to unlock the channel.
NOTE
• Touch [Info Change]. Select the sequence of the
channel list as follows;
• Channel name, Artist name, Song title, Category
name, Content information.
Ñ Skip channel select
You can set the undesired channels to skip.
1 Touch [Skip Channel Select].
h Skip Category Select screen appears.
2 Touch the desired category from the list.
h Displays all the channels in the selected
category.
SiriusXM®
55English
3 Touch each channel on the list and set to
ON or OFF.
NOTE
• To delete the skip channel setting, touch
[Disable All] and then touch [YES] on the
confirmation screen.
• Touch [Info Change]. Select the sequence of the
channel list as follows;
Channel name, Artist name, Song title, Category
name, Content information.
Ñ Content Alerts setup
Activating content alert
1 Touch [Content Alerts] in the SiriusXM
SETUP screen.
h The Content Alerts is turned on or off.
Default is “ON”.
Selecting the content for the content
alert
1 Touch [Content Alerts Content Set] in the
SiriusXM SETUP screen.
h Artist list screen appears.
2 Select the content you want to set up.
NOTE
• You need to set up a Parental code (P.53)
beforehand.
3 Touch each content list and set ON or OFF.
NOTE
• You can select “ON” up to 30 items of Artist, Song,
and Team.
●To delete the Artist and Song
1 Touch [Delete].
2 Touch each content list.
3 Touch [Delete] and then touch [YES] on the
confirmation screen.
SiriusXM®
56
To select a Team
Get alerted when your favorite sports team
is playing on another SiriusXM channel with
GameAlert™
1 Touch [My Games].
2 Touch the desired league from the list.
3 Touch each team list and set ON or OFF.
NOTE
• You can select “ON” up to 30 items of Artist, Song,
and Team.
Ñ SportsFlash™ setup
Activating SportsFlash
1 Touch [SportsFlash] in the SiriusXM
SETUP screen.
h The SportsFlash is turned on or off.
Default is “ON”.
Selecting the team for SportsFlash
1 Touch [SportsFlash Team Set] in the
SiriusXM SETUP screen.
h Team Set screen appears.
2 Touch [Edit].
3 Touch the desired league from the list.
4 Touch each team list and set ON or OFF.
5 Touch [ ] twice.
SiriusXM®
57English
■[Edit]
Sets and removes teams.
■[Priority]
Sets the priority of a team to be posted.
■[Clear]
Removes all teams that have been set.
Touch [Clear]. When the confirmation screen
appears, touch [YES].
NOTE
• SportsFlash™ is available on SXV300 or later tuner
models.
• Up to 50 teams can be added.
Set the SportsFlash™ Team Priority
1 Touch [Priority].
2 Set the priority of a team.
Each time you touch Team, the priority is
set and reset.
3 Touch [Done].
NOTE
• Priority can be set on up to 5 teams.
Ñ Select a City for Traffic &
Weather
You can select a city for which you wish to
receive SiriusXM Traffic & Weather broadcasts
and hear them from the beginning.
1 Touch [Traffic & Weather City Select] in
the SiriusXM SETUP screen.
2 Touch [T] and [U] to select a city.
Ñ TuneStart™
1 Touch [Tune Start] in the SiriusXM SETUP
screen.
The TuneStart is turned on or off.
Default is “ON”.
Ñ Reset
1 Touch [SiriusXM Reset] in the SiriusXM
SETUP screen.
h Confirmation screen appears.
2 Touch [YES].
h All SiriusXM settings return to default.
Bluetooth Control
58
Bluetooth Control
Using the Bluetooth function, various
functions can be used: listening to the audio
file, making/receiving a call.
Information for using
Bluetooth® devices
Bluetooth is a short-range wireless radio
communication technology for mobile devices
such as mobile phones, portable PCs, and
other devices.
Bluetooth devices can be connected without
cables and communicate with each other.
NOTE
• While driving, do not perform complicated
operations such as dialing numbers, using the
phone book, etc. When you perform these
operations, stop your car in a safe place.
• Some Bluetooth devices may not connect to this
unit depending on the Bluetooth version of the
device.
• This unit may not work for some Bluetooth
devices.
• Connecting conditions may vary depending on
your environment.
• For some Bluetooth devices, the device is
disconnected when the unit is turned off.
Ñ About the cell-phone and
Bluetooth audio player
This unit conforms to the following Bluetooth
specifications:
Version
Bluetooth Ver. 3.0
Profile
Cell-phone:
HFP (V1.6) (Hands Free Profile)
SPP (Serial Port Profile)
PBAP (Phonebook Access Profile)
Audio player:
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.5) (Audio/Video Remote Control
Profile)
Sound codec
SBC, AAC
NOTE
• For the cell-phones verified for compatibility,
access the following URL:
http://www.kenwood.com/cs/ce/bt/.
• The units supporting the Bluetooth function have
been certified for conformity with the Bluetooth
Standard following the procedure prescribed by
Bluetooth SIG.
• However, it may be impossible for such units to
communicate with your cell-phone depending
on its type.
Bluetooth Control
59English
Register from the Bluetooth
unit
It is necessary to register the Bluetooth audio
player or cell-phone to this unit before using
the Bluetooth function.
You can register up to 10 Bluetooth units.
NOTE
• Up to 10 Bluetooth units can be registered. If an
attempt is made to register the 11th Bluetooth
unit, the Bluetooth unit connected on the earliest
date will be deleted to register the 11th one.
• This unit is compatible with the Apple Easy
Pairing function. When an iPod touch or iPhone is
connected to this unit, an authentication dialog
appears. Performing operation for authentication
on this unit or iOS smartphone registers the
smartphone as a Bluetooth device.
Follow the step 1, 2 and 3 for registration.
Step 1: Registration from the Bluetooth
device
1 Search the unit (“DNX****”) from your
smartphone/cell-phone.
2 Input the PIN code in your smartphone/
cell-phone.
PIN code is set to “0000” as the default.
●SSP (Secure Simple Pairing of Bluetooth
2.1 or later)
1 Search the unit (“DNX****”) from your
smartphone/cell-phone.
2 Confirm the request both on the
smartphone/cell-phone and the unit.
Step 2: Connection settings
• When the HFP profile is supported, Hands Free
1 or 2 is automatically selected for connection,
proceeding to the next step.
• When the A2DP or SPP profile is supported,
the cell-phone or audio player is automatically
connected, proceeding to the next step.
If cell-phones and/or audio players have already
been connected, a selection screen appears.
1 Select the hands-free number to connect.
A name of a smartphone is displayed when
it has hands-free connection with the unit.
2 Select if you want to use the audio player
app in your smartphone over A2DP, and
the other apps in your smartphone over
SPP.
This message appears if the device
supports BT audio (A2DP) or smartphone
link (SPP).
Bluetooth Control
60
Step 3: Phonebook transfer
1 Select if you want to transfer your
phonebook data.
This message appears if the device
supports PBAP.
The phonebook data transmission starts.
Some smartphones may request
permission to access the data. The
data transmission will start with your
permission.
When the data transmission and
connection have completed, the Bluetooth
connection icon appears on the screen.
Bluetooth Setup
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [SETUP].
h SETUP Menu screen appears.
3 Touch [Bluetooth].
h Bluetooth SETUP screen appears.
See the following section for each
setting.
• Connect the Bluetooth unit (P.61)
• Change the PIN code (P.62)
• Change the device name (P.62)
Bluetooth Control
61English
Ñ Connect the Bluetooth unit
1 Touch [Select Device] in the Bluetooth
SETUP screen.
2 Touch the device name you want to
connect.
h Profile select screen appears.
NOTE
• If the icon is lighted, it means that the unit will
use that device.
3 Set each profile as follows.
■TEL (HFP) 1, TEL (HFP) 2
The device is connected with the unit as
hands-free phone 1 or 2.
■Audio (A2DP)/App (SPP)
Set to interwork with an application installed
in a smartphone or to use as an audio player.
4 Touch [Close].
NOTE
• If a device has been paired, the Bluetooth unit
cannot be connected from the paired device.
To delete the registered Bluetooth unit
1 Touch [Delete].
2 Touch the device name to check.
■[; All]
Select all Bluetooth unit.
■[ All]
Erases all check marks.
3 Touch [Delete].
h Confirmation message appears.
4 Touch [Yes].
Bluetooth Control
62
Ñ Change the PIN code
1 Touch [PIN Code] in the Bluetooth SETUP
screen.
h PIN Code Set screen appears.
2 Input the PIN code.
3 Touch [SET].
Ñ Change the device name
1 Touch [Device Name] in the Bluetooth
SETUP screen.
h Change Device Name screen appears.
2 Input the device name.
3 Touch [Enter].
Playing Bluetooth Audio
Device
Most function can be controlled from the
source control screen.
To enter Bluetooth source, touch [Bluetooth]
icon in the source selection screen. (P.12)
Ñ Bluetooth basic operation
Control screen
3
4
5
2
1
1
Device name/ [ ] / [ ]
• Connected device name.
• [
] : Repeats the current track/folder. Each
time you touch the key, repeat mode switches
in the following sequence; File repeat ( ),
Folder repeat ( ), All songs repeat ( ),
Repeat off ( )
• [
] : Randomly plays all tracks in current
folder. Each time you touch the key, random
mode switches in the following sequence;
Folder random ( ), All random ( ),
Random off ( )
2
Information display *
Displays the name of the track information.
3
[Function bar *
• [1]: Searches file. See File search (P.63).
• [E] [F]: Searches the previous/next
content. Touch and hold to fast forward or fast
backward. (It will be cancelled automatically
after about 50 seconds.)
• [D]: Plays.
• [H]: Pauses.
• [
] : Displays the Graphic Equalizer screen.
(P.79)
Bluetooth Control
63English
4
Function panel
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel.
• BT DEVICE CHANGE] : Selects the device to
connect via Bluetooth audio (A2DP) or APP
(SPP). See Connect the Bluetooth audio
(P.63).
5
Play mode indicator/ Playing time
D, H: Current play mode indicator
The meanings of each icon are as follows;
D (play), B (fast forward), A (fast backward),
H (pause), I (stop).
* These items appear only when the audio player
which supports AVRCP profile is connected.
NOTE
• If the operation keys do not appear, operate from
the player.
• Depending on your cell-phone or audio player,
audio may be heard and controlled but text
information may not appear.
• If the volume is too low, raise it on your cell-
phone or audio player.
Ñ Connect the Bluetooth audio
Selects the device to connect via Bluetooth
audio (A2DP) or APP (SPP).
1 Touch on the left side of the screen.
Touch [BT DEVICE CHANGE].
2 Touch the device name you want to
connect.
3 Touch [Close].
Ñ File search
1 Touch [1].
2 Touch the desired file or folder.
When you touch a folder its contents are
displayed.
3 Touch desired item from the content list.
h Playback starts.
NOTE
• For operations in the list screen, see List screen
(P.15).
Bluetooth Control
64
Using Hands-Free Unit
You can use telephone function by connecting
the Bluetooth telephone to this unit.
NOTE
• While Apple CarPlay or Android Auto is being
connected, Bluetooth Hands-Free function and
two Bluetooth devices connections cannot be
used. Only Apple CarPlay or Android Auto Hands-
Free function can be used.
Ñ Make a call
1 Touch [Û].
h Hands Free screen appears.
NOTE
• If your mobile phone supports PBAP, you can
display the phone book and call lists on the
touch panel screen when the mobile phone is
connected.
– Phone book: up to 1000 entries
– Up to 50 entries including dialed calls, received
calls, and missed calls
2 Select a dialing method.
• [ ]: Call using call records
• [
]: Call using the phonebook
• [
]: Call using the preset number
• [
]: Call by entering a phone number
• [
]: Voice Recognition (P.65)
●Select the cell-phone to use
When you connect two cell-phones
1) Touch [
] to select the phone
you want to use.
●Bluetooth SETUP
1) Touch [
].
Bluetooth SETUP screen appears.
NOTE
• The status icons such as battery and antenna
displayed may differ from those displayed on the
cell-phone.
• Setting the cell-phone in the private mode can
disable the hands-free function.
Call using call records
1 Touch [ ].
2 Select the phone number from the list.
Call by entering a phone number
1 Touch [ ].
2 Enter a phone number with number keys.
3 Touch [ ].
Bluetooth Control
65English
Call using the preset number
1 Touch [ ].
2 Touch the Name or phone number.
Call using the phonebook
1 Touch [ ].
2 Touch [ ].
3 Select the initial.
• Characters with no corresponding name
will not appear.
• During search, a non-accent character
such as “u” is searched for instead of an
accent character such as “ü”.
4 Select the person you want to call from
the list.
5 Select the phone number from the list.
NOTE
• You can set the list to arrange in the order of last
name or first name. For details, see Hands-Free
Setup (P.68).
Ñ Voice Recognition
You can access the voice recognition function
of the cell-phone connected to this unit.
You can search the cell-phone phonebook
by voice. (The functionality depends on the
cell-phone.)
1 Press the [ ] button for 1 second.
Press for 1 second
h Voice Recognition screen appears.
2 Start speaking.
NOTE
• You can use voice recognition function by
touching [ ] on the Hands Free screen.
Bluetooth Control
66
Ñ Receive a call
1 Touch [ ] to answer a phone call or
[
] to reject an incoming call.
NOTE
• While monitoring the view camera, this screen
does not appear even if a call comes in. To display
this screen, press the [TEL] button or return the
shift knob of car to the driver position.
To end call
1 While talking, touch [ ].
Ñ Operations during a call
●Adjust the volume of your voice
1) Touch [Speech Quality].
2) Touch [T] or [U] of [Microphone Level].
●Adjust the receiver volume
Press the [S] or [R] button.
●Mute your voice
Touch [
] to mute or not to mute your voice.
●Output the dial tone
Touch [DTMF] to display the tone input screen.
You can send tones by touching desired keys
on the screen.
●Switching the speaking voice output
Touching [
]/ [ ] each time switches
the speaking voice output between cell-phone
and speaker.
●Call-waiting
When you receive a call while talking on
another call, you can answer the newly
received call by touching [
]. The current call
is on hold.
Each time you touch [
], the caller will change.
When you touch [
], the current call will end
and switch to the call in hold.
●[×]
The Hands-Free popup screen is closed. To
display it again, touch [
].
Bluetooth Control
67English
Ñ Phone number preset
You can register frequently used phone
numbers to this unit.
1 Touch [ ].
2 Touch [Edit].
3 Select where to preset.
4 Select how to preset.
• [Add number from phonebook]:
Select the number to preset by referring to
“Call using the phonebook”. See Call using
the phonebook (P.65).
• [Add number direct]:
Enter the telephone number directly and
touch [SET]. See Call by entering a phone
number (P.64).
NOTE
• To delete the preset number, touch [Delete] and
then touch [Yes] on the confirmation screen.
Ñ Phonebook transfer
You can transfer the phonebook in your
Bluetooth smartphone via PBAP.
1 Touch [ ].
2 Touch [ ].
h The phonebook data transmission starts.
Phonebook deletion
1 Touch [ ].
2 Touch the name to check.
■[; All]
Checks all boxes.
■[ All]
Erases all check marks.
3 Touch [Delete].
h Confirmation message appears.
4 Touch [Yes].
Bluetooth Control
68
Hands-Free Setup
You can perform various setup about
handsfree function.
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [SETUP].
h SETUP Menu screen appears.
3 Touch [Bluetooth].
h Bluetooth SETUP screen appears.
4 Touch [TEL SETUP].
h TEL SETUP screen appears.
5 Set each item as follows.
■Bluetooth HF/Audio
Select the speakers to output the sound from
cell-phone (such as phone call voice and
ringing tone) and Bluetooth audio player.
Front: Outputs from the front speakers.
All (Default): Outputs from all speakers.
■Auto Response*
Sets an automatic response time to pick-up
an incoming call.
OFF (Default): Automatic response is not
available.
1/ 5/ 10/ 15/ 20/ 25/ 30: Set calling ring
time (second).
■Auto Pairing
When set to “ON”, the Apple Auto Pairing
function is turned on to automatically
register the iPod touch or iPhone connected
to this unit.
ON (Default): Uses Apple Auto Pairing
function.
OFF: Not uses Apple Auto Pairing function.
■Sort Order
Sets how to arrange the cell-phone
phonebook.
First: Arranges in the order of first name.
Last (Default): Arranges in the order of last
name.
■Echo Cancel Level
Adjusts the level of echo cancellation.
Default is “0”.
■Noise Reduction Level
Reduces the noises generated by
surrounding environment without changing
the microphone volume. Use this setting
when the voice of caller is not clear. Default
is “0”.
* Either the time interval for automatic
answer set on this unit or the time
interval set on the cell-phone, whichever
is shorter takes effect.
6 Touch [OK].
Other External Components
69English
Other External Components
View Camera
NOTE
• To connect a camera, see P.94.
• To use a rear view camera, a REVERSE lead
connection is required. (P.93)
• The view of the front view camera or dashboard
camera varies depending on the setting of
[Dashboard Camera /Front Camera].
• If [R-CAM Interruption] is set to on, the camera
screen is displayed when you shift the gear to the
reverse (R) position.
Ñ Display the camera screen
1 Press the [MENU] button for 1second.
Press for 1 second
h View camera screen appears.
2 Adjust each item as follows.
2
34
1
1
Switching the View Camera
Touch to change the front view camera or
dashboard camera and rear view camera.
2
Camera off
Touch to exit the camera screen.
3
Switching the Guideline
Touching each time turns on or off the
guideline. Available when [Rear Camera] is
set to [CMOS 3-Series Camera].
4
Switching the Angle
Touching each time changes camera angles:
Available when [Dashboard Camera /
Front Camera] is set to [CMOS 3-Series
Camera].
Ñ Camera Setup
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [SETUP].
h SETUP Menu screen appears.
3 Touch [Camera].
h Camera screen appears.
4 Set each item as follows.
■Rear Camera
CMOS 3-Series Camera: Select this when
the CMOS-3xx series with ID 1 set is
connected.
Other (Default): Select this when the other
camera is connected.
■R-CAM Interruption
ON: Displays the picture from the rear view
camera when you shift the gear to the
reverse (R) position.
OFF (Default): Select this when no camera is
connected.
■R-CAM Settings
If you select [CMOS 3-Series Camera] for
[Rear Camera], adjusts the CMOS-3xx series
with ID 1 set. For details, see the instruction
manual of your camera.
■Parking Guidelines
You can display parking guidelines to enable
easier parking when you shift the gear to the
reverse (R) position.
Default is “ON”.
■Guidelines SETUP
If you select [ON] for [Parking Guidelines],
adjust the parking guidelines. See To adjust
the parking guidelines (P.70).
Other External Components
70
■Dashboard Camera /Front Camera
Dashboard Camera: Select this when the
dashboard camera is connected.
CMOS 3-Series Camera: Select this when
the CMOS-3xx series with ID 2 set is
connected.
Other: Select this when the other camera is
connected.
OFF (Default): Select this when no camera is
connected.
■F-CAM Settings
If you select [CMOS 3-Series Camera] for
[Dashboard Camera /Front Camera],
adjusts the CMOS-3xx series with ID 2 set. For
details, see the instruction manual of your
camera.
■Front Camera Mirror Image
If you select [ON] for Dashboard Camera /
Front Camera.
ON: Displays the picture from the front view
camera horizontally reversed.
OFF (Default): Displays the picture from the
front view camera as it is.
To adjust the parking guidelines
NOTE
• Install the rear view camera in the appropriate
position according to the instructions supplied
with the rear view camera.
• When adjusting the parking guidelines, make
sure to use the parking brake to prevent the car
from moving.
1 Touch [ON] of [Parking Guidelines] in the
Camera screen. (P.69)
2 Touch [Guidelines SETUP] in the Camera
screen.
3 Adjust the parking guidelines by
selecting the mark.
4 Adjusting the position of the selected
mark.
A
B
CD
Make sure that A and B are horizontally
parallel, and that C and D are the same
length.
NOTE
• Touch [Initialize] and after touch [Ye s ] to set all
the marks to the initial default position.
Use Dashboard Camera
A Dashboard Camera, DRV-N520 (optional
accessory), connected to this unit lets you play
video-recorded data and so on.
For details, see the instruction manual of
the Dashboard Camera DRV-N520 (optional
accessory).
NOTE
• To connect a dashboard camera, see P.95.
• Sets the dashboard camera/front camera as
[Dashboard Camera]. (P.70)
Ñ Display the dashboard camera
screen
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [Camera].
Setting Up
72
Setting Up
Monitor Screen Setup
You can adjust image quality in video, menu
screen, etc.
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [Screen Adjustment].
h Screen Control screen appears.
3 Adjust each item as follows.
■Backlight / Contrast / Black / Brightness
/ Color / Tint
Adjusts each item.
■Aspect
Select screen mode.
Full: Changes the aspect ratio of video and
displays fully on the screen.
Normal: Displays with 4:3 ratio.
Auto:
DVD, VCD and disc media: Video of 16:9
ratio is displayed in Full and video of 4:3
ratio is displayed in Regular.
USB device and SD card: Displays video
fully on vertical or horizontal with no ratio
change.
NOTE
• Adjusting items are different depending on the
current source.
System Setup
NOTE
• Each operation in this section can be started from
the multi function menu.
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [SETUP].
See the following section for each
setting.
• Set up AV (P.76)
• Set up display (P.74)
• Set up the user interface (P.73)
• Set up camera (P.69)
• Set up special (P.74)
• Set up Bluetooth (P.60)
• Set up navigation (P.19)
Setting Up
73English
User Interface Setup
You can setup user interface parameters.
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [SETUP].
h SETUP screen appears.
3 Touch [User Interface].
h User Interface screen appears.
4 Set each item as follows.
■Beep
Turns the key touch tone on or off.
Default is “ON”.
■Parking Assist Display
When an ADS adapter is connected, you can
display information about obstacles around
the car.
ON: Always displays information.
Dyn. (Default): Displays information when
the sensor detects obstacles.
OFF: Cancels.
This can be set when the iDataLink
(commercially available) is connected.
■Parking Assist Position
Select where information about obstacles is
displayed on the screen (left or right).
“Left”/ “Right” (Default)
This can be set when the iDataLink
(commercially available) is connected.
■Language Select Mode
Selects the mode to select a language.
Easy (Default): Selects a language easily.
Advanced: Allows you to select languages
for respective items.*
■Language Select
Selects a language.
■Clock
NAV-SYNC (Default): Synchronizes the clock
time with navigation.
Manual: Sets the clock manually
■Time Zone
If you have selected [Manual] for Clock,
select the time zone.
■Clock Adjust
If you select [Manual] for Clock, adjust the
date and time manually. (P.73)
* If you select [Advanced] for Language
Select Mode, the following screen
appears.
■GUI Language Select
Selects the display language used for the
control screen and so forth.
■Navigation Language Select
Selects the language used for navigation.
Ñ Adjust the date and time
manually.
1 Touch [Time Zone] in the User Interface
screen.
2 Select the time zone.
3 Touch [Clock Adjust] in the User Interface
screen.
4 Adjust the date, then adjust the time.
5 Touch [Set].
Setting Up
74
Special Setup
You can setup Special parameters.
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [SETUP].
h SETUP screen appears.
3 Touch [Special].
h Special screen appears.
4 Set each item as follows.
■DEMO
Set the demonstration mode. Default is “ON”.
■Manual Power OFF
Assigns the function of the [HOME] button
when held.
AV OFF: Turns off the screen and audio.
Interrupts from incoming hands-free
calls, rear camera views and so on are
functional, though.
Complete OFF (Default): Switches off the
power. Interrupts are not functional.
■SETUP Memory
Locks or unlocks the Audio SETUP Memory/
Recall/Clear.
■Audio SETUP Memory
Memorizes the current audio setting.
• Fader/ Balance, Speaker / X’over, Equalizer
(User Preset, SW Level), Position/DTA,
Sound Effect (P.77)
■Audio SETUP Recall
Recalls the memorized audio setting.
■Audio SETUP Clear
Clears the AUDIO SETUP Memory and the
currently memorized audio setting.
■Software Information
Check the software version of this unit.
(P.74)
■Open Source Licenses
Displays the open source licenses.
■Initialize
Touch [Initialize] and then touch [Yes] to set
all the settings to the initial default settings.
• Audio SETUP Memory is not initialized.
Ñ Software Information
Check the software version of this unit.
1 Touch [Software Information] in the
Special screen.
2 Confirm the software version.
NOTE
• For how to update the software, see the relevant
update procedure manual which comes with the
software.
Display Setup
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [SETUP].
h SETUP screen appears.
3 Touch [Display].
h Display screen appears.
4 Set each item as follows.
■Dimmer
Select dimmer mode.
OFF: The display and buttons do not dim.
ON: The display and buttons dim.
SYNC (Default): Turns the dimmer function
on or off when the vehicle light control
switch is turned on or off.
NAV-SYNC: Turns the dimmer function on or
off according to the Navigation Day/Night
display setting.
Setting Up
75English
■OSD Clock
Select if you want to display the clock while
watching DVD video, etc.
"ON" (Default)/ "OFF"
■Key Color
You can set the button illumination color.
(P.75)
■Background
Changing background image or color.
(P.75)
■Viewing Angle
If it is hard to see the image on the screen
even after adjusting the front panel angle,
adjust the viewing angle. The smaller the
(negative) value, the more whitish the image
on the screen looks.
"0" (Default)/ "-1"/ "-2"/ "-3"
Ñ Customizing the key color
You can set the button illumination color.
1 Touch [Key Color] in the Display screen.
2 Touch the desired color.
■User
The color you have set in the process of
[Adjust] is registered.
■Scan
You can set the key color to continuously
scan through the color spectrum.
3 Touch [ ].
To register original color
You can register your original color.
1 Touch [User] in the Key Color screen.
2 Touch [Adjust].
3 Use [−] and [+] to adjust each color value.
4 Touch [ ].
Ñ Change background image or
color
1 Touch [Background] in the Display screen.
2 Select an image.
*1*2
*1 Select a background color in advance.
*2 Select an original image in advance.
To select background color
1 Touch [Background Color] in the
Background screen.
2 Select a background color.
*1
*1 The color you have selected at [Key Color]
is added on the image. If you select “Scan” at
[Key Color], you cannot select this image.
3 Touch [ ].
Setting Up
76
To register original image
You can load an image from the connected
USB device and set it for the background
image.
Before operating this procedure, it is necessary
to connect the device which has the image to
load.
1 Touch [User1 Select] or [User2 Select] in
the Background screen.
2 Select the image to load.
3 Touch [Enter].
h The selected image is loaded and the
display returns to the Background
screen.
NOTE
• Touching [ ] rotates counter clockwise.
• Touching [
] rotates clockwise.
• Picture files: JPEG (.jpg, .jpeg), PNG (.png), BMP
(.bmp)
AV Setup
You can set AV parameters.
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [SETUP].
h SETUP screen appears.
3 Touch [AV].
h AV screen appears.
4 Set each item as follows.
■AV-OUT
You can select an AV source to be output
from the AV OUTPUT port.
OFF, AV-IN, DISC, USB, SD, or iPod
You cannot select iPod if it is connected via
Bluetooth.
If you select USB, SD, iPod, Disc, Spotify,
Pandora, Bluetooth audio, Apple CarPlay or
Android Auto as the main source, you cannot
select USB, SD or iPod as the AV output
source.
■CarPlay Sidebar
Select the position of the control bar (left or
right) shown on the touch panel.
“Left” (Default)/ “Right”
■OEM SETUP
Confirm the information about/ change the
settings for using the ADS adapter.
Controlling Audio
77English
Controlling Audio
NOTICE
• Each operation in this section can be started from
the multi function menu.
You can adjust the various settings such as
audio balance or subwoofer level.
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [Audio].
See the following section for each
setting.
• Set up speaker/ X’over (P.77)
• Controlling equalizer (P.79)
• Set listening position/ DTA (P.82)
• Controlling general audio (Fader /
Balance) (P.78)
• Set volume offset (P.80)
• Performing zone control (P.80)
• Set sound effect (P.81)
Speaker/ X’over setup
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [Audio].
h Audio screen appears.
3 Touch [Speaker/Xover].
4 Select a car type.
You can setup the car type and speaker
network, etc.
If your car type is selected, the Delay Time
Alignment is set automatically (for timing
adjustment of sound output for each
channel) to have the highest surround
effects.
5 Touch the speaker (1) you wish to adjust
and set each item (2) as follows.
1
2
■Speaker
You can select a speaker type and its size to
get the best sound effects.
When the speaker type and size are set,
the speaker crossover network is set
automatically.
■Location (Only for Front, Rear)
Select the speaker position you have fixed.
Controlling Audio
78
■Tweeter (Only for Front)
You can set the tweeter when you are
selecting front speakers.
None, Small, Medium, Large
■X’over
Displays the speaker crossover setup screen.
You can adjust the crossover setup that was
set automatically when you selected the
speaker type.
For details, see Crossover network setup
(P.78)
Ñ Crossover network setup
You can set a crossover frequency of speakers.
1 Touch [Xover].
2 Touch the speaker to set.
3 Set each item as follows.
■HPF FREQ
High Pass Filter adjustment. (When front or
rear speaker is selected on Speaker Select
screen)
■LPF FREQ
Low Pass Filter adjustment. (When subwoofer
is selected on Speaker Select screen)
■Slope*1
Sets a crossover slope.
■Gain
Adjusts the front speaker, rear speaker, or
subwoofer level.
■TW (Tweeter) Gain *2
Adjusts the tweeter level. (When front is
selected on Speaker Select screen)
■Phase Inversion*3
Sets the phase of subwoofer output.
Check [Phase Inversion] to shift the phase
180 degrees. (When subwoofer is selected
on Speaker Select screen)
*1 Only when “LPF FREQ”/“HPF FREQ” is set to
a mode other than “Through” in [Xover].
*2 Only when “Tweeter” is set to “Small”,
“Medium”, “Large” in [Speaker Setup].
*3 Only when “Subwoofer” is set to a mode
other than “None” in [Speaker Setup].
Controlling General Audio
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [Audio].
h Audio screen appears.
3 Touch [Fader / Balance].
4 Set each item as follows.
■Fader / Balance
Adjust the volume balance around the
touched area.
[C] and [D] adjust the right and left volume
balance.
[R] and [S] adjust the front and rear volume
balance.
■[Center]
Clear the adjustment.
Controlling Audio
79English
Equalizer Control
You can adjust equalizer by selecting the
optimized setting for each category.
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [Audio].
h Audio screen appears.
3 Touch [Equalizer].
4 Touch the screen and set the Graphic
Equalizer as desired.
■Gain level (dotted frame area)
Adjust the gain level by touching the each
frequency bar.
You can select frequency bar and adjust its
level by [R], [S].
■Preset Select
Displays the screen to recall the preset
equalizer curve.
■Memory
Saves the adjusted equalizer curve from
“User1” to “User4”.
■Initialize
The current EQ curve returns to flat.
■ALL SRC
Apply the adjusted equalizer to all sources.
Touch [ALL SRC] and then touch [OK] on the
confirmation screen.
■Bass EXT (Bass Extend Settings)
When turned on, the frequency lower than
62.5 Hz is set to the same gain level as 62.5
Hz.
■SW Level
Adjusts the subwoofer volume. This setting
is not available when subwoofer is set to
“None”. See Speaker/ X’over setup (P.77).
Ñ Recall the EQ curve
1 Touch [Preset Select].
2 Select EQ curve.
NOTE
• [iPod] is available only during iPod source.
Ñ Save the EQ curve
1 Adjust the EQ curve.
2 Touch [Memory].
3 Select where to save.
Controlling Audio
80
Volume Offset
Finely adjust the volume of the current source
to minimize the difference in volume between
different sources.
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [Audio].
h Audio screen appears.
3 Touch [Volume Offset].
4 Touch [+] or [−] to adjust the level.
■Initialize
Returns to the initial settings.
* If you have increased the volume first, then
reduced the volume using the “Volume
Offset”, the sound generated if you suddenly
switch to another source may be extremely
loud.
Zone Control
You can select different sources for both front
and rear positions in the vehicle.
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [Audio].
h Audio screen appears.
3 Touch [Zone Control].
h Zone Control screen appears.
4 Touch [Zone Select].
5 Touch [Dual Zone].
6 Set each source as follows.
■[Zone Select]
Touch [Single Zone] to turn off the dual
zone function.
■[Front Source] [Rear Source]
Select the audio source for each.
■[Rear VOL.]
Adjusts the rear source volume.
Controlling Audio
81English
NOTE
• When the rear speaker sound is switched, the
audio source that is output at the AV OUTPUT
terminal is also switched to the same source.
• When the dual zone function is set to on, the
following functions are not available.
– Output from the subwoofer
– Subwoofer Level/ Bass Boost (P.81)
– Equalizer Control/ Sound Effect/ Listening
Position (P.79, 81, 82)
– Speaker Setup (P.77)
– High-resolution Sound Source File Playback
• You cannot select iPod if it is connected via
Bluetooth.
• If you select USB, SD, iPod, Disc, Bluetooth audio,
Apple CarPlay or Android Auto as the Front
Source, you cannot select USB, SD or iPod as the
Rear Source.
Sound Effect
You can set sound effects.
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [Audio].
h Audio screen appears.
3 Touch [Sound Effect].
4 Set each item as follows.
■Bass Boost
Sets the amount of bass boost among “OFF”/
“1”/ “2”/ “3”.
■Loudness
Sets the amounts of boost of low and high
tones.
“OFF”, “Low”, “High”
■Drive Equalizer+
The sound quality is automatically optimized
to meet the current car speed by GPS.
“OFF”, “ON”
■Space Enhancer
Select the feeling of sound space
enhancement.
“OFF”/ “Small”/ “Medium”/ “Large”.
This setting is not available during HD Radio
tuner source.
■Supreme
Turns ON/OFF the Supreme function.
Technology to extrapolate and supplement
with proprietary algorithm, the high-
frequency range that is cut off when
encoding.
Controlling Audio
82
■Realizer
Virtually makes the sound more realistic
using the Digital Signal Processor (DSP)
system.
Select the level from “OFF”/ “1”/ “2”/ “3”.
■Stage EQ
You can adjust the height of speakers
virtually to suit your listening position.
“OFF”/ “Low”/ “Middle”/ “High”.

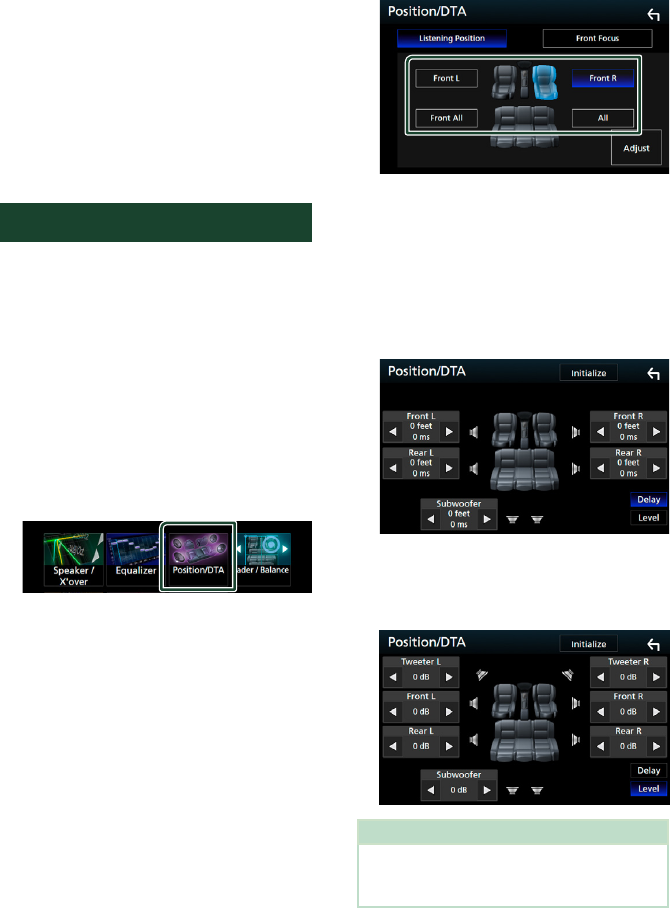

Listening Position/ DTA
Listening Position/DTA allows you to improve
the sound field depending on the position of
the seat you sit.
Listening Position/DTA allows you to set
“Listening Position” and “Front Focus”. You
cannot set both at the same time.
1 Press the [MENU] button.
h Popup menu appears.
2 Touch [Audio].
h Audio screen appears.
3 Touch [Position/DTA].
• Set up Listening Position (P.82)
• Set up Front Focus (P.83)
Ñ Listening Position
Adjust the sound delay time as nearer speakers
to the selected seat have more delay time,
so that the sound from each speaker arrive a
listener at the same time.
1 Touch [Listening Position] in the Position/
DTA screen.
2 Select listening position from [Front R]
(Right front), [Front L] (Left front),
[Front All] (All front), and [All].
Position DTA control
You can fine-adjust your listening position.
1 Touch [Adjust].
2 Touch [Delay].
3 Touch [T] or [U] to adjust the delay time of
the selected speaker.
4 Touch [Level].
5 Touch [T] or [U] to adjust the sound level
of the selected speaker.
NOTE
• To return to the initial setting of Delay and Level,
touch [Initialize] and [YES] in the confirmation
screen.
Controlling Audio
83English
Ñ Front Focus
This is the function to focus the imaginary
sound image in front of the selected seat.
1 Touch [Front Focus] in the Position/DTA
screen.
2 Select a front focus position.
For [Front All] and [All], select Priority L or R
depending on which side you want to put
the imaginary sound image.
Ñ Front Focus fine adjustment
1 Touch [Adjust].
2 Touch [Delay].
3 Set each item as follows.
■Sound Image LR (Front)
Adjust the sound image to focus on in front
of front seats.
■Sound Image LR (Rear)
Adjust the sound image to focus on in front
of rear seats.
■Size of the Virtual Sound Field
Adjust the size of sound image to meet your
taste. If the sound image is shifted from the
front, adjust it by [Sound Image LR (Front)]
or [Sound Image LR (Rear)].
■Subwoofer Delay
Adjust the delay time of subwoofer.
4 Touch [Level].
5 Touch [T] or [U] to adjust the sound level
of the selected speaker.
NOTE
• To return to the initial setting of Delay and Level,
touch [Initialize] and [YES] in the confirmation
screen.
Remote control
84
Remote control
This unit can be operated using the remote
control KNA-RCDV331 (optional accessory).
# CAUTION
• Put the remote control in a place where it will
not move during braking or other operations.
A dangerous situation could result, if the
remote control falls down and gets wedged
under the pedals while driving.
• Do not leave the battery near fire or under
direct sunlight. A fire, explosion or excessive
heat generation may result.
• Do not recharge, short, break up or heat the
battery or place it in an open fire. Such actions
may cause the battery to leak fluid. If spilled
fluid comes in contact with your eyes or on
clothing, immediately rinse with water and
consult a physician.
• Place the battery out of reach of children. In
the unlikely event that a child swallows the
battery, immediately consult a physician.
Battery Installation
If the remote control operates only over
shorter distances or does not operate at all, it
is possible that the batteries are depleted.
In such instances, replace the both batteries
with new ones.
1 Insert two “AAA”/“R03”-size batteries
with the and poles aligned properly,
following the illustration inside the case.
Remote control
85English

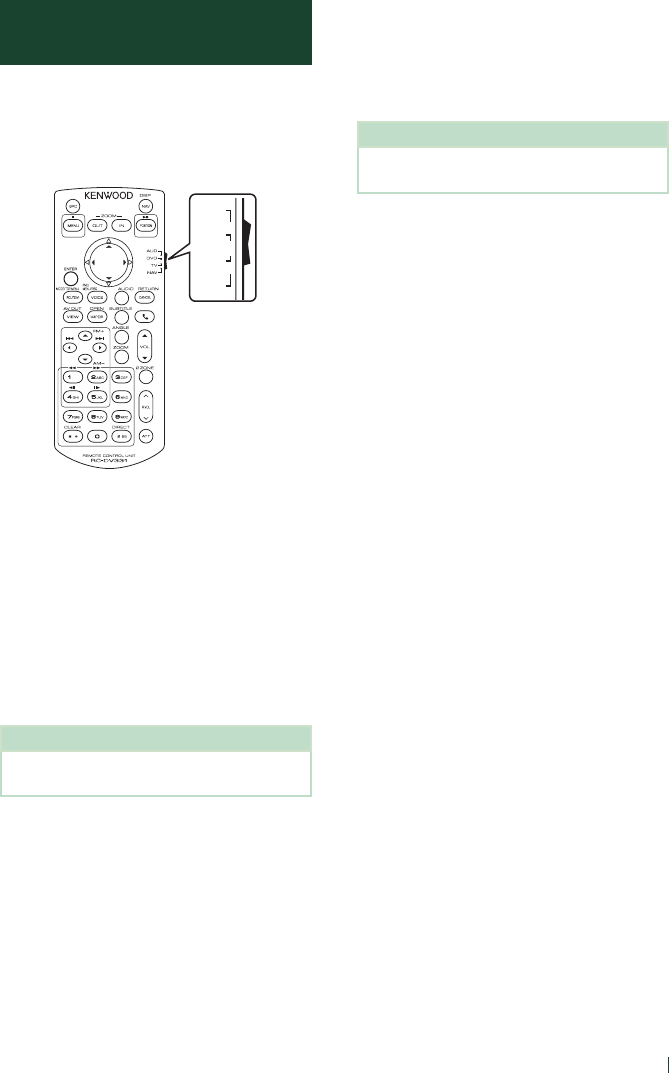

Functions of the Remote
control Buttons
Ñ Switch the operation mode
The functions operated from the remote
control differ depending on the position of the
mode switch.
DVD
TV
NAV
AUD
s
s
s
s
■AUD mode
Switch to this mode when controlling a
selected source or tuner source, etc.
■DVD mode
Switch to this mode when playing a disc
media including DVD, VCD, and CD.
■NAV mode
Switch to this mode when controlling
navigation function.
■TV mode
Not used.
NOTE
• When controlling a player that is not integrated in
the unit, select “AUD” mode.
Ñ Direct search mode
Using the remote control, you can jump
directly to the desired file, track chapter, etc.
with entering the number corresponding to
the content.
NOTE
• This operation cannot be performed for USB
device and iPod.
1 Press the [#BS] button several times until
the desired content appears.
The available contents are different
depending on the source.
■DVD
Title number/Chapter number
■VCD 1.X and 2.X (PBC OFF)
Track number
■VCD 2.X (PBC ON)
Scene number/Track number
■Music CD
Track number
■HD Radio tuner
Frequency value/Channel number
■SiriusXM
Channel number
2 Enter the number of the content you want
to play using the numeric keypad.
3 For DVD or VCD, music CD, press the
[ENTER] button.
For radio, press the [C] or [D] button.
h The content you entered is played.
Remote control
86
12
5
17
19
21
22
23
24
25
26
18
20
3
6
7
8
10
12
13
14
15
16
9
11
4
Key
Name
Mode
switch
Function
1
SRC AUD Switches to the source to be played.
In hands-free mode, hangs up the phone.
2
NAV −Switches between the navigation and the source screens.
3
MENU DVD Stops playing and memorizes the last point where the disc stopped. The last point
is deleted by pressing twice.
NAV Displays Main menu.
4
OUT, IN NAV Zooms in or out the navigation map.
5
POSITION AUD, DVD Pauses the track or file, and resumes playing by pressing twice.
During radio, HD Radio, and SiriusXM source in AUD mode, switches the seek
mode.
NAV Displays the current position.
6
Cursor Key DVD Moves the cursor in the DVD menu.
NAV Moves the cursor or scrolls the map.
7
ENTER AUD, DVD Performs the selected function.
NAV • Registers the selected position.
• Performs the selected function.
8
ROUTE M AUD Screen mode changes each time you press this key during video playback.
DVD Returns to the DVD top menu.
NAV Displays Route Option menu.
Remote control
87English
Key
Name
Mode
switch
Function
9
VOICE AUD Displays the control screen of current source. (USB, SD, iPod, DISC)
DVD Displays the DVD menu.
Turns the playback control on or off while playing VCD.
NAV Speaks the voice guidance.
10
VIEW AUD, DVD Switches the AV source to be output.
NAV Switches between 2D and 3D map displays.
11
MAP DIR AUD, DVD Switches the display angle each time it is pressed.
NAV Switches between the heading up navigation and north up navigation map
displays.
12
R/SAUD, DVD Selects the folder to be played.
During radio and HD Radio source in AUD mode, select FM/ AM band to be
received.
During SiriusXM source in AUD mode, switches the bands to be received.
13
C/DAUD, DVD Selects the track or file to be played.
During radio, HD Radio, and SiriusXM source in AUD mode, switches to broadcast
stations received by the unit.
14
Numeric
Keypad
AUD Specifies the number to search in direct search.
For details on the direct search mode, see Direct search mode (P.85).
DVD • Press [1] [2] to fast forward/backward.
• Press [4] [5] to slow forward/backward. Switches the slow playback speed each
time you press this key.*
*DVD only
15
* + DVD Clears the number.
16
# BS AUD, DVD Switches to the direct search mode.
For details on the direct search mode, see Direct search mode (P.85).
17
AUDIO DVD Switches the voice language each time you press this key.
18
CANCEL DVD Displays previous screen.
NAV Cancels the operations.
19
SUBTITLE DVD Switches the subtitle language.
20
−When a call comes in, answers the call.
21
ANGLE DVD Switches the picture angle each time you press this key.
22
Vol RS −Adjusts the volume.
23
ZOOM DVD Switches the zoom ratio (2, 3, 4, Off) each time you press this key.
24
2 ZONE AUD, DVD Switches the Dual Zone function on and off.
25
R.VOL −Adjusts volume at rear when the Dual Zone function is on.
26
AT T −Lowers the volume by pressing the key once.
Restores the previous volume by pressing the key twice.
Connection/Installation
88
Connection/Installation
Before Installation
Before installation of this unit, please note the
following precautions.
# WARNINGS
• If you connect the ignition wire (red) and
the battery wire (yellow) to the car chassis
(ground), you may cause a short circuit, that
in turn may start a fire. Always connect those
wires to the power source running through
the fuse box.
• Do not cut out the fuse from the ignition wire
(red) and the battery wire (yellow). The power
supply must be connected to the wires via
the fuse.
# CAUTION
• Install this unit in the console of your vehicle.
Do not touch the metal part of this unit during
and shortly after the use of the unit. Metal part
such as the heat sink and enclosure become
hot.
NOTE
• Mounting and wiring this product requires
skills and experience. For best safety, leave the
mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V
DC power supply.
• Do not install the unit in a spot exposed to
direct sunlight or excessive heat or humidity.
Also avoid places with too much dust or the
possibility of water splashing.
• Do not use your own screws. Use only the
screws provided. If you use the wrong screws,
you could damage the unit.
• If the power is not turned ON (“There is an
error in the speaker wiring. Please check the
connections.” is displayed), the speaker wire
may have a short-circuit or touched the chassis
of the vehicle and the protection function may
have been activated. Therefore, the speaker
wire should be checked.
• If your car’s ignition does not have an ACC
position, connect the ignition wires to a power
source that can be turned on and off with the
ignition key. If you connect the ignition wire to
a power source with a constant voltage supply,
such as with battery wires, the battery may be
drained.
• If the console has a lid, make sure to install the
unit so that the front panel will not hit the lid
when closing and opening.
• If the fuse blows, first make sure the wires
aren’t touching to cause a short circuit, then
replace the old fuse with one with the same
rating.
• Insulate unconnected wires with vinyl tape or
other similar material. To prevent a short circuit,
do not remove the caps on the ends of the
unconnected wires or the terminals.
• Connect the speaker wires correctly to the
terminals to which they correspond. The unit
may be damaged or fail to work if you share
the ¤ wires or ground them to any metal part
in the car.
• When only two speakers are being connected
to the system, connect the connectors either
to both the front output terminals or to both
the rear output terminals (do not mix front
and rear). For example, if you connect the ¢
connector of the left speaker to a front output
terminal, do not connect the ¤ connector to
a rear output terminal.
• After the unit is installed, check whether the
brake lamps, blinkers, wipers, etc. on the car
are working properly.
• Mount the unit so that the mounting angle is
30° or less.
• This unit has the cooling fan to decrease the
internal temperature. Do not mount the unit
in a place where the cooling fan of the unit is
blocked. Blocking these openings will inhibit
the cooling of the internal temperature and
result in malfunction.
Cooling fan
Connection/Installation
89English
• Do not press hard on the panel surface when
installing the unit to the vehicle. Otherwise
scars, damage, or failure may result.
• Reception may drop if there are metal objects
near the Bluetooth antenna.
Bluetooth antenna unit
Ñ Supplied accessories for
installation
1
x1
2
(Black 1 m)
x1
3
(Gray 1 m)
x1
4
(3 m)
x1
5 [1]
x2
6 [1]
x1
7 [1]
x4
8
(M5 x 8 mm)
x6
9
(M5 x 8 mm)
x6
0 [1]
x1
-
(3.5 m) x1
=
x1
[1] DNX994S only
Connection/Installation
90
Ñ Installation procedure
1) To prevent a short circuit, remove the key
from the ignition and disconnect the ¤
terminal of the battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the speaker wires of the wiring
harness.
4) Connect the wiring harness wires in the
following order; ground, battery, ignition.
5) Connect the wiring harness connector to the
unit.
6) Install the unit in your car.
7) Reconnect the ¤ terminal of the battery.
8) Perform the Initial Setup.
See Initial setup (P.9).
Installing the unit
Ñ Non-Japanese cars (DNX994S)
Bend the tabs of the
mounting sleeve
with a screwdriver
or similar utensil and
attach it in place.
Ñ Japanese cars
8 or 9
8 or 9
Car Bracket
NOTE
• Make sure that the unit is installed securely in
place. If the unit is unstable, it may malfunction
(eg, the sound may skip).
Ñ Trim plate (DNX994S)
1) Attach accessory 0 to the unit.
0
Connection/Installation
91English
●General Motors cars (DNX994S)
1) Cut out accessory 6 to meet the shape of the
opening of the center console.
2) Attach accessory 6 to the unit.
6
Cut out to meet the shape
of the opening in the
vehicle.
●Toyota/Scion cars (DNX994S)
1) Cut out accessory 6 as illustrated.
Cutting line
6
2) Fold double-sided adhesive (accessory 7)
along the slit and attach it to accessory 6
cut-out against the center rib as illustrated.
Use 2 pieces of accessory 7 for 1 accessory
6 cut-out.
3) Attach accessory 6 cut-out to the unit.
7
Ñ GPS antenna
GPS antenna is installed inside of the car. It
should be installed as horizontally as possible
to allow easy reception of the GPS satellite
signals.
To mount the GPS antenna inside your vehicle:
1) Clean your dashboard or other surface.
2) Remove the separator of the metal plate
(accessory =).
3) Press the metal plate (accessory =) down
firmly on your dashboard or other mounting
surface. You can bend the metal plate
(accessory =) to conform to a curved surface,
if necessary.
4) Remove the separator of the GPS antenna
(accessory -), and stick the antenna to the
metal plate (accessory =).
=
-
NOTE
• Depending on the type of car, reception of the
GPS satellite signals might not be possible with
an inside installation.
• Please install this GPS antenna in an area away
from any antennas that are used with CB radios or
satellite televisions.
• The GPS antenna should be installed at a position
that is spaced at least 12 inch (30 cm) from
cellular phone or other transmitting antennas.
Signals from the GPS satellite may be interfered
with by these types of communication.
• Painting the GPS antenna with (metallic) paint
may cause a drop in performance.
Connection/Installation
92
Ñ Microphone unit
1) Check the installation position of the
microphone (accessory 4).
2) Clean the installation surface.
3) Remove the separator of the microphone
(accessory 4), and stick the microphone to
the place shown below.
4) Wire the microphone cable up to the unit
with it secured at several positions using tape
or other desired method.
5) Adjust the direction of the microphone
(accessory 4) to the driver.
4
Fix a cable with a commercial item of tape.
Ñ Removing the trim plate
(DNX994S)
1) Engage the catch pins on the extraction key
(accessory 5) and remove the two locks on
the lower level.
Lower the trim plate (accessory 0) and pull it
forward as shown in the figure.
5
0
Lock
Catch
NOTE
• The trim plate can be removed from the top side
in the same manner.
2) When the lower level is removed, remove the
upper two locations.
Ñ Removing the unit (DNX994S)
1) Remove the trim plate by referring to step 1 in
"Removing the trim plate".
2) Insert the two extraction key (accessory 5)
deeply into the slots on each side, as shown.
5
3) Lower the extraction key toward the bottom,
and pull out the unit halfway while pressing
towards the inside.
NOTE
• Be careful to avoid injury from the catch pins on
the extraction key.
4) Pull the unit all the way out with your hands,
being careful not to drop it.
Connection/Installation
93English
Ñ Connecting wires to terminals
ILLUMI
ANT CONT
STEERING WHEEL
REMOTE INPUT
REMOTE CONT
PRK SW
REVERSE
P. CONT
CAM+
CAM–
Fuse (15A)
When using the optional power amplifier,
connect to its power control terminal. (Max.
200mA, 12V)
Depending on what antenna you are using,
connect either to the control terminal of the
motor antenna, or to the power terminal for
the booster amplifier of the film-type antenna.
(Max. 300mA, 12V)
Blue/White
(Power control wire)
Green/White
Green/Red
To CMOS-3xx series (Optional Accessory) camera
control terminal
Blue
(Antenna control wire)
To car light control switch
Orange/White
(Dimmer control wire)
Purple/White
(Reverse sensor wire) (2 m)
Light Blue/Yellow
(Steering remote control wire)
Connect to vehicle’s reverse lamp harness when
using the optional rear view camera.
To steering remote
To use the steering wheel remote control
feature, you need an exclusive remote
adapter (not supplied) matched to your car.
If no connections are made, do not let
the cable come out from the tab.
Purple/Black
To rear right speaker
To rear left speaker
To front right speaker
To front left speaker
Speaker impedance: 4-8 Ω
Purple
Green/Black
Green
Gray/Black
Gray
White/Black
White
Accessory 1
Connect to the vehicle’s
parking brake detection switch
harness. Light Green
(Parking sensor wire)
(2 m)
For best safety, be sure to
connect the parking sensor.
Ignition key switch
ACC Red
(Ignition wire)
Yellow
(Battery wire)
Car fuse box
Battery
Black
(Ground wire) ¤
(To car chassis)
Connection/Installation
94
Ñ Connecting the system and
external components
2
1
3 4
5678
10
11
12
9
1
AV Audio output (ø3.5 mini jack)
2
FM/AM antenna input
3
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Subwoofer Preout
(Left; White, Right; Red)
4
SiriusXM Connect Vehicle Tuner connector
5
iDatalink connector
6
AV-IN (CA-C3AV; Optional Accessory) input
7
Dashboard camera interface
Connect a Dashboard Camera DRV-N520
(optional accessory). (P.95)
8
Accessory -: GPS Antenna
9
Accessory 4: Bluetooth Microphone
10
Rear view camera input (Yellow)
11
Front view camera/ Dashboard camera input
(Yellow)
12
Visual Output (Yellow)
Ñ Connecting a USB device
USB device[2]
USB (Gray) terminal[1]
USB (Black) terminal[1]
Accessory 2 (Black) (1 m) [3]
Accessory 3 (Gray) (1 m) [3]
[1] USB maximum power supply current :
DC 5 V = 1.5 A
[2] Sold separately / Use CA-U1EX to extend the
cable if necessary. (Max 500 mA, 5V)
[3] See Securing the USB extension cable
(P.94).
Ñ Securing the USB extension
cable
Secure the USB extension cable with insulating
tape or the like so that its connectors are not
disconnected.
Connection/Installation
95English
Ñ Connecting an iPod/iPhone
●Lightning connector
KCA-iP103 (0.8m)[3]
KCA-iP103 (0.8m)[3]
iPod/iPhone[2]
iPhone (with CarPlay)[2]
USB (Gray) terminal[1]
USB (Black) terminal[1]
Accessory 2 (Black) (1 m) [4]
Accessory 3 (Gray) (1 m) [4]
[1] USB maximum power supply current :
DC 5 V = 1.5 A
[2] Sold separately
[3] Optional accessory
[4] See Securing the USB extension cable
(P.94).
Ñ Connecting an Android
smartphone
Micro USB to USB cable[2]
Android smartphone[2]
USB (Gray) terminal[1]
USB (Black) terminal[1]
Accessory 2 (Black) (1 m) [3]
Accessory 3 (Gray) (1 m) [3]
[1] USB maximum power supply current :
DC 5 V = 1.5 A
[2] Sold separately
[3] See Securing the USB extension cable
(P.94).
Ñ Connecting a Dashboard
camera
DRV-N520 [1]
Front view camera/
Dashboard camera input
(Yellow)
Dashboard camera interface
[1] Optional accessory
Troubleshooting
96
Troubleshooting
Problems and Solutions
If any trouble occurs, first check the following
table for possible problems.
NOTE
• Some functions of this unit may be disabled by
some settings made on this unit.
• What might seem to be a malfunction in your
unit may just be the result of slight misoperation
or miswiring.
Ñ About settings
• Cannot set up the subwoofer.
• Cannot set up subwoofer phase.
• No output from the subwoofer.
• Cannot set up the low pass filter.
• Cannot set up the high pass filter.
Subwoofer is not set to on.
hSet the subwoofer to on. See Speaker/ X’over
setup (P.77).
The dual zone function is enabled.
hSet the dual zone function to off. See Zone Control
(P.80).
• Cannot select the output destination of the
subsource in the dual zone.
• Cannot adjust the volume of the rear speakers.
The dual zone function is disabled.
hSet the dual zone function to on. See Zone Control
(P.80).
• Cannot set up the equalizer.
• Cannot set up the crossover network.
The dual zone function is enabled.
hSet the dual zone function to off. See Zone Control
(P.80).
Ñ About audio operations
Radio reception is poor.
The car antenna is not extended.
hPull out the antenna all the way.
The antenna control wire is not connected.
hConnect the wire correctly. See Connecting the
system and external components (P.94).
Cannot select a folder.
The random play function is enabled.
hTurn off the random function.
Cannot perform repeat play during VCD playback.
The PBC function is enabled.
hTurn off the PBC function.
The specified disc does not play, but another one
plays instead.
The disc is quite dirty.
hClean the disc. See Precautions on handling discs
(P.4).
The disc is severely scratched.
hTry another disc instead.
The sound skips when an audio file is being
played.
The disc is scratched or dirty.
hClean the disc. See Precautions on handling discs
(P.4).
The recording condition is bad.
hRecord the file again or use another disc.
Ñ Other
The Touch Sensor Tone doesn’t sound.
The preout jack is being used.
hThe Touch Sensor Tone cannot be output from the
preout jack.
Android smartphon operation is slow.
This occurs when multiple applications are started on
the Android smartphone.
hFor details, see Caution for Smartphone Users
(P.5).
Error Messages
When you fail to operate the unit correctly, the
cause of the failure appears as the message on
the screen.
here is an error in the speaker wiring. Please check
the connections.
Protective circuit has been activated because a speaker
cord has shorted or it has come in contact with the car
chassis.
hWire or insulate the speaker cord as appropriate and
turn the power off and on again.
Hot Error
When the internal temperature of this unit rises to 60°C
or more, the protection circuit is activated and you may
not be able to operate the unit.
hUse the unit again after reducing the temperature
of the unit.
Mecha Error
The disc player is malfunctioning.
hEject the disc and try inserting it again. Contact the
KENWOOD dealer if this indicator continues blinking
or the disc cannot be ejected.
Troubleshooting
97English
Disc Error
An unplayable disc is inserted.
hChange the disc. See Playable Media and Files
(P.98).
Read Error
The disc is quite dirty.
hClean the disc. See Precautions on handling discs
(P.4).
Disc is upside down.
hLoad the disc with the labeled side up.
Region Code Error
The disc you wanted to play has a region code that
cannot be played with this unit.
hSee Region Codes in the World (P.100) or try
another disc.
Error 07–67
The unit is not operating correctly due to some reason
or other.
hTurn the power off and on again. If the “Error 07−67”
message does not disappear, see your nearest
KENWOOD dealer.
No Device (USB device)
The USB device is selected as a source although no USB
device is connected.
hChange the source to any source other than USB/
iPod. Connect a USB device, and change the source
to USB again.
Disconnected (iPod, Bluetooth audio player)
The iPod/Bluetooth audio player is selected as a source
although no iPod/Bluetooth audio player is connected.
hChange the source to any source other than iPod/
Bluetooth. Connect an iPod/Bluetooth audio player,
and change the source to iPod/Bluetooth again.
No Media file
The connected USB device contains no playable audio
file. Media was played that doesn’t have data recorded
that the unit can play.
hSee Playable Media and Files (P.98) and try
another USB device.
USB device over current status detected.
The connected USB device is rated a current capacity
higher than the allowable limit.
hCheck the USB device. Some trouble may have
occurred to the connected USB device.
hChange the source to any source other than USB.
Remove the USB device.
Navigation Error. Please turn on power again later.
The communication error has occurred due to severely
cold temperature.
hTurn on power again after warming your car interior.
Ñ SiriusXM
Check Tuner
A SiriusXM tuner is not connected to this unit.
hVerify that the SiriusXM Connect Vehicle Tuner cable
is securely connected to the radio.
Subscription Updated - Press Return To Continue
The SiriusXM subscription has been renewed.
hPressing the Control knob will clear the message.
SXM Chan Unavailable
The currently selected channel is unavailable.
h—
SXM Ch Unsubscribed
The currently selected channel is not subscribed to.
h—
SXM Check Antenna
No antenna is connected to the SiriusXM tuner.
hCheck that an antenna is connected to the SiriusXM
tuner. Check antenna for damages.
SXM No Signal
No SiriusXM radio signal is received.
hVerify that your vehicle is outdoors with a clear view
of the sky.
Channel Locked
The selected channel has been locked by the parental
controls.
hEnter the unlock code when you are asked. See
Parental Control (P.54).
Incorrect Pass Code entered
The selected channel is a mature or parental lock
channel, and locked by the parental lock or user lock
code.
hEnter the correct lock code.
Appendix
98
Appendix
Playable Media and Files
You can play various kinds of media and files on this unit.
Ñ List of playable discs
Disc types / Standard Support Remark
DVD DVD Video v
DVD Audio ×
DVD-VR ×
DVD-R*1v• MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis/ MPEG1/ MPEG2/
MPEG4/ H.264/ WMV/ MKV playback
• Multi-border/Multisession playback (Playback depends on
authoring conditions)
DVD-RW v
DVD+R v
DVD+RW v
DVD-R DL (Dual layer) vOnly video format
DVD+R DL (Double layer) v
DVD-RAM ×
CD Music CD*1v
CD-ROM v• MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis playback
• Multisession is supported.
• Packet write is not supported.
CD-R v
CD-RW v
DTS-CD ×
Video CD (VCD) v
Super video CD ×
Photo CD ×
CD-EXTRA rOnly music CD session can be played.
HDCD rNormal music CD sound quality
CCCD ×
Others Dualdisc ×
Super audio CD rOnly CD layer can be played.
v : Playback is possible.
r : Playback is partly possible.
× : Playback is impossible.
*1 Incompatible with 8 cm (3 inch) discs.
■Use of DualDisc
When playing a “DualDisc” on this unit, the surface
of the disc that is not played may be scratched
while the disc is inserted or ejected. Since the music
CD surface does not conform to the CD standard,
playback may be impossible.
(A “DualDisc” is a disc with one surface containing
DVD standard signals and the other surface
containing music CD signals.)
■About disc format
The disc format should be the one of the
following.
• ISO 9660 Level 1/2
• Joliet
• Romeo
• Long file name
Appendix
99English
Ñ About files
The following audio, video, and picture files are supported.
■Playable Audio files
Format Bit rate Sampling frequency Bit count
AAC-LC (.m4a) MPEG2/4 AAC LC
HE-AAC(V1,V2)
8 – 320kbps, VBR 16 – 48 kHz 16 bit
MP3 (.mp3) MPEG 1/2 Audio Layer 3 8 – 320kbps, VBR 16 – 48 kHz 16 bit
WMA (.wma) Windows Media Audio
Standard L3 profile
(Version 7,8,9)
8 – 320kbps 16 – 48 kHz 16 bit
Linear PCM
(WAVE) (.wav)
RIFF waveform Audio
Format –16 – 48 kHz (Disc),
16 – 192 kHz (USB/ SD)
16/ 24 bit
FLAC (.flac) flac – 16 – 48 kHz (Disc),
16 – 192 kHz (USB/ SD)
16/ 24 bit
Vorbis (.ogg) vorbis VBR 16 – 48 kHz 16 bit
DSD (.dsf, .dff) DSF
DSDIFF
– 2.8 MHz, 5.6 MHz, 11.2 MHz 1 bit
NOTE
• If music of normal CD and other playback systems are recorded in the same disc, only the playback system
recorded at the first setout is played.
• WMA and AAC of which is covered with DRM cannot be played.
• DSD sound is converted to PCM sound before playback.
• The EmChinks tag of DSDIFF is not supported.
• Although the audio files are complied with the standards listed above, the play may be impossible depending on
the types or conditions of media or device.
■Acceptable Video files
Profile Max. Picture size Max. bit rate Audio format
MPEG-1 (.mpg, .mpeg) – 352 × 240, 352 × 288 1.5 Mbps MPEG Audio Layer 2
MPEG-2 (.mpg, .mpeg) MP@ML 720 × 480, 720 × 576 8 Mbps MPEG Audio Layer 2
H.264/MPEG-4 AVC
(.mp4, .m4v, .avi, .flv, .f4v)
Baseline Profile,
Main Profile
1920 × 1080 (30 fps) 8 Mbps MP3, AAC
MPEG-4 (.mp4, .avi) Advanced Simple
Profile
1920 × 1080 (30 fps) 8 Mbps MP3, AAC
WMV (.wmv) Main Profile 1920 × 1080 (30 fps) 8 Mbps WMA
MKV (.mkv) Video Format follows H.264/MPEG-4 AVC, MPEG-4, WMV MP3, AAC, WMA, Vorbis,
FLAC
■Limitation of structure for the file and the folder
Disc media USB device
Maximum number of folder layers 8 8
Maximum number of files (per folder) 999 999
Maximum number of folders (per folder) 5000 9999
Maximum number of folders (per device) 5000 –
NOTE
• You can enter a folder name and file name with 255 or fewer single-byte characters.
• Files in the folder whose folder name begins with a dot (.) cannot be played.
Appendix
100
Region Codes in the World
The DVD players are given a region code according to the country or area it is marketed, as shown in
the following map.
1
2
4
1
5
4
5
2
1
2
6
3
■DVD disc marks
ALL
Indicates a region number. The discs with this
mark can be played with any DVD player.
8
Indicates the number of audio languages
recorded. Up to 8 languages can be recorded in
a movie. You can select a favorite language.
32
Indicates the number of subtitled languages
recorded. Up to 32 languages can be recorded.
9
If a DVD disc has scenes shot from multiple
angles, you can select a favorite angle.
16:9 LB
Indicates the type of screen for the image. The
left mark indicates that a wide image picture
(16:9) is displayed on a standard TV set screen
(4:3) with a black band at both the top and
bottom of the screen (letter box).
■Operation regulatory marks
With this DVD, some functions of this unit
such as the play function may be restricted
depending on the location where the DVD is
playing. In this case, the following marks will
appear on the screen. For more information,
refer to the disc manual.
Prohibition Mark
■Discs with limited period of use
Do not leave discs with a limited period of use in
this unit. If you load an already expired disc, you
may not be able to remove it from this unit.
Appendix
101English
Code Language
aa Afar
ab Abkhazian
af Afrikaans
am Amharic
ar Arabic
as Assamese
ay Aymara
az Azerbaijani
ba Bashkir
be Byelorussian
bg Bulgarian
bh Bihari
bi Bislama
bn Bengali, Bangla
bo Tibetan
br Breton
ca Catalan
co Corsican
cs Czech
cy Welsh
da Danish
de German
dz Bhutani
el Greek
en English
eo Esperanto
es Spanish
et Estonian
eu Basque
fa Persian
fi Finnish
fj Fiji
fo Faroese
fr French
fy Frisian
ga Irish
gd Scots Gaelic
gl Galician
gn Guarani
gu Gujarati
ha Hausa
he Hebrew
hi Hindi
hr Croatian
hu Hungarian
hy Armenian
Code Language
ia Interlingua
ie Interlingue
ik Inupiak
id Indonesian
is Icelandic
it Italian
ja Japanese
jv Javanese
ka Georgian
kk Kazakh
kl Greenlandic
km Cambodian
kn Kannada
ko Korean
ks Kashmiri
ku Kurdish
ky Kirghiz
la Latin
lb Luxembourgish
ln Lingala
lo Laotian
lt Lithuanian
lv Latvian, Lettish
mg Malagasy
mi Maori
mk Macedonian
ml Malayalam
mn Mongolian
mo Moldavian
mr Marathi
ms Malay
mt Maltese
my Burmese
na Nauru
ne Nepali
nl Dutch
no Norwegian
oc Occitan
om (Afan) Oromo
or Oriya
pa Punjabi
pl Polish
ps Pashto, Pushto
pt Portuguese
qu Quechua
rm Rhaeto-Romance
Code Language
rn Kirundi
ro Romanian
ru Russian
rw Kinyarwanda
sa Sanskrit
sd Sindhi
sg Sangho
sh Serbo-Croatian
si Singhalese
sk Slovak
sl Slovenian
sm Samoan
sn Shona
so Somali
sq Albanian
sr Serbian
ss Siswati
st Sesotho
su Sundanese
sv Swedish
sw Swahili
ta Tamil
te Telugu
tg Tajik
th Thai
ti Tigrinya
tk Turkmen
tl Tagalog
tn Setswana
to Tongan
tr Turkish
ts Tsonga
tt Tatar
tw Twi
uk Ukrainian
ur Urdu
uz Uzbek
vi Vietnamese
vo Volapuk
wo Wolof
xh Xhosa
yo Yoruba
zh Chinese
zu Zulu
DVD Language Codes
Appendix
102
Specifications
■Monitor section
Picture Size
: 6.95 inches (diagonal) wide
: 156.6 mm (W) × 81.6 mm (H)
6-3/16 × 3-3/16 inch
Display System
: TN LCD panel
Drive System
: TFT active matrix system
Number of Pixels
: 1,152,000 (800H x 480V x RGB)
Effective Pixels
: 99.99 %
Pixel Arrangement
: RGB striped arrangement
Back Lighting
: LED
■DVD player section
D/A Converter
: 24/ 32 bit
Audio Decoder
: Linear PCM/ Dolby Digital/ MP3/ WMA/ AAC/ WAV/
FLAC/ Vorbis
Video Decoder
: MPEG1/ MPEG2/ MPEG4/ WMV/ H.264/ MKV
Wow & Flutter
: Below Measurable Limit
Frequency Response
• 96 kHz : 20 – 44,000 Hz
• 48 kHz : 20 – 22,000 Hz
• 44.1 kHz : 20 – 20,000 Hz
Total Harmonic Distortion
: 0.010 % (1 kHz)
S/N Ratio (dB)
: 90.5 dB
Dynamic Range
: 89 dB
Disc Format
: DVD-Video/ VIDEO-CD/ CD-DA
Quantifying Bit Number
: 16/ 20/ 24 bit
■USB interface section
USB Standard
: USB 2.0 High Speed
File System
: FAT 16/ 32, exFAT, NTFS
Maximum Power Supply Current
: DC 5 V 1.5 A × 2
D/A Converter
: 24/ 32 bit
Audio Decoder
: MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis/ DSD
Video Decoder
: MPEG1/ MPEG2/ MPEG4/ WMV/ H.264/ MKV
■SD
SD Standard
: SD / SDHC / SDXC
Compatible File System
: FAT 16/ 32, exFAT, NTFS
Capacity
: Maximum 2T Byte
Data Transfer Rate
: Maximum 24 Mbps
Audio Decoder
: MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis/ DSD
Video Decoder
: MPEG1/ MPEG2/ MPEG4/ WMV/ H.264/ MKV
Appendix
103English
■Bluetooth section
Technology
: Bluetooth Ver.3.0
Frequency
: 2.402 – 2.480 GHz
Output Power
: +4dBm (MAX), 0dBm (AVE), Power Class2
Maximum Communication range
: Line of sight approx. 10m (32.8 ft)
Audio Codec
: SBC/ AAC
Profile (Multi Profile support)
• HFP (V1.6) (Hands Free Profile)
• SPP (Serial Port Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (V1.5) (Audio/Video Remote Control Profile)
• PBAP (Phonebook Access Profile)
■DSP section
Graphics equalizer
Band: 13 Band
Frequency (BAND1 – 13)
: 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/
6.3k/ 10k/ 16k Hz
Gain
: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 dB
2Way X'Over
High pass filter
Frequency: Through, 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/
120/ 150/ 180/ 220/ 250 Hz
Slope: -6/-12/-18/-24 dB/Oct.
Low pass filter
Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/
150/ 180/ 220/ 250 Hz, Through
Slope: -6/-12/-18/-24 dB/Oct.
Position
Front / Rear /Subwoofer Delay
: 0 – 20.01 ft (0.03 or 0.04 ft Step)
Gain
: -8 – 0 dB
Subwoofer level
: -50 – +10 dB
■Digital FM tuner section
Frequency Range (step)
: 87.9 MHz – 107.9 MHz (200 kHz)
Frequency Response (± 3.0 dB)
: 20 Hz – 20 kHz
S/N Ratio
: 80 dB (STEREO)
■Digital AM tuner section
Frequency Range (step)
: 530 kHz – 1700 kHz (10 kHz)
Frequency Response (± 3.0 dB)
: 40 Hz – 15 kHz
S/N Ratio (dB)
: 80 dB (STEREO)
■FM tuner section
Frequency Range (step)
: 87.9 MHz – 107.9 MHz (200 kHz)
Usable Sensitivity (S/N : 30 dB)
: 9.3 dBf (0.8 μV/ 75 Ω)
Quieting Sensitivity (S/N : 50 dB)
: 10.2 dBf (1.13 μV/ 75 Ω)
Frequency Response
: 30 Hz – 15 kHz
S/N Ratio (dB)
: 75 dB (MONO)
Selectivity (± 400 kHz)
: Over 80 dB
Stereo Separation
: 45 dB (1 kHz)
■AM tuner section
Frequency Range (step)
: 530 kHz – 1700 kHz (10 kHz)
Usable Sensitivity
: 28 dBμ
Appendix
104
■Video section
Color System of External Video Input
: NTSC
External Video Input Level (mini jack)
: 1 Vp-p/ 75 Ω
External Audio Max Input Level (mini jack)
: 2 V/ 25 kΩ
Video Input Level (RCA jacks)
: 1 Vp-p/ 75 Ω
Video Output Level (RCA jacks)
: 1 Vp-p/ 75 Ω
Audio Output Level (mini jack)
: 1.2 V/ 10 kΩ
■Audio section
Maximum Power (Front & Rear)
: 50 W × 4
Typical Power Output (Front & Rear)
Full Bandwidth Power (at less than 1% THD)
: 22 W × 4
Output frequency band
: 20 – 88,000 Hz
Preout Level (V)
DNX994S
: 5 V/ 10 kΩ
DNX874S
: 4 V/ 10 kΩ
Preout Impedance
: ≤ 300 Ω
Speaker Impedance
: 4 – 8 Ω
■Navigation section
Receiver
: High-sensitivity GPS receiver
Reception Frequency
: 1575.42 MHz (C/A code)
Acquisition Times
Cold : 29 seconds (typ)
(All satellites at -130 dBm Without aiding)
Update Rate
: 1/second, continuous
Accuracy
Position: <2.5 meters, CEP, at -130 dBm
Velocity: 0.1 meter/sec
Position Method
: GPS
Antenna
: External GPS antenna
■General
Operating Voltage
: 14.4 V (10.5 – 16 V allowable)
Maximum Current Consumption
: 15 A
Installation Dimensions (W × H × D)
DNX994S
: 182 × 112 × 163 mm
7-3/16 × 4-7/16 × 6-7/16 inch
DNX874S
: 178 × 100 × 160 mm
7 × 3-15/16 × 6-5/16 inch
Operational Temperature Range
: -10 °C – +60 °C
Weight
: 2.5 kg (5.51 lbs)
NOTE
• Although the effective pixels for the liquid crystal
panel is given as 99.99% or more, 0.01% of pixels
may not light or may light incorrectly.
Specifications subject to change without notice.
Appendix
105English
About this Unit
■Copyrights
• The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by JVC KENWOOD Corporation is
under license. Other trademarks and trade names are
those of their respective owners.
• Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio and the double-D symbol are
trademarks of Dolby Laboratories.
• is a trademark of DVD Format/Logo
Licensing Corporation registered in the U.S., Japan
and other countries.
• This item incorporates copy protection technology
that is protected by U.S. patents and other
intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are prohibited.
• The “AAC” logo is a trademark of Dolby Laboratories.
• “Made for iPod” and “Made for iPhone” mean that an
electronic accessory has been designed to connect
specifically to iPod, or iPhone, respectively, and
has been certified by the developer to meet Apple
performance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that the
use of this accessory with iPod, or iPhone may affect
wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch
are trademarks of Apple Inc., registered in the U.S.
and other countries.
• Apple, Siri, Apple CarPlay and Apple CarPlay logo are
trademarks of Apple Inc., registered in the U.S. and
other countries.
• Sirius, XM and all related marks and logos are
trademarks of Sirius XM Radio Inc. All rights reserved.
• HD Radio Technology manufactured under license
from iBiquity Digital Corporation. U.S. and Foreign
Patents. HD Radio™ and the HD, HD Radio, and “Arc”
logos are proprietary trademarks of iBiquity Digital
Corp.
• INRIX is a registered trademark of INRIX, Inc.
• PANDORA, the PANDORA logo, and the Pandora
trade dress are trademarks or registered trademarks
of Pandora Media, Inc., used with permission.
• SPOTIFY and the Spotify logo are among the
registered trademarks of Spotify AB.
• Android, Android Auto, Google Play and other marks
are trademarks of Google Inc.
• BlackBerry®, RIM®, Research In Motion® and related
trademarks, names and logos are the property of
Research In Motion Limited and are registered and/
or used in the U.S. and countries around the world.
Used under license from Research In Motion Limited.
• SDXC and microSDXC Logos are trademarks of
SD-3C, LLC.
• THIS PRODUCT IS LICENSED UNDER THE AVC
PATENT PORTFOLIO LICENSE FOR THE PERSONAL
USE OF A CONSUMER OR OTHER USES IN WHICH IT
DOES NOT RECEIVE REMUNERATION TO (¡)ENCODE
VIDEO IN COMPLIANCE WITH THE AVC STANDARD
(“AVC VIDEO”) AND/OR (¡¡)DECODE AVC VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED
FROM A VIDEO PROVIDER LICENSED TO PROVIDE
AVC VIDEO. NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA,
L.L.C. SEE HTTP://WWW.MPEGLA.COM
• THIS PRODUCT IS LICENSED UNDER THE MPEG-
4 VISUAL PATENT PORTFOLIO LICENSE FOR
THE PERSONAL AND NON-COMMERCIAL USE
OF A CONSUMER FOR (¡) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD
(“MPEG-4 VIDEO”) AND/OR (¡¡) DECODING MPEG-
4 VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL
ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED BY MPEG LA TO PROVIDE
MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION INCLUDING THAT RELATING TO
PROMOTIONAL, INTERNAL AND COMMERCIAL USES
AND LICENSING MAY BE OBTAINED FROM MPEG LA,
LLC. SEE HTTP://WWW.MPEGLA.COM.
• THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT
PORTFOLIO LICENSE FOR THE PERSONAL AND NON-
COMMERCIAL USE OF A CONSUMER TO ( i ) ENCODE
VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD
(“VC-1 VIDEO”) AND/OR ( ii ) DECODE VC-1 VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL AND NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM A VIDEO PROVIDER
LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FOR ANY OTHER
USE. ADDITIONAL INFORMATION MAY BE OBTAINED
FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.
COM
Appendix
106
• libFLAC
Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2
007,2008,2009 Josh Coalson
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
• libvorbis
Copyright (c) 2002-2008 Xiph.org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
• libogg
Copyright (c) 2002, Xiph.org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
Appendix
107English
■FCC WARNING
This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless
the modifications are expressly approved in the
instruction manual. The user could lose the authority to
operate this equipment if an unauthorized change or
modification is made.
NOTE
• This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation.
• This equipment may cause harmful interference
to radio communications, if it is not installed
and used in accordance with the instructions.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
# CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
In compliance with Federal Regulations, following
are reproductions of labels on, or inside the product
relating to laser product safety.
JVC KENWOOD Corporation
2967-3, ISHIKAWA-MACHI,
HACHIOJI-SHI, TOKYO, JAPAN
THIS PRODUCT COMPLIES WITH DHHS RULES
21 CFR SUBCHAPTER J IN EFFECT AT DATE OF
MANUFACTURE.
Location: Bottom plate (DNX994S)
Top plate (DNX874S)
■IC (Industry Canada) Notice
This device complies with Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of
the device.
The term “IC: ” before the certification/ registration
number only signifies that the Industry Canada
technical specification were met.
# CAUTION
This equipment complies with FCC/IC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF)
Exposure Guidelines in Supplement C to OET65 and
RSS-102 of the IC radio frequency (RF) Exposure rules.
This equipment has very low levels of RF energy that
it deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it
should be installed and operated keeping the radiator
at least 20cm or more away from person’s body
(excluding extremities: hands, wrists, feet and ankles).
Under Industry Canada regulations, this radio
transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication.
• Contains Transmitter Module
FCC ID: ZWY8811X
• Contains Transmitter Module
IC: 12033A-8811X
■CALIFORNIA, USA
This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material – special handling
may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Appendix
■Información acerca de la eliminación
de equipos eléctricos y electrónicos
al final de la vida útil (aplicable a los
países que hayan adoptado sistemas
independientes de recogida de
residuos)
Los productos con el símbolo de un contenedor con
ruedas tachado no podrán ser desechados como
residuos domésticos.
Los equipos eléctricos y electrónicos al final de la vida
útil, deberán ser reciclados en instalaciones que puedan
dar el tratamiento adecuado a estos productos y a sus
subproductos residuales correspondientes. Póngase
en contacto con su administración local para obtener
información sobre el punto de recogida más cercano.
Un tratamiento correcto del reciclaje y la eliminación
de residuos ayuda a conservar los recursos y evita al
mismo tiempo efectos perjudiciales en la salud y el
medio ambiente.
■Informação sobre a eliminação de
pilhas
Este produto não deve ser eliminado como lixo
doméstico geral. Devolva a pilha usada ao revendedor
ou entidade autorizada para que a mesma seja
devolvida ao fabricante ou importador.
A reciclagem e a eliminação de lixo de maneira
apropriada ajudarão a conservar os recursos naturais ao
mesmo tempo que prevenirão os efeitos prejudicais à
nossa saúde e ao meio ambiente.
■Para cumplimiento de la IFT:
“La operación de este equipo esta sujeta a las
siguientes dos condiciones:
(1) es posible que este equipo o dispositivo no
cause interferencia perjudicial y
(2) este equipo o dispositivo debe aceptar
cualquier interferencia,
incluyendo la que pueda causar su operación no
deseada.”

Navigation menu
