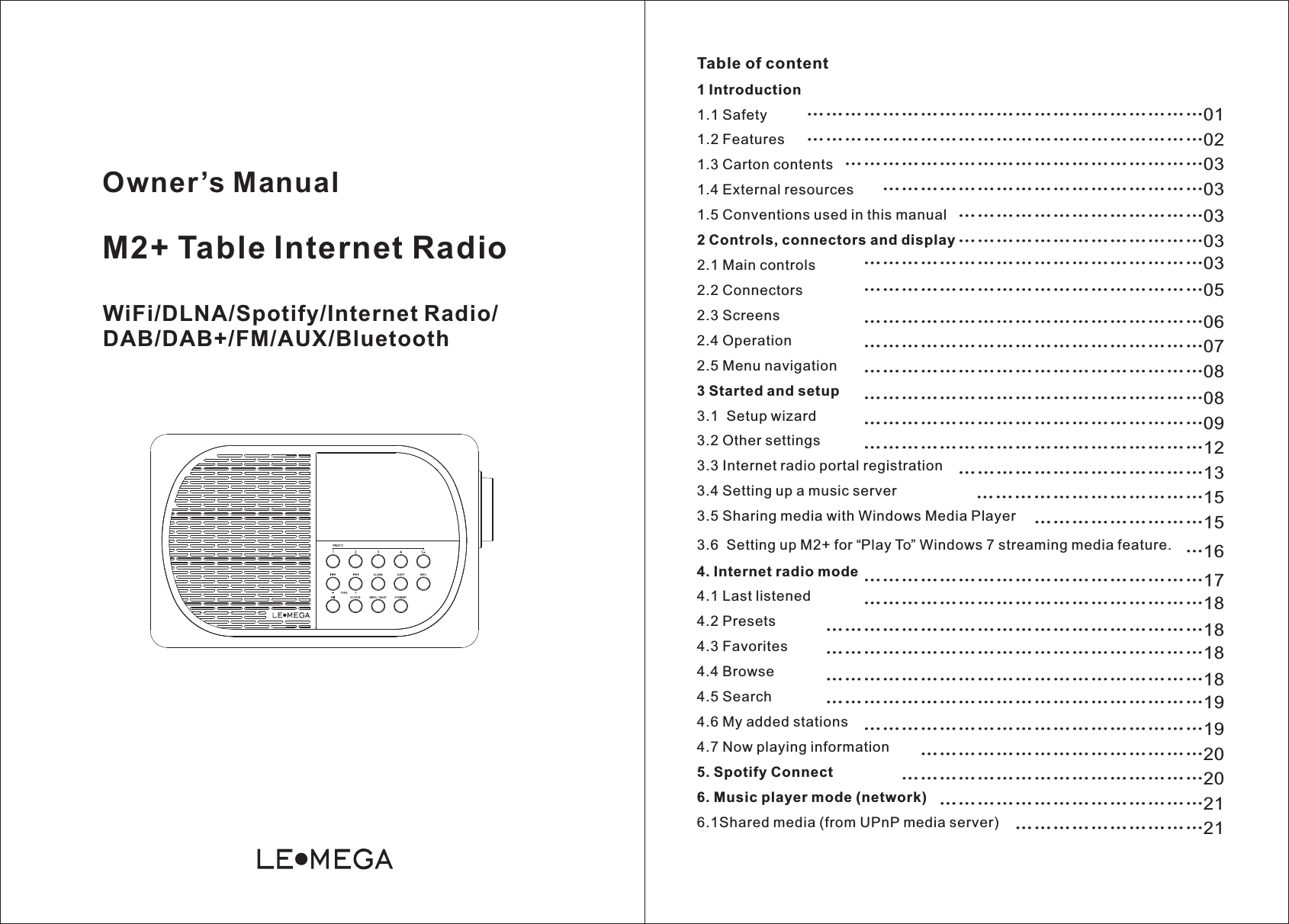

Owner’s Manual WiFi/DLNA/Spotify/Internet Radio/DAB/DAB+/FM/AUX/BluetoothM2+ Table Internet RadioTable of content1 Introduction1.1 Safety1.2 Features1.3 Carton contents1.4 External resources1.5 Conventions used in this manual2 Controls, connectors and display2.1 Main controls2.2 Connectors2.3 Screens2.4 Operation2.5 Menu navigation3 Started and setup3.1 Setup wizard3.2 Other settings3.3 Internet radio portal registration3.4 Setting up a music server3.5 Sharing media with Windows Media Player3.6 Setting up M2+ for “Play To” Windows 7 streaming media feature.4. Internet radio mode4.1 Last listened4.2 Presets4.3 Favorites4.4 Browse4.5 Search4.6 My added stations4.7 Now playing information5. Spotify Connect6. Music player mode (network)6.1Shared media (from UPnP media server)…… …………………………………01…………………… …………………………………02…………………… …………………………………03……………… …………………………………03………… ………………………03………… ………………………03………… … ………………………………03…… ……… … ………………………………05…… ……… …………………………………06…………… …………………………………07…………… …………………………………08…………… …………………………………08…………… … ………………………………09…… ……… …………………12…………………………… …………………13…………… … ……………15……… ………15………………………16…… …… ………………………18…… …………… …… ………………………17…… …………… …… ……………………………18…… …………… …… ……………………………18…… …………… …………………………18………………………… …… ……………………………19…… …………… … …………………19…… …………………… … …………………20…… …………… ………………20………………………… …………………………21………………………………21
6.2 USB playback6.3 Playlists6.4 Repeat/shuffle6.5 Now playing information7 Using the “Play To” feature in Windows 7 to stream media7.1 Use “Play To” in Windows Media Player7.2 Use “Play To” elsewhere in Windows 77.3 Now playing information8 DAB radio mode8.1 Scanning for stations8.2 Selecting stations8.3 Now playing information8.4 Settings9 FM radio mode9.1 Selecting stations9.2 Now playing information9.3 Settings10 Aux mode11 Bluetooth mode12 Alarms and sleep12.1 Alarms12.2 Sleep13 Software upgrade and factory reset13.1 Software upgrade13.2 Factory reset14 Troubleshooting and error messages14.1 Error messages14.2 Troubleshooting15 Technical Specification…… ………………………………23………………… ………………………………23………………… ………………………………24………………… ………………………………24…………24…………………………24……………………………25…… ………………………………25………… ………………………………25………………… …………………………26………………… ……………………………26………………… ………………………………27………… ………………………………27………………… ………………………………27………………… ………………………………28………………………………………………28…… ………………………………28………………… ………………………………28………………… ………………………………29………………… ………………………………30……………… ………………………………30………………… ………………………………31………………… ………31………………… …………………………31………………… ………………………………31………………… ………32………………… ……………………………32………………… ……………………………33………………… ………………………35……………1. Safety 1.1 Safety InstructionsPlease store this instruction manual for future reference.ŸWARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus. ŸWARNING: The direct plug-in adapter is used as disconnect device, the disconnect device shall remain readily operable.ŸThis lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.ŸWarning: To reduce the risk of electric shock, do not remove cover(or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.ŸThe exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. Ÿ Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. ŸNo naked flame sources, such as lighted candles, should not be placed on the apparatus.ŸDo not use this product near water or moisture.ŸClean only with a dry cloth.ŸUnplug this product from the wall outlet before cleaning. ŸPlace th unit on a solid surface. 1 of 35
3 of 35ŸDo not put it in a closed bookcase or a cabinet that may keep air from flowing through its ventilation openings.ŸDo not install near any heat sources, such as radiators, heat registers, stoves or other appliances that produce heat.ŸProtect the power cord from being walked on or pinched, particularly at plugs and the point where they exit from the product.ŸServicing is required when the product has been damaged. Do not attempt to service this product yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please contact the manufacturer to be referred to an authorized service center near you.ŸTo prevent risk of fire or electric shock, avoid over loading wall outlets, extension cords, or integral convenience receptacles.ŸDo not let objects or liquids enter the product.ŸUse proper power sources. Plug the product into a proper power source, As described in the operating instructions or as marked on the product.1.2 FeaturesThis manual describes how to use the M2+, an advanced but easy-to-use Wi-Fi connected audio system with the following modes:ŸInternet Radio with access to over 20,000 stations by wifi streaming or Wired Ethernet connected, 'Listen again' broadcasts and podcasts. ŸSpotify acting as wireless speakers controlled by the Spotify App available for iOS/Android smart devices and a desktop client for PCs. ŸMusic player allowing easy navigation and playback through a USB or network-stored library of music files including AAC+, MP3, WMA, WAV, and FLAC. Play To feature allowing media to be pushed from a PC running Windows 7 to M2+.ŸDAB/DAB+digital radio with a wide choice of channels and digital quality sound broadcast free-to-air. ŸFM with RDS (Radio Data System).ŸBluetooth: streaming music and control from smart device.• USB port: to play the MP3 music from USB stick storage device.• Aux in or external MP3 music sources from iPod/iPad or other Mp3 players M2+ also provides the following features:ŸLarge TFT color display for easy control and clear information display.ŸUNDOK the Frontier Silicon Remote Control App to control the playback. ŸClock with auto-update capability and dual independent alarms Sleep/snooze.ŸMultiple network profiles for easy setup and portability. ŸMultiple languages.1.3 Carton contentsAfter you unpack the box, you will find the following itemsŸ1 M2+ unitŸ1 DC14V 1.5A power adapterŸ1 owner's manualŸ1 gloves1.4 External resources To operate M2+, the following external resources are needed: ŸA power source (100-240 V mains supply)ŸA wireless (Wi-Fi) network (provided through a router) with Appropriate permissions and password if necessary (for Internet radio and Network Music player modes)ŸBroadband Internet access (for Internet radio mode and Spotify mode and Internet Software Update)ŸA music library stored on the network or on a USB mass storage device (for Music player modes), ŸAn iOS or Android device (for using control apps).ŸAn external audio source (for Aux in mode)1.5 Conventions used in this manualButton (press) Physical button on the keypadOption (select) Menu option shown on the displayName Menu, screen or other name2. Controls, connectors and display 2.1 Main controlsRemote control from an Android or iOS Smart Device, using Spotify App or 2 of 35
5 of 354 of 351. SELECT/ VOLUME/MUTE/SNOOZE: a. SELECT: Turn to scroll through a menu or station list. The chosen option is highlighted), Press to the button to select. b. VOLUME: Turn to the button to adjust the volume up or down whenplayback. c. MUTE: Press to the button to mute the music when playing. d. SNOOZE: Press the button to snooze a set time when alarm sounding.e. FULL SIDESHOW: Long press the button to switch normal playing screen image to full screen slide show image.2. STANDBY: Turn on or back to standby mode (showing clock and date) or cancel sleep or cancel alarm function.3. SLEEP: When playing, press Sleep, M2+ will back to set sleep time. When playing, opens the sleep menu to set the time interval before the unit is set to Standby mode. When alarm is sounding, allows you to set the snooze interval.4. SOURCE: Press to Source to select different modes internet radio, Spotify, My music, DAB, FM, Bluetooth and Aux.5. ALARM: Press to Alarm, the screen will display Alarm 1 and Alarm 2; then Rotate and press the SELECT button to select alarm 1 or alarm 2 to set up.6. INFO: View more information about the station or track playing. Press again to cycle through further information screens then return to the normal Now playing screen.7. BACK/MENU: a. BACK: press the BACK to return to the previous screen.b. MENU: press the MENU to show the MENU for the current mode. Press again to show now playing screen.8. PRESET: Long press 1,2,3,4,5+ to preset and save the favorite stations (save 20 favorite stations); Short Press to 1,2,3,4,5+ to select the favorite station or Preset recall. You can preset 20 stations by press 5+ and by scroll the preset list to achieve. 9. TUNE-/ : Previous: Press to select the previous track under FM/DAB / Bluetooth mode; Press and hold the Tune- button 2 seconds to auto-scan the stations under the FM mode.10. TUNE+/ : Next: Press to select the next track under FM/DAB/ Bluetooth mode; Press and hold the Tune+ button 2 seconds to auto-scan the stations under the FM mode.11. : Press to select Play/Pause under internet radio, Spotify, My music and BT mode. In Fmmode, press to do auto scan the stations. 2.2 Connectors As shown below has connectors (from left to right)for the followings: u; 18243510679 11M2+ Table internet radio11 4 523 6 78
6 of 35 7 of 352.3 Screens ŸThe screen shows various menus, dialogues and displays as described below. There are basically six types of screens:ŸStandby (clock) ŸSplash (mode) ŸNow playingŸDialogueŸError/InformationŸMenuWhere there is more text than can be fitted onto a screen, the text automatically scrolls right to left after a brief pause.The Standby screen shows the time, date and any active alarm times.A splash screen is displayed for each mode. Press source to cycle through the listening modes.ŸNow playing screens show information about the audio source and track now playing, where available.Dialogue screens are shown to allow the user to change settings. They vary in complexity from simple Yes/No options up to the scrollable network passphrase input screen. The selected option is highlighted with a yellow background. Dialogue screens mark the currently saved setting with an asterisk (*).Error/Information screens give specific messages for a few seconds, then change automatically to the next screen.Menu Screens – for details of menu screens see Section 2.5 Menu.2.4 Operation After the initial setup, M2+ is ready for operating in most Modes. To select a Mode, press source until the required Mode splash screen is displayed. After a brief moment M2+ switches to that mode. The last station or track previously used in that mode is selected. If this is not possible, M2+ scans for relevant stations, networks, or prompts the user for appropriate 1.DC power in (14V)2.Power switch (ON/OFF)3.LAN for Ethernet connect4.USB socket for USB stick with MP3 music playback (not for charging).5.Headphones out. 6.Line out (to connect to an external amplifier)7.Aux in (to connect external media like iPod)8.Battery compartment: open compartment to find the Battery.
8 of 35 9 of 35input. See the relevant Mode section for details of how to use each listening mode. The Common local controls for sound volume, Mute and Play/Pause are available in all listening modes. 2.5 Menu navigation The primary control for moving through menus and options is the Select Control. Rotate the control to move up or down a menu. Once the required option or value is highlighted press the Select Control. All menus and lists act as loops such that turning the control to go beyond the first or last entry in a menu or list takes you to the opposite end of the menu or list. So going up from the first entry in a menu will take you to the last option in the menu, etc. A “>” appears on the right of the screen if there are more options above or below those visible.To enter the menu tree in a particular mode press Menu. To move back a menu level press Back . To exit the menu system, press Menu again. Each mode has a Mode menu, with options specific to that mode. For example, the FM mode menu has two mode specific options: Scan setting and Audio setting. In addition, each mode menu has two final options: System settings > and Main menu >. The ">" indicates options leading to further menus.The System settings menu presents system setting functions to allow the user to setup how the unit behaves. This includes Equalizer, network ,time/date, language, factory reset and software update. The Main menu presents an alternative method for selecting listening modes plus sleep and alarm functions.3. Started and setup M2+ is easy to use. To play DAB or FM radio, all you need is a power source (a 100-240 V mains supply); For Music Player mode, you need a wired/wireless Ethernet network and a UPnP music server (e.g. a PC). For Internet -connected modes such as Internet radio, you also need a broadband Internet connection.3.1 Setup wizardWhen M2+ is started for the first time, it runs through a setup wizard to configure settings for date/time and network. Once this has finished, the system is ready to use in most modes. Note: To change these settings later, select Menu > System settings >. To run the setup wizard again, select Menu > System settings > Setup wizard. Select Yes to start the setup wizard. If you choose No, the next screen asks if you would like to run the wizard next time M2+ is started. The system then starts without configuring time/date and network settings and enters the Main Menu.Note: If power is removed while the wizard is in progress, the wizard will run again next time M2+ is started.3.1.1 12/24 hour display To change between 12 and 24 hour display, select Set 12/24 hour and then select your preference.3.1.2 Set Time/Date (wizard)The date and time are displayed as dd-mm-yyyy and hh:mm AM/PM with the first value, dd, active (flashing). Adjust each value with the Select control. As each value is set by pressing the Select control, the next value becomes active ready for adjustment.Auto-update Auto-update works with data sent over DAB, FM or the Internet. The clock is only updated when in a corresponding mode, so it is best to select a mode you
11 of 3510 of 35use regularly. DAB and FM use time signals broadcast with radio transmissions. Network uses a time signal sent from the Internet radio portal when in anynetwork-connected mode.1.Select Update from DAB, Update from FM, Update from Network or Noupdate.2. If you are updating from the network, set your time zone.3. If your country uses daylight saving, the automatically updated time from the network may be wrong by one hour. When daylight savings are in effect (during the winter), turn on the Daylight savings option to rectify this. Note that if you are updating the time from DAB or FM, the Daylight savings option has no effect on the clock's time. M2+ will auto-update from the selected source when time information is available. Manual set If you set No update, the wizard now prompts you to set the time and date manually. The date and time are displayed as dd-mm-yyyy and hh:mm AM/PM with the first value, dd, active (flashing). Adjust each value with the Select control. As each value is set, the next value becomes active and flashes.3.1.3 Network M2+ is compatible with all common network protocols and encryption methods, including Wi-Fi Protected Setup (WPS). To connect M2+ to your network, you need a Wi-Fi wireless router, together with password key if set Select WLAN region/country >Wi-Fi network (SSID), and then select a network from the list. If the network is open (non-encrypted), M2+ connects and no further details are required; see Completion below.Standard encrypted network To enter the network’s key (password), use the Select control to highlight the next relevant character and press to select each character in turn. As each character is selected, the key is built up near the top of the display. The three options – Backspace, OK and Cancel are included in the selection loop. These can be accessed just using the Select control, or, a short cut Isavailable, pressing the Info key, which moves the selection highlight to theBack Space option. WPS setup WPS encrypted networks are identified by ‘[WPS]’ at the start of the network name, and have two methods of connection. Select one and follow the prompts. When using the network wizard an additional option to Skip WPS is available. Select one and follow the prompts:Push Button M2+ prompts you to press the connect button on the router. It then press the select control.
12 of 35 13 of 35ŸPin > (code number)M2+ generates an 8-digit code number which you enter into the wireless router, access point.ŸSkip WPS >Enter key as for a standard encrypted network, above. For more information on setting up a WPS encrypted network, see your WPS router’s instructions.On completionM2+ connects to the selected network. If connecting fails, M2+ returns to a previous screen to try again. To exit the process use the Back/Menu button.3.2 Other settings Sections for those modes. Common settings are covered below. 3.2.1 Equalizer Several preset EQ modes are available; also a user-defined setting (My EQ). To choose an EQ setting, select Menu >System settings > Equalizer. You canthen choose from a variety of preset modes and My EQThe last option ‘My EQ profile setup’ allows you to define your own settingsfor the ‘My EQ’ option, with custom bass, and treble settings. 3.2.2 NetworkM2+ remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. You can3.2.3 Language The default language is English. To change, select Menu > System settings > Language >then select your language.3.2.4 Connection your smartphone with the radio via UNDOK APP To connect your Smartphone with M2+ you need to download the free app “UNDOK“ from Apple Store or Google Play Store. IMPORTANT: The phone must be in the same wireless network as the music system. ŸDownload the app and open it. ŸThe app automatically searches for available devices. Select “LEMEGA M2+” from the list. ŸOpen SOURCE to choose between different input signals. ŸOpen BROWSE to get a list of available stations. Select the desired station.ŸOpen NOW PLAYING to get more information about the channel. ŸOpen the settings to adjust the equalizer, set sleep timer and other functions easily. 3.3 Internet radio portal registration M2+ uses the Frontier Silicon Internet radio portal website that allows you to organize your favorite's lists and also listen to Internet radio on a computer.see the list of registered networks through Menu > System settings >Network > Network profile >From here you can delete unwanted networks by turning and pressing Select then confirming delete Yes. There are also other options for viewing and manually altering network settings from Menu > System settings > Network > (for example setting up a wired network).Users experienced with networking may find these options useful for diagnosing and fixing network problems.
14 of 35 15 of 35Ÿaccess code, Ÿyour e-mail address, Ÿpassphrase, Ÿradio model (M2+).If you already have an account and wish to add an additional radio, log in to your account and select My preferences > Add another Wi-Fi radio. Once your radio is registered with the portal, you can immediately use the Internet radio favorites and added stations features.3.4 Setting up a music serverIn order for M2+ to play music files from a computer, the computer must be set up to share files or media. UPnP media sharing allows devices like M2+ to play music from a shared media library navigating through tag menus such as Artist, Album or Genre. If you are running a suitable server system such as a PC with Windows Media Player 10 or later (WMP), and your music library is well-tagged, then it is recommended to use media sharing. Only the UPnP server needs to be set up. Notice: iTunes does not currently work as a UPnP media server, but there are add-ons available to work with an iTunes library.3.5 Sharing media with Windows Media Player The most common UPnP server is Windows Media Player (10 or later). Alternatively, other UPnP platforms and servers may be used. To set up WMP for media sharing, perform the following steps: 1.Ensure that the PC is connected to the network.2.Ensure that the radio is powered on and connected to the same network.3.In WMP, add to the media library the audio files and folders you want to share with M2+ (Library > Add to Library)4.In WMP, enable media sharing (Library > Media sharing).Notice: setup can differ depending on which version of WMP you have.Notice: it may show; M2+, “Unknown device”, “Frontier Silicon” or the Jupiter logo as shown below.To register your M2+ with the portal, switch to Internet radio mode and then obtain your radio's unique portal access code by selecting Menu >Station list > Help > Get access code >Write down the access code.Note: The displayed access code is only valid for a few minutes. If you fail to register your radio within the time window you will need to repeat the above step to get a new access code and try again. Do not confuse the portal access code with the Radio ID (from Menu > System settings > Info.) Visit the portal website at www.wifiradio-frontier.com. If this is your first visit to the portal, register for a new account, entering the following information:
16 of 35 17 of 34Make sure that the radio has access to the shared media by selecting it and clicking Allow.You can also set a name for the shared media in Settings… Click OK to close the dialogue boxes.The PC is now ready to stream the music to the radio. The WMP UPnP service runs in the background; there is no need to start WMP explicitly.3.6 Setting up M2+ for “Play To” Windows 7 streaming media feature.To set-up M2+ to be controlled and to stream music via Windows Media Player 12 (Windows 7 only), perform the following steps: 1. Ensure that the PC is connected to the network.2. Ensure that M2+ is powered on and connected to the same network.Note: M2+ must be in an Internet radio mode to be detected 3. From the Windows 7 main screen, select Start > Devices and Printers.4. Select the Add a device tab in the top left of the Devices and Printers window and follow the instruction prompts given by the wizard.In the Devices and Printers window a icon *) will appear and you are now ready to stream your Windows media music files to M2+. *) To change the name of your device, right click on icon and chooseproperties. Then choose UPnP and click on “device webpage”.4. Internet radio modeM2+ can play thousands of radio stations and podcasts from around the world though a broadband Internet connection. When you select Internet radio mode, M2+ contacts the Frontier Silicon Internet radio portal to get a list of stations, organized into different categories like Country, Most popular and Genre.Once you select a station, M2+ connects directly to that station. The portal also enables multiple lists of favourite stations that you can personalise, for example Andy's stations, Jo's favourites, Talkshows. To use the favourites feature, register your radio with the portal website. If you have several Frontier Silicon radios, you can register them all on the same account so that each radio has access to your favourite's lists. It is possible to add favourites either directly through M2+ or through any computer with a web browser. To enter Internet Radio mode, either press Mode until the display shows Internet Radio or select Menu >Main menu > Internet Radio.Note: The station list menu is provided from the Internet radio portal, so it is only accessible when M2+ is connected to the Internet. Station lists and submenus may change from time to time.There are several ways of selecting stations. Directly from the radio: ŸLast listenedŸPresetsFrom the portal through the Menu > Station list> menu:ŸFavourites listsŸBrowse by Country, Genre, Most popular, NewestŸSearch by keywordŸMy added stations
