limoss HC370 Cinema Control System Wall Unit User Manual Cinema system
limoss (Shenzhen) Co., ltd Cinema Control System Wall Unit Cinema system
limoss >
Users Guide
linear
motion
systems
Cinema Seat
Mass Open/Close
Wall Box
Transmitter
Product Specification
Mass Open/Close system
Wall Unit
2016.09.22
2
GL-TE-017(V06)
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Any changes or medications not expressly approved by party responsible for compliance could void the
user’s authority to operate the equipment.
This equipment should be installed and operated with minimum distance 20cm between rotation & your
body.
RSS-Gen & RSS-210 Statement:
"This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement."
RSS-102 Statement:
"This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled
environment. "
"Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un
environnement non contrôlé. "
Mass Open/Close system
Wall Unit
2016.09.22
3
GL-TE-017(V06)
Description
This system is designed for cinema seats mass open and close. With one wall unit box could control up 100
sets seats open and close at one time.
Technical Parameter
Mass Open and Close Wall Box
Model: HC370 602087
Dimension:250x200x100mm
AC Input: 100~240VAC,50/60Hz,1.6A ~0.7A
Akku Pack
Cell:18650x3
Rated Capacity: 16.2Wh
Wireless Parameters
RF Frequency: 2.4GHz
Working mode: Broadcasting only
Control Range: >50m in open space
Connection:
Antenna Connector: SMA female
US AC cable 1400mm (Optional)
Key selector switch
3 position with return in center and key
LED Indicator
Green: Working
Red: Pairing
Reset
Press the reset button to reset the transmitter if system halted.
Certifiaction:
CE/FCC/cTUVs/
Mass Open/Close system
Wall Unit
2016.09.22
4
GL-TE-017(V06)
Description for system

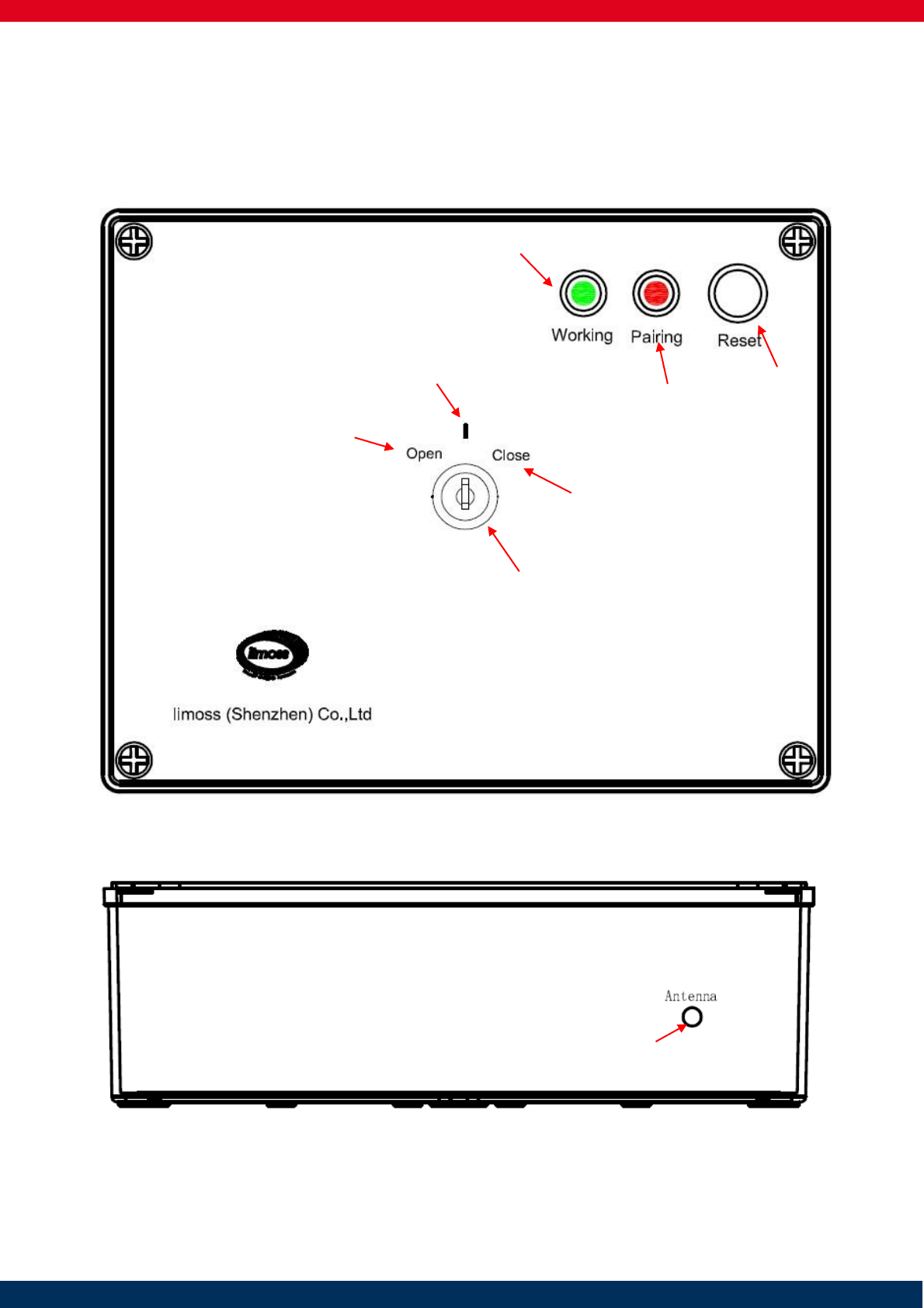

1． Front panel
2. Top side: SMA Antenna Connector
Pairing Mode Indicator
Working Mode Indicator
Mass Close
Position
Mass Open
Position
Standby
Position
Female SMA-J Socket for
antenna /extension cable
Key selector switch
Reset Button
Mass Open/Close system
Wall Unit
2016.09.22
5
GL-TE-017(V06)

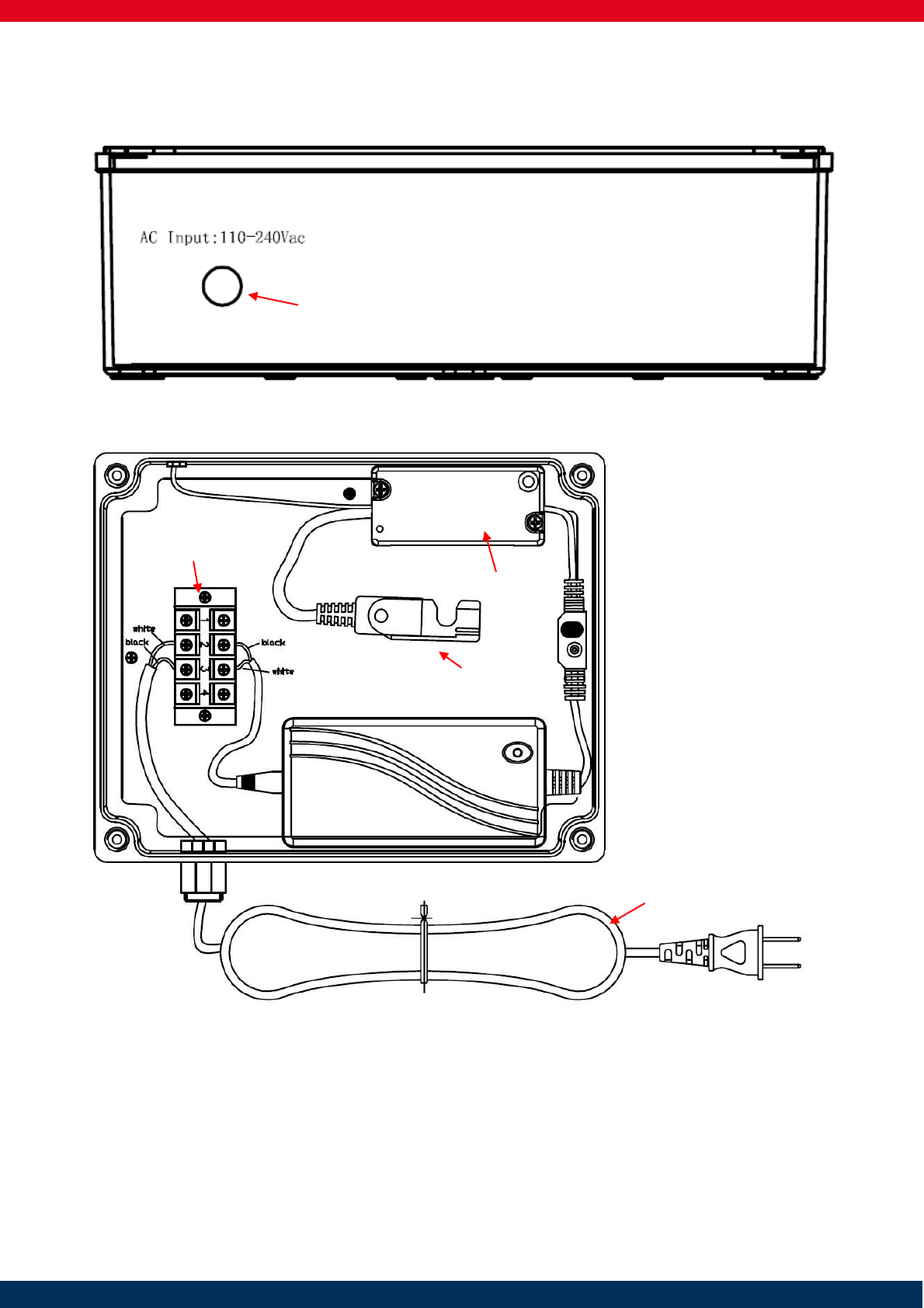

3. AC input with PG7 Connector
4. Inside Box
AC Power
Terminal lock
Transmitter:MC230
Connector to
Front panel
SMPS+Akku:
MC165+130
The AC Power Input
(Cable gland optional)
US AC Cable:
1400mm (Optional)
Mass Open/Close system
Wall Unit
2016.09.22
6
GL-TE-017(V06)

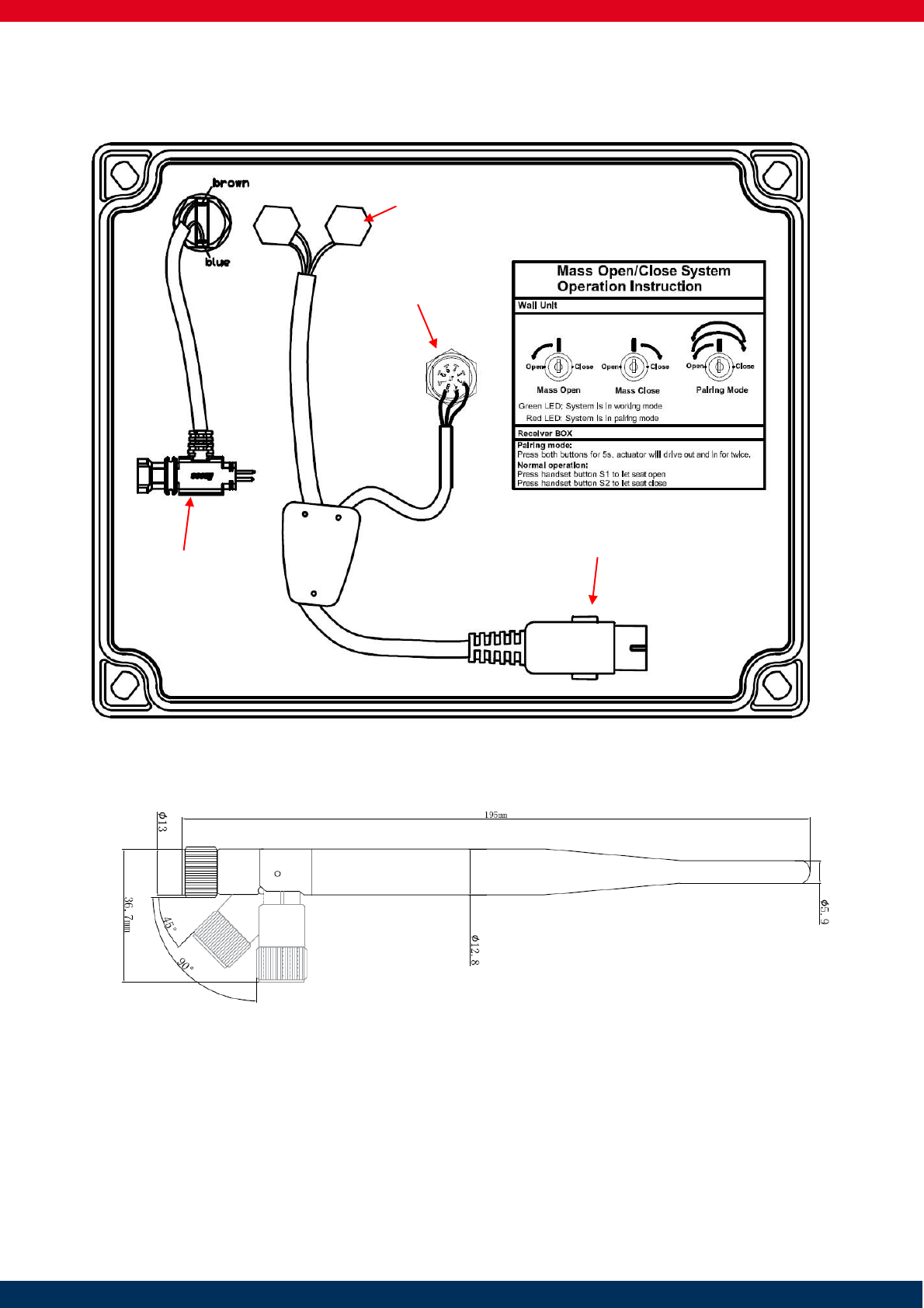

5. Front Panel
6. Accessary
2.4GHz 5dBi antenna x1
Antenna Extension Cable 2m x1
Key selector switch
Terminal
LED Indicator
Face plate connector
T-Plug for Reset
Mass Open/Close system
Wall Unit
2016.09.22
7
GL-TE-017(V06)

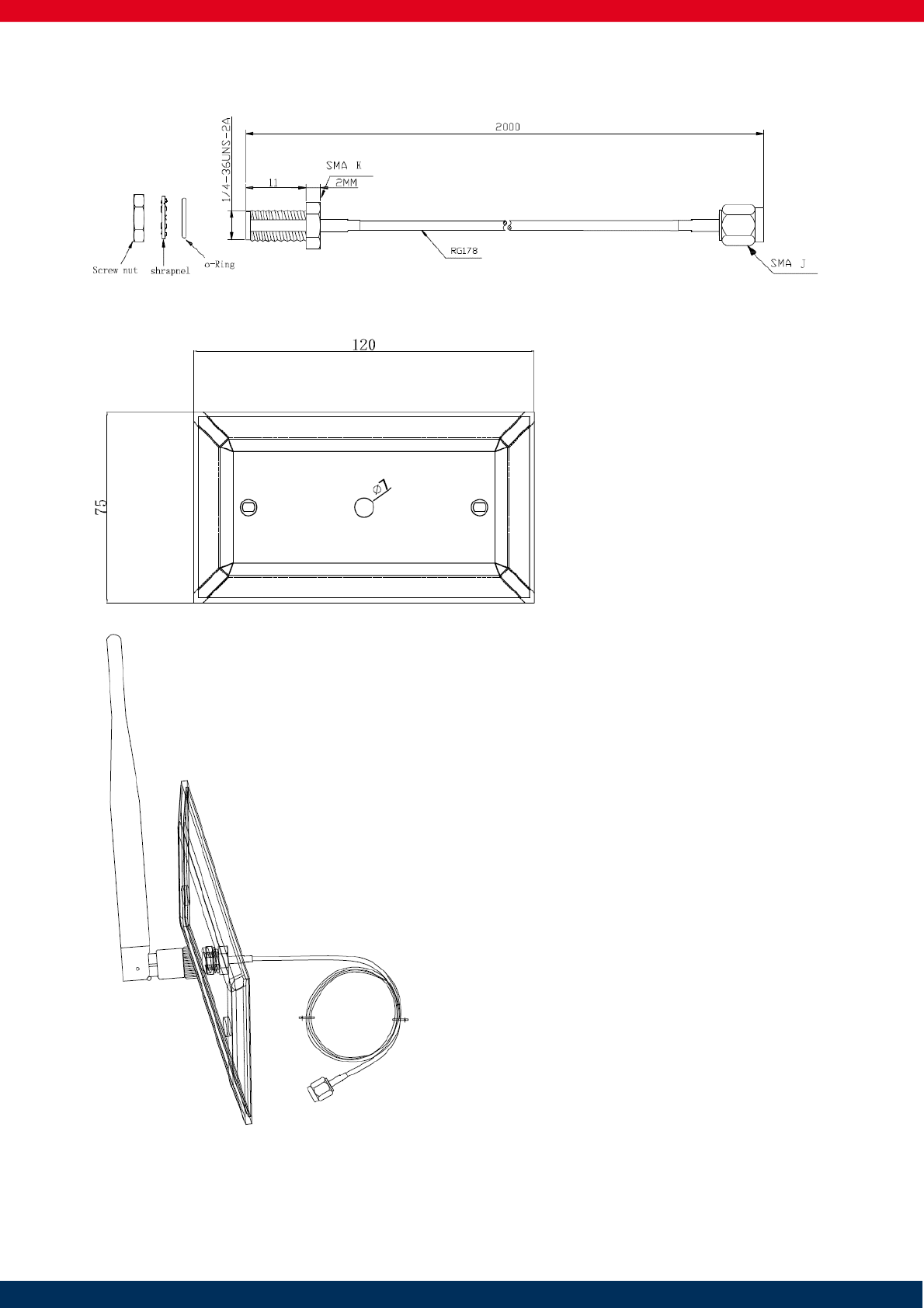

Antenna Front Panel
The way to assemble the face plate with antenna and extension cable.
Mass Open/Close system
Wall Unit
2016.09.22
8
GL-TE-017(V06)
Label
Operation Instruction:
Before all operation, please connect transmitter box to AC power, plug the receiver box MC250 to
L1 actuator.
Pairing
1. Transmitter box:
Turn the key left to position Open, turn right to position Close, and turn left to position Open again
in 3 seconds, the pairing LED will light on, the transmitter is pairing mode.
Turn the key any direction will exit paring mode
2. Receiver box
press both buttons of handset for 5 seconds, if transmitter box is in paring mode, the motor will drive
out and in for twice in 4 seconds, then the paring is finished.
Operation:
Turn key to position Open to let all seats open
Turn key to position Close to let all seats close
Release the key to position I to standby.
Remark:
If turning the key switch 2.5 times within 1 seconds, the operation will be disabled for 5 s, and the working
LED indicator will be flashing to prevent user playing with the system.
Mass Open/Close system
Wall Unit
2016.09.22
Revised history
Item
Change content
Index
Revised date
1
First issue
00
2015.12.31
2
Add the picture and description
01
2016.02.02
3
Add drawing and detail description
02
2016.05.30
4
Add the Reset button, change 1& 2 to open and close
03
2016.08.23
5
Add the Reset text on the face plate, update with new lock, add the AC
cable
04
2016.09.06
6
Correct the label art. No.
05
2016.09.06
7.
Add FCC statement and IC caution , add certification list
06
2016.09.22
