limoss HC371 Cinema Control System Wall Unit User Manual Cinema system
limoss (Shenzhen) Co., ltd Cinema Control System Wall Unit Cinema system
limoss >
Users Manual
linear
motion
systems
Cinema Seat
Mass Open/Close
Wall Box
Transmitter
Product Specification
Mass Open/Close system
Wall Unit
Specification
2
GL-TE-017(V08)
Warning
The socket-outlet shall be installed near the equipment and shall be easily accessible!

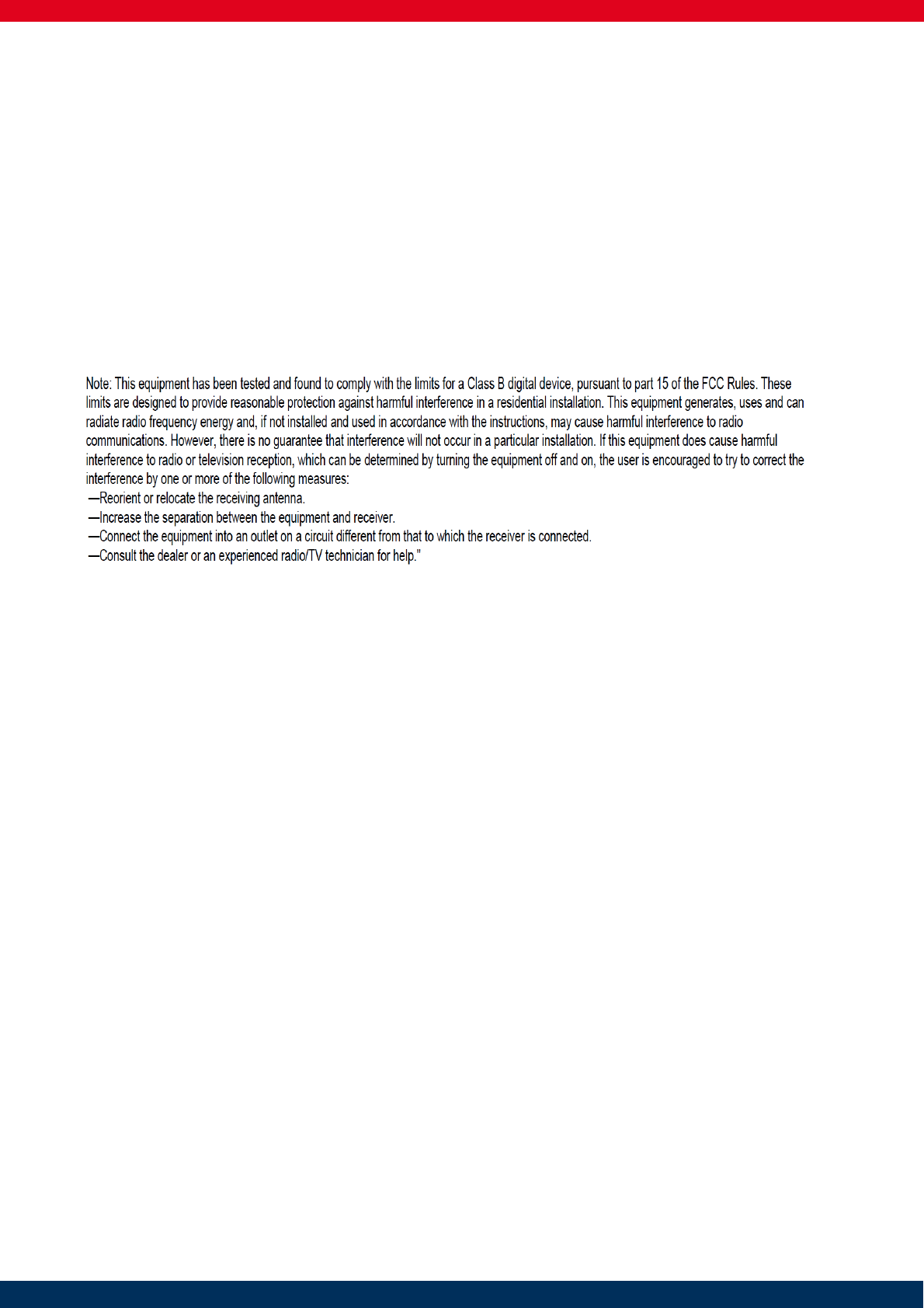

FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Any changes or modifications not expressly approved by party responsible for compliance could void the
user’s authority to operate the equipment.
This equipment should be installed and operated with minimum distance 20cm between rotation & your
body.
RSS-Gen & RSS-210 Statement:
"This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement."
RSS-102 Statement:
"This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled
environment. "
"Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un
environnement non contrôlé. "
Mass Open/Close system
Wall Unit
Specification
3
GL-TE-017(V08)
Description
This system is designed for cinema seats mass open and close. With one wall unit box could control up 100
sets seats open and close at one time.
Technical Parameter
Mass Open and Close Wall Box
Model: HC371
Article No.: 501958
Dimension:250x200x100mm
Input: 29Vdc, Max. 0.1A
Backup Battery: 18V (2x 6LR61)
Wireless Parameters
RF Frequency: 2.4GHz
Working mode: Broadcasting only
Control Range: >50m in open space
Connection:
Antenna Connector: SMA female
Key lock switch
2 position on and off with key
Display
16 characters x 2 Row
Certification:
CE/FCC/cTUVs/
Mass Open/Close system
Wall Unit
Specification
4
GL-TE-017(V08)
Description for system

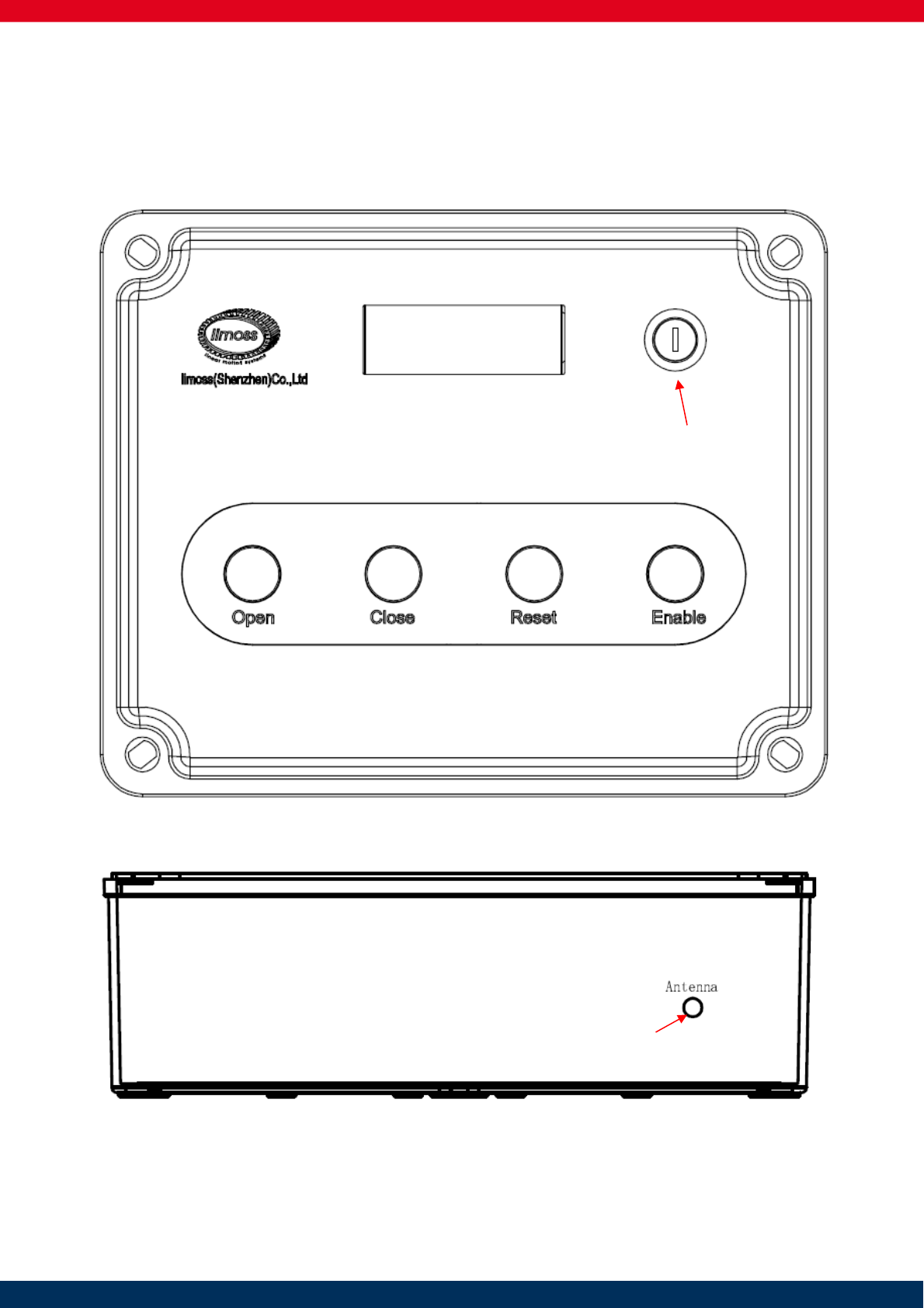

1． Front panel
2. Top side: SMA Antenna Connector
LCD Display
Female SMA-J Socket for
antenna /extension cable
Power Key lock switch
Mass Open/Close system
Wall Unit
Specification
5
GL-TE-017(V08)

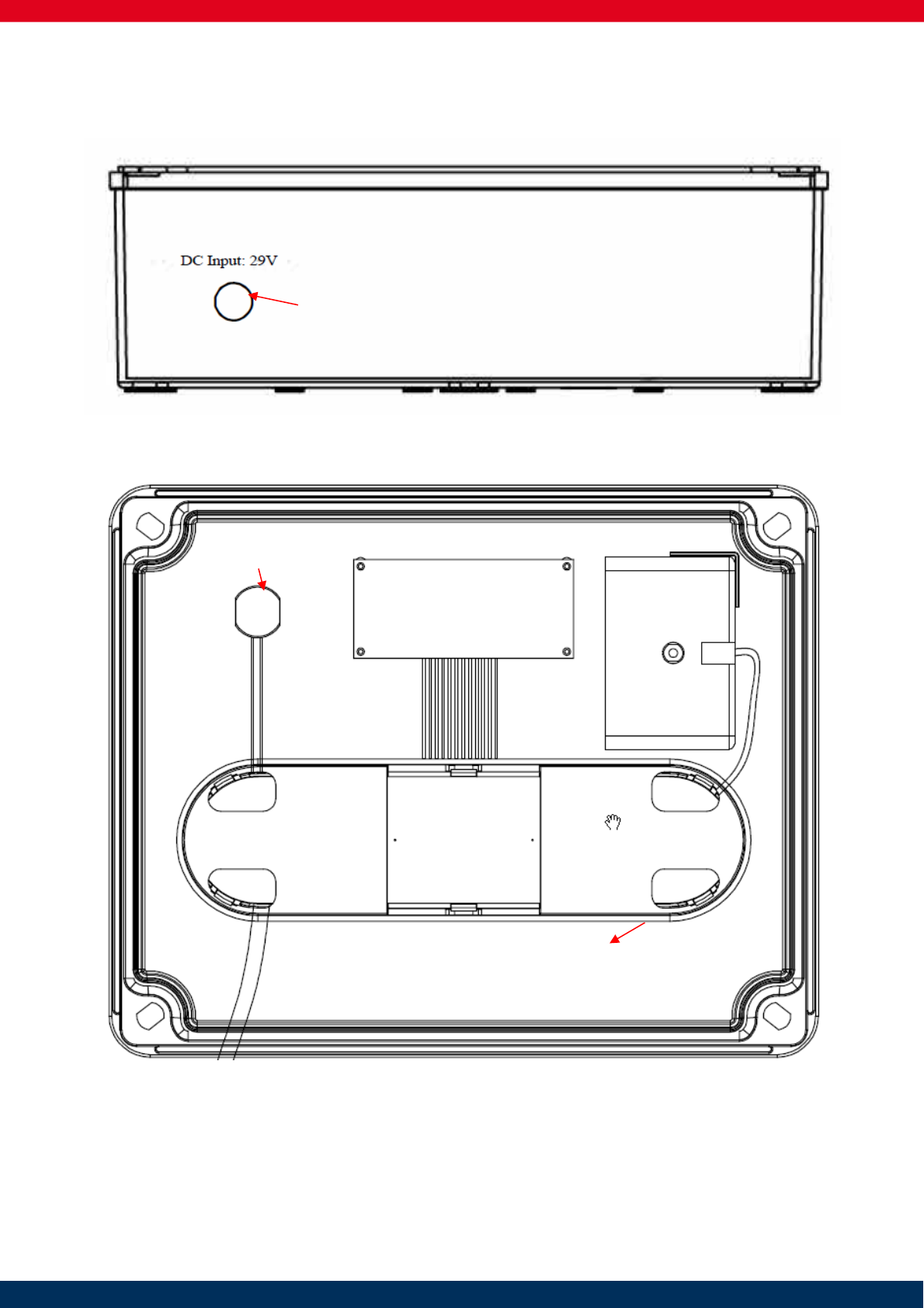

3. DC Input with PG7 Connector
4. Inside Box
Power Key
lock switch
LCD Display 1602
Main PCBA
The DC Power Input
(Cable gland optional)
Backup Battery
Mass Open/Close system
Wall Unit
Specification
6
GL-TE-017(V08)

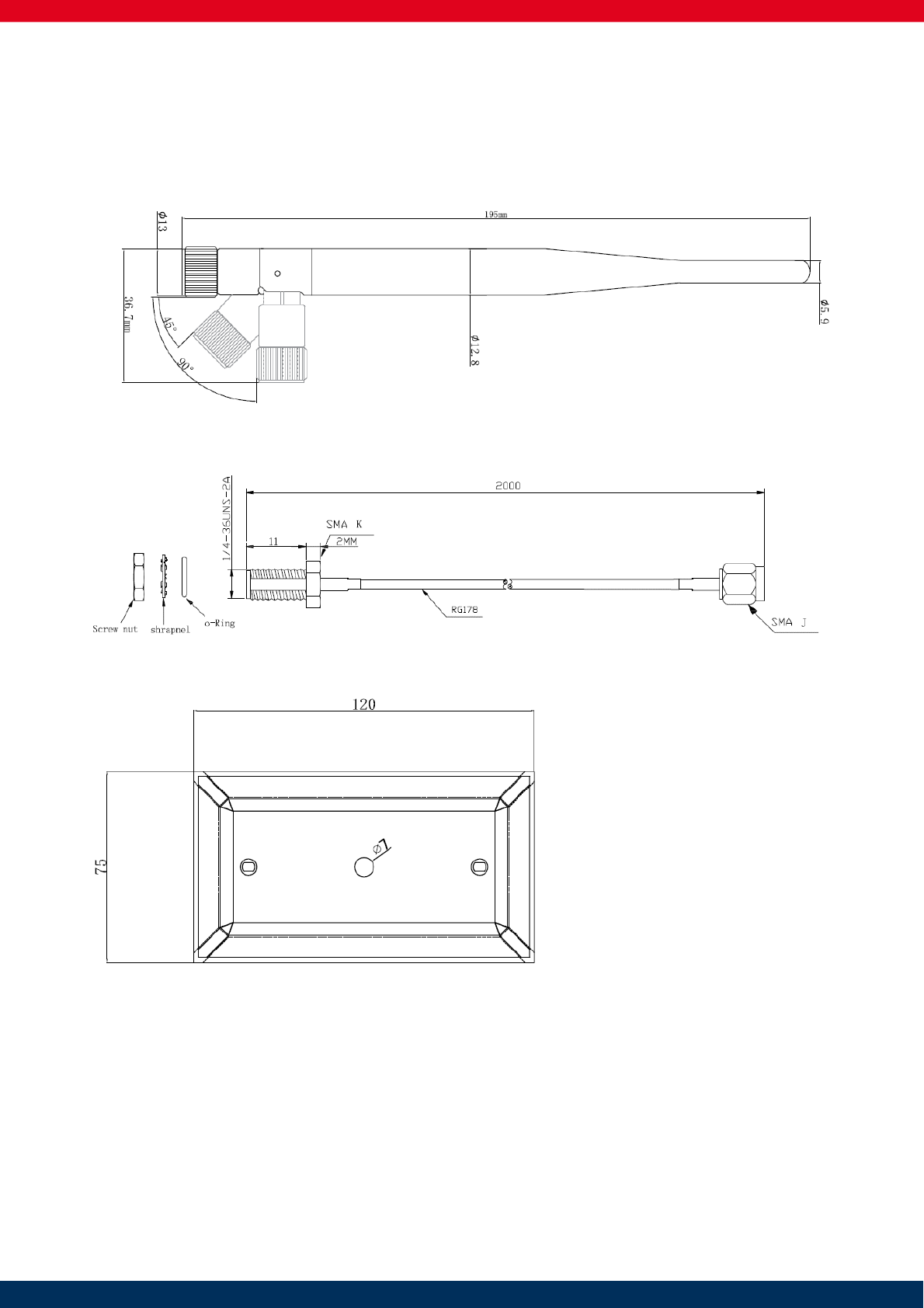

6. Accessary
2.4GHz 5dBi antenna x1
Antenna Extension Cable 2m x1
Antenna Front Panel

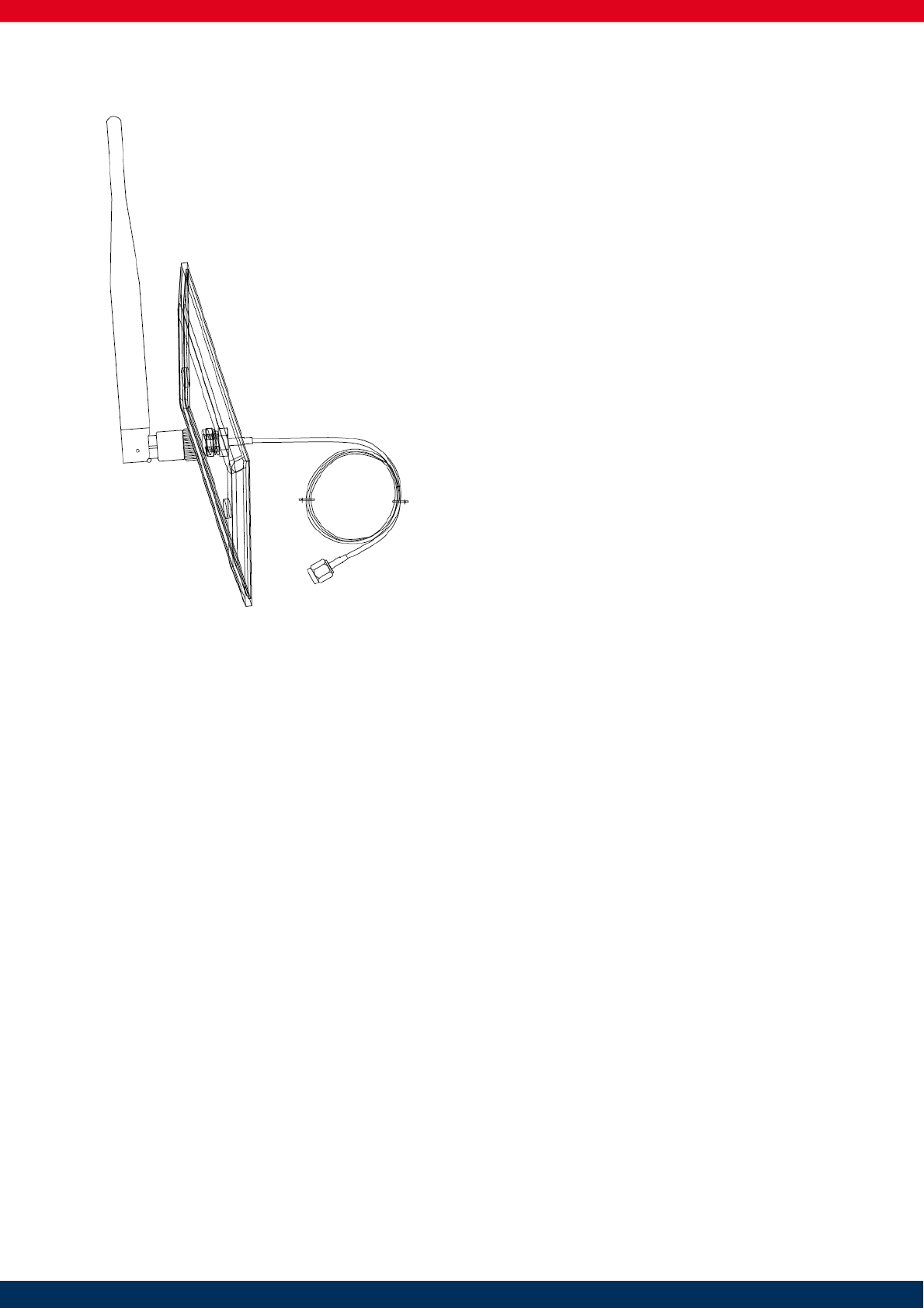

The way to assemble the face plate with antenna and extension cable.
Mass Open/Close system
Wall Unit
Specification
7
GL-TE-017(V08)
Mass Open/Close system
Wall Unit
Specification
8
GL-TE-017(V08)
Label
Operation Instruction:
Before all operation, please connect transmitter box to DC power, plug the receiver box MC250 to
L1 actuator , and turn the key lock to position “On”.
The display will show information if power on and initialization correct.
Pairing
1. Transmitter box:
Presse Open/Close/Enable at the same time, the display will show : “Enter the paring mode”, and
counter for 3 s to enter.
Press any key will exit paring mode
2. Receiver box
There are two method to make the pairing
When power on, there is 5 seconds in pairing model, once received pairing signal from transmitter ,
the pairing will execute automatically , he motor will drive out and in for twice in 4 seconds, then the
paring is finished.
press both buttons of handset for 5 seconds, if transmitter box is in paring mode, the motor will
drive out and in for twice in 4 seconds, then the paring is finished.
Operation:
Press Open + Enable to let all seats open
Press Close n + Enable to let all seats Close
Remark:
If turning the key switch 2.5 times within 1 seconds, the operation will be disabled for 5 s, and the working
LED indicator will be flashing to prevent user playing with the system.
Mass Open/Close system
Wall Unit
Specification
Revised history
Item
Change content
Index
Revised date
1
First issue
00
2017/2/19
2.
Update drawing and operation
01
2017/2/25
