limoss HC373 Cinema Control System Wall Unit User Manual Cinema system

limoss (Shenzhen) Co., ltd Cinema Control System Wall Unit Cinema system

User Manual

linear
motion
systems
Cinema Seat
Mass Open/Close
Wall Box
Transmitter
Product Specification
Specification
Mass Open/Close system
Wall Unit
2
GL-TE-24(V04)
Warning
(1) This system is to be used when all seats are unoccupied. The theater should be
completely vacant when this system is used!!
(2) The socket-outlet shall be installed near the equipment and shall be easily
accessible!
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Any changes or medications not expressly approved by party responsible for compliance could void the
user’s authority to operate the equipment.
This equipment should be installed and operated with minimum distance 20cm between rotation & your
body.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
RSS Statement:
"This device complies with Industry Canada licence-exempt RSS standard(s).
Specification
Mass Open/Close system
Wall Unit
3
GL-TE-24(V04)
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement."
RSS-102 Statement:
"This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled
environment. "
"Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un
environnement non contrôlé. "
Specification
Mass Open/Close system
Wall Unit
4
GL-TE-24(V04)
CE-RED Declaration
Hereby, limoss (Shenzhen) Co., Ltd. declares that this HC373 is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU ,which this declaration refers conforms
with the relevant standards:
3.1a Health and safety: EN60950-1:2006+A11:2009+A1:2010+A12:2011+ A2:2013
3.1b EMC:
Draft ETSI EN 301 489-1 V2.2.0
Final Draft ETSI EN 301 489-3 V2.1.1
3.2 Radio: ETSI EN 300 440 V2.1.1
Description
This system is designed for cinema seats mass open and close. With one wall unit box could control up
hundreds of seats open and close at one time.
Technical Parameter
Mass Open and Close Wall Box
Model: HC373
Article No.:
Dimension:250x200x100mm
AC Input: 100~240VAC,50/60Hz,0.4A Max
Backup Battery: 18V (2x 6LR61)
Wireless Parameters
RF Frequency: 2.4GHz
Working mode: Broadcasting only
Control Range: >50m in open space
Antenna
Build-in 2.4GHz 3dBi Antenna
Key lock switch
2 position on and off with key
Specification
Mass Open/Close system
Wall Unit
5
GL-TE-24(V04)
Display
16 characters x 2 Row
Certification:
CE/FCC/cTUVs/
Specification
Mass Open/Close system
Wall Unit
6
GL-TE-24(V04)

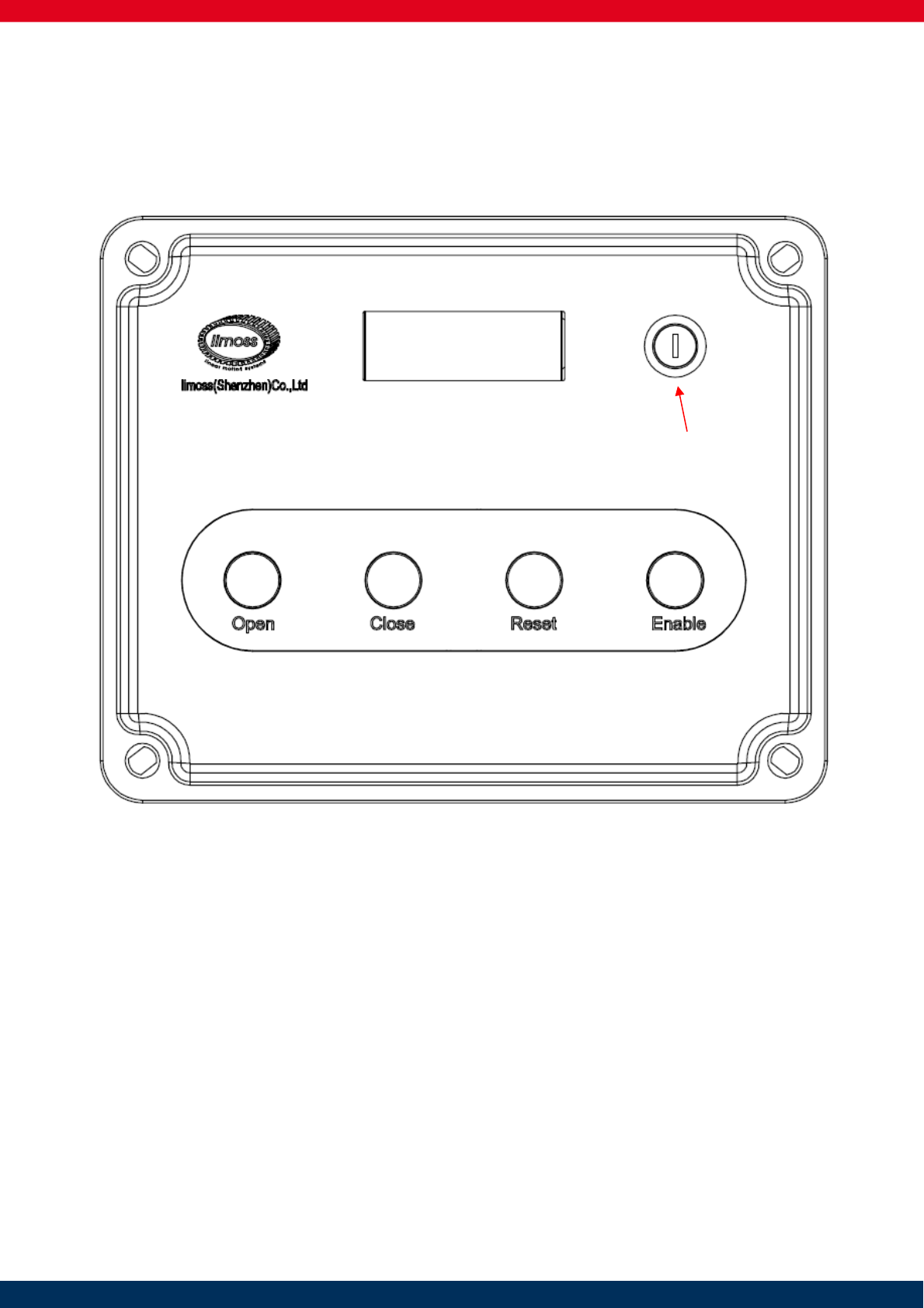

Description for system
LCD Display
Power Key lock switch
Specification
Mass Open/Close system
Wall Unit
7
GL-TE-24(V04)

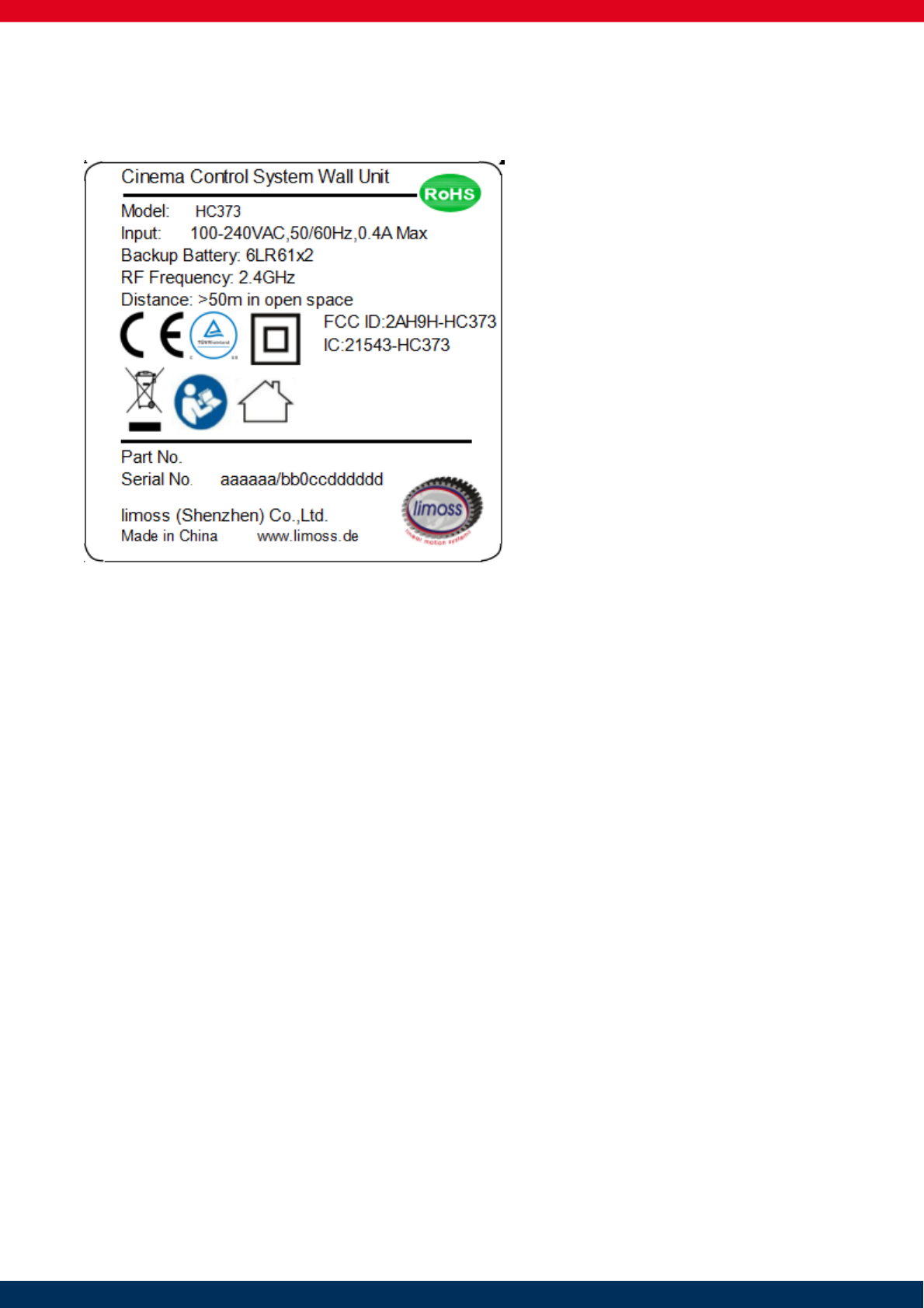

Label
Operation Instruction:
Before all operation, please connect transmitter box to DC power, plug the receiver box MC250 to
L1 actuator , and turn the key lock to position “On”.
The display will show information if power on and initialization correct.
Pairing
1. Transmitter box:
Presse Open/Close/Enable at the same time, the display will show : “Enter the paring mode”, and
counter for 3 s to enter pairing mode which “Paring…”.
Press any key will exit paring mode
2. Receiver box
There are two method to make the pairing
When power on, there is 5 seconds in pairing model, once received pairing signal from transmitter ,
the pairing will execute automatically , he motor will drive out and in for twice in 4 seconds, then the
paring is finished.
press both buttons of handset for 5 seconds, if transmitter box is in paring mode, the motor will
drive out and in for twice in 4 seconds, then the paring is finished.
Specification
Mass Open/Close system
Wall Unit
8
GL-TE-24(V04)
Operation:
Press Open + Enable to let all seats open
Press Close + Enable to let all seats Close
Specification
Mass Open/Close system
Wall Unit
Revised history
Change content
Index
Revised date
First issue
00
2017/2/19
Update drawing and operation
01
2017/2/25
Update Label Drawing and Input voltage
02
2017/03/13
1. Change to Build-in 3dBi antenna
2. Remove external antenna and extension cable.
03
2017/05/31
Add attention information on page 2
04
2017/06/07
