limoss MC250 Wireless Receiver User Manual Cinema system

limoss (Shenzhen) Co., ltd Wireless Receiver Cinema system

Users Manual

linear
motion
systems
Cinema Seat
Mass Open/Close
Receiver Box
Product Specification
Mass Open/Close system
Receiver
2016.09.22
2
GL-TE-017(V03)
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Any changes or medications not expressly approved by party responsible for compliance could void the
user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help."
This equipment should be installed and operated with minimum distance 20cm between rotation & your
body.
RSS-Gen & RSS-210 Statement:
"This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement."
RSS-102 Statement:
"This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled
environment. "
"Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un
environnement non contrôlé. "
Mass Open/Close system
Receiver
2016.09.22
3
GL-TE-017(V03)
Description
This system is designed for cinema seats mass open and close. With one wall unit box could control up all
seats open and close at one time.
Technical Parameter
Wireless Receiver Unit
Model: MC250 501711
Deminsion:114x50x35mm
Connection: 5Pin DIN plug
Input: 24V~35Vdc/2A
Standby Current: <15mA
RF Operation Frequency: 2.4GHz
Certification: CE/FCC/cTUVs

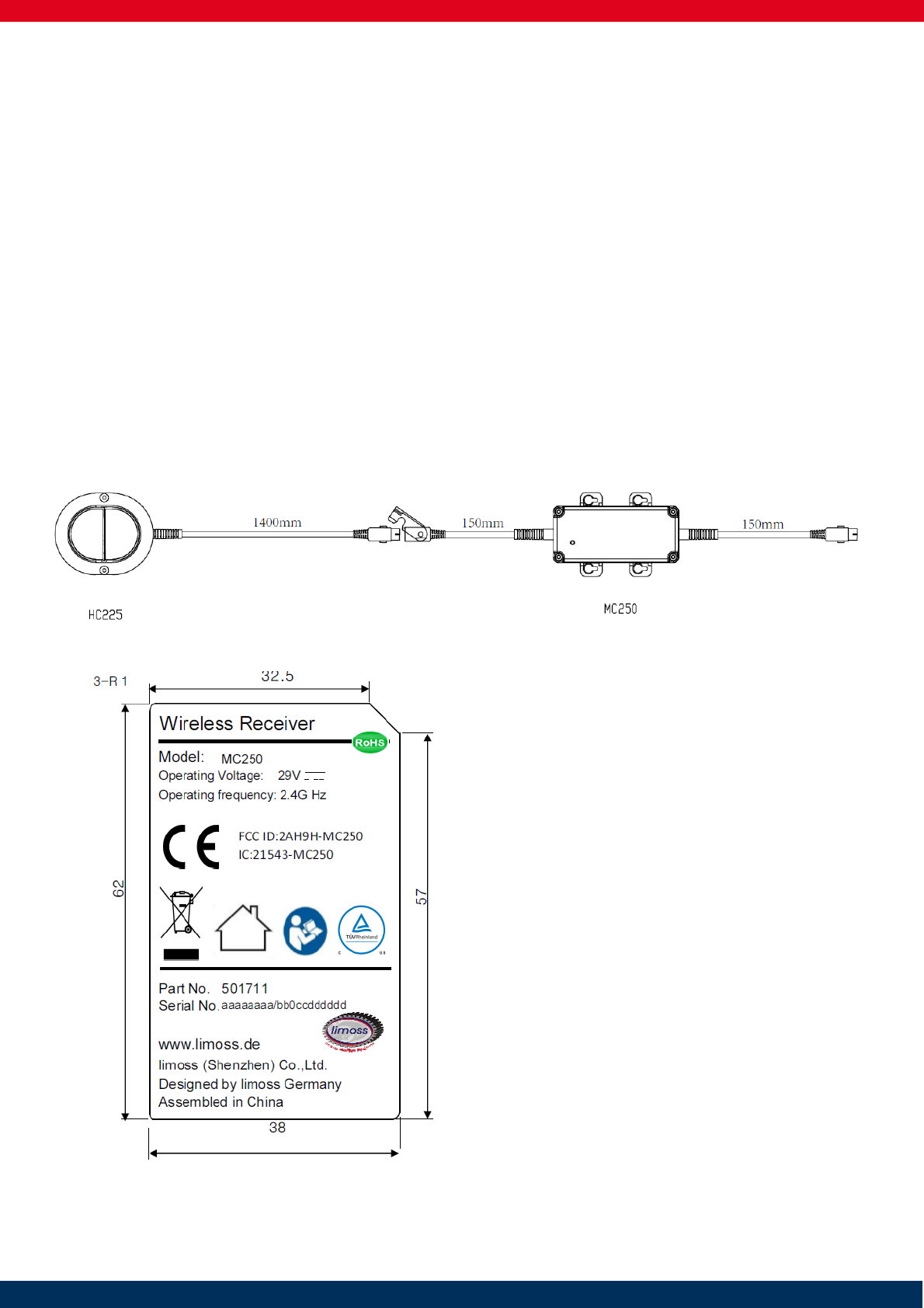

Connection overview for the system
Label:
Mass Open/Close system
Receiver
2016.09.22
4
GL-TE-017(V03)
Operation Instruction:
Before all operation, please connect transmitter box to AC power, plug the receiver box MC250 to
L1 actuator.
Pairing
1. Transmitter box:
Turn the key left, turn right, and turn left again in 3 seconds, the pairing LED will light on, the
transmitter is pairing mode.
Turn the key any direction will exit paring mode
2. Receiver box
press both buttons of handset for 5 seconds, if transmitter box is in paring mode, the motor will drive
out and in for twice in 4 seconds, then the paring is finished.
Mass Open/Close Operation:
Turn wall unit key to position Open to let all seats open
Turn wall unit key to position Close to let all seats close
Release the key to position I to standby.
Single unit Operation:
Press handset button S1 to let seat open
Press handset button S2 to let seat open
Remark:
1. When connected to power supply please connect with handset and don’t press any buttons, the receiver
box will recognize the handset logic automatic.
2. If press the buttons 2.5 times within 1 seconds, the operation will be disabled for 5 s to prevent user
playing with the system.
Mass Open/Close system
Receiver
2016.09.22
5
GL-TE-017(V03)
Revised history
Item
Index
Revised date
1
00
2015.12.31
2
01
2016.08.23
3
02
2016.09.06
4
03
2016.09.22
