limoss MC251 Wireless Receiver User Manual Cinema system

limoss (Shenzhen) Co., ltd Wireless Receiver Cinema system

User Manual

linear
motion
systems
Cinema Seat
Mass Open/Close
Receiver Box
Master MC251
Product Specification
Mass Open/Close system Receiver 2017/02/2
5
2
GL-TE-017(01)
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Any changes or modifications not expressly approved by party responsible for compliance could void the
user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help."
This equipment should be installed and operated with minimum distance 20cm between rotation & your
body.
RSS-Gen & RSS-210 Statement:
"This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement."
RSS-102 Statement:
"This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled
environment. "
"Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un
environnement non contrôlé. "
Mass Open/Close system
Receiver
2017/02/2
5
3
GL-TE-017(01)
Description
This system is designed for cinema seats mass open and close. With one wall unit box could control up all
seats open and close at one time.
The Master motor controller is a wireless receiver and could execute the command from transmitter and
delivery the control signal to slave motor controller.
Technical Parameter
Wireless Receiver Unit
Master
Model: MC251
Article Number: 501933
Deminsion:114x50x35mm
Connection: 5Pin DIN plug male and female
Input: 24V~35Vdc/2A
Standby Current: <15mA
RF Operation Frequency: 2.4GHz
Certification: CE/FCC/cTUVs

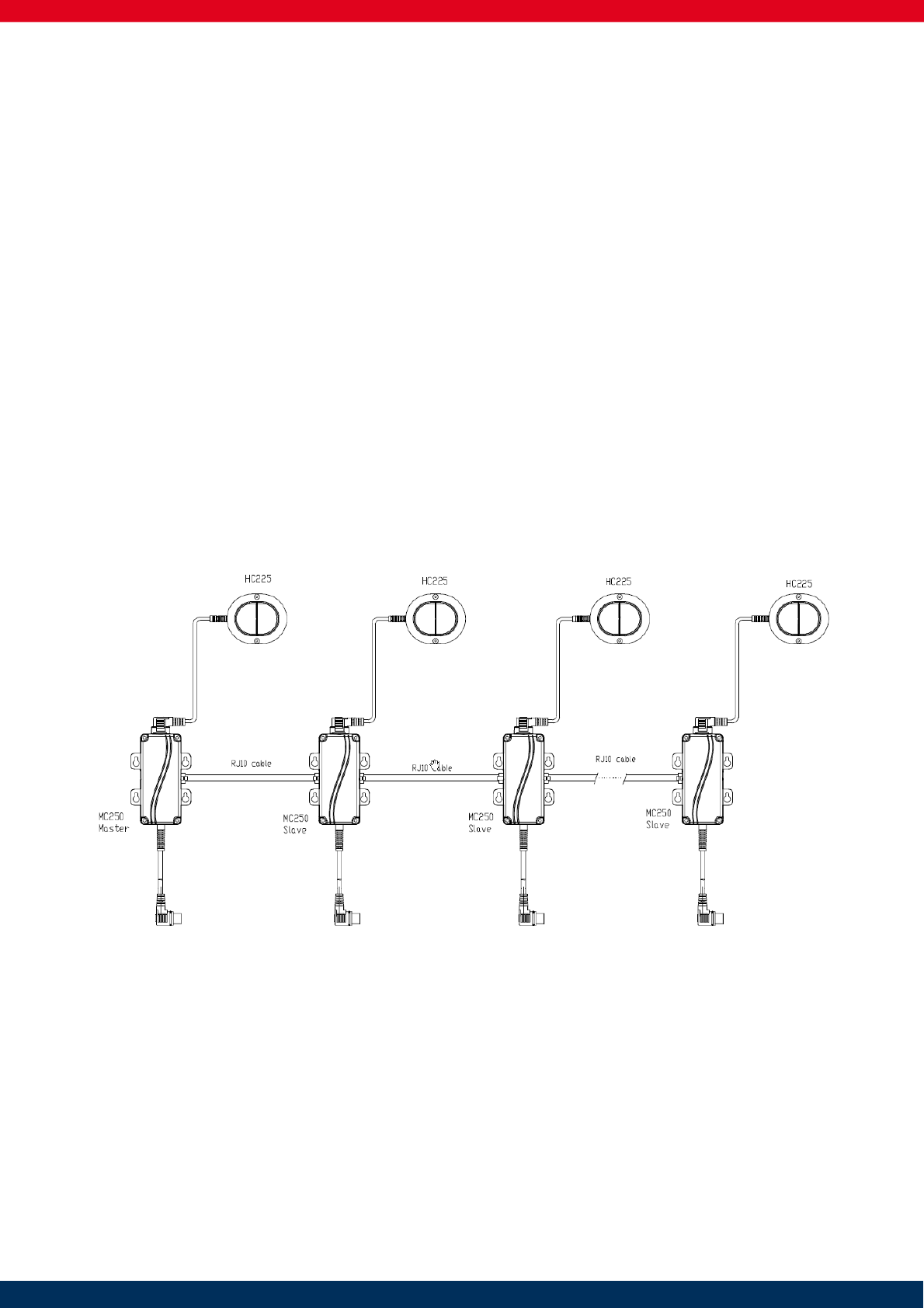

Connection overview
Mass Open/Close system
Receiver
2017/02/2
5
4
GL-TE-017(01)
Label:
Operation Instruction:
Before all operation, please connect transmitter box to DC power, plug the receiver box MC250 to
L1 actuator , and turn the key lock to position “On”.
The display will show information if power on and initialization correct.
Pairing
1. Transmitter box:
Presse Open/Close/Enable at the same time, the display will show: “Enter the paring mode”, and
counter for 3 s to enter.
Press any key will exit paring mode
2. Receiver box
There are two method to make the pairing
When power on, there is 5 seconds in pairing model, once received pairing signal from transmitter,
the pairing will execute automatically, the motor will drive out and in for twice in 4 seconds, then the
paring is finished.
press both buttons of handset for 5 seconds, if transmitter box is in paring mode, the motor will
drive out and in for twice in 4 seconds, then the paring is finished.
Mass Open/Close system
Receiver
2017/02/2
5
5
GL-TE-017(01)
3. Master controller box unit Single Operation:
Press handset button S1 to let seat open
Press handset button S2 to let seat open
Remark:
If turning the key switch 2.5 times within 1 seconds, the operation will be disabled for 5 s, and the working
LED indicator will be flashing to prevent user playing with the system.
Mass Open/Close system
Receiver
2017/02/2
5
6
GL-TE-017(01)
Revised history
Item
Index
Revised date
1
00
2017/2/19
2
01
2017/02/25
Mass Open/Close system
Receiver
2017/02/2
5
