User manual
Max
by
English
A MESSAGE FROM THE LOVENSE TEAM
Thank you for choosing LOVENSE!
Launched in late 2013, Max and Nora were the first app-based, interactive sex toys of its kind. Our
dedicated team of developers are still working hard to bring you the software features you want and
expect from a sex tech company... and it's mainly thanks to our customers. Our customers' feedback
has allowed us to continually improve and establish ourselves as one of the pioneers of teledildonic
technology.
Got feedback? We'd love to hear from you, too! Shoot us an e-mail at app@lovense.com and we'll
plass on your suggestions to the development team. Together, we can continue to create innovative
sex toys for years to come. Thanks again for your support!
GETTING STARTED
We strongly recommend viewing our video guides while setting up! Please visit: http://ww-
w.lovense.com/guide.
If you're a cam model, in addition to viewing our regular guide, please visit this guide for using
our chrome extension: http://www.lovense.com/cam-model/guide
Turn On/Off ------- Press and Hold Button A (for 3 seconds)
Tap Button A ----- Toggles Vibration Speeds
Tap Button B ----- Toggles Air Pump Settings
Button Instruction
Air Pump Details
Indicator Light
Button A
Button B
Charging Port
Air Vent
Level 1 : Subtle Contractions
Level 2 : Mild Contractions
Level 3 : Deep Contractions (tightest)

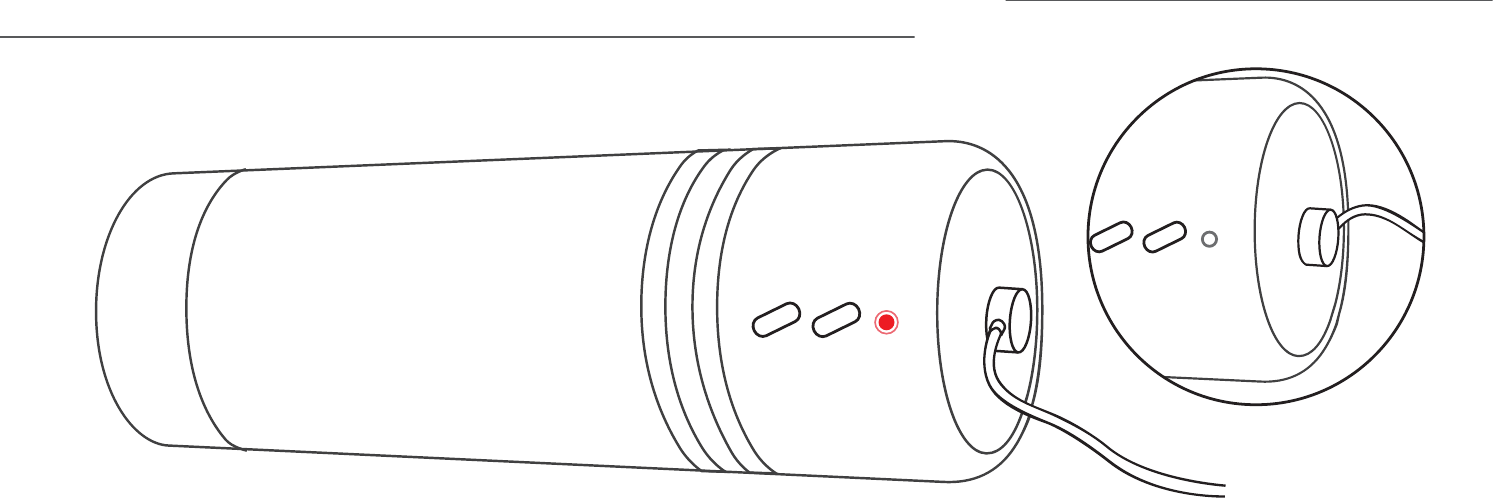

CHARGING
Turn off the device before charging. The cable can be plugged into any USB port or USB/AC
power adapter to start charging. It will take approximately 2 hours to fully charge. Once it is fully
charged, the solid red light will turn off.
It is a magnetic charger and will only work if positioned correctly. When attempting to charge, if a
solid red light doesn’t turn on, rotate the cable 180 degrees.
NOTE:

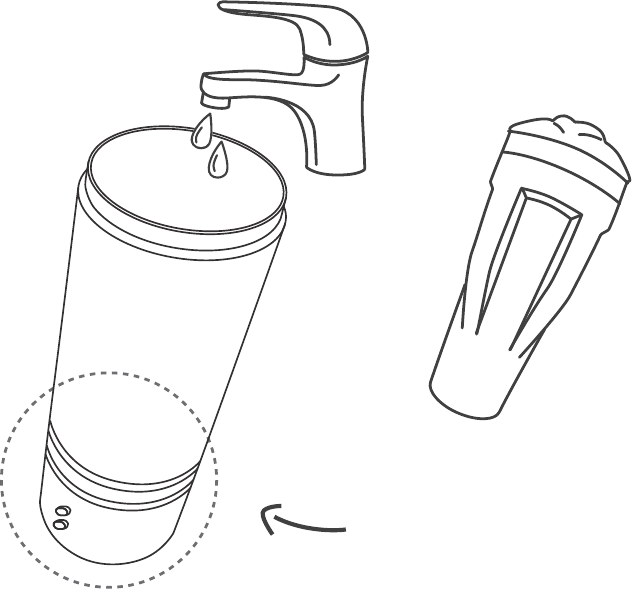

CLEANING & CARE
· Clean your device before and after each use.
· Clean with warm water. Do NOT use soap on the inner sleeve, as it may degrade the material.
· Dry thoroughly before storing.
· Keep away from extreme heat or cold.
Remove and wash separately
This part shouldn’t touch water!
Make sure the air vent is closed during washing!
USAGE TIPS

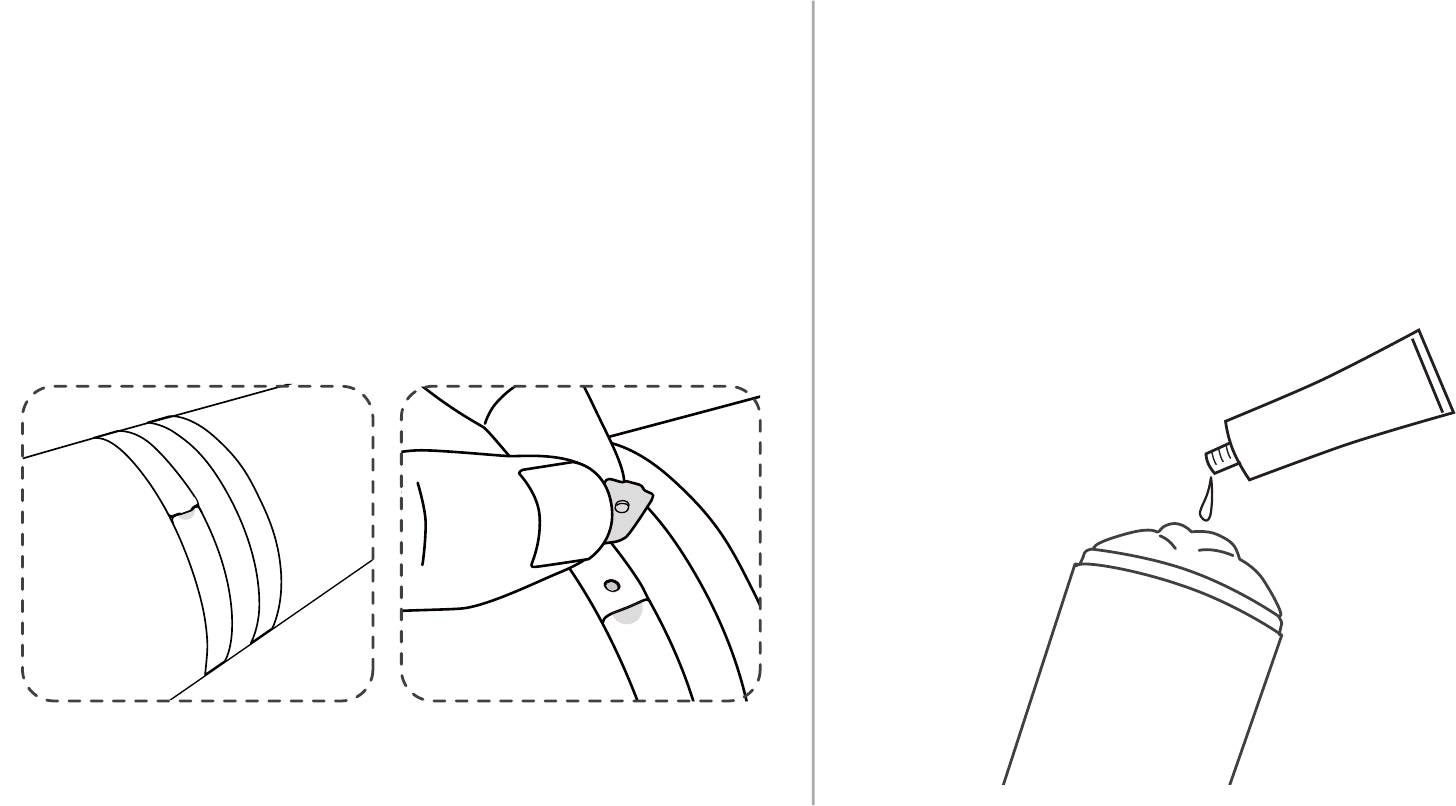

Air Vent Lubricant
If the toy is too tight, locate the air vent which
is on the opposite sides of the buttons.
During use, try rythmically covering and
uncovering the vent- it may improve the
sensation.
Before insertion, generously apply lube to the
inside of the sleeve, the entry hole and your
penis. Water based lube may dry out quickly,
so you may need to reapply.
We recommend using JO Anal H20 Lubricant
for the best experience.
Lubricant
HOW TO CONNECT
Download our “Body Chat” app:
Turn on Max Pair with your device
Links to our smartphone and PC/MAC software available here:
www.lovense.com/sextoys/download
1
23
(Press down and hold button A for 3-4 seconds.)
Body Chat

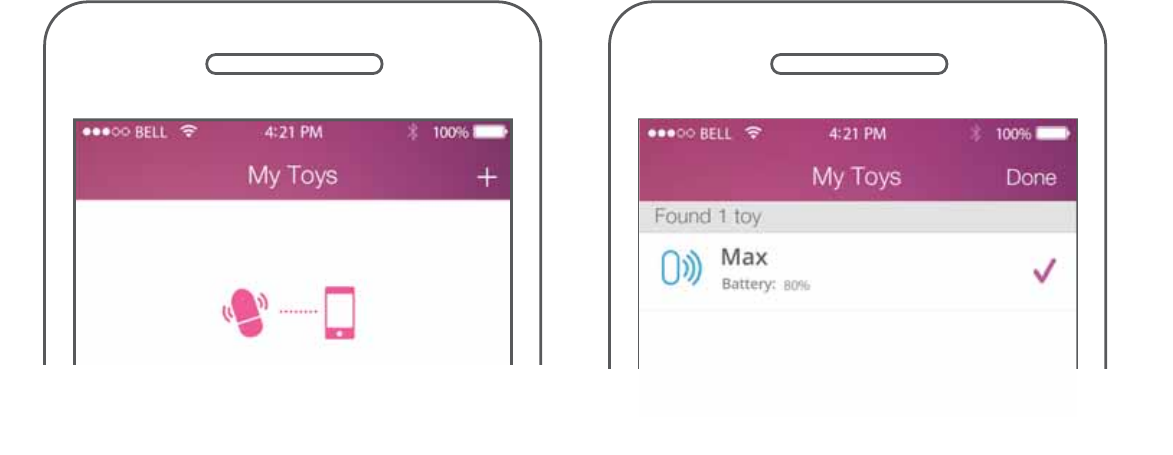

PAIRING WITH A SMARTPHONE
Turn on Max. A blinking green light means it’s ready to connect.
Open and log into to the Body Chat app.
Go to the “Toys” tab and press “+”.
After Max is found, press “Done”.
1.
2.
3.
4.
· A solid green light means the toy is connected to your device.
· You only have to pair your toy once. Next time it should automatically connect with your phone.
NOTES:
PAIRING WITH PC/MAC
Turn on your computer’s Bluetooth. (If it doesn't have Bluetooth, we have included a USB
Bluetooth Dongle.)
1.
PC: Double-click the Bluetooth icon. Click "Add a device".
MAC: Click “Browse Files on Device...”
2.
1-1 Windows 1-2 MAC
2-1 Windows 2-2 MAC
PC: Select the device that starts with “LVS-” (or “Other”) and click “Next”. Click "Enter the
device's pairing code". Enter the pairing code, which is 0000. Click "Next".
MAC: Select the device that starts with “LVS-” (or “Other”) and click “Pair”.
Max should now be connected to your computer.
Open Google Chrome Internet Browser.
(If you don't have this browser, you can download it for free.)
Visit www.lovense.com/sextoys/download using Chrome and click the link to install our
PC/MAC app.
Log into the app and click "Add a toy". You will now be able to connect with your partner via
your computer.
3.
4.
5.
6.
7.
CONNECTING WITH PARTNER
Go to the “People” tab and click “+” to add your partner.
After they accept your request, they will show up on your contact list.
Click their name to chat and you will see the following connecting options:
1.
2.
3.
Both options will enable you to give/take long distance control or have long distance sex.
We recommend using a 3rd party video chat service (like Skype) for a smoother video
connection if you have two internet-connected devices you can use simultaneously.
·
·
NOTES:
With Video Without Video
SPECIFICATIONS
WHAT’S INCLUDED:
Materials: ABS / Skin-like TPE
Size : 230mm x 74mm x 74mm
Weight : 580g
Battery : Li-Ion Rechargeable
Use Time : up to 180 Minutes
Standby : up to 100 Hours
(1) Max Bluetooth Male Masturbator
(1) USB Charging Cable
(1) USB Bluetooth Dongle
(1) User Manual
TROUBLESHOOTING
SMARTPHONE USERS
For additional assistance, use the contact form at
lovense.com/contact. Someone from the Lovense team will
normally reply within 12-24 hours.
OTHER RESOURCES
1. Use the in-app tips to help you.
2. Use the help guide in the “Settings” tab.
1. View our video guides - www.lovense.com/guide
2. Visit our FAQ page – www.lovense.com/sextoys/faq
LOVENSE warrants this product for a period of ONE (1) YEAR, after the date of original
purchase, against defects due to faulty workmanship or materials. If you discover a defect
and notify LOVENSE during the warranty period, LOVENSE will, at its discretion, replace the
product free of charge.
The warranty covers working parts that affect the function of the product. It does NOT cover
cosmetic deterioration caused by fair wear and tear or damage caused by accident, misuse
or neglect. Any attempt to open or take apart the product (or its accessories) will void the
warranty.
Claims under warranty must be supported by reasonable evidence that the date of the claim
is within the warranty period. To validate your warranty, please contact us using the form at
lovense.com/contact. Provide your order ID# (or receipt from an authorized reseller) with
your email.
WARRANTY TERMS AND CONDITIONS
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable exposure condition without restriction.
