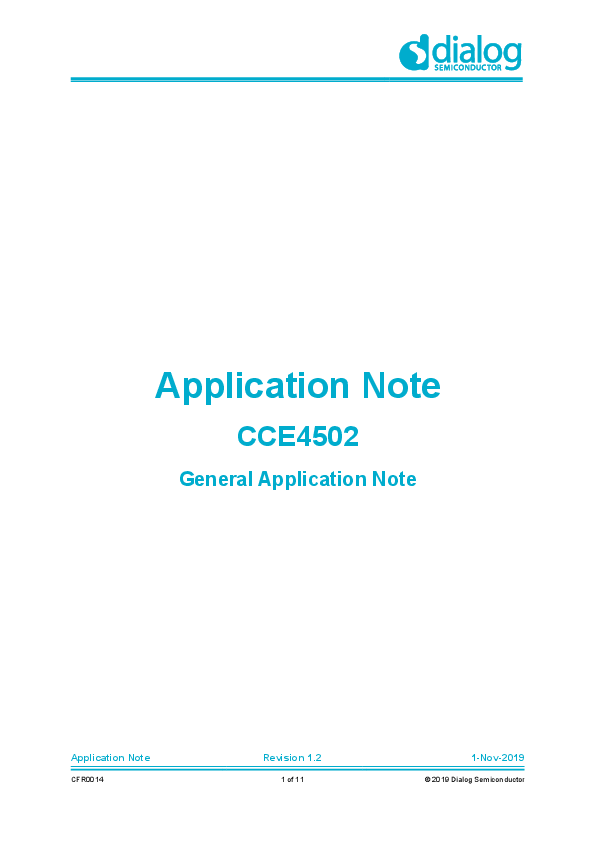

Application Note
CCE4502
General Application Note

Application Note
CFR0014

Revision 1.2
1 of 11

1-Nov-2019
© 2019 Dialog Semiconductor

CCE4502
IO-Link Device IC with integrated Frame Handler

1 Preface
The CCE4502 transceiver is suitable for I/O Link Device applications and is compliant with the IO-Link Interface and System specification Version 1.1.2 from July 2013 accessible via www.io-link.org. This application note contains information complementary to the CCE4502 product specification and is subject of permanent improvement. Please consult the CCE4502 product specification for most recent and detailed information.

2 Typical Application
Typical applications of the CCE4502 include IO-Link enabled sensors or actors.
The IO-Link interface can provide power for the CCE4502 and other circuitry of the application, such as microcontrollers and sensor or actuator controlling circuit.
The first channel of the CCE4502 controls the IO-Link CQ line. A second channel is available to drive an optional in- or output for compatibility with a wide range of communication interfaces.

Micro Controller

Power Clock SPI or IO

Sensor or
Actuator

Power

CCE4502

L+
Transient CQ Voltage I/Q Protection
L-

IO-Link

Figure 1: Typical Application ­ I/Q optional
In general, a microcontroller is required for IO-Link Device applications, albeit the IO-Link Framehandler of CCE4502 reduces the MCU load of the external microcontroller. The microcontroller needs to interface the sensor or actuator and provide data requested by the IO-Link interface of the CCE4502.

Application Note
CFR0014

Revision 1.2
2 of 11

1-Nov-2019
© 2019 Dialog Semiconductor

CCE4502
IO-Link Device IC with integrated Frame Handler

3 Power supply

The IC is supplied by 9V to 36V between L+ and L- pins. An internal protection circuit prevents damage to the CCE4502 if power is applied in reverse polarity. Thus, the pin VSS serves as the reference ground for all pins except L+ and L-. Connecting L- and VSS will tamper the reverse polarity protection function.

Bandgap Reference

L+

9V...36V supply

CQ1

HV

DIO

IO

10µF L-

External load

100nF

VREF

VDD5

5V LDO

External load

22µH 22µF

LEXT VHH

VSS VDD1V8 100nF VDD 470nF External load

DCDC Regulator

3.3V / 5V LDO

CCE4502
IO-Cells

1.8V LDO

+

IDDQ

+ 2.5V -

+ 1.6V -

5.6V +

4.6V -

Digital Core
Reset logic

Figure 2: CCE4502 power supply block diagram
The CCE4502 integrates several regulators to provide internal and external supply voltages:
1. A 5V output voltage LDO at pin VDD5 providing up to 10mA. 2. DC/DC regulator provides 7V at pin LEXT providing up to 50mA. 3. A factory programmed regulator, which provides 3.3V or 5V up to 50mA. 4. A 1.8V LDO to supply internal logic, no external load allowed. 5. A 1.2V reference voltage output can provide up to 100uA load current.
The DC/DC regulator also provides the input voltage for the 3.3V/5V LDO, do not draw more than 50mA from both regulators together.
Thermal capabilities of the device and PCB limit the current driving capability of the regulators.

VDD5 ­ 5V LDO
A constant 5V is available at VDD5. This pin can drive a maximum load current of 10mA. A 100nF capacitor to VSS is required at this pin, even if no external load is connected.

DC/DC regulator
A DC/DC regulator is available to generate a 7V output voltage at VHH from the supply. The voltage at VHH serves as input to the 3.3V/5V and 1.8V LDO.
The DC/DC regulator runs in either linear regulation or buck regulation mode. The regulation mode of the DC/DC regulator is factory programmed into the CCE4502. Consult the product specification for corresponding order codes!
Always check the power budget to select the DC/DC regulator option suitable to your design.

Application Note
CFR0014

Revision 1.2
3 of 11

1-Nov-2019
© 2019 Dialog Semiconductor

CCE4502
IO-Link Device IC with integrated Frame Handler

3.2.1 Buck Mode
The buck regulation mode improves the efficiency of the CCE4502 and allows limiting the on chip power dissipation at the cost of additional external components. In buck regulation mode, the following external components are required:
1. 22µH inductor from LEXT to VHH. 2. 22µF low ESR capacitor from VHH to VSS. 3. 10µF capacitor from L+ to L-.
In buck mode, the DC/DC regulator switches at a frequency of 2.0MHz (±500kHz). This clock is generated internally.

L- DIO CQ1 L+

10µF

*1

*1

*1 *1

100nF

Environment Sensor/Board

14.745MHz

K1

L+ CLKEXT

CQ1

DIO

L-

22µH

7V 22µF
Low ESR

100nF

3.3V / 5V 470nF 100nF
5V

LEXT VHH VSS VDD1V8 VDD VDD5

CCE4502
DCDC regulator in Buck Mode

SDX2 TXD2 SSX SCLK RXD1 TXEN1

to µC from µC from µC from µC
to µC from µC

VREF INTX SDX1 TXD1 MOSI MISO

*1) TVS diode su ch as SMAJ33A

1.2V to µC to µC from µC from µC to µC

Figure 3: Application schematic with DC/DC in Buck Mode

Application Note
CFR0014

Revision 1.2
4 of 11

1-Nov-2019
© 2019 Dialog Semiconductor

CCE4502
IO-Link Device IC with integrated Frame Handler

3.2.2 Linear Mode
In linear regulation mode, the pins LEXT and VHH have to be connected externally. A 100nF capacitor from VHH to VSS is required for a stable 7V output voltage.

L- DIO CQ1 L+

*1

*1

*1 *1

100nF

Environment Sensor/Board

14.745MHz

LDIO CQ1 L+ CLKEXT K1

7V 100nF
100nF

3.3V / 5V 470nF

5V

100nF

LEXT VHH VSS VDD1V8 VDD VDD5

CCE4502
DCDC regulator in Linear Mode

SDX2 TXD2 SSX SCLK RXD1 TXEN1

to µC from µC from µC from µC
to µC from µC

VREF INTX SDX1 TXD1 MOSI MISO

*1) TVS diode su ch as SMAJ33A

1.2V to µC to µC from µC from µC to µC

Figure 4: Application schematic with DC/DC in Linear Mode

Application Note
CFR0014

Revision 1.2
5 of 11

1-Nov-2019
© 2019 Dialog Semiconductor

CCE4502
IO-Link Device IC with integrated Frame Handler

3.2.3 External Supply
If neither the buck regulator mode nor the linear regulator mode can be used, an external 6V to 36V supply must be connected to VHH. A 100nF capacitor is recommended from VHH to VSS. Leave LEXT unconnected.

L- DIO CQ1 L+

*1

*1

*1 *1

100nF

Environment Sensor/Board

14.745MHz

K1

L+ CLKEXT

CQ1

DIO

L-

External 6V-36V supply 100nF 100nF

3.3V / 5V 470nF

5V

100nF

LEXT VHH VSS VDD1V8 VDD VDD5

CCE4502

SDX2 TXD2 SSX SCLK RXD1 TXEN1

to µC from µC from µC from µC
to µC from µC

VREF INTX SDX1 TXD1 MOSI MISO

*1) TVS diode su ch as SMAJ33A

1.2V to µC to µC from µC from µC to µC

Figure 5: Application schematic with DC/DC bypassed
VDD ­ 3.3V/5V LDO
The output voltage of the LDO at pin VDD is factory programmed. Consult the product specification for corresponding order codes! A 470nF capacitor is required between VDD and VSS for a stable output voltage. All digital IOs (INTX, SDX1, TXD1, MOSI, MISO, TXEN1, RXD1, SCLK, SSX, TXD2, SDX2, K1, CLK_EXT) are supplied by this voltage, thus defining their input threshold and output voltage.
External circuitry can be supplied by this LDO. Up to 50mA can be drawn. Keep in mind, that the maximum load current at VHH and VDD must not exceed 50mA in total.

Application Note
CFR0014

Revision 1.2
6 of 11

1-Nov-2019
© 2019 Dialog Semiconductor

CCE4502
IO-Link Device IC with integrated Frame Handler
VDD1V8 ­ 1.8V LDO
This output voltage is fixed to 1.8V and is used by internal logic of the IC. A 100nF capacitor is required between VDD1V8 and VSS.
4 Clock
A calibrated internal 14.7456MHz (±2%) oscillator provides the system clock used by the core logic. This clock signal is available at the CLK_EXT pin of the IC if the pin K1 is connected to VSS or left open.
If an external clock is required, connect a 14.7456MHz clock source to CLK_EXT and connect K1 to VDD. An absolute accuracy of ±3% or better is required for proper IO-Link communication. If VDD is programmed for 3.3V output voltage, a 3.3V CMOS clock signal is required at CLK_EXT. Hence, a 5V CMOS clock signal is required at CLK_EXT, if VDD is programmed for 5V output voltage.

Core Logic
CCE4502

0 1
14.746MHz Oscillator

K1 CLK_EXT

Figure 6: Clock system

5 µC Interface
Two interfaces are available to control the CCE4502, depending on the target application

Logic IO-Interface
The pins TXEN1, SDX1, TXD1, RXD1, TXD2, SDX2 allow direct access to the channel1 (CQ1) in/output and the channel2 (DIO) output. By using these pins only, all IO-Link protocol handling has to be implemented in the externally connected MCU. However, this allows using the CCE4502 as a simple levelshifter from 3.3V/5V logic signals to IO-Link compliant levels.

SPI
The SPI (SSX, SCLK, MOSI, MISO and INTX) interface can be used to control the channel1 (CQ1) and channel2 (DIO) in and outputs. It allows to access internal supervisor circuitry, such as the over temperature, overvoltage detector and output overcurrent protection.
Furthermore IO-Link communication is eased by the on chip logic (Framehandler, Wakeup detect). So the computation overhead for the external MCU is reduced.

6 Power Budget
The ability of conducting heat from the chips core to the environment (thermal resistance) and highest allowable chip (junction) temperature limit the maximum power dissipation the CCE4502 can handle.

Application Note
CFR0014

Revision 1.2
7 of 11

1-Nov-2019
© 2019 Dialog Semiconductor

CCE4502
IO-Link Device IC with integrated Frame Handler
To minimize the temperature gradients at the chip, the total power dissipation is limited to 1W, see Absolute Maximum section of the product specification.
Keep in mind, that the internal temperature detection will flag over temperature at Tj=(120±10) °C.
System assembly, PCB layout and package determine the thermal resistance (Rthj-a) from junction to ambient of the IC measured in K/W. For the QFN24 package, by connecting the exposed pad to a copper plane at the backside of the PCB using thermal vias, good thermal coupling is possible. A junction to ambient thermal resistance of 40K/W can be achieved for the QFN24 4x4 package. System assembly will influence the Rthj-a, like free airflow at the PCB vs. thermal isolation of the PCB when assembled in the final product.
Calculate the junction temperature as follows:
 =  + -
Assuming ambient temperature (Ta) of 105°C, an Rthj-a of 40K/W and 1W of dissipated power (PD) inside the chip, the junction temperature (Tj) will rise to 145°C.
The on-chip power dissipation of the CCE4502, hence the junction temperature, is influenced by:
1. Input voltage. 2. External load currents at the regulator outputs and digital IOs. 3. Operation mode of the DC/DC regulator. 4. Output current at CQ1 and DIO. 5. Internal power consumption.
Use the "CCE4502 Power Budget" Excel sheet to calculate the total on chip power dissipation:

Application Note
CFR0014

Figure 7: Screenshot of Power Budget Calculator

Revision 1.2
8 of 11

1-Nov-2019
© 2019 Dialog Semiconductor

CCE4502
IO-Link Device IC with integrated Frame Handler
7 Reference Schematic

Figure 8: CCE4502 IO-Link Device Reference Schematic

Application Note
CFR0014

Revision 1.2
9 of 11

1-Nov-2019
© 2019 Dialog Semiconductor

CCE4502
IO-Link Device IC with integrated Frame Handler

8 Revision History

Revision 1.5 1.4

Date 01-Nov-2019 04-Dec-2017

1.3

15-Nov-2016

1.2

17-Oct-2016

1.1

12-Sep-2016

1.0

07-Sep-2016

Description Updated Template Update of application schematics Replaced capacitor LP/VSS with LP/LM Removed Reference PCB layout In line with spec Fixed PCB layout view Fixed VHH input voltage in bypass mode Initial revision

Content
1 Preface............................................................................................................................................ 2 2 Typical Application ....................................................................................................................... 2 3 Power supply ................................................................................................................................. 3
VDD5 ­ 5V LDO .................................................................................................................... 3 DC/DC regulator .................................................................................................................... 3 3.2.1 Buck Mode ......................................................................................................................... 4 3.2.2 Linear Mode ....................................................................................................................... 5 3.2.3 External Supply.................................................................................................................. 6 VDD ­ 3.3V/5V LDO .............................................................................................................. 6 VDD1V8 ­ 1.8V LDO ............................................................................................................. 7 4 Clock ............................................................................................................................................... 7 5 µC Interface .................................................................................................................................... 7 Logic IO-Interface .................................................................................................................. 7 SPI ......................................................................................................................................... 7 6 Power Budget ................................................................................................................................ 7 7 Reference Schematic .................................................................................................................... 9 8 Revision History .......................................................................................................................... 10 Disclaimer........................................................................................................................................... 11

Application Note
CFR0014

Revision 1.2
10 of 11

1-Nov-2019
© 2019 Dialog Semiconductor

Disclaimer
Information in this document is believed to be accurate and reliable. However, Dialog Semiconductor does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information. Dialog Semiconductor furthermore takes no responsibility whatsoever for the content in this document if provided by any information source outside of Dialog Semiconductor.
Dialog Semiconductor reserves the right to change without notice the information published in this document, including without limitation the specification and the design of the related semiconductor products, software and applications.
Applications, software, and semiconductor products described in this document are for illustrative purposes only. Dialog Semiconductor makes no representation or warranty that such applications, software and semiconductor products will be suitable for the specified use without further testing or modification. Unless otherwise agreed in writing, such testing or modification is the sole responsibility of the customer and Dialog Semiconductor excludes all liability in this respect.
Customer notes that nothing in this document may be construed as a license for customer to use the Dialog Semiconductor products, software and applications referred to in this document. Such license must be separately sought by customer with Dialog Semiconductor.
All use of Dialog Semiconductor products, software and applications referred to in this document are subject to Dialog Semiconductor's Standard Terms and Conditions of Sale, available on the company website (www.dialog-semiconductor.com) unless otherwise stated.
Dialog and the Dialog logo are trademarks of Dialog Semiconductor plc or its subsidiaries. All other product or service names are the property of their respective owners.
© 2019 Dialog Semiconductor. All rights reserved.

Application Note
CFR0014

Revision 1.2
11 of 11

1-Nov-2019
© 2019 Dialog Semiconductor
