User Manual for beko models including: B3T4911DW, B3T4911DG, B3T4911DW Dryer, Dryer
Dryer / User manual 7 1.4 Transporting safety • Unplug the product prior to transport, empty the water tank and if any, remove the water drain connections.
Freestanding 9kg Condenser Tumble Dryer B3T4911D | Beko Eire

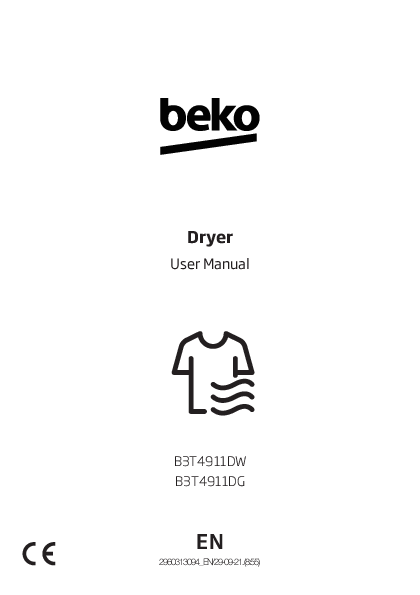

Dryer User Manual B3T4911DW B3T4911DG EN 2960313094_EN/29-09-21.(8:55) Dear Customer, Please read these instructions first before using your appliance Thank you for choosing a Beko appliance. Please take some time to read this user manual before using your appliance, to ensure you know how to safely operate the controls and functions. Carefully follow all unpacking and installation instructions to ensure the appliance is correctly connected and fitted prior to use. Please write your product model and serial number on the last page of this user manual, and store in a safe location close to the appliance for easy future reference. This user manual may also be applicable for several other models. Differences between models will be listed. If you have any questions or concerns, please call our contact centre or find help and information online at www.beko.co.uk Explanation of symbols used throughout this User Manual The following symbols are used in the user guide: Danger that may cause death or injury Read the manual. Important information or useful usage tips Warning against hot surfaces B Warning against electric shock Warning against UV Radiation hazard Warning against scalding The product's packaging is made of recyclable materials, in accordance with the National Environment Legislation. Warning against fire NOTICE Danger that may cause material damage on the product or surrounding area This product was manufactured using the latest technology in environmentally friendly conditions. Table Of Contents 1.1 Intended use .....................................................................................................5 1.2 Safety of children, vulnerable persons and pets .................................................5 1.3 Electrical Safety .................................................................................................6 1.4 Transporting safety ............................................................................................7 1.5 Installing safety ..................................................................................................7 1.6 Usage safety .....................................................................................................9 1.7 Maintenance and cleaning safety.....................................................................11 1.8 Lighting safety .................................................................................................11 1.9 Steam program safety .....................................................................................12 2 Environmental instructions................................................................. 13 2.1 Compliance with the WEEE Regulations and Waste Disposal ..........................13 2.2 Packaging information .....................................................................................13 2.3 Standard conformity and test information / EU declaration of conformity .........13 3 Your drying machine ........................................................................... 14 3.1 Technical specifications ...................................................................................14 3.2 General appearance ........................................................................................15 3.3 Scope of delivery .............................................................................................15 4 Installation .......................................................................................... 16 4.1 Right place for installation ................................................................................16 4.2 Removing the shipping safety group ................................................................16 4.3 Water connection ............................................................................................16 4.4 Adjusting the stands ........................................................................................17 4.5 Moving the drying machine..............................................................................17 4.7 Replacing the lighting bulb...............................................................................17 5 Preparation ......................................................................................... 18 5.1 Laundry suitable for drying in drying machine ..................................................18 5.2 Laundry not suitable for drying in drying machine ............................................18 5.3 Preparing the laundry to be dried.....................................................................18 5.4 What to do for energy saving...........................................................................18 5.5 Correct load capacity ......................................................................................19 Dryer / User manual 3 6 Running the product .......................................................................... 20 6.1 Control Panel...................................................................................................20 6.2 Symbols ..........................................................................................................20 6.3. Preparation of drying machine ........................................................................20 6.4 Program selection and consumption chart.......................................................21 6.5 Auxiliary functions............................................................................................23 6.6 Warning indicators...........................................................................................24 6.7 Starting the program........................................................................................24 6.8 Child Lock .......................................................................................................24 6.9 Changing the program after it is started ...........................................................24 6.10 Cancelling the program..................................................................................25 6.11 End of program .............................................................................................25 6.12 Odour feature ................................................................................................25 7 Maintenance and cleaning ............................................................... 26 7.1 Lint Filter / Loading Door Inner Surface............................................................26 7.2 Cleaning the sensors ......................................................................................26 7.3 Draining the water tank....................................................................................27 7.4 For the condenser; ..........................................................................................27 8 Troubleshooting ................................................................................. 28 9. Electrical Connection......................................................................... 30 9.1 Attention!.........................................................................................................30 9.2 Electrical requirements.....................................................................................30 9.3 Fitting a different plug .....................................................................................30 4 Dryer / User manual 1 Safety Instructions This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. · Our company shall not be held responsible for damages that may occur if these instructions are not observed. · Installation and repair operations shall always be performed by Authorized Service. · Use original spare parts and accessories only. · Do not repair or replace any component of the product unless it is clearly specified in the operation manual. · Do not modify the product. 1.1 Intended use · Product is designed only for household use. It is not intended for commercial use. · The product is not designed for outdoor use. · Do not install or operate the product where freezing is a possibility and/ or vulnerable to external elements. Water frozen in the pump or the hoses may cause damages · Product can only be used to dry and ventilate laundry which are washed with water and drying machine safe. 1.2 Safety of children, vulnerable persons and pets · This product may be used by children aged 8 years and older and persons with underdeveloped physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a the product safe way and the hazards involved. Children should not tamper with the device. Cleaning and maintenance should not be carried out by children unless they are supervised. · Children under 3 years old shall be kept away from the product unless supervised. Dryer / User manual 5 · Electrical products are dangerous for children and pets. Children and pets shall not play with the product, climb on or get inside the product. · Keep the product door closed even when not operated. Children or pets could be locked inside the product and suffocate. · Cleaning and user maintenance operations must not be performed by children unless supervised. · Keep the packaging materials away from children. Risk of injury and suffocation. · Keep all additives used with the product away from children. · Before disposing of the product, cut the power cord and destroy the loading door. 1.3 Electrical Safety · The product must not be plugged in during installation, maintenance, cleaning, repair and transporting operations. · If the power the cord is damaged, it shall be replaced by authorized service to avoid any risk that may occur. · Do not tuck the power cord under the product or to the rear of the product. Do not put heavy items on the power cord. Power cord shall not be kinked, pinched and shall not come in contact with any heat source. · Do not use an extension cord, multi-plug or adaptor to operate your product. · The product shall not be powered via an external switch such as a timer or shall not be connected to a circuit that is regularly opened and closed with a tool. · The plug shall be easily accessible. If this is not possible, a mechanism that meets the electrical legislation and that disconnects all terminals from the mains (fuse, switch, main switch, etc.) shall be available on the electrical installation. · Do not touch the plug with wet hands. · When unplugging the appliance, don't hold the power cord, but the plug. 6 Dryer / User manual 1.4 Transporting safety · Unplug the product prior to transport, empty the water tank and if any, remove the water drain connections. · This product is heavy, do not handle it by yourself. · Take required precautions for the product against falling and tipping. Do not crash or drop the product when transporting. · Do not use the extruding parts of the product (such as the loading door) to move the product. · Move the product in upright position. If it cannot be moved upright, transport via tilting to the right side when viewed from the front. 1.5 Installing safety · To prepare the product ready for installation, ensure that the electrical installation and water drain is proper by checking the information in the user manual. If it is not suitable for installation, call a qualified electrician and plumber to arrange the utilities as necessary. These operations shall be undertaken by the customer. · Check for any damage on the product before installing it. Do not have the product installed if it is damaged. · Do not remove the adjustable stand. · Place the product on a level and hard surface and balance with the adjustable legs. · The gap between the product and the floor shall not be reduced via materials such as rugs, pieces of wood and bands. The ventilation holes under the base of the product shall not be clogged with a rug. · The product shall be installed not to clog the ventilation holes. · Install the product in an environment free of dust with good ventilation. · Do not install the product in close proximity to flammable and explosive materials and do not keep flammable and explosive materials near the product when it is in operation. · The product shall not be installed against a door, sliding door where the product loading door cannot be completely opened, or behind a hinged door where the product hinge is faced against the door's hinges. Dryer / User manual 7 · Install the product where periodic maintenance and cleaning can be done with ease. · Place the product with its back surface to the wall (for heater models). · After placing the product, ensure that the back wall does not come in contact with any extrusion (a water tap, electrical outlet etc.). · Place the product with at least 1 cm space between the product and the furniture edges. · Follow the flue connection rules specified in the guide (for models with flue). · The exhaust air shall not be directed to flue which is used to exhaust the smoke of devices that consume gas or other fuels (for models with flue). · The ventilation hose shall not be connected to a heating stove or a chimney flue (for models with flue). · Plug the product to a grounded outlet protected with an appropriate fuse in align with the specified type and current rates. Have an expert electrician set grounding equipment. Do not use the product without a grounding conforming with regional/national regulations. · Plug the product in a grounded socket that conforms with the voltage, current and frequency values specified in the type label. · Do not plug the product to loose, broken, dirty, greasy sockets or sockets that has come out their seats or sockets with a risk of water contact. · The new hose sets supplied with the product shall be used. Do not reuse the old hose sets. Do not make attachments to the hoses. · Place the power cord and hoses not cause a risk of tripping over. · To use the product on top of a washing machine, a fixing aperture shall be used between two products. Fixing aperture shall be mounted by the authorised service. · When the product is placed on the washing machine, their combined weight when full could be around 180 kg. Place the products on a sturdy floor that can carry adequate amount of load. · Washing machine cannot be placed on top of the drying machine. 8 Dryer / User manual Suitable Instalment Table for Washing Machine and Drying Machine Connection Kit Type Depth Measurement (DM: Drying Machine, WM: Washing Machine) Plastic - 54/60 cm (with/without arch) DM WM DM - WM = max. 10 cm Plastic - 46cm (with/without arch) DM WM DM - WM = max. 10 cm With Shelves - 60 cm DM WM With Shelves - 54cm DM WM 1.6 Usage safety · The maximum weight of dry laundry prior to washing is specified in "Technical Specifications" section. · Do not place the unwashed items in the drying machine. · Items that are soiled with materials such as cooking oils, acetone, alcohol, petrol, kerosene, stain removers, turpentine, wax or was removers shall be washed in hot water with more amount of detergent prior to drying with the drying machine. · If chemicals are utilized for cleaning, the drying machine shall not be used. · Rubber foam (latex foam), shower bonnets, water resistant textiles, rubber supported materials and clothes, pillows with rubber foam pads shall not be dried in a drying machine. · The items with hair spray, hair product residue or similar materials shall not be dried in a drying machine. · Empty the pockets of the clothes and remove items such as matches and lighters. · If all items cannot be removed rapidly and cannot be placed where heat can dissipate, do not stop the drying machine before drying cycle completed. · The last part of the drying machine cycle is conducted without heating (cooling cycle) in order to ensure that the items are kept at a temperature that will not harm the items. Dryer / User manual 9 · Laundry softeners or similar products shall be used in align with the laundry softener instructions. · Do not use the drying machine without the fibre filter. · Do not allow fibre accumulation around the drying machine. · To prevent back draft of gas in the room from the devices that consume other fuels, including open fire, appropriate ventilation shall be provided (for models with flue). · Do not operate the product together with heaters such as gas heater and a chimney. It may cause the flue to catch fire. (for models with flue) · Do not lean or sit on the loading door when it is open, the product may tip over. · Do not get on the product. · Do not place a source of flame (candles, cigarettes, etc.) on the product or in the vicinity of it. Do not keep flammable/explosive materials. · Do not touch the drum as it revolves. · The back wall of the product will be hot during operation. Do not touch the back side of the product during drying or after the drying process is completed. (For models with heating) · Do not touch the inner surface of the drum while adding or removing clothes during a continuing program. The drum surface is hot. · Do not press the buttons with sharp objects such as forks, knives, with your nails etc. · Do not operate the faulty or damaged product. Unplug the product (or shut down the connected fuse) and call the authorized service. · Unplug the product when not in use. 10 Dryer / User manual 1.7 Maintenance and cleaning safety · Do not wash the product by spraying or pouring water on it. Do not use a pressure cleaner, steam cleaner, hose or pressurised gun to clean the product. · Do not use sharp or abrasive tools to clean the product. · Do not use materials such as household cleaning agents, soaps, detergents, gas, gasoline, alcohol, wax, etc. to clean the product. · The fibre filter shall be regularly cleaned. After each drying cycle, clean the fibre filter and the inner surface of the loading door. · Clean the fibre accumulation on the fins of the evaporator behind the filter drawer with a vacuum cleaner. You can clean by hand, provided you wear protective gloves. Do not try to clean with bare hands. Evaporator fins may damage your hands. (For products with heat pump) · Due to fire and explosion hazard, do not use solutions, cleaning materials, steel wool or similar materials and tools to clean sensors. · Clean the flue. (for models with flue) · Do not drink the condensed water. 1.8 Lighting safety · Contact an authorized service when you need to replace the LED/bulb using for lighting (for products with lighting). Dryer / User manual 11 1.9 Steam program safety · Applicable to products with steam program. · Steam programs only use distilled water or condensed water in the water vessel of the machine. Do not use mains water or additives. When using condensed water in the water vessel, it should be filtered and cleared of fibres. · Before putting laundry in a steam program, stains on it should be removed. · You may put laundry that is not dirty or stained but permeated with unpleasant odour in deodorizing program. · Do not use any dry cleaning set or additional material within a steam program or any program. · Do not open the door when steam programs are on. Hot water may be expelled. · Do not drink the pure water supplied with the product. 12 Dryer / User manual 2 Environmental instructions 2.1 Compliance with the WEEE Regulations and Waste Disposal This product does not contain the dangerous and prohibited materials indicated in the "Regulation on The Control of Waste Electrical and Electronic Equipment" published by Ministry of Environment and Urbanisation of Republic of Turkey. Complies WEEE Regulations. This product was manufactured from recyclable and reusable high quality parts and materials. Therefore, do not dispose of this product with other domestic wastes at the end of its life cycle. Take it to a collection point for electrical and electronic equipment. You can ask your local administration about these collection points. You can help protect the environment and natural resources by delivering the used products for recycling. 2.2 Packaging information The product's packaging is made of recyclable materials, in accordance with the National Legislation. Do not dispose the packaging waste with the household waste or other wastes, dispose it to the packaging collection areas specified by local authorities. 2.3 Standard conformity and test information / EU declaration of conformity The development, manufacturing and sales phases of this product is conducted in conformity with the safety rules specified in all related instructions of the European Union. Dryer / User manual 13 3 Your drying machine 3.1 Technical specifications EN Height (Min. / Max.) Width Depth Capacity (max.) Net weight (± %10) Voltage Rated power input Model code 84,6 cm / 86,6 cm* 59,8 cm 60,9 cm 9 kg** 35 kg See type label*** * Min. height: Height with the adjustable stand closed. Max. height: Height with the adjustable stand opened at maximum height. ** Weight of dry laundry before washing. *** Data plate is under the door on the drying machine. In order to increase the drying machine's quality, the technical specifications may be changed without prior notice. Figures in this manual are schematic and may not exactly match the product. The values provided with the drying machine or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions. 14 Dryer / User manual 3.2 General appearance 11 10 9 8 7 6 1. Top panel 2. Control panel 3. Loading door 4. Toe board handle 5. Ventilation grids 6. Adjustable feet 7. Toe board 8. Rating plate 9. Lint filter 10. Water tank drawer 11. Power cord 3.3 Scope of delivery 1. Water discharge hose* 1 2. Filter drawer 2 spare sponge* 3 3. User Manual 4 5 4. Drying basket* 6. Water filling cap* 7. Pure Water* 8. Odour Capsule Group* 9. Brush* 5. Drying basket user manual* 10. Filter cloth* *Optional - may not be included, depends on model. Dryer / User manual 15 4 Installation Read the "Safety Instructions" first! Before consulting the nearest Authorized Service for installing the drying machine, see the information in the user guide and make sure the electric and water utilities are as required. If not, call an electrician and plumber to arrange the utilities as necessary. It is customer's responsibility to prepare the location the drying machine shall be placed on and also have power and waste water installation prepared. 4.1 Right place for installation · Install the drying machine on a flat and stable surface. · Dryer machine is heavy. Do not move it by yourself. · Operate the drying machine in an environment free of dust with good ventilation. · The gap between the drying machine and the floor shall not be reduced via materials such as rugs, pieces of wood and bands. · Do not block the ventilation grilles of the drying machine. · There shall not be doors that can be locked, sliding doors or hinged doors near the installation environment of the drying machine that may block the loading door to be opened. · Once the drying machine is installed, the connections must stay stable. After placing the drying machine, ensure that the back wall does not come in contact with any extrusion (a water tap, electrical outlet etc.). · Place the drying machine with at least 1 cm space between the product and the furniture edges. · Your drying machine is suitable to be operated between +5°C to +35°C. If operated outside this temperature range, your drying machine's operation may be compromised and get damaged. · The drying machine shall not be placed with the back side against a wall. B Do not place the drying machine on its power cord. 4.2 Removing the shipping safety group Remove the shipping safety group prior to first use the product. Do not leave an accessory or any NOTICE parts of the shipping safety group inside the drum. 4.3 Water connection Instead of periodically draining the water accumulated in the water tank, you can discharge via the water discharge hose supplied with the drying machine. Connecting the water drainage hose 1-2 Remove the 1 2 hose behind the drying machine by pulling it manually from 3 4 where it is attached. Do not use a tool to remove the hose. 3 Insert one end of the water discharge hose supplied with the drying machine to where you have removed the hose on the drying machine. 4 Fix the other end of the water discharge hose to directly waste water drainage or a sink. 16 Dryer / User manual NOTICE The water discharge hose shall be fixed at maximum 80 cm height. Ensure that the water discharge hose do not get kinked, collapsed or pressed on between the discharge and the drying machine. Hose shall be connected not to be disconnected from its location. Leaked water may cause damage. Do not extend the water drainage hose. Check whether the water runs at an appropriate flow. The drainage line shall not be closed or clogged. If an accessory package is provided with your product, check the detailed instructions. 4.4 Adjusting the stands Until the drying machine stands level and sturdy, adjust the stands by turning them left and right. 4.5 Moving the drying machine · Drain the water in the drying machine completely. · If the product is connected via direct discharge, remove the hose connections. The drying machine is recommended to be moved in upright position. Otherwise, tilt it to the right side when viewed from the front and move the drying machine. 4.7 Replacing the lighting bulb If your drying machine has drum lighting lamp; Consult the authorized service to replace the bulb/LED used in lighting your drying machine. The bulb in this product is not suitable for home lighting. The intended use of this lamp is to ensure safely loading the laundry to the drying machine. The lamps used in this appliance is resistant to heavy physical conditions such as temperatures over 50°C. Dryer / User manual 17 5 Preparation Read the "Safety Instructions" first! 5.1 Laundry suitable for drying in drying machine NOTICE Laundry that are not drying machine safe may damage the appliance and the laundry during drying. Follow the instructions on the labels on the laundry to be dried. Only dry the laundry with "drying machine safe" written on their labels. Do not dry with dryer 5.2 Laundry not suitable for drying in drying machine NOTICE Undergarments with metal supports shall not be dried in drying machine. If these metal supports get loose and ripped from the garment, it may damage the machine. Delicate embroidery textiles, cotton and silk garments, garments manufactured from delicate and valuable textiles, non breathing garments and tulle curtains shall not be dried in drying machine. 5.3 Preparing the laundry to be dried Items such as coins, metal parts, needles, nails, screws, stones etc. may damage the drum group of the product or may cause functional operation issues. Therefore check all laundry that will be loaded to the NOTICE product. Dry the laundry with metal accessories such as zippers by turning them inside out. Close the zippers, hooks and clasps, button up the covers' buttons, tie textile belts and apron belts. 5.4 What to do for energy saving · Use the highest possible wringing option as you wash the laundry. Therefore you can reduce the drying period and reduce energy consumption. Sort the laundry based on their types and thickness. Dry same types of laundry together. For instance kitchen towels and table cloths dry faster than bathroom towels. · Follow the recommendations in the user manual for program selection. · During drying do not open the loading door unless necessary. If you are required to open the loading door, do not keep it open for too long. · Do not add wet laundry as the drying machine operates. · Clean the Fibre Filter before and after each drying session. · For condensation models, be sure to clean the condenser at least once a month or after each 30 drying sessions. · Make sure the filters are clean. Refer to maintenance and cleaning for details. · For models with flue, follow the flue connection rules specified in the guides and clean the flue. · During drying session, properly ventilate the environment in which the drying machine is in. · On models with heat pump, check the condenser at least every six months and clean it if it is dirty. 18 Dryer / User manual · If you are using environment friendly filter, you are not required to clean the filter after every cycle. When the environment friendly icon is lit on the screen, change the filter cloth. 5.5 Correct load capacity NOTICE If the laundry in the product exceed maximum load capacity, it may not operate as intended and may cause material damage or damage the product. For each program, follow the maximum load capacity. The weights below are provided as examples. Laundry Approx. weight (g)* Laundry Approx. weight (g)* Cotton bedding 1500 Cotton dress 500 (double size) Bedding (single size) 1000 Dress 350 Bed sheet (double size) 500 Denim 700 Bed sheet (single size) 350 Handkerchief (10 pcs) 100 Large table cloth 700 T-Shirt 125 Small table cloth 250 Blouse 150 Tea napkin 100 Cotton shirt 300 Bath towel 700 Shirt 200 Hand towel 350 *Weight of dry laundry before washing. Dryer / User manual 19 6 Running the product 6.1 Control Panel 1 1. On/Off/Program Selection button. 2. Start / Stand-by button. 3. End time selection button. 4. Time program selection button. 5. Low temperature selection button. 6.2 Symbols 87 6 54 32 6. Audible warning and child lock selection button. 7. Wrinkle prevention selection button/ Drum light button. 8. Dryness level selection button. Tank full Filter cleaning Filter drawer / Start Heat exchanger pause cleaning cancel Drying Buzzer Iron Dry Cupboard Cupboard Extra dry End Dry Dry + Anti- Child-proof Low TimeDry Ending In RapiDry On / Off Wool Protect Freshen Hygiene Downwear Wifi creasing lock temperature Up (Baby Protect+) Remote Control Dryness Level Drum Light Daily Delicates Towels Mix Synthetics Cottons Cottons Eco Jeans Sport Bedding/ Shirts Duvet Express Hygienic Hygienic Drying Refresh Steam Steam Level1 Steam Level2 Night Outdoor Environmentally Environmentally Bluetooth friendly filter full friendly filter Gentle Dry 6.3. Preparation of drying machine · Plug the drying machine. · Open the loading door. · Place the laundry to the drying machine without jamming them. · Push and close the loading door. NOTICE · Select the desired program by using On/Off/Program Selection button, the machine will turn on. Selecting the program with the On/ Off/Program Selection button does not mean that the program started. Press Start / Stand-by button to start the program. Ensure that no laundry is jammed to the loading door. Do not close the loading door with force. 20 Dryer / User manual 6.4 Program selection and consumption chart EN Programmes Programme Description Capacity (kg) Spin speed in washing machine (rpm) Drying Time (minutes) Cottons Cottons Eco Cottons Iron dry Synthetics Mix Towels GentleCare Sports Freshen up Timer Programme Jeans You can dry your heat-resistant cotton textiles with this programme. A drying setting suitable for the thickness of the products to be dried and the 9 1000 159 desired level of dryness should be selected. It dries single layer, casual cotton textiles in the most economical way. 9 1000 149 You may dry your cotton laundry to be ironed in this program to have them slightly damp for ease 9 1000 120 of ironing. (Shirt, T-shirt, tablecloth, etc.) You can dry all your synthetic textiles with this programme. A drying setting suitable for the level 4 800 50 of dryness you desire should be selected. Use this programme to dry non-pigmenting synthetic and cotton laundry items together. Sports and fitness clothes may be dried with this 4 1000 83 program. Drying towels such as kitchen towel, bath towel and hand towel. 5 1000 110 You may dry your delicate laundry or laundry with hand wash symbol (silk blouses, thin underwear, etc.) at low temperature in this 2 1200 35 program. You can dry your single-layer sportswear for daily use made of synthetic, cotton or mixed fabrics 4 1000 60 with this program. It just provides airing for 10 minutes without any hot air. You can air the cotton and linen laundry that are kept closed for a long time , and - - 10 eliminate the odour in them. You may select from time programmes between 10 and 160 minutes to achieve the desired drying level at low temperature. In this programme, tumble drier's operation lasts for - - - the set time independently from the dryness of laundry. You may dry denim pants, skirts, shirts or jackets in this program. 4 1200 80 Dryer / User manual 21 Outdoor You can dry your multi-layer textile products made of synthetic, cotton or mixed fabrics used for outdoor activities and outdoor sports with this 2 1000 60 program. Daily Shirts You can dry both cotton and synthetic laundry with this programme.Sports and fitness clothes 4 1000 83 may be dried with this program. It dries the shirts in a more sensitive manner, and causes less creasing and easier ironing. 1,5 1200 35 Super Short 0.5kg Use this program to have 2 shirts ready for ironing. 0,5 1200 15 Hygiene It is a long-term program that you can use for the clothes (baby clothes, towels, underwear, etc. cotton) you require hygeine. Hygiene is provided with high temperature. It is especially suitable for 5 800 105 durable fabrics. ((This program is identified and approved by England's "The British Foundation" (Allergy UK).)) Energy consumption values Spin speed in washing machine (rpm) Approximate amount of remaining humidity Energy consumption value kWh Programmes Capacity (kg) Cottons Eco * Cottons Iron dry Synthetics cupboard dry 9 1000 60% 5,21 9 1000 60% 4,10 4 800 40% 1,90 "Cottons Eco programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet Cottons laundry and that it is the most efficient programme in terms of energy consumption for Cottons. "If you regularly dry the 9 Kg maximum load of Cottons we suggest to connect the drain hose to prevent the dryer stopping mid-cycle in order to empty the tank" (see Section "Connection to the drain") * : Energy Label standard program EN 61121The values in the table are determined according to the EN 61121 standard. Consumption values may vary from the valued in the chart depending on laundry type, wringing speed, ambient conditions and voltage levels. 22 Dryer / User manual Allergy UK is the trademark of the British Allergy Foundation. The Seal of Approval has been created to guide people requesting an advice that the product significantly reduces the amount of the allergens in an environment where allergic people are present or the product restricts/reduces/ eliminates the allergens. The purpose is to provide evidence that the products have been scientifically tested or analysed to yield measurable results. 6.5 Auxiliary functions Dryness level Dryness level button is used for adjusting to desired dryness. Program time may change depending on the selection. You can activate this function only prior to start of program. Wrinkle prevention You can turn on and off the wrinkle prevention function by pressing the wrinkle prevention selection button. If you will not take the laundry out immediately after the program has completed, you may use Wrinkle prevention function to prevent wrinkling of your laundry. Audible warning Drying machine makes an audible warning when the program is completed. Press the "Audible Warning" button if you do not want audible warning. When you press the audible warning button, the light goes off and it does not sound when the program is completed. You can select this function before the program starts or after the program starts. Low temperature You can activate this function only prior to start of a program. You can activate this function if you want to dry your laundry at a lower temperature. The program duration will be longer after it becomes activated. End time You can delay the end time of the program up to 24 hours with end time function. 1. Open the loading door and place the laundry. 2. Select the drying program. 3. Press the End Time selection button and set the delay time you wish. End time LED turns on. (When pressed and hold the button, End Time proceeds non-stop). 4. Press the Start / Stand-by button. End Time countdown begins. The ":" sign in the middle of displayed delay time flashes. You can add or remove laundry within end time. Displayed time is the sum of normal drying time and end time. End Time LED turns off at the end of countdown, the drying starts and the drying LED turns on. Changing the end time If you want to change the duration during the countdown: Pause the program and Turn the On/Off/ Program Selection button and cancel the program. Select the desired program and repeat the End Time selection. Cancelling the end time function If you want to cancel the end time countdown and start the program immediately: Pause the program and Turn the On/Off/ Program Selection button and cancel the program. Select the desired program and press the "Start/Pause" button. Drum Light You can turn on and off the drum light by pressing this button. The light turns on when the button is pressed and turns off after certain time. Dryer / User manual 23 6.6 Warning indicators Warning indicators may vary depending on the model of your drying machine. Filter cleaning When the program is completed, the warning indicator for filter cleaning turns on. Water tank If the water tank fills up while the program continues, the warning indicator starts flashing and the machine goes into stand-by. In this case, empty the water tank and start the program by pressing the Start / Stand-by button. Warning indicator turns off and program resumes. Cleaning of filter drawer/ heat exchanger Warning symbol flashes periodically to remind that filter drawer must be cleaned. 6.7 Starting the program Press the Start/Stand-by button to start the program. Start/Stand-by and Drying indicators turn on to show that program started. 6.8 Child Lock The drying machine has a child lock which prevents the program flow from being interrupted when the buttons are pressed during a program. When the Child Lock is activated, all buttons on the panel except the On/Off/Program Selection button are deactivated. Press the Audible Warning button for 3 seconds in order to activate the child lock. The child lock has to be deactivated to be able to start a new program after the current program is finished or to be able to interfere with the program. To deactivate the child lock, keep the same buttons pressed for 3 seconds. When the child lock is activated, the child lock warning indicator on the screen turns on. When the child lock is active: The drying machine runs, or in stand-by state the indicator symbols will not change upon changing the position of the program selection button. When the drying machine is operated and the child lock is active, if the program selection button is turned, a double beeping noise will be heard. If the child lock is deactivated before the program selection button is turned to its original place, the program will be terminated since the program selection button is displaced. 6.9 Changing the program after it is started You can change the program you selected to dry your laundry with a different program after the drying machine starts running. · For example, Pause the program and turn the On/Off/Program Selection button to select the Extra Dry program in order to select the Extra Dry program instead of Ironing Dryness. · Press the Start/Stand-by button to start the program. Adding and removing clothes during stand-by If you want to add or remove clothes to/from the drying machine after the drying program starts: · Press the Start/Stand-by button to put the drying machine in Stand-by state. The drying operation stops. · Open the loading door while in Standby state, and close the door after you remove or add laundry. · Press the Start/Stand-by button to start the program. 24 Dryer / User manual Adding laundry after the drying operation starts may cause the dried laundry inside the drying machine to mix with wet laundry and leave the laundry damp at the end of operation. Adding or removing laundry during drying may be repeated as many times as you wish. But this operation continuously interrupts the drying operation, and thus increases program duration and energy consumption. So, it is recommended to add laundry before the program starts. If a new program is selected by turning the program selection button while the drying machine is in stand-by, the running program terminates. Do not touch the inner surface of the drum while adding or removing clothes during a continuing program. The drum surface is hot. 6.10 Cancelling the program If you want to cancel the program and terminate the drying operation for any reason after the drying machine starts running, Pause the program and turn the On/Off/Program Selection button; the program terminates. The inside of the drying machine shall be extremely hot when you cancel the program during machine operation, so run the refreshing program to allow it to cool down. 6.11 End of program When the program ends, the LED's of End/ Wrinkle Prevention and Fibre Filter Cleaning Warning on the program follow-up indicator turn on. Loading door can be opened and drying machine is ready for another operation. Turn the On/Off/Program Selection button to On/Off position in order to turn off the drying machine. If the Wrinkle Prevention mode is active and the laundry is not removed after the program is completed, the wrinkle prevention function activates for 2 hours to prevent the laundry inside the machine to get wrinkled. The program tumbles the laundry with 10-minute intervals to prevent them from wrinkling. 6.12 Odour feature If your drying machine has odour feature, read the ProScent manual to use this feature. Dryer / User manual 25 7 Maintenance and cleaning Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals. B This product must be unplugged during maintenance and cleaning works (control panel, body, etc.). 7.1 Lint Filter / Loading Door Inner Surface Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter. A layer can build up on the filter pores that can cause clogging of the filter after using the dryer for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before reinstalling it. · Clean the entire inner surface of the loading door and loading door gasket with a soft damp cloth. Always clean the lint filter and the inner surfaces of the loading door after each drying process. You can clean the lint filter housing with a vacuum cleaner. To clean the lint filter: · Open the loading door. · Remove the lint filter by pulling it up and open the lint filter. · Clean lint, fiber, and cotton raveling by hand or with a soft piece of cloth. · Close the lint filter and place it back into its housing. 7.2 Cleaning the sensors There are dampness sensors in the dryer that detect whether the laundry is dry or not. To clean the sensors: · Open the loading door of the dryer. · Allow the machine to cool down if it is still hot due to the drying process. · Wipe the metal surfaces of the sensor with a soft cloth, dampened with vinegar and dry them. Clean metal surfaces of the sensors 4 times a year. Do not use metal tools when cleaning metal surfaces of the sensors. Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion! 26 Dryer / User manual 7.3 Draining the water tank Dampness of the laundry is removed and condensed during drying process and the water that arise accumulates in the water tank. Drain the water tank after each drying cycle. A WARNING! · Condensed water is not drinkable! · Never remove the water tank when the program is running! If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle. To drain the water tank: 7.4 For the condenser; Clean the condenser after every 30 drying cycles or once a month. o clean the condenser: · If a drying process has been carried out, open the door of the machine and wait until it cools down · Unlock the 2 condenser locks after opening the kick plate · Pull out the condenser. 1. Remove the water tank in the drawer or container carefully. · If there is lint accumulation in the funnel of the water tank, clean it under running water. · Place the water tank into its seat. If the direct water draining is used as an option, there is no need to empty the water tank. Clean the condenser by applying pressurized water with a shower armature and wait until the water drains. Place the condenser in its housing. Fasten the 2 locks and make sure that they are seated securely. Close the kick plate cover. Dryer / User manual 27 8 Troubleshooting Drying operation takes too long. Fibre filter (interior and exterior filter) pores may be clogged. >>> Wash the fibre filters with warm water and dry. Condenser front side may be clogged. >>> Clean the front side of the condenser. The ventilation grills in front of the machine may be closed. >>> Remove any object in front of the ventilation grills that blocks air. Ventilation may be inadequate because the are the machine is installed in is too small. >>> Open the door or windows to prevent the room temperature from rising very high. If there is a humidity sensor. A lime layer may have accumulated on the humidity sensor. >>> Clean the humidity sensor. Excessive amount of laundry might be loaded. >>> Do not load the drying machine excessively. Laundry might not have been wrung adequately. >>> Perform a higher speed wringing on the washing machine. Clothes come out damp after drying. A program not suitable for the laundry type may have been used.>>> Check the maintenance labels on the clothes and select a program suitable for the clothes' type or use time programs as extra. Fibre filter (interior and exterior filter) pores may be clogged. >>> Wash the filters with warm water and dry. Condenser front side may be clogged. >>> Clean the front side of the condenser. Excessive amount of laundry might be loaded. >>> Do not load the drying machine excessively. Laundry might not have been wrung adequately. >>> Perform a higher speed wringing on the washing machine. Drying machine does not turn on or program cannot be started. Drying machine does not run after it is configured. Power plug might be unplugged. >>> Make sure the power cord is plugged in. Loading door might be open. >>> Ensure that the loading door is properly closed. A program might not be set or Start / Pause button might not be pressed. >>> Check that the program is set and it is not in Pause position.. Child lock may be activated. >>> Turn off the child lock. Program terminated prematurely for no reason. Loading door might be closed completely. >>> Ensure that the loading door is properly closed. There might be a power outage. >>> Press the Start / Pause / Cancel button to start the program. Water tank may be full. >>> Empty the water tank. Clothes have shrunk, hardened or spoiled. A program not suitable with the laundry type might have been used. >>> Check the maintenance labels on the clothes and select a program suitable for the clothes. Water drips from the loading door. Fibres might have gathered on the inner sides of the loading door and the loading door gasket. >>> Clean the inner surfaces of the loading door and the loading door gasket surfaces. Loading door opens by itself. Loading door might be closed completely. >>> Push the loading door until the closing sound is heard. Water tank warning symbol is on/flashing. Water tank may be full. >>> Empty the water tank. Water discharge hose might have collapsed. >>> If the product is connected directly to the water drain check the water discharge hose. 28 Dryer / User manual The lighting inside the drying machine does not turn on. (In models with lamp) The drying machine might not have been turned on using On/Off button. >>> Check that the drying machine is turned on. Lamp might be malfunctioning. >>> Contact Authorized Service to replace the lamp. Wrinkle prevention icon or light is lit. Anti-Crease mode that prevents the laundry in the drier to crease may be activated. >>> Turn the drier off and remove the laundry. Fibre filter cleaning icon is lit. Fibre filter (interior and exterior filter) may be unclean. >>> Wash the filters with warm water and dry.. A layer may be formed on the fibre filter pores that leads to clogging. >>> Wash the filters with warm water and dry. A layer that may cause clogging of the pores of the fibre filters (internal and external filters) may have occurred.<<Wash and dry the filters with lukewarm water>> Fibre filters may not be inserted. >>> Insert the interior and exterior filters to their places. Environmentally-friendly filter cloth may not be installed on the plastic part and the front of the condenser may have clogged.>>>Install the environmentally-friendly filter to the plastic part and place it on the filter housing. Environmentally-friendly filter may have not been replaced although the warning symbol is illuminated. "Replace your filter." An audible warning is heard from the machine Fibre filters may not be inserted. >>> Insert the interior and exterior filters to their places. Filters of the machine may not have been installed.>>> Install the fibre filters (internal and external) or the environmentally-friendly filter to their housing. Condenser warning icon is flashing. Condenser front side may be clogged with fibres. >>> Clean the front side of the condenser. Fibre filters may not be inserted. >>> Insert the interior and exterior filters to their places. The lighting inside the drying machine turns on. (In models with lamp) If the drying machine is plugged to the power outlet, the On/Off button is pressed and the door is open; the light turns on. >>> Unplug the drying machine or bring the On/Off button to Off position. Wifi icon flashes continuously. (for models featuringHomeWhiz Function) >>> The product may not be connected to the wireless network. Follow the instructions to connect to the network. The device which the product utilize to connect to network may be faulty. Check it.The product may not be connecting to the network due to proximity. If you see the "F L t" message on the screen, please follow the steps below. Filters may be dirty. Clean internal and external filters or replace the eco-friendly filter. If you use double filter, as an internal and external filter, on the cover area, ensure that both filters are installed. If you use the eco-friendly filter feature, ensure that the filter cloth is installed to the plastic part. Install the filter cloth to the plastic part if it is not installed. The are in front of the condenser may be dirty. Open and inspect the toe board area and ensure that it is clean. Refer to the Maintenance and Cleaning section. If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself. If you experience any issue with your device, you can request a replacement by consulting to the nearest authorised service with the device model number. Dryer / User manual 29 9. Electrical Connection Make sure that you have an earthed power outlet socket rated at 13 amps (minimum). 9.1 Attention! When installed, the socket must be reachable after installation, or a separate switch (which can disconnect the two poles) must be used in the installation. Check for suitability. For a permanent connection, a master switch with at least 3mm contact clearance and minimum 13 A rating must be used. 9.2 Electrical requirements Before you insert the plug into the wall socket make sure that the voltage and the frequency shown in the rating label corresponds to your electricity supply. We recommend that this appliance be connected to the mains supply via a suitable switched and fused socket in a readily accessible position. Should the mains lead of the appliance become damaged or need replacing at any time, it must be replaced by a special purpose made mains lead which can only be obtained from an Authorised Service Agent. Warning This appliance must be earthed If the fitted moulded plug is not suitable for your socket, then the plug should be cut off and an appropriate plug fitted. The moulded plug on this appliance incorporates a 13A fuse. Should the fuse need to be replaced an ASTA approved BS1362 fuse of the same rating must be used. Do not forget to refit the fuse cover. In the event of losing the fuse cover, the plug must not be used until a replacement fuse cover has been fitted. Colour of the replacement fuse cover must be the same colour as that visible on the pin face of the plug. Fuse covers are available from any good electrical store. In order to avoid hazards, damaged supply cord should be replaced by the manufacturer, its service agent or similarly qualified people. Do not operate without the top cover fitted. Risk of injury. Important 9.3 Fitting a different plug As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals on your plug, proceed as follows: 1 Connect the green - yellow or green (earth) wire to the terminal in the plug marked `E' or with the symbol or coloured green and yellow or green. 2 Connect the blue (neutral) wire to the terminal in the plug marked `N' or coloured black. 3 Connect the brown (live) wire to the terminal in the plug marked `L' or coloured red. With the alternative plugs a 13 A fuse must be fitted either in the plug or adaptor or in the main fuse box. If in doubt contact a qualified electrician. Green and yellow or green N Blue or black L Brown or red 9.4 Washer/dryer combination Do not stack washing machine on top of the tumble dryer. This would damage both appliances and guarantees would become void. It is also unsafe to stack an appliance on top of another without using a suitable and approved stacking kit obtained from specialist retailers. 30 Dryer / User manual BEKO UK AND IRELAND STANDARD MANUFACTURER GUARANTEE TERMS AND CONDITIONS Your new Beko product is guaranteed against faulty materials, defective components or manufacturing defects. The standard guarantee starts from the date of original purchase of the product, and lasts for a period of twelve (12) months unless Beko plc (the "Manufacturer") agrees to extend the guarantee for the product in writing. If you have purchased an American style Fridge freezer, the standard guarantee starts from the date of original purchase of the product, and lasts for a period of twenty four (24) months unless Beko plc (the "Manufacturer") agrees to extend the guarantee for the product in writing. If you have any questions about the guarantee on your product (including how long it is valid), please contact your retailer or our contact centre on 0333 207 9710 (UK and Northern Ireland) or 01 862 3411 (Republic of Ireland) This guarantee does not in any way diminish or affect your statutory rights in connection with the product. This guarantee is in addition to your statutory rights as a consumer. If you have any questions about these rights, please contact the retailer from which you purchased the product. In certain circumstances, it is possible that your statutory rights may offer additional or higher levels of protection than those offered under the terms of this guarantee. What is covered by this guarantee? · Repairs to the product required as a result of faulty materials, defective components or manufacturing defects. · Functional replacement parts to repair a product. · The costs of a Beko Approved Engineer to carry out the repair. What is not covered? · Transit and delivery damage. · Cabinet or appearance parts, including but not limited to control knobs, flaps and handles. · Accessories and/or consumable items including but not limited to ice trays, scrapers, cutlery baskets, filters and light bulbs. · Repairs necessary as a direct or indirect result of: - Accidental damage, misuse or abuse of a product. - An attempted repair of a product by anyone other than a Beko Approved Engineer (the "Engineer"). - Installation or use of a product where such installation or use fails to meet the requirements contained in this guarantee or the User Instructions Booklet. · Repairs to a product operated at any time on commercial or non-residential household premises (unless we have previously agreed to the installation environment). This guarantee is limited to the cost of repairing the product. To the extent permitted by law, the Manufacturer does not accept and will not be held liable for any financial loss incurred in connection with the failure of any product to operate in accordance with the expected standards. Such financial loss includes but is not limited to loss arising from: · Time taken off work. · Damaged food, clothing or other items. · Meals taken at restaurants or from takeaways. · General compensation for inconvenience. Important Notes 1. Your product is designed and built for domestic household use only. 2. The guarantee will automatically be void if the product is installed or is used in commercial or non-residential domestic household premises, unless we have previously agreed to the installation environment. 3. The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided with your product. 4. Professional installation by a qualified Electrical Domestic Appliance Installer is recommended for all Washing Machines, Dishwashers and Electric Cookers (as incorrect installation may result in you having to pay for the cost of repairing the product). 5. Gas Cookers must be professionally installed by a Gas Safe (or Gas Networks Ireland for Republic of Ireland) registered gas installer. 6. This guarantee is given in respect of products purchased and used within the United Kingdom and the Republic of Ireland. 7. This guarantee is effective from the initial date of purchase of a new product from an authorised retailer and will be void if the product is resold. 8. This guarantee does not apply to graded sales (where the product is purchased as a "second"). Dryer / User manual 31 9. Possession of a copy of these terms and conditions does not necessarily mean that a product has the benefit of this guarantee. If you have any questions, please call our Call Centre on the number set out above. 10. The Manufacturer reserves the right to terminate the guarantee if its staff or representatives are subjected to physical or verbal abuse in the course of carrying out their duties. 11. Optional extras, where available (i.e. extendable feet) are supplied on a chargeable basis only. Does Beko offer replacements? This is a repair-only guarantee. On occasion, the Manufacturer may at its sole discretion, replace your product with a new product instead of carrying out a repair. Where a replacement is offered, this would normally be an identical model but when this is not possible, a model of similar specification will be provided. The Manufacturer will cover the costs and arrange for the delivery of the new product and for the return of the old product. Any costs related to disconnecting the faulty product and installing the replacement product will not be borne by the Manufacturer unless previously agreed to in writing. The original guarantee will continue to apply to the replacement product; the new product will not come with a new guarantee. When will the repair take place? Our Engineers work Monday to Friday 9.00am to 5.00pm. Appointments outside these hours may be possible at the sole discretion of the Manufacturer but cannot be guaranteed. Whilst our Engineers will endeavour to minimize inconvenience and to meet requests for specific timed appointments, this cannot be guaranteed. We will not be liable for delays or if it is unable to carry out a repair because a convenient appointment cannot be arranged. Will there be any charge for the repairs? It is your responsibility to provide evidence to the Engineer that your product is covered by this guarantee with a proof of purchase. The Manufacturer reserves the right to charge for the reasonable cost of any service call if: · You cannot provide evidence that your product is covered by this guarantee. · Where a service call has been made and the engineer finds that there is no fault with your product. · That your product has not been installed or operated in accordance with the User Instructions Booklet. · That the fault was caused by something other than faulty materials, defective components or manufacturing defects. · For missed appointments. Payment of these costs are due immediately upon the Engineer providing you with an invoice. The Manufacturer reserves the right to terminate the guarantee if you fail to pay the costs for the service call in a timely manner. If you are a resident of the United Kingdom, this guarantee will be governed by English law and subject to the English Courts, save where you live in another part of the United Kingdom, in which case the law and courts of that location will apply. If you are resident in the Republic of Ireland, this guarantee will be governed by Irish law and the Irish courts will have jurisdiction. This guarantee is provided by Beko plc. Beko House, 1 Greenhill Crescent, Watford, Hertfordshire. WD18 8QU. Beko plc is registered in England and Wales with company registration number 02415578. BEKO UK AND IRELAND BUILT-IN APPLIANCES GUARANTEE TERMS AND CONDITIONS If you have purchased a built-in or integrated appliance, and registered it within 90 days of purchase by completing the online registration form, then the standard 12 month guarantee will be extended to 24 months, under the same terms and conditions as detailed in our Standard Guarantee Terms and Conditions. 32 Dryer / User manual BEKO UK AND IRELAND PROSMART INVERTER MOTOR GUARANTEE TERMS AND CONDITIONS This 10 year guarantee relates to Beko products that feature the ProSmart Inverter Motor. The ProSmart Motor guarantee terms and conditions are in addition to our Standard guarantee terms and conditions detailed in the previous section. In order to activate the 10 year guarantee you MUST register the appliance within 90 days of the original purchase date. You can register by first visiting Beko.co.uk/register and by following the online instructions. Beko Free standing appliances come with a 12 month parts and labour guarantee as standard, Beko Built-in appliances come with a 12 month parts and labour guarantee as standard. This is extended to 24 months, free of charge, upon registration of the appliance. When you register your appliance for additional guarantee, you will automatically activate the ProSmart Motor 10 year guarantee. You do not need to register twice. (beko.co.uk/guarantee-terms). To make a claim against your Beko ProSmart Inverter Motor Guarantee (the "Guarantee"), all customer and product details must be registered with Beko plc using the procedure outlined below. 1. This extra 9 years (for free standing appliances) or 8 years (for built-in or integrated appliances) guarantee is only effective after the expiration of the standard manufacturer's guarantee. 2. It is only valid for the ProSmart Inverter motors of selected washing machines, washer-dryers, tumble dryers and dishwashers. It does not cover any labour charge or any other components of the product. In addition, it is only valid for one replacement of the ProSmart motor during the extra 9-year (for free standing appliances) or 8 year (for built-in appliances) guarantee period. 3. To activate your guarantee, you MUST register your appliance within 90 days of the original purchase date, by visiting beko.co.uk/register. 4. Customers will receive a unique reference code as proof of guarantee validation by email or post, which must be quoted at the time of a claim being made. 5. Any repair/replacement of the ProSmart Inverter motor must only be carried out by an authorised Beko Service Agent (the "Service Agent"). 6. Labour for the repair/replacement of the ProSmart Inverter motor is not included in this guarantee and is chargeable directly by the Service Agent. 7. Any additional components fitted to the product at any time will not be covered by this guarantee and will be chargeable directly by the Service Agent. 8. The guarantee is not transferable and cannot be exchanged for cash. 9. There are no alternative or additional offers to this Guarantee. 10. The guarantee is exclusive of the manufacturer's standard guarantee 11. The Terms and Conditions shown above are in addition to the standard terms and conditions of your product guarantee. Please read and refer to such Terms and Conditions when making any claim. 12. We may use the information you provide for marketing purposes and to analyse your purchasing preferences. We may keep your information for a reasonable period for these purposes in accordance with the applicable Data Protection Laws and General Data Protection Regulations (GDPR). You can opt into this service during the registration process. Further details are available at http://www.beko.co.uk/cookie-and-privacy. 13. These Terms and Conditions are governed by the laws of England and Wales; manufacturer: Beko plc, Beko House, 1 Greenhill Crescent, Watford WD18 8QU. Company Registration Number: 02415578. Dryer / User manual 33 HOW TO OBTAIN SERVICE FOR YOUR APPLIANCE Please keep your purchase receipt or other proof of purchase details in a safe place; you will need to have this documentation available should the product require attention under guarantee. Please take a few moments to complete the details below, as you will need this information when you call us, or to use our online services. When you call us you may be required to input your serial number into your telephone keypad. For help please visit beko.co.uk/support/model-finder · The product model number is printed on the Operating Instruction Booklet / User guide · The product model and serial number is printed on the Rating Label affixed to the appliance. · The Retailer (Purchased from) and Date of purchase will be printed on your purchase receipt or other proof of purchase paperwork Recording of these details alone will not count as proof of purchase. A valid proof of purchase is required for requesting service under guarantee. Model number Serial number Purchased from Date of purchase For service under guarantee or for product advice please call our Contact centre Before requesting service please check the troubleshooting guide in the Operating Instructions booklet, as a charge may be levied where no fault is found, and even though your product may still be under guarantee. After arranging service the area around the product must be easily accessible to the Engineer, without the need for cabinets or furniture to be removed or moved. It is your responsibility to ensure our Engineers have a clean and safe environment to carry out any repairs. Please have your Model number and Serial number available when you call us, as you may be required to input your serial number into your telephone keypad during your call. UK Mainland & Northern Ireland: 0333 207 9710 Landline or mobile calls to 0333 numbers cost no more than calls to geographic numbers 01 or 02, and are charged at the basic rate. Calls from landlines and mobiles are included in free call packages but please check with your telephone service provider for exact call charges. Republic of Ireland: 01 862 3411 Service once the manufacturers guarantee has expired If you have purchased an extended guarantee please refer to the instructions contained within the extended guarantee agreement document, otherwise please call us using the appropriate number above, where service can be obtained at a charge. Should you experience any difficulty in obtaining service please call us on 0333 207 9710 or 01 862 3411 Contact us though our website Send us a secure message through our online contact us form. Please visit our website, click Contact Us and choose a product support topic from the list of options. Complete the required details and click send message. Product registrations For UK registrations please visit beko.co.uk/register and for the Republic of Ireland visit beko.ie/register. 34 Dryer / User manual PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 Supplier name or trademark Model name Rated capacity (kg) Type of Tumble Dryer Energy efficiency class (1) Annual Energy Consumption (kWh) (2) Type of Control Energy consumption of the standard cotton programme at full load (kWh) Energy consumption of the standard cotton programme at partial load (kWh) Air Vented Condenser Automatic Non-automatic BEKO B3T4911DW / 7182483250 B3T4911DG / 7185531680 9.0 - B 615,7 5,21 2,78 Power consumption of the off-mode for the standart cotton programme at full load, PO (W) 0,50 Power consumption of the left-on mode for the standart cotton programme at full load, PL (W) 1,00 The duration of the left on mode (min) 30 Standard cotton programme (3) Programme time of the standard cotton programme at full load, Tdry (min) 149 Programme time of the standard cotton programme at partial load, Tdry1/2 (min) 84 Weighted programme time of the standard cotton programme at full and partial load (T t) 112 Condensation efficiency class (4) B Average condensation efficiency of the standard cotton programme at full load, C dry 81% Average condensation efficiency of the standard cotton programme at partial load, Cdry1/2 81% Weighted condensation efficiency of the standard cotton programme at full load and partial load, Ct 81% Sound power level for the standard cotton programme at full load (5) 65 Built-in - : Yes - : No (1) Scale from A+++ (most efficient) to D (least efficient) (2) Energy consumption based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used. (3) "Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton (4) Scale from G (lest efficient) to A (most efficient) (5) Weighted average value -- L WA expressed in dB(A) re 1 pW Dryer / User manual 35Adobe PDF Library 15.0
