M1M 20 POWER METER USER MANUAL. 3.5.Technical data. Auxiliary power supply. Voltage. 100-230 V AC/DC ±15%. Frequency. 50 - 60Hz ±5%. Power consumption.
File Info : application/pdf, 52 Pages, 5.32MB

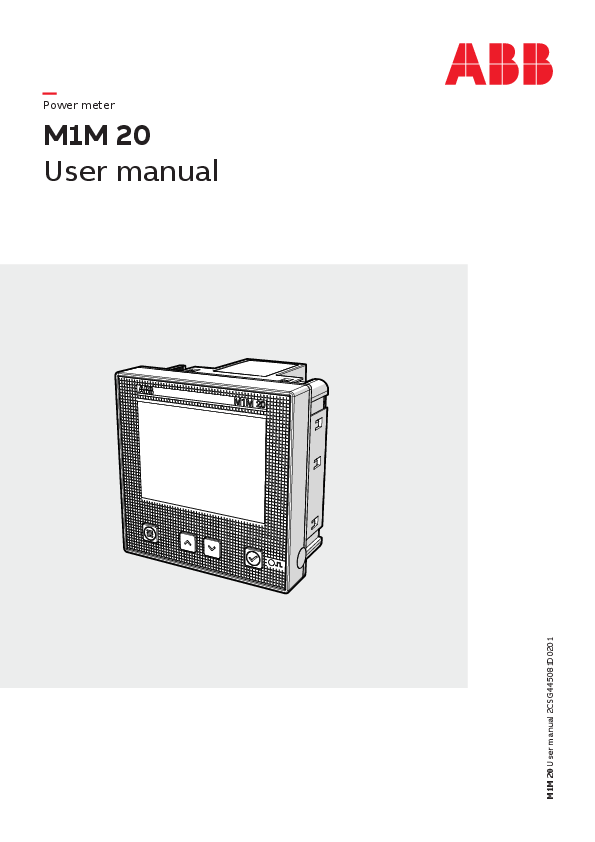

Document DocumentPower meter M1M 20 User manual M1M 20 User manual 2CSG445081D0201 M1M 20 POWER METER USER MANUAL 3 Table of Contents 1.General information.............................................................................................. 5 1.1.Use and storage of the manual..............................................................................5 1.2.Copyright...................................................................................................................5 1.3.Liability disclaimer...................................................................................................5 1.4.General safety warnings.........................................................................................5 1.5.Cyber Security Disclaimer.......................................................................................6 2.Packaging contents............................................................................................... 7 3.Technical characteristics......................................................................................8 3.1.Description of the device.......................................................................................8 3.2.Main functionalities.................................................................................................8 3.3.Versions......................................................................................................................8 3.4.Overall dimensions..................................................................................................9 3.5.Technical data.........................................................................................................10 4.Installation........................................................................................................... 12 4.1.Assembly.................................................................................................................. 12 4.2.Disassembly............................................................................................................ 13 4.3.Wiring diagrams.....................................................................................................14 5.Access to device.................................................................................................. 18 5.1.Display...................................................................................................................... 18 5.2.Buttons................................................................................................................... 20 5.3.Data entry................................................................................................................ 21 6.First commissioning...........................................................................................24 6.1.Password for the first use (PASS).......................................................................24 6.2.Wiring (WIRI)...........................................................................................................25 6.3.CT ratio (CT)...........................................................................................................25 6.4.VT ratio (VT)............................................................................................................26 7.Configuration (CONF).......................................................................................... 27 7.1.Unit (UNIT)...............................................................................................................28 7.2.Installation (INSTL)................................................................................................ 31 7.3.Input / output (I/O)............................................................................................... 31 7.4.Alarms (ALM) ......................................................................................................... 34 7.5.Communication (COMM)..................................................................................... 40 8.Data reading (READ)...........................................................................................43 8.1.Realtime (REAL)..................................................................................................... 43 4 M1M 20 POWER METER USER MANUAL 8.2.Energy (ENRG)....................................................................................................... 45 8.3.Power Quality (PWQT)......................................................................................... 46 8.4.I/O............................................................................................................................47 8.5.Notifications (NOTF)............................................................................................ 48 8.6.Timers (TIME)........................................................................................................ 50 M1M 20 POWER METER USER MANUAL 5 1.General information 1.1.Use and storage of the manual Carefully read this manual and adhere to the indications described prior to using the device. This manual contains all of the safety information, the technical aspects and the operations necessary to ensure the correct use of the device and maintain it in safe conditions. 1.2.Copyright The copyright of this manual is the property of ABB LV Installation Materials Co. Ltd. Beijing. This manual contains texts, designs and illustrations of a technical nature which must not be disclosed or transmitted to third parties, even partially, without the written authorisation of ABB LV Installation Materials Co. Ltd. Beijing. 1.3.Liability disclaimer The information contained in this document is subject to change without notice and cannot be considered as an obligation by ABB LV Installation Materials Co. Ltd. Beijing. ABB LV Installation Materials Co. Ltd. Beijing is not liable for any errors that may appear in this document. ABB LV Installation Materials Co. Ltd. Beijing is not liable under any circumstances for any direct, indirect, special, incidental or consequential damage of any kind that may arise from using this document. ABB LV Installation Materials Co. Ltd. Beijing is also not liable for incidental or consequential damage that may arise from using the software or hardware mentioned in this document. 1.4.General safety warnings Non-adherence to the following points can lead to serious injury or death. Use the suitable personal protection devices and adhere to the current regulations governing electrical safety. · This device must be installed exclusively by qualified personnel who have read all of the information relative to the installation. · Check that the voltage supply and measurement are compatible with the range permitted by the device. · Ensure that all current and voltage supplies are disconnected prior to carrying out any controls, visual inspections and tests on the device. · Always assume that all circuits are under voltage until they are completely disconnected, subjected to tests and labelled. · Disconnect all of the power supply prior to working on the device. · Always use a suitable voltage detection device to check that the supply is interrupted. · Pay attention to any dangers and carefully check the work area ensuring that no instruments or foreign objects have been left inside the compartment in which the device is housed. · The correct use of this device depends on a correct manipulation, installation and use. · Failure to adhere to the basic installation information can lead to injuries as well as damage to the electric instruments or to any other product. · NEVER connect an external fuse in by-pass. · Disconnect all of the input and output wires before carrying out a dielectric rigidity test or an insulation test on an instrument in which the device is installed. · The tests carried out at a high voltage can damage the device's electronic components. · The device has to be installed inside a switchboard. · Installation of M1M shall include a switch or circuit breaker for the connection of auxiliary supply and voltage measurement. The switch or circuit breaker must be suitably located and easily reachable and must be marked as the disconnecting device for M1M. · Switch off circuit breaker or switch before disconnecting from the auxiliary supply and voltage measurement or connecting to the auxiliary supply or voltage measurement. 6 M1M 20 POWER METER USER MANUAL 1.5.Cyber Security Disclaimer M1M 20 power meter is designed to be connected and to communicate information and data via a network interface, which should be connected to a secure network. It is your sole responsibility to provide and continuously ensure a secure connection between the product and your network or any other network (as the case may be) and to establish and maintain appropriate measures (such as but not limited to the installation of firewalls, application of authentication measures, encryption of data, installation of antivirus programs, etc.) to protect the M1M 20 power meter product, the network, its system and interfaces against any kind of security breaches, unauthorized access, interference, intrusion, leakage and/or theft of data or information. ABB LV Installation Materials Co. Ltd. Beijing and its affiliates are not liable for damages and/ or losses related to such security breaches, unauthorized access, interference, intrusion, leakage and/or theft of data or information. Although ABB LV Installation Materials Co. Ltd. Beijing provides functionality testing on the products and updates that we release, you should institute your own testing program for any product updates or other major system updates (to include but not limited to code changes, configuration file changes, third party software updates or patches, hardware change out, etc.) to ensure that the security measures that you have implemented have not been compromised and system functionality in your environment is as expected. M1M 20 POWER METER USER MANUAL 7 2.Packaging contents 1 2 3 M1M Calibration Certificate Contact us ABB S.p.A. Electrification Business Viale dell'Industria, 18 20010 Vittuone (MI) Italy https://new.abb.com/low-voltage Warning! Installation by person with electrotechnical expertise only. ! QR Code for online User Manual. © Copyright 2019 ABB S.p.A. All rights reserved. Specification subject to change without notice. 1.Packaging Content · A M1M product attached with a fixed clips · A Installation Manual · A Calibration Certificate · A pack of wiring terminals (power source, voltage port, I/O ports and RS-485 port) 2.Installation 2.1.Assembly 92-0+0,8 mm 1 3.Wiring Diagram 3-Phase 4-wire network with 3CTs 3-Phase 4-wire network with 1CT 3-Phase 3-wire network with 3CTs 92-0+0,8 mm 2CSG445090D1001 July 2020 4.HMI 4.HMI RTC RTC M1M 30 power meter INSTALLATION MANUAL 1. · M1M · · · 2. 2.1. 2 3. 3 1 3 Menu Data Area Icon Test Conditions No. V1 [V] V2 [V] V3 [V] I1 [A] I2 [A] I3 [A] PF #1 230 230 230 6 6 6 1 #2 230 230 1 23 230 4 0,9 Ene0rg,9y LED 0,9 1 Button Fun#ct3ions 230 1 Menu 2 Up 3 Down 4 Enter Access the menu and navigation Navigate in the#m4easure2m3e0nts or change a configuration value Navigate in the measurements oCrocnhfiarnmgaenaaccotn#iof5ingaunradtio2n3v0alue navigation 230 230 0,15 0,15 1 2320 230 66 3 230 230 0,9 0,9 4 0,15 6 0,9 #6 230 5.First Commissioning To start to use the analyzer i#t 7is mand2at3o0ry to configure the basic setting (password, type of network, CT ratio and VT ratio). 5.1.Setting password #8 230 The password is composed by 4 numerical cchhaarraacctteerr,si.tInisonredceerstsoarsyelteoctu#se9eacbhunttuomn2e3`Ur0ipc'al or `Down' and confirm every selection with `Enter'. #10 230 Default password is 0000. At first use, the password shall be defined. In password, polredaesreteo#ndt1ie1sra0b0le0t02h. e30 230 230 0,15 0,15 0,15 5. 2302M310M1,51,5 1,5 2350.1.230 0,2 0,2 0,2 . 2302301,51,51,.5 230 230 0,2 0,2 0,2 230 0000 0000 230 6 6 6 1 0,5 ind. 0,5 ind. 0,5 ind. 1 1 0,5 ind. 0,5 ind. 0,5 ind. #12 230 230 230 0,9 0,9 0,9 0,5 ind. #13 230 230 230 0,15 0,15 0,15 0,5 ind. #14 58 58 58 6 6 6 5.2.Type of network #15 58 Select the type of network among the following ones Type Descrip#t1io6n 230 558.2.58 6 6 230 230 6 - 3N3T Three-phase,four-wireandthree-transformer 3N3T 3 #17 230 230 230 0,9 - 3 3T Three-phase,three-wireandthree-transformer 3 3T 3 3 2T Three-phase,three-wirea#nd1t8wo-trans2fo3r0mer 23302T 23020,15 - 3 1T Three-phase,three-wireandone-transformer 3 1T 1 1N1T Single-phase,two-wirean#d1o9ne-transf2o3rm0er 2310N1T 23016 - 6 6 0,9 0,15 6 1 0,5 ind. 1 1 1 0,5 ind. #20 230 5.3.Current Transformer ratio 1. Select the current transformer primary ratio and confirm selection by `E#n2te1r'. 230 2. Select the current transformer secondary ratio and confirm selection by `Enter' 2350.3.2300,9 - 1. 2320. 2300,15- 0,9 0,15 0,5 ind. 0,5 ind. Test Description Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Verification Active energy (Import) Accuracy Results Limit -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% -0,01% ±0,5% 1 T2his Calibration Certificate may not be reproduced, in whole or in part, without written permission of ABB Test Result Passed Passed Passed Passed Passed Passed Passed Passed Passed Passed Passed Passed Passed Passed Passed Passed Passed Passed Passed Passed Passed 3-Phase 4-wire network with 3CTs and 3VTs 33 1-Phase 2-wire network with 1CT 1 5.4.Voltage Transformer ratio 1. Select the current transformer primary ratio and confirm selection by `Enter'; 2. Select the current transformer secondary ratio and confirm selection by `Enter'. 5.4. 1. ; 2. 1 2 4 4 Packaging contents 1 Power meter M1M 20 2 Installation manual 3 Calibration certificate 4 Installation accessories (removable terminals, fixing clips) The number and type of removable terminals in the package varies according to the different versions. 8 M1M 20 POWER METER USER MANUAL 3.Technical characteristics 3.1.Description of the device M1M series can help users accurately monitor energy efficiency while meeting their cost control requirement. Conforming to the international electric energy metering and monitoring accuracy standards, all M1M series products are perfectly suitable for ABB electrical systems and solutions. 3.2.Main functionalities Real-time Measurement TRMS Current TRMS Voltage Frequency Active, Reactive and Apparent Power Power Factor Operating timer, countdown timer Energy Active, Reactive and Apparent Energy Four-quadrant (Import/Export) Power quality THD (I, V) Neutral current Data recording and logs Alarms Warnings, alarms and errors logs · · · · · · · · · Calculated 15 · 3.3.Versions Product Name M1M 20 I/O M1M 20 MODBUS M1M 20 ETHERNET M!M 20 I/O 2 digital inputs, 2 digital outputs - Communication protocol Modbus RTU Modbus RTU Modbus TCP/IP - M1M 20 POWER METER USER MANUAL 3.4.Overall dimensions 9 65,8 mm 19,2 mm 96 mm 90 mm 96 mm IEC 61554 92 -0+0,8 mm 85 mm 92 -0+0,8 mm 10 M1M 20 POWER METER USER MANUAL 3.5.Technical data Auxiliary power supply Voltage Frequency Power consumption Installation category Protection fuse 100-230 V AC/DC ±15% 50 - 60Hz ±5% 5VA max CAT III 300V class per IEC 61010-1 edition 3 T1 A-277 VAC Measurement accuracy IEC 61557-12 Active energy Reactive energy Active power Reactive power Apparent power Voltage Current Neutral Current (calculated) Frequency Unbalance Harmonics, THD (Current, voltage) IEC 61557-12 PMD/S/K55/1 (M1M 20, M1M 20 Modbus, M1M 20 Ethernet) IEC 61557-12 PMD/S/K55/0.5 (M1M 20 I/O) IEC 61557-12 Class 1 (M1M 20, M1M 20 Modbus, M1M 20 Ethernet) IEC 61557-12 Class 0.5 (M1M 20 I/O) IEC 62053-22 Class 0.5S (M1M 20 I/O) IEC 61557-12 Class 2 IEC 61557-12 Class 1 (M1M 20, M1M 20 Modbus, M1M 20 Ethernet) IEC 61557-12 Class 0.5 (M1M 20 I/O) IEC 61557-12 Class 2 IEC 61557-12 Class 2 IEC 61557-12 Class 0.5 IEC 61557-12 Class 0.5 IEC 61557-12 Class 1 IEC 61557-12 Class 0.1 IEC 61557-12 Class 0.5 IEC 61557-12 Class 1 Voltage Measurement inputs Voltage Range Type Rated frequency Protection fuse 80-265 VAC(L-N) Single-phase, three-phase (3P, 3P+N) 50Hz or 60Hz T1 A-277 VAC Current measurement inputs Current input mode Rated current at secondary side of CT Range without accuracy derating Indirect insertion with CT 1A or 5A 50mA-6A I/O Digital Output Number of output channels Voltage Current 2 (M1M 20 I/O only) 5-48VDC 2-100mA Digital Input Number of input channels Voltage 2 (M1M 20 I/O only) 24VDC Mechanical properties Overall Dimensions IP degree of protection (IEC 60529) Max. weight 96 mm x 96 mm x 85 mm Front: IP51 Terminals: IP20 345g M1M 20 POWER METER USER MANUAL 11 Climatic conditions Operating temperature Storage temperature Environment -5 to 55 °C (K55 IEC61557-12) -25 to 70 °C (K55 IEC61557-12) It is prohibited to use in the environment containing H2S, Cl2, NH3 and other harmful gases Communication protocol Modbus RTU Communication interface Baud rate Parity number Address Connector Modbus TCP/IP Protocol Communication interface M1M 20 MODBUS, M1M 20 I/O RS485 with optical isolation 9.6, 19.2, 38.4, 57.6, 115.2 kbps Odd (1 stop bit), Even (1 stop bit), None (1 or 2 stop bits) 1-247 3 pole terminal M1M 20 ETHERNET Modbus TCP/IP RJ45 Standards Power metering and monitoring devices (PMD) EMC Electrical safety IEC 61557-12 IEC 61326-1 IEC 61010-1 12 M1M 20 POWER METER USER MANUAL 4.Installation 4.1.Assembly IEC 61554 92-0+0,8 mm 1 92-0+0,8 mm 2 3 M1M 20 POWER METER USER MANUAL 13 4.2.Disassembly 1 IEC 61554 92-0+0,8 mm 2 92-0+0,8 mm 14 M1M 20 POWER METER USER MANUAL 4.3.Wiring diagrams The operations to carry out for the correct connection of the device, based on the type of electric line available, are described in this section. The installation and the cabling of the device must be carried out by qualified personnel. Danger of electrocution, burning and electric arc. Use the personal protection devices suitable to adhere to the current regulations governing electrical safety. Prior to carrying out any connections check the sectioning of the electric supply with the voltage detection device. · M1M 20 ETHERNET · M1M 20 I/O M1M 20 POWER METER USER MANUAL 15 · M1M 20 MODBUS · M1M 20 16 M1M 20 POWER METER USER MANUAL Type of network M1M 20 can be used on different type of network (please refer to chapter "7.Configuration (CONF)" for the configuration on the device). According to the type of network that has been chosen, the parameters visualized on the device HMI change. Below the wiring diagrams are shown: · 3-phase 4-wire network with 3CTs (3N3T) · 3-phase 3-wire network with 3CTs (3 3T) · 3-phase 3-wire network with 2CTs (3 2T) · 3-phase 3-wire network with 1CT (3 1T) M1M 20 POWER METER USER MANUAL 17 · 1-phase 2-wire network with 1CT (1N1T) · Digital outputs (M1M 20 I/O only) · Digital inputs (M1M 20 I/O only) 18 M1M 20 POWER METER USER MANUAL 5.Access to device This chapter gives a detailed introduction of the device's HMI, including how to read data and configure related parameters. 5.1.Display Front panel The front panel of M1M is shown below: 1 2 3 Operator panel 1 Display 2 Function buttons 3 Energy pulse LED M1M 20 POWER METER USER MANUAL 19 Display content Display is divided into 8 different areas, as shown in the figure below: 1 7 6 4 2 N 1 2 3 4 5 6 7 Icon 5 3 Area Title Phase Measurements Magnitude/Unit Load type Additional info Icons Description Title of the content displayed on each screen, including MENU, READ and CONF... The corresponding phase of the measured value displayed, such as L1, L2, L3, L12 and L23... Specific measured value Magnitude includes E, K and M; Unit includes V, A, W and WH... Inductive load and capacitive load Additional info regarding the displayed page. Indicating various types of state; and for further details, see the table below Description Notification of alarm Correct phase sequence Reverse phase sequence Notification of error Communication signals sent Communication signals received Configure parameters Device locked, and parameters non-configurable Device unlocked, and parameters configurable Notification of warning 20 M1M 20 POWER METER USER MANUAL 5.2.Buttons Each M1M is provided with 4 pushbuttons as per below picture:: 2 3 1 4 Functions of each button might change according to the displayed page on the meter. See below for a complete description: # Button Functions 1 Menu Go to the main menu; go back; or return to the default screen 2 Up Page up and enter numerical value in cyclic and ascending way and decimal point; and when pressed continuously, page is up continuously or numerical value ascends automatically 3 Down Page down and move to higher-order numerical value and confirm the decimal point; and when pressed continuously, page is down or numerical value moves to higher order continuously until zero clearing 4 Enter Go to the next menu, confirm the numerical value or option input, and read the average of the parameter measurements M1M 20 POWER METER USER MANUAL 21 5.3.Data entry Some of the pages require the entry of numerical characters (0-9) in the Configuration mode. In these cases the display will show an active field identified by a flashing number. Data entry procedure The data entry procedure is as follows: 1 x3 1. Press "Up" to increase the numerical characters from 0 to 9, until the required character is obtained. · How to: Go back to a previous number x9 If during the data entry the desired number is exceeded by mistake, it is needed to increase the displayed number until data entry starts again from 0. · Add a second digit 2 x1 2. Press "Down" to move the cursor in order to add a second digit to the number; 22 M1M 20 POWER METER USER MANUAL · How to: Enable the comma x1 Some device configurations allow entering the comma. Comma can be displayed by increasing the number with "Up" , after character 9 and before data entry starts again from character 0. · Confirm number 1 x5 2 x1 3 x1 3. Repeat the operations described in steps 1 and 2 until the desired number is obtained, press "Enter" to confirm the number. M1M 20 POWER METER USER MANUAL 23 · How to: Enter the magnitude Some device configurations allow entering the magnitude. Once the number has been entered as after step 3, keys "Up" and "Down" allow enabling the magnitude "K" (kilo) or not. Press "Enter" to confirm the magnitude. Follow the steps below when the buttons are used to enter numbers: x1 x1 24 M1M 20 POWER METER USER MANUAL 6.First commissioning When the device is started up for the first time, the basic parameters need to be set, and the wizard program will guide the user to configure the device by following the steps below: First commissioning wizard Set password (PASS) Set Wiring (WIRI) Set CT ratio (CT) Set VT ratio (VT) 6.1.Password for the first use (PASS) A password can be set by the user to protect the Configuration menu and avoid any unwanted modification to the device settings. At the first use it is mandatory to define a password. The password comprises 4 digits, and Button "Up" and Button "Down" can be used to enter numbers, and Button "Enter" can be used to confirm the user's settings and Button "Menu" used to drop the user's settings. In order to disable the password, please set the new password as 0000. The password can be changed this way: 1. go to CONF/UNIT/PASS, 2. press "Enter" to start changing password. M1M 20 POWER METER USER MANUAL 25 6.2.Wiring (WIRI) In order to configure the type of network it is needed to choose one of the available options according to the installation conditions. CONF INSTL WIRI 1. Scroll the list of fields "Up" or "Down" 2. Select one option by pressing "Enter" Type 3N3T 3 3T 3 2T 3 1T 1N1T Description Three-phase, four-wire and 3 CTs Three-phase, three-wire and 3 CTs Three-phase, three-wire and 2 CTs Three-phase, three-wire and 1 CT Single-phase, two-wire and 1 CT 6.3.CT ratio (CT) M1M is capable to measure current only via indirect connection by means of current transformers CTs.../5A or .../1A. It is needed to set the transformation ratio of the installed current transformers. In order to configure the current transformers ratio it is possible to set the primary (PRIM) and secondary (SEC) of the current transformer. CONF INSTL CT 1. When the number of the primary CT is set, press Button "Enter" 2. Use Button "Up" and Button "Down" to select the magnitude 3. Press button "Enter" to confirm the setting of the primary CT 4. Press button "Down" to go to the setting of the secondary CT 5. Select the secondary CT among 1 and 5A 6. Press button "Enter" to confirm the setting of the secondary CT 26 M1M 20 POWER METER USER MANUAL 6.4.VT ratio (VT) M1M is capable to measure voltage via direct connection up to 265 VL-N, or via indirect connection by means of voltage transformers. In order to configure the voltage transformer ratio it is needed to enter manually the values of both primary (PRIM) and secondary (SEC). CONF INSTL VT 1. When the number of the primary VT is set, press Button "Enter" 2. Use Button "Up" and Button "Down" to select the magnitude 3. Press button "Enter" to confirm the setting of the primary VT 4. Press button "Down" to go to the setting of the secondary VT 5. When the number of the secondary VT is set, press Button "Enter" 6. Press button "Enter" to confirm the setting of the secondary VT In case of direct insertion without voltage transformers, please set VT ratio as 230/230 (default) M1M 20 POWER METER USER MANUAL 27 7.Configuration (CONF) When the user goes to the CONF section, Icon will be displayed. When entering the CONF section, in order to change any configuration of the device, it is mandatory to enter the password. The password is valid as soon as the user remains in the Configuration section and for max. 5 minutes of idle. After quitting the Configuration section, it is needed to enter again the password. In case of wrong entering of the password for three times in a row, user will have to wait for 5 minutes until he can enter the password once again. In order to read only the configurations, it is possible to simultaneously press "Enter" and "Up" buttons. After the user enters the password to unlock the device, Icon will be displayed and icon will disappear. CONF includes the following menus: Menu UNIT INSTL I/O ALARM COMM Description Settings related to the device itself Settings related to the installation conditions Definition of I/O type of the M1M version Definition of alarm conditions Settings related to the embedded communication protocols of the M1M version 28 M1M 20 POWER METER USER MANUAL 7.1.Unit (UNIT) UNIT includes the following sub-menus: Menu PASS RESET INFO BRT Description Change the existing password Full or partial reset of the meter Device information Adjust the brightness of the display Modify password (PASS) PWD shares the same interface and setting way with password setting. For details, see "6.1.Password for the first use (PASS)". CONF UNIT PASS Reset (RESET) CONF UNIT RESET If the user selects "YES" and presses Button "Enter", all parameters will be reset, i.e. restoring all parameters to their factory default. RESET sub-menu includes the following pages: Menu RESET FACTORY RESET ENRG RESET NOTF Description Reset factory settings Clear energy value Clear notifications · RESET FACTORY Reset Factory settings restores parameters to default values, including communication parameters, input and output, notifications, etc. CONF UNIT RESET FACTORY M1M 20 POWER METER USER MANUAL 29 · RESET ENRG Reset energy will clear the energy to 0. CONF UNIT RESET ENRG · RESET NOTF All notifications will be cleared after the Reset Notification, including alarms, warnings, and faults. CONF UNIT RESET NOTF 30 M1M 20 POWER METER USER MANUAL Device info (INFO) INFO includes firmware version, product model and peripheral functions, etc. CONF UNIT INFO Menu FW CNFC M1M Description Firmware version Parameter configuration counter Product model and peripheral functions Brightness (BRT) The parameter is used to adjust brightness of the display. CONF UNIT BRT The default of this parameter is 100%, and the adjustable range is 10%-100%. M1M 20 POWER METER USER MANUAL 31 7.2.Installation (INSTL) INSTL includes the following sub-menus: Menu WIRI CT VT Description Set the type of network and number of wires on which the device is installed Set the ratio of current transformers for current measurement Set the ratio of voltage transformers for voltage measurement, if any The three items must be set during the first startup. For details, see "6.2.Wiring (WIRI)", "6.3.CT ratio (CT)" and "6.4.VT ratio (VT)". 7.3.Input / output (I/O) In this section it is possible to configure I/O slots of the meter. Please refer to the table in "3.3.Versions" for the detail of I/O types per each M1M. I/O includes the following sub-menus: Menu DO DI PULS Description Digital output Digital input Specific settings in case of pulse output Digital Output (DO) All DOs can be configured as alarm output (ALARM) or pulse output (PULSE). CONF IO DO 32 M1M 20 POWER METER USER MANUAL Digital input (DI) DI can monitor the current state on one hand, and record the number of input pulses on the other hand. This parameter can clear the number of pulses recorded. CONF IO DI When "YES" is selected and Button "Enter" pressed, the system will clear all pulses recorded by the DI. DI pulse count requires a factor to be set, which can be in the range of 1 to 9999 Options WH KWH MWH VARH KVARH MVARH VAH KVAH MVAH Description None Active energy Reactive energy Apparent energy M1M 20 POWER METER USER MANUAL 33 Pulse settings (PULS) PULS includes selection of energy variables of panel LED indicator, energy pulse output ratio, and selection of energy variables of the DO set as PULSE. CONF IO PULS The optional output energy variables of LED indicator and DO include: Electricity Variable PEN QEN OFF Description Active energy Reactive energy Off The setting range of pulse output ratio is: 0.001 ... 9999. The formula guiding this parameter setting is: 1 pulse = X Wh (varh/VAh) X is the set number. 34 M1M 20 POWER METER USER MANUAL 7.4.Alarms (ALM) ALARM configuration is used to get info on threshold violations of specific parameters. When the measurement quantity exceeds the limit, an alarm will be given to prompt users to make corresponding treatment measures in time. Each alarm can only be triggered when certain conditions are met. The following graph describes the process of triggering and releasing an alarm: Variable Event Event Threshold Delay MAX Hysteresis MIN Delay Hysteresis Event Threshold Event Alarm Digital Output When the value of the alarm variable exceeds the threshold and the delay, the alarm will be generated; and when the alarm variable recovers to the normal range and exceeds the hysteresis and delay, the alarm will be released. Alarm can be connected to certain DO to control the alarm signal output at the DO. If the alarm is stored in flash, it can be viewed later in the read data menu. When the device is in alarm state, ICON will be displayed. Each M1M provides up to 15 alarms; following parameters are available: Menu NUM VARIABLE PHASE TYPE SETPOINT DELAY HYSTERESIS LOG PORT Description Select which alarm will be edited, max 15 alarms can be selected Select alarm variable Select the phase of alarm variable Type of alarm: cross-up (MAX) or cross-down (MIN) Set threshold Delay time Set hysteresis Read only - Alarms are not logged on M1M 20 Select digital output port for alarm M1M 20 POWER METER USER MANUAL 35 NUM Select an alarm to edit, which will be added to the alarm list if it has been edited. CONF ALM NUM · "ADD" indicates that the alarm is not yet present. If it needs to be added, press Button "Enter" to go to the event and configure the subsequent parameters. · "EDIT" indicates that the alarm is already present. If it needs to be modified, press Button "Enter" to go to the event and modify the configurations. If certain event needs to be deleted from the alarm list, the alarm variable is selected as "NONE". For details, see "VARIABLE". 36 M1M 20 POWER METER USER MANUAL VARIABLE Select one variable as alarm variable. CONF ALM VARIABLE Variable VLN VLL I IN P Q S PT QT ST PF PFT F THDV THDI Description Phase voltage Line voltage Phase current Neutral current Active power Reactive power Apparent power Total active power Total reactive power Apparent power Power factor Total power factor Frequency Total harmonic distortion of voltage Total harmonic distortion of current M1M 20 POWER METER USER MANUAL 37 PHASE When a variable is selected, a specific phase of the variable needs to be selected. CONF ALM PHASE Phase L1 L2 L3 L123 TOT Description Phase 1 Phase 2 Phase 3 All three phases Total phase Different variables contain different phases, so the phase selection depends on the variable selected. TYPE TYPE includes MAX (cross-up event) and MIN (cross-down event). CONF ALM TYPE 38 M1M 20 POWER METER USER MANUAL SETPOINT SETPOINT includes numerical value and magnitude. Different variables correspond to different thresholds, magnitudes, and units, and you need to select variables before setting SETPOINT. CONF ALM SETPOINT After the number is set, it is needed to use Button "Up" and Button "Down" to adjust the magnitude. HYSTERESIS HYSTERESIS is a percentage value, and its setting range is 0%-50%. CONF ALM HYSTERESIS DELAY DELAY is used to verify whether the variable value really exceeds the limit or is recovered, and its setting range is 1-255s. CONF ALM DELAY M1M 20 POWER METER USER MANUAL 39 LOG All alarms are by defaul in UNLOG mode, meaning that alarms are not stored in any flash memory. However, it is still possible to read out the alarms in: READ NOTF ALM CONF ALM LOG After device restart, all alarms will be erased and it will not be possible to retrieve them. PORT Each alarm event can be connected with certain DO, and different alarms can be connected to the same DO. CONF ALM PORT The optional DOs include DO1, DO2 and OFF. Only the DOs configured as alarm output can appear in the list. For details, see "7.3.Input / output (I/O)". 40 M1M 20 POWER METER USER MANUAL 7.5.Communication (COMM) Communication menu allow to set all the parameters related to the communication protocol available for a specific product version. The embedded communication protocol varies according to the different product versions. Please refer to "3.3. Versions" for the details on the embedded communication protocols. Based on product version following configuration menus are available: Communication Protocol Modbus RTU Modbus TCP/IP Parameter ADDR BAUD BYTE DHCP IP MASK GW Description Bus address Baud rate Byte format Enable/disable DHCP function IP address Subnet mask Default gateway In the communication process, whichever communication mode is selected, when the device receives data, Icon will appear and flicker; and when the device sends data, Icon will appear and flicker. Modbus RTU (M1M 20 Modbus, M1M 20 I/O) · ADDR For the devices that adopt the Modbus RTU protocol, a unique address on the bus needs to be set. CONF COMM ADDR The address range is 1-247. · BAUD BAUD represents data transmission rate. The higher the BAUD, the faster the data transmission. CONF COMM BAUD The optional Baud rates include 9600, 19200, 38400, 57600 and 115200 bps. M1M 20 POWER METER USER MANUAL 41 · BYTE BYTE comprises three parts bits per byte, parity bit and stop bit. CONF COMM BYTE The optional byte formats include: BYTE 8E1 8O1 8N1 8N2 Description 8 even parity bits and 1 stop bit 8 odd parity bits and 1 stop bit 8 No Parity bits and 1 stop bit 8 No Parity bits and 2 stop bits Modbus TCP/IP (M1M 20 Ethernet) · DHCP If DHCP is set as "YES", it indicates that the IP address and subnet mask assigned by the host will be used. CONF COMM DHCP The default state of DHCP is "NO", i.e. turned off. · IP IP comprises 4 segments. Each time Button "Enter" is pressed, the next segment can be set. CONF COMM IP The default IP address is: 192.168.2.252. The device and the host must share the same network, or their communication is not possible. 42 M1M 20 POWER METER USER MANUAL · MASK MASK indicates the LAN segment. Only the devices that have the same subnet mask within the same LAN can communicate with each other. CONF COMM MASK The default MASK is: 255.255.255.0. · GW The default GW is the node address that forwards the data package to other networks. CONF COMM GW The default GW is: 192.168.002.001. M1M 20 POWER METER USER MANUAL 43 8.Data reading (READ) READ section allows to visualize all the parameters measured by M1M. Specifically, it includes the following menus: Menu REAL ENRG PWQT I/O NOTF TIME Description Real-time measurements Energy measurements Power quality State of digital input/output port Notification message Timers 8.1.Realtime (REAL) REAL means the real-time data of the current electric energy, including the following items: READ REAL 44 M1M 20 POWER METER USER MANUAL REAL SUMM VLN VLL I IN P Q S PQST F Description Summary data, including total three-phase voltage, three-phase current and active power Phase voltage; when WIRI is selected as "3 3T", "3 2T" or "3 1T", this data is absent Line voltage Current Neutral current; when WIRI is selected as "3 3T", "3 2T", "3 1T" or "1N1T", this data is absent Per phase active power; when WIRI is selected as "1N1T", this data is absent Per phase reactive power; when WIRI is selected as "1N1T", this data is absent Per phase apparent power; when WIRI is selected as "1N1T", this data is absent Total active, reactive, apparent power Frequency M1M 20 POWER METER USER MANUAL 45 8.2.Energy (ENRG) READ ENRG ENRG +PEN -PEN +QEN -QEN SEN Description Total imported active energy Total exported active energy Total imported reactive energy Total exported reactive energy Total apparent energy 46 M1M 20 POWER METER USER MANUAL 8.3.Power Quality (PWQT) READ PWQT PWQT PF PFT THDV THDI Description Per phase power factor; when WIRI is selected as "3 3T", "3 2T", "3 1T" or "1N1T", this data is absent Total power factor Total harmonic distortion of voltage Total harmonic distortion of current Individual harmonics are present only via Modbus RTU and Modbus TCP/IP communication. M1M 20 POWER METER USER MANUAL 47 8.4.I/O I/O sub-menu includes the reading of status and/or pulses for I/O, according to the product version: Menu DO STATE DO PULSE DI STATE DI PULSE Description State of digital output port Pulse count of digital output port State of digital input port Pulse count of digital input port Only M1M 20 I/O is equipped with 2 Digital Inputs and 2 Digital Outputs. The state classifications include: State ON OFF PULSE Description DO is on DO is off Pulse output 48 M1M 20 POWER METER USER MANUAL 8.5.Notifications (NOTF) NOTF includes the following items: Menu ALARM WARN ERROR Description Alarm list, user settable and related to specific parameters, threshold, etc Warnings list, related to installation conditions and device settings. Errors list, related to the device and to its self-diagnostics. Alarms (ALM) ALARM is generated based on the Alarm configured by the user. When the conditions meet the alarm parameters, the ALARM notification will be generated and Icon will be displayed. ALARM comprises alarm count and specific alarm message. The alarm message consists of alarm number, variable name, type, phase and threshold. READ NOTF ALM M1M 20 POWER METER USER MANUAL 49 Warnings (WARN) WARN is generated when the device detects the operating conditions. When there is a WARN notification, Icon will be displayed; and when the user checks all warn messages, Icon will disappear. WARN comprises warn count and specific warn message. READ NOTF WARN Warning VOL REVES U1 MISS U2 MISS U3 MISS I1 MISS I2 MISS I3 MISS I1 REVES I2 REVES I3 REVES I12 REVES I23 REVES I31 REVES Definition Voltage Reverse Voltage 1 Missing Voltage 2 Missing Voltage 3 Missing Current 1 Missing Current 2 Missing Current 3 Missing Current 1 Reverse Current 2 Reverse Current 3 Reverse Current 1 with 2 Reverse Current 2 with 3 Reverse Current 3 with 1 Reverse 50 M1M 20 POWER METER USER MANUAL Errors (ERR) ERROR is generated when the device detects operating conditions. When there is an ERROR notification, Icon will be displayed and it will not diapear until the error is solved. ERROR comprises error count and specific error message. READ NOTF ERR Error UNCONFIG FWUP FAIL REPROVED Definition EEPROM Missing Firmware update Failure (only M1M with communication) Product not Approved 8.6.Timers (TIME) TIME includes count-up timers reading. Count-up timer starts counting when the device is first started off from the user. .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... .......................................................................................................................................................................................................................................... ABB LV Installation Materials Co. Ltd. Beijing Electrification Business Area No. 17 Kangding Street , Beijing Economic-Technological Development Area 100176 new.abb.com/low-voltageAdobe PDF Library 15.0
