ETVH(X)16(U)E6V(9W),ETBX16E6V(9W),ETBH(X)16E6V(9W) Operation manual 4PEN644732-1 English

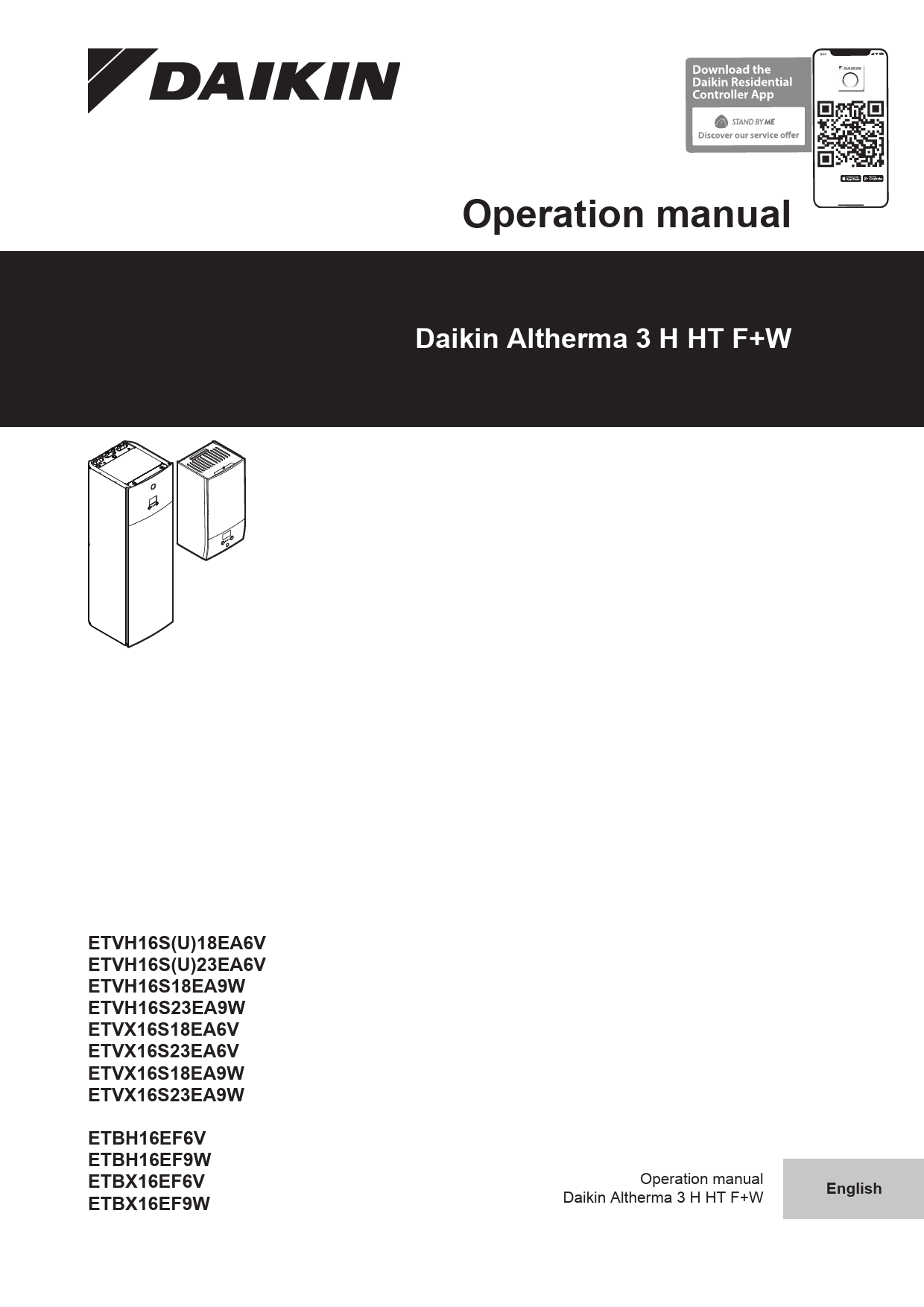

Operation manual
Daikin Altherma 3 H HT F+W

ETVH16S(U)18EA6V ETVH16S(U)23EA6V ETVH16S18EA9W ETVH16S23EA9W ETVX16S18EA6V ETVX16S23EA6V ETVX16S18EA9W ETVX16S23EA9W
ETBH16EF6V ETBH16EF9W ETBX16EF6V ETBX16EF9W

Operation manual Daikin Altherma 3 H HT F+W

English

Table of contents
Table of contents

1 About this document

2 User safety instructions

2.1 General...................................................................................... 3

2.2 Instructions for safe operation ................................................... 4

3 About the system

3.1 Components in a typical system layout ..................................... 4

4 Quick guide

4.1 User permission level ................................................................ 4

4.2 Space heating/cooling ............................................................... 5

4.3 Domestic hot water.................................................................... 6

5 Operation

5.1 User interface: Overview ........................................................... 7

5.2 Menu structure: Overview user settings .................................... 8

5.3 Possible screens: Overview ...................................................... 9

5.3.1 Home screen............................................................... 9

5.3.2 Main menu screen ...................................................... 10

5.3.3 Setpoint screen ........................................................... 10

5.3.4 Detailed screen with values ........................................ 11

5.4 Turning operation ON or OFF ................................................... 11

5.4.1 Visual indication .......................................................... 11

5.4.2 To turn ON or OFF...................................................... 11

5.5 Reading out information ............................................................ 11

5.6 Space heating/cooling control ................................................... 12

5.6.1 Setting the space operation mode .............................. 12

5.6.2 To change the desired room temperature................... 12

5.6.3 To change the desired leaving water temperature...... 12

5.7 Domestic hot water control........................................................ 13

5.7.1 Reheat mode .............................................................. 13

5.7.2 Scheduled mode ......................................................... 13

5.7.3 Scheduled + reheat mode........................................... 13

5.7.4 Using DHW powerful operation................................... 13

5.8 Schedule screen: Example........................................................ 14

5.9 Weather-dependent curve......................................................... 15

5.9.1 What is a weather-dependent curve? ......................... 15

5.9.2 2-points curve ............................................................. 16

5.9.3 Slope-offset curve ....................................................... 16

5.9.4 Using weather-dependent curves ............................... 17

6 Energy saving tips

7 Maintenance and service

7.1 Overview: Maintenance and service ......................................... 18

8 Troubleshooting

8.1 To display the help text in case of a malfunction....................... 18

8.2 To check the malfunction history............................................... 18

8.3 Symptom: You are feeling too cold (hot) in your living room..... 19

8.4 Symptom: The water at the tap is too cold ................................ 19

8.5 Symptom: Heat pump failure..................................................... 19

8.6 Symptom: The system is making gurgling noises after

commissioning........................................................................... 19

9 Disposal

10 Glossary

11 Installer settings: Tables to be filled in by

installer

11.1 Configuration wizard.................................................................. 20

11.2 Settings menu ........................................................................... 20

1 About this document
Thank you for purchasing this product. Please:
Read the documentation carefully before operating the user interface to ensure the best possible performance.
Request the installer to inform you about the settings that he used to configure your system. Check if he has filled in the installer settings tables. If not, request him to do so.
Keep the documentation for future reference.
Target audience End users
Documentation set This document is part of a documentation set. The complete set consists of:
General safety precautions: Safety instructions that you must read before installing
Format: Paper (in the box of the indoor unit)
Operation manual: Quick guide for basic usage
Format: Paper (in the box of the indoor unit)
User reference guide: Detailed step-by-step instructions and background information for basic and advanced usage
Format: Digital files on http://www.daikineurope.com/supportand-manuals/product-information/
Installation manual Outdoor unit: Installation instructions
Format: Paper (in the box of the outdoor unit)
Installation manual Indoor unit: Installation instructions
Format: Paper (in the box of the indoor unit)
Installer reference guide: Preparation of the installation, good practices, reference data, ...
Format: Digital files on http://www.daikineurope.com/supportand-manuals/product-information/
Addendum book for optional equipment: Additional info about how to install optional equipment
Format: Paper (in the box of the indoor unit) + Digital files on http://www.daikineurope.com/support-and-manuals/productinformation/
Latest revisions of the supplied documentation may be available on the regional Daikin website or via your installer.
The original documentation is written in English. All other languages are translations.
Daikin Residential Controller app If set up by your installer, you can use the Daikin Residential Controller app to control and monitor the status of your system. For more information, see:
http://www.onlinecontroller.daikineurope.com/

Operation manual
2

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

Breadcrumbs Breadcrumbs (example: [4.3]) help you to locate where you are in the menu structure of the user interface.
1 To enable the breadcrumbs: In the home screen or main menu screen, press the help button. The breadcrumbs appear in the top left corner of the screen.
2 To disable the breadcrumbs: Press the help button again.
This document also mentions these breadcrumbs. Example: 1 Go to [4.3]: Space heating/cooling > Operation range.
This means: 1 Starting from the home screen, turn the left dial and go to Space heating/cooling. 4
Space heating/cooling
2 Press the left dial to enter the submenu. 3 Turn the left dial and go to Operation range.
4.3
Operation range
4 Press the left dial to enter the submenu.

2 User safety instructions
concerning use of the appliance in a safe way and understand the hazards involved. Children SHALL NOT play with the appliance. Cleaning and user maintenance SHALL NOT be made by children without supervision.
WARNING To prevent electrical shocks or fire: Do NOT rinse the unit. Do NOT operate the unit with wet
hands. Do NOT place any objects containing
water on the unit.
CAUTION Do NOT place any objects or
equipment on top of the unit. Do NOT sit, climb or stand on the
unit.
Units are marked with the following symbol:

2 User safety instructions
Always observe the following safety instructions and regulations.
2.1 General
WARNING If you are NOT sure how to operate the unit, contact your installer.
WARNING This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

This means that electrical and electronic products may NOT be mixed with unsorted household waste. Do NOT try to dismantle the system yourself: the dismantling of the system, treatment of the refrigerant, of oil and of other parts must be done by an authorized installer and must comply with applicable legislation.
Units must be treated at a specialized treatment facility for reuse, recycling and recovery. By ensuring this product is disposed of correctly, you will help to prevent potential negative consequences for the environment and human health. For more information, contact your installer or local authority.
Batteries are marked with the following symbol:
This means that the batteries may NOT be mixed with unsorted household waste. If a chemical symbol is printed beneath the symbol, this chemical symbol means that the battery contains a heavy metal above a certain concentration.
Possible chemical symbols are: Pb: lead (>0.004%).
Waste batteries must be treated at a specialized treatment facility for reuse. By ensuring waste batteries are disposed of correctly, you will help to prevent potential negative consequences for the environment and human health.

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

Operation manual
3

3 About the system
2.2 Instructions for safe operation
WARNING: MILDLY FLAMMABLE MATERIAL
The refrigerant inside this unit is mildly flammable.
WARNING
The appliance shall be stored so as to prevent mechanical damage and in a well-ventilated room without continuously operating ignition sources (example: open flames, an operating gas appliance or an operating electric heater).
WARNING
Do NOT pierce or burn refrigerant cycle parts.
Do NOT use cleaning materials or means to accelerate the defrosting process other than those recommended by the manufacturer.
Be aware that the refrigerant inside the system is odourless.
WARNING
The refrigerant inside the unit is mildly flammable, but normally does NOT leak. If the refrigerant leaks in the room and comes in contact with fire from a burner, a heater, or a cooker, this may result in fire, or the formation of a harmful gas.
Turn off any combustible heating devices, ventilate the room, and contact the dealer where you purchased the unit.
Do NOT use the unit until a service person confirms that the part from which the refrigerant leaked has been repaired.
WARNING
Air purging heat emitters or collectors. Before you purge air from heat emitters or collectors, check if or is displayed on the home screen of the user interface.
If not, you can purge air immediately.
Operation manual
4

If yes, make sure that the room where you want to purge air is sufficiently ventilated. Reason: Refrigerant might leak into the water circuit, and subsequently into the room when you purge air from the heat emitters or collectors.

3 About the system
Depending on the system layout, the system can: Heat up a space Cool down a space (if a heating/cooling heat pump model is
installed) Produce domestic hot water (if a DHW tank is installed)
INFORMATION Cooling is only applicable in case of:
Reversible models Heating only models + conversion kit

3.1 Components in a typical system layout

a c
f

A Main zone. Example: Living room. B Additional zone. Example: Bedroom. C Technical room. Example: Garage. a Outdoor unit heat pump b Indoor unit heat pump c Domestic hot water (DHW) tank d User interface of the indoor unit e Dedicated Human Comfort Interface (BRC1HHDA used as
room thermostat) f Underfloor heating g Radiators, heat pump convectors, or fan coil units
INFORMATION
The indoor unit and the domestic hot water tank (if installed) can be separated or integrated depending on the indoor unit type.

4 Quick guide
4.1 User permission level
The amount of information you can read out and edit in the menu structure depends on your user permission level: User: Standard mode
ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

Advanced user: You can read out and edit more information To change the user permission level
1 Go to [B]: User profile.
B
User profile

4 Quick guide
To change the desired room temperature During room temperature control, you can use the room temperature setpoint screen to read out and adjust the desired room temperature.
1 Go to [1]: Room.
1
Room

2 Enter the applicable pin code for the user permission -- level. Browse through the list of digits and change the selected digit. Move the cursor from left to right. Confirm the pin code and proceed.
User pin code The User pin code is 0000.
User
0000
Advanced user pin code The Advanced user pin code is 1234. Additional menu items for the user are now visible.
Advanced user
1234

2 Adjust the desired room temperature.

21°C

Room

a Actual room temperature b Desired room temperature
To change the desired leaving water temperature You can use the leaving water temperature setpoint screen to read out and adjust the desired leaving water temperature.
1 Go to [2]: Main zone or [3]: Additional zone.
2

Main zone

4.2 Space heating/cooling

To turn space heating/cooling operation ON or OFF
NOTICE
Room frost protection. Even if you turn OFF space heating/cooling operation ([C.2]: Operation > Space heating/cooling), room frost protection operation if enabled can still activate. However, for leaving water temperature control and external room thermostat control, the protection is NOT guaranteed.

NOTICE
Water pipe freeze prevention. Even if you turn OFF space heating/cooling operation ([C.2]: Operation > Space heating/cooling), water pipe freeze prevention if enabled will remain active.

1 Go to [C.2]: Operation > Space heating/cooling.

C.2

Operation

Space heating/cooling

Tank

Off

2 Set operation to On or Off.

Additional zone

2 Adjust the desired leaving water temperature.

35°C

Main zone

45°C

Additional zone

a Actual leaving water temperature b Desired leaving water temperature
To change the weather-dependent curve for the space heating/ cooling zones
1 Go to the applicable zone:

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

Operation manual
5

5 Operation

Zone Main zone Heating Main zone Cooling Additional zone Heating Additional zone Cooling

Go to ...
[2.5] Main zone > Heating WD curve
[2.6] Main zone > Cooling WD curve
[3.5] Additional zone > Heating WD curve
[3.6] Additional zone > Cooling WD curve

2 Change the weather-dependent curve.
There are 2 types of WD curves: slope-offset curve (default), and 2-points curve. If needed, you can change the type in [2.E] Main zone > WD curve type. The way to adjust the curve depends on the type.

Slope-offset curve

Slope. When slope is changed, Offset. When offset is changed,

the new preferred temperature at the new preferred temperature at

X1 is unequally higher than the X1 is equally higher as the

preferred temperature at X2.

Y3 Y2 Y1

Y4 Y3
Y2 Y1

X1 X2

X1, X2 Y1~Y4
a b c d

Outdoor ambient temperature Desired leaving water temperature WD curve before changes WD curve after changes Slope Offset

Possible actions on this screen

Select slope or offset.

Increase or decrease the slope/offset.

When slope is selected: set slope and go to offset.

When offset is selected: set offset.

Confirm changes and return to the submenu.

2-points curve

X1, X2 Outdoor ambient temperature Y1, Y2 Desired leaving water temperature
Possible actions on this screen Go through the temperatures. Change the temperature. Go to the next temperature. Confirm changes and proceed.
More information For more information, see also: "5.4 Turning operation ON or OFF" 4[ 11] "5.6 Space heating/cooling control" 4[ 12] "5.8 Schedule screen: Example" 4[ 14] "5.9 Weather-dependent curve" 4[ 15]

User reference guide

4.3 Domestic hot water

To turn tank heating operation ON or OFF

NOTICE
Disinfection mode. Even if you turn OFF tank heating operation ([C.3]: Operation > Tank), disinfection mode will remain active. However, if you turn it OFF while disinfection is running, an AH error occurs.

1 Go to [C.3]: Operation > Tank.

C.3

Operation

Space heating/cooling

Tank

Off

2 Set operation to On or Off. To change the tank temperature setpoint In Reheat only mode, you can use the tank temperature setpoint screen to read out and adjust the domestic hot water temperature.
1 Go to [5]: Tank.
5
Tank

2 Adjust the domestic hot water temperature.

50°C

Tank

a Actual domestic hot water temperature b Desired domestic hot water temperature
In other modes, you can only view the setpoint screen but not modify it. Instead, you can modify the settings for the Comfort setpoint [5.2], Eco setpoint [5.3] and Reheat setpoint [5.4].
More information For more information, see also: "5.4 Turning operation ON or OFF" 4[ 11] "5.7 Domestic hot water control" 4[ 13] "5.8 Schedule screen: Example" 4[ 14] User reference guide

5 Operation
INFORMATION Cooling is only applicable in case of:
Reversible models Heating only models + conversion kit

Operation manual
6

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

5.1 User interface: Overview
The user interface has the following components:
b
c
a
a Status indicator b LCD screen c Dials and buttons

a
b c

a Status indicator b LCD screen c Dials and buttons

Status indicator

The LEDs of the status indicator light up or blink to show the operating mode of the unit.

LED

Mode

Blinking blue Standby

Continuous blue Operation

Blinking red Malfunction

Description The unit is not in operation. The unit is in operation. A malfunction occurred.

See "8.1 To display the help text in case of a malfunction" 4[ 18] for more information.

Slot for WLAN cartridge
With the WLAN cartridge, the installer can connect the system to the internet. As user you can then control the system via the Daikin Residential Controller app. Note: This slot cannot be used for SD cards.

USB connector
With a USB memory stick, the installer can:
Update the software. This requires a correct config file on the USB memory stick.
Import the settings generated by E-Configurator (Heating Solutions Navigator) from the USB memory stick to the user interface (MMI). This requires a correct config file on the USB memory stick.
Export the current settings (i.e. field settings, MMI EEPROM settings, schedule timers) from the user interface (MMI) to the USB memory stick.

LCD screen The LCD screen has a sleeping function. After 15 min of noninteraction with the user interface, the screen darkens. Pressing any button or rotating any dial awakens the display.
Dials and buttons You use the dials and buttons:
To navigate through the screens, menus and settings of the LCD screen
To set values

5 Operation

bcd

Item a Left dial

Description
The LCD shows an arc on the left side of the display when you can use the left dial.

: Turn, then press the left dial. Navigate

through the menu structure.

: Turn the left dial. Choose a menu item.

: Press the left dial. Confirm your choice

or go to a submenu.

b Back button : Press to go back 1 step in the menu structure.

c Home button

: Press to go back to the home screen.

d Help button : Press to show a help text related to the current page (if available).

e Right dial The LCD shows an arc on the right side of the display when you can use the right dial.

: Turn, then press the right dial. Change

a value or setting, shown at the right side of the

screen.

: Turn the right dial. Navigate through

the possible values and settings.

: Press the right dial. Confirm your

choice and go to the next menu item.

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

Operation manual
7

5 Operation

5.2 Menu structure: Overview user settings

[1] Room
Schedule Heating schedule (*) Cooling schedule Antifrost Setpoint range Room sensor offset Room comfort setpoint
[2] Main zone
Schedule Heating schedule (*) Cooling schedule Setpoint mode Heating WD curve (*) Cooling WD curve WD curve type
[3] Additional zone
Schedule Heating schedule (*) Cooling schedule Setpoint mode Heating WD curve (*) Cooling WD curve WD curve type
[4] Space heating/cooling
Operation mode (*) Operation mode schedule
[5] Tank
Powerful operation Comfort setpoint Eco setpoint Reheat setpoint Schedule WD curve WD curve type
[7] User settings
Language Time/date Holiday Quiet Electricity price Gas price
[8] Information
Energy data Malfunction history Dealer information Sensors Actuators Operation modes About Connection status Running hours
[B] User profile
[C] Operation
Space heating/cooling Tank

[1.4] Antifrost Activation Room setpoint
[1.5] Setpoint range Heating minimum Heating maximum
(*) Cooling minimum (*) Cooling maximum
[1.9] Room comfort setpoint Heating comfort setpoint
(*) Cooling comfort setpoint
[7.2] Time/date Hours Minutes Year Month Day Daylight savings time Format
[7.3] Holiday Activation From Till
[7.4] Quiet (**) Activation
Schedule (**) Level
[7.5] Electricity price High Medium Low Schedule
[8.1] Energy data Electricity input Produced heat
(***) [D] Wireless gateway
Mode Reboot WPS Remove from cloud Home network connection Cloud connection

Setpoint screen (*) Only applicable for reversible models, or heating only models + conversion kit (**) Only accessible by installer (***) Only applicable when WLAN is installed
INFORMATION
Depending on the selected installer settings and unit type, settings will be visible/invisible.

Operation manual
8

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

5.3 Possible screens: Overview
The most common screens are as follows:
a OR
b

+ c1

c c2

a Home screen b Main menu screen c Lower level screens:
c1: Setpoint screen
c2: Detailed screen with values
c3: Screen with weather-dependent curve
c4: Screen with schedule

5.3.1 Home screen
Press the button to go back to the home screen. You see an overview of the unit configuration and the room and setpoint temperatures. Only symbols applicable for your configuration are visible on the home screen.
e3 a1 a2 b c

26 Feb 2019

22:19

k3 e2

1.6 bar

35
g3

i1 i2 i3 i4 h1 h2
Possible actions on this screen Go through the list of the main menu. Go to the main menu screen. Enable/disable breadcrumbs.

Item

Description

a Domestic hot water

Domestic hot water

a2 55 Measured tank temperature(a)

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

5 Operation

Item

Description

b Disinfection / Powerful

Disinfection mode active

Powerful operation mode active

c Emergency

Heat pump failure and system operates in Emergency mode or heat pump is forced off.

d Current date and time

e Smart energy

Smart energy is available via solar panels or smart

grid.

Smart energy is currently being used for space

heating.

Smart energy is currently being used for domestic

hot water.

f Space operation mode

Cooling

Heating

g Outdoor / quiet mode g1 6 Measured outdoor temperature(a)

Quiet mode active

Outdoor unit

h Indoor unit / domestic hot water tank

Floor-standing indoor unit with integrated tank

Wall-mounted indoor unit

Wall-mounted indoor unit with separated tank

Water pressure

i Main zone i1 Installed room thermostat type: Unit operation is decided based on the ambient temperature of the dedicated Human Comfort Interface (BRC1HHDA used as room thermostat).
Unit operation is decided by the external room thermostat (wired or wireless).
-- No room thermostat installed or set. Unit operation is decided based on the leaving water temperature regardless of the actual room temperature and/or heating demand of the room.
i2 Installed heat emitter type: Underfloor heating
Fancoil unit
Radiator
i3 21 Measured room temperature(a)

i4 35 Leaving water temperature setpoint(a)

j Holiday mode Holiday mode active

Operation manual
9

5 Operation

Item

Description

k Additional zone

k1 Installed room thermostat type:

Unit operation is decided by the external room thermostat (wired or wireless).

-- No room thermostat installed or set. Unit operation is decided based on the leaving water temperature regardless of the actual room temperature and/or heating demand of the room.

k2 Installed heat emitter type:

Underfloor heating

Fancoil unit

Radiator k3 45 Leaving water temperature setpoint(a)

l Malfunction A malfunction occurred.
See "8.1 To display the help text in case of a malfunction" 4[ 18] for more information.
(a) If the corresponding operation (for example: space heating) is not active, the circle is greyed out.

5.3.2 Main menu screen

Starting from the home screen, press (

) or turn (

) the

left dial to open the main menu screen. From the main menu, you

can access the different setpoint screens and submenus.

2 Malfunctioning Room

Main zone

Additional zone Space heating/cooling

a Selected submenu Possible actions on this screen
Go through the list. Enter the submenu. Enable/disable breadcrumbs.

Submenu
[0] or Malfunctioning

Description
Restriction: Only displayed if a malfunction occurs.
See "8.1 To display the help text in case of a malfunction" 4[ 18] for more information.

[1] Room

Restriction: Only displayed if a dedicated Human Comfort Interface (BRC1HHDA used as room thermostat) is controlling the indoor unit.

Set the room temperature.

[2]

Main zone

Shows the applicable symbol for your main zone emitter type.

Set the leaving water temperature for the main zone.

[3] Additional zone Restriction: Only displayed if there are two leaving water temperature zones. Shows the applicable symbol for your additional zone emitter type.

Set the leaving water temperature for the additional zone (if present).

Submenu
[4] Space heating/ cooling

[5] Tank

[7] User settings

[8]

Information

[9]

Installer

settings

[A] Commissioning

[B] User profile [C] Operation

[D] Wireless gateway

Description Shows the applicable symbol of your unit.
Put the unit in heating mode or cooling mode. You cannot change the mode on heating only models.
Set the domestic hot water tank temperature.
Gives access to user settings such as holiday mode and quiet mode.
Displays data and information about the indoor unit.
Restriction: Only for the installer.
Gives access to advanced settings.
Restriction: Only for the installer.
Perform tests and maintenance.
Change the active user profile.
Turn heating/cooling functionality and domestic hot water preparation on or off.
Restriction: Only displayed if a wireless LAN (WLAN) is installed.
Contains settings needed when configuring the Daikin Residential Controller app.

5.3.3 Setpoint screen

The setpoint screen is displayed for screens describing system components that need a setpoint value.

Examples [1] Room temperature screen

[2] Main zone screen

21°C

Room

35°C

Main zone

[3] Additional zone screen
3

45°C

Additional zone

[5] Tank temperature screen
5

50°C

Tank

Explanation

a2 c

e a1

+ b2
d
b1

Possible actions on this screen Go through the list of the submenu. Go to the submenu. Adjust and automatically apply the desired temperature.

Operation manual
10

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

Item Minimum temperature limit
Maximum temperature limit
Current temperature Desired temperature Submenu

Description a1 Fixed by the unit a2 Restricted by the installer b1 Fixed by the unit b2 Restricted by the installer c Measured by the unit d Turn the right dial to
increase/decrease.
e Turn or press the left dial to go to the submenu.

5.3.4

Detailed screen with values

Example:

7.2.1

Time/date

Hours

Minutes

acb

a Settings b Values c Selected setting and value
Possible actions on this screen Go through the list of settings.
Change the value.
Go to the next setting.
Confirm changes and proceed.

5.4 Turning operation ON or OFF

5.4.1 Visual indication

Certain functionalities of the unit can be enabled or disabled separately. If a functionality is disabled, the corresponding temperature icon in the home screen will be greyed out.

Space heating/cooling operation

1.6 bar

a Space heating/cooling operation ON b Space heating/cooling operation OFF

Tank heating operation c

5 Operation
d

1.6 bar

c Tank heating operation ON d Tank heating operation OFF

5.4.2 To turn ON or OFF
Space heating/cooling operation
NOTICE
Room frost protection. Even if you turn OFF space heating/cooling operation ([C.2]: Operation > Space heating/cooling), room frost protection operation if enabled can still activate. However, for leaving water temperature control and external room thermostat control, the protection is NOT guaranteed.

NOTICE
Water pipe freeze prevention. Even if you turn OFF space heating/cooling operation ([C.2]: Operation > Space heating/cooling), water pipe freeze prevention if enabled will remain active.

1 Go to [C.2]: Operation > Space heating/cooling.

C.2

Operation

Space heating/cooling

Tank

Off

2 Set operation to On or Off.

Tank heating operation

1 Go to [C.3]: Operation > Tank.

C.3

Operation

Space heating/cooling

Tank

Off

2 Set operation to On or Off.
5.5 Reading out information
To read out information 1 Go to [8]: Information.

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

Operation manual
11

5 Operation

Possible read-out information In menu...
[8.1] Energy data [8.2] Malfunction history [8.3] Dealer information [8.4] Sensors
[8.5] Actuators
[8.6] Operation modes
[8.7] About [8.8] Connection status
[8.9] Running hours

You can read out...
Produced energy, consumed electricity, and consumed gas
Malfunction history
Contact/helpdesk number
Room, tank or domestic hot water, outside, and leaving water temperature (if applicable)
Status/mode of each actuator
Example: Domestic hot water pump ON/OFF
Current operation mode
Example: Defrost/oil return mode
Version information about the system
Information about the connection status of the unit, the room thermostat and the LAN adapter.
Running hours of specific system components

5.6 Space heating/cooling control

5.6.1 Setting the space operation mode

About space operation modes

Your unit can be a heating or a heating/cooling model:

If your unit is a heating model, it can heat up a space.

If your unit is a heating/cooling model, it can both heat up and cool down a space. You have to tell the system which operation mode to use.

To tell the system which space operation to use, you can:

You can...
Check which space operation mode is currently used.

Location Home screen

Set the space operation mode permanently. Main menu
Restrict automatic changeover according to a monthly schedule.

To set the space operation mode
1 Go to [4.1]: Space heating/cooling > Operation mode
2 Select one of the following options:
Heating: Only heating mode
Cooling: Only cooling mode
Automatic: The operation mode changes automatically between heating and cooling based on the outdoor temperature. Restricted per month according to the Operation mode schedule [4.2].

To restrict automatic changeover according to a schedule Conditions: You set the space operation mode to Automatic.
1 Go to [4.2]: Space heating/cooling > Operation mode schedule.
2 Select a month.

3 For each month, select an option: Reversible: Not restricted Heating only: Restricted Cooling only: Restricted
4 Confirm the changes.
5.6.2 To change the desired room temperature
During room temperature control, you can use the room temperature setpoint screen to read out and adjust the desired room temperature.
1 Go to [1]: Room.
1
Room

2 Adjust the desired room temperature.

21°C

Room

a Actual room temperature b Desired room temperature
If scheduling is on after changing the desired room temperature The temperature will stay the same as long as there is no
scheduled action. The desired room temperature will return to its scheduled value
whenever a scheduled action occurs. You can avoid scheduled behaviour by (temporarily) turning off scheduling.
To turn off room temperature scheduling 1 Go to [1.1]: Room > Schedule. 2 Select No.

5.6.3 To change the desired leaving water temperature
INFORMATION
The leaving water is the water that is sent to the heat emitters. The desired leaving water temperature is set by your installer in accordance with the heat emitter type. Only adjust the leaving water temperature settings in case of problems.
You can use the leaving water temperature setpoint screen to read out and adjust the desired leaving water temperature.

Operation manual
12

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

1 Go to [2]: Main zone or [3]: Additional zone.
2
Main zone

3 Additional zone

2 Adjust the desired leaving water temperature.

35°C

Main zone

45°C

Additional zone

a Actual leaving water temperature b Desired leaving water temperature

5.7 Domestic hot water control

5.7.1 Reheat mode

In reheat mode the DHW tank continuously heats up to the temperature shown on the home screen (example: 50°C) when the temperature drops below a certain value.

Tt
60°C 50°C

1 2

3 4

40°C

15°C

00:00

07:00

14:00

21:00

Tt DHW tank temperature t Time

INFORMATION
Risk of space heating capacity shortage for domestic hot water tank without internal booster heater: In case of frequent domestic hot water operation, frequent and long space heating/cooling interruption will happen when selecting the following:
Tank > Heat up mode > Reheat only.

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

5 Operation

INFORMATION
When the DHW tank mode is reheat, the risk for capacity shortage and comfort problem is significant. In case of frequent reheat operation, space heating/cooling function is regularly interrupted.

5.7.2 Scheduled mode

In scheduled mode the DHW tank produces hot water corresponding to a schedule. The best time to allow the tank to produce hot water is at night, because the space heating demand is lower.

Example: Tt
60°C 50°C 40°C

15°C

00:00

07:00

14:00

21:00

Tt DHW tank temperature t Time
Initially, the DHW tank temperature is the same as the temperature of the domestic water entering the DHW tank (example: 15°C).
At 00:00 the DHW tank is programmed to heat up the water to a preset value (example: Comfort = 60°C).
During the morning, you consume hot water and the DHW tank temperature decreases.
At 14:00 the DHW tank is programmed to heat up the water to a preset value (example: Eco = 50°C). Hot water is available again.
During the afternoon and evening, you consume hot water again and the DHW tank temperature decreases again.
At 00:00 the next day, the cycle repeats.

5.7.3 Scheduled + reheat mode

In scheduled + reheat mode, the domestic hot water control is the same as in scheduled mode. However, when the DHW tank temperature drops below a preset value (=reheat tank temperature hysteresis value; example: 35°C), the DHW tank heats up until it reaches the reheat set point (example: 45°C). This ensures that a minimum amount of hot water is available at all times.

Example:

Tt
60°C 50°C 45°C

35°C

15°C

00:00

07:00

14:00

21:00

Tt Domestic hot water tank temperature t Time

5.7.4 Using DHW powerful operation
About powerful operation
Powerful operation allows the domestic hot water to be heated by the backup heater or booster heater. Use this mode on days when there is more hot water usage than usual.

Operation manual
13

5 Operation
To check if powerful operation is active
If is displayed on the home screen, powerful operation is active. Activate or deactivate Powerful operation as follows:
1 Go to [5.1]: Tank > Powerful operation 2 Turn powerful operation Off or On.
Usage example: You immediately need more hot water You are in the following situation: You already consumed most of your domestic hot water. You cannot wait for the next scheduled action to heat up the
domestic hot water tank. Then you can activate powerful operation. The domestic hot water tank will start heating up the water to the Comfort temperature.
INFORMATION When powerful operation is active, the risk of space heating/cooling and capacity shortage comfort problems is significant. In case of frequent domestic hot water operation, frequent and long space heating/cooling interruptions will happen.
5.8 Schedule screen: Example
This example shows how to set a room temperature schedule in heating mode for the main zone.
INFORMATION The procedures to program other schedules are similar.
To program the schedule: overview Example: You want to program the following schedule:
User defined 1 Mon Tue Wed Thu Fri Sat Sun
Prerequisite: The room temperature schedule is only available if room thermostat control is active. If leaving water temperature control is active, you can program the main zone schedule instead.
1 Go to the schedule. 2 (optional) Clear the content of the whole week schedule or the
content of a selected day schedule. 3 Program the schedule for Monday. 4 Copy the schedule to the other weekdays. 5 Program the schedule for Saturday and copy it to Sunday. 6 Give the schedule a name.
To go to the schedule 1 Go to [1.1]: Room > Schedule. 2 Set scheduling to Yes. 3 Go to [1.2]: Room > Heating schedule.
To clear the content of the week schedule 1 Select the name of the current schedule.
User defined 1 Mon Tue Wed Thu Fri Sat Sun

2 Select Delete.

Delete Rename Select

3 Select OK to confirm.

To clear the content of a day schedule
1 Select the day of which you want to clear the content. For example Friday

User defined 1

Mon

Tue

Wed

Thu

Fri

Sat

Sun

2 Select Delete.

Delete Edit Copy
3 Select OK to confirm.
To program the schedule for Monday 1 Select Monday.
User defined 1 Mon Tue Wed Thu Fri Sat Sun
2 Select Edit.

Delete Edit Copy

3 Use the left dial to select an entry and edit the entry with the right dial. You can program up to 6 actions each day. On the bar, a high temperature has a darker colour than a low temperature.

6:00 20°C

8:30 18°C

17:30 21°C

Mon 24 22:00 18°C --:-- --

Note: To clear an action, set its time as the time of the previous action.
4 Confirm the changes.
Result: The schedule for Monday is defined. The value of the last action is valid until the next programmed action. In this example, Monday is the first day you programmed. Thus, the last programmed action is valid up to the first action of next Monday.

Operation manual
14

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

To copy the schedule to the other weekdays 1 Select Monday.
User defined 1 Mon Tue Wed Thu Fri Sat Sun
2 Select Copy.

Delete Edit Copy

Result: Next to the copied day, "C" is displayed. 3 Select Tuesday.

User defined 1

Mon

Tue

Wed

Thu

Fri

Sat

Sun

4 Select Paste.

Delete Edit Copy Paste

Result:

User defined 1

Mon

Tue

Wed

Thu

Fri

Sat

Sun

5 Repeat this action for all other weekdays.

User defined 1

Mon

Tue

Wed

Thu

Fri

Sat

Sun

To program the schedule for Saturday and copy it to Sunday
1 Select Saturday. 2 Select Edit. 3 Use the left dial to select an entry and edit the entry
with the right dial.

8:00 21°C

23:00 18°C

--:-- --

Sat 24

4 Confirm the changes. 5 Select Saturday. 6 Select Copy.

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

7 Select Sunday. 8 Select Paste.
Result:

User defined 1

Mon

Tue

Wed

Thu

Fri

Sat

Sun

5 Operation

To rename the schedule 1 Select the name of the current schedule.
User defined 1 Mon Tue Wed Thu Fri Sat Sun
2 Select Rename.

Delete Rename Select
3 (optional) To delete the current schedule name, browse through the character list until is displayed, then press to remove the previous character. Repeat for each character of the schedule name.
4 To name the current schedule, browse through the character list and confirm the selected character. The schedule name can contain up to 15 characters.
5 Confirm the new name.
INFORMATION
Not all schedules can be renamed.
5.9 Weather-dependent curve
5.9.1 What is a weather-dependent curve?
Weather-dependent operation The unit operates 'weather dependent' if the desired leaving water or tank temperature is determined automatically by the outdoor temperature. It therefore is connected to a temperature sensor on the North wall of the building. If the outdoor temperature drops or rises, the unit compensates instantly. Thus, the unit does not have to wait for feedback by the thermostat to increase or decrease the temperature of the leaving water or tank. Because it reacts more quickly, it prevents high rises and drops of the indoor temperature and water temperature at tap points.
Advantage Weather-dependent operation reduces energy consumption.
Weather-dependent curve To be able to compensate for differences in temperature, the unit relies on its weather-dependent curve. This curve defines how much the temperature of the tank or leaving water must be at different outdoor temperatures. Because the slope of the curve depends on local circumstances such as climate and the insulation of the house, the curve can be adjusted by an installer or user.

Operation manual
15

5 Operation
Types of weather-dependent curve There are 2 types of weather-dependent curves: 2-points curve Slope-offset curve Which type of curve you use to make adjustments, depends on your personal preference. See "5.9.4 Using weather-dependent curves" 4[ 17]. Availability The weather-dependent curve is available for: Main zone - Heating Main zone - Cooling Additional zone - Heating Additional zone - Cooling Tank (only available to installers)
INFORMATION To operate weather dependent, correctly configure the setpoint of the main zone, additional zone or tank. See "5.9.4 Using weather-dependent curves" 4[ 17].
5.9.2 2-points curve
Define the weather-dependent curve with these two setpoints: Setpoint (X1, Y2) Setpoint (X2, Y1) Example
a
Y2

Item

Description

a Selected weather dependent zone:

: Main zone or additional zone heating

: Main zone or additional zone cooling

X1, X2 Y1, Y2

: Domestic hot water
Examples of outdoor ambient temperature
Examples of desired tank temperature or leaving water temperature. The icon corresponds to the heat emitter for that zone:

: Underfloor heating

: Fan coil unit

: Radiator

: Domestic hot water tank
Possible actions on this screen Go through the temperatures. Change the temperature. Go to the next temperature. Confirm changes and proceed.

5.9.3 Slope-offset curve

Slope and offset
Define the weather-dependent curve by its slope and offset:
Change the slope to differently increase or decrease the temperature of the leaving water for different ambient temperatures. For example, if leaving water temperature is in general fine but at low ambient temperatures too cold, raise the slope so that leaving water temperature is heated increasingly more at decreasingly lower ambient temperatures.
Change the offset to equally increase or decrease the temperature of the leaving water for different ambient temperatures. For example, if leaving water temperature is always a bit too cold at different ambient temperatures, shift the offset up to equally increase the leaving water temperature for all ambient temperatures.

Examples Weather-dependent curve when slope is selected:

Y3 Y2 Y1

X1 X2

Weather-dependent curve when offset is selected:

Y4 Y3
Y2 Y1

Item a b
c d e

Description WD curve before changes.
WD curve after changes (as example):
When slope is changed, the new preferred temperature at X1 is unequally higher than the preferred temperature at X2.
When offset is changed, the new preferred temperature at X1 is equally higher as the preferred temperature at X2.
Slope
Offset
Selected weather dependent zone:

: Main zone or additional zone heating

: Main zone or additional zone cooling

: Domestic hot water X1, X2 Examples of outdoor ambient temperature

Operation manual
16

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

Item
Y1, Y2, Y3, Y4

Description
Examples of desired tank temperature or leaving water temperature. The icon corresponds to the heat emitter for that zone:

: Underfloor heating

: Fan coil unit

: Radiator

: Domestic hot water tank
Possible actions on this screen Select slope or offset. Increase or decrease the slope/offset. When slope is selected: set slope and go to offset. When offset is selected: set offset. Confirm changes and return to the submenu.

5.9.4 Using weather-dependent curves

Configure weather-dependent curves as following:

To define the setpoint mode

To use the weather-dependent curve, you need to define the correct setpoint mode:

Go to setpoint mode ...
Main zone Heating
[2.4] Main zone > Setpoint mode

Set the setpoint mode to ...
WD heating, fixed cooling OR Weather dependent

Main zone Cooling
[2.4] Main zone > Setpoint mode

Weather dependent

Additional zone Heating
[3.4] Additional zone > Setpoint mode

WD heating, fixed cooling OR Weather dependent

Additional zone Cooling
[3.4] Additional zone > Setpoint mode

Weather dependent

Tank [5.B] Tank > Setpoint mode

Restriction: Only available to installers.

Weather dependent

To change the type of weather-dependent curve To change the type for all zones (main + additional) and for the tank, go to [2.E] Main zone > WD curve type. Viewing which type is selected is also possible via: [3.C] Additional zone > WD curve type [5.E] Tank > WD curve type
Restriction: Only available to installers.

To change the weather-dependent curve

Zone

Go to ...

Main zone Heating

[2.5] Main zone > Heating WD curve

Main zone Cooling

[2.6] Main zone > Cooling WD curve

Additional zone Heating

[3.5] Additional zone > Heating WD curve

Additional zone Cooling

[3.6] Additional zone > Cooling WD curve

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

6 Energy saving tips

Tank

Zone

Go to ... Restriction: Only available to installers.
[5.C] Tank > WD curve

INFORMATION
Maximum and minimum setpoints
You cannot configure the curve with temperatures that are higher or lower than the set maximum and minimum setpoints for that zone or for the tank. When the maximum or minimum setpoint is reached, the curve flattens out.

To fine-tune the weather-dependent curve: slope-offset curve

The following table describes how to fine-tune the weatherdependent curve of a zone or tank:

You feel ...

Fine-tune with slope and offset:

At regular outdoor At cold outdoor temperatures ... temperatures ...

Slope

Offset

Cold

Hot

Cold

Hot

Cold

Hot

To fine-tune the weather-dependent curve: 2-points curve

The following table describes how to fine-tune the weatherdependent curve of a zone or tank:

You feel ...

At regular outdoor At cold outdoor temperatures ... temperatures ...

Cold

Fine-tune with setpoints:
Y2(a) Y1(a) X1(a) X2(a)
----

Hot

----

Cold

----

Cold

Hot

----

Hot

Cold

Hot

(a) See "5.9.2 2-points curve" 4[ 16].

6 Energy saving tips
Tips about room temperature
Make sure the desired room temperature is NEVER too high (in heating mode) or too low (in cooling mode), but ALWAYS according to your actual needs. Each saved degree can save up to 6% of heating/cooling costs.
Do NOT increase/decrease the desired room temperature to speed up space heating/cooling. The space will NOT heat up/cool down faster.
When your system layout contains slow heat emitters (example: underfloor heating), avoid large fluctuation of the desired room temperature and do NOT let the room temperature drop too low/ rise too high. It will take more time and energy to heat up/cool down the room again.
Operation manual
17

7 Maintenance and service
Use a weekly schedule for your normal space heating or cooling needs. If necessary, you can easily deviate from the schedule: For shorter periods: You can overrule the scheduled room temperature until the next scheduled action. Example: When you have a party, or when you are leaving for a couple of hours. For longer periods: You can use the holiday mode.
Tips about DHW tank temperature Use a weekly schedule for your normal domestic hot water needs
(only in scheduled mode). Program to heat up the DHW tank to a preset value (Comfort =
higher DHW tank temperature) during the night, because then space heating demand is lower. If heating up the DHW tank once at night is not sufficient, program to additionally heat up the DHW tank to a preset value (Eco = lower DHW tank temperature) during the day. Make sure the desired DHW tank temperature is NOT too high. Example: After installation, lower the DHW tank temperature daily by 1°C and check if you still have enough hot water. Program to turn ON the domestic hot water pump only during periods of the day when instant hot water is necessary. Example: In the morning and evening.
7 Maintenance and service
7.1 Overview: Maintenance and service
The installer has to perform a yearly maintenance. You can find the contact/helpdesk number via the user interface.
1 Go to [8.3]: Information > Dealer information.
As end user, you have to: Keep the area around the unit clean. Keep the user interface clean with a soft damp cloth. Do NOT use
any detergents. Regularly check if the water pressure is above 1 bar.
Refrigerant This product contains fluorinated greenhouse gases. Do NOT vent gases into the atmosphere. Refrigerant type: R32 Global warming potential (GWP) value: 675
NOTICE Applicable legislation on fluorinated greenhouse gases requires that the refrigerant charge of the unit is indicated both in weight and CO2 equivalent. Formula to calculate the quantity in CO2 equivalent tonnes: GWP value of the refrigerant × total refrigerant charge [in kg] / 1000 Please contact your installer for more information.
WARNING: FLAMMABLE MATERIAL The refrigerant inside this unit is mildly flammable.

WARNING Do NOT pierce or burn refrigerant cycle parts. Do NOT use cleaning materials or means to accelerate the defrosting process other than those recommended by the manufacturer. Be aware that the refrigerant inside the system is odourless.
WARNING The refrigerant inside the unit is mildly flammable, but normally does NOT leak. If the refrigerant leaks in the room and comes in contact with fire from a burner, a heater, or a cooker, this may result in fire, or the formation of a harmful gas. Turn off any combustible heating devices, ventilate the room, and contact the dealer where you purchased the unit. Do NOT use the unit until a service person confirms that the part from which the refrigerant leaked has been repaired.
8 Troubleshooting
Contact For the symptoms listed below, you can try to solve the problem yourself. For any other problem, contact your installer. You can find the contact/helpdesk number via the user interface.
1 Go to [8.3]: Information > Dealer information.
8.1 To display the help text in case of a malfunction
In case of a malfunction, the following will appear on the home screen depending on the severity:
: Error
: Malfunction You can get a short and a long description of the malfunction as follows:
1 Press the left dial to open the main menu and go to Malfunctioning. Result: A short description of the error and the error code is displayed on the screen.
2 Press in the error screen. Result: A long description of the error is displayed on the screen.
8.2 To check the malfunction history
Conditions: The user permission level is set to advanced end user. 1 Go to [8.2]: Information > Malfunction history.
You see a list of the most recent malfunctions.

Operation manual
18

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

8.3 Symptom: You are feeling too cold (hot) in your living room

Possible cause

Corrective action

The desired room temperature is Increase (decrease) the desired

too low (high).

room temperature. See "5.6.2 To

change the desired room

temperature" 4[ 12].

If the problem recurs daily, do one of the following:

Increase (decrease) the room temperature preset value. See the user reference guide.

Adjust the room temperature schedule. See "5.8 Schedule screen: Example" 4[ 14].

The desired room temperature cannot be reached.

Increase the desired leaving water temperature in accordance with the heat emitter type. See "5.6.3 To change the desired leaving water temperature" 4[ 12].

The weather-dependent curve is Adjust the weather-dependent

set incorrectly.

curve. See "5.9 Weather-

dependent curve" 4[ 15].

8.4 Symptom: The water at the tap is too cold

Possible cause
You ran out of domestic hot water because of unusual high consumption.
The desired DHW tank temperature is too low.

Corrective action
If you immediately need domestic hot water, activate the DHW tank Powerful operation. However, this consumes extra energy. See "5.7.4 Using DHW powerful operation" 4[ 13].

If the problems recurs daily, do one of the following:

Increase the DHW tank temperature preset value. See the user reference guide.

Adjust the DHW tank

temperature

schedule.

Example: Program to

additionally heat up the

DHW tank to a preset value

(Eco setpoint = lower tank

temperature) during the day.

See "5.8 Schedule screen:

Example" 4[ 14].

8.5 Symptom: Heat pump failure
When the heat pump fails to operate, the backup heater and/or booster heater can serve as an emergency heater. It then takes over the heat load either automatically or by manual interaction.
When Emergency is set to Automatic and a heat pump failure occurs:
For ETVH/X: The backup heater automatically takes over the domestic hot water production and space heating.
For ETBH/X: The backup heater automatically takes over the heat load, and the booster heater in the optional tank takes over the domestic hot water production.

8 Troubleshooting

When Emergency is set to Manual and a heat pump failure occurs, the domestic hot water heating and space heating stops.
To manually recover it via the user interface, go to the Malfunctioning main menu screen and confirm whether the backup heater and/or booster heater can take over the heat load or not.
Alternatively, when Emergency is set to:
auto SH reduced/DHW on, space heating is reduced but domestic hot water is still available.
auto SH reduced/DHW off, space heating is reduced and domestic hot water is NOT available.
auto SH normal/DHW off, space heating operates as normally but domestic hot water is NOT available.
Similarly as in Manual mode, the unit can take the full load with the backup heater and/or booster heater if the user activates this via the Malfunctioning main menu screen.

When the heat pump fails, interface.
Possible cause Heat pump is damaged.

will appear on the user

Corrective action
See "8.1 To display the help text in case of a malfunction" 4[ 18].

INFORMATION
When the backup heater or booster heater takes over the heat load, electricity consumption will be considerably higher.

8.6 Symptom: The system is making gurgling noises after commissioning

Possible cause There is air in the system.

Corrective action Purge air from the system.(a)

Incorrect hydraulic balance.

1 Perform hydraulic balancing

to assure that the flow is

correctly

distributed

between the emitters.

2 If hydraulic balancing is not sufficient, change the pump limitation settings ([9-0D] and [9-0E] if applicable).

Various malfunctions.

Check if or is displayed on the home screen of the user interface. See "8.1 To display the help text in case of a malfunction" 4[ 18] for more information about the malfunction.

(a) We recommend to purge air with the air purge function of the unit (to be performed by the installer). If you purge air from the heat emitters or collectors, mind the following:

WARNING
Air purging heat emitters or collectors. Before you purge air from heat emitters or collectors, check if or
is displayed on the home screen of the user interface.
If not, you can purge air immediately.
If yes, make sure that the room where you want to purge air is sufficiently ventilated. Reason: Refrigerant might leak into the water circuit, and subsequently into the room when you purge air from the heat emitters or collectors.

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

Operation manual
19

9 Disposal
9 Disposal
NOTICE Do NOT try to dismantle the system yourself: dismantling of the system, treatment of the refrigerant, oil and other parts MUST comply with applicable legislation. Units MUST be treated at a specialised treatment facility for reuse, recycling and recovery.

10 Glossary
DHW = Domestic hot water Hot water used, in any type of building, for domestic purposes.
LWT = Leaving water temperature Water temperature at the water outlet of the unit.

11 Installer settings: Tables to be filled in by installer

11.1 Configuration wizard

Setting System
Indoor unit type (read only) Backup heater type [9.3.1] (read only) Domestic hot water [9.2.1] Emergency [9.5] Number of zones [4.4] Glycol Filled system (overview field setting [E0D]) Booster heater capacity [9.4.1] (if applicable) Backup heater Voltage [9.3.2] Configuration [9.3.3] Capacity step 1 [9.3.4] Additional capacity step 2 [9.3.5] (if applicable) Main zone Emitter type [2.7] Control [2.9] Setpoint mode [2.4] Schedule [2.1] WD curve type [2.E] Additional zone (only if [4.4]=1, dual zone) Emitter type [3.7] Control (read only) [3.9] Setpoint mode [3.4] Schedule [3.1] WD curve type [3.C] (read only) Tank (if applicable)

Fill in...

Setting Heat up mode [5.6] Comfort setpoint [5.2] Eco setpoint [5.3] Reheat setpoint [5.4] Setpoint mode [5.B] WD curve type [5.E] (read only)
11.2 Settings menu
Setting Main zone
Thermostat type [2.A] Additional zone (if applicable)
Thermostat type [3.A] Information
Dealer information [8.3]

Fill in... Fill in...

Operation manual
20

ETVH/X16S(U)18+23EA6V+9W + ETBH/X16EF6V+9W Daikin Altherma 3 H HT F+W 4P644732-1 2021.02

4P644732-1 0000000O

Verantwortung für Energie und Umwelt

4P644732-1 2021.02

References

SCHEMA ST4 ST4 PDF Engine (Build 10.0.1.0)
