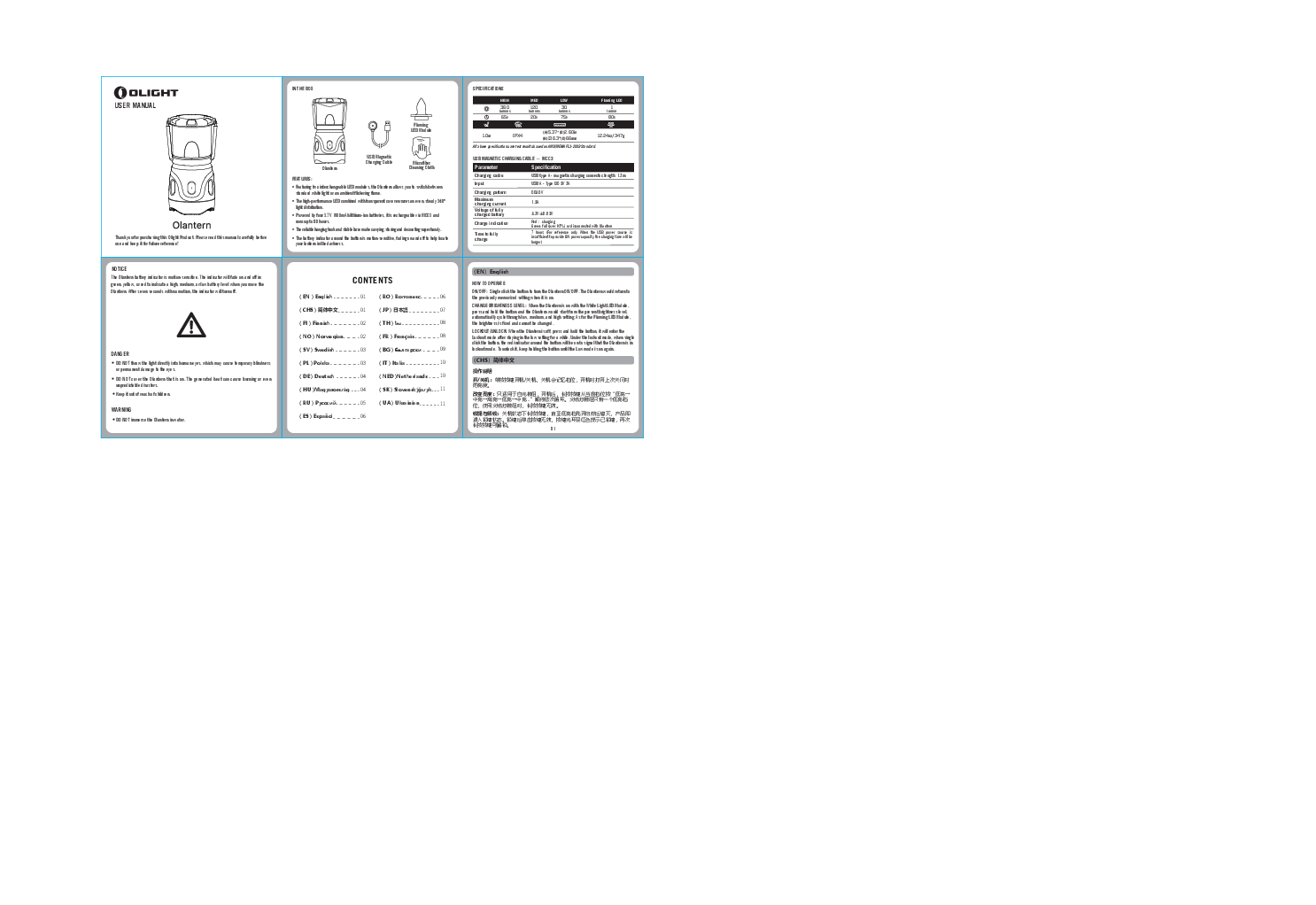

Olantern User Manual

Product Overview

The Olantern features two interchangeable LED modules, allowing you to switch between standard white light or an ambient flickering flame. It offers a high-performance LED combined with a transparent cover for an even, steady 360° light distribution. The lantern is powered by four 3.7V 1900mAh lithium-ion batteries and is rechargeable via MCC3, providing up to 80 hours of use. It includes a reliable hanging hook and a stable base for convenient carrying, storing, and decorating. The battery indicator around the button is motion-sensitive, fading on and off to help locate your lantern in the darkness.

Battery Level Indicator:

• >70%: Green Indicator
• 30-70%: Yellow Indicator
• <10%: Indicator Blinks Red
• <30%: Red Indicator

Specifications

All specifications are test results based on ANSI/NEMA FL1-2009 Standard.

Charging

USB Magnetic Charging Cable -- MCC3

• Charging cable: USB type A - magnetic charging connector, length: 1.2m
• Input: USB A - Type DC 5V 2A
• Charging pattern: CC&CV
• Maximum charging current: 1.5A
• Voltage of fully charged battery: 4.2V±0.05V
• Charge indication: Red: charging, Green: full (over 95%) or disconnected with Olantern
• Time to fully charge: 7 hours (For reference only. When the USB power source is insufficient to provide 8W power capacity, the charging time will be longer)

Notice: Before first use, please fully charge the product. Connect the magnetic USB end of the charging cable (MCC3) to an external USB power source, then attach the other end to the charging port. The red indicator means charging, green indicator means charging completed (battery power >95%). Only charge with standard MCC3, not compatible with other MCC.

How to Operate

• ON/OFF: Single click the button to turn the Olantern ON/OFF. The Olantern would return to the previously memorized setting when it is on.
• Change Brightness Level: When the Olantern is on with the White Light LED Module, press and hold the button and the Olantern would start from the present brightness level, automatically cycle through low, medium, and high setting. As for the Flaming LED Module, the brightness is fixed and cannot be changed.
• Lockout/Unlock: When the Olantern is off, press and hold the button, it will enter the Lockout mode after staying in the low setting for a while. Under the lockout mode, when single click the button, the red indicator around the button will be on to signal that the Olantern is in lockout mode. To unlock it, keep holding the button until the Low mode is on again.

Notice: The Olantern battery indicator is motion-sensitive. The indicator will fade on and off in green, yellow, or red to indicate a high, medium, or low battery level when you move the Olantern. After seven seconds with no motion, the indicator will turn off.

DANGER:

• DO NOT throw the light directly into human eyes, which may cause temporary blindness or permanent damage to the eyes.
• DO NOT cover the Olantern that is on. The generated heat can cause burning or even unpredictable disasters.
• Keep it out of reach of children.

WARNING:

• DO NOT immerse the Olantern in water.

LED Module Replacement

Turn off the Olantern. Unscrew the cover as guided by the "OPEN" mark on the upper cap and remove it. Turn around the LED module anticlockwise and remove it from the base. Fetch another module and screw it onto the base. Reinstall the cover. If the LED module is not put in place, the indicator around the button will have no response and the product won't work when you turn on the Olantern.

Safety Precaution: Before replacing the LED module, please turn off the Olantern for a while to allow it to cool.

Warranty

Within 30 days of purchase: Contact the original seller for repair or replacement.

Within 2 years of purchase: Contact Olight for repair or replacement.

USB magnetic charging cable: One year.

This warranty does not cover normal wear and tear, modifications, misuse, disintegrations, negligence, accidents, improper maintenance, or repair by anyone other than an Authorized retailer or Olight itself.

Customer Support

• USA Customer Support: cs@olightstore.com
• Global Customer Support: customer-service@olightworld.com
• Visit www.olightworld.com to see our complete product line of portable illumination tools.

EU Declaration of Conformity

EU-Declaration of Conformity can be found here: https://olightworld.com/ec-declaration

Company Information

Dongguan Olight E-Commerce Technology Co., Ltd

4th Floor, Building 4, Kegu Industrial Park, No 6 Zhongnan Road, Changan Town, Dongguan City, Guangdong, China.

Made in China
