Dimensions (W x H x D) Mass
Back View
400

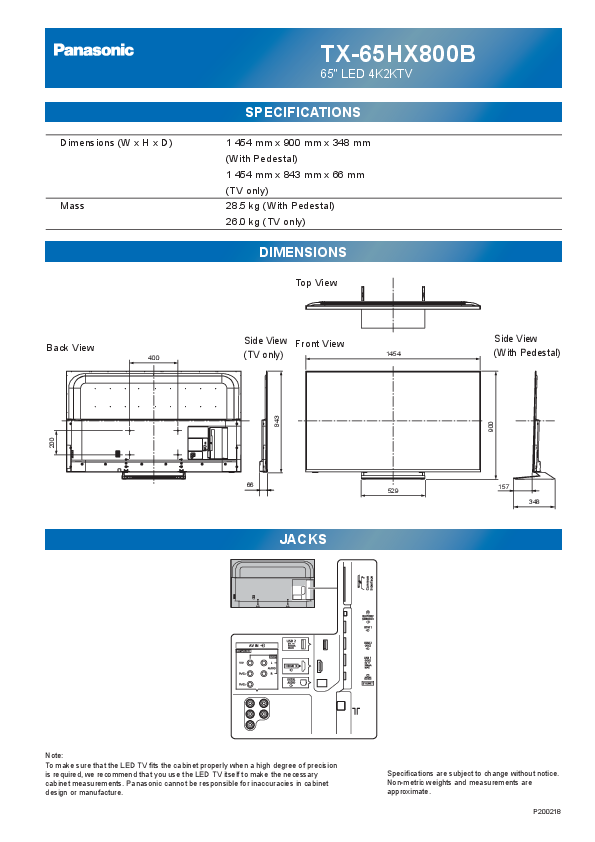

TX-65HX800B
65" LED 4K2KTV
SPECIFICATIONS
1 454 mm x 900 mm x 348 mm (With Pedestal) 1 454 mm x 843 mm x 66 mm (TV only) 28.5 kg (With Pedestal) 26.0 kg (TV only)
DIMENSIONS
Top View

Side View Front View

(TV only)

1454

Side View (With Pedestal)

200 843
900

66 529
JACKS

157 348

Note: To make sure that the LED TV fits the cabinet properly when a high degree of precision is required, we recommend that you use the LED TV itself to make the necessary cabinet measurements. Panasonic cannot be responsible for inaccuracies in cabinet design or manufacture.

Specifications are subject to change without notice. Non-metric weights and measurements are approximate.
P200218
